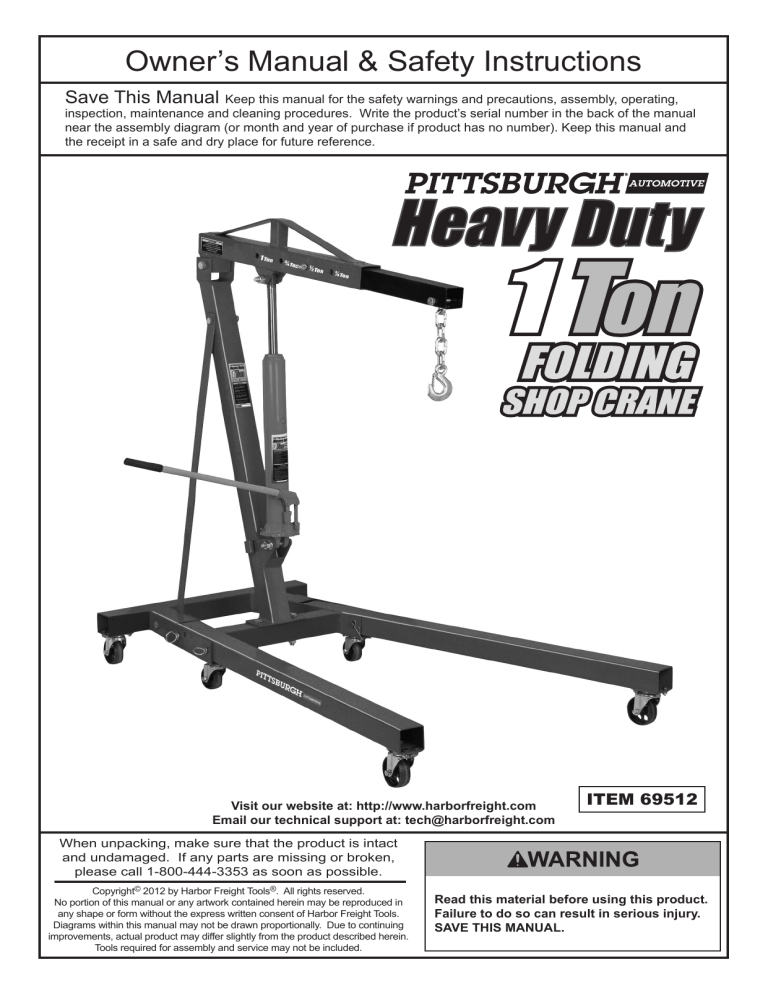

Owner’s Manual & Safety Instructions

Save This Manual

Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

Visit our website at: http://www.harborfreight.com

Email our technical support at: [email protected]

When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.

Copyright

©

2012 by Harbor Freight Tools

®

. All rights reserved.

No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

ITEM 69512

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

Safety ......................................................... 2

Specifications ............................................. 4

Setup .......................................................... 4

Operation .................................................... 7

Table of Contents

Maintenance ............................................... 8

Parts Lists and Diagrams .......................... 10

Warranty .................................................... 12

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

Addresses practices not related to personal injury.

IMPORTANT SAFETY INFORMATION

General Safety Warnings

Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in serious injury.

Save all warnings and instructions for future reference.

1. Study, understand, and follow all instructions before operating this device.

2. Do not exceed rated capacity.

3. Use only on hard, level surfaces.

4. Before moving, lower the load to the lowest possible point.

5. Use only sling or chains with a rated capacity greater than the weight of the load being lifted.

6. Do not allow load to swing or drop violently while lowering or moving.

7. No alterations shall be made to this product. Do not adjust safety valve.

8. Properly extend leg extensions and secure boom in proper setting before use.

9. Follow capacities marked on boom; capacity decreases as boom lengthens.

10. Wear ANSI-approved safety goggles and heavy-duty work gloves during use.

11. Verify replacement ram has same rating, mounting points and maximum length.

12. Do not use for aircraft purposes.

Page 2

For technical questions, please call 1-800-444-3353.

Item 69512

13. Inspect before every use; do not use if parts loose or damaged.

14. Keep your work area clean and well lit.

Cluttered work areas invite accidents.

15. Keep bystanders, children, and visitors away while operating Engine Crane. Distractions can cause you to lose control.

16. Stay alert. Watch what you are doing, and use common sense when operating a ram. Do not use a ram while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating rams may result in serious personal injury.

17. Follow instructions in the “Inspection, Maintenance,

And Cleaning” section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of injury and may void any applicable warranty.

18. Maintain labels and nameplates on the

Engine Crane. These carry important information. If unreadable or missing, contact

Harbor Freight Tools for a replacement.

19. Before use, read manufacturer’s instruction manual for the object you will lift.

20. Industrial applications must follow

OSHA requirements.

21. The warnings, precautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur. The operator must understand that common sense and caution are factors, which cannot be built into this product, but must be supplied by the operator

.

SAVE THESE INSTRUCTIONS.

Item 69512

For technical questions, please call 1-800-444-3353.

Page 3

Specifications

Specifications

Ram Capacity 3 Ton

1 Ton

3/4 Ton

1/2 Ton

1/4 Ton

Boom Positions

70-3/4 IN.

75 IN.

79 IN.

82-3/4 IN.

Package Contents

Box A

Part Description Qty

29 Leg

21 Support Brace

22 Support Post

23 Boom

24 Boom Extension 1

25 Ram

27 Handle

1

1

1

1

2

2

Box B

Part Description Qty

28 Base

Assembly

Hardware and

Casters

1

Lot

Meets 2005 ANSI/ASME PALD standards.

Assembly

Bolt Shaft Identification Chart

Chain

Bolt

Part #15

12 x 80 mm

Boom

Bolt

Part #2

14 x 100 mm

Top Ram

Bolt

Part #19

16 x 80 mm

Bottom Ram

Bolt

Part #1

16 x 90 mm

Frame

Bolt

Part #3

16 x 100 mm

Hinge

Bolt

Part #20

16 x 110 mm

Small

Caster Bolt

Part #6B

8 x 16 mm

Large

Caster Bolt

Part #6A

8 x 18 mm

Note:

Match shaft of bolt with shapes to determine bolt part number and function.

TO PREVENT SERIOUS INJURY AND DEATH:

The correct bolts must be used during assembly. Carefully compare bolts to Bolt Identification illustration above and the measurements shown in the parts list and assembly diagrams near the end of this manual to make sure that the correct bolts are used in the correct place.

For safety and ease of assembly, use two people to assemble the Shop Crane.

CAUTION: DO NOT TIGHTEN ANY BOLTS UNTIL YOU ARE FULLY FINISHED WITH ASSEMBLY.

OTHERWISE PARTS WILL NOT LINE UP PROPERLY.

Page 4

For technical questions, please call 1-800-444-3353.

Item 69512

Base

Lock

Washer

Nut

Base

Washer

Large

Caster

Legs

1.

Large Caster Bolt (6A)

Figure A

To attach two Large Casters to the rear section of the

Base, align the four mounting holes in each Large

Caster with the four mounting holes on the underside of each Base end. Secure in place using four Large

Caster Bolts, Washers, Lock Washers and Nuts.

Figure D

4. Slide Legs into front of the Base.

R-Pins

Base

Lock Pins

Small

Caster

Washer

Lock Washer

Small Caster Bolt (6B)

Figure B

2. To attach two Small Casters to the front section of the Base, align the four mounting holes in each

Small Caster with the four mounting holes on the underside of each base end. Secure in place using four Small Caster Bolts, Washers and Lock Washers.

Figure E

5. Lock Legs in place using the Lock Pins.

To insert the Lock Pins, lift up on front of Base until holes line up. After all four Lock Pins are inserted, insert one R-Pin through small hole at end of each Lock Pin until it snaps into place.

Note:

Make sure Lock Pins are secure before proceeding.

Post

Boom Bolt (2)

Leg

Nut

Lock

Washer

Large

Caster

Washer

Small Caster Bolt (6B)

Figure C

3. To attach one Large Caster to the end of each Leg, align the four mounting holes in each Large Caster with the four mounting holes on the underside of each Leg. Secure in place using four Small

Caster Bolts, Washers, Lock Washers and Nuts.

Base

Washers

Nuts

Figure F

6. Use the Boom Bolts, Washers, and Nuts to secure the bottom of the Post to the Base.

Item 69512

For technical questions, please call 1-800-444-3353.

Page 5

Nut

Washer

Lock Washer

Washer

Nut

Bolt

(20)

Post

Leg Leg

Post

Support

The bends of the

Supports face out at the top and in at the bottom as shown above.

Bolt (3)

Supports

Nut

Bolt (3)

Washer

Lock

Washer

Figure G

7. Use two Frame Bolts, Washers and Nuts to fasten the lower ends of the Supports to the inside of the

Frame, then use one Hinge Bolt, Washer and Nut to fasten the top ends of the Supports to the Post.

Bolt (19)

Nut

Washer

Ram

Nut

Washer

Bolt (1)

Figure I

9. Use a Bottom Ram Bolt, Washer and Nut to attach lower end of the Ram to the Post and a Top Ram Bolt, Washer and Nut to attach the top of the Ram to the Boom.

Boom

Boom Bolt (2)

Boom Extension

Nut

Lock Washer

Washer

Nut

Lock Washer

Washer

Bolt

(20)

Figure H

8. Use the Hinge Bolt, Washer, Lock Washer and

Nut to attach the Boom to the top of the Post.

Chain Bolt (15)

Figure J

10. Slide the Boom Extension into the Boom and use the

Bolt, Washer and Nut to secure at the desired load rating. Use the Bolt, Washer and Nut to attach the

Hook and Chain to the end of the Boom Extension.

Page 6

For technical questions, please call 1-800-444-3353.

Item 69512

Operating Instructions

Read ENTIRE IMPORTANT SAFETY INFORMATION section at beginning of this manual including all text under subheadings therein before set up or use of this product.

Note: Once Assembly is complete, tighten ALL Bolts before initial operation.

Lifting and Lowering

3/8 Ton Load

Figure K

1. Locate the hole on the Boom with a weight limit higher than the weight you will be lifting.

For example: Locate the 1/2 TON hole on the Boom for a load that is under 1/2 Ton. See Figure K.

Boom Pin

Figure L

R-Pin

2. Adjust the Boom Extension so the hole farthest from the hook-end aligns with the chosen hole on the Boom.

Secure into place by inserting the Boom Bolt through all aligned holes and securing in place with the Washer and Nut. See Figure L above.

WARNING! Keep clear of the object that is being lifted by the Engine Crane.

Be aware of the possibility of a load slipping off the Hook and Chain.

An item that falls from the Crane can cause serious injury.

3. Move the Crane so that the Hook and Chain are directly above the item to be lifted.

4. Securely attach the Hook and Chain to the item.

5. To raise the Boom, turn the Ram’s release valve fully clockwise (right). Insert the Handle into the

Ram and pump (up and down) repeatedly until the item has been lifted to the desired height.

WARNING!

Fully tighten the release valve or else the Ram may lower or may not be able to reach the full height.

6. To lower the Crane,

SLOWLY

turn the Ram’s release valve counterclockwise (left).

Folding the Frame

WARNING! Do not fold the Crane while loaded.

1. Lower the Crane all the way.

2. Remove R-Pins from the front Lock Pins.

Remove the front Lock Pins. Leave rear Lock Pins in.

3. Raise the Legs until they rest against the Handle.

4. Insert a front Lock Pin into the middle hole of the Base, for each Leg, and reinsert R-Pins.

Bleeding Instructions

IMPORTANT!

Before first use, check for proper hydraulic oil level and thoroughly test the equipment.

If it does not work properly, bleed excess air from its hydraulic system as follows:

1. Open Release Valve and lower Ram completely.

2. Remove Oil Plug and fill with hydraulic oil (sold separately) to full level.

3. Apply downward pressure to the Boom and

Pump the Ram Handle quickly several times.

4. Check the Oil Fill Hole and, if necessary, top off the Oil Fill Hole with hydraulic oil.

5. Replace the Oil Plug and close the Release Valve.

6. Test the equipment several times for proper operation before attempting to lift a load. If, after bleeding, the equipment still does not appear to be working properly, do not use the equipment until it has been repaired by a qualified service technician.

Item 69512

For technical questions, please call 1-800-444-3353.

Page 7

Maintenance and Servicing

Procedures not specifically explained in this manual must be performed only by a qualified technician.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

Cleaning, Maintenance, and Lubrication

1.

BEFORE EACH USE,

inspect the general condition of the tool. Check for:

• loose hardware,

• misalignment or binding of moving parts,

• cracked or broken parts, and

• any other condition that may affect its safe operation.

2.

Before each use, thoroughly test the Ram for proper operation prior to its actual use.

If the Ram appears to not be working properly, follow Bleeding instructions on page 7.

3.

Change the hydraulic oil at least once every three years:

a. With the Ram fully lowered, remove the

Oil Filler Plug on the side of the Housing.

b. Tip the Ram to allow the old hydraulic oil to drain out of the Housing completely, and dispose of the old hydraulic oil in accordance with local regulations.

c. With the Ram upright, completely fill the Housing with a high quality hydraulic oil (not included) until the oil just begins to run out of the Oil Fill Hole.

d. Open the valve Release Screw and pump the Handle to bleed air from the system. e. Reinstall the Oil Filler Plug.

4. Wipe dry with a clean cloth. Then, store the

Ram in a safe, dry location out of reach of children and other non-authorized people

.

Page 8

For technical questions, please call 1-800-444-3353.

Item 69512

Troubleshooting

TO PREVENT SERIOUS INJURY: Use caution when troubleshooting malfunctioning ram. Stay clear of supported load. Completely resolve all problems before use.

If solutions presented in Troubleshooting guide do not solve the problem, have a qualified technician inspect and repair ram before use.

After ram is repaired: Test it carefully without a load by raising and lowering it fully, checking for proper operation, BEFORE RETURNING RAM TO OPERATION.

DO NOT USE A DAMAGED OR

MALFUNCTIONING RAM!

Ram will not lift at its weight capacity

POSSIBLE SYMPTOMS

Hook lowers under load

Pump stroke feels spongy

Hook will not lift all the way

Handle moves up when

Ram is under load

Oil leaking from

Filler

Plug

PROBABLE SOLUTION

(Make certain that the Ram is not supporting a load while attempting a solution.)

X

X

X

X

X

X X

X

X

Check that Release Valve is closed fully.

Bleed air from the system.

Valves may be blocked and may not close fully. To flush the valves:

1. Lower the Chain / Hook and securely close the

Release Valve.

2. Manually lift the Chain /

Hook several inches.

3. Open the release valve and force the Chain / Hook down as quickly as possible.

Ram may be low on oil. Check the oil level and refill if needed.

Ram may require bleeding - see instructions on page 7.

Unit may have too much hydraulic oil inside, check fluid level and adjust if needed.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS

QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Item 69512

For technical questions, please call 1-800-444-3353.

Page 9

Parts Lists and Diagrams

Crane Parts List and Diagram

Part Description Qty

1 Bottom Ram Bolt M16×90 1

2 Boom Bolt M14×100

3 Frame Bolt M16×100

4 16 Washer

5 M16 Nut

6A Large Caster Bolt M8×18 8

6B Small Caster Bolt M8×16 16

7 3 1/2" Wheel

8 8 Spring Washer

9 M8 Nut

4

24

24

6

6

3

2

Part Description

10 3" Wheel

11 16 Pin

12 14 Washer

13 M14 Nut

14 R-Pin

15 Chain Bolt M12×80

16 12 Washer

17 12 Spring Washer

18 M12 Nut

19 Top Ram Bolt M16×80

1

1

3

4

Qty

2

4

3

1

1

1

Part Description

20 Frame Bolt M16×110

21 Support Brace

22 Support Post

23 Boom

24 Boom Extension

25 Ram

26 Chain

27 Handle

28 Base

29 Leg

1

1

1

1

Qty

2

2

1

1

1

2

Note:

Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts.

Page 10

For technical questions, please call 1-800-444-3353.

Item 69512

Ram Parts List and Diagram

Part Description

1A Screw

2A O-Ring

3A Spring

4A Ball Cup

5A Steel Ball

6A Screw Cover

7A Release Valve

8A Rectangle Seal Ring

9A Steel Ball

10A Base

11A Pin

1

1

1

1

Qty

1

1

1

1

2

1

1

Part

12A Pin

Description

13A Pin Shaft

14A Connecting Bar

15A Handle Sleeve

16A Steel Ball

17A Washer

18A O-Ring

19A Shield Ring

20A Pump Core

21A Washer

22A Hydraulic Cylinder

1

1

1

2

Qty

1

2

1

1

1

1

1

Note:

When re-ordering parts from this list, use the part number with the “A” suffix.

Part Description

23A Pump Body

24A Seal Ring

25A Oil Tank

26A Oil Plug

27A Rectangle Seal Ring

28A O-Ring

29A Top Nut

30A O-ring

31A Bowl Washer

32A Piston Rod

1

1

1

1

1

1

1

Qty

1

1

1

12A

Record Product’s Serial Number Here:

Note:

If product has no serial number, record month and year of purchase instead.

Note:

Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts.

Item 69512

For technical questions, please call 1-800-444-3353.

Page 11

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
