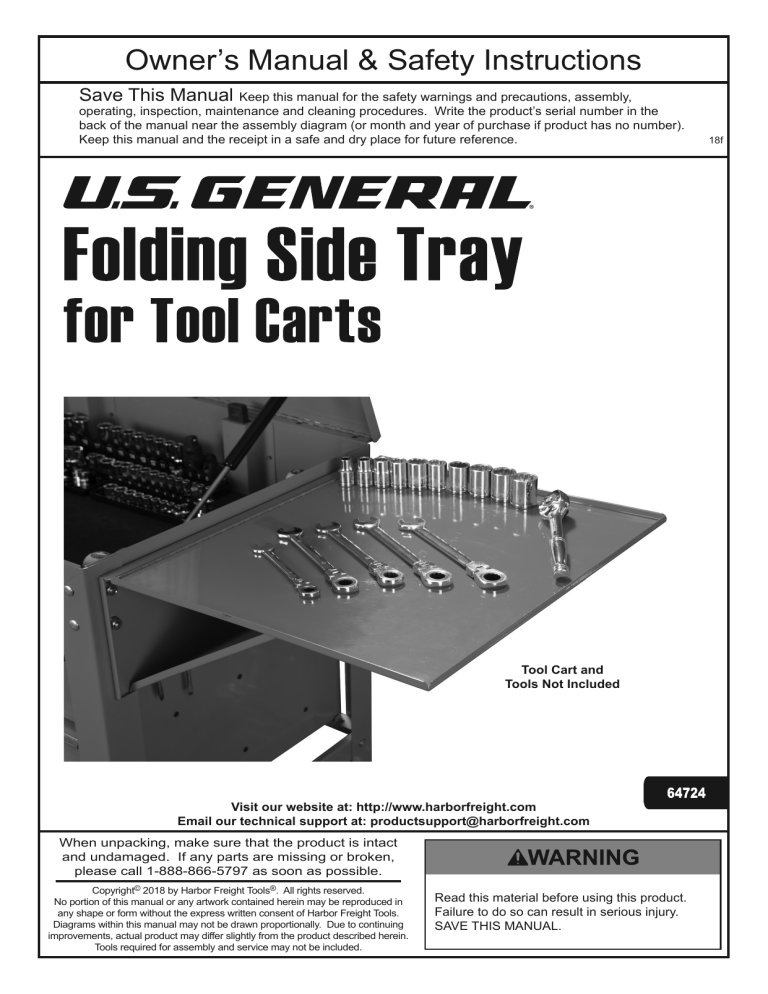

Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Tool Cart and
Tools Not Included
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2018 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
18f
Specifications
Size
16-7/8″ D x 18-1/4″ L
Included Hardware
Weight Capacity
35 lb
4 x M8x20 Bolts
4 x M8 Nuts
IMPORTANT SAFETY INFORMATION
Mounting Precautions
1. Mount only according to these instructions.
Improper mounting can create hazards.
3. Keep work area clean and well lit.
2. Wear ANSI-approved safety goggles and
heavy-duty work gloves during mounting.
5. Do not mount when tired or when under the
influence of alcohol, drugs or medication.
4. Keep bystanders out of the area during mounting.
Use Precautions
TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:
1. DO NOT SIT, STAND OR CLIMB ON THIS ITEM.
2. This product is not a toy.
Do not allow children to play with or near this item.
3. Do not exceed weight capacity.
4. Use as intended only.
5. Inspect before every use;
do not use if parts are loose or damaged.
6. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Mounting Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
1. If mounting to Tool Cart (95272 / 61427 / 69397):
a. Remove the four Nuts and Bolts from
the corners opposite the Handle.
b. Line up the Mounting Plate (See Figure B.)
with the holes, then secure the
Tray with the Bolts and Nuts.
2. If mounting to a different cart, pilot holes may
need to be drilled into mounting surface:
a. Using the Mounting Plate as a template, mark
locations of Mounting Holes on mounting surface.
b. Using a drill bit appropriate for the Bolts,
drill pilot holes into the marked locations.
c. Position the Mounting Plate so that
Mounting Holes align with pilot holes.
d. Thread Bolts through Mounting Holes and
into pilot holes, then secure with Nuts.
Mounting
Holes
Mounting
Plate
Figure B
Figure A
Page 2
For technical questions, please call 1-888-866-5797.
Item 64724
Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
1. Lift up the Tray until it is high enough
for the Support to clear the Lip.
2. Rest the Support in the Lip, then push down
on the Tray to make sure it is fully seated.
3. To fold down, lift up the Tray, remove
the Support from the Lip, then place the
Support and Tray in down position.
Hinge
Tray
Hinge
Support
Lip
Lip
Tray
Support
Figure C
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If any part becomes damaged,
have the problem corrected before further use.
1. PERIODICALLY, inspect the general
condition of the Tray. Check for:
• loose hardware,
2. Wipe Tray assembly with clean cloth.
3. Lubricate Hinges as needed.
• misalignment or binding of parts,
• cracked or broken parts,
• any other condition that may
affect its safe operation.
Item 64724
For technical questions, please call 1-888-866-5797.
Page 3
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
