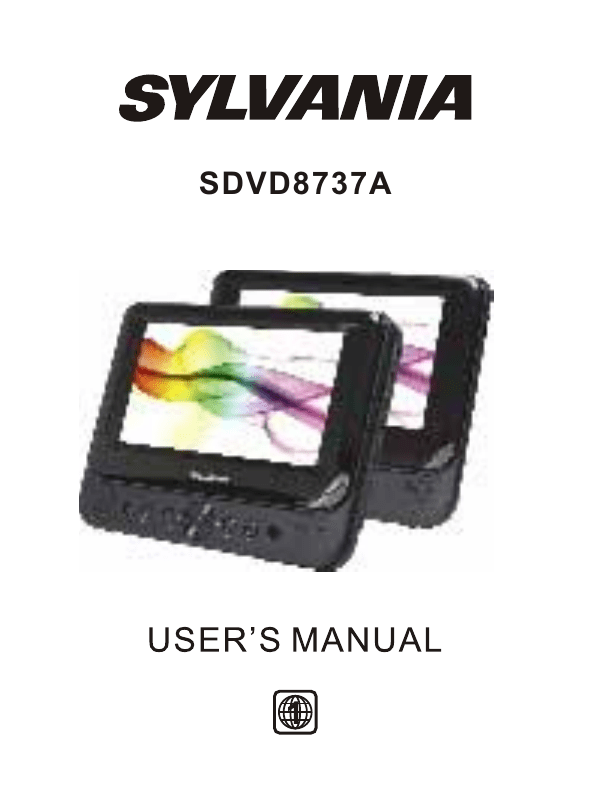

SYLVANIA
SDVD8737A
USER'S MANUAL
Safety Precaution 1
Package 3
Main Features 3
Main Unit Controls 4
System Connection 6
Basic operation 11
System Setup 15
Specification 18
Troubleshooting 19
Safety Precaution
CAUTION
DO NOT OPEN
The light flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
alertthe user to the presence of important operation and servicing
f The exclamation point within an equilateral triangle is intended to
instructions in the literature accompanying the appliance.
Warning: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
1) Please read the instruction manual carefully and follow all the requirements
of safe operation to operate the device.
2) Do not use this unit near water. Do not place over the unit any container
with liquid inside.
3) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
4) Unplug this unit during lightning storms or when unused for long time.
5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use
liquid detergent or aerosol.
6) Only use accessories specified by the manufacturer.
7) Refer all servicing to qualified service personnel, servicing is required when
the unit has been damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the unit,
exposed to moisture, does not operate normally. Don't try to repair the
machine by yourself because of the danger of high voltage and electric
shock.
8) Do not use irregular shaped discs such as heart or star-shaped discs as
they may cause the unit to malfunction.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Energy Verified
й UL Rendement
” | Energétique Vérifié
DVD player
DC+Audio/Video cable
AC power Wall adapter
DC power car adapter
User Manual
№ [DA aaa
Mounting Straps
® High brightness color 7" LCD screen
e Compatible with disc of DVD, MP3, CD, JPEG etc.
e Built-in stereo speaker
e Support PAL/NTSC system
e Support Multi-language OSD, speed forward/backward,repeat function
Main Unit Controls
1. Open knob
2. Power ON/OFF switch
3. SETUP button
4. Functron button
5. АУ < >
6.0K button (Function same as
"ENTER" on Remote control)
7. Play/Pause
8. STOP button
9. DC IN 9-12V
10. DC OUT
11. AV OUT
12. Earphone jack
13. Volume knob
14. Bracket
15. Rating Label Position
Monitor View
1. Power ON/OFF
2. Volume knob
3. Earphone jack
4. AV IN
a
6
le
v
WAKE
5. DC IN 9-12V
6. Brightness Knob
7. Bracket
8. Rating Label Position
System Connection
Powering And Installation
Plug one end of the AC power Wall adapter into the DC IN9-12V jack on the
right of the machine, then plug the other end into the AC power receptacle.
Please refer to the following illustration.
>>
If using DC power car adapter to connect to the power: Plug one end of
the DC power car adapter into the DC IN 9-12V jack on the unit, plug the
other end into the car cigarette lighter socket. See illustration below.
Note:
1. DC power car adapter is available to use only when the car cigarette
lighter with DC 12V negative grounding.
2. The mains plug is used as the disconnect device, the disconnect device
should remain readily operable.
Connecting To The Monitor
The unit can also be connected to the external LCD monitor.
Connect the unit to power by AC power Wall adapter or DC power car adapter .
Then connect the unit DC OUT jack to DC IN 9-12V Jack of the LCD Monitor
by a DC/AV cable. Also use this DC/AV cable to connect the AV OUT jack of
the unit to AV IN jack of the Monitor.
Please refer to the illustration below.
Note: You're advised to supply both units the power by the cigarette lighter
adapter only. The AC power Wall adapter is used to supply power of one
unit only and as the charger to charge the main unit if it's with built-in battery.
. Fit the straps to the DVD Player / Monitor as required.
Please install the units with strap A (long)
and strap B (short) together.
А N,
в N
Turn the player around so the backs are facing you.
—
B
HII © .
Strap A through the unit from right clip first, then
across the loop in Strap B, last Strap A through
the unit left clip.
2. Fitting the straps to the headrest.
a. Fitting the straps to the headrest.
Fit the straps around the headrest
and engage the 2 trident clips.
Ensure clips are securely fastened.
Pull the straps tight using the
adjustment.
Tuck the loose ends into the strap
tidy.
NOTE:
Be sure to complete the installation then use the DVD Playerin the car.
For the unit installation is recommended that the DVD Player is on the
LEFT headrest, to ensure a neat cable run to the monitor, as shown below:
#< 600(6)00 6 ÿ
Connecting With External Speaker
VIDEO IN AUDIO IN
888 =1 ©
TV T°] AMPLIFIER
=, =
Left front Center|speaker Right front
speaker speaker
O
SUBWOOFER (©)
Left rear speaker Right rear speaker
Note: There is no 5.1 channel in the unit, however, after connecting to APM it
is available to output audio in 5.1 channel.
10
Basic Operation
Playing disc of DVD, CD, MP3
N OO BON-
—
. The virtual key is shown on the left of
и
. Connect the unit to the power;
. Open the unit and adjust the monitor to the best position for viewing.
. Turn on the unit by sliding the ON/OFF switch to ON.
. Open the disc door and insert a disc into the door with the label side facing
up.
. Close the disc door. The unit will load the disc and start playing.
. During playback,press "»11" to pause; press it again to resume playback.
. When playing disc of DVD, CD, Press "»»", the unit will search forward.
Press it repeatedly, the unit will play at 2, 4, 8, 16, 32 times of speed. press
"««" , the unit will search backward. Press it repeatedly, the unit will play at
2, 4, 8, 16, 32 times of speed.
. Press "mm" once to stop playback; then press "»11" to resume playback from
the point where you stopped; press "m " twice to stop playback completely.
. When the playing is finished, please turn off the power by sliding ON/OFF
switch to OFF.
Virtual Remote Operation
. Press "FUNCTION " button when disc is playing, you will see a virtual
remote control as below, and the playback will be paused.
the menu, and the current playback DEN
status is displayed on the right. Repeat Off — Mute Off
. Use the t/>1/</> button to choose Angle Mark Nu
the icon, when the icon is selected,
you can see the description at the
bottom.
. Press OK button, the selected virtual
key will be activated, "OK=Selected
function" icon will be shown at top left for 10 seconds, in these 10 seconds
you just need to press OK button to change the style of the function. If the
icon disappear, the OK key will not work. ( For Search, Return, Mute, the
icon won't be shown).
11
5. You can also press "FUNCTION" button to close virtual remote menu
without any operation. The player will resume playing after the menu exit.
Note:
1
2
1.
NO
os)
. When the disc is in the submenu, press the function key can go back the
title menu.
. Stop or no disc state, the "FUNCTION" is invalid.
Virtual Remote Operation
SRH (Search): Press the"SRH" key ,you can see the number bar below,
Use left/right key to move the cursor, press ok to confirm, when playing
DVD, you can change the chapter and the title, press the "T/C " icon
change the item you want to change. When playing CD, you can select the
track.
Note: To select the title, you need to enter two numbers.
0123456789 OK T/C
. M (Menu): to enter or exit menu root.
. ZOOM: When playing DVD discs, you can zoom in, press the "ZOOM"
button and ok button to change the image size according the following
sequence: x2 x3 x4, when playing JPEG file, you can zoom in and zoom
out, press the "ZOOM" button and ok button to change the image size
according the following sequence: 100% 125% 150% 200% 75% 50%.
. TT (Title): to display title information.
. ADO ( Audio): to select audio language.
. SUB (Subtitle): to select subtitle language when playing DVD disc.
. OSD: Display the disc information during playing DVD/CD. Such as
elapsed time and remaining time.
. 7» ( Repeat): When playing disc of DVD/CD/MP3, you can change the
repeat style by press repeat button. For different type of disc, it change
according different sequence.
DVD: 2 > Chapter —> <> Title — > All —» Repeatoff
MP3: &Z> One —» ¿> Folder
CD: > Trak —» &> Al
12
9. Slow: You can press slow key to change the playing speed slowly during
playing DVD. Then press OK repeatedly to change the playback speed
according the following sequence: 1/2 1/4 1/8 1/16.
10. <1 (Return): to return to the main menu.
11. 3 (MUTE): to turn mute.
12. Angle: When playing a DVD disc with multi-angles, press "Angle" button
and OK button to change the display angle.
Note: The function is available only for disc with multi-angle.
Playing JPEG File
1. Place a JPEG disc into the tray,the unit will start reading and playing.
2. Press "leq »»1" and OK button to select a JPEG file from the menu.
3. Press "<< D»" to rotate the picture clockwise.
4. Press "b»1" to reverse the picture horizontally and press "iq" to reverse the
picture vertically.
Function operation:
Press "FUNCTION" key you will see the toolbar as below:
Le
Press the <q/» to move the cursor to select functions.
Press "OK" to select the function.
: Return, to return to the main menu.
: To repeat one, repeat all.
:To zoom in/out the image during playback.
Press "FUNCTION" to exit the toolbar.
13
1. Place a MP3 disc into the disc door.
2. Press "leq pp" t0 select the file; Press OK button to play the file selected.
00: 36 03: 43 3)
DIT
\Ctyy\
[29 TRACKO1
[29 ТВАСКО2
[29] ТВАСКОЗ
LEY TRACK04
Mp3 TRACKO5
Function operation:
Press "FUNCTION" then you will see the toolbar as below:
EA OPA
Press the <q/>» to move the cursor to select functions,
Press the number key to select the track.
Press "OK" to select the function.
DG : MUTE, to turn mute.
>: To select repeat one, repeat folder, repeat off.
Press "FUNCTION" to exit the toolbar
14
| General Setup
Press Setup button,the main menu will be
displayed on the screen
In the General Setup Page, Press pp»
button to highlight this item.
Press OK button to access.
Press 44 »» button to select the setting.
Press OK button to confirm your selection.
Press «« button to exit.
Normal/PS
Angle Mark Normal/LB
OSD Lang
Screen Saver
TV display:
Enter this option, user can set screen display
format (Nomal/PS, Nomal/LB, Wide)
The default is "Wide".
Note:
¥¢ The function depends on the display ratio
with which the DVD disc is recorded.
¥¢ Please choose "Wide (16:9)" when using
a 16:9 wide screen TV set.
TV Display Wide
OSD Lang ENG Off
Screen Saver ON
Angle Mark:
Enter this option to set the angle during
playback.
Optional setting: ON, OFF.
The default is: ON.
TV Display Wide
Angle Mark
Screen Saver French
German
Italian
OSD Language:
In the option user can set OSD menu
language (English, French, German, Italian).
The default: English.
15
TV Display
Angle Mark
OSD Lang
Screen Saver:
Enter this option to set whether to activate
the screen saver function.
The default is ON.
TV Type:
Enter this option to select TV type
(PAL, NTSC).
The default is NTSC.
Set the Video Quality of PANEL
Audio ENG English |
Subtitle Off French
Disc Menu ENG German
Parental Italian
Default
Audio:
Enter this option,user can select preferred
audio language for DVDs.
The default is English.
Note:
x The audio language depend on the
material on each disc.
Y User can also change the audio language
during playback by pressing the Audio button.
16
Audio
ENG
Disc Menu ENG
Parental
Default
English
French
German
Italian
Subtitle:
Select your preferred language to show the
subtitles on the screen.
The default is OFF.
The subtitle languages depend on the
information available on each disc,You can
also change the subtitle language during
playback by press the SUBTITLE button.
Audio
Subtitle
Parental French
Default German
Italian
ENG
Disc Menu:
This function allows you to choose the menu
language stored on the disc.
The default is English.
Note:the disc menu languages depend on the
information available on the disc.
Subtitle Off
Disc Menu
Default
Parental:
Enter this option to set the parental control
level to some unsuitable disc scenes being
watched by the children.
Optional parental control levels: KID SAFE,
G, PG, PG 13, PGR, R, NC17, ADULT.
The default of this option is ADULT.
Make continuously pressing "FUNCTION"
button on the unit 4 times to be the password.
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default Reset
Default:
Select this item and press OK button to reset.
all settings to the original factory settings.
17
Specification
Compatible disc: DVD+R/RW, DVD-R/RW, CD-DA,
CD-R/RW, MP3, JPEG
Signal system: PAL/NTSC
Panel size: 7 inch
Picture resolution: 800x480(RGB)
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4 Vrms/10kOhm
Audio S/N: Better than 80 dB
Dynamic range: Better than 85 dB
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9-12V
Power consumption: 10 W
Operating temperature: 0~40°C
Weight(Monitor/DVD Player): 0.36 / 0.7 kgs
Dimensions (Monitor/DVD Player)(W x D x H):
212x166.5x25mm / 212x 167x 40 mm
Note:
1.The quality and speed for reading JPEG photos depend on the resolution
and compression ratio of the photos. Some JPEG photo may not be
played due to the disc quality and the formats.
2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to
the quality on burning conditions.
18
Troubleshooting
PROBLEM
SOLUTION
No sound or
distorted sound
Make sure the machine is connected properly.
Make sure all cables are securely inserted into
the appropriate jacks.
Can't advance
through a movie
You can't advance through the opening credits
and warning information that appears at the
beginning of movies because the disc is
programmed to prohibit that action.
The feature or action cannot be completed at
this time because:
1. The disc's software restricts it.
The icon © 2. The disc's software doesn't support the
appears on feature (e.g., angles)
screen 3. The feature is not available at the moment.
4. You've requested a title or chapter number
that is out of range.
Picture is The disc might be damaged. Try another disc;
distorted It is normal for some distortion to appear during
forward or reverse scan.
No forward or
reverse scan
Some discs have sections that prohibit rapid
scanning or chapter skip;
If you try to skip through the warning information
and credits at the beginning of a movie, you
won't be able to. This part of the movie is often
programmed to prohibit skipping through it.
waste. Please recycle where facilities exist. Check with your Local Authority
or retailer for recycling advice. (Waste Electrical and Electronic equipment
If at any time in the future you should need to dispose of this product please
note that waste electrical products should not be disposed of with household
Directive)
Owing to continuous improvement, no prior notice will be given regarding changes on
above feature and spec.
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
