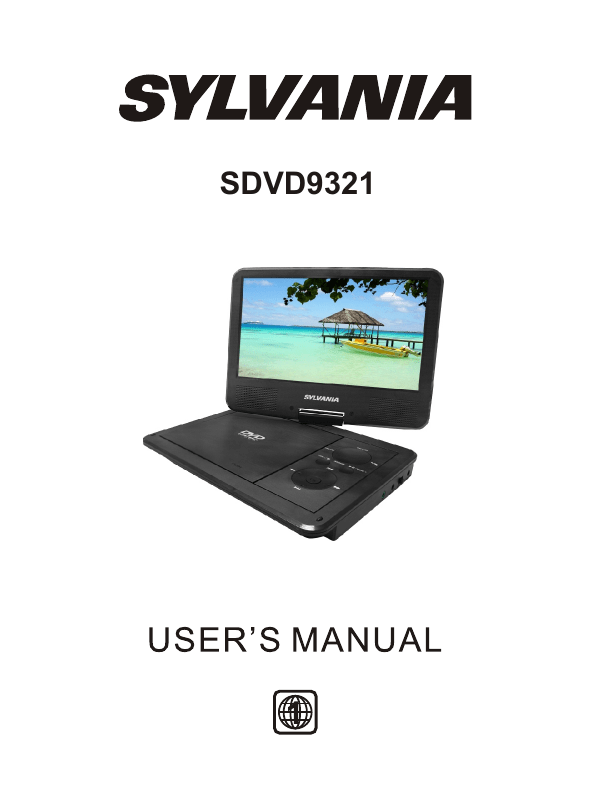

Sylvania SDVD9321 Owner's manual

Sylvania SDVD9321 Owner's manual

SDVD9321

Table Of Contents

Safety Precaution

Package

Main Features

Main Unit Controls

System Connection

Basic operation

Virtual Remote Operation

System Setup

Specification

Troubleshooting

3

4

1

3

5

7

8

11

14

16

Safety Precaution

Thank you for choosing our portable DVD player.

The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for later consultation.

Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements of safe operation to operate the device.

2) Do not use this unit near water. Do not place over the unit any container with liquid inside.

3) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel, servicing is required when the unit has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the unit, exposed to moisture, does not operate normally. Don't try to repair the machine by yourself because of the danger of high voltage and electric shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as they may cause the unit to malfunction.

1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

2

Package

DVD Player

AC power Wall adapter

User Manual

DC power car adapter

1

1

1

1

Main Features

High brightness color 9” LCD screen

Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc.

Built-in stereo speaker

Built-in rechargeable Lithium polymer battery

Support PAL or NTSC system

Support Multi-language OSD, speed forward/backward, repeat function

Swiveling LCD Screen

for use.

90°

180°

180°

3

Main Unit Controls

1

2

3

4

5

6

7

8

9

10

15

16

11

12

13

14

1. USB Port

2. SETUP button

3. MENU button

4. FUNC. button

5. MODE button

1.when put in

USB flash,press "MODE" will switch to USB status, if no USB ,will keep

DVD status unchanged. 2.Press this button 4 times continuously to be the password for children)

6. STOP / VOL

-

( press shortly to stop, press

longly to reduce volume.)

4

7. Play/Pause / VOL+

( press shortly to play /pause,

press longly to add volume.)

8

. button

10. OK button

11. DC IN 9-12V

12. Power ON/OFF switch

13. AV OUT

14. Earphone jack

15.

Open knob

16. Rating label position

System Connection

Powering And Installation

Plug one end of the AC power Wall adapter into the DC IN9-12V jack on the right of the machine, then plug the other end into the AC power receptacle.

Please refer to the following illustration.

If using DC power car adapter to connect to the power: Plug one end of the DC power car adapter into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. See illustration below.

Note

1. DC power car adapter is available to use only when the car cigarette

lighter with DC 12V negative grounding.

2. The mains plug is used as the disconnect device, the disconnect device

should remain readily operable.

Using USB

Upon using an USB, insert it into the USB slot directly.

5

Connecting With External Speaker

The unit can be connected with external speaker. Please see the following illustration.

AV CABLE

Not supplied

VIDEO IN

TV

AUDIO IN

AMPLIFIER

Left front speaker

Center speaker Right front speaker

SUBWOOFER

Left rear speaker Right rear speaker

Note:

There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel.

6

Basic Operation

Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, XVID.

DVD VCD CD MP3 XVID

MPEG4

SVCD

1. Connect the unit to the power;

2. Open the unit and adjust the monitor to the best position for viewing.

3. Turn on the unit by sliding the ON/OFF switch to ON.

4. Open the disc door and insert a disc into the door with the label side facing

up.

5. Close the disc door. The unit will load the disc and start playing.

6. During playback,press " " to pause; press it again to resume playback.

7. When playing disc of DVD, CD, Press " ", the unit will search forward.

Press it repeatedly, the unit will play at 2, 4, 8, 16, 32 times of speed. press

" " , the unit will search backward. Press it repeatedly, the unit will play at

2, 4, 8, 16, 32 times of speed.

8. Press " " once to stop playback; then press " " to resume playback from

the point where you stopped; press " " twice to stop playback completely.

9. When the playing is finished, please turn off the power by sliding ON/OFF

switch to OFF.

10.Mode function: When press "MODE" button will auto swith to USB status

when put in USB flash disc card. Moreover, no matter put in disc or not,

will show DVD status.

Note:

Please do not disconnect USB devices while they are working with the unit.

Functional failure may occur in case of wrong operations.

7

Virtual Remote Operation

1. Press "MODE" button when disc is playing, you will see a virtual

remote control as below, and the playback will be paused.

2. The virtual key is shown on the left of

the menu, and the current playback

status is displayed on the right.

3. Use the / / / button to choose

the icon, when the icon is selected,

you can see the description at the

bottom.

SRH

TT

OSD

M

ZOOM

ADO SUB

SLOW

ANGLE

Subtitle Off

Repeat Off Mute Off

Angle Mark Null

4. Press " " button, the selected virtual

key will be activated, " =Selected

SEARCH

function" icon will be shown at top left for 10 seconds, in these 10 seconds

you just need to press " " button to change the style of the function. If the

icon disappear, the " " key will not work. ( For Search, Return, Mute, the

icon won't be shown).

5. You can also press "MODE" button to close virtual remote menu. The

player will resume playing after the menu exit.

Note:

1. When the disc is in the submenu, press the function key can go back the

title menu.

2. Open or no disc state, the "MODE" is setup function.

Virtual Remote Operation

1. SRH (Search): Press the"SRH" key ,you can see the number bar below,

Use left/right key to move the cursor, press " " to confirm, when playing

DVD, you can change the chapter and the title, press the "T/C " icon

change the item you want to change. When playing CD, you can select the

track.

Note: To select the title, you need to enter two numbers.

0 1 2 3 4 5 6 7 8 9 OK T/C

2. M (Menu): to enter or exit menu root.

8

3. ZOOM: When playing DVD discs, you can zoom in, press the "ZOOM"

button and " " button to change the image size according the following

sequence: x2 x3 x4, when playing JPEG file, you can zoom in and zoom

out, press the "ZOOM" button and " " button to change the image size

according the following sequence: 100% 125% 150% 200% 75% 50%.

4. TT (Title): to display title information.

5. ADO ( Audio): to select audio language.

6. SUB (Subtitle): to select subtitle language when playing DVD disc.

7. OSD: D isplay the disc information during playing DVD/CD. Such as

elapsed time and remaining time.

8. ( Repeat): When playing disc of DVD/CD/MP3, you can change the

repeat style by press repeat button. For different type of disc, it change

according different sequence.

DVD:

MP3:

CD:

Chapter

One

Track

Title

Folder

All

All

Repeat off

9. Slow: You can press slow key to change the playing speed slowly during

playing DVD. Then press " " repeatedly to change the playback speed

according the following sequence: 1/2 1/4 1/8 1/16.

10. (Return): to return to the main menu.

11. (MUTE): to turn mute.

12. Angle: When playing a DVD disc with multi-angles, press "Angle" button

and " " button to change the display angle.

Note: The function is available only for disc with multi-angle.

Playing JPEG File

1. Place a JPEG disc into the tray, the unit will start reading and playing.

2. Press " " and " " button to select a JPEG file from the menu.

3. Press " " to rotate the picture clockwise.

4. Press " " to reverse the picture horizontally and press " " to reverse the

picture vertically.

9

Function operation:

Press "MODE" key you will see the toolbar as below:

Press the / to move the cursor to select functions.

Press " " to select the function.

: Return, to return to the main menu.

: To repeat one, repeat all.

:To zoom in/out the image during playback.

Press "MODE" to exit the toolbar.

Play MP3 File

1. Place a MP3 disc into the disc door.

2. Press " " to select the file; Press " " button to play the file selected.

00 36 03 43

Dir 001

\Ctyy\

Mp3

Mp3

Mp3

Mp3

Mp3

......

TRACK01

TRACK02

TRACK03

TRACK04

TRACK05

Function operation:

Press "MODE" then you will see the toolbar as below:

0 1 2 3 4 5 6 7 8 9 OK

Press the / to move the cursor to select functions,

Press the number key to select the track.

Press " " to select the function.

: MUTE, to turn mute.

: To select repeat one, repeat folder, repeat off.

Press "MODE" to exit the toolbar

10

System Setup

Setup Menu -- Main Page

General Setup

Video Setup

Preference Setup

Press MODE button when no disk or CD door open, the main menu will be displayed on the screen.

In the General Setup Page, Press button to highlight this item.

Press button to access.

Press button to select the setting.

Press button to confirm your selection.

Press MODE button to exit.

General Setup Page

General Setup

TV Display Wide

Angle Mark ON

Normal/PS

Normal/LB

OSD Lang ENG Wide

Screen Saver ON

:Move :Return :Entry

General Setup

TV Display Wide

Angle Mark ON On

OSD Lang ENG Off

Screen Saver ON

:Move :Return :Entry

General Setup

TV Display Wide

Angle Mark ON

OSD Lang ENG English

Screen Saver ON French

German

Italian

:Move :Return :Entry

TV display:

Enter this option, user can set screen display format (Nomal/PS, Nomal/LB, Wide)

The default is "Wide".

Note:

The function depends on the display ratio

with which the DVD disc is recorded.

Please choose "Wide (16:9)" when using

a 16:9 wide screen TV set.

Angle Mark:

Enter this option to set the angle during playback.

Optional setting: ON, OFF.

The default is: ON.

OSD Language:

In the option user can set OSD menu language (English, French, German, Italian).

The default: English.

11

General Setup

TV Display Wide

Angle Mark ON

OSD Lang ENG

Screen Saver ON

On

Off

:Move :Return :Entry

Video Setup Page

Video Setup

TV Type NTSC

Panel Quality

PAL

NTSC

Screen Saver:

Enter this option to set whether to activate the screen saver function.

The default is ON.

TV Type:

Enter this option to select TV type

(PAL, NTSC).

The default is NTSC.

:Move

:Return

Video Setup

TV Type NTSC

Panel Quality

:Entry

Set the Video Quality of PANEL

:Move :Return :Entry

Preference Page

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default

English

French

German

Italian

:Move :Return :Entry

Audio:

Enter this option,user can select preferred audio language for DVDs.

The default is English.

Note

The audio language depend on the

material on each disc.

User can also change the audio language

durin g play back by pressing the Audio button.

12

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default

English

French

German

Italian

Off

:Move

:Return :Entry

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default

:Move :Return

English

French

German

Italian

:Entry

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default

:Move :Return

1 KID SAFE

2 G

3 PG

4 PG 13

5 PGR

6 R

7 NC 17

8 ADULT

:Entry

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default Reset

:Move :Return :Entry

Subtitle:

Select your preferred language to show the subtitles on the screen.

The default is OFF.

The subtitle languages depend on the information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button.

Disc Menu:

This function allows you to choose the menu language stored on the disc.

The default is English.

Note: the disc menu languages depend on the information available on the disc.

Parental:

Enter this option to set the parental control level to some unsuitable disc scenes being watched by the children.

Optional parental control levels: KID SAFE,

G, PG,PG 13,PGR, R, Nc17, ADULT.

The default of this option is ADULT.

Make continuously pressing "MODE" button on the unit 4 times to be the password.

Default:

Select this item and press " " button to reset.

all settings to the original factory settings.

13

Specification

Compatible disc: DVD/VCD/CD/MP3/MPEG4

Signal system: PAL/NTSC

Panel size: 9 inch

Picture resolution: 640x234(RGB) or 640x220(RGB)

Frequency response: 20 Hz to 20 kHz

Video output: 1 Vp-p/75 Ohm, unbalanced

Audio output: 1.4Vrms/10kOhm

Audio S/N: Better than 80 dB

Dynamic range: Better than 85 dB

USB: support USB 1.1

Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm

Power source: DC 9-12V

Power consumption: 10 W

Operating temperature:0~40°C

Weight: 0.85 kg

Dimensions (W x D x H): 233.5

175 43 mm

Battery Type: Li Polymer

14

Rechargeable Battery Use

The unit utilizes long-life Li polymer battery for portable power supply. The battery has no Memory Effect and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It is enough to recharge no longer than 4H each time. Fully recharged battery can last about 4 hours with earphones on (earphone not included).

Precautions Related To Battery Recharge

The battery can be charing when using, The light is red when charging, and the light turn yellow when it is fully charged.

Using And Maintaining Rechargeable Battery

1. The normal working temperature is: 0 °C ~40 °C ;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing, it's normal, while avoid long time playing

and unattended;

4. Avoid having the unit collide with any objects, and place away from all

possible heat sources or damp areas.

Caution:

Danger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.

Removal Of Waste Battery

a b

Before to discard EOL unit, please remove the waste battery by below steps: a. Pull out the screws on the battery cover by the screwdriver to unpack the

unit.

b. Remove the battery socket from the board.

15

Troubleshooting

PROBLEM SOLUTION

No sound or distorted sound

Make sure the machine is connected properly.

Make sure all cables are securely inserted into the appropriate jacks.

Can't advance through a movie

The icon appears on screen

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1. The disc's software restricts it.

2. The disc's software doesn't support the

feature (e.g., angles)

3. The feature is not available at the moment.

4. You've requested a title or chapter number

that is out of range.

Picture is distorted

No forward or reverse scan

The disc might be damaged. Try another disc;

It is normal for some distortion to appear during forward or reverse scan.

Some discs have sections that prohibit rapid scanning or chapter skip;

If you try to skip through the warning information and credits at the beginning of a movie, you won't be able to. This part of the movie is often programmed to prohibit skipping through it.

lf at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic equipment

Directive)

Owing to continuous improvement, no prior notice will be given regarding changes on above feature and spec.

16

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
