DE
EN
FR
NL
SV
DA
FI
NO
IT
ES
PT
PL
HU
CS
SK
EL
RU
SL
HR
SR /
BS
UK
RO
TR
BG
SQ
ET
SK Návod na obsluhu
Akumulátorový vyžínač
EL Οδηγίες χρήσης
Κουρευτικό μπαταρίας
RU Инструкция по эксплуатации
Аккумуляторный триммер
SL Navodilo za uporabo
Akumulatorski obrezovalnik
HR Upute za uporabu
Baterijski trimer
SR / Uputstvo za rad
BS Baterijska trimer-kosilica
UK Інструкція з експлуатації
Акумуляторний-тример
RO Instrucţiuni de utilizare
Trimmer cu acumulator
TR Kullanma Kılavuzu
Akülü tırpan
BG Инструкция за експлоатация
Akku-Тример
SQ Manual përdorimi
Prerësi me bateri
ET Kasutusjuhend
Akuga trimmer
LT Eksploatavimo instrukcija
Akumuliatorinė žoliapjovė
LV Lietošanas instrukcija
Ar akumulatoru darbināms trimmeris
LT

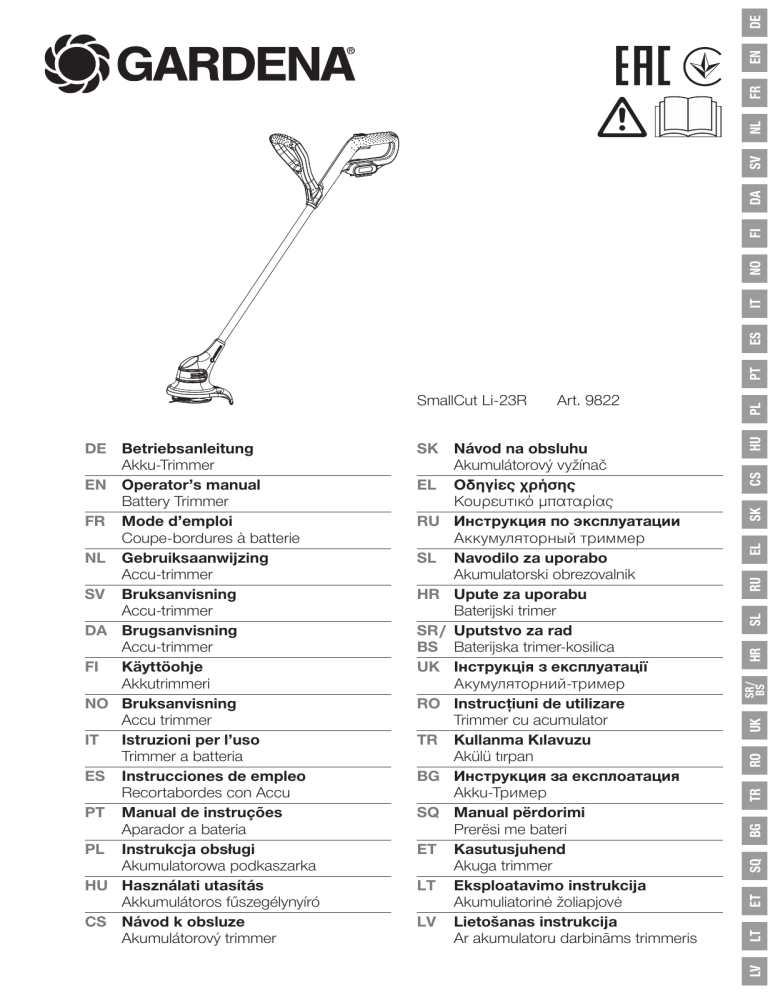

DE Betriebsanleitung
Akku-Trimmer
EN Operator’s manual
Battery Trimmer
FR Mode d’emploi
Coupe-bordures à batterie
NL Gebruiksaanwijzing
Accu-trimmer
SV Bruksanvisning
Accu-trimmer
DA Brugsanvisning
Accu-trimmer
FI Käyttöohje
Akkutrimmeri
NO Bruksanvisning
Accu trimmer
IT Istruzioni per l’uso
Trimmer a batteria
ES Instrucciones de empleo
Recortabordes con Accu
PT Manual de instruções
Aparador a bateria
PL Instrukcja obsługi
Akumulatorowa podkaszarka
HU Használati utasítás
Akkumulátoros fűszegélynyíró
CS Návod k obsluze
Akumulátorový trimmer
Art. 9822
LV
SmallCut Li-23R
DE Produkthaftung
Wir weisen ausdrücklich darauf hin, dass wir in Übereinstimmung mit dem Produkthaftungsgesetz nicht für Schäden haften, die durch unsere Produkte entstehen, wenn
diese unsachgemäß und nicht durch einen von uns autorisierten Servicepartner repariert wurden oder wenn keine Original GARDENA Teile oder von uns z­ ugelassene Teile
verwendet wurden.
EN Product liability
In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products
have not been properly repaired by a GARDENA-approved service partner or where original GARDENA parts or parts authorised by GARDENA were not used.
FR Responsabilité
Conformément à la loi relative à la responsabilité du fait des produits défectueux, nous déclarons expressément par la présente que nous déclinons toute responsabilité
pour les dommages résultant de nos produits, si lesdits p
­ roduits n‘ont pas été correctement réparés par un partenaire d‘entretien agréé GARDENA ou si des pièces
­d’origine GARDENA ou des pièces agréées GARDENA n‘ont pas été utilisées.
NL Productaansprakelijkheid
Conform de Duitse wet inzake productaansprakelijkheid verklaren wij hierbij uitdrukkelijk dat wij geen aansprakelijkheid aanvaarden voor schade ontstaan uit onze producten waarbij deze producten niet zijn gerepareerd door een GARDENA-erkende servicepartner of waarbij geen originele GARDENA-onderdelen of onderdelen die door
GARDENA zijn goedgekeurd zijn gebruikt.
SV Produktansvar
I enlighet med tyska produktansvarslagar förklarar vi härmed uttryckligen att vi inte åtar oss något ansvar för skador som orsakas av våra produkter där produkterna inte
har genomgått korrekt reparation från en GARDENA-godkänd servicepartner eller där originaldelar från GARDENA eller delar godkända av GARDENA inte använts.
DA Produktansvar
I overensstemmelse med den tyske produktansvarslov erklærer vi hermed udtrykkeligt, at vi ikke påtager os noget ansvar for skader på vores produkter, hvis de pågældende produkter ikke er blevet repareret korrekt af en GARDENA-godkendt servicepartner, eller hvor der ikke er brugt originale GARDENA-reservedele eller godkendte
reservedele fra GARDENA.
FI Tuotevastuu
Saksan tuotevastuulain mukaisesti emme ole vastuussa laitteiden vaurioista, jos korjauksia ei ole tehnyt GARDENAn hyväksymä huoltoliike tai jos niiden syynä on m
­ uiden
kuin alkuperäisten GARDENA-varaosien tai GARDENAn hyväksymien varaosien käyttö.
IT Responsabilità del prodotto
In conformità con la Legge tedesca sulla responsabilità del prodotto, con la presente dichiariamo espressamente che decliniamo qualsiasi responsabilità per danni causati
dai nostri prodotti qualora non siano stati correttamente riparati presso un partner di assistenza approvato GARDENA o laddove non siano stati utilizzati ricambi originali o
autorizzati GARDENA.
ES Responsabilidad sobre el producto
De acuerdo con la Ley de responsabilidad sobre productos alemana, por la presente declaramos expresamente que no aceptamos ningún tipo de responsabilidad por los
daños ocasionados por nuestros productos si dichos productos no han sido reparados por un socio de mantenimiento aprobado por GARDENA o si no se han utilizado
piezas originales GARDENA o piezas autorizadas por GARDENA.
PT Responsabilidade pelo produto
De acordo com a lei alemã de responsabilidade pelo produto, declaramos que não nos responsabilizamos por danos causados pelos nossos produtos, caso os tais
produtos não tenham sido devidamente reparados por um parceiro de assistência GARDENA aprovado ou se não tiverem sido utilizadas peças GARDENA originais ou
peças autorizadas pela GARDENA.
PL Odpowiedzialność za produkt
Zgodnie z niemiecką ustawą o odpowiedzialności za produkt, niniejszym wyraźnie oświadczamy, że nie ponosimy żadnej odpowiedzialności za szkody poniesione
na ­skutek użytkowania naszych produktów, w przypadku gdy naprawa tych produktów nie była odpowiednio przeprowadzana przez zatwierdzonego przez firmę
­GARDENA partnera serwisowego lub nie stosowano oryginalnych części GARDENA albo części autoryzowanych przez tę firmę.
HU Termékszavatosság
A németországi termékszavatossági törvénnyel összhangban ezennel nyomatékosan kijelentjük, hogy nem vállalunk felelősséget a termékeinkben keletkezett olyan károkért,
amelyek valamely GARDENA által jóváhagyott szervizpartner által nem megfelelően végzett javításból adódtak, vagy amely során nem eredeti GARDENA alkatrészeket vagy
a GARDENA által jóváhagyott alkatrészeket használtak fel.
CS Odpovědnost za výrobek
V souladu s německým zákonem o odpovědnosti za výrobek tímto výslovně prohlašujeme, že nepřijímáme žádnou odpovědnost za poškození vzniklá na našich výrobcích,
kdy zmíněné výrobky nebyly řádně opraveny schváleným servisním partnerem GARDENA nebo kdy nebyly použity originální náhradní díly GARDENA
nebo náhradní díly autorizované společností GARDENA.
SK Zodpovednosť za produkt
V súlade s nemeckými právnymi predpismi upravujúcimi zodpovednosť za výrobok týmto výslovne prehlasujeme, že nenesieme žiadnu zodpovednosť za škody s­ pôsobené
našimi výrobkami, v prípade ktorých neboli náležité opravy vykonané servisným partnerom schváleným spoločnosťou GARDENA alebo neboli použité
diely spoločnosti GARDENA alebo diely schválené spoločnosťou GARDENA.
EL Ευθύνη προϊόντος
Σύμφωνα με τον γερμανικό νόμο περί Ευθύνης για τα Προϊόντα, με το παρόν δηλώνουμε ρητώς ότι δεν αποδεχόμαστε καμία ευθύνη για τυχόν ζημίες που
προκύπτουν από τα προϊόντα μας εάν αυτά δεν έχουν επισκευαστεί σωστά από κάποιον εγκεκριμένο συνεργάτη επισκευών της GARDENA ή εάν δεν έχουν
χρησιμοποιηθεί αυθεντικά εξαρτήματα GARDENA ή εξαρτήματα εγκεκριμένα από την GARDENA.
SL Odgovornost proizvajalca
V skladu z nemškimi zakoni o odgovornosti za izdelke, izrecno izjavljajo, da ne sprejemamo nobene odgovornosti za škodo, ki jo povzročijo naši izdelki, če teh niso ­ustrezno
popravili GARDENINI odobreni servisni partnerji ali pri tem niso bili uporabljeni originalni GARDENINI nadomestni deli ali GARDENINIMI homologiranimi n
­ adomestnimi deli.
HR Pouzdanost proizvoda
Sukladno njemačkom zakonu o pouzdanosti proizvoda, ovime izričito izjavljujemo kako ne prihvaćamo nikakvu o
­ dgovornost za oštećenja na našim proizvodima nastala
uslijed neispravnog popravka od strane servisnog partnera kojeg odobrava GARDENA ili uslijed nekorištenja originalnih GARDENA dijelova ili dijelova koje odobrava
­GARDENA.
RO Răspunderea pentru produs
În conformitate cu Legea germană privind răspunderea pentru produs, declarăm în mod expres prin prezentul d
­ ocument că nu acceptăm nicio răspundere pentru
­defecţiunile suferite de produsele noastre atunci când acestea nu au fost reparate în mod corect de un atelier de service partener, aprobat de GARDENA, sau când nu au
fost u
­ tilizate piese GARDENA originale sau piese autorizate de GARDENA.
BG Отговорност за вреди, причинени от стоки
Съгласно германския Закон за отговорността за вреди, причинени от стоки, с настоящото изрично декларираме, че не носим отговорност за щети,
причинени от нашите продукти, ако те не са били правилно ремонтирани от одобрен от GARDENA сервиз или ако не са използвани оригинални части на
GARDENA или части, одобрени от GARDENA.
ET Tootevastutus
Vastavalt Saksamaa tootevastutusseadusele deklareerime käesolevaga selgesõnaliselt, et me ei kanna mingisugust vastutust meie toodetest tingitud kahjude eest, kui need
tooted ei ole korrektselt parandatud GARDENA heakskii­detud hoolduspartneri poolt või kui parandamisel ei ole kasutatud GARDENA originaalosi või GARDENA volitatud osi.
LT Gaminio patikimumas
Mes aiškiai pareiškiame, kad, atsižvelgiant į Vokietijos gaminių patikimumo įstatymą, neprisiimame atsakomybės dėl bet kokios žalos, patirtos dėl mūsų gaminių, jeigu
jie buvo netinkamai taisomi arba jų dalys buvo pakeistos n
­ eoriginaliomis GARDENA dalimis ar nepatvirtintomis dalimis, arba jeigu remonto darbai buvo atliekami ne
­GARDENA techninės priežiūros centro specialistų.
LV Atbildība par produkcijas kvalitāti
Saskaņā ar Vācijas likumu par atbildību par produkcijas kvalitāti ar šo mēs paziņojam, ka neuzņemamies atbildību par bojājumiem, kas radušies, lietojot mūsu izstrādājumus, kuru remontu nav veicis uzņēmuma GARDENA apstiprināts apkopes partneris vai kuru remontam netika izmantotas oriģinālās GARDENA detaļas vai detaļas,
kuru lietošanu apstiprinājis uzņēmums GARDENA.
2
A1
A2
A3
5
1
4
2
3 0
2
3
1
A1
ß
4
A2
ß
O1
O2
O3
1
6 2
7
F
ß
å
V
1
2
5
X
M1
T1
T2
B
3
A
8
8
9
4
3
9
3
EN
­
EN
1. SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5. STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7. TECHNICAL DATA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8. ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9. SERVICE / WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Translation of the original instructions.
This product may be used under super­
vision, or if instruction regarding the safe
use of the product has been provided and
the resulting dangers have been understood, by
children aged 8 and above, as well as by persons
with physical, sensory or mental disabilities or
a lack of experience and knowledge. Children
must not be allowed to play with the product.
Cleaning and user maintenance must not be performed by children without supervision. The use
7
EN
of this product by young people under the age of
16 is not recommended.
Intended use:
The GARDENA Trimmer is intended to trim and to cut lawn and areas of
grass in private domestic gardens and allotments.
The product is not intended for long term use.
DANGER! Risk of injury!
Do not use the product to cut hedges, to chop up material or to
make compost.
1. SAFETY
IMPORTANT!
Read the operator’s manual carefully before use and keep for future
­reference.
Symbols on the product:
Read operator’s manual.
Keep bystanders away.
Always wear approved hearing protection.
Always wear approved eye protection.
Do not expose to rain.
For the charger:
Remove plug from the mains immediately if the cable
is damaged or cut.
General safety warnings
Electrical safety
DANGER! Electric shock!
Risk of injury due to electric shock.
v The product must be supplied through a residual current device (RCD)
having a rated residual operating current not exceeding 30 mA.
Do not overreach and keep the balance at all times. Always be sure of the footing
on slopes. Walk, never run.
Do not touch moving hazardous parts before the machine is disconnected from
the mains and the moving hazardous parts have come to a complete stop.
Always wear substantial footwear and long trousers while operating the machine.
Safe operating practices
1 Training
a) Read the instructions carefully. Be familiar with the controls and the correct
use of the machine.
b) Never allow children or people unfamiliar with these instructions to use the
machine. Local regulations can restrict the age of the operator.
c) Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
2 Preparation
a) Before use check the supply and extension cord for signs of damage or
aging. If the cord becomes damaged during use, disconnect the cord from
the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine if the cord is damaged or
worn.
b) Before use, always visually inspect the machine for damaged, missing or
­misplaced guards or shields.
c) Never operate the machine while people, especially children, or pets are
­nearby.
3
a)
b)
c)
Operation
Keep supply and extension cords away from cutting means.
Wear eye protection and stout shoes at all times while operating the machine.
Avoid using the machine in bad weather conditions especially when there is
a risk of lightning.
d) Use the machine only in daylight or good artificial light.
e) Never operate the machine with damaged guards or shields or without guards
or shields in place.
f) Switch on the motor only when the hands and feet are away from the cutting
means.
8
g) Always disconnect the machine from the power supply (i. e. remove the plug
from the mains, remove the disabling device or removable battery):
1) whenever the machine is left unattended;
2) before clearing a blockage;
3) before checking, cleaning or working on the machine;
4) after striking a foreign object;
5) whenever the machine starts vibrating abnormally.
h) Take care against injury to feet and hands from the cutting means.
i) Always ensure that the ventilation openings are kept clear of debris.
4 Maintenance and storage
a) Disconnect the machine from the power supply (i. e. remove the plug from the
mains, remove the disabling device or removable battery) before carrying out
maintenance or cleaning work.
b) Use only the manufacturer’s recommended replacement parts and acces­
sories.
c) Inspect and maintain the machine regularly. Have the machine repaired only
by an authorized repairer.
d) When not in use, store the machine out of the reach of children.
Additional safety warnings
Battery safety
DANGER! Fire risk!
The battery product to be charged must be placed on a nonflammable,
heat resistant and non-conductive surface while charging.
The battery must not be charged unattended.
Keep corrosive, flammable and easily combustible objects clear of the
battery charger and the battery product.
Do not cover the battery charger and the battery product while charging.
Disconnect the battery charger immediately in the event of smoke formation or
fire.
Only use the original GARDENA Charger to charge the battery. The use of other
battery chargers may damage the batteries irreparably and even cause a fire.
Do not use the GARDENA charger to charge external rechargeable batteries,
as GARDENA cannot guarantee compatibility and could therefore present a risk
of fire or explosion.
Do not charge non-rechargeable batteries.
DANGER! Risk of explosion!
Protect battery products from heat and fire. Do not leave on radiators or
expose to strong sunshine for long periods.
Do not operate them in explosive atmospheres, e. g. in the presence of
flammable liquids (vapours), flammable gases or accumulations of dust.
Batteries may create sparks which could ignite the mixtures.
Only charge and use the battery product in ambient temperatures of between
0 °C and 40 °C. Allow battery to cool down after long periods of use.
Check the charging cable regularly for signs of damage or ageing (brittleness).
Only use it in perfect condition.
Do not stow or transport the battery product above 45 °C or in direct sunlight.
Ideally, the battery product should be stored below 25 °C so that self-discharge
is low.
Do not expose the battery product to rain, water (immersion) or wet conditions.
Water entering a battery product will increase the risk of electric shock.
If usage of the battery is not planned for a certain time (winter period) reload
the battery to avoid a deep discharge.
Do not store the battery product in places where static electricity is present.
Electrical safety
DANGER! Cardiac arrest!
This product makes an electromagnetic field while it operates. This field
may under some conditions interfere with active or passive medical
implants. To decrease the risk of conditions that can possibly injure or
kill, we recommend persons with medical implants to speak with their
physician and the medical implant manufacturer before you operate the
product.
Only use the battery product between 0 °C and 40 °C.
Thoroughly inspect the area where the product is to be used and remove all
wires and other foreign objects.
Before using the product and after any impact, check for signs of wear or
­damage and repair as necessary.
If the product can no longer be switched off in the event of a defect, place the
product on a solid surface and monitor it until the battery is empty. Send the
defective product to our GARDENA Service Centre.
Never attempt to use an incomplete product or one with an unauthorised modification.
Stop the product if the product starts to vibrate abnormally. Check immediately.
Excessive vibration can cause injury.
Do not use the product nearby a water.
Do not operate next to swimming pools or garden ponds.
DANGER! Risk of suffocation!
Small parts can be easily swallowed. There is also a risk that the polybag
can suffocate toddlers. Keep toddlers away when you assemble the
product.
DANGER! Risk of injury!
If the device switches off due to an empty battery (charging control
lamp ; flashes green), it may happen that the battery recovers after
a certain time. The device is then ready for operation again.
Use personal protective equipment.
Wear gloves for cleaning the cutting device.
Always wear eye protection.
Protective equipment such as gloves, non-skid safety shoes, or hearing protection used for appropriate conditions will reduce personal injuries.
Be careful during adjustment of the product to prevent entrapment of the fingers
between moving and fixed parts of the machine.
Don’t use water, or chemical substances for cleaning the guard or other parts of
the trimmer.
Keep all nuts, bolts and screws tight to be sure the product is in a safe working
condition.
Do not disassemble the product further than the delivery status.
Warning! When wearing hearing protection, and due to the noise produced by
the product, the operator may not notice persons approaching.
While operation and transport pay special attention to the hazard for other
­people.
Stay alert, watch what you are doing and use common sense when operating
a power tool.
Do not use a power tool while you are tired or under the influence of drugs,
­alcohol or medication.
A moment of inattention while operating power tools may result in serious
­personal injury.
2. ASSEMBLY
DANGER! Risk of injury!
Cut injury when the product starts accidentally.
v Wait for the plastic blades to stop before you assemble the
product.
To assemble the additional handle [ Fig. A1 ]:
v Slide the additional handle (1) on the top part of the handle (2) until it
audibly engages (click).
The scope of delivery includes 5 plastic blades (3). There are 4 spare p­lastic blades in the magazine (10).
For the assembly of the plastic blade into the blade holder,
see 6. TROUBLESHOOTING “To replace the plastic blade”.
To assemble the protective cover [ Fig. A2 /A3 ]:
DANGER!
The product may only be used when the protective cover
is assembled.
1. Put the protective cover (4) to the trimmer head (5) while you feed the
plastic blade (3) through the opening in the protective cover (4).
2. Rotate the protective cover (4) until it can be completely pushed on
A1 / ß
A2 face each other).
(the arrows ß
3. Rotate the protective cover (4) anti-clockwise until the connection
­audibly engages. (click).
3. OPERATION
DANGER! Risk of injury!
Cut injury when the product starts accidentally.
v Wait for the plastic blade to stop before you transport the
product.
To charge the battery [ Fig. O1 ]:
CAUTION!
Overvoltage damages the battery and the charging power
supply.
v Make sure that you use the correct mains voltage.
Before you use the battery the first time, the battery must be completely
charged.
The lithium-ion battery can be charged in any state of charge and the
charging process can be disconnected at any time without to damage
the battery (no memory effect).
1. Connect the charging power supply (C) into a mains socket.
The power LED (Lc) illuminates red.
F .
2. Connect the battery charger cable (E) to the charging socket ß
F at the charging socket
When the charging control lamp ß
flashes green, the battery is being charged.
F at the charging socket
When the charging control lamp ß
illuminates green, the battery is completely charged
(Charging time see 7. TECHNICAL DATA).
3. Examine the charge status regularly while you charge.
4. When the battery is completely charged, disconnect the battery charger
F .
cable (E) from the charging socket ß
5. Disconnect the charging power supply (C) from the mains.
Work position [ Fig. O2 ]:
v Hold the product by the additional handle (1) and the main handle (2)
so that the trimmer head (5) is tilted a small distance forward.
Avoid contact of the plastic blade and the blade carrier with hard objects
(walls, stones fences etc.) to prevent the plastic blade and the blade car­
rier from wearing or breaking.
To start the trimmer [ Fig. O3 ]:
DANGER! Risk of injury!
Risk of injury if the product does not stop when you
release the start lever.
v Do not bypass the safety devices or switches. For example do
not attach the start lever to the handle.
To start:
The product is provided with a two-switch safety device (start lever
with starting lockout) to prevent the product from being turned on
by accident.
1. Hold the additional handle (1) with one hand.
2. Hold the main handle (2) with the other hand, push the starting
lockout (6) forward and pull the start lever (7).
The trimmer starts.
3. Release the starting lockout (6) again.
To stop:
v Release the start lever (7).
The trimmer stops in a few seconds.
4. MAINTENANCE
DANGER! Risk of injury!
Cut injury when the product starts accidentally.
v Wait for the plastic blade to stop before you maintain the
­product.
To clean the Trimmer [ Fig. M1 ]:
DANGER! Risk of injury!
Risk of injury and risk of damage to the product.
v Do not clean the product with water or with a water jet
(in particular high-pressure water jet).
v Do not clean with chemicals including petrol or solvents.
Some can destroy critical plastic parts.
The airflow slots must always be clean.
1. Clean the airflow slots (8) with a soft brush (do not use a screwdriver).
2. Clean all movable parts after each operation. Especially remove any
grass and dirt from the protective cover (4).
To clean the charging power supply:
Make sure that the contacts of the charging socket and the charging
power supply always are clean and dry before you connect the charging
power supply.
Do not use running water.
v Clean the contacts and the plastic parts with a soft and dry cloth.
9
EN
Personal safety
EN
5. STORAGE
OTE: For any other malfunctions please contact the GARDENA service departN
ment. Repairs must only be done by GARDENA service departments or specialist
dealers approved by GARDENA.
To put into storage:
The product must be stored away from children.
1. Charge the battery.
2. Clean the trimmer and the charging power supply
(see 4. MAINTENANCE).
3. Store the trimmer and the charging power supply in a dry, enclosed
and frost-free place.
Disposal:
(in accordance with RL2012/19/EC)
The product must not be disposed of to normal household waste.
It must be disposed of in line with local environmental regulations.
The GARDENA battery contains lithium-ion cells that
should not be disposed of with normal household waste
at the end of its life.
Li-ion
IMPORTANT!
v Dispose of the product through or via your municipal recycling
c
­ ollection centre.
6. TROUBLESHOOTING
DANGER! Risk of injury!
Cut injury when the product starts accidentally.
v Wait for the plastic blade to stop before you troubleshoot
the product.
To replace the plastic blade [ Fig. T1 / T2 ]:
DANGER! Risk of cutting injuries!
v Do not use metal cutting elements or spare parts and
­acces­sories not intended for use by GARDENA.
The plastic blades may only become worn to half the original
length at most. Only use original GARDENA Spare Blades
RotorCut. Spare plastic blades are available from your GARDENA
dealer or direct from GARDENA Service.
• GARDENA Spare Blades RotorCut for Turbotrimmer Art. 5368
To remove the plastic blade:
1. Turn the trimmer over.
2. Push the end of the plastic blade down slightly (A), slide the plastic
blade (3) inside through the blade carrier (9) (B) and pull out.
To insert the plastic blade:
v Slide the new plastic blade (3) from inside through the slot in metal of
the blade carrier (9) until it audibly engages (click).
When the new plastic blade is correctly inserted, it can be moved more
easily.
Problem
Possible Cause
Remedy
Trimmer is not cutting
cleanly or not cutting at all
Plastic blade is worn or too
short.
eplace the plastic blade.
vR
Plastic blade is broken off.
vR
eplace the plastic blade.
Trimmer vibrates severely
Plastic blade is excessively
v Replace the plastic blade.
worn and creates an unbalance.
Blade carrier is worn.
vR
eplace the blade carrier.
Trimmer does not start.
Charging control lamp ;
flashes green
Under voltage.
v Charge the battery.
Trimmer does not start.
Charging control lamp ;
flashes red
Battery overload.
v Release the start lever.
Start again.
Engine is blocked.
v Remove the obstacle.
Start again.
Battery temperature is out of
range.
v Use the battery in surroundings where temperatures are
between 0 °C and 40 °C.
Charging power supply is not
plugged in correctly.
v P lug the charging power
­supply into a wall outlet.
Power LED (Lc) on the
charging power supply
does not illuminate
10
7. TECHNICAL DATA
Battery Trimmer
Unit
Value (Art. 9822)
Cutting width
cm
23
Rpm of blade carrier
R/min.
9500
Weight
kg
1.7
dB(A)
71
3
Sound power level LWA2):
measured/guaranteed
Uncertainty kWA
dB(A)
86 / 88
1.5
Hand/arm vibration avhw1)
Uncertainty ka
m/s2
< 2.5
1.5
Sound pressure level L
Uncertainty kpA
1)
pA
Measuring process complying with:
1)
EN 50636-2-91
2)
RL 2000/14/EC
OTE: The stated vibration emission value has been measured according to
N
a standardized test procedure and can be used for comparison of one electric
power tool with another. It can also be used for preliminary evaluation of
exposure. The vibration emission value can vary during actual use of the electric power
tool.
Battery
Unit
Value
Battery voltage
V (DC)
14.4
Battery capacity
Ah
2.0
Battery charging time
80 % / 100 % (approx.)
min.
160 / 200
Charging Power Supply
Unit
Value
(Art. 9836-00.610.00 EU, 9836-28.610.00 UK)
Mains voltage
V (AC)
100 – 240
Mains frequency
Hz
50 – 60
Rated Power
W
15
Output voltage
V (DC)
18.5
Max. output current
mA
600
8. ACCESSORIES
GARDENA Charging Power
Supply
Charger to charge the internal batteries. Art. 9836-00.610.00 EU,
9836-28.610.00 UK
GARDENA Spare Blades
RotorCut for Turbotrimmer
As replacement for consumed plastic
­blades.
GARDENA Replacement
blade carrier
Available via the GARDENA Service.
Art. 5368
9. SERVICE / WARRANTY
Service:
Please contact the address on the back page.
Warranty statement:
In the event of a warranty claim, no charge is levied to you for the services
provided.
GARDENA Manufacturing GmbH grants a warranty for all original
­GARDENA new products for two years from the date of original purchase
from the retailer, provided that the devices have been for p
­ rivate use only.
This manufacturer’s warranty does not apply to products acquired second
hand. This warranty includes all ­significant defects of the product that can
be proved to be material or manufacturing faults. This war­ranty is fulfilled
by supplying a fully functional replacement product or by repairing the
faulty product sent to us free of charge; we reserve the right to choose
between these options. This service is subject to the following provisions:
• The product has been used for its intended ­purpose as per the
­recommendations in the ­operating instructions.
• Neither the purchaser nor a third party has attempted to open or
repair the product.
• Only Original GARDENA replacement parts and wear parts have been
used for operation.
EN
• Presentation of the receipt.
Normal wear and tear of parts and components (such as blades, blade
­fixing parts, turbines, light bulbs, V-belts / toothed belts, impellers, air
­filters, spark plugs), visual changes, wear parts and consumables are
excluded from the warranty.
This manufacturer’s warranty is limited to replacement and repair of
­products in accordance with the abovementioned conditions. The manufacturer’s warranty does not constitute an entitlement to lodge other
claims against us as a manufacturer, such as for damages. This manu­
facturer’s warranty does not, of course, affect statutory and contractual
warranty claims against the dealer / retailer.
The manufacturer’s warranty is governed by the law of the Federal
­Republic of Germany.
In case of a warranty claim, please return the faulty product, together with
a copy of the receipt and a description of the fault, with postage paid to
the service address.
Consumables:
The plastic blade and the blade carrier are consumables and are not
included in the warranty.
­
11
DE EU-Konformitätserklärung
HU EU megfelelőségi nyilatkozat
EN EC Declaration of Conformity
CS EU prohlášení o shodě
FR Déclaration de conformité CE
SK EÚ vyhlásenie o zhode
NL EU-conformiteitsverklaring
EL Δήλωση συμμόρφωσης ΕΕ
SV EU-försäkran om överensstämmelse
SL Izjava EU o skladnosti
DA EU-overensstemmelseserklæring
HR EU izjava o sukladnosti
FI EU-vaatimustenmukaisuusvakuutus
RO Declaraţie de conformitate UE
IT Dichiarazione di conformità UE
BG ЕС-Декларация за съответствие
ES Declaración de conformidad de la UE
ET EL-i vastavusdeklaratsioon
PT Declaração CE de Conformidade
LT ES atitikties deklaracija
PL Deklaracja zgodności UE
LV ES atbilstības deklarācija
Der Unterzeichnende bestätigt als Bevollmächtigte des Herstellers, der GARDENA Germany AB, PO Box 7454,
S-103 92, Stockholm, Schweden, dass das (die) nachfolgend bezeichnete(n) Gerät(e) in der von uns in Verkehr gebrachten
­Ausführung die Anforderungen der harmonisierten EU-Richtlinien, EU-Sicherheitsstandards und produktspezifischen Standards
erfüllt / erfüllen. Bei einer nicht mit uns abgestimmten Änderung des (der) Geräte(s) verliert diese Erklärung ihre Gültigkeit.
The undersigned hereby certifies as the authorized representative of the manufacturer, GARDENA Germany AB, PO Box 7454,
S-103 92, Stockholm, Sweden, that, when leaving our factory, the unit(s) indicated below is / are in ­accordance with the
­harmonised EU guidelines, EU standards of safety and product specific standards. This certificate becomes void if the unit(s)
is / are modified without our approval.
Le soussigné déclare, en tant que mandataire du fabricant, la GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm,
Suède, qu’à la sortie de ses usines le matériel neuf désigné ci-dessous était conforme aux prescriptions des directives européennes énoncées ci-après et conforme aux règles de sécurité et autres règles qui lui sont applicables dans le cadre de l’Union
européenne. Toute modification portée sur ce(s) produit(s) sans l’accord express de notre part supprime la validité de ce certificat.
De ondergetekende bevestigt als gevolmachtigde van de fabrikant, GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm,
Zweden, dat het / de onderstaand vermelde apparaat/apparaten in de door ons in de handel gebrachte uitvoering voldoet / voldoen
aan de eisen van de geharmoniseerde EU-richtlijnen, EU-veiligheidsnormen en productspecifieke normen. Bij een niet met ons
afgestemde verandering van het apparaat/de apparaten verliest deze verklaring haar geldigheid.
Undertecknad intygar som befullmäktigad företrädare för tillverkaren, GARDENA Germany AB, PO Box 7454,
S-103 92, Stockholm, Sverige, att nedan angiven apparat / nedan angivna apparater i det utförande vi har släppt på marknaden,
uppfyller fordringarna i de harmoniserade EU-direktiven, EU-säkerhetsstandarderna och de produktspecifika standarderna.
Denna försäkran upphör att gälla vid en ändring av apparaten / apparaterna som inte har stämts av med oss.
Underskriveren bekræfter som fuldmægtig for producenten, GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Sverige,
at det (de) efterfølgende betegnede apparat(er) i den af os markedsførte udførelse opfylder kravene i de harmoniserede EU-direktiver, EU-sikkerhedsstandarder og produktspecifikke standarder. Foretages en ændring af apparatet / apparaterne, der ikke er aftalt
med os, mister denne erklæring sin gyldighed.
Allekirjoittanut vahvistaa valmistajan, GARDENA Germany AB, PO Box 7454, S-103 92, Tukholma, Ruotsi, valtuuttamana henkilönä, että seuraava laite täyttää / seuraavat laitteet täyttävät meidän toimittamassa mallissa yhdenmukaistettujen EU-direktiivien,
EU-turvallisuusmääräysten ja tuotekohtaisten standardien vaatimukset. Laitteen / laitteiden muutoksissa, joista ei ole sovittu meidän
kanssamme, menettää tämä selvitys voimassaolonsa.
Il sottoscritto, in quanto soggetto autorizzato dal produttore, GARDENA Germany AB, PO Box 7454, S-103 92, Stoccolma, Svezia,
dichiara che l’apparecchio/gli apparecchi di seguito denominato / i, nella versione da noi immessa in commercio, soddisfa / no
i requisiti delle direttive UE armonizzate, degli standard di sicurezza europei e degli standard specifici per il prodotto.
La presente dichiarazione perde di validità in caso di modifica dell’apparecchio / degli apparecchi non concordata con noi.
El firmante confirma, en calidad de apoderado del fabricante GARDENA Germany AB, PO Box 7454, S-103 92 Estocolmo (­Suecia),
que el / los aparato(s) mencionado(s) a continuación cumple(n), en la versión lanzada al mercado por nuestra empresa, los requisitos de las directivas de la UE armonizadas, los estándares de seguridad de la UE y los estándares específicos del producto.
La presente declaración perderá su validez si se modifica(n) el / los aparato(s) sin previa aprobación por nuestra parte.
O abaixo-assinado, na qualidade de representante do fabricante, GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm,
Schweden, confirma que o(s) aparelho(s) a seguir designado(s) no modelo lançado por nós no mercado cumpre / cumprem
os requisitos das diretivas UE harmonizadas, as normas de segurança UE e as normas específicas para estes produtos.
Esta declaração perde a sua validade se forem realizadas alterações no(s) aparelho(s) sem o nosso consentimento.
Niżej podpisany potwierdza jako upoważniony przedstawiciel producenta, spółki GARDENA Germany AB, PO Box 7454,
S-103 92, Sztokholm, Szwecja, że określone poniżej urządzenie/-nia w wersji wprowadzonej przez nas do obrotu spełnia /
-niają wymogi zharmonizowanych dyrektyw UE, norm bezpieczeństwa UE oraz norm dotyczących konkretnych produktów.
Niniejsza deklaracja traci ważność w przypadku wprowadzania nieuzgodnionych z nami zmian urządzenia / ń.
Produktbezeichnung:
Description of the product:
Désignation du produit :
Beschrijving van het product:
Beskrivning av produkten:
Beskrivelse af produktet:
Tuotteen kuvaus:
Descrizione del prodotto:
Descripción del producto:
Descrição do produto:
Opis produktu:
A termék leírása:
Popis výrobku:
Popis produktu:
Περιγραφή του προϊόντος:
Opis izdelka:
Opis proizvoda:
Descrierea produsului:
Описание на продукта:
Toote kirjeldus:
Gaminio aprašas:
Izstrādājuma apraksts:
Akku-Trimmer
Battery Trimmer
Coupe-bordures à batterie
Accu-trimmer
Accu-trimmer
Accu-trimmer
Akkutrimmeri
Trimmer a batteria
Recortabordes con Accu
Aparador a bateria
Akumulatorowa podkaszarka
Akkumulátoros fűszegélynyíró
Akumulátorový trimmer
Akumulátorový vyžínač
Κουρευτικό μπαταρίας
Akumulatorski obrezovalnik
Baterijski trimer
Trimmer cu acumulator
Akku-Тример
Akuga trimmer
Akumuliatorinė žoliapjovė
Ar akumulatoru darbināms trimmeris
Produkttyp:
Product type:
Type de produit :
Producttype:
Produkttyp:
Produkttype:
Tuotetyyppi:
Tipo adi prodotto:
Tipo de producto:
Tipo de produto:
Typ produktu:
Artikelnummer:
Article number:
Référence :
Artikelnummer:
Artikelnummer:
Artikelnummer:
Tuotenumero:
Codice articolo:
Referencia:
Número de ­referência:
Numer katalogowy:
Terméktípus:
Druh výrobku:
Typ produktu:
Τύπος προϊόντος:
Vrsta izdelka:
Vrsta proizvoda:
Tip produs:
Тип продукт:
Tootetüüp:
Gaminio tipas:
Produkta veids:
SmallCut Li-23R
EU-Richtlinien:
EC-Directives:
Directives CE :
EG-richtlijnen:
EU-direktiv:
EF-direktiver:
EY-direktiivit:
Direttive UE:
Directiva CE:
Diretivas CE:
Dyrektywy WE:
EK-irányelvek:
Předpisy ES:
Smernice EÚ:
Οδηγίες ΕΚ:
Direktive EU:
EC direktive:
Directive CE:
Директиви на ЕО:
EÜ direktiivid:
Cikkszámok:
Objednací číslo:
Objednávacie číslo:
Κωδικός είδους:
Številka izdelka:
Kataloški broj:
Cod articol:
Артикул номер:
Artiklinumber:
Dalies numeris:
Artikula numurs:
9822
EB direktyvos:
EK direktīvas:
2000/14/EG
2006/42/EG
2011/65/EG
2014/30/EG
Netzteil / Power Supply:
2014/35/EG
Hinterlegte ­
Dokumentation:
G ARDENA Technische
­Dokumentation,
M. Kugler 89079 Ulm
Konformitätsbewer­tungs­
verfahren:
Nach 2000/14/EG Art. 14
Anhang VI
Deposited ­Documentation:
G ARDENA Technical
­Documentation,
M. Kugler 89079 Ulm
Conformity Assessment
P­ rocedure:
according to 2000/14/EC
Art.14 Annex VI
Documentation déposée:
Documentation
­technique GARDENA,
M. Kugler 89079 Ulm
Procédure d’évaluation
de la ­conformité :
Selon 2000/14/CE art. 14
Annexe VI
Az alulírott, a GARDENA Germany AB, Pf. 7454, S-103 92, Stockholm, Svédország megbízotti minőségében megerősíti, hogy
az általunk alábbi kivitelben forgalomba hozott, lent nevezett eszköz(ök) megfelel(nek) az uniós irányelvekkel összhangba hozott
nemzeti előírások követelményeinek, az EU biztonsági szabványainak és a konkrét termékre vonatkozó szabványoknak.
Az eszköz(ök)nek velünk nem egyeztetett módosítása esetén ez a nyilatkozat érvényét veszti.
Podepsaná osoba zplnomocněná výrobcem GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Švédsko potvrzuje,
že v následujícím uvedený(-é) přístroj(-e) v provedení námi uvedeném na trh splňuje / splňují požadavky směrnic EU, bezpečnostních norem EU a norem specifických pro výrobek. V případě změny přístroje(-ů), která s námi nebyla dohodnuta, ztrácí toto prohlášení svou platnost.
Dolu podpísaný potvrdzuje, ako splnomocnený zástupca výrobcu, GARDENA Germany AB, PO Box 7454, S-103 92, Štokholm,
Švédsko, že ďalej označené zariadenie / a vo vyhotovení uvedenom na trh spĺňa / jú požiadavky harmonizovaných smerníc EÚ,
­bezpečnostných štandardov EÚ a predpisov, špecifických pre dané výrobky. Pri zmene zariadenia / zariadení, ktorá nebola odsúhlasená našou spoločnosťou, stráca toto vyhlásenie platnosť.
Ο υπογεγραμμένος βεβαιώνει ως πληρεξούσιος του κατασκευαστή, της εταιρείας GARDENA Germany AB, Τ.Θ. 7454, S-103 92,
Στοκχόλμη, Σουηδία, ότι η (οι) παρακάτω αναφερόμενη(ες) συσκευή(ές) στην έκδοση που τίθεται από εμάς σε κυκλοφορία πληροί/πληρούν τις απαιτήσεις των εναρμονισμένων οδηγιών της ΕΕ, προτύπων ασφαλείας της ΕΕ και των ειδικών για το προϊόν προτύπων. Σε
περίπτωση τροποποίησης της (των) συσκευής(ών) χωρίς προηγούμενη συνεννόηση με την εταιρεία μας παύει να ισχύει η δήλωση.
Spodaj podpisani kot pooblaščenec proizvajalca GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Švedska,
potrjuje, da v nadaljevanju označene naprave v izvedbi, v kakršni smo jih dali v promet, izpolnjujejo zahteve usklajenih direktiv EU,
varnostnega standarda EU in standardov, ki veljajo za posamezne izdelke. V primeru spremembe naprave, ki ni usklajena
z nami, ta izjava neha veljati.
Dolje potpisani kao opunomoćenik proizvođača, tvrtke GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Švedska,
potvrđujemo da niže navedeni uređaj(i) odgovarajuće izvedbe koji / koje smo iznijeli na tržište ispunjavaju kriterije usklađenih
­direktiva EU i sigurnosnih standarda EU kao i standarda koji se tiču proizvoda. Ova izjava gubi valjanost u slučaju izmjena uređaja
koje nisu prethodno ugovorene s nama.
Semnatarul, în calitatea sa de împuternicit al producătorului GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Suedia,
confirmă că aparatul (aparatele) descrise în cele ce urmează, în execuţia pusă de noi pe piaţă îndeplineşte (îndeplinesc) cerinţele
directivelor armonizate UE, ale standardelor de siguranţă UE şi ale standardelor specifice produsului.
În cazul modificării fără aprobarea noastră prealabilă a aparatului (aparatelor), această declaraţie îşi pierde valabilitatea.
Долуподписаният удостоверява като пълномощник на производителя GARDENA Germany AB, PO Box 7454, S-103 92,
Стокхолм, Швеция, че по-долу описаният(ите) уред(и) във варианта на изпълнение пуснат от нас на пазара изпълнява /
изпълняват изискванията на хармонизираните ЕС-директиви, ЕС-норми за безопасност и специфичните норми за
продукцията. В случай на промяна на уреда(ите), която не е съгласувана с нас, тази декларация губи своята валидност.
Allakirjutanu kinnitab tootja, GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Rootsi, poolt volitatud isikuna,
et järgnevalt nimetatud seade (seadmed) täidab (täidavad) meie poolt turule toodud versiooni kujul harmoneeritud EL-i direktiivide,
EL-i ohutusstandardite ja tootepõhiste standardite nõuded. Seadmel (seadmetel) meiega kooskõlastamata muudatuse tegemise
korral kaotab käesolev deklaratsioon oma kehtivuse.
Pasirašantysis, kaip gamintojo, GARDENA Germany AB, PO Box 7454, S-103 92, Stokholmas, Švedija, įgaliotasis atstovas patvirtina, kad žemiau nurodyto(-ų) prietaiso(-ų) modeliai, kurie buvo pagaminti mūsų gamyklose, atitinka darniąsias ES direktyvas,
ES saugumo standartus ir specifinius gaminio standartus. Atlikus bet kokį prietaiso(-ų) pakeitimą, kuris nėra suderintas su mumis,
ši deklaracija praranda galiojimą.
Zemā parakstījusies persona kā ražotāja, uzņēmuma GARDENA Germany AB, PO Box 7454, S-103 92, Stokholma, Zviedrija,
­pilnvarotais pārstāvis apstiprina, ka tālāk norādītā(-s) ierīce(-s) izpildījumā, kādā mēs to (tās) esam laiduši tirgū, atbilst saskaņotajām ES direktīvām, ES drošības standartiem un konkrētajam produktam noteiktajiem standartiem.
Ierīcē(-s) veicot ar mums nesaskaņotas izmaiņas, šī deklarācija zaudē savu spēku.
Harmonisierte EN-Normen /
Harmonised EN:
Schall-Leistungspegel:
Noise level:
Niveau sonore :
Geluidsniveau:
Ljudnivå:
Støjniveau:
Äänitaso:
Livello acustico:
Nivel de ruido:
Nível de ruído:
Poziom hałasu:
Zajszint:
EN ISO 12100
EN 60335-1
EN 50636-2-91
gemessen / garantiert
measured / guaranteed
mesuré / garanti
gemeten / gegarandeerd
uppmätt / garanterad
målt / garanteret
mitattu / taattu
misurato / garantito
medido / garantizado
medido / garantido
zmierzony / gwarantowany
mért / garantált
Netzteil / Power Supply:
EN 61558-1
EN 61558-2-16
Batterien / Batteries:
EN 62133-2
Hladina hluku:
Hladiny hluku:
Επίπεδο θορύβου:
Raven zvočne moči:
Razina buke:
Nivel de zgomot:
Ниво на шум:
Müratase:
Triukšmo lygis:
Trokšņa līmenis :
naměřená / zaručená
namerané/zaručené
μετρημένο / εγγυημένο
izmerjena / zagotovljena
mjerena / zajamčena
măsurat / garantat
измерено / гарантирано
mõõdetud / garanteeritud
išmatuotas / garantuojamas
mērītais / garantētais
86 dB(A) / 88 dB(A)
Anbringungsjahr der CE-Kennzeichnung:
Year of CE marking:
Année d’apposition du ­marquage CE :
Installatiejaar van de CE-aanduiding:
Märkningsår:
CE-Mærkningsår:
CE-merkin kiinnitysvuosi:
Anno di applicazione della c­ ertificazione CE:
Colocación del ­distintivo CE:
Ano de marcação pela CE:
Rok nadania o­ znakowania CE:
CE-jelzés elhelyezésének éve:
Rok umístění značky CE:
Rok udelenia značky CE:
Έτος σήματος CE:
Leto namestitve CE-oznake:
Godina dobivanja CE oznake:
Anul de marcare CE:
Година на поставяне на CE-маркировка:
CE-märgistuse p­ aigaldamise aasta:
Metai, kada pažymėta CE-ženklu:
CE-marķējuma uzlikšanas gads:
Ulm, den 03.07.2019
Ulm, 03.07.2019
Fait à Ulm, le 03.07.2019
Ulm, 03-07-2019
Ulm, 2019.07.03.
Ulm, 03.07.2019
Ulmissa, 03.07.2019
Ulm, 03.07.2019
Ulm, 03.07.2019
Ulm, 03.07.2019
Ulm, dnia 03.07.2019
Ulm, 03.07.2019
Ulm, 03.07.2019
Ulm, dňa 03.07.2019
Ulm, 03.07.2019
Ulm, 03.07.2019
Ulm, dana 03.07.2019
Ulm, 03.07.2019
Улм, 03.07.2019
Ulm, 03.07.2019
Ulm, 03.07.2019
Ulme, 03.07.2019
Der Bevollmächtigte
Authorised representative
Le mandataire
De gevolmachtigde
Auktoriserad representant
Autoriseret repræsentant
Valtuutettu edustaja
Persona delegata
La persona autorizada
O representante
Pełnomocnik
Meghatalmazott
Zplnomocněnec
Splnomocnený
Ο εξουσιοδοτημένος
Pooblaščenec
Ovlaštena osoba
Conducerea tehnică
Упълномощен
Volitatud esindaja
Įgaliotasis atstovas
Pilnvarotā persona
2018
Reinhard Pompe
Vice President
103
Deutschland / Germany
GARDENA
Manufacturing GmbH
Central Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen:
(+ 49) 731 490 - 123
Reparaturen:
(+ 49) 731 490 - 290
[email protected]
Albania
COBALT Sh.p.k.
Rr. Siri Kodra
1000 Tirana
Argentina
Husqvarna Argentina S.A.
Av.del Libertador 5954 –
Piso 11 – Torre B
(C1428ARP) Buenos Aires
Phone: (+ 54) 11 5194 5000
[email protected]
ar.husqvarna.com
Armenia
Garden Land Ltd.
61 Tigran Mets
0005 Yerevan
Australia
Husqvarna Australia Pty. Ltd.
Locked Bag 5
Central Coast BC
NSW 2252
Phone: (+ 61) (0) 2 4352 7400
[email protected]
husqvarna.com.au
Austria / Österreich
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel. : (+ 43) 732 77 01 01- 485
[email protected]
husqvarnagroup.com
China
Husqvarna (Shanghai)
Management Co., Ltd.
富世华(上海)管理有限公司
3F, Benq Square B,
No207, Song Hong Rd.,
Chang Ning District,
Shanghai, PRC. 200335
上海市长宁区淞虹路207号明
基广场B座3楼,邮编:200335
Colombia
Husqvarna Colombia S.A.
Calle 18 No. 68 D-31, zona
Industrial de Montevideo
Bogotá, Cundinamarca
Tel. 571 2922700 ext. 105
[email protected]
husqvarna.com.co
Costa Rica
Compania Exim
Euroiberoamericana S.A.
Los Colegios, Moravia,
200 metros al Sur del Colegio
Saint Francis – San José
Phone: (+ 506) 297 68 83
[email protected]
Croatia
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel. : (+ 43) 732 77 01 01- 485
[email protected]
husqvarnagroup.com
Cyprus
Med Marketing
17 Digeni Akrita Ave
P.O. Box 27017
1641 Nicosia
Azerbaijan
Firm Progress
a. Aliyev Str. 26A
1052 Baku
Czech Republic
Husqvarna Česko s.r.o.
Türkova 2319 / 5b
149 00 Praha 4 – Chodov
Bezplatná infolinka :
800 100 425
[email protected]
Belgium
Husqvarna België nv / sa
Gardena Division
Rue Egide Van Ophem 111
1180 Uccle / Ukkel
Tel.: (+ 32) 2 720 92 12
[email protected]
Denmark
GARDENA DANMARK
Lejrvej 19, st.
3500 Værløse
Tlf.: (+ 45) 70 26 47 70
[email protected]
www.gardena.com /dk
Bosnia / Herzegovina
SILK TRADE d.o.o.
Industrijska zona Bukva bb
74260 Tešanj
Dominican Republic
BOSQUESA, S.R.L
Carretera Santiago Licey
Km. 5 ½
Esquina Copal II.
Santiago
Dominican Republic
Phone: (+ 809) 736-0333
[email protected]
Brazil
Husqvarna do Brasil Ltda
Av. Francisco Matarazzo,
1400 – 19º andar
São Paulo – SP
CEP: 05001-903
Tel: 0800-112252
[email protected]
husqvarna.com.br
Bulgaria
AGROLAND България АД
бул. 8 Декември, №13
Офис 5
1700 Студентски град
София
Тел.: (+ 359) 24 66 69 10
[email protected]
Canada / USA
GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario L6T 4X3
Phone: (+1) 905 792 93 30
[email protected]
Chile
Maquinarias Agroforestales
Ltda. (Maga Ltda.)
Santiago, Chile
Avda. Chesterton
# 8355 comuna Las Condes
Phone: (+ 56) 2 202 4417
[email protected]
Zipcode: 7560330
106
Ecuador
Husqvarna Ecuador S.A.
Arupos E1-181 y 10 de
Agosto Quito, Pichincha
Tel. (+ 593) 22800739
[email protected]
husqvarna.com.ec
Estonia
Husqvarna Eesti OÜ
Valdeku 132
EE-11216 Tallinn
[email protected]
Finland
Oy Husqvarna Ab
Gardena Division
Lautatarhankatu 8 B / PL 3
00581 HELSINKI
www.gardena.fi
Georgia
Transporter LLC
8 / 57 Beliashvili street
0159 Tbilisi, Georgia
Phone: (+ 995) 322 14 71 71
Great Britain
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
[email protected]
husqvarna.co.uk
Greece
Π. ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ
Λεωφ. Αθηνών 92
Αθήνα
Τ.Κ.104 42
Ελλάδα
Τηλ. (+ 30) 210 51 93 100
[email protected]
Hungary
Husqvarna Magyarország Kft.
Ezred u. 1- 3
1044 Budapest
Telefon: (+ 36) 1 251- 4161
[email protected]
husqvarna.hu
Iceland
Ó. Johnson & Kaaber
Tunguhalsi 1
110 Reykjavik
[email protected]
Ireland
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
[email protected]
husqvarna.co.uk
Italy
Husqvarna Italia S.p.A.
Via Santa Vecchia 15
23868 VALMADRERA (LC)
Phone: (+ 39) 0341.203.111
[email protected]
it.husqvarna.com
Japan
KAKUICHI Co. Ltd.
Sumitomo Realty &
Development Kojimachi
BLDG., 8F
5 - 1 Nibanncyo
Chiyoda-ku
Tokyo 102-0084
Phone: (+ 81) 33 264 4721
[email protected]
Kazakhstan
LAMED Ltd.
155 /1, Tazhibayevoi Str.
050060 Almaty
IP Schmidt
Abayavenue 3B
110 005 Kostanay
Korea
Kyung Jin Trading CO.,LTD.
107-4, SunDuk Bld.,
YangJae-dong,
Seocho-gu,
Seoul, (zipcode: 137-891)
Phone: (+ 82) (0)2 574-6300
Kyrgyzstan
Alye Maki
av. Moladaya Guardir J 3
720014
Bishkek
Latvia
Husqvarna Latvija SIA
Ulbrokas 19A
France
LV-1021 Rīga
Husqvarna France
9 /11 Allée des pierres mayettes [email protected]
92635 Gennevilliers Cedex
Lithuania
France
UAB Husqvarna Lietuva
http : // www.gardena.com / fr
Ateities pl. 77C
N° AZUR : 0 810 00 78 23
LT-52104 Kaunas
[email protected]
(Prix d’un appel local)
Luxembourg
Magasins Jules Neuberg
39, rue Jacques Stas
Luxembourg-Gasperich 2549
Case Postale No. 12
Luxembourg 2010
Phone: (+ 352) 40 14 01
[email protected]
Mexico
AFOSA
Av. Lopez Mateos Sur # 5019
Col. La Calma 45070
Zapopan, Jalisco
Mexico
Phone: (+ 52) 33 3818-3434
[email protected]
Moldova
Convel S.R.L.
290A Muncesti Str.
2002 Chisinau
Netherlands
Husqvarna Nederland B.V.
GARDENA Division
Postbus 50131
1305 AC ALMERE
Phone: (+ 31) 36 521 00 10
[email protected]
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
Phone: (+ 599) 9 767 66 55
[email protected]
New Zealand
Husqvarna New Zealand Ltd.
PO Box 76-437
Manukau City 2241
Phone: (+ 64) (0) 9 9202410
[email protected]
Norway
Husqvarna Norge AS
Gardena Division
Trøskenveien 36
1708 Sarpsborg
[email protected]
Peru
Husqvarna Perú S.A.
Jr. Ramón Cárcamo 710
Lima 1
Tel: (+ 51) 1 3 320 400 ext. 416
[email protected]
husqvarna.com
Poland
Husqvarna
Poland Spółka z o.o.
ul. Wysockiego 15 b
03-371 Warszawa
Phone: (+ 48) 22 330 96 00
[email protected]
Portugal
Husqvarna Portugal , SA
Lagoa - Albarraque
2635 - 595 Rio de Mouro
Tel.: (+ 351) 21 922 85 30
Fax : (+ 351) 21 922 85 36
[email protected]
Romania
Madex International Srl
Soseaua Odaii 117 - 123,
RO 013603 Bucureşti, S 1
Phone: (+ 40) 21 352.76.03
[email protected]
Russia / Россия
ООО „Хускварна“
141400, Московская обл.,
г. Химки,
улица Ленинградская,
владение 39, стр.6
Бизнес Центр
„Химки Бизнес Парк“,
помещение ОВ02_04
http: //www.gardena.ru
Serbia
Domel d.o.o.
Autoput za Novi Sad bb
11273 Belgrade
Phone: (+381) 1 18 48 88 12
[email protected]
Singapore
Hy- Ray PRIVATE LIMITED
40 Jalan Pemimpin
# 02-08 Tat Ann Building
Singapore 577185
Phone: (+ 65) 6253 2277
[email protected]
Slovak Republic
Husqvarna Česko s.r.o.
Türkova 2319 / 5b
149 00 Praha 4 – Chodov
Bezplatná infolinka:
800 154 044
[email protected]
Slovenia
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel. : (+ 43) 732 77 01 01- 485
[email protected]
husqvarnagroup.com
South Africa
Husqvarna
South Africa (Pty) Ltd
Postnet Suite 250
Private Bag X6,
Cascades, 3202
South Africa
Phone: (+ 27) 33 846 9700
[email protected]
Spain
Husqvarna España S.A.
Calle de Rivas nº 10
28052 Madrid
Phone: (+ 34) 91 708 05 00
[email protected]
Suriname
Agrofix n.v.
Verlengde Hogestraat # 22
Phone : (+ 597) 472426
[email protected]
Pobox : 2006
Paramaribo
Suriname – South America
Sweden
Husqvarna AB
Gardena Division
S-561 82 Huskvarna
[email protected]
Switzerland / Schweiz
Husqvarna Schweiz AG
Consumer Products
Industriestrasse 10
5506 Mägenwil
Phone: (+ 41) (0) 62 887 37 90
[email protected]
Turkey
Dost Bahçe Dış Ticaret
Mümessillik A.Ş
Yunus Mah. Adil Sok. No:3
Ic Kapi No: 1 Kartal
34873 Istanbul
Phone: (+ 90) 216 38 93 939
[email protected]
Ukraine / Україна
ТОВ «Хускварна Україна»
вул. Васильківська, 34,
офіс 204-г
03022, м. Київ
Тел. (+38) 044 498 39 02
[email protected]
Uruguay
FELI SA
Entre Ríos 1083 CP 11800
Montevideo – Uruguay
Tel : (+ 598) 22 03 18 44
[email protected]
Venezuela
Corporación Casa y Jardín C.A.
Av. Caroní, Edif. Trezmen, PB.
Colinas de Bello Monte.
1050 Caracas.
Tlf : (+ 58) 212 992 33 22
[email protected]
000020.960.08 / 0618
9822-20.960.02/0919
GARDENA
© GARDENA
Manufacturing
GmbH
Manufacturing GmbH
D-89070
D
- 89070Ulm
Ulm
http://www.gardena.com
http:
//www.gardena.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
