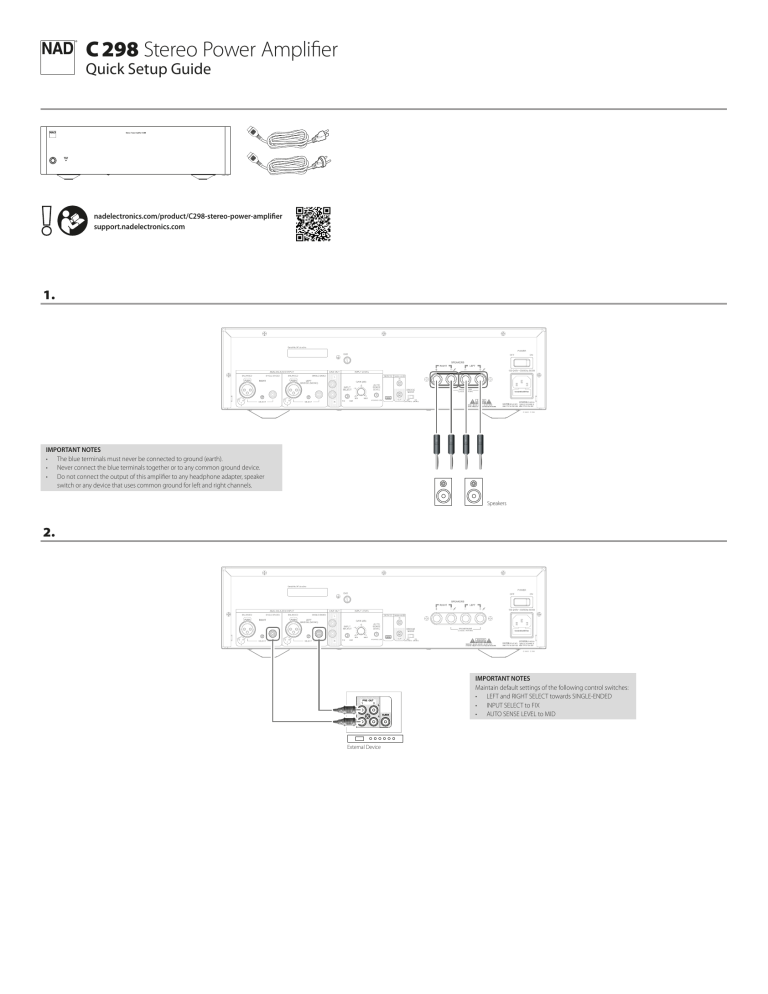

C 298 Stereo Power Amplifier
Quick Setup Guide
© NAD C 298
!
nadelectronics.com/product/C298-stereo-power-amplifier
support.nadelectronics.com
1.
© NAD C 298
IMPORTANT NOTES
• The blue terminals must never be connected to ground (earth).
• Never connect the blue terminals together or to any common ground device.
• Do not connect the output of this amplifier to any headphone adapter, speaker
switch or any device that uses common ground for left and right channels.
Speakers
2.
© NAD C 298
IMPORTANT NOTES
Maintain default settings of the following control switches:
• LEFT and RIGHT SELECT towards SINGLE-ENDED
• INPUT SELECT to FIX
• AUTO SENSE LEVEL to MID
External Device
3.
2
© NAD C 298
1
3
© NAD C 298
©2020 NAD ELECTRONICS INTERNATIONAL, A DIVISION OF LENBROOK INDUSTRIES LIMITED
All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited.
No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
C298-QS-EN-v03 - 06/20
