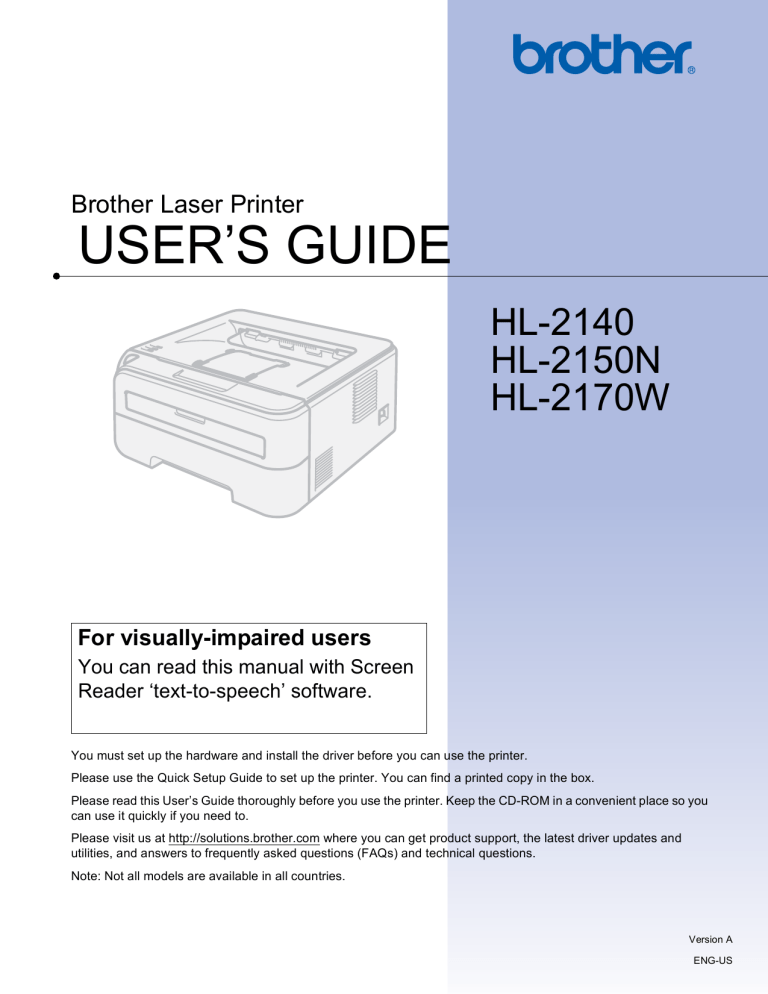

Brother Laser Printer
USER’S GUIDE
HL-2140
HL-2150N
HL-2170W
For visually-impaired users
You can read this manual with Screen
Reader ‘text-to-speech’ software.
You must set up the hardware and install the driver before you can use the printer.
Please use the Quick Setup Guide to set up the printer. You can find a printed copy in the box.
Please read this User’s Guide thoroughly before you use the printer. Keep the CD-ROM in a convenient place so you can use it quickly if you need to.
Please visit us at http://solutions.brother.com where you can get product support, the latest driver updates and utilities, and answers to frequently asked questions (FAQs) and technical questions.
Note: Not all models are available in all countries.
Version A
ENG-US
Using this guide
Symbols used in this guide
We use the following icons throughout this User’s Guide:
Warnings tell you what to do to prevent possible personal injury.
Electrical Hazard icons alert you to a possible electrical shock.
Hot Surface icons warn you not to touch machine parts that are hot.
Cautions specify procedures you must follow or avoid to prevent possible damage to the printer or other objects.
Improper Setup icons alert you to devices and operations that are not compatible with the printer.
Notes tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.
i
Safety precautions
To use the printer safely
Please keep these instructions for later reference and read them before attempting any maintenance. If you
DO NOT follow these safety instructions, there is a possibility of a fire, electrical shock, burn or suffocation.
WARNING
There are high voltage electrodes inside the printer. Before you clean the inside of the printer, make sure that you have turned off the power switch and unplugged the printer from the AC power outlet.
DO NOT handle the plug with wet hands. Doing this might cause an electrical shock.
Always make sure the plug is fully inserted.
DO NOT use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite inside the vacuum cleaner, potentially starting a fire. Carefully clean the toner dust with a dry, lint-free cloth and dispose of it according to local regulations.
DO NOT use flammable substances, any type of spray or an organic solvent/liquids containsalcohol or ammonia to clean the inside or outside of the machine. Refer to
on page 73 for how to clean the
machine.
ii
After you have just used the printer, some internal parts of the printer will be extremely hot. When you open the front or back cover (back output tray) of the printer, DO NOT touch the shaded parts shown in the illustration.
Inside the printer
(Front View)
Inside the printer
(Back View)
Plastic bags are used in the packaging of your machine and drum unit. To avoid danger of suffocation, keep these bags away from babies and children.
Cleaning the outside of the printer:
• Make sure that you have unplugged the printer from the AC power outlet.
• Use neutral detergents. Cleaning with volatile liquids such as thinner or benzine will damage the outside surface of the printer.
• DO NOT use cleaning materials that contain ammonia.
CAUTION
Lightning and power surges can damage this product! We recommend that you use a quality surge protection device on the AC power line, or unplug the cords during a lightning storm.
Note
DO NOT remove or damage the caution labels located on or around the fuser.
iii
Trademarks
The Brother logo is a registered trademark of Brother Industries, Ltd.
Apple, the Apple Logo, Macintosh and TrueType are registered trademarks of Apple Inc. in the United States and other countries.
Hewlett Packard is a registered trademark and HP LaserJet 6P, 6L, 5P, 5L, 4, 4L 4P, III, IIIP, II, and IIP are trademarks of Hewlett-Packard Company.
Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.
Microsoft, Windows and Windows Server are registered trademarks of Microsoft Corporation in the United
States and/or other countries.
E
NERGY
S
TAR is a U.S. registered mark.
SuSE is a registered trade mark of SuSE Linux AG.
RED HAT is a registered trade mark of Red Hat. Inc.
Mandrake is a registered trade mark of Mandrake Soft SA.
Intel, Intel Xeon and Pentium are trademarks or registered trademarks of Intel Corporation.
AMD, AMD Athlon, AMD Opteron and combinations thereof, are trademarks of Advanced Micro Devices, Inc.
Java and all Java-based trademarks and logos are trademarks or registered trademarks of
Sun Microsystems, Inc. in the United States and other countries.
Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.
All other terms and brand and product names mentioned in this User’s Guide are registered trademarks of their respective companies.
Compilation and Publication Notice
Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product’s descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
© 2007 Brother Industries Ltd.
Shipment of the Printer
If for any reason you must ship your printer, carefully package the printer to avoid any damage during transit.
We recommend that you save and use the original packaging. The printer should also be adequately insured with the carrier.
iv
Table of Contents
1
2
3
4
5
About this Printer 1
Printing Methods 5
Driver and Software 26
Features in the printer driver (for Windows
®
Features in the printer driver (for Macintosh
) ....................................................................................29
) ..................................................................................39
and Windows Vista
®
and Windows Server
®
®
2003 ................................45
.............................................................................................................45
Control Panel 48
Routine Maintenance 60
v
6
A
B
Troubleshooting 79
with USB..................................................................................................................98
Appendix 99
Quick reference for bar code control commands
Appendix (for Europe and Other Countries) 117
Compliance Statement ..................................................................118
vi
C
D
Appendix (for USA and Canada) 122
Compliance Statement ..................................................................126
Index 129
vii
1
About this Printer
What is in the box?
When you unpack the printer, make sure that you have all of the following parts.
Printer
Quick Setup Guide
CD-ROM
Drum unit and starter toner cartridge assembly
AC power cord
Interface cable
The interface cable is not a standard accessory. Purchase the appropriate cable for the interface you are using.
USB cable
Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2 meters).
DO NOT connect the interface cable at this time. Connecting the interface cable is done during the printer driver installation process.
When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB port on a keyboard or non-powered USB hub.
Third party USB ports are not supported for Macintosh
®
.
Network cable (HL-2150N / HL-2170W only)
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast
Ethernet Network.
1
1
1
1
1
Front view
1
3
2
4
5
6
2
1
1 Face-down output tray support flap 2 (support flap 2)
2 Face-down output tray support flap 1 (support flap 1)
3 Control panel
4 Manual feed paper guide
5 Manual feed slot
6 Manual feed slot cover
7 Paper tray
8 Front cover
9 Power switch
10 Ventilation hole
11 Face-down output tray
For details about the support flap 2, see page 96
For details about the control panel, see
.
7
8
11
10
9
About this Printer
1
1
2
Back view
1
2
1 Back cover (back output tray)
2 AC power connector
3 HL-2150N / HL-2170W: Network status LEDs (Light Emitting Diodes)
4 HL-2150N / HL-2170W: 10/100BASE-TX port
5 HL-2170W: Wireless setup button
6 USB interface connector
6
5
4
3
About this Printer
1
1
3
About this Printer
Positioning the printer
Read the following before you use the printer.
Power supply
Use the printer within the recommended power range.
Power source: USA and Canada:
Europe and Australia:
AC 110 to 120 V, 50/60 Hz
AC 220 to 240 V, 50/60 Hz
The power cord, including extensions, should be no longer than 5 meters (16.5 feet).
Do not share the same power circuit with other high-powered appliances, such as an air conditioner, copier, shredder and so on. If you cannot avoid using the printer with these appliances, we recommend that you use a voltage transformer or a high-frequency noise filter.
Use a voltage regulator if the power source is not stable.
1
Environment
Put your printer on a flat, stable surface such as a desk that is free of vibration and shocks.
Put the printer near an AC power outlet, so that it can be easily unplugged from the AC power outlet if there is an emergency.
Only use the printer within the following ranges of temperature and humidity:
Temperature: 10
°
C to 32.5
°
C (50
°
F to 90.5
°
F)
Humidity: 20% to 80% (without condensation)
Use the printer in a well-ventilated room.
DO NOT put the printer where the ventilation hole of the printer is blocked. Keep a gap of roughly 100 mm
(4 in.) between the ventilation hole and the wall.
DO NOT expose the printer to direct sunlight, excessive heat, moisture, or dust.
DO NOT put the printer near devices that contain magnets or produce magnetic fields.
DO NOT expose the printer to open/naked flames or salty or corrosive gasses.
DO NOT put objects on top of the printer.
DO NOT put the printer near heaters, air conditioners, water, chemicals or refrigerators.
Keep the printer horizontal when you carry it.
1
1
1
4
2
Printing Methods
2
About paper
Type and size of paper
The printer loads paper from the installed paper tray or the manual feed slot.
The names for the paper trays in the printer driver and this guide are as follows:
Paper tray
Manual feed slot
Tray 1
Manual
When looking at this page in the electronic file, you can jump to the page for each printing method by clicking p
in the table.
Media type
Plain paper
75 g/m
2
to 105 g/m
2
(20 to
28 lb)
Recycled paper
Bond paper
Rough paper– 60 g/m
2
to
163 g/m
2
(16 to 43 lb)
Thin paper
60 g/m
2
to 75 g/m
2
(16 to 20 lb)
Thick paper
105 g/m
2
to 163 g/m
2
(28 to
43 lb)
Transparency
Tray 1
A4 or Letter
Labels
Manual
A4 or Letter
A4 or Letter
Choose the media type from the printer driver
Plain Paper
Recycled Paper
Bond Paper
Thin Paper
Thick Paper
or
Thicker
Paper
Transparencies
Thicker Paper
Envelopes
Envelopes
Env. Thin
Env. Thick
2
2
2
5
Printing Methods
1
Paper size
Tray 1
, B5 (ISO), Executive,
A5, A6, B6 (ISO), Folio, Post Card
Number of sheets
(80 g/m
2
/
20 lb)
Envelope size
250 sheets
N/A
Legal size paper is not available in some regions outside the USA and Canada.
Manual
Width: 76.2 to 220mm (3 to 8.7 in.)
Length: 116 to 406.4 mm (4.57 to 16 in.)
Single sheet
COM10
Recommended paper
2
2
Plain paper
Recycled paper
Transparency
Labels
Envelope
Europe
Xerox Premier TCF 80 g/m
2
Xerox Business 80 g/m
2
Xerox Recycled Supreme 80 g/m
2
3M CG3300
Avery laser label L7163
Antalis River series (DL)
USA
Xerox 4200DP 20 lb
Hammermill Laser Print (24 lb=90g/m2)
(No specific brand recommended)
3M CG3300
Avery laser labels white #5160
(No specific brand recommended)
Before you buy a lot of paper, test a small quantity to make sure that the paper is suitable.
Use paper that is made for plain-paper copying.
Use paper that is 75 to 90 g/m
2
(20 to 24 lb).
Use neutral paper. Do not use acidic or alkaline paper.
Use long-grain paper.
Use paper with a moisture content of approximately 5%.
This printer can use recycled paper that meets DIN 19309 specifications.
CAUTION
DO NOT use ink jet paper because it may cause a paper jam or damage your printer.
Preprinted paper must use ink that can withstand the temperature of the printer's fusing process (200 degrees centigrade).
If you use bond paper, paper having a rough surface or paper that is wrinkled or creased, the paper may exhibit degraded performance.
Note
If you use paper that is not recommended, a paper jam or misfeed may occur in the printer.
(To help you choose which paper to use with this printer, see
Important information for choosing your paper
6
Printing Methods
Types of envelopes
Most envelopes will be suitable for your printer. However, some envelopes may have feed and print quality problems due to the way they have been made. A suitable envelope should have edges with straight, wellcreased folds and the leading edge should not be thicker than two pieces of paper. The envelope should lie flat and not be of baggy or flimsy construction. You should buy quality envelopes from a supplier who understands that you will be using the envelopes in a laser printer. Before you print a lot of envelopes, test one to make sure that the print results are what you want.
Brother does not recommend a particular envelope because envelope manufacturers may change the envelope specifications. You are responsible for the quality and performance of the envelopes you use.
Do not use damaged, curled, wrinkled, irregularly shaped, extremely shiny or textured envelopes.
Do not use envelopes with clasps, snaps, tie strings, self-adhesive components, windows, holes, cutouts or perforations.
Do not use envelopes that are of a baggy construction, not sharply creased, embossed (have raised writing on them) or pre-printed on the inside.
Do not use envelopes that were previously printed by a laser printer.
Do not use envelopes that are made of paper that weighs more than the paper weight specifications for the printer.
Do not use envelopes that have been badly made, with edges that are not straight or consistently square.
2
2
If you use any of the types of envelopes listed above, they may damage your printer. This damage is not covered under any Brother warranty or service agreement.
Note
• Do not put different types of paper in the paper tray at the same time because it may cause paper jams or misfeeds.
• Do not print envelopes using manual duplex printing.
• You must choose the same paper size from your application as the paper or envelope you are using.
7
Printing Methods
2
Unprintable area
The area of the paper that cannot be printed on is shown in the table below:
Portrait
1
2 4
3
1
2
3
4
A4
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
Landscape
Letter
4.23 mm
(0.16 in.)
6.35 mm
(0.25 in.)
4.23 mm
(0.16 in.)
6.35 mm
(0.25 in.)
Legal
4.23 mm
(0.16 in.)
6.35 mm
(0.25 in.)
4.23 mm
(0.16 in.)
6.35 mm
(0.25 in.)
B5 (ISO)
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
1
Executive
4.23 mm
(0.16 in.)
6.35 mm
(0.25 in.)
4.23 mm
(0.16 in.)
6.35 mm
(0.25 in.)
A5
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
A6
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
B6
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
4.23 mm
(0.16 in.)
6.01 mm
(0.24 in.)
2
2 4
3
3
4
1
2
A4
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
Letter
4.23 mm
(0.16 in.)
5.08 mm
(0.2 in.)
4.23 mm
(0.16 in.)
5.08 mm
(0.2 in.)
Legal
4.23 mm
(0.16 in.)
5.08 mm
(0.2 in.)
4.23 mm
(0.16 in.)
5.08 mm
(0.2 in.)
B5 (ISO)
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
Executive
4.23 mm
(0.16 in.)
5.08 mm
(0.2 in.)
4.23 mm
(0.16 in.)
5.08 mm
(0.2 in.)
A5
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
A6
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
B6
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
4.23 mm
(0.16 in.)
5.0 mm
(0.19 in.)
8
2
2
Printing methods
Printing on plain paper and transparencies
Printing on plain paper and transparencies from the paper tray
(For the recommended paper to use, see
a
Pull the paper tray completely out of the printer.
Printing Methods
2
2
2
2
b
While pressing the green paper-guide release lever, slide the paper guides to fit the paper size. Make sure that the guides are firmly in the slots.
9
Printing Methods
Note
For Legal size paper, press the release button in the bottom of the paper tray and then pull out the back of the paper tray. (Legal size paper is not available in some regions.)
2
c
Put paper in the tray, and make sure that the paper is below the maximum paper mark (1). The side to be printed on must be face down.
1
CAUTION
Make sure the paper guides touch the sides of the paper so it will feed properly. If you do not this, it may cause damage to your printer.
d
Put the paper tray firmly back in the printer. Make sure that it is completely inserted into the printer.
10
e
Lift up the support flap 1 (1) to prevent paper from sliding off the face-down output tray.
1
Printing Methods
2
f
Choose the following from the printer driver:
Paper Size
............................ (1)
Media Type
........................... (2)
Paper Source
....................... (3) and any other settings.
Windows
®
printer driver
1
2
3
11
Macintosh
®
printer driver
1
2
Printing Methods
3
2
g
Send the print data to the printer.
Note
• The Error LED on the control panel will light up to indicate
No paper
if the power switch is turned on before you put paper or transparencies in the tray. You can clear this error indication by pressing
Go
.
• When printing on transparencies, remove each transparency as soon as it has been printed. Stacking the printed transparencies may cause a paper jam or the transparency to curl.
12
Printing Methods
Printing on plain paper, bond paper or transparencies from the Manual feed slot
(For the recommended paper to use, see
Note
The printer automatically turns on the Manual Feed mode when you put paper in the manual feed slot.
a
Lift up the support flap 1 (1) to prevent paper from sliding off the face-down output tray, or remove each page as soon as it comes out of the printer.
2
2
1 b
Open the manual feed slot cover.
c
Using both hands, slide the manual feed slot paper guides to the width of the paper that you are going to use.
13
Printing Methods d
Using both hands, put one piece of paper or one transparency in the manual feed slot until the front edge of the paper or transparency touches the paper feed roller. When you feel the machine pull in the paper, let go.
2
Note
• Put the paper into the manual feed slot with the side to be printed face up.
• Make sure that the paper or transparency is straight and in the correct position on the manual feed slot. If it is not, the paper or the transparency may not be fed properly, resulting in a skewed printout or a paper jam.
• Do not put more than one piece of paper in the manual feed slot at any one time, as it may cause a jam.
• If you put any media (paper, transparency and so on) in the manual feed slot before the printer is in the
Ready state, the media may be ejected without being printed on.
14
e
Choose the following from the printer driver:
Paper Size
............................ (1)
Media Type
........................... (2)
Paper Source
....................... (3) and any other settings.
Windows
®
printer driver
1
2
3
Macintosh
®
printer driver
1
2
Printing Methods
2
3
15
Printing Methods f
Send the print data to the printer.
g
After the printed page comes out of the printer, put in the next sheet of paper or transparency as in Step
above. Repeat for each page that you want to print.
Note
• The Error LED on the control panel will flash to indicate
No paper
in the manual feed slot until you put a sheet of paper or transparency in the manual feed slot.
2
• When printing on transparencies, remove each transparency as soon as it has been printed. Stacking the printed transparencies may cause a paper jam or transparency to curl.
16
Printing Methods
Printing on thick paper, labels and envelopes
When the back output tray is pulled down, the printer has a straight paper path from the manual feed slot through to the back of the printer. Use this paper feed and output method when you want to print on thick
paper, labels or envelopes. (For the recommended paper to use, see
2
Note
The printer automatically turns on the Manual Feed mode when you put paper in the manual feed slot.
a
Open the back cover (back output tray).
2
b
Open the manual feed slot cover.
c
Using both hands, slide the manual feed slot paper guides to the width of the paper that you are going to use.
17
Printing Methods d
Using both hands, put one piece of paper or one envelope in the manual feed slot until the front edge of the paper or envelope touches the paper feed roller. When you feel the machine pull in the paper, let go.
2
Note
• Put the paper into the manual feed slot with the side to be printed face up.
• Make sure that the paper or envelope is straight and in the proper position on the manual feed slot. If it is not, the paper or the envelope may not be fed properly, resulting in a skewed printout or a paper jam.
• Do not put more than one piece of paper in the manual feed slot at any one time, as it may cause a jam.
• If you put any Media (paper, envelope and so on) in the manual feed slot before the printer is in the Ready state, the media may be ejected without being printed on.
e
Choose the following from the printer driver:
Paper Size
............................ (1)
Media Type
........................... (2)
Paper Source
....................... (3) and any other settings.
Windows
®
printer driver
1
2
3
18
Printing Methods
Note
• When you use Envelope #10, choose
Com-10
for the
Paper Size
.
• For other envelopes which are not listed in the printer driver, such as Envelope #9 or Envelope C6, choose
User Defined...
(For more information on envelope sizes, see
Macintosh
®
printer driver
Paper Size
............................ (1)
Media Type
........................... (2)
Paper Source
....................... (3) and any other settings.
2
3
1
2
19
Printing Methods f
Send the print data to the printer.
g
After the printed page comes out of the printer, put in the next sheet of paper or envelope as shown in
Step
. Repeat for each page that you want to print.
Note
• The Error LED on the control panel will flash to indicate
No paper
in the manual feed slot until you put a sheet of paper or envelope in the manual feed slot.
2
• Remove each sheet or envelope as soon as it has been printed. Stacking sheets or envelopes may cause the paper to jam or curl.
20
Printing Methods
Note
• If an envelope is creased after it is printed, turn the next one around 180
°
when you put it in the manual feed slot, and then in the printer driver choose the
Advanced
tab, select
Page Setting
, and check the
Reverse Print
box. As an alternative you can change the printing direction in your software application.
2
• If the DL size double flap envelope is creased after printing, choose
DL Long Edge
in
Paper Size
, from the
Basic
tab. Put a new DL size double-flap envelope in the manual feed slot with the longest edge of the envelope in first, then print again.
• If envelopes get smudged during printing set the
Media Type
to
Thick Paper
or
Thicker Paper
to increase the fixing temperature.
• Envelope joints that are sealed by the manufacturer should be secure.
• All sides of the envelope should be properly folded without wrinkles or creases.
21
Printing Methods
Duplex printing
The supplied printer drivers for Windows
®
2000/XP/XP Professional x64 Edition, Windows Vista
®
,
Windows Server
®
2003/Windows Server
®
2003 x64 Edition and Mac OS
®
X 10.3 or greater all enable duplex printing. For more information about how to choose the settings, see the
Help
text in the printer driver.
2
2
Guidelines for printing on both sides of the paper
If the paper is thin, it may wrinkle.
If paper is curled, flatten it and then put it back in the paper tray or the manual feed slot.
If the paper is not feeding properly, it may be curled. Remove the paper and straighten it.
When you use the manual duplex function, it is possible that there may be paper jams or poor print quality.
Paper jams and how to clear them
on page 85. If you have a print quality
Note
• The screens in this section are from Windows
®
XP. The screens on your computer may vary depending on your operating system.
• Make sure that the paper tray is completely inserted into the printer.
• You should use plain paper, recycled paper or thin paper. Do not use bond paper.
2
Printing on both sides of the paper (manual duplex printing)
If you are using the Macintosh
®
2
Manual duplex printing from the paper tray
a
In the printer driver choose the
Advanced
tab, click the Duplex icon, and then choose the
Manual Duplex
printing mode, and from the
Basic
tab choose the Paper Source to be
Tray1
.
b
Send the data to the printer, then click
OK
on the computer screen.
The printer will automatically print all the even-numbered pages on one side of the paper first.
2
22
Printing Methods c
Remove the printed even-numbered pages from the output tray and put them back in the paper tray with the side to be printed on (blank side) face down. Follow the instructions on the computer screen.
2
d
The printer will now automatically print all the odd-numbered pages on the other side of the paper.
Note
When you put paper in the paper tray, first empty the tray. Next, put the printed pages in the tray, with the printed side face up. (Do not add the printed pages to the top of a stack of unprinted paper.)
Manual duplex printing from the manual feed slot
2
Note
You should use plain paper and recycled paper. Do not use bond paper.
a
In the printer driver choose the
Advanced
tab, click the Duplex icon, then choose the
Manual Duplex
printing mode, and then from the
Basic
tab choose the
Paper Source
to be
Manual feed
.
b
Open the manual feed slot cover.
23
Printing Methods c
Using both hands, slide the manual feed slot paper guides to the width of the paper that you are going to use.
2
d
Using both hands put the paper in the manual feed slot with the side that is going to be printed on first facing up. Follow the instructions on the computer screen. Repeat this step until you have printed all the even-numbered pages.
e
Remove the printed even-numbered pages from the output tray, and then put the first of the printed sheets back into the manual feed slot with the side to be printed on (the blank side) face up. Follow the instructions on the computer screen.
f
Repeat Step
until you have printed all the odd-numbered pages.
24
Printing Methods
Paper orientation for manual duplex printing
The printer prints the second page first.
If you print 10 pages on 5 sheets of paper, it will print page 2 and then page 1 on the first sheet of paper. It will print page 4 and then page 3 on the second sheet of paper. It will print page 6 and then page 5 on the third sheet of paper, and so on.
When doing manual duplex printing, the paper must be put in the paper tray in the following way:
For the paper tray:
• Put the side to be printed on face down with the leading edge (top) of the paper at the front of the tray.
• To print on the second side, put the paper face up, with the leading edge (top) of the paper at the front of the tray.
• If letterhead paper is used, put the paper in the tray with the heading face up at the front of the tray.
• To print on the second side, put the heading face down at the front of the tray.
For the manual feed slot:
• Put the side to be printed on face up with the leading edge (top) of the paper in first.
• To print on the second side, put the paper face down, with the leading edge (top) of the paper in first.
• If letterhead paper is used, put it in with the heading face down and in first.
• To print on the second side, put the heading face up and in first.
2
2
25
3
Driver and Software
3
Printer driver
A printer driver is software that translates data from the format used by a computer to the format that a particular printer needs. Typically, this format is page description language (PDL).
The printer drivers for the supported versions of Windows
®
and Macintosh
®
are on the CD-ROM we have supplied or on the Brother Solutions Center at http://solutions.brother.com. Install the drivers by following the
Quick Setup Guide. The latest printer driver can be downloaded from the Brother Solutions Center at http://solutions.brother.com.
(If you want to uninstall the printer driver, see
Uninstalling the printer driver
3
3
For Windows
®
Windows
®
printer driver (HL-2150N / HL-2170W only)
GDI printer driver for Windows
®
(HL-2140 only)
For Macintosh
®
Macintosh
®
printer driver
2
1
For Linux
LPR printer driver
CUPS printer driver
Download the printer driver for Linux from http://solutions.brother.com or a link on the supplied CD-ROM.
Depending on Linux distributions, the driver may not be available.
Note
• For more information about Linux printer driver, visit us at http://solutions.brother.com.
• The printer driver for Linux may be released after the initial release of this product.
3
3
3
26
Driver and Software
1
Windows
®
2000 Professional
Windows
®
XP Home Edition
Windows
®
XP Professional
Windows Vista
®
Windows Server
®
2003
Windows
®
XP Professional x64 Edition
Windows Server
®
2003 x64 Edition
Mac OS
®
X 10.2.4 or greater
Linux (Mandrake, Red Hat,
SuSE Linux, Debian)
Windows
® printer driver
(HL-2150N/
HL-2170W
Only)
GDI printer driver for
Windows
®
(HL-2140 Only)
Macintosh
® printer driver
LPR / CUPS
p
Download the printer driver from http://solutions.brother.com or a link on the supplied CD-ROM.
If you download from a link on CD-ROM, click
Install Other Drivers or Utilities
, then click
For Linux users
on the screen menu. Access to internet is required.
3
27
You can change the following printer settings when you print from your computer.
Paper Size
Multiple Page
Orientation
Copies
Media Type
Paper Source
Resolution
Toner Save Mode
Print Setting
Scaling
Job Spooling
Quick Print Setup
Sleep Time
Density adjustment
2
3
1
Error Message Printout
Improve Print Output
These settings are not available with the Mac OS
®
10.2.4.
These settings are not available with the Macintosh
®
printer driver.
These settings are not available with the HL-2140.
Driver and Software
3
28
Driver and Software
Features in the printer driver (for Windows
®
)
(For more information, see the
Help
text in the printer driver.)
Note
• The screens in this section are from Windows
®
XP. The screens on your computer will vary depending on your operating system.
• If you are using Windows
®
2000, XP, Windows Vista
®
or Windows Server
®
2003, you can access the
Printing Preferences
dialog box by clicking
Printing Preferences...
in the
General
tab of the
Printer Properties
dialog box.
Basic tab
You can also change settings by clicking the illustration on the left side of the
Basic
tab.
3
3
3
1
2 a
Choose the
Paper Size
,
Multiple Page
,
Orientation
,
Copies
and
Media Type
(1).
b
Choose the
Paper Source
(2).
c
Click
OK
to apply your chosen settings.
To return to the default settings, click
Default
, then
OK
.
29
Driver and Software
Paper Size
From the drop-down box choose the Paper Size you are using.
Multiple Page
The Multiple Page selection can reduce the image size of a page allowing multiple pages to be printed on one sheet of paper or can enlarge the image size for printing one page on multiple sheets of paper.
3
3
3
Page Order
When N in 1 option is selected, the page order can be selected from the drop-down list.
Border Line
When printing multiple pages on one sheet with the Multiple Page feature you can choose to have a solid border, dash border or no border around each page on the sheet.
3
Orientation
Orientation selects the position of how your document will be printed (
Portrait
or
Landscape
).
3
3
Copies
The copies selection sets the number of copies that will be printed.
Collate
With the Collate check box selected, one complete copy of your document will be printed and then will be repeated for the number of copies you selected. If the Collate check box is not selected, then each page will be printed for all the copies selected before the next page of the document is printed.
3
3
30
Driver and Software
Media Type
You can use the following types of media in your printer. For the best print quality, select the type of media that you wish to use.
3
Plain Paper
Envelopes
Thin Paper
Env. Thick
Thick Paper
Env. Thin
Thicker Paper Bond Paper Transparencies
Recycled Paper
Note
• When using ordinary plain paper (72.5 g/m
2
to 95 g/m
2
/ 19 to 25 lb) choose
Plain Paper
. When using heavier weight paper or rough paper choose
Thick Paper
or
Thicker Paper
. For bond paper, choose
Bond Paper
.
• When you use envelopes, choose
Envelopes
. If the toner is not fixed to the envelope correctly when
Envelopes
has been selected, choose
Env. Thick
. If the envelope is crumpled when
Envelopes
has been selected, choose
Env.Thin
.
Paper Source
You can choose
Auto Select
,
Tray1
,
Manual
and specify separate trays for printing the first page and for printing from the second page onwards.
3
Note
The printer automatically turns on the Manual Feed mode when you put paper in the manual feed slot.
3
31
Advanced tab
1 2 3 4 5
Driver and Software
3
3
Change the tab settings by clicking one of the following icons:
Print Quality (1)
Duplex (2)
Watermark (3)
Page Setting (4)
Device Options (5)
Print Quality
Resolution
You can change the resolution as follows:
• HQ 1200
• 600 dpi
• 300 dpi
Toner Save Mode
You can save running costs by turning on the
Toner Save Mode
, which reduces the print density (print appears lighter).
Note
• We do not recommend
Toner Save Mode
for printing Photo or Gray Scale images.
•
Toner Save Mode
is not available for
HQ 1200
resolution.
3
32
Driver and Software
Print Setting
You can manually change the print setting.
•
General
This is a printing mode for general printing of documents.
•
Graphics
This is the best mode for printing documents that contain graphics.
•
Office Document
This is the best mode for printing office documents.
•
Manual
You can change the settings manually by choosing
Manual
and clicking the
Setting...
button. You can set brightness, contrast and other settings.
Duplex Printing
Manual Duplex
Check the
Duplex
box and choose
Manual Duplex
. In this mode, the printer prints all the even numbered pages first. Then the printer driver will stop and show the instructions required to re-install the paper. When you click
OK
the odd numbered pages will be printed. There are six types of manual duplex binding directions available for each orientation.
Booklet Printing
When you want to print a booklet, use this function. To make the Booklet, fold the printed pages down the middle, when using the booklet printing function.
Binding Offset
If you check the Binding Offset option, you can also specify the offset for binding in inches or millimeters.
3
3
Watermark
You can put a logo or text into your documents as a watermark.
You can choose one of the preset watermarks, or you can use a bitmap file or text file that you have created.
When you use a bitmap file as a watermark, you can change the size of the watermark and put it anywhere you like on the page.
When you use text as a watermark, you can change the font, darkness and angle settings.
3
Page Setting
You can change the print image scaling and choose
Mirror/Reverse print
options.
3
33
Device Options
You can set the following in
Printer Function
:
Job Spooling
Quick Print Setup
Sleep Time
Macro (HL-2150N / HL-2170W only)
Header-Footer Print
Density adjustment
Error Message Printout
Improve Print Output
Driver and Software
3
3
34
Driver and Software
Job Spooling
The printer keeps the last print job sent to it in memory.
To reprint the last document, press the
Go
button and hold it down for about 4 seconds until all the LEDs light up in order (
Toner
,
Drum
,
Error
,
Ready
), and then release the
Go
button. Within 2 seconds press the
Go
button the number of times you want to reprint. If you don’t press the
Go
button within 2 seconds, a single copy will be printed.
Note
If you want to prevent other people from printing your data using the reprint function, uncheck the
Use Reprint
check box in the job spooling settings.
Quick Print Setup
This feature allows you to quickly choose driver settings by clicking a tasktray icon.
You can turn the quick print setting on or off. By placing a check in the selection boxes for the following functions you can choose which will be available in the quick print setting.
• Multiple Page
• Manual Duplex
• Toner Save Mode
• Paper Source
• Media Type
Sleep Time
When the printer does not receive data for a certain period of time, it enters sleep mode. In sleep mode, the printer acts as though it were turned off. When you choose
Printer Default
the timeout setting will be
5 minutes. Intelligent Sleep Mode automatically adjusts to the most suitable timeout setting depending on the frequency of your printer use.
While the printer is in sleep mode, the
Ready
LED lights up slightly, but the printer can still receive data.
Receiving a print file or document or pressing the
Go
button will automatically wake up the printer to start printing.
To turn sleep mode off, from the
Advanced
tab, click the
Device Options
icon and choose
Sleep Time
.
Double-click the word
Sleep Time
, and the Sleep Time Off function will appear. Click
Off
to stop the printer going into sleep mode. The Sleep Time Off function can be hidden by double-clicking the word Sleep Time again. We recommend that you keep sleep mode on for power saving.
Macro (
HL-2150N
/
HL-2170W
only)
You can save a page of a document as a macro to the printer's memory. You can also execute the saved macro (you can use the saved macro as an overlay on any document). This will save time and increase printing speed for often used information such as forms, company logos, letterhead formats or invoices.
3
35
Driver and Software
Header-Footer Print
When this feature is enabled, it will print the date and time on your document from your computer’s system clock and the PC login user name or the text you entered. By clicking
Setting
, you can customize the information.
• ID Print
If you select
Login User Name
, your PC login user name will print. If you select
Custom
and enter the text in the
Custom
edit box, the text you entered will print.
Density adjustment
Increase or decrease the print density.
Note
The
Density adjustment
is not available when you set the
resolution
to
HQ 1200
.
Error Message Printout
You can choose whether the printer reports problems by printing an error page. For details, see
Selections are
Printer Default
(ON),
ON
and
OFF
.
Improve Print Output
This feature allows you to improve a print quality problem.
• Reduce Paper Curl
If you choose this setting, the paper curl may be reduced.
If you are printing only a few pages, you do not need to choose this setting. We recommend that you change the printer driver setting in
Media Type
to a thin setting.
• Improve Toner Fixing
If you choose this setting, the toner fixing on paper may be improved. If this selection does not improve the situation enough, select
Thicker paper
in
Media type
settings.
3
36
Driver and Software
Tray Settings tab
You can define the paper size for each paper tray and auto detect the serial number in the
Tray Settings
tab as follows.
3
3
1
2
Paper Source Setting
(1)
This feature identifies the paper size defined for each paper tray.
•
Paper Size
This setting allows you to define which paper size is used for the tray and manual feed slot. Highlight the paper source you want to define and then choose the paper size from the pull-down menu. Click
Update
to apply the setting to the paper source.
•
Default Source
This setting allows you to choose the default paper source that your document will be printed from. Choose the
Default Source
from the pull-down menu and click
Update
to save your setting. The
Auto Select
setting will automatically pull paper from any paper source (tray or manual feed slot) that has a defined paper size that matches your document.
Serial No.
(2)
By clicking
Auto Detect
, the printer driver will probe the printer and display its serial number. If it fails to receive the information, the screen will display "---------".
Note
The
Auto Detect
function is not available under the following printer conditions:
• The printer power switch is off.
• The printer is in an error state.
• The printer is in a network shared environment.
• The cable is not connected to the printer correctly.
37
Driver and Software
3
Support tab
2
3
4
5
1
Visit the Genuine Supplies website
(1)
You can visit our website for original/genuine Brother supplies by clicking this button.
Brother Solutions Center
(2)
The Brother Solutions Center (http://solutions.brother.com) is a website offering information about your
Brother product including FAQs (Frequently Asked Questions), User’s Guides, driver updates and tips for using your printer.
Print Settings
(3)
This will print the pages that show how the internal settings of the printer have been configured.
Print Fonts
(4) (HL-2150N / HL-2170W only)
This will print the pages that show all the internal fonts of the printer.
Check Setting...
(5)
You can check the current driver settings.
3
38
Driver and Software
Features in the printer driver (for Macintosh
®
)
This printer supports Mac OS
®
X 10.2.4 or greater.
Note
The screens in this section are from Mac OS
®
X 10.4. The screens on your Macintosh
®
will vary depending on your operating system.
Page Setup
You can set the
Paper Size
,
Orientation
and
Scale
.
3
3
3
Copies & Pages
You can set the
Copies
and
Pages
.
3
39
Cover Page (for Mac OS
®
X 10.4)
You can make the following cover page settings:
Driver and Software
3
3
Print Cover Page
If you want to add a cover page to your document, use this function.
Cover Page Type
Choose a template for the cover page.
Billing Info
If you want to add the billing information to the cover page, enter text in the
Billing Info
box.
Layout
3
Pages per Sheet
Choose how many pages will appear on each side of the paper.
Layout Direction
When you specify the pages per sheet, you can also specify the direction of the layout.
Border
If you want to add a border, use this function.
40
Driver and Software
Duplex Printing
Manual duplex (for Mac OS
®
X 10.3 or greater)
Select
Paper Handling
.
Choose
Odd numbered pages
and print, and then choose
Even numbered pages
and print.
3
3
Print Settings
You can change settings by choosing a setting in the
Print Settings
list:
Basic
tab
3
Resolution
You can change the resolution as follows:
• 300 dpi
• 600 dpi
• HQ 1200
41
Driver and Software
Toner Save Mode
You can conserve toner using this feature. When you set
Toner Save Mode
to
On
, print appears lighter.
The default setting is
Off
.
Note
• We do not recommend
Toner Save Mode
for printing Photo or Gray Scale images.
•
Toner Save Mode
is not available for
HQ 1200
resolution.
Media Type
You can change the media type to one of the following:
• Plain Paper
• Thin Paper
• Thick Paper
• Thicker Paper
• Bond Paper
• Transparencies
• Envelopes
• Env. Thick
• Env. Thin
• Recycled Paper
Support
You can visit the Brother Solutions Center (http://solutions.brother.com) and our website for original/genuine Brother supplies by clicking the
Support
button.
The Brother Solutions Center is a website offering information about your Brother product including FAQs
(Frequently Asked Questions), User’s Guides, driver updates and tips for using your printer.
3
42
Advanced
tab
Driver and Software
3
Print Quality
You can change the print quality as follows:
• Photo
This is a photograph mode (gradation priority). Choose this setting for printing photographs that have continuous gradation. You can represent soft contrasts between various shades of gray.
• Graphics
This is a graphics mode (contrast priority). Choose this setting for printing text and figures, such as business and presentation documents. You can represent sharp contrasts between shaded areas.
• Chart/Graph
This is the best dither pattern for business documents such as presentations, that include words, graphs or charts. It is particularly suitable for solid colors.
Mirror Print
Check
Mirror Print
to reverse the data from left to right.
Reverse Print
Check
Reverse Print
to reverse the data from up to down.
Sleep Time
When the printer does not receive data for a certain period of time, it enters sleep mode. In sleep mode, the printer acts as though it were turned off. The default setting for timeout is 5 minutes. If you want to change the sleep time, choose
Manual
and then enter the time in the text box on the driver.
While the printer is in sleep mode, the
Ready
LED lights up slightly, but the printer can still receive data.
Receiving a print file or document or pressing one of the buttons will automatically wake up the printer to start printing.
43
Driver and Software
Improve Print Output
This feature allows you to improve a print quality problem.
• Reduce Paper Curl
If you choose this setting, the paper curl may be reduced.
If you are printing only a few pages, you do not need to choose this setting. We recommend that you change the printer driver setting in
Media Type
to a thin setting.
• Improve Toner Fixing
If you choose this setting, the toner fixing on paper may be improved. If this selection does not improve the situation enough, select
thicker paper
in
media type
settings.
Status Monitor (For Mac
OS
®
X 10.3 or greater users)
This reports the printer status (any errors that may happen with the printer) when printing. If you would like to turn the status monitor on, run the
Status Monitor
(from the
Macintosh HD
(Startup Disk), choose
Library
,
Printers
,
Brother
,
Utilities
).
3
3
44
Driver and Software
Uninstalling the printer driver
You can uninstall the printer driver that you have installed with the following steps.
Note
•
This is not available if you installed the printer driver from the Windows Add a printer function.
•
After uninstalling, we recommend that you restart your computer to remove files that were in use during the uninstall.
Printer driver for Windows
®
and Windows Vista
®
and Windows Server
®
2003
3
3
a
Click the
Start
button, point to
All Programs
and then to your printer name.
b
Click
UnInstall
.
1 c
Follow the instructions on the screen.
Programs
for windows
®
2000 users
3
Printer driver for Macintosh
®
3
For Mac OS
®
X 10.2
a
Disconnect the USB cable between the Macintosh
®
and your printer.
b
Restart the Macintosh
®
.
c
Log on as an ‘Administrator’.
d
Run the
Print Center
(from the
Go
button menu, choose
Applications
,
Utilities
), then choose the printer you want to remove and remove it by clicking the
Delete
button.
e
Drag the
HL_MFLPro
folder (from the
Macintosh HD
(Startup Disk), choose
Library
,
Printers
,
Brother
) into the Trash and then empty the Trash.
f
Restart the Macintosh
®
.
3
For Mac OS
®
X 10.3 or greater
a
Disconnect the USB cable between the Macintosh
®
and your printer.
b
Restart the Macintosh
®
.
c
Log on as an ‘Administrator’.
d
Run the
Printer Setup Utility
(from the
Go
button menu, choose
Applications
,
Utilities
), then choose the printer you want to remove and remove it by clicking the
Delete
button.
e
Restart the Macintosh
®
.
3
45
Driver and Software
Software
Software for network models (HL-2150N / HL-2170W only)
3
3
BRAdmin Light
BRAdmin Light is a utility for initial setup of Brother network connected devices. This utility can search for
Brother products on your network, view the status and configure basic network settings, such as IP address.
The BRAdmin Light utility is available for Windows
®
2000/XP and Windows Vista
®
and Windows Server
®
2003, and Mac OS
®
X 10.2.4 or greater computers. For installing BRAdmin Light, please see the Quick Setup
Guide we provided with the printer. For Macintosh
®
users, BRAdmin Light will be installed automatically when you install the printer driver. If you have already installed the printer driver, you do not have to install it again.
For more information on BRAdmin Light, visit us at http://solutions.brother.com.
3
BRAdmin Professional (for Windows
®
)
BRAdmin Professional is a utility for more advanced management of network connected Brother devices.
This utility can search for Brother products on your network, view the status and configure the network settings from a computer running the Windows
®
system. BRAdmin Professional has additional features from
BRAdmin Light.
For more information and to download the software, visit us at http://solutions.brother.com.
3
1
Web BRAdmin (for Windows
®
)
Web BRAdmin is a utility for managing network connected Brother devices. This utility can search for Brother products on your network, view the status and configure the network settings. Unlike BRAdmin Professional, which is designed for Windows
®
only, the Web BRAdmin is a server based utility that can be accessed from any client PC with a web browser that supports JRE (Java Runtime Environment). By installing the Web
BRAdmin server utility on a computer running IIS
, administrators can connect to the Web BRAdmin server
using a web browser, which then communicates with the device itself.
For more information and to download the software, visit us at http://solutions.brother.com.
3
Internet Information Server 4.0 or Internet Information Services 5.0 / 5.1 / 6.0 / 7.0
Web Based Management (web browser)
Web Based Management (web browser) is a utility for managing network connected Brother devices, using the HTTP (Hyper Text Transfer Protocol). This utility can view the status of Brother products on your network and configure the machine or network settings using a standard web browser that is installed on your computer.
For more information, see Chapter 13 of the Network User’s Guide on the CD-ROM we have supplied.
3
Driver Deployment Wizard (for Windows
®
)
This installer includes the Windows
®
printer driver and Brother network port driver (LPR). If the administrator installs the printer driver and port driver using this application, the administrator can save the file to the file server or send the file by E-mail to users. Then, each user just clicks that file to have the printer driver, port driver, IP address, and so on, automatically copied to their computer.
3
3
46
Driver and Software
Automatic interface selection (HL-2150N / HL-2170W only)
This printer has an automatic interface selection feature that is turned on by default. This lets it automatically change the interface to USB or Ethernet depending on which interface is receiving data.
Since the default setting is on for the automatic interface selection mode, simply connect the interface cable to the printer. Always turn off both your computer and printer when connecting or disconnecting the cable.
Note
This function takes a few seconds to work. If you want to speed up printing, choose the required interface
manually by using Remote Printer Console. (See
If you typically use only one interface, we recommend that you choose that interface using Remote Printer
on page 47.). If only one interface is chosen, the printer will allocate
the entire input buffer to that interface.
3
3
Remote Printer Console
Remote Printer Console is software to change many of the printer settings independently of your application.
For example, you can change the settings for printer margin, sleep mode, character set and so on. These settings are then remembered and used by the printer.
3
How to use and install the Remote Printer Console software
To use the Remote Printer Console software, follow the steps below.
3
For Windows
®
a
Put the CD-ROM into your CD-ROM drive and close the opening screen when it appears.
b
Open Windows
®
Explorer and choose the CD-ROM drive.
c
Double-click the
Tool
folder.
d
Double-click the
RPC
folder.
e
Refer to the
RPC_User’s_Guide.pdf
for how to install and use the Remote Printer Console.
For Macintosh
®
(HL-2150N / HL-2170W only)
a
Put the CD-ROM into your CD-ROM drive. Double-click the
HL2100
icon on the desktop.
b
Double-click the
RPC
folder.
c
Refer to the
RPC_User’s_Guide.pdf
for how to install and use the Remote Printer Console.
3
3
47
4
Control Panel
4
LEDs (Light Emitting Diodes)
This section refers to three LEDs
Toner
,
Drum
and
Error
, and a dual function
Ready
LED &
Go
button on the control panel.
4
1
2
3
4
1
Toner LED
The Toner LED indicates when the Toner is low or at the end of its life.
2
Drum LED
The Drum LED indicates when the Drum is nearing the end of its life.
3
Error LED
The Error LED indicates when the printer is in one of the following states:
No paper / Paper jam / Cover open
4
Ready LED
The Ready LED will flash depending on the printer status.
Go button
Wake-up / Error recovery / Form feed / Job Cancel / Reprint
4
The LED indications shown in the table below are used in the illustrations in this chapter.
LED is off.
or
LED is on.
or or
The LED is dimmed.
LED is blinking.
or or
48
LED
Control Panel
Printer status
Off
The power switch is off.
Sleep mode
The printer is in sleep mode. Pressing the
Go
button wakes up the printer from sleep mode to ready mode.
4
Ready to print
The printer is ready to print.
49
LED
Control Panel
Printer status
Warming up
The printer is warming up.
Cooling down
The printer is cooling down. Wait for a few seconds until the inside of the printer has cooled down.
Receiving data
The printer is either receiving data from the computer, processing data in memory or printing the data.
Data remaining in memory
There is remaining print data in the printer memory. If the
Ready
LED is blinking for a long time and nothing has printed, press the
Go
button to print the remaining data in the memory.
4
Toner low
Indicates that the toner cartridge is nearly empty. Buy a new toner cartridge and have it ready for when
Toner life end
is indicated.
The
Toner
LED will turn on for 2 seconds and off for 3 seconds.
Toner life end
Replace the toner cartridge with a new one. See
Cartridge error
The drum unit assembly is not installed correctly. Take the drum unit out of the machine and put it back in.
50
LED
Control Panel
Printer status
Drum life end soon
The drum unit is near the end of its life. We recommend that you get a new drum unit to replace the current one. See
The
Drum
LED will turn on for 2 seconds and off for 3 seconds.
4
No paper fed tray1
Put paper in the tray. Then press the
Go
button. See
Printing on plain paper and transparencies
No paper fed manual feed slot
Put paper in the manual feed slot. See
Printing on plain paper and transparencies
Printing on thick paper, labels and envelopes
Front cover is open
Close the front cover of the printer.
Fuser cover is open
Close the fuser cover located behind the back cover of the printer.
Paper jam
Clear the paper jam. See
Paper jams and how to clear them
does not start printing, press the
Go
button.
Memory full
The printer memory is full and the printer cannot print full pages of a document. See
Print overrun
A print overrun occurred and the printer cannot print full pages of a document. See
51
LED
Control Panel
Printer status
Drum error
The corona wire needs to be cleaned. See
If your LED's still shows the same error indication after you have cleaned the corona
wire, replace the drum unit with a new one. See
4
52
Control Panel
Service call indications
If there is an error that cannot be cleared by the user, the printer will show that a service call is needed by lighting up all the LEDs as shown below.
4
4
If you see the service call indication shown above, turn off the power switch, and then turn it back on and try to print again.
If the error remains after switching the printer back on, press the
Go
button and make a note of the LED's that remain lit and report the error status (as shown in the table below) to your dealer or Brother Customer Service.
LED indications while pressing the Go button
LEDs Main PCB failure Fuser unit
Toner
Laser unit failure Main motor failure
High voltage failure
Drum
Error
Ready
1
If this error occurs, turn off the printer power switch, wait a few seconds, and then turn it on again. Leave the printer for 10 minutes with the power on. If the error occurs again, call your dealer or Brother Customer Service.
53
Control Panel
For example, the LED indication below shows a fuser unit failure.
Brother Customer Service.
Note
Make sure that the front cover is completely closed before you report a service call.
4
54
Control Panel
Go button
The
Go
button has the following functions:
Cancel printing
Cancel only the printing job:
While printing press the
Go
button for about 4 seconds until all the LEDs light up. The
Ready
and
Error
LEDs will flash as the job is being canceled.
Cancel all the received jobs:
To delete all jobs, press the
Go
button for about 4 seconds until all the LEDs light up and then release it.
Press the
Go
button again. The
Ready
and
Error
LEDs will flash as the job is being canceled.
Wake-up
If the printer is in sleep mode, press the
Go
button to wake the printer up and go to the Ready state.
Error recovery
If there is an error, the printer will recover automatically from some errors. If an error is not automatically cleared, press the
Go
button to clear the error, and then continue to use the printer.
Form feed
If the blue
Ready
LED blinks for a long time, press the
Go
button. The printer will print any data that is left in the printer’s memory.
Reprint
To reprint the last document, press the
Go
button for about 4 seconds until all the LEDs light up and then release it. Within 2 seconds press the
Go
button the number of times you want to reprint. If you don’t press the
Go
button within 2 seconds, a single copy will be printed.
If you want to use the reprint function open the driver's
Properties
dialog box and go to the Advanced tab, select the
Device options
icon and click
Job Spooling
and then check the
Use Reprint
check box. See
4
4
55
Control Panel
Print a test page
You can use the
Go
button or the printer driver to print a test page.
Using the Go button
a
Turn off the printer.
b
Make sure that the front cover is closed and the power cord is plugged in.
c
Hold down the
Go
button as you turn on the power switch. Keep the
Go
button pressed down until the
Toner
,
Drum
and
Error
LEDs light up. Release the
Go
button. Make sure that the
Toner
,
Drum
and
Error
LEDs are off.
d
Press the
Go
button again. The printer will print a test page.
4
Using the printer driver
If you are using the Windows
®
printer driver, click the
Print Test Page
button in the
General
tab of the printer driver.
4
4
4
56
Control Panel
Print a Printer Settings page
You can print the current settings using the control panel button or printer driver.
Using the Go button
a
Make sure that the front cover is closed and the power cord is plugged in.
b
Turn on the printer and wait until the printer is in the Ready state.
c
Press the
Go
button three times within 2 seconds. The printer will print the current printer settings page.
4
Using the printer driver
If you are using the Windows
®
printer driver, you can print the current printer settings page by clicking the
Print Settings
button in the
Support
tab.
4
4
4
57
Control Panel
Print Fonts (HL-2150N / HL-2170W only)
You can print a list of the internal fonts using the control panel button or printer driver.
Using the Go button
a
Turn off the printer.
b
Make sure that the front cover is closed and the power cord is plugged in.
c
Hold down the
Go
button as you turn on the power switch. Keep the
Go
button pressed down until the
Toner
,
Drum
and
Error
LEDs light up. Release the
Go
button. Make sure that the
Toner
,
Drum
and
Error
LEDs are off.
d
Press the
Go
button twice. The printer will print a list of the internal fonts.
4
Using the printer driver
If you are using the Brother’s Windows
®
printer driver, you can print a list of the internal fonts by clicking the
Print Fonts
button in the
Support
tab.
4
4
4
58
Control Panel
Network default settings (HL-2150N / HL-2170W only)
If you want to reset the print server back to its default settings (resetting all information such as the password and IP address information), follow these steps:
4
Using the Go button
a
Turn off the printer.
b
Make sure that the front cover is closed and the power cord is plugged in.
c
Hold down the
Go
button as you turn on the power switch. Keep the
Go
button pressed down until the
Toner
,
Drum
and
Error
LEDs light up. Release the
Go
button. Make sure that the
Toner
,
Drum
and
Error
LEDs are off.
d
Press the
Go
button seven times. Make sure that all the LEDs light up to indicate the print server has been reset to its default settings.
4
4
59
5
Routine Maintenance
5
You will need to replace certain parts and clean the printer regularly.
WARNING
When you replace certain parts or clean the inside of the printer, remember the following:
• If your clothes are smeared with toner, wipe off the toner with a dry cloth and immediately wash the clothes in cold water to avoid stains.
• Be careful not to inhale toner.
• After you have just used the printer, some internal parts of the printer will be extremely hot. When you open the front cover or back cover (back output tray) of the printer, DO NOT touch the shaded parts shown in the illustration. If you do this, you may get burned.
5
Replacing the consumable items
You will need to replace the consumable items when the machine indicates that the life of the consumable is over.
5
Consumables
5
Toner cartridge Drum unit
See
Order No. TN-330, TN-360
Order No.DR-360
60
Routine Maintenance
Toner cartridge
2
3
1
The life of the original toner cartridge that came with the printer may be either a starter
toner cartridge, and depends on the model and country you bought the printer in.
The starter toner cartridge will print approximately 1,000 A4 or Letter-size single-sided pages. Approx. cartridge yield is declared in accordance with ISO/IEC 19752.
Standard toner cartridges print approximately 1,500 A4 or Letter-size single-sided pages. Approx. cartridge yield is declared in accordance with
ISO/IEC 19752.
High yield toner cartridges print approximately 2,600 A4 or Letter-size single-sided pages. Approx. cartridge yield is declared in accordance with
ISO/IEC 19752.
Note
• The amount of toner used varies according to what is printed on the page and the print density setting.
• If you change the print density setting for lighter or darker printing, the amount of toner used will change.
• Wait to unpack the toner cartridge until immediately before you put it into the printer.
Toner Low message
The
Toner
LED will turn on for 2 seconds and off for 3 seconds and repeats this pattern.
5
5
5
If the LED shows this message, the printer has nearly run out of toner and will continue to print until it has reached the end of its life. Buy a new toner cartridge and have it ready before you get a
Toner Life End
message. To replace the toner cartridge, see
Note
The
Toner
LED will blink continuously if the toner cartridge is nearly empty.
61
Toner Life End message
The printer will stop printing until you replace the toner cartridge with a new one.
Routine Maintenance
5
Replacing the toner cartridge
Note
• To ensure high quality printing, we recommend that you use only genuine Brother toner cartridges. When you want to buy toner cartridges, call your dealer or Brother Customer Service.
• We recommend that you clean the printer when you replace the toner cartridge. See
a
Make sure that the printer is turned on. Open the front cover.
5
5
b
Take out the drum unit and toner cartridge assembly.
62
Routine Maintenance
CAUTION
We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.
To prevent damage to the printer from static electricity, DO NOT touch the electrodes shown in the illustration.
5
c
Push down the green lock lever and take the toner cartridge out of the drum unit.
WARNING
DO NOT put a toner cartridge into a fire. It could explode, resulting in injuries.
DO NOT use flammable substances, any type of spray an organic solvent/liquids contains alcohol or ammonia to clean the inside or outside of the printer. Doing this may cause a fire or electrical shock. See
on page 73 for how to clean the printer.
63
Routine Maintenance
CAUTION
Handle the toner cartridge carefully. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.
To avoid print quality problems, DO NOT touch the shaded parts shown in the illustrations.
5
Note
• Be sure to seal up the toner cartridge tightly in a suitable bag so that toner powder does not spill out of the cartridge.
• Go to http://www.brother-usa.com/environment/ for instructions on how to return the used toner cartridge to the brother collection program. If you choose not to return your used toner cartridge, please discard the used toner cartridge according to local regulations, keeping it separate from domestic waste. If you have questions, call your local waste disposal office.
d
Unpack the new toner cartridge. Hold the cartridge level with both hands and gently rock it from side to side five or six times to spread the toner evenly inside the cartridge.
64
Routine Maintenance
CAUTION
Wait to unpack the toner cartridge until immediately before you put it in the printer. If toner cartridges are left unpacked for a long time the toner life will be shortened.
If an unpacked drum unit is put in direct sunlight or room light, the unit may be damaged.
Put the toner cartridge in the drum unit immediately after you have removed the protective cover. To prevent any degradation to the print quality, DO NOT touch the shaded parts shown in the illustrations.
5
CAUTION
For USA and Canada
Brother strongly recommends that you do not refill the toner cartridge provided with your printer. We also strongly recommend that you continue to use only genuine Brother brand replacement toner cartridges. Use or attempted use of potentially incompatible toner and/or cartridges in the Brother machine may cause damage to the machine and/or may result in unsatisfactory print quality. Our warranty coverage does not apply to any problem that is caused by the use of unauthorized third party toner and/or cartridges. To protect your investment and obtain premium performance from the Brother machine, we strongly recommend the use of genuine Brother supplies.
65
Routine Maintenance
CAUTION
For UK and other countries
Brother machines are designed to work with toner of a particular specification and will work to a level of optimum performance when used with genuine Brother branded toner cartridges. Brother cannot guarantee this optimum performance if toner or toner cartridges of other specifications are used. Brother does not therefore recommend the use of cartridges other than genuine Brother branded cartridges with this machine.
If damage is caused to the drum unit or other part of this machine as a result of using other manufacturer’s products with this machine, any repairs required as a result may not be covered by the warranty.
5
e
Pull off the protective cover.
f
Put the new toner cartridge firmly into the drum unit until you hear it lock into place. If you put it in properly, the lock lever will lift automatically.
CAUTION
Make sure that you put in the toner cartridge properly or it may separate from the drum unit.
66
Routine Maintenance g
Clean the primary corona wire inside the drum unit by gently sliding the green tab from right to left and left to right several times.
1
CAUTION
Be sure to return the tab to the home position ( a
) (1). If you do not, printed pages may have a vertical stripe.
5
h
Put the drum unit and toner cartridge assembly back in the printer. Close the front cover.
CAUTION
DO NOT turn off the printer power switch or open the front cover until the
Ready
LED lights up.
67
Routine Maintenance
Drum unit
A new drum unit can print approximately 12,000 A4 or Letter size single-sided pages at 1 per/ job.
Note
• There are many factors that determine the actual drum life, such as the temperature, humidity, type of paper, type of toner used, number of pages per print job and so on. Under ideal conditions, the average drum life is estimated at approximately 12,000 pages. The actual number of pages that your drum will print may be significantly less than this estimate. Because we have no control over the many factors that determine the actual drum life, we cannot guarantee a minimum number of pages that will be printed by your drum.
• For best performance, use only genuine Brother toner. The printer should be used only in a clean, dustfree environment with adequate ventilation.
• Printing with a third-party drum unit may reduce not only the print quality but also the quality and life of the printer itself. Warranty coverage does not apply to problems caused by the use of a third-party drum unit.
Change Drum message
The
Drum
LED will turn on for 2 seconds and off for 3 seconds and repeats this pattern.
5
5
5
If the LED shows the message, it means the drum unit is near the end of its life. We recommend that you replace the drum unit with a new one before there is a noticeable deterioration in the print quality.
68
Routine Maintenance
Replacing the drum unit
CAUTION
While removing the drum unit, handle it carefully because it may contain toner.
Every time you replace the drum unit, clean the inside of the printer. See
When you replace the drum unit with a new one, you need to reset the drum counter by completing the following steps: a
Make sure that the printer is turned on and the
Drum
LED is blinking. Open the front cover.
5
5
b
Press and hold down the white
Go
button for about 4 seconds until all the LEDs light up. Once all four
LEDs are lit, release the
Go
button.
Improper Setup
Do not reset the drum counter when you only replace the toner cartridge.
69
Routine Maintenance c
Take out the drum unit and toner cartridge assembly.
CAUTION
We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.
To prevent damage to the printer from static electricity, DO NOT touch the electrodes shown in the illustration.
5
d
Push down the green lock lever and take the toner cartridge out of the drum unit.
70
Routine Maintenance
CAUTION
Handle the toner cartridge carefully. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.
To avoid print quality problems, DO NOT touch the shaded parts shown in the illustrations.
5
Note
• Be sure to seal up the drum unit tightly in a suitable bag so that toner powder does not spill out of the unit.
• Go to http://www.brother-usa.com/environment/ for instructions on how to return the used toner cartridge to the brother collection program. If you choose not to return your used toner cartridge, please discard the used toner cartridge according to local regulations, keeping it separate from domestic waste. If you have questions, call your local waste disposal office.
e
Unpack the new drum unit.
CAUTION
Wait to unpack a drum unit until immediately before you put it in the printer. Exposure to direct sunlight or room light may damage the drum unit.
f
Put the toner cartridge firmly into the new drum unit until you hear it lock into place. If you put the cartridge in properly, the green lock lever will lift automatically.
71
Routine Maintenance
CAUTION
Make sure that you put in the toner cartridge properly, or it may separate from the drum unit.
g
Put the drum unit and toner cartridge assembly back in the printer.
5
h
Close the front cover.
i
Make sure that the
Drum
LED is now off.
72
Routine Maintenance
Cleaning
Clean the outside and inside of the printer regularly with a dry, lint-free cloth. When you replace the toner cartridge or the drum unit, make sure that you clean the inside of the printer. If printed pages are stained with toner, clean the inside of the printer with a dry, lint-free cloth.
5
Cleaning the outside of the printer
5
WARNING
Use neutral detergents.
DO NOT use cleaning materials that contain ammonia, alcohol, any type of spray, or any type of flammable substance to clean the outside or inside of the machine. Doing this may cause a fire or electrical shock.
5
a
Turn off the printer power switch and then unplug the printer.
b
Pull the paper tray completely out of the printer.
73
c
Wipe the outside of the printer with a dry, lint-free cloth to remove dust.
Routine Maintenance d
Remove anything that is stuck inside the paper tray.
e
Wipe the inside of the paper tray with a dry, lint-free cloth to remove dust.
f
Put the paper tray back in the printer.
g
Plug the printer back in, and then turn on the power switch.
Cleaning the inside of the printer
a
Turn off the printer power switch and then unplug the printer.
b
Open the front cover.
5
5
74
Routine Maintenance c
Take out the drum unit and toner cartridge assembly.
HOT SURFACE
After you have just used the printer, some internal parts of the printer will be extremely hot. Wait for the printer to cool down before you touch the internal parts of the printer.
5
CAUTION
We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.
Handle the toner cartridge carefully. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.
To prevent damage to the printer from static electricity, DO NOT touch the electrodes shown in the illustration.
75
d
Wipe the scanner window with a dry, lint-free cloth.
Routine Maintenance
5
e
Put the drum unit and toner cartridge assembly back in the printer.
f
Close the front cover.
g
Plug the printer back in, and then turn on the power switch.
76
Cleaning the corona wire
If you have print quality problems, clean the corona wire as follows: a
Open the front cover.
Routine Maintenance
5
5
b
Take out the drum unit and toner cartridge assembly.
CAUTION
We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.
To prevent damage to the printer from static electricity, DO NOT touch the electrodes shown in the illustration.
77
Routine Maintenance c
Clean the primary corona wire inside the drum unit by gently sliding the green tab from right to left and left to right several times.
1
CAUTION
Be sure to return the tab to the home position ( a
) (1). If you do not, printed pages may have a vertical stripe.
5
d
Put the drum unit and toner cartridge assembly back in the printer. Close the front cover.
78
6
Troubleshooting
6
You can correct most problems by yourself. If you need additional help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips. Visit us at http://solutions.brother.com.
Identifying your problem
First, check the following:
The AC power cord is connected properly and the printer is turned on.
All of the protective parts have been removed.
The toner cartridges and drum unit are installed properly.
The front cover and fuser cover are fully closed.
Paper is inserted properly in the paper tray.
The interface cable is securely connected to the printer and the computer.
The correct driver for the printer has been chosen and is installed.
The computer is set up to connect to the correct printer port.
Printer does not print:
If you did not solve your problem with the above checks, identify your problem and then go to the page suggested below.
Printer LED is blinking
See
Status Monitor Error Message appears
See
Error messages in the Status Monitor
Printer printed an Error Message
See
Paper handling
(See
Paper jams and how to clear them
Other problems
(See
Pages are printed, but there are problems with:
Print quality
(See
Printout is incorrect
(See
6
6
6
6
6
79
Troubleshooting
Error messages in the Status Monitor
The Status Monitor will report problems with the printer. Take the proper action by referring to the following table.
If you want to turn the status monitor on, follow these steps:
For Windows
®
users
Click the
Start
button,
, your printer (e.g Brother
HL-2140
), and then
Status Monitor
.
1
Programs
for Windows
®
2000 users
For Macintosh
®
users (Mac OS
®
X 10.3 or greater only)
6
Error message
Cover is Open
Memory Full
Print Overrun
No Paper Fed Tray 1
Action
Close the front cover of the printer.
Press the
Go
button to print the remaining data in the printer memory. Cancel the print job if you want to delete the remaining data in the printer memory. See
Reduce the complexity of your document or cut the print resolution.
Press the
Go
button to print the remaining data in the printer memory. Cancel the print job if you want to delete the remaining data in the printer memory. See
If this does not clear the error, reduce the complexity of your document or cut the print resolution.
(HL-2150N / HL-2170W only)
Change the following settings in the supplied Windows
®
driver and try again. The best combination of these settings will vary depending on your document:
• Graphics mode
• TrueType mode
• Use Printer TrueType
®
Fonts
1
Choose the
Advanced
tab, click the Print Quality icon, and then choose
Manual
in
Print Setting
and click the
Setting...
button.
The paper tray may be out of paper or not properly installed. If it is empty, put a new stack of paper in the paper tray and then press the
Go
button.
If there is paper in the paper tray, make sure it is straight. If the paper is curled, straighten it before printing. Sometimes it is helpful to remove the paper, turn the stack over and put it back in the paper tray.
Cut the amount of paper in the paper tray, and then try again.
Make sure you use paper that meets Brother’s recommended paper specifications. See
Load the same size paper that you selected in the current driver setting.
6
80
Troubleshooting
Error message
No Paper Fed Manual Slot
Action
If the manual feed slot is empty, put a piece of paper in it.
Make sure you use paper that meets Brother’s recommended paper specifications. See
Load the same size paper that you selected in the current driver setting.
Clear the jammed paper from the indicated area. See
Paper jams and how to clear them
Paper Jam Tray 1
Paper Jam Inside
Paper Jam Rear
Toner Life End
Toner Low
Cartridge Error
Fuser Cover is Open
Drum Life End Soon
Drum Error
Service Call
See
Buy a new toner cartridge and have it ready for when the
Toner Life End
status is indicated.
Make sure the drum unit and toner cartridge assembly is installed properly.
Close the fuser cover located behind the back cover of the printer.
The drum unit is near the end of its life. Buy a new drum unit to replace the current one. See
See
If your LED's still shows the same error indication after you have cleaned the corona wire, replace the drum unit with a new one. See
Check the LED indication to identify the error. See
6
81
Troubleshooting
Error message printout
The printer can also report problems by printing an error message. Use the table below to identify and clear the error message.
6
Error message
Memory Full
Print Overrun
Resolution reduced to enable printing
(The printer has printed the document at a reduced resolution)
Action
Press the
Go
button to print the remaining data in the printer memory. Cancel the print job if you want to delete the remaining data in the printer memory. See
Reduce the complexity of your document or reduce the print resolution.
Press the
Go
button to print the remaining data in the printer memory. Cancel the print job if you want to delete the remaining data in the printer memory. See
If this does not clear the error, reduce the complexity of your document or reduce the print resolution.
(HL-2150N / HL-2170W only)
Change the following settings in the supplied Windows
®
driver and try again. The best combination of these settings will vary depending on your document:
• Graphics mode
• TrueType mode
• Use Printer TrueType
®
Fonts
1
Choose the
Advanced
tab, click the Print Quality icon, and then choose
Manual
in
Print Setting
and click the
Setting...
button.
Reduce the complexity of your document before you print to prevent automatic reduction in the resolution.
6
82
Troubleshooting
Paper handling
First, make sure that you are using paper that meets Brother’s recommended paper specifications. (See
6
Problem
The printer does not feed paper.
The printer does not feed paper from the manual feed slot.
The printer does not feed envelopes.
A paper jam has occurred.
The printer does not print.
When printing on normal paper, it creases.
The paper slides off the top output tray.
Recommendation
If there is paper in the paper tray, make sure it is straight. If the paper is curled, flatten it before printing. Sometimes it is helpful to remove the paper. Turn the stack over and put it back in the paper tray.
Reduce the amount of paper in the paper tray, and then try again.
Make sure that manual feed mode is not chosen in the printer driver.
Fan the paper well and put it back in firmly.
Make sure that you have chosen the manual feed slot in the Paper Source of the printer driver.
The printer can feed envelopes from the manual feed slot. You must set up your application to print on the size of envelopes you are using. This is usually done in the page setup or document setup menu of your software. (See your application manual.)
Paper jams and how to clear them
Make sure that the cable is connected to the printer.
Make sure that you have chosen the correct printer driver.
Change the printer driver setting in
Media Type
to a thin setting.
Lift up the output tray support flap 1 (1).
6
1
83
Troubleshooting
Problem
The paper slides off the back output tray.
Recommendation
Follow these steps: a
Remove the output tray support flap 1 (1) from the top of the printer by first lifting the flap up.
Then push the flap to the left or right to release one of the posts (2) on the flap and pull up.
1
2 b
Attach the support flap 1 (1) to the back output tray by inserting the posts of the support flap one at a time into the holes of the back output tray.
1
6
84
Paper jams and how to clear them
If a paper jam occurs, the printer will flash the Error LED as shown below.
Troubleshooting
6
HOT SURFACE
After you have just used the printer, some internal parts of the printer will be extremely hot. When you open the front cover or back cover (back output tray) of the printer, DO NOT touch the shaded parts shown in the illustration. If you do this, you may get burned.
6
Clear the jammed paper as follows.
If the jammed paper is removed completely by following the steps below, you can install the paper tray first, and then close the front cover. The printer will resume printing automatically.
If the printer does not start printing automatically, press the
Go
button. If the printer still does not start printing, check that all the remaining jammed paper has been removed from the printer. Then try printing again.
85
Troubleshooting
Note
• Always remove all paper from the paper tray and straighten the stack when you add new paper. This helps prevent multiple sheets of paper from feeding through the printer at one time and prevents paper jams.
• Please confirm that you have installed both a toner cartridge and a drum unit in the machine. If you have not installed a drum unit or have installed the drum unit improperly, then this may cause a paper jam in your Brother machine.
a
Open the front cover.
b
Slowly take out the drum unit and toner cartridge assembly. The jammed paper will be pulled out with the drum unit and toner cartridge assembly.
6
CAUTION
We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.
To prevent damage to the printer caused by static electricity, DO NOT touch the electrodes shown in the illustration.
86
c
Close the front cover.
Note
Do not put the drum unit and toner cartridge assembly back in at this point.
d
Pull the paper tray completely out of the printer.
Troubleshooting
6
e
Pull the jammed paper down and out of the printer.
f
Open the back cover (back output tray).
87
Troubleshooting g
Pull the tab toward you to open the fuser cover (1).
h
Pull the jammed paper out of the fuser unit.
1
HOT SURFACE
After you have just used the printer, some internal parts of the printer will be extremely hot. Wait for the printer to cool down before you touch the internal parts of the printer.
6
i
Close the back cover (back output tray).
88
Troubleshooting j
Push down the green lock lever and take the toner cartridge out of the drum unit. Clear the jammed paper if there is any inside the drum unit.
CAUTION
Handle the toner cartridge carefully. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.
To avoid print quality problems, DO NOT touch the shaded parts shown in the illustrations.
6
89
Troubleshooting k
Put the toner cartridge back into the drum unit until you hear it lock into place. If you put the cartridge in properly, the green lock lever will lift automatically.
l
Open the front cover. Put the drum unit and toner cartridge assembly back in the printer.
6
m
Put the paper tray firmly back in the printer.
n
Close the front cover.
o
Make sure that the
Error
LED is now off.
90
Troubleshooting
Improving the print quality
If you have a print quality problem, print a test page first (see
looks good, the problem is probably not the printer. Check the interface cable or try the printer on another computer.
This section gives information on the following topics.
6
Examples of poor print quality
Faint
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
Gray background
Recommendation
Check the printer’s environment. Conditions such as humidity, high temperatures, and so on, may cause this print fault. See
If the whole page is too light,
Toner Save Mode
may be on. Turn off
Toner Save
Mode
in the printer
Properties
tab of the driver.
Put in a new toner cartridge. See
Put in a new drum unit. See
You may clear the problem by wiping the scanner window with a soft cloth. See
Cleaning the inside of the printer
Make sure that you use paper that meets our specifications. See
Check the printer’s environment. Conditions such as high temperatures and high humidity can increase the amount of background shading. See
Put in a new toner cartridge. See
Put in a new drum unit. See
Make sure that you use paper that meets our specifications. Rough-surfaced
paper or thick print media may cause this problem. See
Make sure that the media type setting in the driver matches the type of paper you are using. See
Put in a new drum unit. See
The fuser unit may be contaminated. Call Brother Customer Service.
6
Ghost
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
Toner specks
Make sure that you use paper that meets our specifications. Rough-surfaced
paper may cause the problem. See
The drum unit may be damaged. Put in a new drum unit. See
The fuser unit may be contaminated. Call Brother Customer Service.
91
Troubleshooting
Examples of poor print quality
Hollow print
Recommendation
Make sure that you use paper that meets our specifications. See
Choose
Thick paper
mode in the printer driver, or use thinner paper than what you are now using.
Check the printer’s environment. Conditions such as high humidity can cause hollow print. See
The drum unit may be damaged. Put in a new drum unit. See
Clean the primary corona wire inside the drum unit by sliding the green tab. Be sure to return the green tab to the home position ( a
). See
The drum unit may be damaged. Put in a new drum unit. See
The fuser unit may be contaminated. Call Brother Customer Service.
6
All black
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
White lines across the page
Make sure that you use paper that meets our specifications. A rough surfaced paper or thick print media can cause problems.
Make sure that you choose the correct media type in the printer driver.
The problem may disappear by itself. Print multiple pages to clear this problem, especially if the printer has not been used for a long time.
The drum unit may be damaged. Put in a new drum unit. See
Clean the inside of the printer and the primary corona wire in the drum unit. See
The drum unit may be damaged. Put in a new drum unit. See
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
Lines across the page
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
White lines down the page
Make sure that a torn piece of paper is not inside the printer covering the scanner window.
Wipe the scanner window with a soft cloth. See
Cleaning the inside of the printer
The toner cartridge may be damaged. Put in a new toner cartridge. See
The drum unit may be damaged. Put in a new drum unit. See
92
Troubleshooting
Examples of poor print quality
75 mm
(2.95 in.)
75 mm
(2.95 in.)
Recommendation
If the problem is not solved after printing a few pages, the drum unit may have glue from a label stuck on the OPC drum surface.
Clean the drum unit as follows:
a
Put the print sample in front of the drum unit, and find the exact position of the poor print.
6
White Spots on black text and graphics at 75 mm
(2.95 in.) intervals
6
75 mm
(2.95 in.)
75 mm
(2.95 in.) b
Turn the drum unit gear by hand while looking at the surface of the OPC drum (1).
1
Black Spots at 75 mm
(2.95 in.) intervals
c
When you have found the mark on the drum that matches the print sample, wipe the surface of the OPC drum with a dry cotton swab until the dust or glue on the surface comes off.
CAUTION
DO NOT clean the surface of the photosensitive drum with a sharp object.
The drum unit may be damaged. Put in a new drum unit. See
93
Troubleshooting
Examples of poor print quality
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
Black toner marks across the page
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
Black lines down the page
Printed pages have toner stains down the page.
Recommendation
The drum unit may be damaged. Put in a new drum unit. See
The toner cartridge may be damaged. Put in a new toner cartridge. See
Make sure that you use paper that meets our specifications. See
If you use label sheets for laser printers, the glue from the sheets may sometimes
stick to the OPC drum surface. Clean the drum unit. See page 93.
Do not use paper that has clips or staples because they will scratch the surface of the drum.
If the unpacked drum unit is in direct sunlight or room light, the unit may be damaged.
Clean the corona wire inside the drum unit by sliding the green tab. See
Make sure the primary corona wire cleaner is at the home position ( a
).
The drum unit may be damaged. Put in a new drum unit. See
The toner cartridge may be damaged. Put in a new toner cartridge. See
The fuser unit may be smudged. Call your dealer or Brother Customer Service.
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
Page skewed
Make sure that the paper or other print media is loaded properly in the paper tray and that the guides are not too tight or too loose against the paper stack.
Set the paper guides correctly. See
Printing on plain paper and transparencies from the paper tray
If you are using the manual feed slot, see
Printing on plain paper, bond paper or transparencies from the Manual feed slot
The paper tray may be too full. See
Printing on plain paper and transparencies from the paper tray
Check the paper type and quality. See
Check the paper type and quality. High temperatures and high humidity will cause paper to curl. See
If you do not use the printer often, the paper may have been in the paper tray too long. Turn over the stack of paper in the paper tray. Also, fan the paper stack and then rotate the paper 180
°
in the paper tray.
6
Curled or wavy
94
Troubleshooting
Examples of poor print quality
B DEFGH abc efghijk
A C D b c d e
1 3 4
Wrinkles or creases
ABCDEFGH abcdefghijk
A B C D a b c d e
0 1 2 3 4
Poor fixing
Recommendation
Make sure that the paper is loaded properly. See
Printing on plain paper and transparencies from the paper tray
Check the paper type and quality. See
Turn over the stack of paper in the tray or try rotating the paper 180
°
in the input tray.
Choose
Improve Toner Fixing
mode in the printer driver. See
Improve Print
Output
®
®
).
If you print only a few pages, change the printer driver setting in
Media Type
to a thin setting.
6
95
Examples of poor print quality
Troubleshooting
Recommendation
Turn the paper over in the paper tray, and print again. (Excluding Letterhead paper) If the problem remains, lift up the support flaps as follows: a
Lift up the output tray support flap 1 (1).
1
Curled
6
b
Lift up the output tray support flap 2 (2).
2 c
Fold down the output tray support flap 1 (1) and fold down the output tray support flap 2 (2).
1
2
Choose Reduce Paper Curl mode in the printer driver when you do not use our recommended paper. See Improve Print Output in
Windows
®
®
).
96
Troubleshooting
Solving print problems
6
Problem
The printer prints unexpectedly or it prints garbage data.
The printer cannot print full pages of a document. An error message appears.
Memory Full
The printer cannot print full pages of a document. An error message appears.
Print Overrun
The headers or footers appear when the document displays on the screen but they do not show up when it is printed.
Recommendation
Make sure that the printer cable is not too long. We recommend that you use a
USB cable that is no longer than 2 meters (6.5 feet).
Make sure that the printer cable is not damaged or broken.
If you are using an interface-switching device, remove it. Connect your computer directly to your printer, and then try again.
Make sure that you have chosen the correct printer driver with ‘Set as Default
Printer’.
Make sure that the printer is not connected to the same port that is also connected to a storage device or scanner. Take away all other devices and connect the port only to the printer.
Turn off the
Status Monitor
.
Press the
Go
button to print the remaining data in the printer memory. Cancel the
print job if you want to delete the remaining data in the printer memory. (See
Reduce the complexity of your document or reduce the print resolution.
Press the
Go
button to print the remaining data in the printer memory. Cancel the
print job if you want to delete the remaining data in the printer memory. See
If this does not clear the error, reduce the complexity of your document or cut the print resolution.
(HL-2150N / HL-2170W only)
Change the following settings in the supplied Windows
®
driver and try again. The best combination of these settings will vary depending on your document:
• TrueType mode
• Use Printer TrueType
®
1
Choose the
Advanced
tab, click the Print Quality icon, and then choose
Manual
in
Print Setting
and click the
Setting...
button.
Adjust the top and bottom margins of your document.
6
97
Troubleshooting
Network problems
(
HL-2150N
/
HL-2170W
only)
1
For problems concerning using your printer on a Network, see the Network User’s Guide on the CD-ROM we have supplied. Click
Documentation
on the menu screen.
The Network User’s Guide in HTML format will be installed automatically when you install the driver. Click the
Start
button,
, your printer, and then User’s Guide.
You can also view the manuals in PDF format by accessing the Brother Solutions Center
(http://solutions.brother.com).
Programs
for Windows
®
2000 users
6
Other problems
For Macintosh
®
with USB
6
6
6
Problem
The printer does not appear in
Print Center
(Mac OS
®
X 10.2) or
Print Setup Utility
(Mac
OS
®
X 10.3 or greater).
Unable to print from the application.
Recommendation
Make sure that the printer is turned on.
Make sure that the USB interface cable is connected correctly.
Make sure the printer driver is installed correctly.
Make sure that the supplied Macintosh
(Mac OS
®
X 10.3 or greater).
®
printer driver is installed in the
Hard Disk
and that it is chosen with
Print Center
(Mac OS
®
X 10.2) or
Print Setup Utility
98
A
Appendix
Printer specifications
Engine
1
2
3
Model
Technology
Linux
HL-2140
Electrophotographic
HL-2150N HL-2170W
Print speed
Up to 22 ppm (A4 size)
First print time
Resolution
Windows
®
2000/XP/
XP Professional x64
Edition,
Windows Vista
®
,
Windows Server
®
2003/
Windows Server
®
2003 x64 Edition
DOS
Mac OS greater
®
X 10.2.4 or
Less than 10 sec
HQ1200
600 dpi
300 dpi
N/A
HQ1200
600 dpi
600 dpi
300 dpi
600 dpi
300 dpi
The printing speed may change depending on the type of document you print.
Print speed may be slower when the printer is connected by wireless LAN (HL-2170W only).
From standard paper tray.
A
A
A
A
99
Appendix
Controller
Model
Processor
Memory
Interface
Network
Connectivity
Emulation
Resident fonts
Protocols
Management tool
PCL
HL-2140
181MHz
8 MB
N/A
N/A
GDI
N/A
HL-2150N HL-2170W
16 MB
,
10BASE-T/100BASE-
TX Ethernet
32 MB
,
10BASE-T/100BASE-
TX Ethernet,
Wireless LAN IEEE
802.11b/g
TCP/IP (Standard 10/100BASE-TX Ethernet)
Web BRAdmin
Web Based Management
PCL6
49 scalable fonts, 12 bitmap fonts, 11 bar codes
5
6
7
3
4
1
2
Compatible with USB 2.0 specification
See the Network User's Guide locator on the CD-ROM for details on the supported network protocols.
Brother original Windows
®
and Macintosh
®
utility for printer and print server management. Install from the supplied CD-ROM.
Brother original Windows
®
utility for printer and print server management. It has more functions than BRAdmin Light. Download from http://solutions.brother.com.
Server based management utility. Download from http://solutions.brother.com.
Printer and print server management through Web Based Management (Web browser).
Code39, Interleaved 2 of 5, EAN-8, EAN-13, UPC-A, UPC-E, EAN-128, Codabar, FIM (US-PostNet), ISBN, Code128
A
A
100
Appendix
Software
A
Model
Printer driver
Utilities
Windows
®
Macintosh
Linux
®
HL-2140
GDI printer driver for
Windows
®
2000/XP/XP
Professional x64 Edition,
Windows Vista
®
,
Windows Server
®
2003/Windows Server
®
2003 x64 Edition
HL-2150N HL-2170W
PCL printer driver for Windows
®
2000/XP/XP
Professional x64 Edition, Windows Vista
®
, Windows
Server
®
2003/Windows Server
®
2003 x64 Edition
Macintosh printer driver for Mac OS
®
X 10.2.4 or greater
Linux driver for CUPS printing system (x86, x64 environment)
Linux driver for LPD/LPRng printing system (x86, x64 environment)
Driver Deployment Wizard
1
2
3
4
Download the printer driver for Linux from http://solutions.brother.com.
Depending on Linux distributions, the driver may not be available.
Instructional animations for problem solving.
The Driver Deployment Wizard automates the installation of printers in a peer-to-peer network (Windows
®
only).
Control panel
A
A
HL-2150N HL-2170W Model
LED
Button
Paper handling
HL-2140
4 LEDs
1 button
1
Model
Paper Input
Paper
Duplex
Manual feed slot
Paper tray
Face-down
Face-up
Calculated with 80 g/m2 (20 lb) paper
HL-2140
1 sheet
250 sheets
100 sheets
1 sheet
Manual Duplex
HL-2150N HL-2170W
A
101
Appendix
Media specifications
A
Model
Media types
Media weights
Manual feed slot
Paper tray
Manual feed slot
Paper tray
Media sizes
Manual feed slot
Paper tray (Standard)
HL-2140 HL-2150N HL-2170W
Plain paper, Bond paper, Recycled paper, Thin paper, Thick paper,
Envelopes, Labels, Transparencies
Plain paper, Recycled paper, Thin paper, Transparencies
60 to 163 g/m
2
(16 to 43 lb)
60 to 105 g/m
2
(16 to 28 lb)
Width: 76.2 to 220mm (3.0 to 8.66 in.)
Length: 116 to 406.4 mm (4.57 to 16 in.)
A4, Letter, Legal
, B5 (ISO), Executive, A5, A6, B6, Folio
1
2
Up to 10 sheets
Legal size paper is not available in some regions outside the USA and Canada.
Supplies
A
A
Model HL-2140 HL-2150N
Toner Cartridge
Drum Unit
Starter cartridge
Standard cartridge
High yield cartridge
Approx. 1,000 pages A4/Letter pages
Approx. 1,500 pages A4/Letter pages
Approx. 2,600 pages A4/Letter pages
Approx. 12,000 pages A4/Letter pages
(1 page / job)
1
Approx. cartridge yield is declared in accordance with ISO/IEC 19752.
HL-2170W
Dimensions / weights
Model
Dimensions (W
×
D
×
H)
Weights
HL-2140 HL-2150N
368
×
361
×
170.5 mm (14.5
×
14.2
×
6.7 in.)
Approx. 5.8 kg (12.8 lb)
HL-2170W
Order
No.
N/A
TN-330
TN-360
DR-360
A
102
Appendix
Other
Model
Power consumption
Noise level
Ecology
Sound Pressure
Sound power
Power save
Toner save
Printing
Standby
Sleep
Printing
Standby
Printing
Standby
HL-2140 HL-2150N
Average 460 W at 25
°
C (77
°
F)
Average 80 W at 25
°
C (77
°
F)
Average 5 W Average 7 W
51 dB (A)
30 dB (A)
LWAd = 6.7 Bell (A)
LWAd = 4.5 Bell (A)
Yes
Yes
1
We do not recommend Toner Save Mode for printing Photo or Gray Scale images.
Computer requirements
HL-2170W
Average 8 W
1
Computer Platform & Operating
System Version
Windows
System
®
Operating
Macintosh
Operating
System
®
Processor Minimum Speed
Windows
®
2000
Professional
Windows
®
XP Home
Edition
Windows
®
XP
Professional
Windows
®
XP
Professional x64
Edition
Windows Vista
®
Windows Server
®
2003
Windows Server
®
2003 x64 Edition
Mac OS
®
X 10.2.4 -
10.4.3
Mac OS
®
X 10.4.4 or greater
Intel
®
Pentium
64-bit (Intel
CPU
®
®
II or equivalent
64 or AMD64) supported
Intel
®
CPU
Pentium
®
64-bit (Intel
®
4 or equivalent
64 or AMD64) supported
Intel
®
Pentium
®
III or equivalent
64-bit (Intel
®
CPU
PowerPC G4/G5,
PowerPC G3 350MHz
PowerPC G4/G5,
Intel
®
64 or AMD64) supported
Core™ Processor
Minimum
RAM
Recomm ended
RAM
64 MB
128 MB
256 MB
512 MB
256 MB
128 MB
512 MB
256 MB
512 MB
1 GB
512 MB
256 MB
1 GB
Third party USB ports are not supported.
Hard Disk
Space to install
50 MB
80 MB
103
A
A
A
Appendix
Important information for choosing your paper
This section gives information to help you choose paper to use with this printer.
Note
If you use paper that is not recommended, a paper jam or misfeed may occur in the printer. (See
Before you buy a large quantity of paper
Make sure that the paper is suitable for the printer.
A
A
Paper for plain paper copies
Paper is divided by usage, such as paper for printing and paper for copying. The usage is usually written on the paper’s package. Check the package to see whether it is suitable for laser printers. Use paper that is suitable for laser printers.
A
Basis weight
The basis weight of the paper in general use varies in different countries. We recommend that you use paper that weighs 75 to 90 g/m
2
(20 to 24 lb), although this printer is able to cope with thinner or thicker paper than these weights.
A
A
Unit g/m
2 lb
Europe
80 to 90
USA
75 to 90
20 to 24
Long grain and short grain
The pulp fiber of the paper is aligned during paper manufacturing. Paper can be classified into two types, long grain and short grain.
A
Long grain paper fibers run in the same direction as the long edge of the paper. Short grain paper fibers run perpendicular to the long edge of the paper. Though most plain paper for copying is long grain, some is short grain. We recommend that you use long grain paper for this printer. Short grain paper is too weak for the paper transport of the printer.
Acid paper and neutralized paper
Paper can be classified as either acid paper or neutralized paper.
Though modern paper manufacture methods started with acid paper, neutralized paper is recently taking the place of acid paper because of environmental issues.
A
However, many forms of acid paper can be found in recycled paper. We recommend that you use neutralized paper for this printer.
You can use an acid paper check pen to distinguish acid paper from neutral paper.
104
Appendix
60
64
75
90
105
120
135
161
Print surface
The characteristics of the face side and reverse side of a sheet of paper may vary a little.
Usually, the opening side of the paper ream package is the print side. Follow the indications on the paper package. Typically, the print side is indicated by an arrow.
A
Moisture content
Moisture content is the amount of water left in the paper after manufacture. It is one of the important characteristics of the paper. This can change greatly depending on the storage environment, although usually paper contains about 5% water by weight. Because paper often absorbs water, the amount of water can sometimes be about 10% in a high humidity environment. When the amount of water increases, the characteristics of the paper changes greatly. The fixing of the toner may become worse. For storage of the paper and during use, we recommend that the humidity of the surrounding environment be between 50% and
60%.
A
Rough estimate of basis weight
A g/m
2
32
36
43
20
24
28
lb
Bond
16
17
Index
90
A
105
Paper size
Paper size
Letter
Legal
Executive
A4
A5
A5 Long Edge
A6
Envelope Monarch
Envelope Com-10
Envelope DL
Envelope C5
B5 (JIS)
B5 (ISO)
B6 (ISO)
Folio
Post Card
A4 Long
Envelope DL-L
3
×
5 mm
210 × 297 mm
148
×
210 mm
210
×
148 mm
105 × 148 mm
110 × 220 mm
162
×
229 mm
182
×
257 mm
176 × 250 mm
125
×
176 mm
100 × 148 mm
210
×
405 mm
220
×
110 mm
in.
8.5 × 11 in.
8.5
×
14 in.
7.25
×
10.5 in.
3.875
×
7.5 in.
4.12
×
9.5 in.
8.5
×
13 in.
3 × 5 in.
Appendix
A
A
106
Appendix
Symbol and character sets (HL-2150N / HL-2170W only)
For the HP LaserJet emulation modes, you can choose the symbol and character sets using Web Based
Management (Web browser) when connected to a network or the control panel buttons.
A
How to use Web Based Management (web browser)
To use Web Based Management (Web browser), follow the steps below.
Note
We recommend Microsoft Internet Explorer 6.0
®
(or greater) or Firefox
®
1.0 (or greater) for Windows
®
and
Safari™ 1.0 for Macintosh
®
. Please also make sure that JavaScript and cookies are always enabled in whichever browser you use. We recommend you upgrade to Safari™ 1.2 or greater to enable JavaScript.
To use a web browser, you will need to know the IP address of the print server.
a
Start your web browser.
b
Type http://printer_ip_address/
into your browser. (Where printer_ip_address
is the IP address or the node name)
For example: http://192.168.1.2/
(if the printer’s IP address is 192.168.1.2.)
Note
• If you have edited the hosts file on your computer or are using a Domain Name System, you can also enter the DNS name of the print server. As the print server supports TCP/IP and NetBIOS, you can also enter the NetBIOS name of the print server. The NetBIOS name can be seen on the printer settings page. The
NetBIOS name assigned is the first 15 characters of the node name and by default it will appear as
“BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network.
• For Macintosh
®
users, you can also have easy access to Web Based Management by clicking the machine icon on
Status Monitor
screen. c
Click
Printer Settings
.
d
Enter a user name and a password.
Note
The login name for the Administrator is “ admin
” (case sensitive) and the default password is “ access
”.
e
Click
OK
.
f
Choose the
HP LaserJet
tab and click
Font Setup
. Choose a symbol set you want to use from the
Symbol Set
list box.
A
A
107
Symbol and character sets list
OCR symbol sets
When you choose the OCR-A or OCR-B font, the matching symbol set is always used.
OCR A (0O)
OCR B (1O)
HP LaserJet mode
ABICOMP Brazil / Portugal (13P)
Desktop (7J)
HP German (0G)
ISO Latin1 (0N)
ISO Latin5 (5N)
ISO2 IRV (2U)
ISO5 ASCII (0U)
ISO11 Swedish (0S)
ISO15 Italian (0I)
ISO17 Spanish (2S)
ISO25 French (0F)
ISO60 Norwegian1 (0D)
ISO69 French (1F)
ISO85 Spanish (6S)
ISO8859 / 15 Latin (9N)
Legal (1U)
MC Text (12J)
PC8 (10U)
PC8 D/N (11U)
PC8 Latin / Greek (12G)
PC8 Turkish (9T)
PC850 Multilingual (12U)
PC852 East Europe (17U)
PC855 Cyrillic (10R)
PC858 Multilingual Euro (13U)
PC861 Iceland (21U)
PC865 Nordic (25U)
PC869 Greece (11G)
Pi Font (15U)
ABICOMP International (14P)
Greek8 (8G)
HP Spanish (1S)
ISO Latin2 (2N)
ISO Latin6 (6N)
ISO4 UK (1E)
ISO10 Swedish (3S)
ISO14 JIS ASCII (0K)
ISO16 Portuguese (4S)
ISO21 German (1G)
ISO57 Chinese (2K)
ISO61 Norwegian2 (1D)
ISO84 Portuguese (5S)
ISO8859 / 7 Latin / Greek (12N)
ISO8859 / 15 Latin / Cyrillic (10N)
Math-8 (8M)
MS Publishing (6J)
PC8 Bulgarian (13R)
PC8 Greek Alternate (437G) (14G)
PC8 PC Nova (27Q)
PC775 (26U)
PC851 Greece (10G)
PC853 Latin3 (Turkish) (18U)
PC857 Latin5 (Turkish) (16U)
PC860 Portugal (20U)
PC863 Canadian French (23U)
PC866 Cyrillic (3R)
PC1004 (9J)
PS Math (5M)
Appendix
A
A
A
108
HP LaserJet mode
PS Text (10J)
Roman9 (4U)
Russian-GOST (12R)
Roman8 (8U)
Roman Extension (0E)
Symbol (19M)
Appendix
A
109
Appendix
Quick reference for bar code control commands
(HL-2150N / HL-2170W only)
The printer can print bar codes in the HP LaserJet emulation modes.
Print bar codes or expanded characters
A
A
Code
Dec
Hex
ESC i
27 105
1B 69
Format:
ESC i n ... n \
Creates bar codes or expanded characters according to the segment of parameters ‘n ... n’. For more information about parameters, see the following Definition of Parameters. This command must end with the
‘ \ ’ code (5CH).
A
Definition of parameters
This bar code command can have the following parameters in the parameter segment (n ... n). As parameters are effective within the single command syntax ESC i n ... n \, they do not apply in the bar code commands.
If certain parameters are not given, they take the preset settings. The last parameter must be the bar code data start (‘b’ or ‘B’) or the expanded character data start (‘l’ or ‘L’). Other parameters can be given in any sequence. Each parameter can start with a lower-case or upper-case character, for example, ‘t0’ or ‘T0’, ‘s3’ or ‘S3’ and so one.
A
Bar code mode
A
n = ‘t0’ or ‘T0’ n = ‘t1’ or ‘T1’ n = ‘t3’ or ‘T3’ n = ‘t4’ or ‘T4’ n = ‘t5’ or ‘T5’ n = ‘t6’ or ‘T6’ n = ‘t9’ or ‘T9’ n = ‘t12’ or ‘T12’ n = ‘t13’ or ‘T13’ n = ‘t14’ or ‘T14’ n = ‘t130’ or ‘T130’ n = ‘t131’ or ‘T131’ n = ‘t132’ or ‘T132’ n = ‘t133’ or ‘T133’ n = ‘t134’ or ‘T134’
CODE 39 (default)
Interleaved 2 of 5
FIM (US-Post Net)
Post Net (US-Post Net)
EAN 8, EAN 13, or UPC A
UPC E
Codabar
Code 128 set A
Code 128 set B
Code 128 set C
ISBN (EAN)
ISBN (UPC-E)
EAN 128 set A
EAN 128 set B
EAN 128 set C
110
Appendix
This parameter selects the bar code mode as shown above. When n is ‘t5’ or ‘T5’ the bar code mode (EAN
8, EAN 13, or UPC A) varies according to the number of characters in the data.
Bar code, expanded character, line block drawing and box drawing
A
n = ‘s0’ or ‘S0’ n = ‘s1’ or ‘S1’ n = ‘s3’ or ‘S3’
3: 1 (default)
2: 1
2.5: 1
This parameter chooses the bar code style as above. When the EAN 8, EAN 13, UPC-A, Code 128 or EAN
128 bar code mode is chosen, this bar code style parameter is ignored.
Expanded Character
‘S’
0 = White
1 = Black
2 = Vertical stripes
3 = Horizontal stripes
4 = Cross hatch
For example ‘S’ n1 n2 n1 = Background fill pattern n2 = Foreground fill pattern
If ‘S’ is followed by only one parameter, the parameter is a foreground fill pattern.
Line block drawing & box drawing
‘S’
1 = Black
2 = Vertical stripes
3 = Horizontal stripes
4 = Cross hatch
Bar code
n = ‘mnnn’ or ‘Mnnn’ (nnn = 0 ~ 32767)
This parameter shows the bar code width. The unit of ‘nnn’ is a percentage.
A
A
111
Appendix
Bar code human readable line ON or OFF
n = ‘r0’ or ‘R0 n = ‘r1’ or ‘R1
Human readable line OFF
Human readable line ON
A
Preset:
Preset:
Human readable line ON
(1) ‘T5’ or ‘t5’
(2) ‘T6’ or ‘t6’
(3) ‘T130’ or ‘t130’
(4) ‘T131’ or ‘t131’
Human readable line OFF
All others
This parameter shows whether the printer prints the human readable line below the bar code. Human readable characters are always printed with OCR-B font of 10 pitch and all the current character style enhancements are masked. The default setting is determined by the bar code mode selected by ‘t’ or ‘T’.
Quiet zone
n = ‘onnn’ or ‘Onnn’ (nnn = 0 ~ 32767)
Quiet zone is the space on both sides of the bar codes. Its width can be shown using the units that are set by the ‘u’ of ‘U’ parameter. (For the description of ‘u' or ‘U' parameter, see the next section.) The default setting of the quiet-zone width is 1 inch.
A
A
Bar code, expanded character unit, line block drawing and box drawing
A
n = ‘u0’ or ‘U0’ n = ‘u1’ or ‘U1’ n = ‘u2’ or ‘U2’ n = ‘u3’ or ‘U3’ n = ‘u4’ or ‘U4’ n = ‘u5’ or ‘U5’ n = ‘u6’ or ‘U6’ n = ‘u7’ or ‘U7’ mm (preset)
1/10
1/100
1/12
1/120
1/10 mm
1/300
1/720
This parameter shows the measurement units of X-axis offset, Y-axis offset, and bar code height.
Bar code, expanded character, line block drawing and box drawing offset in X-axis
n = ‘xnnn’ or ‘Xnnn’
This parameter shows the offset from the left margin in the ‘u’- or ‘U’-specified unit.
A
112
Appendix
Bar code & expanded character offset in Y-axis
n = ‘ynnn’ or ‘Ynnn’
This parameter shows the downward offset from the current print position in the ‘u’- or ‘U’-specified unit.
A
Bar code, expanded character, line block drawing and box drawing height
n = ‘hnnn’, ‘Hnnn’, ‘dnnn’, or ‘Dnnn’
1 EAN13, EAN8, UPC-A, ISBN (EAN13, EAN8, UPC-A), ISBN (UPC-E): 22 mm
2 UPC-E: 18 mm
3 Others: 12 mm
Expanded characters i
2.2 mm (preset)
Line block drawing and box drawing i
1 dot
This parameter shows the height of bar codes or expanded characters as shown above. It can start with ‘h’,
‘H’, ‘d’, or ‘D’. The height of bar codes is shown in the ‘u’- or ‘U’-specified unit. The default setting of the bar code height (12 mm, 18 mm or 22 mm) is determined by the bar code mode selected by ‘t’ or ‘T’.
A
A
Expanded character width, line block drawing and box drawing
n = ‘wnnn’ or ‘Wnnn’
Expanded character i
1.2 mm
Line block drawing and box drawing i
1 dot
This parameter shows the width of expanded characters as shown above.
A
Expanded character rotation
A
n = ‘a0’ or ‘A0’ n = ‘a1’ or ‘A1’ n = ‘a2’ or ‘A2’ n = ‘a3’ or ‘A3’
‘Upright (preset)
‘Rotated 90 degrees
‘Upside down, rotated 180 degrees
‘Rotated 270 degrees
Bar code data start
n = ‘b’ or ‘B’
Data that follows ‘b’ or ‘B’ is read in as bar code data. Bar code data must end with the ‘ \ ’ code (5CH), which also ends this command. The acceptable bar code data is determined by the bar code mode selected by ‘t’ or ‘T’.
When CODE 39 is chosen with the parameter ‘t0’ or ‘T0’
Forty three characters ‘0’ to ‘9’, ‘A’ to ‘Z’, ‘-’, ‘ . ’, ‘ (space)’, ‘$’, ‘ / ’, ‘+’, and ‘%’ can be accepted as bar code data. Other characters will cause a data error. The number of characters for bar codes is not limited. The bar code data automatically starts and ends with an asterisk ‘ * ’ (start character and stop character). If the received data has an asterisk ‘ * ’ at the beginning or end, the asterisk is regarded as a start character or stop character.
A
113
Appendix
When Interleaved 2 of 5 is selected with the parameter ‘t1’ or ‘T1’:
Ten numerical characters ‘0’ to ‘9’ can be accepted as bar code data. Other characters cause a data error.
The number of characters for bar codes is not limited. This mode of bar codes needs even characters. If the bar code data has odd characters, ‘0’ is automatically added to the end of the bar code data.
When FIM (US-Post Net) is selected with the parameter ‘t3’ or ‘T3’
Characters ‘A’ to ‘D’ are valid and one digit of data can be printed. Upper-case and lower-case alphabet characters can be accepted.
When Post Net (US-Post Net) is selected with the parameter ‘t4’ or ‘T4’
Numbers ‘0’ to ‘9' can be data and it must end with a check digit. ‘?’ can be used instead of the check digit.
When EAN 8, EAN 13, or UPC A is selected with the parameter ‘t5’ or ‘T5’
Ten numbers ‘0’ to ‘9’ can be accepted as bar code data. The number of characters for bar codes is limited as follows:
EAN 8: Total 8 digits (7 digits + 1 check digit)
EAN 13: Total 13 digits (12 digits + 1 check digit)
UPC A: Total 12 digits (11 digits + 1 check digit)
A number of characters other than those stated above will cause a data error that results in the bar code data being printed as normal print data. If the check digit is not correct, the printer decides the correct check digit automatically so that the correct bar code data will be printed. When EAN13 is selected, adding
‘+’ and a two-digit or five-digit number after the data can create an add-on code.
When UPC-E is selected with the parameter ‘t6’ or ‘T6’:
The numbers ‘0’ to ‘9’ can be accepted as bar code data.
A
Eight digits
(standard format) The first character must be ‘0’ and the data must end with a check digit.
Total eight digits = ‘0’ plus 6 digits plus 1 check digit.
The first character and the last check digit are removed from the eight digit data.
1
2
‘?’ can be used instead of a check digit.
Adding ‘+’ and two-digit or five-digit number after the data creates an add-on code.
When Codebar is chosen with the parameter ‘t9’ or ‘T9’
Characters ‘0’ to ‘9’, ‘-’, ‘ . ’, ‘$’, ‘/’, ‘+’, ‘ : ’ can be printed. Characters ‘A’ to ‘D’ can be printed as a startstop code, which can be upper case or lower case. If there is no start-stop code, errors will happen. A check digit cannot be added and using ‘?’ causes errors.
When Code 128 Set A, Set B, or Set C is selected with the parameter ‘t12’ or ‘T12’, ‘t13’ or ‘T13’, or ‘t14’ or ‘T14’
Code 128 sets A, B and C can be individually selected. Set A shows characters Hex 00 to 5F. Set B includes characters Hex 20 to 7F. Set C includes the pairs 00 to 99. Switching is allowed between the code sets by sending %A, %B, or %C. FNC 1, 2, 3, and 4 are produced with %1, %2, %3, and %4. The SHIFT code, %S, allows temporary switching (for one character only) from set A to set B and vice versa. The ‘%’ character can be encoded by sending it twice.
When ISBN (EAN) is selected with the parameter ‘t130’ or ‘T130’
The same rules apply as for ‘t5’ or ‘T5’.
114
Appendix
When ISBN (UPC-E) is selected with the parameter ‘t131’ or ‘T131’:
The same rules apply as for ‘t6’ or ‘T6’.
When EAN 128 set A, set B or set C is selected with the parameter ‘t132’ or ‘T132’, ‘t133’ or ‘T133’ or ‘t134’ or ‘T134’
The same rules apply as for ‘t12’ or ‘T12’, ‘t13’ or ‘T13’, or ‘t14’ or ‘T14’.
Box drawing
ESC i ... E (or e)
‘E’ or ‘e’ is a terminator.
A
Line block drawing
ESC i ... V (or v)
‘V’ or ‘v’ is a terminator.
A
Expanded character data start
n = ‘l’ or ‘L’
Data that follows ‘l’ or ‘L’ is read as expanded character data (or labeling data). Expanded character data must end with the ‘ \ ’ code (5CH), which also ends this command.
A
A
Example Program Listings
WIDTH "LPT1:",255
'CODE 39
LPRINT CHR$(27);"it0r1s0o0x00y00bCODE39?\";
'Interleaved 2 of 5
LPRINT CHR$(27);"it1r1s0o0x00y20b123456?\";
'FIM
LPRINT CHR$(27);"it3r1o0x00y40bA\";
'Post Net
LPRINT CHR$(27);"it4r1o0x00y60b1234567890?\";
'EAN-8
LPRINT CHR$(27);"it5r1o0x00y70b1234567?\";
'UPC-A
LPRINT CHR$(27);"it5r1o0x50y70b12345678901?\";
'EAN-13
LPRINT CHR$(27);"it5r1o0x100y70b123456789012?\";
'UPC-E
LPRINT CHR$(27);"it6r1o0x150y70b0123456?\";
A
115
'Codabar
LPRINT CHR$(27);"it9r1s0o0x00y100bA123456A\";
'Code 128 set A
LPRINT CHR$(27);"it12r1o0x00y120bCODE128A12345?\";
'Code 128 set B
LPRINT CHR$(27);"it13r1o0x00y140bCODE128B12345?\";
'Code 128 set C
LPRINT CHR$(27);"it14r1o0x00y160b";CHR$(1);CHR$(2);"?\";
'ISBN(EAN)
LPRINTCHR$(27);"it130r1o0x00y180b123456789012?+12345\";
'EAN 128 set A
LPRINT CHR$(27);"it132r1o0x00y210b1234567890?\";
LPRINT CHR$(12)
END
Appendix
A
116
B
Appendix (for Europe and Other
Countries)
B
Brother numbers
B
IMPORTANT
For technical and operational help, you must call the country where you bought the printer. Calls must be made
from within
that country.
Register your product
By registering your Brother product, you will be recorded as the original owner of the product.
Your registration with Brother:
may serve as a confirmation of the purchase date of your product should you lose your receipt;
may support an insurance claim by you in the event of product loss covered by insurance; and,
will help us to notify you of enhancements to your product and special offers.
Please complete the Brother Warranty Registration or, for your convenience and most efficient way to register your new product, register on-line at
B
http://www.brother.com/registration/
Frequently asked questions (FAQs)
The Brother Solutions Center is our one-stop resource for all your printer needs. You can download the latest drivers, software and utilities, read FAQs and troubleshooting tips to learn how to get the most from your
Brother product.
B
http://solutions.brother.com
You can check here for Brother driver updates.
B
Customer Service
Visit http://www.brother.com for contact information on your local Brother office.
B
Service center locations
For service centres in Europe, contact your local Brother Office. Address and telephone contact information for European offices can be found at http://www.brother.com by selecting your country.
B
Internet Addresses
Brother Global Web Site: http://www.brother.com
For Frequently Asked Questions (FAQs), Product Support and Technical Questions, and Driver Updates and Utilities: http://solutions.brother.com
117
Appendix (for Europe and Other Countries)
Important information: regulations
Radio interference (220 to 240 volt model only)
This printer follows EN55022 (CISPR Publication 22)/Class B.
International ENERGY STAR
®
Compliance Statement
The purpose of the International ENERGY STAR
®
Program is to promote the development and popularization of energy-efficient office equipment. As an ENERGY STAR
®
Partner, Brother Industries, Ltd. has determined that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
B
B
B
IEC 60825-1 specification (220 to 240 volt model only)
This printer is a Class 1 laser product as defined in IEC 60825-1 +A2:2001 specifications. The label shown below is attached in countries where it is needed.
B
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
LASER KLASSE 1 PRODUKT
This printer has a Class 3B laser diode which produces invisible laser radiation in the laser unit. You should not open the laser unit under any circumstances.
Caution
Use of controls or adjustments or performance of procedures other than those specified in this User’s Guide may result in hazardous invisible radiation exposure.
B
B
118
Appendix (for Europe and Other Countries)
For Finland and Sweden
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
Varoitus!
Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.
B
B
Varning
Om apparaten används på annat sätt än i denna Bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.
B
Internal laser radiation
B
Maximum radiation power: 10 mW
Wave length:
Laser class:
780 - 800 nm
Class 3B
B
119
Appendix (for Europe and Other Countries)
IMPORTANT - for your safety
To ensure safe operation, the supplied three-pin plug must be inserted only into a standard three-pin power outlet that is properly grounded through the standard electrical wiring.
Extension cords used with this printer must be three-pin plug type and correctly wired to provide grounding.
Incorrectly wired extension cords may cause personal injury and equipment damage.
The fact that the equipment operates satisfactorily does not imply that the power is grounded and that the installation is completely safe. For your safety, if in any doubt about the effective grounding of the power, call a qualified electrician.
This product should be connected to an AC power source within the range indicated on the rating label. DO
NOT connect it to a DC power source. If you are not sure, contact a qualified electrician.
B
Disconnect device
You must install this printer near a power outlet that is easily accessible. In case of an emergency, you must disconnect the power cord from the power outlet to shut off the power completely.
B
Caution for LAN connection (HL-2150N / HL-2170W only)
Connect this product to a LAN connection that is not subjected to overvoltages.
IT power system (For Norway only)
This product is also designed for an IT power system with phase-to-phase voltage 230V.
B
B
B
Wiring information (for UK)
Important
If you need to replace the plug fuse, fit a fuse that is approved by ASTA to BS1362 with the same rating as the original fuse.
Always replace the fuse cover. Never use a plug that does not have a cover.
B
B
Warning - This printer must be earthed.
The wires in the mains lead are coloured in line with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
If in any doubt, call a qualified electrician.
Maschinenlärminformations- Verordnung 3. GPSGV (For Germany only)
Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäß EN ISO 7779.
B
B
120
EC Declaration of Conformity
Appendix (for Europe and Other Countries)
B
B
121
C
Appendix (for USA and Canada)
C
Brother numbers
C
IMPORTANT
For technical and operational help, you must call the country where you bought the printer. Calls must be made
from within
that country.
Register your product
By registering your product with Brother International Corporation, you will be recorded as the original owner of the product.
C
Your registration with Brother:
may serve as a confirmation of the purchase date of your product should you lose your receipt;
may support an insurance claim by you in the event of product loss covered by insurance; and,
will help us notify you of enhancements to your product and special offers.
Please complete the Brother Warranty Registration or, for your convenience and most efficient way to register your new product, register on-line at
http://www.brother.com/registration/
FAQs (frequently asked questions)
The Brother Solutions Center is our one-stop resource for all your printer needs. You can download the latest software and utilities and read FAQs and troubleshooting tips to learn how to get the most from your Brother product.
C
http://solutions.brother.com
You can check here for Brother driver updates.
C
122
Appendix (for USA and Canada)
Customer Service
In USA:
In Canada:
1-877-BROTHER (1-877-276-8437)
1-877-BROTHER
If you have comments or suggestions, please write us at:
In USA:
In Canada:
Printer Customer Support
Brother International Corporation
26250 Enterprise Ct. # 250
Lake Forest, CA 92630
Brother International Corporation (Canada), Ltd.
- Marketing Dept.
1, rue Hotel de Ville Dollard-des-Ormeaux, PQ, Canada H9B 3H6
C
Service center locator (USA only)
For the location of a Brother authorized service center, call 1-877-BROTHER (1-877-276-8437).
Service center locations (Canada only)
For the location of a Brother authorized service center, call 1-877-BROTHER.
Internet addresses
Brother Global Web Site: http://www.brother.com
For Frequently Asked Questions (FAQs), Product Support and Technical Questions, and Driver Updates and Utilities: http://solutions.brother.com
For Brother Accessories & Supplies:
In USA
: http://www.brothermall.com
In Canada
: http://www.brother.ca
C
C
C
123
Appendix (for USA and Canada)
Ordering supplies
For best quality results use only genuine Brother supplies, which are available at most Brother retailers. If you cannot find the supplies you need and you have a Visa, MasterCard, Discover, or American Express credit card, you can order supplies directly from Brother. (You can visit us online for a complete selection of the
Brother accessories and supplies that are available for purchase.)
C
Note
In Canada, only Visa and MasterCard are accepted.
In USA:
In Canada:
1-877-552-MALL (1-877-552-6255)
1-800-947-1445 (fax) http://www.brothermall.com
1-877-BROTHER http://www.brother.ca
1
Description
Toner Cartridges
Drum Unit
Item
TN-330 (Standard, prints approx. 1,500 pages)
TN-360 (High Yield, prints approx. 2,600 pages)
DR-360
Approx. cartridge yield is declared in accordance with ISO/IEC 19752.
C
124
Appendix (for USA and Canada)
Important information: regulations
Federal Communications Commission (FCC) Declaration of Conformity (USA only)
C
C
Responsible Party: Brother International Corporation
100 Somerset Corporate Boulevard
P.O. Box 6911
Bridgewater, NJ 08807-0911
USA
Telephone: (908) 704-1700 declares, that the products
Product name:
Model number:
Laser Printer HL-2140, HL-2150N and HL-2170W
HL-21 complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
C
Important
A shielded interface cable should be used to ensure compliance with the limits for a Class B digital device.
Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user’s authority to operate the equipment.
C
Industry Canada Compliance Statement (Canada only)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
C
125
Appendix (for USA and Canada)
International ENERGY STAR
®
Compliance Statement
The purpose of the International ENERGY STAR
®
Program is to promote the development and popularization of energy-efficient office equipment. As an ENERGY STAR
®
Partner, Brother Industries, Ltd. has determined that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
C
C
126
Appendix (for USA and Canada)
Laser notices
C
Laser safety (110 to 120 volt model only)
This printer is certified as a Class 1 laser product under the U.S. Department of Health and Human Services
(DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of
1968. This means that the printer does not produce hazardous laser radiation.
Since radiation emitted inside the printer is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation.
C
FDA regulations (110 to 120 volt model only)
The U.S. Food and Drug Administration (FDA) has implemented regulations for laser products manufactured on and after August 2, 1976. Compliance is mandatory for products marketed in the United States. The following label on the back of the printer indicates compliance with the FDA regulations and must be attached to laser products marketed in the United States.
C
MANUFACTURED:
Brother Technology (Shenzhen) Ltd.
NO6 Gold Garden Ind., Nanling Buji, Longgang, Shenzhen, China
This product complies with FDA performance standards for laser products except for deviations pursuant to Laser
Notice No.50, dated June 24, 2007.
C
Caution
Use of controls, adjustments or performance of procedures other than those specified in this User’s Guide may result in hazardous invisible radiation exposure.
C
Internal laser radiation
C
Maximum radiation power: 10 mW
Wave length: 780 - 800 nm
Laser class: Class 3B
127
Appendix (for USA and Canada)
IMPORTANT - for your safety
To ensure safe operation, the supplied three-pin plug must be inserted only into a standard three-pin power outlet that is properly grounded through the standard electrical wiring.
Extension cords used with this printer must be three-pin plug type and correctly wired to provide proper grounding. Incorrectly wired extension cords may cause personal injury and equipment damage.
The fact that the equipment operates satisfactorily does not imply that the power is grounded and that the installation is completely safe. For your safety, if in any doubt about the effective grounding of the power, call a qualified electrician.
This product should be connected to an AC power source within the range indicated on the rating label. DO
NOT connect it to a DC power source. If you are not sure, contact a qualified electrician.
C
Disconnect device
You must install this printer near a power outlet that is easily accessible. In case of an emergency, you must disconnect the AC power cord from the AC power outlet to shut off the power completely.
C
Caution for LAN connection (HL-2150N / HL-2170W only)
Connect this product to a LAN connection that is not subjected to overvoltages.
C
C
128
D
Index
A
Automatic Interface Selection
................................... 47
B
Bar code control
...................................................... 110
BRAdmin Light
.......................................................... 46
BRAdmin Professional
.............................................. 46
Brother Numbers (USA/Canada)
C
Carton contents
........................................................... 1
Cartridge position error
............................................. 50
Character sets
......................................................... 107
Cleaning
.................................................................... 73
Computer requirements
.......................................... 103
Consumables
............................................................ 60
Control panel
.....................................................48
Corona wire
.................................................. 67
Cover open
............................................................... 51
D
Device options
.......................................................... 34
Dimensions
............................................................. 102
Domain
.................................................................... 107
Driver Deployment Wizard
........................................ 46
Drum error
................................................................. 52
Drum life end soon
.................................................... 51
Drum unit
.................................................................. 68
Duplex printing
.......................................................... 22
E
Emulation
................................................................ 100
Envelopes
.............................................................7
Error messages
...................................................80
F
Fonts
.................................................................58
G
Go buttons
................................................................ 55
I
Interface
.................................................................. 100
J
Job cancel
................................................................. 55
L
LEDs
......................................................................... 48
Linux
......................................................................... 26
M
Macintosh
®
.........................................................39
Manual feed slot
........................................................ 13
manual feed slot
........................................................ 23
Media specifications
................................................ 102
Media type
.................................................................. 5
Memory
................................................................... 100
Memory full
............................................................... 51
N
Network
..................................................................... 46
Network connectivity
............................................... 100
Network default setting
............................................. 59
No paper
................................................................... 51
O
OPC drum
................................................................. 93
P
Paper
..................................................................5
Paper handling
........................................................ 101
Paper jams
..........................................................51
PCL printer driver
...................................................... 29
Plain paper
.................................................................. 6
Power supply
.............................................................. 4
Print overrun
............................................................. 51
Print quality
............................................................... 91
Print test page
........................................................... 56
Printer driver
.............................................. 29
Printer settings
.......................................................... 57
Processor
................................................................ 100
R
Register your product
......................................117
Remote Printer Console
............................................ 47
Reprint
................................................................35
D
129
S
Scanner window
........................................................ 76
Service call
................................................................ 53
Service centers (USA/Canada)
............................... 123
Service centres (Europe and other countries)
Software
.................................................................... 46
Specifications
............................................................ 99
Status Monitor
.....................................................44
Symbol
.................................................................... 107
T
Toner cartridge
.......................................................... 61
Toner life end
......................................................50
Toner low
.................................................................. 50
Tray Setting tab
......................................................... 37
Troubleshooting
........................................................ 79
U
Unprintable area
......................................................... 8
Utilities
.................................................................... 101
W
Watermark
................................................................ 33
Web Based Management
Web browser
.......................................................... 46
Web BRAdmin
.......................................................... 46
Weights
................................................................... 102
Windows
®
................................................................. 29
Index
D
130
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
