PREFACE:
GENERAL INFORMATION:
Prior to selection of a Titan FCI Dual Plate Check Valve, the
following factors must be determined:
• Material construction requirements of the Check Valve.
• Design and working pressure/temperature requirements.
• Operating conditions (throttling, pressure drop, condensation,
flow reversal, operation frequency, etc.).
• Service media type (liquid, gas, abrasive, corrosive, dirty, etc).
• Pipeline Media Flow-rate and Viscosity.
• Clean Start-up Pressure of the Pipeline.
• Space availability for installation.
Please contact a Titan Design Engineer to assist in the determination
of these requirements prior to selection and purchase.
Service
f
Quality
CAUTION:
Titan FCI’s Dual Plate Check Valves are intended for
liquid service that does not exceed 10 ft./sec. They are
not recommended for steam service or flow media that
contains suspended solids such as wastewater.
UNPACKING AND INSPECTION:
Upon receipt of product, it is important to follow these
unpacking and inspection procedures.
All Titan FCI Dual Plate Check Valves are shipped in
specialized shipping containers designed to prevent
damage during transportation. If external damage to the
shipping container is evident upon receipt of product,
please request that a representative of the shipping carrier
be present before unpacking the product.
• Carefully open the shipping container, following any
instructions that may be marked on the container. Remove all packing material surrounding the Check Valve and carefully lift it from the container. It
is recommend to keep the shipping container and all
packing material for reuse in storage or reshipment.
f
Commitment
Tel: 910-735-0000 s Fax: 910-738-3848 s [email protected] s www.titanfci.com
290 Corporate Drive s PO Box 7408 s Lumberton, NC 28358
CVDIOM0406
For additional information regarding Titan FCI’s Dual Plate Check
Valves, please refer to the engineering specification sheet for each
model. Further information may also be obtained from Titan FCI’s
Double Disc, Non-Slam Check Valve Product Guide.
Figure 1: CV 41-DI
ANSI Class 150 lb
Ductile Iron Body • EPDM Seat
Titan’s Dual Plate Check Valves are designed to automatically
prevent back-flow in systems where it is desirable to permit flow in
one direction and prevent flow in the opposite direction. When the
pump starts and the downstream flow creates the required pressure
drop in the forward direction, the Dual Plates will automatically
open. When the pump stops and the flow ceases, the torsion of
the spring will automatically close the Dual Plates prior to flow
reversal. This creates a positive shutoff against flow reversal and
eliminates system surges and water hammer.
DUAL PLATE CHECK VALVE
This manual contains information concerning the installation,
operation, and maintenance of Titan Flow Control (Titan FCI)
Wafer Style, Dual Plate Check Valves. To ensure efficient and safe
operation of Titan FCI Dual Plate Check Valves, the instructions in
this manual should be thoroughly read and understood. This manual
is general in nature and is not meant to take the place of an on-site,
process engineer or pipe fitter. As such, Titan FCI recommends
that only experienced, skilled personnel be allowed to install and
maintain Titan FCI Dual Plate Check Valves. Please retain this manual
in a location where it is readily available for reference.
TITAN
TITAN FLOW
CONTROL, INC.
INSTALLATION, OPERATION,
AND MAINTENANCE
UNPACKING AND INSPECTION: Continued...
1
7
8
5
9
2
6
3
• Before installation, the check valve should be inspected internally for any loose or foreign materials that may have become trapped inside the Check Valve during transportation.
4
Figure 2: CAD Illustration
PARTS LIST
INSTALLATION:
Dual Plate Check Valve
1
BODY
2
DISC
3
HINGE PIN
4
SPRING
5
NPT PLUG
6
WASHER
7
NAMEPLATE
8
SEAT
9
EYEBOLT
Pre-Installation Checklist
Pre-Installation Checklist Continued...
• Ensure Working conditions (pressure and temperature) are with in the specified capacity of the product being installed.
Please refer to the Engineering Specification Sheet for each
Check Valve model to determine these values.
• Inspect sealing surfaces that they are clean and smooth; no nicks or cuts. The pipeline should also be checked for proper alignment. Titan FCI
Check Valves should never be utilized to realign an
existing piping system.
• Make sure that the construction material of the Check Valve is
compatible with the media flowing in the pipeline. Additionally,
ensure that the service media is filtered to remove unwanted
debris prior to entering the Check Valve. If the service media
is not sufficiently clean, debris particles can prevent the Check
Valve from sealing correctly and degrade overall performance
overtime.
Service
f
Quality
• For efficient function and improved service life, recognized piping standards stipulate placing Check Valves 5 to 10 pipe diameters from any
turbulence producing devices (elbows, pumps, tees,
expansions, reductions, and swages).
f
Commitment
Tel: 910-735-0000 s Fax: 910-738-3848 s [email protected] s www.titanfci.com
290 Corporate Drive s PO Box 7408 s Lumberton, NC 28358
CVDIOM0406
• When ready to install, remove any preservatives with solvent
dampened cloths. Remove any loose material and protective
packing material.
No.
• If the Check Valve is not required to be installed immediately,
it should be stored indoors in a clean, dry, consistent temperature environment. It is also recommended to utilize
the original shipping container and packing materials to properly store the Check Valve. If long term storage is required, a desiccant may be necessary. This would be based
upon the local, environmental storage conditions. Additionally,
rubber surfaces may require a thin film of grease. Rubber surfaces should never be directly exposed to sunlight or ozone
for extended periods. Please consult a Titan FCI Design
Engineer to assist in this determination.
DUAL PLATE CHECK VALVE
• Visually inspect the Check Valve for any signs of damage including scratches, loose parts, broken parts or any other physical damage that may have occurred during shipment. If
damage is observed, immediately file a claim with the shipping
carrier. Check Valves that are damaged during transportation
are the responsibility of the customer. For information regarding Titan FCI’s warranty policy, please refer to the last page of this document.
TITAN
TITAN FLOW
CONTROL, INC.
INSTALLATION, OPERATION,
AND MAINTENANCE
INSTALLATION: Continued...
INSTALLATION: Continued...
Titan FCI Dual Plate Check Valves are designed for steady flow
conditions and are not recommended for use in reciprocating
pump, compressor or other types of physical/thermal shock-load
applications. In this type of application, the Check Valve will not
perform efficiently and will ultimately fail.
Vertical Installation:
It is necessary to orientate the valve rib such that there
is equal loading on the Dual Plates. This is illustrated in
the diagram below. Additional pressure drop should be
expected due to the weight of the discs.
PRECAUTION:
Titan FCI Dual Plate Check Valves are designed to operate
properly for flow rates between 5 ft./sec. to 10 ft./sec.. It is not
recommended to exceed the maximum flow rate of 10 ft./sec.
or the minimum flow rate of 5 ft./sec..
In this position, the valve
rib is perpendicular to the
incoming horizontal piping
which creates an unequal
loading on the plates.
PRECAUTION:
A Titan FCI strainer should be installed ahead of the pump to
ensure protection and proper operation of the check valve and
the pump.
Horizontal Flow
DUAL PLATE CHECK VALVE
PRECAUTION:
Horizontal Flow
PRECAUTION:
A Titan FCI Dual Plate Check Valves can only be mated with
flat-faced pipe flanges per ANSI 16.5.
Horizontal Installation:
The valve rib must be installed perpendicular to the flow. This is
shown in the diagram below. The eyebolt or plug is located directly
above the valve rib can be used to correctly position the valve.
In this position, the valve rib
is parallel to the incoming
horizontal piping and
creates an equal loading
on the plates.
Horizontal Flow
Horizontal Flow
Figure 4:Vertical Positioning
CAUTION:
Correct
For vertical installations, Dual Plate Check Valves can
only be installed with flow direction upward. In the
vertical position, the outlet will be above the inlet.
Incorrect
Figure 3: Horizontal Positioning
Service
f
Quality
f
Commitment
Tel: 910-735-0000 s Fax: 910-738-3848 s [email protected] s www.titanfci.com
290 Corporate Drive s PO Box 7408 s Lumberton, NC 28358
CVDIOM0406
Step 1:
Remove the plastic flange protectors (if present) and other
packaging materials from the Check Valve.
TITAN
TITAN FLOW
CONTROL, INC.
INSTALLATION, OPERATION,
AND MAINTENANCE
INSTALLATION: Continued...
Step 3:
While supporting the existing pipeline, lift the Check Valve into
position. For large or heavy Check Valves, the appropriate material
handling equipment must be used in order to prevent injury and
possible damage to the Check Valve.
CAUTION:
When lifting the Check Valve, utilize the eye bolt or place slings/
chains securely around the valve body. Never lift the Check Valve
by attaching slings/chains to the trim/seat assembly. The trim/seat
assembly is not designed to withstand the weight of the unit.
1
5
8
3
6
MAINTENANCE:
Titan FCI Dual Plate Check Valves are designed to provide
trouble-free service and seldom require maintenance. If
removal of Check Valve is required for inspection, please
follow these steps.
Valve Removal
CAUTION:
Before removing the Check Valve from the pipeline,
the pressure inside the vessel must be reduced to
atmospheric via suction or venting. Failure to do so
may result in serious bodily injury.
CAUTION:
Before removing the Check Valve from the pipeline,
ensure that the media that is flowing in the pipeline
is known and any special handling precautions are
understood. Please review the Material Safety Data
Sheet (MSDS) for that specific fluid.
Step 1:
To remove the Check Valve from the pipeline, first isolate
the Check Valve by shutting off the upstream pump and
closing the downstream isolation valve. Drain the system
as much as possible.
7
4
Once proper installation has been successfully completed,
start the system gradually, at start up as well as after shut
down. This eliminates sudden shock to the Check Valve
and other equipment in the line.
2
Step 2:
Relieve pressure from both sides of the Check Valve by
venting the line.
Figure 5: Bolting Sequence
CAUTION:
Excessive bolt torque may damage the Check Valve Flanges.
Please refer to established flange bolt torques.
Service
f
Quality
f
Commitment
Tel: 910-735-0000 s Fax: 910-738-3848 s [email protected] s www.titanfci.com
290 Corporate Drive s PO Box 7408 s Lumberton, NC 28358
CVDIOM0406
Step 5:
Install lubricated flange bolts and hand tighten. Flange bolts should
then be tightened using a star or crisscross pattern to evenly load
the bolts. This is illustrated in the diagram below.
Start-up Procedure:
Step 4:
Install a standard, 1/8” thick flange gasket (in accordance with ANSI
B16.5) between valve and mating flanges (on both sides). Ensure the
flange gaskets are centered correctly to prevent internal leakage.
OPERATION:
DUAL PLATE CHECK VALVE
Step 2:
Following the instructions for horizontal or vertical installation
described previously, orientate the flow arrow (cast into the side
of the valve body or printed on the nameplate) in the direction of
the pipeline flow. In the correct position, the dual plates will move
away from the valve seat, in the direction of the pipeline flow.
TITAN
TITAN FLOW
CONTROL, INC.
INSTALLATION, OPERATION,
AND MAINTENANCE
MAINTENANCE: Continued...
Step 4:
Remove Check Valve from the pipeline and inspect the internal
components for wear or damage. If replacement parts are required,
please constant Titan Flow Control for repair recommendations.
SPARE PARTS LIST:
For the bill of materials and spare parts listing of each Globe
Style Check Valve, please refer to the corresponding Engineering
Specification Submittal Sheet.
Trouble Shooting:
Vibration:
Verify that flow rate is within acceptable ranges (5 ft./sec. to 10
ft./sec.). Additionally, verify that the Check Valve is 5 to 10 pipe
diameters from any turbulence producing devices (elbows, pumps,
tees, expansions, reductions, and swages).
Slamming:
Remove Check Valve from piping system and inspect the spring.
Verify that the spring is providing the proper tension.
THIS WARRANTY IS IN LIEU OF ANY OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
ANY IMPLIED WARRANTY OF FITNESS OR
MERCHANTABILITY. SELLER SHALL NOT BE LIABLE FOR
ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES. NO REPRESENTATIVE OR SELLER HAS
AUTHORITY TO MAKE ANY REPRESENTATIONS OR
WARRANTIES, EXCEPT AS STATED HEREIN.
Restricted Flow:
If flow is halted at the Check Valve, verify that the flow direction
arrow (casted into the side of the body or printed on the nameplate)
is pointing in the direction of the flow.
Service
f
Quality
f
Commitment
Tel: 910-735-0000 s Fax: 910-738-3848 s [email protected] s www.titanfci.com
290 Corporate Drive s PO Box 7408 s Lumberton, NC 28358
CVDIOM0406
When removing the Check Valve for inspection, please follow
the removal instructions presented in this manual. Always relieve
pressure from both sides of the Check Valve before inspection.
Seller warrants each of the products and parts sold
hereunder, under normal use of service, and subject to
user’s compliance with any operating instructions and
other directions given by seller, to be free from defects
in materials or workmanship for a period of one year
from date of shipment from seller’s plant. Seller’s liability,
under this warranty, shall be limited to, at the seller’s
option, to repairing or replacing any such defective product
FOB seller’s plant in Lumberton, NC, and reimbursing
purchaser for shipping costs, subject to the following:
(1) Timely receipt of purchaser’s written notice that such
products are defective. (2) Seller’s written authorization
to purchaser for the return of such products, (3) the return
of such products to seller with shipping charges prepaid
and (4) seller’s inspection of and confirmation that such
products are defective in materials or workmanship. If
seller’s inspection shows that the products returned are
defective due to dirt, rust or any foreign material not
attributable to seller: improper usage, over tightening
on threads, abuse or incorrect assembly in the field, or
other cause not due to seller’s improper manufacture,
seller will, subject to purchaser’s written authorization,
repair or replace such products at cost. Seller’s factory
inspection and testing reports will be made available to
purchaser upon request.
Leakage:
Periodic inspections for leakage should be performed. If leakage
is present, check the flange gasket and flange bolt torque. In some
situations, it may be necessary to isolate the Check Valve by shutting
off upstream and downstream valves. Then remove the Check Valve
and inspect the seating surfaces for damage.
WARRANTY:

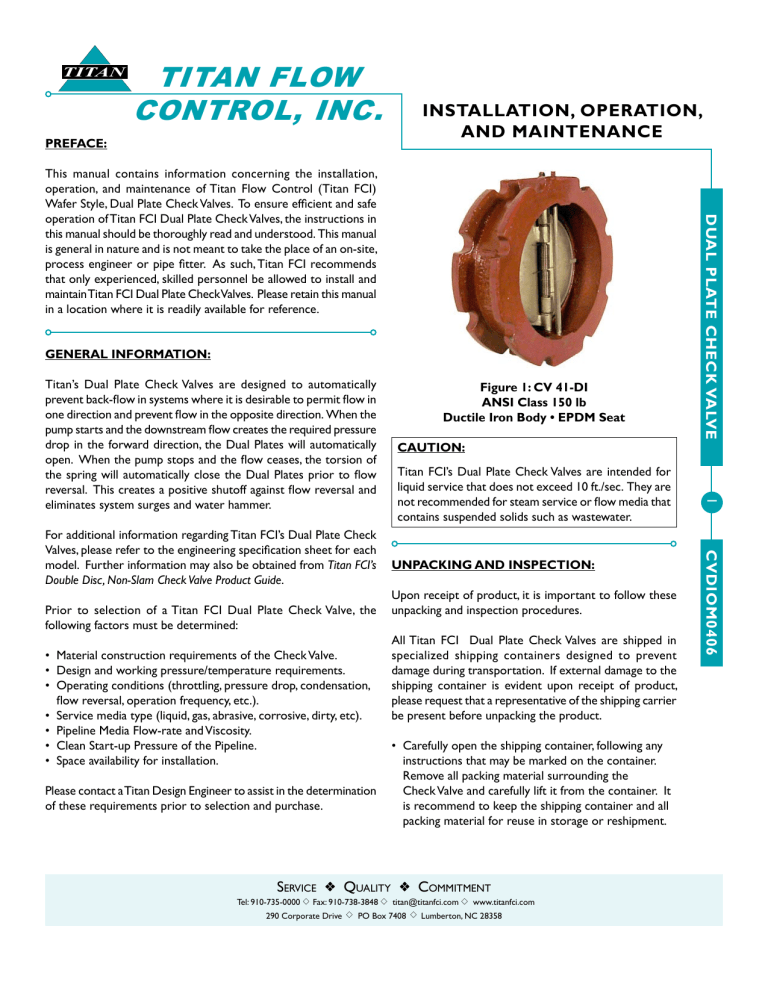

DUAL PLATE CHECK VALVE
Step 3:
Loosen the outlet side first, never loosen the inlet side first. Once
pressure has bee relived, loosen inlet side.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
