Fagor 1SF-72CE Owner Manual

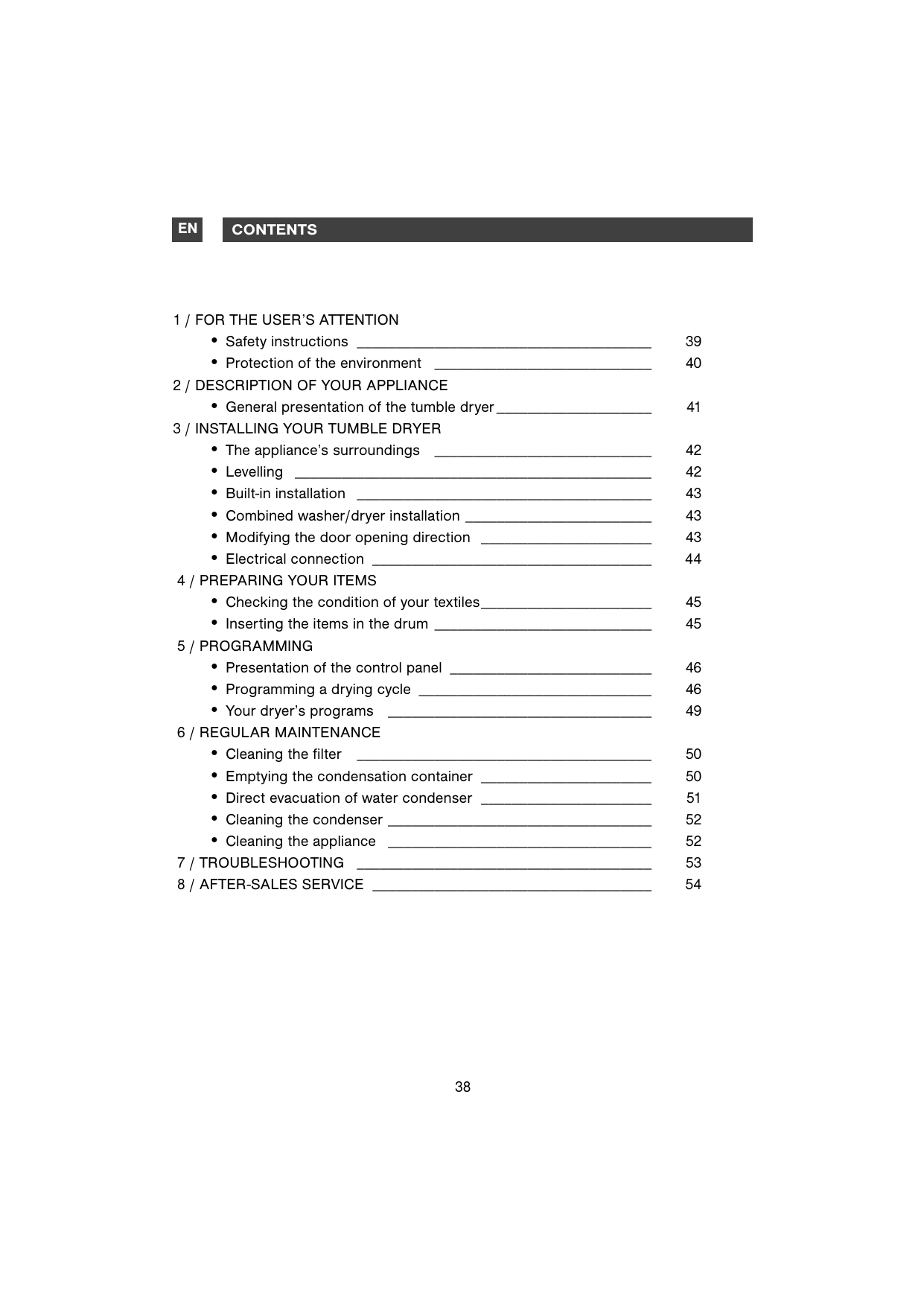

CONTENTS

1 / FOR THE USER’S ATTENTION

•

Safety instructions ______________________________________ 39

•

Protection of the environment ____________________________ 40

2 / DESCRIPTION OF YOUR APPLIANCE

•

General presentation of the tumble dryer ____________________ 41

3 / INSTALLING YOUR TUMBLE DRYER

•

The appliance’s surroundings ____________________________ 42

•

Levelling ______________________________________________ 42

•

Built-in installation ______________________________________ 43

•

Combined washer/dryer installation ________________________ 43

•

Modifying the door opening direction ______________________ 43

•

Electrical connection ____________________________________ 44

4 / PREPARING YOUR ITEMS

•

Checking the condition of your textiles______________________ 45

•

Inserting the items in the drum ____________________________ 45

5 / PROGRAMMING

•

Presentation of the control panel __________________________ 46

•

Programming a drying cycle ______________________________ 46

•

Your dryer’s programs __________________________________ 49

6 / REGULAR MAINTENANCE

•

Cleaning the filter ______________________________________ 50

•

Emptying the condensation container ______________________ 50

•

Direct evacuation of water condenser ______________________ 51

•

Cleaning the condenser __________________________________ 52

•

Cleaning the appliance __________________________________ 52

7 / TROUBLESHOOTING ______________________________________ 53

8 / AFTER-SALES SERVICE ____________________________________ 54

1 / FOR THE USER’S ATTENTION

Warning :

Please read the user guide carefully before turning on your appliance so that you can learn how to use it as quickly as possible.

Important :

Keep these operating instructions with your appliance. If you should sell your machine or give it to someone else, ensure that the operating instructions are provided.

Please take note of these safety instructions before installing and using your appliance.

They have been written for your safety and that of others.

•

Children’s safety

— This appliance must only be used by adults.

Do not let children play with the appliance and keep pets away from it.

— Keep young children away from the appliance when it is operating.

— Keep the packaging materials out of children’s reach (e.g.: plastic bags, polystyrene, etc.) because they can be dangerous for children : risk of suffocation.

— This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or instructed concerning use of the appliance by the person responsible for their safety.

• SAFETY INSTRUCTIONS

•

Installation

— When you receive the appliance, unpack it or have it unpacked immediately. Check that it has not suffered any damage during transport. Express any reservations in writing on the delivery slip and keep a copy.

Never connect a damaged appliance.

If your appliance is damaged, please contact your dealer.

— Before connecting your appliance, please refer to the installation instructions.

— Your tumble dryer must be kept disconnected from the mains supply throughout the whole installation process.

— The electrical connection details shown on your appliance’s information plate must match those of the local mains supply.

— Once your appliance has been installed, the electrical plug must remain accessible.

— Do not alter or try to alter the appliance’s characteristics. This could be dangerous.

— If your installation requires alteration, only entrust the electrical and plumbing work to qualified electricians and plumbers.

— The appliance must not be installed behind a locking door, a sliding door or a door with hinges on the opposite side to those on the dryer.

— Your appliance is designed for normal domestic use. Do not use it for commercial or industrial purposes or for any purpose other than the one for which it has been designed

•

Use

Important :

Your tumble dryer is designed for domestic use only, for drying textiles suitable for tumble drying.

Important :

You must observe the following instructions. We decline any responsibility and rescind the guarantee if these recommendations are ignored : failure to observe them can result in material damage and physical injury.

— Use your appliance in accordance with its method of use, thereby avoiding injury to yourself and damage to your items. Do not use solvents in the appliance (risk of fire and explosion).

— Strictly comply with the care instructions on your laundry.

— If you have to open the door of the drum during the drying cycle, ensure that you do not touch the drum immediately, as it is very hot.

1 / FOR THE USER’S ATTENTION

— Substances contained in soiling such as oil, acetone, alcohol, petrol, kerosene, stain removers, turpentine or wax must be removed before drying in your machine (by using an adapted warm water washing programme with additional detergent for example).

— Precautions for using stain-removing products : any preliminary treatment by solvent, stain-remover, aerosol, such as acetone, alcohol, gasoline, kerosene, térébentine is prohibited because these products are very inflammable. If your laundry requires this type of treatment, this must be done before washing. Similarly, we recommend that you do not use these products near to your dryer or, in general, near any electrical appliance in a poorly ventilated room in order to avoid any risk of an explosion.

— If any incidents occur, which you cannot resolve using the troubleshooting advice we provide (see

“TROUBLESHOOTING”), contact our Technical Service Center.

— Before disposing of your worn-out appliance, make it unusable. Unplug and cut off the power cable flush with the appliance and make the door lock inoperable.

— For your safety’s sake, if you wish to change your appliance’s power cable, contact a qualified electrician.

— If any operating anomalies occur, disconnect your appliance and call our Technical Service

Center.

•

ENVIRONMENTAL PROTECTION

The appliance’s packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate that in countries that are a members of the European Union the used appliances should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment.

Contact your town hall or your retailer for the used appliance collection points closest to your home.

We thank you for doing your part to protect the environment.

•ENERGY SAVINGS

— Spin your textiles at high speeds ; the residual dampness will be low, as will your energy consumption. Even synthetic textiles must be spun before drying.

— Place the maximum load in your machine ; this will optimize the energy used. When doing so, comply with the indications on volume provided in this instruction manual.

— The drying time and the energy consumption are both increased by a high ambient temperature and too small a room.

— Clean the filter after each drying cycle.

— Clean the condenser twice a month.

— Swich off your tumble dryer at the cycle ends.

2 / DESCRIPTION OF YOUR APPLIANCE

• GENERAL PRESENTATION OF THE TUMBLE DRYER

Fig. 01

Control panel

Condensate container

Condenser grill

Filter

Information plate (Reference for

After-Sales)

Adjustable feet

3 / INSTALLING YOUR TUMBLE DRYER

• THE APPLIANCE’S SURROUNDINGS

Advice :

Your tumble dryer releases heat. If you place it next to another appliance or a unit, we advise you always to leave a space in-between to assist in air circulation (Fig. 02).

Important :

We strongly advise against :

— Installing your appliance on a carpeted floor.

If you cannot avoid this, take all possible measures not to obstruct the circulation of air at its base.

— Installing your dryer in a location where it can be subject to being splashed with water.

— Installing your dryer in a small closed room

(if this is the case, open the door or the window during drying).

— Installing your dryer in a poorly ventilated room. The temperature in the room must remain below 30°C during drying.

Fig. 02

• LEVELLING

Important :

Use a level to check that the appliance is horizontal :

Your dryer is fitted with 4 adjustable feet

(Fig.03). To adjust the stability and levelness :

— Tip it slightly backwards.

— Screw one or more of the feet in or out using a spanner or a screwdriver to adjust their height to suit the shape of the floor (Fig.03).

— Set your dryer back on its feet and check that it is stable.

Fig. 03

3 / INSTALLING YOUR TUMBLE DRYER

• BUILT-IN INSTALLATION

Important :

If you are fitting the appliance underneath a worktop, you must either keep the original laminated top, or replace it with a slimmer version using a kit available for this purpose from your dealer. For safety reasons, the appliance must never be operated without a top.

• COMBINED WASHER/DRYER INSTALLATION

An adaptation kit is available from your dealer. This is used to mount your tumble dryer above your washing machine.

Important :

Check with your dealer that the kit is compatible with your washing machine. For safety reasons, fitting must be performed by a qualified professional.

• MODIFYING THE DOOR OPENING DIRECTION

If you wish, you can alter the direction the door opens as follows (Fig. 04 or 05).

— Remove the 4 screws in the front panel holding the hinges

A and

.

— Reverse the hinge

A and fasten it back on.

— Refit the door on the hinge

— Reverse the hinge

B and fasten it back on.

— Reverse the positions of the lock and the cover

E on the machine’s front.

— Reverse the positions of the bolt

Fig. 04

Left-hand Door

Fig. 05

Right-hand door

3 / INSTALLING YOUR TUMBLE DRYER

• ELECTRICAL CONNECTION

Danger :

To make the electrical connection to your appliance :

— Do not use an extension, an adapter, a multiple socket or a programmable timer.

— The plug must be easily accessible but be out of children’s reach.

— If there's any doubt about the condition of your installation, contact your installer or a qualified

Brandt-approved professional.

— Never eliminate the electrical Earthing system.

The electrical installation must comply with the prevailing standards and the Electricity Board’s regulations in the country concerned, particularly regarding Earthing and installation in shower rooms.

We cannot be held responsible for any incident caused by poor electrical installation.

• REPLACING THE ELECTRIC POWER CABLE

Important :

To ensure your safety, this must be carried out by the manufacturer's after-sales service team or a qualified professional.

Advice :

In order to easily find your appliance’s reference numbers in the future, we recommend that you note them down on the “After-Sales Service and Consumer Relations” page (this page also explains where to find these on your appliance).

Your appliance complies with European Directives 2006/95/EEC (Low Voltage Directive) and

2004/108/EEC (Electromagnetic Compatibility).

4 / PREPARING YOUR ITEMS

• CHECKING THE CONDITION OF YOUR TEXTILES

Advice :

If, before you insert your clothes in the tumble dryer, you notice any stains, even after washing, do not dry the items concerned. As a general rule, stains that have been ironed or tumble-dried can no longer be removed.

Please refer to the instructions for treating stubborn stains provided in most washing machine instruction manuals and, in particular, wash the stained items again.

Important :

Do not tumble-dry the following articles :

— Clothing including rubber like materials (for example: shower caps, waterproof clothing and textiles, linings, pillows etc.)

— Chlorofibres (Thermolactyl* for example)

*Registered trademark

— Items containing underwiring that could become detached

— Bulky items (duvets, eiderdowns, etc...)

— Laundry that has not been spun

— Laundry cleaned with inflammable chemicals.

•

Preparing your items :

— Close all zippers and snap buttons.

— Remove any loose buttons, pins or hook fasteners.

— Knot any belts, apron strings, etc...

— Empty pockets.

— Always adhere to the manufacturer's instructions when using softening products.

Important :

Check the labels on your textiles

Normal drying

Do not tumble dry

Gentle drying

• INSERTING YOUR ITEMS IN THE DRUM

— Open the door by pushing (press where the label is) (Fig. 06).

— Check that the filter is in its housing .

— Insert washed and spun clothes loosely in wiitth ou diin g iitt o piilliin up

— Take care not to let any fabrics get caught in the door.

— Close the door.

•

Recommended volumes :

The maximum capacity of the dryer is 7 kg.

— To reduce creasing and optimise drying times, we recommend you do not overload the machine.

Fig. 06

5 / PROGRAMMING

• PRESENTATION OF THE CONTROL PANEL

1SF-72CE

Programs dial

Anti-creasing

Delayed start

B C D

Buzzer

Start/Pause

On/Off

• PROGRAMMING A DRYING CYCLE

• Starting the appliance :

Check that the power cable is plugged in. The appliance will not start unless the door is properly closed.

Press the “ On /Off” button .

Select your program (see the table “Your dryer’s programs” on the following pages) by turning the programs dial

(it turns in both directions). The indicator light shows you the program you have selected.

Press “ Start /Pause” gram will start.

and the pro-

The program progress lights illuminate successively as the drying progresses.

Program progress :

Pause - Drying - Cooling down - End of program

• “ MEMO ACTIV’ ” function :

Your dryer remembers the programs that you use most often.

After a few drying cycles, the program displayed when you switch on your machine is the one that you have used most often.

Advice :

Consult the Programs table on the next page to determine the program needed for the type of items.

5 / PROGRAMMING

• Delaying a program’s start :

Select your program using the program knob

. The indicator light lit shows you the program you have selected.

Press the “Delayed Start” knob to delay the start of your program by 3 h , 6 h,

9 h or 12 hours.

Confirm by pressing the “ Start /Pause” button

During the delayed start phase, the indicator changes from 12:00 to 9:00, from 9:00 to 6:00 or from 6:00 to 3:00. Once the Delayed Start time delay has expired, the program actually starts. The program progress lights illuminate as the drying cycle progresses.

• Adding or removing an item during drying :

Press “Start/ Pause ” to interrupt drying or open the door.

Insert or remove the item or items and close the door.

Press the “ Start /Pause” button resume drying.

Delayed start

Program stop

• Altering programming or drying during operation :

If you have entered the wrong program, you can change your selection during the cycle.

Press “Start/ Pause ” to drying.

Select another program using the program dial.

Press the “ Start /Pause” button resume drying.

• Stopping the appliance :

At the end of the program, the “ Filter ” and

“ Tank Full ” lights flash alternately to remind you that you must clean the filter and empty the water collection tank after every drying cycle:

Press the “On/ Off ”button your dryer.

and empty

Clean the filter and empty the water collection tank (see the “REGULAR MAINTENANCE” section).

End of program

5 / PROGRAMMING

• “Anti-creasing” option :

The “Anti-creasing” option fluffs the textiles every 10 minutes for up to 24 hours, until the door is opened or the machine is turned off. It begins as soon as the drying finishes and prevents the clothes from settling in the machine.

To select this function, press the “Anti-creasing” . An indicator lights up to show that this option has been activated.

“Anti-creasing” option

• “Buzzer” option :

Press the ““B uz err”” button . At the end of drying, three beeps will sound every 10 minutes for one hour until the door is opened or the appliance is stopped.

• Cooling cycle :

All programs finish with a cooling cycle that lasts for a few minutes to allow the washing to cool gradually.

Important :

Do not stop your dryer before this cycle has finished.

“Buzzer” option

• During the cycle :

Your tank is full during the drying cycle.

The appliance stops during the program.

The “ Tank Full ” and “Pause” and the program light flashes.

light is lit,

Proceed to empty your water collection tank

(see the “REGULAR MAINTENANCE” section).

Press “ Start your program.

Program stop

Remarks :

The “Anti-creasing” and "Buzzer" options remains selected from one program to the next. You can simply press the button to deactivate thes options, even during a program.

Important :

A power failure cancels the current program. In this case, therefore, you have to reset all the programming operations.

5 / PROGRAMMING

• YOUR DRYER’S PROGRAMS

Regular programs

COTTON -

Extra drying -

Ready to put away -

Ready to iron -

Machine pressing -

ALL TEXTILES -

Ready to put away -

Ready to iron -

Other drying programs

Type of textile

Cotton

Regular textiles

Schirts -

Synthetic, easy iron

Modern fibres -

Delicate, synthetic

Delicates -

Very delicate: silk, light synthetic lingerie ...

Refreshing and airing your textiles after prolonged storage

Other textiles

Air and refresh -

Additional drying

30 min. ou 60 min.

Regular textiles

Drying results

Dry

Slightly damp

Damp

Dry

Slightly damp

Dry

15 minutes

RECOMMENDED PROGRAMS FOR TESTS TO EN 61121 - DIRECTIVE 95/13/EEC

Load I

Load II

Load III

”Dry Cotton”

”Ready-to-iron Cotton”

7kg

”Easy Maintenance Textiles” 3kg

.... select “Cotton” - ready to put away

.... select “Cotton” - ready to iron

.... select “Modern Fibres”

Advice :

As a safety measure, you are advised to unplug the power cable when you are not using the appliance.

6 / REGULAR MAINTENANCE

• CLEANING THE FILTER

Important :

Please remember that the filter must be cleaned after every drying.

This is located in the lower part of your dryer.

Clean it as follows:

— Remove it from its housing by pulling it upwards (Fig. 08)

— Open the filter (Fig. 09)

— Clean it by removing the thin coating of fluff covering it (Fig. 10)

Ensure that there is no fluff accumulating round the dryer.

Important :

Do not wash filter with water Fig. 11)..

— Re-insert it in its housing, pushing it well in.

Fig. 08

Fig. 09

Fig. 10

• EMPTYING THE CONDENSATION

CONTAINER

This is located at the top of your appliance. It collects the water extracted from your items as they are dried.

— To empty it, release it from its housing by pulling it towards you (Fig. 12).

Important :

The condensation container must be emptied after each drying cycle (Fig.13).

Important :

Risk of frost : if there is a risk of frost, empty the condensation container.

Important :

Moving the appliance : empty the condensation container if you wish to move or tilt your appliance.

— Empty the container (Fig. 13).

Fig. 11

Fig. 12

Fig. 13

6 / REGULAR MAINTENANCE

• DIRECT EVACUATION OF WATER CONDENSER

To avoid having to empty the collection tank every time you use the appliance, you have a kit (*) for removing the water from the condenser directly into the drain (hose and deflector). To fit this :

— Take off the existing pipe and push it inside the appliance (Fig. 14).

— Clip the deflector with the top of the pump (Fig. 15).

— Connect the hose from the kit to the end connector on the appliance (Fig. 16).

You can connect the other end of the hose either :

- To a ventilated trap (Fig. 17).

- Or a sink trap (Fig. 18).

When connecting to a trap, you must remove the filler plug. Then press home the rubber tip. If necessary, add a clamp connection (Fig. 18).

Fig. 14

Fig. 15

Important :

The deflector must necessarily be positioned before the drain hose connection to avoid any water splashes when taking off the hose.

Fig. 16

Remarks :

(*) This kit is provided with the appliance

(according to model).

Fig. 17

Fig. 18

6 / REGULAR MAINTENANCE

• CLEANING THE CONDENSER

Important :

The condenser must be cleaned twice a month.

Important :

Unplug the power cable from the socket before cleaning the condenser.

— Open the grill at the front of the appliance.

— Release the condenser (Fig.19).

— Remove it carefully (Fig.20).

— Remove any fluff from the condenser.

— Clean it with water only under the tap (Fig.21).

— After cleaning, ensure that none of the tubes are “blocked” and that the fins are clean.

— Rub it superficially.

— Re-insert the condenser and lock it in place.

Close the grill.

Important :

When refitting the condenser, ensure that it is pushed in firmly right to the back of its housing when locking it in.

Fig. 19

Fig. 20

Fig. 21

• CLEANING THE APPLIANCE

Advice :

To clean the control panel, the access to the drum and the casing, use only a sponge or a damp cloth and some soapy water.

— Ensure that there is no fluff accumulating round the dryer.

— Clean the door seal with a damp cloth.

— Clean the filter housing with your vacuum cleaner once a year.

You should n ott u e,, under any circumstances

(Fig 22) :

— Abrasive powders

— Metal or plastic sponges

— Alcohol-based products (alcohol, thinners, etc.)

Fig. 22

7 / TROUBLESHOOTING check.

Advice :

Some incidents may arise when you are using your dryer. Here are the points you should

Fault :

The dryer does not start :

The drying times are too long :

The laundry is too damp :

Check whether :

- the plug is in the socket

- the On/Off button is pressed in

- the door is properly closed

- the condenser is correctly locked in place.

- the filter in the drum is clogged with fluff

- the laundry has been spun enough beforehand

(500rpm minimum, but spinning at 850rpm provides better drying times)

- the condenser is not clogged.

- the air inlets and outlets are unobstructed enough to ensure correct air circulation.

- the drying programme selected matches the type of items in the drum.

- the filter in the drum is clogged with fluff

- the type of drying has been selected correctly (too low) : switch to the next programme up or increase the drying time.

- the condenser is not blocked by fluff.

The laundry is too dry, too creased : - the drying time selected is too long: the drying time is better to be too short than too long: this avoids the laundry becoming too dry and difficult to iron.

The items are unevenly dried :

The synthetic items are loaded with static electricity :

- the laundry has been dried too much

- you have used softener during washing. By using this product, you can reduce most of the problems with static electricity.

The “Tank Full” indicator light is lit : - the condensate container is full: once you have emptied it, re-insert it correctly, pushing it completely into its housing

The “Tank Full” indicator light illuminates although the tank is empty :

- the types of textiles in the load are too different (e.g.

sheets together with jeans)

- the laundry has been laid correctly ‘unfolded’ in the dryer

- the drum is not overloaded.

- the container has been properly inserted: push it in completely.

- the condenser is tightly locked on the two sides.

8 / AFTER-SALES SERVICE

Any work on your appliance must be performed by a Brandt-approved qualified professional. When you call, mention your appliance’s full reference (model, type, serial number).

These details are shown on the manufacturer’s information plate

(Fig. 23).

ORIGINAL PARTS

During any maintenance work, ask that only c errttiiffiie giin all rre plla ce en s b us d.

Fig. 23

NOTES

1SF-72CE

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF
