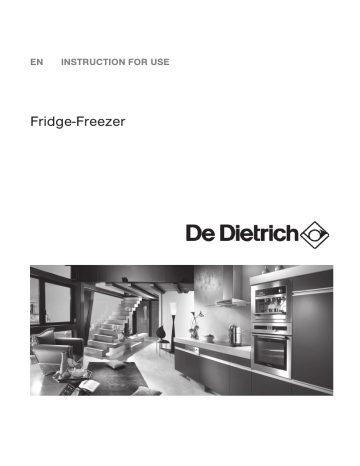

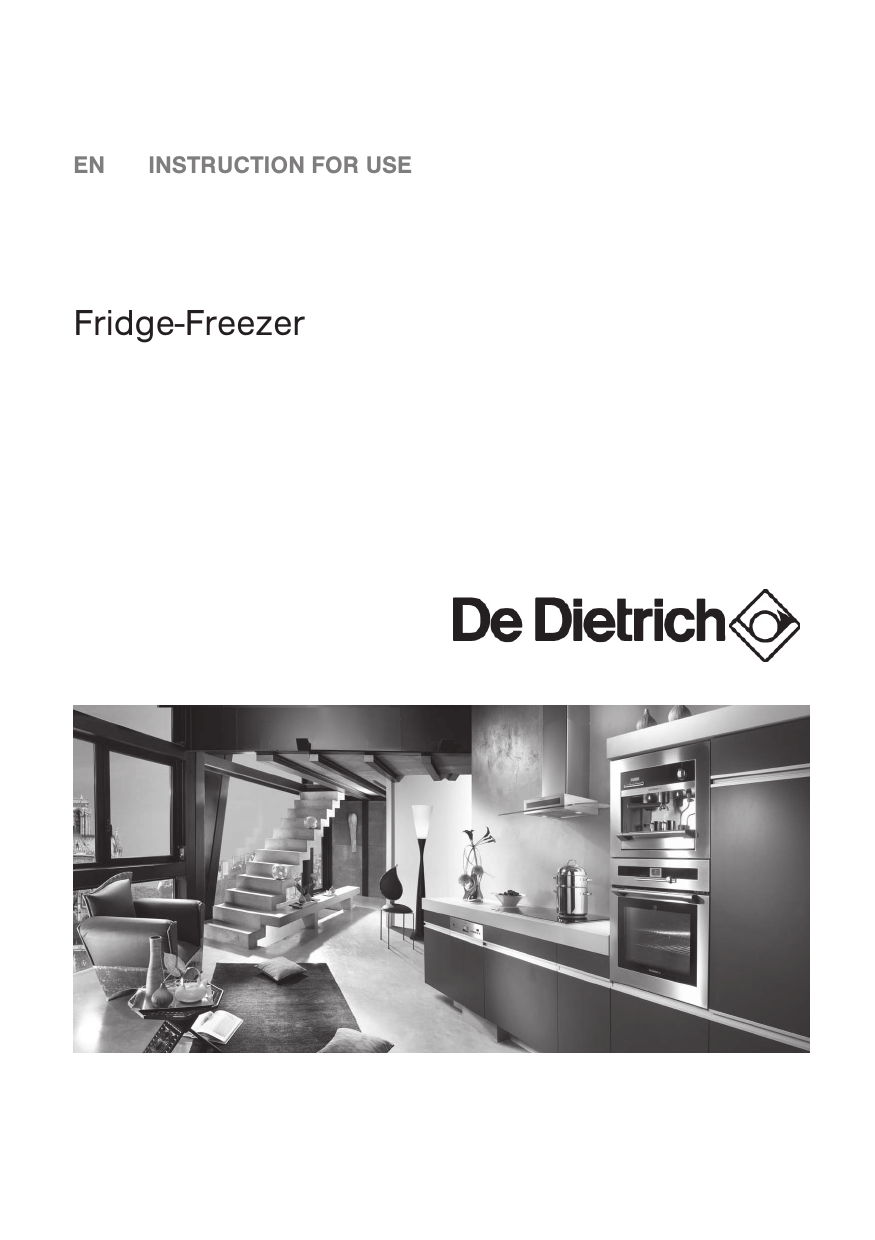

De Dietrich DRD1127J Owner Manual
EN INSTRUCTION FOR USE
Fridge-Freezer
Dear Customer,
You have just acquired a DE DIETRICHfridge and we would like to thank you.
Our research teams have created this new generation of appliances for you. Their quality, design,features and technological advances make them exceptional products, and reveal our unique know-how.
Your new DE DIETRICHfridge will blend harmoniously into your kitchen and will perfectly combinefood preservation performance and ease of use. We wanted to offer you a product of excellence.
In the DE DIETRICHproduct range, you will also nd a wide choice of hobs, ovens, microwaves,hoods, dishwashers, cookers, freezers, that you can coordinate with your new DE
DIETRICHfridge.
Visit our website
www.dedietrich-electromenager.com
, where you will nd our latest innovationsas well as useful and complementary information.
DE DIETRICH
Setting New Values
As part of our commitment to constantly improving our products, we reserve the right to make changes to thembased on technical advances to their technical and functional features and appearance.
Warning:
Before installing and using your appliance, please carefully read this Guide to Installation and Use, which willallow you to quickly familiarise yourself with its operation.
Fridge-Freezer EN
Thank you for your trust and for buying this appliance. We hope it will successfully serve the purpose for many years.
Fridge-Freezer
is for domestic use only.
The lower part of the appliance is fridge
and is used for storing fresh foods at the temperature of 0°C and higher.
The upper part is freezer
and is used for freezing fresh foods and storing frozen foods for longer periods of time (up to one year, depending on the kind of foods you store). The compartment is marked with four stars..
Before Putting Into Use .........................3
Instructions for Use
Mounting Instructions
We Care for the Environment
Tips for Energy Savings
Important ...............................................4
Storing Time During Power Supply
Interruption
Disposing of the Worn Out Appliance
Environmental protection .....................5
Placing and Installation ........................5
Choosing the Right Place
Connection to Power Supply
Description of the Appliance ................6
Operation Control .................................7
Temperature Selection
Use...........................................................7
Storing Fresh Foods
Freezing Fresh Foods
Ice Making
Food safety ...........................................10
Temperature Indicator
Maintenance and Cleaning .................11
Automatic Defrosting of the Refrigerator
Manual Defrosting of the Frezing
Compartment
Cleaning the Appliance
Switch Off the Appliance When Not In Use
Trouble-Shooting Guide......................12
Before Putting Into Use
x
Before connecting the appliance to the mains supply, leave it stand for about 2 hours, which will reduce a possibility of malfunctions in the cooling system due to transport handling.
x
Clean the appliance, and be thorough, especially in the interior (See Cleaning and
Maintenance).
x
In case the interior accessories are not correctly placed, rearrange them as described in chapter Description of the
Appliance.
Instructions for Use
These instructions for use are intended for the user. They describe the appliance and its correct and safe use. They were prepared for various types of refrigerators therefore you might find in it some functions that do not apply to your appliance and description of the accesories that your appliance does not include.
Mounting Instructions
Integrated appliances are equipped with instructions for mounting the appliance into the kitchen unit. The appliance should be mounted by qualified technician and instructions are for his use only.
We Care for the Environment
x
Our appliances are distributed in packaging made of environmental friendly material which could safely be recycled, disposed off or destroyed, with no effects on the nature whatsoever.
Instructions for Use 3
x
These instructions are printed either on recycled paper or chlorine free bleached paper.
x
When your appliance finally wears out, please try not to burden the environment with it; call your nearest authorised service agent. (See Disposing of the Worn Out
Appliance).
Tips for Energy Savings
x
Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, mind to close it as soon as possible. This is especially important if you have an upright model.
x
Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).
x
Use higher thermostat settings only when required or recommended.
x
Before loading the appliance with packages of fresh foods, make sure they are cooled to ambient temperature.
x
Ice and frost layer increase energy consumption, so do clean the appliance as soon as the layer is 3-5 mm thick.
x
If the gasket is damaged or if it turns out that the sealing is poor, the energy consumption is substantially higher. To restore efficiency, replace the gasket.
x
The condenser on the rear wall should be always clean, free of dust or any impurities.
x
Always consider instructions stated in sections Positioning and Energy Saving
Tips, otherwise the energy consumption is substantially higher.
4
Important
x
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
.
x
If you have bought this appliance to replace an old one equipped with a lock that cannot be opened from inside (lock, bolt), make sure that the lock is broken. This will make it impossible for children to lock themselves inside the appliance and suffocate.
x
The appliance must be correctly connected to the mains supply. (see: Connecting to the
Mains Supply).
x
Do not touch the cooled surfaces while the appliance operates, especially not with wet hands, because the skin may stick to the cold surfaces.
x
Do not freeze bottles containing liquid, especially not soft drinks, such as mineral water, sparkling wine, beer, cola etc., because liquid expands during freezing and the glass bottle is very likely to blow up.
x
Do not eat frozen food (bread, fruit, vegetables), because you can get frostbites.
x
If the food has strange smell or color, throw it away, because it is very likely that it is spoiled and therefore dangerous to eat.
x
Disconnect the appliance from the power supply before repairing it (only a qualified technician should repair it), before cleaning and before replacing the light bulb.
x
Do not defrost the appliance with other electric devices (hair dryer etc.) and never scrape the ice or frost layer with sharp tools.
Use only enclosed tools or tools recommended by the manufacturer.
x
For the sake of environment protection - be careful not to damage the rear wall of the appliance (the condenser unit or the tubes for example when moving the appliance) or any part of the refrigerating system inside the appliance.
x
The refrigerating system of the appliance is filled with refrigerant and oil, so when the appliance is damaged, handle it with care and dispose it of in compliance with environmental protecting precautions. (See
We Care for the Environment).
x
Heating element incorporated in the appliance, all around the rim, is controlled by the operation of the compressor and it prevents the door gasket to freeze on to the freezer housing.
x
If the supply cord is damaged, it must be replaced by the manufacturer or his service agent or a qualified person in order to avoid hazard.
x
The rating plate is inside the appliance or outside on the rear wall.
x
Warning:
Ventilation slots on the appliance or built-in element should always be kept clean and unobstructed.
Instructions for Use
x
Warning:
Do not use any mechanical accessories when thawing the refrigerator, except for those explicitly recommended by the manufacturer.
x
Warning:
To prevent any pollution be careful not to damage the insulation or refrigeration tubes at the rear wall during the installation, cleaning and disposal of the appliance.
x
Warning:
Do not use any electrical devices inside the appliance, except for those explicitly recommendedby the manufacturer.
Storing Time During Power Supply
Interruption
Do not open the freezer in case of failure or power supply interruption! In case the interruption is extended over longer period of time (16 hours), take food out of the freezer and use it, or make sure that is sufficiently cooled (perhaps you have an extra appliance).
Disposing of the Worn Out Appliance
x
When your appliance finally wears out, dispose it of. If the appliance has a lock, break it, in order to prevent eventual accidents (danger of children get locked inside the appliance).
x
The refrigerating system of the appliance is filled with refrigerant and insulating substances which should be separately treated and processed. Call your nearest authorised service agent or specialised servicing centre. If you don't find one, contact your local authorities or your distributor. Be careful not to damage the tubes on the rear wall of the appliance (danger of pollution).
Environmental protection
This appliance’s packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate that in countries that are a members of the European Union the used appliances should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European
Directive 2002/96/EC on Waste Electrical and
Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.
We thank you doing your part to protect the environment.
Placing and Installation
Choosing the Right Place
Place the appliance in a dry and regularly ventilated room. Allowed ambient temperature depends on the model (class) of the appliance and is stated on the rating plate of the appliance. Never place the appliance near heat emitting devices (e.g. cooker, radiator, water heater or similar devices) and do not expose it to direct sunlight. The appliance should be positioned at least 3 cm away from the electric or gas cooker and at least 30 cm away from the oil or coal stove. If this is not possible, use an appropriate insulation. Behind the appliance there should be free space at least 200 cm
2 wide and above the appliance the high kitchen units should be at least 5 cm away from the appliance in order to assure adequate ventilation of the condenser unit.
Class
SN (subnormal)
N (normal)
ST (sub-tropical)
T (tropical)
Ambient temparature
from + 10°C to + 32°C from + 16°C to + 32°C from + 16°C to + 38°C from + 16°C to + 43°C
Connection to Power Supply
Connect the appliance with the cable and plug to the power supply socket outlet with a ground terminal (safety socket). Required nominal voltage and frequency are indicated on the rating plate. The connection to the mains
Instructions for Use 5
supply and earthing have to be made according to current standards and regulations.
The appliance resists temporary voltage tolerance up to -6 to +6 %.
Your appliance is compliant with European
Directives as well as their modifications.
Description of the Appliance
B
1
3
2
A
Refrigerator (A)
Refrigerator is used for storing fresh foods for few days.
Freezer (B)
Freezer is used for freezing fresh foods and for storing already frozen foods.
Defrost Water Outlet (2)
Regularly check the defrost water outlet and the channel, because they should never be clogged (as for example with food rests). If clogged, use a plastic straw and clean it.
Fruit and Vegetable Container (3)
The container is on the bottom under the glass shelf and is used mainly for storing fruits and
Shelf (1)
(number depends on the model)
Shelf can be optionally placed on the guides inside the appliance. It is protected against pulling out. If you want to remove it, slightly lift up the back part and pull it out. Glass shelves
(some models only have them) are protected with plastic spacers. Before pulling the shelf out, spacers must be moved towards you.
Spacers can be also removed, however, it is better to keep them for any later transport.
Quickly perishable food should be stored on the back i.e. the coldest part of the shelves.
vegetables. It provides adequate humidity which has favourable effect on food stored.
The fan (4)
(certain models only) x
The fan distributes evenly the inside temperature and reduces dew on storage shelf surfaces.
x
When the refrigerator door is opened, the fan stops operating.
x
It is recommended to switch the fan on:
6 Instructions for Use
when the ambient temperature in the room is increased (above 30°C), in case of increased humidity (during summer season).
x
Switching the fan on/off
ON = OFF =
0
Note: Energy consumption is increased during fan operation.
tubes, cans etc. The lower shelf is used for storing bottles.
Illumination in the Interior of the
Refrigerator
The light for illuminating the interior of the appliance is on, when the door is opened. The operation of the light does not depend on the position of the thermostat knob.
NOTE:
x
The appliance can be equipped with various accesories, depending on the model of the appliance.
Various accesories (spice container, tube holder or additional shelves and drawer partitions) can be bought in authorized centres.
Door Liner
The door liner consists of various shelves or holders used for storing eggs, cheese, butter and yogurt as well as other smaller packages,
Operation Control
The appliance is controlled with thermostat knob, situated in the right upper part inside the appliance. Turn the knob from
STOP (0)
position towards
7
and backwards.
Temperature Selection
x
Higher settings on the knob (towards
7
) mean lower temperatures (colder) in all three compartments of the appliance. Temperature in the interior of the appliance may even drop below 0°C. Higher settings should be used only in case higher temperature is recommended or required. When the ambient temperature is normal, we recommend medium setting.
x
Changes of the ambient temprature affect temperature in the interior of the appliance
(choose correct setting of the thermostat knob).
x
In
STOP (0)
position the appliance does not operate (the cooling system is switched off), yet power supply is not interrupted (the light is on, when you open the refrigerator door).
x
When the fan is on (only for models with built-in fan), we recommend new setting of temperature in the appliance.
Use
Storing Fresh Foods
Proper use of the appliance, adequately packed food, correct temperature and taking into account hygienic precautions will substantially influence the quality of the food stored.
x
Foods to be stored in the refrigerator should be properly packed as to prevent mixing various moisture degrees and odors (in polyethylene bags or sheet, aluminium foil, wax paper, or stored in covered containers or bottles). Before you store food in the refrigerator, cool it to ambient temperature.
x
Before storing food in the refrigerator, remove the excessive packaging (like yoghurt in multi-package).
x
Pack systematically and make sure that foodstuffs do not touch each other (various
Instructions for Use 7
odours may mix). Assure adequate air circulation around packages.
x
Never store inflammable, volatile or explosive substances.
x
Beverages with high alcohol percentage shall be stored in tightly sealed bottles in vertical position.
x
Food should not touch the rear wall of the refrigerator!
x
Foods should be cooled down before storing.
x
Crispy and delicate foods should be stored in the coldest parts of the refrigerator.
x
Try not to open the door too often.
x
Set the thermostat to the setting where lower temperatures are reached. Set the thermostat gradually as to avoid freezing of the foods. Use a thermometer and measure the temperature in the individual compartments. Place the thermostat in a glass vessel filled with water. Temperature readings are most reliable few hour after steady state is reached.
x
Some organic solutions like volatile oils in lemon or orange peel, acid in butter etc. can cause damages and when in contact with plastic surfaces or gaskets for longer period of time.
x
Unpleasant odor inside the refrigerator is a sign that something is wrong with foods or that your refrigerator needs cleaning.
Unpleasant odor can be eliminated or reduced by washing the interior of the refrigerator with a mild solution of water and vinegar. We also recommend using activated carbon filters to clean the air or to neutralize odors.
x
If you plan a longer journey, make sure to remove quickly perishable articles of food out of the appliance before you leave.
Fresh Food Storage Time in the Refrigerator
Article of food Storage time (days)
Butter
Eggs
Meat: fresh uncut
chopped
smoked
Fish
Marinade
Root
Cheese
Sweets
Fruit
Prepared dishes
=
+
=
+
+
+
2
+
+
+
+
+
+
+
+
+
+
+
+
1
+
+
+
+
+
+
+
=
3
+
+
=
=
=
+
+
+
4
+
+
+
=
=
=
+
+
+
5
+
+
+
+
+
=
=
=
6
+
+
+
+
+
=
=
=
7
+
+
+
+
+
=
=
8
=
+
+
+
+
=
=
9
=
+
+
+
=
=
=
10
=
+
+
+
=
=
=
11
=
=
=
=
=
=
Legend: + reccomended storage time = possible storage time
=
=
=
=
12 13
=
= =
=
=
=
=
Freezing Fresh Foods
x
Carefully select food you intend to freeze; it should be of adequate quality and suitable for freezing.
x
Use correct packaging and wrap it right.
The packaging should be air tight and shouldn't leak since this could cause substantial vitamin loss and dehydration of foods.
Foils and bags should be soft enough to tightly wrap around the foods.
x
When preparing foods to be frozen, consider sanitary precautions.
x
Mark packages with following data: kind and amount of foods and the date of loading.
x
It is most important that the food is frozen as quickly as possible. Therefore we
14
=
=
=
=
= recommend the size of the package not to be too large and to be cooled before loading into the freezer.
x
The amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the rating plate (freezing capacity). If the loaded amount is too large, the quality of freezing is reduced which affects the quality of frozen foods.
Freezing Procedure
x
If you have a model without the integrated switch for intensive cooling
, turn the thermostat knob to position
4-7
some 24 hours before loading. After 24 hours load the freezer shelf with fresh food packages. Some 24 hours after loading, turn the thermostat knob to operating position if necessary (see Temperature selection), and
8 Instructions for Use
then reload the frozen packages into the storage baskets.
x
If you have a model with integrated switch for intensive cooling
, switch it on some 24 hours before loading the appliance with larger amounts of fresh foods and turn the thermostat knob to position
4-7
. After 24 hours load the appliance with fresh food packages. After loading, wait for another 24 hours and
switch off
the switch and turn the thermostat knob to required position (see
Temperature selection). The switch is ON when the marking (
I
) or colour marking is visible, and OFF when the marking (
0
) is visible or colour marking is not visible
(depending on model).
store frozen packages directly on the cooling shelves.
To allow the required circulation of cool air, do not place any food above the indicated line – see image below (only with some models).
x
The next time you want to freeze fresh foods, repeat the freezing procedure and be careful that packages with fresh foods do not touch frozen packages.
x
For freezing smaller amount of foods (up to
1 kg) there is no need to change the thermostat setting (see Temperature
Selection).
Storing Frozen Foods
Packages of frozen foods are stored in the basket. If you remove the baskets, you can
Commercially Frozen Foods
The storage time and the recommended temperature for storing commercially frozen foods are indicated on the packaging. For storing and using consider the manufacturer's instruction. When shopping, be careful and choose only adequately packed foods provided with complete data and stored in freezers where the temperature is not higher than -
18°C. Do not buy packages of food covered with frost layer. This indicates that the package was thawed before at least once. Be careful that packages don't start to thaw, as the temperature raise reduces the quality of foods.
Approximate Storage Time for Frozen Foods
Food
1 2 3 4
Storage time (in months)
5 6 7 8
+ Vegetable
Fruit
Bread, pastries
Milk
Ready-made meals
Meat: Beef
Veal
Pork
Poultry
Game
Minced meat
Smoked sausages
Fish: lean
fat
Offal
+
+
+
+
+
+
+
+
+
+ +
+ +
+
+
+
9
+
+
+
10
+
+
+
+
+
11
+
+
12
+
+
Instructions for Use 9
Defrosting Frozen Food
Partially thawed or defrosted foods should be used as soon as possible. Cold air preserves the food but it does not destroy microorganisms which rapidly activate after defrosting and make foods perishable.
Partial defrosting reduces the nutritional value of foods, especially of fruits, vegetables and ready-made meals.
plate. Time required for the ice to form, largely depends on ambient temperature, thermostat setting and on how often you open the door. It usually takes 2-6 hours
(depends on which model of refrigerator you have). With smaller refrigerators we recommend you make a stock of ice cubes
(store them in a separate plastic box). The easiest way to empty the ice tray is to turn the tray around, pour it with cold water and slightly twist it (bend it).
Ice Making
(certain models only)
Recommended thermostat position for ice making is on the middle setting. Fill two thirds of the ice tray with cold water or any other liquid convenient for freezing. Insert the ice tray into the guides or on the cooling
Food safety
Temperature Indicator
The temperature indicator, situated in the coolest part of refrigerator, helps to control correct temperatures of the appliance. Adequate temperature is indicated with
O.K.
mark. If this mark does not show, the temperature of this compartment is too high. Use the thermostat to reduce the temperature in a particular compartment (see chapter "Control of the appliance"). Do not change the setting too often; before temperature checking or when setting it anew, please, wait for 12 hours at least.
Remark!
After the appliance has been loaded with fresh food, or when the door is open too frequetnly or for a too long time, the
OK
mark will not be visible
.
The coolest area of refrigerator, which appears immediately above the shelf covering the crisper pan, is about 20 cm in height.
Foor Arranging
Compartment
Freezing compartment
Food
Ice, frozen food,fresh food intended for freezing…
Refrigerator areas:
:
Cold area
Crisper pan
Top shelves
Door compartments
Colder area
Middle shelves
Fresh fruits, vegetable,…
Butter, cheese, eggs, yoghourth, beverages,…
Products of milk, sweets, prepared dishes (e.g. sauces and other faty dishes),soft & fresh cheese, delicatessen, sweets,…
The Coldest area
Above the shelf covering the crisper pan
Meat (especially poultry, venition, fish), delicatessen or other prepared food, salads, short pastry based on eggs or cream, fresh puff pastry, spongecake, yeats dough for pizzas, fresh products and cheeses made of uncooked fresh milk, vegetables ready and adequately wrapped or all fresh products, the consumption date of which is conditioned by a saving temperature which must be lower or equal to
+4°C. Max. storing time: 1-2 days
Remark:
Bananas, potato, garlic and anion are not kep in the refrigerator. Fermented cheeses are not kept in refrigerator,except if we wish to stop its ripening. They must be well wrapped.
10 Instructions for Use
Maintenance and Cleaning
Automatic Defrosting of the Refrigerator
There is no need to defrost the refrigerator, because ice depositing on the inner back wall is defrosted automatically. Ice is depositing on the inner back wall during the compressor operation; later on, when the compressor is not operating ice is defrosting and water drops collect and drain through the outlet in the inner back wall into the drain pan situated above the compressor, from where it evaporates.
Manual Defrosting of the Frezing
Compartment
When the frost and ice layer in the frezing compartment is 3-5 mm thick, you should clean the freezer.
x
Few hours before defrosting set the thermostat to position
7
, so that packages are well frozen. Reset the thermostat to
STOP (0)
position and disconnect the power supply. Empty the freezer and take care that the packages remain frozen.
x
Leave the door open for a while so that you can easy scrape off the frost. Use the plastic scraper but be careful not to damage the inner surfaces of the freezer. Wipe up the scraped frost and ice before it is completely defrosted.
x
Avoid using defrosting sprays, as they may cause damage to the plastic parts and may be hazardous to health.
x
Remove the
detachable accesories
in the interior of the appliance and clean it with water and liquid detergent. Plastic parts cannot be washed in washing machine.
x
Wash the
interior
of the appliance with lukewarm water, in which you added one or two spoonfuls of vinegar.
x
Every now and then wipe the
condenser
on the rear wall. Use soft non-metal brush or vacuum cleaner.
x
Do not forget to clean also the defrost water
receptacle
above the refrigerator compressor (do not remove the receptacle).
After cleaning, connect the appliance to power supply and reload the packages.
Switch Off the Appliance When Not In
Use
If you do not intend to use the appliance for a longer period, set the thermostat knob to the
STOP (0)
position, disconnect the power supply, take out the foods and defrost and clean the appliance. Leave the door slightly open.
Cleaning the Appliance
Disconnect the power supply before cleaning the appliance.
Do not use coarse or aggressive cleaning agents as you can damage the surface. Be careful to remove any cleanser agent remaining after cleaning.
x
Clean the
exterior
with water and detergent.
Varnished surfaces are cleaned with soft cloth and an alcohol based cleaning agent
(for example glass cleaners). You may also use alcohol (ethanol or isoprophylic alcohol).
The application of abrasive and specially aggressive cleaners, such as the stainless steel cleaners, is not appropriate for the cleaning of plastic and coated parts.
Instructions for Use 11
Trouble-Shooting Guide
During the service, you can come across some troubles that in most cases result from improper handling of the appliance and can easy be eliminated.
The Appliance Fails to Operate After
Connecting to the Mains Supply
x
Check the supply in the outlet socket and make sure the appliance is switched on
(thermostat knob in operating position).
Continuous Operation of the Refrigerating
System
x the door was frequently opened or it was left opened for too long; x the door is not properly closed (the door may sag, the gasket may be polluted or damaged); x perhaps you have overloaded the appliance with fresh foods; x
The reason may be inadequate ventilation of the compressor and condenser (assure adequate air circulation and wipe off the condenser); x
Continuous operation button activated (see section Freezing of Food).
Ice Formation on the Inner Rear Wall
As long as the defrost water runs to the channel and through the outlet to the drain pan on the compressor, automatic defrosting of the appliance is assured. In case the ice formation on the inner back wall is increased (3-5 mm), ice should be manually defrosted.
Set the thermostat knob to
STOP (0)
position and leave the door open. Never use electric devices for defrosting and do not scrape the ice or frost layer with sharp objects.
After completed defrosting, turn the knob to desired position and close the refrigerator door.
The cause of increased ice formation may be one of the following: the door does not seal well (clean the gasket if it is contaminated, or replace it if it is damaged); the door was frequently opened or it was left opened for too long; the food stored in the refrigerator was warm; the food or dish is touching the inner back wall.
Water is Leaking From the Refrigerator
In case the discharge water outlet is clogged, or the defrost water drips over the channel, water leaks from the refrigerator.
x
Clean the clogged opening, for example with a plastic straw.
x
Manually defrost the increased ice layer.
See "Ice Formation on the Inner Back Wall".
The Freezer Door is Hard to Open
If you want to open the door that has just or recently been closed, you may find it hard to open. The reason why this happens is, that when you open the door, warm air gets into the appliance and when it is getting cool, the underpressure seals the door. After few minutes (1-3), the door can easily be opened.
Noise
Cooling in refrigerating-freezing appliances is enabled by the cooling system with compressor, which produces noise. How noisy the appliance is depends on where it is placed, how it is used and how old the appliance is.
x
During the operation
of the compressor the noise of liquid is heard and when the compressor is not operating, the refrigerant flow is heard. This is a normal condition and it has no influence whatsoever on the lifetime of the appliance.
x
After starting the appliance
, the operation of the compressor and the refrigerant flow may be louder, which does not mean that something is wrong with the appliance and it has no influence on the lifetime of the appliance. Gradually the noise is reduced.
x
Sometimes
unusual and stronger noise
is heard, which is rather unusual for the appliance. This noise is often a consequence of inadequate placing.
The appliance shall be placed and levelled firmly on solid base.
It should not touch the wall or kitchen units standing next to it.
Check the accesories in the interior of the appliance, they should be placed correctly in their positions; also check the bottles, tins and other vessels that might touch each other and rattle.
12 Instructions for Use
Bulb Replacement
Before replacing the light bulb, disconnect the appliance form the power supply. Insert the screw driver into the bulb cover opening on the lower side and with slight push downward remove the cover. Replace the old bulb with a new one – halogenous or standard (E 14, max.
25 W - Osram Halolux, Philips H.E.) and fit back the cover. Don't forget: the old bulb does not belong to organic waste.
Light bulb is consuming good therefore our in-guarantee service does not relate to it.
WE RESERVE THE RIGHT TO ALTER THE SPECIFICATIONS WITH NO INFLUENCE
ON THE OPERATION OF THE APPLIANCE.
Instructions for Use 13
Návod k použití
1
HZI 2726 DED en (03-13)
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
