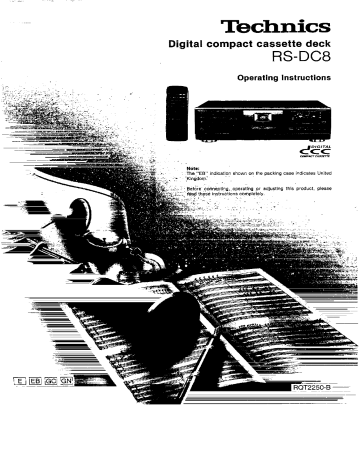

" Technics
Digital compact cassette deck
RS-DC8
Operating Instructions
2701 DIGITAL
COMPACT CASSETTE
В Note:
~ The "EB” indication shown on the packing case indicates United
+ - Kingdom:
. Anecting, operating or adjusting this product, please
- instructions completely.
RQT2250-B —
Dear Customer
Thank you for purchasing this Technics product.
For optimum performance and safety, please read
these Instructions carefully.
—_— DZ = - =
Conventions used in these operating instruc-
tions
These operating instructions use the following conventions
to help you to find Information regarding the use of the
cassette tapes.
16164 - This section provides information when a DCC
(digital compact cassette) tape is used.
I ACC I= This section provides information when an ordinary
od a
ACC (analog compact cassette) tape is used.
Refer to page 29 for further information about DCC/ACC
tapes.
(For areas except United Kingdom, Europe, Australia and
N.Z.)
CAUTION:
The AC voltage is different according to the
area.
Be sure to set the proper voltage in your area
Defore Use.
(For details, please refer to the page 9.) _
[| AC power supply cord... ... e eereeeres 1
(Рог United (For Australia (For others)
Kingdom) and N.Z)
(YJA0733) {RJADO36-K; RIADO 19-20
Stereo connection cables . ....... 111442101000 00 2
(SJP2249-6)
[| Remote control transmitter .. .. _.................. 1
(RAK-DC712WH)
Batteries. LL aa 2 |
{UM-4. “AAA, RO3)
. }
[] Power plug adaptor... ...... eo 3
(SUP5213-2)
(Not supplied for United Kingdom, Europe,
Australia and N.Z.)
en a E
: e ae E
e NIUE De HEY == E NENA A a a a Eade EPI т = EE =
TNA Pam Rd 2 LADO ION TR BER E A “T ВЕ 45 FE kE! ==
DRAE ETA TR MT - a E PATA
pit
Before use
Caution for AC mains lead
Ta ET HET Dci EE
Editing using markers RTM:
(For United Kingdom) . : Ce 4
Suggestions for safety .. Ce 5
Front panel contiols.............................. S
Concerning the remote control ................. 7
Connectlons .............._ As 8
Playback
Playback of tape .............. .............. 10
About the Dolby noise-reduction system _
ACC OMA KERLE 11
To change the tape side .............. iin... 12
To rewind and fastforward the fane. ...............—.—.—... 12
When using the headphones .............._—-— 1.0000... i2
Changing the information of the display
DCC only
To change the display of text information display... ...... 13
To change time Intrormation on the display... ............ 14
Playback of the desired track................... 14
Skip play .. aa Eee 14
Accessing to song tracks by their track Nos.
Selecting tracks by their track titles EJE ......... 15
Recording EXI
Recording ....................... 0 ee 16
Marker writing Möde, Lee 0 17
Adjusting the recording level/balance ...............41. 18
Append editing. ............. 22.000 Ene 18
To create unrecorded segments (blank interval).......... 19
on the display. ......................... Back cover
Markers (type and function) .................. 20
Marker writing in MANUAL mode .............. 22
To write the START marker.. ......... 2... mr. 22
To wrfte the SKIP marker ea. .. 22
Towritethe END marker... ........... o.oo 23
To write ihe REVERSE marken. 4e 23
To write the NEXT market. .. oii. 24
To perform the renumbering function... .............. 24
Erasing written markers... ...................... 25
_ Writing text information onto the tape ........26 ___-
Timer
Playback and recording with timer............. 28
For timer playback .. .. EE 28
For timer recording SEE 111111 28
Reference
About the DCC/IACC tape... ..................... 29
Quick reference for remote control use ....... 30
Maintenance .................. ol >
SCMS (Serlal Copy Management System).
Technical specificatlons ......................... 33
Troubleshooting guide ........................... 34
Explanation of messages appearing
(For United Kingdom)
(“EB” area code model only)
у
rom — m vn 5e or эт ты о Le am an aed + Fe
ror YUUI Sariy, Pase rav E
carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark @ or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is replac-
ed.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
. Caution for AC mains lead |
The wire which is coloured BROWN must be con-
nected 10 the terminal in the plug which is marked
with ine leiter | ог cotouired REL.
Under no circumstances should either of these
wires be connected to the earth terminal of the
three pin plug, marked with the letter E or the Earth
Symbol À .
Before use
Remove the connector cover as follows. ... .—.-
VON! |
IF THE FITTED MOULDED PLUG IS UN-
SUITABLE FOR THE SOCKET OUTLET IN YOUR
HOME THEN THE FUSE SHOULD BE REMOVED
AND THE PLUG CUT OFF AND DISPOSED OF
SAFELY. |
THERE 1S A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13-AMPERE SOCKET. В
How to replace the fuse
1. Remove the fuse cover with a screwdriver.
If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accor-
dance wlth the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminalis in your plug, pro-
ceed as follows:
The wire which is coloured BLUE must be con-
nected to the terminal in the plug which is marked
with the letter N or coloured BLACK.
Fuse
(S ampere)
Placement
Avoid placing the unit in areas of:
» direct sunlight
* high temperature
= high humidity
» excessive vibration
* Uneven surfaces (Place the unit on a flat level surface.)
Such conditions might damage the cabinet and/or other compo-
nent parts and thereby shorten the unit's service life.
Ventilation
* Place the unit in a well ventilated position at least 10 cms away
from wall surfaces etc.
= Ensure that curtains and similar materials do not obstruct the
ventilation holes.
Stacking
Never place heavy items on top of the unit or the power cord.
Voltage
* ii iS very dangerous io use an AC power source of high voltage
such as for an air conditioner.
A lire might be caused by such a connection,
«A DC power source can not be used.
Be sure to check the power source carefully, especially on a
ship or other place where DC is used.
Power cord protection
e Avoid cuts, scratches or poor connection of the AC mains cord,
as this may resulf in fire or electric shock hazard,
"чт чья — | "OL Red WR Nf wr IR
Excessive bending. pulling or slicing of the cord should also be
avolded.
« Do not pull on the cord when you are disconnecting the power,
as this could cause an electric shock. Grasp the plug firmly
when you disconnect the power supply.
e Never touch the plug with wet hands or a serlous electric shock
could result.
"AA Lo mm mm mn
Æ RP di ral rs
т. . re Caer Te Y smal -
A AAA EE ie mae E. TA DE en >
2 ISE CESSE TE ARE
pai ire re чай e
10, E EE еле: E + =
i уе mes SNIE EEE Es
Foreign materials
e Ensure that no forelgn objects, such as needles, coins,
screwdrivers etc., accidentally fall into the unit or through the
ventilation holes.
Otherwise, a serious electric shock or malfunction could occur. 7
* Be extremely careful about spilling water or liquid onfinto the
unit, as a fire or electric shock could occur.
(Disconnect the power plug and contact your dealer immediate-
ly if this occurs.)
* Avoid spraying insecticldes onto the unit as they contain flam-
mable gases which can be ignited.
e Insecticides, alcohol, paint thinner and similar chemicals
should never be used to clean the unit as they can cause flaking
or cloudiness to the cabinet finish.
a my
Maintenance (Sec
rn
ть ne
Pays Jo
Clean the cabinet, panel and controls with a soft cloth hghtly
maistened with mild detergent solution.
Da not use any type of abrasive pad, scouring powder or solvent
such as alcohol or benzine.
Service
» Naver attempt 10 repair, disassemble ¢r reconstruct the unit if
“there seems to be a problem. CE
A serious electric shock could result if you [gnore this precau-
tlonary measure. o
* If a problem occurs during operation (the sound is Interrupted,
indicators fail to illuminate, smoke is detected, etc) contact
your dealer or Authorized Service Center immediately.
» Disconnect the power supply if the unit will not be used for a
long time. Otherwise the operation life could be shortened.
|
]
| i
|
i Ai
|
о
|
E
e
®
ny
S |
3
T
œ
No. Name Ref. page
Ti Power “STANDBY cdd JON” switch
(POWER, STANDBY € /ON) 10
Press to switch the un:t from on to standby mode or vice ver-
sa. In standby mode, the unit ig still consuming a small
mere et rend ml en m a
lL Е ИИС.
2: “STANDBY” Indicator (STANDBY) -
When tne unit :s connected to the AC mains supply, this in-
dicator lights up in standby mode and goes out when the unit
is turned on,
3; Dolby noise-reduction button
(DOLBY NR) 11
‘4: Reverse-mode selection button
{REVERSE MODE) 18
5) Recording input selection button
(INPUT SELECTOR) 16
6 Automatic marker writing button
(MARKER AUTO) 16
7: Text mode selection button
(TEXT MODE) 13
(8: Text scroll button (TEXT SCROLL) 13
9: Cassette holder 10
10 Counter mode selection button
(COUNTER MODE) 14
Tf: Counter reset button
(COUNTER RESET) 14
12 End search button (END SEARCH) 18
No. Name Ref. page
13 Pause button (11 PAUSE) 10,17
{4 Automatic-record-muting button
(QO AUTO REC MUTE) 19
15: Record button/indicator (9 REC) 16
16: Rewind/fast-forward buttons (REW/FF} 12
47: Remote control signal sensor
(SENSOR) 7
18 Timer switch (TIMER) 28
“a Line dnhenar len DLIFRLIECA To
wi 1 TEEN Ил FF EE JET UTE Fa" al a
20 Headphone level adjustment control
(PHONES LEVEL) 12
27 Recording-balance control (BALANCE) 18
72 Recording-level control (REC LEVEL) 18
23 Sampling frequency Indicators
(SAMPLING FREQUENCY) 19
24 Openiclose button {4 OPEN/CLOSE) 10
лайн
25 Tape side selection button
(> DIRECTION) 12
28 Stop button (IE) 10,17
27 Playback button/indicator (>) 10,16
Battery installation
Insert the batteries included with this unit as shown below.
AD
Check the (+)
and (—) sides.
When you need to repiace these batteries
Use two UM-4 “AÑa”, IEC ROS (1.5 Y) or equivalent batteries.
Battery notes
Do not mix old and new batteries, or batteries of different types
(carbon and alkaline, elc.).
Always remove old, weak or worn-out batteries promptly and
dispose of them properly.
The average battery life is about one year.
Although the battery life varies depending on how often the
device 15 used, you should generally replace the batteries about
once a year.
The batteries should be replaced if commands from the remote
control transmitter do not operate the unit even when transmitter
is held close to the front panel.
Never subject batteries to excessive heat or {lame; do not at-
tempt {o disassemble them; and be sure they are not shori-cir-
culiéd.
If you will not use the remote control for a long period of time,
remove the batteries and store them in a cool, dark place.
If a battery leaks, remove all batteries and dispose of them pro-
perly. Thoroughly clean the battery compartment before Inser-
ting new batteries.
If the leaking electrolyte comes Into contact with skin or clothes,
flush with water immediately.
Keep batteries out of reach of children.
Do not use rechargeable (nickel-cadmium) type batteries.
Do not attempt to recharge alkaline or carbon batteries.
Do not dispose of used batteries in household rubbish.
Method for use
Use the remote control within 60 degrees ; and within 7 meters
(23 ft.) facing directly toward the remote control signal sensor.
Remote control signal sensor
не
Um" /
|
|
About 7 meters In front of
the sensor, (The actual
range will depend on the
angle at which the remote
control is used.)
Be sure the transmission window and the unit's sensor are free
from dust. Excesslve dust might affect performance.
The operation may not be correct it direct sunlight or another
strong light source strikes the receiving sensor of this unit. if
there is a problem, place the unit away from the light source.
Connections
» Before connecting any components to the deck, make sure that
they are all turned OFF.
= Ses thé Operating Instructions of each component for detailed
connection information.
Connecting the deck to an amplifier
with digital optical terminals
(Digital Connection)
Digital Amplifier {nat included)
Stereo connection cables
White 4) “TE E
Red (A) =m “E
Connecting the deck to an amplifier
without digital optical terminals
(Analog Connection)
Amplifier {not included)
CIGITAL
OPTICAL
CUT IN
T
| Optical fiber cables
Pe A (not included)
= В
| Optical fiber cable connactions
| TT A,
a Е
Dust Te m
ый ee J
tarés connéciion
cables (included)
This unit
protection i
LE 7
This unit
| DIGITAL
: OPTICAL
HEC 1 RED
CNT;
Note on connection using an optical fiber cable
For this connection, you can use the same type of optica: fiber
cable that you have used for your digital amplifier or CD piayar.
« Never force the optical fiber cables to bend excessively.
« Store the dust protection cap securely, and replace №
whenaver cables are not connected to the terminals.
To digitally record directly from
another digital source
Use the optical fiber cable to connect the optica! recording input
terminal {REC 1 (IN 1) or REC 2 (IN 2y ot this deck to the digita! op-
tical out terminat of the CD player, or a second DCT or DAT.
Digital source such as CD player, etc. (not included)
DIGITAL LINE OUT
"E ou E
UE conrection cable —
inci .
oe included) | Yo OO input
= } terminal
Optical + cable
af amplifier
(not included)
This unit
RECT REC2
(IM1} ;
a
E A L +
When a component with recording capabilities is connected to
the deck, ba careful not to sel both the component end the deck
to the recording standby mode a! the same time. This may resul
in 2 maifunction.
n rannoant thn f' nnwwoar стл тата 7
cord
recording using the timer
L'nnnanrtinna for playback ar
E AI Ne Nd BAR LF BAA Fr E ar i
f (For United Kingdom only)
BE SURE TO READ THE CAUTION FOR AC
POWER SUPPLY CORD ON PAGE 4 BEFORE
| THE FOLLOWING CONNECTIONS.
„”
” x
(For areas except United Kingdom, Europe, Australia and
N.Z.)
Set the voltage selector to the voltage setting for the area in
which the unit will be used.
[Use a minus (—) screwdriver]
If the power supply in your area is 117 V or 120 V, set to the
‘127 V' position.
Mote that this unit will be seriously damaged if this setting is
not made correctly.
ee A
This unit \ |
L ] - I
AC wall outle: y
” (For areas except United Kingdom, Europe,
Australia and N.Z.)
Н the power plug will not fit your socket, use the
power plug adaptor (included).
(For araas except Australia and N.Z.)
Insertion of Connector
Even when the connector is perfectly inserted, depending on the
type of inlet used, the front part of the connector may jut out as
shown in the drawing.
However there is no problem using the unit.
\
Approx. 6 mm
Appliance inlet
Connect the power cables between the deck and each unit as
shown below. The diagram dees not illustrate signal connections.
(See the operating instrucions of your timer for further informa-
tion.)
(Example of a system configuration using a BS tuner)
An audio timer or a tuner with timer
(hoth sold separately)
AC OUTLET [oe]
a ELA AA E
— vy
BS tuner (sold separately)
‘ | can [Em]
— . Y _ _ Ma]
Amplifier (sold separately) à a
|
FER EES
AC DUTLETS ANA, |
|
TI | TT | --
This unit : ;
|
ALN
=] im
DZ
AC walt outlet le: >
Notas on Installation
= == =m = SS TE a =
Do not install thls deck near a tuner or TV.
Since this deck uses high-frequency signals. placing it near a
tuner or TV may cause roise or interference with the tuner or TV
reception.
This phenomenon may also occur when an indoor antenna is
used with the tuner or TV. It is recommended that an outdoor
antenna be used.
10
“Playback of tape
Make sure that the Timer selector 8 15 set lo the OFF pos ion
TIMER selector
1
9] 01 0% Y 0u can use self-recorded DCC tapes and commercial-
ly sold DCC music tapes.
Press POWER.
{The deck is turned ON.)
TAPE в
МО
The above message
indicates that no
cassette is loaded in the deck.
Sampling frequency indicators
(See page 19)
"cr CAM rm
2
o
— per
Prass OPEN/CLOSE and load
the DCC tane as shown below.
5, __Load the tape
A with the labe! side
tacing toward you.
Alter the tape is loaded, the cassette com-
pariment closes avtomatically.
| For your reference :
Luz Am ———" 5 mm m == @ ое, = a BT m am
nee Lo Lge 194 CR Turtr: ei SOFT HIN
about messages appearing on the display.
To interrupt playback temporarily
Press II PAUSE,
PAUSE
3
Press REVERSE MODE to select
the desired reverse mode.
Each time this button is pressed, the reverse
mode indicator “ ¿ )” or “(QD is
displayed altarnately. |
o -_ —
"ме ™ i TRACK ba [— |
: TE
TY: Roth tana sides are niaved and tha
ne sides are nlavad and t
the tape stops automatically.
С : Playback ot both tape sides is
repeated up to 8 times, and then the
tape stops automatically.
Press Pr. (The indicator above the button
lights up and playback starts.)
When the deck plays a DOC tape from its
beginning, it takes a while for the deck to
start playback since the deck reads the time
information written onto the DCC tape.
-035 0 в
- + Track No
go H 5
Press )> to continue playback {or press Il PAUSE
"a ал 1
agai:iz.
Su
N
To stop playback
> Press M-
mee SE i
EAN.
E A ATA EC Но —_ ны сент
TI
| A cc ; You can play ACC tapes such as normal, CrO; ard
metal tapes.
selector
1 Press POWER. (The deck is turned ON.)
2 Press OPENICLOSE and load the ACC
tape as shown below.
e Forward side
cassette compartment closes
automatically.
3 Press REVERSE MODE to select the
desired reverse mode.
4): Both sides (forward side [> and backward side <T)
are played, and then the tape stops automatically.
O: Playback of both sides are repeated up to 8 times,
and then the tape stops automatically.
Press DOLBY NR to select the specific
type of Dolby noise-reduction system
desired.
(Select the same type that was used for recording.)
000. STOP > -
Each time this button Is pressed, the indication on the
display charges in the following order:
E — C — No indication
+
Commercially sold ACC tapes with the Dolby NR (double-
D symbol ©“ EX] 7) mark have been recorded with the
Dolby B NR system. When using a tape that has not been
recorded with the Dolby NR system, set the Dolby NR
system to OFF {no indication on the display).
5 Press Pr. (Playback starts.)
About the Dolby noise-reduction
system [ACC only]
The Dolby noise-reduction system is designed to effectively
reduce the annoying high-frequency “hissing” noise typical of
cassette tapes. During recording, the system functions to in-
crease the high-frequency sound level, the sound, and then, dur-
ing playback, that same portion is weakened to bring It back to
the previous level.
This unit includes two types of Dolby noise-reduction systems,
the Dolby B NR-type and C NR-type.
Dolby B-type noise-reduction
Noise is reduced to about one-third.
Use this system when playing back tapes recorded by the Dolby-
B noise-reduction system, such as prerecorded music tapes, etc.
Dolby C-type noise-reduction
Noise is reduced to about one-tenth,
Use this system for the recording and playback of sound sources
that have a wide dynamic range and good tone quality, such as
FM broadcasts of live performances, etc, and for playing back
such tapes.
TA HE
Dolby noise-reduction manufuctured under license from
Ге Ня |на ель В ея Голос PAra
LA Y CLUE ALS IO lan yy Tid | pf CALLS
“DOLBY” and the double-D symbol DO are trademarks of
Dolby Laboratories Licensing Corporation.
PHONES LEVEL control DIRECTION TT
(Used to adjust the volume level of > Quick Reverse Functlon
the connected headphones.) = CE This function detects the leader tape (transparant tape) and
changes the tape direction for playback (recording)
automatically in about * second
Magnetic tape (able to be recorded upon)
Leader tape (unable to be recorded upon}—
This leader tape detecting function becomes operational
about 15 seconds after playback (or recording) starts. This
Headphones (not included) function prevents the leader tape from being detected when
(6.3 mm phone plug stereo type) playback (or recording) starts from the beginning of the tape.
| If this function does not work, the tape will reverse at the end.
+ » This function rnay not work correctly in the following cases:
To change the tape side e aa. fa When tapes with colored leader tapes are used,
— When dirty tapes or tapes with a very thin magnetic
DIRECT!
ON Press |p DIRECTION. coating are used, and
di Each time this button is pressed, the tape direc- — When the deck's cassette compartment is exposed to
tion indicator changes alternately as shown strong light such as direct sunlight.
below. * This function may not work depending on the type of DCC
Tape Direction Indicator tapes.
>El
"m
LI
When using a DCC tape, the indicator [A] or [B]in-
dicates the side being played.
When using an ACC tape, the indicator [> 1$
displayed for the forward side and <] for the
backward side.
To rewind and fast-forward the tape
Press REW or FF In the stop mods.
To rewind To fast-forward
©
If the REW button is pressed at the end of the tape, or the FF
button is pressed at the beginning of the tape, the tape will
wind either backward or forward at a higher speed.
{The indication “H" appears on the display during high-speed
tape winding.)
"For your reference;
Sometimes, the high speed function will not be performed if
either the FF or REW button is pressed in the middle of the tape.
When using the headphones
» Reduce the volume level with the PHONES LEYEL control and
connect the headphones to the PHONES Jack of the deck.
* Avoid listening for prolonged periads of time to prevent hearing
damage.
12
== — E. O CS O TT - me - - o 7 - =. EY EX]
pen cr E e EN
: : >
E e A lm a ay = =
Е # a NE er Em 3 <r = Te 14 Ha | к a TE 3
E x FRE Hi = = a
ir te 5 Ae ;
EF ; E RL елей E. LES ofa: HER? ¥
Hr Or Es éme PE PRE DA EE A wi E TONTAS tsp а
Septet faster dbf EES E Hdl hy
zo CE PERLE Ty TE = A EN Tes Ti AT rant ws
To change the display of text information display
On the display, the text information (such as the album title, artist
name, track title, etc.) which has been written onto a commercial: Using a self-recorded DCC tap €
jy sold DOC music tape can be displayed. i . .
The deck can also display text information which you have per- Each time the TEXT MODE button Is pressed, text information
sonallv written onto a self-recorded DCC tape. (See page 267 that has been written by the procedure described on page 26 1s
y pe. (See page 26.) displayed after the "TEXT 1”, “TEXT 2”, "TEXT 3" or “TEXT 4” in-
dications.
MODE SCROLL MODE ER
Text information is written onto the beginning of each track of
your recorded DCC tape. Therefore, if you start playback midway
through the track, you cannot dispiay the text information from
that track.
When a line of text information has been written
using 12 characters or more,
TEXT Press TEXT SCROLL.
SCROLL
The characters will advance sequentiaily.
TEXT
MODE Press TEXT MODE during playback.
ry.
XXUW LO display LEXL ¡NÍOrmatión or E
commercially sold DCC music tape:
Pressing the TEXT MODE button changes the text information on
the display in the following order:
ALBUM TITLE — ARTIST — TRACK TITLE
1 |
T Album title
ALBUM TITLEMPIAND WORKS
(Several seconds later)
D Artist name
ARTIST |» BEETHOVEN
(Several seconds later)
® Current track title
TRACK TITLE= MOONLIGHT
(Several seconds laten
If no text information has been written on the To display time information
tape or before text information Is read, COUNTER
aaa" WII appear on the display. MODE Press COUNTER MODE.
fa
13
14
the information of
a
To change time information on the
display_
If you are using an ACC tape, only the tape counter Indication will
be displayed.
COUNTER
MODE RESET
move Press COUNTER MODE.
Each time this button is pressed, the display is
changed in the following order:
I: Total play elapsed time
(Absolute time)
| ATA | Me
| CLUB 2 E
i Hi _ we TACA, pia.
Current track No. _M
= 3 Tape counter
+ {equals the number of
2; Elapsed playing time of revolutions of the tape
pach track reel)
2HY 5
TRAC Ма.
С Current track No.
en
| urrent track No-| A.
+ pe
| & Total play time
| E Tape remaining time {Commercially sold
DCC music tape only)
50:18
TOTAL TRACE Mo
Current track No.
Total number of tracks
The display “-:—:---” appears if the track No. or time information
is not written onto the tape correctly.
[For your reference;
* The absolute time (the total playing elapsed time) contains
unrecorded segments between each track. Therefore, when a
commercially so'd music tape is played, the absolute time in-
dicated on the display may be several seconds longer than the
total play elapsed time listed on the commercially sold music
tape label.
e |f the side is changed during playback or the FF or REW button
is pressed. the tape remaining time display is changed to the
Harare" display.
= - acces — ES
To reset the tape counter to “000”
COUNTER Drace COIINTER REC In tha #
RE Le > A O N
SET
counter mode.
The counter display returns to “000.”
lack marked with 8 START marker.
[ACC] The TPS (Tape Program Sensor) function allows you io
access the desired track by detecting the interva!
{unrecorded segment} between tracks.
[asi eso
Eel
Ш То skip to the beginning of the
current track or the previous
IE To skip to the beginning of the
following track
Press F.SKIP.
Tracks are skipped according ic the number of limes the R SKIP
or F.SKIP buttons are pressed.
«When tha R.SKIP о: F.SKIP button is pressed in the stop (or
pause) mode, the deck will return to the stop {or pause) mode
after the R.SKIP or F.SKIP is performed.
e Up to 99 tracks can be skipped.
The Skip play may not function properly in the following cases:
When a DCC tape is used
When two START markers are written too ciose each other.
When an ACC tape is used
e when the length of a blank section or the interval between
tracks is 3 seconds er less.
* when there is a section with an extremely low volume level or
unrecordad segment in the recording.
- whan tha El QUID Ar Е WIE ha sión 16 Neacoor] witb я in EN car mea
WWE ITT [ RRIF R-AsL abl LA с КАЛ Ina pi] COREA WRAL LI | FL SI Tha
after the beginning of a currant track, or before the beginning of
the following track.
"when the tape has been recorded with fade-ins [gradual in-
crease in signal strength} and fade-outs (gradual 1088 of signal)
- C—O — = —<#---"
eee EE
E A IET
Na Y A
a NT a
MR Ep mn
ES TI TES RE PP Le dato CS a AN mE TA AE i ee il ue Pepa
BE a me AE ADE an Serial BE AAA Feds A
ER TT Tee A E
Cn emma de PER LAIA Sg at ката ИКСА Ве НЫНЕ dé Parti ci gi RE ir rr 2b Ко:
Accessing to song tracks by their
track Nos.
This function works only with commerclally sold DCC music
tapes ar self-recorded DCC tapes onto which track Nos. have
been writian.
(With Remote Control Only)
st
Us
i
0
N
Us
m
"A
“ts
e
Us
+
&
A
Fr
oh
=
=
o
=
a
o
a
o
8
:
;
0
0
=
"a
had
—
IV
=
<
+
I
+
0
0
|
Input the desired track No. with
the alphanumeric buttons on the
Remote Control.
Example: If track No. "37 is input during
playback,
=
The deck locates the beginning of the
designated track and then returns to ils
previous mode (le. playback, stop or pause).
IN To select track Nos. 10— 99
— - . >
Press the " 7
dr a e ост . . ; - „a a
DD ” bution ard then input the desireg Track
No.
Example: To input “15”, press tha following buttons within 4
seconds.
10 + =k 1 АВС 5 MNO
QO dp (OO =» <
{within 4 seconds) (within 4 seconds)
» Up to 99 tracks can be selected.
Selecting tracks by their track
titles
This function is operational only with commerclally sold DCC
Music tapes.
T Tem dt IA dew frm mew
Up to 16 tracks cai
cr
m
Ww
m
E
Ei um
TEXT MODE button M button
[Before operation
Press TEXT MODE to let the deck read text information and then
press IN button.
“| Press TEXT MODE until the “TRACK TITLE”
indicatinn annaare nn tha dienlav.
nnears ne disn -
BE EN Eris hE FE ea Tru XE - - 7
Each time this button is pressed, the display changes in the
following order:
ALBUM TITLE — ARTIST — TRACK TITLE
Î | a
TRACK TITLE
J (After several seconds)
MOONLIGHT.
(for example)
©) Select the desired title by pressing the R.SKIP
or F.SKIP.
Press R.SKIP to change the track title display to the reverse
direction.
Press F.SKIP to change the track title display to the forward
direction.
AM | x - - ele. dir e mem
nn Title of selected track
| T 7—
WAL “a (an example) a
v t .
Blinks
3 Press > while the track title display blinks
{this lasts for about 10 seconds,)
The deck locates the track of the designated track title and
starts playback.
» When the p» button ls nat pressed within the 10 seconds
while the track title is blinking, the display returns fo the
display mode of operation step 1 above.
“For your reference
After 17 tracks or more, select the desired track by track No. In
this case, the track title will appear on the display after the
a rw “Pr
playback starts.
Title of the current track
15
| You cannot record onto a tape with the grasure-protect ;
switch set to the protect position (closed position) (see page
29) or commercially sold DCC music tapes.
Make sure that the TIMER selector is set to the OFF position.
mae a om Eia==5 - 2 — on AE
Preparation | Turn on the deck and load a recordable DCC tape into it with
the label side facing toward you.
1 [After selecting side A with <> DIRECTION
3 Select recording input mode by bution]
pressing INPUT SELECTOR.
Each time this bution is button is pressed, the
indication on the display changes in the follow-
ing order:
DIGITAL 1 — DIGITAL 2 — ANALOG
Press REW to fully rewind the tape
to its beginning. BR
« Ba sure to press REW so that the absolute
time {see the bottom of the next page) can be
Î | written onto the tape correctly,
e Dy not oraze any other button until the tana
DIGITAL 1: Recording through the “DIGITAL stops automatically alter tape rewinding.
17 terminal
DIGITAL 2: Recording through the “DIGITAL.
2” terminal 2 Select the marker writing mode by
ANALOG: Recording through tha “ANALOG”
pressing MARKER AUTO.
(See next page for further Information about the
marker writing mode )
For normai use, select the AUTO mode.
terminals
“ч
x
UU - { <> DIRECTION button pa
|}
TIMER selector Sampling frequency indicators
(See page 19.)
Press @ REC. A Press » to start recording and
(The LED above the @ REC button lights up.)
then, start piayIng the recording
There is a 10-second “lead-in area” written onto the tape (see
he Le source.
page 19). This is a digital process unique to DCC tapes. Then, the
deck is set to the recording standby mode. (The LED above the P- MA с j ны
puiton tighis up.) en ee i
Го TAECH TE aM
E aia
Display after tead-in area writing Is finished
Recording stops at the end of side B irrespec-
tive of the REVERSE MODE button setting (
“co -
It you've selected the ANALOG input in operation step 3 above, be Do not press the INPUT SELECTOR button: dur-
sure to adjust the recording level/balance before proceeding to по Tacord ng to change the recording input
step 5 according to the section "Adjusting the recording mode.
level/balance” on page 18.
000 0 в
EEE : EE
SCORE. BELLE Ls FETE IE
Marker writing mode
In addition to the audio signals or time information, you can write
a “marker” that controls the tape movement onto the tape. (See
pages 20 and 21.)
There are two types of marker writing modes: AUTO and
MANUAL. These can be selected by pressing the MARKER AUTO
button.
in the AUTO writing mode:
The indicator appears on the display.
in the MANUAL writing mode:
The indicator disappears.
" r El
— ——- — — —
1 me 3 me — This indication
An EZ : TRACK Na fa = appears: N
AUTO writing mode
The “START marker” that marks the beginning of each track (in-
cluding the track No.) is written automatically onto the tape in the
following cases:
This is helpful when recording from a DCC music tape, CD or DAT
which contains track Nos.
= When the input signal contains a signal indicating the beginning
of a track. {Only during digital input recording}
+ When there Is an unrecorded segment or a section with an ex-
tremely low level for 3 seconds or more (i.e. at which the peak
leval meter does not fluctuate).
“For your reference |
If you repeatedly record the same track of a CD with the digital in-
put using the CD player's repeat play function, the START marker
may not be written onto the second recording of the track.
VUS Ё BE Track No.
= EE та тн indication
appears:
——
After finishing recording by pressing the I button, the END
marker indicating the recording end position is written onto the
tape automatically.
2008 5 а
ETE
— This indication
appears mu mm
CT I
During playback, when the tape comes to the position where the
END marker is written onto the tape, the deck operates accord-
ing to the REVERSE MODE button setting as shown below:
In „_) mode: Tape stops at the END marker position. ~~
In £ ; ) mode: Tape is played repeatedly from the beginning of
ihe tape io ihe END marker position 8 times, and
then stops automatically,
MANUAL writing mode LS
Only the first START marker is written: onto the tape. Additional
START markers are not written onto the tape automatically.
Therefore, select the MANUAL writing mode when recording a
source which does not contain track Nos. (such as BS broad:
ame ae aa NN rit dan arts AE IEEE ~ mm 7
жи nus La a A AA
COLT, LA] YI III Y Ou Wai LLA VWIILES 17151 RGIo THI ally SNL A JIT
positlon during the recording of a CD.
Refer to pages 22—24 or how to write markers when you
select the MANUAL writing mode.
To interrupt recording temporarily
PAUSE Press II PAUSE.
Press Pp to continue recording (or press Ill PAUSE
again).
To stop recording
Press Ш.
lt takes about 2 or 3 seconds until the deck stops
completely.
What is absolute time?
Absolute time is the total elapsed time of recording or playback
from the beginning of the tape to the current tape position. If the
absolute time is not recorded correctly, it is not possible to check
the current tape position or locate the desired tape position ac-
curately.
Your atiention is drawn to the fact that recording prerecorded
tapes or discs or other published or broadcast material may
infringe copyright laws,
17
18
Recording level adjustment
Recording EEE
Adjusting the recording level/
balance (only during ANALOG input mode)
This adjustment should be made attar pressing the @ REC button
(step 4 of recording on page 16).
Make sure that the deck is in the recording standby mode, start
playing recording source and maka adjustments as follows:
REC LEVEL control
BALANCE control
Peak level meter
By observing the peak level meters, rotate the REC LEVEL con-
trol so that the indicators reach “0 dB" at the track's peak level
as ciosely as possibie withoui exceeding it.
The scale bar of the meter holds the peak level for about 1
second. This functlon lets you know the maximum input.
Peak Levei Mater Excessive
level “OVER”
Peak T indicator
o
4 24 —5 =i E =4
NH I HET RH INH Rr I ROH Hn Him
ITH I HE HERE LI ES HERE IR RAEI SHARP NN NR A Ca RR 1m
Li Mel
Inccficiart [awal ГР! foral FHotartlar
a) EEE U SF Na Y] E" A
If the level meter exceads "0 dB" and reaches the OVER” in-
dication, sound at this level will be distorted during playback
Recording balance (left/right)
adjustment
Set the BALANCE control to the center position for recording
rom a regular stereo source.
If the balance of the ¡eft and right channels have to be adiusted
for recording, e.g. from a monaural source, make adjustments by
observing the left-right balance of the peak level meter.
Level of left channel
=a -24 -16 | ~12 -8 = 1 OVER
INNER NEE IR LL DNAS L TRACT RRR A DANE TINS NN RAN In
LTE TUT TE TEE TEE TEE ELT LL nnn
Lévei oi right channel
Append editing
—. .. mis function enables you lo append (join) & new recording to the
end of an existing recording on the tape with consecutive ab-
solute time.
It is necessary to record the absolute time (ses page 17) sequen-
tlaily without interruption onto the tape if you want 10 write the
track Nos and time information up to the end of the tape.
To write the absolute time onto the tape sequentially, perform the
END SEARCH operation belore starting recording as shown
below.
What is END SEARCH?
This function detects the tape position automatically where
the previous recording ended {i.e where the END marker was
written onto the tape).
When using a tape onto which any END marker has not been
written, (In other words, a tape recorded in the MANUAL
writing mode), be sure to write the END marker at the and of
the previous recording. (See page 23.)
1
o
| С
168
s0g |
ЕТ
ON
©
© a
[In the stop mode at any tape position]
4 Press END SEARCH. обои
The END SEARCH locates the | A J Л —
tape position where the END }
marker is written and then и” 1 se
stops the tape. =
+
MAIN
2 Start recording by foilowing steps 2—5 on
page 16.
The END marker written onto the tape where the Append
Editing starts is erased and a new START marker {including
track No.) is written.
: For your refernce:
* The END SEARCH ais0o detects blank segments where both
audio and control signals have not been recorded Yor about 10
to 30 seconds, and the deck then stops the tape. if you perform
the Append Editing from this position, the track No. may not be
written onto the beginning of à track.
« When there Is more than one END marker (or 10-to-30-Second
biank intervals on the tape as mentioned above), the first END
marker of the blank intervals are detected and the deck
automatically stops the tape.
To create unrecorded segments
(blank interval):
You can make a 4-second unrecorded segment or 4-second
blank interval between tracks to avoid recording unwanted
materials during recording of broadcasts with a BS tuner, etc,
AUTO REC MUTE
To make a 4-second unrecorded segment
AUTO RECMUTE Quickly press AUTO REC MUTE dur-
ing recording.
The tape will advance for 4 seconds without
recording audio sigrals and the deck will be set to
the recording standby mode automatically.
To make a unrecorded segment more than
4 seconds
AUTORECMUTE Hold AUTO REC MUTE pressed as
desired.
Raleasina this buttan automaticaliv sets the deck
TF a A A E PEE LATE TT
to the recording standby mode.
To continue recording
Press №.
| For your reference
The START marker (including track No.) is written onto the tape
position where recording resumes.
LEAD-IN Area
The LEAD-IN area between the leader tape and the beginning
of the first track is an area where control signals {for ensuring’
correct playback) of digital audio signals are written. When
the deck's @ REC button is pressed with the tape fully re-
wound, the contral signals are written in this area.
Beginning of 1st track
Absolute time is | The absolute time
displayed as counting starts
negative values. | from 0:00”.
all
— 0:10 0:00. 0:01. 0:02...
| |
EAR Track TS TEST
"Л БАО-НМ агеа ентот» бе АТА
Leader tape ete A /
area
Side B
Sampling frequency Indicators
Because the deck has three types of sampling frequencies for
digital signals (i.e. 48 kHz, 44.1 kHz and 32 kHz), the deck can
perform recording of digital signals from not only CDs but also
from DAT and other digital sources.
The sampling frequency Indicators light up according to the
current sampling frequency of input signals.
48 kHz: Used for DAT tapes recorded with analog input
signals, etc.
44.1 kHz: Used for CD, commercially sold DCC music tapes
or analog-recorded DCC tapes, etc.
32 kHz Used for a source with a sampling frequency of 32
kHz.
(The 44.1 kHz indicator lights up during analog Input record-
ing.)
Sampling frequency indicatars
TS
i> 0200 CO — —
EX A YES 56 esta cer
= AD AO = == =
1322 ETE
| |
\
19
You can write various markers onto the tape (control signals for -Position where a marker can be written
tape movement) that are helpful for editing onto the DCC tape in
addition to the audio signals and time information. Five types of Beginning of side A
markers can be written onto the DCC tape in the two writing DCC tape
m О ап AL): Th re as fol! :
odes (AUT d MANUAL) ose 8 ofows 1 /Track for control signes of side А’, /, у ZA 4, /)
Track for audio signals of side A
\\
You cannot add any markers to a commercially sold DCC music | N
tape. AX
1 Track for audio signals of side B
RN ous for control signals of side В/У,
{
| Beginning of side 8
Markers are written here.
You cannot write more than ona marker onto the same posi-
tion. or onto positions set very closely to each other.
AUTO | MANUAL Writing
Purpose Marker name Function Writing | During | After
B | | | recording | recording
TO access the START marker This is used to mark the beginning of each
desired track (Skip track and enables you to access the desired 1
play) track during Skip play.
START marker T marker :
STAR Operational | Operational : Operational
(Seepage 17.) | (Seepage 22) | (Seepage 22)
hoe
| Track 1 Track 2
To skip unwanted SKIP marker This is used to mark the beginning ot the un- ; ;
material such as wanted material or inaudible parts you want to ; ; |
commercials or | - Skip after recording is finished. This part will; © i
unrecorded segment fast forward to the next track marked with the
during playback START marker automatically. |
SKIP marker START marker | Non- Non- i Operational
rational rational | ‚ (See 22.
j Skipping ope opa page 72.)
(Fast forwarding) ;
Phe
| 7 i
= /
: : {Unwanted X
i Track 1 X Track 2
| part) _
i
“< wl
nn a ee a 15 + e:
TT iio Aa e A e. a Gé ie Fee ak amen E: ES > 55 Free ma
- Ti a Aziz == = di
3 == Es EEE
MANUAL Writing
| : AUTO
Purpose Marker name Function Writing | During After
recording | recording
To mark the end END marker The deck accesses the end of previous record-
nosition o nf recording ing whan tha END SEARCH is narfarmad reno
{This Is helpful for - page 18). This enables you to perform Append
Append Editing.) : Editing from this point.
| END marker Operational | Non- Operational
(See page 17.) | operational | (Seepage 23.)
( I
Track 1 Track 2 {unrecorded \ |
segment) i
|
|
|
To skip the * REVERSE ; During recording or playback of side A, the *
remaining | marker i tape side is reversed to B at the position
|
unrecorded segment marked with the REVERSE marker on side A.
of side A, and then ; . {This marker cannot be written onto side B.)
access side B in
order to continue
recording or | REVERSE marker — Non. Operational | Operational
playback quickly. | — Side A - operational (Seepage 23.) ; (See page 23)
| Track 1 | Track 2 | Тгаск 3 HS
| Track 6 | Track 5 | Track 4 a
: ,
; |
: Side B
| Reversing direction |
| |
| -
To fast forward the NEXT marker | During recording or playback of side A. the |
tape automatically i tape Is fast forwarded from the position |
from the remaining | marked with the NEXT marker to the beginning |
unrecorded segment ¡ of side B. (This marker cannot be written onto
of side A to the | side B.) :
beginning of side B i
(This is helpful to : Non- - Operational | Operational
separately record : operational (Seepage 24.) | (Seepage 24.)
different albums Beginning NEXT marker
onto side A or B.) of side A o
= --
=
Track 1 | Track2 | Track3 | 5
| Track 3 | Track 2 | Track 1 ж 5
+
Beginning +
of side B
-
; The firet track on side В 19 recorded as track 1,
NF Ka Bf ar Na боя ВЫ a
| and the absolute time writing starts from 0:00.
Renumbering function
The markers written onto the tape are checked and all track Nos. are renumbered in sequence automatically by this function. After writing
markers in the MANUAL writing mode, be sure to renumber after the writing is finished, (See page 24 for further information.)
22
[Before writing markers |
e Set the erasure-protect switch on the DCC tape to the record position. (Ses page 29.)
= Salect the MANUAL writing mode. (See page 17.)
To write the START marker
(during or afier recording)
(after recording)
To write the SKIP marker
This is used to access to the desired track.
To write during recording a
(With Remote Control Only)
MARKER CONTROL
START| SKIP REVERSE NEXT
(FI J
AUTO;
MANUAL REMUMBER ERASE
> an CJ
END
WRITE
[During recording, before the position where you want to write]
5TH
$ Press START.
Press again when you want to
delete the "STA" display.
Press WRITE at the = TH
desired position. /
EN
To write after recording is finished
[During playback. before the position where you want to write]
1 Press START.
2 Press WRITE at the desired position.
(Playback sound is not heard while the marker Is being
written.)
For your reference
In the pause or stop mode, you can also write the START marker
onto the tape using the same operation as instructed above.
Track numbers cannot be input if the START marker is written
after recording. Be sure to do the renumbering after the
marker writing is finished. (Ses page 24.)
: лан ен e a
—
This Is used to skip unwanted material during playback.
{With Remots Control Only}
*
010
[During playback, when you are right before the position where
you want to write,}
5 {
} 1 }
| Press SKIP.
Press again when you want to
delete the “SKP” display.
2
Press WRITE at the
desired position.
{Playback sound is not heard
whiie the marker is being writ-
ten.)
SEP
|___ CNE ©
| For your referance |
In the pause or stop mode, you can also write the SKIP marker
onto the tape using the same operation as instructed above.
ca tina at sa BR ir SE Br TEE S aus
e e ne
To write the END marker
(after recording)
This is used to mark the end position of recording.
(With Remote Control Only)
1 7 3
Г MARKER CONTROL à
START SKIP REVERSE NEXT | ERD :
OOO
| MANUAL RENUNBER ERASE | WRITE |
II IG
NO e `
close SEARCH PAUSE REC HUT CED
< DI OO) => =
R.SKIP F.8KIP
dd Ja
1 Press @ REC to set the deck to the recording
standby mode.
2 Press END.
Press again when you went to
delete the “END” display.
ENT
Га Ms... — .— & @
wo Fess wni
La
After writing is completed, the deck changes from the stand-
by mede to the stop mode.
-For your reference
The END marker written onto the tape does not allow further
playback of the next part. If you wish to play the tape after the
END marker, press the FF button 10 advance the tape and then
play.
fia ar DE: E. + EE
e UE To
To write the REVERSE marker
(during or after recording)
This Is used to skip the remaining part of side A and continue
recording anto side B quickly.
Writing during recording
(With Remote Control Onty)
ER CONTROL
START SKIP REVERSE NEXT END
O
MANUAL RENUMBE ERASE | WRITE
(DD) = CE)
OPEN/ END AUTO
CLOSE SEARCH PAUSE REC MUTE (GE
a
R.SKIP F.SKIP REW
a IQ
№
Ii
FM ele oe rte om — a me cm am = ll =
¡During recording on side A, ai!
want to change to side B,]
$ Press Il PAUSE to set the deck to the recor-
ding standby mode.
Also, temporarily stop the playing of a source such as a CD
player, etc.
2 Press REVERSE.
Press again when you want to
- delete the “REV” display.
FEI
1% 3 4
Press WINTE. E —
The recording side changes to En
side B and the deck remains in
- the recording standby mode.
Go
4 Press »- to start recording.
Resume the playing of a source such as a CD player, etc.
| For your reference |
You can make a recording continuously from side A to side B
without having to write the REVERSE marker (as instructed
above), if you have no time to pause the deck during recording a
broadcast,
Press the {JP button to change the recording side to side B.
| |
In this case, the REVERSE marker is temporarily written onto side
B. Be sure to do the renumbering after recording is finished In
order to rewrlte the correct REVERSE marker onto side А.
Writing markers after recording
Press the @ НЕС button at the desired position where the
REVERSE marker is to be written, and follow operation steps 2
año 3 above.
23
24
— Marker writing in MANUAL mode
Writing after recording
To write the NEXT marker
(during or after recording)
- = о сое
This is used to mark the beginning of the remaining unrecorded
segment of side A when you want to fast forward to the beginning
of side B immediately.
Writing markers during recording
{With Remote Control Only)
(> 1234
Е a À o = { MARKER CONTHOL a
code START SKIP REVERSE|NEXT | END
J) CIO) J
Зее MANUAL RENUMBES ERASE | WRITE
JO IE
=a ca
o oa - “
OPEN/ END AUTO
CLOSE SEARCH PAUSE REC MUTE (TRE
*
Co
— RSKIP F.SKIP NEW FF
- = -
II
[while recording on side A, at the position whers you want to fast-
forward the tape to side B,]
1 Press II PAUSE to set the deck to the recor-
ding standby mode.
Stop the playing of a source such as a CD player, etc
2 Press NEXT. Ар OT
— Press again when you want to [VU # !
delete the "NXT" display.
3 Press WRITE. | 1 т
The tape will fast forward to the / i
beginning of side B. MAP
_ ETA
4 (Then, it wilt be set to the recording standby mode at the
beginning of side B.)
Press >.
Continue the recording.
(OR)
If you wish to stop recording, press M.
The first track on side B is writter: as the first track (track No. 1)
and the absolute time is written from “0:00”.
Press the @ REC button at the desired position where you wish to
write the REVERSE marker in order 10 set the deck to the record-
ing standby mode and follow operation steps 2 and 3 above.
function ___
= 1 crue wm TT TO ==
To perform the renumbering
Renumbering must be performed after MANUAL writing andlor
erasing of markers has been completed.
Renumbering has the following functions:
* To add track Nos. to START markers written in the MANUAL
mode.
To renumber sequentiaily the tracks that are no in order after
markers are written or erased.
» To rewrite the REVERSE marker that was temporarily written
from side B onto side A.
{With Remote Control Only)
0
fl
I
03 |
[In the stop mode, at any tape position.)
$ Press RENUMBER.
Renumbaering starts. When !he
following procedures are finish-
ad, renumbering 1s completed.
FNM
Renumbering procedure:
(D The tape should be fully rewound to the beginning of side A.
@ Track Nos. are renumbered sequentially while the tape is mov-
ing.
* The tape Is fast forwarded except at the position marked
with the START marker.
*e The tape moves according to the REVERSE and/or NEXT
marker instructions written onto the tape.
it takes some time for the deck ta complete renumbering
because the deck checks each track number.
3 After renumbering is finished, the deck fulty rewinds the tape
to the baginning of side A and stops.
END
es,
Al. — PAT AIT
ie LUN I Er
e
Ls E
utton to select the tape counter mode. (See page 14.)
1 Play the tape and locate the marker to be
erased.
To erase the START marker
The "MARKER" indication ap-
pears oh the display for about 3 MARKER
seconds when the tape comes
to a position where a START
marker Is located. Stop
nlavhack at this nosition,
To arase the SKIP marker
When the tape comes to the position marked with the SKIP
marker, fast-forwarding starts.
Write down that tape position by reading the tape counter.
Then, rewind the tape to 2 or 3 counts (counter reading)
before that position.
2 Press START or SKIP GTA
depending on the !
marker you wish to
ininta „= _£ TF ala
LEI LOs (Example of START marker)
Press again when you want to
delete the “STA” or “Skp"
display,
When a marker is deleted, the
3 Press ERASE. 5 T E |
ELE indication stops blink- MARKER ak _
ing and remains lit for a while x
and then goes off. Blinks
If the “IEEE ' indication disappears before coming to a
marker to be erased, (the will blink for about a max-
frum of 10 seconds), the marker cannot be erased. H this
occurs, press the ERASE button again.
Be sure to renumber the markers after erasing them. (See
previous page.)
If the tape position passes the position of the marker that you
wish to be deleted, and the ERASE button is pressed, possible
aL — wm mad A
m Urea mea ка
érasure O1 the next Mmairxer may GCCUI.
: For your reference '
New records over the existing records erase all markers (START,
SKIP, END, REVERSE and NEXT) written to the tape.
26
You can write text information such as album title, artist name or
track title, etc. onto your recorded DCC tape.
There are 4 categories of text information (TEXT 1 — TEXT 4) that
can be written onto the beginning of each track.
Text Text _— _ a
TEXT 1 TEXT 1 Ñ
TEXT 2 TEXT 2 Ñ
TEXT 3 TEXT 3 _
TEXT 4 TEXT 4
} f
Track 1 Track 2 \
| | pa ]
Recordable DCC tape
Examples of categories of texts
TEXT 1: Album title
TEXT 2: Artist name
TEXT 3: Track title
TEXT 4: Date of recording
Up to 40 characters can be entered in each TEXT line. (If more
than 8 characters are displayed, the leftmost character of the
ine is scrolled to the left.
* No text Information can be written onto the following types of
DCC tapes:
1: Commercially sold music tapes.
2; Blank unrecorded tapes.
& Tape onto which no START marker has been written.
* Set the erasure-protect switch and safety tab on the recordable
DCC tape to the record position. (See page 29.)
* Use an already renumbered tape. (See page 24.)
* You cannot select the desired tracks by their track title written
onto the tape.
(With Remote Control Only)
3 {Alphanumeric 2 7
` buttons) |
DEL button
N
|
M
||
|
MANUAL HENUNBER ERASE WRITE
(J CJ J CJ]
OPEN: END AUTO В
| CLOSE SEARCH PAUSE REC MUTE GS
EMT
SOO CO Cd
R_SKIP F.SKIP
O0 Ba
CI
Alphanumeric buttons
Each time an alphanumeric button 18 pressed, the
alphanumeric character above the button is displayed in the
following order.
{For exampis) ! ABC А -+ В-+С -+ 1
С
For your refernce’
« If you want to enter a space. select the underline mark *'__
by pressing the “9 YZ, _." button.
» The characters “> 107 of the “> 10+ —X"” button is not
displayed.
a =
For ы У
стой e iad я Sha a
[Batore operation]
Access the beginning of the desired track onto which you want to
write text Information, using the R.SKIP or F.SKIP button. Then,
press the E button.
Example:
Tar avia +ha iras: $+14la STAT IT EASY ta dba TC 2 [evn af tha
EA VFIILES LLI 41 8%. LS DAL 11 AA 8e IME LIS amd oJ THI WI LIS
third track.
| Press EDIT.
= * { 7 —
- TEXT EDÍT-
” 7 I \ MARKER
fn a La
2 Press TEXT MODE to select the desired
TEXT line.
Each time this button is pressed, the display is changed in
the following order:
TEXT 1 — TEXT 2 — TEXT 3 — TET 4
1
4 TEXT -9 =
Press the alphanumeric button to display
the desired character.
In this example, press the "7 STU” but-
7
STU ton. Each time this button is pressed,
CD) LL the character changes in the following
order:
$8—T—U— 7
tr 1 --
PT, |
CN би i
a |
Á Press CURSOR D (right one).
The cursor moves to the right.
DT
are
E sl,
#1 % |
| “© Press CURSOR « or > to move ) 4 T,
5 Repeat steps 3 and 4 to enter other
characters.
To enter a space between characiers, move the cursor
without entering a character or select "— with the
"OYZ— " button. (You cannot enter a space at the beginning
of a line.)
TT
L |
*
EASH- ——
G Repeat steps 2-5 to enter characters in
TEXT 1, 2 and 4.
7 Press WRITE to write the text information on-
to the tape.
me à ~ Y T HE T I E _—
the cursor to the incorrect UU H E 1 7
character. >
(© Enter the correct character, (See si —
operation step 3 above.) TH И y E T ;
1
Sy
3, Press CURSCR «| or > to move sv
the cursor to the incorrect 7 H H E I 7
character. !
FT
4; Press DEL. о т NA тт
The character ls deleted without LAN E if
leaving any spaces. У
the tape
. --To correct text information written onto
Display the tex: information to be corrected. After correcting,
press the WRITE button.
See page 13 on how to change the display of text information writ-
ten onto the tape.
27
ack and recording with timer
Using the optional timer (or tuner with a timer) enables you to per-
form playback of tape or record a broadcast with a tuner {or BS
tuner) at a pre-programmed time,
Eos Lana a == E an En nn oT E Stine nus ft me EY"
1 Or timer prayvaca E Or LUCI TECO LIE RABIA rn
— mot EIA GUA EEE UE" LADEN
Preparation
After the connections are made as instructed on page 9, set your
amplifier and tuner {or BS tuner) to the broadcast reception
| Preparation |
After the connections are made as instructed on page 9, set your
amplifier to the tape playback mode.
28
1 Make preparations for playback on the deck.
For DCC tape playback, follow the operation steps
1—3 described on page 10.
(ACC: For ACC iape playback, follow the operation steps
E г= A чи — m m m Bm
1—4 described on page 11.
2 Set the timer to the desired time for
playback and complete the timer settings.
(The deck and components connected to the timer will be
turned off.)
For further information about timer setting,
Operating instructions of your component.
refer to the
nt TIRE la à HEF AWM
"Ca TIMER DEF LIFE to гы a
Co
(At the pre-programmed time, playback starts automatical-
ly.)
After Timer playback is finished,
Be sure to return the TIMER selector to "OFF".
mode.
3
A с
dl... 7 |
Ses oa | omo
2 => ©» O it i СЕ |
s © © da > YET ICH
|
1 Make preparations for recording.
Follow steps 1 —3 described on page 16.
2 Set the timer to the desired time for recor-
ding and complete the timer settings.
(The deck and components connected to the timer will be
turned off.) _.
For further information about timer setting. refer to the
Ocerating Instructions of your component.
©
Cat TIMER salanin
nil чы? Ъ E FREY Ве T E ar a
{At the pre-programmed time, recording starts automatica!-
№.)
or to “REC”,
FE
After recording + with the timer Is finished,
» Be sure to return the TIMER selector to the “OFF" position.
» The END marker 1s not automatically written at the end of the
recording. If you intend to make “Append Editing” starting at
the end of a recording, use MANUAL writing to write the END
marker. {See page 23)
» To perform Append Editing using the timer, set the timer after
END SEARCH is finished. (See page 18.)
« |t takes about 30 seconds for the deck to start recording after
the timer Is turned on at a pre-programmed time. Therefore. in
order not to miss recording the beginning of a broadcast. set
the recording start time 30 seconds or more before the actual
tIme of a broadcast according to your timer"s timer setting func-
tion.
SEE TE II] E
i E A DE: a
Fo EERE EM eine LA EA: =
= a a i FT TE Mine ir
El = 3 = = - THE To
ut 1) CERO E TEA
TE: e he! REY Ts FE =; wig FLT i;
-- AA = x
EEF IE qe.
DCC Tape: Abbreviated for Digital Compact Cassette Tape
ACC Tape: Abbreviated for Analog Compact Cassette Tape
About the DCC tape
There are two types of DCC tapes.
(D Commerclally sold music tapes
(2) Blank DCC tapes for recording of 45, 60, 75 and 90 minutes,
etc.
Construction of a DCC tape
Unlike an ACC, a DCC tape is sealed. It is protected by a slider,
The slider protects the tape and hub holes from dust, which may
cause possible dropouts {digital signal losses), and also prevents
E amb TA am am
“Li "y Sy LEA Г in IG hp.
Hub insertion holes
{covered by the slider)
HK Safety tab
KErasure-protect
switch
(Rear side)
Cassette tape length identification holes
{only on the recordable DCC tape)
Protection of tape from accidental
erasure
eE PES Le
== 77 maire Te
Isa AAA ET
= : - EEE ONE EA
LEN a = PRET ES fot Ty Se Fey © RTE
= moe € = - = 7e
Er gx ie o ИЕ =
: ar - AR DAS EPI =
= a EL Ey ETA EE : ès = St FREE
Gee a Ta LT NA PAR UL LAA елей > =
rad EEC AA E > =
€ L'ÉTÉ repre | swe a E EE nai zn ES Er Кута 55
me Lr LTE RTL e RPTE Ea an т amr т De
Handling precautions
* Be carefui noi io damage the cassette tape length identification
holes. Damaged holes may cause possible malfunction of the
deck.
* Do not attempt to open the slider of the DCC tape in order to
pull out or touch the tape.
» Be careful not to drop the cassette or subject it to strong vibra-
tions.
Only use DCC tapes in a deck bearing the " EC ‘ logo. Do
not load DCC tapes into an ordinary analog "cassette deck. H
this occurs, the tape may be damaged.
A recorded tape can be protected agalnst any accldental erasure
by sliding the erasure-protect switch on the rear side of the
cassette Up to set the safety tab to the Protect positlon (closed
position) as shown in the diagram.
r
Recording cannot be performed
with this safety tab closed.
=
q
Slide this switch— t
up with a batt
point pen or the
like,
ACC tapes
Besides normal ACC tapes. this deck can also use CrO, and
metal tapes. (The automatic tape selection function equipped
with this deck determires the types of ACC tape.)
Note for using ACC tapes longer than
90-minute
H is not recommended that tapes longer than 90 minutes be
used, because the tapes are too ihin for adequate tension during
any tape movement (ie. repeated stop, fast forwarding or rewind).
Therefare these tapes may be stretched and tangled up in the
head assembly (the heads, capstans and pinch rollers) of the
deck.
Please take up the tape slack.
Possible damage to the tape may occur if there is too much
slack.
| art Ian A Wh
A £'CCOU LUS Vir
storage
# Store the DCC/ACC tapes In their storage case.
# Avoid storing the DCC/ACC tapes in the following places:
1. A place with high temperature (35° C or more) and humidity
(80% or more).
2. Near a magnetic field generated by speakers or ona TV set.
3. A place exposed to direct sunlight.
29
30
REVERS
MODE
INPUT
DINA
e
® ©
E
Г MARKER COMTROL
MANUAL RENUMBER
éco
_/
START SKIP REVERSE NEXT END
¡ OO OC)
ERASE WRITE
Y DD
A.SKIP F.SKiP REW
A Sa
@
“Quick reference for remote control use
Common opera ations
page
POWER
(A) ! Tum the unit on and off u 10
Cassette compariment Close 10
OPENICLOSE o)
Selecting time Information COUNTER
PCC any es 14
© +
Resetting the tape counter : ET 14
“For playback page
To start playback | | 10
To temporarily interrupt RE ed 10
playback a
DO о ; =
. To stop playback : JJ 10
© | new FF
i To rewind or fast-forward С) 12
To change direction of the tape | 12
RAKE FANT
To pertorm Skip piay (3) J 14
To select the type of Doiby NR DOLSY NA 11
system [ACC only] i с)
T lect th d - MODE
o select the reverse mode 10
® - To access the desired track by ; s ac Zu + 15
i selecting the track No. | OO
. To display text information such ; TEXT 13
: as album title, etc. CS
To scroll! text information | send”
| DOC ony 13
ier a TE ТЕЛ:
> = ES Jude oh]
de + Зин ик = 2 ТН. пение
E i
= - = SRE 3€ É Es
ag) rai HE
For recording IL) Page
© To select the recording input | SELECTOR 16
mode J)
To set the deck to the recording ECO 16
etandhv mada ( )
To start recordin - 16
° |
© To temporarily interrupt “ama 17
recording DT
| N =
To stop recordin 17
J © ! AÉC MUTE
To make an unrecorded segment | | | 19
1 ABC 2 DEF 3 36H Y nee MODE J -
LI (9 J (J
4 JKL 5 MNO 6 POR gc —
Du“ 5 5 For marker editing EM ::17 page
7 $U E VWX 9 YZ. || DEL WRITE ol |)
D OO DIG : TO select the AUTO or MANUAL * MANUAL 16
0 <>f =10+-1 EDT — «CURSOR» mode of marker writing CJ)
D OD OO D | For the START marker writing or START 22 25
erasure mode и В
MARKER CONTROL ; For the SKIP marker writing or | SKIP 2996
START SKIP REVERSE NEXT END a arasure mode J '
J J) CJ) CJ) CC) (H} i
: AUTO/ — | For the REVERSE marker writing REVERSE 23
© | [MANUAL RENUMBER ERASE WRITE : mode 3)
; For the NEXT marker writing NEXT 24
: | lopen: | END AUTO mode —
CLOSE BEARCHIPAUSE REC MUTE ®
& © For the END marker writing END 23
III IT CO mode (J
R.SKIP . REW FF WRITE
CT CU I (I To write markers CS 22—24
ua . > _ . ERASE LL
|] | | | | : To erase markers CD 25
1 J - To renumber | I 24
Co END
3 For END SEARCH | =) 18
; - To set the text information input | EDIT 27
; ¡ mode |
‘TEXT
\_ J : To select text information mode Co) 13,27
с a = 0 ex. - --
h 1 ABC >10 +-* 27
© To enter characters Jr» D
: To move the cursor o 27
To write text information on the WRITE 27
tape -
To delete a character > 27
32
Maintenance
ma tn ZI Le
Head assembly care
Any dust or dirt on the head assembly (head. capstan anc pinch
roller} will interfere with the sound quality of recording and
piayback. To assure good sound Guailiy, De Sure fo Ciean ine
heads after approximately every 10 hours of use.
e |f the sound quality is rot improved after the head assembly is
cleaned, the tape should be changed because the tape may be
worn out or old. Use a new tape instead.
* |f the sound quality is not improved after clearing the head
assembly and changing the tape. consult your dealer.
Use a Cleaning Kit (sold separately} to clear: the head assembly.
TN
7 7 9
s Do not touch the head assembly with your fingers.
» Lise a cotton swab for cleaning the head assembly.
For your reference”
You can also use a Cleaning Tape (sold separataly) for Analog
Cassette.
La not use
— O -— aC — A IEA —
Using a demagnetizer for an analog cassette deck may damage
the head assembly of this deck.
To clean the cabinet of the deck
(For your safety, disconnect the power cord from the AC wall
outlet.)
To clean the cabinet, wipe it with a soft cloth.
For persistent stains on the surface of this deck, use a damp
cloth with a mild detergent and then wipe with a soft, dry cloth.
s Never apply any solution such as alcohol or paint thinner,
» [If you use a chemically treated cloth, follow the directions
carefully.
T——] JU -
mpm Es —E- = =
Important notice on recording of digital source
LL = En = Ras EE St ESS wn € E О -
-— mE =
The deck has adopted an SCMS (Serial Copy Management
System) which prohibits uncestricted copying of digitatly-record-
ed tapes.
The SCMS ailows only one generation of digitat signal-copy CDs
and digitaity recorded tapes to another tape for protection of
copytights. (This deck stops recording operation.)
» СО or commercialhy sold DCC music tapes
* OCC or DAT tapes recorded with analog input
(Digitat-signa! copying Is possible)
pr
(Digitat-signa! copying is impossible.)
0 ax
it should be noted that it may not be possible to make digital
copies from tapes which do not conform to the SCMS format.
[For your reference:
You can make analog input recordings from a digital tape when
digital recordings cannot be made. (The SCMS format does not
apply to this situation.)
E Digital Recording/Playback
Tape recording system Stationary head type DCC
Sampling frequencies
{Analog input recording)
(Playback/Digita! input recording
44.1 kHz
48 kHz, 44.1 kHz, 32 kHz
(selected automatically)
No. of quantizing bits 16-bit linear
Audio coding system PASC
No. of channels 2-channet (stereo)
Freguency response
(44.1 kHz sampling frequency)
{48 kHz sampling frequency)
(32 kHz sampling frequency)
Total harmonic distortion
(Playback)
(Recording/playback)
Dynamic range
10 Hz—20 kHz (+0.2 dB)
10 Hz-22 kHz (+0.2 dB)
10 Hz- 14.5 kHz (£0.2 dB)
0.007 % or less (1 kHz, 0 dB)
0.009% or less (1 kHz, 0 dB)
{Playback} 95 dB or more (A-weighied)
(Recording/playback) 90 dB or more (A-weighted)
SIN
(Playback) 95 dB or more (A-weighted)
(Recording/playback) 20 dB or more (A-weighted)
Channel separation
{Playback) 95 dB or more (1 kHz)
(Recording/playback)
Wow and flutter
80 dB or more (1 kHz)
Below measurable limit
H Analog Cassette Tape Playback
Deck system Analog compact cassette
Track system 4-track, 2-channel (Stereo)
Frequency response (Dolby NR off)
Normal 30 Hz- 15 kHz (DIN)
Cro, 30 Hz- 16 kHz (DIN)
Metal 30 Hz—17 kHz (DIN)
S/N
{Signal level = 250 nwb/m, CrO; type tape)
NR off 56 dB (A-weighted)
Dolby B NR on
Dolby © NR on
Wow and flutter
65 dB (CCIR)
74 dB (CCIR)
0.08% (WAMS)
+0.2% (DIN)
tr fais UE ES RENE Ed net 00 ARA teme To
E wre o Ha Seely na ul E
HA Sn ges o
Es DIA RL RIE Le EE TE Re SE, PEE = ER
E Terminals
Analog input
input sensitivity 100 mv
Input impedance 47 kQ
Analog output (fixed)
Output level 500 mV (DCC —12 dB}
Maximal output level 2 V (DCC 0 dB)
Output impedance 1 kQ
Headphones output
Maximum level ЗО mw +30 mw
(32 Q load)
Load impedance range 8-600 Q
Digital input Optical 2 input
(with select SW)
Digital output Optical
M Mechanism
Heads 20-channel thin film head
Tape drive system Single capstan drlve
(Auto reverse)
Tape drive motors
Capstan FG servo motor
Reel table DC motos
Tape spead 4.76 cm/s {1-7/8 Ips.)
Fast forward and rewind times
Approx. 60 sec. with D-60 cassette tape
E General
Power consumption
For United Kingdom, Europe, Australia and N.Z. 33 W
For others 35 W
Power supply
For United Kingdom, Europe, Australia and N.Z.
AC 50 Hz/60 Нг. 230—240 \
For others AC 50/60 Hz, 110 V/127 V/220 V/240 V
Dimensions (W x H x D} 430 x 136 x 334 mm
weight 5.5 kg
Notes:
1. Specifications are subject to change without notice. Weight
and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
For United Kingdom only
This apparatus was prodused io BS 800.
[MASH is a trademark of NTT..
33
34
Before requesting Service for this unit, check the chart below for
a possible cause of the problem you are experiencing. Some
simple checks or a minor adjustment or: your part may eliminate
the problem and restore proper operation.
EPT E. ag
Technics dealer Tor instructions
| Problem
|
Problem noted at all times
— Possible cause(s)
== == “Y
If you are in doubt about some of the check points, or if the
remedies indicated in the chart do no! solve the problem, refer to
the directory of Authorized Service Canters {enclosed with this
unit) to locate a convenient service cenigr, OF consult your
Problem while DCC tape is used
The unit is placed In the TIMER seiector is set to the “REC” or i » Press MM (STOP) button and s set TIMER
record or play mode as soon “PLAY” position. . selector to the “CFF" position. 28
as the power Is switched on.
Tapa moves but no sound is | Amplifier's volume control is set tc LOW. * Adjust amplifier's volume with its volume _
heard. control.
Amplifier's Input selector is not at corract © = Set the selector to the correct position. _ |
nosltion, '
Noise or distortion in Recording level was excessively high or low. | «Record again at proper recording level {if :;
playback sound the tape was recorded by analog record- ! 18
ing). !
| Playback sound Is inter. Head assembly is dirty. = Clean the head assembly with the cleaning |
rupted, kit (sold separate) and record again. 25
| Cassette tape is old. _ N * Use a new cassette tape. . j
=. а
иене нее тн тит пен к-т LDL] oe но он
Track Nos. or play elapsed Track No. has not been written property. e Renumber. - i
time 1s not displayed. DCC tape is not played from its beginning. « Press R.SKiP button to rewind the tape to 14
its beginning,
Search function does not START marker has not been written correct- | « Rewrite START markar.
operate correctly. by. 2
Tape stops at a certain : END marker has been written to the position. | * Press FF button to advance the tape and
position during playback. press »- button. 12
hecording cannot be perform: . Cassetts's safety tab is closed. = Slide the safety tap to the record position. 29
| Digital input recording cannot [ INPUT Selector is set to the "ANALOG" * Set H to the “DIGITAL 1” or “DIGITAL 2" 18
be performed. : position. position.
| "DIGITAL *" or "DIGITAL 2" indicator blinks. | * Check connections of optical fiber cables. 8
« Power an input source appliance. —
: Digital copy prohibit indicator is lit = MaRS analog Input recording 16,32
Analog input recording Incorrect Connections S with your stereo » Connect correctly. a
cannot be performed. amplifier, i
REC LEVEL control Is set to the “0” position. | =» Adjust recording (input! level with REC 16
LEVEL control,
INPUT selector is set to the "DIGITAL 17 or | = Set it tc the “ANALOG” position, 16
“DIGITAL 72” position
Marker or text information Cassette's safety tab Is closed. = Stide the safely tab to the record position.
cannot be written to a blank | 29
DCC tape. | > | -
== ао ——
DAA Re
poa a
Frs
= =.
Probiem | Possible cause(s)
Suggested remedy
Problem while ACC tape is used
Playback sound of ACC tape | Incorrect setting of Dolby NR. + Select the same type of Dolby NR system 11
is poor. that was used for the recording.
Problem while Remote Control is used
Remote Control doses not - Cassette tape is not loaded correctly. ‚ * Load cassette tape correctly. 10
function correctly. - Batteries are low. = Replace the batteries. 7
The deck does not recelve signal from the * Check both distance and angle between the |
Remote Control. Remote Control and the deck. Check that |
. | 7
there is no obstacle between them and use |
the Remote Control at a correct position. |:
35
Indicates that the DCC or ACC tape is not loaded.
257)
: There is no readable time information on the DCC tape. This will be displayed when no
: time information has been written onto the tape. (See page 14.)
Indicates that no tex! information has been written onto the DCC tape or the text infor-
matlon is not read yet. (See page 13.)
indicates that the deck is reading the text information written onto the DCC tape.
а al
Indicates that the DCC tape is being fast forwarded automatically from the position
marked with the NEXT marker on side A to the beginning of side B. When this display ap-
pears during playback, side B playback starts from its beginning. (See pages 21 and
24.)
H
Indicates that the DCC tape is being fast forwarded automatically fom the end of
recording on side B to the beginning of side A {provided that the deck is set to the CD
reverse mode). In this case, playback starts from the beginning of side A_ (This is not
displayed when a tape that has been recorded with this deck is used.)
A
(1 THFE ENT
indicates that the DCC tape playback is finished and the taps is being fast torwarded to
the end of side B (provided that the deck is set tothe L_) mode) The tape stops at the
end of side B. (When the DCC tape recorded on this deck is used, this message does
not appear.)
LOFY PRHET
indicates that digital-signal copying is prohibited. Recording stops automatically when
© this display appears. (See page 22.)
The “dec” indicator
on the cassette
compartment cover
This indicator lignts up when ine deck is iumned on ora
deck. If an ACC tape is loaded, this indicator goes oft.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
Printed in Japan
RQT2250-B
HOs94OS
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
