Intermatic DT27C Operating instructions

Intermatic DT27C Operating instructions
12709704 12:50P P.M

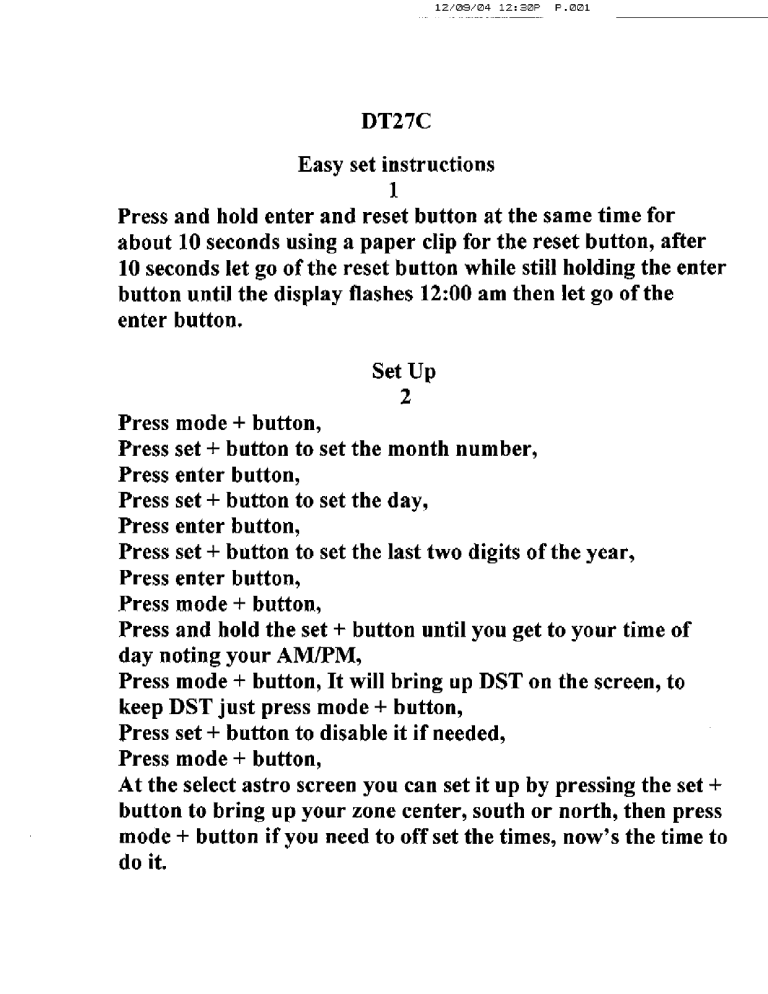

DT27C
Easy set instructions
1
Press and hold enter and reset button at the same time for
about 10 seconds using a paper clip for the reset button, after
10 seconds let go of the reset button while still holding the enter
button until the display flashes 12:00 am then let go of the
enter button.
Set Up
2
Press mode + button,
Press set + button to set the month number,
Press enter button,
Press set + button to set the day,
Press enter button,
Press set + button to set the last two digits of the year,
Press enter button,
Press mode + button,
Press and hold the set + button until you get to your time of
day noting your AM/PM,
Press mode + button, It will bring up DST on the screen, to
keep DST just press mode + button,
Press set + button to disable it if needed,
Press mode + button,
At the select astro screen you can set it up by pressing the set +
button to bring up your zone center, south or north, then press
mode + button if you need to off set the times, now’s the time to
do it.
12709704 I1Z2:50P P.Éde
To set Astro
3
If you need fixed time only skip to step 4, if you need astro on
fixed off skip to step 5.
Press the mode + button until you get to the select astro days
screen
Press the day button for the day or days you need,
Press mode + button,
Press the day button for the day or day's you need for off time,
Press mode + button until you get to the auto screen,
Fixed Time
4
If you do not need astro then just keep pressing the mode +
button until you get to the fixed time and you see -:-- -- on the
screen,
Press the day button to for the day or day’s you need on,
Press the set + button to set your on time.
Press enter button,
Press the day button to for the day or day’s vou need off,
Press the set + button to set your off time,
Press enter button,
Repeat steps if need,
To program astro on and fixed off,
Astro + Fixed time
5
If you want astro on and a fixed time off,
12709704 I1Z2:50P PP. 003
Press the mode + button until you get to the select astro days
screen
Press the day button for the day or days you need,
Press mode + button,
Press day button 11 times until you see -:-- -- on the screen,
Press mode + button,
Press enter button,
Press day button for the day days you need off,
Press and hold the set + button until you get to the time you
need off noting your AM/PM,
When finished, press the mode + button once for auto twice for
auto rand.
