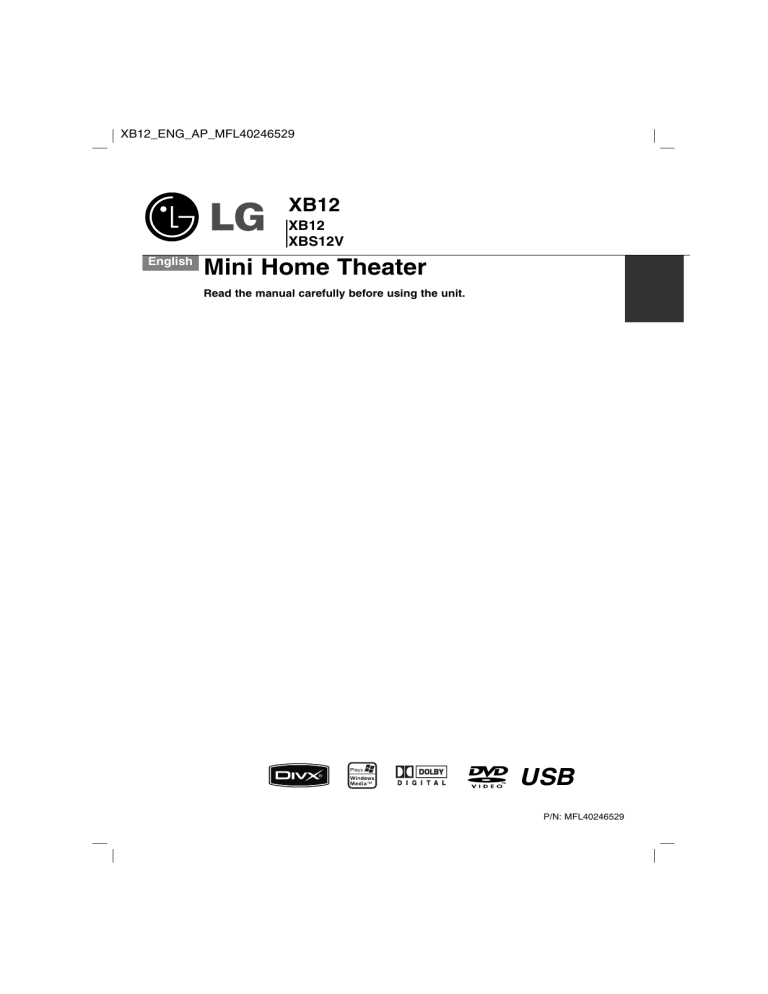

XB12_ENG_AP_MFL402465

2

9

English

XB12

XB12

XBS12V

Mini Home Theater

Read the manual carefully before using the unit.

USB

P/N: MFL402465

2

9

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING:

TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non insulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELEC-

TRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

CAUTION:

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating.

The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service

centre

.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

• The appliance is not intended for use by young children or infirm persons without supervision.

• Young Children should be supervised to ensure that they do not play with appliance.

• If the appliance is supplied from a cord extension set or an electrical portable outlet device, the cord extension set on electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture.

CAUTION:

This Product employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference, should the unit require maintenance, contact an

LG Authorized

service centre see service procedure.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT

STARE INTO BEAM.

CAUTION:

The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED

POWER SAVE MODE

You can set up the unit into an economic power save mode.

In power-on status, press and hold

1/[

(

POWER

) button for about 3 seconds.

- Nothing is displayed in the display window when the unit goes into the power save mode.

To cancel power save mode, press

1/[

(

POWER

).

2

Introduction

Installation

TV Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . 4

Speaker system connection. . . . . . . . . . . . . . . . . . . . 4

Operation

Operation using the front Panel . . . . . . . . . . . . . . . . . 5

Operation using the Remote Control. . . . . . . . . . . . 6-8

Additional features. . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Setup

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Playing an Audio CD or MP3/WMA/JPG/DivX file

Playing an Audio CD or MP3/WMA file . . . . . . . . . . . . 10

Programmed Playback . . . . . . . . . . . . . . . . . . . . . . 10

Viewing a JPEG file . . . . . . . . . . . . . . . . . . . . . . . . . 11

Playing a DivX Movie file . . . . . . . . . . . . . . . . . . . . 11

Timer function

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Timer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

TUNER

Presetting radio stations . . . . . . . . . . . . . . . . . . . . . 12

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . 13

RDS Operation -Optional

. . . . . . . . . . . . . . . 13

Reference

Language Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Specifications

About the symbols for instructions

Caution

Indicates hazards likely to cause harm to the unit itself or other material damage.

Note

T ip

Indicates special operating features of this unit.

Indicates tips and hints to make the task easier

Playable Discs

DVD

(8 cm / 12 cm disc)

Video CD (VCD)

(8 cm / 12 cm disc)

Audio CD

(8 cm / 12 cm disc)

In addition, this unit can play a DVD±R, DVD±RW,

SVCD, and CD-R or CD-RW that contains audio titles,

MP3, WMA, JPEG or DivX files.

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.

• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.

About the symbol display

“ ” may appear on the TV screen during operation.

This icon means the function explained in this owner’s manual is not available on that specific DVD video disc.

About the disc symbols for instructions

A section of which title has one of the following symbols is applicable only to the disc represented by the symbol.

DVD

DVD

VCD

ACD

MP3

WMA

JPEG

DivX

Video CDs

Audio CDs

MP3 file

WMA file

JPEG file

DivX file

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled as the same as the rear of the unit or “ALL”.

Note on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code or the disc cannot play.

• If you try to play a DVD with a different regional code from your player, the message “Check Regional

Code” appears on the TV screen.

3

Installation

For AM(MW) reception,connect the loop antenna (aerial) to the terminal marked AM

(Supplied)- OPTIONAL

Rear of TV

VIDEO

INPUT

FM wire antenna

(supplied

)

OPTIONAL

TV Connection

Video connection

Connect the VIDEO OUT jack from the unit to the

VIDEO IN jack on the TV using the video cable supplied

(V)

.

T ip

• Please refer to the manuals of your TV, VCR, Stereo

System or other devices as necessary to make the best connections.

• To prevent noise pickup, keep the AM loop(optional) antenna away from the unit and other component.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

Speaker System Connection

Connect the speaker wires to the speaker terminals.

• Make sure the unit is connected directly to the TV.

Select the correct AV input on your TV.

• Do not connect your unit to TV via your VCR. The

DVD image could be distorted by the copy protection system.

Antenna (Aerial) Connection

Connect the supplied FM/AM(optional) antennas to listen to the radio.

• Connect the AM loop antenna to the AM antenna connector. (optional)

• Connect the FM wire antenna to the FM antenna connector.

• Be sure to match the speaker wires to the appropriate terminal on the components, + to + and – to –. If the cables are reversed, the sound will be distorted and will lack bass.

• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

4

Operation

Operation using the front Panel

Portable

Device

Portable in cable

USB Memory, MP3

Player (or Memory Card

Reader, etc.)

1. DISPLAY WINDOW

2.

1/[

POWER

FUNC.

(function select)button

(DVD/CD,PORTABLE,FM,

AM (optional),USB )

3. • STOP /MO./ ST. SET(

x

)

• PLAY /PAUSE (

B

/

)

• TUNING (-) - Tuner

CD SKIP/ SCAN (

.

)

• TUNING (+)- Tuner

CD SKIP/ SCAN (

>

)

ALL

ALL

• Volume control knob

4. PORTABLE IN

Jack

Using PORTABLE device

When you connect a portable music playing device to the PORTABLE IN jack on this device by using a

( 3.5mm)mini stereo cable (not supplied), you can here the sound being outputted from the portable device through the speaker.

1.Connect the PORTABLE IN jack on this device to a headphone jack on another portable one by using a cable.

2.Press

FUNC.

on the front panel repeatedly or

PORTABLE(on the remote control) button.

3.Start playing the connected portable device.

4.Adjust the volume by using VOLUME.

5. USB port

USB Function

You can enjoy the media files such as tunes

(MP3/WMA/PHOTO/VIDEO file) saved in an MP3 player or USB memory by connecting the storage device to the USB port of this unit.

Compatible Devices

1. Devices which require additional program installation when you have connected it to a computer, are not supported.

2. MP3 Player : Flash type MP3 player.

The MP3 player requiring installation of a driver is not supported.

3. USB Flash Drive : Devices that support USB2.0 or

USB1.1.

To Remove the USB from the unit

1. Choose the other functions except USB function in order to remove the USB.

2. Remove the USB from the unit.

• Do not extract the USB device while in operation

• Make sure you backup your data first in case it is damaged.

• If you use a USB extension cable or USB hub, the USB device might not be recognized.

• A device using NTFS file system is not supported. (Only FAT (16/32) file system is supported.)

• The USB function of this unit does not support all USB devices.

• Digital camera and mobile phone are not supported.

• This unit is not supported when the total number of files is 1000 or more.

• If the drive of USB device is two or more, a drive folder is displayed on the screen. If you want to move to the previous menu after you select a folder, press RETURN.

6. • TIMER

• CLOCK

7. DISC door

5

Operation using the Remote Control

1

2

3

4

5

16

• XDSS plus

XDSS (Extreme Dynamic Sound System)

Press

XDSS plus

to reinforce treble, bass and the surround effect. The “XDSS” or “NORMAL” indicator lights.

DVD/VCD/DivX/ACD

: XDSS

NORMAL

MP3/WMA

: XDSS

MP3 -- OPT

NORMAL

XDSS

5. • SOUND MODE

You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to

(2 ch. sound only).

Press

SOUND MODE

repeatedly.

BYPASS

STUDIO

CLUB

HALL

THEATER 1

CHURCH

BYPASS...

6

15

7

8

9

10

11

RDS PTY

14

13

12

1. POWER(

1

)

2. FUNCTION SELECT

(TUNER/BAND,DVD, PORTABLE, USB)

3. NUMERIC buttons (0- 9)

Selects a service, program number directly or selects numbered options in a menu.

4. • EQ (

EQUALIZER Effect)

You can choose 4 fixed sound impressions

Each time you press the button the setting changes in the display window as shown below.

NORMAL

ROCK

POP

CLASSIC

NORMAL...

Initial sound mode is BYPASS.

• AUDIO

AUDIO language: During playback, press AUDIO repeatedly to hear a different audio language or audio track.

DVD

DivX

AUDIO channel: Press AUDIO repeatedly during playback to hear a different audio channel

(Stereo., Left or Right).

VCD

• SUBTITLE

During playback, press

SUBTITLE

repeatedly to select a desired subtitle language.

DVD

DivX

RETURN ( )

Removes the setup menu.

6. SETUP

7.

• b

/

B

/ v

/

V

(left/right/up/down)

(Selects an option in the menu)

PRESET -/+ (

v

/

V

)

(Selects program of radio)

Press PRESET

-/+ (

v

/

V

)

repeatedly to select the preset station you want.

Each time you press the button, the unit tunes in one preset station at a time.

Preset radio stations in the unit’s memory first.

(see “Presetting radio stations”on the page 12)

TUN. -/+ (

b / B

)

For manual tuning, press TUN. -/+

(

b / B

)

repeatedly

For automatic tuning, press and hold

TUN. -/+

(

b

/

B

)

for about two seconds.

SELECT/ ENTER

Acknowledges the menu selection.

6

8. MENU

The disc menu appears on the screen.

9. • PROG./MEMO.

Accesses or removes Program menu.

Enter a radio station’s frequency into the tuner.

• REPEAT

During playback, press

REPEAT

repeatedly to select a desired repeat mode.

DVD Video discs: Chapter/Title/Off

Video CD, Audio CD, DivX/MP3/WMA discs:

Track/All/Off

REPEAT A-B

DVD VCD

During playback, press REPEAT A-B to select a point A and a point B and repeats a sequence from point A (Starting point) to point B (End point).

Press REPEAT A-B to exit.

Note

:

The A-B repeat function is available only in the current title.

10.

STOP/MO./ST.

( x

)

For your reference

• If an FM program is noisy;

Press

MO./ST.(

x

)

that “STEREO ” disappears in the display window. There will be no STEREO effect, but the reception will be improved.

Press

MO./ST.(

x

)

again to restore the stereo effect.

• To improve reception;

Reposition the supplied antennas.

• PAUSE/ STEP(

[]

)

During playback, press

PAUSE/ STEP

(

[]

)

to pause playback.

ALL

Press

PAUSE/ STEP

(

[]

)

repeatedly to play

Frame-by-Frame.

DVD VCD

DivX

• PLAY (

B

)

- To Play disc and file

11.• CLEAR

Removes a track number on the program menu or a mark on the MARKER SEARCH menu.

• ZOOM

During playback or in the pause mode, press

ZOOM to enlarge the video image (3 steps).

You can move through the zoomed picture using b / B / v / V buttons.

Zoom may not work on some DVDs.

• MARKER - SEARCH

To enter a Marker

You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

1.During disc playback, press SEARCH.

The marker search menu appears on the screen.

2.Within 10 seconds, press b / B to select a marker number that you want to recall or clear.

3.Press

SELECT/ENTER

and playback starts from the marked scene. Or press

CLEAR

and the marker number is erased from the list.

4.You can play any marker by inputting its number on the marker search menu.

• SLEEP

You can set the unit to turn off automatically at a specified time .

1. Press

SLEEP

to set the desired sleep time.

The

SLEEP

indicator and the sleep time appears in the display window.

2. Each time you press

SLEEP

the setting changes in the following order.

SLEEP180

50

40

30

150

SLEEP 180...

20

120

90

80

70

60

10

OFF (No display)

Note

:

You can check the remaining time before the unit turns off. Press

SLEEP

. The remaining time appears in the display window.

• RDS,PTY - OPTIONAL

Views the various displays of the RDS options.

12.VOLUME -/+

Adjusts speaker volume

.

13.• SKIP (

.

/

>

)

During playback, press SKIP ( .

or > ) to go to the next chapter/track or to return to the beginning of the current chapter/track.

Press SKIP .

twice briefly to step back to the previous chapter/track.

• SCAN (

m

/

M

)

During playback, press SCAN ( m or M ) repeatedly to select the required scan speed.

DVD : 5 steps

( BB , BBB , BBBB , BBBBB , BBBBBB ),

( b b , b bb , b b , b bb b , b bb bb )

Video CD :4 steps

(

BB

,

BBB

,

BBBB

,

BBBBB

)

( b

, bb b

, bb b

, b bb b

)

WMA/MP3, Audio CD m (X2, X4, X8) or

BB (X2, X4, X8)

• SLOW

During playback

, press t or T to select required speed.

DVD : t

(1/2, 1/4, 1/8, 1/16) or

T (1/2, 1/4, 1/8, 1/16)

Video CD : T (1/2, 1/4, 1/8, 1/16)

14.TITLE

(Use the TITLE button to display the title screen included on DVD video discs.)

7

15.DISPLAY

You can display various information about the disc loaded on-screen.

1.Press DISPLAY to show various information about the disc loaded on-screen.

The displayed items differ depending on the disc type or playing status.

2.You can select an item by pressing v

/

V and change or select the setting by pressing b / B .

Title (Track) –Current title (or track) number/total number of titles (or tracks).

Chapter –Current chapter number/ total number of chapters.

Time – Elapsed playing time.

Audio – Selected audio language or channel.

Subtitle – Selected subtitle.

Angle – Selected angle/ total number of angles.

Sound – Selected sound mode.

If a button is not pressed for a few seconds, the onscreen display disappears.

16. MUTE( )

Press MUTE to mute your unit.

You can mute your unit in order, for example, to answer the telephone.

Additional features

Time Search

DVD VCD DivX

To start playing at any chosen time on the disc:

1. Press

DISPLAY

during playback.

2. Press v / V to select the time clock icon and

“--:--:--” appears.

3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press

CLEAR

to remove the numbers you entered. Then input the correct numbers.

4. Press

SELECT/ENTER

to confirm. Playback starts from the selected time.

Screen Saver

The screen saver appears when you leave the unit in

Stop mode for about five minutes.

Last Scene Memory

DVD

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in the memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

This unit does not memorize the scene of a disc if you switch off the unit before commencing to play the disc.

1.5 speed playback

DVD VCD MP3 WMA ACD

You can enjoy a music and movie at a faster speed.

The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed on the disc.

1. Press

PLAY

during the normal playback. The screen will appear at 1.5 speed with sound .

2. To return to the normal PLAY, press

PLAY

.

System Select

You must select an appropriate system mode for your

TV system. If NO DISC appears in the display window, press and hold

PAUSE/STEP (

[]

)

on remote control or

PLAY /PAUSE (

B /[[]]

)

on the front panel for more than

5 seconds to be able to select a system (PAL, NTSC or

AUTO).

- When the selected system is not compatible with the system of your TV, normal colour picture may not be displayed.

NTSC:

Select when the unit is connected with

NTSC-TV.

PAL:

Select when the unit is connected with PAL-TV.

AUTO:

Select when the unit is connected with Multi system TV.

Camera Angle

DVD

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

1.Press

DISPLAY

and then press the v / V to select a angle.

The number of the current angle appears in the display window.

2.Select a desired angle pressing the b

/

B buttons

Setup

Initial Settings

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, read the page 8 to 10 a b c d e

8

To display and exit the Menu:

Press

SETUP

to display the menu. A second press of

SETUP will take you back to initial screen.

To go to the next level:

Press

B

.

To go back to the previous level:

Press b .

GENERAL OPERATION

1. Press SETUP. The Setup menu appears.

2. Use v / V to select the desired option then press B to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).

3. Use v / V to select the second desired option and then press B to move to the third level.

4. Use v / V to select the desired setting then press

SELECT/ENTER

to confirm your selection. Some items require additional steps.

5. Press SETUP or PLAY to exit the Setup menu.

1

LANGUAGE

OSD

Select a language for the Setup menu and the onscreen display.

Disc Audio / Subtitle / Menu

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

Original

– Refers to the original language in which the disc was recorded.

Other

– To select another language, press numeric buttons and then

SELECT/ENTER

to enter the corresponding 4-digit number according to the language code list on the page 14. If you enter the wrong language code, press CLEAR.

2

DISPLAY

TV Aspect

4:3 –

Select when a standard 4:3 TV is connected.

16:9 –

Select when a 16:9 wide TV is connected.

Display Mode

The display Mode setting works only when the TV

Aspect mode is set to “4:3”.

Letterbox –

Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan –

Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

3

AUDIO

Each DVD disc has a variety of audio output options.

Set the unit’s AUDIO options according to the type of audio system you use.

To display and exit the Menu:

Press

SETUP

to display the menu. A second press of

SETUP will take you back to initial screen.

Dynamic Range Control (DRC)

With the DVD* 1 format, you can hear a program’s soundtrack in the most accurate and realistic presentation, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

*1: Dolby Digital only

Vocal

Set Vocal to On only when a multi-channel karaoke

DVD is playing. The karaoke channels on the disc will mix into normal stereo sound.

4

LOCK (Parental Control)

Rating

Blocks playback of rated DVDs based on their contents.

Not all discs are rated.

1. Select “Rating” on the LOCK menu then press B .

2. To access the LOCK options, you must input the password you have created. If you have not yet entered password, you are prompted to do so.

Input a password and press

SELECT/ENTER

. Enter it again and press

SELECT/ENTER

to verify. If you make a mistake before pressing

SELECT/ENTER

, press

CLEAR

.

3. Select a rating from 1 to 8 using the v / V buttons.

Rating 1-8:

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

Unlock:

If you select unlock, parental control is not active and the disc plays in full.

4. Press

SELECT/ENTER

to confirm your rating selection, then press

SETUP

to exit the menu.

Password

You can enter or change password.

1. Select Password on the LOCK menu and then press

B .

2. Follow the step 2 as shown above (Rating).

To change the password, press

SELECT/ENTER

when the “Change” option is highlighted. Input a password and press

SELECT/ENTER

. Enter it again and press

SELECT/ENTER

to verify.

3. Press

SETUP

to exit the menu.

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Press

SETUP

to display the Setup menu.

2. Input the 6-digit number “210499” and press

SELECT/ENTER

. The password is cleared.

9

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page

14.

1. Select “Area Code” on the LOCK menu then press B .

2. Follow step 2 as shown in rating section.

3. Select the first character using v

/

V buttons.

4. Press B and select the second character using v / V buttons.

5. Press

SELECT/ENTER

to confirm your Area code selection.

5

OTHERS

PBC

Set Playback Control (PBC) to On or Off.

On:

Video CDs with PBC are played according to the PBC.

Off:

Video CDs with PBC are played in the same way as Audio CDs.

DivX(R) Registration

We provide you the DivX

®

VOD (Video On Demand) registration code that allows you to rent and purchase videos based on the DivX

®

VOD service. For more information, visit www.divx.com/vod.

1. Select “DivX(R) Registration” option and then press

B .

2. Press

SELECT/ENTER

while “Select” is selected and the registration code will appear.

Use the registration code to purchase or rent the videos from DivX

®

VOD service at www.divx.com/vod. Follow the instructions and download the video onto a disc for playback on this unit.

3. Press

SELECT/ENTER

to exit.

Note :

All the downloaded videos from DivX

®

VOD can only be played back on this unit.

Playing an Audio CD or MP3/WMA/JPG/DivX file

Playing an Audio CD or MP3/WMA file

This unit can play Audio CDs or MP3/WMA files.

MP3/ WMA/ Audio CD

Once you insert a cd with MP3/WMA files or Audio, a menu appears on the TV screen.

Press v / V to select a track/file and then press PLAY or

SELECT/ENTER

, and playback starts. You can use variable playback functions. Refer to the Remote control page .

ID3 TAG

When playing a file containing information such as track titles, you can see the information by pressing DIS-

PLAY.

[ Song, Artist, Album, Genre, Comment ]

T ip

Press MENU to move to the next page.

On a CD with MP3/WMA and JPEG, you can switch

MP3/WMA and JPEG. Press TITLE, and MUSIC or

PHOTO top of the menu is highlighted.

Programmed Playback

The program function enables you to store your favorite tracks from any disc in the unit memory. A program can contain 300 tracks.

1. Insert a disc.

Audio CD and MP3/WMA Discs:

2. Select a track on the “List”, and then press

PROG./MEMO.or select “ (Add)” icon and then press

SELECT/ENTER

to place the selected track on the “Program” list. Repeat to place additional tracks on the list.

Note:

You can add all tracks in the disc. Select “

(Add

All)” icon then press

SELECT/ENTER

.

3. Select the track you want to start playing on the

“Program” list. Press MENU to move to the next page.

4. Press PLAY or

SELECT/ENTER

to start. Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the

“Program” list have played once.

5. To resume normal playback from programmed playback, select a track of AUDIO CD (or MP3/WMA) list and then press PLAY.

Repeat Programmed Tracks

1. Press REPEAT when playing a disc. The repeat icon appears.

2. Press REPEAT to select a desired repeat mode.

• TRACK: repeats the current track

• ALL: repeats all the tracks on programmed list.

• Off(No display): does not play repeatedly.

Erasing a Track from “Program” List

1. Use v V to select the track that you wish to erase from the Program list.

2. Press

CLEAR

. Alternatively, select “ (Delete)” icon then press

SELECT/ENTER

to place the selected track on the Program list. Repeat to erase additional tracks on the list.

Erasing the Complete Program List

Use v / V to select “

SELECT/ENTER

.

(Del all)” and then press

Note:

The programs are also cleared when the disc is removed

10

Viewing a JPEG file

This unit can play discs with JPEG files.

Before playing JPEG recordings, read the notes on

JPEG Recordings on the page 16.

1. Insert a disc and close the tray.

The PHOTO menu appears on the TV screen.

2. Press v

/

V to select a folder, and then press

SELECT/ENTER

. A list of files in the folder appears.

If you are in a file list and want to return to the previous Folder list, use the v / V buttons on the

Remote to highlight

SELECT/ENTER

.

and press

3. If you want to view a particular file, press v / V to highlight a file and press

SELECT/ENTER

or PLAY.

While viewing a file, you can press STOP

(

x

)

to move to the previous menu (JPEG menu).

T ip

There are four Slide Speed options :

> (Slow), >> (Normal), >>> (Fast) and II (off).

Use v / V / b / B to highlight the Speed. Then, use b / B to select the option you want to use and then press

SELECT/ENTER

.

If you set Speed option to Off, the slide is not active.

Slide Show

Use v V b B to highlight the press

SELECT/ENTER

.

(Slide Show) then

Still Picture

1. Press

PAUSE/STEP

during the slide show.

The Unit will now go into the PAUSE mode.

2. To return to the slide show, press PLAY or press

PAUSE/STEP

again.

Moving to another File

Press SKIP ( .

or > ) once during viewing a picture to advance to the next or previous file.

Rotating the picture

Press v / V / b / B during showing a picture to rotate the picture clockwise or counter-clockwise.

Zoom

Each time ZOOM is pressed the setting changes in the following order.

Zoom on y Zoom off

Press v , B or M to enlarge the video image.

Press V , b or m to reduce the video image.

Playing a DivX Movie file

Using this DVD/CD unit you can play DivX disc.

1. Insert a disc and close the tray. The MOVIE menu appears on the TV screen.

2. Press v / V to select a folder and then press

SELECT/ENTER

. A list of files in the folder appears.

If you are in a file list and want to return to the

Folder list, use the v

/

V buttons on the remote to press .

3. If you want to view a particular file, press v / V to highlight a file and press

SELECT/ENTER

or PLAY.

4. Press STOP

(

x

)

to exit.

T ip

Press MENU to move to the next page.

On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC, PHOTO and MOVIE menu. Press

TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

• Be sure to select “SUBTITLE ON” mode by pressing the subtitle file every time before playing a DivX file .

• When the subti t le has more than two languages in the file, original subti t le is only available.

• You can not adjust sound mode while the DivX file playing.

The DivX subtitle file name has to be identified with the DivX file name to display by this unit.

Notice for displaying the Divx subtitle

If the subtitle does not display properly during playback, press and hold

SUBTITLE

for about 3 seconds then press

SUBTITLE

to select another language code until the subtitle is displayed properly .

Timer function

Setting the Clock

1

Press CLOCK.

2

Select a 24 hour cycle or 12 hour cycle by pressing

.

>

on the front panel.

3

Press SET ( cycle.

) to confirm the selected hour

4

Use

.

>

on the front panel to set the correct hours then press SET

(

x

).

5

.

Use

.

on the front panel to set the correct minutes press SET (

x

).

6.

Press CLOCK at any time to display the time for about 5 seconds.

Note :

If you want to reset the clock , press and hold

CLOCK

for more than 2 seconds.

11

Timer Function

With the TIMER function you can turn CD, USB play and radio reception on or off at a desired time.

1. Press

CLOCK

to check the current time.

(If you don’t set clock, the timer function doesn’t work.)

2. Press

TIMER

to enter the timer setting mode. If you want to correct the previously memorized TIMER setting, press and hold

TIMER

for more than 2 seconds.

(If you want to check the previous memorized TIMER setting, press

TIMER

button briefly.)

- The previous memorized time and “ ” indicator appear on display window.

3. Each function (TUNER t DVD t USB ) flashes on display window in turn. Press

SET(

x

)

when the desired function is flashing.

4. a. When you select the TUNER function, select the previously memorized preset number by pressing

. > on the front panel and then, press

SET(

x

)

.

b. When you select the

DVD, USB

function,

- ‘ON TIME’ appears for about 0.5 seconds on display window and then disappears.

5. Set the hour to switch on pressing . > on the front panel and press

SET(

x

)

.

6. Set the minute to switch on pressing . > on the front panel and press

SET(

x

)

.

- ‘OFF TIME’ appears for about 0.5 seconds on display window and then disappears.

7. Refer to the steps 5 - 6 and set the hour/ minute to switch off.

8. Adjust the volume level by pressing . > on the front panel and press

SET(

x

)

.

9. Switch the system off.

The selected function is automatically switched on or off at the time set.

To cancel or check the timer

Each time the

TIMER

button is pressed you can select the timer set or cancel. You can also check the timer setting status.

To activate or check the timer, press the

TIMER

button repeatedly so that “ ” appears in the display window.

To cancel the TIMER, press the

TIMER

button repeatedly so that “ ” disappears from the display window.

• If you insert the DVD,VCD or DivX except audio

CD/MP3/WMA on the unit, the timer function will be operated to the TUNER.

• This is not supported in the multi card reader.

TUNER

Presetting radio stations

You can preset 50 stations for FM and AM (optional)

(MW). Before tuning, make sure that you have turned down the volume.

1. Press

TUNER/BAND

to select the frequency (AM or

FM) you want.

2. Select a station you want by pressing

TUN.

-/+

(

b / B

)

.

Tuning in automatically

- Press

TUN.

-/+

(

b / B

)

for more than 0.5 second.

Scanning stops when the unit tunes in a stations.

Tuning in manually

- Press

TUN.

-/+

(

b / B

3. Press

PROG./MEMO.

.

)

briefly and repeatedly.

A preset number will flash in the display window.

4. Press

PRESET

-/+ (

v

/

V

)

to select the preset number you want.

5. Press

PROG./ MEMO.

again. The station is stored.

6. Repeat the steps 1 (or 2) to 5 to store other stations.

To delete all the memorized stations

Press and hold

PROG./ MEMO.

for about two seconds

“CLEAR” appears in the display window and then

PROG./ MEMO.

again, the stations are deleted.

For your reference

If all stations have already been entered, “FULL” message will appear in the display window for a moment and then a preset number will flash. To change the preset number, follow the steps 4-5.

To recall presets

Press and hold

PRESET

-/+ (

v

/

V

)

until the desired preset number appears or press it repeatedly

12

Listening to the Radio

1. Press

TUNER/BAND

to select the frequency

(AM (optional) or FM) you want.

The last received station is tuned in.

2. Press

PRESET

-/+

( v / V ) repeatedly to select the preset station you want.

- Each time you press the button, the unit tunes in one preset station at a time.

3. Adjust the volume by pressing

VOLUME (

-/+

)

repeatedly.

To turn off the radio

Press (

1

) POWER

er function mode to turn the unit off or select anoth-

(DVD/CD, USB,PORTABLE,AM(optional)/FM).

RDS Operation -Optional

This unit is equipped with RDS (Radio Data System), which brings a wide range of information to FM radio.

RDS, now being used in many countries, is a system for transmitting station call signs or network information, a description of station programme type text message about the station or specifics of musical selection and the correct time.

RDS TUNING

When a FM station is tuned in and it contains RDS data, the unit will automatically display the station’s call sign and the RDS indicator will light in the Display

Window as well as indicators for the RDS services programme (PS), programme type recognition (PTY),

Radio text (RT) and Clock Time (CT) if transmitted by the station.

RDS DISPLAY OPTIONS

The RDS system is capable of transmitting a wide variety of information in addition to the initial call sign that appears when a station is first tuned. In normal RDS operation the display will indicate the station name, broadcast network or call letters. Pressing

RDS

on the remote control enables you to cycle through the various data types in the sequence:

(PS

FREQUENCY

PTY

RT

CT)

PS (Programme Service name)-

The name of the channel is shown in the Display Window.

PTY (Programme type recognition)-

The name of the programme type is shown in the Display Window.

RT (Radio text)-

A “text” message contains special information from the broadcast station. Note that this message may scroll across the display to permit message.

CT (Time controlled by the channel)-

Enables the unit to receive the actual time and show it in the

Display Window.

Some RDS stations may not choose to include some of these additional features. If the data required for the selected mode is not being transmitted, the Display

Window will show a

PTY NONE, RT NONE, CT NONE, or PS NONE

message.

Programme Search (PTY)

A major benefit of RDS is its ability to encode broadcasts with Programme Type (PTY) codes that indicate the type of material being broadcast. The following list shows the abbreviations used to indicate each PTY along with an explanation of the PTY.

NEWS

AFFAIRS

INFO

SPORT

EDUCATE

DRAMA

CULTURE

SCIENCE

VARIED

POP M

ROCK M

EASY M

LIGHT M

CLASSICS

OTHER M

WEATHER

FINANCE

CHILDREN

SOCIAL

RELIGION

PHONE IN

TRAVEL

LEISURE

JAZZ

COUNTRY

NATION M

OLDIES

FOLK M

DOCUMENT

TEST

ALARM !

News

Current Affairs

Information

Sports

Educational

Drama

Culture

Science

Varied Speech Programme

Popular Music

Rock Music

Easy Listening Music

Light Music

Classical Music

Other Music

Weather Information

Financial Programmes

Children’s Programmes

Social Affairs Programmes

Religious Broadcasts

Phone-In Programmes

Travel and Touring

Leisure and Hobby

Jazz Music

Country Music

National Music

Oldies Music

Folk Music

Documentary Programmes

Station Alarm Test Message

Emergency Broadcast Information

You may search for a specific Programme Type (PTY) by following these steps:

1. Press TUNER/ BAND to select the FM mode.

2. Press PTY on the remote control, the display will show the last PTY in use.

3. Press PTY repeatedly to select a desired PTY.

4. When the PTY is selected, press TUN.(-/+).

The unit will go into an automatic search mode.When a station is tuned, the search will stop.

13

Reference

Language Codes

Use this list to input your desired language for the following initial settings:

Disc Audio, Disc Subtitle, Disc Menu.

Language

Abkhazian

Afar

Afrikaans

Albanian

Ameharic

Arabic

Armenian

Assamese

Aymara

Azerbaijani

Bashkir

Basque

Bengali; Bangla

Bhutani

Bihari

Breton

Bulgarian

Burmese

Byelorussian

Cambodian

Catalan

Chinese

Corsican

Croatian

Czech

Danish

Dutch

English

Esperanto

Estonian

Faroese

6783

6865

7876

6978

6979

6984

7079

6671

7789

6669

7577

6765

9072

6779

7282

6588

6590

6665

6985

6678

6890

6672

6682

Code

6566

6565

6570

8381

6577

6582

7289

6583

Language

Fiji

Finnish

French

Frisian

Galician

Georgian

German

Greek

Greenlandic

Guarani

Gujarati

Hausa

Hebrew

Hindi

Hungarian

Icelandic

Indonesian

Interlingua

Irish

Italian

Japanese

Javanese

Kannada

Kashmiri

Kazakh

Kirghiz

Korean

Kurdish

Laothian

Latin

Latvian, Lettish

7575

7589

7579

7585

7679

7665

7686

7378

7365

7165

7384

7465

7487

7578

7583

7576

7178

7185

7265

7387

7273

7285

7383

Code

7074

7073

7082

7089

7176

7565

6869

6976

Language

Lingala

Lithuanian

Macedonian

Malagasy

Malay

Malayalam

Maltese

Maori

Marathi

Moldavian

Mongolian

Nauru

Nepali

Norwegian

Oriya

Panjabi

Pashto, Pushto

Persian

Polish

Portuguese

8083

7065

8076

8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian

Russian

8279

8285

Samoan

Sanskrit

Scots Gaelic

Serbian

Serbo-Croatian

Shona

Sindhi

8377

8365

7168

8382

8372

8378

8368

7782

7779

7778

7865

7869

7879

7982

8065

Code

7678

7684

7775

7771

7783

7776

7784

7773

Area Codes

Choose a area code from this list.

Area

Afghanistan

Argentina

Australia

Austria

Belgium

Bhutan

Bolivia

Brazil

Cambodia

Canada

Chile

China

Colombia

Congo

Costa Rica

Croatia

Czech Republic

Denmark

Ecuador

Egypt

El Salvador

CL

CN

CO

CG

CR

HR

CZ

Code

AF

AR

AU

AT

BE

BT

BO

BR

KH

CA

DK

EC

EG

SV

Area

Ethiopia

Fiji

Finland

France

Germany

Great Britain

Greece

Greenland

Heard and McDonald Islands

Hong Kong

Hungary

India

Indonesia

Israel

Italy

Jamaica

Japan

Kenya

Kuwait

Libya

Luxembourg

HU

IN

ID

IL

IT

JM

JP

Code

ET

FJ

FI

FR

DE

GB

GR

GL

HM

HK

KE

KW

LY

LU

Area

Malaysia

Maldives

Mexico

Monaco

Mongolia

Morocco

Nepal

Code

MY

MV

MX

MC

MN

MA

NP

Netherlands NL

Netherlands Antilles AN

New Zealand NZ

Nigeria

Norway

Oman

Pakistan

Panama

Paraguay

Philippines

Poland

Portugal

PL

PT

Romania RO

Russian Federation RU

NG

NO

OM

PK

PA

PY

PH

Area

Saudi Arabia

Senegal

Singapore

Slovak Republic

Slovenia

South Africa

South Korea

Spain

Sri Lanka

Sweden

Switzerland

Taiwan

Thailand

Turkey

Uganda

Ukraine

United States

Uruguay

Uzbekistan

Vietnam

Zimbabwe

CH

TW

TH

TR

UG

UA

US

Code

SA

SN

SG

SK

SI

ZA

KR

ES

LK

SE

UY

UZ

VN

ZW

Tonga

Turkish

Turkmen

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapük

Welsh

Wolof

Xhosa

Yiddish

Yoruba

Zulu

Language

Singhalese

Slovak

Slovenian

Somali

Spanish

Sudanese

Swahili

Swedish

Tagalog

Tajik

Tamil

Tatar

Telugu

Thai

Tibetan

Tigrinya

8679

6789

8779

8872

7473

8979

9085

8479

8482

8475

8487

8575

8582

8590

8673

8476

8471

8465

8484

8469

8472

6679

8473

Code

8373

8375

8376

8379

6983

8385

8387

8386

14

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

No power.

The power is on, but the unit does not work.

No picture.

Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal output.

• The video cable is not connected securely.

There is no sound or only a very low-level sound is heard.

• The connected TV power is turned off.

• The equipment connected with the audio cable is not set to receive DVD signal output.

The playback picture is poor.

The unit does not start playback.

• The audio cables are not connected securely

.

• The power of the equipment connected with the audio cable is turned off.

• The audio connecting cord is damaged.

• The disc is dirty.

• No disc is inserted.

• An unplayable disc is inserted.

Severe hum or noise is heard.

Symptom

Radio stations cannot be tuned in.

The remote control does not work properly.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• A menu is on the TV screen.

• The Rating level is set.

• The plugs and jacks are dirty.

• The disc is dirty.

• The speakers and components are connected poorly.

• The unit is located with too close to the TV.

• The antenna is positioned or connected poorly.

• The signal strength of the stations is too weak (when tuning in with automatic tuning).

• No stations have been preset or preset stations have been cleared (when tuning by scanning preset stations).

• The remote control is not pointed at the remote sensor of the unit.

• The remote control is too far from the unit.

• There is an obstacle in the path of the remote control and the unit.

Correction

• Plug the power cord into the wall outlet securely.

• Insert a disc. (Check that the DVD or, audio

CD indicator in the DVD display is lit.)

• Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.

• Connect the video cable into the jacks securely.

• Turn on the TV.

• Select the correct input mode of the audio so you can listen to the sound from the unit.

• Connect the audio cable into the jacks securely.

• Turn on the equipment connected with the audio cable.

• Replace it with new one.

• Clean the disc.

• Insert a disc. (Check that the DVD, or audio

CD indicator in the DVD display is lit.)

• Insert a playable disc. (Check the disc type, color system and Regional code.)

• Place the disc with the playback side down.

• Place the disc on the disc tray correctly inside the guide.

• Clean the disc.

• Press the SETUP button to turn off the menu screen.

• Cancel the Rating function or change the rating level.

• Wipe them with a cloth slightly moistened with alcohol.

• Clean the disc.

• Connect the speakers and components securely.

• Move your TV away from the audio components.

• Connect the antenna securely.

• Adjust the antennas and connect an external antenna if necessary.

• Tune in the station manually.

• Preset the stations.

• Point the remote control at the remote sensor of the unit.

• Operate the remote control within about 23 ft

(7 m).

• Remove the obstacle.

15

MP3 / WMA disc compatibility with this player is limited as follows:

• Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)

• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps

(WMA)

• File extensions: “.mp3” / “.wma”

• CD-ROM file format: ISO9660

• We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

• The total number of characters for file name: maximum 8 characters (excluding file extensions like mp3/wma)

• They should not contain special letters such as / ? *

: “ < > l etc.

• The total number of files on the disc should be less than 999.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

JPEG disc compatibility with this player is limited as follows:

• Image file size: less than 2M pixels

(2760 x 2048 pixels) recommended (It may take longer to display a lager than 2M pixel size files)

• Maximum files : Under 999.

• Some discs may not operate due to a different recording format or the condition of disc.

• File extensions: “.jpg”

DivX disc compatibility with this player is limited as follows:

• Available resolution: within 800x600 (W x H) pixels

• The file name of the DivX subtitle is available by 45 characters.

• If there is impossible code to express in the DivX file, it may be displayed as " _ " mark on the display.

• Frame rate : less than 30 fps

• If the video and audio structure of recorded files is not interleaved, either video or audio is outputted.

• Playable DivX file:

".avi ", ".mpg ", ".mpeg ", ".divx"

• Playable Subtitle format:

SubRip(*.srt/*.txt),

SAMI(*.smi), SubStation Alpha(*.ssa/*.txt),

MicroDVD(*.sub/*.txt), SubViewer 2.0(*.sub/*.txt),

VobSub(*.sub)

• Playable Codec format:

DIVX3.xx ", "DIVX4.xx ",

"DIVX5.xx ", "MP43 ", "3IVX ".

• Playable Audio format:

"AC3 ", "PCM ", "MP3 ",

"WMA ".

Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)

Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps

(WMA)

Specifications

General

Power supply

Power consumption

Net Weight

External dimensions (W x H x D)

Tuner/Amplifier

FM Tuning Range

Intermediate Frequency

Signal to Noise Ratio

Frequency Response

AM (optional) Tuning Range

Intermediate Frequency

Signal to Noise Ratio

Refer to the main label.

Refer to the main label.

1.5 kg

150 X 150 X 205 mm

87.5 - 108.0 MHz or 65 -74 MHz, 87.5 -108.0 MHz

10.7 MHz

60/55 dB (Mono/Stereo)

140 - 10000 Hz

522 - 1620 kHz or 520 - 1720 kHz

450 kHz

30 dB

Output Power

Frequency Response 140 - 1800 Hz

Front: 5 W + 5 W (6

Ω

, THD 10 %)

Frequency Response

3

0 - 20000 Hz

Signal-to-noise ratio 75 dB

Speakers

Speaker Name(L/R)

Type

Impedance

Net Dimensions (W x H x D)

Net Weight

XBS12V

Bass Reflex1Way 1Speaker

6

Ω

150 X 150 X 150 mm

1.05 kg

Designs and specifications are subject to change without notice for improvement.

P/NO : MFL402465

2

9

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
