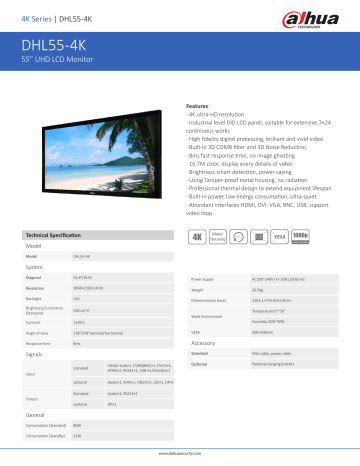

4K Series | DHL55-4K
DHL55-4K
55’’ UHD LCD Monitor
Features:
· 4K ultra-HD resolution
· Industrial level DID LCD panel, suitable for extensive 7×24
continuous works
· High fidelity digital processing, brilliant and vivid video
· Built-in 3D COMB filter and 3D Noise Reduction
· 8ms fast response time, no image ghosting
· 16.7M color, display every details of video
· Brightness smart detection, power-saving
· Using Tamper-proof metal housing, no radiation
· Professional thermal design to extend equipment lifespan
· Built-in power, low energy consumption, ultra-quiet
· Abundant interfaces HDMI, DVI, VGA, BNC, USB, support
video loop
Metal
housing
Technical Specification
1080p
24h* 7
various interface
Model
Model
DHL55-4K
System
Diagonal
54.6"(16:9)
Power Supply
AC100~240V (+/-10%),50/60 Hz
Resolution
3840×2160 (UHD)
Weight
26.5kg
Backlight
LED
Dimensions(no base)
1263.1×743.9×51.9mm
Brightness/Luminance
(Standard)
500 cd/㎡
Contrast
1100:1
Angle of view
178°/178°(vertical/horizontal)
VESA
Response time
8ms
Accessory
Temperature:0°~50°
Work Environment
Humidity:20%~90%
Signals
standard
VGA(D-Sub)×1, CVBS(BNC)×1, DVI-D×1,
HDMI×2, RS232×1, USB multimedia×1
optional
Audio×1, RJ45×1, HDCVI×1, SDI×1, DP×1
Standard
Audio×1, RS232×1
optional
DP×1
Input
Standard
VGA cable, power cable
Optional
Pedestal,hanging bracket
Output
General
Consumption (Standard)
80W
Consumption (Standby)
≤1W
300×300mm
www.dahuasecurity.com
4K Series | DHL55-4K
Dimensions(mm)
www.dahuasecurity.com
