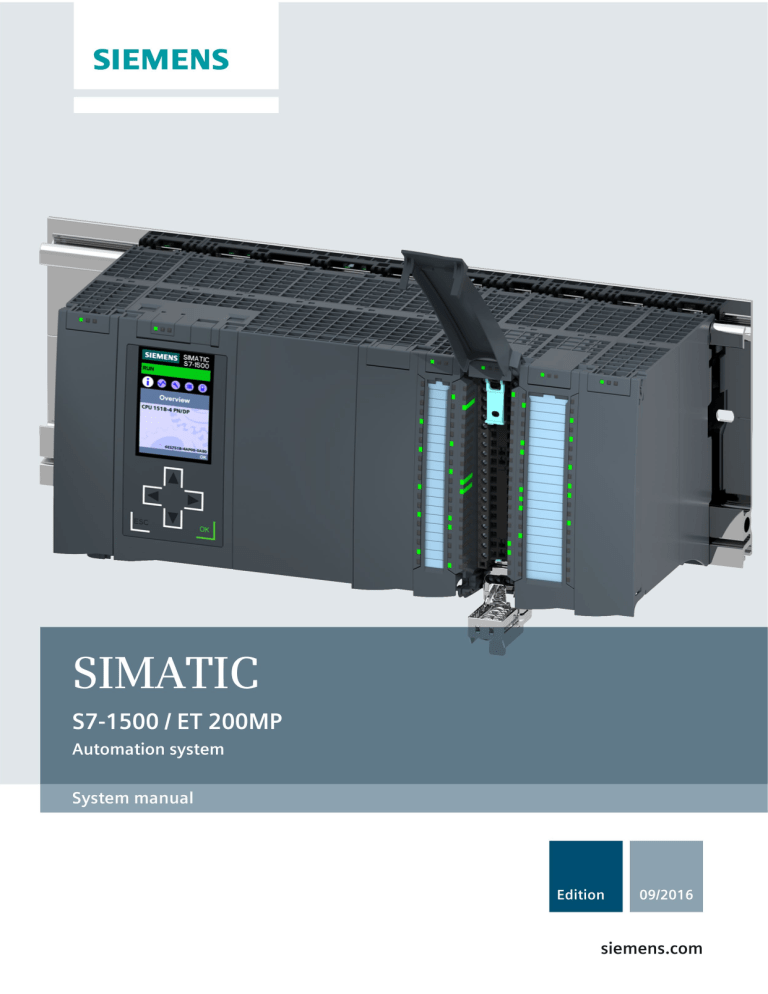

Automation system

SIMATIC

S7-1500, ET 200MP

Automation system

System Manual

___________________

___________________

System overview

___________________

___________________

Installation

___________________

___________________

Configuring

___________________

___________________

Protection

___________________

___________________

Commissioning

___________________

___________________

CPU display

___________________

___________________

___________________

___________________

___________________

09/2016

A5E03461182-AD

Legal information

Warning notice system

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are graded according to the degree of danger.

DANGER indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING indicates that death or severe personal injury m ay result if proper precautions are not taken.

CAUTION indicates that minor personal injury can result if proper precautions are not taken.

NOTICE indicates that property damage can result if proper precautions are not taken.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property damage.

Qualified Personnel

The product/system described in this documentation may be operated only by personnel qualified for the specific task in accordance with the relevant documentation, in particular its warning notices and safety instructions.

Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.

Proper use of Siemens products

Note the following:

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. The permissible ambient conditions must be complied with. The information in the relevant documentation must be observed.

Trademarks

All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

Disclaimer of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the information in this publication is reviewed regularly and any necessary corrections are included in subsequent editions.

Siemens AG

Division Digital Factory

Postfach 48 48

90026 NÜRNBERG

GERMANY

A5E03461182-AD

Ⓟ 08/2016 Subject to change

Copyright © Siemens AG 2013 - 2016.

All rights reserved

4

Preface

Purpose of the documentation

This documentation provides you with important information on how to configure, install, wire and commission the S7-1500 automation system/ET 200MP distributed I/O system.

Basic knowledge required

General knowledge in the field of automation engineering is required to understand this documentation.

Validity of the documentation

This documentation is valid for all products from the SIMATIC S7-1500 and SIMATIC

ET 200MP product families.

Conventions

STEP 7: In this documentation, "STEP 7" is used as a synonym for all versions of the configuration and programming software "STEP 7 (TIA Portal)".

Please also observe notes marked as follows:

Note

A note contains important information on the product described in the documentation, on the handling of the product or on the section of the documentation to which particular attention should be paid.

Automation system

System Manual, 09/2016, A5E03461182-AD

Preface

Special information

Note

Important note for maintaining the operational safety of your plant

Plants with safety-related features are subject to special operational safety requirements on the part of the operator. The supplier is also required to comply with certain measures for product monitoring. Siemens informs system operators in the form of personal notifications about product developments and properties which may be or become important issues in terms of operational safety.

You need to subscribe to the corresponding notifications to ensure that you always remain up-to-date and are able to make any necessary changes to your plant regarding operational safety should the need arise.

Register with Industry Online Support. Follow the links below and click on "Email on update" on the right-hand side in each case:

SIMATIC S7-300/S7-300F ( https://support.industry.siemens.com/cs/ww/en/ps/13751 )

SIMATIC S7-400/S7-400H/S7-400F/FH

( https://support.industry.siemens.com/cs/ww/en/ps/13828 )

SIMATIC WinAC RTX (F) ( https://support.industry.siemens.com/cs/ww/en/ps/13915 )

SIMATIC S7-1500/SIMATIC S7-1500F

( https://support.industry.siemens.com/cs/ww/en/ps/13716 )

SIMATIC S7-1200/SIMATIC S7-1200F

( https://support.industry.siemens.com/cs/ww/en/ps/13883 )

Distributed I/O ( https://support.industry.siemens.com/cs/ww/en/ps/14029 )

STEP 7 (TIA Portal) ( https://support.industry.siemens.com/cs/ww/en/ps/14340 )

Note

When using F-CPUs in safety mode and fail-safe modules, note the description of the failsafe system SIMATIC Safety Programming and Operating Manual SIMATIC Safety -

Configuring and Programming

( http://support.automation.siemens.com/WW/view/en/54110126 ).

Note

Product information

The product information on the S7-1500 automation system/ET 200MP distributed I/O system contains:

Module overview of SIMATIC, S7-1500 and ET 200MP

Additions to the documentation

The product information can be found on the Internet

( http://support.automation.siemens.com/WW/view/en/68052815 ).

Automation system

System Manual, 09/2016, A5E03461182-AD

5

6

Preface

Recycling and disposal

The products are low in pollutants and can be recycled. For environmentally compliant recycling and disposal of your electronic waste, please contact a company certified for the disposal of electronic waste.

Security information

Siemens provides products and solutions with industrial security functions that support the secure operation of plants, systems, machines and networks.

In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept.

Customer is responsible to prevent unauthorized access to its plants, systems, machines and networks. Systems, machines and components should only be connected to the enterprise network or the internet if and to the extent necessary and with appropriate security measures (e.g. use of firewalls and network segmentation) in place.

Additionally, Siemens’ guidance on appropriate security measures should be taken into account. For more information about industrial security, please visit

( http://www.siemens.com/industrialsecurity ).

Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends to apply product updates as soon as available and to always use the latest product versions. Use of product versions that are no longer supported, and failure to apply latest updates may increase customer’s exposure to cyber threats.

To stay informed about product updates, subscribe to the Siemens Industrial Security RSS

Feed under ( http://www.siemens.com/industrialsecurity ).

Siemens Industry Online Support

You can find current information on the following topics quickly and easily here:

● Product support

All the information and extensive know-how on your product, technical specifications,

FAQs, certificates, downloads, and manuals.

● Application examples

Tools and examples to solve your automation tasks – as well as function blocks, performance information and videos.

● Services

Information about Industry Services, Field Services, Technical Support, spare parts and training offers.

● Forums

For answers and solutions concerning automation technology.

● mySupport

Your personal working area in Industry Online Support for messages, support queries, and configurable documents.

This information is provided by the Siemens Industry Online Support in the Internet

( http://www.siemens.com/automation/service&support ).

Automation system

System Manual, 09/2016, A5E03461182-AD

Industry Mall

Preface

The Industry Mall is the catalog and order system of Siemens AG for automation and drive solutions on the basis of Totally Integrated Automation (TIA) and Totally Integrated Power

(TIP).

Catalogs for all the products in automation and drives are available on the Internet

( https://mall.industry.siemens.com

).

Automation system

System Manual, 09/2016, A5E03461182-AD

7

8

Table of contents

1

2

3

4

2.2

2.3

2.4

2.5

Preface .................................................................................................................4

Documentation guide ............................................................................................... 13

System overview .................................................................................................... 17

2.1

What is the SIMATIC S7-1500 automation system?..........................................................19

What is the SIMATIC ET 200MP distributed I/O system? ..................................................22

What are fail-safe automation systems and fail-safe modules? ..........................................25

How are SIMATIC Safety F-systems configured? .............................................................26

Components ..................................................................................................................29

Application planning................................................................................................. 33

3.1

3.1.1

3.1.2

3.1.3

Hardware configuration...................................................................................................33

Hardware configuration of the S7-1500 automation system ...............................................33

Hardware configuration of the ET 200MP distributed I/O system with PROFINET

interface module ............................................................................................................35

Hardware configuration of the ET 200MP distributed I/O system with PROFIBUS

interface module ............................................................................................................37

4.2

4.3

4.4

4.5

3.2

3.2.1

3.2.2

3.3

3.4

System and load power supply........................................................................................38

Use of system power supplies .........................................................................................40

Special considerations for the use of a system power supply in the first power

segment ........................................................................................................................41

Use of load power supplies .............................................................................................44

Power balance calculation ..............................................................................................45

Installation ............................................................................................................ 48

4.1

Basics ...........................................................................................................................48

4.6

4.7

Installing the mounting rail ..............................................................................................50

Installing a system power supply .....................................................................................54

Installing a load current supply ........................................................................................56

Installing the CPU ..........................................................................................................58

Installing the interface module .........................................................................................59

Installing I/O modules .....................................................................................................61

Automation system

System Manual, 09/2016, A5E03461182-AD

Table of contents

5

6

7

5.7

5.8

5.9

5.10

5.10.1

5.10.2

5.10.3

5.3

5.4

5.5

5.6

Wiring ................................................................................................................. 63

5.1

Rules and regulations for operation ................................................................................ 63

5.2

5.2.1

5.2.2

5.2.3

Additional rules and regulations for operation of the S7-1500/ET 200MP with fail-safe

modules ........................................................................................................................ 65

Safe functional extra-low voltage (SELV) for fail-safe modules.......................................... 65

Requirements of sensors and actuators for fail-safe modules ........................................... 66

Capacitive crosstalk of digital input/output signals............................................................ 68

Operation on grounded infeed ........................................................................................ 69

Electrical configuration ................................................................................................... 72

Wiring rules ................................................................................................................... 75

Connecting the supply voltage........................................................................................ 80

Connecting system power supply and load current supply ................................................ 81

Connecting the CPU/interface module to the load current supply ...................................... 83

Connecting interfaces for communication ........................................................................ 85

Front connector for the I/O modules................................................................................ 85

Wiring front connectors for I/O modules without shield contact element ............................. 88

Wiring front connectors for I/O modules with shield contact element ................................. 90

Bringing the front connector into final position.................................................................. 96

5.11

5.11.1

5.11.2

Marking the I/O modules ................................................................................................ 98

Labeling strips ............................................................................................................... 98

Optional marking ........................................................................................................... 99

Configuring ......................................................................................................... 100

6.1

6.1.1

6.1.2

6.1.2.1

6.1.2.2

6.1.2.3

6.1.3

6.1.3.1

6.1.3.2

6.1.3.3

6.2

6.3

Configuring the CPU .....................................................................................................100

Reading out the configuration ........................................................................................101

Address assignment .....................................................................................................106

Addressing - overview...................................................................................................106

Addressing digital modules............................................................................................108

Addressing analog modules ..........................................................................................110

Process images and process image partitions ................................................................112

Process image - overview .............................................................................................112

Assign process image partitions to an OB ......................................................................113

Update process image partitions in the user program......................................................114

Configuring ET 200MP distributed I/O system ................................................................115

Assigning PROFIsafe address to fail-safe modules with SIMATIC Safety .........................116

Basics of program execution ..................................................................................... 117

7.1

Events and OBs ...........................................................................................................117

7.2

7.3

CPU overload behavior .................................................................................................120

Asynchronous instructions ............................................................................................121

Automation system

System Manual, 09/2016, A5E03461182-AD

9

Table of contents

10.4

10.4.1

10.4.2

10.5

10.5.1

10.5.2

10.5.3

10.5.4

10.6

10.6.1

10.6.2

10.7

10.8

10.8.1

10.8.2

10.9

8

8.4

8.5

8.6

8.7

Protection........................................................................................................... 130

8.1

Overview of the protection functions .............................................................................. 130

8.2

8.3

Configuring access protection for the CPU ..................................................................... 131

Using the display to set additional access protection....................................................... 135

Using the user program to set additional access protection ............................................. 135

Know-how protection .................................................................................................... 136

Copy protection ............................................................................................................ 139

Protection by locking the CPU/interface module ............................................................. 141

9

Flexible automation concepts .................................................................................... 142

9.1

Standard machine projects ........................................................................................... 142

9.2

9.2.1

9.2.2

9.2.2.1

9.2.2.2

9.2.2.3

9.2.2.4

9.2.3

9.2.4

Configuration control (option handling)........................................................................... 143

Configuring .................................................................................................................. 145

Creating the control data record .................................................................................... 147

Control data record for the S7-1500 Automation System ................................................. 150

Control data record for the ET 200MP distributed I/O system .......................................... 151

Feedback data record of the ET 200MP distributed I/O system........................................ 152

Examples of configuration control .................................................................................. 153

Transferring the control data record in the startup program of the CPU ............................ 156

Behavior during operation ............................................................................................. 160

10

Commissioning .................................................................................................... 161

10.1

Overview ..................................................................................................................... 161

10.2

10.3

10.3.1

10.3.2

Check before powering on for the first time .................................................................... 163

Procedure for commissioning the S7-1500 automation system ........................................ 164

Removing/inserting a SIMATIC memory card on the CPU ............................................... 165

First power-on of the CPU............................................................................................. 167

Procedure for commissioning the ET 200MP distributed I/O system................................. 168

Commissioning the ET 200MP for PROFINET IO ........................................................... 168

Commissioning the ET 200MP for PROFIBUS DP.......................................................... 169

Operating modes of the CPU ........................................................................................ 170

STARTUP mode .......................................................................................................... 170

STOP mode ................................................................................................................. 173

RUN mode................................................................................................................... 173

Operating mode transitions ........................................................................................... 174

CPU memory reset ....................................................................................................... 176

Automatic memory reset ............................................................................................... 177

Manual memory reset ................................................................................................... 177

Backing up and restoring the CPU configuration............................................................. 179

Identification and maintenance data .............................................................................. 181

Reading out and entering I&M data ............................................................................... 181

Record structure for I&M data ....................................................................................... 184

Shared commissioning of projects ................................................................................. 186

10

Automation system

System Manual, 09/2016, A5E03461182-AD

Table of contents

11

SIMATIC memory card............................................................................................ 187

11.1

SIMATIC memory card - overview .................................................................................187

11.2

11.3

Setting the card type .....................................................................................................191

Data transfer with SIMATIC memory cards.....................................................................192

12

CPU display ........................................................................................................ 193

13

Maintenance........................................................................................................ 203

13.1

13.2

13.2.1

13.2.2

13.2.3

13.3

Removing and inserting I/O modules .............................................................................203

Replacement of I/O modules and front connectors ..........................................................204

Coding element on the I/O module and on the front connector.........................................204

Replacing an I/O module...............................................................................................208

Replacing a front connector...........................................................................................209

13.4

13.5

13.5.1

13.5.2

Replacing the coding element at the power connector of the system power supply

and load current supply.................................................................................................211

Firmware update ..........................................................................................................213

Reset to factory settings................................................................................................218

Resetting the CPU to factory settings.............................................................................218

Resetting interface module (PROFINET IO) to factory settings ........................................222

13.6

Fault reactions with fail-safe modules.............................................................................223

14

Test functions and fault resolution ............................................................................... 225

14.1

14.2

Test functions...............................................................................................................225

Reading out/saving service data ....................................................................................230

15

Technical specifications........................................................................................... 233

15.1

Standards and Approvals ..............................................................................................234

15.2

15.3

15.4

15.5

15.6

15.7

Electromagnetic compatibility ........................................................................................239

Electromagnetic compatibility of fail-safe modules ..........................................................241

Shipping and storage conditions ....................................................................................241

Mechanical and climatic ambient conditions ...................................................................242

Information on insulation tests, protection class, degree of protection and rated voltage ....244

Use of the S7-1500/ET 200MP in zone 2 hazardous areas..............................................245

Automation system

System Manual, 09/2016, A5E03461182-AD

11

Table of contents

A

B

A.4

A.5

A.6

A.7

Dimension drawings............................................................................................... 246

A.1

Dimension drawings of the mounting rails ...................................................................... 246

A.2

A.3

Dimension drawing of shielding bracket for 35 mm modules............................................ 249

Dimension drawing of shielding bracket for 25 mm modules............................................ 250

Dimension drawing of shielding bracket for 35 mm modules............................................ 250

Dimension drawing of shielding bracket for 25 mm modules............................................ 251

Dimension drawing of shielding bracket for 35 mm modules............................................ 251

Dimension drawing of shielding bracket for 25 mm modules............................................ 251

A.8

A.9

Dimension drawings of the labeling strips....................................................................... 252

Dimension drawing of test probe for measurement tap.................................................... 252

Accessories/spare parts .......................................................................................... 253

Glossary ............................................................................................................ 256

Index ................................................................................................................ 266

12

Automation system

System Manual, 09/2016, A5E03461182-AD

Documentation guide

1

The documentation for the SIMATIC S7-1500 automation system, the CPU 1516pro-2 PN based on SIMATIC S7-1500 and the SIMATIC ET 200MP distributed I/O system is arranged into three areas.

This arrangement enables you to access the specific content you require.

Basic information

The System Manual and Getting Started describe in detail the configuration, installation, wiring and commissioning of the SIMATIC S7-1500 and ET 200MP systems. For

CPU 1516pro-2 PN you use the corresponding operating instructions. The STEP 7 online help supports you in the configuration and programming.

Device information

Product manuals contain a compact description of the module-specific information, such as properties, wiring diagrams, characteristics and technical specifications.

Automation system

System Manual, 09/2016, A5E03461182-AD

13

Documentation guide

General information

The function manuals contain detailed descriptions on general topics regarding the SIMATIC

S7-1500 and ET 200MP systems, e.g. diagnostics, communication, motion control, Web server, OPC UA.

You can download the documentation free of charge from the Internet

( http://w3.siemens.com/mcms/industrial-automation-systems-simatic/en/manualoverview/Pages/Default.aspx

).

Changes and supplements to the manuals are documented in a Product Information.

You can download the product information free of charge from the Internet

( https://support.industry.siemens.com/cs/us/en/view/68052815 ).

Manual Collection S7-1500/ET 200MP

The Manual Collection contains the complete documentation on the SIMATIC S7-1500 automation system and the ET 200MP distributed I/O system gathered together in one file.

You can find the Manual Collection on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/86140384 ).

SIMATIC S7-1500 comparison list for programming languages

The comparison list contains an overview of which instructions and functions you can use for which controller families.

You can find the comparison list on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/86630375 ).

"mySupport"

With "mySupport", your personal workspace, you make the best out of your Industry Online

Support.

In "mySupport", you can save filters, favorites and tags, request CAx data and compile your personal library in the Documentation area. In addition, your data is already filled out in support requests and you can get an overview of your current requests at any time.

You must register once to use the full functionality of "mySupport".

You can find "mySupport" on the Internet ( https://support.industry.siemens.com/My/ww/en ).

"mySupport" - Documentation

In the Documentation area in "mySupport" you can combine entire manuals or only parts of these to your own manual.

You can export the manual as PDF file or in a format that can be edited later.

You can find "mySupport" - Documentation on the Internet

( http://support.industry.siemens.com/My/ww/en/documentation ).

14

Automation system

System Manual, 09/2016, A5E03461182-AD

Documentation guide

"mySupport" - CAx data

In the CAx data area in "mySupport", you can access the current product data for your CAx or CAe system.

You configure your own download package with a few clicks.

In doing so you can select:

● Product images, 2D dimension drawings, 3D models, internal circuit diagrams, EPLAN macro files

● Manuals, characteristics, operating manuals, certificates

● Product master data

You can find "mySupport" - CAx data on the Internet

( http://support.industry.siemens.com/my/ww/en/CAxOnline ).

Application examples

The application examples support you with various tools and examples for solving your automation tasks. Solutions are shown in interplay with multiple components in the system - separated from the focus on individual products.

You will find the application examples on the Internet

( https://support.industry.siemens.com/sc/ww/en/sc/2054 ).

TIA Selection Tool

With the TIA Selection Tool, you can select, configure and order devices for Totally

Integrated Automation (TIA).

This tool is the successor of the SIMATIC Selection Tool and combines the known configurators for automation technology into one tool.

With the TIA Selection Tool, you can generate a complete order list from your product selection or product configuration.

You can find the TIA Selection Tool on the Internet

( http://w3.siemens.com/mcms/topics/en/simatic/tia-selection-tool ).

Automation system

System Manual, 09/2016, A5E03461182-AD

15

Documentation guide

SIMATIC Automation Tool

You can use the SIMATIC Automation Tool to run commissioning and maintenance activities simultaneously on various SIMATIC S7 stations as a bulk operation independently of the TIA

Portal.

The SIMATIC Automation Tool provides a multitude of functions:

● Scanning of a PROFINET/Ethernet network and identification of all connected CPUs

● Address assignment (IP, subnet, gateway) and station name (PROFINET device) to a

CPU

● Transfer of the date and the programming device/PC time converted to UTC time to the module

● Program download to CPU

● Operating mode switchover RUN/STOP

● Localization of the CPU by means of LED flashing

● Reading out CPU error information

● Reading the CPU diagnostic buffer

● Reset to factory settings

● Updating the firmware of the CPU and connected modules

You can find the SIMATIC Automation Tool on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/98161300 ).

PRONETA

With SIEMENS PRONETA (PROFINET network analysis), you analyze the PROFINET network during commissioning. PRONETA features two core functions:

● The topology overview independently scans PROFINET and all connected components.

● The IO check is a fast test of the wiring and the module configuration of a system.

You can find SIEMENS PRONETA on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/67460624 ).

16

Automation system

System Manual, 09/2016, A5E03461182-AD

System overview

2

What's new since the previous version (system manual S7-1500, ET 200MP; Edition 12/2014)

What's new?

New contents Compact CPUs

Technology CPUs

Fail-safe modules

Formatting, erasing or converting a SIMATIC memory card via the display

What are the customer benefits?

You can use compact CPUs for smaller to medium-sized applications The compact

CPUs have integrated analog and digital onboard I/O as well as integrated technology functions.

You can use technology CPUs for demanding applications. Technology CPUs are equipped with expanded motion control functions.

With fail-safe modules, you replace the conventional safety engineering technical setup.

Among other things, this involves replacement of switching devices for EMERGENCY OFF, protective door monitoring and two-hand operation.

Your SIMATIC memory card is formatted, erased or converted to a program card directly via the display without having to use

STEP 7. You save time.

Where can I find information?

Starting from section System overview (Page 17)

Starting from section System overview (Page 17)

Starting from section System overview (Page 17)

Section CPU display

(Page 193)

Automation system

System Manual, 09/2016, A5E03461182-AD

17

System overview

What's new?

Changed contents

What are the customer benefits?

Asynchronous instructions You are given an overview of the resource consumption of asynchronous instructions.

You can use this information to ensure adequate resources in the CPU.

Configuration control Configuration control provides you with the following advantages:

Different configuration levels of a standard machine can be handled in a single project.

• No changes to the hardware configuration or user program are needed.

Flexibility to vary the centralized/decentralized structure of a system.

• Easy handling during maintenance, versioning and upgrades.

Hardware savings: You only use the I/O modules that you currently need.

• Potential savings when building, commissioning and creating documentation for standard machines.

Wiring rules for the power supply elements

Connecting the

CPU/interface module to the load current supply

Firmware update via accessible devices

You are given information on proper connection of the power supply elements.

You are given information on proper connection of the CPU/interface module to the load current supply.

You are given information on fast firmware updates via accessible devices in the network.

Where can I find information?

Section Asynchronous instructions (Page 121)

Section Configuration control

(option handling) (Page 143)

Section Wiring rules

(Page 75)

Section Connecting the

CPU/interface module to the load current supply (Page 83)

Section Firmware update

(Page 213)

18

Automation system

System Manual, 09/2016, A5E03461182-AD

System overview

2.1 What is the SIMATIC S7-1500 automation system?

2.1

What is the SIMATIC S7-1500 automation system?

SIMATIC S7-1500

The SIMATIC S7-1500 automation system is the further development of the SIMATIC

S7-300 and S7-400 automation systems.

Through the integration of numerous new performance features, the S7-1500 automation system offers you excellent operability and the highest performance.

Customer benefits of the system

Figure 2-1 SIMATIC S7-1500 automation system - Customer benefits

Automation system

System Manual, 09/2016, A5E03461182-AD

19

System overview

2.1 What is the SIMATIC S7-1500 automation system?

Field of application

The S7-1500 automation system offers the required flexibility and performance for a wide range of controller applications in machine and plant engineering. The scalable configuration makes it possible for you to adapt your PLC to the local conditions.

By using fail-safe S7-1500 CPUs and fail-safe modules, you can implement applications for safety engineering. Configuration and programming of your safety program takes place the same way as for standard CPUs - in the TIA Portal.

In addition to the standard motion control and technology functions available in the S7-1500,

SIMATIC S7-1500 technology CPUs offer you additional features such as enhanced synchronous operation and cam disk functionalities.

The S7-1500 automation system is approved for IP20 degree of protection and is intended for use in a dry environment and installation in a control cabinet.

Configuration

The SIMATIC S7-1500 automation system is made up of the following components:

● CPU (standard, fail-safe, compact or technology CPU)

● Digital and analog I/O modules

● Communications modules (PROFINET/Ethernet, PROFIBUS, point-to-point)

● Technology modules (counting, position detection, time-based IO)

● Load current supply

● System power supply (optional)

You install the S7-1500 automation system on a mounting rail. It can consist of up to 32 modules (CPU, system supply and 30 I/O modules). You connect the modules to each other with U connectors.

20

Automation system

System Manual, 09/2016, A5E03461182-AD

Configuration example

System overview

2.1 What is the SIMATIC S7-1500 automation system?

System power supply

CPU

I/O modules

Mounting rail with integrated DIN rail profile

Figure 2-2 Example configuration of an S7-1500 automation system

Automation system

System Manual, 09/2016, A5E03461182-AD

21

System overview

2.2 What is the SIMATIC ET 200MP distributed I/O system?

2.2

What is the SIMATIC ET 200MP distributed I/O system?

SIMATIC ET 200MP

The ET 200MP is a scalable and highly flexible distributed I/O system for connecting the process signals to a central controller via fieldbus.

Customer benefits of the system

Figure 2-3 SIMATIC ET 200MP distributed I/O system - customer benefits

Field of application

Its scalable design gives you the option to tailor your configuration exactly to local requirements.

The ET 200MP distributed I/O system is approved for IP 20 degree of protection and is intended for use in a dry environment and installation in a control cabinet.

22

Automation system

System Manual, 09/2016, A5E03461182-AD

System overview

2.2 What is the SIMATIC ET 200MP distributed I/O system?

Configuration

The SIMATIC ET 200MP distributed I/O system is made up of the following components:

● Interface module (PROFINET or PROFIBUS)

● Digital and analog I/O modules

● Communications modules (point-to-point)

● Technology modules (counting, position detection, time-based IO)

● System power supply (optional)

The ET 200MP distributed I/O system is installed on a mounting rail like the S7-1500 automation system.

The I/O modules of the SIMATIC ET 200MP distributed I/O system can be used in a decentralized configuration (with an ET 200MP interface module) or in a centralized configuration (with an S7-1500 CPU).

Example of a configuration with the IM 155-5 PN ST interface module

Interface module

I/O modules

System power supply

Mounting rail with integrated DIN rail profile

Figure 2-4 Example of a configuration of the ET 200MP with IM 155-5 PN ST

Automation system

System Manual, 09/2016, A5E03461182-AD

23

System overview

2.2 What is the SIMATIC ET 200MP distributed I/O system?

Example of a configuration with the IM 155-5 DP ST interface module

Interface module

I/O modules

Mounting rail with integrated DIN rail profile

Figure 2-5 Example of a configuration of the ET 200MP with IM 155-5 DP ST

See also

Accessories/spare parts (Page 253)

24

Automation system

System Manual, 09/2016, A5E03461182-AD

System overview

2.3 What are fail-safe automation systems and fail-safe modules?

2.3

What are fail-safe automation systems and fail-safe modules?

Fail-safe automation systems

Fail-safe automation systems (F-systems) are used in systems with higher safety requirements. F-systems control processes and ensure that they are in a safe state immediately after shutdown. In other words, F-systems control processes in which an immediate shutdown does not endanger persons or the environment.

Safety Integrated

Safety Integrated is the integrated safety concept for automation and drive technology from

Siemens.

Proven technologies and systems from automation technology, such as the S7-1500 automation system described here, are used for safety engineering. Safety Integrated includes the complete safety sequence, ranging from sensor, actuator and fail-safe modules right through to the controller, including safety-related communication via standard fieldbuses. Drives and controllers handle safety tasks in addition to their actual functions.

Fail-safe modules

Fail-safe modules (F-modules) differ from non-fail-safe modules in that they internally monitor themselves and their sensor and actuator lines for faults and enter the safe state when faults are detected.

The F-CPU communicates with a fail-safe module via the safety-related PROFIsafe bus profile.

Application area of S7-1500/ET 200MP with fail-safe I/O modules

By using S7-1500 automation systems / ET 200MP distributed I/O systems with fail-safe

I/O modules, you replace the conventional safety engineering technical setup. This includes replacing, for example, switching devices for emergency stop, protective door monitors, two-hand operation, etc.

Automation system

System Manual, 09/2016, A5E03461182-AD

25

System overview

2.4 How are SIMATIC Safety F-systems configured?

2.4

How are SIMATIC Safety F-systems configured?

SIMATIC Safety F-system with S7-1500 and ET 200MP

The figure below contains an example of an F-system SIMATIC Safety with S7-1500,

ET 200MP and PROFINET IO.

Fail-safe I/O modules and non-fail-safe I/O modules can be combined in an

S7-1500/ET 200MP configuration.

The fail-safe IO controller (F-CPU) exchanges safety-related data with fail-safe modules. It does not exchange safety-related data with non-fail-safe modules.

Figure 2-6 Fail-safe automation system SIMATIC Safety (example)

Fail-safe I/O modules S7-1500/ET 200MP

The following fail-safe I/O modules are available for S7-1500/ET 200MP:

● Fail-safe digital input modules detect the signal states of safety-related sensors and send the relevant safety frames to the F-CPU.

● Fail-safe digital output modules are used to control actuators for safety-oriented tasks.

26

Automation system

System Manual, 09/2016, A5E03461182-AD

System overview

2.4 How are SIMATIC Safety F-systems configured?

Configuration example of the ET 200MP with fail-safe I/O modules

Interface module

I/O modules

Power supply (optional)

Fail-safe I/O modules

Mounting rail with integrated top-hat rail

Figure 2-7 Configuration example of the ET 200MP with fail-safe I/O modules

Hardware and software requirements

Fail-safe I/O modules S7-1500/ET 200MP can be used:

● in S7-1500 with S7-1500 F-CPUs as of firmware version V1.7

● distributed in ET 200MP with S7-1500 F-CPUs as of firmware version V1.5 and all

F-CPUs that can be selected in the hardware catalog of the TIA Portal

The following interface modules are required for fail-safe I/O modules in ET 200MP :

● IM 155-5 PN ST, as of firmware version V3.0.0

● IM 155-5 PN HF, as of firmware version V3.0.0

● IM 155-5 DP ST, as of firmware version V3.0.0

To configure and program fail-safe I/O modules S7-1500/ET 200MP , you need:

● STEP 7 (TIA Portal) as of V13 SP1

● The option package STEP 7 Safety Advanced as of V13 SP1 + HSP0086

Automation system

System Manual, 09/2016, A5E03461182-AD

27

System overview

2.4 How are SIMATIC Safety F-systems configured?

Use in safety mode only

You can only use the S7-1500/ET 200MP fail-safe I/O modules in safety mode. They cannot be used in non-fail-safe mode, i.e. standard mode.

Achievable safety classes

Fail-safe I/O modules are equipped with integrated safety functions for safety mode.

You can achieve the safety classes of the table below:

● By corresponding parameter assignment of the safety functions in STEP 7,

● With a specific combination of fail-safe and non-fail-safe I/O modules as well as

● With a special arrangement and wiring of the sensors and actuators

Table 2- 1 Safety classes that can be achieved with S7-1500/ET 200MP in safety mode

According to IEC 61508:2010

SIL3

SIL3

Safety class in safety m ode

According to ISO 13849-1:2015

Category 3 (PL) Performance Level d

Category 4 (PL) Performance Level e

Additional information

The applications and wiring for the particular safety class are described in the manuals of the fail-safe I/O modules.

28

Automation system

System Manual, 09/2016, A5E03461182-AD

System overview

2.5 Components

2.5

Components

Components of the S7-1500 automation system/ET 200MP distributed I/O system

Table 2- 2 Components S7-1500/ET 200MP

Com ponents

Mounting rail

Function

The mounting rail is the rack of the S7-1500 automation system. You can use the entire length of the mounting rail (marginless assembly).

The mounting rails can be ordered as Accessories/spare parts

(Page 253) accessories.

Diagram

PE connection element for mounting rail

The set of screws is threaded into the mounting rail's T-profile groove, and is required for grounding the mounting rail.

The set of screws is contained in the scope of delivery of the mounting rails in the standard lengths (160 to 830 mm) and can be ordered as

Accessories/spare parts (Page 253).

CPU (standard, failsafe, compact or technology CPU)

Interface module for

PROFINET IO

The CPU executes the user program. The integrated system power supply of the CPU supplies the modules used via the backplane bus.

Further features and functions of the CPU:

• Communication via Ethernet

Communication via PROFIBUS / PROFINET

• HMI communication

Integrated web server

• OPC UA server

Integrated technology (e.g. motion control functions, trace functionality)

• Integrated system diagnostics

Integrated protection functions (access, know-how and copy protection)

• Safety mode (when using fail-safe CPUs)

The interface module:

Is used as an IO device on PROFINET IO

Links the ET 200MP distributed I/O system with the IO controller.

Exchanges data with the I/O modules via the backplane bus.

Automation system

System Manual, 09/2016, A5E03461182-AD

29

System overview

2.5 Components

Com ponents

Interface module for

PROFIBUS DP

Function

The interface module:

Is used as a DP slave PROFIBUS DP

Links the ET 200MP distributed I/O system with the DP master.

Exchanges data with the I/O modules via the backplane bus.

I/O module/ fail-safe I/O module

U connector

Front connectors

The I/O modules form the interface between the controller and the process. The controller detects the current process state via the connected sensors and actuators, and triggers the corresponding reactions. I/O modules are divided into the following module types:

Digital input (DI, F-DI)

• Digital output (DQ, F-DQ)

Digital input/digital output (DI/DQ)

• Analog input (AI)

Analog output (AQ)

• Analog input/analog output (AI/AQ)

Technology module (TM)

• Communication module (CM)

Communication processor (CP)

A U connector is included in the scope of delivery for each I/O module.

For fail-safe I/O modules, an additional electronic coding element for saving the PROFIsafe address is included in the scope of delivery and

can be ordered as spare part Accessories/spare parts (Page 253).

The individual modules are connected to one another with the U connector. The U connector provides the mechanical and electrical connection between the modules.

The U connector is included in the scope of delivery of all modules

(exceptions: CPU, interface module) and can be ordered as Accessories/spare parts (Page 253).

The purpose of the front connectors is to wire the I/O modules.

The front connectors for technology and analog modules must be supplemented with a shielding bracket, power supply element, and shielding clamp. The components are included in the scope of delivery of the technology modules, analog modules and compact CPUs (for

onboard I/O) and can be ordered as Accessories/spare parts

(Page 253)accessories.

There are front connectors with screw terminals and push-in terminals for 35 mm modules, and with push-in terminals for 25 mm modules.

The front connectors for 25 mm modules are included in the scope of delivery of the I/O modules and compact CPUs (for onboard I/O).

Four potential bridges and one cable tie are included in the scope of delivery of the front connectors for 35 mm modules. The front connectors for 25 mm modules have no potential bridges due to the compact module design.

Diagram

30

Automation system

System Manual, 09/2016, A5E03461182-AD

Com ponents

Potential bridges for front connector

Shielding bracket

Function

You jumper two terminals with potential bridges.

The potential bridges are included in the scope of delivery of the front

connector and can be ordered as Accessories/spare parts (Page 253).

The front connectors for 25 mm modules have no potential bridges.

Therefore, you should also observe the information in the product manual for the respective digital or analog module.

The shield bracket is an insertable bracket for modules with EMCcritical signals (e.g. analog modules, technology modules), and (together with the shield clamp) permits the low impedance application of shielding with minimal installation times.

The shield bracket is included in the scope of delivery of the analog modules, technology modules and compact CPUs (for onboard I/O)

and can be ordered as Accessories/spare parts (Page 253).

System overview

2.5 Components

Diagram

Shield clamp The shield clamps are used to attach cable shielding to the shielding bracket.

The shield clamp is included in the scope of delivery of the analog modules, technology modules and compact CPUs (for onboard I/O)

and can be ordered as Accessories/spare parts (Page 253).

Power supply element The power supply element is inserted in the front cable connector, and serves to supply power to modules with EMC-critical signals (analog modules, technology modules).

The power supply element (connection technology: screw terminal) is included in the scope of delivery of the analog and technology mod-

ules and can be ordered as Accessories/spare parts (Page 253).

Labeling strips for the exterior of the front cover of the I/O modules

The labeling strips are used to label the modules for specific plants.

You can label the labeling strips using a machine. The labeling strips are available in various colors:

Al gray: Non-fail-safe modules

4-pole connection plug for supply voltage of the CPU/interface module

• Yellow: Fail-safe modules

The labeling strips are included in the scope of delivery of the I/O modules and compact CPUs (for onboard I/O). Additional labeling

strips can be ordered as Accessories/spare parts (Page 253).

The supply voltage is supplied by means of the 4-pole connection plug.

Automation system

System Manual, 09/2016, A5E03461182-AD

31

System overview

2.5 Components

Com ponents

System power supply

(PS)

Load current supply

(PM)

Function

The system power supply is a diagnostics-capable power supply module, that can be connected with the backplane bus using a U connector.

A system power supply is required, if the power fed from the

CPU/interface module into the backplane bus is not sufficient to supply the connected modules with power.

System power supplies are available in various models:

PS 25W 24V DC

PS 60W 24/48/60V DC

PS 60W 120/230V AC/DC

A power cable connector with coding element and U connector is included in the scope of delivery of the system power supply and may be ordered as spare part.

The system power supply (PS), central modules (CPU), and input and output circuits of the I/O modules are supplied with 24 V DC through the load current supply (PM).

If you are using load current supplies, we recommend the devices from our SIMATIC series. These devices can be mounted on the mounting rail.

Load current supplies are available in various models:

PM 70W 120/230V AC

• PM 190W 120/230V AC

Reference

Diagram

You can find additional information on the different function classes (for example, basic, standard) of the interface and I/O modules in FAQ in Internet

( https://support.industry.siemens.com/cs/de/de/view/109476914/en ).

32

Automation system

System Manual, 09/2016, A5E03461182-AD

Application planning

3

3.1

Introduction

Hardware configuration

The S7-1500 automation system/ET 200MP distributed I/O system consists of a single-row configuration in which all modules are installed on one mounting rail. The modules are connected by means of U connectors, and thus form a self-assembling backplane bus.

You can configure the S7-1500 automation system/ET 200MP distributed I/O system with fail-safe and non-fail-safe modules.

3.1.1

Hardware configuration of the S7-1500 automation system

Maximum configuration

● The integrated system power supply of the CPU supplies 10 W or 12 W (depending on

CPU type) to the backplane bus. The power budget calculation determines the exact number of modules (without optional PS) that can be operated with the CPU. The

operating principle is described in section Power balance calculation (Page 45).

● A maximum of three system power supplies (PS) is possible: one can be inserted to the left of the CPU and two can be inserted to the right of the CPU.

● If you insert a system power supply (PS) to the left of the CPU, this yields a possible maximum configuration of a total of 32 modules, which occupy slots 0 to 31. If system power supplies (PS) are needed to the right of the CPU, they each occupy one slot.

Figure 3-1 S7-1500 maximum configuration

Automation system

System Manual, 09/2016, A5E03461182-AD

33

Application planning

3.1 Hardware configuration

Applicable modules

The following table shows which modules may be used in the various slots:

Table 3- 1 Assignment of slot numbers

Module type

Load current supply (PM)*

Permissible slots

0**

System power supply (PS)

CPU

Analog and digital I/O modules

Communications modules

Point-to-point

0; 2 - 31

1

2 - 31

2 - 31

PROFINET/Ethernet, PROFIBUS

When using a CPU 1511-1(F) PN, CPU 1511C-1 PN,

CPU 1511T-1 PN

2 - 31

When using a CPU 1512C-1 PN

When using a CPU 1513(F)-1 PN

2-31

2 - 31

When using a CPU 1515(F)-2 PN, CPU 1515T-2 PN 2 - 31

When using a CPU 1516(F)-3 PN/DP 2 - 31

2 - 31 When using a CPU 1517(F)-3 PN/DP,

CPU 1517T(F)-3 PN/DP

When using a CPU 1518(F)-4 PN/DP,

CPU 1518(F)-4 PN/DP ODK

Technology modules

2 - 31

2 - 31

Maximum number of m odules

Unlimited / only 1

PM can be configured in STEP 7

3

1

30

30

4

6

6

6

8

8

8

30

* No connection to the backplane bus.

** When slot 0 is occupied by a load current supply (PM) in STEP 7, this slot can no longer be used for a system power supply (PS) in STEP 7. You do not have to configure a load current supply

(PM) in STEP 7.

34

Automation system

System Manual, 09/2016, A5E03461182-AD

Application planning

3.1 Hardware configuration

3.1.2

Hardware configuration of the ET 200MP distributed I/O system with

PROFINET interface module

Maximum configuration

● The integrated system power supply of the interface module feeds 14 W into the backplane bus. The power budget calculation determines the exact number of I/O modules that can be operated with the interface module (without optional PS). The

operating principle is described in section Power balance calculation (Page 45).

● A maximum of three system power supplies (PS) is possible: one can be inserted to the left of the interface module and two can be inserted to the right of the interface module.

● If you insert a system power supply (PS) to the left of the interface module, this yields a possible maximum configuration of a total of 32 modules (up to 30 modules to the right of the interface module). If system power supplies (PS) are needed to the right of the interface module, they each occupy one slot.

Figure 3-2 Maximum configuration ET 200MP with IM 155-5 PN

Automation system

System Manual, 09/2016, A5E03461182-AD

35

Application planning

3.1 Hardware configuration

Applicable modules

The following table shows which modules may be used in the various slots:

Table 3- 2 Assignment of slot numbers

Module type

Load current supply (PM)*

System power supply (PS)

Interface module

Analog and digital I/O modules

Communications modules

Point-to-point

Technology modules

Permissible slots

0**

0; 2 - 31

1

2 - 31

2 - 31

2 - 31

Maximum number of modules

Unlimited / only 1 PM can be configured in STEP 7

3

1

30

30

30

* No connection to the backplane bus.

** When slot 0 is occupied by a load current supply (PM) in STEP 7, this slot can no longer be used for a system power supply (PS) in STEP 7. You do not have to configure a load current supply

(PM) in STEP 7.

36

Automation system

System Manual, 09/2016, A5E03461182-AD

Application planning

3.1 Hardware configuration

3.1.3

Hardware configuration of the ET 200MP distributed I/O system with

PROFIBUS interface module

Maximum configuration

The integrated system power supply of the interface module feeds 14 W into the backplane bus. The power budget calculation determines the exact number of I/O modules that can be

operated with the interface module. The operating principle is described in section Power balance calculation (Page 45).

Figure 3-3 Maximum configuration ET 200MP with IM 155-5 DP

Applicable modules

The following table shows which modules may be used in the various slots:

Table 3- 3 Assignment of slot numbers

Module type

Interface module

Analog and digital I/O modules

Communications modules

Point-to-point

Technology modules

Permissible slots

2

3 - 14

3 - 14

3 - 14

Maximum number of modules

1

12

12

12

Automation system

System Manual, 09/2016, A5E03461182-AD

37

Application planning

3.2 System and load power supply

3.2

System and load power supply

Types of power supplies

The S7-1500 automation system/ET 200MP distributed I/O system distinguishes between two types of power supply:

● System power supply (PS)

● Load current supply (PM)

System power supply (PS)

The system power supply has a connection to the backplane bus (U connector) and supplies solely the internally required system voltage. This system voltage supplies parts of the module electronics and the LEDs. A system power supply can also supply CPUs or interface modules if these are not connected to a 24 VDC load current supply.

Load current supply (PM)

The load current supply feeds the input/output circuits of the modules, as well as the sensors and actuators of the plant, if installed. The supply of the CPU/interface module with 24 V DC is optional if you supply the voltage for the backplane bus via a system power supply.

Special characteristic of the load current supply

Load current supplies are mounted on the "S7-1500 mounting rail" and do not have a connection to the backplane bus.

Total configuration with power supplies

Figure 3-4 Total configuration with load current supply (PM) and system power supply (PS)

38

Automation system

System Manual, 09/2016, A5E03461182-AD

Application planning

3.2 System and load power supply

Optionally, you can insert up to two system power supplies (PS) in the slots to the right of the

CPU/interface module.

The number of load current supplies is unlimited.

Observe the installation rules and specified installation distances in the manuals of the load current supplies.

System power supplies

● PS 25W 24V DC: Supply voltage with 24 V DC and infeed power to the backplane bus of

25 W

● PS 60W 24/48/60V DC: Supply voltage with 24/48/60 V DC and infeed power to the backplane bus of 60 W

● PS 60W 120/230V AC/DC: Supply voltage with 120/230 V AC and infeed power to the backplane bus of 60 W

Load current supplies

The load current supplies listed below have been technically adapted especially to the

S7-1500 automation system/ET 200MP distributed I/O system. Use of the listed load current supplies is not imperative because a SITOP module, for example, can be used an alternative.

● PM 70W 120/230 V AC: Supply voltage with 120/230 V AC and infeed power to the backplane bus of 70 W

● PM 190W 120/230 V AC: Supply voltage with 120/230 V AC and infeed power to the backplane bus of 190 W

Also note the following FAQ on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/96998532 ) in connection with load current supply units.

Automation system

System Manual, 09/2016, A5E03461182-AD

39

Application planning

3.2 System and load power supply

3.2.1

Introduction

Use of system power supplies

If the power fed from the CPU/interface module into the backplane bus is not sufficient to supply all connected modules with power, system power supplies (PS) are required.

Whether or not you need a system power supply depends on the power consumption of the modules used. The power supplied by the CPU/interface module and the system power supplies must be greater than the power required by the I/O modules.

During configuration, STEP 7 compares the supplied power and the power required by the modules. If the required power is too high, you receive a corresponding message from

STEP 7.

Slots for system power supplies

The following slots may be used for system power supplies:

● A system power supply in slot 0 to the left of the CPU/interface module

● Up to 2 system power supplies in the slots to the right of the CPU/interface module

(power segments) A power segment consists of a power supply module and the modules supplied by it.

Power segment

If you are using system power supplies to the right of the CPU/interface module, divide the configuration into power segments.

Configuration variant with power segments

40

Figure 3-5 Configuration variants with 3 power segments

Note

If you use the TIA Portal for configuring, it automatically checks the configuration for consistency and informs you as of which module you must open up a new power segment.

Automation system

System Manual, 09/2016, A5E03461182-AD

Reference

Application planning

3.2 System and load power supply

Information about the required power is available in the section Power balance calculation

(Page 45).

Additional information on the performance values (power feed, power consumption) of the

CPU, interface module, system power supply, and I/O modules can be found in the manuals

( http://support.automation.siemens.com/WW/view/en/57251228 ) of the respective modules.

3.2.2

Special considerations for the use of a system power supply in the first power segment

Infeed options

There are three options for the infeed of the required system voltage in the backplane bus:

● Infeed via CPU/interface module

● Infeed via CPU/interface module and system power supply

● Infeed only via system power supply in slot 0

Infeed via CPU/interface module

Infeed via the CPU/interface module generally suffices for small and medium hardware configurations. The power consumption of the connected modules must not exceed the power supplied by the CPU/interface module.

In this configuration variant, supply the CPU/interface module with 24 V DC from a load current supply.

Procedure

To set up the supply by means of the CPU/interface module, follow these steps:

1.

Open the "Properties" tab of the CPU/interface module in STEP 7 and select the "System power supply" in the navigation.

2.

Select the option "Connection to supply voltage L+".

Figure 3-6 Supply voltage via CPU/interface module only

Automation system

System Manual, 09/2016, A5E03461182-AD

41

Application planning

3.2 System and load power supply

Infeed via CPU/interface module and system power supply

For larger hardware configurations, infeed into the backplane bus by the CPU/interface module alone no longer suffices. If the modules consume more power in total than the power supplied by the CPU/interface module, you must insert an additional system power supply.

Supply the system power supply with the permissible supply voltage and the CPU/interface module with 24 V DC.

Both the system power supply and the CPU/interface module feed current into the backplane bus. The supplied power is summed.

Power addition: "Infeed power of the system power supply" + "Infeed power of the

CPU/interface module"

Procedure

To set up the supply by means of the CPU/interface module and system power supply, follow these steps:

1.

Open the "Properties" tab of the CPU/interface module in STEP 7 and select the "System power supply" in the navigation.

2.

Select the option "Connection to supply voltage L+".

Figure 3-7 Supply voltage via the CPU/interface module and system power supply

Infeed via system power supply only

As a further possibility you can supply the required power to the backplane bus using only a system power supply (in slot 0). In this case, the CPU/interface module is not supplied with

24 V DC, and draws its supply from the backplane bus. The system power supply must be inserted to the left of the CPU/interface module for this.

In general, you can use system power supplies with AC or DC infeed for the configuration.

If no supply voltage with 24 V DC is present (and e.g. only CMs/CPs are inserted next to the

CPU), you can use a system power supply with 230 V AC because the CMs/CPs are supplied via the backplane bus.

42

Automation system

System Manual, 09/2016, A5E03461182-AD

Procedure

Application planning

3.2 System and load power supply

To set up infeed only via the system power supply, follow these steps:

1.

Open the "Properties" tab of the CPU/interface module in STEP 7 and select the "System power supply" in the navigation.

2.

Select the option "No connection to supply voltage L+".

Figure 3-8 No infeed into the backplane bus by means of the CPU/interface module

Automation system

System Manual, 09/2016, A5E03461182-AD

43

Application planning

3.3 Use of load power supplies

3.3

Introduction

Use of load power supplies

The system power supply (PS), central modules (CPU), interface module and input and output circuits of the I/O modules are supplied with 24 V DC by the load current supply (PM).

Load current supplies can be mounted on the mounting rail but do not have a connection to the backplane bus.

Observe the installation rules and specified installation distances in the manuals of the load current supplies.

Use of multiple load current supplies

Several load current supplies (PM) can be used as follows for higher output currents:

Every load current supply feeds independent 24 V DC load lines.

Alternatively you can use an external 24 V power supply, e.g. from the SITOP line.

Figure 3-9 Supply of the modules from 24 V DC load current suppl

Note

Alternative 24 V supply of the modules from the control cabinet

If safe galvanic isolation (SELV/PELV according to IEC 60364-4-41) is ensured, you can supply the modules alternatively with 24 V DC from the control cabinet.

Reference

More information on load current supplies can be found on the Internet

( https://mall.industry.siemens.com

) in the online catalog and in the online ordering system.

44

Automation system

System Manual, 09/2016, A5E03461182-AD

Application planning

3.4 Power balance calculation

3.4

Power balance calculation

Principle of power balance calculation

In order to ensure that modules are supplied from the backplane bus, the fed-in power is compared with the power required by the modules. The power balance calculation checks whether the power provided by the system power supplies including CPU/interface module is greater than or equal to the power used by the consumers (modules).

In order to operate the configuration with its used modules, the power balance must be positive for each power segment in use.

This means that the power fed into the power segment is greater than the power consumed by the modules.

Take care even during planning, that the power fed into the backplane bus is always greater than or equivalent to the power drawn. The TIA Selection Tool

( http://w3.siemens.com/mcms/topics/en/simatic/tia-selection-tool ) aids you during planning.

The power fed into the backplane bus by the CPU/interface module and system power supply is listed in the technical specifications of the CPU/interface module in the corresponding manuals.

The power consumed from the backplane bus by an I/O module or the CPU/interface module can be found in the technical specifications in the corresponding manuals.

The power balance calculation is performed:

● When configuring with STEP 7

● During operation by the CPU

Automation system

System Manual, 09/2016, A5E03461182-AD

45

Application planning

3.4 Power balance calculation

Power balance calculation when configuring with STEP 7

STEP 7 checks compliance with the power balance during the configuration.

Proceed as follows to evaluate the power balance calculation:

1.

Perform the configuration of the S7-1500/ET 200MP with all the required modules.

2.

In the network view, select the CPU/interface module or the system power supply.

3.

Open the "Properties" tab in the inspector window.

4.

Select the "System power supply" entry in the area navigation.

5.

Check the "Power segment overview" table, so see whether the power balance is positive. If the power balance is negative, the underpowered modules will be marked in red.

Figure 3-10 Example of a power balance calculation with STEP 7

Power balance calculation check for overload by the CPU/interface module

Compliance with a positive power balance is monitored by the CPU/interface module:

● At every POWER ON

● At every change of the installed hardware

Causes for overload

An overload can still occur despite a positive power balance during planning. The cause for overload can be a hardware configuration that does not correspond to the configuration in

STEP 7, for example:

● More I/O modules are inserted in the actual configuration than were planned

● A supply voltage L+ (24 V DC) that is necessary for operation is not connected when system voltage infeed via the CPU/interface module is specified during parameter

assignment (see section Special considerations for the use of a system power supply in the first power segment (Page 41))

● A system power supply that is necessary for operation is not inserted

● A system power supply that is necessary for operation is not switched on (power connection plug or on/off switch)

● A system power supply that is necessary for operation has no U connector inserted

46

Automation system

System Manual, 09/2016, A5E03461182-AD

Application planning

3.4 Power balance calculation

Response of the CPU to negative power balance or failure of system power supplies

As soon as a negative power balance/overload is detected by the CPU in a power segment, the following actions are executed:

● CPU stores the retentive data

● CPU enters the event in the diagnostics buffer

● CPU carries out a restart and repeats this until the cause of the negative power balance is resolved

Response of the interface module to negative power balance or failure of system power supplies

As a result of the overload, the interface module switches off all power segments. The I/O controller or DP master can no longer access the I/O modules. The interface module provides diagnostic information and periodically checks the connection to the backplane bus and re-establishes it.

Exception: In the case of a voltage drop or a hardware fault in power segment 2 or 3, the corresponding system power supply module switches off its power segment (and possibly the following segments), and generates a diagnostic alarm, if possible.

More information on the behavior of the system power supply (PS) in the event of a fault can be found in the manuals for the system power supplies.

Automation system

System Manual, 09/2016, A5E03461182-AD

47

Installation

4

4.1

Introduction

Basics

All modules of the S7-1500 automation system/ET 200MP distributed I/O system are open equipment. This means that you may only install this system in housings, cabinets or electrical operating rooms. The housings, cabinets and electrical operating rooms must guarantee protection against electric shock and spread of fire. The requirements regarding mechanical strength must also be observed. The housings, cabinets, and electrical operating rooms must not be accessible without a key or tool. Access may only be possible for instructed or authorized personnel.

Installation position

The S7-1500 automation system/ET 200MP distributed I/O system can be used in a horizontal installation for ambient temperatures up to 60 °C and in vertical installation for ambient temperatures up to 40 °C. Additional information can be found in the section

Mechanical and climatic ambient conditions (Page 242).

Mounting rail

In addition to the S7-1500/ET 200MP modules, other components can be mounted on the mounting rail; for example, modules from the S7-1200 and ET 200SP portfolio, terminals, circuit breakers, small contactors or similar components.

These components can influence the installation dimensions for the cable duct.

Modules can be mounted up to the outer edge of the mounting rail (marginless assembly).

The mounting rails are available in various lengths. You can order the mounting rails using the online catalog or the online ordering system. You can find the available lengths and

article numbers in the Accessories/spare parts (Page 253) section.

48

Automation system

System Manual, 09/2016, A5E03461182-AD

Installation

4.1 Basics

Minimum clearances

Modules can be mounted up to the outer edge of the mounting rail. Maintain the following minimum clearances at the top and bottom when installing or removing the S7-1500 automation system/ET 200MP distributed I/O system.

Upper edge of the mounting rail

Figure 4-1 Minimum clearances in the control cabinet

Installation rules

● The installation starts on the left with a CPU/interface module or a system power supply.

● The modules are connected to each other with U connectors.

● Note that no U connector protrudes from the first and last module.

Note

Only remove and insert modules when the power to the system is switched off.

WARNING

Protection from conductive contamination

Taking into consideration the ambient conditions, the devices must be protected from conductive contamination.

This can be achieved, for example, by installing the devices in a control cabinet with the appropriate degree of protection.

Automation system

System Manual, 09/2016, A5E03461182-AD

49

Installation

4.2 Installing the mounting rail

4.2

Installing the mounting rail

Lengths and drill holes

The mounting rails are delivered in six lengths:

● 160 mm

● 245 mm

● 482.6 mm (19 inches)

● 530 mm

● 830 mm

● 2000 mm

You can find the article numbers in the section Accessories/spare parts (Page 253).

The mounting rails (from 160 to 830 mm) come with two drill holes for fixing screws. A set of screws for grounding the mounting rail is provided.

The 2000 mm mounting rail is provided for assemblies with special lengths and does not have holes for fixing screws. No set of screws for grounding is enclosed with the mounting

rail (can be ordered as Accessories/spare parts (Page 253)).

The specifications of the maximum offsets between two drill holes can be found in the table,

"Dimensions for the drill holes".

Tools required

● Commercially available hacksaw

● Drill ∅ 6.5 mm

● Screwdriver

● Size 10 adjustable screw-wrench or socket wrench for grounding cable connection

● Adjustable screw-wrench, matching the selected fixing screws

● Stripping tool and crimp tool for the grounding cable

Required accessories

You can use the following screw types for fastening of the mounting rails:

Table 4- 1 Required accessories

For ...

• outer fixing screws additional fixing screws (for mounting rails > 482.6 mm) you can use ...

M6 fillister head screws according to

ISO 1207/ISO 1580 (DIN 84/DIN 85)

M6 hexagon head screws according to

ISO 4017 (DIN 4017)

Explanation

Choose a suitable screw length for your assembly.

You also need washers for cylinder head screws with an internal diameter of 6.4 mm and an external diameter of 11 mm in accordance with ISO 7092 (DIN 433).

50

Automation system

System Manual, 09/2016, A5E03461182-AD

Dimensions for the drill holes

Table 4- 2 Dimensions for the drill holes

"Standard" mounting rails "Longer" mounting rails

Installation

4.2 Installing the mounting rail

Length of the mounting rail Distance a

160 mm 10 mm

245 mm

482.6 mm

530 mm

830 mm

10 mm

8.3 mm

15 mm

15 mm

Distance b

140 mm

225 mm

466 mm

500 mm

800 mm

Additional fixing screws (for mounting rails > 530 mm)

For mounting rails > 530 mm, we recommend using additional fixing screws at intervals of ≤

500 mm on the identification groove.

Preparing the 2000 mm mounting rail for installation

To prepare the 2000 mm mounting rail for installation, follow these steps:

1.

Cut the 2000 mm mounting rail to the required length.

2.

Mark the holes. The necessary dimensions can be found in the table "Dimensions for the drill holes":

– Two drill holes at the beginning and end of the mounting rail

– Additional drill holes at equal intervals of 500 mm maximum, along the identification groove

3.

Drill the marked holes according to the selected type of fastening.

4.

Ensure that there are no burrs or shavings on the mounting rail.

Automation system

System Manual, 09/2016, A5E03461182-AD

51

Installation

4.2 Installing the mounting rail

Note

To ensure secure installation of the modules, make sure you position the drill holes centered on the identification groove and only use screws of the maximum size.

Identification groove for additional drill holes

Additional drill hole

Figure 4-2 Preparing the 2000 mm mounting rail for installation

Installing the mounting rail

Place the mounting rail such that sufficient space remains for installation of and heat

dissipation from the modules. Note the figure Figure 4-1 Minimum clearances in the control cabinet (Page 49).

Screw the rail onto the mounting surface.

Attaching the protective conductor

The S7-1500 automation system/ ET 200MP distributed I/O system has to be connected to the protective conductor system of the electrical system to ensure electrical safety.

To connect the protective conductor, follow these steps:

1.

Strip the grounding conductor with a minimum diameter of 10 mm

2

and attach a ring terminal for size M6 bolts with the crimping pliers.

2.

Slide the enclosed bolt into the T profile groove.

3.

Insert the spacer, ring terminal with the grounding connector, flat washer, and lock washer onto the bolt (in that order). Thread the hexagon head nut, and fasten the components in place with the nut (torque 4 Nm).

52

Automation system

System Manual, 09/2016, A5E03461182-AD

Installation

4.2 Installing the mounting rail

4.

Connect the opposite end of the grounding cable to the central grounding point/protective conductor busbar (PE).

Figure 4-3 Attaching the protective conductor

Note

Alternative grounding of the mounting rail

If it is ensured that the mounting rail is permanently connected to the protective conductor system using an equivalent installation that complies with standards, for example, by permanent attachment to a grounded control cabinet wall, grounding via the grounding screw can be omitted.

Reference

Additional information on the precise dimensions of the mounting rails can be found in the

Dimension drawings of the mounting rails (Page 246) section.

Automation system

System Manual, 09/2016, A5E03461182-AD

53

Installation

4.3 Installing a system power supply

4.3

Introduction

Installing a system power supply

The system power supply has a connection to the backplane bus and supplies the connected modules with the internal supply voltage.

Requirements

The mounting rail is installed.

Tools required

Screwdriver with 4.5 mm blade

Installing a system power supply

To install the system power supply, follow these steps:

1.

Insert the U-connector into the back of the system power supply.

2.

Hang the system power supply on the mounting rail.

3.

Swivel the system power supply to the rear.

54

Figure 4-4 Installing a system power supply

4.

Open the front cover.

5.

Disconnect the power cable connector from the system power supply.

6.

Screw the system power supply tight (torque 1.5 Nm).

7.

Insert the already wired-up power cable connector into the system power supply.

Information about wiring of the power cable connector is available in the section Connecting system power supply and load current supply (Page 81).

Automation system

System Manual, 09/2016, A5E03461182-AD

Uninstalling a system power supply

The system power supply is wired up.

To uninstall the system power supply, follow these steps:

1.

Turn off the feed supply voltage.

2.

Open the front cover.

3.

Shut down the system power supply.

4.

Disconnect the power cable connector, and remove the connector from the system power supply.

5.

Undo the power supply module's fixing screw(s).

6.

Swivel the system power supply out of the mounting rail.

Reference

Installation

4.3 Installing a system power supply

Additional information can be found in the manuals for the system power supplies.

Automation system

System Manual, 09/2016, A5E03461182-AD

55

Installation

4.4 Installing a load current supply

4.4

Introduction

Installing a load current supply

Load current supplies do not have a connection to the backplane bus of the S7-1500 automation systems/ET 200MP distributed I/O system and also do not occupy a slot on the backplane bus. The system power supply, CPU, interface module and input and output circuits of the I/O modules are supplied with 24 V DC by the load current supply.

Requirements

The mounting rail is installed.

Tools required

Screwdriver with 4.5 mm blade

Installing a load current supply

Watch video sequence ( http://www.automation.siemens.com/salesmaterial-as/interactivemanuals/getting-started_simatic-s7-1500/videos/EN/mount/start.html

)

To install a load current supply, follow these steps:

1.

Hook the load current supply on the mounting rail.

2.

Swivel the load current supply to the rear.

56

Figure 4-5 Installing a load current supply

3.

Open the front cover.

4.

Disconnect the power cable connector from the load current supply.

Automation system

System Manual, 09/2016, A5E03461182-AD

Installation

4.4 Installing a load current supply

5.

Tighten the screw for the load current supply (torque 1.5 Nm).

6.

Insert the already wired-up power cable connector into the load current supply.

For a description on how to wire the power cable connector, refer to the section Connecting system power supply and load current supply (Page 81).

Note

Load current supplies can only be mounted on the left or right side outside the S7-1500 automation system/ET 200MP distributed I/O system. If you mount a load current supply on the right of the configured setup, the heat development of the load current supply may make a gap to the configured setup necessary. For additional information, refer to the relevant manuals. The number of load current supplies that can be used is unlimited.

Uninstalling the load current supply

The load current supply is wired up.

To uninstall a load current supply, follow these steps:

1.

Turn off the feed supply voltage.

2.

Open the front cover.

3.

Shut down the load current supply.

4.

Disconnect the power cable connector, and remove the connector from the load current supply.

5.

Undo the power supply module's fixing screw(s).

6.

Swivel the load current supply out of the mounting rail.

Reference

Additional information can be found in the manuals for the load current supplies.

Automation system

System Manual, 09/2016, A5E03461182-AD

57

Installation

4.5 Installing the CPU

4.5

Introduction

Installing the CPU

The CPU executes the user program and supplies the electronics of the modules with power via the backplane bus.

Requirements

The mounting rail is installed.

In a system power supply located on the left next to the CPU, a U connector is inserted on the back right.

Note

Protective film

Note that a protective film is applied to the display in the delivery state of the CPU. You can remove the protective film as required.

Tools required

Screwdriver with 4.5 mm blade

Installing the CPU

Watch video sequence ( http://www.automation.siemens.com/salesmaterial-as/interactivemanuals/getting-started_simatic-s7-1500/videos/EN/mount/start.html

)

To install a CPU, follow these steps:

1.

Insert a U-connector into the back right on the CPU.

2.

Hook the CPU on the mounting rail and slide the CPU up to the left-hand system power supply.

3.

Ensure that the U-connector is inserted at the system power supply. Swivel the CPU in to the rear.

58

Automation system

System Manual, 09/2016, A5E03461182-AD

4.

Tighten the screw for the CPU (torque 1.5 Nm).

Installation

4.6 Installing the interface module

Figure 4-6 Installing the CPU

Uninstalling the CPU

The CPU is wired, and is followed by additional modules.

To uninstall a CPU, follow these steps:

1.

Open the front cover.

2.

Switch the CPU into STOP mode.

3.

Turn off the feed supply voltage.

4.

Pull off the connector for the supply voltage.

5.

Loosen the bus connectors for PROFIBUS/PROFINET with the screwdriver, and remove them from the CPU.

6.

Undo the CPU's fixing screw(s).

7.

Pivot the CPU out of the mounting rail.

4.6

Introduction

Installing the interface module

The interface module connects the ET 200MP with the PROFINET IO/PROFIBUS DP and exchanges data between the higher-level controller and the I/O modules.

Requirements

The mounting rail is installed.

Automation system

System Manual, 09/2016, A5E03461182-AD

59

Installation

4.6 Installing the interface module

For a system power supply located to the left of the interface module, a U connector is inserted on the back left.

Tools required

Screwdriver with 4.5 mm blade

Installing the interface module

Watch video sequence

( https://support.industry.siemens.com/cs/media/67462859_installing_web_en/start.htm

)

To install an interface module, proceed as follows:

1.

Mount the U-connector on the back right-hand side of the interface module.

2.

Hook the interface module on the rail.

3.

Pivot the interface module towards the back.

4.

Tighten the screw for the interface module (torque 1.5 Nm).

Figure 4-7 Installing the interface module

Uninstalling the interface module

The interface module is wired and is followed by additional modules.

To uninstall the interface module, follow these steps:

1.

Switch off the supply voltage for the interface module.

2.

Open the front cover.

3.

Loosen the bus connector and the connector for the supply voltage with the screwdriver and remove the connectors from the interface module.

4.

Loosen the fixing screw of the interface module.

5.

Pivot the interface module out of the mounting rail.

60

Automation system

System Manual, 09/2016, A5E03461182-AD

Installation

4.7 Installing I/O modules

4.7

Introduction

Installing I/O modules

The I/O modules are installed following the CPU/interface module. I/O modules form the interface between the controller and the process. The controller detects the current process state via the connected sensors and actuators, and triggers the corresponding reactions.

Requirements

The mounting rail is installed.

The CPU/interface module is installed.

In the module/CPU/interface module located to the left of the I/O module, a U-connector is inserted on the back right.

Tools required

Screwdriver with 4.5 mm blade

Automation system

System Manual, 09/2016, A5E03461182-AD

61

Installation

4.7 Installing I/O modules

Installing I/O modules

Watch video sequence ( http://www.automation.siemens.com/salesmaterial-as/interactivemanuals/getting-started_simatic-s7-1500/videos/EN/mount/start.html

)

Proceed as follows to install an I/O module:

1.

Insert a U connector into the back right on the I/O module.

Exception: the last I/O module in the assembly

2.

Hook the I/O module on the mounting rail and slide the I/O module up to module on the left.

3.

Pivot the I/O module towards the back.

4.

Tighten the screw for the I/O module (torque 1.5 Nm).

Figure 4-8 Installing I/O module

Uninstalling I/O modules

The I/O module is wired.

Proceed as follows to dismantle an I/O module:

1.

Turn off all feed supply voltages.

2.

Open the front cover.

3.

For communications modules: Loosen and remove the connector from the module.

At I/O modules: Pull the front connector out of the I/O module using the unlocking strap.

Swivel the front connector downward and remove it from the groves.

4.

Loosen the fixing screw of the I/O module.

5.

Pivot the I/O module out of the mounting rail.

62

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5

5.1

Introduction

Rules and regulations for operation

When installing the S7-1500 automation system/ ET 200MP distributed I/O system as part of a plant or system, special rules and regulations need to be adhered to depending on the area of application.

This section provides an overview of the most important rules that must be observed for the integration of the S7-1500 automation system/ ET 200MP distributed I/O system in a plant or system.

Specific application

Please observe the safety and accident prevention regulations applying to specific applications (e.g., machine protection guidelines).

EMERGENCY-STOP devices

EMERGENCY OFF equipment to IEC 60204 (corresponds to DIN VDE 0113) must remain effective in all operating modes of the plant or system.

Excluding hazardous plant states

Hazardous operating states must not occur when:

● The plant starts up again after a voltage dip or voltage failure.

● The bus communication is resumed after a fault.

If necessary, EMERGENCY-STOP must be forced.

An uncontrolled or undefined startup is not permitted after the EMERGENCY STOP is unlocked.

Automation system

System Manual, 09/2016, A5E03461182-AD

63

Wiring

5.1 Rules and regulations for operation

Line voltage

Below, everything you need to consider in terms of line voltage is described (refer to section

Information on insulation tests, protection class, degree of protection and rated voltage

(Page 244)):

● For fixed plants or systems without multipole circuit breaker, a mains disconnection device (multipole) must be available in the building installation.

● For load current supplies, the configured rated voltage range must correspond to the local line voltage.

● For all power circuits of the S7-1500 automation system/ET 200MP distributed I/O system, the fluctuation/deviation of the line voltage from the rated value must be within the permitted tolerance.

24 V DC supply

The following describes what you must pay attention to in terms of the 24 V DC supply:

● Power supply units for the 24 V DC supply must have a safe galvanic isolation in accordance with IEC 60364-4-41.

● To protect the S7-1500 automation system/ET 200MP distributed I/O system from lightning and overvoltages, use overvoltage arresters.

Suitable components for the lightning and overvoltage protection are specified in the

Defining interference-free controllers

( http://support.automation.siemens.com/WW/view/en/59193566 ) function manual.

Protection against electrical shock

The mounting rail of the S7-1500 automation system/ET 200MP distributed I/O system has to be connected conductively with the protective conductor as protection against electric shock.

Protection against external electrical influences

The following describes what you must pay attention to in terms of protection against electrical influences and/or faults:

● Make sure that the system for discharging electromagnetic interference is connected to a protective conductor with sufficient diameter for all plants with an S7-1500 automation system/ ET 200MP distributed I/O system.

● For supply, signal and bus lines, you must ensure that the laying of the lines and the installation is correct.

● For signal and bus lines, you must ensure that a wire/cable breakage or a cross-wire does not lead to undefined states of the plant or system.

Reference

Additional information can be found in the function manual, Designing interference-free controllers ( http://support.automation.siemens.com/WW/view/en/59193566 ).

64

Automation system

System Manual, 09/2016, A5E03461182-AD

5.2

Wiring

5.2 Additional rules and regulations for operation of the S7-1500/ET 200MP with fail-safe modules

Additional rules and regulations for operation of the

S7-1500/ET 200MP with fail-safe modules

5.2.1

Safe functional extra-low voltage (SELV) for fail-safe modules

WARNING

The fail-safe modules must be operated with safe functional extra low voltage (SELV,

PELV).

You can find more information on safe functional extra-low voltage in the data sheets, for example, of the applicable power supplies.

The fail-safe modules operate at a rated voltage of24 V DC. The tolerance range is

19.2 V DC to 28.8 V DC.

Within the overvoltage range from 32 V DC to 36 V DC, the F-modules react in a fail-safe manner and the inputs and outputs are passivated. For overvoltages greater than 36 V DC, the F-modules are permanently de-energized and can be damaged.

Use a power supply unit that does not exceed U m

= 36 V DC even in the event of a fault.

For more on this, refer to the information in the data sheet on overvoltage protection in the case of an internal error. Or implement appropriate measures to limit the voltage, e.g., use of a surge protection device.

All system components that can supply electrical energy in any form whatsoever must fulfill this condition.

Each additional circuit (24 V DC) used in the system must have a safe functional extra low voltage (SELV, PELV). Refer to the relevant data sheets or contact the manufacturer.

Sensors and actuators with an external power supply can also be connected to F-modules.

Make sure that power is supplied to these components from safe functional extra-low voltage as well. The process signal of a 24 V DC digital module may not exceed a fault voltage U m

in the event of a fault.

WARNING

Even when a fault occurs, the permissible potential difference between the supply of the interface module (bus voltage) and the load voltage must not be exceeded.

An external direct electrical connection is one way to meet this requirement. This also prevents potential differences from causing voltage additions at the individual voltage sources, which could cause the fault voltage U m

to be exceeded.

Automation system

System Manual, 09/2016, A5E03461182-AD

65

Wiring

5.2 Additional rules and regulations for operation of the S7-1500/ET 200MP with fail-safe modules

Power supply requirements in case of voltage interruptions

Note

Always use power packs or power supply units (24 VDC) with a mains buffering time of at least 20 ms to ensure adherence to IEC 61131-2.

Also take into consideration the respective requirements of your product standards regarding mains buffering time.

Information on the power supply components is available on the Internet

( https://mall.industry.siemens.com

).

5.2.2

Requirements of sensors and actuators for fail-safe modules

General requirements for sensors and actuators

Note the following important warning regarding safety-related use of sensors and actuators:

WARNING

Note that instrumentation with sensors and actuators bears a considerable safety responsibility. Also bear in mind that sensors and actuators generally do not have a service life of 20 years as defined in IEC 61508:2010 without considerable loss of safety.

The probability of hazardous faults and the rate of hazardous faults of safety functions must comply with an SIL-defined high limit. A listing of values achieved by F-modules in the technical specifications of the F-modules is available under "Fail-safe performance characteristics".

To achieve the respective safety class, suitably qualified sensors and actuators are necessary.

Additional sensor requirements

General rule: A single-channel sensor is sufficient to achieve SIL3/Cat.3/PLd. However, to achieve SIL3/Cat.3/PLd with a single-channel sensor, the sensor itself must be

SIL3/Cat.3/PLd-capable; otherwise, the sensor must be connected via two channels to achieve this safety level.

66

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.2 Additional rules and regulations for operation of the S7-1500/ET 200MP with fail-safe modules

To achieve Cat.4, sensors must be connected via two channels.

WARNING

In the case of fail-safe input modules, a "0" value is output to the F-CPU after detection of faults. You therefore need to make sure that the sensors are implemented in such a way as to ensure the reliable reaction of the safety program when the sensor is in the "0" state.

Example: In its safety program, an EMERGENCY-STOP sensor must achieve the shutdown of the respective actuator when it is in the "0" state (EMERGENCY-STOP button pressed).

Duration requirements for sensor signals

WARNING

Observe the following requirements for sensor signals:

• In order to ensure the correct detection of the sensor signals via fail-safe modules with inputs, you need to make sure that the sensor signals are output for a minimum duration.

In order for pulses to be detected with certainty, the time between two signal changes

(pulse duration) must be greater than the PROFIsafe monitoring time.

Safe detection of inputs through F-modules

The minimum duration of sensor signals for F-modules with inputs depends on the configured input delay, the parameters of the short circuit test of the sensor supplies, and the configured discrepancy behavior for 1oo2 evaluation. The duration of the signal must be greater than the maximum response time of the configured application. Information on calculating the maximum response time can be found in section "Response times" of the respective F-module.

The maximum permitted switching frequency of the sensor signals results from the minimum duration.

Additional requirements for actuators

The fail-safe output modules test the outputs at regular intervals. The F-module briefly switches off the activated outputs and, if necessary, switches on the deactivated outputs.

You can assign the maximum duration of the test pulses (dark and light period) with parameters.

Automation system

System Manual, 09/2016, A5E03461182-AD

67

Wiring

5.2 Additional rules and regulations for operation of the S7-1500/ET 200MP with fail-safe modules

High-speed actuators may briefly drop out or be activated during this test. If your process does not tolerate this, set the pulse duration of the light or dark test correspondingly or use actuators that have sufficient lag.

WARNING

If the actuators switch voltages greater than 24 V DC (for example, 230 V DC), safe electrical isolation must be ensured between the outputs of a fail-safe output module and the components carrying a higher voltage (in accordance with EN 60664-1:2010).

This is generally the case for relays and contactors. Particular attention must be paid to this issue for semiconductor switching devices.

Technical specifications of sensors and actuators

Refer to the manuals of the fail-safe modules for technical specifications to assist you in selecting sensors and actuators.

5.2.3

Capacitive crosstalk of digital input/output signals

Readback errors may occur on the F-DQ modules if the fail-safe digital output signals and fail-safe digital input signals are routed through a single cable.

Cause: Capacitive crosstalk

During the bit pattern test of the outputs or the sensor supply of the inputs, the steep switching edge of the output drivers caused by the coupling capacitance of the line may result in crosstalk to other non-activated output or input channels. This may then lead to a response of the readback circuit in these channels. The module detects a cross circuit/short circuit and performs a safety-related shutdown.

Remedy:

● Separate cables for F-DI modules, F-DQ modules or non-fail-safe DQ modules

● Coupling relay or diodes in the outputs

● Disable the short-circuit test of the sensor supply if safety class requirements allow it.

Cause: magnetic crosstalk

Note that an inductive load connected to the F-DQ channels can induce capacitive coupling of a strong magnetic field.

Solution:

● Spatially disconnect the inductive loads or shield against the magnetic field.

● Configure the "Max. readback time dark test" to 50 ms or higher.

68

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.3 Operation on grounded infeed

5.3

Introduction

Operation on grounded infeed

Information is provided below on the overall configuration of an S7-1500 automation system/ET 200MP distributed I/O system on a grounded infeed (TN-S system). The specific subjects discussed are:

● Disconnecting devices, short-circuit and overload protection to IEC 60364 (corresponding to DIN VDE 0100) and IEC 60204 (corresponding to DIN VDE 0113)

● Load current supplies and load circuits

Grounded infeed

In the case of grounding incoming supplies (TN-S system) the neutral conductor (N) and the protective conductor (PE) are each grounded. Both conductors form a part of the overvoltage concept. When a plant is in operation, the current flows across the neutral conductor. When a fault occurs, for example a single ground fault between a live conductor and ground, the current flows through the protective conductor.

Safe galvanic isolation (SELV/PELV in accordance with IEC 60364-4-41)

Load current supplies/system power supplies with 24 V DC supply require safe electrical separation. This protection is designated as SELV (Safety Extra Low Voltage)/PELV

(Protective Extra Low Voltage) in accordance with IEC 60364-4-41.

The wiring of SELV/PELV circuits must be separated from the wiring of other circuits that are not SELV/PELV, or the insulation of all conductors must be rated for the higher voltage.

Reference potential of the controller

The reference potential of the S7-1500 automation system/ ET 200MP distributed I/O system is connected with the mounting rail through a high-resistance RC combination in the

CPU/interface module. In this way, high-frequency interference currents are conducted and electrostatic charges are avoided. Despite the grounded mounting rail, the reference potential of the S7-1500 automation system/ET 200MP distributed I/O system has to be considered as ungrounded due to the high-resistance connection.

If you want to configure the S7-1500 automation system/ET 200MP distributed I/O system with grounded reference potential, connect the M connection of the CPU/interface module galvanically with the protective conductor.

You can find a simplified representation of the potential relationships in section Electrical configuration (Page 72).

Automation system

System Manual, 09/2016, A5E03461182-AD

69

Wiring

5.3 Operation on grounded infeed

Short-circuit and overload protection

Various measures as protection against short-circuits and overloads are required for setting up a full installation. The nature of the components and the degree to which the required measures are binding depends on the IEC (DIN VDE) regulation applicable to your plant configuration. The table refers to the following figure and compares the IEC (DIN VDE) regulations.

Table 5- 1 Components and required measures

Shut-off device for control system, sensors, and actuators

Short-circuit and overload protection:

In groups for sensors and actuators

Load current supply for AC load circuits with more than five electromagnetic devices

Reference to following figure

IEC 60364

(DIN VDE 0100)

Main switch

IEC 60204 (DIN VDE 0113)

Disconnector

Single-pole protection of circuits

With grounded secondary circuit: fuse unipolar

Otherwise: fuse all poles

Galvanic isolation by transformer recommended

Galvanic isolation by transformer recommended

70

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.3 Operation on grounded infeed

S7-1500/ET 200MP in the overall configuration

The figure below shows the overall configuration of the S7-1500/ET 200MP (load current supply and grounding concept) with infeed from a TN-S system.

Main switch

Short-circuit and overload protection on the primary side

Short-circuit and overload protection on the secondary side

The load current supply (galvanic isolation)

Figure 5-1 Operating the S7-1500/ET 200MP with grounded reference potential

Automation system

System Manual, 09/2016, A5E03461182-AD

71

Wiring

5.4 Electrical configuration

5.4

Electrical configuration

Galvanic isolation

With the S7-1500 automation system/ET 200MP distributed I/O system, there is galvanic isolation between:

● The primary side of the system power supply (PS) and all other circuit components

● The (PROFIBUS/PROFINET) communication interfaces of the CPU/interface module and all other circuit components

● The load circuits/process electronics and all other circuit parts of the S7-1500/ET 200MP components

High-frequency interference currents are conducted and electrostatic charges are avoided through integrated RC combinations or integrated capacitors.

S7-1500 potential relationships

The following figure shows a simplified representation of the potential relationships of the

S7-1500 automation system.

Figure 5-2 Potential relationships for S7-1500 using CPU 1516-3 PN/DP as an example

72

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.4 Electrical configuration

Potential relationships ET 200MP on PROFINET IO

The following figure shows a simplified representation of the potential relationships of the

ET 200MP distributed I/O system on PROFINET IO.

Figure 5-3 Potential relationships for ET 200MP using an IM 155-5 PN HF interface module as an example

Automation system

System Manual, 09/2016, A5E03461182-AD

73

Wiring

5.4 Electrical configuration

Potential relationships ET 200MP on PROFIBUS DP

The following figure shows a simplified representation of the potential relationships of the

ET 200MP distributed I/O system on PROFIBUS DP.

Figure 5-4 Potential relationships for ET 200MP using an IM 155-5 DP ST interface module as an example

74

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.5 Wiring rules

5.5

Introduction

Wiring rules

Use suitable cables for connecting the S7-1500 automation system/ET 200MP distributed

I/O system. The following tables present the wiring rules for the CPU, interface module, system power supply, load current supply, front connector and power supply elements.

CPU, interface module, system power supply and load current supply

Table 5- 2 Wiring rules for CPU, interface module, system power supply and load current supply

(Cu)

Wiring rules for ...

Permitted cable cross-sections of solid cables (Cu) -

Permitted cable crosssections of flexible cables

Sheath diameter

Tool

Connection system

Tightening torque

* American Wire Gauge

Without wire end sleeve

With end sleeve

Number of wires per connection

Stripped length of the wires

End sleeves according to

DIN 46228

-

1

-

CPU/interface m odule

0.25 to 2.5 mm

2

AWG

*

: 24 to 16

0.25 to 1.5 mm design

2

AWG

*

: 24 to 16

10 to 11 mm without plastic sleeve Design A, 10 mm long with plastic sleeve 0.25 to 1.5 mm

2

Design E, 10 mm long

3 to 3.5 mm screwdriver, conic

Push-in terminal

-

System power and load current

-

-

1.5 mm

2

AWG

*

: 16

1.5 mm

2

AWG

*

: 16

1

7 to 8 mm

Design A, 7 mm long

Design A, 7 mm long

8.5 mm supply

3 to 3.5 mm screwdriver, conic design

Screw terminal from 0.5 Nm to 0.6 Nm

Automation system

System Manual, 09/2016, A5E03461182-AD

75

Wiring

5.5 Wiring rules

Front connectors

Table 5- 3 Wiring rules for front connector

Wiring rules for ...

(screw term inal, for 35 mm m odule)

Permitted cable cross-sections of solid cables (Cu) up to 0.25 mm²

Permitted cable crosssections of flexible cables

(Cu)

Without wire end sleeve

With end sleeve

40-pin front connector

AWG

*

: up to 24

0.25 to 1.5 mm

2

AWG

*

: 24 to 16

0.25 to 1.5 mm

AWG

*

2

: 24 to 16

Number of wires per connection 1 or combination of 2 wires up to 1.5 mm

2

(total) in the same end sleeve

Stripped length of the wires

End sleeves according to

DIN 46228

8 mm up to max. 0.75 mm

2

(corresponding to length of end sleeve

**

: 8 mm)

10 to 12 mm for all cross-sections (corresponding to length of end sleeve

**

:

10 mm, 12 mm) without plastic sleeve Design A:

8 mm long up to max.

0.75 mm

2

,

10 mm and 12 mm long for all crosssections with plastic sleeve 0.25 to 1.5 mm

2

Sheath diameter

Tool

Connection system

Design E

8 mm long up to max.

0.75 mm

2

,

10 mm and 12 mm long for all crosssections

-

3 to 3.5 mm screwdriver, conic design

Screw terminal

Design A: 8 mm and10 mm long

Design E 8 mm and10 mm long

-

3 to 3.5 mm screwdriver, conic design

Push-in terminal

40-pin front connector

(push-in term inal, for 35 mm m odule) up to 0.25 mm²

AWG

*

: up to 24

0.25 to 1.5 mm

2

AWG

*

: 24 to 16

0.25 to 1.5 mm

AWG

*

2

: 24 to 16

1 or combination of 2 wires up to 1.5 mm

(total) in the same end sleeve

8 to 11 mm (corre-

10 mm)

2 sponding to length of end sleeve

**

: 8 mm,

40-pin front connector

(push-in term inal, for 25 mm m odule) up to 0.25 mm²

AWG

*

: up to 24

0.25 to 1.5 mm

2

(max. 40 x 0.75 mm

2

)

AWG

*

: 24 to 16 mm

2

(max. 40 x 0.75 mm

2

)

0.25 to 1.5 mm

2

(max. 32 x 0.75 mm²;

8 x 1.5 mm²)

AWG

*

: 24 to 16

(max. 32 x AWG 19;

8 x AWG 16)

1 or combination of 2 wires up to 1.5 mm

2

(total) in the same end sleeve

8 to 11 mm (corresponding to length of end sleeve

**

: 8 mm,

10 mm)

Design A: 8 mm and10 mm long

Design E 8 mm and10 mm long

-

3 to 3.5 mm screwdriver, conic design

Push-in terminal

76

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.5 Wiring rules

Wiring rules for ...

Tightening torque

(screw terminal)

Max. actuation force for complete opening of the push-in terminal

Recommended crimp shape for end sleeve

40-pin front connector

(screw term inal, for 35 mm m odule) from 0.4 Nm to 0.7

Nm

40-pin front connector

(push-in term inal, for 35 mm m odule)

-

40-pin front connector

(push-in term inal, for 25 mm m odule)

-

- 40 N 40 N

- Corresponding to crimping tool PZ 6/5

Corresponding to crimping tool PZ 6/5

* American Wire Gauge

** End sleeve

Automation system

System Manual, 09/2016, A5E03461182-AD

77

Wiring

5.5 Wiring rules

Power supply elements

Table 5- 4 Wiring rules for power supply elements (component of shield set)

DIN 46228

Sheath diameter

Tool

Connection system

Tightening torque

(screw terminal)

Wiring rules for ...

Permitted cable cross-sections of solid cables (Cu)

Permitted cable cross-sections of flexible cables (Cu)

Number of wires per connection

Stripped length of the wires

End sleeves according to

Without wire end sleeve

With end sleeve without plastic sleeve with plastic sleeve 0.25 to

1.5 mm

2

Max. actuation force for complete opening of the push-in terminal

-

-

0.25 to 1.5 mm

2

AWG

*

: 24 to 16

0.25 to 1.5 mm

2

AWG

*

: 24 to 16

1 or combination of 2 wires up to 1.5 mm

2

(total) in the same end sleeve

8 mm up to max. 0.75 mm

2

(corresponding to length of end sleeve

**

: 8 mm)

10 to 12 mm for all crosssections (corresponding to length of end sleeve

**

:

10 mm, 12 mm)

Design A:

8 mm long up to max. 0.75 mm

2

,

10 mm and 12 mm long for all cross-sections

Design E

8 mm long up to max. 0.75 mm

2

,

10 mm and 12 mm long for all cross-sections

-

3 to 3.5 mm screwdriver, conic design

Screw terminal from 0.4 Nm to 0.7 Nm

-

Power supply elem ent

(screw term inal, for 35 m m m odule)

Power supply elem ent

(push-in term inal, for 25 m m m odule)

-

-

0.25 to 1.5 mm

2

AWG

*

: 24 to 16

0.25 to 1.5 mm

2

AWG

*

: 24 to 16

1 or combination of 2 wires up to 1.5 mm

2

(total) in the same end sleeve

8 to 11 mm (corresponding to length of end sleeve

**

:

8 mm, 10 mm)

Design A: 8 mm and10 mm long

Design E 8 mm and10 mm long

-

3 to 3.5 mm screwdriver, conic design

Push-in terminal

-

40 N

78

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring rules for ...

Recommended crimp shape for end sleeve

Wiring

5.5 Wiring rules

Power supply elem ent

(screw term inal, for 35 m m m odule)

-

Power supply elem ent

(push-in term inal, for 25 m m m odule)

Corresponding to crimping tool PZ 6/5

* American Wire Gauge

** End sleeve

Permissible cable temperature

Note

Permissible cable temperatures

At the max. ambient temperature of the S7-1500/ET 200MP system, you must select sufficiently large wire cross-sections so that the permissible cable temperatures are not exceeded.

Examples:

At an ambient temperature of 60° C, a current of, for example, 4 A per wire and a crosssection of 1.5 mm² Cu, a connecting cable must be rated for a temperature range of at least 90° C.

• At an ambient temperature of 60° C, a current of, for example, 2 A per wire and a crosssection of 1.5 mm² Cu, a connecting cable must be rated for a temperature range of at least 80° C.

Automation system

System Manual, 09/2016, A5E03461182-AD

79

Wiring

5.6 Connecting the supply voltage

5.6

Introduction

Connecting the supply voltage

The supply voltage of the CPU/interface module is supplied by means of a 4-pole connection plug, which is located on the front of the CPU.

Connection for supply voltage (X80)

The connections of the 4-pole connector have the following meaning:

+ 24 V DC of the supply voltage

Mass of the supply voltage

Mass of the supply voltage for looping (current limited to 10 A)

+ 24 V DC of the supply voltage for looping (current limited to 10 A)

Spring opener (one spring opener per terminal)

Figure 5-5 Connection for supply voltage

The maximum connector cross-section is 1.5 mm

2

. The cable connector offers you the option of looping the supply voltage uninterrupted, even when it is unplugged.

Requirements

● Only wire the cable connector when the supply voltage is turned off.

Observe the Wiring rules (Page 75).

Tools required

3 to 3.5 mm screwdriver

Tool-free connection of cables: multi-wire (stranded), with end sleeve or ultrasonic compressed

To connect a wire without tools, follow these steps:

1.

Strip 8 to 11 mm of the wires.

2.

Seal or crimp the wire with end sleeves.

3.

Insert the wire into the push-in terminal as far as it will go.

4.

Push the wired connector into the socket of the CPU/interface module.

80

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.7 Connecting system power supply and load current supply

Connection of wires: multi-wire (stranded), without end sleeve, unprocessed

To connect a wire without end sleeve, follow these steps:

1.

Strip 8 to 11 mm of the wires.

2.

Using a screwdriver, press the spring release and insert the wire into the push-in terminal as far as it will go.

3.

Pull the screwdriver out of the spring release.

4.

Push the wired connector into the socket of the CPU/interface module.

Loosening a wire

Push with the screwdriver as far as it will go into the spring release. Remove the wire.

Uninstalling the connection plug

To uninstall the connection plug, you need a screwdriver. With the screwdriver, pry the connection plug out of the CPU/interface module.

5.7

Introduction

Connecting system power supply and load current supply

In the delivery condition of the system power supplies/load current supplies, power connectors are inserted. The modules and the associated power connectors are coded. The coding is effected by means of two coding elements - one coding element is located in the module, and the other in the power connector. The system power supplies/load current supplies use identical power connectors for the voltage connection.

The coding element prevents the insertion of a power connector into a different type of system power supply/load current supply.

Tools required

3 to 3.5 mm screwdriver

Automation system

System Manual, 09/2016, A5E03461182-AD

81

Wiring

5.7 Connecting system power supply and load current supply

Connecting the supply voltage to a system power supply/load current supply

Watch video sequence

( https://support.industry.siemens.com/cs/media/67462859_connecting_supply_web_en/start.

htm )

To connect the supply voltage, follow these steps:

1.

Swing the front cover of the module up until the front cover latches.

2.

Press down the unlocking button of the power cable connector (Figure 1). Remove the power cable connector from the front of the module.

3.

Loosen the screw on the front of the connector. This loosens the housing latch and the cable relief. With a tightened screw the connector's cover can't be removed (Figure 2).

4.

Pry off the connector cover using a suitable tool (Figure 3).

Figure 5-6 Connecting the supply voltage to a system power supply/load current supply (1)

5.

Strip the cable sheathing to a length of 35 mm and the conductors to a length of 7 to 8 mm, and bring them up to the end sleeves.

6.

Connect the wires in the connector according to the connection diagram (Figure 4).

7.

Close the cover (Figure 5).

8.

Retighten the screw (Figure 6). This effects a strain relief on the lines.

Reference

82

Figure 5-7 Connecting the supply voltage to a system power supply/load current supply (2)

9.

Insert the power connector into the module, until the latch engages.

Additional information about connecting the 24 V DC output voltage of the load voltage supply modules is available in the manuals of the corresponding modules.

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.8 Connecting the CPU/interface module to the load current supply

5.8

Introduction

Connecting the CPU/interface module to the load current supply

The load current supply is equipped with a plug-in 24 V DC output terminal (behind the front cover at the bottom). You connect the wires for the supply voltage of the CPU/interface module to this terminal.

Requirements

● Only wire the connection plug when the supply voltage is turned off.

● The connection plug for connecting the supply voltage to the CPU/interface module is

already mounted. See section Connecting the supply voltage (Page 80).

Tools required

3 to 3.5 mm screwdriver

Automation system

System Manual, 09/2016, A5E03461182-AD

83

Wiring

5.8 Connecting the CPU/interface module to the load current supply

Connecting the CPU/interface module to a load current supply

Watch video sequence

( https://support.industry.siemens.com/cs/media/78027451_S7_1500_gs_wire_web_en/start.h

tm )

To connect the supply voltage, follow these steps:

1.

Open the front flap of the load current supply and pull the 24 V DC output terminal downwards.

2.

Connect the 24 V DC output terminal to the wires of the 4-pole connection plug of the

CPU/interface module. The cable cross-section can be 0.5 mm² to 2.5 mm².

3.

Connecting the load current supply to the CPU/interface module.

84

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.9 Connecting interfaces for communication

5.9

Connecting interfaces for communication

Connecting interfaces for communication

The communication interfaces of the CPU/interface module are connected using standardized connectors.

Use prefabricated connecting cables for the connection. If you want to prepare communication cables yourself, the interface assignment is specified in the manuals of the corresponding modules. Observe the mounting instructions for the connectors.

5.10

Introduction

Front connector for the I/O modules

The sensors and actuators of your plant are connected to the automation system by means of front connectors. Wire the sensors and actuators to the front connector and then plug it into the I/O module. You can either wire the front connector in the "pre-wiring position" that makes convenient wiring possible, or completely, before you insert it into the I/O module.

You can remove the front connector easily from the I/O module with the wiring attached. This means it is not necessary to loosen the wiring when you replace the module.

Automation system

System Manual, 09/2016, A5E03461182-AD

85

Wiring

5.10 Front connector for the I/O modules

Device versions of the front connector

Front connector 35 mm with screw terminals

Front connector 25 mm with push-in terminals

Front connector 35 mm with push-in terminals

Figure 5-8 Device versions of the front connector

86

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.10 Front connector for the I/O modules

Properties of the front connectors

The three different front connectors are characterized as follows:

● 40 clamping points each

● Connection system: Screw terminal (for 35 mm modules only) or push-in terminal

● Module width: 35 mm or 25 mm

● If you want to supply load groups with the same potential (non-isolated), use the potential bridges supplied for the front connector (with 35 mm width) for digital I/O modules. In four locations: 9 and 29, 10 and 30, 19 and 39, 20 and 40, the terminals can be bridged by means of potential bridges. Advantage: Reduction of the wiring effort.

Note

Use of potential bridges

The use of potential bridges depends on the relevant module used.

Potential bridges must not be used for 230 V modules. Use the potential bridges only with a maximum supply voltage of 24 V DC. The current capacity per potential bridge is 8 A maximum.

Owing to the different assignment for analog I/O modules, potential bridges must not be used.

The front connectors for 25 mm modules have no potential bridges.

Observe the instructions and wiring rules in the product manual of the respective I/O module when using potential bridges.

● In the delivery state a coding element is located in the module. When the front connector is first inserted into the I/O module, a part of the coding element clips onto the front connector. When the front connector is removed from the I/O module, one part of the coding element remains in the front connector, and the other part remains in the I/O module. The insertion of a front connector that is not suited to the module is thereby mechanically prevented. This ensures, for example, that the front connector with the coding element of a digital module cannot be inserted into an analog module.

Properties of the front connectors on fail-safe modules

In as-delivered condition, a fail-safe module not only has a mechanical coding element but also an electronic rewritable memory for the PROFIsafe address. This is the electronic coding element.

When the front connector is inserted in the F-module, the electronic coding element latches fully into place in the front connector. If you remove the front connector from the F-module, the memory with the PROFIsafe address of the fail-safe module remains in the front

connector (see section Replacing a front connector (Page 209)).

Reference

You can find additional information on the coding element in the section Coding element on the I/O module and on the front connector (Page 204).

Additional information on the use of the potential bridges can be found in the product manual for the respective I/O module.

Automation system

System Manual, 09/2016, A5E03461182-AD

87

Wiring

5.10 Front connector for the I/O modules

5.10.1

Wiring front connectors for I/O modules without shield contact element

Requirements

● The I/O modules are installed on the mounting rail.

● The supply voltages are turned off.

The cables are prepared according to the clamping technology used; take the Wiring rules (Page 75) into account for this purpose.

Tools required

● Stripping tool

● 3 to 3.5 mm screwdriver

Preparing and wiring front connectors for I/O modules without shield contact element

Proceed as follows to wire the front connector:

1.

As needed, switch off the load current supply.

2.

Place the included cable strain relief (cable tie) for the cable harness into the front connector (Figure 1).

3.

Swing the front cover of the wired I/O module up until the front cover latches (Figure 2).

Watch video sequence

( https://support.industry.siemens.com/cs/media/67462859_wiring_front_web_en/start.htm

)

88

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.10 Front connector for the I/O modules

4.

Bring the front connector into the pre-wiring position. To do this, hook the front connector into the bottom of the I/O module and swivel the front connector upward until the front connector latches (Figure 3).

Result: In this position, the front connector still protrudes from the I/O module (Figure 4).

However, front connector and I/O module are not yet electrically connected. By means of the pre-wiring position, you can easily wire the front connector.

Figure 5-9 Wiring front connectors for I/O modules without shield contact element

5.

Begin to completely wire the front connector.

6.

Put the strain relief around the cable harness, and pull the strain relief for the cable harness tight.

Automation system

System Manual, 09/2016, A5E03461182-AD

89

Wiring

5.10 Front connector for the I/O modules

Use of the potential bridges on 35 mm digital modules

With the delivered potential bridges, for digital modules with a maximum rated voltage of

24 V DC, you can bridge the terminals for the voltage supply and thus reduce the wiring effort. The bridges are used to connect the following pairs of opposing terminals: 9 and 29,

10 and 30, 19 and 39 as well as 20 and 40.

Reference

Additional information on wiring the inputs and outputs can be found in the manuals for the

I/O modules.

5.10.2

Wiring front connectors for I/O modules with shield contact element

Requirements

● The I/O modules are installed on the mounting rail.

● The supply voltages are turned off.

● The wires are prepared according to the clamping technology used. To do this, follow the

Wiring rules (Page 75).

Tools required

● Stripping tool

● 3 to 3.5 mm screwdriver

● Flat pliers

90

Automation system

System Manual, 09/2016, A5E03461182-AD

Details view

Wiring

5.10 Front connector for the I/O modules

The shielding bracket, the power supply element, and the shielding clamp are included in the scope of delivery for the analog and technology modules.

The following figure shows the details view of a front connector with shield connection element:

Shield clamp

Cable sheathing removed (approx. 20 mm)

Strain relief (cable tie)

Signal cables

Front connectors

Power supply element

Shielding bracket

Supply lines

+

Shield contact

Figure 5-10 Details view for front connectors with shield connection elements

Preparing front connectors for I/O modules with shield contact element

Watch video sequence

( https://support.industry.siemens.com/cs/media/67462859_wiring_shield_web_en/start.htm

)

To prepare the front connector for wiring, follow these steps:

1.

Remove the connection separator from the lower part of the connector (Figure 1).

2.

Insert the power supply element (Figure 2).

3.

Insert the shielding bracket from below into the guiding groove of the front connector until it latches into place (Figure 3).

Automation system

System Manual, 09/2016, A5E03461182-AD

91

Wiring

5.10 Front connector for the I/O modules

4.

Place the included cable strain relief (cable tie) for the cable harness into the front connector (Figure 4).

92

Figure 5-11 Preparing front connectors for I/O modules with shield contact element (1)

5.

Swing the front cover up until the front cover latches (Figure 5).

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.10 Front connector for the I/O modules

6.

Bring the front connector into the pre-wiring position. To do this, hook the front connector into the bottom of the I/O module and swivel it upwards until the front connector latches

(Figure 6).

Result: In this position, the front connector still protrudes from the I/O module (Figure 7).

However, front connector and I/O module are not yet electrically connected.

Figure 5-12 Preparing front connectors for I/O modules with shield contact element (2)

Automation system

System Manual, 09/2016, A5E03461182-AD

93

Wiring

5.10 Front connector for the I/O modules

7.

Wire the power supply element (Figure 8).

Terminals 41/42 and 43/44 are galvanically connected to each other. If you connect the supply voltage to 41 (L+) and 44 (M), you can then loop-through the potential to the next module with terminals 42 (L+) and 43 (M).

Figure 5-13 Preparing front connectors for I/O modules with shield connection element (3)

Wiring front connectors for I/O modules with shield contact element

To wire a front connector, follow these steps:

1.

Strip the cable shielding.

2.

Begin to completely wire the front connector (Figure 1).

94

Figure 5-14 Wiring front connectors for I/O modules with shield connection element (1)

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.10 Front connector for the I/O modules

3.

Put the strain relief (cable tie) around the cable harness, and pull the strain relief for the cable harness tight (Figure 2).

Figure 5-15 Wiring front connectors for I/O modules with shield connection element (2)

4.

Insert the shield clamp from below into the shielding bracket in order to connect the cable shielding (Figure 3).

Functions of the shield contact

The shield contact:

● Is needed to apply cable shields (e.g., for analog modules)

● Interference currents on cable shields are diverted from the shield connection to ground via the mounting rail. The shielding connection is not required at cable entry into the switchboard.

Reference

Figure 5-16 Wiring front connectors for I/O modules with shield connection element (3)

Additional information on wiring the inputs and outputs can be found in the manuals for the

I/O modules.

Automation system

System Manual, 09/2016, A5E03461182-AD

95

Wiring

5.10 Front connector for the I/O modules

5.10.3

Bringing the front connector into final position

Bring the front connector from the pre-wiring position into final position

Proceed as follows to bring the front connector from the pre-wiring position into final position:

1.

Grip the front connector by the unlocking strap.

2.

Pull on the strap until the front connector is released from its latched position.

3.

Tilt the top section of the front connector and raise it slightly. The front connector slides over the guide channel into its final position.

Figure 5-17 Bring the front connector from the pre-wiring position into final position

4.

Push the front connector back into the I/O module until it latches. The front connector is now electrically connected with the I/O module.

5.

Swivel the front cover down into place. Various latch positions are possible depending on the space requirement of the cable harness so that the required cable storage space can grow as needed.

96

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.10 Front connector for the I/O modules

Bringing the front connector directly into final position

Proceed as follows to bring the front connector directly into final position:

1.

Grip the front connector by the unlocking strap.

2.

Push the guide pin of the front connector into the guide channel that has been displaced downwards. The front connector slides over the guide channel into its final position.

Figure 5-18 Bringing the front connector directly into final position

3.

Tilt the front connector and press it into the I/O module until it latches. The front connector is now electrically connected with the I/O module.

4.

Swivel the front cover down into place. Various latch positions are possible depending on the space requirement of the cable harness so that the required cable storage space can grow as needed.

Automation system

System Manual, 09/2016, A5E03461182-AD

97

Wiring

5.11 Marking the I/O modules

5.11

Marking the I/O modules

5.11.1

Introduction

Labeling strips

Mark the pin assignment of the I/O modules using labeling strips. You can label the labeling strips as desired and slide them into the outside of the front cover.

The labeling strips are available in the following models:

● Pre-prepared strips that are included with the I/O module as delivered.

DIN A4 sheets, pre-perforated strips for machine printing; see section Accessories/spare parts (Page 253)

Preparing and installing the labeling strip

Proceed as follows to prepare and install the labeling strips:

1.

Label the labeling strip.

You can print labeling strips for the modules in your project with STEP 7. The labeling strips are exported to Microsoft Word DOCX files and printed from the text editing program. You can find more information in the online help.

2.

With a pre-perforated strip: Separate the labeling strip from the sheet.

3.

Slide the labeling strip into the outside of the front cover.

Labeling strips

Figure 5-19 Marking with labeling strips

98

Automation system

System Manual, 09/2016, A5E03461182-AD

Wiring

5.11 Marking the I/O modules

5.11.2

Introduction

Optional marking

On the I/O modules there is free space on the front cover, that permits an additional labeling or marking on the part of the customer.

Optional marking

The front cover provides about 30 mm x 10 mm of space in its lower part for an optional identifier label.

Free space for example for equipment identifiers

Figure 5-20 Optional marking

Automation system

System Manual, 09/2016, A5E03461182-AD

99

Configuring

Introduction

6

By configuring the individual hardware components, assigning their parameters, and connecting them, you communicate to the S7-1500 automation system/ET 200MP distributed I/O system its preset configuration and operating principle. You perform the work needed for this in the device and network views in STEP 7.

"Configuring" is understood to mean the arranging, setup and networking of devices and modules within the device view or network view of STEP 7. STEP 7 graphically represents modules and racks. Just like "real" module racks, the device view allows the insertion of a defined number of modules.

When the modules are inserted, STEP 7 automatically assigns the addresses and a unique hardware identifier (HW identifier). You can change the addresses later. The HW identifiers cannot be changed.

At startup, the system components compare the configured preset configuration with the actual configuration of the system. By means of parameter assignment, you can specify the response of the CPU to errors in the hardware configuration.

"Assigning parameters" is understood to mean setting the properties of the components used (CPU, modules).

The hardware configuration (result of "configuring" and "assigning parameters") is compiled and downloaded to the CPU. The CPU then connects to the configured components and transfers their configuration and parameters. Modules can be replaced very easily because when a new module is inserted, its configuration and parameters are transferred again.

6.1

Configuring the CPU

Requirements for configuration of the CPU

Configuration software

STEP 7(TIA Portal) as of V12.0

1)

Installation information

STEP 7 online help

1)

The following CPUs can be configured only in V12 or higher: CPU 1511-1 PN, CPU 1513-1 PN, CPU 1516-3 PN/DP.

Please note that all other CPUs can be configured only starting from a later version (e.g. V12 SP1). Refer to the product manual for the CPU to find out whether the version of the CPU you are using is configurable in STEP 7.

Reference

100

You can find an overview of the most important documents and links for the TIA Portal in the following FAQ on the Internet

( https://support.industry.siemens.com/cs/de/de/view/65601780/en ).

Automation system

System Manual, 09/2016, A5E03461182-AD

Configuring

6.1 Configuring the CPU

6.1.1

Introduction

Reading out the configuration

When a connection exists to a physically present CPU, you can load the configuration of this

CPU (including centrally present modules) from the device into your project using the

"Hardware detection" function. You do not need to manually configure the CPU and the centrally present modules, as the physical configuration is read out automatically.

If a CPU and the centrally present modules have already been configured and you want to load the current configuration and parameters in a new project, it is advisable to use the

"Upload device as new station" function. For additional information about this function, refer

to section Backing up and restoring the CPU configuration (Page 179).

Procedure for reading out an existing configuration

1.

Create a new project and configure an "Unspecified CPU 1500".

Figure 6-1 Unspecified S7-1500 CPU in the device view

Note

Click the link "detect" to open the "Hardware detection for PLC_x" dialog. An example can be found in the following FAQ on the Internet

( https://support.industry.siemens.com/cs/ww/de/view/41885693/en ).

An alternative procedure is described in step 2 and step 3.

Automation system

System Manual, 09/2016, A5E03461182-AD

101

Configuring

6.1 Configuring the CPU

2.

In the device view (or network view), select the "Hardware detection" command in the

"Online" menu.

Figure 6-2 Hardware detection in the Online menu

STEP 7 opens the "Hardware detection for PLC_x" dialog box.

102

Automation system

System Manual, 09/2016, A5E03461182-AD

Configuring

6.1 Configuring the CPU

3.

In the "Hardware detection for PLC_x" dialog box, click "Refresh". Then, select the CPU and click "Detect".

Figure 6-3 Hardware detection dialog box

Automation system

System Manual, 09/2016, A5E03461182-AD

103

Configuring

6.1 Configuring the CPU

Result of the hardware detection

STEP 7 has read out the hardware configuration and the modules and transferred them to your project. STEP 7 assigns a valid default parameter assignments for all modules. You can change the parameter assignment subsequently.

Figure 6-4 Result of the hardware detection in the device view

Note

If you want to go online after the hardware detection, you have to first download the detected configuration to the CPU; otherwise, an error may occur due to inconsistent configurations.

You can find an example of downloading a project to the CPU with STEP 7 in the following

FAQ on the Internet ( https://support.industry.siemens.com/cs/ww/de/view/42637263/en ).

104

Automation system

System Manual, 09/2016, A5E03461182-AD

Properties of the CPUs

The properties of the CPUs have special significance for system behavior. For a CPU, you can make the following settings in STEP 7, for example:

● Startup characteristics

● Parameter assignment of the interface(s), for example IP address, subnet mask

● Web server, e.g., activation, user administration, and languages

● OPC UA server

● Global Security Certificate Manager

● Cycle times, e.g., maximum cycle time

● Properties for the operation of the display

● System and clock memory

● Protection level for access protection with assigned password parameter

● Time and day settings (daylight saving/standard) For additional information, refer to the following FAQ on the Internet

( https://support.industry.siemens.com/cs/ww/de/view/43566349/en ).

The properties that can be set and the corresponding value ranges are specified by STEP 7.

Fields that cannot be edited are grayed out.

Reference

Configuring

6.1 Configuring the CPU

Information about the individual settings can be found in the online help and in the manual of the respective CPU.

Automation system

System Manual, 09/2016, A5E03461182-AD

105

Configuring

6.1 Configuring the CPU

6.1.2

Address assignment

6.1.2.1

Introduction

Addressing - overview

In order to address the automation components or I/O modules, unique addresses must be assigned to them. The various address areas are explained below.

I/O address

I/O addresses (input/output addresses) are required in the user program to read inputs and set outputs.

STEP 7 automatically assigns input and output addresses when modules are configured.

Each module uses a continuous range of input and/or output addresses corresponding to its volume of input and output data.

Figure 6-5 Example with input / output addresses from STEP 7

The address areas of the modules are assigned by default to the process image partition 0

("Automatic updating"). This process image partition is updated in the main cycle of the CPU.

Device address (e.g., Ethernet address)

Device addresses are addresses of modules with interfaces to a subnet (e.g., IP address or

PROFIBUS address). They are required in order to address the various devices on a subnet, e.g., in order to download a user program.

106

Automation system

System Manual, 09/2016, A5E03461182-AD

Configuring

6.1 Configuring the CPU

Hardware identifier

STEP 7 automatically assigns a hardware identifier (HW identifier) for identification and addressing of modules and submodules. The HW identifier is used, for example, for diagnostics alarms or for instructions, to identify the faulty module or the addressed module.

Figure 6-6 Example of a Hardware identifier from STEP 7

The "System constants" tab contains all hardware identifiers and their symbolic names (of

HW identifier) for the selected module.

The HW identifiers and names of all modules of a device are also available in the default tag table on the "System constants" tab.

Figure 6-7 Example of a default tag table from STEP 7

Automation system

System Manual, 09/2016, A5E03461182-AD

107

Configuring

6.1 Configuring the CPU

6.1.2.2

Introduction

Addressing digital modules

The addressing of digital modules is described below. In your user program, you require the addresses of the channels of the digital module.

Digital module addresses

The address of a digital module's input or output is composed of the byte address and the bit address. The channels of the digital module are assigned bit addresses.

Example: I 1.2

The example consists of:

I Input -

1 Byte address The byte address depends on the module start address

2 Bit address You read the bit address from the module

When you insert a digital module into a free slot, STEP 7 assigns a default address. You can change the proposed default address in STEP 7.

108

Automation system

System Manual, 09/2016, A5E03461182-AD

Configuring

6.1 Configuring the CPU

Example for the assignment of channel addresses (digital module)

The following figure shows how the addresses of the individual channels of the digital input module (e.g., 6ES7521-1BL00-0AB0) are determined.

Figure 6-8 Example for the assignment of channel addresses (digital module)

Note

You can assign symbolic names to the addresses at the following locations in STEP 7:

• PLC tag table

Properties of the module in the "IO Tags" tab.

Automation system

System Manual, 09/2016, A5E03461182-AD

109

Configuring

6.1 Configuring the CPU

Value status

The value status is additional binary information of a digital input or output signal. It is entered simultaneously with the process signal in the process image input and provides information about the validity of the input or output signal.

If you enable the value status for a digital module, then additional bytes are allocated in the input address area. Each bit in the value status is assigned to a channel and provides information about the validity of the process value. You can find the assignment in the product manual for the respective I/O module.

The value status is influenced by all diagnostics that might falsify the process value, e.g. wire break, short-circuit.

● 1

B

: A valid process value is being output or read for the channel.

● 0

B

: A substitute value is being output for the channel, or the channel is deactivated, faulty or inaccessible.

You can find additional information on evaluation and processing of the value status for failsafe digital modules in the SIMATIC Safety – Configuring and Programming

( http://support.automation.siemens.com/WW/view/en/54110126 ) manual.

Reference

Additional information on addressing and address allocation with value status can be found in the manuals of the digital modules, and in the online help for STEP 7. An example of the evaluation of the value status in the user program is available in the function manual

Diagnostics ( http://support.automation.siemens.com/WW/view/en/59192926 ).

6.1.2.3

Introduction

Addressing analog modules

The addressing of analog modules is described below. In your user program, you require the addresses of the channels of the analog module.

Analog module addresses

The address of an analog channel is always a word address. The channel address depends on the module start address. The channel addresses are automatically assigned during configuration in STEP 7. Based on the module start addresses, the assignment of the channel addresses occurs in increasing sequence (in the following figure, the module start address is 256).

When you insert an analog module into a free slot, STEP 7 assigns a default address. You can change the assigned default address in STEP 7.

110

Automation system

System Manual, 09/2016, A5E03461182-AD

Configuring

6.1 Configuring the CPU

Example for the assignment of channel addresses (analog module)

The following figure shows how the addresses of the individual channels of the analog input module (e.g., 6ES7531-7NF10-0AB0) are determined when the module has the start address 256.

Figure 6-9 Example for the assignment of channel addresses (analog module)

Note

You can assign symbolic names to the addresses at the following locations in STEP 7:

PLC tag table

• Properties of the module in the "IO Tags" tab.

Automation system

System Manual, 09/2016, A5E03461182-AD

111

Configuring

6.1 Configuring the CPU

Value status

The value status is additional binary information of an analog input or output value. It is entered simultaneously with the process value in the process image input and provides information about the validity of the analog value.

If you enable the value status for an analog module, then additional bytes are allocated in the input address area. Each bit in the value status is assigned to a channel and provides information about the validity of the process value. You can find the assignment in the product manual for the respective I/O module.

The value status is influenced by all diagnostics that might falsify the process value, e.g. wire break, short-circuit.

● 1

B

: A valid process value is being output or read for the channel.

● 0

B

: A substitute value is being output for the channel, or the channel is deactivated, faulty or inaccessible.

Reference

Additional information on addressing and address allocation with value status can be found in the manuals of the analog modules, and in the online help for STEP 7. A detailed description of the value status for analog modules is available in the function manual Analog value processing ( http://support.automation.siemens.com/WW/view/en/67989094 ). An example of the evaluation of the value status in the user program is available in the function manual Diagnostics ( http://support.automation.siemens.com/WW/view/en/59192926 ).

6.1.3

Process images and process image partitions

6.1.3.1

Process image - overview

Process image of the inputs and outputs

When the user program addresses the input (I) and output (O) operand areas, it does not query the signal states directly from the I/O modules. Instead, it accesses a memory area of the CPU. This memory area contains an image of the signal states and is called the process image.

Advantages of the process image

A process image allows you to access a consistent image of process signals during cyclic program execution. If a signal state at an input module changes during program processing, the signal state is retained in the process image. The process image is not updated until the next cycle.

112

Automation system

System Manual, 09/2016, A5E03461182-AD

Configuring

6.1 Configuring the CPU

Consistency of the process image

When the process image is updated, the S7-1500 accesses the data of each submodule as consistent data. The maximum data width that is accessed as consistent data for each submodule is dependent on the IO system. For PROFINET IO, for example, this data width is 1024 bytes.

32 process image partitions

By means of process image partitions, the CPU synchronizes the updated inputs/outputs of particular modules with defined user program sections.

In the S7-1500 automation system, the overall process image is subdivided into up to 32 process image partitions (PIP).

PIP 0 (automatic update) is automatically updated in each program cycle and is assigned to

OB 1.

Process image partitions PIP 1 through PIP 31 can be assigned to the other OBs. In

STEP 7, this assignment occurs during configuration of the I/O modules.

After the OB has been started, the assigned process image partition of inputs is updated by the system and the process signals are read in. At the end of the OB the outputs of the assigned process image partition are written directly to the peripheral outputs by the system without having to wait for the termination of the cyclic program processing.

6.1.3.2

Assign process image partitions to an OB

Update process image partition

You can assign a process image partition to an OB. In this case, the process image partition is automatically updated.

The process image partition of the inputs (PIPI) is always read in/updated before the processing of the associated OB. The process image partition of the outputs (PIPQ) is always output at the end of the OB.

The following figure illustrates the updating of a process image partition.

Figure 6-10 Update process image partitions

Automation system

System Manual, 09/2016, A5E03461182-AD

113

Configuring

6.1 Configuring the CPU

6.1.3.3

Update process image partitions in the user program

Requirements

As an alternative to the automatic updating and to updating by assignment to an OB, you can use the instruction "UPDAT_PI" or the instruction "UPDAT_PO" at the start or the at the end of the respectively assigned OB to update the process image. In STEP 7, these instructions are available on the "Instructions" Task Card under "Extended instructions" and may be called from any point in the program.

Requirements for updating process image partitions with the "UPDAT_PI" and "UPDAT_PO" instructions:

● The process image partitions cannot be assigned to any OB, i.e. they cannot be automatically updated.

● PIP 0 (automatic update) can likewise not be updated with the "UPDAT_PI" and

"UPDAT_PO" instructions.

UPDAT_PI: Update process image partition of the inputs

With this instruction you read the signal states from the input modules into the process image partition of the inputs (PIPI).

UPDAT_PO: Update process image partition of the outputs

With this instruction you transmit the process image partition of the outputs to the output modules.

Isochronous mode interrupt OBs

In the isochronous mode interrupt OBs you use the instructions "SYNC_PI" and "SYNC_PO" to update the process image partitions. Additional information on isochronous mode interrupt

OBs is available in the STEP 7 online help.

Direct I/O access to the inputs and outputs of the module

You also have direct read and write access to the I/O, as an alternative to access via the process image, should direct access be required for programming reasons. A direct (write)

I/O access also writes the process image. This prevents the situation where a subsequent output of the process image overwrites the value written via direct access again.

Reference

Additional information on process image partitions is available found in the function manual,

Cycle and response times ( http://support.automation.siemens.com/WW/view/en/59193558 ).

114

Automation system

System Manual, 09/2016, A5E03461182-AD

Configuring

6.2 Configuring ET 200MP distributed I/O system

6.2

Introduction

Configuring ET 200MP distributed I/O system

You configure and assign parameters to the ET 200MP (interface module and I/O modules) with STEP 7 or in the configuration software of another manufacturer.

Requirements

Table 6- 1 Requirements for installation

Configuration software Requirements

STEP 7 (TIA Portal) as of V13

1)

IM 155-5 PN ST and IM 155-5 DP ST: as of firmware version V2.0.0

Installation information

STEP 7 online help

STEP 7 V5.5 SP3 or higher

Software of another manufacturer

IM 155-5 PN HF: as of firmware version V1.0.0

PROFINET IO GSD file: GSDML-Vx.y-siemenset200mp-"Date in format yyyymmdd".xml

( http://support.automation.siemens.com/WW/view/en/19

698639/130000 )

STEP 7 online help

Manufacturer documentation

PROFIBUS DP GSD file: SI0xxxxx.gsx

( http://support.automation.siemens.com/WW/view/en/10

805317/133300 )

1)

The TIA Portal supports GSDML specification V2.25. The ET 200MP is delivered with a GSD file based on specification

V2.3. The GSD file can be installed and used in the TIA Portal.

Reference

You can find an overview of the most important documents and links for the TIA Portal in the following FAQ on the Internet

( https://support.industry.siemens.com/cs/de/de/view/65601780/en ).

Configuring operation on PROFIBUS DP using a GSD file

If you want to configure the operation on the PROFIBUS DP using GSD file, note the following additional requirements:

Table 6- 2 Requirements for PROFIBUS DP with GSD file

I/O modules

Input/output modules 35 mm

Input/output modules 25 mm

Technology modules (TM)

Communications modules CM PtP

Required firmware version

IM 155-5 DP ST as of ...

V1.0.0

V2.0.0

V2.0.0

V1.0.0

Required firmware version I/O modules as of ...

V2.0

V1.0

V1.1

V1.0.1

Automation system

System Manual, 09/2016, A5E03461182-AD

115

Configuring

6.3 Assigning PROFIsafe address to fail-safe modules with SIMATIC Safety

6.3

Assigning PROFIsafe address to fail-safe modules with SIMATIC

Safety

The PROFIsafe address is saved permanently on the electronic coding element of the

S7-1500/ET 200MP fail-safe modules. You can find additional information on the electronic

coding element in the section Replacing the coding element at the power connector of the system power supply and load current supply (Page 211).

Note

The supply voltage L+ must be applied to the F-module during the assignment of the

PROFIsafe address (F-destination address together with F-source address).

For additional information on assigning the PROFIsafe address (F-destination address together with the F-source address), refer to the SIMATIC Safety - Configuring and

Programming ( http://support.automation.siemens.com/WW/view/en/54110126 ) programming and operating manual and the online help.

116

Automation system

System Manual, 09/2016, A5E03461182-AD

Basics of program execution

7

7.1

Events and OBs

Response to triggers

The occurrence of a trigger results in the following reaction:

● If the event comes from an event source to which you have assigned an OB, this event triggers the execution of the assigned OB. The event enters the queue according to its priority.

● If the event comes from an event source to which you have not assigned an OB, the default system reaction is executed.

Note

Some event sources, such as startup, pull/plug, exist even if you do not configure them.

Triggers

The table below provides an overview of the triggers, including the possible values for OB priority, possible OB numbers, default system reaction and number of OBs.

Table 7- 1 Triggers

Types of event sources

Startup

2)

Cyclic program

2)

Time-of-day interrupt

Cyclic interrupt

2)

Hardware interrupt

2)

Status interrupt

2)

Time-delay interrupt

2)

Update interrupt

Manufacturer-specific or profile-specific interrupt

Possible priorities (default priority)

1

1

2 to 24 (2)

2 to 24 (3)

2 to 24 (8 to 17, frequency dependent)

2 to 26 (18)

2 to 24 (4)

2 to 24 (4)

2 to 24 (4)

Isochronous mode interrupt 16 to 26 (21)

Time error

3)

22

Maximum cycle time exceeded once

Diagnostics interrupt 2 to 26 (5)

Possible OB numbers

100, ≥ 123

1, ≥ 123

10 to 17, ≥ 123

20 to 23, ≥ 123

30 to 38, ≥ 123

Default system reaction

1)

Ignore

Ignore

Not applicable

Not applicable

Not applicable

40 to 47, ≥ 123

55

56

57

61 to 64, ≥ 123

80

82

Ignore

Ignore

Ignore

Ignore

Ignore

Ignore

STOP

Ignore

Number of OBs

0 to 100

0 to 100

0 to 20

0 to 20

0 to 20

0 to 50

0 or 1

0 or 1

0 or 1

0 to 2

0 or 1

0 or 1

Automation system

System Manual, 09/2016, A5E03461182-AD

117

Basics of program execution

7.1 Events and OBs

Types of event sources

Removal/insertion of modules

Rack error

MC servo

4)

MC pre-servo

4)

MC post-servo

4)

Possible priorities (default priority)

2 to 26 (6)

2 to 26 (6)

17 to 26 (25)

17 to 26 (25)

17 to 26 (25)

MC interpolator

4)

Programming error (only for global error handling)

I/O access error (only for global error handling)

16 to 26 (24)

2 to 26 (7)

2 to 26 (7)

1)

If you have not configured the OB.

Possible OB numbers

83

86

91

67

95

92

121

122

Default system reaction

Ignore

Ignore

1)

Not applicable

Not applicable

Not applicable

Not applicable

STOP

Ignore

Number of OBs

0 or 1

0 or 1

0 or 1

0 or 1

0 or 1

0 or 1

0 or 1

0 or 1

2)

For these event sources, apart from the permanently assigned OB numbers (see column: possible OB numbers), you can also assign OB numbers from the range ≥ 123 in STEP 7.

3)

If the maximum cycle time has been exceeded twice within a cycle, the CPU always switches to STOP regardless of whether you have configured OB80.

4)

You can find additional information about these event sources and the runtime behavior in the S7-1500 Motion Control function manual.

Assignment between event source and OBs

The type of OB determines where you make the assignment between OB and event source:

● With hardware interrupts and isochronous mode interrupts, the assignment is made during the configuration of the hardware or when the OB is created.

● For MC servo, MC pre-servo, MC post-servo and MC interpolator, STEP 7 automatically assigns OBs 91/92 as soon as a technology object is added.

● For all other types of OB, the assignment is made when the OB is created, where applicable after you have configured the event source.

For hardware interrupts, you can change an assignment which has already been made during runtime with the instructions ATTACH and DETACH. In this case, only the actually effective assignment changes, and not the configured assignment. The configured assignment takes effect after loading, and upon each startup.

The CPU ignores hardware interrupts to which you did not assign an OB in your configuration or which occur after the DETACH instruction. The check as to whether an OB is assigned to an event does not take place when the associated event occurs, but only when the hardware interrupt actually has to be executed.

118

Automation system

System Manual, 09/2016, A5E03461182-AD

Basics of program execution

7.1 Events and OBs

OB priority and runtime behavior

If you have assigned an OB to the event, the OB has the priority of the event. S7-1500 CPUs support the priority classes 1 (lowest) to 26 (highest). The following items are essential to the execution of an event:

● Call and execution of the assigned OB

● The update of the process image partition of the assigned OB

The user program processes the OBs exclusively on a priority basis. This means the program processes the OB with the highest priority first when multiple OB requests occur at the same time. If an event occurs that has a higher priority than the currently active OB, this

OB is interrupted. The user program processes events of the same priority in order of occurrence.

Note

Communication

The communication (e.g. test functions with the PG) always works with priority 15. To prevent extending the program runtime unnecessarily in time-critical applications, these OBs should not be interrupted by communication. Assign a priority > 15 for these OBs.

Reference

Additional information on organization blocks is available in the STEP 7 online help.

Automation system

System Manual, 09/2016, A5E03461182-AD

119

Basics of program execution

7.2 CPU overload behavior

7.2

CPU overload behavior

Requirements

For the event scenarios considered in the following section, it is assumed that you have assigned an OB to each event source and that these OBs have the same priority. The second condition, in particular, is only for the sake of a simplified representation.

Principle of CPU overload behavior

An occurring event triggers the execution of the associated OB. Depending on the OB priority and the current processor load, a time delay may occur before the OB is executed when there is an overload. The same event can therefore occur once or several times before the user program processes the OB belonging to the preceding event. The CPU treats such a situation as follows: The operating system queues the events in the queue associated with their priority in the order of their occurrence.

To control temporary overload situations, you can limit the number of queued events that originate from the same source. The next event is discarded as soon as the maximum number of pending triggers of a specific cyclic interrupt OB, for example, is reached.

An overload occurs when events which originate from the same source occur faster than they can be processed by the CPU.

More detailed information is provided in the following sections.

Discarding similar events or fetching them later

Below, the term "similar events" refers to events from a single source, such as triggers for a specific cyclic interrupt OB.

The OB parameter "Events to be queued" is used to specify how many similar events the operating system places in the associated queue and therefore post-processes. If this parameter has the value 1, for example, exactly one event is stored temporarily.

Note

Post-processing of cyclic events is often not desirable, as this can lead to an overload with

OBs of the same or lower priority. Therefore, it is generally advantageous to discard similar events and to react to the overload situation during the next scheduled OB processing. If the value of the "Events to be queued" parameter is low, this ensures that an overload situation is mitigated rather than aggravated.

If the maximum number of triggers is reached in the queue for a cyclic interrupt OB (Cyclic interrupt), for example, each additional trigger is only counted and subsequently discarded.

During the next scheduled execution of the OB, the CPU provides the number of discarded triggers in the "Event_Count" input parameter (in the start information). You can then react appropriately to the overload situation. The CPU then sets the counter for lost events to zero.

If the CPU, for example, first discards a trigger for a cyclic interrupt OB, its further behavior depends on the OB parameter "Report event overflow into diagnostic buffer": If the check box is selected, the CPU enters the event DW#16#0002:3507 once in the diagnostics buffer for the overload situation at this event source. The CPU suppresses additional diagnostics buffer entries of the event DW#16#0002:3507 until all events from this source have been post-processed.

120

Automation system

System Manual, 09/2016, A5E03461182-AD

Basics of program execution

7.3 Asynchronous instructions

Threshold mechanism for time error OB request

The OB parameter "Enable time error" is used to specify whether the time error OB is to be called at a defined overload for similar events. You can find the OB parameter "Enable time error" in the properties of the OB in the "Attributes" category.

When you enable the time error OB (check box selected), use the OB parameter "Event threshold for time error" to specify the number of similar events in the queue as of which the time error OB is called. If this parameter has the value 1, for example, the CPU enters the event DW#16#0002:3502 once in the diagnostics buffer and requests the time error OB when the second event occurs. The CPU suppresses additional diagnostics buffer entries of the event DW#16#0002:3502 until all events from this source have been post-processed.

In the event of an overload, you therefore have the option of programming a reaction well before the limit is reached for similar events and thus before the events are discarded.

The following value range applies to the "Event threshold for time error" parameter:

1 ≤ "Event threshold for time error" ≤ "Events to be queued".

7.3

Asynchronous instructions

Difference between synchronous and asynchronous instructions

During program execution a distinction is made between synchronous and asynchronous instructions.

The "synchronous" and "asynchronous" properties relate to the temporal relationship between the call and execution of the instruction.

The following applies to synchronous instructions: When the call of a synchronous instruction is complete, execution of the instruction is also complete.

This is different in the case of asynchronous instructions: When the call of an asynchronous instruction is complete, execution of the asynchronous instruction is not necessarily complete yet. This means the execution of an asynchronous instruction can extend over multiple calls. The CPU processes asynchronous instructions in parallel with the cyclic user program. Asynchronous instructions generate jobs in the CPU for their processing.

Asynchronous instructions are usually instructions for transferring data (data records for modules, communication data, diagnostic data, etc.).

Automation system

System Manual, 09/2016, A5E03461182-AD

121

Basics of program execution

7.3 Asynchronous instructions

Processing of asynchronous instructions

The figure below shows the difference between the processing of an asynchronous instruction and a synchronous instruction. In this figure the asynchronous instruction is called five times before its execution is complete, e.g. a data record has been completely transferred.

First call of the asynchronous instruction, start of execution

Intermediate call of the asynchronous instruction, execution continues

Last call of the asynchronous instruction, completion of execution

The synchronous instruction is completely executed at each call

Duration of complete execution

Figure 7-1 Difference between asynchronous and synchronous instructions

Parallel processing of asynchronous instruction jobs

A CPU can process several asynchronous instruction jobs in parallel. The CPU processes the jobs in parallel under the following conditions:

● Several asynchronous instruction jobs are called at the same time.

● The maximum number of simultaneously running jobs for the instruction is not exceeded.

The figure below shows the parallel processing of two jobs of the WRREC instruction. The two instructions are executed simultaneously for a certain duration.

122

Figure 7-2 Parallel processing of the asynchronous instruction WRREC

Automation system

System Manual, 09/2016, A5E03461182-AD

Basics of program execution

7.3 Asynchronous instructions

Assignment of call to job of the instruction

To execute an instruction over multiple calls, the CPU must be able to uniquely relate a subsequent call to a running job of the instruction.

To relate a call to a job, the CPU uses one of the following two mechanisms, depending on the type of the instruction:

● Using the instance data block of the instruction (for "SFB" type)

● Using job-identifying input parameters of the instruction. These input parameters must match in each call during processing of the asynchronous instruction.

Example: A job of the "Create_DB" instruction is identified by input parameters

LOW_LIMIT, UP_LIMIT, COUNT, ATTRIB and SRCBLK.

The following table shows which input parameters you use to identify which instruction.

Instruction

DPSYC_FR

D_ACT_DP

DPNRM_DG

WR_DPARM

WR_REC

RD_REC

CREATE_DB

READ_DBL

WRIT_DBL

RD_DPARA

DP_TOPOL

Job is identified by

LADDR, GROUP, MODE

LADDR

LADDR

LADDR, RECNUM

LADDR, RECNUM

LADDR, RECNUM

LOW_LIMIT, UP_LIMIT, COUNT, ATTRIB,

SRCBLK

SRCBLK, DSTBLK

SRCBLK, DSTBLK

LADDR, RECNUM

DP_ID

Automation system

System Manual, 09/2016, A5E03461182-AD

123

Basics of program execution

7.3 Asynchronous instructions

Status of an asynchronous instruction

An asynchronous instruction shows its status via the block parameters STATUS/RET_VAL and BUSY. Many asynchronous instructions also use the block parameters DONE and

ERROR.

The figure below shows the two asynchronous instructions WRREC and CREATE_DB.

The input parameter REQ starts the job to execute the asynchronous instruction.

The output parameter DONE indicates that the job was completed without error.

The output parameter BUSY indicates whether the job is currently being executed. When

BUSY =1, a resource is allocated for the asynchronous instruction. When BUSY = 0, the resource is free.

The output parameter ERROR indicates that an error has occurred.

The output parameter STATUS/RET_VAL provides information on the status of the job execution. The output parameter STATUS/RET_VAL receives the error information after the occurrence of an error.

Figure 7-3 Block parameters of asynchronous instructions using the instructions WRREC and

CREATE_DB as examples.

Summary

The table below provides you with an overview of the relationships described above. It shows in particular the possible values of the output parameters if execution of the instruction is not complete after a call.

Note

You must evaluate the relevant output parameters in your program after each call

124

Automation system

System Manual, 09/2016, A5E03461182-AD

Basics of program execution

7.3 Asynchronous instructions

Seq. no. of the call

1

2 to (n - 1) n

Relationship between REQ, STATUS/RET_VAL, BUSY and DONE during a "running" job.

Type of call REQ STATUS/RET_VAL BUSY

First call 1 W#16#7001

Error code (e.g. W#16#80C3 for lack of resources)

Intermediate call Not relevant W#16#7002

Last call Not relevant W#16#0000, if no errors have occurred.

Error code if errors occurred.

1

0

1

0

0

0

1

0

DONE

0

0

0

0

1

ERROR

0

1

Use of resources

Asynchronous instructions use resources in the CPU during their execution. The resources are limited depending on the type of CPU and instruction; the CPU can simultaneously process only a maximum number of asynchronous instruction jobs. The resources are available again after a job has been processed successfully or with errors.

Example: For the RDREC instruction, an S7-1500 CPU can process up to 20 jobs in parallel.

If the maximum number of simultaneously running jobs for an instruction is exceeded, the instruction returns error code 80C3 (lack of resources) in the STATUS block parameter. The execution of the job is stopped until a resource becomes free again.

Note

Lower-level asynchronous instructions

Some asynchronous instructions use one or more lower-level asynchronous instructions for their processing. This dependence is shown in the tables below.

Please note that with multiple lower-level instructions, only one lower-level resource is typically allocated at a time.

Automation system

System Manual, 09/2016, A5E03461182-AD

125

Basics of program execution

7.3 Asynchronous instructions

Extended instructions: maximum number of simultaneously running jobs

The following table shows the maximum number of simultaneously running jobs for asynchronous extended instructions.

Extended instructions 1505S 1511(F)

1511C

1511T

1507S

1512C

1513(F)

1515(F)

1515T

1516(F) 1517(F)

1517T(F)

1518(F)

1518(F)ODK

Distributed I/O

RDREC

RD_REC

WRREC

WR_REC

D_ACT_DP

ReconfigIOSystem

DPSYC_FR

DPNRM_DG

DP_TOPOL

ASI_CTRL

PROFIenergy uses RDREC, WRREC

2

8

1

PE_START_END

PE_CMD

PE_DS3_Write_ET200S uses RDREC, WRREC uses RDREC, WRREC uses RDREC, WRREC

PE_WOL

Module parameter assignment uses RDREC, WRREC, TUSEND, TURCV, TCON, TDISCON

RD_DPAR

RD_DPARA

RD_DPARM

WR_DPARM

Diagnostics

Get_IM_Data

GetStationInfo

Recipes and data logging

RecipeExport

RecipeImport uses RDREC, WRREC, D_ACT_DP,

20

20

8

10

10

10

10

10

10

DataLogCreate

DataLogOpen

DataLogWrite

DataLogClear

DataLogClose

DataLogDelete

DataLogNewFile

Data block functions

CREATE_DB

10

10

10

10

10

10

10

10

10

10

126

Automation system

System Manual, 09/2016, A5E03461182-AD

Basics of program execution

7.3 Asynchronous instructions

Extended instructions

READ_DBL

WRIT_DBL

DELETE_DB

1505S 1511(F)

1511C

1511T

1507S

1512C

1513(F)

1515(F)

1515T

1516(F) 1517(F)

1517T(F)

1518(F)

1518(F)ODK

10

10

10

Basic instructions: maximum number of simultaneously running jobs

The following table shows the maximum number of simultaneously running jobs for asynchronous basic instructions.

Basic instructions 1505S 1511(F)

1511C

1511T

1507S

1512C

1513(F)

1515(F)

1515T

1516(F) 1517(F)

1517T(F)

1518(F)

1518(F)ODK

Array DB

ReadFromArrayDBL

WriteToArrayDBL uses READ_DBL (see Extended instructions) uses READ_DBL, WRIT_DBL (see Extended instructions)

Communication: maximum number of simultaneously running jobs

The following table shows the maximum number of simultaneously running jobs for asynchronous instructions (Open User Communication) for the various CPUs.

Open User Communication 1505S

88

1511(F)

1511C

1511T

96

1507S

1512C

1513(F)

128

1515(F)

1515T

192

1516(F) 1517(F)

1517T(F)

256 320

1518(F)

1518(F)ODK

384 TSEND

TUSEND

TRCV

TURCV

TCON

TDISCON

88

88

88

96

96

96

128

128

128

192

192

192

256

256

256

320

320

320

384

384

384

T_RESET

T_DIAG

T_CONFIG

TSEND_C

TRCV_C

TMAIL_C

88

88

96

96

128

128

192

192

1 uses TSEND, TUSEND, TRCV, TCON, TDISCON

256

256 uses TSEND, TUSEND, TRCV, TURCV, TCON, TDISCON uses TSEND, TUSEND, TRCV, TURCV, TCON, TDISCON

320

320

384

384

Automation system

System Manual, 09/2016, A5E03461182-AD

127

Basics of program execution

7.3 Asynchronous instructions

The following table shows the maximum number of simultaneously running jobs for asynchronous instructions (MODBUS TCP) for the various CPUs.

MODBUS TCP

MB_CLIENT

MB_SERVER

1505S 1511(F)

1511C

1507S

1512C

1515(F)

1515T

1516(F) 1517(F)

1517T(F)

1511T 1513(F) uses TSEND, TUSEND, TRCV, TURCV, TCON, TDISCON uses TSEND, TUSEND, TRCV, TURCV, TCON, TDISCON

1518(F)

1518(F)ODK

S7 communication

The table below shows the maximum number of simultaneously running jobs for asynchronous instructions (S7 communication) for the various CPUs. The S7 communication instructions use a common pool of resources.

1505S

264

1511(F)

1511C

1511T

288

1507S

1512C

1513(F)

384

1515(F)

1515T

576

1516(F) 1517(F)

1517T(F)

768 960 1152 PUT

GET

USEND

URCV

BSEND

BRCV

1518(F)

1518(F)ODK

The following table shows the maximum number of simultaneously running jobs for asynchronous instructions (communications processors) for the various CPUs.

Communications processors 1505S 1511(F)

1511C

1511T

1507S

1512C

1513(F)

1515(F)

1515T

1516(F) 1517(F)

1517T(F)

1518(F)

1518(F)ODK

PtP communication

Port_Config

Send_Config

Receive_Config

Send_P2P

Receive_P2P

Receive_Reset

Signal_Get uses RDDEC, WRREC uses RDDEC, WRREC uses RDDEC, WRREC uses RDDEC, WRREC uses RDDEC, WRREC uses RDDEC, WRREC uses RDDEC, WRREC uses RDDEC, WRREC uses RDDEC, WRREC uses RDDEC, WRREC

Signal_Set

Get_Features

Set_Features

USS communication

USS_Port_Scan

MODBUS (RTU)

Modbus_Comm_Load

ET 200S serial interface

S_USSI

SIMATIC NET CP

FTP_CMD uses RDDEC, WRREC uses RDDEC, WRREC uses CREATE_DB uses TSEND, TRCV, TCON, TDISCON

128

Automation system

System Manual, 09/2016, A5E03461182-AD

Basics of program execution

7.3 Asynchronous instructions

Technology: maximum number of simultaneously running jobs

The following table shows the maximum number of simultaneously running jobs for asynchronous instructions (technology).

Technology 1511(F)

1511C

1512C

1513(F)

1511T 1505S

1515(F)

1516(F)

1515T 1507S 1517(F) 1517T(F) 1518(F)

1518(F)ODK

S7-1500 Motion Control

MC_Power

MC_Reset

MC_Home

MC_Halt

MC_MoveAbsolute

MC_MoveRelative

MC_MoveVelocity

MC_MoveJog

MC_GearIn

MC_MoveSuperimposed

MC_MeasuringInput

MC_MeasuringInputCyclic

MC_AbortMeasuringInput

MC_OutputCam

MC_CamTrack

MC_TorqueLimiting

MC_SetSensor

MC_GearInPos

MC_SynchronizedMotionSim ulation

MC_PhasingAbsolute

MC_PhasingRelative

MC_CamIn

MC_InterpolateCam

MC_GetCamLeadingValue

MC_GetCamFollowingValue

-

300

300 -

1500

1500

3000

- -

4800

4800

6400

-

Reference

You can find additional information on block parameter assignment in the STEP 7 online help.

Automation system

System Manual, 09/2016, A5E03461182-AD

129

Protection

8

8.1

Introduction

Overview of the protection functions

This chapter describes the following functions for protecting the S7-1500 automation system/ET 200MP distributed I/O system against unauthorized access:

Protection functions

Access protection

Know-how protection

Copy protection

Protection by locking the CPU/interface module

S7-1500 ET 200MP

✓ ---

---

---

✓ ✓

Further measures for protecting the CPU

The following measures additionally increase the protection against unauthorized access to functions and data of the S7-1500 CPU from external sources and via the network:

● Deactivation of the Web server

● Deactivation of the OPC UA server (you can find additional information on the security mechanisms for OPC UA server in the Communication

( https://support.industry.siemens.com/cs/de/de/view/59192925/en ) Function Manual)

● Deactivation of the time synchronization via an NTP Server

● Deactivation of the PUT/GET communication

When you use Web server, protect your S7-1500 automation system against unauthorized access:

● By setting password-protected access rights for specific users in the user administration.

● By using the pre-set option "Permit access only via HTTPS".

The option allows access to the web server only with the secure hypertext transmission protocol HTTPS.

130

Automation system

System Manual, 09/2016, A5E03461182-AD

Protection

8.2 Configuring access protection for the CPU

8.2

Introduction

Configuring access protection for the CPU

The CPU offers four access levels to limit access to specific functions.

By setting up the access levels and the passwords for a CPU, you limit the functions and memory areas that are accessible without entering a password. The individual access levels as well as their associated passwords are specified in the object properties of the CPU.

Access levels of the CPU

Table 8- 1 Access levels and access restrictions

Access levels Access restrictions

Complete access (no protection)

The hardware configuration and the blocks can be read and changed by all users.

Read access With this access level, read-only access to the hardware configuration and the blocks is possible without entering a password, which means you can download hardware configuration and blocks to the programming device. In addition, HMI access and access to diagnostics data is possible.

Without entering the password, you cannot load any blocks or hardware configuration into the CPU. Additionally, the following are not possible without the password: Writing test functions and firmware update (online).

HMI access

No access

(complete protection)

With this access level only HMI access and access to diagnostics data is possible without entering the password.

Without entering the password, you can neither load blocks and hardware configuration into the CPU, nor load blocks and hardware configuration from the CPU into the programming device.

Additionally, the following are not possible without the password: Test functions, changing the operating mode (RUN/STOP), firmware update and display of online/offline comparison status.

When the CPU has complete protection, no read or write access to the hardware configuration and the blocks is possible (without access authorization in the form of a password). HMI access is also not possible. The server function for PUT/GET communication is disabled in this access level (cannot be changed).

Authentication with the password will again provide you full access to the CPU.

A list of which functions are available in the different access levels is available in the "Setting options for the protection" entry in the STEP 7 online help.

Automation system

System Manual, 09/2016, A5E03461182-AD

131

Protection

8.2 Configuring access protection for the CPU

Properties of the access levels

Each access level allows unrestricted access to certain functions without entering a password, e.g. identification using the "Accessible devices" function.

The CPU's default setting is "No restriction" and "No password protection". In order to protect access to a CPU, you must edit the properties of the CPU and set up a password. In the default access level "Full access (no protection)" every user can read and change the hardware configuration and the blocks. A password is not set and is also not required for online access.

Communication between the CPUs (via the communication functions in the blocks) is not restricted by the access level of the CPU, unless PUT/GET communication is deactivated in the "No access" (complete protection) access level.

Entry of the right password allows access to all the functions that are allowed in the corresponding level.

Note

Configuring an access level does not replace know-how protection

Configuring access levels offers a high degree of protection against unauthorized changes on the CPU by restricting the rights to download the hardware and software configuration to the CPU. However, blocks on the SIMATIC memory card are not write- or read-protected.

Use know-how protection to protect the code of blocks on the SIMATIC memory card.

Behavior of functions with different access levels

The STEP 7 online help includes a table which lists the online functions that are available in the different access levels.

132

Automation system

System Manual, 09/2016, A5E03461182-AD

Protection

8.2 Configuring access protection for the CPU

Parameterizing the procedure at access levels

To configure the access levels of an S7-1500 CPU, follow these steps:

1.

Open the properties of the S7-1500 CPU in the Inspector window.

2.

Open the "Protection" entry in the area navigation.

A table with the possible access levels appears in the Inspector window.

Figure 8-1 Possible access levels

3.

Activate the desired protection level in the first column of the table. The green check marks in the columns to the right of the respective access level show you which operations are still available without entering the password. In the example (see above), read access and HMI access is still possible without a password.

4.

In the "Enter password" column, specify a password for the access level "Full access" in the first row. In the "Confirm password" column, enter the selected password again to guard against incorrect entries.

Ensure that the password is sufficiently secure, in other words, that is does not follow a pattern that can be recognized by a machine!

5.

Assign additional passwords to other access levels as needed, if the selected access level calls for this.

6.

Download the hardware configuration for the access level to take effect.

The CPU logs the entry of the correct or incorrect password and any changes in the configuration of the access levels by a corresponding entry in the diagnostics buffer.

Automation system

System Manual, 09/2016, A5E03461182-AD

133

Protection

8.2 Configuring access protection for the CPU

Behavior of a password-protected CPU during operation

The CPU protection takes effect after the settings are downloaded in the CPU.

Before an online function is executed, the necessary permission is checked and, if necessary, the user is prompted to enter a password. The functions protected by a password can only be executed by one programming device/PC at any one time. Another programming device/PC cannot log on.

Access authorization to the protected data is in effect for the duration of the online connection, or until the access authorization is manually rescinded with "Online > Delete access rights".

Access to a password-protected CPU in the RUN mode can be limited locally in the display so that access with a password is also not possible.

Access level for F-CPUs

For the fail-safe CPUs, there is an additional access level in addition to the four described access levels. For additional information on this access level, refer to the description of the fail-safe system SIMATIC Safety Programming and Operating Manual SIMATIC Safety -

Configuring and Programming

( http://support.automation.siemens.com/WW/view/en/54110126 ).

134

Automation system

System Manual, 09/2016, A5E03461182-AD

Protection

8.3 Using the display to set additional access protection

8.3

Using the display to set additional access protection

Blocking access to a password-protected CPU

On the display of an S7-1500 CPU, you can block access to a password-protected CPU

(local lock). The access lock is only in effect, when the mode selector is in the RUN position.

The access block requires a configured protection level in STEP 7. The access block is effective regardless of the password protection. This means that even if someone accesses the CPU via a connected programming device and has entered the correct password, access to the CPU remains disabled.

The access block can be set separately for each access level on the display, so that, for example, read access is allowed locally, but write access is not allowed locally.

Procedure

If an access level with a password is configured in STEP 7, access can be blocked using the display.

Proceed as follows to set the local access protection for an S7-1500 CPU on the display:

1.

On the display, select Settings > Protection menu.

2.

Confirm the selection using "OK", and configure for each access level, whether access at the RUN mode selector is allowed or not:

Allow: Access to the CPU is possible with the corresponding password in STEP 7.

Disabled in RUN: When the mode selector is in the RUN position, no more users with privileges for this access level can log in to the CPU, even if they know the password. In

STOP mode, access is possible with password entry.

Access protection for the display

A password can be configured for the display in STEP 7 in the properties of the CPU so that the local access protection is protected by a local password.

8.4

Using the user program to set additional access protection

Access protection by means of the user program

In addition to restricting access to the display, you can also restrict access to a passwordprotected CPU in STEP 7 using the instruction ENDIS_PW. You can find a description of this block in the online help under the keyword "ENDIS_PW: Limit and enable password legitimation".

Automation system

System Manual, 09/2016, A5E03461182-AD

135

Protection

8.5 Know-how protection

8.5

Application

Know-how protection

You can use know-how protection to protect one or more blocks of the OB, FB, FC type and global data blocks in your program from unauthorized access. You can enter a password to restrict access to a block. The password offers high-level protection against unauthorized reading or manipulation of the block.

Readable data

If a block is know-how protected, only the following data is readable without the correct password:

● Block title, comments and block properties

● Block parameters (INPUT, OUTPUT, IN, OUT, RETURN)

● Call structure of the program

● Global tags without information on the point of use

Further actions

Further actions that can be carried out with a know-how protected block:

● Copying and deleting

● Calling within a program

● Online/offline comparison

● Load

Global data blocks and array data blocks

You cannot provide global data blocks (global DBs) with know-how protection. Users who do not possess the valid password can read the global data block but not change it.

You cannot provide array data blocks (array DBs) with know-how protection.

136

Automation system

System Manual, 09/2016, A5E03461182-AD

Setting up block know-how protection

To set up block know-how protection, follow these steps:

1.

Open the properties of the respective block.

2.

Select the "Protection" option under "General".

Protection

8.5 Know-how protection

Figure 8-2 Setting up block know-how protection (1)

3.

Click the "Protection" button to display the "Know-how protection" dialog.

Figure 8-3 Setting up block know-how protection (2)

4.

Click the "Define" button to open the "Define password" dialog.

Figure 8-4 Setting up block know-how protection (3)

5.

Enter the new password in the "New password" field. Enter the same password in the

"Confirm password" field.

6.

Click "OK" to confirm your entry.

7.

Close the "Know-how protection" dialog by clicking "OK".

Result: The blocks selected will be know-how-protected. Know-how protected blocks are marked with a lock symbol in the project tree. The password entered applies to all blocks selected.

Automation system

System Manual, 09/2016, A5E03461182-AD

137

Protection

8.5 Know-how protection

Opening know-how protected blocks

To open a know-how protected block, follow these steps:

1.

Double-click the block to open the "Access protection" dialog.

2.

Enter the password for the know-how protected block.

3.

Click "OK" to confirm your entry.

Result: The know-how-protected blockopens.

Once you have opened the block, you can edit the program code and the block interface of the block for as long as the block or STEP 7 is open. The password must be entered again the next time the block is opened. If you close the "Access protection" dialog with "Cancel", the block will open but the block code will not be displayed and you will not be able to edit the block.

If you copy the block or add it to a library, for example, this does not cancel the know-how protection of the block. The copies will also be know-how-protected.

Removing block know-how protection

To remove block know-how protection, follow these steps:

1.

Select the block from which you want to remove know-how protection. The protected block must not be open in the program editor.

2.

In the "Edit" menu, select the "Know-how protection" command to open the "Know-how protection" dialog.

3.

Clear the "Hide code (Know-how protection)" check box.

Figure 8-5 Removing block know-how protection (1)

4.

Enter the password.

138

Figure 8-6 Removing block know-how protection (2)

5.

Click "OK" to confirm your entry.

Result: Know-how protection will be removed from the block selected.

Automation system

System Manual, 09/2016, A5E03461182-AD

Protection

8.6 Copy protection

8.6

Application

Copy protection

The copy protection allows you to protect your program against unauthorized duplication.

With copy protection you associate the blocks with a specific SIMATIC memory card or CPU.

Through the association with the serial number of a SIMATIC memory card or CPU, the use of this program or block is only possible in combination with a specific SIMATIC memory card or CPU.

Copy and know-how protection

Recommendation: To prevent an unauthorized reset of the copy protection, provide a copyprotected block with additional know-how protection. First set up the copy protection for the block and after this the know-how protection.

Setting up copy protection

To set up copy protection, follow these steps:

1.

Open the properties of the respective block.

2.

Select the "Protection" option under "General".

Figure 8-7 Setting up copy protection (1)

3.

In the "Copy protection" area, select either the "Bind to serial number of the CPU" entry or the "Bind to serial number of the memory card" entry from the drop-down list.

Figure 8-8 Setting up copy protection (2)

Automation system

System Manual, 09/2016, A5E03461182-AD

139

Protection

8.6 Copy protection

4.

Activate the option "Serial number is inserted when downloading to a device or a memory card" if the serial number is to be inserted automatically during the uploading process

(dynamic binding). Assign a password using the "Define password" button to link the use of a block additionally to the input of a password.

Activate the "Enter serial number" option if you want to manually bind the serial number of the CPU or the SIMATIC memory card to a block (static binding).

5.

You can now set up the know-how protection for the block in the "Know-how protection" area.

Note

If you download a copy protected block to a device that does not match the specified serial number, the entire download operation will be rejected. This means that blocks without copy protection will also not be downloaded.

Removing copy protection

To remove copy protection, follow these steps:

1.

Remove any existing Know-how protection (Page 136).

2.

Open the properties of the respective block.

3.

Select the "Protection" option under "General".

4.

In the "Copy protection" area, select the "No binding" entry from the drop-down list.

Figure 8-9 Removing copy protection

140

Automation system

System Manual, 09/2016, A5E03461182-AD

Protection

8.7 Protection by locking the CPU/interface module

8.7

Protection by locking the CPU/interface module

Locking options

Protect your CPU/interface module from unauthorized access by additionally using a sufficiently secured front cover.

You have e.g. the following options:

● Affix a seal

● Secure the front cover with a lock (shackle diameter: 3 mm)

Figure 8-10 Locking latch using a CPU as an example

Automation system

System Manual, 09/2016, A5E03461182-AD

141

142

Flexible automation concepts

9

9.1

Introduction

Standard machine projects

Standard machine projects are STEP 7 projects that use a set of innovative functions allowing simple configuration and commissioning of flexible automation solutions for standard machines or for machines with a modular structure.

A hardware configuration consisting of an S7-1500 CPU as the IO controller and any connected IO devices represents a "PROFINET IO system master". This master is configured with a maximum configuration based on which various options can be derived for different standard machines, for example with different configuration variants of the IO system.

Greater flexibility at all levels

Standard machine projects have the following central characteristics:

● From one project (IO system master) with an engineered maximum configuration, different variants of a standard machine can be loaded (IO system options). The standard machine project covers all variants (options) of the IO system.

● An IO system option can be integrated in an existing network locally using simple tools.

Flexibility is provided in more ways than one:

● With suitable configuration, adaptation of the IP address parameters of the IO controller is possible locally using simple tools. This allows a standard machine to be integrated in different plants with little effort or to be included in a network several times.

IO systems with this property are known as multiple use IO systems.

● With suitable configuration and programming, different setups of IO system options can be operated locally that differ in terms of the selection of IO devices used or in terms of the arrangement of the IO devices.

Since the specific configuration of the IO system is controlled by the user program, this is known as configuration control for IO systems.

● Independently of the functions described above, with suitable configuration and programming, you can use different station options of central devices or distributed

I/O devices in one project. The devices can be different in terms of the selection and arrangement of the modules.

Since the concrete configuration of the station is controlled by the user program, this is also known as configuration control.

Additional information

You can find additional information on configuration control in the section Configuration control (option handling) (Page 143).

You can find additional information on multiple use IO systems and on configuration control for IO systems in the PROFINET with STEP 7 V14

( http://support.automation.siemens.com/WW/view/en/49948856 ) Function Manual.

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

9.2

Introduction

Configuration control (option handling)

With configuration control (option handling), you handle various standard machine configuration levels in one project without having to change the hardware configuration or user program.

Operating principle of configuration control

Configuration control enables you to operate different configuration levels of a standard machine with a single configuration of the S7-1500 automation system/ET 200MP distributed

I/O system.

● A station master (maximum configuration) is configured in a project. The station master comprises all modules needed for all possible equipment components of a modular standard machine.

● Provision is made in the user program of the project for various station options for the different configuration levels of the standard machine and for selection of a station option.

A station option uses, for example, only some of the modules of the station master and these modules are not inserted in the configured order.

● Manufacturers of standard machines select a station option for a configuration level of the standard machine. They do not have change the project or download the modified configuration.

You use a control data record you have programmed to notify the CPU/interface module as to which modules are missing or located on different slots in a station option as compared to the station master. The configuration control has no effect on the parameter assignment of the modules.

The configuration control allows you to flexibly vary the centralized/distributed configuration.

As a precondition for this, the station option must be able to be derived from the station master.

Automation system

System Manual, 09/2016, A5E03461182-AD

143

Flexible automation concepts

9.2 Configuration control (option handling)

The following figure shows three configuration levels of a standard machine with the corresponding station options of the S7-1500 automation system.

Benefits

Figure 9-1 Various configuration levels of a standard machine with the corresponding station options of the S7-1500 automation system

● Easy project handling and commissioning through use of a single STEP 7 project for all station options.

● Easy handling during maintenance, versioning and upgrades.

● Hardware savings: Only the I/O modules needed for the current station option of the machine are installed.

● Potential savings when building, commissioning and creating documentation for standard machines.

144

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

Procedure

To set up the configuration control, follow these steps in the order given:

Table 9- 1 Procedure for commissioning the SIMATIC S7-1500

Step

1

2

3

Procedure

Enable configuration control in STEP 7

Create control data record

Transfer control data record

See...

Section Configuring (Page 145)

Section Creating the control data record (Page 147)

Section Transferring the control data record in the startup program of the CPU (Page 156)

Block library "OH_S71x00_Library"

The block library OH_S71x00_Library

( https://support.industry.siemens.com/cs/ww/en/view/29430270 ) is available for download from the Internet. The block library contains data types with the structure of the control data records for the S7-1500/ET 200MP. You can implement your flexible automation solution economically with the help of these data types.

9.2.1

Configuring

Requirements

With the S7-1500, configuration control is possible both with centrally inserted modules and with the ET 200MP distributed I/O system via PROFINET IO.

For S7-1500 automation system:

● STEP 7 Professional as of Version V13

● CPU S7-15XX as of firmware version V1.5

● The startup parameter "Comparison preset to actual configuration" is set to "Startup CPU even if mismatch" (default setting).

You can find the "Comparison preset to actual configuration" parameter in the Inspector window of the CPU properties under "General">"Startup".

For ET 200MP distributed I/O system:

● STEP 7 Professional as of Version V13

● IM 155-5 PN ST/HF

● You have assigned the interface module to an IO controller/DP master in STEP 7

● The startup parameter "Comparison preset to actual module" is set to "Startup CPU even if mismatch" (default setting).

You can find the "Comparison preset to actual module" parameter in the Inspector window of the interface module properties in the "Startup" field under "General">"Module parameters".

Automation system

System Manual, 09/2016, A5E03461182-AD

145

Flexible automation concepts

9.2 Configuration control (option handling)

Required steps

Enable the "Allow to reconfigure the device via the user program" parameter when configuring the CPU/interface module.

● For an S7-1500 CPU, you can find the "Allow to reconfigure the device via the user program" parameter in the "Configuration control" area.

● For an IM 155-5 PN interface module, you can find the "Allow to reconfigure the device via the user program" parameter in the "Configuration control" field under

"General">"Module parameters".

Figure 9-2 Enabling configuration control using an S7-1500 CPU as an example

146

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

9.2.2

Creating the control data record

Required steps

To create a control data record for the configuration control, follow these steps:

1.

Create a PLC data type that contains the structure of the control data record.

You can find the structure of the control data record:

for the S7-1500 automation system in section Control data record for the S7-1500

Automation System (Page 150).

for the ET 200MP distributed I/O system in Control data record for the ET 200MP distributed I/O system (Page 151).

Figure 9-3 Creating control data record 196 using an S7-1500 CPU as an example

2.

Create a global data block.

Automation system

System Manual, 09/2016, A5E03461182-AD

147

Flexible automation concepts

9.2 Configuration control (option handling)

3.

Create an array of the data type of the above created PLC data type in the data block.

The following figure shows a data block containing three control data records for an S7-

1500 CPU.

Figure 9-4 Data block for configuration control

4.

In the "Start value" column of the control data records, enter which module is located at which slot.

Figure 9-5 Assigning slots

148

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

Rules

Observe the following rules:

● Slot entries in the control data record outside the station master are ignored by the

CPU/interface module.

● The control data record must contain the entries up to the last slot of the station option.

● Each slot of a station option may only be present once in the control data record.

● Each slot of a station option may only be assigned to one slot in the station master.

● System power supplies (PS) can also be subject to configuration control.

Note

Configuration control for system power supplies

In the case of a configuration (station option) loaded using a data record, STEP 7 does not automatically check compliance with the power budget.

Ensure that the power supplied in each power segment of the station option is greater than or equal to the power drawn.

You can find additional information in the section Power balance calculation (Page 45).

Using communication modules

● Point-to-point communication modules:

Point-to-point communication modules can be used without any restrictions for the configuration control.

● PROFINET/Ethernet and PROFIBUS communication modules:

CPUs as of firmware version V1.7 support configuration control when using

PROFINET/Ethernet or PROFIBUS communication modules. If PROFINET/Ethernet or

PROFIBUS communication modules, such as a CM 1542-5 (DP master or DP slave) are inserted in the central configuration, these communication modules cannot be influenced by the configuration control. You must therefore leave these modules in the slots preassigned in the station master and enter the slot numbers from the station master in the control data record ("Station option slot = Station master slot"). In a station option, all slots up to the communication module furthest from the CPU must be present in the control data record. Maximum flexibility is achieved by inserting the communication modules directly to the right of the CPU.

Automation system

System Manual, 09/2016, A5E03461182-AD

149

Flexible automation concepts

9.2 Configuration control (option handling)

9.2.2.1

Control data record for the S7-1500 Automation System

Slot assignment

The following table shows the slot assignment of the modules for the S7-1500 automation system:

Table 9- 2 Slot assignment

Slot

0

1

2 - 31

Modules

System power supply (optional)

CPU

I/O modules/system power supplies, depending on the station option

Comment

Upstream of CPU

Slot 1 is always the CPU

Downstream of CPU

Control data record

For configuration control of the S7-1500 automation system, you define a control data record

196 V4.0, which contains a slot assignment. The table below shows the structure of a control data record with explanations of the individual elements.

Table 9- 3 Configuration control: Structure of control data record 196

3

4

Byte

0

1

2

5

6

7

:

4 + (max. slot number)

Element

Block length

Block ID

Version

Code

4 + number of slots

196

4

Version 0

Slot 0 of the station master Slot assignment in the station option

Slot 1 of the station master Slot assignment 1 in the station option

(always 1, because the CPU is always in slot 1)

Slot 2 of the station master Slot assignment in the station option

Slot 3 of the station master Slot assignment in the station option

: :

Maximum slot of the station master

Slot assignment in the station option

Explanation

Header

Control element

Contains information on which module is inserted in which slot.

The following rule determines which value you must enter in the respective byte:

If the module is included in the station option, enter the slot number of the module.

• If the module is not included in the station option, enter 255.

150

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

9.2.2.2

Control data record for the ET 200MP distributed I/O system

Slot assignment

The following table shows the slot assignment of the modules for the ET 200MP distribution

I/O system:

Table 9- 4 Slot assignment

Slot

0

1

Modules

System power supply (optional)

Interface module

2 - 31 I/O modules/system power supplies, depending on the station option

Comment

Upstream from interface module

Interface module (slot 1) is not an element of the configuration control, but instead controls this

Downstream from the interface module

Control data record

For configuration control of the ET 200MP distributed I/O system, you define a control data record 196 V3.0, which contains a slot assignment. The table below shows the structure of a control data record with explanations of the individual elements.

Table 9- 5 Configuration control: Structure of control data record 196

3

4

Byte

0

1

2

5

6

:

4 + (max. slot no. - 1)

Element

Block length

Block ID

Version

Code

4 + number of slots

196

3

Version 0

Slot 0 of the station master Slot assignment in the station option

Slot 2 of the station master Slot assignment in the station option

Slot 3 of the station master Slot assignment in the station option

: :

Maximum slot of the station master

Slot assignment in the station option

Explanation

Header

Control element

Contains information on which module is inserted in which slot.

The following rule determines which value you must enter in the respective byte:

If the module is included in the station option, enter the slot number of the module.

• If the module is not included in the station option, enter 127.

Automation system

System Manual, 09/2016, A5E03461182-AD

151

Flexible automation concepts

9.2 Configuration control (option handling)

9.2.2.3

Feedback data record of the ET 200MP distributed I/O system

Operating principle

The feedback data record informs you about the accuracy of the module assignment and gives you the option of detecting assignment errors in the control data record. The feedback data record is mapped via a separate data record 197 V2.0.

Slot assignment

The feedback data record exists only when configuration control is configured and always refers to the maximum quantity framework without interface module, i.e., 31 slots.

The following table shows the slot assignment of the modules:

Table 9- 6 Slot assignment

Slot

0

2 - 31

Modules

System power supply (optional)

I/O modules/system power supplies, depending on the station option

Comment

Upstream from interface module

Downstream from the interface module

Partial reading of the feedback data record is possible.

Feedback data record

Table 9- 7 Feedback data record

6

7

:

64

65

4

5

2

3

Byte

0

1

Element

Block length

Block ID

Version

Status slot 0

Reserved

Status slot 2

Reserved

:

Slot n status

Reserved

Code

66

197

2

0

0/1

0

0/1

0

:

Maximum slot

0

* Not possible if the slot is marked as not available.

Explanation

Header

Status = 1:

• Module from station master is inserted in the station option

Slot is marked as not available in the control data record

Status = 0:

• Module pulled

Incorrect module inserted in the station option*

152

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

Note

The data in the feedback data record is always mapped for all modules. In a Shared Device configuration, it is therefore irrelevant which IO controller the respective modules are assigned to.

As long as no control data record was sent, a one-to-one module assignment is assumed for the compilation of data record 197 (station master → station option).

Error messages

In the case of an error when reading the feedback data record, the RDREC instruction returns the following error messages via the STATUS block parameter:

Table 9- 8 Error messages

Error code

80B1

H

80B5

H

80B8

H

Meaning

Invalid length; the length information in data record 197 is not correct.

Configuration control not configured

Parameter error

The following events cause a parameter error:

• Incorrect block ID in the header (not equal to 197)

Invalid version identifier in the header

• A reserved bit was set

Multiple slots in the station master are assigned to the same slot in the station option

9.2.2.4

Examples of configuration control

A station master consisting of a system power supply, CPU, and three I/O modules is configured in STEP 7 in the following section.

The module at slot 3 is not present in the station option 1 and is "hidden" by the configuration control.

In station option 2, the order of the modules in slots 3 and 4 is interchanged. The modified order of the modules is made known to the CPU by a modified control data record.

Automation system

System Manual, 09/2016, A5E03461182-AD

153

Flexible automation concepts

9.2 Configuration control (option handling)

Station option 1 with module that is not present

The module that is located in slot 3 in the station master is not present in the station option 1.

Slot 3 must be designated in the control data record accordingly with 255 (= not present).

154

Module is not present in the station option 1.

Figure 9-6 Example: Hardware configuration of station option 1 with the associated control data record in STEP 7

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

Station option 2 with modified order of modules

The order of the modules in slot 3 and 4 is interchanged.

Figure 9-7 Example: Hardware configuration of station option 2 with the associated control data record in STEP 7

Automation system

System Manual, 09/2016, A5E03461182-AD

155

Flexible automation concepts

9.2 Configuration control (option handling)

Detailed application example

You can find a detailed application example for the configuration control in S7-1500 in here

( https://support.industry.siemens.com/cs/ww/en/view/29430270 ) under "Application example for ET 200SP (PROFINET) and S7-1500 by using the library".

9.2.3

Transferring the control data record in the startup program of the CPU

Required steps

Transfer the created control data record 196 to the CPU/interface module using the WRREC

(Write data record) instruction.

Parameters of the WRREC instruction

Below, you will find explanations of individual parameters of the WRREC instruction which you must supply with specific values in the configuration control context. You can find additional information on the WRREC instruction in the STEP 7 online help.

ID Hardware identifier

For configuration control for centrally arranged modules, use the HW identifier for the CPU.

If you have selected the CPU in the network view or device view, you can find the

HW identifier on the System constants tab of the Inspector window.

Use the value of the system constant "Local Configuration".

For configuration control for distributed I/O, use the HW identifier of the interface module.

If you have selected the interface module in the network view or device view, you can find the HW identifier on the System constants tab of the Inspector window.

Use the value of the system constant "<Name_of_interface_module> Head".

INDEX Data record number: 196 (decimal)

RECORD Control data record to be transferred.

For the structure of the control data record, see section Creating the control data record (Page 147).

156

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

Error messages

In case of error, the WRREC instruction returns the following error messages via the

STATUS block parameter:

Table 9- 9 Error messages

Error code

80B1

H

80B5

H

80E2

H

80B8

H

Meaning

Invalid length; the length information in data record 196 is not correct.

Configuration control parameters not assigned.

Data record was transferred in the wrong OB context. The data record must be transferred in the startup program.

Parameter error

Reasons for a parameter error are:

Incorrect block ID in the header (not equal to 196)

Invalid version identifier in the header

A reserved bit was set

A station master slot was assigned an invalid slot in the station option

Multiple slots in the station master are assigned to the same slot in the station option

For shared device on submodule level: violation of defined restrictions

Automation system

System Manual, 09/2016, A5E03461182-AD

157

Flexible automation concepts

9.2 Configuration control (option handling)

Special requirements relating to the transfer of the control data record to the CPU

● If you have enabled configuration control, the CPU is not ready for operation without a control data record. The CPU returns from startup to STOP if a valid control data record is not transferred in the startup OB (for example, OB 100). The central I/O is not initialized in this case. The cause for STOP mode is entered in the diagnostics buffer.

Note

If an incorrect control data record is transferred to the CPU in the startup OB, the startup of the CPU may be prevented.

In this case, perform a reset to factory settings of the CPU and then transfer a correct control data record.

● The CPU processes the WRREC instruction for transferring the control data record asynchronously. For this reason, you must call WRREC in the startup OB (for example,

OB 100) repeatedly in a loop until the output parameters "BUSY" and "DONE" indicate that the data record has been transferred.

– Tip: To program the loop, use the SCL programming language with the REPEAT ...

UNTIL instruction.

REPEAT

"WRREC_DB"(REQ := "start_config_control",

ID := "Local Configuration",

INDEX := 196,

LEN := "conf_LEN",

DONE => "conf_DONE",

BUSY => "conf_BUSY",

RECORD := "ConfDB".ConfigControl["ConfDB".Option],

//Selection of control data record*

ERROR => "conf_ERROR",

STATUS => "conf_STATUS");

UNTIL NOT "conf_BUSY"

END_REPEAT;

*Selection of the station option in the user program: In order for the CPU to know which station option you want to operate, you must set up a possibility to select between the various control data records in the user program. You can implement the selection, for example, via an Int tag that references an array element. Note that the tag for selecting the control data record must be located in the retentive memory area.

If the tag is not retentive, it will be initialized during startup of the CPU and will thus be unavailable for selection of the station option.

– In the graphical programming languages, you implement the loop using instructions for program control.

158

Automation system

System Manual, 09/2016, A5E03461182-AD

Flexible automation concepts

9.2 Configuration control (option handling)

Example in FBD: Use the LABEL (jump label) and JMP (jump at RLO=1) instructions to program a loop.

Figure 9-8 WRREC

● The control data record is stored retentively in the CPU. Note:

– The retentivity of the control data record is independent of the retentivity settings in the

STEP 7 memory area. This means that the memory area in which the control data record is configured does not have to be configured as retentive for this purpose.

– If you write a control data record with modified configuration, the original data record

196 is deleted and the new data record 196 is saved retentively. The CPU will then restart with the modified configuration.

Automation system

System Manual, 09/2016, A5E03461182-AD

159

Flexible automation concepts

9.2 Configuration control (option handling)

Special requirements relating to the transfer of the control data record to the interface module

● If you have enabled configuration control, the ET 200MP station is not ready for operation without a control data record. As long as no valid control data record has been transferred, the I/O modules are considered as failed by the CPU and exhibit substitute value behavior. The interface module continues to exchange data.

● The control data record is stored retentively in the interface module. Note:

– If the configuration is unchanged, you do not have to rewrite the control data record 196 during restart.

– If you write a control data record with modified configuration, this will result in a station failure in the distributed I/O system. The original data record 196 is deleted and the new data record 196 is saved retentively. The station will then restart with the modified configuration.

9.2.4

Behavior during operation

Effect of discrepancy between station master and station option

For the online display and for the display in the diagnostics buffer (module OK or module faulty), the station master is always used and not the differing station option.

Example: A module outputs diagnostics data. This module is configured in slot 4 in the station master, but is inserted in slot 3 in the station option (missing module; see example in the next section). The online view (station master) shows an incorrect module in slot 4. In the real configuration, the module in slot 3 indicates an error via an LED display.

Response to modules that are not present

If modules are entered as not present in the control data record, the automation system behaves as follows:

● Modules designated as not present in the control data record do not supply diagnostics and their status is always OK. The value status is OK.

● Direct writing access to the outputs that are not present or writing access to the process image of outputs that are not present: Remains without effect; no access error is signaled.

● Direct reading access to the inputs that are not present or reading access to the process image of inputs that are not present: Value "0" is supplied; no access error is signaled.

● Write data record to module that is not present: Remains without effect; no error is signaled.

● Read data record from module that is not present: The output parameter STATUS of the instruction RDREC supplies the value 80A3

H

"General CM error".

160

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10

10.1

Introduction

Overview

This section includes information on the following topics:

● Check before powering on for the first time

● Removing/inserting the SIMATIC memory card

● First power-on of the CPU

● First power-on of the ET 200MP on PROFINET IO

● First power-on of the ET 200MP on PROFIBUS DP

● Operating modes of the CPU

● CPU memory reset

● Identification and maintenance data

Commissioning requirements

Note

Performing tests

You must ensure the safety of your plant. You therefore need to perform a complete functional test and the necessary safety checks before the final commissioning of a plant.

Also allow for any possible foreseeable errors in the tests. This avoids endangering persons or equipment during operation.

Automation system

System Manual, 09/2016, A5E03461182-AD

161

Commissioning

10.1 Overview

PRONETA

SIEMENS PRONETA PC-based software tool that is provided free-of-charge, which simplifies the commissioning of PROFINET systems by performing the following tasks:

● Topology overview that automatically scans PROFINET and displays all connected components. This overview can be exported in the form of a device list. You have the option of "Initializing" the components and performing other simple configuration tasks, as well as comparing the actual configuration with a required configuration.

● IO check to quickly test the wiring of a plant and the module configuration of the components. By reading and writing the inputs and outputs, PRONETA makes sure that the distributed I/O devices with their sensors and actuators are correctly wired.

PRONETA can create test profile templates and store test logs to document the test results.

● All tasks can be performed even before a CPU is integrated into the network. Moreover, since no other engineering tools or hardware are required, PRONETA enables a fast and convenient checking of a plant configuration at an early stage.

Additional information about PRONETA can be found here

( http://support.automation.siemens.com/WW/view/en/67460624 ).

SIMATIC Automation Tool

SIMATIC Automation Tool is a free, PC-based software tool that supports you during commissioning of the S7-1500 automation system/ET 200MP distributed I/O system.

You carry out commissioning and service activities with this tool independent of the TIA

Portal.

It offers the following functions:

● Network scanning and creation of a table showing the accessible devices in the network.

The table includes configured and non-configured CPUs and modules and is stored in a secure SAT project file.

● LED flashing on a device for physical identification of the device

● Downloading of addresses (IP, subnet, gateway) to a device

● Downloading the PROFINET name (station name) to a device

● Setting the time in a CPU to the current time of your PG/PC (programming device/personal computer).

● Downloading a new program to a CPU

● Downloading a firmware update to a CPU or module

● Placing a CPU in RUN or STOP mode

● Performing a CPU memory reset

● Reading the diagnostic buffer of a CPU

● Loading service data from a CPU

● Backup/restore of CPU data from/to a backup file

● Resetting devices to factory settings

You can find additional information on the SIMATIC Automation Tool here

( https://support.industry.siemens.com/cs/ww/de/view/98161300

).

162

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.2 Check before powering on for the first time

10.2

Check before powering on for the first time

Check before powering on for the first time

Before the first power-on, check the installation and the wiring of the S7-1500 automation system/ET 200MP distributed I/O system.

Questions for the check

The following questions provide guidance for the review of your S7-1500 automation system/ET 200MP distributed I/O system in the form of a checklist.

Racks

● Are the mounting rails firmly installed on the wall, in the framework, or in the cabinet?

● Are the cable ducts correctly installed?

● Have the minimum clearances been observed?

Grounding and chassis concept

● Is the mounting rail connected to the protective conductor?

● Has the connection between reference ground and ground been correctly made on all mounting rails?

● Are the required equipotential bonding cables connected with low impedance to the affected plant units?

Module installation and wiring

● Are all the modules inserted / installed in accordance with the mounting plan and corresponding to the configuration with STEP 7 and screwed firmly to the mounting rail?

● Are all the front connectors wired according to the circuit diagram, in the final position, and inserted on the correct module?

● Are the correct modules installed and connected to each other with U connectors?

● Are U connectors projecting either at the left-hand or right-hand over the outer modules on the S7-1500 automation system/ET 200MP distributed I/O system?

System power supply or load current supply

● Are all system power supplies and load current supplies switched off?

● Is the power cable connector correctly wired?

● Has the connection to line voltage been made?

Automation system

System Manual, 09/2016, A5E03461182-AD

163

Commissioning

10.3 Procedure for commissioning the S7-1500 automation system

10.3

Procedure for commissioning the S7-1500 automation system

Requirements

● The CPU is in the "Factory settings" state or has been reset to factory settings (see

Resetting the CPU to factory settings (Page 218)).

● The SIMATIC memory card is as delivered or has been formatted.

Commissioning procedure

For the first commissioning of an S7-1500 automation system, we recommend the following procedure:

2

3

4

Table 10- 1 Procedure for commissioning the SIMATIC S7-1500

Step

1

5

6

7

8

9

10

Procedure

Configure hardware in STEP 7 and perform power balance calculation (see also "Requirements:

CPU as bus device")

Create user program

Insert required modules

Wiring the assembly (system power supplies, front connectors, etc.)

Insert SIMATIC memory card in the CPU

Switch on the CPU and system power supply

Check LEDs

Evaluate information on the CPU's display

Configure hardware in STEP 7 and download to the CPU

Test inputs and outputs

See...

Section Power balance calculation (Page 45)

STEP 7 online help

Section Installation (Page 48)

Section Wiring (Page 63)

Section Removing/inserting a SIMATIC memory card on the

CPU (Page 165)

See section First power-on of the CPU (Page 167)

The meaning of the LEDs can be found in the manuals of the modules.

Section CPU display (Page 193)

Online and diagnostics functions in STEP 7

The following functions are helpful: Monitoring and modifying tags, testing with program status, forcing, modifying the

outputs in STOP mode. See section Test functions and fault resolution (Page 225)

164

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.3 Procedure for commissioning the S7-1500 automation system

Requirements: CPU as bus device

Note the following requirements for operation of a CPU as bus device:

● PROFIBUS interface

– The integrated PROFIBUS interface of the CPU is configured using STEP 7 (device address and bus parameters configured).

– The CPU is connected to the subnet.

– The terminating resistors at the segment boundaries are switched on.

See the PROFIBUS Function Manual

( http://support.automation.siemens.com/WW/view/en/59193579 )

● PROFINET interface

– The integrated PROFINET interface of the CPU is configured using STEP 7

(IP address and device name configured).

– The CPU is connected to the subnet.

See the PROFINET Function Manual

( http://support.automation.siemens.com/WW/view/en/49948856 )

10.3.1

Removing/inserting a SIMATIC memory card on the CPU

Requirements

The CPU only supports pre-formatted SIMATIC memory cards. If applicable, delete all previously stored data before using the SIMATIC memory card. Additional information about

deleting the contents of the SIMATIC memory card can be found in the section SIMATIC memory card - overview (Page 187).

In order to work with the SIMATIC memory card, first ensure that the SIMATIC memory card is not write-protected. For this purpose, slide the slider on the SIMATIC memory card out of the lock position.

If the inserted SIMATIC memory card is write-protected, the CPU display outputs the symbol in the "Memory card" menu under "Overview" and writes a corresponding alarm to the lower level of the menu.

Automation system

System Manual, 09/2016, A5E03461182-AD

165

Commissioning

10.3 Procedure for commissioning the S7-1500 automation system

Inserting the SIMATIC memory card

To insert a SIMATIC memory card, follow these steps:

1.

Open the front cover of the CPU.

2.

Ensure that the CPU is either switched off, or in the STOP mode.

3.

Insert the SIMATIC memory card, as depicted on the CPU, into the slot for the SIMATIC memory card.

Figure 10-1 Slot for the SIMATIC memory card

4.

Insert the SIMATIC memory card with light pressure into the CPU, until the SIMATIC memory card latches.

Removing the SIMATIC memory card

To remove a SIMATIC memory card, follow these steps:

1.

Open the front cover.

2.

Switch the CPU into STOP mode.

3.

Press the SIMATIC memory card into the CPU with light pressure. After audible unlatching of the SIMATIC memory card, remove it.

Only remove the SIMATIC memory card in POWER OFF or STOP mode of the CPU. Ensure that no writing functions (online functions with the programming device, e.g. loading/deleting a block, test functions) are active in STOP mode or were active before POWER OFF.

If you remove the SIMATIC memory card during a write process, the following problems can occur:

● The data content of a file is incomplete.

● The file is no longer readable, or no longer exists.

● The entire content of the card is corrupted.

Also note the following FAQ on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/59457183 ) in connection with the removal of the SIMATIC memory card.

166

Automation system

System Manual, 09/2016, A5E03461182-AD

Reactions after removing/inserting the SIMATIC memory card

Inserting and removing the SIMATIC memory card in STOP mode triggers a re-evaluation of the SIMATIC memory card. The CPU hereby compares the content of the configuration on the SIMATIC memory card with the backed-up retentive data. If the backed-up retentive data matches the data of the configuration on the SIMATIC memory card, the retentive data is retained. If the data differs, the CPU automatically performs a memory reset (which means the retentive data is deleted) and then goes to STOP.

The CPU evaluates the SIMATIC memory card and indicates this by flashing the RUN/STOP

LED.

Reference

Commissioning

10.3 Procedure for commissioning the S7-1500 automation system

You can find additional information on the SIMATIC memory card in the section SIMATIC memory card (Page 187).

10.3.2

First power-on of the CPU

Requirements

● An S7-1500 automation system is installed and wired.

● The SIMATIC memory card is inserted in the CPU.

Procedure

To commission a CPU, follow these steps:

1.

Switch on the system power supply and load current supply.

Result:

● The CPU executes a flash test:

– All LEDs flash at 2 Hz

– RUN/STOP LED flashes alternately yellow/green

– ERROR LED flashes red

– MAINT LED flashes yellow

● The CPU runs the system initialization and evaluates the SIMATIC memory card:

– RUN/STOP LED flashes yellow at 2 Hz

● After the system initialization has been completed, the CPU goes to STOP mode:

– The RUN/STOP LED lights up yellow

Automation system

System Manual, 09/2016, A5E03461182-AD

167

Commissioning

10.4 Procedure for commissioning the ET 200MP distributed I/O system

10.4

Procedure for commissioning the ET 200MP distributed I/O system

10.4.1

Introduction

Commissioning the ET 200MP for PROFINET IO

The commissioning of your automation system depends on the plant configuration.

The following procedure describes the commissioning of the distributed I/O system on an IO controller.

Commissioning procedure

To commission the ET 200MP as an IO device for PROFINET IO, we recommend the following procedure:

Table 10- 2 Procedure for commissioning the ET 200MP as an IO device for PROFINET IO

4

5

Step Procedure

1 Install ET 200MP

2 Connect ET 200MP

Supply voltages

PROFINET IO

Sensors and actuators

6

Configure IO controller

Switch on supply voltages for the IO controller

Switch on supply voltages for IO devices

7

See...

Section Installation (Page 48)

Section Wiring (Page 63)

Interface module

( http://support.automation.siemens.com/WW/view/en

/67295970/133300 ) manual

STEP 7 online help

8

9

Download configuration to the IO controller

Switch IO controller to RUN mode

Check LEDs

CPU manual or documentation of the IO controller

CPU manual or documentation of the IO controller

10 Test inputs and outputs

CPU manual or documentation of the IO controller

Interface module

( http://support.automation.siemens.com/WW/view/en

/67295970/133300 ) manual

The following functions are helpful: Monitoring and modifying tags, testing with program status, forcing,

modifying the outputs. See section Test functions and fault resolution (Page 225)

Note

The operating mode transitions for the IO controller from RUN to STOP or from STOP to

RUN can take several milliseconds, until the mode transition for the inputs and outputs of all

I/O modules for the ET 200MP station is completed. This delay also applies to isochronous mode.

168

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.4 Procedure for commissioning the ET 200MP distributed I/O system

10.4.2

Introduction

Commissioning the ET 200MP for PROFIBUS DP

The commissioning of your automation system depends on the plant configuration.

The following procedure describes the commissioning of the ET 200MP distributed

I/O system on a DP master.

Commissioning procedure

To commission the ET 200MP as a DP slave for PROFIBUS DP, we recommend the following procedure:

Table 10- 3 Procedure for commissioning the ET 200MP as a DP slave for PROFIBUS DP

5

6

8

9

Step Procedure

1

See...

Install ET 200MP (with IM 155-5 DP ST) Section Installation (Page 48)

2 Set the PROFIBUS address on the interface module

Manual for the interface module

( http://support.automation.siemens.com/WW/view

/en/77910801/133300 )

3 Connect ET 200MP

Supply voltages

Section Wiring (Page 63)

PROFIBUS DP

Sensors and actuators

4

7

10

Configure DP master (including

PROFIBUS address)

Documentation of the DP master

Switch on supply voltages for DP master Documentation of the DP master

Switch on supply voltages for DP slaves Interface module

( http://support.automation.siemens.com/WW/view

/en/77910801/133300 ) manual

STEP 7 online help Download configuration to the DP master

Switch DP master to RUN

Check LEDs

Test inputs and outputs

Documentation of the DP master

Interface module

( http://support.automation.siemens.com/WW/view

/en/77910801/133300 ) manual

The following functions are helpful: Monitoring and modifying tags, testing with program status,

forcing, modifying the outputs. See section Test functions and fault resolution (Page 225)

Note

During operating mode transitions of the DP master from RUN to STOP or from STOP to

RUN, it can take several milliseconds until the mode transition for the inputs and outputs of all I/O modules of the ET 200MP is complete.

Automation system

System Manual, 09/2016, A5E03461182-AD

169

Commissioning

10.5 Operating modes of the CPU

10.5

Introduction

Operating modes of the CPU

Operating modes describe the states of the CPU. The following operating states are possible via the mode selector:

● STARTUP

● RUN

● STOP

In these operating modes, the CPU can communicate, for example, via the PROFINET IO interface (X1).

The status LEDs on the front side of the CPU indicate the current operating mode.

10.5.1

Function

STARTUP mode

Before the CPU starts to execute the cyclic user program, a startup program is executed.

By suitably programming startup OBs, you can specify initialization tags for your cyclic program in the startup program. That is, you can set up one or several startup OBs in your program, or none at all.

170

Automation system

System Manual, 09/2016, A5E03461182-AD

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.5 Operating modes of the CPU

Special features in Startup mode

● All outputs are disabled or react according to the parameter settings for the respective module: They provide a substitute value as set in the parameters or retain the last value output and bring the controlled process to a safe operating mode.

● The process image is initialized.

● The process image is not updated.

In order to read the current state of inputs during STARTUP, you can access inputs by direct I/O access.

In order to initialize outputs during STARTUP, you can write the values via the process image or via direct I/O access. The values are output at the outputs during the transition to the RUN mode.

● The CPU always starts up in a warm restart.

– The non-retentive bit memories, timers and counters are initialized.

– The non-retentive tags in data blocks are initialized.

● During startup, no cycle time monitoring is running yet.

● The CPU processes the startup OBs in the order of the startup OB numbers. The CPU processes all programmed startup OBs regardless of the selected startup mode.

● If a corresponding event occurs, the CPU can start the following OBs in startup:

– OB 82: Diagnostics interrupt

– OB 83: Removal/insertion of modules

– OB 86: Rack error

– OB 121: Programming error (only for global error handling)

– OB 122: Time-out (for global error handling only)

You can find a description of how to use global and local error handling in the STEP 7 online help.

The CPU cannot start all other OBs until after the transition to RUN mode.

Response when expected and actual configurations do not match

The configuration downloaded to the CPU represents the expected configuration. The actual configuration is the actual configuration of the automation system. If the expected configuration and actual configuration deviate from one another, the CPU's behavior is specified by the setting of the hardware compatibility. For additional information about the

hardware compatibility, see the section Operating mode transitions (Page 174).

Canceling a startup

If errors occur during startup, the CPU cancels the startup and returns to STOP mode.

The CPU does not perform startup or interrupts startup under the following conditions:

● You have not inserted a SIMATIC memory card or an invalid one is inserted.

● You have not downloaded a hardware configuration to the CPU.

Parameter assignment of startup behavior

You can assign parameters for the behavior of the CPU in the Startup group of the CPU properties.

171

Commissioning

10.5 Operating modes of the CPU

Setting the startup behavior

To set the startup behavior, follow these steps:

1.

Select the CPU in the device view of the STEP 7 hardware network editor.

2.

In the properties under "General" select the "Startup" area.

172

Figure 10-2 Setting the startup behavior

Sets the startup type after POWER ON

Defines the startup behavior for the case where a module in a slot does not correspond to the configured module. This parameter applies to the CPU and to all the modules for which no other setting was selected.

• Startup CPU only if compatible: In this setting a module on a configured slot has to be compatible with the configured module. Compatible means that the module matches the number of inputs and output and must match with respect to its electrical and functional properties.

Startup CPU even if mismatch: At this setting the CPU starts up irrespective of the type of module plugged.

For locally used modules you can configure the hardware compatibility in the parameter

"Comparison preset to actual module" individually for each slot. When you change the setting of the hardware compatibility for a module, the setting made at the CPU does not apply for this module.

Specifies a maximum period (default: 60000 ms) in which the central and distributed I/O must be ready for operation. The communications modules (CM/CP) are supplied with voltage and communication parameters during the CPU startup. This parameter assignment time grants a period within which the I/O modules connected to the communication module (CM/CP) must be operationally ready.

The CPU goes into RUN mode when the central and the distributed I/O is operationally ready within the parameter assignment time.

If the central and distributed I/O is not ready for operation within the configuration time, the startup characteristics of the CPU depends on the setting of the hardware compatibility.

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.5 Operating modes of the CPU

Example for the "Comparison preset to actual configuration" parameter

"Startup CPU only if compatible"

The DI 32x24VDC HF input module with 32 digital inputs can be a compatible replacement for a DI 16x24VDC HF input module with 16 digital inputs. The pin assignment and all electrical and functional properties are identical.

"Startup CPU even if mismatch"

Instead of a configured digital input module, you insert an analog output module or no module is present in this slot and thus in all subsequent slots. Although the configured inputs cannot be accessed, the CPU starts up.

Note that the user program cannot function correctly in this case and take the appropriate measures.

10.5.2

Function

STOP mode

The CPU does not execute the user program in STOP mode.

All outputs are disabled or react according to the parameter settings for the respective module: They provide a substitute value as set in the parameters or retain the last value output and thus hold the controlled process in a safe operating mode.

10.5.3

RUN mode

Function

In "RUN" mode the cyclic, time-driven, and interrupt-driven program execution is performed.

Addresses that are in the "Automatic Update" process image are automatically updated in

each program cycle. See also section Process images and process image partitions

(Page 112).

Execution of the user program

Once the CPU has read the inputs, the cyclic program is executed from the first instruction to the last instruction. Events with higher priority, such as hardware interrupts, diagnostic interrupts and communication, can interrupt the cyclic program flow and prolong the cycle time.

If you have configured a minimum cycle time, the CPU will not end the cycle until this minimum cycle time has expired, even if the user program is completed sooner.

The operating system monitors the execution time of the cyclic program for a configurable upper limit known as the maximum cycle time. You can restart this time monitoring at any point in your program by calling the RE_TRIGR instruction.

If the cyclic program exceeds the maximum cycle time, the operating system will attempt to start the time error OB (OB 80). If the OB is not present, the CPU ignores that the maximum cycle time was exceeded. If the cycle monitoring time is exceeded a second time, e.g. while the time error OB is being processed, the CPU goes to STOP mode.

Automation system

System Manual, 09/2016, A5E03461182-AD

173

Commissioning

10.5 Operating modes of the CPU

Reference

Additional information about cycle and response times is available in the Function Manual

Cycle and response times ( http://support.automation.siemens.com/WW/view/en/59193558 ).

10.5.4

Operating mode transitions

Operating modes and operating mode transitions

The following figure shows the operating modes and the operating mode transitions:

Figure 10-3 Operating modes and operating mode transitions

The table below shows the effects of the operating mode transitions:

Table 10- 4 Operating mode transitions

No. Operating mode transitions

POWER ON →

STARTUP

After switching on, the CPU switches to

"STARTUP" mode if:

The hardware configuration and program blocks are consistent.

• Startup type "Warm restart - RUN" is set

② POWER ON →

STOP or

Startup type "Warm restart mode before

POWER OFF" is set and the CPU was in RUN mode before POWER OFF.

After switching on, the CPU goes to "STOP" mode if:

The hardware configuration and program blocks are inconsistent or

Startup type "No restart" is set. or

Startup type "Warm restart mode before

POWER OFF" is set and the CPU was in STOP mode before POWER OFF.

Effects

Non-retentive memory is cleared, and the content of non-retentive DBs is reset to the start values of the load memory. Retentive memory and retentive DB contents are retained.

Non-retentive memory is cleared, and the content of non-retentive DBs is reset to the start values of the load memory. Retentive memory and retentive DB contents are retained.

174

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.5 Operating modes of the CPU

No.

Operating mode transitions

STOP →

STARTUP

The CPU switches to "STARTUP" mode if:

The hardware configuration and program blocks are consistent.

You set the CPU to "RUN" mode via the programming device or the display and the mode switch in is RUN position.

STARTUP →

STOP

STARTUP →

RUN or

You set the mode switch from STOP to

RUN.

The CPU returns to the "STOP" mode in the following cases of "STARTUP":

• The CPU detects an error during startup.

You set the the CPU to "STOP" via the programming device, display or mode selector.

• A STOP command is executed in the

Startup OB.

The CPU goes to the "RUN" mode in the following cases of "START-UP":

The CPU has initialized the PLC tags.

The CPU has executed the startup blocks successfully.

⑥ RUN → STOP The CPU returns to the "STOP" mode in the following cases of "RUN":

• An error is detected that prevents continued processing.

A STOP command is executed in the user program.

• You set the the CPU to "STOP" via the programming device, display or mode selector.

Effects

Non-retentive memory is cleared, and the content of non-retentive DBs is reset to the start values of the load memory. Retentive memory and retentive DB contents are retained.

Automation system

System Manual, 09/2016, A5E03461182-AD

175

Commissioning

10.6 CPU memory reset

10.6

CPU memory reset

Basics of a memory reset

A memory reset on the CPU is possible only in the STOP mode.

During memory reset, the CPU is changed to a so-called "initial status".

This means that:

● An existing online connection between your programming device/PC and the CPU is terminated.

● The content of the work memory and the retentive and non-retentive data (applies only to manual memory reset by the user) are deleted.

● The diagnostics buffer, time of day, and IP address are retained.

● Subsequently the CPU is initialized with the loaded project data (hardware configuration, code and data blocks, force jobs). The CPU copies this data from the load memory to the work memory.

Result:

– If you set an IP address in the hardware configuration ("Set IP address in the project" option) and a SIMATIC memory card with the project is in the CPU, this IP address is valid after the memory reset.

– Data blocks no longer have current values but rather their configured start values.

– Force jobs remain active.

How can I tell if the CPU is performing a memory reset?

The RUN/STOP LED flashes yellow at 2 Hz. After completion the CPU goes into STOP mode, and the RUN/STOP LED is switched on (unchanging yellow).

Result after memory reset

The following table provides an overview of the contents of the memory objects after memory reset.

Table 10- 5 Memory objects after memory reset

Memory object

Actual values of the data blocks, instance data blocks

Bit memories, timers and counters

Retentive tags of technology objects

(e.g. adjustment values of absolute encoders)

Diagnostics buffer entries (retentive area)

Diagnostics buffer entries (non-retentive area)

IP address

Device name

Counter readings of the runtime meters

Time of day

Contents

Initialized

Initialized

Retained

Retained

Initialized

Retained

Retained

Retained

Retained

176

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.6 CPU memory reset

10.6.1

Automatic memory reset

Possible cause of automatic memory reset

The CPU executes an automatic memory reset if an error occurs that prevents normal further processing.

Causes for such errors can be:

● User program is too large, and can't be completely loaded into work memory.

● The project data on the SIMATIC memory card are damaged, for example because a file was deleted.

● If you remove or insert the SIMATIC memory card and the backed-up retentive data differs in structure from that of the configuration on the SIMATIC memory card.

10.6.2

Manual memory reset

Reason for manual memory reset

Memory reset is required to reset the CPU to its "original state".

CPU memory reset

There are three options for performing a CPU memory reset:

● Using the mode selector

● Using the display

● Using STEP 7

Procedure using the mode selector

Note

Memory reset ↔ Reset to factory settings

The procedure described below also corresponds to the procedure for resetting to factory settings:

Selector operation with inserted SIMATIC memory card: CPU executes a memory reset

Selector operation without inserted SIMATIC memory card: CPU executes reset to factory settings

Automation system

System Manual, 09/2016, A5E03461182-AD

177

Commissioning

10.6 CPU memory reset

To perform a memory reset of the CPU using the mode selector, follow these steps:

1.

Set the mode selector to the STOP position.

Result: The RUN/STOP LED lights up yellow.

2.

Set the mode selector to the MRES position. Hold the selector in this position until the

RUN/STOP LED lights up for the 2nd time and remains continuously lit (this takes three seconds). After this, release the selector.

3.

Within the next three seconds, switch the mode selector back to the MRES position, and then back to STOP again.

Result: The CPU executes memory reset.

For information on resetting the CPU to factory settings, refer to the section Resetting the

CPU to factory settings (Page 218).

Procedure using the display

To navigate to the desired "Memory reset" menu command, select the following sequence of menu commands and confirm after each selection with "OK".

● Settings → Reset → Memory reset

Result: The CPU executes memory reset.

Procedure using STEP 7

To perform a memory reset of the CPU via STEP 7, follow these steps:

1.

Open the "Online Tools" task card of the CPU.

2.

Click the "MRES" button in the "CPU control panel" pane.

3.

Click "OK" in response to the confirmation prompt.

Result: The CPU is set to STOP mode and performs memory reset.

178

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.7 Backing up and restoring the CPU configuration

10.7

Backing up and restoring the CPU configuration

Backup from online device

You will make a number of changes to your plant over time, for example, add new devices, replace existing devices or adapt the user program. If these changes result in undesirable behavior, you can restore the plant to an earlier state. Before you load a changed configuration to the CPU, first use the option "Backup from online device" to create a complete backup of the current device status.

Upload from device (software)

With the option "Upload from device (software)", you load the software project data from the

CPU to an existing CPU in the project.

Upload device as new station

If you are operating a new programming device/PC in the plant, the STEP 7 project that was used to create the plant configuration might not be available. In this case you can use the option "Upload device as new station" to load the device's data into a project in your PG/PC.

Snapshot of the monitor values

You can use the option "Snapshot of the monitor values" to backup the current values of the data block, in order to be able to restore the current values if necessary at a later date.

Overview of backup types

The table below shows the backup of CPU data depending on the selected type of backup and its specific characteristics:

Actual values of all DBs

(global and instance data blocks)*

Blocks of the type OB, FC, FB and DB

PLC tags

(tag names and constant names)

Technology objects

Hardware configuration

Backup from online device

Upload from device (software)

--

Actual values (bit memories, timers, counters)*

Contents of the SIMATIC memory card

Archives, recipes

Entries in the diagnostics buffer

Current time

--

--

--

--

--

--

--

Properties of the type of backup

Backup possible for fail-safe CPUs

Backup can be edited

--

--

Backup possible in operating mode STOP RUN, STOP

Upload device as new station

--

--

--

--

--

--

RUN, STOP

Snapshot of the m onitor values

--

--

--

--

--

--

--

--

--

RUN, STOP

* Only the values of the tags that are set as retentive are backed up

Automation system

System Manual, 09/2016, A5E03461182-AD

179

Commissioning

10.7 Backing up and restoring the CPU configuration

Reference

You can find additional information on the different backup methods in the STEP 7 online help.

Emergency address (Emergency IP)

The emergency address (emergency IP address) of a CPU is intended for diagnostic and download functions, e.g. when the CPU is no longer accessible via the IP protocol after a wrong project is downloaded. For additional information on the emergency address, refer to the following FAQ on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/97649773 ).

Storage of multilingual project texts

When you configure a CPU, texts of different categories result, e.g.

● Object names (names of blocks, modules, tags, etc.)

● Comments (for blocks, networks, watch tables, etc.)

● Messages and diagnostic texts

Texts are made available by the system (e.g. diagnostic buffer texts) or created during the configuration (e.g. alarms).

Texts exist in the project in one language or, after a translation process, in multiple languages. You can maintain project texts in all languages available to you in the project tree

(Languages & resources > Project texts). The texts produced when configuring can be downloaded to the CPU.

The following texts are downloaded in the selected languages with the project data to the

CPU and are also used by the Web server/CPU display:

● Diagnostic buffer texts (cannot be changed)

● Status texts for the module status (cannot be changed)

● Message texts with associated text lists

● Tag comments and step comments for Graph and PLC Code Viewer

● Comments in watch tables

The following texts are also downloaded in the selected languages with the project languages to the CPU but are not used by the Web server/CPU display:

● Comments in tag tables (for tags and constants)

● Comments in global data blocks

● Comments of elements in block interfaces of FBs, FCs, DBs and UDTs

● Network titles in blocks written in LAD, FBD or STL

● Block comments

● Network comments

● Comments of LAD and FBD elements

180

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.8 Identification and maintenance data

The S7-1500 CPUs support the storage of multilingual project texts in up to three different project languages. If the project texts of a particular project language exceed the reserved memory space nevertheless, the project cannot be downloaded to the CPU. The download is aborted with a notice that not enough memory space is available. If this happens, take steps to reduce the required memory space, e.g. shorten comments.

Note

Size of the SIMATIC memory card

If the memory space needed for downloading projects exceeds the memory space on the utilized SIMATIC memory card, the download to the CPU is aborted with an error message.

Ensure that your SIMATIC memory card has sufficient memory space for downloading projects.

You can find information on reading out the memory usage of the CPU and the SIMATIC memory card in the Structure and Use of the CPU Memory

( https://support.industry.siemens.com/cs/de/de/view/59193101/en ) Function Manual.

You can find information on parameter assignment of multilingual project texts in STEP 7 in the STEP 7 online help.

10.8

Identification and maintenance data

10.8.1

I&M data

Reading out and entering I&M data

Identification and maintenance data (I&M data) is data saved on the module as read-only

(I data) or read/write (M data) information.

Identification data (I&M0): Manufacturer information about the module that can only be read and is in part also printed on the housing of the module, for example, article number and serial number.

Maintenance data (I&M1, 2, 3): Plant-dependent information, e.g. installation location.

Maintenance data for the S7-1500/ET 200MP is created during configuration and downloaded to the automation system/distributed I/O system.

All modules of the S7-1500/ET 200MP support identification data (I&M0 through I&M3).

The I&M identification data supports you in the following activities:

● Checking the plant configuration

● Locating hardware changes in a plant

● Correcting errors in a plant

Modules can be clearly identified online using the I&M identification data.

You can read out the identification data with STEP 7 (see online help for STEP 7).

Automation system

System Manual, 09/2016, A5E03461182-AD

181

Commissioning

10.8 Identification and maintenance data

Options for reading out I&M data

● Via the user program

● Using the display of the CPU

● Via STEP 7 or HMI devices

● Via the CPU web server

Procedure for reading I&M data via the user program

To read the modules' I&M data in the user program, use the RDREC instruction.

The data record structure for centrally inserted modules as well as for distributed modules

that are accessible via PROFINET IO/PROFIBUS DP is described in the section Record structure for I&M data (Page 184).

Reference

The description of the instructions can be found in the STEP 7 online help.

Procedure for reading I&M data via the display

To read the I&M data "Plant designation" or "Location identifier" of the CPU via the display, follow these steps:

1.

Navigate to the "Overview/PLC" menu on the display of the CPU.

2.

Select "Plant designation" or "Location identifier" and confirm with "OK".

To read the I&M data "Plant designation" or "Location identifier" of a centrally used module, follow these steps:

1.

Navigate to the "Modules" menu on the display of the CPU.

2.

Select the menu command "Local modules" and confirm with "OK".

3.

Select the slot of the module (e.g., slot 3: DI 32 x 24VDC HF) and confirm with "OK".

4.

Select the "Status" and confirm with OK.

5.

Select "Plant designation" or "Location identifier" and confirm with "OK".

To read the I&M data "Plant designation" or "Location identifier" of a module used in distributed mode, follow these steps:

1.

Navigate to the "Modules" menu on the display of the CPU.

2.

Select the corresponding distributed I/O system (for example PROFINET IO system) and confirm with "OK".

3.

Select the corresponding device (for example ET 200SP-Station_1) and confirm with

"OK".

4.

Select the slot of the module (e.g., slot 1: DI 16 x DC24V ST_1) and confirm with "OK".

5.

Select the "Status" and confirm with OK.

6.

Select "Plant designation" or "Location identifier" and confirm with "OK".

182

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.8 Identification and maintenance data

Procedure for reading I&M data via STEP 7

Requirement: There must be an online connection to the CPU/interface module.

To read I&M data using STEP 7, follow these steps:

1.

In the project tree, select the CPU/interface module and go to "Online & diagnostics".

2.

In the "Diagnostics" folder, select the "General" area.

Procedure for entering maintenance data via STEP 7

STEP 7 assigns a default module name. You can enter the following information:

● Plant designation (I&M 1)

● Location identifier (I&M 1)

● Installation date (I&M 2)

● Additional information (I&M 3)

To enter maintenance data via STEP 7, follow these steps:

1.

In the device view of STEP 7, select the CPU/interface module or a module.

2.

In the properties under "General", select the "Identification & Maintenance" area and enter the data.

During the loading of the hardware configuration, the maintenance data (I&M 1, 2, 3) are also loaded.

Procedure for reading I&M data via the Web server

The procedure is described in detail in the Web server Function Manual

( http://support.automation.siemens.com/WW/view/en/59193560 ).

Automation system

System Manual, 09/2016, A5E03461182-AD

183

Commissioning

10.8 Identification and maintenance data

10.8.2

Record structure for I&M data

Reading I&M records via user program (centrally and distributed via PROFINET IO)

Use Read data record ("RDREC" instruction) to access specific identification data. Under the associated record index you obtain the corresponding part of the identification data.

The records are structured as follows:

Table 10- 6 Basic structure of data records with I&M identification data

Contents

Header information

BlockType 2

Length (bytes)

BlockLength

BlockVersionHigh

BlockVersionLow

Identification data

Identification data

(see table below)

2

1

1

I&M0/Index AFF0

I&M1/Index AFF1

H

H

: 54

: 54

I&M2/Index AFF2

H

: 16

I&M3/Index AFF3

H

: 54

-

-

-

-

Coding (hex)

I&M0: 0020

H

I&M1: 0021

H

I&M2: 0022

H

I&M3: 0023

H

I&M0: 0038

H

I&M1: 0038

H

I&M2: 0012

H

I&M3: 0038

H

01

00

Table 10- 7 Record structure for I&M identification data

Identification data Access

Identification data 0: (record index AFF0

H

)

VendorIDHigh

VendorIDLow

Order_ID read (1 bytes) read (1 bytes)

0000

H

002A

H

Exam ple Explanation

Vendor name

(002A

H

= SIEMENS AG) read (20 bytes) 6ES7516-3AN00-0AB0 Part number of the module

(e.g. CPU 1516-3 PN/DP)

IM_SERIAL_NUMBER

IM_HARDWARE_REVISION

IM_SOFTWARE_REVISION

SWRevisionPrefix read (16 bytes) - read (2 bytes) 1 read

(1 byte)

Firmware version

V

Serial number (device-specific) corresponds to hardware version

(e.g. 1)

Provides information about the firmware version of the module (e.g. V1.0.0)

IM_SWRevision_Functional_

Enhancement

(1 byte) 0000

H

- 00FF

H

IM_SWRevision_Bug_Fix

(1 byte) 0000

H

- 00FF

H

184

Automation system

System Manual, 09/2016, A5E03461182-AD

Commissioning

10.8 Identification and maintenance data

Identification data

IM_SWRevision_Internal_

Change

IM_REVISION_COUNTER

Access

(1 byte) read (2 bytes)

IM_PROFILE_ID read (2 bytes)

IM_PROFILE_SPECIFIC_TYPE read (2 bytes)

IM_VERSION

IM_Version_Major

IM_Version_Minor

IM_SUPPORTED read

(1 byte)

(1 byte) read (2 bytes)

Maintenance data 1: (Record index AFF1

H

)

IM_TAG_FUNCTION read/write (32 bytes)

IM_TAG_LOCATION

IM_DESCRIPTOR read/write (22 bytes)

Maintenance data 2: (Record index AFF2

H

)

IM_DATE read/write (16 bytes)

Maintenance data 3: (Record index AFF3

H

) read/write (54 bytes)

Exam ple

0000

H

- 00FF

H

0000

H

Explanation

0000

0001

0003

0101

H

H

H

H

Provides information about parameter changes on the module

(not used)

Generic Device

CPU

I/O modules

Provides information on the ID data version

(0101

H

= Version 1.1)

-

-

000E

H provides information about the available identification and maintenance data

(I&M1 to I&M3)

Enter an identifier for the module here, that is unique plant-wide.

Enter the installation location of the module here.

YYYY-MM-DD HH:MM Enter the installation date of the module here.

- Enter a comment about the module here.

Reading I&M records with record 255 (distributed configuration via PROFIBUS)

Use Read data record ("RDREC" instruction) to access specific identification data.

The modules support standardized access to identification data using DR 255 (index 65000 to 65003). For additional information on the DR 255 data structure, refer to the specifications of the Profile Guidelines Part 1: Identification & Maintenance Functions - Order no.: 3.502,

Version 1.2, October 2009.

Automation system

System Manual, 09/2016, A5E03461182-AD

185

Commissioning

10.9 Shared commissioning of projects

10.9

Shared commissioning of projects

Team Engineering

In Team Engineering, several users from various engineering systems work on a project at the same time and access one S7-1500 CPU.

The users can edit separate parts of a master project independently of one another at the same time. The changes of the other editors are displayed in a synchronization dialog during the loading of the configuration in the CPU and synchronized automatically, if possible.

Certain online functions can also be executed at the same time from several engineering systems on a shared CPU, such as:

● Monitoring blocks on the CPU

● Modifying blocks on the CPU

● Trace functions

You can find detailed information on the topic of Team Engineering in the STEP 7 online help.

186

Automation system

System Manual, 09/2016, A5E03461182-AD

SIMATIC memory card

11

11.1

Introduction

SIMATIC memory card - overview

The S7-1500 automation system uses a SIMATIC memory card as the program memory.

The SIMATIC memory card is a preformatted memory card compatible with the Windows file system. The memory card is available in different memory sizes and can be used for the following purposes:

● Transportable data carrier

● Program card

● Firmware update card

● Service data cards

If you transfer the user program to the CPU via an online connection, it is written to the load memory of the SIMATIC memory card, which must be in the card slot of the CPU for this to work.

You can also write the SIMATIC memory card in the PG/PC. A commercially available SD card reader is required to write / read the SIMATIC memory card with the programming device / PC. This is used to copy files directly to the SIMATIC memory card using the

Windows Explorer, for example.

A SIMATIC memory card is absolutely required in order to operate the CPU.

Automation system

System Manual, 09/2016, A5E03461182-AD

187

SIMATIC memory card

11.1 SIMATIC memory card - overview

Labeling of the SIMATIC memory card

Article number

Serial number

Product version

Memory size

Slider for enabling write protection:

• Slider up: not write-protected

Slider down: write-protected

Figure 11-1 Labeling of the SIMATIC memory card

Folders and files on the SIMATIC memory card

The following folders and files can be found on the SIMATIC memory card:

Table 11- 1 Folder structure

Folder

FWUPDATE.S7S

SIMATIC.S7S

SIMATIC.HMI

DataLogs

Recipes

Backups

Description

Firmware update files for CPU and I/O modules

User program, i.e. all blocks (OBs, FCs, FBs, DBs) and system blocks, project data of the CPU

HMI-relevant data

DataLog files

Recipe files

Files for backup and restore using the display

188

Automation system

System Manual, 09/2016, A5E03461182-AD

SIMATIC memory card

11.1 SIMATIC memory card - overview

Table 11- 2 File structure

File type

S7_JOB.S7S

SIMATIC.HMI\Backup\*.psb

Description

Job file

Panel backup files

SIMATICHMI_Backups_DMS.bin Protected file (required to use panel backup files in STEP 7)

__LOG__ crdinfo.bin

Protected system file (required in order to use the card)

Protected system file (required in order to use the card)

DUMP.S7S

*.pdf, *.txt, *.csv, ....

Service data file

Further files with different formats that you can also store in folders of the SIMATIC memory card

Use the serial number for copy protection

You can set up copy protection for CPUs which binds execution of the block to a specific

SIMATIC memory card. Configuration is carried out in STEP 7 in the properties of the block

"Bind to serial number of the SIMATIC memory card".

You can only execute the block if it is on the SIMATIC memory card with the specified serial

number (see section Copy protection (Page 139)).

Removing the SIMATIC memory card

Only remove the SIMATIC memory card in POWER OFF or STOP mode of the CPU. Ensure that no writing functions (online functions with the programming device, e.g. loading/deleting a block, test functions) are active in STOP mode or were active before POWER OFF.

If you remove the SIMATIC memory card during a write process, the following problems can occur:

● The data content of a file is incomplete.

● The file is no longer readable, or no longer exists.

● The entire content of the card is corrupted.

Inserting the SIMATIC memory card in the CPU in STOP mode triggers a re-evaluation of the SIMATIC memory card. The CPU hereby compares the content of the configuration on the SIMATIC memory card with the backed-up retentive data. If the backed-up retentive data matches the data of the configuration on the SIMATIC memory card, the retentive data is retained. If the data differs, the CPU automatically performs a memory reset (which means the retentive data is deleted) and then goes to STOP.

Also note the following FAQ on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/59457183 ) in connection with the removal of the SIMATIC memory card.

Removing the SIMATIC memory card from Windows computers

If you are using the card in a commercially available card reader under Windows, use the

"Eject" function before you remove the card from the card reader. If you remove the card without using the "Eject" function, you may lose data.

Automation system

System Manual, 09/2016, A5E03461182-AD

189

SIMATIC memory card

11.1 SIMATIC memory card - overview

Deleting the contents of the SIMATIC memory card

You have the following options for deleting the contents of the SIMATIC memory card:

● Delete files using Windows Explorer

● Format with STEP 7

Note

If you format the card with Windows utilities, you will render the SIMATIC memory card unusable as a storage medium for a CPU.

Deletion of files and folders is permitted, with the exception of the "__LOG__" and

"crdinfo.bin" system files. The CPU needs these system files. If you delete the files, you will no longer be able to use the SIMATIC memory card with the CPU.

If you have deleted the "__LOG__" and "crdinfo.bin" system files, format the SIMATIC memory card as described in the following section.

Formatting the SIMATIC memory card

Note

You may only format a SIMATIC memory card in the CPU; otherwise, the SIMATIC memory card cannot be used in the CPU.

If you want to format the SIMATIC memory card using STEP 7, an online connection to the relevant CPU must exist. The relevant CPU is in the STOP mode.

Proceed as follows to format a SIMATIC memory card:

1.

Open the Online and Diagnostics view of the CPU (either from the project context or via

"Accessible devices").

2.

In the "Functions" folder, select the "Format memory card" group.

3.

Click the "Format" button.

4.

Click "Yes" in response to the confirmation prompt.

Result:

● The SIMATIC memory card is formatted for use in the CPU.

● The data on the CPU is deleted with the exception of the IP address.

You can find information on how to repair an inconsistent or incorrectly formatted card in the following FAQ on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/69063974 ).

190

Automation system

System Manual, 09/2016, A5E03461182-AD

Service life of a SIMATIC memory card

The service life of a SIMATIC memory card depends essentially on the following factors:

● Number of delete/write operations per memory block

● Number of written bytes

● External influences, such as ambient temperature

Reference

SIMATIC memory card

11.2 Setting the card type

You can find additional information on the service life of the SIMATIC memory card as well as on memory utilization and memory areas to be used in the Structure and Use of the CPU

Memory ( https://support.industry.siemens.com/cs/de/de/view/59193101/en ) Function

Manual.

11.2

Introduction

Setting the card type

You can use the SIMATIC memory card as a program card or as a firmware update card.

Procedure

1.

To set the card type, insert the SIMATIC memory card into the card reader of the programming device.

2.

Select the "SIMATIC Card Reader" folder in the project tree.

3.

In the properties of the selected SIMATIC memory card, specify the card type:

● Program card

You use a program card as an external load memory for the CPU. It contains the entire user program for the CPU. The CPU transfers the user program from the load memory to the work memory. The user program runs in the work memory.

The following folder is created on the SIMATIC memory card: SIMATIC.S7

● Firmware update card

You can save firmware for CPUs and for I/O modules on a SIMATIC memory card. You can perform a firmware update with the help of a specially prepared SIMATIC memory card.

The following folder is created on the SIMATIC memory card: FWUPDATE.S7S

Reference

You can find additional information in the STEP 7 online help.

Automation system

System Manual, 09/2016, A5E03461182-AD

191

SIMATIC memory card

11.3 Data transfer with SIMATIC memory cards

11.3

Data transfer with SIMATIC memory cards

Transferring objects from the project to a SIMATIC memory card

When the SIMATIC memory card is inserted in the programming device or in an external card reader, you can transfer the following objects from the project tree (STEP 7) to the

SIMATIC memory card:

● Individual blocks (multiple selection possible)

In this case, the transfer is consistent, which means that the function takes dependencies between blocks due to block calls into account.

● CPU folder

In this case, all runtime-relevant objects including blocks and the hardware configuration are transferred onto the SIMATIC memory card - just as when downloading.

● Service data

In this case, the service data saved beforehand (see section Reading out/saving service data (Page 230)) is transferred to the SIMATIC memory card.

To perform a transfer, you can transfer the objects by dragging and dropping, or use the

"Card Reader/USB memory > Write to memory card" command in the "Project" menu.

Firmware update via SIMATIC memory card

You can find information on how to perform a firmware update via SIMATIC memory card in

the section Firmware update (Page 213).

Reference

For additional information about the SIMATIC memory card, refer to the STEP 7 online help.

192

Automation system

System Manual, 09/2016, A5E03461182-AD

CPU display

12

Introduction

The section below gives an overview of the mode of operation of the CPU display. Detailed information on the individual options, a training course and a simulation of the selectable menu items is available in the SIMATIC S7-1500 Display Simulator

( http://www.automation.siemens.com/salesmaterial-as/interactive-manuals/gettingstarted_simatic-s7-1500/disp_tool/start_en.html

).

Display

The S7-1500 CPU has a front cover with a display and operating keys. The display of the

CPU shows you the control and status information in different menus. You use operating keys to navigate through the menus and make a variety of settings in the process.

Benefits

The display of the CPU offers the following advantages:

● Reduced downtimes through diagnostic messages in plain text

● Changing of the interface settings locally without a programming device

● Password assignment for display operation is possible via STEP 7.

● Shorter downtimes due to read and write access to force tables and read access to watch tables:

The watch tables and force tables allow the current values of the individual tags of a user program or CPU to be monitored and modified on the display. You can find additional

information on the watch and force tables in the section Test functions and fault resolution (Page 225) and in the STEP 7 online help.

● IP addresses of CPU and connected CMs/CPs can be set.

● For F-CPUs: Overview of status of safety mode and of F-parameters of F-CPU and F-I/O.

● Backing up/restoring the CPU configuration to/from the SIMATIC memory card.

Operating temperature for the display

To increase the service life of the display, the display switches off when the permitted operating temperature is exceeded. When the display has cooled down again, it switches on automatically again. When the display is switched off, the LEDs continue to show the status of the CPU.

Additional information about the temperatures at which the display switches off and back on again is available in the technical data of the manuals of the CPUs.

Automation system

System Manual, 09/2016, A5E03461182-AD

193

CPU display

Display

The following figures show an example of a CPU with large display (left: for example,

CPU 1516-3 PN/DP) and a CPU with small display (right: for example, CPU 1511-1 PN).

CPU status information

Names of the menus

Data display field

Navigation aid, e.g. OK/ESC or the page number

Figure 12-1 Example views of the displays

194

Automation system

System Manual, 09/2016, A5E03461182-AD

CPU display

Regarding

: CPU status information

The following table shows the CPU status information that can be retrieved via the display.

Table 12- 1 CPU status information

Color and icons for the status data

Green

Orange

Red

White

Meaning

RUN

• STOP

STOP - firmware update

FAULT

• Connection established between CPU and display.

Protection level configured.

• At least one interrupt is active in the CPU.

No SIMATIC memory card inserted in the CPU.

• The serial number to which a know-how-protected block is bound, does not match the serial number of the CPU or the SIMATIC memory card.

No user program loaded.

Force job is active in the CPU.

F-capability activated. Safety operation active (for fail-safe CPUs)

The symbol is grayed out when safety mode is deactivated.

Fail-safe CPU (for fail-safe CPUs).

Automation system

System Manual, 09/2016, A5E03461182-AD

195

CPU display

Regarding

: Names of the menus

The following table shows the available menus of the display.

Table 12- 2 Names of the menus

Main menu items Meaning

Overview

Description

The "Overview" menu contains information about the properties of the CPU and the properties of the inserted SIMATIC memory card, as well as information on whether a know-how protection or a linking of the serial number exists.

For F-CPUs, the status of the safety mode, the collective signature and the date of the last change in the F-CPU is displayed.

Diagnostics The "Diagnostics" menu includes:

Settings

Modules

Display

• Display of diagnostic messages.

Read/write access to force and watch tables.

• Display of cycle time.

Display of CPU memory utilization.

• Display of interrupts.

In the "Settings" menu, you can:

Assign the IP addresses and the PROFINET device name of the CPU.

Set the network properties of each CPU interface.

Set the date, time, time zones, operating modes (RUN/STOP) and protection levels.

Disable/enable display with display password.

Perform a CPU memory reset.

Perform a reset to factory settings.

Format the SIMATIC memory card.

Delete the the user program.

Back up/restore the CPU configuration to/from the SIMATIC memory card.

View the status of the firmware update.

Convert the SIMATIC memory card into a program card

The "Modules" menu contains information about the central and distributed modules that are used in your configuration.

Peripherally deployed modules are connected to the CPU via

PROFINET and/or PROFIBUS.

You can set the IP addresses for the CPU or a CP/CM here.

Fail-safe parameters are displayed for F-modules.

In the "Display" menu you can configure settings related to the display, such as language setting, brightness and energy-saving mode. The energy-saving mode dims the display. The standby mode selectors the display off.

196

Automation system

System Manual, 09/2016, A5E03461182-AD

Menu icons

CPU display

The following table shows the icons that are displayed in the menus.

Table 12- 3 Menu icons

Icon Meaning

Editable menu item.

Select the desired language here.

A message is available in the next lower level page.

There is an error in the next lower level page.

The marked module is not accessible.

Navigate to the next lower level page.

In edit mode you make the selection using two arrow keys:

• down/up: jumps to the selection or is used to select the desired digits/options.

In edit mode you make the selection using four arrow keys:

• down/up: jumps to the selection or is used to select the desired digits.

• left/right: jumps one spot forward or backward.

The alarm is not yet acknowledged.

The alarm is acknowledged.

Handling the front cover

The front cover is pluggable. You can remove or replace the front cover during operation

(RUN). Removing or replacing the front cover has no effect on the running CPU.

To remove the front cover from the CPU, follow these steps:

1.

Flip up the front cover until the front cover stands at a 90° angle to the front of the module.

2.

In the upper area of the front cover simultaneously press on the anchor(s) and pull the front cover forward and away.

Automation system

System Manual, 09/2016, A5E03461182-AD

197

CPU display

The figure below shows an exemplary view of the CPU 1516-3 PN/DP.

Fasteners for removing and fitting the front panel

Figure 12-2 Removing and fitting the front panel

WARNING

Personal injury or material damage can occur in zone 2 hazardous areas

Personal injury or material damage can occur in hazardous are zone 2 if you remove or fit the front panel while the S7-1500 automation system is running.

Before you remove or fit the front panel, always switch off the power supply to the S7-1500 automation system in hazardous area zone 2.

198

Automation system

System Manual, 09/2016, A5E03461182-AD

CPU display

Control keys

The following keys are available on the CPU's display:

● Four arrow keys: "up", "down", "left", "right"

If you press and hold an arrow key for 2 seconds, this generates an automatic scroll function.

● One ESC key

● One OK key

Figure 12-3 Control keys

Note

If the display is in energy-saving mode or in standby mode, you can exit this mode by pressing any key.

Functions of the "OK" and "ESC" keys

● For menu commands in which an entry can be made:

– OK → valid access to the menu command, confirmation of input, and exit from the edit mode

– ESC → set the original content (which means changes are not saved) and exit from edit mode

● For menu commands in which no entry can be made:

– OK → to next submenu command

– ESC → back to previous menu command

If you hold ESC for around three seconds on any screen of the display, you jump automatically to the home page.

Automation system

System Manual, 09/2016, A5E03461182-AD

199

CPU display

Tooltips

Some of the values shown on the display (e.g., station name, plant designation, location identifier, PROFINET device name, etc.) can exceed the available display width. This applies in particular to the CPUs with a small display. If you focus on the relevant value on the display and then press the "Left" arrow key, a tooltip appears. The tooltip shows the name of the value in complete length. The tooltip is hidden again if you again press the "Left" arrow or the ESC key.

Figure 12-4 Tooltip function

Uploading image to the display via STEP 7

You can use the "User-defined logo" function under "Display" in the device view of the CPU to load an image from your file system into the display of the CPU via STEP 7.

200

Figure 12-5 Uploading image to CPU

Automation system

System Manual, 09/2016, A5E03461182-AD

CPU display

To correctly show the aspect ratio of the uploaded image, use the following dimensions depending on the CPU images.

Table 12- 4 Dimensions

CPU

CPU 1511(F)-1 PN

CPU 1511C-1 PN

CPU 1511T-1 PN

CPU 1512C-1 PN

CPU 1513(F)-1 PN

CPU 1515(F)-2 PN

CPU 1515T-2 PN

CPU 1516(F)-3 PN/DP

CPU 1517(F)-3 PN/DP

CPU 1517T(F)-3 PN/DP

CPU 1518(F)-4 PN/DP

CPU 1518(F)-4 PN/DP ODK

Dimensions

128 x 120 pixels

128 x 120 pixels

128 x 120 pixels

240 x 260 pixels

240 x 260 pixels

240 x 260 pixels

240 x 260 pixels

Supported formats

Bitmap, JPEG, GIF, PNG

Bitmap, JPEG, GIF, PNG

Bitmap, JPEG, GIF, PNG

Bitmap, JPEG, GIF, PNG

Bitmap, JPEG, GIF, PNG

Bitmap, JPEG, GIF, PNG

Bitmap, JPEG, GIF, PNG

If the uploaded image exceeds the specified dimensions, the display shows only part of the image. The "Adapt logo" option in STEP 7 provides you with the option of scaling the image to the specified dimensions. However, note that the original aspect ratio of the image is not retained in such cases.

Displaying image on the display

To display the uploaded image on the display of the CPU, press the ESC key in the main screen of the display. When you upload an image and are in the main screen, the display automatically shows the image after 60 seconds. To hide the image again, press any key on the display.

Available language settings

You can set the following languages separately for menu and alarm texts:

● Chinese

● German

● English

● French

● Italian

● Japanese

● Korean

● Portuguese (Brazil)

● Russian

● Spanish

● Turkish

Automation system

System Manual, 09/2016, A5E03461182-AD

201

CPU display

You select the required language directly at the display in the "Display" menu or in STEP 7 in the hardware configuration of the CPU under User interface languages".

To display message texts on the display, follow these steps:

1.

Download the message texts to the CPU as a software component. To do so, select the

"Consistent download" option under "Text libraries" in the "Load preview" dialog.

2.

You set the project language that is to be displayed as the interface language by means of parameter assignment. To do so, select the CPU in the Inspector window and navigate to the "Multiple languages" area ("Properties > General > Multiple languages") and assign the required project languages to the interface languages.

Reference

Important information/special requirements for the display of F-CPUs can be found in

Product Information F-CPUs S7-1500

( https://support.industry.siemens.com/cs/ww/de/view/109478599/en )

202

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13

13.1

Requirement

Removing and inserting I/O modules

Remove or insert front connectors and I/O modules only when the voltage is switched off.

NOTICE

Physical damage can occur

If you install or uninstall front connectors and/or I/O modules with switched-on voltage, this can lead to undefined conditions in your plant.

The S7-1500 automation system/ET 200MP distributed I/O system may be damaged as a result.

Therefore only install/uninstall front connectors and/or I/O modules with switched-off voltage.

Therefore during the planning of a plant always make sure to comply with the necessary, pertinent standards and safety guidelines.

Automation system

System Manual, 09/2016, A5E03461182-AD

203

Maintenance

13.2 Replacement of I/O modules and front connectors

13.2

Replacement of I/O modules and front connectors

13.2.1

Function

Coding element on the I/O module and on the front connector

All front connectors for the I/O modules of the S7-1500 automation system/ET 200MP distributed I/O system are identical. The coding element prevents a front connector from being inserted on a module with a different electrical pin assignment.

Delivery state of the I/O module

In the delivery state, the coding element is located in the I/O module.

204

Figure 13-1 Coding element in the I/O module (delivery condition)

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.2 Replacement of I/O modules and front connectors

Coding element in the front connector

When the front connector is inserted into the I/O module for the first time, one half of the coding element latches into the front connector. When you remove the front connector from the I/O module, this half of the coding element remains in the front connector, while the other half remains in the I/O module.

Figure 13-2 Coding element in the I/O module/front connector

You can insert a coded front connector on modules with the same electrical pin assignment.

Refer to section Application planning (Page 33).

NOTICE

Physical damage can occur

If the coding element is changed or removed, it will be possible to insert the front connector on modules in which the electrical connection is not properly wired.

This can destroy the module and/or the connected sensors and actuators. Even hazardous plant states are possible.

Do not change the coding element unless you want to use the front connector on a different module and you change the process wiring accordingly.

Use cases for replacing the coding element

● Replacing an I/O module, for example, due to a defect or incorrect configuration

● Replacing a front connector

Automation system

System Manual, 09/2016, A5E03461182-AD

205

Maintenance

13.2 Replacement of I/O modules and front connectors

Additional electronic coding element for fail-safe modules

In as-delivered condition, a fail-safe module not only has a mechanical coding element but also an electronic rewritable memory for the PROFIsafe address. The figure below shows the electronic coding element:

Electronic coding element

Figure 13-3 F-module with electronic coding element (as delivered)

206

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.2 Replacement of I/O modules and front connectors

When the front connector is inserted in the F-module, the electronic coding element engages completely in the front connector. If you remove the front connector from the F-module, the memory with the PROFIsafe address of the fail-safe module remains in the front connector.

Electronic coding element

Figure 13-4 Front connector with electronic coding element

Automation system

System Manual, 09/2016, A5E03461182-AD

207

Maintenance

13.2 Replacement of I/O modules and front connectors

13.2.2

Introduction

Replacing an I/O module

● When the front connector is first inserted into the I/O module, a part of the coding element clips onto the front connector.

● In the case of fail-safe modules, the electronic coding element with the PROFIsafe address of the F-module also engages completely in the front connector.

When you replace an I/O module with the same type of module, the correct coding element or coding elements in the case of F-modules are already present in the front connector.

Result: Before inserting the previous front connector, you must remove the coding element(s) from the new I/O module.

Procedure

To replace the I/O module, follow these steps:

You have already uninstalled the I/O module.

You can find information on removing the I/O module in section Installing I/O modules

(Page 61).

1.

For a new I/O module, use a screwdriver to break out the half of the mechanical coding element that is designated for the front connector.

Note

The arrangement of the mechanical coding element depends on the module type: Check the position of the coding element on the front connector before you break out the matching half from the I/O module.

For a new fail-safe module you must also remove the electronic coding element from the

F-module.

208

Figure 13-5 Breaking the coding element out of the I/O module

2.

Insert the existing front connector into the new I/O module (same module type) until your hear it click into place.

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.2 Replacement of I/O modules and front connectors

13.2.3

Introduction

Replacing a front connector

● When the front connector is first inserted into the I/O module, a part of the mechanical coding element engages on the front connector.

● In the case of fail-safe modules, the electronic coding element with the PROFIsafe address of the F-module also engages completely in the front connector.

When you replace a defective front connector with a new front connector, you must transfer the coding element(s) to the new front connector.

Procedure

You have already removed the front connector from the module and loosened the wiring. If you are using the front connector for an analog module, you also need to remove the power supply element and shield element. Proceed as follows to replace the front connector:

1.

Carefully remove the mechanical coding element from the front connector. Take care not to damage the coding element.

Figure 13-6 Removing the mechanical coding element from the front connector

Note

The coding elements are dependent on the module type.

2.

Insert the removed mechanical coding element into the new front connector.

Figure 13-7 Inserting the mechanical coding element into a new front connector

Automation system

System Manual, 09/2016, A5E03461182-AD

209

Maintenance

13.2 Replacement of I/O modules and front connectors

3.

Additionally for F-modules:

– Carefully remove the electronic coding element from the front connector. Take care not to damage the coding element.

– Insert the removed electronic coding element into the new front connector.

Figure 13-8 Removing the electronic coding element from the front connector and inserting it into a new front connector

4.

Insert the new front connector into the existing I/O module, until your hear it click into place.

5.

Wire the new front connector.

210

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.3 Replacing the coding element at the power connector of the system power supply and load current supply

13.3

Replacing the coding element at the power connector of the system power supply and load current supply

Introduction

The coding consists of a 2-part coding element.

Ex factory a part of the coding element is inserted into the back side of the power connector.

The other part is firmly inserted in the system power supply or load current supply.

This prevents the insertion of a power connector of a system power supply or load current supply into a module of a different type.

DANGER

Do not manipulate the coding element, or leave it off

If you undertake changes to the coding element or replace it, then this can lead to dangerous conditions in your plant.

In order to prevent damage, you must not change or replace the coding.

The coding element may not be left off.

Replacement parts scenario

Insertion of the coding element into a new power connector in the case of a replacement part.

DANGER

Dangerous voltage

When installing the coding element, you must take into account the supply voltage of the system power supply and load current supply, 24 V DC, 24/48/60 V DC or 120/230 V

AC/DC.

Only install the coding element with switched-off voltage.

You must insert the coding element in such a way that the power connector matches the power supply module in terms of voltage.

Automation system

System Manual, 09/2016, A5E03461182-AD

211

Maintenance

13.3 Replacing the coding element at the power connector of the system power supply and load current supply

Procedure

To replace the coding element on the power connector of the system power supply and load current supply, follow these steps:

1.

Orient yourself using the labeling on the power cable connection.

Figure 13-9 Labeling on the power connector

2.

Orient yourself using the red marking on the coding element.

3.

The coding element has 3 red markings. Turn the coding element in such a way that one of the 3 red markings corresponds to the voltage indicated on the connector.

4.

Insert the coding element into the back side of the power cable connector, until you hear it click into place. The figure below shows you how to insert a coding element into a power cable connector for 24 V DC.

Figure 13-10 Inserting a coding element into a power connector

212

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.4 Firmware update

13.4

Introduction

Firmware update

During operation, it may be necessary to update the firmware (e.g. due to function extensions).

Update the firmware of the CPU/interface module, display and the I/O modules using firmware files. The retentive data is retained after the execution of the firmware update.

Requirement

● You have downloaded the file(s) for the firmware update from the Product Support

( https://support.industry.siemens.com/cs/ww/en/ps ) web page.

On this web site, select:

– For the S7-1500 automation system: Automation Technology > Automation Systems >

Industrial Automation Systems SIMATIC > Controllers > SIMATIC S7 Advanced

Controller SIMATIC S7 > SIMATIC S7-1500.

– For the ET 200MP distributed I/O system: Automation Technology > Automation

Systems > Industrial Automation Systems SIMATIC > SIMATIC ET 200 I/O systems >

ET 200 systems for the cabinet > ET 200MP.

Figure 13-11 Product tree using the S7-1500 as an example:

Automation system

System Manual, 09/2016, A5E03461182-AD

213

Maintenance

13.4 Firmware update

From there, navigate to the specific type of module that you want to update. To continue, click on the "Software downloads" link under "Support". Save the desired firmware update files.

Figure 13-12 Selecting the software downloads

● Before installing the firmware update, ensure that the modules are not being used.

Additional requirement for fail-safe modules

WARNING

Check the firmware version for F-approval

When using a new firmware version, always check that the version is approved for use in the respective module.

The attachments of the certificate

( http://support.automation.siemens.com/WW/view/en/49368678/134200 ) for

SIMATIC Safety specify which firmware version is approved.

Options for the firmware update

There are the following options for performing a firmware update:

● Online in STEP 7 via Online & Diagnostics

● Online in STEP 7 via accessible devices (PROFINET)

● Via SIMATIC memory card (possible for CPU, display, and all centrally inserted modules)

● Via the integrated Web server

● Online via the SIMATIC Automation Tool

214

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.4 Firmware update

The table below provides an overview of the media that can be used to update the firmware of a specific module.

Table 13- 1 Overview of firmware update options

Firmware update CPU

STEP 7 (TIA Portal V12 or higher)

Accessible devices

SIMATIC memory card

Web server of the CPU

SIMATIC Automation Tool

Central I/O module Interface m odule Distributed I/O m odule

✓ ✓ ✓

✓ ✓ --

--

--

Installation of the firmware update

WARNING

Impermissible plant states possible

The CPU switches to STOP mode or the interface module to "station failure" as a result of the firmware update being installed. STOP or station failure can have an adverse effect on the operation of an online process or a machine.

Unexpected operation of a process or a machine can lead to fatal or severe injuries and/or to material damages.

Ensure before installing the firmware update, that the CPU is not executing any active process.

Procedure: online in STEP 7 via Online & diagnostics

Proceed as follows to perform an online firmware update via STEP 7:

1.

Select the module in the device view.

2.

Select the "Online & diagnostics" menu command from the shortcut menu.

3.

In the "Functions" folder, select the "Firmware update" group.

For a CPU, you can select whether you want to update the CPU or the CPU's display.

4.

Click the "Browse" button to select the firmware update files in the "Firmware update" area.

5.

Select the matching firmware file. The table in the firmware update area lists all modules for which an update is possible with the selected firmware file.

6.

Click the "Run update" button. If the module can interpret the selected file, the file is downloaded to the module. If you must change the CPU mode, STEP 7 prompts you to do so with dialogs.

Automation system

System Manual, 09/2016, A5E03461182-AD

215

Maintenance

13.4 Firmware update

Updating the firmware

The "Run firmware after update" check box is always selected.

After a successful loading process the CPU includes imports the firmware and subsequently operates with the new firmware.

Note

If a firmware update is interrupted, you need to remove and insert the module before starting the firmware update again.

Procedure: online in STEP 7 via accessible devices

To perform a firmware update online via accessible devices, follow these steps:

1.

From the "Online menu, select the "Accessible devices" menu item.

2.

In the Accessible devices dialog, search for the accessible devices for the selected

PROFINET interface.

3.

To go to a device in the project tree, select the desired device from the list of accessible devices and click the "Show" button.

4.

In the project tree, select the "Online & diagnostics" option of the relevant device and perform the firmware update under the category Functions/Firmware Update (CPU,

Display, Local modules).

Procedure via the SIMATIC memory card

Proceed as follows perform a firmware update via the SIMATIC memory card:

1.

Insert a SIMATIC memory card into an SD card reader of your programming device / computer.

2.

To store the update file on the SIMATIC memory card, select the SIMATIC memory card in the "Card Reader/USB memory" folder in the project tree.

3.

Select the "Card Reader/USB memory > Create firmware update memory card" command in the "Project" menu.

4.

Use a file selection dialog to navigate to the firmware update file. In a further step you can decide whether you are deleting the content of the SIMATIC memory card or adding the firmware update files to the SIMATIC memory card.

5.

Insert the SIMATIC memory card with the firmware update files into the CPU.

The firmware update begins shortly after the SIMATIC memory card has been plugged.

The display indicates that the CPU is in STOP mode, and that a firmware update is being executed: "STOP - FW UPDATE". It displays the progress of the firmware update. The

CPU shows any errors that occur during the firmware update on the display.

The display shows a results screen after the completion of the firmware update.

216

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.4 Firmware update

6.

Remove the SIMATIC memory card after the firmware update is complete.

The RUN LED on the CPU lights up yellow, the MAINT LED flashes yellow.

If you use the SIMATIC memory card subsequently as a program card, delete the firmware update files manually. Optionally, you can perform this action directly on the

CPU display. To do so, after completion of the firmware update, select the "Convert memory card" menu item on the display.

Note

If your hardware configuration contains several modules, the CPU updates all affected module in the slot sequence, i.e. in ascending order of the module position in the STEP 7 device configuration.

Note

Memory size of the SIMATIC memory card

If you perform a firmware update via the SIMATIC memory card, you must use a large enough card based on the CPU used and the associated I/O modules.

Therefore, be sure to note the file size of the update files when downloading them from the

Product Support website. The file size information is especially important when you perform the firmware update not only for the CPU but also for the associated I/O modules, communication modules, etc. The total size of the update files must not exceed the available memory size of your SIMATIC memory card.

Procedure: via the integrated Web server

The procedure is described in the Web server

( http://support.automation.siemens.com/WW/view/en/59193560 ) Function Manual.

Procedure: online via the SIMATIC Automation Tool

The procedure is described in the SIMATIC Automation Tool

( https://support.industry.siemens.com/cs/ww/de/view/98161300 ) manual (included in the

SIMATIC Automation Tool).

Special feature at a firmware update of analog modules

If you want to carry out a firmware update for analog modules, you have to supply 24 V DC load supply to the module through the power supply element.

Behavior after the firmware update

After the firmware update, check the firmware version of the updated module.

Automation system

System Manual, 09/2016, A5E03461182-AD

217

Maintenance

13.5 Reset to factory settings

Reference

For additional information on the topic of firmware update, refer to the STEP 7 online help and the following FAQ on the Internet

( https://support.industry.siemens.com/cs/ww/en/view/89257657 ).

See also

Overview (Page 161)

13.5

Reset to factory settings

13.5.1

Function

Resetting the CPU to factory settings

"Reset to factory settings" restores the CPU to its delivery state. The function deletes all information that was stored internally on the CPU.

Recommendation:

If you want to remove a PROFINET CPU and use it elsewhere with a different program, or put it into storage, restore the CPU to its delivery state. When resetting to factory settings, remember that the IP address parameters are also deleted.

Options for resetting a CPU to factory settings

To reset the CPU to its delivery state, follow these steps:

● using the mode switch

● using the display

● using STEP 7

● using the SIMATIC Automation Tool

218

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.5 Reset to factory settings

Procedure using the mode selector

Make sure that the CPU is in STOP mode (the CPU display shows STOP mode or

RUN/STOP LED lights up yellow).

Note

Reset to factory settings ↔ Memory reset

The procedure described below also corresponds to the procedure for a memory reset:

Selector operation with inserted SIMATIC memory card: CPU executes a memory reset

Selector operation without inserted SIMATIC memory card: CPU executes reset to factory settings

Perform a reset to factory settings as follows:

1.

Set the mode selector to the STOP position.

Result: The RUN/STOP LED lights up yellow.

2.

Set the mode selector to the MRES position. Hold the mode selector in this position until the RUN/STOP LED lights up for the 2nd time and remains continuously lit (this takes three seconds). After this, release the selector.

3.

Within the next three seconds, switch the mode selector back to the MRES position, and then back to STOP again.

Result: The CPU executes a "Reset to factory settings", during which time the RUN/STOP

LED flashes yellow. When the RUN/STOP LED lights up yellow, then the CPU has been reset to factory settings, and is in the STOP mode. The "Reset to factory settings" event is entered into the diagnostics buffer.

Note

The IP address of the CPU is also deleted when the CPU is reset to the factory settings through the mode selector.

Procedure using the display

Make sure that the CPU is in STOP mode (CPU shows STOP mode or RUN/STOP LED lights up yellow).

To navigate to the desired "Factory settings" menu command, select the following sequence of menu commands and confirm after each selection with "OK".

● Settings → Reset → Factory settings

Automation system

System Manual, 09/2016, A5E03461182-AD

219

Maintenance

13.5 Reset to factory settings

Result: The CPU executes a "Reset to factory settings", during which time the RUN/STOP

LED flashes yellow. When the RUN/STOP LED lights up yellow, then the CPU has been reset to factory settings, and is in the STOP mode. The "Reset to factory settings" event is entered into the diagnostics buffer.

Note

The IP address of the CPU is also deleted when the CPU is reset to the factory settings through the display.

Procedure using STEP 7

To reset a CPU to factory settings via STEP 7, follow these steps:

Make sure that there is an online connection to the CPU.

1.

Open the Online and Diagnostics view of the CPU.

2.

In the "Functions" folder, select the "Reset to factory settings" group.

3.

If you want to keep the IP address, select the "Keep IP address" option button. If you want to delete the IP address, select the "Delete IP address" option button.

Note

With "Delete IP address", all IP addresses are deleted. This applies regardless of how you established the online connection.

If a SIMATIC memory card is inserted, selecting the "Delete IP address" option causes the following: The IP addresses are deleted and the CPU is reset to factory settings.

Then, the configuration (including IP address) that is stored on the SIMATIC memory card is transferred to the CPU (see below). If the memory card was formatted before the reset to factory settings or if it is empty, no IP address is transferred to the CPU.

4.

Click the "Reset" button.

5.

Click "OK" in response to the confirmation prompts.

Result: The CPU executes a "Reset to factory settings", during which time the RUN/STOP

LED flashes yellow. When the RUN/STOP LED lights up yellow, then the CPU has been reset to factory settings, and is in the STOP mode. The "Reset to factory settings" event is entered into the diagnostics buffer.

Procedure using the SIMATIC Automation Tool

The procedure is described in the SIMATIC Automation Tool

( https://support.industry.siemens.com/cs/ww/de/view/98161300 ) manual (included in the

SIMATIC Automation Tool).

220

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.5 Reset to factory settings

Result after resetting to factory settings

The following table provides an overview of the contents of the memory objects after the reset to factory settings.

Table 13- 2 Result after resetting to factory settings

Memory object

Actual values of the data blocks, instance data blocks

Bit memories, timers and counters

Retentive tags of technology objects

(e.g. adjustment values of absolute encoders)

Diagnostics buffer entries (retentive area)

Diagnostics buffer entries (non-retentive area)

IP address

Device name

Counter readings of the runtime meters

Time of day

Contents

Initialized

Initialized

Initialized

Initialized

Initialized

Depends on the procedure:

Using mode switch: is deleted

Using display: is deleted

Using STEP 7: Depending on the setting of the "Keep IP address"/"Delete IP address" option buttons

Initialized

Initialized

Initialized

If a SIMATIC memory card was inserted prior to the reset to factory settings, the CPU downloads the configuration contained on the SIMATIC memory card (hardware and software). A configured IP address is then valid again.

Reference

Additional information on "Reset to factory settings" can be found in the Function Manual

Structure and use of the CPU memory

( http://support.automation.siemens.com/WW/view/en/59193101 ) in the section on memory areas and retentivity, and in the online help for STEP 7. For information on the memory reset

of the CPU, refer to the section CPU memory reset (Page 176).

Automation system

System Manual, 09/2016, A5E03461182-AD

221

Maintenance

13.5 Reset to factory settings

13.5.2

Function

Resetting interface module (PROFINET IO) to factory settings

The interface module can be reset to its factory state using "Reset to factory settings".

Method of resetting an interface module to factory settings

● Via STEP 7 (online via PROFINET IO)

Procedure using STEP 7

To reset an interface module to factory settings via STEP 7, follow these steps:

Make sure that an online connection to the interface module exists.

1.

Open the online and diagnostics view of the interface module.

2.

In the "Functions" folder, select the "Reset to factory settings" group.

3.

Click the "Reset" button.

4.

Click "OK" in response to the confirmation prompts.

Result: The interface module then performs a "Reset to factory settings".

Result after resetting to factory settings

Table 13- 3 Properties of the interface module when shipped

Properties

Parameter

IP address

Device name

MAC address

I&M data

Firmware version

Value

Default setting

Not present

Not present

Present

Identification data (I&M0) present

Maintenance data (I&M1, 2, 3) reset*

Present

* Can be selected as of STEP 7 V14: "Retain maintenance data"/"Delete maintenance data"

Note

Failure of downstream stations is possible

Stations downstream from the interface module can fail when the factory settings are restored on an interface module.

222

Automation system

System Manual, 09/2016, A5E03461182-AD

Maintenance

13.6 Fault reactions with fail-safe modules

Note

Substitute value behavior of the installed I/O modules during reset to factory settings

With "Reset to factory settings", the I/O modules in the station change to the non-configured state, which means that no input data is acquired and no output data is output.

Reference

You will find more information on the procedure in the STEP 7 online help.

13.6

Fault reactions with fail-safe modules

Safe state (safety concept)

The basic principle behind the safety concept is the existence of a safe state for all process variables.

Note

For fail-safe input and output modules, this safe state is the value "0".

Fault reactions and startup of the F-system

The safety function requires that substitute values (safe state) be output instead of process values for a fail-safe module (passivation of the fail-safe module) in the following cases:

● When the F-system is started up

● If errors are detected during safety-related communication between the F-CPU and the Fmodule via the PROFIsafe safety protocol (communication error)

● If F-I/O faults or channel faults are detected (e.g., wire break, discrepancy error)

Detected faults are written to the diagnostic buffer of the F-CPU and communicated to the safety program in the F-CPU.

F-modules cannot save errors as retentive data. When the system is powered down and then restarted, any faults still existing are detected again during startup. However, you have the option of saving faults in your safety program.

WARNING

Channel faults do not trigger any diagnostic reactions or error handling for channels that have been set to "deactivated" in STEP 7, even when this channel is affected indirectly by a channel group fault (Channel parameter "activated/deactivated").

Automation system

System Manual, 09/2016, A5E03461182-AD

223

Maintenance

13.6 Fault reactions with fail-safe modules

Remedying faults in the F-system

To remedy faults in your F-system, follow the procedure described in IEC 61508-1:2010 section 7.15.2.4 and IEC 61508-2:2010 section 7.6.2.1 e.

The following steps must be performed:

1.

Diagnostic and repair of the fault

2.

Revalidation of the safety function

3.

Recording in the service report

Fail-safe value output for F-modules

In the case of F-modules with inputs, the F-system provides fail-safe values (0) for the safety program instead of the process data pending at the fail-safe inputs in case of passivation.

In the case of F-modules with outputs, the F-system transfers fail-safe values (0) to the failsafe outputs instead of the output values provided by the safety program in case of passivation. The output channels are de-energized. This also applies when the F-CPU goes into STOP mode. The parameter assignment of fail-safe values is not possible.

Depending on the F-system used and the type of fault that occurred, (F-I/O, channel or communication error) and on the parameter assignment of the F-module, fail-safe values are used either for the affected channel only or for all channels of the fail-safe module involved.

Reintegration of a fail-safe module

The system changes from fail-safe to process values (reintegration of an F-module) either automatically or only after user acknowledgment in the safety program. If channel faults occur, it may be necessary to remove and reinsert the F-module. A detailed listing of faults requiring removal and insertion of the F-module can be found in the section Diagnostic messages of the respective F-module.

After reintegration, the following occurs:

● In the case of an F-module with inputs, the process data pending at the fail-safe inputs are provided to the safety program

● In the case of an F-module with outputs, the output values provided in the safety program are again transferred to the fail-safe outputs

Additional information on passivation and reintegration

For additional information on passivation and reintegration of F-I/O, refer to the SIMATIC

Safety, Configuring and Programming

( http://support.automation.siemens.com/WW/view/en/54110126 ) manual.

Reaction of the F-module with inputs to communication errors

F-modules with inputs respond differently to communication errors compared to other errors.

If a communication error is detected, the current process values remain set at the inputs of the F-module. There is no passivation of the channels. The current process values are passivated in the F-CPU.

224

Automation system

System Manual, 09/2016, A5E03461182-AD

Test functions and fault resolution

14

14.1

Introduction

Test functions

You have the option of testing the operation of your user program on the CPU. You can then monitor signal states and values of tags and can assign values to tags to simulate specific situations in the running of the program.

Note

Using test functions

The use of test functions can influence the program execution time and thus the cycle and response times of the controller to a slight extent (a few milliseconds).

Requirements

● There is an online connection to the relevant CPU.

● An executable user program is available in the CPU.

Test options

● Testing with program status

● Testing with a watch table

● Testing with a force table

● Testing with a PLC tag table

● Testing with a data block editor

● Testing with the LED flash test

● Testing with a trace function

Automation system

System Manual, 09/2016, A5E03461182-AD

225

Test functions and fault resolution

14.1 Test functions

Testing with program status

The program status allows you to monitor the execution of the program. You can display the values of operands and the results of logic operations (RLO) allowing you to recognize and fix logical errors in your program.

Note

Restrictions with the "Program status" function

The monitoring of loops can increase the cycle time significantly, depending in each case on the number of tags to be monitored and on the actual number of loops processed.

WARNING

Testing with program status

A test with the "Program status" function can cause serious damage to property or injury to persons if there are functional disturbances or program errors.

Make sure that no dangerous situations can arise before you conduct a test with the

"Program status" function.

226

Automation system

System Manual, 09/2016, A5E03461182-AD

Test functions and fault resolution

14.1 Test functions

Testing with watch tables

The following functions are available in the watch table:

● Monitoring of tags

You can use the watch tables to monitor the current values of the individual tags of a user program or a CPU on the programming device/PC, on the display of the CPU, and on the web server. A symbolic name for the tags must be specified in the "Name" column of the watch table to allow the display of the CPU and the web server to show the value of the tags.

You can monitor the following operand areas:

– Inputs and outputs (process image) and bit memory

– Contents of data blocks

– Peripheral inputs and peripheral outputs

– Timers and counters

● Modifying tags

Use this function to assign fixed values to the individual tags of a user program or CPU on the PG/PC. Modifying is also possible with Test with program status.

The following operand areas are modifiable:

– Inputs and outputs (process image) and bit memory

– Contents of data blocks

– Peripheral inputs and peripheral outputs (for example, %I0.0:P, %Q0.0:P)

– Timers and counters

● "Enable peripheral outputs" and "Modify now"

These two functions enable you to assign fixed values to individual peripheral outputs of a CPU in the STOP mode. You can also use them to check your wiring.

Automation system

System Manual, 09/2016, A5E03461182-AD

227

Test functions and fault resolution

14.1 Test functions

Testing with a force table

The following functions are available in the force table:

● Monitoring of tags

You can use the force tables to display the current values of the individual tags of a user program or a CPU on the programming device/PC, on the display of the CPU, and on the web server. You can monitor the table with or without trigger condition.

A symbolic name for the tags must be specified in the "Name" column of the force table in order that the display of the CPU and the web server can display the value of the tags.

You can monitor the following tags:

– Bit memory

– Contents of data blocks

– Peripheral inputs

● Modifying tags

You use this function to assign fixed values to individual tags of a user program or a CPU on the programming device/PC or on the display of the CPU. Modifying is also possible with Test with program status.

The following tags are modifiable:

– Bit memory

– Contents of data blocks

– Peripheral inputs (e.g. %I0.0:P)

● Forcing of peripheral inputs and peripheral outputs

You can force individual peripheral inputs or peripheral outputs.

– Peripheral inputs: Forcing of peripheral inputs (for example %I0.0:P) is a "bypassing" of sensors / inputs by the specification of fixed values to the program. The program receives the force value instead of the actual input value (via process image or via direct access).

– Peripheral outputs: Forcing of peripheral outputs (for example %Q0.0:P) is a

"bypassing" of the complete program by the specification of fixed values to the actuators.

One advantage of the force table is that you can simulate different test environments and overwrite tags in the CPU with a permanent value. This enables you to intervene in the ongoing process for regulating purposes.

Difference between modifying and forcing

The fundamental difference between the modifying and forcing functions consists in the storage behavior:

● Modifying: Modifying of tags is an online function and is not stored in the CPU. You can end modifying of tags in the watch table or force table or by terminating the online connection.

● Forcing: A force job is written to the SIMATIC memory card and is retained after a

POWER OFF. The S7-1500 CPU displays an active force job with a corresponding symbol. You can only end the forcing of peripheral inputs and peripheral outputs in the force table.

228

Automation system

System Manual, 09/2016, A5E03461182-AD

Test functions and fault resolution

14.1 Test functions

Testing with a PLC tag table

You can monitor the current data values of tags in the CPU directly in the PLC tag table. To do so, open the PLC tag table and start the monitoring.

You also have the option of copying PLC tags to a watch table or force table so that you can monitor, control or force them in the table.

Testing with a data block editor

The data block editor offers different options for monitoring and modifying tags. These functions directly access the actual values of the tags in the online program. Actual values are the current values of tags in the CPU work memory at any moment during program execution. The following functions for monitoring and modifying are available in the database editor.

● Monitor tags online

● Modify individual actual values

● Create a snapshot of the actual values

● Overwrite actual values with a snapshot

Note

Setting data values during commissioning

During commissioning of a plant, data values have to be frequently adjusted in order to optimally adapt the program to the general operating conditions on site. The declaration table for data blocks offers some functions for this purpose.

Testing with the LED flash test

In many online dialogs, you can perform an LED flash test. This function is useful, for example, when you are not sure which device in the hardware configuration corresponds to the station currently selected in the software.

When you click the "Flash LED" button, an LED flashes at the currently selected station. On the CPU, the following LEDs flash: RUN/STOP LED, ERROR LED and MAINT LED. The

LEDs flash until you cancel the flash test.

Testing with a trace function

The trace function is used to record the CPU tags, depending on the settable trigger conditions. Tags are, for example, drive parameters or system and user tags of a CPU. The

CPU saves the recordings. You can display and evaluate the recordings, if necessary, with

STEP 7 or via the Web server.

The trace function can be called from the CPU's folder in the project tree, under the name

"Traces".

In connection with trace functions, also note the following FAQ on the Internet

( http://www.siemens.com/automation/service&support ).

Automation system

System Manual, 09/2016, A5E03461182-AD

229

Test functions and fault resolution

14.2 Reading out/saving service data

Simulation

With STEP 7 you can run and test the hardware and software of the project in a simulated environment. Start the simulation using the menu command "Online" > "Simulation" > "Start".

Reference

Additional information on the test functions can be found in the STEP 7 online help.

Additional information about testing with trace functions is available in the Function Manual

Using the trace and logic analyzer function

( http://support.automation.siemens.com/WW/view/en/64897128 ).

14.2

Service data

Reading out/saving service data

In addition to the contents of the diagnostics buffer, the service data contain numerous additional data points about the internal status of the CPU. If a problem occurs with the CPU that cannot be solved with other methods, send the service data to our Service & Support team. The service data allow Service & Support to analyze problems that have occurred rapidly.

Methods of reading service data

You can read out service data with:

● The Web server

● STEP 7

● The SIMATIC memory card

Procedure using the Web server

To read service data using the Web server, follow these steps:

1.

Open a web browser that is suitable for communication with the CPU.

2.

Enter the following address in the address bar of the web browser: https://<CPU IP address>/save_service_data, e.g. https://172.23.15.3/save_service_data

230

Automation system

System Manual, 09/2016, A5E03461182-AD

Test functions and fault resolution

14.2 Reading out/saving service data

3.

The service data page will appear on your screen, with a button for saving the service data.

Figure 14-1 Reading out service data via the web server

4.

Save the service data locally on your PC/programming device, by clicking "Save

ServiceData".

Result: The data is saved in a .dmp file with the following naming convention: <Article number> <Serial number> <Time stamp>.dmp". The file name can be changed.

Note

If you have defined your user page as the home page of the Web server, direct access to the service data by inputting the IP address of the CPU is not possible. For more information on reading out service data via a user-defined page, refer to the Web server

( http://support.automation.siemens.com/WW/view/en/59193560 ) function manual.

Procedure using STEP 7

A description of how to save service data is available under the keyword "Save service data" in STEP 7 online help.

Procedure via the SIMATIC memory card

Use the SIMATIC memory card to read out the service data only if you are no longer able to communicate with the CPU via Ethernet. In all other cases it is preferable to read out the service data via the Web server or STEP 7.

The procedure using the SIMATIC memory card is more time-consuming than the other options for reading out the service data. You must also ensure before reading out that there is sufficient memory space on the SIMATIC memory card.

To read service data using the SIMATIC memory card, follow these steps:

1.

Insert the SIMATIC memory card into the card reader of your PC / programming device.

2.

Open the job file S7_JOB.S7S in an editor.

3.

Overwrite the entry PROGRAM with the string DUMP in the editor.

To ensure that the file size is exactly 4 bytes, do not use any spaces/line breaks/quotation marks.

4.

Save the file under the existing file name.

Automation system

System Manual, 09/2016, A5E03461182-AD

231

Test functions and fault resolution

14.2 Reading out/saving service data

5.

Make sure that the SIMATIC memory card is not write-protected and insert it in the slot on the CPU.

(for the CPU 1517(F)-3 PN/DP, CPU 1517T(F)-3 PN/DP, CPU 1518(F)-4 PN/DP and

CPU 1518(F)-4 PN/DP ODK, you need a card ≥ 2 GB, and for the CPU 1511(F)-1 PN,

CPU 1511C-1 PN, CPU 1511T-1 PN, CPU 1512C-1 PN, CPU 1513(F)-1 PN,

CPU 1515(F)-2 PN, CPU 1515T-2 PN and CPU 1516(F)-3 PN/DP, a card ≥ 32 MB)

Result: The CPU writes the service data file DUMP.S7S to the SIMATIC memory card and remains in STOP mode.

The transfer of the service data has been completed as soon as the STOP LED stops flashing and lights up continuously. If the transfer was successful, only the STOP LED lights up. If the transfer was not successful, the STOP LED lights up and the ERROR LED flashes.

In case of an error, the CPU stores a text file with a note on the error that occurred in the

DUMP.S7S folder.

232

Automation system

System Manual, 09/2016, A5E03461182-AD

Technical specifications

15

Introduction

This chapter lists the technical specifications of the system:

● The standards and test values which the modules of the S7-1500 automation system/ET 200MP distributed I/O system comply with and fulfill.

● The test criteria according to which the S7-1500 automation system/ET 200MP distributed I/O system was tested.

Technical specifications for the modules

The technical specifications of the individual modules can be found in the manuals of the modules themselves. In the event of deviations between the statements in this document and the manuals, the statements in the manuals take priority.

Automation system

System Manual, 09/2016, A5E03461182-AD

233

Technical specifications

15.1 Standards and Approvals

15.1

Standards and Approvals

Currently valid markings and authorizations

Note

Details on the components of the S7-1500 automation system/ET 200MP distributed

I/O system

The currently valid markings and approvals are printed on the components of the S7-1500 automation system/ET 200MP distributed I/O system.

Safety information

WARNING

Personal injury and damage to property may occur

In hazardous areas, injury to persons and material damage may occur if you disconnect plug-in connections during operation of an S7-1500 automation system/ET 200MP distributed I/O system.

Always switch off the power to the S7-1500 automation system/ET 200MP distributed

I/O system when disconnecting plug-in connections in hazardous atmospheres.

WARNING

Explosion hazard

If you replace components, compliance with Class I, DIV 2 may become invalid.

WARNING

Deployment requirements

This device is only suitable for use in Class I, Div. 2, Group A, B, C, D, or in non-hazardous areas.

234

Automation system

System Manual, 09/2016, A5E03461182-AD

CE mark

Technical specifications

15.1 Standards and Approvals

The S7-1500 automation system/ET 200MP distributed I/O system meets the requirements and protection targets of the following EC guidelines and complies with the harmonized

European standards (EN) for programmable logic controllers published in the official gazettes of the European Community:

● 2006/95/EC "Electrical Equipment Designed for Use within Certain Voltage Limits" (Low-

Voltage Directive)

● 2004/108/EC "Electromagnetic Compatibility" (EMC Directive)

● 94/9/EC on "equipment and protective systems for use in hazardous areas" (explosion protection directive)

● For S7-1500/ET 200MP fail-safe modules, the following also applies: 2006/42/EC

"Machinery Directive"

The EC declaration of conformity is held on file available to competent authorities at:

Siemens AG

Digital Factory

Factory Automation

DF FA AS DH AMB

Postfach 1963

D-92209 Amberg

These files are also available for download on the Customer Support Internet pages, under the keyword "Declaration of Conformity".

cULus approval

Underwriters Laboratories Inc. in accordance with

● UL 508 (Industrial Control Equipment)

● C22.2 No. 142 (Process Control Equipment)

OR

Automation system

System Manual, 09/2016, A5E03461182-AD

235

Technical specifications

15.1 Standards and Approvals

cULus HAZ. LOC. approval

Underwriters Laboratories Inc. in accordance with

● UL 508 (Industrial Control Equipment)

● CSA C22.2 No. 142 (Process Control Equipment)

● ANSI/ISA 12.12.01

● CSA C22.2 No. 213 (Hazardous Location)

APPROVED for use in

Class I, Division 2, Group A, B, C, D Tx;

Class I, Zone 2, Group IIC Tx

Installation Instructions for cULus haz.loc.

● WARNING - Explosion Hazard - Do not disconnect while circuit is live unless area is known to be non-hazardous.

● WARNING - Explosion Hazard - Substitution of components may impair suitability for

Class I, Division 2 or Zone 2.

● This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D; Class I, Zone

2, Group IIC; or non-hazardous locations.

● These products need to be connected by means of the front connector Cat. No.

6ES7592-1AM00-0XB0

WARNING: EXPOSURE TO SOME CHEMICALS MAY DEGRADE THE SEALING

PROPERTIES OF MATERIALS USED IN THE RELAYS.

FM approval

Factory Mutual Research (FM) according to

● Approval Standard Class Number 3611, 3600, 3810

● ANSI/ISA 82.02.01 (IEC 61010-1)

● CSA C22.2 No. 213

● CSA 22.2 No. 1010.1

APPROVED for use in Class I, Division 2, Group A, B, C, D Tx;

Class I, Zone 2, Group IIC Tx

ATEX approval

In accordance with EN 60079-15 (Electrical apparatus for potentially explosive atmospheres;

Type of protection "n") and EN 60079-0 (Electrical apparatus for potentially explosive gas atmospheres - Part 0: General Requirements)

236

Automation system

System Manual, 09/2016, A5E03461182-AD

Technical specifications

15.1 Standards and Approvals

IECEx approval

According to IEC 60079-15 (Explosive atmospheres - Part 15: Equipment protection by type of protection "n") and IEC 60079-0 (Explosive atmospheres - Part 0: Equipment - General requirements)

RCM (C-Tick) Declaration of conformity for Australia/New Zealand

The S7-1500 automation system/ET 200MP distributed I/O system fulfills the requirements of the standards:

● AS/NZS 61000.6.4

● IEC 61000-6-4.

Korea Certification

KC registration number: KCC-REM-S49-S71500

Please note that this device corresponds to limit value class A in terms of the emission of radio frequency interference. This device can be used in all areas, except residential areas.

이 기기는 업무용 (A 급 ) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기

바라며 가정 외의 지역에서 사용하는 것을 목적으로 합니다 .

Marking for the Eurasian Customs Union

EAC (Eurasian Conformity)

Customs Union of Russia, Belarus and Kazakhstan

Declaration of conformity with the technical requirements of the Customs Union (TR CU).

IEC 61131

The S7-1500 automation system/ET 200MP distributed I/O system meets the requirements and criteria of the standard IEC 61131-2

(programmable logic controllers, Part 2: Equipment requirements and tests).

PROFINET standard

The S7-1500 automation system/ET 200MP distributed I/O system is based on standard

IEC 61158 Type 10.

PROFIBUS standard

The S7-1500 automation system/ET 200MP distributed I/O system is based on standard

IEC 61158 Type 3.

Automation system

System Manual, 09/2016, A5E03461182-AD

237

Technical specifications

15.1 Standards and Approvals

Marine approval

Classification societies:

● ABS (American Bureau of Shipping)

● BV (Bureau Veritas)

● DNV (Det Norske Veritas)

● GL (Germanischer Lloyd)

● LRS (Lloyds Register of Shipping)

● Class NK (Nippon Kaiji Kyokai)

Industrial use

SIMATIC products are designed for industrial applications.

Table 15- 1 Industrial use

Area of application

Industry

Interference emission requirements

EN 61000-6-4: 2011

Interference immunity requirements

EN 61000-6-2: 2005

Use in residential areas

Note

The S7-1500 automation system/ET 200MP distributed I/O system is intended for use in industrial areas; use in residential areas may have an impact on radio/TV reception.

If you use the S7-1500 automation system/ET 200MP distributed I/O system in residential areas, you must comply with limit value class B according to EN 55011.

Suitable measures for achieving RF interference level Class B include, for example:

● Installation of the S7-1500 automation system/ET 200MP distributed I/O system in grounded control cabinets/control boxes

● Use of noise filters in the supply lines

Reference

The certificates for the markings and approvals can be found on the Internet under

Service&Support ( http://www.siemens.com/automation/service&support ).

238

Automation system

System Manual, 09/2016, A5E03461182-AD

Technical specifications

15.2 Electromagnetic compatibility

15.2

Definition

Electromagnetic compatibility

Electromagnetic compatibility (EMC) is the ability of an electrical installation to function satisfactorily in its electromagnetic environment without interfering with that environment.

Among other things, the S7-1500 automation system/ET 200MP distributed I/O system also meets the requirements of the EMC legislation for the European single market. The prerequisite for this is that the S7-1500/ET 200MP system complies with the requirements and guidelines relating to electrical equipment.

EMC in accordance with NE21

The S7-1500 automation system/ET 200MP distributed I/O system meets the EMC specifications of the NAMUR guideline NE21.

Pulse-shaped disturbances

The following table shows the electromagnetic compatibility of the S7-1500 automation system/ET 200MP distributed I/O system with regard to pulse-shaped disturbances.

Table 15- 2 Pulse-shaped disturbances

Pulse-shaped disturbance Test voltage

Electrostatic discharge in accordance with IEC 61000-4-2.

Air discharge: ±8 kV

Contact discharge: ±6 kV

Burst pulses (high-speed transient disturbances) in accordance with

IEC 61000-4-4.

±2 kV (power supply lines)

±2 kV (signal lines > 30 m)

±1 kV (signal lines < 30 m)

High-energy single pulse (surge) in accordance with IEC 61000-4-5

External protective circuit required (not for 230 V modules)

(see the Defining interference-free controllers

( http://support.automation.siemens.com/WW/view/en/59193566 ) Function Manual)

• asymmetric coupling

±2 kV (power supply lines)

DC with protective elements

±2 kV (signal/data line only > 30 m), with protective elements

• symmetric coupling

±1 kV (power supply lines) DC with protective elements

±1 kV (signal/data line only > 30 m), with protective elements

Corresponds with degree of severity

3

3

3

3

3

Automation system

System Manual, 09/2016, A5E03461182-AD

239

Technical specifications

15.2 Electromagnetic compatibility

Sinusoidal disturbances

The following table shows the electromagnetic compatibility of the S7-1500 automation system/ET 200MP distributed I/O system with regard to sinusoidal disturbances (RF radiation).

Table 15- 3 Sinusoidal disturbances with RF radiation

RF radiation in accordance with IEC 61000-4-3/NAMUR 21

Electromagnetic RF field, amplitude-modulated

80 to 1000 MHz; 1.4 to 2 GHz 2.0 GHz to 2.7 GHz

10 V/m

80 % AM (1 kHz)

1 V/m

Corresponds with degree of severity

3

The following table shows the electromagnetic compatibility of the S7-1500 automation system/ET 200MP distributed I/O system with regard to sinusoidal disturbances (RF coupling).

Table 15- 4 Sinusoidal disturbances with RF coupling

RF coupling in accordance with IEC 61000-4-6 from 10 kHz

10 V rms

80 % AM (1 kHz)

150 Ω source impedance

Corresponds with degree of severity

3

Emission of radio interference

Interference emission of electromagnetic fields in accordance with EN 55016: Limit value class A, group 1 (measured at a distance of 10 m).

Table 15- 5 Interference emission of electromagnetic fields

Frequency

30 MHz to 230 MHz

230 MHz to 1000 MHz

Interference emission

< 40 dB (µV/m) QP

< 47 dB (µV/m) QP

Interference emission via the AC power supply in accordance with EN 55016: Limit value class A, Group 1.

Table 15- 6 Interference emission via the AC power supply

Frequency

0.15 MHz to 0.5 MHz

0.5 MHz to 30 MHz

Interference emission

< 79 dB (µV/m)Q

< 66 dB (µV/m) M

< 73 dB (µV/m)Q

< 60 dB (µV/m) M

240

Automation system

System Manual, 09/2016, A5E03461182-AD

Technical specifications

15.3 Electromagnetic compatibility of fail-safe modules

15.3

Electromagnetic compatibility of fail-safe modules

Pulse-shaped interference

In the case of surges according to IEC 61000-4-5:2014, the S7-1500/ET 200MP fail-safe

I/O modules without external protective circuit fulfil severity level 2.

Protecting S7-1500/ET 200MP against overvoltages with fail-safe modules

If your system requires protection from overvoltage, we recommend that you use an external protective circuit (surge filter) between the load current supply and the supply voltage input of the F-modules to ensure surge immunity for S7-1500/ET 200MP with fail-safe modules.

Note

Lightning protection measures always require a case-by-case examination of the entire system. An almost complete protection from overvoltages, however, can only be achieved if the entire building surroundings have been designed for overvoltage protection. In particular, this involves structural measures in the building design phase.

For detailed information regarding overvoltage protection, we recommend that you contact your Siemens representative or a company specializing in lightning protection.

You can find more information on protection from overvoltage in the Designing interferencefree controllers ( http://support.automation.siemens.com/WW/view/en/59193566 ) function manual.

15.4

Shipping and storage conditions

Introduction

With respect to transportation and storage conditions, the S7-1500 automation system/ET 200MP distributed I/O system fulfills the requirements in accordance with

IEC 61131-2. The following statements apply to modules that are transported and stored in the original packaging.

Shipping and storage conditions for modules

Table 15- 7 Shipping and storage conditions

Type of condition

Free fall (in shipping package)

Temperature

Barometric pressure

Relative humidity

Sinusoidal vibrations in accordance with IEC

60068-2-6

Permissible range

≤ 1 m from -40 °C to +70 °C

1080 hPa to 660 hPa (corresponds to an altitude of -

1000 m to 3500 m)

5% to 95%, without condensation

5 - 9 Hz: 3.5 mm

9 - 500 Hz: 9.8 m/s

2

Shock in accordance with IEC 60068-2-27 250 m/s

2

, 6 ms, 1000 shocks

Automation system

System Manual, 09/2016, A5E03461182-AD

241

Technical specifications

15.5 Mechanical and climatic ambient conditions

15.5

Mechanical and climatic ambient conditions

Operating conditions

The S7-1500 automation system/ET 200MP distributed I/O system is suitable for use in weather-proof, fixed locations. The operating conditions exceed requirements according to

DIN IEC 60721-3-3:

● Class 3M3 (mechanical requirements)

● Class 3K3 (climatic requirements)

Test of mechanical ambient conditions

The table below provides important information with respect to the type and scope of the test of ambient mechanical conditions.

Table 15- 8 Test of mechanical ambient conditions

Condition tested

Vibration

Shock

Test Standard

Vibration test according to IEC 60068-2-6 (Sinus)

Shock, tested according to IEC 60068-2-27

Continuous shock Shock, tested according to IEC 60068-2-27

Comment

Type of oscillation: Frequency sweeps with a rate of change of 1 octave/minute.

5 Hz ≤ f ≤ 8.4 Hz, constant amplitude 7 mm

8.4 Hz ≤ f ≤ 150 Hz, constant acceleration 2 g

Duration of oscillation: 10 frequency sweeps per axis, along each of the 3 mutually perpendicular axes

Type of shock: Half-sine

Shock intensity: 15 g max., duration 11 ms

Direction of shock: 3 shocks each in (+/-) direction, along each of the 3 mutually perpendicular axes

Type of shock: Half-sine

Shock intensity: 250 m/s

2

peak value, 6 ms duration

Direction of shock: 1000 shocks each in (+/-) direction, along each of the 3 mutually perpendicular axes

Reduction of vibrations

If your S7-1500 automation system/ET 200MP distributed I/O system is exposed to severe shock or vibration, take appropriate measures to reduce the acceleration or the amplitude.

We recommend the installation of the S7-1500 automation system/ET 200MP distributed I/O system on damping materials (for example, rubber-bonded metal mounting).

242

Automation system

System Manual, 09/2016, A5E03461182-AD

Technical specifications

15.5 Mechanical and climatic ambient conditions

Climatic ambient conditions

The following table shows the permissible climatic ambient conditions for the S7-1500 automation system/ET 200MP distributed I/O system:

Table 15- 9 Climatic ambient conditions

Am bient conditions

Temperature: horizontal mounting position: vertical mounting position:

Temperature variation

Relative humidity

Barometric pressure

Pollutant concentration

Permissible range

0 °C to 60 °C

0 °C to 40 °C

Comments

To increase the service life of the display, the display switches off when the permitted operating temperature is exceeded.

Further information about the temperatures at which the display switches off and back on again is available in the technical specifications of the manuals of the CPUs.

10 K/h from 10 % to 95 % from 1080 hPa to 795 hPa

SO

2

: <0.5 ppm;

RH <60%, no condensation

H

2

S: < 0.1 ppm;

RH < 60 %, no condensation

-

ISA-S71.04 severity level G1; G2; G3 -

-

Without condensation, corresponds to relative humidity (RH) class 2 in accordance with IEC 61131 part 2 corresponds to an altitude of -1000 m to 2000 m

Automation system

System Manual, 09/2016, A5E03461182-AD

243

Technical specifications

15.6 Information on insulation tests, protection class, degree of protection and rated voltage

15.6

Information on insulation tests, protection class, degree of protection and rated voltage

Insulation

The insulation is designed in accordance with the requirements of EN 61131-2: 2007.

Note

Galvanic isolation with 707 V DC (Type Test) is tested for modules with 24 V DC supply voltage (SELV/PELV).

Pollution degree/overvoltage category according to IEC 61131-2: 2007

● Pollution degree 2

● Overvoltage category: II

Protection class according to IEC 61131-2: 2007

The S7-1500 automation system/ET 200MP distributed I/O system meets protection class I and contains parts of protection classes II and III.

Degree of protection IP20

Degree of protection IP20 in accordance with IEC 60529 for all modules of the S7-1500 automation system/ET 200MP distributed I/O system, i.e.:

● Protection against contact with standard test finger

● Protection against foreign objects with diameters in excess of 12.5 mm

● No protection against water

244

Automation system

System Manual, 09/2016, A5E03461182-AD

Technical specifications

15.7 Use of the S7-1500/ET 200MP in zone 2 hazardous areas

Rated voltage for operation

The S7-1500 automation system/ET 200MP distributed I/O system works with the rated voltages and corresponding tolerances listed in the following table.

Note the supply voltage of each module when selecting the rated voltage.

Table 15- 10 Rated voltage of all modules of the S7-1500 automation system/ET 200MP distributed

I/O system for operation rated voltage

24 V DC

48 V DC

Tolerance range

19.2 V DC to 28.8 V DC

1

40.8 to 57.6 V DC

60 V DC

120 V AC

230 V AC

51.0 to 72.0 V DC

93 V AC to 132 V AC

187 V AC to 264 V AC

1

Static value: Creation as functional extra-low voltage with safe galvanic isolation according to

IEC 60364-4-41.

15.7

Reference

Use of the S7-1500/ET 200MP in zone 2 hazardous areas

See product information Deployment of the modules in zone 2 hazardous atmospheres

( http://support.automation.siemens.com/WW/view/en/19692172 ).

Automation system

System Manual, 09/2016, A5E03461182-AD

245

Dimension drawings

A.1

Dimension drawings of the mounting rails

Mounting rail 160 mm

A

Figure A-1 Mounting rail 160 mm

246

Automation system

System Manual, 09/2016, A5E03461182-AD

Mounting rail 245 mm

Dimension drawings

A.1 Dimension drawings of the mounting rails

Figure A-2 Mounting rail 245 mm

Mounting rail 482.6 mm

Figure A-3 Mounting rail 482.6 mm

Automation system

System Manual, 09/2016, A5E03461182-AD

247

Dimension drawings

A.1 Dimension drawings of the mounting rails

Mounting rail 530 mm

Figure A-4 Mounting rail 530 mm

Mounting rail 830 mm

248

Figure A-5 Mounting rail 830 mm

Automation system

System Manual, 09/2016, A5E03461182-AD

Mounting rail 2000 mm

Dimension drawings

A.2 Dimension drawing of shielding bracket for 35 mm modules

A.2

Figure A-6 Mounting rail 2000 mm

Dimension drawing of shielding bracket for 35 mm modules

Figure A-7 Dimension drawing of shielding bracket for 35 mm modules

Automation system

System Manual, 09/2016, A5E03461182-AD

249

Dimension drawings

A.3 Dimension drawing of shielding bracket for 25 mm modules

A.3

Dimension drawing of shielding bracket for 25 mm modules

A.4

Figure A-8 Dimension drawing of shielding bracket for 25 mm modules

Dimension drawing of shielding bracket for 35 mm modules

Figure A-9 Dimension drawing of shielding bracket for 35 mm modules

250

Automation system

System Manual, 09/2016, A5E03461182-AD

A.5

Dimension drawings

A.5 Dimension drawing of shielding bracket for 25 mm modules

Dimension drawing of shielding bracket for 25 mm modules

A.6

Figure A-10 Dimension drawing of shielding bracket for 25 mm modules

Dimension drawing of shielding bracket for 35 mm modules

A.7

Figure A-11 Dimension drawing of shielding bracket for 35 mm modules

Dimension drawing of shielding bracket for 25 mm modules

Figure A-12 Dimension drawing of shielding bracket for 25 mm modules

Automation system

System Manual, 09/2016, A5E03461182-AD

251

Dimension drawings

A.8 Dimension drawings of the labeling strips

A.8

Dimension drawings of the labeling strips

Figure A-13 Dimension drawing of labeling strips for 35 mm modules

A.9

Figure A-14 Dimension drawing of labeling strips for 25 mm modules

Dimension drawing of test probe for measurement tap

To perform measurements on the front connector of the S7-1500/ET 200MP automation system, you need a test probe with the following properties:

● Maximum diameter at measuring tip: 1 mm

● Length of measuring tip: ≥ 10 mm

252

Figure A-15 Dimension drawing of test probe for measurement tap

Corresponding test probes are available from electrical retailers.

Automation system

System Manual, 09/2016, A5E03461182-AD

Accessories/spare parts

Accessories for the S7-1500 automation system/ET 200MP distributed I/O system

Table B- 1 General accessories

Designation

Mounting rail

• Mounting rail, 160 mm (with drill holes)

Article number

6ES7590-1AB60-0AA0

• Mounting rail, 245 mm (with drill holes)

6ES7590-1AC40-0AA0

• Mounting rail, 482 mm (with drill holes)

6ES7590-1AE80-0AA0

• Mounting rail, 530 mm (with drill holes)

6ES7590-1AF30-0AA0

Mounting rail, 830 mm (with drill holes)

6ES7590-1AJ30-0AA0

Mounting rail, 2000 mm (without drill holes) for cutting to length

6ES7590-1BC00-0AA0

PE connection element for mounting rail, 2000 mm (spare part),

20 units

6ES7590-5AA00-0AA0

Front connector (incl. four potential bridges, cable tie, and individual labeling strip) for 35 mm modules

• Screw-type terminals, 40-pin

6ES7592-1AM00-0XB0

Front connector (incl. four potential bridges, cable tie, and individual labeling strip) for 35 mm modules

Push-in terminal (40-pin)

6ES7592-1BM00-0XB0

Front connector (incl. cable tie and individual labeling strip) for 25 mm modules

• Push-in terminal (40-pin)

6ES7592-1BM00-0XA0

4-pole connection plug for supply voltage (spare part), 10 units 6ES7193-4JB00-0AA0

DIN A4 labeling sheet (10 x for labeling the 35 mm I/O modules)

• Pre-perforated, AI gray

6ES7592-2AX00-0AA0

DIN A4 labeling sheet (10 x for labeling the 25 mm I/O modules)

Pre-perforated, AI gray

6ES7592-1AX00-0AA0

U connector (spare part), 5 units

I/O shielding set for 35 mm modules (consists of: power supply element, shielding bracket, and shield clamp), (spare part), 5 units

I/O shielding set for 25 mm modules (consists of: power supply element, shielding bracket, and shield clamp), (spare part), 4 units

Shield clamp (spare part), 10 units

70 mm display for CPU (spare part)

35 mm display for CPU (spare part)

6ES7590-0AA00-0AA0

6ES7590-5CA00-0AA0

6ES7590-5CA10-0XA0

6ES7590-5BA00-0AA0

6ES7591-1BA00-0AA0

6ES7591-1AA00-0AA0

Automation system

System Manual, 09/2016, A5E03461182-AD

B

253

Accessories/spare parts

Designation

Power cable connector with coding element for power supplies

(spare part), 10 units

Article number

6ES7590-8AA00-0AA0

Potential bridge for front connector (spare part), 20 units 6ES7592-3AA00-0AA0

Universal front cover for 35 mm I/O modules (spare part), 5 units 6ES7528-0AA00-7AA0

Consists of:

5 x front cover

5 x front labeling strip (per module - article number)

5 x wiring diagram (per module article number)

Universal front cover for 25 mm I/O modules (spare part), 5 units 6ES7528-0AA00-0AA0

Consists of:

5 x front cover

• 5 x front labeling strip (per module - article number)

5 x wiring diagram (per module article number)

Universal front cover for interface module (spare part), 5 units 6ES7528-0AA70-7AA0

Consists of:

5 x front cover

Industrial Ethernet FastConnect RJ45 plug 180 degrees, 1 unit 6GK1901-1BB10-2AA0

Industrial Ethernet FastConnect RJ45 plug 180 degrees, 10 units 6GK1901-1BB10-2AB0

Industrial Ethernet FastConnect RJ45 plug 90 degrees, 1 unit 6GK1901-1BB20-2AA0

Industrial Ethernet FastConnect RJ45 plug 90 degrees, 10 units 6GK1901-1BB20-2AB0

PROFIBUS-FastConnect bus connector without programming device socket, up to 12 MBaud, 1 unit

6ES7972-0BA70-0XA0

6ES7972-0BB70-0XA0 PROFIBUS FastConnect bus connector with programming device socket, up to 12 MBaud, 1 unit

*

PROFIBUS FastConnect bus connector without programming device socket, up to 12 MBaud, 1 unit

6ES7972-0BA52-0XA0

PROFIBUS FastConnect bus connector with programming device socket, up to 12 MBaud, 1 unit

6ES7972-0BB52-0XA0

*

The PROFIBUS FastConnect bus connector 0BB70 is supplied with the IM 155-5 DP ST interface module and can also be ordered as a spare part.

SIMATIC memory cards

Article number

6ES7954-8LCxx-0AA0

6ES7954-8LExx-0AA0

6ES7954-8LFxx-0AA0

6ES7954-8LL02-0AA0

6ES7954-8LPxx-0AA0

6ES7954-8LT02-0AA0

Capacity

4 MB

12 MB

24 MB

256 MB

2 GB

32 GB

254

Automation system

System Manual, 09/2016, A5E03461182-AD

Accessories/spare parts

Online catalog

Other article numbers for the S7-1500 automation system/ET 200MP distributed I/O system can be found on the Internet ( https://mall.industry.siemens.com

) in the online catalog and the online order system.

Accessories for fail-safe modules S7-1500/ET 200MP

Table B- 2 Accessories for fail-safe modules

Designation

Electronic coding element with rewritable memory for failsafe modules (spare part), 5 units

Article number

6ES7592-6EF00-1AA0

Front cover for 35 mm F-I/O modules (spare part), 5 units 6ES7528-0AA10-7AA0

Consists of:

5 x front cover

• 5 x front labeling strip (per module - article number)

5 x wiring diagram (per module article number)

6ES7592-2CX00-0AA0 DIN A4 labeling sheet (10 x for labeling the fail-safe I/O modules), pre-perforated, yellow

Automation system

System Manual, 09/2016, A5E03461182-AD

255

256

Glossary

Automation system

Programmable logic controller for the closed-loop and open-loop control of process chains in the process engineering industry and manufacturing technology. The automation system consists of different components and integrated system functions according to the automation task.

Baud rate

Data transmission rate indicates the number of bits transmitted per second (baud rate = bit rate).

Bit memory

Bit memory is a component of the system memory of the CPU for saving intermediate results. It can be accessed in bit, byte, word or double word mode.

Bus

A common transfer route to which all nodes of a field bus system are connected; it has two defined ends.

Bus cable connector

Physical connection between the bus node and the bus cable.

Bus, self-assembling

The modules are lined up on the mounting rail, and are mechanically and electrically connected to each other with a U connector as they are swiveled into position. In this way the bus is extended with each module.

Code block

In SIMATIC S7, a code block is a block that contains a section of the STEP 7 user program.

(in contrast to a data block, which contains only data)

Configuration

Systematic arrangement of the individual modules (configuration).

Automation system

System Manual, 09/2016, A5E03461182-AD

Connection plug

Physical connection between device and cable.

Glossary

Consistent data

Data whose content belongs together and must not be separated is known as consistent data.

Counter

Counters are components of the system memory of the CPU. You can modify the content of the "counter cells" using STEP 7 instructions (e.g. count up/down).

CPU

The CPU uses the integrated system power supply to supply the electronics of the modules via the backplane bus. The CPU contains the operating system and executes the user program. The user program is located on the SIMATICmemory card and is processed in the work memory of the CPU. The PROFINET interfaces on the CPU allow simultaneous communication with PROFINET devices, PROFINET controllers, HMI devices, programming devices, other controllers and other systems. The S7-1500 CPUs support operation as an IO controller and I-device. Similarly to the PROFINET interface, the PROFIBUS interface available on some of the S7-1500 CPUs allows communication with other devices. When the interface is used as PROFIBUS DP interface, the CPU on the PROFIBUS DP also assumes the role of a DP master.

Crimping

Procedure whereby two components joined together, e.g. wire end sleeve and cable, are connected with one another through plastic strain.

Cycle time

The cycle time represents the time a CPU requires to execute the user program once.

Cyclic interrupt

see "Interrupt, cyclic"

Data block

Data blocks (DBs) are data areas in the user program that contain user data. There are global data blocks, which can be accessed from all code blocks, and instance data blocks, which are assigned to a specific FB call.

Device

A device can send, receive or amplify data via the bus, e.g. IO device via PROFINET IO.

Automation system

System Manual, 09/2016, A5E03461182-AD

257

Glossary

Device names

Before an IO device can be addressed by an IO controller, it must have a device name. This approach was chosen for PROFINET because names are easier to administer than complex

IP addresses.

In its delivery state, an IO device has no device name. An IO device can only be addressed by an IO controller - e.g., for transferring configuration data (including the IP address) during startup, or for user data exchange during cyclic operation - after it has been assigned a device name with the programming device/PC.

Diagnostic buffer

The diagnostic buffer is a battery-backed memory area in the CPU where diagnostic events are stored in their order of occurrence.

Diagnostics

Monitoring functions for the detection, localization, classification, display, and further evaluation of errors, faults, and alarms. They run automatically while the system is in operation. This increases the availability of systems by reducing commissioning times and downtimes.

Diagnostics interrupt

see "Interrupt, diagnostic"

Distributed I/O system

System with I/O modules that are configured on a distributed basis, at a large distance from the CPU controlling them.

DP

Distributed I/O

Equipotential bonding

Electrical connection (potential equalization conductor) that brings the bodies of electrical equipment and other conductive bodies to the same or almost the same potential, in order to prevent disruptive or dangerous voltages between these bodies.

Firmware update

Updating the firmware of modules (interface modules, I/O modules, etc.), for example after functional expansions, to the latest firmware version (update).

258

Automation system

System Manual, 09/2016, A5E03461182-AD

Function

Glossary

A function (FC) is a code block with no static data. A function allows you to pass parameters in the user program. Functions are thus suited for programming frequently recurring complex functions, such as calculations.

Function block

A function block (FB) is a code block with static data. An FB allows you to pass parameters in the user program. Function blocks are thus suited for programming frequently recurring complex functions, such as closed-loop controls or operating mode selection.

Functional ground

The functional ground is a low-impedance current path between electric circuits and ground.

It is not intended as a protective measure but rather, for example, for improvement of interference immunity.

Ground

Conductive earth whose electrical potential can be set equal to zero at any point.

All interconnected, inactive parts of a piece of equipment that cannot accept any dangerous contact voltage, even in the event of a fault.

Ground

Conductive earth whose electrical potential can be set equal to zero at any point.

All interconnected, inactive parts of a piece of equipment that cannot accept any dangerous contact voltage, even in the event of a fault.

Grounding

Grounding means connecting an electrically conductive part to a grounding electrode by means of a grounding system.

GSD file

Hardware interrupt

See "Interrupt, hardware"

I/O modules

The Generic Station Description file contains all properties of a PROFINET or PROFIBUS device that are necessary for its configuration.

All modules that can be operated with a CPU or an interface module.

Automation system

System Manual, 09/2016, A5E03461182-AD

259

Glossary

Identification data

Information that is saved in modules, and that supports the user in reviewing the system configuration and locating hardware changes.

Instance data block

Each call of a function block in the STEP 7 user program is assigned a data block, which is automatically generated. Values of the input, output and in/out parameters, as well as local block data, are stored in the instance data block.

Interface module

Module in the distributed I/O system. The interface module connects the distributed I/O system to the CPU (IO controller) via a fieldbus, and prepares the data for and from I/O modules.

Interrupt

The operating system of the CPU distinguishes between various priority classes that control the execution of the user program. These priority classes include interrupts, such as hardware interrupts. When an interrupt occurs, the operating system automatically calls an assigned organization block. The user can program the desired reaction in the organization block (e.g. in a FB).

Interrupt, cyclic

The CPU generates a cyclic interrupt periodically within a parameterizable time grid and then processes the corresponding organization block.

Interrupt, hardware

A hardware interrupt is triggered by interrupt-triggering modules due to a certain event in the process. The hardware interrupt is signaled to the CPU. The CPU then processes the assigned organization block according to the priority of this interrupt.

Interrupt, time-delay

The time-delay interrupt is one of the program execution priority classes of SIMATIC S7. It is generated after expiration of a timer started in the user program. The CPU then processes the corresponding organization block.

Interrupt, time-of-day

The time-of-day interrupt is one of the program execution priority classes of SIMATIC S7.. It is generated based on a defined date (or daily) and time (e.g. 9:50 or every hour, every minute). The CPU then processes the corresponding organization block.

260

Automation system

System Manual, 09/2016, A5E03461182-AD

Glossary

Interrupt, update

When it receives an update interrupt, the operating system calls the update interrupt OB.

This may happen if you changed a parameter on a slot of a device.

IP address

The IP address is made up of four decimal numbers with a range of values from 0 through

255. The decimal numbers are separated by a dot (e.g. 192.162.0.0).

The IP address consists of the following:

● Address of the network

● Address of the device (PROFINET interface of the IO controller/IO device)

Isolated modules

In the case of isolated input/output modules, the reference potentials of the control and load circuits are galvanically isolated, e.g. by means of optical isolators, relays or transformers.

Input/output circuits can be connected to common potential.

Load current supply

Supply of the module's input and output electric circuits.

MAC address

Every PROFINET device is assigned a worldwide unique device identification before it leaves the factory. This 6-byte long device identification is the MAC address.

The MAC address is divided into:

● 3-byte manufacturer identification

● 3-byte device identification (consecutive number)

The MAC address is generally shown on the front of the device.

Example: 08-00-06-6B-80-C0

Non-isolated modules

In the case of non-isolated input and output modules, the reference potentials of the control and load circuits are electrically connected.

NTP

The Network Time Protocol (NTP) is a standard for synchronizing clocks in automation systems via Industrial Ethernet. NTP uses the UDP connectionless network protocol.

Automation system

System Manual, 09/2016, A5E03461182-AD

261

Glossary

Organization block

Organization blocks (OBs) form the interface between the operating system of the CPU and the user program. The organization blocks determine the order in which the user program is executed.

Parameter

● Tag of a STEP 7 code block:

● Tag for setting the behavior of a module (one or more per module). In as-delivered state, every module has an appropriate basic setting, which you can change by configuring in

STEP 7. There are static and dynamic parameters

Parameter assignment

Parameter assignment is the transfer of parameters from the IO controller / DP master to the

IO device / DP slave.

Parameters, dynamic

In contrast to static parameters, you can change dynamic parameters of modules during operation by calling an SFC in the user program, e.g. limit values of an analog input module.

Parameters, static

In contrast to dynamic parameters, you cannot change static parameters of modules with the user program but only by configuring in STEP 7, e.g. input delay of a digital input module.

PELV

Protective Extra Low Voltage = grounded extra low voltage with safe isolation

Pre-wiring

Wiring of the electrical system on the front connector before the front connector is used on the I/O module.

Process image (I/O)

The CPU transfers the values from the input and output modules to this memory area. At the start of the cyclic program the signal states of the input modules are transmitted to the process image of the inputs. At the end of the cyclic program the process image of the outputs is transmitted as signal state to the output modules.

Product version (PV) = Function version (FV)

The product version or function version provides information on the hardware version of the module.

262

Automation system

System Manual, 09/2016, A5E03461182-AD

PROFIBUS

Glossary

PROcess FIeld BUS, process and fieldbus standard that is specified in IEC 61158 Type 3. It specifies functional, electrical and mechanical characteristics for a bit-serial field bus system.

PROFIBUS supports the protocols DP (= Distributed I/O), FMS (= Fieldbus Message

Specification), PA (= Process Automation), or TF (= Technological Functions).

PROFINET

PROcess FIeld NETwork, open industrial Ethernet standard which further develops

PROFIBUS and industrial Ethernet. A cross-manufacturer communication, automation, and engineering model defined by PROFIBUS International e.V. as an automation standard.

PROFINET IO

Communication concept for the realization of modular, distributed applications within the scope of PROFINET.

PROFINET IO controller

Device used to address connected I/O devices (e.g. distributed I/O systems). This means that: The IO controller exchanges input and output signals with assigned I/O devices. Often, the IO controller is the CPU on which the automation program runs.

PROFINET IO device

Distributed field device that can be assigned to one or more IO controllers (e.g. distributed

I/O system, valve terminals, frequency converters, switches).

Push-in terminal

Terminal for the tool-free connection of wires.

Reference potential

Potential from which the voltages of the circuits involved are observed and/or measured.

Restart

During a warm restart, all non-retentive bit memory is deleted and non-retentive DB contents are reset to the initial values from load memory. Retentive bit memory and retentive DB contents are retained. Program execution begins at the call of the first startup OB.

Retentivity

A memory area whose content is retained after power failure and after a STOP to RUN transition is retentive. The non-retentive area of the bit memory, timers and counters is reset after power failure and after a STOP to RUN transition.

Automation system

System Manual, 09/2016, A5E03461182-AD

263

Glossary

Row

All the modules attached to a mounting rail.

Runtime error

Error that occurs during execution of the user program in the automation system (thus not in the process).

SELV

Safety Extra Low Voltage = Safety extra-low voltage

Slave station

A slave may only exchange data with a master after being requested to by the master.

SNMP

SNMP (Simple Network Management Protocol) is the standardized protocol for performing diagnostics on and assigning parameters to the Ethernet network infrastructure.

In the office setting and in automation engineering, devices from a wide range of vendors on the Ethernet support SNMP.

SNMP-based applications can be operated on the same network in parallel to applications with PROFINET.

The scope of supported functions varies depending on the device type. For example a switch has more functions than a CP 1616.

Switch

PROFIBUS is a linear network. The communication nodes are linked by means of a passive cable - the bus.

By contrast, Industrial Ethernet consists of point-to-point connections: each communication node is interconnected directly with precisely one other communication node.

If a communication node is linked to several communication nodes, this communication node is connected to the port of an active network component - the switch. Additional communication nodes (including switches) can now be connected to the other ports of the switch. The connection between a communication node and the switch remains a point-topoint connection.

A switch thus has the task of regenerating and distributing received signals. The switch

"learns" the Ethernet address(es) of a connected PROFINET device or additional switches and only forwards those signals that are intended for the connected PROFINET device or switch.

A switch has a specific number of connections (ports). You connect at most one PROFINET device or additional switch to each port.

264

Automation system

System Manual, 09/2016, A5E03461182-AD

Glossary

System power supply

Consists of the integrated system power supply of the CPU/interface module and additional power supplies (PS), if necessary. The system power supply serves exclusively to supply the

I/O modules via the backplane bus.

Technology object

A technology object supports you in the configuration and commissioning of a technological function.

The properties of real objects are represented by technology objects in the controller. Real objects can be, for example, controlled systems and drives.

The technology object contains all data of the real object required for its open-loop or closedloop control, and it signals back status information.

TIA Portal

Totally Integrated Automation Portal

The TIA Portal is the key to the full performance capability of Totally Integrated Automation.

The software optimizes operating, machine and process sequences.

Time-delay interrupt

see "Interrupt, time-delay"

Time-of-day interrupt

see "Interrupt, time-of-day"

Timer

Timers are components of the system memory of the CPU. The operating system automatically updates the content of the "timer cells" asynchronously to the user program.

STEP 7 instructions define the precise function of the timer cell (e.g. on-delay) and trigger its execution (e.g. start).

Update interrupt

see "Interrupt, update"

User program

SIMATIC differentiates between the operating system of the CPU and user programs. The user program contains all instructions and declarations as well as data for the signal processing that enable a plant or process to be controlled. The user program is assigned to a programmable module (e.g. CPU) and can be structured in smaller units.

Warm restart

See "Restart"

Automation system

System Manual, 09/2016, A5E03461182-AD

265

Index

2

24 V DC supply, 64

A

Accessible devices

Firmware update, 216

Accessories, 253

Addressing, 106

Analog modules, 110

Basics, 106

Digital modules, 108

Ambient condition

Climatic, 243

Mechanical, 242

Operating conditions, 242

Analog modules

Addressing, 110

Application

Power segment,

Approvals, 234

CE, 235 cULus, 235

FM, 236

IEC 61131, 237

Industrial use, 238

Use in residential areas, 238

C

CE approval, 235

Changes

Compared to previous version, 17

Climatic ambient conditions, 243

Coding element, 81, 204

Basics, 204

Front connectors, 209

Power connector, 211

Replace module, 208

Commissioning, 161, 184

Check before power-on, 163

First power-on, 167

First power-on, requirements, 167

Identification data, 181, 184

Identification data - record structure, 184

266

Procedure, 164

Removing/inserting SIMATIC memory card, 165

Reset to factory settings, 222

Components

Overview of the ET 200MP, 29

Configuration, 69

Basics, 101

Electrical, 72

ET 200MP, 23

On grounded reference potential, 69

Configuration control, 142, 143

Configuration control for IO systems, 142

Configuring, 115

Properties of the CPUs, 105

Connection plug

4-pole, 31

Control data record

S7-1500, 150

CPU, 29

Accessories, 253

Backup/restore contents, 179

Display, 193

Installing, uninstalling, 58

Memory reset, 176

Reading out service data, 230

Reset to factory settings, 219

Supply voltage, 80

Wiring rules, 75

cULus approval, 235

D

Degree of protection IP20, 244

Digital modules

Addressing, 108

Dimension drawing, 249

Labeling strips, 252

Mounting rail, 246

Power supply element, 251, 251

Shield clamp, 250, 251

Shielding bracket, 250

Display, 193

Basics, 193

Control buttons, 199

Languages, 201

Automation system

System Manual, 09/2016, A5E03461182-AD

E

Electromagnetic compatibility (EMC), 239

Electrostatic discharge, 239

EMC (Electromagnetic compatibility), 239

Disturbances, 239

Radio interference, 240

EMERGENCY-STOP devices, 63

ET 200MP, 22

Accessories, 253

Components, 29

Configuration example, 27

Configuring, 115

Examples of configurations, 23

Field of application, 22

Example

Configuration of ET 200MP, 27

Examples of configurations, 23

F

Factory settings, 219, 222

Fail-safe I/O modules

Coding element, 30

FAQ

Emergency address, 180

Repairing a SIMATIC memory card, 190

FAQs

Firmware update, 218

Labeling strips, 98

Load current supplies, 39

Removing a SIMATIC memory card, 166, 189

Firmware update, 213

FM approval, 236

Front connectors, 30

Final position, 96

General information, 85

Potential bridge, 86

replacing, 209

Shield contact, 95

Wiring, 88, 90, 91, 94

Wiring of analog modules, 90

Wiring rules, 75

H

Hardware configuration ET 200MP DP

Slots, 37

Hardware configuration ET 200MP PN

Slots, 36

I

I/O module, 30

Front connectors, 85

Inserting or removing, 203

Installing, uninstalling, 62

Marking, 98

replacing, 208

Identification data, 181

Record structure, 184

IEC 60204, 63

IEC 61131, 237

Infeed, 69

Infeed, grounded, 69

Installation

Basics, 48

CPU, 58

I/O modules, 62

Interface module, 59

Load current supply, 56

Mounting rail, 50, 52

Power supply, 54

Installation position, 48

Installation rules, 49

Insulation, 244

Interface module, 29

Installation rules, 49

Installing, uninstalling, 59

Reset to factory settings, 222

Supply voltage, 80

Wiring rules, 75

G

Galvanic isolation, 72

Grounded infeed, 69

Grounding, 53

Configuration on grounded reference potential, 69

Overview of the CPU, 71

L

Labeling strips, 31, 98, 98

Dimension drawing, 252

Languages

Display, 201

Lightning protection, 64

Line voltage, 64

Load current supply, 32, 38

Definition, 38

Installing, uninstalling, 56

Wiring rules, 75

Automation system

System Manual, 09/2016, A5E03461182-AD

Index

267

Index

M

Main entry, 22

Maintenance

Coding element, 204

Firmware update, 213

Reading out service data, 230

Removal and insertion, 203

Replace module, 208

Replacing a front connector, 209

Reset to factory settings, 219

Test functions, 225

Marking, 98, 99

Labeling strips, 98

optional, 99

Maximum configuration

with PROFIBUS interface module, 37

with PROFINET interface module, 35

Maximum cycle time, (Cycle monitoring time), (Cycle monitoring time)

Memory reset

Automatic, 177

Basics, 176

Manual, 177

Minimum clearances, 49

Module swapping, (See Replacing)

Mounting rail, 29, 48, 50

Attaching the protective conductor, 52

Dimension drawing, 246

Drill holes, 51

Fastening, 51

installation, 52

Length, 51

Multiple use IO systems, 142

STARTUP, 171

STOP, 173

Option handling, (See configuration control)

Overall configuration, 71

Overload, 46

Overload behavior, 120

Overview

Components of an S7-1500, 29

Grounding the CPU, 71

Overview, graphic

Examples of configurations, 23

P

PE connection element, 29

PELV, 69

Pollution degree, 244

Potential bridge, 31

Front connectors, 86

Power balance calculation, 45

Overload, 46

Power segment

Application, 41

Power supply, 54

Power supply element, 31, 251, 251

Process image

Inputs and outputs, 112

Process image partition

updating in the user program, 114

updating, automatically, 113

Protection, 131, 137, 139, 141

Access levels, 131

Behavior of a password-protected CPU, 134

Copy protection, 139

Know-how protection, 137

mechanical locking, 141

Protection against electrical shock, 64

Protection against external electrical influences, 64

Protection class, 244

O

OBs, 117

Event source, 118

Overload behavior, 120

Priorities, 117

Priorities and runtime behavior, 119

Queue, 117

Similar events, 120

Threshold mechanism, 121

Time error interrupt OB, 121

Triggers, 117

Operating modes

Basics, 170

Operating mode transitions, 174

RUN, 173

Setting the startup behavior, 172

R

Radio interference, 240

rated voltage, 245

Reading out service data, 230

Reference potential of the controller, 69

Removal and insertion of modules, 203

Replacing

Front connectors, 209

I/O module, 208

268

Automation system

System Manual, 09/2016, A5E03461182-AD

S

S7-1500

Configuration, 20

Configuration example, 21

Field of application, 20

Overview of components, 29

S7-1500 CPU/ET 200MP interface module

Rules and regulations for operation, 63

S7-1500 hardware configuration

Slots, 34

Safe galvanic isolation, 69

Shield clamp, 31, 250, 251

Shielding bracket, 31, 249, 249, 250

Shipping conditions, 241

Short-circuit and overload protection, 70

SIMATIC memory card, 187, 191, 192

Basics, 187

Firmware card, 191

Possible applications, 192

Program card, 191

Repairing, 190

Updating firmware, 192

Spare parts, 253

Specific application, 63

Standard machine project, 142

Standards, 234

Storage conditions, 241

Supply voltage

CPU, 80

Interface module, 80

Swapping, (See Replacing)

System power supply, 32, 38

Application, 40, 41

Configuration variants, 40

Definition, 38

Installing, uninstalling, 54

Power segment, 40

Wiring rules, 75

T

Technical specifications

Climatic ambient conditions, 243

Electromagnetic compatibility (EMC), 239

Shipping and storage conditions, 241

Standards and Approvals, 234

Test functions, 225

Test voltage, 244

type-coded, 204

Automation system

System Manual, 09/2016, A5E03461182-AD

Index

U

U connector, 30

Uninstalling

CPU, 59

I/O module, 62

Load current supply, 57

System power supply, 55

W

Wiring, 63

Front connectors, (Analog modules), 91

General rules for the S7-1500 CPU/the ET 200MP

interface module, 63

Front connectors, (Analog modules), 91

Front connectors, (Analog modules), 91

Load current supply, 81

Sensors and actuators, 85

Supply voltage to the CPU, 80

System power supply, 81

Without tools, 80

Wiring actuators, 85

Wiring rules

CPU, 75

Front connectors, 75

Load current supply, 75

System power supply, 75

Wiring sensors, 85

Z

Zone 2 hazardous atmosphere, 245

269
