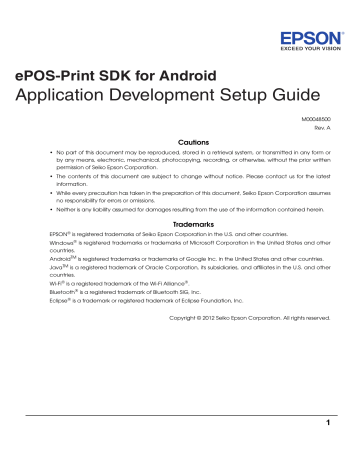

ePOS-Print SDK for Android

Application Development Setup Guide

M00048500

Rev. A

Cautions

• No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation.

• The contents of this document are subject to change without notice. Please contact us for the latest information.

• While every precaution has taken in the preparation of this document, Seiko Epson Corporation assumes no responsibility for errors or omissions.

• Neither is any liability assumed for damages resulting from the use of the information contained herein.

Trademarks

EPSON

is registered trademarks of Seiko Epson Corporation in the U.S. and other countries.

Windows

is registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.

Android

TM

is registered trademarks or trademarks of Google Inc. in the United States and other countries.

Java

TM

is a registered trademark of Oracle Corporation, its subsidiaries, and affiliates in the U.S. and other countries.

Wi-Fi

is a registered trademark of the Wi-Fi Alliance

.

Bluetooth

is a registered trademark of Bluetooth SIG, Inc.

Eclipse

is a trademark or registered trademark of Eclipse Foundation, Inc.

Copyright © 2012 Seiko Epson Corporation. All rights reserved.

1

2

Overview

This document describes the procedures to establish the development environment for the application used for printing from Android device using Eclipse. Set up the environment to run the sample program supplied with EPSON ePOS-Print SDK for Android.

Environment for This Document

This document applies to the environment as described below. Information such as the Web page URLs and the download file versions are as of April 2012. If your environment is different from the following, interpret the descriptions accordingly.

OS : Windows 7 (32 bit)

Java SE Development Kit 6 Update 31

Eclipse Classic 3.7.2

Android SDK Tools, Revision 17

ADT Plugin 17.0.0

Sample program supplied with ePOS-Print SDK for Android

Relevant Manual

ePOS-Print SDK for Android User's Manual

Operation Workflow

1.

"Installing Java SE Development Kit" on page 4

Download and install JDK.

2.

"Setting Up Eclipse" on page 6

Download Eclipse and configure the initial settings.

3.

"Setting Up Android SDK Manager" on page 9

Download and install Android SDK Manager. Configure the settings required for development.

4.

"Downloading and Installing ADT Plugin" on page 14

Install ADT Plugin to Eclipse.

5.

"Executing Sample Application (Eclipse)" on page 18

Execute the sample application using the emulator.

3

4

Installing Java SE Development Kit

Download and install JDK (Java Development Kit).

Downloading JDK

1

Access the following URL and download Java SE 6 JDK.

http://www.oracle.com/technetwork/java/javase/downloads/index.html

2

The Java SE Downloads window appears. Select [Accept License Agreement] and select the file to be installed. Save the file to a desired location.

(In this manual, download Windows x86 to construct the environment.)

Installing JDK

1

Start the downloaded file. The following window appears. Click the [Next] button.

2

Select the function to install and click the [Next] button. To change the installation destination, click the [Change] button and change the destination.

(In this manual, the default destination is used.)

3

Installation starts.

4

When installation completes, the following window appears. Click the [Finish] button.

5

Setting Up Eclipse

Download, install and set up Eclipse.

Downloading Eclipse

Access the following URL and download Eclipse. Save the file to a desired location.

(In this manual, download and set up Eclipse Classic 3.7.2)

http://www.eclipse.org/downloads/

6

Installing Eclipse and Configuring Initial Settings

1

Extract the downloaded file to a desired location.

(In this manual, extract the file under "C:\Program Files".)

2

Double-click "eclipse.exe" to start Eclipse.

3

Set up the work folder during Eclipse startup process. Click the [OK] button.

(In this manual, the default settings are used.)

Setting Proxy for Eclipse

Use this operation when proxy setting is required for Internet connection. If not required, this operation is unnecessary.

1

Select [Window] - [Preferences].

7

8

2

Select [General]-[Network Connections] from the left column. Set the proxy and click the [OK] button.

Setting Up Android SDK Manager

Download and install Android SDK Manager. Create Android Virtual Device.

Downloading Android SDK Manager

Access the following URL and download Android SDK Manager.

(In this manual, download the installer for Windows.)

http://developer.android.com/sdk/index.html

Installing Android SDK Manager

1

Start the downloaded file. The following window appears. Click the [Next] button.

9

10

2

Click the [Next] button.

If   JDK   is   not   installed,   it   is   notified   at   this   point.

3

Specify the installation destination. Click the [Next] button.

(In this manual, the default settings are used.)

4

Specify the name to be registered to Start Menu. Click the [Install] button.

5

When installation completes, click the [Next] button.

6

Clear the [Start SDK Manager] checkbox. Click the [Finish] button.

11

12

Setting Android SDK Manager

1

Start Android SDK Manager.

[Start]-[All Programs]-[Android SDK Tools]-[SDK Manager]

On   Windows   Vista   or   later,   it   is   required   to   run   Android   SDK   Manager   as   the   administrator.



To   run   as   the   administrator,   right ‐ click   Android   SDK   Manager   and   select   [Run   as   administrator].

If   Android   SDK   Manager   is   not   run   as   the   administrator,   package   download   will   fail.

2

When the proxy setting is required, select [Tools]-[Options].

3

The proxy setting window appears. Set the proxy and click the [Close] button.

4

Among the Android versions supported by ePOS-Print SDK for Android, select the version of the device to be developed, and click the [Install XX packages...] button.

5

Select [Accept All] and click the [Install] button. Installation of Virtual Device starts.

13

14

Downloading and Installing ADT Plugin

Download and install ADT (Android Development Tools) Plugin.

To   execute   this   operation,   the   computer   must   be   connected   to   the   Internet.

  If   the   proxy   setting   is   required   for   Internet   connection,   refer   to

  ʺ Setting   Proxy   for   Eclipse ʺ  on   page   7 .

1

Start Eclipse. Select [Help]-[Install New Software].

2

Click the [Add] button.

3

Enter [Name] and [Location], and click the [OK] button.

Item Description

Name

Location

ADT Plugin https://dl-ssl.google.com/android/eclipse/

4

Select the [Developer Tools] checkbox and click the [Next] button.

5

Confirm the plugin to be installed, and click the [Next] button.

6

After confirming the terms of the license agreement, select the [I accept...] checkbox and click the [Finish] button.

15

16

7

Installation starts. If the following window appears, click the [OK] button.

8

Click the [Restart Now] button to restart Eclipse.

9

Select [Window] - [Preferences].

10

Select [Android] from the left column. Click the [Browse...] button to display the

Android folder where SDK Manager is installed.

(In this manual, display "C:\Program Files\Android\android-sdk".)

11

Click the [Apply] button. Confirm that the installed package is displayed.

17

18

Executing Sample Application (Eclipse)

Import the sample program supplied with ePOS-Print SDK for Android into Eclipse, create a virtual device, and check operation using the emulator.

Importing Application

Import the sample application to Eclipse.

1

Extract ePOS-Print SDK for Android and save it to a desired location.

2

Start Eclipse. Select [File]-[Import].

3

Select [General]-[Existing Projects into Workspace]. Click the [Next] button.

4

Click the [Browse...] button to display the saved ePOS-Print SDK for Android. Select the [Copy projects into workspace] checkbox and click the [Finish] button.

5

Confirm that the application has been properly imported.

19

Settings for Newly Created Project

Compiler compliance level settings

When a new project is created, the Compiler compliance level of the created project must be changed to

"1.6". To change the Compiler compliance level, follow the procedures below.

1

Select the created project and select [Project]-[Properties].

2

Select [Java Compiler] from the left column. Change [Compiler compliance level:] to [1.6].

20

Settings for Using the Wi-Fi / Bluetooth function

To use the Wi-Fi / Bluetooth function, it is required to specify "Permission" in AndroidManifest.xml.

For using the Wi-Fi function

android.permission.INTERNET

For using the Bluetooth function

android.permission.BLUETOOTH

android.permission.BLUETOOTH_ADMIN

Specify "Permission" with the following procedures:

1

Double-click [AndroidManifest.xml].

2

Select the [Permissions] tag. Click the [Add] button.

3

Select [Uses Permission] and click the [OK] button.

4

[Uses Permission] is added. Click the " " mark next to [Name] and select the necessary Permissions from the list.

21

22

5

Repeat Step 2 to 4 to specify the required Permissions.

Executing Sample Application (Emulator)

1

Start Android Virtual Device Manager. After it starts, click the [New...] button.

[Start]-[All Programs]-[Android SDK Tools]-[AVD Manager]

2

Select the virtual device name to be created and the OS version. Specify [Name]

(any name) and select [Target]. Click the [Create AVD] button.

23

24

3

The created virtual device is displayed.

4

Click the button to run Eclipse.

5

For the initial startup, the window to confirm the execution type appears. Select

[Android Application] and click the [OK] button.

6

The emulator starts and the application is executed.

25

26

Executing Sample Application (Android Device)

To run the application using an actual Android device, set up the device according to the procedures described in the following URL:

http://developer.android.com/guide/developing/device.html
