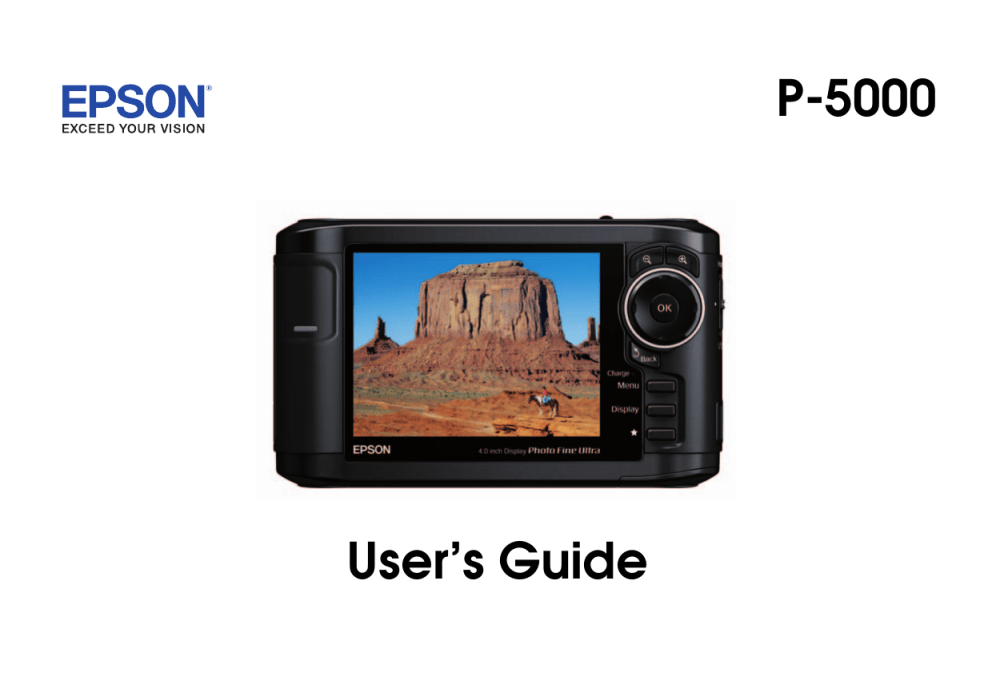

Epson P-5000 User's Guide

User’s Guide

P-5000

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the

U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as

Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson Approved Products by Seiko Epson Corporation.

Trademarks

Epson is a registered trademark and USB DIRECT-PRINT, Photo Fine, and Exceed Your Vision are trademarks of Seiko Epson Corporation.

Photo Enhance is a trademark of Epson America, Inc.

QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple, Inc., used under license.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

CompactFlash is a registered trademark of SanDisk Corporation.

SD is a trademark of SD Card.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

This product is licensed under the MPEG-4 Visual Patent Portfolio License for the personal and non-commercial use of a consumer for (i) encoding video in compliance with the MPEG-4 visual standard (MPEG-4 Video) and/or (ii) decoding MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed by MPEG LA to provide MPEG-4 Video. No license is granted or shall be implied for any other use.

Additional information including that relating to promotional, internal and commercial uses and licensing may be obtained from MPEG LA, L.L.C. (See www.mpegla.com)

This product is licensed under the AVC Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC standard (AVC Video) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C.

(See www.mpegla.com)

MPEG Layer-3 audio coding technology is licensed from Fraunhofer IIS and Thomson.

Any use of this product other than consumer personal use in any manner that complies with the MPEG-2 standard for encoding video information for packaged media is expressly prohibited without a license under applicable patents in the MPEG-2 patent portfolio, which license is available from MPEG LA, L.L.C., 250 STEELE STREET,

SUITE 300, DENVER, COLORADO 80206.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

General Notice:

Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

Patents:

5,809,336

5,784,584

6,598,148

Introduction

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using the Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 1 Getting Started

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Lights and Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning On the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting the Language, Date, and Time . . . . . . . . . . . . . . . 12

Locking the Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Turning Off the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Saving Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chapter 2 Using Memory Cards

Inserting and Removing Memory Cards . . . . . . . . . . . . . . 16

Using the CF Card Slot . . . . . . . . . . . . . . . . . . . . . . . 17

Using the SD Card Slot . . . . . . . . . . . . . . . . . . . . . . . 18

Copying Files From a Memory Card . . . . . . . . . . . . . . . . . 19

Copying All Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Copying Selected Files . . . . . . . . . . . . . . . . . . . . . . . . 20

Copying Files to a Folder . . . . . . . . . . . . . . . . . . . . . . 21

Creating a New Folder and Copying Files . . . . . . . . . 22

Chapter 3 Viewing Photos and Videos

Using the Viewer Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Changing the Display . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using the Pop-up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Supported Image Formats . . . . . . . . . . . . . . . . . . . . . . . . . 25

Viewing Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Zooming an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Displaying Information . . . . . . . . . . . . . . . . . . . . . . . 27

Displaying a Wider Color Gamut. . . . . . . . . . . . . . . . 28

Displaying Images as a Slide Show . . . . . . . . . . . . . . . 28

Rotating an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Viewing Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Supported Video Formats . . . . . . . . . . . . . . . . . . . . . 30

Playing Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Setting the Display Mode. . . . . . . . . . . . . . . . . . . . . . 32

Viewing Files on a TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Chapter 4 Playing Music

Copying Music From Your Computer . . . . . . . . . . . . . . . 34

Supported Audio Formats . . . . . . . . . . . . . . . . . . . . . . . . . 36

Playing Audio Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Setting Repeat and Shuffle Options. . . . . . . . . . . . . . . . . . 38

Creating a Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Creating a Playlist on the Viewer . . . . . . . . . . . . . . . . 39

Adding Tracks to an Existing Playlist . . . . . . . . . . . . . 40

Removing Tracks From a Playlist . . . . . . . . . . . . . . . . 40

Changing the Order of a Playlist . . . . . . . . . . . . . . . . 40

Using the Equalizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Deleting Audio Files From the Viewer . . . . . . . . . . . . . . . 41

Chapter 5 Managing Files

Copying Files To and From Your Computer. . . . . . . . . . . 42

Backing Up Files to Your Computer. . . . . . . . . . . . . . 43

Copying Files From Your Computer to the Viewer . . 44

Disconnecting the Viewer From Your Computer . . . . 44

Setting Backup and Conversion Preferences . . . . . . . . 45

Using the Viewer With USB Devices . . . . . . . . . . . . . . . . 46

Connecting a USB Device . . . . . . . . . . . . . . . . . . . . . 47

Copying Files to the Viewer . . . . . . . . . . . . . . . . . . . . 47

Copying Files to the USB Device . . . . . . . . . . . . . . . . 48

Setting Folders as Private . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Renaming a Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Deleting Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . . 51

Locking Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . . 53

Setting a Folder Icon or Home Screen Wallpaper . . . . . . . 54

Rating Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Selecting a Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Chapter 6 Printing

Connecting the Viewer to a Printer . . . . . . . . . . . . . . . . . . 56

Printing Your Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Printing Your Videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Chapter 7 Customizing Settings

Hard Drive Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Power Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

File Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Movie Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

View Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Chapter 8 Maintenance and

Troubleshooting

Cleaning the Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Problems and Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Power Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

File Viewing Problems . . . . . . . . . . . . . . . . . . . . . . . . 65

File Operation Problems . . . . . . . . . . . . . . . . . . . . . . 66

Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Updating the Firmware and Printer Driver . . . . . . . . . . . . 67

Uninstalling Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Resetting the Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Replacing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Internet Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Speak to a Support Representative . . . . . . . . . . . . . . . 69

Appendix A

Notices and Specifications

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Windows System Requirements . . . . . . . . . . . . . . . . . 70

Macintosh System Requirements . . . . . . . . . . . . . . . . 70

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Standards and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Introduction

With the Epson ® P-5000 multimedia viewer, you can enjoy photos, videos, and music wherever you go. Your images are displayed on Epson’s exclusive 4-inch Photo Fine ™ Ultra

LCD in brilliant color and detail.

❍

Features

❍

Large 4-inch LCD with true Adobe ® RGB color gamut

Support for JPEG and RAW files (including zoom)

Support for MP3 and AAC audio, with music playlists

Support for MPEG4, Motion JPEG, and DivX ® (with

DRM) video

80GB hard drive

Two slots for CompactFlash ® and SD ™ memory cards

Hi-speed USB 2.0 interface for PC or Macintosh ®

Software for convenient file conversion and transfer

Direct printing to PictBridge ® printers

Lithium-ion battery and AC adapter

Video output to display pictures on a TV or projector

Using the Documentation

This guide provides information and instructions for all the viewer features, including troubleshooting tips.

Make sure you read and follow all the “Safety Instructions” on page 71. Please follow these guidelines:

Warning:

Must be followed carefully to avoid bodily injury.

Caution:

Must be observed to avoid damage to your equipment.

Note:

Contains important information and useful tips on the operation of your product.

If you need assistance using your viewer, see “Where To Get

Help” on page 69.

Your package also includes a

P-3000/P-5000 Basics Guide

Keep it with the viewer for handy reference.

Chapter 1 Getting Started

Parts

SD card slot

CompactFlash card slot

Memory card access light

CF card slot eject button

Headphone connector

Liquid Crystal

Display (LCD)

Strap hook

Power switch with Hold function

Host USB connector

(for camera, flash drive, etc.)

Device USB connector

(for computer)

A/V Out connector

Rubber cover

BA TT

Battery cover

Speaker

AC adapter connector

Reset button

Getting Started 8

Lights and Buttons

Activity light

Flashes blue during power on, printing, file transfer, and computer connection

Charge light

Green for battery charging; orange for problems

4-way ring

Press to select a photo or navigate the menus

Zoom buttons

Press to zoom in or out, or adjust the volume for music or video

OK button

Press to select an option, open a folder or photo, or play music or video

Charge

Menu

Back

Display

Back button

Press to cancel your selection or return to the previous display or menu item

Menu button

Press to display a pop-up menu.

Display button

Press to change the display or view photo information

button

Press to select a file or rate a photo from 1 to 5 stars

Getting Started 9

Installing the Battery

The viewer comes with a lithium-ion battery.

Turn the viewer upside down.

Slide the battery cover to the right to open it.

Close the battery cover and slide it to the left until it clicks.

BATT

Insert the battery into the compartment in the direction of the arrow on the battery.

Charging the Battery

After installing the battery, you need to charge it using the

AC adapter. It takes about 3.5 hours to fully charge the battery when the viewer is off, and longer when the viewer is on.

The

Charge

light is green while the battery is being charged. When the battery is fully charged, the light turns off.

Getting Started 10

To charge the battery, connect the AC adapter as shown below. Connect the other end to the power cord, and plug it into an electrical outlet.

Note:

The battery may become hot when the viewer is operated during charging. Charging will stop until the battery cools down.

Caution:

Do not connect the AC adapter when the battery is not installed; this can damage the viewer. Turn off the viewer before disconnecting the AC adapter.

The battery status is displayed in the top right corner of the

LCD screen when the viewer is on.

Battery is fully charged.

Battery power is about half full.

Battery power is low.

Battery power is running out. Charge the battery using the AC adapter.

Battery is charging.

Removing the Battery

If you plan to store the viewer for an extended period of time, you should remove the battery.

Make sure the viewer is turned off.

Caution:

Remove the AC adapter if it is connected to the viewer.

Never remove the battery while the viewer is turned on.

Doing so may cause files to be lost or damaged.

Open the battery cover.

Push the latch down. The battery pops out.

Getting Started 11

Pull out the battery. Then close the battery cover.

Setting the Language, Date, and Time

The first time you turn on the viewer, you see the Language setting screen:

Turning On the Power

Slide the power switch down as shown below, then release it.

The activity light flashes for a moment then turns off.

Activity light

Hold

Note:

If you see the Home screen instead (as shown in “Using the

Home Screen” on page 14), the language has already been

selected. To change it or check the date and time, select

Settings on the Home screen. Then follow the instructions in

“Date and Time” or “Language” on page 62.

Press

to select

English

. You see a message about setting the date.

Getting Started 12

Press

. You see the Date and Time screen:

Locking the Buttons

You can lock the buttons on the viewer. This allows you to place the viewer in a purse or backpack and use it with headphones without accidentally pressing the buttons.

To lock the buttons, slide the power switch to

Hold

Hold

Press up or down on the 4-way ring to change the value for the selected item (such as the year).

To go to the next option (

Month

Day

, for example) press right or left.

After setting the date, set the date format.

When you finish, highlight

Complete and press

You see the Home screen. See “Using the Home Screen” on page 14 for details.

Note:

If you remove the battery, the date and time settings will be erased after about one day. The next time you turn on the viewer, the date and time setting screen will be displayed.

To unlock the buttons, slide the power switch back to the middle position.

Getting Started 13

Using the Home Screen

Whenever you turn on the viewer, the Home screen appears. All operations can be started from this screen.

Hold icon SD icon CF icon

Battery icon

Home

My Music

View Rated Files

My Videos

My Photos

Backup Files

Memory Card

USB Device

Settings

20122006.001

19122006.002

19122006.001

18122006.001

17122006.001

The following table summarizes the Home screen.

Icon

Battery

icon

Function

Indicates the remaining charge in the battery.

See “Charging the Battery” (page 10).

CF icon Indicates that a CompactFlash memory card is inserted.

SD icon Indicates that an SD memory card is inserted.

Icon

Hold

icon

Music

View

Rated Files

Videos

Function

Indicates that the buttons are locked. See

“Locking the Buttons” (page 13).

Listen to music copied from your computer.

See “Playing Audio Files” (page 36).

View files that you have rated with one or

more stars. See “Rating Photos” (page 54).

View folders and play videos that you have

copied into the Videos folder. See “Viewing

Videos” (page 30).

Photos

Backup

Files

Memory

Card

USB

Device

View folders and files that you have copied

into the Photos folder. See “Viewing Images”

(page 26).

View folders and files backed up from memory cards or USB devices.

View files on memory cards or copy the files

to the viewer. See “Copying Files From a

Memory Card” (page 19).

Copy files to or from a USB device. See

“Using the Viewer With USB Devices” (page

46).

Settings Check and adjust viewer settings. See

“Customizing Settings” (page 60).

Getting Started 14

Turning Off the Power

Before you turn off the viewer, make sure the memory card access light is off. Then slide the power switch as shown below, and hold it down for a few seconds until the activity light flashes and the viewer turns off.

Memory card access light

Activity light

Hold

Saving Power

When you are not using the viewer, it goes into one of the power-saving modes listed below. You can adjust the timing

for all of the power-saving modes; see “Power Save” on page 60 for more information.

❍

The LCD screen turns dark after one minute of inactivity. Press any button to turn it on.

The LCD screen turns off after five minutes of inactivity. Press any button to turn it on.

The viewer turns off automatically after 10 minutes of inactivity. Slide down the power switch to turn it back on.

When the AC adapter is connected, the viewer plays a screen saver instead of turning off.

To customize the screen saver, see “Selecting a Screen

Saver” on page 55.

Getting Started 15

Chapter 2 Using Memory Cards

The viewer has two memory card slots: one for

CompactFlash cards and one for SD (Secure Digital) cards.

This chapter explains how to insert and remove memory cards and how to display and copy files.

Inserting and Removing Memory

Cards

The viewer supports the following types of memory cards:

Memory card type

CompactFlash Card

(Type I and Type II)

Microdrive

™

SD (Secure Digital) and SD High

Capacity Card

Maximum Capacity

8GB

4GB

2GB

MultiMedia Card and Multimedia Card

Plus

1GB

With a CompactFlash adapter, you can use the memory cards listed below (up to 8GB) in the

C/F Card

slot:

❍

❍ miniSD ™ Card

❍

Memory Stick PRO Duo

Memory Stick ™

❍ xD-Picture Card ™

Memory Stick Duo ™

❍

SmartMedia Card

Memory Stick PRO ™

❍

RS-MMC Card

™

Caution:

Make sure you follow all instructions included with your memory card.

Never remove a memory card, or shake or drop the viewer while the memory card access light is flashing. Doing so may cause files to be lost or damaged.

Do not put labels or stickers on memory cards. The sticker may peel off, preventing the card from being ejected and damaging the viewer.

Avoid using or storing cards in direct sunlight, or in places that are extremely hot, humid, or dusty.

Using Memory Cards 16

Using the CF Card Slot

You can use Type I and Type II CompactFlash cards or

Microdrive cards in the

CF Card

slot. If you have a

CompactFlash adapter, you can also use other types of cards,

as described in “Inserting and Removing Memory Cards” on page 16.

Insert the memory card into the slot with the label facing forward. Then push the memory card all the way into the slot.

If you are using a CompactFlash adapter, put the card into the adapter and insert the adapter into the slot.

To remove a card from the

CF Card

slot, first make sure the memory card access light is off. Then press the eject button and pull out the card.

If the button is not sticking out, press it once to pop it out, then press it again to eject the card.

Note:

If you are using a CompactFlash adapter, remove the adapter from the viewer; do not remove only the memory card.

Caution:

Make sure you insert memory cards in the correct orientation.

Otherwise, the card and viewer may be damaged.

Using Memory Cards 17

Using the SD Card Slot

You can use Secure Digital or MultiMedia cards in the

Card

slot.

Insert the memory card into the slot as shown below. Then push the memory card all the way into the slot.

To remove a card from the

SD Card

slot, first make sure the memory card access light is off. Then press in on the top of the card.

Caution:

Make sure you insert memory cards in the correct orientation.

Otherwise, the card and viewer may be damaged.

When the card pops up, pull it out of the slot.

Using Memory Cards 18

Copying Files From a Memory Card

After you insert a memory card, you can browse the files and decide what you want to do with them, or simply copy all the files on the card to the viewer.

Note:

If the battery power is low, copying may not be completed. Use the AC adapter if this happens.

Copying All Files

Insert a memory card.

If the Memory Card Menu doesn’t open automatically, select

Memory Card

in the Home screen, then press

. You see the following menu:

Memory Card

CF Memory Card Backup

Browse CF Memory Card

SD Memory Card Backup

Browse SD Memory Card

Select

CF Memory Card Backup

SD Memory

Card Backup

. Then press

The files are copied to a folder that is automatically created in the Backup Files folder on the viewer. The folder is named according to the date and the date format you selected, for example,

12252006.001

Folders are numbered in the order they are copied.

If you want to change the name, see “Creating a New

Folder and Copying Files” on page 22.

When the backup is complete, you see thumbnail images of the copied photos.

Note:

The files on the memory card can be automatically deleted after

copying is complete. For details, see “File Operation” on page 61.

To check the copied files, select

Backup Files

in the Home screen, then press

. Press

again to select the folder you just copied and display the files.

Using Memory Cards 19

Copying Selected Files

Insert a memory card. If the Memory Card Menu doesn’t open automatically, select

Memory Card

in the

Home screen, then press

In the Memory Card menu, select

Browse CF Memory

Card or

Browse SD Memory Card

Press

. The files on the memory card appear in thumbnail view.


Press the

button to display the pop-up menu.

Select

Backup, then press

Small white check boxes appear on each thumbnail image.

Check box


Use the 4-way ring to highlight each photo you want to copy, then press the button to select it. The selected items are displayed with red check marks.

When you are finished selecting photos, press

The files are copied to a folder that is automatically created in the Backup Files folder on the viewer. The folder is named according to the date and the date format you selected, for example,

12252006.001

Folders are numbered in the order they are copied.

If you want to change the name, see “Creating a New

Folder and Copying Files” on page 22.

Using Memory Cards 20

Copying Files to a Folder

You can copy selected files directly from a memory card to a new or existing folder in My Videos or My Photos.

Insert a memory card.

If the Memory Card Menu doesn’t open automatically, select

Memory Card

in the Home screen, then press

In the Memory Card menu, select

Browse CF Memory

Card or

Browse SD Memory Card

Press

. The files on the memory card appear in thumbnail view.

Press the

button to display the pop-up menu.

Select

Copy/Move, press

, then press

OK again to select

Copy to Folder

Check boxes appear on each thumbnail image.

Use the 4-way ring to highlight each photo you want to copy, then press the button to select it. The selected items are displayed with red check marks.

Note:

To select all files and folders, press Menu and choose

Select All . To select more than one file or folder, you must view them on the thumbnail, mini-thumbnail, or detailed list

screen. For more information, see “Changing the Display” on page 24.

Press

Use the 4-way ring to select the folder where you want to copy the items. Then do one of the following:

❍

To copy the items into the selected folder, press

Your items are copied.

❍

To copy the items into a new folder, highlight

Create New Folder

and press

. Then see the next section to enter a name for the new folder and copy the items.

Note:

It’s easier to manage your files if you to copy them into a folder you’ve named, instead of placing them in the root of a main folder (such as My Photos or My Videos).

Using Memory Cards 21

Creating a New Folder and Copying Files

You can create a folder and copy files to it from a memory card, USB device, or from Backup Files.

To copy items to a new folder, follow the steps in the previous section.

When you select

Create New Folder

and press

, the on-screen keyboard appears with the current date entered as the default name for the folder.

07232007.001

To enter a new name, use the

Back

(backspace) button to clear the current name. Then enter a new name using the 4-way ring (highlight each character and press

to enter it).

❍

To move the cursor forward or backward, press or .

❍

To delete the last letter input, press

To enter a space, press

Back.

To switch between upper- and lowercase, press

Display

❍

To cancel the name, highlight

Cancel

and press

After entering the name, highlight

Done

and press

Your files are copied to the new folder.

You can either keep the name or enter a new one.

To keep the current name, highlight

Done

and press

. Your files are copied to the new folder.

Using Memory Cards 22

Chapter 3 Viewing Photos and Videos

After you have copied files from a memory card, you can view or play them in various ways. This chapter explains how to view photos and video files on your viewer and on a

TV or projector.

Using the Viewer Screen

The following illustrations identify the icons that appear on the screen:

Rated file

Private folder

Folder is set as screen saver

My Photos

01002000 2006.1217

2006.1205

2006.1201

Locked file

Unsupported file format

Music file

❍

By default, unsupported files are not displayed. If you

want to change this setting, see “File Operation” on page 61.

Thumbnails of video files that have not been played back, or have not been played back completely, are displayed with ( ) or shown in mini-thumbnail view).

( ) respectively (not

Viewing Photos and Videos 23

❍

Thumbnails of folders that have been backed up on your computer in Backup Files are displayed with the

icon.

Files in unsupported formats or with names that contain unsupported characters may be displayed as “?”, and may not be accessible.

Changing the Display

You can change the file view by pressing the

Display

button while in a folder.

Thumbnails

(12 per screen)

Mini-thumbnails

(64 per screen)

My Photos/2006.1205









EPV0013.TXT



Down the Black

Beaches

EPV0480.MP3

Details

(file name, date modified, and file size)

My Photos

Using the Pop-up Menu

Press the

button at any time to display a menu of the options currently available. These options vary, depending on what you are doing with the viewer.

The following table summarizes the menu functions:

Audio Track

Setting

Copy/Move

Delete

Display mode

Display photo enhance

Selects the audio track for DivX videos that have multiple tracks.

Copies or moves files or folders. See

page 21.

Deletes files or folders. See page 51.

Selects modes for various types of videos.

See page 32.

Displays photo images using a wider color

gamut. See page 28.

Viewing Photos and Videos 24

Edit

Rating

Photo Print

Play Settings

Settings

Set as Screen

Saver

Slide Show

Sort

Subtitle

Setting

Video Print

Wallpaper and

Icon Settings

Locks files or folders (page 53), renames

folders, (page 51), or rotates photos (page 29).

Rates files from one to 5 stars. See

page 54.

Prints photo images. See page 57.

Sets the display size for videos, or returns

to the beginning of the video. See page 31.

Adjusts LCD brightness, turns the key beep on or off, and sets display options for private folders and unsupported files. See

pages 61 to 62.

Creates a screen saver from the images in

a folder. See page 55.

Starts displaying the images in a folder as a

slide show. See page 28.

Organizes the files in a folder by date, name, or file extension.

Selects subtitles for DivX videos that include them.

Prints video images. See page 59.

Selects an image to be used as background for a folder or the Home

screen. See page 54.

Supported Image Formats

Image files

JPEG

RAW

Extension

.jpg

.jpeg

.arw

.cr2

.crw

.dng

.erf

.mrw

.nef

.orf

.pef

.raf

Details

Minimum size: 72

72 pixels

Maximum size: 30 megapixels

Maximum image aspect ratio: 3:1

JPEG data stored in the header of

RAW files is displayed.

Note:

TIFF files and progressive JPEG files are not supported.

For DNG files, the viewer supports only the JPEG preview embedded in files saved with Adobe DNG Converter or Adobe

Photoshop.

Viewing Photos and Videos 25

Viewing Images

After you have copied files from a memory card you can view them in various ways. You can display the images at full screen, zoom in, or show several types of photographic information.

Use the 4-way ring to select

My Photos

Backup

Files

Home

My Music

View Rated Files

My Videos

My Photos

Backup Files

Memory Card

USB Device

Settings

2006.1205

sample

Press

Select the folder containing the images you want to view, then press

You see a screen like this:

To move to the next screen, press and hold the bottom of the 4-way ring.

Use the 4-way ring to select the image you want to view, then press

. The selected image is enlarged to fill the screen.

Viewing Photos and Videos 26

Zooming an Image

You can zoom RAW images up to 100% and JPEG images up to 400%.

❍

To zoom in on an image, press the button. Keep pressing it to zoom in up to 400%.

❍

To zoom out, press the button. Continue pressing it to zoom all the way out.

❍

To pan around a zoomed image, use the 4-way ring.

To return to the normal full-screen view, press

Back

To select an area to zoom in, press

when a full-screen image is displayed. Use the 4-way ring to move the red box to the area you want to zoom, then press

again.

When you are viewing a zoomed-in image, you can display the next or previous photo without changing the zoom.

Press

to display the pop-up menu, then select


Previous Photo

and press

OK.

Displaying Information

You can view metadata and Exif information, a histogram, and a visual alert indicating poorly exposed highlight and shadow areas of your photos.

To view the file name and date for a full-screen image, press the

Display button.

To view metadata, Exif information, and a histogram, press

Display again:

28/12/2006 12:30:08

Viewing Photos and Videos 27

To view the over- and under-exposure preview, press

Display

a third time:

In the preview, poorly exposed highlight and shadow areas show graduated tone reversal. The brightest 6% of the image shows 4 levels of black, and the darkest 6% shows 4 levels of white.

To return to normal display, press the

Display

button again.

Displaying a Wider Color Gamut

Images are displayed in the color space they were captured in: either sRGB or AdobeRGB. You can also display images in a wider color gamut and correct color casts, backlighting, underexposure, and low-contrast images with Display Photo

Enhance.

Note:

Display Photo Enhance affects only the image shown on the viewer, and does not change the file itself. The Menu, Display,

, and buttons are not available in this mode.

When you are viewing a full-screen image, press

Menu and select

Display Photo Enhance.

You can use the

4-way ring to view the next or previous photo in Display

Photo Enhance.

To return to the normal display, press

Back

Displaying Images as a Slide Show

You can display images in My Photos as a slide show and select transition effects, timing, and background music.

Select a folder you want to display as a slide show.

Press the

Menu button to display the pop-up menu:

My Photos/2006.1205

Copy/Move

Edit

Rate


Sort



Photo Print

Wallpaper and Icon Settings

Slide Show



Settings


Return to HOME

Delete

EPV0013.TXT





Down the Black

Beaches

EPV0480.MP3

Viewing Photos and Videos 28

Select

Slide Show

and press

. The slide show starts.

To adjust the timing, effects, and music, press

Menu while the slide show is playing.

Select one of the following, then press

and adjust the settings as noted.

❍

LCD Brightness:

Choose from 10 brightness levels.

Slide Show Duration:

Choose the time between slide transitions, from 1 to 30 seconds.

❍

Slide Show Music:

Choose from three preset music selections or a playlist that you have created.

You can use the and buttons to adjust the volume while the slide show is playing.

❍

Slide Show Effects:

Choose from 4 transition effects, or choose

None

to move through your images without transitions.

❍

Return to Home:

End the slide show and return to the Home screen.

You can also adjust slide show options by selecting

Settings

on the Home screen. See “Slide Show” on page 61 for

details.

Rotating an Image

Images that contain rotation information are automatically rotated on the viewer. You can also rotate an image manually in My Photos.

Select the image in thumbnail view, then press the

Menu button to display the pop-up menu.

Select

Edit

, then press

Select

Rotate Right rotate the image 90° clockwise, or

Rotate Left to rotate it 90° counterclockwise.Then press

. You see your photos displayed with white check boxes.

Use the 4-way ring to highlight each photo you want to highlight, and press to select it. The selected items are displayed with red check marks.

Press

OK to rotate the photos.

Note:

To rotate a photo displayed full-screen, press Menu , select Edit , then select Rotate and press OK . Then select Right or Left and press OK . To rotate other photos in the folder, press right or left on the 4-way ring.

You can turn off the Auto-Rotation feature. See “File Operation” on page 61 for details.

Viewing Photos and Videos 29

Viewing Videos

The viewersupports video files in resolutions ranging from

320

240 pixels to 720

576 pixels, with file sizes up to

2GB.

Supported Video Formats

File format

.avi

Video codec

MPEG-4

(Advanced

Simple Profile)

.avi

.divx

.mov

Motion JPEG

DivX (Home

Theater Profile)

MPEG-4

(Advanced

Simple Profile)

Motion JPEG

Audio codec

Detail

AAC,

G.711,

PCM,

ADPCM

G.711,

PCM,

ADPCM

MPEG

Audio,

PCM,

ADPCM

30 fps: 720

480

25 fps: 720

576

8 Mbps (peak)

4 Mbps (avg.)

30 fps: 720

480

25 fps: 720

576

60 fps: 320

240

30 fps: 720

480

25 fps: 720

576

8 Mbps (peak)

4 Mbps (avg.)

AAC, PCM 30 fps: 720

480

25 fps: 720

576

8 Mbps (peak)

4 Mbps (avg.)

G.711,

PCM,

ADPCM

30 fps: 720

480

25 fps: 720

576

60 fps: 320

240

File format

.mp4

.mov

.mp4

.m4v

.wmv

.mpg

.mpeg

.vob

.mod

.asf

Video codec

MPEG-4

(Advanced

Simple Profile)

H.264/AVC

(Baseline Profile

Level 1.2)

Windows

Media Video 9

(MP@LL)

MPEG1 MPEG2

(MP@ML)

MPEG2

(MP@ML)

MPEG-4

(Advanced

Simple Profile)

Audio codec

Detail

AAC, PCM 30 fps: 720

25 fps: 720

480

576

8 Mbps (peak)

4 Mbps (avg.)

AAC, PCM 30 fps: 320

240

850 kbps (peak)

768 kbps (avg.)

Windows

Media

Audio 9/9.1

30 fps: 352

288

850 kbps (peak)

768 kbps (avg.)

PCM,

MPEG

Audio

PCM,

MPEG

Audio

ADPCM

30 fps: 720

25 fps: 720

480

576

10 Mbps (peak)

8 Mbps (avg.)

30 fps: 720

25 fps: 720

480

576

10 Mbps (peak)

8 Mbps (avg.)

30 fps: 720

480

25 fps: 720

576

8 Mbps (peak)

4 Mbps (avg.)

Viewing Photos and Videos 30

Note:

DVD-Video, DivX menu, and WMV DRM are not supported.

To display your viewer’s DivX VOD registration code, see

“Movie Setting” on page 61.

Playing Videos

You can transfer video files directly from memory cards as

described in “Copying Files From a Memory Card” on page 19. Or you can copy and convert video files from your

computer, as described in “Copying Files From Your

Computer to the Viewer” on page 44.

Use the 4-way ring to select

Backup Files

Videos

, then press

Select the folder containing the video you want to play, then press

Use the 4-way ring to select the video you want to play, then press

Note:

You can set the video screen size by selecting Play at Full

Screen or Play at Original Size from Play Settings in the pop-up menu. Setting Play at Full Screen displays the image by adjusting the longest side to the LCD display without changing the aspect ratio.

❍

To play or pause the video, press

OK.

To adjust the audio volume, press or .

To rewind or fast-forward, press left or right on the

4-way ring. Press repeatedly to increase the speed. (This function may not work with some videos, such as .mov).

To stop the video and return to the previous screen, press

Back

The viewer remembers where you stopped. When you resume, playback starts 3 seconds before the stop point

(for videos longer than 1 minute). If you want to play the video from the beginning, press

, select

Play

Settings

, then select

Play from Beginning

To view information about the video, press

Display

You see a progress bar on the video. Press

Display

again to view information including frame rate, bit rate, and video and audio codecs:

:15/12/2006 12:24

Viewing Photos and Videos 31

Setting the Display Mode

You can choose from five different modes to adjust the color, brightness, and contrast for various types of videos.

While a video is playing, press the

button to display the pop-up menu.

Select

Display mode

, then press

Select one of the following:

❍

Home video: setting)

for camcorder video (the default

❍

Cinema: for increased contrast and color saturation

Nature: to display video in a wider color space than sRGB

❍

Power saving: to lower the backlight and save battery life

Original: to display video with the most accurate color and brightness

Press

to return to the video.

Viewing Files on a TV

You can connect the viewer to a TV or projector and view your images, videos, and slide shows.

You will need a camcorder AV cable (3.5-mm mini-plug to

3 RCA plugs), available at many electronics stores.

Connect the three RCA plugs to the video and audio

IN jacks on your TV or projector.

Connect the mini-plug on the other end to the

A/V Out jack on the side of the viewer.

The viewer’s LCD screen turns off.

Set the TV or projector to display video input from the viewer.

You can use all of the viewer’s controls to play slide shows, photos, and videos on your TV or projector.

Viewing Photos and Videos 32

Note:

You may need to set the Video Out setting to match your TV

(see page 62).

Some TVs may crop your images on the top and bottom, or you may notice some flickering, for example, near the edges of the screen. This is a normal result of your viewer’s high image resolution.

Viewing Photos and Videos 33

Chapter 4 Playing Music

You can transfer audio files from your computer and play them on the viewer. You can create playlists using the Epson

Link2 software on your computer, or using the viewer itself.

This chapter describes how to transfer and play music, and how to manage your audio files on the viewer.

WMA and WAV files are automatically converted to M4A when they are transferred. You can specify conversion

settings if necessary; see “Setting Backup and Conversion

Preferences” on page 45 for instructions.

Connect the AC adapter to the viewer and plug it in.

Turn on the viewer and your computer.

Use the included USB cable to connect the viewer to your computer.

Copying Music From Your Computer

First, make sure you have installed the Epson Link2 software, following the instructions in your

P-3000/P-5000

Basics

guide.

If you want to copy files from a music CD, you first need to convert the file format to MP3 or M4A using CD copying software on your computer. You can also use this software to change the song and artist names displayed on the playlist if necessary.

Larger end

Smaller end

The LCD screen turns off.

Playing Music 34

Double-click the

Epson Link2

icon on your desktop to open the program.

Click

My Music on the screen, then locate the audio files you want to copy from your computer.

Click the down arrow in the center of the screen to transfer the files to your viewer.

Disconnect the viewer from your computer:

❍

Windows:

Right-click the icon in the lower right corner of your screen and select

Safely Remove

Hardware

Unplug or Eject Hardware

. Then remove the USB cable.

❍

Macintosh:

Drag and drop the viewer icon to the trash, then remove the USB cable.

If you see a message on the viewer asking you to update the music list, click

OK.

Note:

Only audio files transferred from a computer can be displayed in

My Music. If you want to play a music file copied from a memory card, select it in Backup Files, then press

to play it.

Caution:

Epson Link2 uses ID3 tags to organize your music files. If the ID3 tag information is missing, these items will appear as “unknown.” The viewer will rename your files to make them playable. Always keep backup copies of your songs, and never transfer your only copies to the viewer.

Playing Music 35

Supported Audio Formats

The viewer can store up to 10,000 audio files. It supports the following audio formats without copyright protection and with a maximum file size of 100MB:

Audio file extensions

.m4a

.mp3

.wma

Audio codec

AAC (MPEG4)

MP3 (MPEG 1/2/2.5

- Layer 3)

Windows Media

Audio 9

Details

Maximum bit rate:

320 kbps

(48 kHz, 16 bit Stereo)

Bit rate: 48 to 192 kbps

(48kHz, 16 bit Stereo)

Note:

The viewer supports non-lossless-compliant M4A and WMA files. Some files may not be played, even if the formats are supported.

Playing Audio Files

You can connect headphones to the jack on top of the viewer, or listen through the viewer’s built-in speaker.

Select

My Music

on the Home screen using the 4-way ring, then press

Home

My Music

View Rated Files

My Videos

My Photos

Backup Files

Music List

Resume

Select

Music List

, then press

Playing Music 36

Select a category to start playing, then press

My Mu s ic

Arti s t

Album

Genre

All

Playli s t

Update Mu s ic Li s t

All

A g ian s

Alimia

Andy Well s

Auidence Effect s

Beache s

BOY S

Butterflie s

Cindy Jack s on

David Blue s

Elvi s Cole

JACKIE6

Jame s Walter johon jone s

Micheal Pole

MOON 60 8

Select the desired track using the 4-way ring, then press

OK.

00001/00568

❍

You can narrow your search by selecting one of the categories and navigating its subcategories using the

4-way ring. Select

All

to include all items in the list.

Artist - Artist name - Album name - Track name

Album - Album name - Track name

Genre - Genre name - Artist name - Album name -

Track name

❍

All - Track name

Playlist - Playlist name - Track name

(for details, see “Creating a Playlist” on page 38)

Update Music List (to update audio data after transferring from your computer.)

You can do the following while listening to music or audio files.

❍

To play or pause music, press

To adjust the volume, press or .

To skip back or forward, press left or right on the 4-way ring. Press and hold to rewind or fast-forward.

To return to the previous screen (without stopping the audio), press

Back

. (If you are not in My Music, the audio stops when you press

Back

To display information about the audio file such as codec, bit rate, and sampling rate, press

Display

Playing Music 37

Setting Repeat and Shuffle Options

In My Music, press the

button and select

Play

Mode

. Set the following items using the 4-way ring, then press

First select either

Shuffle

Normal Play Order

to set the playback order, then select the desired repeat play mode.

To play...

Current category once.

Current track repeatedly.

Current category repeatedly.

Current category in random order.

Current category in normal order repeatedly.

Select...

No Repeat

Repeat One Song

Repeat All

Shuffle

Normal Play Order

Creating a Playlist

You can create playlists using the Epson Link2 software, or on the viewer itself. Follow the steps below to create a

playlist using Epson Link2, or see “Creating a Playlist on the

Viewer” on page 39.

Connect the viewer to your computer as described on

page 34.

Double-click the

Epson Link2

icon on your desktop to open the program.

Click

Playlist on the left side of the screen.

Click the icon in the lower right corner.

Playing Music 38

Enter a name for the playlist.

Select the songs you want to add. If you want to add all the songs from an album or by an artist, you can select the album or artist.

Click the down arrow in the center of the screen to add the songs to your playlist.

After you have created playlists, you can use the buttons in the lower right corner of the screen to rearrange the songs and edit the lists.

Creating a Playlist on the Viewer

You can also create and edit playlists on the viewer.

In My Music, press the

button to display the pop-up menu.

Select

Add to Playlist

, then press

Select

Create New Playlist

, then press

The on-screen keyboard appears, with

Playlist001

as the default name.

Text Input

Playli s t001

1 2

A B

Cap

3 s

C D

DI S P

K L M N

O P

U V W X

Y Z

S pace

Cancel

Back s pace

8 9

G H

Q R

_ (

Back

)

Menu

Done

To use this name, highlight

Done

and press

❍

To enter a new name, use the

Back

(backspace) button to clear the current name. Then enter a new name using the 4-way ring (highlight each character and press

to enter it).

❍

To move the cursor forward or backward, press or .

To delete the last letter input, press

To enter a space, press

To switch between upper- and lowercase, press

Display

Back.

❍

To cancel the name, highlight

Cancel

and press

Playing Music 39

After entering the name, select

Done

, then press

Select the tracks for the playlist using the 4-way ring and the button. The selected files are displayed with red check marks.

If you want to select all the tracks displayed, press

and select

Select All

When you have selected all the tracks you want, press

Note:

To delete a playlist, select it in My Music, press Menu , then select Delete this Playlist .

Adding Tracks to an Existing Playlist

Display a list of songs in My Music, then press

Select

Add to Playlist

, then press

Select the list you want to add to, and press

Select the tracks for the playlist using the 4-way ring and the button, then press

Removing Tracks From a Playlist

Select a playlist in My Music, then select a track you want to remove.

Press

, select

Delete, and press

Select each file you want to remove using the 4-way ring and the button, then press

The tracks are removed from the playlist, but not deleted from the viewer.

Changing the Order of a Playlist

Select a playlist in My Music, then select a track you want to move.

Press

, then select

Change Song Order

Press up or down on the 4-way ring to move the track within the playlist.

When the list is in the order you want, press

Playing Music 40

Using the Equalizer

You can use the equalizer to select from 7 genre settings or create a customized setting of your own.

In My Music, press the

button to display the pop-up menu.

Select

Audio Equalizer Setting

Select the setting you want and press

❍

Normal

Jazz

Classical

Rock

❍

Pop

Live

Full Bass

To create a custom setting, select

Custom

and press

Adjust the level of each frequency using the 4-way ring, then press

Note:

You may need to listen with headphones to hear the effects of the various settings.

Deleting Audio Files From the Viewer

In My Music, press the

button to display the pop-up menu.

Select

Delete

Select audio files to delete using the 4-way ring and the

button.

Once you have selected all the files you want to delete, press

. You see a confirmation message.

Select

Yes

, then press

+ 15

+ 12

+ 10

+ 8

+ 4

- 4

- 8

- 10

- 12

- 15

Bass Treble

Playing Music 41

Chapter 5 Managing Files

You can back up files from the viewer to your computer, and copy files from your computer to the viewer. You can also transfer files to and from USB devices.

This chapter explains how to work with the files and folders on your viewer and transfer them between the viewer and other devices.

Use the included USB cable to connect the viewer to your computer.

Copying Files To and From Your

Computer

You can use the Epson Link2 software to back up files from the viewer to your computer and copy files from your computer to the viewer. Make sure you have installed the software, following the instructions in your

P-3000/P-5000

Basics

guide.

Connect the AC adapter to the viewer and plug it in.

Then turn on the viewer and your computer.

Larger end Smaller end

The LCD screen turns off.

Note:

Although your computer may recognize the viewer as a removable drive, it is best to transfer files using the Epson Link2 software.

Managing Files 42

Caution:

When the viewer is connected to a computer, do not connect a

USB device to the Host USB port on the viewer. Do not change the names of any folders on the viewer from your computer, or the viewer may become unusable.

Backing Up Files to Your Computer

You can back up files to your computer automatically or manually. First, make sure you connect the viewer as

described on page 42.

Double-click the

Epson Link2

icon on your desktop to open the program.

If you see a message that Epson Link2 has found files in your viewer’s Backup Files folder, click

Yes

to back up the files automatically.

Note:

Only files that haven’t already been copied will be transferred.

To transfer files manually, click the

Backup

icon on the left side of the screen, then click the icon in the middle of the screen.

All the files in the Backup Files folder of the viewer are copied to your computer.

By default, the files are copied to the Epson Link2

Backup folder in Documents or My Documents.

If you want to change the location or turn off the

automatic backup feature, see “Setting Backup and

Conversion Preferences” on page 45.

If a confirmation dialog box is displayed, select whether to delete or keep the transferred files in the viewer.

Note:

You can also select individual video or photo files to transfer from the viewer to your computer. For instructions, click the

in the upper right corner of the Epson Link2 screen.

Managing Files 43

Copying Files From Your Computer to the

Viewer

You can copy photos, videos, and music from your computer to the viewer. For instructions on copying music,

see “Copying Music From Your Computer” on page 34.

WMV files are automatically converted to MP4 when they are transferred, and videos that exceed 2GB are automatically divided into multiple files.

If you want to specify conversion settings, see “Setting

Backup and Conversion Preferences” on page 45.

Connect the viewer to your computer as described on

page 42.

Double-click the

Epson Link2

icon on your desktop to open the program.

Select

Photos

Videos

, or

Music

, depending on the type of files you want to transfer.

Select the files to transfer in the Computer window, then click the down arrow in the center of the screen. The files are transferred to the viewer.

Note:

You can also transfer files by dragging and dropping them into the lower contents window. For more information, click the

in the upper right corner of the Link2 screen.

Disconnecting the Viewer From Your

Computer

When you are finished transferring files between your computer and the viewer, make sure you follow these steps to disconnect.

Do one of the following:

❍

Windows:

Right click the USB Device icon in the

System Tray (lower right corner of your screen) and select

Safely Remove Hardware

Unplug or

Eject Hardware

❍

Macintosh:

trash.

Drag and drop the viewer icon to the

Remove the USB cable from your computer.

Remove the USB cable from the viewer.

Managing Files 44

Setting Backup and Conversion Preferences

You can use the Settings window in Epson Link2 to change the folder where files from the viewer are saved on your computer.

You can also change the conversion settings for video files transferred from your computer to the viewer. In Windows, you can also change the conversion settings for audio files.

Double-click the

Epson Link2

icon on your desktop to open the program.

Click the settings icon in the upper right corner of the screen.

The Settings window appears.

Managing Files 45

If you don’t want to have files from the viewer automatically backed up on your computer, deselect the

Copy backup data to the computer

check box. You

can still back up files manually, as described on page 43.

If you want to specify the conversion settings for video files, click the arrow next to

Normal

in the Movie File box.

Select

Normal

High Quality

High Compression

Custom

, or

No Conversion

Selecting

Custom allows you to specify the resolution, frame rate, and bit rate.

Choose higher settings for improved video quality, or lower settings for reduced file sizes. Frame rates lower than 29.97 may cause flicker or poor quality video.

If you want to specify the conversion settings for music files, click the arrow next to

Normal in the Music File box (Windows only).

Select

Normal

High Quality

High Compression

, or

Custom

Selecting

Custom

allows you to specify the sampling rate and bit rate. Choose higher settings for improved audio quality, or lower settings for reduced file sizes.

If you want to change the folder where files are backed up on your computer, you can adjust the Store Folder

Settings. The default folder is Epson Link2 Backup in

My Documents (Windows XP or 2000) or Documents

(Windows Vista ™ or Macintosh).

When you are finished, click

For more information about backup and conversion settings in Epson Link2, click the

in the upper right corner of the

Epson Link2 screen.

Using the Viewer With USB Devices

You can connect a flash memory drive or other USB device to your viewer and copy files to or from the device.

The viewer supports devices that are compatible with the

USB Mass Storage specification, including:

❍

Digital cameras

Flash memory drives

Memory card readers

External hard drives

Epson multimedia storage viewers

Managing Files 46

Note:

USB hubs are not supported, and some USB devices may not work without a power connection. Epson cannot guarantee the compatibility of any device.

Connecting a USB Device

Before you connect a USB device, connect the AC adapter to the viewer and plug it in if possible. If your USB device has an AC adapter, use it to prevent the possible loss of files during transfer.

Open the connector cover on the side of the viewer.

Plug the device into the

Host

USB connector on the side of the viewer.

If the device has a USB cable, connect one end of the cable to the device and the other end to the

Host

USB connector on the viewer.

Note:

To prevent a possible malfunction, do not use both USB connectors on the viewer at the same time.

Turn on the viewer and the USB device if necessary.

Copying Files to the Viewer

After you connect a USB device, you can copy all the files to the viewer, or select individual files to copy.

On the Home screen, use the 4-way ring to highlight

USB Device

, then press

. You see the USB Device menu:

USB Device

Backup USB device to Viewer

Browse USB Device

Copy all Backup Files

Do one of the following:

❍

To copy all files, select

Backup USB device to

Viewer

, then press

. The files are copied to a folder that is automatically created in the Backup

Files folder on the viewer.

Managing Files 47

❍

The folder is named according to the date, for example,

12252006.001

. You can change the date format by selecting

Settings > Date and Time

the Home screen (see page 11). Folders are

numbered in the order they are copied.

Skip to step 7.

To copy selected files, select

Browse USB Device in the USB Device menu, then press

. You see your files displayed in thumbnail view.

Continue with the steps below.

Press the

button to display the pop-up menu.

Select

Backup, then press

. Small white check boxes appear on each thumbnail image.

Use the 4-way ring to highlight each file you want to copy, then press the button to select it. The selected items are displayed with red check marks.

When you are finished selecting files, press

The files are copied to a folder that is automatically created in the Backup Files folder on the viewer.

Wait until all the files are copied, then disconnect the

USB device.

Copying Files to the USB Device

You can copy all the files or selected files from the viewer to a USB device.

If your USB device has an AC adapter, connect the adapter and plug it in before starting.

Backing Up All Files to a USB Device

This process may take some time, depending on the volume of data in the viewer.

Follow the instructions on page 47 to connect the USB

device.

On the Home screen, use the 4-way ring to highlight

USB Device

, then press

In the USB Device menu, select

Copy all Backup

Files

USB Device

Backup USB device to Viewer

Browse USB Device

Copy all Backup Files

Managing Files 48

Press

, then wait while the files are copied.

Copying Selected Files to a USB Device

You can select individual files or folders to copy.

Follow the instructions on page 47 to connect the USB

device.

Select the file or folder you want to copy.

Press the

button.

My Photos/2006.1205

Copy/Move

Edit

Rate


Sort



Photo Print

Wallpaper and Icon Settings

Slide Show



Settings

Return to HOME

Delete


EPV0013.TXT





Down the Black

Beaches

EPV0480.MP3

Select

Copy/Move

, then press

Select

Copy to USB Device

, then press

❍

If you selected a folder, all the files are copied to the

USB device. Wait until all the files are copied, then disconnect the device.

❍

If you selected an individual file, you see your photos displayed with white check boxes.

Continue with steps 6 and 7 below.

Use the 4-way ring to highlight each photo you want to copy and press to select it. The selected items are displayed with red check marks.

When you are finished selecting photos, press

. Your files are copied to the USB device. When the copy is complete, you can disconnect the device.

Setting Folders as Private

You can select and hide folders so that other people cannot view the files.

Note:

Even if folders are set as private folders on the viewer, they may still be viewed on a computer, depending on the computer setting.

Using the 4-way ring, select a folder you want to hide.

Press the

button, select

Settings

, then press

Select

Show Private Folders

, then press

Managing Files 49

You see the Password screen:

Select Folders to Set as Private

01002000 2006.0617

2005.1205

Password


0 0 0 0

You see your folders displayed:

Select Folders to Set as Private

01002000 2006.0617

2006.1205

2006.1201

If you have already set a password for your viewer, enter the 4-digit password number using the 4-way ring, then press

If you have not set a password, leave the password at the default setting,

0000

, and press

. For instructions on

setting a password, see “File Operation” on page 61.

Repeat step 2, then select

Set/Unset as Private

and press

Use the 4-way ring to highlight each folder you want to set as private, and press to select it. The selected items are displayed with red check marks.

Once you have selected all the folders you want to set as private, press

Note:

You can press Menu and select either Select all or

Deselect all , then press OK , or select Apply from the pop-up menu.

When you see the Password screen, enter a 4-digit password number using the 4-way ring, then press

Managing Files 50

Note:

To hide the folder set as a private folder, select Hide

Private Folders in step 3. To show private folders, select

Show Private Folders in step 3.

Renaming a Folder

Using the 4-way ring, select a folder to rename.

Press

, select

Edit

, then press

Select

Rename

, then press

. You see the on-screen keyboard:

Text Input

My Favorite

Caps

B C

DISP

5 6

D E

N O

U V W X Y Z

Space

Backspace

G H I

(

Back

)

Menu

Cancel Done

❍

To move the cursor forward or backward, press or .

❍

To delete the last letter input, press

To enter a space, press

Back.

To switch between upper and lower case, press

Display

❍

To cancel the name, highlight

Cancel

and press

After you enter the name, select

Done

, then press

Deleting Files and Folders

You can delete files and folders from the viewer using the menu and buttons as described below. To use the Link2 software for deletion, click the

in the upper right corner of the Link2 screen.

Select a folder or file to delete.

Press

Menu, select

Delete

, then press

Use the

Back

(backspace) button to clear the current name. Then enter a new name using the 4-way ring

(highlight each character and press

to enter it).

Managing Files 51

Check boxes appear on each thumbnail image:

Select Files to Delete

Check box









EPV0013.TXT



Down the Black

Beaches

EPV0480.MP3

Use the 4-way ring to highlight each file or folder you want to delete, and press to select it. The selected items are displayed with red check marks.

Press

Note:

You can press Menu in the thumbnail screen and select

Select all , Deselect all , or Apply .

If you are viewing a full-screen photo, press select

Delete

to enter deletion mode.

and

Select

Delete again, then press

. You can display additional photos to delete by pressing right or left on the 4-way ring. To cancel deletion mode, select

Cancel and press

, or press the

Back button.

When the confirmation message appears, select

Yes

, then press

Managing Files 52

Locking Files and Folders

You can lock selected files or folders so they cannot be deleted or rotated. When a file or folder is locked, the icon is displayed.

Select a folder or file to lock.

Press the

button to display the pop-up menu.

Select

Edit

, then select

Lock/Unlock and press

Check boxes appear on each thumbnail image:

Select Files to Lock

Check box





Press

to lock the files or folders.

If you are viewing a full-screen photo, press

Menu, select

Edit

, then select

Lock/Unlock

to enter lock mode.





EPV0013.TXT



Down the Black

Beaches

EPV0480.MP3

Use the 4-way ring to highlight each file or folder you want to lock, and press to select it. The selected items are displayed with red check marks.

Note:

In the thumbnail screen, you can press Menu and select

Select all , Deselect all , or Apply .

Select

Lock

Unlock

then press

. You can display additional photos to lock by pressing right or left on the

4-way ring. To cancel, select

Cancel

and press

or press the

Back button.

Note:

The lock on the folder or file remains in effect until you unlock it, even if you turn off the viewer.

Managing Files 53

Setting a Folder Icon or Home Screen

Wallpaper

You can set your favorite file as an icon for the folder or

“wallpaper” for the Home screen.

Select the file you want to use.

Press

, then select

Wallpaper and Icon Settings

, then press

Select

Set as Folder Icon

Set as Wallpaper of

HOME

, then press

You can use the menu to rate multiple photos or folders:

Select a photo or folder you want to rate.

Press

, select

Rate

, then press

My Photos/2006.1205

Copy/Move

Edit

Rate


Sort



Photo Print

Wallpaper and Icon Settings

Slide Show



Settings


Return to HOME

Delete

EPV0013.TXT





Down the Black

Beaches

EPV0480.MP3

Rating Photos

You can rate your photos from one to five stars. This lets you quickly view your best photos from

View Rated Files in the Home screen. You can rate up to 3000 photos.

When you copy a rated file to your computer, you must use the Epson Link2 software to copy the rating information.

You can then move your rated files into Adobe Bridge.

To rate a single photo, select it in My Photos or Backup

Files, then press the button to rate it. Continue pressing the button to increase the rating up to

, or remove the rating.

Select the number of stars you want to assign, then press

Use the 4-way ring to highlight each file or folder you want to rate, and press to select it. The selected items are displayed with red check marks.

Note:

In the thumbnail screen, you can press Menu and select

Select all , Deselect all , or Apply .

Once you are done selecting files, press

Managing Files 54

Note:

If you delete a file from My Photos, My Videos, or Backup Files, the corresponding rated file will also be deleted from View

Rated Files.

Selecting a Screen Saver

You can select a folder to be used as a screen saver. The photos in the folder will be displayed as a slide show when the viewer is plugged in using the AC adapter and is inactive for 3 minutes.

If you want to change the timing for the screen saver, see

“Power Save” on page 60. If you want to change the

transition effects, see “Slide Show” on page 61.

Select a folder, then press

to display the pop-up menu.

Select

Set as Screen Saver

, then press

Note:

To cancel the setting, select Don’t Use as Screen Saver .

Managing Files 55

Chapter 6 Printing

You can print photos or videos by connecting the viewer to a PictBridge-compatible printer, such as the Epson R260,

R380, or RX580.

Check the Epson web site to get the latest information on

supported printers. See “Where To Get Help” on page 69.

Depending on your printer model and settings, you can use the following sizes and types of paper.

Paper

Epson Ultra Premium

Photo Paper Glossy

Epson Premium Photo

Paper Glossy

Size

4 × 6 in., Letter

4 × 6 in., 5 × 7 in., 8 × 10 in.,

Letter

Epson Premium Photo

Paper Semigloss

4 × 6 in., Letter

Epson Photo Paper Glossy 4 × 6 in., Letter, A4

Connecting the Viewer to a Printer

Refer to your printer manual to locate the external device

USB connector on the printer, which may be labeled or

EXT. I/F

Connect the AC adapter to the viewer and turn it on.

Connect the small end of the USB cable to the

Device

USB connector on the viewer.

Note:

For details about paper, see your printer documentation.

Printing 56

Connect the other end of the cable to the USB connector on the printer.

Select

Photo Print

, then press

The number of prints is shown for each photo.

Number of prints

Print Quality

01 01 01 00






Note:

Disconnect the USB cable from the viewer when not operating with a computer or printer.

Printing Your Photos

Make sure the printer is turned on and has paper and ink.

Make sure the AC adapter is connected to the viewer before you print.

Using the viewer, highlight an image you want to print.

Note:

You cannot print a JPEG file if the vertical or horizontal size of the image exceeds 4600 pixels.

Press

to display the pop-up menu.

Select the number of prints you want for each photo

If you are printing a full-screen photo, you can set the number of prints you want, then display the other photos in the folder by pressing right or left on the

4-way ring.

Printing 57

To display a preview of the color when you print with

PhotoEnhance ™ on an Epson printer, press

Display

Press

Back

to return to the normal display.

Once you have selected all of the photos and set the number of prints for each, press

. The viewer checks the printer connection, and you see the Print Settings screen.

Print Settings

Start Printings

Picture number

Number of Prints

Paper size

Paper kind

Layout

Print Date

Print Mode

4x6in

Photo paper

Border

Do Not Print


In the Print Settings screen, specify the settings using the 4-way ring, then press

You can adjust the following settings:

Setting

Number of

Prints

Description

Set the number of prints (video only).

Paper size Choose the paper size loaded in the printer.

Paper kind Choose type of paper loaded in the printer.

Layout Choose Border or Borderless.

Print Date Print the date when the photo was taken. If the photo does not include date information, the printing date is added.

Print Mode Choose Photo, High speed , or Best Photo.

Note:

Depending on the printer, the paper settings may be limited or set to Automatic . The settings will be cleared once the image has been printed.

Select

Start Printing

, then press

Printing 58

Printing Your Videos

You can print images from video files at 12 frames per sheet on 4

6-inch paper only.

Make sure the printer is connected and has paper and ink, and the AC adapter is connected to the viewer.

Start playing the video.

When you see the frame you want to print, press

to pause the video. You can press left or right on the 4-way ring to search for the frames you want to print.

Press

to display the pop-up menu.

Select

Video Print

, then press

Select a

Frame Interval

(

Long

Medium

, or

Short

) to take still images from the video.

Select the frame where you want to start printing by pressing right or left on the 4-way ring, then press

Video Print

In the Print Settings screen, specify the settings by pressing up or down on the 4-way ring, then press

See page 58 for more information.

Select

Start Printing

, then press

Printing 59

Chapter 7 Customizing Settings

You can change settings for displaying images, copying files, controlling the viewer’s sounds, and other functions.

From the Home screen, select

Settings

and press

. You see this screen:

Hard Drive Capacity

Use this option to check the available space on the viewer’s hard drive and also on any memory cards that are loaded in the viewer. The total file size is also given for all files in the

Backup, My Photos, My Videos, and My Music folders.

Settings

Hard Drive Capacity

Power Save

File Operation

Movie Setting

Slide Show

Sound

View Mode

Date and Time

Language

Use the 4-way ring to select and change any of the settings described below.

Power Save

Use the following options to adjust how the viewer saves power:

❍

Backlight Timer

to set when the LCD screen turns dark during inactivity. You can select 1, 3, 5, 10, or 15 minutes.

Sleep Timer

to set when the LCD turns off during inactivity. You can select 1, 3, 5, 10, or 15 minutes.

Power Off Timer

to set when the viewer turns off during inactivity. If the AC adapter is connected to the viewer, it will not turn off but will play a screen saver instead. You can select 1, 3, 5, 10, or 15 minutes.

Customizing Settings 60

❍

Screen Saver

to set when the screen saver begins during inactivity (if the AC adapter is connected). You

can select 1, 3, 5, 10, or 15 minutes. See “Slide Show”

(below) to control the features of the screen saver.

File Operation

Use these options to change how the viewer handles various file-related operations:

❍

Auto-Rotation

to determine whether the viewer auto-rotates images according to Exif information included in the file by the camera that took the photo.

Unsupported Files

to set whether unsupported files are displayed on the viewer. If you select

Show

, unsupported files appear as gray boxes with

question marks inside.

Delete After Copying

to set whether files are deleted after copying them. Select

Delete

to clear the files from their original location automatically after copying them, or

Confirm

to ask each time if you want to clear them.

Or select

Do Not Delete

to copy files without deleting them from their original location.

Set Password

to set a password for private folders. The default password is

0000

Movie Setting

Use these options for movies played on the viewer:

❍

DivX Reg. Code

to display the DivX registration code.

This code is required when you buy copyright-protected

DivX VOD video content for downloading.

Play Settings

to adjust the screen size of a video. You can select

Play at Full Screen

Play at Original

Size

Slide Show

Use these options to select effects, timing, and background music for slide shows. These settings also control the features of your screen saver.

❍

Effects

to choose one of five slide transition effects.

Duration

to choose the time between slide transitions.

You can select from 1 to 30 seconds.

Slide Show Music

to choose background music for the slide show. You can select none, one of three presets, or a music playlist that you’ve created.

Clock

to choose whether to display the current time in the corner of the screen.

Customizing Settings 61

Sound

Use these options to control the default volume for movies and music, and to set audible alerts.

❍

Key Beep

to turn on or off sounds made by the viewer when you press the buttons.

Backup Complete Sound

to select one of several preset sounds to alert you when the viewer finishes backing up files.

Volume

to set the default volume for music and videos.

You can change the volume when playing music or videos by pressing or .

Date and Time

If you remove the battery, the date and time settings will be erased after about one day. Use this screen to re-enter the date and time, if necessary.

❍

Enter the

Year

Month

Day

Hour

, and

Minute

Use

Date Format

to change the format of the file dates shown on the Details screen. Folders created in Backup

Files are also named according to the selected format.

Language

Lets you choose one of ten languages.

View Mode

Use these options to adjust the LCD screen and how the viewer displays images:

❍

LCD Brightness

to control the brightness of the screen.

Video Out

to select

NTSC

PAL

according the type of

TV system or external display connected to the viewer.

Color Space

to set the color space, if color space information in the image is unspecified. Select sRGB

AdobeRGB

Firmware Version

Displays the viewer’s firmware version.

Customizing Settings 62

Chapter 8 Maintenance and Troubleshooting

This chapter describes how to clean the viewer and solve problems.

Cleaning the Viewer

Follow these guidelines to clean the viewer:

❍

Turn off the viewer and unplug the AC adapter before cleaning.

Use a clean, dry cloth to wipe it clean.

Do not use harsh or abrasive cleaners.

Error Messages

When a problem occurs, an error message or icon may appear on the LCD. Refer to the following table to diagnose

an error message. For more assistance, see “Problems and

Solutions” on page 64.

Error message

Unable to access file.

Description

Wait until the memory card access light turns off, then reinsert the memory card and try again.

Some files failed to be copied.

Check the files and try again.

An error occurred during verification. Files were not deleted from the memory card.

Cannot access the hard drive. There may be a problem with the hard drive, or it may not be formatted as FAT32.

Backup all the data to the computer and contact Epson as

described in “Where To Get

Help” on page 69.

Maintenance and Troubleshooting 63

Error message

No response from the printer. Please check the printer.

Description

Make sure your printer is on and the USB cable is connected correctly. Check the printer’s manual to make sure it’s

PictBridge-compatible.

Turn off the viewer and wait until it cools down.

The battery power is running out. Charge the battery. For

details, see “Charging the

Battery” on page 10.

Press the reset button.

See “Resetting the Viewer” on page 68.

Problems and Solutions

Use the information in this section to diagnose problems and find solutions.

Power Problems

The power does not turn on.

Cause

The battery has run out.

What to do

When the icon appears on the top right corner of the LCD, the battery has run out. See

“Charging the Battery” on page 10

and charge the battery.

The battery is not installed correctly.

Make sure the battery is installed

correctly. See “Installing the

Battery” on page 10.

The viewer may have shut off automatically to save battery power.

Slide the power switch down to turn the viewer back on.

The battery may need to be replaced.

See “Replacing the Battery” on page 69.

Maintenance and Troubleshooting 64

File Viewing Problems

The image is not displayed.

Cause

The image format is not supported.

What to do

If an image doesn’t appear or appears as

, it may not be in a

supported file type. See “Supported

Image Formats” on page 25.

Copy the image again.

The image data is corrupted.

The video or audio file is not supported.

The LCD is too dark.

See “Supported Video Formats” on page 30 or “Supported Audio

Formats” on page 36.

Adjust the LCD brightness. See

“View Mode” on page 62.

The screen may have turned off automatically to save power. Press any button to turn the screen on.

If you’ve connected the viewer to your TV or computer, the LCD screen turns off.

You’ve connected the viewer to your TV and the image is cut off or flickering.

Some TVs may crop your images at the top and bottom, or you may notice some flickering near the edges of the screen. This is a normal result of your viewer’s high image resolution.

The video is not displayed clearly or stops abruptly.

Cause What to do

The bit rate of the video is too high.

Check the bit rate. See “Supported

Video Formats” on page 30 for

details.

Sound breaks off when the video or audio is played.

Cause

The bit rate of the file is too high.

What to do

Check the bit rate.

See “Supported

Video Formats” on page 30 or

“Supported Audio Formats” on page 36 for details.

Maintenance and Troubleshooting 65

No sound comes out when a video is played.

Cause

The Audio Codec of the file is not supported.

What to do

Check the file format. See

“Supported Video Formats” on page 30 or “Supported Audio

Formats” on page 36 for details.

File Operation Problems

You cannot copy a file or files.

Cause What to do

There is not enough space available on the hard drive to copy all of the files on the memory card.

Check the hard drive space. See

“Hard Drive Capacity” on page 60.

Delete unnecessary files or reduce the number of files to copy from the memory card.

The viewer’s hard drive space doesn’t increase, even though data has been deleted.

If you’ve connected the viewer to your computer, it’s best to delete files using the Link2 software, or data may not be removed completely. Check the Recycle Bin

(Windows) or Trash (Macintosh) and empty it to clear any files.

You cannot copy files from an external USB device.

Connect the AC adapter to the viewer. If the external USB device has its own power adapter, connect it too.

You cannot delete a file.

Cause

The file is locked.

What to do

Unlock the file and then delete it.

See “Locking Files and Folders”

(page 53) and “Deleting Files and

Folders” (page 51).

You cannot use the buttons on the viewer.

Cause What to do

The buttons are deactivated because the power switch is set to

Hold

Slide the power switch back to the middle position.

You cannot set/unset a folder as private.

Cause What to do

The password is incorrect.

If you forget the password, enter

5555, 7777, then 3333 to reset it to the default (0000).

Maintenance and Troubleshooting 66

Printing Problems

You cannot print.

Cause What to do

The printer is not supported. Make sure your printer is

supported. See page 56.

The printer’s power is off.

Turn on the printer.

The USB cable is not connected correctly.

You cannot print a JPEG image.

See “Connecting the Viewer to a

Printer” on page 56 and reconnect

the cable.

Make sure the JPEG image does not exceed 4600 pixels in either the vertical or horizontal direction.

If you connect the viewer to a printer with the Home screen displayed, the printer may be recognized as a computer.

Connect the viewer to the printer after selecting an image to print.

Updating the Firmware and Printer

Driver

Epson will occasionally update the viewer firmware. You can download the latest firmware for the viewer from Epson’s

support website

Instructions for updating the firmware are provided online.

Uninstalling Software

If you need to uninstall the Epson Link2 software, follow

the procedure below for Windows or on page 68 for

Macintosh. Be sure to back up any viewer installation data before deleting.

Windows

Click

Start

, point to

All Programs

(or

Programs

), then select

EPSON

. Select

Epson Link2

, then click

Uninstaller

Note:

For Windows Vista, when you see the User Account

Control screen, click Allow .

After the confirmation dialog box appears, click

Yes

When you see a message that uninstallation is complete, click

Finish

Maintenance and Troubleshooting 67

If you see a message asking you to restart, click

Restart

Now.

Macintosh

Connect the viewer to your Macintosh.

Double-click the

P-5000

drive on your desktop.

Double-click the installation software.

Select

Custom Install.

Select

Epson Link2

On the software installation screen, select

Uninstall.

When you see a message asking you to restart, click

Restart Now.

Resetting the Viewer

If the viewer stops working, or you want to restore its default settings, you can reset it.

Gently insert the end of a paper clip into the

Reset

button next to the viewer’s USB ports.

The viewer shuts off, resets to its default settings, and comes back on.

Maintenance and Troubleshooting 68

Replacing the Battery

You can purchase a replacement lithium-ion battery

(B32B818262) from an Epson authorized reseller.

To find the nearest reseller, call 800-GO-EPSON

(800-463-7766). Or you can purchase online at

www.epsonstore.com

(U.S. sales) or

www.epson.ca

(Canadian sales).

Where To Get Help

Epson provides these technical support services:

Internet Support

Visit Epson’s

support website

for solutions to common problems with your viewer. You can download software and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.

Speak to a Support Representative

Before you call Epson for support, please have the following information ready:

❍

Product name (Epson P-5000)

Product serial number (located on the bottom of the viewer)

❍

Proof of purchase (such as a store receipt) and date of purchase

❍

Computer configuration

Description of the problem

Then call:

❍

U.S.: (562) 276-4303, 6

to 6

, Pacific Time,

Monday through Friday.

Canada: (905) 709-3839, 6

to 6

, Pacific Time,

Monday through Friday.

Toll or long distance charges may apply.

Maintenance and Troubleshooting 69

Appendix A

Notices and Specifications

System Requirements

Windows System Requirements

To use your viewer software, your system should have:

❍

A Microsoft ® Windows compatible PC with a

Pentium ® III processor (1 GHz or faster recommended)

Microsoft Windows 2000 Professional (SP3 or later),

Windows XP Home, Windows XP Professional,

Windows XP Professional x64 Edition, or Windows

Vista.

At least 256MB RAM

100MB free hard disk space for installation,

2GB required for operation

SVGA monitor (800 × 600), 16-bit color or higher

USB type A connector

Macintosh System Requirements

To use your viewer software, your system should have:

❍

700 MHz G4 processor or higher (PowerPC ® or Intel ®

CoreDuo)

Macintosh OS X 10.2.8 to 10.4.x

At least 512MB RAM

150MB free hard disk space for installation,

2GB required for operation

SVGA monitor (800 × 600), 32000 colors or more

USB type A connector

Notices and Specifications 70

Safety Instructions

Read all these instructions before using the viewer, and keep this guide handy for later reference. Follow all warnings and instructions marked on the viewer and any options.

Using the Viewer

Caution:

Do not drop the viewer or expose it to any impact, to avoid damaging the internal hard disk and losing stored files. Do not format the hard disk from your computer, or the viewer will be unusable.

Epson is not responsible for backing up or recovering data. It is strongly recommended that you make your own backup files.

❍

Follow all warnings and instructions marked on this product.

Use only AC adapter model A351H and lithium-ion battery model D111A with this product.

When connecting the viewer to a computer or other device with a cable, ensure the correct orientation of the connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.

❍

Do not insert objects into the slots or openings on the viewer.

Do not touch the components inside the viewer unless instructed to do so in the documentation. Never force the viewer’s components into place. Although the viewer is designed to be sturdy, rough handling can damage it.

Never spill liquid onto the viewer.

If the viewer emits unusual noises, odors, or smoke, cancel the current operation and turn it off immediately.

Remove the battery and disconnect the AC adapter from the viewer, then unplug the AC adapter from the power outlet. Contact Epson.

Do not use your headphones for long periods at high volume as this can cause permanent hearing loss.

Do not use your headphones while operating a vehicle or performing an activity that requires attention to external sound. When wearing your headphones, we strongly recommend setting the volume so that you can hear your normal speaking voice.

Do not stand the device upright as it may fall over and be damaged.

Do not use the viewer after moving it between extreme temperatures, which may cause condensation to form on electronic parts.

Notices and Specifications 71

❍

If you use the viewer in places where the use of electronic devices is limited, such as in airplanes or hospitals, follow all instructions in those places.

Do not use the viewer outdoors during a thunderstorm.

To prevent fire or electric shock, do not cover the viewer with a blanket or other covering that may give off a static electric shock.

To prevent fire or electric shock, do not expose the viewer or its options to rain or moisture.

To prevent fire or explosion, do not use the viewer where flammable or volatile gas is stored.

Using the Battery

Caution:

There is a risk of explosion if the battery is replaced by the incorrect type. Use the specified new batteries only. Dispose of used batteries according to the instructions.

❍

If battery acid gets into your eyes or on your skin, immediately rinse the affected area thoroughly with water and seek medical treatment. If a battery is swallowed, seek medical treatment immediately.

Use only an Epson lithium-ion battery for the viewer according to the instructions in this manual.

❍

Use only AC adapter model A351H and the viewer

(Model G961A/G961B) to charge batteries.

Do not use the battery that comes with the viewer for other devices.

To protect against short-circuiting, do not remove the outside sleeves of the battery.

Do not handle the battery with wet hands or use it near water.

Do not expose the battery to water or high humidity.

Do not drop, puncture, disassemble, mutilate, or short-circuit the battery.

Do not place the battery near or into fire or water.

Do not use batteries that are leaking or damaged in any way.

Do not charge the battery on devices except the viewer.

Do not charge the battery near open flame or in very hot locations.

Keep batteries away from heat sources.

Do not leave the battery in a vehicle to prevent the battery from overheating.

Do not insert objects into any openings as they may touch dangerous voltage points or short-circuit components.

Notices and Specifications 72

❍

Prevent the battery from coming into contact with metal objects that could short-circuit it, such as coins or keys.

Do not insert the battery into power outlets or other power sources such as car cigarette lighter sockets.

Do not solder wires or terminals directly to the battery.

Do not touch battery terminals.

Keep batteries away from open flame if they leak or smell strange.

If overheating, discoloration, or distortion occur, remove the battery from the viewer and do not use it.

Charge the battery before using it if it has not been used for a long period.

Storing the Battery

❍

When not using this device for a long period, remove the battery from the viewer and store it separately.

Do not store batteries where the temperature or humidity is very high.

Store batteries out of children’s reach.

Disposing of the Battery

Before disposing of the battery, make sure you discharge it completely.

Warning:

Be sure to securely cover the end of the battery with tape to prevent combustion or explosion when disposing.

Do not incinerate or dispose of the battery in fire.

Do not dispose of batteries as ordinary refuse. Instead, dispose of them in a collection or recycle box in accordance with local laws.

For users in North America and Canada:

This mark indicates that the battery will be recycled by the RBRC. When you are ready to dispose of the battery, contact the RBRC at

(800) 822-8837.

Using the AC Adapter

❍

Use only the type of power source indicated on the AC adapter’s label, and always supply power directly from a standard, domestic power outlet with a power cord that meets the relevant local safety standards.

Place the AC adapter near an electrical outlet where the power cord can be easily unplugged.

Notices and Specifications 73

❍

The AC adapter and power cable provided are designed for use with the viewer. Do not attempt to use them with other electronic devices unless specified.

Do not remove the AC adapter from this device during operations (connecting the AC adapter during operations is possible).

The AC adapter included is designed for use with the viewer. Use of any other adapter could result in fire, electrical shock, or injury.

Use only AC adapter model A351H with the viewer.

Do not connect the AC adapter when the battery is not installed. Otherwise, the viewer may be damaged.

Use only the power source that meets the power requirements indicated on the label attached to the product. If you are not sure of the power supply specifications in your area, contact your local power company or regulatory agency.

Make sure the total amperage of all devices plugged into the power outlet does not exceed the power outlet’s ampere rating.

Do not use a damaged or frayed AC adapter.

❍

If you use an extension cord with the viewer, make sure the total amperage of all devices plugged into the extension cord does not exceed the cord’s amperage rating.

Never disassemble, modify, or attempt to repair the AC adapter by yourself.

Do not use power outlets controlled by wall switches or automatic timers.

Do not use power outlets on the same circuit as large motors or other appliances that may cause voltage fluctuations.

Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and off.

To prevent fire or electric shock, do not cover the AC adapter with a blanket or similar covering.

Position the viewer’s power cord so that it will not be stepped on or run over.

Do not place any objects on the power cord and the AC adapter.

Keep the power cord straight at the ends and at the points where it enters the transformer.

The power cord should be placed to avoid abrasions, cuts, fraying, crimping, kinking, and other damage.

Notices and Specifications 74

❍

If you cannot insert the plug into the power outlet, contact an electrician.

Remove the AC plug from the outlet during lightning storms.

Using a Memory Card

❍

Only memory cards designed for the product’s

specifications can be used. (See page 16.)

The methods for using memory cards vary according to card type. See the documentation included with your memory card for details.

Do not remove a memory card or turn off the product while the memory card access light is flashing.

Using the LCD

❍

The LCD panel on the viewer may contain a few small bright or dark spots. These are normal and do not mean that your LCD panel is damaged in any way.

If the LCD panel on the viewer is damaged, contact

Epson.

❍

If the liquid crystal solution contained in the LCD panel on the viewer leaks out and gets onto your hands, wash them thoroughly with soap and water. If it gets into your eyes, flush them immediately with water. If discomfort or vision problems remain after a thorough flushing, see a doctor immediately.

Use only a soft, dry cloth to clean the display. Do not use liquid or chemical cleaners.

Storing, Maintaining, or Transporting the

Viewer

❍

Do not store the viewer outdoors.

Do not store the viewer near water.

Do not store the viewer in a location subject to high temperature or humidity.

Do not store the viewer in a location subject to rapid changes in temperature or humidity.

Do not store the viewer in a location subject to direct sunlight or strong light sources.

Unplug the viewer from the power outlet before cleaning it. Use a damp cloth for cleaning and do not use liquid or aerosol cleaners.

Notices and Specifications 75

❍

Remove the battery and unplug the viewer and refer servicing to qualified service personnel under the following conditions: The power cord or plug is damaged; liquid has entered the viewer or its options; the viewer or its options have been dropped or the case is damaged; the viewer or its options do not operate normally or exhibit a distinct change in performance.

WARNING:

The cords included with this product contain chemicals, including lead, known to the State of California to cause birth defects or other reproductive harm.

Wash hands after handling.

(provided in accordance with

Proposition 65 in Cal. Health & Safety Code § 25249.5 et seq)

Standards and Approvals

Epson P-5000

EMC: FCC Part 15 Subpart B Class

CAN/CSA-CEI/IEC CISPR22 Class B

AC Adapter (Model A351H)

Safety:

EMC:

UL60950

CSA C22.2 No. 60950

CAN/CSA-CEI/IEC CISPR22 Class B

Battery (Model D111A)

Safety: UL2054

Notices and Specifications 76

Specifications

General

LCD:

HDD:

Dimensions

(without projections) and weight:

Temperature:

Humidity

(without condensation):

Altitude

4 inches, 640

480 pixels,

Approx. 16,770,000 colors

2.5 inch HDD, 80GB, FAT 12/16/32

VFAT supported

Height 3.5 inches (88.7 mm)

Width 5.9 inches (150 mm)

Depth

Weight

(approx.)

1.3 inches (33.1 mm)

5.2 oz (430 g), including battery

Operating (or charging): 41 to 95 °F

(5 to 35 °C)

Non-operating: –4 to 140 °F

(–20 to 60 °C)

Operating: 30 to 80%

Non-operating: 10 to 80%

Operating: 3000 m or less

Non-operating: 12000 m or less

Memory card: CompactFlash memory card (Type I/

Type II, including Microdrive);

SD memory card, SD High-Capacity

Card, MultiMedia Card, MultiMedia

Card Plus

Note:

A commercially available CF adapter is needed to use other memory cards.

Power sources: Lithium-ion battery (Model D111A)

AC adapter (Model A351H)

Battery life

(when fully charged)*:

Approx. 3 hours when playing a slide show

(in the default settings)

Approx. 3 hours when playing video

(MPEG4, 2 Mbps, using headphones)

Approx. 6 hours when playing audio

(MP3, 128 kbps, using headphones)

* Times may vary depending on the memory card being used, the number of files, ambient temperature, and other factors.

Notices and Specifications 77

Electrical

Input voltage: DC 5.0 V

Rated current: Maximum 2.3 A

Power consumption:

6.3 W (when using the battery)

7.9 W (when using the AC adapter)

Interface

USB connector: Two USB 2.0 (Mass Storage Class) interfaces Full Speed and High Speed mode

Host: Standard A

Device: Mini-B

A/V Out connector:

Quadrupole mini pin jack (Ø 3.5 mm)

Headphone Out connector:

Quadrupole mini pin jack (Ø 3.5 mm)

CF Card slot:

SD Card slot:

One slot (Type 1/Type 2, 3.3V) for

CompactFlash memory card or

Microdrive

One slot for SD memory card or

MultiMedia card

Battery

Type:

Model:

Size:

Ratings:

Temperature:

Rechargeable lithium-ion battery

D111A

0.88

0.80

2.78 inches

(22.45

20.4

71 mm)

3.7 V, 2600 mAh

Storing: –4 to 104 °F (–20 to 60 °C)

Keep the battery in a cool place when storing for a long period.

AC Adapter

Model:

Input:

Output:

Power consumption:

A351H

AC 100 to 240 V, 50 to 60 Hz, 0.3 to 0.1 A

DC 5.0 V, 2.3 A

Maximum 18 W

Optional Accessory

Model: Lithium-ion battery, D111A

Product code: B32B818262

Notices and Specifications 78

Index

A/V Out connector

, 8, 32

AC adapter connecting

connector

specifications

Activity light

Adobe Bridge

AdobeRGB

Audio

copying files to viewer

creating playlist

deleting files

problems

repeat and shuffle

Backing up

preferences

to computer

Backup Files icon

Battery

cover

replacing

safety

Beep settings

Bit rate audio

Index 79

Buttons locking

, 13

using

, 9

Cable

USB

Color space

CompactFlash adapter

card slot

icon

Computer connecting to

Connecting computer

printer

Copying

files from memory cards

, 19 to 21

files to/from computer

, 42 to 44

files to/from USB devices

, 47 to 49

problems

, 66

Customizing settings

, 60 to 62

Date and time, setting

Deleting

files and folders

, 8, 34, 42 to 44, 56 to 57

Display button

Display Photo Enhance

DivX

Eject button

Electrical specifications

, 78

Epson

Link2

, 35, 38, 42 to 46

printers

, 56

purchasing battery

, 69 technical support

Index 80

Error messages

File formats audio

File Operation settings

, 61

Files copying from memory card

, 19 to 21

copying to/from computer

, 42 to 44

copying to/from USB devices

locking

problems viewing

Firmware version

Folders changing display

locking

setting as screen saver

Hard drive capacity

Headphones

Hold icon

Home screen

Host USB connector

Index 81

Images

copying to folder

, 22

displaying as a slide show

, 28

displaying information

display problems

rotating

viewing

Interface specifications

JPEG files

Lights

Link2 software backing up files

creating playlist

setting preferences

transferring music files

, 35

Locking buttons

, 13

files and folders

, 53

Macintosh disconnecting from

, 44

system requirements

, 70

Maximum bit rate, video

Memory card

copying files

safety instructions

types

Metadata

Microdrive

Movie Settings

Index 82

Music

creating playlist

deleting files

repeat and shuffle

Paper, types and sizes

Password

see

Images

PictBridge

Playing

videos

Playlist creating

modifying

Power problems

turning on

Printing photos

problems

Private folders

Problems audio and video

, 65 to 66

copying and deleting files

power

printing

solving

Projector, connecting to

Protecting files

Rating photos

RAW files

Resetting the viewer

Rotating images

Index 83

Safety instructions

Screen icons

Secure Digital

card slot

icon

Settings

Date and time

icon

Slide show creating

Sound problems

Specifications

electrical

interface

standards and approvals

, 76

sRGB

, 28, 62

Status and error messages

System requirements

Technical support

Time, setting

Troubleshooting

audio and video problems

, 65 to 66

error messages

, 63 to 64

file operation problems

, 66

file viewing problems

printing problems

Underexposure preview

USB

, 34, 42 to 44, 56 to 57

connectors

USB devices

copying files

types

Index 84

Video codec

DivX registration code

problems

screen size

selecting NTSC or PAL

View Rated Files

Wallpaper

Windows

xD-Picture card

Index 85

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Epson P6000 - Multimedia Photo Viewer User`s guide

Epson Digital Camera P3000-P5000 User manual

Epson P-6000 Digital Photo Frame User Manual

Epson P-7000 User's Guide

HP Awesome Cond Tested Works Photosmart 620 2.1 Mp Digital Camera - Silver

Epson P-5000 Owner Manual

Epson PhotoPC P-3000 User Manual

Epson P-6000 Basic Guide

Epson P4000 - Multimedia Storage Viewer User`s guide

Epson Camcorder P-2000 User manual

Epson P-2000 Basic Guide

Epson P-4000 Basic Guide

Epson PhotoPC P-5000 User Manual

Epson P-6000 Owner Manual

Epson PhotoPC P-1000 Specifications

Epson P-1000 Quick Reference Guide

Digital Foci Picture Porter Elite PPE-360 Supplementary Manual

Epson PhotoPC P-1000 User's Manual

Epson P-7000 Owner Manual

Epson 3100Z User's Manual

Epson PhotoPC 600 Specifications

Download PDF

Epson P-5000 User's Guide

User’s Guide

P-5000

Contents

Introduction

Features

Using the Documentation

Chapter 1

Getting Started

Parts

Lights and Buttons

Installing the Battery

Charging the Battery

Removing the Battery

Setting the Language, Date, and Time

Turning On the Power

Locking the Buttons

Using the Home Screen

Turning Off the Power

Saving Power

Chapter 2

Using Memory Cards

Inserting and Removing Memory

Cards

Using the CF Card Slot

Using the SD Card Slot

Copying Files From a Memory Card

Copying All Files

Copying Selected Files

Copying Files to a Folder

Creating a New Folder and Copying Files

Chapter 3

Viewing Photos and Videos

Using the Viewer Screen

Changing the Display

Using the Pop-up Menu

Supported Image Formats

Viewing Images

Zooming an Image

Displaying Information

Displaying a Wider Color Gamut

Displaying Images as a Slide Show

Rotating an Image

Viewing Videos

Supported Video Formats

Playing Videos

Setting the Display Mode

Viewing Files on a TV

Chapter 4

Playing Music

Copying Music From Your Computer

Supported Audio Formats

Playing Audio Files

Setting Repeat and Shuffle Options

Creating a Playlist

Creating a Playlist on the Viewer

Adding Tracks to an Existing Playlist

Removing Tracks From a Playlist

Changing the Order of a Playlist

Using the Equalizer

Deleting Audio Files From the Viewer

Chapter 5

Managing Files

Copying Files To and From Your

Computer

Backing Up Files to Your Computer

Copying Files From Your Computer to the

Viewer

Disconnecting the Viewer From Your

Computer

Setting Backup and Conversion Preferences

Using the Viewer With USB Devices

Connecting a USB Device

Copying Files to the Viewer

Copying Files to the USB Device

Setting Folders as Private

Renaming a Folder

Deleting Files and Folders

Locking Files and Folders

Setting a Folder Icon or Home Screen
