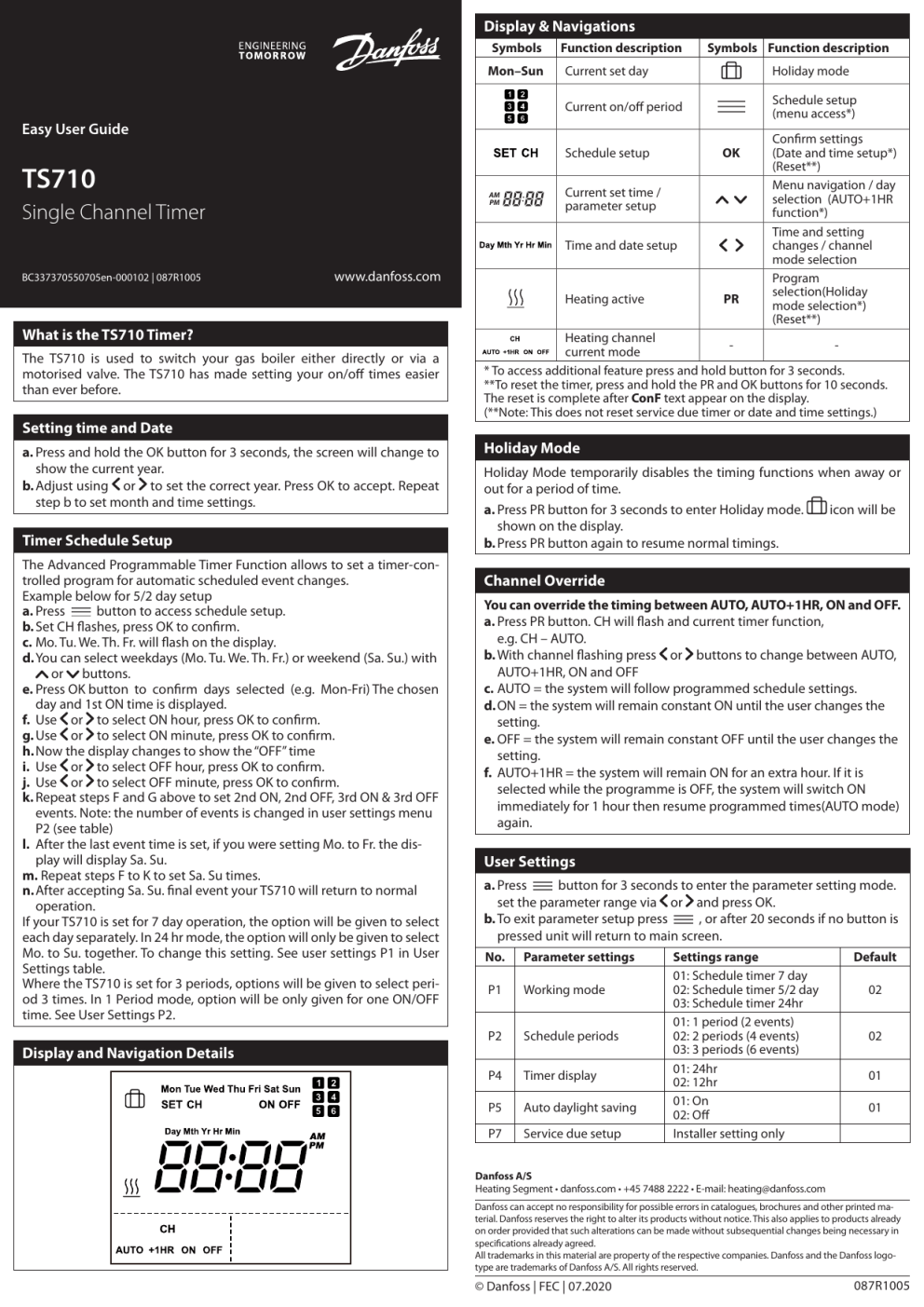

Danfoss TS710 Digital Room Thermostat Easy User Guide

Display & Navigations
Symbols
Mon–Sun
Function description
Symbols Function description
Current set day
Holiday mode
Current on/off period
Schedule setup
(menu access*)
Easy User Guide
OK
Schedule setup
TS710
AM
PM
Single Channel Timer
Current set time /
parameter setup
Time and date setup
BC337370550705en-000102 | 087R1005
www.danfoss.com
Heating active
What is the TS710 Timer?
The TS710 is used to switch your gas boiler either directly or via a
motorised valve. The TS710 has made setting your on/off times easier
than ever before.
Setting time and Date
a. Press and hold the OK button for 3 seconds, the screen will change to
show the current year.
b. Adjust using or to set the correct year. Press OK to accept. Repeat
step b to set month and time settings.
Timer Schedule Setup
The Advanced Programmable Timer Function allows to set a timer-controlled program for automatic scheduled event changes.
Example below for 5/2 day setup
a. Press
button to access schedule setup.
b. Set CH flashes, press OK to confirm.
c. Mo. Tu. We. Th. Fr. will flash on the display.
d. You can select weekdays (Mo. Tu. We. Th. Fr.) or weekend (Sa. Su.) with
or buttons.
e. Press OK button to confirm days selected (e.g. Mon-Fri) The chosen
day and 1st ON time is displayed.
f. Use or to select ON hour, press OK to confirm.
g. Use or to select ON minute, press OK to confirm.
h. Now the display changes to show the “OFF” time
i. Use or to select OFF hour, press OK to confirm.
j. Use or to select OFF minute, press OK to confirm.
k. Repeat steps F and G above to set 2nd ON, 2nd OFF, 3rd ON & 3rd OFF
events. Note: the number of events is changed in user settings menu
P2 (see table)
l. After the last event time is set, if you were setting Mo. to Fr. the display will display Sa. Su.
m. Repeat steps F to K to set Sa. Su times.
n. After accepting Sa. Su. final event your TS710 will return to normal
operation.
If your TS710 is set for 7 day operation, the option will be given to select
each day separately. In 24 hr mode, the option will only be given to select
Mo. to Su. together. To change this setting. See user settings P1 in User
Settings table.
Where the TS710 is set for 3 periods, options will be given to select period 3 times. In 1 Period mode, option will be only given for one ON/OFF
time. See User Settings P2.
PR
Confirm settings
(Date and time setup*)
(Reset**)
Menu navigation / day
selection (AUTO+1HR
function*)
Time and setting
changes / channel
mode selection
Program
selection(Holiday
mode selection*)
(Reset**)
Heating channel
current mode
* To access additional feature press and hold button for 3 seconds.
**To reset the timer, press and hold the PR and OK buttons for 10 seconds.
The reset is complete after ConF text appear on the display.
(**Note: This does not reset service due timer or date and time settings.)
Holiday Mode
Holiday Mode temporarily disables the timing functions when away or
out for a period of time.
a. Press PR button for 3 seconds to enter Holiday mode.
icon will be
shown on the display.
b. Press PR button again to resume normal timings.
Channel Override
You can override the timing between AUTO, AUTO+1HR, ON and OFF.
a. Press PR button. CH will flash and current timer function,
e.g. CH – AUTO.
b. With channel flashing press or buttons to change between AUTO,
AUTO+1HR, ON and OFF
c. AUTO = the system will follow programmed schedule settings.
d. ON = the system will remain constant ON until the user changes the
setting.
e. OFF = the system will remain constant OFF until the user changes the
setting.
f. AUTO+1HR = the system will remain ON for an extra hour. If it is
selected while the programme is OFF, the system will switch ON
immediately for 1 hour then resume programmed times(AUTO mode)
again.
User Settings
a. Press
button for 3 seconds to enter the parameter setting mode.
set the parameter range via or and press OK.
b. To exit parameter setup press
, or after 20 seconds if no button is
pressed unit will return to main screen.
No.
Parameter settings
P1
Working mode
P2
Schedule periods
P4
Timer display
P5
Auto daylight saving
P7
Service due setup
Display and Navigation Details
Settings range
01: Schedule timer 7 day
02: Schedule timer 5/2 day
03: Schedule timer 24hr
01: 1 period (2 events)
02: 2 periods (4 events)
03: 3 periods (6 events)
01: 24hr
02: 12hr
01: On
02: Off
Installer setting only
Default
02
02
01
01
Danfoss A/S
Heating Segment • danfoss.com • +45 7488 2222 • E-mail: [email protected]
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already
on order provided that such alterations can be made without subsequential changes being necessary in
specifications already agreed.
All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
© Danfoss | FEC | 07.2020
