Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

IMPORTANT

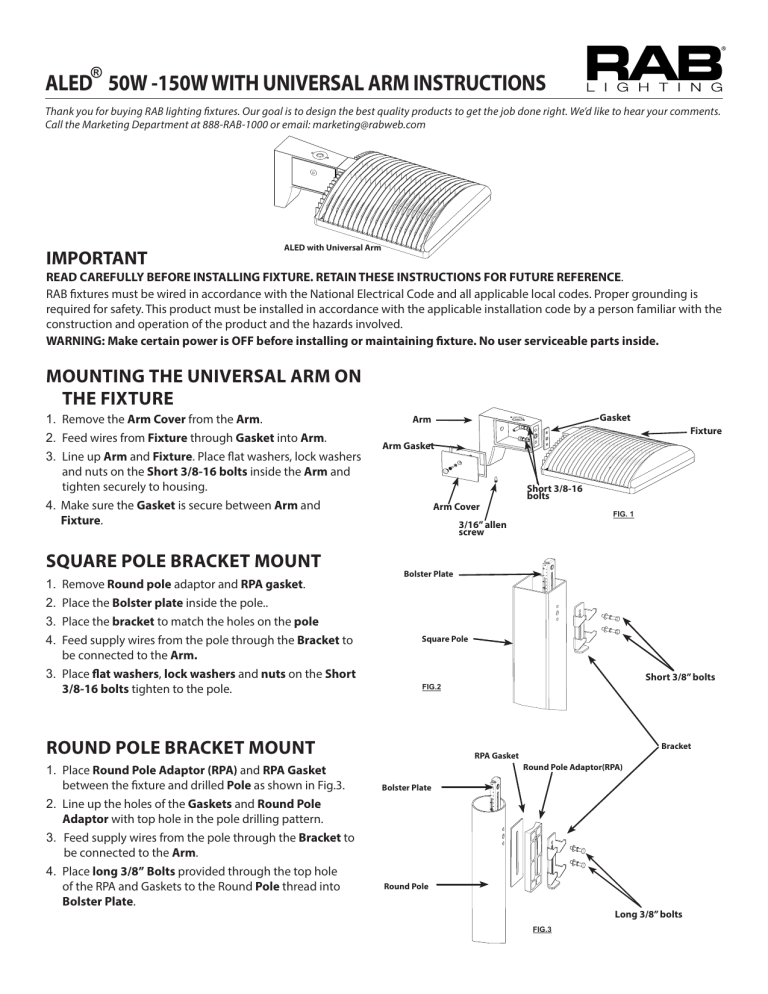

ALED with Universal Arm

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

.

RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.

WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

MOUNTING THE UNIVERSAL ARM ON

THE FIXTURE

1.

Remove the

Arm Cover

from the

Arm

.

2.

Feed wires from

Fixture

through

Gasket

into

Arm

.

3.

Line up

Arm

and

Fixture

. Place flat washers, lock washers and nuts on the

Short 3/8-16 bolts

inside the

Arm

and tighten securely to housing.

4.

Make sure the

Gasket

is secure between

Arm

and

Fixture

.

Arm

Arm Gasket

Arm Cover

Gasket

FIG. 1

Fixture

SQUARE POLE BRACKET MOUNT

1.

Remove

Round pole

adaptor and

RPA gasket

.

2.

Place the

Bolster plate

inside the pole..

3.

Place the

bracket

to match the holes on the

pole

4.

Feed supply wires from the pole through the

Bracket

to be connected to the

Arm.

3.

Place

flat washers

,

lock washers

and

nuts

on the

Short

3/8-16 bolts

tighten to the pole.

Bolster Plate

Square Pole

FIG.2

Short 3/8” bolts

ROUND POLE BRACKET MOUNT

1.

Place

Round Pole Adaptor (RPA)

and

RPA Gasket

between the fixture and drilled

Pole

as shown in Fig.3.

2. Line up the holes of the

Gaskets

and

Round Pole

Adaptor

with top hole in the pole drilling pattern.

3.

Feed supply wires from the pole through the

Bracket

to be connected to the

Arm

.

4.

Place

long 3/8” Bolts

provided through the top hole of the RPA and Gaskets to the Round

Pole

thread into

Bolster Plate

.

Bolster Plate

Round Pole

RPA Gasket

Round Pole Adaptor(RPA)

Bracket

Long 3/8” bolts

FIG.3

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

MOUNTING FIXTURE TO THE POLE

1. Remove the

Arm Cover

from the

Arm

.

2.

Feed supply wires which are already pulled out from the pole through the bracket into the

Arm

.

3.

Make necessary connections inside the

Arm

and knot wires for strain relief.

4.

Slide the

metal hanger plates

at the back of the Arm to the

mounting hooks

of the bracket on the pole,to secure the fixture to the pole.

5.

Replace the

Arm Cover

. Be sure the

Gasket

on

Arm

Cover

is in place. Tighten

Screws

and add the

Plugs

.

Secure

Pole cap

. Tighten Set screw at the bottom of the arm.

ON-OFF WIRING

Universal voltage driver permits operation at 120V thru 277V,

50 or 60 Hz. Units ordered with (/480V) suffix are 480V, 60Hz.

For Non-Dimming, follow the wiring directions as in fig. 5

1.

Connect the black fixture lead to the (+) LINE supply lead.

2.

Connect the white fixture lead to the (-) COMMON supply lead.

3. Connect the GROUND wire from fixture to supply ground.

(+)LINE BLACK

(-)COMMON WHITE

GROUND GROUND

LIGHT

FIXTURE

Pole (Not provided)

FIG.5

Fixture

Bracket

Close up

Arm

Arm Cover Gasket

Arm Cover screw

Plug

PHOTOCELL INSTALLATION

Wire the photocell as shown below.(Fig.6)

1. Remove close up plug on top of the wall mounting box.

2. Install photocell and wire as per diagram.

3. Use photocell rated for your supply voltage.

BLACK

LIGHT

FIXTURE

FIG.6

Metal Hanger plates

Mounting Hooks

FIG.4

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

0-10V DIMMABLE WIRING WITH

WATTSTOPPER SENSOR

Universal voltage driver and Wattstopper Sensor permits operation at 120V thru 277V, 50 or 60 Hz. For 0-10V Dimming with Wattstopper, follow the wiring directions (Fig.7)

1.

Connect the black fixture lead to the LOAD of

Wattstopper Sensor.

2. Connect LINE of Wattstopper Sensor to LINE supply lead.

3.

Connect the white fixture lead and NEUTRAL of

Wattstopper Sensor to the COMMON supply lead.

4.

Connect the GROUND wire from fixture and Wattstopper

Sensor to supply ground. Do NOT connect the GROUND of the dimming fixture to the output.

5. Connect the purple fixture lead to DIM + of Wattstopper

Sensor.

6.

Connect the gray fixture lead to the DIM - of Wattstopper

Sensor lead.

7.

Cap the yellow fixture lead, if present. Do NOT connect.

DIMMABLE WIRING DIAGRAM

LED

Dimmable

Driver

NEUTRAL

LOAD

GRAY (-)

VIOLET (+)

14-18 AWG Solid CU Wire Only

FSP-211

High/Low PIR

Occupancy Sensor

230 VAC, 50 Hz

1200W max ballast

18-20 AWG Solid CU Wire Only

CLEANING & MAINTENANCE

CAUTION: Be sure fixture temperature is cool enough to touch. Do not clean or maintain while fixture is energized.

1.

Clean glass lens with non-abrasive glass cleaning solution.

2.

Do not open fixture to clean the LED. Do not touch the

LED.

FIG.7

POLE DRILLING DETAIL

Dimensions of the holes on RPA and Bracket.

This template is not to scale. Please use measurements shown in Fig.8.

TROUBLESHOOTING

1. Check that the line voltage at the fixture is correct. Refer to wiring directions.

2. Be sure the fixture is grounded properly.

3. Is the photocell, if used, functioning properly?

ACCESSORIES

LALED150

-Door Lens replacement

Avaiable in Bronze, (W)White, (RG)Gray

GOALED150W

-Wire Guard

Available in (G)Grey

FIG.8

Patent: US: pat. D668,370

Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation, operation or maintenance.

Easy Answers

© 2017 RAB LIGHTING Inc.

Northvale, New Jersey 07647 USA

ALED IN 0717

rabweb.com

Visit our website for product info

Tech Help Line

Call our experts - 888 722-1000

e-mail

Answered promptly - [email protected]

Free Lighting Layouts

Answered online or by request

R

ALED SLIPFITTER 50W 78W 105W 125W 150W INSTRUCTIONS

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

.

RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A

PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.

WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

MOUNTING FIXTURE

1. The

Slipfitter

fits a 2 3/8” O.D.

Tenon

. Place the slipfitter over the tenon and secure the fixture with 2

Set Screws

on the side of the slipfitter.

2.

Feed wires from

Fixture

through slipfitter and supply wires from

Pole

. Make the necessary connections in the slipfitter and knot wires for strain relief.

3. To adjust the angle of the slipfitter, remove 2

screws

and remove the

Slipfitter Cover Plate.

Loosen the

Locking

Bolt

and swivel fixture to desired angle. The graduation on the slipfitter cover plate can be used as guidelines to adjust the angle.

4. Tighten the

Locking Bolt.

Replace slipfitter cover plate

.

Tighten

Screws

and close the

Plug.

5.

Seal

Plug

using Teflon tape or silicone sealant.

Screws

Plug

Fixture

Slipfitter

Locking Bolt

Tenon

CLEANING & MAINTENANCE

CAUTION: Be sure fixture temperature is cool enough to touch. Do not clean or maintain while fixture is energized.

1. Clean glass lens with non-abrasive glass cleaning solution.

2. Do not open fixture to clean the LED. Do not touch the

LED.

TROUBLESHOOTING

1. Check that the line voltage at fixture is correct. Refer to wiring directions.

2. Is the fixture grounded properly?

3. Is the photocell functioning properly (if used)?

R

ALED SLIPFITTER 50W 78W 105W 125W 150W INSTRUCTIONS

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

ON-OFF WIRING

Universal voltage driver permits operation at 120V thru 277V,

50 or 60 Hz. Units ordered with (/480V) suffix are 480V, 60Hz.

For Non-Dimming, follow the wiring directions as in fig. 1.

1.

Connect the black fixture lead to the (+) LINE supply lead.

2.

Connect the white fixture lead to the (-) COMMON supply lead.

3.

Connect the GROUND wire from fixture to supply ground.

(+)LINE BLACK

(-)COMMON WHITE

GROUND GROUND

LIGHT

FIXTURE

Fig. 1

0-10V DIMMABLE WIRING

Universal voltage driver permits operation at 120V thru 277V,

50 or 60 Hz. For 0-10V Dimming, follow the wiring directions as in fig. 2.

1.

Connect the black fixture lead to the (+) LINE supply lead.

2.

Connect the white fixture lead to the (-) COMMON supply lead.

3.

Connect the GROUND wire from fixture to supply ground.

Do NOT connect the GROUND of the dimming fixture to the output.

4.

Connect the purple fixture lead to the (V+) DIM lead.

5.

Connect the gray fixture lead to the (V-) DIM lead.

6.

Cap the yellow fixture lead, if present. Do NOT connect.

PHOTOCELL INSTALLATION

Photocell may be installed in the field. Apply weatherproof silicone sealant to all plugs and unused conduit entries.

1. Remove close up plug on top of the wall mounting box.

2. Install photocell and wire as per diagram.

3. Use photocell rated for your supply voltage.

Fig. 2

BLACK

PHOTOCELL

PHOTOCELL

RAB fixture designs are protected under U.S. and International Intellectual Property laws.

Patents:

US:

pat. D587,839;

CN

: ZL200830272893.0;

MX:

28396,

TW

: pat. 96304793-U02; CA: D RAB Lighting, Inc

Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation, operation or maintenance.

Easy Installation & Product Help

©2013 RAB LIGHTING Inc.

Northvale, New Jersey 07647 USA

ALEDSF IN 0114

Tech Help Line

Call our experts 888 RAB-1000

rabweb.com

Visit our website for product info

email

Answered promptly [email protected]

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

ALED260/ 360

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

.

RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.

WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

CAUTION: The fixture weighs 80lbs. Make sure pole and hardware supplied by others (if any) can withstand the weight of the fixture.

MOUNTING ARM ON FIXTURE

1.

Remove the

Arm Cover

from the

Arm

.

2.

Feed wires from

Fixture

through

Gasket

into

Arm

.

3.

Line up

Arm

and

Fixture

. Place flat washers, lock washers and nuts on the

Short 3/8-16 bolts

inside the

Arm

and tighten securely to housing.

4.

Make sure the

Gasket

is secure between

Arm

and

Fixture

.

Arm

Short 3/8”

Bolts

Gasket

Fixture

MOUNTING FIXTURE DIRECTLY TO

POLE

Check that pole is drilled according to Pole Drawing Detail.

1.

Remove the

Arm Cover

from the

Arm

.

2.

Feed wires from

Fixture

through

Gasket

into

Arm

. Feed supply wires from

Pole

through

Gasket

into

Arm

.

3.

Insert

Long 3/8-16 bolts

through

Arm, Gasket, Pole

and thread into the

Bolster Plate

. Be sure the

Gasket

is between the

Arm

and pole and secure with bolts, washers and lockwashers.

4.

Make necessary connections inside the

Arm

and knot wires for strain relief.

5.

Replace the

Arm Cover

. Be sure the

Gasket

on

Arm

Cover

is in place. Tighten

Screws

and add the

Plugs

.

Secure

Pole cap

.

Pole Cap

Gasket

Short 3/8” Bolts

Screws (2)

Plugs (2)

Arm Cover

Arm

Long 3/8” Bolts

Bolster

Plate

Plugs (2)

Screws (2)

Arm Cover

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

ROUND POLE ADAPTOR ACCESSORY

For use with standard RAB pole drilling.

1.

Drill round pole using the dimensions shown in the Pole

Drilling Detail.

2. Place

Round Pole Adaptor/ RPA (Ordered separately)

and

RPA Gasket

between the fixture and drilled

Pole

as shown.

3.

Line up top holes of the

Gaskets

and

Round Pole

Adaptor

with top hole in the pole drilling pattern.

4.

Place

long 3/8” Bolts

from the

ALED

through the top hole of the RPA and Gaskets to the Round

Pole

thread into

Bolster Plate

.

5. Feed wires from

Fixture

through

Gasket

into

Arm

. Feed supply wires from

Pole

through

Gasket

into

Arm

. Make necessary connections inside the

Arm

and knot wires for strain relief.

6.

Replace the

Arm Cover

, tighten

Screws

and add the

Plugs

. Secure Pole cap.

0-10V DIMMABLE WIRING

Universal voltage driver permits operation at 120V thru 277V,

50 or 60 Hz. 0-10V control wires must be rated for 300V minimum. Units ordered with (/480) suffix are 480V, 50 or

60Hz. For 0-10V Dimming, follow the wiring directions as shown in figure below.

1.

Connect the black fixture lead to the LINE supply lead.

2. Connect the white fixture lead to the COMMON supply lead.

3.

Connect the GROUND wire from fixture to supply ground.

Do NOT connect the GROUND of the dimming fixture to the output.

4.

Connect the purple fixture lead to the (V+) DIM lead.

5. Connect the gray fixture lead to the (V-) DIM lead.

6.

Cap the yellow fixture lead, if present. Do NOT connect.

Round Pole Adaptor (RPA) - Ordered separately

Bolster Plate

Arm Gasket

Round Pole

(not supplied)

RPA

Gasket

Plugs (2)

Screws (2)

Arm Cover

Long 3/8” Bolts

PHOTOCELL INSTALLATION

Photocell may be installed in the field. Apply weatherproof silicone sealant to all plugs and unused conduit entries.

1. Knockout hole on top of arm.

2. Install photocell and wire as per diagram.

3. Use photocell rated for your supply voltage.

BLACK

PHOTOCELL

PHOTOCELL

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

POLE DRILLING DETAIL

For non-RAB poles use these dimensions to drill the pole.

This template is not to scale. Please use measurements shown.

CLEANING & MAINTENANCE

CAUTION: Be sure fixture temperature is cool enough to touch. Do not clean or maintain while fixture is energized.

1.

Clean glass lens with non-abrasive glass cleaning solution.

2.

Do not open fixture to clean the LED. Do not touch the

LED.

TROUBLESHOOTING

1. Check that the line voltage at the fixture is correct. Refer to wiring directions.

2. Be sure the fixture is grounded properly.

3. Is the photocell, if used, functioning properly?

Patent: US: pat. D668,370

Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation, operation or maintenance.

Easy Installation & Product Help

©2016 RAB LIGHTING Inc.

Northvale, New Jersey 07647 USA

Tech Help Line

Call our experts 888 RAB-1000

rabweb.com

Visit our website for product info

email

Answered promptly [email protected]

ALED 260 360 IN 0616

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

ALED260/ 360 with Slipfitter

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

.

RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.

WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

CAUTION: The fixture weighs 80lbs. Make sure pole and hardware supplied by others (if any) can withstand the weight of the fixture.

MOUNTING FIXTURE

1. The

Slipfitter

fits a 2 3/8” O.D.

Tenon

. Place the slipfitter over the

Tenon

and secure the fixture with

Set Screws

(2)

on the side of the

Slipfitter

.

2.

Feed wires from

Fixture

through

Slipfitter

and supply wires from pole (not supplied). Make the necessary connections in the

Slipfitter

and knot wires for strain relief.

3. To adjust the angle of the

Slipfitter

, remove

Screws

(2)

and remove the

Slipfitter Cover Plate.

Loosen the

Locking Bolt

and swivel fixture to desired angle. The graduation on the

Slipfitter Cover Plate

can be used as guidelines to adjust the angle.

4. Tighten the

Locking Bolt.

Replace

Slipfitter Cover Plate.

Tighten

Screws

.

5.

Apply weatherproof silicone sealant and tighten

Plug.

Fixture

Screws (2)

Plug

Slipfitter

Cover

Plate

Slipfitter

Locking Bolt

Tenon

(supplied by others)

Set screws

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.

Call the Marketing Department at 888-RAB-1000 or email: [email protected]

0-10V DIMMABLE WIRING

Universal voltage driver permits operation at 120V thru 277V,

50 or 60 Hz. 0-10V control wires must be rated for 300V minimum. Units ordered with (/480) suffix are 480V, 50 or

60Hz. For 0-10V Dimming, follow the wiring directions as shown in figure below.

1.

Connect the black fixture lead to the LINE supply lead.

2.

Connect the white fixture lead to the COMMON supply lead.

3.

Connect the GROUND wire from fixture to supply ground.

Do NOT connect the GROUND of the dimming fixture to the output.

4.

Connect the purple fixture lead to the (V+) DIM lead.

5.

Connect the gray fixture lead to the (V-) DIM lead.

6.

Cap the yellow fixture lead, if present. Do NOT connect.

CLEANING & MAINTENANCE

CAUTION: Be sure fixture temperature is cool enough to touch. Do not clean or maintain while fixture is energized.

1.

Clean glass lens with non-abrasive glass cleaning solution.

2.

Do not open fixture to clean the LED. Do not touch the

LED.

TROUBLESHOOTING

1. Check that the line voltage at the fixture is correct. Refer to wiring directions.

2. Be sure the fixture is grounded properly.

3. Is the photocell, if used, functioning properly?

Patent: US: pat. D668,370

Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation, operation or maintenance.

Easy Installation & Product Help

©2016 RAB LIGHTING Inc.

Northvale, New Jersey 07647 USA

Tech Help Line

Call our experts 888 RAB-1000

rabweb.com

Visit our website for product info

email

Answered promptly [email protected]

ALEDSF 260 360 IN 0616

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
