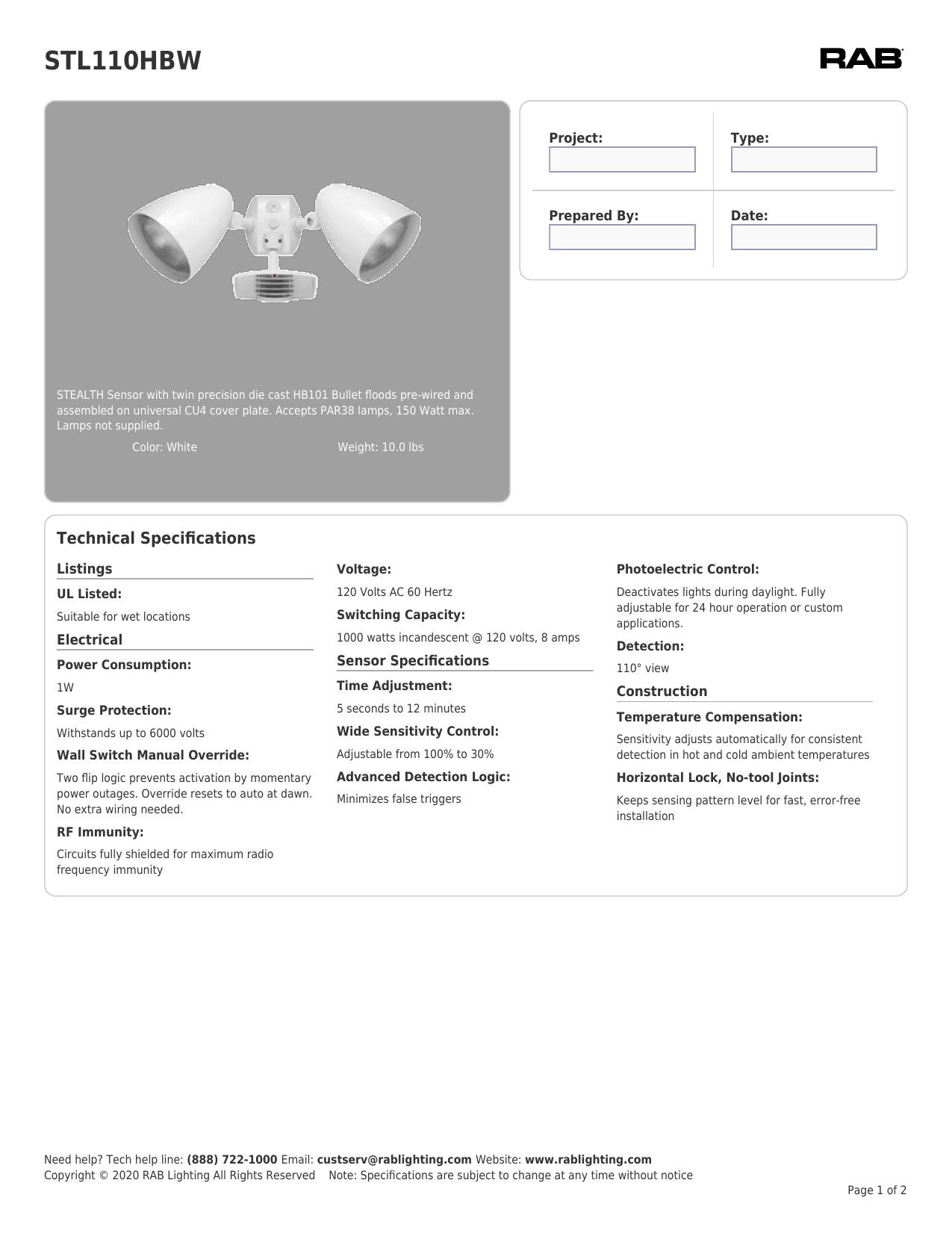

STL110HBW
Project:
Prepared By:
Type:
Date:
STEALTH Sensor with twin precision die cast HB101 Bullet floods pre-wired and assembled on universal CU4 cover plate. Accepts PAR38 lamps, 150 Watt max.
Lamps not supplied.
Color: White Weight: 10.0 lbs
Technical Specifications
Listings
UL Listed:
Suitable for wet locations
Electrical
Power Consumption:
1W
Surge Protection:
Withstands up to 6000 volts
Wall Switch Manual Override:
Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn.
No extra wiring needed.
RF Immunity:
Circuits fully shielded for maximum radio frequency immunity
Voltage:
120 Volts AC 60 Hertz
Switching Capacity:
1000 watts incandescent @ 120 volts, 8 amps
Sensor Specifications
Time Adjustment:
5 seconds to 12 minutes
Wide Sensitivity Control:
Adjustable from 100% to 30%
Advanced Detection Logic:
Minimizes false triggers
Photoelectric Control:
Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
Detection:
110° view
Construction
Temperature Compensation:
Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
Horizontal Lock, No-tool Joints:
Keeps sensing pattern level for fast, error-free installation
Need help? Tech help line: (888) 722-1000 Email: [email protected] Website: www.rablighting.com
Copyright © 2020 RAB Lighting All Rights Reserved Note: Specifications are subject to change at any time without notice
Page 1 of 2
STL110HBW
Technical Specifications (continued)
Construction
Floodlights:
Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers.
LED Characteristics
LED Detection Indicator:
Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence
Color Matched Lens:
Dark lens with bronze units, white lens with white units
Other
Warranty:
10 year sensor warranty
Dimensions
Buy American Act Compliance:
RAB values USA manufacturing! Upon request,
RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA).
Please contact customer service to request a quote for the product to be made BAA compliant.
Features
Temperature compensation
Radio frequency immunity
6000 volt surge protection
Quick test time
LED detection & "on guard" indicator
Color matched vandal resistant lens and grill
Protected manual override with auto reset
Can be wired in parallel
