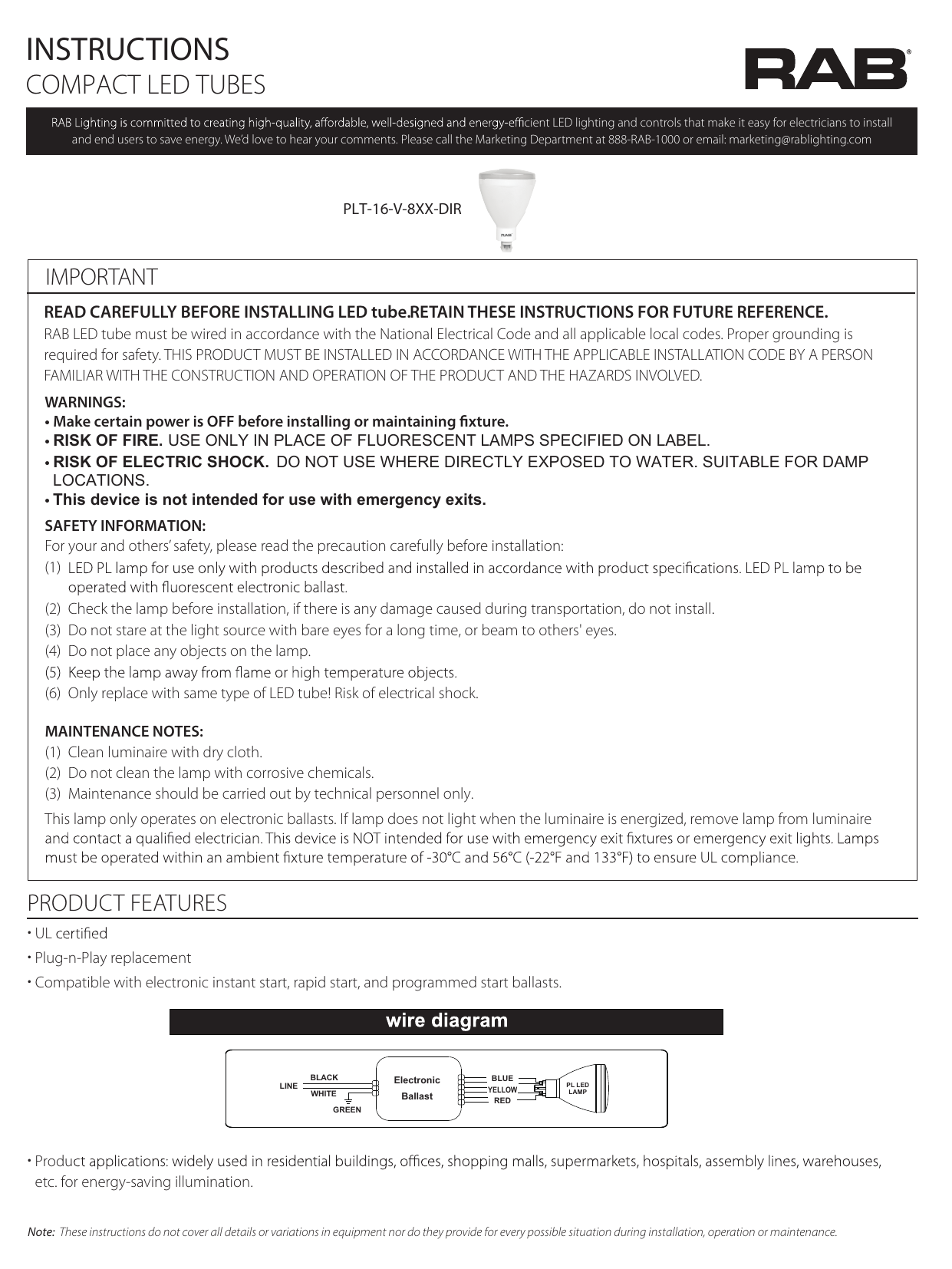

RAB Lighting PLT-16-V-830-DIR Compact Instructions

INSTRUCTIONS
COMPACT LED TUBES
cient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We’d love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: [email protected]
PLT-16-V-8XX-DIR
IMPORTANT
READ CAREFULLY BEFORE INSTALLING LED tube.RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB LED tube must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNINGS:
• Make certain power is OFF before installing or maintaining fixture.
• RISK OF FIRE. USE ONLY IN PLACE OF FLUORESCENT LAMPS SPECIFIED ON LABEL.
• RISK OF ELECTRIC SHOCK. DO NOT USE WHERE DIRECTLY EXPOSED TO WATER. SUITABLE FOR DAMP
LOCATIONS.
• This device is not intended for use with emergency exits.
SAFETY INFORMATION:
For your and others’ safety, please read the precaution carefully before installation:
(1)
(2) Check the lamp before installation, if there is any damage caused during transportation, do not install.
(3) Do not stare at the light source with bare eyes for a long time, or beam to others' eyes.
(4) Do not place any objects on the lamp.
(6) Only replace with same type of LED tube! Risk of electrical shock.
MAINTENANCE NOTES:
(1) Clean luminaire with dry cloth.
(2) Do not clean the lamp with corrosive chemicals.
(3) Maintenance should be carried out by technical personnel only.
This lamp only operates on electronic ballasts. If lamp does not light when the luminaire is energized, remove lamp from luminaire
PRODUCT FEATURES
· UL
· Plug-n-Play replacement
· Compatible with electronic instant start, rapid start, and programmed start ballasts.
LINE
BLACK
Electronic
WHITE
Ballast
GREEN
BLUE
YELLOW
RED
PL LED
LAMP
· Produ
etc. for energy-saving illumination.
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation, operation or maintenance.
INSTRUCTIONS
COMPACT LED TUBES
and end users to save energy. We’d love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: [email protected]
INSTALLATION INSTRUCTIONS
WARNING
1. Make Sure Power is OFF.
DO NOT INSTALL THIS LAMP IN A PRE-HEAT LUMINAIRE.
2.
CAUTION RISK OF FIRE. IF THE LAMP OR LUMINAIRE
EXHIBITS UNDESIRABLE OPERATION (BUZZING,
FLICKERING, ETC.), IMMEDIATELY TURN OFF POWER,
REMOVE LAMP FROM LUMINAIRE AND CONTACT
MANUFACTURER.
4. Bring LED lamp to luminaire and insert lamp pins into luminaire
lamp holders.
ATTENTION RISQUE DE FEU. SI LA LAMPE OU LE
LUMINAIRE MONTRE DES SIGNES D'OPERATION
INDESIRABLE (BRUIT, VIBRATION, CLIGNOTEMENT,
ETC.), ALORS COUPER IMMÉDIATEMENT LE COURANT
ET ENLÈVER LA LAMPE DE L'APPAREIL D'ÉCLAIRAGE
ENTRER EN CONTACT AVEC LE FABRICANT.
THIS LAMP ONLY OPERATES ON ELECTRONIC
BALLASTS. IF LAMP DOES NOT LIGHT WHEN THE
LUMINAIRE IS ENERGIZED, REMOVE LAMP FROM
LUMINAIRE AND CONTACT LAMP MANUFACTURER OR
QUALIFIED ELECTRICIAN.
This product may cause interference to radio equipment and
should not be installed near maritime safety communications
equipment or other critical navigation or communication
equipment operating between 0.45-30MHz.
6. Power ON.
WARRANTY
This product is warranted for 5 years from the date of purchase.
on this package, send an email or write to the address below for
product return and replacement. This replacement is the sole
remedy available. Liability for incidental or con- sequential damage
is expressly excluded.
Easy Answers
© 2019 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
rablighting.com
Visit our website for product info
Tech Help Line
Call our experts: 888 722-1000
e-mail
Answered promptly - [email protected]
PLT-16-V-8XX-DIR
RAB WARRANTY: RAB’s warranty is subject to all terms and conditions found at rablighting.com/warranty.
Free Lighting Layouts
Answered online or by request
