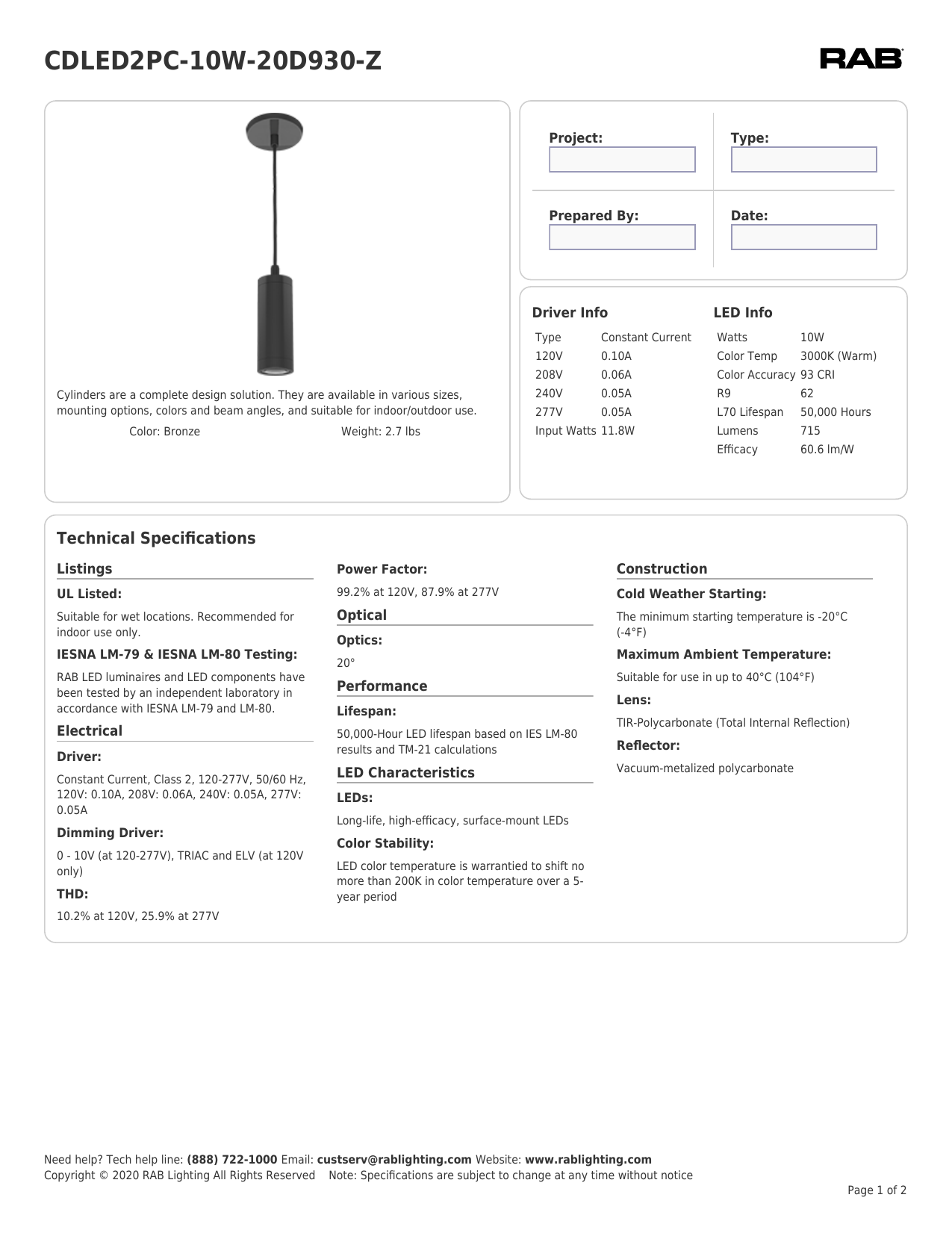

RAB Lighting CDLED2PC-10W-20D930-Z Cylinders, Cylinder Spec Sheet

CDLED2PC-10W-20D930-Z
Cylinders are a complete design solution. They are available in various sizes,
mounting options, colors and beam angles, and suitable for indoor/outdoor use.
Color: Bronze
Weight: 2.7 lbs
Project:
Type:
Prepared By:
Date:
Driver Info
LED Info
Type
Constant Current
Watts
10W
120V
0.10A
Color Temp
3000K (Warm)
208V
0.06A
Color Accuracy 93 CRI
240V
0.05A
R9
62
277V
0.05A
L70 Lifespan
50,000 Hours
Lumens
715
Efficacy
60.6 lm/W
Input Watts 11.8W
Technical Specifications
Listings
Power Factor:
Construction
UL Listed:
99.2% at 120V, 87.9% at 277V
Cold Weather Starting:
Suitable for wet locations. Recommended for
indoor use only.
Optical
The minimum starting temperature is -20°C
(-4°F)
IESNA LM-79 & IESNA LM-80 Testing:
RAB LED luminaires and LED components have
been tested by an independent laboratory in
accordance with IESNA LM-79 and LM-80.
Electrical
Driver:
Constant Current, Class 2, 120-277V, 50/60 Hz,
120V: 0.10A, 208V: 0.06A, 240V: 0.05A, 277V:
0.05A
Dimming Driver:
0 - 10V (at 120-277V), TRIAC and ELV (at 120V
only)
THD:
Optics:
20°
Performance
Lifespan:
50,000-Hour LED lifespan based on IES LM-80
results and TM-21 calculations
LED Characteristics
Maximum Ambient Temperature:
Suitable for use in up to 40°C (104°F)
Lens:
TIR-Polycarbonate (Total Internal Reflection)
Reflector:
Vacuum-metalized polycarbonate
LEDs:
Long-life, high-efficacy, surface-mount LEDs
Color Stability:
LED color temperature is warrantied to shift no
more than 200K in color temperature over a 5year period
10.2% at 120V, 25.9% at 277V
Need help? Tech help line: (888) 722-1000 Email: [email protected] Website: www.rablighting.com
Copyright © 2020 RAB Lighting All Rights Reserved Note: Specifications are subject to change at any time without notice
Page 1 of 2
CDLED2PC-10W-20D930-Z
Technical Specifications (continued)
Construction
Green Technology:
Buy American Act Compliance:
Housing:
Mercury and UV free. RoHS-compliant
components.
RAB values USA manufacturing! Upon request,
RAB may be able to manufacture this product to
be compliant with the Buy American Act (BAA).
Please contact customer service to request a
quote for the product to be made BAA
compliant.
Extruded aluminum
Finish:
Mounting:
Pendant cord (48" standard, cut to length in
field)
Gaskets:
Formulated for high durability and long-lasting
color
Other
Warranty:
High-temperature silicone
RAB warrants that our LED products will be free
from defects in materials and workmanship for a
period of five (5) years from the date of delivery
to the end user, including coverage of light
output, color stability, driver performance and
fixture finish. RAB's warranty is subject to all
terms and conditions found at
rablighting.com/warranty.
Dimensions
Features
Sleek, contemporary, architectural-grade design
Universal dimming driver (TRIAC, ELV and 0-10V)
50,000-Hour LED lifespan
Ordering Matrix
Family
Size
Mounting
CDLED
2
PC
2 = 2"
4 = 4"
6 = 6"
WD = Wall Direct (Downlight) Only
WU = Wall Indirect (Uplight) Only
W = Wall Direct/Indirect
(Downlight/Uplight)
S = Surface (Ceiling Mount)
PC = Pendant Cord 48" Standard
PS = Pendant Stem
Wattage
–
10W
10W
20W
26W
40W
=
=
=
=
10W
20W
26W
40W
–
Optic
CRI/Color Temp
20D
930
20D = 20°
30D = 30°
40D = 40°
50D = 50°
80D = 80°
WW = Wall Wash
927
930
935
940
950
=
=
=
=
=
90 CRI, 2700K
90 CRI, 3000K
90 CRI, 3500K
90 CRI, 4000K
90 CRI, 5000K
Finish
–
Z
W = Matte
White
K = Matte Black
S = Matte Silver
Z = Bronze
Need help? Tech help line: (888) 722-1000 Email: [email protected] Website: www.rablighting.com
Copyright © 2020 RAB Lighting All Rights Reserved Note: Specifications are subject to change at any time without notice
Page 2 of 2
