Acer AL1715 Owner Manual

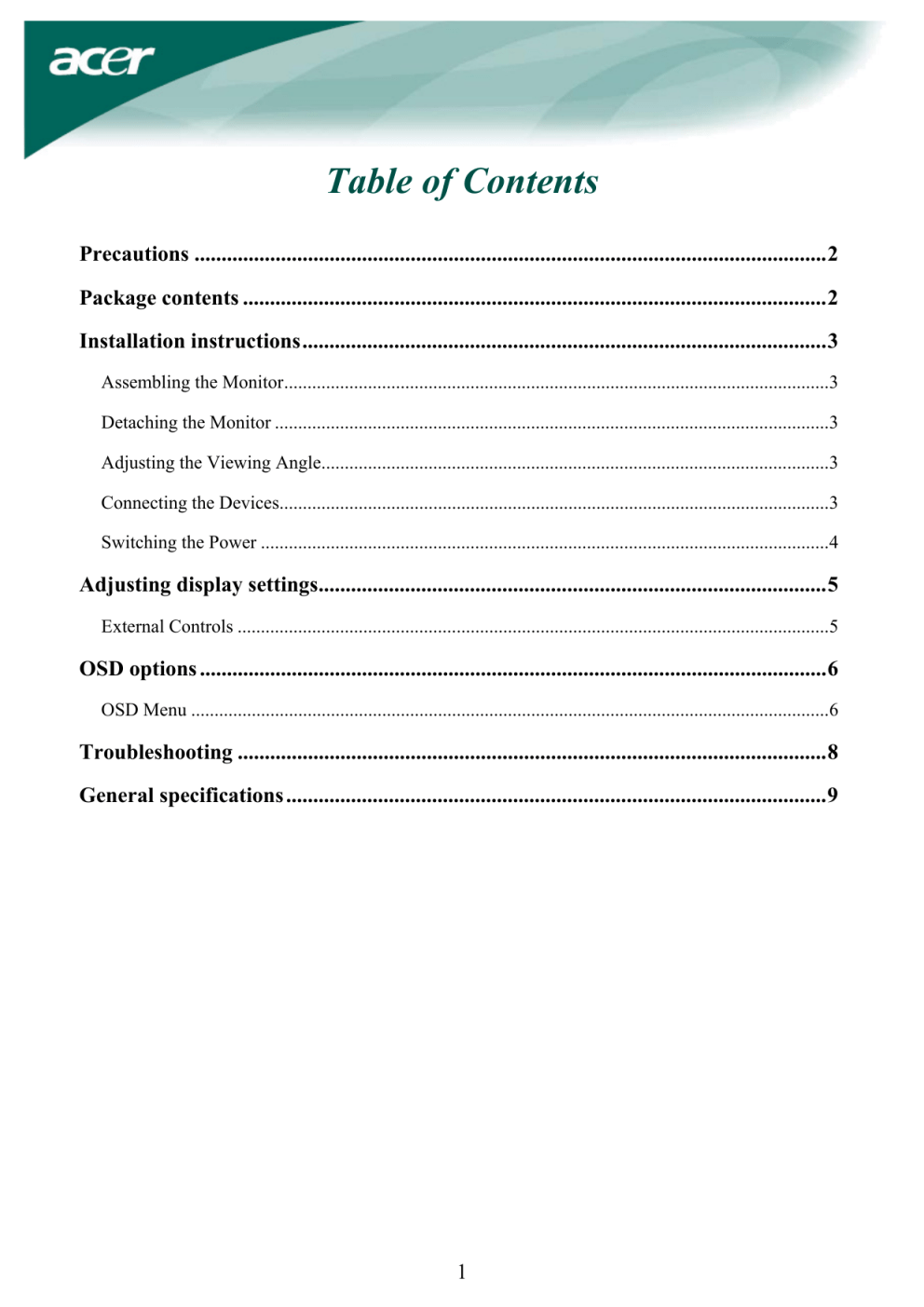

Table of Contents
Precautions .....................................................................................................................2
Package contents ............................................................................................................2
Installation instructions.................................................................................................3
Assembling the Monitor.....................................................................................................................3
Detaching the Monitor .......................................................................................................................3
Adjusting the Viewing Angle.............................................................................................................3
Connecting the Devices......................................................................................................................3
Switching the Power ..........................................................................................................................4
Adjusting display settings..............................................................................................5
External Controls ...............................................................................................................................5
OSD options ....................................................................................................................6
OSD Menu .........................................................................................................................................6
Troubleshooting .............................................................................................................8
General specifications ....................................................................................................9
1
Precautions
The monitor may be damaged if placed too near a source of heat. Be aware of the
location of radiators, cookers, open fires etc.
Do not cover the slots and openings on the back or top of the cabinet as the
monitor requires ventilation. The monitor should be located in a well-ventilated
room to prevent the possibility of overheating.
Do not allow sharp objects such as knives, pens, or pencils near the screen. If such
objects touch the screen, the LCD panel will be permanently scratched.
When cleaning this monitor, disconnect it from the electric socket to avoid any
danger of electrocution. A soft, lint-free cloth should be used to clean the
outside of the monitor. A cloth very slightly moistened with a mild detergent
solution will clean stubborn stains. Keep liquids away from the display screen,
including sprays. Do not spray liquid directly - it is best to lightly spray on to a
cloth and wipe. If liquid gets inside the monitor it can cause electrical shock
and/or damage to the unit.
If you encounter a problem, please check the "Troubleshooting" section first. If
this does not resolve the problem do not attempt to repair the monitor by yourself;
opening or removing covers can lead to injury or death through electrocution
among other hazards. Please contact a qualified engineer if you find the
troubleshooting section does not help.
Package contents
LCD Monitor
Power Cord
(Speaker optional)
User Manual (CD)
Audio Cable
(Optional)
Quick Start Guide
2
Installation instructions
Assembling the Monitor
acer
acer
1. Position the monitor on top of the stand.
2. Connect the stand into the neck of the monitor
along the track.
Detaching the Monitor
If you need to repackage the monitor, please separate the monitor and base, and restore them to
the carton. To detach the monitor:
1. Unplug the AC power cord to make sure the power is off.
2. Pull the 4 hooks on bottom side of the base and hold.
3. Separate the monitor and base and put them into carton.
Important
First, find a clean, flat surface to place the monitor after removing it from the stand. Place a clean
dry cloth under the monitor to protect it further. Pull the monitor slightly up and away from the
stand.
Adjusting the Viewing Angle
The viewing angle of the monitor ranges from -5°~20°.
Connecting the Devices
Caution: Make sure that the computer and the monitor are both disconnected from the
power supply.
3
3
2
VGA
Audio
2
1
AC
VGA
1
3
AC
Audio
Power Code
Attach the monitor to the power cord which should then be inserted
into a properly grounded electric socket.
VGA Cable
(Attached)
Connect the signal cable to the VGA output socket of the graphics card
on the computer. Then tighten the thumbscrews on the connector.
Audio cable
(Optional)
Connect the audio input socket of the LCD monitor and the computer
by means of the audio cable.
WARNING: The D-Sub 15 pin plug of the VGA cable is trapezoid in shape. Make sure
the shape of the plug matches the shape of the socket it is inserted into, and
that none of the pins are bent or otherwise damaged.
Switching the Power
First, switch the power on to the monitor, then switch the power on to the computer. When you
see the LED on the power button go green, this indicates the computer is ready for use. Allow
about 10 seconds for the video signal to appear. If you do not see the green light on the power
button or a video signal, check the connections.
4
1 2 3 4
AUTO
<
>
5
MENU
Adjusting display settings
External Controls
1
2
3
4
5
<
>
AUTO
If OSD is active, press to exit a selection in OSD. If OSD is
inactive, press and the monitor will automatically optimize the
position, focus and clock of your display.
MINUS
If OSD is active, press to select or adjust OSD options. If OSD is
inactive, press once, then press the buttons marked < or > to adjust
the volume.X
PLUS
If OSD is active, press to select or adjust OSD options. If OSD is
inactive, press once, then press the buttons marked < or > to adjust
the volume.Y
OSD
Function
POWER
Press to view OSD.
Press again to enter a selection in OSD.
Power on/off
Green: power on
Orange: in sleep mode
Notice: X & Y are only suitable for models with speakers.
5
OSD options
Please refer to "External Controls" on Page 5.
To adjust the OSD settings:
1. Press the MENU button to open the OSD menu. Press again to enter a selection of 10
functions on OSD.
2. Use the buttons marked < or >, to highlight a control, then adjust the control to the desired
level.
3. When you have finished making all selections, press the AUTO button to exit the OSD.
OSD Menu
Contrast:
This adjusts dark and light shades of color relative to each other to
achieve a comfortable contrast.
Brightness:
This adjusts the brightness of the picture on the screen.
Focus:
This removes any horizontal distortion and makes the picture clear and
sharp.
Clock:
If there are any vertical stripes seen on the background of the screen this
renders them less noticeable by minimizing their size. It also changes the
size of the horizontal screen.
H-Position:
This adjusts the horizontal.
V-Position:
This adjusts the vertical.
COLOR:
There are three ways of adjusting color:
Warm (Reddish white)
Cool (Bluish white)
User defined:
You can adjust the colors red, green and blue to the intensity you desire.
6
LANGUAGE:
Select the OSD menu language from
English, German, Spanish, Simplified Chinese, Traditional Chinese,
French, Italian, and Japanese.
OSD SETTING:
This changes the position of the OSD window on the screen and staying
time.
Auto Config:
System runs auto-configuration.
INFORMATION:
This shows brief information on the screen.
Reset:
Recall to default settings.
Exit:
Exit from OSD.
7
Troubleshooting
Problems
Possible Solutions
Power LED is not
ON
•
•
Check to see if the power switch is in the ON position.
Ensure that the Power Cord is connected.
No Picture
•
•
•
Check to see if the power switch is in the ON position.
Ensure that the Power Cord is connected.
Ensure the video cable is securely connected to the back of the monitor
and the computer.
Move the mouse or press any key on the keyboard to bring the monitor
out of "active off" mode.
•
Picture shows
inappropriate colors
•
Picture bounces or a •
wave pattern is
•
present in the
Image is not sized
or centered properly
•
•
See "Color Adjustment" to adjust RGB color or to select color
temperature.
Move or switch off electrical devices that may be causing interference.
Inspect the monitor's video cable and ensure that none of the pins are
bent.
Press select/auto key and the monitor will automatically optimize the
position of your display.
See "Position adjustment".
Caution: Do not attempt to service the monitor yourself or open the computer yourself.
Please refer all servicing to qualified service personnel if the problems cannot
be solved in "Troubleshooting" section.
8
General specifications
Item
LCD Panel
Display
Max resolution
Pixel Pitch
Color
Brightness
Contrast Ratio
Response Time
View Angle of Horizontal
View Angle of Vertical
External Controls
Power Button
Control Buttons
OSD Function
Contrast /Brightness
Focus/Clock
Position
Color
Language
OSD setting
Auto config
Information
Reset
Exit
Video Interface
Video
Sync
Audio (Optional)
Plug & Play
Power
Power Source
Power consumption during
normal operation
Power consumption during
active off operation
Dimension and Weight
Dimension (W×H×D)
Weight (Net/ Gross)
Specification
17-inch Flat panel active-matrix TFT LCD
SXGA 1280×1024 pixels
0.264 mm
16.2M
270 cd/m² (Typical)
450:1 (Typical)
4ms +12ms /16ms (Tr+Tf / typical)
75° / 75°
75° / 60°
ON/ OFF
Auto, <, >, MENU
Contrast / Brightness
Focus/Clock
Position
Color
Language
OSD Setting
Auto config
Information
Reset
Exit
Analog 0.7V
TTL (+/ -)
1W x 2
DDC2B
100~240V AC, 50/60 Hz
< 40W
< 1W
377 × 396 × 182 mm (with stand)
377 × 396 × 62 mm (without stand)
4.3 Kg/ 5.4Kg
9
