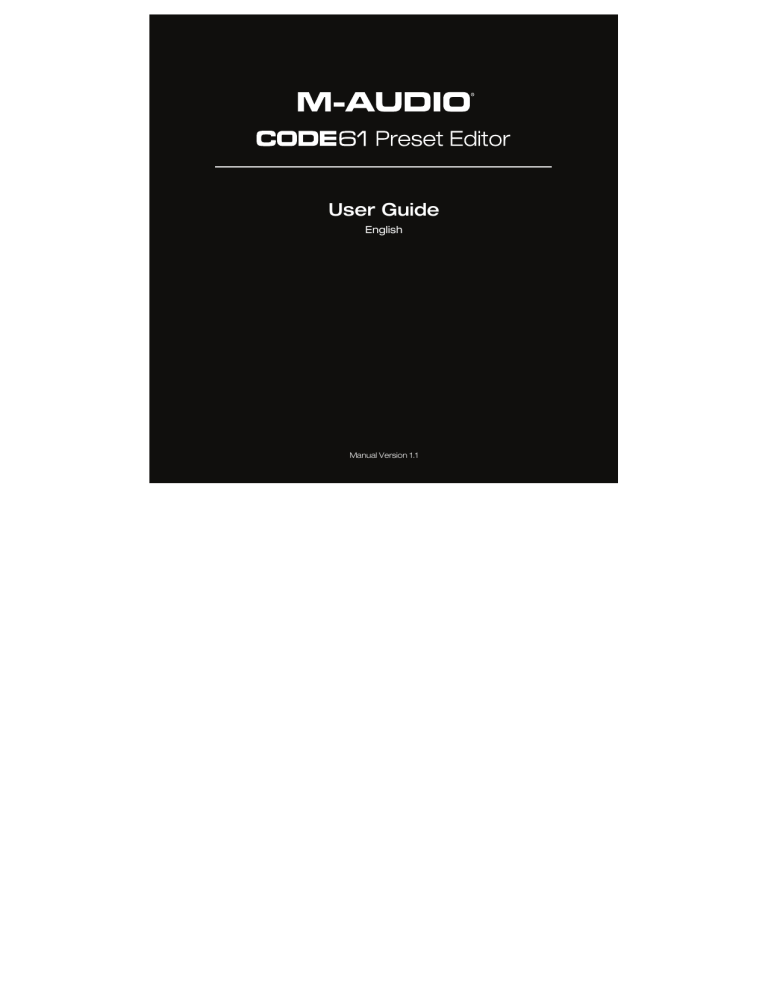

User Guide

English

Manual Version 1.1

Table of Contents

Introduction ....................................... 4

Editing the Controls ..................... 10

Information & Support ................... 4

Installation ..................................... 4

Operation .......................................... 5

Getting Started .............................. 5

Managing Your Presets ................. 6

About Presets ................................... 6

Loading & Retrieving Presets ........ 7

Saving Presets .................................. 8

Sending Presets ............................... 9

Overview .......................................... 10

Graphical User Interface .................... 10

Control Panel ....................................... 11

Encoders .......................................... 12

Faders ............................................... 17

Buttons ............................................ 22

MIDI ..................................................... 22

Colors .................................................. 33

HID ....................................................... 34

Pads ................................................. 36

MIDI ..................................................... 36

Colors .................................................. 47

Keybed ............................................ 48

2

Modulation & Pitch Wheels .......... 50

X-Y Pad ............................................ 54

MIDI ..................................................... 54

Note .................................................... 59

Sustain Pedal .................................. 60

Volume Pedal .................................. 68

Global Settings ............................ 73

Software Menus .......................... 75

File ..................................................... 75

Help .................................................. 75

Appendix ......................................... 76

Velocity Curves ............................ 76

Encoders ......................................... 76

Keybed ............................................ 77

Pads ................................................. 78

X-Y Pad ............................................ 79

Trademarks & Licenses .............. 80

3

Introduction

The Code 61 Editor software gives you a visual and intuitive way to edit the various MIDI messages that your Code 61 keyboard’s controls send to your computer.

Information & Support

For the latest information about this product (documentation, technical specifications, system requirements, compatibility information, etc.) and product registration, visit

m-audio.com

.

For additional product support, visit

m-audio.com

/

support

.

Installation

1.

Double-click the

.exe

(Windows

®

) or

.pkg

(Mac

®

OS X

®

) installer file you downloaded.

2.

Follow the on-screen instructions.

After the installation has completed, open the

Code 61 Preset Editor

by doing the following:

Windows:

Click the

Start Menu

, click

All Programs

, click the

M-Audio

folder, and then click

Code 61 Preset Editor

.

Mac OS X:

Double-click

Code 61 Preset Editor

in

Applications

.

4

Operation

Getting Started

To open the Code 61 Editor:

1.

Optional:

Connect your Code 61 keyboard to your computer using a standard USB cable.

(If you are connecting your keyboard to a USB hub, make sure it is a powered hub.) You can still use the editor without connecting a Code 61, but you will not be able to send presets to it or retrieve presets from it.

2.

Open the Code 61 Editor. The window will show a graphical representation of your Code

61 with all of its editable controls.

5

Managing Your Presets

About Presets

A preset is a preset file (

.Code61

) containing all of the assignments you make in the Editor.

This includes MIDI assignments, HID keystroke assignments, and color assignments. Using presets lets you maintain several different control configurations to use in different situations.

For instance, you may use different presets with different kinds of software, or you may use some presets for production and others for performance.

Your Code 61 keyboard can store

12

presets at a time. You can store additional presets on your computer to load onto your Code 61 keyboard with this editor.

This chapter explains how to load presets into the editor (

Loading & Retrieving Presets

), save presets onto your computer (

Saving Presets

), and send presets to your connected Code

61 keyboard (

Sending Presets

).

Note:

The current preset’s name is shown in the upper-right corner of the window. This is the name that appears in your Code 61 keyboard’s display when you load it. To change the name, click the field and enter a new name. Preset names can be 6 characters long and can include the following characters:

A

Z

,

0

9

,

[ ] / \ = _ ' .

and spaces.

6

Loading & Retrieving Presets

To edit a preset, you first have to load it into the Code 61 Editor. You can

load

a preset from your computer or

retrieve

a preset from your connected Code 61 keyboard.

Note:

The current preset’s name is shown in the upper-right corner of the window. This is the name that appears in your Code 61 keyboard’s display when you load it. To change the name, click the field and enter a new name. Preset names can be 6 characters long and can include the following characters:

A

Z

,

0

9

,

[ ] / \ = _ ' .

and spaces.

To load a preset from your computer,

do one of the following:

Click

File

and then click

Load Preset

.

Press

Ctrl

+

O

(Windows) or

Control

+

O

(Mac OS X).

After that, locate the desired preset file (

.Code61

), and click

Open

.

To retrieve a preset from your connected Code 61:

1.

Click

File

and then click

Retrieve Preset

. Alternatively, press

Ctrl

+

Shift

+

R

(Windows) or

Control

+

Shift

+

R

(Mac OS X).

2.

In the window that appears, click the drop-down menu to select the desired preset number (

Preset 1

12

) or the current settings of your Code 61 (

RAM

).

3.

Click

Get

to confirm your choice, or click the

X

in the upper-right corner to close the window and cancel the operation.

Important:

Editing this preset will not affect the preset stored on your Code 61. See

Sending

Presets

below to learn how to send the edited preset to your Code 61.

7

Saving Presets

Saving a preset on your computer lets you edit it or send it to your Code 61 in the future. All

MIDI assignments that you see in the editor will be saved in the preset.

Note:

The current preset’s name is shown in the upper-right corner of the window. This is the name that appears in your Code 61 keyboard’s display when you load it. To change the name, click the field and enter a new name. Preset names can be 6 characters long and can include the following characters:

A

Z

,

0

9

,

[ ] / \ = _ ' .

and spaces.

To save the preset,

do one of the following:

Click

File

and then click

Save Preset

.

Press

Ctrl

+

S

(Windows) or

Control

+

S

(Mac OS X).

If this is the first time you are saving the preset, select the desired location, enter a file name, and click

Save

. The preset will be saved as a

.Code61

file.

8

Sending Presets

Sending a preset to your connected Code 61 lets you transfer the preset from the editor to your Code 61 keyboard’s internal memory. All MIDI assignments that you see in the editor will be sent to your Code 61.

Note:

The current preset’s name is shown in the upper-right corner of the window. This is the name that appears in your Code 61 keyboard’s display when you load it. To change the name, click the field and enter a new name. Preset names can be 6 characters long and can include the following characters:

A

Z

,

0

9

,

[ ] / \ = _ ' .

and spaces.

To send a preset to your connected Code 61:

1.

Click

File

and then click

Send Preset

. Alternatively, press

Ctrl

+

Shift

+

S

(Windows) or

Control

+

Shift

+

S

(Mac OS X).

2.

In the window that appears, click the drop-down menu to select the desired preset number (

Preset 1

12

) or the current settings of your Code 61 (

RAM

).

3.

Click

Send

to confirm your choice, or click the

X

in the upper-right corner to close the window and cancel the operation. (Sending the preset will overwrite that preset number on your Code 61.)

9

Editing the Controls

Overview

Graphical User Interface

To edit the parameters for a type of control on your Code 61, click the desired control in the graphic of the Code 61 in the software window.

Click one of the types of controls to jump to that section of this User Guide.

Encoders

Pads

X-Y Pad

Faders

Buttons

Keybed

Modulation & Pitch Wheels

Sustain Pedal

Volume Pedal

10

Control Panel

The bottom part of the window is the

control panel

, which shows the available and current modes and parameters of the selected Code 61 control. Its name will appear in the upper-left corner of the control panel, and it will be highlighted in the graphical user interface above it, as well.

To select a button,

click it.

To use a drop-down menu,

click it to reveal the menu options, and then click an option to select it.

To use a value field,

do any of the following:

Click it and enter a number (

0

127

).

Click the up (

) or down (

) arrows next to the field.

Click it and then use your computer’s up (

) or down (

) keys.

To use a checkbox,

click it to check (enable) or uncheck (disable) it. (Doing so may reveal or hide additional parameters that you can set.)

11

Encoders

Click one of the encoders (

E1

E8

) to set the MIDI assignments for the corresponding

encoder

on your Code 61. Click one of the

Bank

buttons (

1

4

) at the top of the window to select another bank of encoders. You can assign the parameters for the encoders in MIDI Mode only.

Mode:

Click one of the 4 buttons to select the corresponding mode for the encoder. The parameters below will depend on your selection.

CC Absolute:

The encoder will send CC messages based on its current physical position.

CC Relative:

The encoder will send CC messages to increment or decrement the current value.

RPN

/

NRPN:

The encoder will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

).

Other:

The encoder will send a message for another type of command.

12

When set to

CC Absolute

, these are the available parameters:

CC:

The encoder will send its MIDI messages using this CC number.

Min:

The encoder’s minimum position will correspond with this value. You can reverse the encoder’s polarity by making this value larger than the

Max

value.

Max:

The encoder’s maximum position will correspond with this value. You can reverse the encoder’s polarity by making this value smaller than the

Min

value.

Chan:

The encoder will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

13

When set to

CC Relative

, these are the available parameters:

Type:

The encoder will increment or decrement the CC’s current value, depending on this setting. Select one of these options: o

Up

(

Type 1

) or

Up

(

Type 2

)

:

Turning the encoder clockwise increments the value.

Turning it counter-clockwise decrements the value. If your software does not respond to the (

Type 1

) setting, use the (

Type 2

) setting—or vice versa. o

Down

(

Type 1

) or

Down

(

Type 2

)

:

Turning the encoder clockwise decrements the value. Turning it counter-clockwise increments the value. If your software does not respond to the (

Type 1

) setting, use the (

Type 2

) setting—or vice versa.

CC:

The encoder will send its MIDI messages using this CC number.

Chan:

The encoder will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

14

When set to

RPN

/

NRPN

, these are the available parameters:

Type:

The encoder will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

), depending on this setting. Select one of these options: o

RPN Coarse

or

RPN Fine:

Turning the encoder adjusts the RPN coarsely or finely, respectively. o

NRPN Coarse

or

NRPN Fine:

Turning the encoder adjusts the NRPN coarsely or finely, respectively.

MSB:

The encoder will send this Most Significant Byte value when you turn it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN MSB. If

Type

is set to

NRPN

Coarse

or

NRPN Fine

, it will send the NRPN MSB.

LSB:

The encoder will send this Least Significant Byte value when you turn it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN LSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN LSB.

Chan:

The encoder will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

15

When set to

Other

, these are the available parameters:

Type:

The encoder will adjust this parameter when you turn it. Select one of these options:

Pitch Bend Sensitivity

(RPN),

Fine Tune

(RPN),

Coarse Tune

(RPN),

Channel Pressure

,

Master Volume

(SysEx),

Master Pan

(SysEx),

Coarse Tune

(SysEx),

Fine Tune

(SysEx),

Chorus Mod. Rate

(SysEx),

Chorus Mod. Depth

(SysEx),

Feedback

(SysEx),

Send to

Reverb

(SysEx), or

Pitch Bend

.

Min:

The encoder’s minimum position will correspond with this value. Click it and enter a number (

0

127

). You can reverse the encoder’s polarity by making this value larger than the

Max

value.

Max:

The encoder’s maximum position will correspond with this value. Click it and enter a number (

0

127

). You can reverse the encoder’s polarity by making this value smaller than the

Min

value.

Chan:

The encoder will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

16

Faders

Click one of the faders (

F1

F9

) to set the MIDI assignments for the corresponding

fader

on your Code 61. Click one of the

Bank

buttons (

1

4

) at the top of the window to select another bank of faders. You can assign the parameters for the fader in MIDI Mode only.

Mode:

Click one of the 4 buttons to select the corresponding mode for the fader. The parameters below will depend on your selection.

CC Absolute:

The fader will send CC messages based on its current physical position.

CC Relative:

The fader will send CC messages to increment or decrement the current value.

RPN

/

NRPN:

The fader will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

).

Other:

The fader will send a message for another type of command.

17

When set to

CC Absolute

, these are the available parameters:

CC:

The fader will send its MIDI messages using this CC number.

Min:

The fader’s minimum position will correspond with this value. You can reverse the fader’s polarity by making this value larger than the

Max

value.

Max:

The fader’s maximum position will correspond with this value. You can reverse the fader’s polarity by making this value smaller than the

Min

value.

Chan:

The fader will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

18

When set to

CC Relative

, these are the available parameters:

Type:

The fader will increment or decrement the CC’s current value, depending on this setting. Select one of these options: o

Up

(

Type 1

) or

Up

(

Type 2

)

:

Moving the fader up increments the value. Moving it down decrements the value. If your software does not respond to the (

Type 1

) setting, use the (

Type 2

) setting—or vice versa. o

Down

(

Type 1

) or

Down

(

Type 2

)

:

Moving the fader up decrements the value. Moving it down increments the value. If your software does not respond to the (

Type 1

) setting, use the (

Type 2

) setting—or vice versa.

CC:

The fader will send its MIDI messages using this CC number.

Chan:

The fader will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

19

When set to

RPN

/

NRPN

, these are the available parameters:

Type:

The fader will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

), depending on this setting. Select one of these options: o

RPN Coarse

or

RPN Fine:

Moving the fader adjusts the RPN coarsely or finely, respectively. o

NRPN Coarse

or

NRPN Fine:

Moving the fader adjusts the NRPN coarsely or finely, respectively.

MSB:

The fader will send this Most Significant Byte value when you move it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN MSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN MSB.

LSB:

The fader will send this Least Significant Byte value when you move it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN LSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN LSB.

Chan:

The fader will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

20

When set to

Other

, these are the available parameters:

Type:

The fader will adjust this parameter when you move it. Select one of these options:

Pitch Bend Sensitivity

(RPN),

Fine Tune

(RPN),

Coarse Tune

(RPN),

Channel Pressure

,

Master Volume

(SysEx),

Master Pan

(SysEx),

Coarse Tune

(SysEx),

Fine Tune

(SysEx),

Chorus Mod. Rate

(SysEx),

Chorus Mod. Depth

(SysEx),

Feedback

(SysEx),

Send to

Reverb

(SysEx), or

Pitch Bend

.

Min:

The fader’s minimum position will correspond with this value. You can reverse the fader’s polarity by making this value larger than the

Max

value.

Max:

The fader’s maximum position will correspond with this value. You can reverse the fader’s polarity by making this value smaller than the

Min

value.

Chan:

The fader will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

21

Buttons

Click one of the buttons (

B1

B9

) to set the MIDI assignments for the corresponding

button

on your Code 61. Click one of the

Bank

buttons (

1

4

) at the top of the window to select another bank of buttons. You can assign the parameters for the buttons in

MIDI Mode

or

HID Mode

as

well as the buttons’

Colors

.

MIDI

Mode:

Click this menu and select one of the following options. The parameters below will depend on your selection.

Note:

The button will send MIDI note messages.

MMC:

The button will send MMC (MIDI Machine Control) messages. MMC is a transport control protocol that is used to remotely control some recording hardware and DAWs.

Program:

The button will send a combined program number, Bank LSB, and Bank MSB number. This can be useful for selecting a preset from a specific bank of a virtual instrument or synthesizer (the instrument or synthesizer must support these messages).

Program Cycle:

The button will cycle through 2, 3, or 4 program numbers each time you press it.

22

Program Inc

/

Dec:

The button will increment/decrement the program number by

1

each time you press it. After it reaches its highest or lowest program, it will “wrap around” and start again at its lowest or highest program, respectively. In other words, pressing the button causes the value to cycle through its entire range by increments of 1.

CC Absolute:

The button will send MIDI CC messages with a “pressed” value and a

“released” value.

CC Cycle:

The button will cycle through 2, 3, or 4 MIDI CC values each time you press it.

CC Inc

/

Dec:

The button will increment/decrement a MIDI CC value by

1

each time you press it. After it reaches its highest or lowest value, it will “wrap around” and start again at its lowest or highest value, respectively. In other words, pressing the button causes the value to cycle through its entire range by increments of 1.

RPN

/

NRPN:

The button will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

).

Other:

The button will send a message for another type of command.

23

When set to

Note

, these are the available parameters:

Note:

The button will send this MIDI note number when you press it.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

Latch:

When Latch is enabled, the button will send one value when pressed and a different value when pressed a second time, alternating between the two values with each press (“latching” or “toggle” behavior). When Latch is disabled, the button will send one value when pressed and one value when released (“momentary” behavior).

On:

The button will send the MIDI note number with this velocity when you press it to turn it on.

Off:

The button will send the MIDI note number with this velocity when you press it to turn it off. This value will usually be

0

(to turn the note off).

24

When set to

MMC

, these are the available parameters:

MMC:

The button will send this MMC message when you press it. Select

Stop

,

Play

,

Deferred Play

,

Fast-Forward

,

Rewind

,

Record Strobe

(Punch In),

Record Exit

(Punch

Out),

Record Pause

,

Pause

,

Eject

,

Chase

, or

MMC Reset

.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

When set to

Program

, these are the available parameters:

Program:

The button will send this program number when you press it.

MSB:

The button will send this Bank MSB (Most Significant Byte) number when you press it.

LSB:

The button will send this Bank LSB (Least Significant Byte) number when you press it.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

25

When set to

Program Cycle

, these are the available parameters:

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

Type:

The button will cycle through this many program numbers (one at a time) when you press it:

2 Values

,

3 Values

, or

4 Values

.

First

&

Last:

The button will send these program numbers when you press it, one at a time, cycling through them with each press.

If

Type

is set to

3 Values

or

4 Values

, use the

Value 2

and

Value 3

fields to select additional program numbers.

26

When set to

Program Inc

/

Dec

, these are the available parameters:

Type:

The button will send the next (

Increment

) or previous (

Decrement

) program number in the range of programs when you press it.

Min:

The lowest program in the range of programs will correspond with this value.

Max:

The highest program in the range of programs will correspond with this value.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

27

When set to

CC Absolute

, these are the available parameters:

CC:

The button will send its MIDI messages using this CC number.

Down:

The button will send the MIDI CC number with this value when you press it.

Up:

The button will send the MIDI CC number with this value when you release it.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

28

When set to

CC Cycle

, these are the available parameters:

CC:

The button will send its MIDI messages using this CC number.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

Type:

The button will cycle through this many values with the CC number (one at a time) when you press it:

2 Values

,

3 Values

, or

4 Values

.

First

&

Last:

The button will send these values with the CC number when you press it, one at a time, cycling through them with each press.

If

Type

is set to

3 Values

or

4 Values

, use the

Value 2

and

Value 3

fields to select additional values.

29

When set to

CC Inc

/

Dec

, these are the available parameters:

Type:

The button will send the next (

Increment

) or previous (

Decrement

) value number in the range of values when you press it.

CC:

The button will send its MIDI messages using this CC number.

Min:

The lowest value in the range of values will correspond with this value.

Max:

The highest value in the range of values will correspond with this value.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

30

When set to

RPN

/

NRPN

, these are the available parameters:

Type:

The button will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

), depending on this setting. Select one of these options: o

RPN Coarse

or

RPN Fine:

Pressing the button adjusts the RPN coarsely or finely, respectively. o

NRPN Coarse

or

NRPN Fine:

Pressing the button adjusts the NRPN coarsely or finely, respectively.

MSB:

The button will send this Most Significant Byte value when you press it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN MSB. If

Type

is set to

NRPN

Coarse

or

NRPN Fine

, it will send the NRPN MSB.

LSB:

The button will send this Least Significant Byte value when you press it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN LSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN LSB.

Value:

The button will send this value with the RPN or NRPN when you press it.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

31

When set to

Other

, these are the available parameters:

Type:

The button will send a value for this parameter when you press it. Select one of these options:

Pitch Bend Sensitivity

(RPN),

Fine Tune

(RPN),

Coarse Tune

(RPN),

Channel Pressure

,

Master Volume

(SysEx),

Master Pan

(SysEx),

Coarse Tune

(SysEx),

Fine Tune

(SysEx),

Chorus Mod. Rate

(SysEx),

Chorus Mod. Depth

(SysEx),

Feedback

(SysEx),

Send to Reverb

(SysEx),

Pitch Bend

,

Reverb Type

(SysEx),

Reverb Time

(SysEx), or

Chorus Type

(SysEx).

Value:

The button will send this value for the parameter when you press it.

Chan:

The button will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

32

Colors

Each button can have a set of colors assigned to it, making it easier to distinguish between their different functions, notes, etc. Each button can use up to 4 colors, depending on its function.

0 Off

1 Green

Use the 5

Color

drop-down menus to select the color for each button state. The fifth drop-down menu corresponds to its color in HID Mode. (All

4 drop-down menus will be shown even if the button uses only 2 or 3 states.)

2 Cyan

3 Blue

Tip:

Press

Shift

and click a

button

to cycle through its colors.

33

HID

The HID (human interface device) protocol lets devices send standard computer keyboard keystrokes. USB game controllers are an example of this, acting as an alternative to your computer’s keyboard. Your Code 61 keyboard’s assignable

buttons

can also use the HID protocol, letting you configure certain buttons to send your most-often used keystrokes to your software (for example,

Control

+

C

to copy).

Use the

Key

drop-down menu to select the keystroke the button will send:

Off Up

0

9 Down

A

Z Left

Space Right

F1

F12 Tab Esc

Backspace

Enter

34

Use the

Mod Key

drop-down menu to select the modifier the button will send:

Off Shift

Mac OS X Modifiers

Shift

Control

Window

Control

Control

Alt Option

Shift

+

Control Shift

+

Control

Shift

+

Window Shift

+

Option

Shift

+

Alt Shift

+

Control

Control

+

Window Control

+

Control

Control

+

Alt Control

+

Option

Window

+

Alt Control

+

Option

Shift

+

Control

+

Window Shift

+

Control

+

Control

Shift

+

Control

+

Alt Shift

+

Control

+

Option

Shift

+

Window

+

Alt Shift

+

Option

+

Control

Control

+

Window

+

Alt Control

+

Control

+

Option

35

Pads

Click one of the pads (

P1

P16

) to set the MIDI assignments for the corresponding

pad

on your Code 61. You can assign the parameters for the pads in

MIDI Mode

as well as

the pads’

Colors

.

MIDI

Mode:

Click this menu and select one of the following options. The parameters below will depend on your selection.

Note:

The pad will send MIDI note messages.

MMC:

The pad will send MMC (MIDI Machine Control) messages. MMC is a transport control protocol that is used to remotely control some recording hardware and DAWs.

Program:

The pad will send a combined program number, Bank LSB, and Bank MSB number. This can be useful for selecting a preset from a specific bank of a virtual instrument or synthesizer (the instrument or synthesizer must support these messages).

Program Cycle:

The pad will cycle through 2, 3, or 4 program numbers each time you press it.

36

Program Inc

/

Dec:

The pad will increment/decrement the program number by

1

each time you press it. After it reaches its highest or lowest program, it will “wrap around” and start again at its lowest or highest program, respectively. In other words, pressing the pad causes the value to cycle through its entire range by increments of 1.

CC Absolute:

The pad will send MIDI CC messages with a “pressed” value and a

“released” value.

CC Cycle:

The pad will cycle through 2, 3, or 4 MIDI CC values each time you press it.

CC Inc

/

Dec:

The pad will increment/decrement a MIDI CC value by

1

each time you press it. After it reaches its highest or lowest value, it will “wrap around” and start again at its lowest or highest value, respectively. In other words, pressing the pad causes the value to cycle through its entire range by increments of 1.

RPN

/

NRPN:

The pad will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

).

Other:

The pad will send a message for another type of command.

37

When set to

Note

, these are the available parameters:

Note:

The pad will send this MIDI note number when you press it.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

Latch:

When Latch is enabled, the pad will send one value when pressed and a different value when pressed a second time, alternating between the two values with each press

(“latching” or “toggle” behavior). When Latch is disabled, the pads will send one value when pressed and one value when released (“momentary” behavior).

On

(available if

Latch

is enabled)

:

The pad will send the MIDI note number with this velocity when you press it to turn it on.

Off

(available if

Latch

is enabled)

:

The pad will send the MIDI note number with this velocity when you press it to turn it off. This value will usually be

0

(to turn the note off).

38

When set to

MMC

, these are the available parameters:

MMC:

The pad will send this MMC message when you press it. Select

Stop

,

Play

,

Deferred Play

,

Fast-Forward

,

Rewind

,

Record Strobe

(Punch In),

Record Exit

(Punch

Out),

Record Pause

,

Pause

,

Eject

,

Chase

, or

MMC Reset

.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

When set to

Program

, these are the available parameters:

Program:

The pad will send this program number when you press it.

MSB:

The pad will send this Bank MSB (Most Significant Byte) number when you press it.

LSB:

The pad will send this Bank LSB (Least Significant Byte) number when you press it.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

39

When set to

Program Cycle

, these are the available parameters:

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

Type:

The pad will cycle through this many program numbers (one at a time) when you press it:

2 Values

,

3 Values

, or

4 Values

.

First

&

Last:

The pad will send these program numbers when you press it, one at a time, cycling through them with each press.

If

Type

is set to

3 Values

or

4 Values

, use the

Value 2

and

Value 3

fields to select additional program numbers.

40

When set to

Program Inc

/

Dec

, these are the available parameters:

Type:

The pad will send the next (

Increment

) or previous (

Decrement

) program number in the range of programs when you press it.

Min:

The lowest program in the range of programs will correspond with this value.

Max:

The highest program in the range of programs will correspond with this value.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

41

When set to

CC Absolute

, these are the available parameters:

CC:

The pad will send its MIDI messages using this CC number.

Down:

The pad will send the MIDI CC number with this value when you press it.

Up:

The pad will send the MIDI CC number with this value when you release it.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

42

When set to

CC Cycle

, these are the available parameters:

CC:

The pad will send its MIDI messages using this CC number.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

Type:

The pad will cycle through this many values with the CC number (one at a time) when you press it:

2 Values

,

3 Values

, or

4 Values

.

First

&

Last:

The pad will send these values with the CC number when you press it, one at a time, cycling through them with each press.

If

Type

is set to

3 Values

or

4 Values

, use the

Value 2

and

Value 3

fields to select additional values.

43

When set to

CC Inc

/

Dec

, these are the available parameters:

Type:

The pad will send the next (

Increment

) or previous (

Decrement

) value number in the range of values when you press it.

CC:

The pad will send its MIDI messages using this CC number.

Min:

The lowest value in the range of values will correspond with this value.

Max:

The highest value in the range of values will correspond with this value.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

44

When set to

RPN

/

NRPN

, these are the available parameters:

Type:

The pad will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

), depending on this setting. Select one of these options: o

RPN Coarse

or

RPN Fine:

Pressing the pad adjusts the RPN coarsely or finely, respectively. o

NRPN Coarse

or

NRPN Fine:

Pressing the pad adjusts the NRPN coarsely or finely, respectively.

MSB:

The pad will send this Most Significant Byte value when you press it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN MSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN MSB.

LSB:

The pad will send this Least Significant Byte value when you press it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN LSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN LSB.

Value:

The pad will send this value with the RPN or NRPN when you press it.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

45

When set to

Other

, these are the available parameters:

Type:

The pad will send a value for this parameter when you press it. Select one of these options:

Pitch Bend Sensitivity

(RPN),

Fine Tune

(RPN),

Coarse Tune

(RPN),

Channel

Pressure

,

Master Volume

(SysEx),

Master Pan

(SysEx),

Coarse Tune

(SysEx),

Fine Tune

(SysEx),

Chorus Mod. Rate

(SysEx),

Chorus Mod. Depth

(SysEx),

Feedback

(SysEx),

Send to Reverb

(SysEx),

Pitch Bend

,

Reverb Type

(SysEx),

Reverb Time

(SysEx), or

Chorus Type

(SysEx).

Value:

The pad will send this value for the parameter when you press it.

Chan:

The pad will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

46

Colors

Each pad can have a set of colors assigned to it, making it easier to distinguish between their different functions, notes, etc. Each pad can use up to 4 colors, depending on its function.

0 Off

1 Chartreuse 8 Magenta

2 Green

Use the 4

Color

drop-down menus to select the color for each pad state. (All 4 drop-down menus will be shown even if the pad uses only

2 or 3 states.)

3 Aquamarine 10 Red

4 Cyan

5 Azure 12 Yellow

6 Blue 13 White

Tip:

Press

Shift

and click a

pad

to cycle through its colors.

47

Keybed

The

keybed

(the piano keys) on your Code 61 can be divided into 1–4 “zones.” When zones are active (when the

Zone

button and one or more

Zone 1

4

buttons are lit), each zone can send its controls’ MIDI messages over its own MIDI channel. You can assign the parameters for the keybed/zones in MIDI Mode only.

Tip:

This feature is great for dividing your Code keyboard between different virtual instruments or synthesizers. For example, you can create two zones, each using a different MIDI channel, and play and control two virtual instruments simultaneously—one with each half of the keys.

Click one of the

Zone 1

4

piano keys to set the MIDI assignments for the corresponding zone on your Code 61. All 4 zones have the same parameters, which you can set independently.

These are the available parameters:

On

/

Off:

When this box is checked, the zone on your Code 61 keyboard will be active.

When this box is unchecked, the zone on your Code 61 keyboard will be inactive.

First:

The zone’s lowest key will correspond with this note.

Last:

The zone’s highest key will correspond with this note.

48

Octave:

The zone’s keys will send their notes using this octave shift (from their original position on the keybed).

Note:

The zone octave and transposition are independent from the keyboard’s overall octave and transposition, but all of these affect the note a key sends out.

Transpose:

The zone’s keys will send their notes using this transposition (from their original position on the keybed).

Note:

The zone octave and transposition are independent from the keyboard’s overall octave and transposition, but all of these affect the note a key sends out.

Program:

The zone will send this program number when you press a key in it.

MSB:

The zone will send this Bank MSB (Most Significant Byte) number when you press a key in it.

LSB:

The zone will send this Bank LSB (Least Significant Byte) number when you press a key in it.

Chan:

The zone will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

Note:

Any other controls whose

Chan

settings are set to this zone will send their messages using this channel, as well.

49

Modulation & Pitch Wheels

Click the

modulation wheel

(the left wheel) or the

pitch-bend wheel

(the right wheel) to set the MIDI assignments for the corresponding

wheel

on your Code

61. You can assign the parameters for the modulation wheel and pitch wheel in

MIDI Mode only.

Mode:

Click one of the 4 buttons to select the corresponding mode for the wheel. The parameters below will depend on your selection.

CC Absolute:

The wheel will send CC messages based on its current physical position.

RPN

/

NRPN:

The wheel will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

).

Other:

The wheel will send a message for another type of command.

50

When set to

CC Absolute

, these are the available parameters:

CC:

The wheel will send its MIDI messages using this CC number.

Min:

The wheel’s minimum position will correspond with this value. You can reverse the wheel’s polarity by making this value larger than the

Max

value.

Max:

The wheel’s maximum position will correspond with this value. You can reverse the wheel’s polarity by making this value smaller than the

Min

value.

Chan:

The wheel will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

51

When set to

RPN

/

NRPN

, these are the available parameters:

Type:

The wheel will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

), depending on this setting. Select one of these options: o

RPN Coarse

or

RPN Fine:

Moving the wheel adjusts the RPN coarsely or finely, respectively. o

NRPN Coarse

or

NRPN Fine:

Moving the wheel adjusts the NRPN coarsely or finely, respectively.

MSB:

The wheel will send this Most Significant Byte value when you move it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN MSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN MSB.

LSB:

The wheel will send this Least Significant Byte value when you move it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN LSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN LSB.

Chan:

The wheel will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

52

When set to

Other

, these are the available parameters:

Type:

The wheel will adjust this parameter when you move it. Select one of these options:

Pitch Bend Sensitivity

(RPN),

Fine Tune

(RPN),

Coarse Tune

(RPN),

Channel Pressure

,

Master Volume

(SysEx),

Master Pan

(SysEx),

Coarse Tune

(SysEx),

Fine Tune

(SysEx),

Chorus Mod. Rate

(SysEx),

Chorus Mod. Depth

(SysEx),

Feedback

(SysEx),

Send to

Reverb

(SysEx), or

Pitch Bend

.

Min:

The wheel’s minimum position will correspond with this value. You can reverse the wheel’s polarity by making this value larger than the

Max

value.

Max:

The wheel’s maximum position will correspond with this value. You can reverse the wheel’s polarity by making this value smaller than the

Min

value.

Chan:

The wheel will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

53

X-Y Pad

Click

X

or

Y

in the X-Y pad to set the MIDI assignments for the corresponding axis of the

X-Y pad

on your Code 61. You can assign the parameters for the

X-Y pad in

MIDI Mode

and

Note Mode

.

MIDI

Mode:

Click one of the 4 buttons to select the corresponding mode for the axis. The parameters below will depend on your selection.

CC Absolute:

The axis will send CC messages based on the current physical position of your finger on it.

CC Relative:

The axis will send CC messages to increment or decrement the current value.

RPN

/

NRPN:

The axis will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

).

Other:

The axis will send a message for another type of command.

54

When set to

CC Absolute

, these are the available parameters:

CC:

The axis will send its MIDI messages using this CC number.

Min:

The axis’s minimum position will correspond with this value. You can reverse the axis’s polarity by making this value larger than the

Max

value.

Max:

The axis’s maximum position will correspond with this value. You can reverse the axis’s polarity by making this value smaller than the

Min

value.

Chan:

The axis will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

55

When set to

CC Relative

, these are the available parameters:

Type:

The axis will increment or decrement the CC’s current value, depending on this setting. Select one of these options: o

Up

(

Type 1

) or

Up

(

Type 2

)

:

Moving your finger up along the axis increments the value.

Moving it down decrements the value. If your software does not respond to the (

Type

1

) setting, use the (

Type 2

) setting—or vice versa. o

Down

(

Type 1

) or

Down

(

Type 2

)

:

Moving your finger up along the axis decrements the value. Moving it down increments the value. If your software does not respond to the (

Type 1

) setting, use the (

Type 2

) setting—or vice versa.

CC:

The axis will send its MIDI messages using this CC number.

Chan:

The axis will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

56

When set to

RPN

/

NRPN

, these are the available parameters:

Type:

The axis will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

), depending on this setting. Select one of these options: o

RPN Coarse

or

RPN Fine:

Moving your finger along the axis adjusts the RPN coarsely or finely, respectively. o

NRPN Coarse

or

NRPN Fine:

Moving your finger along the axis adjusts the NRPN coarsely or finely, respectively.

MSB:

The axis will send this Most Significant Byte value when you move your finger along it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN MSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN MSB.

LSB:

The axis will send this Least Significant Byte value when you move your finger along it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN LSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN LSB.

Chan:

The axis will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

57

When set to

Other

, these are the available parameters:

Type:

The axis will adjust this parameter when you move it. Select one of these options:

Pitch Bend Sensitivity

(RPN),

Fine Tune

(RPN),

Coarse Tune

(RPN),

Channel Pressure

,

Master Volume

(SysEx),

Master Pan

(SysEx),

Coarse Tune

(SysEx),

Fine Tune

(SysEx),

Chorus Mod. Rate

(SysEx),

Chorus Mod. Depth

(SysEx),

Feedback

(SysEx),

Send to

Reverb

(SysEx), or

Pitch Bend

.

Min:

The axis’s minimum position will correspond with this value. You can reverse the axis’s polarity by making this value larger than the

Max

value.

Max:

The axis’s maximum position will correspond with this value. You can reverse the axis’s polarity by making this value smaller than the

Min

value.

Chan:

The axis will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

58

Note

When an axis of the

X-Y pad

is in MIDI Note Mode, you can move your finger along it to send a range of MIDI notes.

These are the available parameters:

Type:

The length of the entire axis will be divided into this many segments of equal size:

3

8 Notes

or a range of notes that you select.

First:

The axis’s minimum position will correspond with this MIDI note. If

Type

is set to

Range

, you can reverse the axis’s polarity by making this value larger than the

Max

value.

Last:

The axis’s maximum position will correspond with this MIDI note. If

Type

is set to

Range

, you can reverse the axis’s polarity by making this value smaller than the

Min

value.

Note 2

7:

These 1–6 additional fields let you assign notes between the first and last notes.

Scale:

When using all 3–8 notes, use this menu to select a scale; all 3–8 notes will then be automatically set to ascending note values of the selected scale. You can shift the entire scale up or down by changing its root note (

First

). Select

Off

to disable this feature and select the notes manually.

59

Sustain Pedal

Click the sustain pedal (just under the encoders) to set the MIDI assignments for the

sustain pedal

on your Code 61. You can assign the parameters for the sustain pedal in MIDI Mode only.

Mode:

Click this menu and select one of the following options. The parameters below will depend on your selection.

Note:

The pedal will send MIDI note messages.

MMC:

The pedal will send MMC (MIDI Machine Control) messages. MMC is a transport control protocol that is used to remotely control some recording hardware and DAWs.

Program:

The pedal will send a combined program number, Bank LSB, and Bank MSB number. This can be useful for selecting a preset from a specific bank of a virtual instrument or synthesizer (the instrument or synthesizer must support these messages).

Program Inc

/

Dec:

The pedal will increment/decrement the program number by

1

each time you press it. After it reaches its highest or lowest program, it will “wrap around” and start again at its lowest or highest program, respectively. In other words, pressing the pedal causes the value to cycle through its entire range by increments of 1.

CC Absolute:

The pedal will send a CC message with one value when you press it to turn it on and another value when you press it to turn it off. The values will alternate with each press.

CC Inc

/

Dec:

The pedal will increment/decrement a MIDI CC value by

1

each time you press it. After it reaches its highest or lowest value, it will “wrap around” and start again at its lowest or highest value, respectively. In other words, pressing the pedal causes the value to cycle through its entire range by increments of 1.

60

RPN

/

NRPN:

The pedal will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

).

Other:

The pedal will send a message for another type of command.

When set to

Note

, these are the available parameters:

Note:

The pedal will send this MIDI note number when you press it.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

Latch:

When Latch is enabled, the pedal will send one value when pressed and a different value when pressed a second time, alternating between the two values with each press

(“latching” or “toggle” behavior). When Latch is disabled, the pedal will send one value when pressed and one value when released (“momentary” behavior).

On:

The pedal will send the MIDI note number with this velocity when you press it to turn it on.

Off:

The pedal will send the MIDI note number with this velocity when you press it to turn it off. This value will usually be

0

(to turn the note off).

61

When set to

MMC

, these are the available parameters:

MMC:

The pedal will send this MMC message when you press it. Select

Stop

,

Play

,

Deferred Play

,

Fast-Forward

,

Rewind

,

Record Strobe

(Punch In),

Record Exit

(Punch

Out),

Record Pause

,

Pause

,

Eject

,

Chase

, or

MMC Reset

.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

When set to

Program

, these are the available parameters:

Program:

The pedal will send this program number when you press it.

MSB:

The pedal will send this Bank MSB (Most Significant Byte) number when you press it.

LSB:

The pedal will send this Bank LSB (Least Significant Byte) number when you press it.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

62

When set to

Program Inc

/

Dec

, these are the available parameters:

Type:

The pedal will send the next (

Increment

) or previous (

Decrement

) program number in the range of programs when you press it.

Min:

The lowest program in the range of programs will correspond with this value.

Max:

The highest program in the range of programs will correspond with this value.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

63

When set to

CC Absolute

, these are the available parameters:

CC:

The pedal will send its MIDI messages using this CC number.

Down:

The pedal will send the MIDI CC number with this value when you press it.

Up:

The pedal will send the MIDI CC number with this value when you release it.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

64

When set to

CC Inc

/

Dec

, these are the available parameters:

Type:

The pedal will send the next (

Increment

) or previous (

Decrement

) value number in the range of values when you press it.

CC:

The pedal will send its MIDI messages using this CC number.

Min:

The lowest value in the range of values will correspond with this value.

Max:

The highest value in the range of values will correspond with this value.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

65

When set to

RPN

/

NRPN

, these are the available parameters:

Type:

The pedal will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

), depending on this setting. Select one of these options: o

RPN Coarse

or

RPN Fine:

Pressing the pedal adjusts the RPN coarsely or finely, respectively. o

NRPN Coarse

or

NRPN Fine:

Pressing the pedal adjusts the NRPN coarsely or finely, respectively.

MSB:

The pedal will send this Most Significant Byte value when you press it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN MSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN MSB.

LSB:

The pedal will send this Least Significant Byte value when you press it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN LSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN LSB.

Value:

The pedal will send this value with the RPN or NRPN when you press it.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

66

When set to

Other

, these are the available parameters:

Type:

The pedal will send a value for this parameter when you press it. Select one of these options:

Pitch Bend Sensitivity

(RPN),

Fine Tune

(RPN),

Coarse Tune

(RPN),

Channel

Pressure

,

Master Volume

(SysEx),

Master Pan

(SysEx),

Coarse Tune

(SysEx),

Fine Tune

(SysEx),

Chorus Mod. Rate

(SysEx),

Chorus Mod. Depth

(SysEx),

Feedback

(SysEx),

Send to Reverb

(SysEx),

Pitch Bend

,

Reverb Type

(SysEx),

Reverb Time

(SysEx), or

Chorus Type

(SysEx).

Value:

The pedal will send this value for the parameter when you press it.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

67

Volume Pedal

Click the volume pedal (in the lower-right corner) to set the MIDI assignments for the

volume pedal

on your Code 61. You can assign the parameters for the volume pedal in MIDI Mode only.

Mode:

Click this menu and select one of the following options. The parameters below will depend on your selection.

CC Absolute:

The pedal will send CC messages based on its current physical position.

CC Relative:

The pedal will send CC messages to increment or decrement the current value.

RPN

/

NRPN:

The pedal will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

).

Other:

The pedal will send a message for another type of command.

68

When set to

CC Absolute

, these are the available parameters:

CC:

The pedal will send its MIDI messages using this CC number.

Min:

The pedal’s minimum position will correspond with this value. You can reverse the pedal’s polarity by making this value larger than the

Max

value.

Max:

The pedal’s maximum position will correspond with this value. You can reverse the pedal’s polarity by making this value smaller than the

Min

value.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

69

When set to

CC Relative

, these are the available parameters:

Type:

The pedal will increment or decrement the CC’s current value, depending on this setting. Select one of these options: o

Up

(

Type 1

) or

Up

(

Type 2

)

:

Moving the pedal up increments the value. Moving it down decrements the value. If your software does not respond to the (

Type 1

) setting, use the (

Type 2

) setting—or vice versa. o

Down

(

Type 1

) or

Down

(

Type 2

)

:

Moving the pedal up decrements the value. Moving it down increments the value. If your software does not respond to the (

Type 1

) setting, use the (

Type 2

) setting—or vice versa.

CC:

The fader will send its MIDI messages using this CC number.

Chan:

The fader will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

70

When set to

RPN

/

NRPN

, these are the available parameters:

Type:

The pedal will send a registered parameter number (

RPN

) or non-registered parameter number (

NRPN

), depending on this setting. Select one of these options: o

RPN Coarse

or

RPN Fine:

Moving the pedal adjusts the RPN coarsely or finely, respectively. o

NRPN Coarse

or

NRPN Fine:

Moving the pedal adjusts the NRPN coarsely or finely, respectively.

MSB:

The pedal will send this Most Significant Byte value when you press it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN MSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN MSB.

LSB:

The pedal will send this Least Significant Byte value when you press it. If

Type

is set to

RPN Coarse

or

RPN Fine

, it will send the RPN LSB. If

Type

is set to

NRPN Coarse

or

NRPN Fine

, it will send the NRPN LSB.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

71

When set to

Other

, these are the available parameters:

Type:

The pedal will adjust this parameter when you move it. Select one of these options:

Pitch Bend Sensitivity

(RPN),

Fine Tune

(RPN),

Coarse Tune

(RPN),

Channel Pressure

,

Master Volume

(SysEx),

Master Pan

(SysEx),

Coarse Tune

(SysEx),

Fine Tune

(SysEx),

Chorus Mod. Rate

(SysEx),

Chorus Mod. Depth

(SysEx),

Feedback

(SysEx),

Send to

Reverb

(SysEx), or

Pitch Bend

.

Min:

The pedal’s minimum position will correspond with this value. You can reverse the pedal’s polarity by making this value larger than the

Max

value.

Max:

The pedal’s maximum position will correspond with this value. You can reverse the pedal’s polarity by making this value smaller than the

Min

value.

Chan:

The pedal will send its messages over this channel. Select the global channel

(

Global

), a specific channel (

Channel 1

16

), a zone (

Zone 1

4

), or all channels (

Omni

).

72

Global Settings

The Global Settings affect the overall operation of your

Code 61 keyboard, regardless of the current preset.

To open Global Settings,

click

File

and then click

Global Settings

.

To send the global settings to your connected

Code 61,

click

Send Settings

.

To retrieve the global settings from your connected

Code 61,

click

Get Settings

.

These are the available settings:

Channel:

This menu lets you set the global channel (

Channel 1

16

). Any other controls or zones whose

Chan

settings are set to

Global

will send their messages using this channel.

XY Pad Curve:

This field determines the velocities of the notes the

X-Y pad

sends as you move your finger across it. This setting affects the X-Y pad in MIDI Note Mode only. See

Appendix

>

Velocity Curves

>

X-Y Pad

for descriptions of the different settings.

Mackie Control

/

HUI:

This menu determines whether the

faders

,

buttons

, and

encoders

can be set to Mackie Control Mode (

Mackie Control

) or HUI Mode (

HUI

).

When set to

Mackie Control

, you can use the

Fader Mode

,

Button Mode

, and/or

Encoder

Mode

buttons to set the

faders

,

buttons

, and/or

encoders

Mackie Control Mode.

When set to

HUI

, you can use the

Fader Mode

,

Button Mode

, and/or

Encoder Mode

buttons to set the

faders

,

buttons

, and/or

encoders

HUI Mode.

73

Key Octave:

This field determines the current octave shift of the entire

keybed

(

-3

to

4

).

Note:

The keyboard’s overall octave and transposition are independent from the zones’ octaves and transpositions, but all of these affect the note a key sends out.

Key Transpose:

This field determines the current transposition of the entire

keybed

(

-12

to

12

).

Note:

The keyboard’s overall octave and transposition are independent from the zones’ octaves and transpositions, but all of these affect the note a key sends out.

Key Curve:

This field determines the velocity sensitivity of the

keybed

—the amount of

force required to generate a note with a specific velocity. See

Appendix

>

Velocity

Curves

>

Keybed

for descriptions of the different settings.

Pad Octave:

This field determines the current octave shift of the

pads

(

-5

to

5

).

Pad Transpose:

This field determines the current transposition of the

pads

(

-12

to

12

).

Pad Curve:

This field determines the velocity sensitivity of the

pads

—the amount of force

required to generate a note with a specific velocity. See

Appendix

>

Velocity Curves

>

Pads

for descriptions of the different settings.

Encoder Curve:

This field determines the rate of acceleration as you turn an encoder. See

Appendix

>

Velocity Curves

>

Encoders

for descriptions of the different settings.

Program:

This field determines the number of the program change message that will be sent when you click

Send Settings

.

MSB:

This field determines the number of the Bank MSB (Most Significant Byte) message that will be sent when you click

Send Settings

.

Note:

A Bank LSB or Bank MSB number may not have any effect until you send a program change message after it.

LSB:

This field determines the number of the Bank LSB (Least Significant Byte) message that will be sent when you click

Send Settings

.

Note:

A Bank LSB or Bank MSB number may not have any effect until you send a program change message after it.

74

Software Menus

File

Send Preset

Select this to export the current settings from the Code 61 Editor to your connected Code 61 keyboard. Alternatively, press

Ctrl

+

Shift

+

S

(Windows) or

Control

+

Shift

+

S

(Mac OS X).

Retrieve Preset

Select this to import the current settings from your connected Code 61 keyboard into the Code 61 Editor. Alternatively, press

Ctrl

+

Shift

+

R

(Windows) or

Control

+

Shift

+

R

(Mac OS X).

Load Preset

Select this to locate and load a preset file (

.Code61

) on your computer to the

Code 61 Editor. Alternatively, press

Ctrl

+

O

(Windows) or

Control

+

O

(Mac OS X).

Save Preset

Select this to save the Code 61 Editor’s current settings to your computer as a preset file (

.Code61

). Alternatively, press

Ctrl

+

S

(Windows) or

Control

+

S

(Mac OS X).

Global Settings

Select this to open the Global Settings window. See

Global Settings

to learn

about this.

Exit

Select this to close the Code 61 Editor.

Mac OS X users:

This option is in the Code 61 Editor menu.

Help

Open User Guide

Select this to open this

User Guide

.

About Code 61

Preset Editor

Select this to view information about this version of the Code 61 Preset

Editor.

Mac OS X users:

This option is in the

Code 61 Preset Editor

menu.

75

1

2

3

Appendix

Velocity Curves

Encoders

To select one of these curves,

use the

Encoder Curve

field in the

Global Settings

. See the

Global Settings

chapter to learn about this.

Curve

Number

Code 61

Display Description

0 ECrV

Of

Turning the encoder will always send a value change of one step in either direction regardless of how quickly/slowly you turn it.

ECrV

C1

This is a slow acceleration curve, useful for making fine adjustments.

ECrV

C2

This is a medium acceleration curve (the default).

ECrV

C3

This is a quick acceleration curve, useful for making coarse adjustments with broad “sweeps.”

76

5

6

7

Keybed

To select one of these curves,

use the

Key Curve

field in the

Global Settings

. See the

Global Settings

chapter to learn about this.

Curve

Number

Code 61

Display Description

1

2

3

4

VCrV

C1

This is a low-sensitivity setting, useful for playing notes with mostly low velocities.

VCrV

C2

This is a medium-sensitivity setting (the default), useful for playing with an average amount of force.

VCrV

C3

This is a high-sensitivity setting, useful for playing notes with mostly high velocities.

VCrV

C4

This is a linear curve. The velocity of the note will be proportional to the amount of force.

VCrV

F1

All notes will have a fixed velocity of

64

.

VCrV

F2

All notes will have a fixed velocity of

100

.

VCrV

F3

All notes will have a fixed velocity of

127

.

77

7

8

5

6

Pads

To select one of these curves,

use the

Pad Curve

field in the

Global Settings

. See the

Global Settings

chapter to learn about this.

Curve

Number

Code 61

Display Description

1

2

3

4

PCrV

C1

This is a low-sensitivity setting, useful for playing notes with mostly low velocities.

PCrV

C2

This is a medium-sensitivity setting (the default), useful for playing with an average amount of force.

PCrV

C3

This is a high-sensitivity setting, useful for playing notes with mostly high velocities.

PCrV

C4

This is a linear curve. The velocity of the note will be proportional to the amount of force.

PCrV

F1

All notes will have a fixed velocity of

64

.

PCrV

F2

All notes will have a fixed velocity of

100

.

PCrV

F3

All notes will have a fixed velocity of

127

.

PCrV

S2

All notes will have a velocity of

64

or

127

, depending on the amount of force.

9

10

PCrV

S3

All notes will have a velocity of

64

,

100

, or

127

, depending on the amount of force.

PCrV

S4

All notes will have a velocity of

32

,

64

,

100

, or

127

, depending on the amount of force.

78

6

7

4

5

2

3

X-Y Pad

To select one of these curves,

use the

XY Pad Curve

field in the

Global Settings

. See the

Global Settings

chapter to learn about this.

Curve

Number

Code 61

Display Description

1 TCrV

F1

All notes will have a fixed velocity of

64

(the default).

8

9

10

TCrV

F2

All notes will have a fixed velocity of

100

.

TCrV

F3

All notes will have a fixed velocity of

127

.

TCrV

S2

The velocities of the notes will between

64

and

127

.

TCrV

S3

Every third note will have a velocity of

127

. All other notes will have a velocity of

64

.

TCrV

S4

The velocities of the notes will between

100

and

127

.

TCrV

S5

Every third note will have a velocity of

127

. All other notes will have a velocity of

100

.

TCrV

S6

Each axis represents the range of velocities from

64

to

127

. A note generated at the axis’s minimum point will have a velocity of

64

. A note generated at the axis’s maximum point will have a velocity of

127

.

TCrV

S7

Each axis represents the range of velocities from

100

to

127

. A note generated at the axis’s minimum point will have a velocity of

100

. A note generated at the axis’s maximum point will have a velocity of

127

.

TCrV

S8

Each axis represents the range of velocities from 1 to

127

. A note generated at the axis’s minimum point will have a velocity of 1. A note generated at the axis’s maximum point will have a velocity of

127

.

79

Trademarks & Licenses

M-Audio is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries.

Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Mackie Control and HUI are trademarks or registered trademarks of LOUD Technologies Inc.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

All other product names, company names, trademarks, or trade names are those of their respective owners.

80

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
