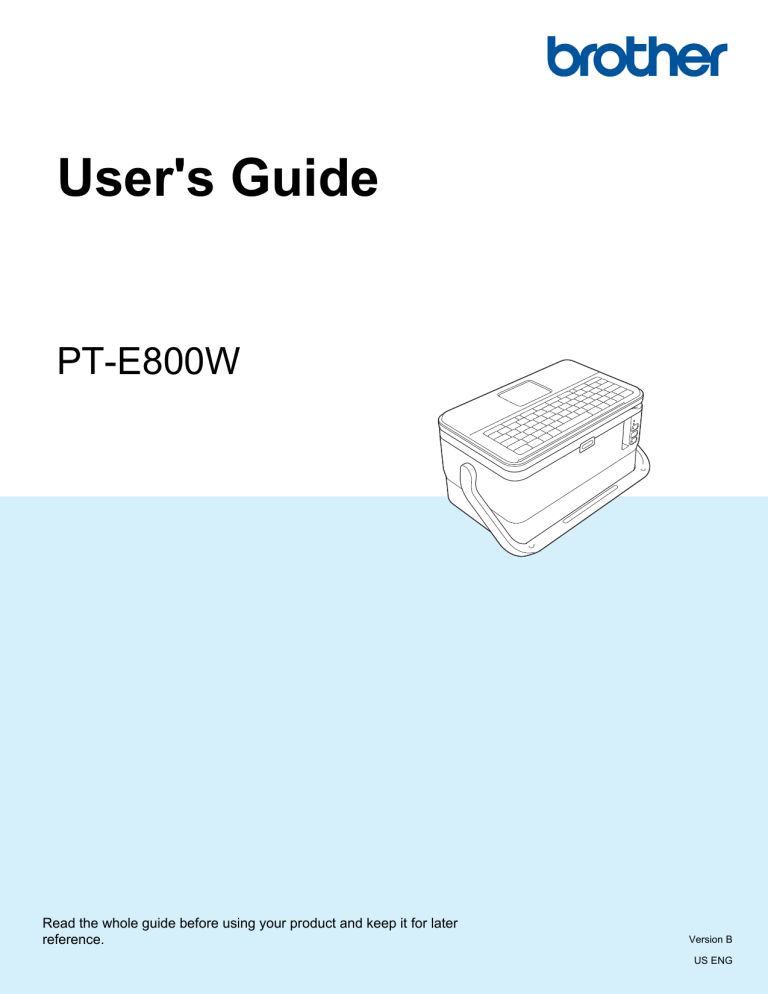

User's Guide

PT-E800W

Read the whole guide before using your product and keep it for later reference.

Version B

US ENG

Introduction

Important Notice

The contents of this document and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publications.

Screen images in this document may differ depending on your computer's operating system, your product model and, the software version.

 Before using the P-touch labeling system, make sure you read all documents included with the P-touch labeling system for information about safety and proper operation.

Not all options and the consumables such as TZe, HGe tape, FLe label, and HSe tube are available in all countries.

 The available options and supplies may vary depending on the country.

Available Manuals

Visit the Brother support website at support.brother.com and click

Manuals

on your model page to download the latest manuals.

Product Safety Guide

1

Quick Setup Guide

1

User's Guide

2

This guide provides safety information; read it before you use the

P-touch labeling system.

This guide provides basic information about using the P-touch labeling system along with troubleshooting tips.

This guide provides additional information about the P-touch labeling system settings and operations, network connection and settings, troubleshooting tips, and maintenance instructions.

1

2

Printed manual in the box

PDF manual on the Brother support website

i

Symbols Used in This Guide

The following symbols are used throughout this guide:

WARNING

CAUTION

Important

Note

Tells you what to do to avoid the risk of injury.

Tells you about procedures you must follow to avoid minor personal injury or damage to the P-touch labeling system.

Indicates information or directions that should be followed. Ignoring them may result in damage, or failed operations.

Indicates notes that provide information or directions that can help you better understand and use the product more efficiently.

ii

IMPORTANT NOTE

 This product is approved for use in the country of purchase only. Do not use this product outside the country of purchase as it may violate the wireless telecommunication and power regulations of that country.

 Not all models are available in all countries.

iii

Table of Contents

Section I Basic Operations

1

2

Setting Up the P-touch Labeling System 2

General Description ...................................................................................................................................2

Front/Back ...........................................................................................................................................2

Inside ...................................................................................................................................................3

Attaching the Keyboard LCD Unit..............................................................................................................4

Connecting the Power Supply ...................................................................................................................5

Inserting a Tape Cassette..........................................................................................................................6

Turning Power On/Off................................................................................................................................7

Feeding Tape ............................................................................................................................................8

Printing a Label Using the P-touch Labeling System Keyboard 9

Keyboard LCD Unit Description.................................................................................................................9

Key Names and Functions ..................................................................................................................9

LCD ...................................................................................................................................................10

Editing a Label .........................................................................................................................................14

Opening the Label Creation Screen ..................................................................................................14

Entering Text from the Keyboard.......................................................................................................14

Inserting Text.....................................................................................................................................14

Adding a New Line ............................................................................................................................14

Deleting Text .....................................................................................................................................15

Using Text Reminder.........................................................................................................................16

Inserting a Tab...................................................................................................................................17

Adding a New Block ..........................................................................................................................17

Adding a New Page...........................................................................................................................18

Entering Accented Characters...........................................................................................................18

Entering Symbols ..............................................................................................................................19

Entering a Serialized Label................................................................................................................21

Creating a Barcode Label..................................................................................................................27

Using the Time Stamp Function ........................................................................................................29

Setting Character Attributes ..............................................................................................................32

Setting Frames ..................................................................................................................................33

Using Auto Format Layouts ...............................................................................................................34

Cable Label Type ..............................................................................................................................35

Setting Cross-ID ................................................................................................................................41

Printing a Label........................................................................................................................................42

Feeding Tape ....................................................................................................................................42

Tape Cutting Options.........................................................................................................................42

Label Adjustment...............................................................................................................................45

Label Preview ....................................................................................................................................46

Printing Labels...................................................................................................................................47

Mirror Printing ....................................................................................................................................48

Using the File Memory.............................................................................................................................49

Storing a Label in the File Memory....................................................................................................49

Opening/Printing a Stored Label File.................................................................................................50

Deleting a Stored Label File ..............................................................................................................50

iv

3

4

5

6

Registering a Function.............................................................................................................................51

Registering a New Function ..............................................................................................................51

Recalling and Using a Registered Function ......................................................................................51

Deleting a Registered Function .........................................................................................................52

Using the Data Transferred to the P-touch Labeling System 53

Transferring Data from the Computer......................................................................................................53

Transferred Symbols ...............................................................................................................................53

Printing the Transferred Template ...........................................................................................................53

When the Template has No Object to be Edited ...............................................................................53

When the Template has an Object to be Edited................................................................................54

When the Template is Linked to the Database and will not be Edited ..............................................55

Using Transferred Database Data ...........................................................................................................56

Searching the Database ....................................................................................................................58

Editing the Database .........................................................................................................................60

Deleting the Transferred Data .................................................................................................................63

Deleting Transferred Symbols ...........................................................................................................63

Deleting Templates............................................................................................................................63

Deleting Databases ...........................................................................................................................63

Printing Using the Computer 64

Installing the Printer Driver and Software ................................................................................................64

Connecting the P-touch Labeling System to a Computer........................................................................64

Connecting Using USB......................................................................................................................64

Connecting Using Wi-Fi.....................................................................................................................65

Printing from a Computer.........................................................................................................................71

Available Applications........................................................................................................................71

Printing from Your Computer.............................................................................................................72

Attaching Labels ................................................................................................................................75

Printing Using the Mobile Device 76

Installing Applications for Use with Mobile Devices.................................................................................76

Available Applications........................................................................................................................76

Connecting the P-touch labeling system to a Mobile Device...................................................................76

Turning the Wireless Function On or Off ...........................................................................................78

Printing from a Mobile Device..................................................................................................................79

Printing from Your Mobile Device ......................................................................................................79

Using a Mobile Device to Print Templates Created on a Computer ..................................................81

Attaching Labels ................................................................................................................................82

Changing the P-touch Labeling System Settings 83

Printer Setting Tool for Windows .............................................................................................................83

Before Using the Printer Setting Tool ................................................................................................83

Using the Printer Setting Tool for Windows .............................................................................................84

Communication Settings for Windows .....................................................................................................86

Settings Dialog Box ...........................................................................................................................86

Menu Bar ...........................................................................................................................................88

General Tab.......................................................................................................................................91

Wireless LAN Tab..............................................................................................................................93

v

7

Wireless Direct Tab ...........................................................................................................................97

Applying Setting Changes to Multiple Printers ..................................................................................98

Device Settings for Windows ...................................................................................................................99

Settings Dialog Box ...........................................................................................................................99

Menu Bar .........................................................................................................................................101

Basic Tab.........................................................................................................................................103

Label Settings Tab...........................................................................................................................104

Applying Setting Changes to Multiple Printers ................................................................................105

Printer Setting Tool for Mac ...................................................................................................................106

Before Using the Printer Setting Tool ..............................................................................................106

Using the Printer Setting Tool for Mac...................................................................................................106

Settings Dialog Box .........................................................................................................................107

Basic Tab.........................................................................................................................................108

Label Settings Tab...........................................................................................................................109

Wireless LAN Tab............................................................................................................................110

Applying Setting Changes to Multiple Printers ................................................................................111

Changing Settings When Printing from a Mobile Device .......................................................................112

Other Functions 113

Confirming the P-touch Labeling System Settings ................................................................................113

Printing Labels Distributed to Multiple Printers (Windows only) ............................................................114

Distributed Printing ..........................................................................................................................114

Printing Labels in High Resolution Mode...............................................................................................118

Printing Labels in High Speed Mode .....................................................................................................119

Printing Labels in High Quality Mode.....................................................................................................120

Mass Storage Mode...............................................................................................................................121

Description.......................................................................................................................................121

Using the Mass Storage Mode ........................................................................................................121

Section II Application for Windows

8

9

Using P-touch Software 124

Installing P-touch Software ....................................................................................................................124

How to Use Cable Label Tool 125

Starting Cable Label Tool ......................................................................................................................125

Creating a Cable Label ..........................................................................................................................126

Faceplate.........................................................................................................................................126

Cable Wrap......................................................................................................................................127

Cable Flag .......................................................................................................................................128

Patch Panel .....................................................................................................................................129

Punch-Down Block ..........................................................................................................................129

Die-cut Flag .....................................................................................................................................130

Heat Shrink Tube.............................................................................................................................130

Linking a Database ................................................................................................................................131

Numbering Function (Serialized Number) Printing ................................................................................132

Printing with Cable Label Tool ...............................................................................................................132

Transferring Templates from Cable Label Tool to the P-touch Labeling System ..................................133

vi

10 How to Use P-touch Editor 134

Starting P-touch Editor...........................................................................................................................134

Printing with P-touch Editor ...................................................................................................................136

Express mode..................................................................................................................................136

Professional mode...........................................................................................................................136

Snap mode ......................................................................................................................................137

Transferring Data to the P-touch Labeling System..........................................................................137

11 How to Use P-touch Transfer Manager 138

Transferring the Template to P-touch Transfer Manager ......................................................................138

Transferring Templates or Other Data from the Computer to the P-touch Labeling System.................141

Backing up Templates or Other Data Saved in the P-touch Labeling System ......................................146

Deleting All the P-touch Labeling System Data .....................................................................................147

Creating a BLF File ...............................................................................................................................148

12 How to Use P-touch Library 149

Starting P-touch Library .........................................................................................................................149

Opening and Editing Templates ............................................................................................................151

Printing Templates.................................................................................................................................152

Searching for Templates........................................................................................................................153

13 Transferring Templates with P-touch Transfer Express 155

Preparing P-touch Transfer Express .....................................................................................................155

Transferring the Template to P-touch Transfer Manager ......................................................................156

Saving the Template as a Transfer Package File (.pdz)........................................................................157

Distributing the Transfer Package File (.pdz) and P-touch Transfer Express to the User .....................159

Transferring the Transfer Package File (.pdz) to Your P-touch Labeling System .................................160

14 How to Update P-touch Software 163

Updating Cable Label Tool and P-touch Editor .....................................................................................163

Updating the Firmware ..........................................................................................................................165

Section III Application for Mac

15 Using P-touch Software 169

Installing P-touch Software ....................................................................................................................169

16 How to Use P-touch Editor 170

Starting P-touch Editor...........................................................................................................................170

Operation modes ...................................................................................................................................171

Standard Mode ................................................................................................................................171

Snap mode (P-touch Editor 5.1 only) ..............................................................................................172

Transferring Data to the P-touch Labeling System................................................................................172

vii

17 How to Update P-touch Software 173

Updating the Firmware ..........................................................................................................................173

Section IV Wireless Network

18 Introduction 177

Network Features ..................................................................................................................................177

19 Changing Your P-touch Labeling System Network Settings 178

Changing Your P-touch Labeling System's Network Settings

(IP Address, Subnet Mask and Gateway) Using Windows.................................................................178

Using the BRAdmin Light Utility.......................................................................................................178

Other Management Utilities ...................................................................................................................180

Using Web Based Management (Web Browser).............................................................................180

Using the BRAdmin Professional Utility (Windows Only) ................................................................180

20 Web Based Management 181

Overview................................................................................................................................................181

Configuring the Printer Settings Using Web Based Management (Web Browser) ................................182

Section V Appendix

21 Resetting the P-touch Labeling System 184

Resetting All Settings to the Factory Settings Using the P-touch Labeling System Buttons .................184

Resetting Data Using the Settings in the Home screen.........................................................................185

Resetting Data Using the Printer Setting Tool .......................................................................................185

22 Maintenance 186

Cleaning the Unit ...................................................................................................................................186

Cleaning the Print Head.........................................................................................................................186

Cleaning the Label Roller ......................................................................................................................187

Cleaning the Tape Cutter Unit ...............................................................................................................187

Cleaning the FLe Sensor .......................................................................................................................188

Replacing the Coin Cell Battery.............................................................................................................188

23 Useful Settings 191

Auto Power-Off Time .............................................................................................................................191

Adjusting the LCD Settings....................................................................................................................192

LCD Contrast...................................................................................................................................192

Backlight ..........................................................................................................................................192

Setting Language and Unit ....................................................................................................................193

Language.........................................................................................................................................193

Setting Unit ......................................................................................................................................193

viii

24 Using the Rechargeable Li-ion Battery (PA-BT-4000LI) 194

Installing the Rechargeable Li-ion Battery .............................................................................................194

Removing the Rechargeable Li-ion Battery ...........................................................................................195

Charging the Rechargeable Li-ion Battery.............................................................................................195

Stopping Rechargeable Li-ion Battery Charging ...................................................................................196

Notes on Using the Rechargeable Li-ion Battery...................................................................................196

Rechargeable Li-ion Battery Characteristics .........................................................................................196

Product Specifications ...........................................................................................................................197

25 Troubleshooting 198

Overview................................................................................................................................................198

LCD Problems .................................................................................................................................199

Printing Problems ............................................................................................................................199

Version Information .........................................................................................................................203

Network Setup Problems.................................................................................................................204

P-touch Labeling System Cannot Print over the Network

P-touch Labeling System Is Not Found on the Network Even after Successful Installation........205

Security Software Problems ............................................................................................................205

Checking the Operation of Network Devices...................................................................................206

Error Messages .....................................................................................................................................207

LED Indicators .......................................................................................................................................208

Indicator Warnings...........................................................................................................................211

26 Product Specifications 212

P-touch Labeling System Specifications................................................................................................212

Operating Environment..........................................................................................................................214

27 Notes on Using P-touch Transfer Manager 215

Notes on Creating Templates ................................................................................................................215

Notes on Transferring Templates ..........................................................................................................215

Notes on Transferring Data Other Than Templates ..............................................................................216

28 Network Terms and Information 217

Supported Protocols and Security Features ..........................................................................................217

Types of Network Connections and Protocols.......................................................................................218

Types of Network Connections........................................................................................................218

Configuring Your P-touch Labeling System for a Network ....................................................................220

IP Addresses, Subnet Masks and Gateways ..................................................................................220

Wireless Network Terms and Concepts ................................................................................................222

Security Terms ................................................................................................................................222

29 Symbols/Characters/Styles 227

Symbols .................................................................................................................................................227

Accented Characters .............................................................................................................................229

Character Attribute.................................................................................................................................230

Frames...................................................................................................................................................233

ix

Auto Format ...........................................................................................................................................235

Template..........................................................................................................................................235

Block Layout ....................................................................................................................................238

Barcodes ...............................................................................................................................................240

Barcode Settings Table ...................................................................................................................240

Special Character List .....................................................................................................................240

Time & Date...........................................................................................................................................242

Time & Date Format Options Table.................................................................................................242

x

Section I

Basic Operations

Setting Up the P-touch Labeling System

Printing a Label Using the P-touch Labeling System

Keyboard

Using the Data Transferred to the P-touch Labeling

System

Printing Using the Computer

Printing Using the Mobile Device

Changing the P-touch Labeling System Settings

Other Functions

53

64

76

83

113

2

9

I

1

Setting Up the P-touch Labeling System

1

1

1

General Description

Front/Back

 Front

1

3

4

5

6

7

8

9

1

2

10

 Back

1 Handle

2 Cover open button

3 Top cover

4 Tape exit slot

5 (Label) indicator

6 (Battery) indicator

7 (Power) button

8 (Feed and Cut) button

9 (Wi-Fi) button

10 Keyboard LCD unit

11 Keyboard LCD unit interface outlet

11

12

13

14

2

Setting Up the P-touch Labeling System

12 Cable holder (holder for the keyboard LCD unit cable)

13 USB port

14 AC adapter outlet

Inside

1

2

3

4

5

6

1 Accessory storage compartment

Use this space to store TZe tape cassettes and the AC adapter.

2 Coin cell battery holder

3 Tape cassette compartment

4 Print head

5 Tape cutter unit

6 Tape exit slot

1

1

3

Setting Up the P-touch Labeling System

Attaching the Keyboard LCD Unit

a

Slide the cover on the bottom of the keyboard LCD unit to remove it, and then connect the keyboard LCD unit cable.

Install the cover.

1

1

b

Connect the USB cable on the keyboard LCD unit to the Keyboard LCD unit interface outlet on the side of the P-touch labeling system.

Note

• When you turn on the P-touch labeling system, the keyboard LCD unit is also turned on.

• The keyboard LCD unit can be installed on the P-touch labeling system by sliding it on the top cover. (Refer to the illustration A.)

• When storing the keyboard LCD unit, turn it upside down and slide it on the top cover with the LCD facing down to prevent it from becoming dusty or dirty. (Refer to the illustration B.)

• You can place the excess cable in the cable holder. (Refer to the illustration C.)

Illustration A Illustration B Illustration C

4

Setting Up the P-touch Labeling System

Connecting the Power Supply

Use the AD9100ESA (AC adapter) for this P-touch labeling system. Connect the AC adapter directly to the

P-touch labeling system.

a

Insert the plug on the AC adapter cord into the AC adapter outlet marked DC IN 24 V on the P-touch labeling system.

b

Insert the plug on the power supply cord into the AC adapter.

1

1

1

2

1 AC adapter

2 Power supply cord

c

Insert the power supply plug into a standard AC power outlet.

Important

• Turn off the P-touch labeling system before disconnecting the AC adapter.

• Do not pull or bend the AC adapter cord and power supply cord.

• After the power supply plug is inserted into the AC power outlet, it may take a few seconds until the

(Power) button is enabled.

Note

To safeguard and back up the P-touch labeling system memory, when the power supply is unplugged it is recommended to leave the rechargeable Li-ion batteries (PA-BT-4000LI) installed in the P-touch labeling system.

5

Setting Up the P-touch Labeling System

Inserting a Tape Cassette

The TZe, HGe tape, FLe label, and HSe tube cassettes can be used in your P-touch labeling system.

Important

If the new tape cassette has a cardboard stopper, be sure to remove the stopper before inserting the cassette.

1

1

a

Check that the end of the tape is not bent and that it passes through the tape guides. If it does not, pass it through the tape guides as shown in the illustration.

1 1

2

2

1 End of tape

2 Tape guides (The actual shape may be different depending on the tape width.)

b

Press the cover open button to open the top cover.

c

Carefully insert the tape cassette into the tape cassette compartment with the end of the tape facing the

P-touch labeling system tape exit slot, then push down evenly until the tape cassette is installed correctly.

1

1 Tape exit slot

Important

• When inserting the tape cassette, make sure that the tape and ink ribbon do not catch on the print head.

6

Setting Up the P-touch Labeling System

• Make sure that there is no slack in the tape. Otherwise the tape may catch on the protrusion (2) and become bent or wrinkled, causing the tape to jam. To fix the slack in the tape, refer to the illustration in

step a

and pull the tape outside of the tape guide.

• When removing the tape cassette, make sure that the tape does not catch on the protrusion (2).

1

2 d

Close the top cover.

Important

Store tape cassettes in a cool dark location, away from direct sunlight and high temperature, high humidity, or dusty locations. After opening the sealed package, use the tape cassette as quickly as possible.

Turning Power On/Off

1

On:

Press the (Power) button to turn on the P-touch labeling system. The (Power) indicator lights in green.

Note

When the P-touch labeling system is turned on for the first time, the language selection screen appears.

Select the language you want using the or key. The language setting can also be changed later. (See

Setting Language and Unit

on page 193.)

Off:

Press and hold the (Power) button again to turn off the P-touch labeling system. The (Power) indicator may light in orange until the power is off.

Important

When turning off the P-touch labeling system, do NOT remove the battery or disconnect the AC adapter until the (Power) indicator turns off.

7

Setting Up the P-touch Labeling System

Feeding Tape

Important

• Be sure to feed tape to remove any slack in the tape and ink ribbon after inserting the tape cassette.

Do not pull the label when the P-touch labeling system is ejecting it from the tape exit slot.

Doing so will cause the ink ribbon to be discharged with the tape. The tape may no longer be functional after the ink ribbon discharges.

• Do not block the tape exit slot during printing or when feeding tape. Doing so will cause the tape to jam.

Feed and Cut

The Feed and Cut function feeds approximately 0.88" (22.3 mm) of blank tape, and then cuts the tape.

a

Press the (Feed and Cut) button.

[

Feed & Cut?

] appears on the LCD.

1

b

Select [

Feed & Cut

] using the or key, and then press the

OK

or

Enter

key. The message [

Feeding

Tape... Please Wait

] appears while the tape is fed, and then the tape is cut.

Note

To exit or cancel this function press the

Esc

key.

Feed Only

This function ejects the tape approximately 0.88" (22.3 mm), resulting in a blank label sticking out of the tape cassette. This action is recommended when using Fabric tapes, which should be cut with scissors.

1

a

Press the (Feed and Cut) button.

[

Feed & Cut?

] appears on the LCD.

b

Select [

Feed Only

] using the or key, and then press the

OK

or

Enter

key. The message [

Feeding

Tape... Please Wait

] appears while the tape is fed.

Note

To exit or cancel this function press the

Esc

key.

1

1

8

2

Printing a Label Using the P-touch

Labeling System Keyboard

2

Keyboard LCD Unit Description

Key Names and Functions

1 2 3 4 5 6 7

23

22

21

12

11

12

13

8

9

10

20 19 18 17 16 15 14

1 Home

Returns to the Home screen to select a menu.

2 Format

Sets characters and attributes.

3 PF (Programmable Function)

Select programmable function.

4 Clear

Clears all text entered, or all text and current settings.

5 Save

Saves the created data in the file memory.

6 Preview

Displays an image of the label that will be printed in the set layout.

7 Cancel

Deletes the print job.

8 Print/Print Options

 Prints the current data onto the tape.

 Prints multiple copies or changes the print settings when used in combination with the

Shift

key.

9 BS (backspace)

Deletes the character to the left of the cursor.

10 Next

Creates the next page.

11 Enter

Adds a new line when entering text.

Selects the displayed option.

2

2

2

9

Printing a Label Using the P-touch Labeling System Keyboard

12 Shift

Enters upper-case letters or symbols when used in combination with the letter keys or number keys.

13 OK

Selects the displayed option.

14 Cursor ( )

Moves the cursor in the direction of the arrow.

15 Esc (Escape)

Cancels the current command and returns the display to the data entry screen or the previous step.

16 Space

 Inserts a blank space.

 Returns a setting to the default value.

17 Accent

Selects and enters an accented character.

18 Symbol

Selects and enters a symbol from a list of available symbols.

19 Serialize/Adv. Serialize

Sets serialized numbers.

20 Insert

Inserts a time stamp, barcode, database, or transferred symbol.

21 Caps

Turns the Caps mode on and off.

22 Tab

Inserts a tab.

23 Letter

 Enters letters or numbers.

 Enters upper-case letters or symbols when used in combination with the

Caps

or

Shift

key.

LCD

Home Screen

1

2

5

6

9

1 Auto Format (Templates)

Specifies the label format from the preset templates.

3

4

7

8

10

2

2

10

Printing a Label Using the P-touch Labeling System Keyboard

2 Create Label

Displays the label creation screen.

3 Auto Format (Block Layouts)

Specifies the label format from the preset layouts.

4 File

Retrieves data that is saved in the file memory.

5 Cable Label

Specifies the label type from the following seven types: Faceplate/Cable Wrap/Cable Flag/Patch

Panel/Punch-Down Block/Die-cut Flag/Inverted Label.

6 Transferred Templates

Retrieves data that was transferred from a computer.

7 Settings

Specifies various settings for the P-touch labeling system.

8 Register Programmable Function

Registers, deletes, and renames programs.

9 Wireless Connection

The left icon indicates the status of the Wi-Fi connection and the right icon indicates the status of the

Wireless Direct connection.

Connected in Wi-Fi mode

Disconnected in Wi-Fi mode

Wireless direct mode ON

(Blinking)

(Off)

Connecting using the Setup Wizard

Wireless connection OFF

10 Battery Level

Indicates the remaining battery level. It appears only when using the Li-ion battery.

- Full

- Half

- Low

- Empty

- Charging

2

11

Printing a Label Using the P-touch Labeling System Keyboard

Label Creation Screen

1

2

A B C D E F G 3

4

5

6

7

8

9

10 11 12 13

1 Caps mode

Indicates that the Caps mode is on.

2 Style Guidance

Indicates the current font (A), character size (B), character width (C), character style (D), line (E), frame

(F), and alignment (G) settings.

3 Layout Guidance

Indicates the orientation, layout, separator, reverse, and repeated text settings. The displayed items vary according to the selected label type.

4 Block Number

Indicates the block number.

5 Line Number

Indicates the line number within the label layout.

6 Page Separator Line

Indicates the end of one page and the beginning of the next page.

7 Block Separator Line

Indicates the end of a block.

8 Enter/Return Symbol

Indicates the end of a line of text.

9 Cursor

Indicates the current data input position. Characters are entered to the left of the cursor.

10 Wireless Connection

Indicates the current status of the wireless connection. See

Wireless Connection

in the Home Screen section.

11 Tab Length Setting

Indicates the set tab length.

12 Tape Size

Indicates the tape size as follows for the text entered: Tape width × Label length. If the label length has been specified, also appears on the right side of the tape size.

2

12

Printing a Label Using the P-touch Labeling System Keyboard

13 Battery Level

Indicates the remaining battery level. It appears only when using the Li-ion battery. See

Battery Level

in the Home Screen section.

2

13

Printing a Label Using the P-touch Labeling System Keyboard

Editing a Label

This chapter explains how to enter text and symbols in labels to create original labels and how to create labels using previously created templates.

2

2

Opening the Label Creation Screen

2

1

1 Create Label

The labels are created using the label creation screen. To open the label creation screen, select [

Create

Label

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

Entering Text from the Keyboard

You can use your P-touch labeling system's keyboard in the same way as a standard computer keyboard.

2

Inserting Text

To insert additional text into an existing line of text, move the cursor to the character at the position where you want to start inserting text, and then enter the additional text. The new text is inserted at the position of the cursor.

2

Adding a New Line

A return mark appears at the end of the line and the cursor moves to the start of the new line.

2

14

Printing a Label Using the P-touch Labeling System Keyboard

Important

• Maximum number of lines (Labels)

• 1.4" (36 mm) tape: 17 lines

• 0.94" (24 mm) tape: 13 lines

• 0.70" (18 mm) tape: 10 lines

• 0.47" (12 mm) tape: 6 lines

• 0.35" (9 mm) tape: 4 lines

• 0.23" (6 mm) tape: 3 lines

• 0.13" (3.5 mm) tape: 1 line

• Maximum number of lines (Heat shrink tubes)

• 0.93" (23.6 mm) tape: 12 lines

• 0.69" (17.7 mm) tape: 10 lines

• 0.46" (11.7 mm) tape: 6 lines

• 0.34" (8.8 mm) tape: 4 lines

• 0.23" (5.8 mm) tape: 2 lines

Deleting Text

Deleting One Character at a Time

To delete a character from an existing line of text, move the cursor to the character at the right of the position where you want to start deleting text, and then press the

BS (Backspace)

key. The character to the left of the cursor is deleted each time the

BS (Backspace)

key is pressed.

2

Note

If you press and hold the

BS (Backspace)

key, the characters to the left of the cursor are continuously deleted.

Deleting All Text at Once

Use the

Clear

key to delete all text at once.

a

Press the

Clear

key.

The Clear options appear.

2

2

2

15

Printing a Label Using the P-touch Labeling System Keyboard b

Using the or key, select [

Text Only

] to delete all text while retaining the current format settings, or select [

Text&Format

] to delete all text and format settings.

Note

• Press the

Esc

key to return to the label creation screen without erasing (or clearing) the text or the format settings.

• When [

Text&Format

] is selected, all text is cleared and the character attribute and cutting option settings are reset to the factory settings.

c

Press the

OK

or

Enter

key.

All text is deleted. If you have selected [

Text&Format

], all format settings are also deleted.

2

Using Text Reminder

When you enter a character, the P-touch labeling system retrieves all character sequences beginning with that character from a history of all printed character sequences to date, and displays those character sequences as a list of options that you can select.

For example, if you enter "B", a mark appears on the screen if there is a character sequence beginning with

"B" in the history. If you press the

OK

key, the P-touch labeling system displays a list of words beginning with the letter "B", such as "Brother". Select the word you want using the or key, and then press the

OK

or

Enter

key to insert the selected word on the text line.

The factory setting is "On".

Note

• To close the list of words, press the

Esc

key.

• To display the entire word, press the key, and to return to the list of words, press the key.

• To delete the text reminder memory, select [

Settings

] - [

Text Reminder

] - [

Clear Memory

] in the

Home screen, and then press the

OK

or

Enter

key.

• To change the text reminder setting, select [

Settings

] - [

Text Reminder

] - [

On/Off

] in the Home screen, and then press the

OK

or

Enter

key.

• The memory can store up to 99 words.

2

16

Printing a Label Using the P-touch Labeling System Keyboard

Inserting a Tab

To insert a tab into an existing line of text, move the cursor to the character at the position where you want to insert a tab, and then press the

Tab

key.

The inserted tab appears as a mark ( ) in the label creation screen.

2

Note

To delete a tab from a label, position the cursor to the right of the tab mark on the label creation screen, and then press the

BS (Backspace)

key.

Changing the Tab Length

a

Press the

Format

key.

2

b

Select [

Tab Length

] using the or key.

c

Select the tab length you want using the or key, and then press the

OK

or

Enter

key.

Note

• The tab length can be set to between 0.0" and 4.0" (0 mm and 100 mm).

• To return to the label creation screen, press the

Esc

key.

• You can also set the tab length by typing in the tab length you want. To apply the setting, after typing in the tab length, press the

OK

or

Enter

key, and then press the

OK

or

Enter

key again.

Adding a New Block

You can create up to 99 new blocks. To create a new block of text and lines, press the

Shift

and

Enter

keys.

The text to the right of the cursor will be moved to the new block. In some label types, you can set the number of blocks when selecting the label type.

2

2

17

Printing a Label Using the P-touch Labeling System Keyboard

Adding a New Page

You can press the

Next

key to create a new page. The cursor moves to the start of the new page. You can create up to 99 new pages.

2

2

Entering Accented Characters

The P-touch labeling system can display and print a set of accented characters, such as other language-specific characters. Selectable “Accented Characters” are listed in the Appendix. (See

Accented

Characters

on page 229.)

a

Enter the character you want to change to an accented character.

Note

Caps mode can be used with the accent function.

b

Press the

Accent

key.

The selectable accented characters appear on the screen.

2

c

Select the accented character you want using the or key, and then press the

OK

or

Enter

key.

The character you entered will change to the selected accented character.

Important

The order of accented characters displayed will differ depending on the selected LCD language.

Note

To return to the previous step, press the

Esc

key.

18

Printing a Label Using the P-touch Labeling System Keyboard

Entering Symbols

1

In addition to the symbols available on the keyboard, there are various symbols (including international, extended ASCII characters and transferred symbols

1

) available with the symbol function.

To enter a symbol, use the symbol function (see

Entering Symbols Using the Symbol Function

on page 19).

Alternatively, press the

Shift

key and a key on the keyboard simultaneously to enter the symbol printed on the selected key’s upper-right corner.

A bitmap image of a user-created character that is not supplied with the P-touch labeling system.

2

Entering Symbols Using the Symbol Function

Selectable symbols (excluding transferred symbols) are listed in the Appendix. (See

Symbols

on page 227.)

2

a

Press the

Symbol

key.

A list of symbol categories and symbols in that category appears.

Note

The last symbol entered is selected in the displayed list.

b

Select a symbol category using the or key, and then press the

OK

or

Enter

key.

c

Select a symbol using the , , or key, and then press the

OK

or

Enter

key.

The selected symbol is inserted into the line of text.

Note

When selecting a symbol:

• To return to the previous page, press the

Shift

key and

Symbol

key.

• To go to the next page, press the

Symbol

key.

• To return to the previous step, press the

Esc

key.

2

19

Printing a Label Using the P-touch Labeling System Keyboard

Entering Transferred Symbols

Important

Before using transferred symbols, transfer the images to the P-touch labeling system using P-touch

Transfer Manager. For more information about using P-touch Transfer Manager, see

How to Use P-touch

Transfer Manager

on page 138.

a

Press the

Insert

key.

b

Select [

Transferred Symbols

] using the or key, and then press the

OK

or

Enter

key.

2

c

Select a transferred symbol using the or key, and then press the

OK

or

Enter

key.

The selected image is inserted into the line of text.

Note

• When selecting a symbol, press the

Shift

key and key to go to the next page, and press the

Shift

key and key to go to the previous page.

• The inserted transferred symbol appears as a mark ( ) in the label creation screen.

• To view the transferred symbol in the label creation screen, move the cursor to the mark ( ) and press the

Insert

key.

• To return to the previous step, press the

Esc

key.

Using Symbol History

You can create your personal category of symbols using [

Symbol History

]. [

History

] appears first when selecting the symbols to help you locate the symbols you want quickly.

2

Important

Transferred symbols cannot be added to [

Symbol History

].

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Symbol History

] using the or key, and press the

OK

or

Enter

key.

c

Select [

On

] to create your personal category using the or key, and then press the

OK

or

Enter

key.

d

In the label creation screen, enter the symbol you want to add to your history by pressing the

Symbol

key, selecting a symbol category using the or key, pressing the

OK

or

Enter

key, selecting a symbol using the , , or key, and then pressing the

OK

or

Enter

key.

2

20

Printing a Label Using the P-touch Labeling System Keyboard e

Press the

Symbol

key.

[

History

] appears, including the symbol entered in step d

.

Note

• Up to 30 symbols can be added to [

History

]. The oldest symbol will be deleted from the category when the symbols added to [

History

] exceed 30 symbols.

• To stop using [

Symbol History

], follow steps a

and

b

above, and then select [

Off

] in the [

Symbol

History

] screen in step c

.

Entering a Serialized Label

Numerically serialized labels can be created. You can set the increment and count for the series. In the serialize mode, you can create a series of labels by incrementing one numeric character in the pattern. In the advanced serialize mode, you can select between Simultaneous or Group. Simultaneous mode creates a series of labels by incrementing two different numbers at the same time. Group mode creates a series of labels by allowing you to select two sequences in the pattern and increment them consecutively.

2

Serialize Mode

a

Enter the text except the text that you want to serialize.

Example

: To create labels 1A-A01, 1A-A02, 1A-A03, and 1A-A04, enter only "1A-A0".

2

2

21

Printing a Label Using the P-touch Labeling System Keyboard b

Position the cursor where you want to insert serialized text, and then press the

Serialize/Adv. Serialize

key.

2

c

Select [

Type

], [

Format

], [

From

], [

To

] and [

Increased by

] using the or key, and set the values using the or key.

Note

You can also set [

From

], [

To

] and [

Increased by

] by typing in the numbers you want.

Example

: [

Type

]:

Normal

, [

Format

]:

000-999

, [

From

]:

1

, [

To

]:

4

, and [

Increased by

]:

1

See the following Serialize Settings table (factory settings are shown in bold):

Attribute

Type

Format Normal

Octal

Hex

From

To

Increased by

Alphabet

Normal

Octal

Hex

Alphabet

Normal

Octal

Hex

Alphabet

a-z

,

A-Z

000-999

000-777

000-FFF a-z

,

A-Z

000-999

000-777

000-FFF a-z

,

A-Z

1-9

Value Description

Normal

,

Octal

,

Hex

,

Alphabet

Specifies the format of the serialized number from decimal, octal, hexadecimal, and alphabetic.

000-999

,

__0-999

,

0-999

Specifies how the digits of the serialized numbers

000-777

,

__0-777

,

0-777 are aligned.

000-FFF

,

__0-FFF

,

0-FFF

 000-***: Zeroes are used to align the digits.

 __0-***: Blank spaces are used to align the digits.

 0-***: The digits are not aligned.

Specifies lower-case or upper-case characters.

Specifies the starting text for the serialized numbers.

Specifies the ending text for the serialized numbers.

Specifies the increment for increasing the serialized numbers.

22

Printing a Label Using the P-touch Labeling System Keyboard d

Press the

OK

or

Enter

key to display an image of the labels on the screen.

Example

:

Note

• Although the P-touch labeling system creates multiple pages of labels after you complete the serialize settings, you can select the pages and print only the pages you want. See

Printing a Range of Pages

on page 48.

• When you want to print multiple copies of the serialized labels, you can select [

Serialize

] or [

Copy

] for the printing order in [

Settings

] - [

Print Order

] in the Home screen.

• When creating labels with a serialized barcode, select the entered barcode, and then press the

Serialize/Adv. Serialize

key. For more information about barcodes, see

Creating a Barcode Label

on page 27.

• To return to the previous step, press the

Esc

key.

Advanced Serialize Mode

2

Simultaneous

a

Enter the text except the text that you want to serialize.

Example

: To create labels 1A-A01, 1A-B02, 1A-C03, and 1A-D04, enter only "1A-0".

2

2

b

Position the cursor where you want to insert the first serialized text (to the right of "0"), and then press the

Shift

and

Serialize/Adv. Serialize

keys. Select [

Simultaneous

] using the or key, and then press the

OK

or

Enter

key.

23

Printing a Label Using the P-touch Labeling System Keyboard c

For the first serialized text, select [

Type

], [

Format

], [

From

], [

To

] and [

Increased by

] using the or

key, set the values using the or key, and then press the

OK

or

Enter

key.

Note

You can also set [

From

], [

To

] and [

Increased by

] by typing in the numbers you want.

Example

: [

Type

]:

Normal

, [

Format

]:

000-999

, [

From

]:

1

, [

To

]:

4

, and [

Increased by

]:

1

See the Serialize Settings table in step c

of

Serialize Mode

for more information.

d

Position the cursor where you want to insert the second serialized text (to the left of "0"), and then press the

OK

or

Enter

key.

2

e

For the second serialized text, select [

Type

], [

Format

], [

From

], and [

Increased by

] using the or key, set the values using the or key, and then press the

OK

or

Enter

key.

Example

: [

Type

]:

Alphabet

, [

Format

]:

A-Z

, [

From

]:

A

, and [

Increased by

]:

1

See the Serialize Settings table in step c

of

Serialize Mode

for more information.

Note

Because the serialized number count is the same for the first serialized text and second serialized text, the value for [

To

] is set automatically.

f

Press the

OK

or

Enter

key to display an image of the labels on the screen.

Example

:

Note

• Although the P-touch labeling system creates multiple pages of labels after you complete the serialize settings, you can select the pages and print only the pages you want. See

Printing a Range of Pages

on page 48.

• When you want to print multiple copies of the serialized labels, you can select [

Serialize

] or [

Copy

] for the printing order in [

Settings

] - [

Print Order

] in the Home screen.

• When creating labels with a serialized barcode, select the entered barcode, and then press the

Serialize/Adv. Serialize

key. For more information about barcodes, see

Creating a Barcode Label

on page 27.

• To return to the previous step, press the

Esc

key.

24

Printing a Label Using the P-touch Labeling System Keyboard

Group

a

Enter the text except the text that you want to serialize.

Example

: To create labels 1A-A01, 1A-A02, 1A-A03, 1A-A04, 1A-B01, 1A-B02, 1A-B03 and 1A-B04, enter only "1A-0".

2

2

b

Position the cursor where you want to insert the first serialized text (to the right of "0"), and then press the

Shift

and

Serialize/Adv. Serialize

keys. Select [

Group

] using the or key, and then press the

OK

or

Enter

key.

c

For the first serialized text, select [

Type

], [

Format

], [

From

], [

To

] and [

Increased by

] using the or

key, set the values using the or key, and then press the

OK

or

Enter

key.

Example

: [

Type

]:

Normal

, [

Format

]:

000-999

, [

From

]:

1

, [

To

]:

4

, and [

Increased by

]:

1

See the Serialize Settings table in step c

of

Serialize Mode

for more information.

d

Position the cursor where you want to insert the second serialized text (to the left of "0"), and then press the

OK

or

Enter

key.

e

For the second serialized text, select [

Type

], [

Format

], [

From

], [

To

] and [

Increased by

] using the or key, set the values using the or key, and then press the

OK

or

Enter

key.

Example

: [

Type

]:

Alphabet

, [

Format

]:

A-Z

, [

From

]:

A

, [

To

]:

B

, and [

Increased by

]:

1

See the Serialize Settings table in step c

of

Serialize Mode

for more information.

25

Printing a Label Using the P-touch Labeling System Keyboard f

Press the

OK

or

Enter

key to display an image of the labels on the screen.

Example

:

Note

• Although the P-touch labeling system creates multiple pages of labels after you complete the serialize settings, you can select the pages and print only the pages you want. See

Printing a Range of Pages

on page 48.

• When you want to print multiple copies of the serialized labels, you can select [

Serialize

] or [

Copy

] for the printing order in [

Settings

] - [

Print Order

] in the Home screen.

• When creating labels with a serialized barcode, select the entered barcode, and then press the

Serialize/Adv. Serialize

key. For more information about barcodes, see

Creating a Barcode Label

on page 27.

• To return to the previous step, press the

Esc

key.

Note

Letters and numbers increase as shown below:

0 i

1 i

2 i

3... i

999 i

000 i

001 i

002 i

003...

A i

B i

C i

D... i

Z i

A i

B i

C i

D...

a i

b i

c i

d... i

z i

a i

b i

c i

d...

2

26

Printing a Label Using the P-touch Labeling System Keyboard

Creating a Barcode Label

You can use the barcode function to create labels with one dimensional barcodes for use with asset control tags, serialized number labels, and even POS and stock control systems.

Selectable “Barcodes” are listed in the Appendix. See

Barcodes

on page 240.

2

Note

• The P-touch labeling system is not designed exclusively for creating barcode labels. Always check that barcode labels can be read by the barcode reader.

• For best results, print barcode labels in black ink on white tape. Some barcode readers may not be able to read barcode labels created using colored tape or ink.

• Use the [

Large

] setting for [

Width

] whenever possible. Some barcode readers may not be able to read barcode labels created using the [

Small

] setting.

• Continuously printing a large number of labels with barcodes can overheat the print head, which may affect printing quality.

Setting Barcode Parameters and Entering Barcode Data

a

Press the

Insert

key.

2

b

Select [

Bar Code

] using the or key, and then press the

OK

or

Enter

key.

The [

Bar Code

] screen appears.

Note

Up to five barcodes can be entered on a label.

c

Select an attribute using the or key, and then select the setting for that attribute using the or key. (Factory settings are shown in bold.)

 Protocol:

CODE39

, CODE128, EAN-8, EAN-13, GS1-128 (UCC/EAN-128), UPC-A, UPC-E, I-2/5

(ITF), CODABAR

 Width:

Small

, Large

 Under#:

On

, Off

 C.Digit:

Off

, On

The check digit is available only for CODE39, I-2/5 and CODABAR protocols.

Note

Characters may not appear below the barcode even when [

On

] is selected for [

Under#

] depending on the width of the tape being used, the number of lines entered, or the current character style settings.

d

Press the

OK

or

Enter

key to apply the settings.

Note

New settings are NOT applied unless you press the

OK

or

Enter

key.

2

27

Printing a Label Using the P-touch Labeling System Keyboard e

Type in the barcode data.

You can enter special characters in the barcode when using the CODE39, CODE128, CODABAR or

GS1-128 protocols. When not using special characters, go to step

h

.

2

f

Press the

Symbol

key.

A list of characters available for the current protocol appears.

g

Select a character using the or key, and then press the

OK

or

Enter

key to insert the character in the barcode data.

h

Press the

OK

or

Enter

key to insert the barcode in the label.

The barcode appears on the label creation screen.

Note

• To return to the previous step, press the

Esc

key.

• To set the selected attribute as the default setting, press the

Space

key .

Editing and Deleting a Barcode

 To edit barcode parameters and barcode data, select the barcode, and then press the

OK

or

Enter

key.

See

Setting Barcode Parameters and Entering Barcode Data

on page 27 for more information.

 To delete a barcode from a label, position the cursor to the right of the barcode mark or select the barcode, and then press the

BS (Backspace)

key.

2

28

Printing a Label Using the P-touch Labeling System Keyboard

Using the Time Stamp Function

You can add the time and date to your label.

Clock Setting

Set the time and date in the [

Set Clock

] screen. After setting the time and date, you can add this information to your label using the [

Time Stamp

] function.

2

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Set Clock

] using the or key, and then press the

OK

or

Enter

key.

c

Set the year according to the current date using the or key. Move to the next parameter using the

or key, and then set the parameter according to the current date and time using the or key.

After you set all the parameters, press the

OK

or

Enter

key to apply the settings.

Note

• You can also set the time and date by typing in the numbers you want.

• The clock will activate from when the clock setting is applied.

• The coin cell battery is used to back up the clock setting when the AC adapter is unplugged.

Time & Date Format Setting

You can select from various formats of the time and date to add to your label.

Selectable "Time & Date" formats are listed in the Appendix. (See

Time & Date

on page 242.)

2

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Time & Date Format

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

Date

] or [

Time

] using the or key according to the item that you want to set. Select the format you want using the or key, and then press the

OK

or

Enter

key to apply the settings.

Note

The values for the date and time are used to display a sample setting. When a format is selected, the time and date set in the clock setting will appear in the selected format style.

2

2

29

Printing a Label Using the P-touch Labeling System Keyboard

Time Stamp Setting

You can insert a time stamp in your label using the following procedure.

Press the

Insert

key, select [

Time Stamp

] using the or key, and then press the

OK

or

Enter

key.

You can change the time stamp settings to display the time stamp in various formats. (Factory settings are shown in bold.)

 Timing

You can select whether to print the date and time when you press the

Insert

key, select [

Time Stamp

] using the or key, and then press the

OK

or

Enter

key, or the date and time when you press the

Print

,

OK

or

Enter

key to add to your label.

2

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Time Stamp Setting

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

Timing

] using the or key, select [

Auto

] or [

Fixed

] using the or key, and then press the

OK

or

Enter

key to apply the settings.

2

Attribute

Timing

Setting

Auto

Fixed

Description

Press the

Insert

key, select [

Time Stamp

] using the or key, and then press the

OK

or

Enter

key; the current date and time (a future date and time or a past date and time when [

Forward

] is set) and a clock icon will be inserted where the cursor is positioned on the label creation screen.

When you press the

Print

,

OK

, or

Enter

key to print, the current date and time will be printed on the label where the date, time, and the clock icon are positioned on the label layout.

Press the

Insert

key, select [

Time Stamp

] using the or key, and then press the

OK

or

Enter

key; the current date and time will be inserted where the cursor is positioned on the label creation screen.When you press the

Print

,

OK

, or

Enter

key to print, the date and time will be printed as shown on the label creation screen.

Note

When [

Auto

] is selected for the [

Timing

] setting and a clock icon is added to the text by pressing the

Insert

key, selecting [

Time Stamp

] using the or key, and then pressing the

OK

or

Enter

key, you can confirm the icon settings as follows. Position the cursor to the left of the clock icon, press the

Insert

key, select [

Time Stamp

] using the or key, and then press the

OK

or

Enter

key.

30

Printing a Label Using the P-touch Labeling System Keyboard

 Format

You can select which information to use when adding the date and time to your label.

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Time Stamp Setting

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

Format

] using the or key, select the value for the setting using the or key, and then press the

OK

or

Enter

key to apply the settings.

2

Attribute

Format

Setting

Date

Time

D&T

T&D

Description

Prints only the date on the label.

Prints only the time on the label.

Prints the date and time on the label.

Prints the time and date on the label.

Forward

You can select whether to use a future date and time, a past date and time, or the current date and time when [

Timing

] is set to [

Auto

].

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Time Stamp Setting

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

Forward

] using the or key, select [

On

] using the or key, and then press the

OK

or

Enter

key.

d

Select [

Add

] or [

Reduce

] using the or key, select the year, month, week, date, hour or minute using the or key, and then set the amount to increase or decrease from the currently set clock using the or key. After all parameters are set, press the

OK

or

Enter

key to apply the settings.

Note

You can also set the date and time by typing in the numbers you want.

Attribute

Forward

Setting

Off

On

Description

Prints the current time and date.

Increases or decreases the date and time according to the value selected in the [

Forward

] setting.

31

Printing a Label Using the P-touch Labeling System Keyboard

Changing and Deleting the Time Stamp Settings

To change the [

Time Stamp

] settings, select the clock icon, and then press the

OK

or

Enter

key.

To delete a time stamp from a label, position the cursor to the right of the clock icon or select the clock icon, and then press the

BS (Backspace)

key.

2

2

Setting Character Attributes

2

Setting Character Attributes by Label

Using the

Format

key, you can select a font and apply size, width, style, line, and alignment attributes.

Selectable “Character Attribute” options are listed in the Appendix. (See

Character Attribute

on page 230.)

2

a

Press the

Format

key.

The [

Font

] dialog box appears.

b

Select an attribute using the or key.

c

Select the setting for that attribute using the or key, and then press the

OK

or

Enter

key to apply the settings.

Note

New settings are NOT applied unless you press the

OK

or

Enter

key.

Note

• To return to the previous step, press the

Esc

key.

• To set the selected attribute as the default setting, press the

Space

key.

• Small characters may be difficult to read when certain styles are applied (for example, Shadow + Italic).

• Depending on the label type, you cannot change the

Format

setting. In this case, appears on the left side of the dialog box.

Setting Character Attributes by Each Line

When a label consists of two or more lines of text, you can set different character attributes (font, size, width, style, line and alignment) for each line.

2

32

Printing a Label Using the P-touch Labeling System Keyboard

Move the cursor to the line you want to modify using the , , or key. Next, press the

Shift

and

Format

keys to display the setting dialog box. ( on the dialog box indicates that you are now setting the attributes for that specific line only.)

2

Important

• When different attribute values are set for each line, the value appears as ***** when you press the

Format

key. When you change the setting on this screen using the or key, the same change is applied to all lines of the label.

• When different attribute values are set for each line, the settings of the line where the cursor is positioned in the label creation screen appear at the top of the screen.

Setting Frames

You can select the frame of the label using the

Format

key. Selectable “Frames” are listed in the Appendix.

(See

Frames

on page 233.)

a

Press the

Format

key.

b

Select [

Frame

] using the or key.

2

c

Select a frame using the or key, and then press the

OK

or

Enter

key.

The selected frame is inserted.

33

Printing a Label Using the P-touch Labeling System Keyboard

Note

• If you press the

Preview

key when selecting a frame, you can display the frame list screen and select a frame from that screen.

• New settings are NOT applied unless you press the

OK

or

Enter

key.

• To return to the previous step, press the

Esc

key.

• To set the [

Frame

] setting as the default setting, press the

Space

key when the [

Frame

] dialog box appears.

Using Auto Format Layouts

2

2

Using Templates

You can use supplied templates to create labels by just entering the text or selecting the format. Selectable

“Templates” are listed in the Appendix. (See

Template

on page 235.)

2

a

Select [

Templates

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select a category using the or key, and then press the

OK

or

Enter

key.

c

Select a template using the or key, and then press the

OK

or

Enter

key.

d

Enter text or a barcode for each text field if needed, and then press the

OK

or

Enter

key.

e

When finished, press the

OK

or

Enter

key.

To print the label, select [

Print

] using the or key, and then press the

OK

or

Enter

key.

Note

• For more information about barcodes, see

Creating a Barcode Label

on page 27.

• You can use the serialize settings with the entered text and barcodes. To specify the serialize settings, see

Entering a Serialized Label

on page 21. (The advanced serialize mode cannot be used.)

• To print the label, see

Printing a Label

on page 42.

• To preview the label before printing, select [

Preview

] using the or key, and then press the

OK

or

Enter

key. For more information about the preview screen, see

Label Preview

on page 46.

• To save the label, select [

Save

] using the or key, and then press the

OK

or

Enter

key.

34

Printing a Label Using the P-touch Labeling System Keyboard

Using Block Layouts

You can use pre-installed block layouts to create labels by just entering the text or barcodes. Selectable

“Block Layouts” are listed in the Appendix. (See

Block Layout

on page 238.)

a

Select [

Block Layouts

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

2

b

Select the tape width using the or key, and then press the

OK

or

Enter

key.

c

Select a block layout using the or key, and then press the

OK

or

Enter

key.

d

Enter text or a barcode for each text field if needed, and then press the

OK

or

Enter

key.

e

When finished, press the

OK

or

Enter

key.

To print the label, select [

Print

] using the or key, and then press the

OK

or

Enter

key.

Note

• For more information about barcodes, see

Creating a Barcode Label

on page 27.

• You can use the serialize settings with the entered text and barcodes. To specify the serialize settings, see

Entering a Serialized Label

on page 21. (The advanced serialize mode cannot be used.)

• To print the label, see

Printing a Label

on page 42.

• To preview the label before printing, select [

Preview

] using the or key, and then press the

OK

or

Enter

key. For more information about the preview screen, see

Label Preview

on page 46.

• To save the label, see

Storing a Label in the File Memory

on page 49.

Cable Label Type

You can create labels for cables, patch panels, and other equipment when performing electrical work by selecting the type of label and setting the necessary items.

a

Select [

Cable Label

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

2

b

Select a label type using the or key, and then press the

OK

or

Enter

key.

The available cable label types are as follows:

Note

Factory settings are shown in bold.

2

35

Printing a Label Using the P-touch Labeling System Keyboard

Faceplate

Labels of this type can be used to identify various faceplates. Blocks of text are evenly spaced on each label.

2

One block Two blocks

2

 Label Length:

2.0" (50 mm)

, 0.4-39.0" (10-999 mm)

 # of Blocks:

1

, 1-5

 Orientation: (Vertical)

Cable Wrap

Labels of this type can be wrapped around a cable or wire.

Standard Rot.90

2

 UOM (Unit of Measure):

Dia(Ø)

, Length, CAT5/6, CAT6A, COAX, AWG, Rot.90

 Value: Varies depending on the UOM (Unit of Measure) setting

 Repeat:

On

, Off

 Cross-ID:

Off

, On

Note

When using Flexible ID Tape:

• We recommend using Flexible ID Tape for "Cable Wrap" labels.

• Labels made with Flexible ID Tape are not designed for use as electrical insulation.

• When wrapping labels around cylindrical objects, the diameter (1) of the object should be at least 0.12"

(3 mm).

• The overlapping (2) ends of the label or the label flag should be at least 0.2" (5 mm).

2

1

36

Printing a Label Using the P-touch Labeling System Keyboard

Note

When using Self-Laminating Tape:

• The text is horizontally printed.

• When you insert the Self-Laminating Tape and select Cable Wrap, you can specify the following items.

 Label Length:

Auto

, 0.6" (15 mm) - 12" (300 mm)

 V. Offset (Adjusts Vertical Position):

0

, -1, -2, -3, -4, -5, -6, -7, +7, +6, +5, +4, +3, +2, +1

 Cross-ID:

Off

, On

Cable Flag

Labels of this type can be wrapped around a cable or wire, and both ends of the label stick together to form a flag. The text on flag labels is printed on both ends of the label, leaving a blank space in the middle that wraps around the cable.

2

2

1

1 Flag length at least 0.6" (15 mm)

 Layout: ),

 Flag Length:

1.2" (30 mm)

, 0.4-8.0" (10-200 mm)

Cable Diameter:

0.24" (6 mm)

, 0.12-3.5" (3-90 mm)

(different text on each side)

 Orientation: (Vertical)

 Cross-ID:

Off

, On

Horizontal Vertical

1

1 Flag length

2 Cable circumference

2 1 1 2

Note

• You can enter up to two barcodes when is selected in flag layout.

• We recommend using Flexible ID Tape for "Cable Flag" labels.

• Labels made with Flexible ID Tape are not designed for use as electrical insulation.

1

37

Printing a Label Using the P-touch Labeling System Keyboard

Patch Panel

Labels of this type can be used to identify various types of panels.

 Block Length:

0.60" (15.0 mm)

, 0.20-12.0" (5.0-300.0 mm)

 # of Blocks:

4

, 1-99

 Separator:

(None)

(Dash), (Line),

 Orientation: (Vertical)

 Reverse:

Off

, On

 Advanced:

Off

, On

Adjust block length independently when “

Advanced

” is set to “

On

”.

1A-B01 1A-B02 1A-B03

1 1 1

1 Block length

 No Margins:

Off

, On

Set the left and right label margins to zero.

Note

Advanced

” and “

No Margins

” cannot be set to “

On

” at the same time.

(Bold), (Frame),

2

2

38

Printing a Label Using the P-touch Labeling System Keyboard

Punch-Down Block

Labels of this type can be used to identify a type of electrical connection, often used in telephony. You can enter up to eight lines for each block on a single label.

2

2

 Module Width:

8.0" (200 mm)

, 2.0-12.0" (50-300 mm)

 Block Type:

4 Pairs

, 2 Pairs, 3 Pairs, 5 Pairs, Blank

 Sequence Type:

 Start Value: ---, 1-99999

(

None

), (Backbone)

Note

• When "

Blank

" is selected in "

Block Type

", "

Sequence Type

" is set to "None".

• When "None" is selected in "

Sequence Type

", "---" appears for "

Start Value

" and you cannot set a value. Selecting "Horizontal" or "Backbone" however, allows you to set the "

Start Value

" setting from

1 to 99,999.

Die-cut Flag

Labels of this type can be printed on special die-cut flag labels to create flag labels for cables and wires.

Use FLe label cassettes for this type of application.

2

 Layout: ),

(same text in same direction on each side),

(different text in different directions on each side),

(different text in same direction on each side)

 Orientation: (Vertical)

39

Printing a Label Using the P-touch Labeling System Keyboard

Inverted Label

Labels of this type can be printed with the text and background colors reversed without changing the tape cassette. In addition, you can create labels with a small label height by setting [

(Vertical).

Orientation

] to

2

ON

Label Length:

Auto

, 0.4-39.0" (5-999 mm)

 Orientation: (Vertical)

Note

• The font and font style are set to Helsinki and bold respectively and cannot be changed.

• The following types of tape cannot be used:

• 0.13" (3.5 mm) tape

• Stencil tape

• Heat Shrink Tube

• Die-cut flag label

2

40

Printing a Label Using the P-touch Labeling System Keyboard

Setting Cross-ID

You can make the Cross-ID printed labels when you select CABLE WRAP or CABLE FLAG.

a

Select [

Cable Label

] in the Home Screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Cable Wrap

] or [

Cable Flag

] using the or key.

2

2

c

Select [

Cross-ID

] using the or key, and select [

On

] using the or key.

d

1 line: Enter the text and insert "/" or "\" where you want to apply Cross-ID.

2 or more lines: You can apply Cross-ID between lines by pressing the

Enter

key to create another line.

For example:

1 line 2 or more lines

41

Printing a Label Using the P-touch Labeling System Keyboard

Printing a Label

2

Feeding Tape

Important

• Be sure to feed tape to remove any slack in the tape and ink ribbon after inserting the tape cassette.

Do not pull the label when the P-touch labeling system is ejecting it from the tape exit slot.

Doing so will cause the ink ribbon to be discharged with the tape. The tape may no longer be functional after the ink ribbon discharges.

• Do not block the tape exit slot during printing or when feeding tape. Doing so will cause the tape to jam.

Feed and Cut

The Feed and Cut function feeds approximately 0.88" (22.3 mm) of blank tape, and then cuts the tape.

a

Press the (Feed and Cut) button.

[

Feed & Cut?

] appears on the LCD.

2

b

Select [

Feed & Cut

] using the or key, and then press the

OK

or

Enter

key. The message [

Feeding

Tape... Please Wait

] appears while the tape is fed, and then the tape is cut.

Note

To exit or cancel this function press the

Esc

key.

Feed Only

This function ejects the tape approximately 0.88" (22.3 mm), resulting in a blank label sticking out of the tape cassette. This action is recommended when using Fabric tapes, which should be cut with scissors.

2

a

Press the (Feed and Cut) button.

[

Feed & Cut?

] appears on the LCD.

b

Select [

Feed Only

] using the or key, and then press the

OK

or

Enter

key. The message [

Feeding

Tape... Please Wait

] appears while the tape is fed.

Note

To exit or cancel this function press the

Esc

key.

Tape Cutting Options

The tape cutting options allow you to specify how the tape is fed and cut when printing labels.

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

2

2 2

42

Printing a Label Using the P-touch Labeling System Keyboard b

Select [

Cut Options

] using the or key, and then press the

OK

or

Enter

key.

c

Select the setting using the or key, and then press the

OK

or

Enter

key to apply the settings.

Note

New settings are NOT applied unless you press the

OK

or

Enter

key.

Note

• To return to the previous step, press the

Esc

key.

• See the following table for a list of all available settings.

• When printing multiple copies of different labels, you can select the chain printing option to reduce the blank space between the labels. The chain printing option is used for cutting option numbers 5-8. (See the

following

Cut Option Table

.)

• When using the chain printing option, press the (Feed and Cut) button after the last label is printed.

Cut Option Table

Cut Option No.

Auto Cut Half Cut Chain Printing Image

2

1 No Yes No

ABC ABC

2 Yes Yes No

ABC

ABC

3 No No No

ABC ABC

4 Yes No No

ABC

ABC

43

Printing a Label Using the P-touch Labeling System Keyboard

Cut Option Table

Cut Option No.

Auto Cut Half Cut

5 No Yes

Chain Printing

Yes


ABC ABC

6 Yes Yes Yes

ABC

ABC

7 No No Yes

ABC ABC

8 Yes No Yes

ABC

ABC

9 Special tape

ABC

ABC

(FLe Label)

1

No ― ―

ABC ABC

(FLe Label)

1

Yes ― ―

ABC

ABC

1

If you are using an FLe label cassette, set this cut option from a computer using the printer driver. These options cannot be set using the keyboard.

2

44

Printing a Label Using the P-touch Labeling System Keyboard

Label Adjustment

2

Adjusting the Label Length

When the tape cassette comes to the end, the printed length may be less accurate.

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

2

b

Select [

Adjust Length

] using the or key, and then press the

OK

or

Enter

key.

c

Set the value using the or key, and then press the

OK

or

Enter

key to apply the settings.

Note

Approximately 1% of the total label length will be adjusted by one level.

Setting Auto Fit Style

When [

Size

] of the character attributes is set to [

Auto

] and the label length is set to a specific length, you can select the way of reducing the text size to fit within the label length.

2

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Auto Fit Style

] using the or key, and then press the

OK

or

Enter

key.

c

Select the style using the or key.

Note

• When [

Text Size

] is selected, the total text size is modified to fit within the label.

• When [

Text Width

] is selected, the text width will be reduced to the size of the [ x 1/2

] setting. (If further size reduction is needed to fit the text into the selected label length, the total text size will be modified after reducing the text width to the [ x 1/2

] setting.) d

Press the

OK

or

Enter

key to apply the settings.

Note

• To return to the previous step, press the

Esc

key.

• To set the style as the default setting for [

Text Size

], press the

Space

key.

2

45

Printing a Label Using the P-touch Labeling System Keyboard

Label Preview

You can preview the current page and check the layout before printing.

a

Press the

Preview

key.

An image of the label appears on the screen.

1

2

3

4

1 Indicates the position of the currently displayed portion of the label using the bar.

2 Indicates the information detected for the installed tape cassette. The first line indicates the character color and the second line indicates the tape color.

3 Press the

Preview

key to increase or decrease the magnification of the preview.

4 Indicates the tape width of the installed tape cassette and the label length as follows:

Tape width x Label length.

Press the , , or key to scroll the preview.

Press the

Preview

key to change the magnification of the preview.

Note

• To return to the label creation screen, press the

Esc

,

OK

or

Enter

key.

• To scroll the preview to the left or right end, press the

Shift

key, and then press the or key.

• To print the label directly from the preview screen, press the

Print

key or open the [

Print Options

] screen and select a print option. See

Printing Labels

on page 47 for more information.

• The print preview is a generated image of the label, and may differ from the actual label when printed.

• The character color and tape color cannot be detected for some tape cassettes.

2

2

46

Printing a Label Using the P-touch Labeling System Keyboard

Printing Labels

Labels can be printed when text entry and formatting is complete.

Important

Do not pull the label when the machine is ejecting it from the tape exit slot.

Doing so will cause the ink ribbon to be discharged with the tape. The tape may no longer be functional after the ink ribbon discharges.

• To prevent damage to the tape, do not touch any key while the [

Printing... Copies

] or [

Feeding

Tape... Please Wait

] message appears.

• Do not block the tape exit slot during printing or when feeding tape. Doing so will cause the tape to jam.

• Be sure to check that there is enough tape remaining when printing several labels continuously. If tape is running low, set fewer copies, print labels one at a time, or replace the tape cassette.

• Striped tape indicates the end of the tape cassette. If this appears during printing, press and hold the

(Power) button to turn off the P-touch labeling system. Attempting to print with an empty tape cassette may damage the P-touch labeling system.

2

2

Printing a Single Page

Press the

Print

key, and then press the

Print

or

OK

key to start printing.

Printing Multiple Copies

Using this function you can print up to 99 copies of the same label.

a

Press the

Print

key, and then select the number of copies using the or key, or type the number using the number keys.

2

Note

Press and hold the or key to change the number of copies quickly.

b

Press the

Print

or

OK

key to print.

Note

To cancel the current print job, press the

Cancel

key.

2

47

Printing a Label Using the P-touch Labeling System Keyboard

Printing a Range of Pages

When there are multiple pages, you can specify the range of pages to print.

a

Press the

Shift

and

Print

keys.

b

Select [

Current Page

] or [

Range

] using the or key, and then press the

OK

or

Enter

key. If you select [

Current Page

], go to step

d

.

c

Using the , , or key, specify the first page and the last page, and then select the number of copies.

2

Note

Blank pages are not printed.

d

Press the

Print

or

OK

key to print.

Note

• If you need all pages, press the

Print

key, and then press the

Print

or

OK

key to print all pages without specifying the range.

• To return to the previous step, press the

Esc

key.

• To cancel the current print job, press the

Cancel

key.

• The figures shown on the screen during printing indicate the “count/number of copies set”.

• Pressing the

Space

key when setting the number of copies resets the value to 01 (default).

Mirror Printing

Use clear tape so the labels can be read correctly from the opposite side when attached on glass, windows or other transparent surfaces.

2

2

a

Press the

Shift

and

Print

keys.

b

Select [

Mirror-print current page

] using the or key, and then press the

OK

or

Enter

key.

c

Press the

Print

or

OK

key to print.

48

Printing a Label Using the P-touch Labeling System Keyboard

Using the File Memory

You can store up to 99 of your most frequently used labels designed using the built-in functions in the file memory. Each label is stored as a file, allowing you to quickly recall your label when needed again.

2

Note

• When the file memory is full, each time you save a file you will need to overwrite one of your stored files.

• The available space

1

in the file memory can be confirmed using the following procedure:

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

Select [

Memory Usage

] using the or key, and then press the

OK

or

Enter

key.

Select [

Local Content

] using the or key, and then press the

OK

or

Enter

key.

1

Because the file size may vary depending on the characters input and the type of data, you may not be able to store a file even if the available space that appears in [

Available : XXXXXchrs

] indicates there is sufficient space.

Storing a Label in the File Memory

a

After entering the text and formatting the label, press the

Save

key.

b

Select a file number using the or key, and then press the

OK

or

Enter

key.

Note

• When there is already a stored file for the selected number, the file you are saving will overwrite the old one.

• To display the layout for the selected file number, press the

Preview

key.

c

Enter the file name, and then press the

OK

or

Enter

key.

The file is saved and the screen returns to the label creation screen.

Note

To return to the previous step, press the

Esc

key.

2

2

49

Printing a Label Using the P-touch Labeling System Keyboard

Opening/Printing a Stored Label File

2

a

Select [

File

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select a file using the or key, and then press the

OK

or

Enter

key.

c

Select [

Open

] using the or key, and then press the

OK

or

Enter

key. The file appears on the label creation screen.

d

Press the

Print

key to print.

Note

To return to the previous step, press the

Esc

key.

Deleting a Stored Label File

2

2

Important

To delete a label created using a transferred template, see

Deleting the Transferred Data

on page 63.

a

Select [

File

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select a file using the or key, and then press the

OK

or

Enter

key.

Note

• To display the layout for the selected file, press the

Preview

key.

• At this time, you can also delete by pressing the

Clear

key.

c

Select [

Delete

] using the or key, and then press the

OK

or

Enter

key.

The [

Delete?

] message appears.

d

Press the

OK

or

Enter

key to delete the file.

Note

To cancel deleting the file and return to the previous screen, press the

Esc

key.

50

Printing a Label Using the P-touch Labeling System Keyboard

Registering a Function

You can program up to 10 frequently used functions with built-in and/or downloadable symbols, images, label designs and databases.

This feature allows you to recall any function by pressing the

PF (Programmable Function)

key.

2

Note

For more information on Register Programmable Function, see [

FAQs & Troubleshooting

] on the Brother support website at support.brother.com.

Registering a New Function

2

2

a

Select [

Register Programmable Function

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key. b

Select [

***

] (not registered) using the or key, and then press the

OK

or

Enter

key. c

Select the item category (symbol, transferred symbol, database, transferred template, or file) that you want to register using the or key, and then press the

OK

or

Enter

key.

d

Select the item that you want to register, and then press the

OK

or

Enter

key.

e

Enter the function name, and then press the

OK

or

Enter

key to register this function.

The function registration is completed.

Note

• The registered function name can be changed later.

• You can register up to 10 functions. If 10 functions are already registered, you must delete one of the functions before registering a new function.

• If you recall a registered function and make changes to it, the revised function cannot be registered by overwriting the previous function. The revised function must be registered as a new function. Delete any unnecessary functions.

Recalling and Using a Registered Function

2

a

Press the

PF (Programmable Function)

key while the Home, label creation screens are displayed.

b

Select a function using the or key, and then press the

OK

or

Enter

key.

Note

• You can also recall a function by typing the function number using the number keys.

• You can also recall a function by selecting [

Register Programmable Function

] in the Home screen.

51

Printing a Label Using the P-touch Labeling System Keyboard

Deleting a Registered Function

2

a

Select [

Register Programmable Function

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select a function using the or key, and then press the

OK

or

Enter

key.

c

Select [

Delete

] using the or key, and then press the

OK

or

Enter

key.

The [

Delete?

] message appears.

d

Press the

OK

or

Enter

key.

Note

You can also recall a function by:

• typing the programmed number using the number keys.

• selecting [

Register Programmable Function

] in the Home screen.

2

52

3

Using the Data Transferred to the P-touch

Labeling System

3

You can use a template, database, or symbol transferred from the computer to print the label.

Transferring Data from the Computer

You can use the transfer function of Cable Label Tool or P-touch Transfer Manager to transfer data from the computer to the P-touch labeling system.

For more information, see

Transferring Templates from Cable Label Tool to the P-touch Labeling System

on page 133 or

How to Use P-touch Transfer Manager

on page 138.

3

3

Transferred Symbols

To enter transferred symbols, see

Entering Symbols

on page 19.

3

Printing the Transferred Template

You can transfer a label designed with P-touch Editor (*.lbx file) to the P-touch labeling system as a template for printing labels. You can enter data into the templates, or print labels from a transferred database.

Important

• Before editing a template, transfer the template to the P-touch labeling system.

• When the transfer of the data to the P-touch labeling system is complete, turn off the P-touch labeling system and then on again.

3

When the Template has No Object to be Edited

3

a

Select [

Transferred Templates

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

Note

The names and numbers of the transferred templates that can be selected appear, and a preview of the selected template appears.

b

Select the template you want using the or key, and then press the

OK

or

Enter

key.

Note

When the template is linked to a database, the icon appears in the upper-right corner of the screen.

53

Using the Data Transferred to the P-touch Labeling System c

Select [

Print

] or [

Print from Database

] using the or key to start printing.

Note

To select the range from the database that you want to print, follow steps

c

-

e

in

When the Template is

Linked to the Database and will not be Edited

.

When the Template has an Object to be Edited

If needed, the template can be temporarily edited. However, the template cannot be saved after it is changed.

When the template is not linked to a database, to print the label you must first select the label template, and then type text in each of its fields.

When the template is linked to a database, you can print a single record or a range of records in the database linked to the template.

3

Important

You cannot add or delete line breaks.

a

Select [

Transferred Templates

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select the template using the or key, and then press the

OK

or

Enter

key.

Note

When the template is linked to a database, the icon appears in the upper-right corner of the screen.

c

Select [

Edit Label without Saving

] using the or key, and then press the

OK

or

Enter

key.

Objects that can be edited appear.

d

Select the object to be edited using the or key, and then press the

OK

or

Enter

key.

 When the template is not linked to a database:

The contents of the selected object appear. Edit the object, and then press the

OK

or

Enter

key.

 When the template is linked to a database:

The first record of the database appears. Edit the object, and then press the

OK

or

Enter

key.

e

When finished, press the

Esc

key.

f

Select the menu using the or key to start printing.

 When the template is not linked to a database:

Select [

Print

] using the or key to start printing.

 When the template is linked to a database:

Select [

Print from Database

] or [

Print Edited Label

] using the or key to start printing.

3

54

Using the Data Transferred to the P-touch Labeling System

Note

• When editing templates linked to a database:

• When an object that is not linked to the database was edited, select [

Print from Database

] to print.

• When an object that is linked to the database was edited, the edited contents will be deleted if you select

[

Print from Database

]. Therefore, print the template just by selecting [

Print Edited Label

] using the or key.

• To select the range from the database that you want to print, follow steps

c

-

e

in

When the Template is

Linked to the Database and will not be Edited

.

• To edit the database, see

Editing the Database

on page 60.

When the Template is Linked to the Database and will not be Edited

3

3

a

Select [

Transferred Templates

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select the template using the or key, and then press the

OK

or

Enter

key.

Note

When the template is linked to a database, the icon appears in the upper-right corner of the screen.

c

Select [

Print from Database

] using the or key, and then press the

OK

or

Enter

key.

The contents of the database linked to the template appear.

d

Select the first record in the range that you want to print using the , , or key, and then press the

OK

or

Enter

key.

e

Select the last record in the range that you want to print using the , , or key, and then press the

OK

or

Enter

key to start printing.

When the range is set, the selected records are highlighted.

Note

To return to the previous step, press the

Esc

key.

55

Using the Data Transferred to the P-touch Labeling System

Using Transferred Database Data

You can transfer a database converted to a *.csv file to the P-touch labeling system.

The data for a database that was transferred without a template can be imported into each label except auto format layouts and transferred templates. The database data is imported according to the number of blocks and pages set for each label.

Important

• Before using a database, transfer the database to the P-touch labeling system.

• If a database and template are linked and transferred together, the database can use only that template.

Note

• If the selected database range is larger than the set number of blocks and pages, the data will be imported until the maximum number of blocks and pages is reached.

• If the set number of blocks and pages is larger than the selected database range, the operation will finish when the complete database is imported. The remaining blocks and pages will not be printed.

a

Press the

Insert

key, select [

Database

] using the or key, and then press the

OK

or

Enter

key.

3

b

Select the database you want using the or key, and then press the

OK

or

Enter

key.

The first record of the selected database appears.

Note

• If the selected record is not changed within a certain time while the database is displayed, the contents of the record will be displayed at the bottom of the screen. However, the contents of the record will not be displayed if the record contains 11 one-byte characters or fewer.

• When the

Preview

key is pressed, the properties of the record appear.

• When setting the range, the "field names" line (first line of data) cannot be selected.

3

56

Using the Data Transferred to the P-touch Labeling System c

Select the first record in the range that you want to insert, and then press the

OK

or

Enter

key.

The selected record is highlighted.

d

Select the last record in the range that you want to insert, and then press the

OK

or

Enter

key.

The selected range is highlighted.

3

The contents of the selected database appear.

57

Using the Data Transferred to the P-touch Labeling System

Searching the Database

While selecting a database record you want to use in a template or added to a label, you can search for records containing specific characters or a specific number.

The search proceeds to the right after the first matched string. Then, the database records will be searched in the same direction as the import order for the label type. The "field names" line will also be searched.

The possible search characters include upper-case and lower-case letters (including accented characters), numbers, and the upper symbols shown on the keys.

3

a

Press the

Insert

key, select [

Database

] using the or key, and then press the

OK

or

Enter

key.

b

Select the database you want using the or key, and then press the

OK

or

Enter

key.

The first record of the selected database appears.

3

c

Type in the first character (for example, "B") that you want to search for.

Example

: If you type "B", the fields will be searched from the first field for character strings containing

"B".

If a string that contains "B" is found, the cursor moves to that data and "B" becomes highlighted. In addition, "B" will be stored in the internal memory.

If a string that contains the searched character "B" is not found, the cursor remains in its current position without moving and the character "B" will not be stored in the internal memory.

58

Using the Data Transferred to the P-touch Labeling System d

Type in the second character (for example, "R") that you want to search for.

Next, if you type "R", the fields will be searched from the next field for character strings containing "BR".

If a string that contains "BR" is found, the cursor moves to that data and "BR" becomes highlighted. In addition, "BR" will be stored in the internal memory.

e

Continue searching the database using the same procedure.

Note

• If the character that you searched for is contained in multiple fields in the database, press the

Next

key to move to the next field containing the character. The character will be highlighted in the field.

3

• Press the

BS (Backspace)

key to delete the last search character. The cursor will move to the field containing the remaining search characters.

59

Using the Data Transferred to the P-touch Labeling System

Editing the Database

3

a

Press the

Insert

key, select [

Database

] using the or key, and then press the

OK

or

Enter

key.

b

Select the database you want to edit using the or key, and then press the

OK

or

Enter

key.

Note

You can also select the database you want to edit using the following procedure:

Select [

Transferred Templates

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key. Select the template linked to a database you want to edit using the or key, and then press the

OK

or

Enter

key. Select [

Print from Database

] using the or key, and then press the

OK

or

Enter

key.

The first record of the selected database appears.

3

c

Select the cell you want using the , , or key, and then press and hold the

OK

or

Enter

key.

60

Using the Data Transferred to the P-touch Labeling System d

Enter the new text.

Note

To cancel editing the text and return to the previous screen, press the

Esc

key.

Important

• You can add or delete a line break.

• Each cell can contain a maximum of 17 lines.

e

Press the

OK

key.

The new text appears.

Note

If you do not want to print the database, press the

OK

key, and then press the

Esc

key. The edited data will be saved.

f

Press the

OK

key again.

The edited record becomes highlighted.

3

61

Using the Data Transferred to the P-touch Labeling System g

Do one of the following:

 When the database has been transferred with a template:

Select the last record in the range that you want to print using the , , or key, and then press the

OK

or

Enter

key to start printing.

When the range is set, the selected records become highlighted.

3

 When the database has been transferred without a template:

Select the last record in the range that you want to insert, and then press the

OK

or

Enter

key.

The selected range becomes highlighted.

The contents of the selected database appears.

h

Press the

Print

key.

62

Using the Data Transferred to the P-touch Labeling System

Deleting the Transferred Data

Use the following methods to delete transferred data.

Multiple items cannot be deleted together. Delete each item separately.

3

Deleting Transferred Symbols

a

Press the

Insert

key, select [

Transferred Symbols

] using the or key, and then press the

OK

or

Enter

key.

b

Select the transferred symbol you want to delete using the or key, and then press the

Clear

key.

The [

Delete?

] message appears.

c

Press the

OK

or

Enter

key.

The selected transferred symbol is deleted and the next image is selected.

If needed, delete the next image.

3

3

Deleting Templates

a

Select [

Transferred Templates

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select the template you want to delete using the or key, and then press the

OK

or

Enter

key.

c

Select [

Delete

] using or key, and then press the

OK

or

Enter

key.

The [

Delete?

] message appears.

d

Press the

OK

or

Enter

key.

The selected template is deleted and the next template is selected.

If needed, delete the next template.

3

Deleting Databases

a

Press the

Insert

key.

b

Select the database you want to delete using the or key, and then press the

Clear

key.

The [

Delete?

] message appears.

c

Press the

OK

or

Enter

key.

The selected database is deleted and the next database is selected.

If needed, delete the next database.

3

63

4

Printing Using the Computer

4

Installing the Printer Driver and Software

To print from your Windows computer or Mac, install the printer driver, Cable Label Tool, P-touch Editor and other applications.

Important

Do not connect the P-touch labeling system to the computer until asked to do so.

a

Visit our website (

www.brother.com/inst

) and download the installer for the software and manuals.

b

Double-click the downloaded file and follow the on-screen instructions to proceed with the installation.

Note

• After the installation starts, you can select which items to install.

• To connect the P-touch labeling system to a computer using a wireless connection, we recommend the following:

• Configure the wireless network settings while installing the software. You can change the settings later using the [

Settings

] in the Home screen or Printer Setting Tool. For more information, see

Connecting Using Wi-Fi

on page 65 or

Changing the P-touch Labeling System Settings

on page 83.

• Install the software on a computer wirelessly connected to your network and configuring the P-touch labeling system using a USB cable.

• Get the SSID (network name) and password (network key) of the wireless network in advance.

c

Close the dialog box when the installation is complete.

4

4

Connecting the P-touch Labeling System to a Computer

Refer to the directions for the type or connection method:

USB cable connection

See

Connecting Using USB

on page 64.

Wireless LAN connection

See

Connecting Using Wi-Fi

on page 65.

4

Connecting Using USB

a

Before connecting the USB cable, make sure that the P-touch labeling system is turned off.

b

Connect the P-touch labeling system end of the USB cable to the USB port on the back of the P-touch labeling system.

c

Connect the other end of the USB cable to the USB port on the computer.

4

64

Printing Using the Computer d

Turn on the P-touch labeling system.

Connecting Using Wi-Fi

You can select the network type, configure or display the network settings using [

Settings

] in the Home screen. You can also use [

Communication settings

] in the Printer Setting Tool for detailed configuration.

For more information see

Changing the P-touch Labeling System Settings

on page 83.

The following Wi-Fi connection methods are available:

 Infrastructure Mode

Ad-Hoc Mode (To set the Ad-Hoc mode, use the Printer Setting Tool (see

Changing the P-touch Labeling

System Settings

on page 83).)

4

Infrastructure Mode

Infrastructure mode allows you to connect the P-touch labeling system to a computer via a wireless access point/router.

Before You Begin

First you must configure the Wi-Fi settings of your P-touch labeling system to communicate with your wireless access point/router. After the P-touch labeling system has been configured, computers on your network will have access to the P-touch labeling system.

4

Important

• If you are going to connect the P-touch labeling system to your network, we recommend contacting your system administrator prior to installation. You must confirm your Wi-Fi settings before you proceed with this installation.

• To configure the Wi-Fi settings again, or if the status of the Wi-Fi connection for your P-touch labeling system is not clear, reset the Wi-Fi settings of the P-touch labeling system.

1 Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

2 Select [

Reset

] using the or key, and then press the

OK

or

Enter

key.

3 Select [

Reset Wi-Fi Settings

] using the or key, and then press the

OK

or

Enter

key.

Note

• We recommend preparing the SSID (network name) and password (network key) of the wireless network in advance.

• To achieve the best results with everyday document printing, use the P-touch labeling system as close to the wireless access point/router as possible with minimal obstructions. Large objects and walls between the two devices and interference from other electronic devices can affect the data transfer speed of your documents.

4

65

Printing Using the Computer

Configuring using the Setup Wizard

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

WLAN

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

Infrastructure Mode

] using the or key, and then press the

OK

or

Enter

key.

d

Select [

Network Setting

] using the or key, and then press the

OK

or

Enter

key.

e

Select [

Setup Wizard

] using the or key, and then press the

OK

or

Enter

key.

f

If any messages appear, press the

OK

or

Enter

key for each message.

The SSIDs for the available networks appear.

4

g

Select the SSID using the or key, or select [

Other...

] and enter the SSID (from 1 to 32 characters), and then press the

OK

or

Enter

key.

The [

Password

] screen appears.

h

Enter the password (from 8 to 63 characters or, when using WEP, from 5 to 13 characters), and then press the

OK

or

Enter

key.

i

The screen returns to the [

Settings

] menu screen, and blinks while the connection is being established.

After 90 seconds, the indicator will change to , but your P-touch labeling system will continue trying to connect to the network.

j

When connected, depending on the strength of the wireless signal, the wireless connection indicator shows of the following symbols:

66

Printing Using the Computer

Note

If you start the setup wizard for the Infrastructure mode or select the network settings for the Direct mode when the wireless function of the P-touch labeling system is turned off, [

Turning on Wi-Fi Radio

] appears and the wireless function turns itself on automatically (or after the

OK

key is pressed). It is no longer necessary to turn the Infrastructure mode or Direct mode on manually.

Connecting the P-touch labeling system to your wireless access point/router using a computer

a

First, write down the SSID (network name) and password (network key) of your wireless access point/router.

b

Connect the P-touch labeling system and computer with a USB cable.

c

Press and hold the (Wi-Fi) button on your P-touch labeling system for one second to turn the Wi-Fi function on. The (Wi-Fi) indicator starts flashing in green once every three seconds.

d

Configure the Infrastructure Mode settings of the P-touch labeling system using the computer.

 For Windows

Start the Printer Setting Tool on your computer, and click [

Communication settings

]. Select

[

Infrastructure or Ad-hoc

] or [

Infrastructure and Wireless Direct

] for [

Selected Interface

] in

[

Communication settings

] in the [

General

] tab, and select [

Infrastructure

] for [

Communication

Mode

] in [

Wireless Settings

] in the [

Wireless LAN

] tab.

For details, see

Changing the P-touch Labeling System Settings

on page 83.

 For Mac

Start the Wireless Device Setup Wizard included in the Printer Driver Package, and then follow the on-screen instructions. The Wireless Device Setup Wizard can be found in the [

Utilities

] folder.

e

Enter the SSID that you wrote down, or click [

Search

] and select the SSID from the displayed list.

f

Enter the password in the [

Passphrase

] field.

Note

The required information depends on the authentication method and encryption mode; enter only the information relevant to your network environment.

g

To send the settings to the P-touch labeling system, click [

Apply

].

When the connection between the P-touch labeling system and your wireless access point/router is established, the (Wi-Fi) indicator lights in green. Computers on the same network as the P-touch labeling system will have access to the P-touch labeling system.

Note

To change any other network settings, use the Printer Setting Tool (see

Changing the P-touch Labeling

System Settings

on page 83).

4

67

Printing Using the Computer

WPS (Wi-Fi Protected Setup™)

If your wireless access point/router supports WPS, you can configure settings and connections wirelessly.

a

First, confirm that your wireless access point/router has the WPS symbol.

b

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

c

Select [

WLAN

] using the or key, and then press the

OK

or

Enter

key.

d

Select [

Infrastructure Mode

] using the or key, and then press the

OK

or

Enter

key.

e

Select [

Network Setting

] using the or key, and then press the

OK

or

Enter

key.

f

Place your P-touch labeling system within the range of your wireless access point/router. The range may differ depending on your environment. See the instructions provided with your wireless access point/router.

g

Select [

Button Push

] using the or key, and then press the

OK

or

Enter

key.

h

Press the

OK

or

Enter

key for a message that appears before the [

Start WPS on Your Wireless

Access Point

].

The [

Start WPS on Your Wireless Access Point

] message appears.

i

Press the WPS button on your wireless access point/router, and then press the

OK

or

Enter

key on your P-touch labeling system.

Note

To return to the previous step, press the

Esc

key.

j

[

Connecting...

] appears for a while, and then [

Connected!

] appears.

k

Press the

OK

or

Enter

key.

The screen returns to the [

Settings

] menu screen.

Depending on the strength of the wireless signal, the wireless connection indicator may show one of the following symbols:

Note

• If you start the setup wizard for the Infrastructure mode or select the network settings for the Direct mode when the wireless function of the P-touch labeling system is turned off, [

Turning on Wi-Fi Radio

] appears and the wireless function turns itself on automatically (or after the

OK

key is pressed). It is no longer necessary to turn the Infrastructure mode or Direct mode on manually.

4

68

Printing Using the Computer

• Your P-touch labeling system will try to connect using WPS for two minutes. If the (Wi-Fi) button is pressed and held during that time, the P-touch labeling system will continue trying to connect for an additional two minutes.

• If your P-touch labeling system could not connect to the network, a message indicating that the connection failed appears.

Configuring by entering the PIN

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

WLAN

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

Infrastructure Mode

] using the or key, and then press the

OK

or

Enter

key.

d

Select [

Network Setting

] using the or key, and then press the

OK

or

Enter

key.

e

Select [

PIN Code

] using the or key, and then press the

OK

or

Enter

key.

f

If some messages appear, press the

OK

or

Enter

key for each message.

g

Type the PIN displayed on the screen into your wireless access point/router, and then press the

OK

or

Enter

key.

4

h

[

Connecting...

] appears for a while, and then [

Connected!

] appears.

i

Press the

OK

or

Enter

key.

The screen returns to the [Settings] menu screen.

Depending on the strength of the wireless signal, the wireless connection indicator may show one of the following symbols:

Note

If you start the setup wizard for the Infrastructure mode or select the network settings for the Direct mode when the wireless function of the P-touch labeling system is turned off, [

Turning on Wi-Fi Radio

] appears and the wireless function turns itself on automatically (or after the

OK

key is pressed). It is no longer necessary to turn the Infrastructure mode or Direct mode on manually.

69

Printing Using the Computer

Ad-Hoc Mode

For Windows, after installing the printer driver and other applications to your computer, set the Ad-Hoc mode using the Printer Setting Tool installed on the computer.

4

For Mac, set the Ad-Hoc mode using the Wireless Device Setup Wizard.

Turning the Wireless Function On or Off

To turn the wireless function on or off, press the (Wi-Fi) button.

a

Press the (Wi-Fi) button. The wireless function is now on. The (Wi-Fi) indicator lights/flashes in green.

b

Press the (Wi-Fi) button again to turn the wireless function off. The (Wi-Fi) indicator turns off.

4

Note

• If [

Off

] is selected in the [

Direct Mode On/Off

] and [

Infrastructure Mode On/Off

] screen, the wireless function will remain off even if you press the (Wi-Fi) button. (The factory setting is "On" for both

Direct mode and Infrastructure mode.) For more information see

Infrastructure Mode

on page 65 or

Connecting the P-touch labeling system to a Mobile Device

on page 76.

• When the wireless function is on, the Li-ion battery power will decrease quickly. To change the power source, connect the AC adapter.

4

70

Printing Using the Computer

Printing from a Computer

4

Available Applications

To use the P-touch labeling system effectively, a number of applications and functions are available.

You must install the printer driver to use these applications.

Visit our website (www.brother.com/inst) and download the installer for the applications and printer driver.

4

Application

Cable Label Tool

P-touch Editor

P-touch Transfer Manager

P-touch Library

P-touch Update Software

Printer Setting Tool

Wireless Device Setup

Wizard

BRAdmin Light

BRAdmin Professional

Windows

r r r r r r r r

Mac

r r r r

Features

Create and print labels for cables, patch panels, faceplates, electrical equipment and more.

Design and print custom labels with built in drawing tools, text using different fonts and styles, imported graphic images and barcodes.

It allows you to transfer templates and other data to the

P-touch labeling system and save backups of your data on the computer.

This application is installed with P-touch Editor.

Manage and print P-touch Editor templates.

You can use P-touch Library to print templates.

This application is installed with P-touch Editor.

Update software to the latest version.

Specify the printer's device settings from a computer.

This application allows you to configure your printer for a wireless network.

Finds the P-touch labeling system on your network and is used to make basic configuration settings from your computer.

Finds the P-touch labeling system on your network and is used to make advanced configuration settings and updates from your computer.

4

71

Printing Using the Computer

Useful Function

Distributed printing

High resolution printing

High speed printing

Windows Mac

r r r

Features

When printing a large number of labels, printing can be distributed among multiple printers.

Because printing is performed at the same time, the total printing time can be reduced.

For more information, see

Printing Labels Distributed to

Multiple Printers (Windows only)

on page 114.

Print in higher resolution.

For more information, see

Printing Labels in High Resolution

Mode

on page 118.

Print faster.

For more information, see

Printing Labels in High Speed

Mode

on page 119.

4

Printing from Your Computer

There are various methods for printing with this P-touch labeling system.

The following describes the procedure for printing from a computer using Cable Label Tool or P-touch Editor.

a

Start Cable Label Tool or P-touch Editor, and then open the document you want to print.

b

Create a label design.

c

Check the cutting options. (See

Cutting Options

on page 73.)

d

Select [

File

] then [

Print

] from the menu bar or by clicking the [

Print

] icon.

4

72

Printing Using the Computer

Cutting Options

The cutting options allow you to specify how the item is fed and cut when it is printed. Use the printer driver to select the cutting option when printing from the computer using the application.

4

See the following table for a list of all available settings:

Tape Cut Option Table

Auto Cut Half Cut Chain Printing Image

4

No Yes No

ABC ABC

Yes Yes No

ABC

ABC

No No No

ABC ABC

Yes No No

ABC

ABC

No Yes Yes

ABC ABC

Yes Yes Yes

ABC

ABC

73

Printing Using the Computer

Tape Cut Option Table

Auto Cut Half Cut

No No

Yes No

Special tape

Chain Printing

Yes

Yes


ABC ABC

ABC

ABC

ABC

ABC

No

(FLe Label)

― ―

ABC ABC

Yes

(FLe Label)

― ―

ABC

ABC

Note

• When printing multiple copies of different labels, select chain printing option to reduce the blank space

between the labels. (See the

Tape Cut Option Table

.)

• When using the chain printing option, press the (Feed and Cut) button after the last label is printed.

4

74

Printing Using the Computer

Attaching Labels

a

If needed, trim the printed label to the shape and length you want with scissors.

b

Peel the backing from the label.

c

Position the label, and then press firmly from top to bottom with your finger to attach the label.

Note

• The backing of some types of tapes may be pre-cut to make it easier to peel the backing. To remove the backing, simply fold the label lengthwise with the text facing inwards, to expose the inside edges of the backing. Next, peel off the backing one piece at a time.

• Labels may be difficult to attach to surfaces that are wet, dirty, or uneven. The labels may peel off easily from these surfaces.

• Extra Strength Adhesive Tape:

• For rough and textured surfaces, we recommend using Extra Strength Adhesive Tape.

• Be sure to read the instructions provided with Fabric Tapes, Extra Strength Adhesive Tapes or other special tapes and observe all precautions noted in the instructions.

4

4

75

5

Printing Using the Mobile Device

5

Installing Applications for Use with Mobile Devices

Brother offers various applications for use with your P-touch labeling system, including applications that allow you to print directly from your Apple iPhone, iPad, and iPod touch or Android™ smartphone or tablets, and applications that allow you to transfer data, such as templates, symbols, and databases created using a computer, to your P-touch labeling system wirelessly.

5

Available Applications

The following Brother applications can be installed free-of-charge from the App Store or Google Play™:

Application

Mobile Cable Label Tool

Brother iPrint&Label

Mobile Transfer Express

Features

Print labels for cables and patch panels using templates on a smartphone, tablet or other mobile device directly to your P-touch labeling system.

Create and print labels using templates on a smartphone, tablet or other mobile device directly to your P-touch labeling system.

Allows you to use a mobile device to download databases and label data, which was created on a computer using P-touch Editor and saved to a cloud service, and send them to your P-touch labeling system.

5

5

Connecting the P-touch labeling system to a Mobile Device

You can connect your P-touch labeling system to a mobile device. To create and print labels directly from your mobile device, install the Brother mobile applications, and then connect your P-touch labeling system to your mobile device.

Connecting using the P-touch labeling system keyboard

5

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

WLAN

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

Direct Mode

] using the or key, and then press the

OK

or

Enter

key.

The P-touch labeling system displays the symbol.

d

Select [

Network Setting

] using the or key, and then press the

OK

or

Enter

key.

76

Printing Using the Mobile Device

Note

• If you start the setup wizard for the Infrastructure mode or select the network settings for the Direct mode when the wireless function of the P-touch labeling system is turned off, [

Turning on Wi-Fi Radio

] appears and the wireless function turns itself on automatically (or after the

OK

key is pressed). It is no longer necessary to turn the Infrastructure mode or Direct mode on manually.

• When the wireless function is on, the Li-ion battery power will decrease quickly. To change the power source, connect the AC adapter.

e

The current SSID appears on-screen. Enter the new SSID if needed, and then press the

OK

or

Enter

key.

f

The current password appears on-screen. Enter the new password if needed, and then press the

OK

or

Enter

key.

g

The screen to confirm the entered SSID and password appears. Press any key to continue, and then go to the wireless network settings page of your mobile device and type the SSID name and password.

h

You have completed the Wireless Direct network setup.

5

Connecting using a Computer

a

Confirm the Wireless Direct settings of the P-touch labeling system.

 For Windows

Connect the P-touch labeling system and computer with a USB cable. Start the Printer Setting Tool on your computer, and click [

Communication settings

]. Confirm that [

Infrastructure and

Wireless Direct

] or [

Wireless Direct

] is selected for [

Selected Interface

] in [

Communication settings

] in the [

General

] tab.

For more information, see

Printer Setting Tool for Windows

on page 83.

 For Mac

Connect the P-touch labeling system and computer with a USB cable. Start the Printer Setting Tool on your computer, and confirm that [

WirelessDirect

] is set to [

On

] in the [

Wireless LAN

] tab.

For more information, see

Printer Setting Tool for Mac

on page 106.

b

Press and hold the (Wi-Fi) button on your P-touch labeling system for one second to turn the Wi-Fi function on.

The (Wi-Fi) indicator starts flashing in green once every three seconds.

c

In the Wi-Fi settings screen of your mobile device, select the SSID of the P-touch labeling system and enter the password.

77

Printing Using the Mobile Device

Note

• The factory settings for the SSID and password are as follows:

SSID: “PT-E800W” or “DIRECT-*****_PT-E800W” where “*****” is the last five digits of the product serial number.

(You can find the serial number label on the bottom of the P-touch labeling system.)

Password (network key): 00000000

• You can connect the P-touch labeling system to a mobile device in the Infrastructure Mode via a wireless access point/router.

• You cannot connect to the Internet via Wi-Fi with computer while using Wireless Direct. To use the

Internet, connect using Infrastructure mode.

Turning the Wireless Function On or Off

To turn the wireless function on or off, press the (Wi-Fi) button.

a

Press the (Wi-Fi) button. The wireless function is now on. The (Wi-Fi) indicator lights/flashes in green.

b

Press the (Wi-Fi) button again to turn the wireless function off. The (Wi-Fi) indicator turns off.

Note

• If [

Off

] is selected in the [

Direct Mode On/Off

] and [

Infrastructure Mode On/Off

] screen, the wireless function will remain off even if you press the (Wi-Fi) button. (The factory setting is "On" for both

Direct mode and Infrastructure mode.) For more information see

Connecting the P-touch labeling system to a Mobile Device

on page 76 or

Infrastructure Mode

on page 65.

• When the wireless function is on, the Li-ion battery power will decrease quickly. To change the power source, connect the AC adapter.

5

5

78

Printing Using the Mobile Device

Printing from a Mobile Device

5

Printing from Your Mobile Device

a

Start the application (Mobile Cable Label Tool/Brother iPrint&Label) on your mobile device.

(See

Available Applications

on page 76.)

Note

Make sure that the P-touch labeling system is connected to your mobile device.

See

Connecting the P-touch labeling system to a Mobile Device

on page 76.

b

Select a label template or design.

Note

You can also select a label or image you designed previously, and print it.

c

Check the cutting option. (See

Cutting Options

on page 79.)

d

Tap [

Print

] in the application menu.

Cutting Options

The cutting options allow you to specify how the item is fed and cut when it is printed. Use the printing option to select the cutting option when printing from the mobile device using the application.

See the following table for a list of all available settings:

5

Tape Cut Option Table

Auto Cut Half Cut Chain Printing Image

5

5

No Yes No

ABC ABC

Yes Yes No

ABC

ABC

No No No

ABC ABC

79

Printing Using the Mobile Device

Tape Cut Option Table

Auto Cut Half Cut

Yes No

No

Yes

No

Yes

No

(FLe Label)

(Mobile Cable Label

Tool only)

Yes

Yes

No

No

Special tape

Chain Printing

No

Yes

Yes

Yes

Yes


ABC

ABC

ABC

ABC

ABC

ABC

ABC

ABC

ABC

ABC

ABC

ABC

ABC ABC

5

80

Printing Using the Mobile Device

Tape Cut Option Table

Auto Cut

Yes

(FLe Label)

(Mobile Cable Label

Tool only)

Half Cut

Chain Printing


ABC

ABC

Note

• When printing multiple copies of different labels, select chain printing option to reduce the blank space

between the labels. (See the

Tape Cut Option Table

.)

• When using the chain printing option, press the (Feed and Cut) button after the last label is printed.

Using a Mobile Device to Print Templates Created on a Computer

You can use P-touch Transfer Manager to save template data, which was created using P-touch Editor, in the BLF format. Then, you can use Mobile Transfer Express to send the saved file from your mobile device to the P-touch labeling system and print the file.

a

Save the template data in the BLF format using P-touch Transfer Manager.

For more information, see

Creating a BLF File

on page 148.

b

Use one of the following methods to use a .blf file with your mobile device.

 Save the file using a cloud storage service, and then use the sharing function of the mobile device's

OS to share the file.

 Send the file as an email attachment from the computer to the mobile device, and then save the file to the mobile device.

c

Connect the P-touch labeling system to your mobile device, and then start Mobile Transfer Express.

The template data appears.

d

Select the template that you want to print, and then transfer the template to the P-touch labeling system.

Note

To download a file from a cloud storage service to your mobile device, you must connect your mobile device using Infrastructure Mode. Therefore, if you also connect your mobile device to the P-touch labeling system using Infrastructure Mode, you can quickly transfer downloaded files.

e

Use the keyboard LCD unit of the P-touch labeling system to select the template that you want to print from the transferred file and print it.

5

5

81

Printing Using the Mobile Device

Attaching Labels

a

If needed, trim the printed label to the shape and length you want with scissors.

b

Peel the backing from the label.

c

Position the label, and then press firmly from top to bottom with your finger to attach the label.

Note

• The backing of some types of tapes may be pre-cut to make it easier to peel the backing. To remove the backing, simply fold the label lengthwise with the text facing inwards, to expose the inside edges of the backing. Next, peel off the backing one piece at a time.

• Labels may be difficult to attach to surfaces that are wet, dirty, or uneven. The labels may peel off easily from these surfaces.

• Extra Strength Adhesive Tape:

• For rough and textured surfaces, we recommend using Extra Strength Adhesive Tape.

• Be sure to read the instructions provided with Fabric Tapes, Extra Strength Adhesive Tapes or other special tapes and observe all precautions noted in the instructions.

5

5

82

6

Changing the P-touch Labeling System

Settings

6

Printer Setting Tool for Windows

Using the “

Printer Setting Tool

”, you can specify the printer's communication settings or device settings from a computer.

6

Note

The “

Printer Setting Tool

” is installed automatically when you use the initial installer to install the printer

driver. For more information, see

Installing the Printer Driver and Software

on page 64.

Important

The “

Printer Setting Tool

” is available only with compatible Brother printers.

Before Using the Printer Setting Tool

 Make sure the AC adapter is connected to the P-touch labeling system and to an AC power outlet, or a fully-charged battery is installed.

 Make sure the printer driver has been installed correctly and you can print.

 Connect this P-touch labeling system to a computer with a USB cable. Settings cannot be specified using

Wi-Fi using this tool.

6

6

83

Changing the P-touch Labeling System Settings

Using the Printer Setting Tool for Windows

a

Connect the P-touch labeling system you want to configure to the computer.

b

Start the Printer Setting Tool.

For Windows 7

:

From the Start button, click [

All Programs

] - [

Brother

] - [

Label & Mobile Printer

] - [

Printer Setting

Tool

].

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2

:

Click the [

Printer Setting Tool

] icon on the [

Apps

] screen.

For Windows 10:

From the Start button, select [

All apps

], and then click [

Brother

] - [

Label & Mobile Printer

] - [

Printer

Setting Tool

].

The main window appears.

6

6

1

2

3

4

1 Printer

Lists the connected printers.

2 Communication settings

Specifies wireless LAN communication settings.

3 Device Settings

Specifies printer device settings, such as power settings and printer settings.

4 Exit

Closes the window.

84

Changing the P-touch Labeling System Settings c

Check that the P-touch labeling system you want to configure appears next to [

Printer

]. If a different printer appears, select the P-touch labeling system you want from the drop-down list.

Note

If only one P-touch labeling system is connected, it is unnecessary to make a selection because only that

P-touch labeling system is available.

d

Select the setting you want to change, and then specify or change the settings in the dialog box.

For more information on the settings dialog boxes, see

Communication Settings for Windows

on page 86

or

Device Settings for Windows

on page 99.

e

Click [

Apply

] - [

Exit

] in the settings dialog box to apply the settings to the P-touch labeling system.

f

Click [

Exit

] in the main window to finish specifying settings.

Important

Use the “

Printer Setting Tool

” to configure the P-touch labeling system only when the P-touch labeling system is in standby. The P-touch labeling system may malfunction if you try to configure it while it is handling a job.

6

85

Changing the P-touch Labeling System Settings

Communication Settings for Windows

With [

Communication settings

] in the “

Printer Setting Tool

”, the printer communication information can be specified or changed when connecting the printer and computer with a USB cable. Not only can you change the communication settings for one printer, but you can also apply the same settings to multiple printers.

6

Settings Dialog Box

6

3

4

5

6

1

6

2

7

8

9

10

1 Disable these settings

When this check box is selected, changed.

appears in the tab, and the settings can no longer be specified or

Settings in a tab where appears will not be applied to the printer even if [

Apply

] is clicked. In addition, the settings in the tab will not be saved or exported when the [

Save in Command File

] or [

Export

] command is executed.

To apply the settings to the printer or save or export them, make sure you clear the check box.

2 Items

When [

Current Status

] is selected, the current settings appear in the settings display/change area.

Select the item for the settings that you want to change.

3 Menu Bar

4 Printer

Lists the connected printers.

5 Node Name

Displays node name (nodes can be renamed).

86

Changing the P-touch Labeling System Settings

6 Settings Tabs

Contains settings that may be specified or changed.

If appears in the tab, the settings in that tab will not be applied to the printer.

7 Settings Display/Change Area

Displays the current settings for the selected item.

8 Refresh

Updates the displayed settings with the most recent information.

9 Exit

Exits [

Communication settings

], and returns to the main window of the “

Printer Setting Tool

”.

Important

Settings are not applied to printers if [

Exit

] is clicked without clicking [

Apply

] after changing settings.

10 Apply

Applies the settings to the printer.

To save the specified settings in a command file, select [

Save in Command File

] from the drop-down list.

The saved command file can be used with the mass storage mode to apply the settings to a printer. (See

Mass Storage Mode

on page 121.)

Important

Clicking [

Apply

] applies all settings in all tabs to the printer.

If the [

Disable these settings

] check box is selected, the settings in that tab are not applied.

6

87

Changing the P-touch Labeling System Settings

Menu Bar

3

4

1

2

6

7

8

5

6

9

10

1 Apply Settings to the Printer

Applies the settings to the printer.

2 Save Settings in Command File

Saves the specified settings in a command file. The file extension is .bin.

The saved command file can be used with the mass storage mode to apply the settings to a printer. (See

Mass Storage Mode

on page 121.)

Note

If the [

Disable these settings

] check box is selected, the settings in that tab are not saved.

Important

• The following information is not saved with the command file:

• Node name

• IP address, subnet mask and default gateway (when the IP address is set to [

STATIC

])

• The saved communication settings commands are intended to be used only for applying settings to a printer. To apply the settings to the printer using this command file, use the mass storage mode.

• Saved command files contain authentication keys and passwords. Take necessary measures to protect saved command files, such as saving them in a location that cannot be accessed by other users.

• Do not send the command file to a different printer model.

6

88

Changing the P-touch Labeling System Settings

3 Import

Import from the current computer wireless settings

Imports the settings from the computer.

Note

• When importing the computer wireless settings, administrator privileges for the computer are needed.

• Only personal security authentication settings (open system, public key authentication and

WPA/WPA2-PSK) can be imported. Enterprise security authentication (such as LEAP and EAP-FAST),

WPA2-PSK (TKIP) and WPA-PSK (AES) settings cannot be imported.

• If multiple wireless LANs are enabled for the computer you use, the first wireless settings (only personal settings) that are detected will be considered for the import data.

• Only the settings (communication mode, SSID, authentication method, encryption mode and authentication key) from the [

Wireless LAN

] tab - [

Wireless Settings

] pane can be imported.

Select a Profile to import

Imports the exported file and applies the settings to a printer.

Click [

Browse

] and select the file you want to import. The settings in the selected file appear in the settings display/change area.

Note

• All settings, such as wireless settings or TCP/IP settings, can be imported, except for node names.

• Only profiles that are compatible with the selected printer can be imported.

• If the imported profile’s IP address is set to [

STATIC

], change the IP address of the imported profile, if needed, so that it does not duplicate the IP address of an existing configured printer on the network.

4 Export

Saves the current settings in a file.

Note

If the [

Disable these settings

] check box is selected, the settings in that tab are not saved.

Important

Exported files are not encrypted.

5 Automatically restart the printer after applying new settings

If this check box is selected, the printer automatically restarts after communication settings are applied.

If this check box is cleared, your must restart the printer manually.

Note

When configuring multiple printers, you can reduce the time needed to change settings by clearing this check box. In this case, we recommend selecting this check box when configuring the first printer so that you can confirm that each setting is operating as intended.

6

89

Changing the P-touch Labeling System Settings

6 Automatically detects the connected printer, and retrieves the current settings.

If this check box is selected and a printer is connected to the computer, the printer is automatically detected and the printer's current settings are displayed in the [

Current Status

] pane.

Note

If the model of the connected printer is different from that of the printer shown in the [

Printer

] drop-down list, the settings available on all tabs change to match the connected printer.

7 Change Node Name/Bluetooth Device Name

Allows renaming a node.

8 Reset to Default Communication Settings

Returns the communication settings to their factory settings.

9 Display Help

Displays the Help.

10 About

Displays the version information.

6

90

Changing the P-touch Labeling System Settings

General Tab

Communication Settings

6

6

1

2

1 Network Settings on Power On

Specifies the conditions for connecting via Wi-Fi when the printer is turned on. Select [

On by Default

], [

Off by Default

] or [

Keep Current State

].

2 Selected Interface

Select [

Infrastructure or Ad-hoc

], [

Infrastructure and Wireless Direct

] or [

Wireless Direct

].

6

91

Changing the P-touch Labeling System Settings

IPv6

1

2

6

6

1 IPv6 usage

Select [

Enable

] or [

Disable

].

2 Priority on IPv6 address

Select to give priority to an IPv6 address.

92

Changing the P-touch Labeling System Settings

Wireless LAN Tab

TCP/IP (Wireless)

1 Boot Method

Select [

AUTO

], [

BOOTP

], [

DHCP

], [

RARP

] or [

STATIC

].

2 IP Address/Subnet Mask/Gateway

Specifies the various networking values.

You can enter these settings only when the IP address is set to [

STATIC

].

3 DNS Server Method

Select [

AUTO

] or [

STATIC

].

4 Primary DNS Server IP Address/Secondary DNS Server IP Address

You can enter these settings only when the DNS server is set to [

STATIC

].

1

2

3

4

6

6

6

93

Changing the P-touch Labeling System Settings

IPv6

1 Static IPv6 Address

Specifies a permanent IPv6 address.

2 Enable this address

Enables the specified static IPv6 address.

3 Primary DNS Server IPv6 Address/Secondary DNS Server IPv6 Address

Specifies the DNS server IPv6 addresses.

4 IPv6 Address List

Displays the list of IPv6 addresses.

3

4

1

2

6

6

94

Changing the P-touch Labeling System Settings

Wireless Settings

6

4

5

6

1

2

3

7

8

1 Communication Mode

Select [

Infrastructure

] or [

Ad-hoc

].

2 SSID (Network Name)

Clicking [

Search

] displays the available SSID selections in a separate dialog box.

3 Channel

Lists available channels.

Note

This setting is valid only in Ad-Hoc mode.

4 Authentication Method/Encryption Mode

The supported encryption modes for the authentication methods are as shown in

Communication Modes and Authentication Methods/Encryption Modes

on page 96.

5 WEP Key

You can specify a setting only when WEP is selected as the encryption mode.

6 Passphrase

You can specify a setting only when WPA/WPA2-PSK is selected as the authentication method.

7 User ID/Password

You can specify settings only when LEAP, EAP-FAST, PEAP, EAP-TTLS or EAP-TLS is selected as the authentication method. In addition, with EAP-TLS, it is not necessary to register a password, but a client certificate must be registered. To register a certificate, connect to the printer from a web browser, and then

specify the certificate. For more information on using a web browser, see

Web Based Management

on page 181.

8 Display the key and password on-screen

If this check box is selected, keys and passwords are displayed in plain (non-encrypted) text.

95

6

Changing the P-touch Labeling System Settings

Communication Modes and Authentication Methods/Encryption Modes

 When [

Communication Mode

] is set to [

Ad-hoc

]

6

Authentication Method

Open System

Encryption Mode

None / WEP

 When [

Communication Mode

] is set to [

Infrastructure

]

Authentication Method

Open System

Shared Key

WPA/WPA2-PSK

LEAP

EAP-FAST/NONE

EAP-FAST/MS-CHAPv2

EAP-FAST/GTC

PEAP/MS-CHAPv2

PEAP/GTC

EAP-TTLS/CHAP

EAP-TTLS/MS-CHAP

EAP-TTLS/MS-CHAPv2

EAP-TTLS/PAP

EAP-TLS

Encryption Mode

None / WEP

WEP

TKIP+AES / AES

CKIP

TKIP+AES / AES

TKIP+AES / AES

TKIP+AES / AES

TKIP+AES / AES

TKIP+AES / AES

TKIP+AES / AES

TKIP+AES / AES

TKIP+AES / AES

TKIP+AES / AES

TKIP+AES / AES

Important

To specify higher level security settings:

When performing certificate verification with EAP-FAST, PEAP, EAP-TTLS or EAP-TLS authentication methods, the certificate cannot be specified from the "

Printer Setting Tool

". After the printer is configured to connect to the network, specify the certificate by accessing the printer from a web browser.

For more information on using a web browser, see

Web Based Management

on page 181.

6

96

Changing the P-touch Labeling System Settings

Wireless Direct Tab

Wireless Direct Settings

6

6

1

1 SSID (Network Name)/Network Key

Specifies the SSID (25 ASCII characters or fewer) and the network key (63 characters or fewer) you want to use in the Wireless Direct mode.

Note

The factory settings for the SSID and password are as follows:

SSID: “PT-E800W” or “DIRECT-*****_PT-E800W”. "*****" is the last five digits of the product serial number.

Password (Network key): 00000000

6

97

Changing the P-touch Labeling System Settings

Applying Setting Changes to Multiple Printers

a

After applying settings to the first printer, disconnect the printer from the computer, and then connect the second printer to the computer.

b

Select the newly connected printer from the [

Printer

] drop-down list.

Note

If the [

Automatically detects the connected printer, and retrieves the current settings.

] check box in the [

Option Settings

] dialog box is selected, the printer connected with the USB cable is automatically selected.

For more information, see

Communication Settings for Windows

on page 86.

c

Click [

Apply

].

The same settings that were applied to the first printer are applied to the second printer.

Note

We recommend selecting the [

Automatically restart the printer after applying new settings

] check box when configuring the first printer so that you can confirm that a connection with the wireless access point/router can be correctly established with the settings. For more information, see

Communication

Settings for Windows

on page 86.

d

Repeat steps

a

– c

for all printers whose settings you want to change.

Important

If the IP address is set to [

STATIC

], the printer's IP address will also be changed to the same address as the first printer.

Change the IP address if needed.

Note

To save the current settings in a file, click [

File

] - [

Export

].

The same settings can be applied to another printer by clicking [

File

] - [

Import

], then selecting the

exported settings file. (See

Communication Settings for Windows

on page 86.)

6

6

98

Changing the P-touch Labeling System Settings

Device Settings for Windows

With [

Device Settings

] in the “

Printer Setting Tool

”, printer settings can be specified or changed when connecting the printer and computer with a USB cable. Not only can you change the device settings for one printer, but you can also apply the same settings to multiple printers.

When printing from a computer application, various printing settings can be specified from the printer driver; however, by using [

Device Settings

] in the “

Printer Setting Tool

”, more advanced settings can be specified.

When [

Device Settings

] is opened, the printer's current settings are retrieved and displayed. If the current settings could not be retrieved, the previous settings are displayed. If the current settings could not be retrieved and previous settings have not been specified, this tool’s factory settings are displayed.

6

Settings Dialog Box

6

6

1

2

3

5

4

6

7

8

1 Menu Bar

Select a command contained in each menu from the list.

2 Printer

Specifies the printer whose device settings are to be configured.

If only one printer is connected, it is unnecessary to make a selection since only that printer will appear.

3 Settings Tabs

Contains settings that may be specified or changed.

Note

If appears in the tab, the settings in that tab cannot be specified or changed. In addition, the settings in the tab will not be applied to the printer even if [

Apply

] is clicked. The settings in the tab will also not be saved or exported when the [

Save in Command File

] or [

Export

] command is executed.

99

Changing the P-touch Labeling System Settings

4 Current Settings

Retrieves the settings from the currently connected printer and displays them in the dialog box. Settings will also be retrieved for parameters on tabs with .

5 Disable these settings

When this check box is selected, changed.

appears in the tab, and the settings can no longer be specified or

Settings in a tab where appears will not be applied to the printer even if [

Apply

] is clicked. In addition, the settings in the tab will not be saved or exported when the [

Save in Command File

] or [

Export

] command is executed.

6 Parameters

Displays the current settings.

7 Exit

Exits [

Device Settings

], and returns to the main window of the “

Printer Setting Tool

”.

8 Apply

Applies the settings to the printer.

To save the specified settings in a command file, select [

Save in Command File

] from the drop-down list.

The saved command file can be used with the mass storage mode to apply the settings to a printer. (See

Mass Storage Mode

on page 121.)

6

100

Changing the P-touch Labeling System Settings

Menu Bar

3

4

1

2

6

5

6

7

8

9

10

11

1 Apply Settings to the Printer

Applies the settings to the printer.

Performs the same operation as when [

Apply

] is clicked.

2 Save Settings in Command File

Saves the specified settings in a command file.

Performs the same operation as when [

Save in Command File

] is selected from the [

Apply

] drop-down list.

3 Import

Imports the exported file.

4 Export

Saves the current settings in a file.

5 Save Print Log in File

Saves the print log in a file in the CSV format.

6 Print Unit Settings

Prints a report containing firmware version and device setting information.

You can also print this report using the (Feed and Cut) button for more than 10 seconds. See

Confirming the P-touch Labeling System Settings

on page 113 for more information.

Note

When you print this report, use 0.94" (24 mm) or 1.4" (36 mm) tape.

6

101

Changing the P-touch Labeling System Settings

7 Factory Reset

Resets all printer settings to factory settings.

8 Delete Template and Database

Deletes the templates and databases stored in the printer.

9 Delete Print Log

Deletes the print log stored in the printer.

10 Option Settings

If the [

Do not display an error message if the current settings cannot be retrieved at startup

] check box is selected, a message will not be displayed next time.

11 About

Displays the version information.

6

102

Changing the P-touch Labeling System Settings

Basic Tab

1

2

3

4

5

6

1 Auto Power On

Specifies whether or not the printer turns on automatically when the power supply cord is plugged into an

AC power outlet.

Available settings: [

Disable

], [

Enable

]

2 Auto Power Off (AC/DC)

Specifies the period of time that passes before the printer turns off automatically when connected to an

AC power outlet.

Available settings: [

None

], 10/20/30/40/50 Minutes, 1/2/4/8/12 hours

3 Auto Power Off (Li-ion)

Specifies the amount of time that passes before the printer turns off automatically when powered by the rechargeable Li-ion battery.

Available settings: [

None

], 10/20/30/40/50 Minutes, 1 hour

4 Contents

Specifies the printer information that will be printed.

Available settings: [

All

], [

Usage Log

], [

Printer Settings

], [

Printer Transfer Data

]

5 Save Printer Print Log

Select whether or not to save the printer's print log. If [

Disable

] is applied to the printer, [

Maintenance

] -

[

Save Print Log in File

] does not work.

Available settings: [

Enable

], [

Disable

]

6

103

Changing the P-touch Labeling System Settings

Label Settings Tab

1

2

3

4

6

1 Length Adjustment

Adjusts the length of the printed label to correspond to the length of the label displayed on the computer.

Available settings: -4 to +4 (1 increments)

2 Full Cut Margin Adjustment

Adjusts the margin length when fully cutting labels.

Available settings: -2 to +2 (1 increments)

3 Half Cut Margin Adjustment

Adjusts the margin length when half-cutting labels.

Available settings: -2 to +2 (1 increments)

4 Test Print

Prints a test label to check the results of each adjustment.

6

104

Changing the P-touch Labeling System Settings

Applying Setting Changes to Multiple Printers

a

After applying settings to the first printer, disconnect the printer from the computer, and then connect the second printer to the computer.

b

Select the newly connected printer from the [

Printer

] drop-down list.

c

Click [

Apply

].

The same settings that were applied to the first printer are applied to the second printer.

d

Repeat steps

a

– c

for all printers whose settings you want to change.

Note

To save the current settings in a file, click [

File

] - [

Export

].

The same settings can be applied to another printer by clicking [

File

] - [

Import

], and then selecting the

exported settings file. (See

Device Settings for Windows

on page 99.)

6

6

105

Changing the P-touch Labeling System Settings

Printer Setting Tool for Mac

Using the “

Printer Setting Tool

”, you can specify the printer’s communication settings and device settings from a Mac. Not only can you change the device settings for one printer, but you can also apply the same settings to multiple printers.

Note

The “

Printer Setting Tool

” is installed automatically when you use the initial installer to install the printer

driver. For more information, see

Installing the Printer Driver and Software

on page 64.

Important

The “

Printer Setting Tool

” is available only with compatible Brother printers.

6

Before Using the Printer Setting Tool

 Make sure the AC adapter is connected to the P-touch labeling system and to an AC power outlet, or a fully-charged battery is installed.

 Make sure the printer driver has been installed correctly and you can print.

 Connect this P-touch labeling system to a computer with a USB cable. Settings can be specified only via

USB using this tool.

6

6

Using the Printer Setting Tool for Mac

a

Connect the P-touch labeling system you want to configure to the computer.

b

Click [

Macintosh HD

] - [

Applications

] - [

Brother

] - [

Printer Setting Tool

] - [

Printer Setting Tool.app

].

The [

Printer Setting Tool

] window appears.

c

Check that the P-touch labeling system you want to configure appears next to [

Printer

]. If a different printer appears, select the P-touch labeling system you want from the drop-down list.

6

Note

If only one P-touch labeling system is connected, it is unnecessary to make a selection because only that

P-touch labeling system will appear.

d

Select a setting tab, and then specify or change the settings.

e

Click [

Apply Settings to the Printer

] in the setting tab to apply the settings to the P-touch labeling system.

f

Click [

Exit

] to finish specifying settings.

Important

Use the Printer Setting Tool to configure the P-touch labeling system only when the P-touch labeling system is in standby. The P-touch labeling system may malfunction if you try to configure it while it is handling a job.

106

Changing the P-touch Labeling System Settings

Settings Dialog Box

1

6

2

3

4

5

6

7 8 9

1 Printer

Lists the connected printers.

2 Import

Imports settings from a file.

3 Export

Saves the current settings in a file.

4 Setting Tabs

Contain settings that may be specified or changed.

5 Apply Settings to the Printer

Applies the settings to the printer.

6 Print Unit Settings

Prints a report containing firmware version and configuration information.

You can also print this report using the (Feed and Cut) button for more than 10 seconds. See

Confirming the P-touch Labeling System Settings

on page 113 for more information.

Note

When you print this report, use 0.94" (24 mm) or 1.4" (36 mm) tape.

7 Factory Reset

Resets printer settings to factory settings.

8 Current Settings

Retrieves the settings from the currently connected printer and displays them in the dialog box.

9 Exit

Exits the Printer Setting Tool.

6

107

Changing the P-touch Labeling System Settings

Basic Tab

6

1

2

3

4

5

1 Auto Power On

Specifies whether the printer turns on automatically when the power supply cord is plugged into an AC power outlet.

Available settings: [

Disable

], [

Enable

]

2 Auto Power Off (AC/DC)

Specifies the period of time that passes before the printer turns off automatically when connected to an

AC power outlet.

Available settings: [

None

], 10/20/30/40/50 Minutes, 1/2/4/8/12 hours

3 Auto Power Off (Li-ion)

Specifies the period of time that passes before the printer turns off automatically when powered by the rechargeable Li-ion battery.

Available settings: [

None

], 10/20/30/40/50 Minutes, 1 hour

4 Print Information Report

Specifies the printer information that will be printed.

Available settings: [

All

], [

Usage Log

], [

Printer Settings

], [

Printer Transfer Data

]

5 Save Printer Print Log

Select whether or not to save the printer’s print log.

Available settings: [

Enable

], [

Disable

]

6

108

Changing the P-touch Labeling System Settings

Label Settings Tab

6

1

2

3

4

1 Length Adjustment

Adjusts the length of the printed label to correspond to the length of the label displayed on the computer.

Available settings: -4 to +4 (1 increments)

2 Full Cut Margin Adjustment

Adjusts the margin length when fully cutting labels.

Available settings: -2 to +2 (1 increments)

3 Half Cut Margin Adjustment

Adjusts the margin length when half-cutting labels.

Available settings: -2 to +2 (1 increments)

4 Test print

Prints a test label to check the results of each adjustment.

6

109

Changing the P-touch Labeling System Settings

Wireless LAN Tab

1

2

3

4

6

1 WirelessDirect

Turns the Wireless Direct function on or off.

2 SSID/Network Key Generation

Select [

AUTO

] or [

STATIC

].

3 SSID (Network Name)/Network Key

Specifies the SSID (3 to 25 ASCII characters) and the network key you want to use in the Wireless Direct mode.

You can specify a setting only when [

STATIC

] is selected as [

SSID/Network Key Generation

].

4 Display current settings

Displays the current settings for Wireless Direct. Click [

Current Settings

] to update the displayed settings with the most recent information.

6

110

Changing the P-touch Labeling System Settings

Applying Setting Changes to Multiple Printers

a

After applying settings to the first printer, disconnect the printer from the computer, and then connect the second printer to the computer.

b

Select the newly connected printer from the [

Printer

] drop-down list.

c

Click [

Apply Settings to the Printer

].

The same settings that were applied to the first printer are applied to the second printer.

d

Repeat steps

a

– c

for all printers whose settings you want to change.

Note

To save the current settings in a file, click [

Export

].

The same settings can be applied to another printer by clicking [

Import

], then selecting the exported settings file. (See

Settings Dialog Box

on page 107.)

6

6

111

Changing the P-touch Labeling System Settings

Changing Settings When Printing from a Mobile Device

If using a mobile device, change the settings as necessary using the application before printing.

The settings that can be changed vary according to the application.

Note

Before connecting a mobile device, you can specify detailed settings by connecting the P-touch labeling system to a computer via USB and using the Printer Setting Tool (see

Using the Printer Setting Tool for

Windows

on page 84).

6

6

112

7

Other Functions

7

Confirming the P-touch Labeling System Settings

You can print the settings report or display the setting information without connecting the P-touch labeling system to a computer or mobile device.

To print the basic settings report:

7

Note

This report contains the following information: The firmware version, device setting information, Wi-Fi setting information, and transferred data information (templates, databases and transferred symbols).

a

Turn on the P-touch labeling system.

b

Press and hold the (Feed and Cut) button for more than 10 seconds to print the report.

Note

• When you print this report, use 0.94" (24 mm) or 1.4" (36 mm) tape.

• This operation can also be performed using the Printer Setting Tool (see

Changing the P-touch Labeling

System Settings

on page 83).

7

113

Other Functions

Printing Labels Distributed to Multiple Printers (Windows only)

7

Distributed Printing

When printing a large number of labels, printing can be distributed among multiple printers. Because printing is performed at the same time, the total printing time can be reduced. You cannot use this function for

Self-Laminating Tape.

7

Note

• Printing can be distributed to printers connected via a USB or network connection.

• The number of pages is automatically divided among the selected printers. If the specified number of pages cannot be evenly divided among the printers, it will be divided in the order of the printers listed in the dialog box when the print settings are specified in step

d

.

7

200

67 67 66

a

From the [

File

] menu in P-touch Editor, click [

Print

].

b

Click [

Properties…

].

114

Other Functions c

Click the [

Advanced

] tab, select the [

Distributed Printing

] check box, and then click [

Settings

].

d

In the [

Distributed Printing Settings

] dialog box, select the printers you want to use for distributed printing.

3

1

2

7

1 Click [

Detect Current Paper Information…

].

2 The current printer information that was detected appears below [

Current Width

] and [

Paper Type

].

3 Select the check box next to the [

Printer Name

] you want.

Note

If the selected tape width is different from that displayed beside [

Current Width

], appears beside the setting below [

Current Width

]. Load the printer with tape of the width specified [

Set Width

].

115

Other Functions e

Specify the tape width.

A. If only one printer has been selected.

In the [

Distributed Printing Settings

] dialog box from step

d

, select the printer whose setting you want to specify, and then either double-click it, or right-click it and then click [

Settings

]. From the [

Set Width

] drop-down list, select the tape width.

Note

Information displayed in the [

Distributed Printing Settings

] dialog box from step

d

can be entered in the

[

Notes

] text box.

B. If multiple printers have been selected.

In the [

Distributed Printing Settings

] dialog box from step

d

, select the printers whose settings you

want to specify, right-click them, and then click [

Settings

]. From the [

Set Width

] drop-down list, select the tape width. The same tape width setting is applied to all selected printers.

7

Note

The settings below [

Printer Settings

] and [

Notes

] are not available.

f

Click [

OK

] to close the tape width setting window.

116

Other Functions g

Click [

OK

] to close the [

Distributed Printing Settings

] window.

Setup is completed.

h

Click [

OK

] to start distributed printing.

Note

• It may not be possible for information to be detected for a printer connected using a USB hub or print server. Before printing, enter the settings manually, and check if the printer can be used for printing.

• Depending on whether a router is used and the security features in use, such as a firewall, it may not be possible to use this function.

• We recommend performing a connection test for your operating environment. Contact your information technology manager or administrator for assistance.

7

117

Other Functions

Printing Labels in High Resolution Mode

High resolution printing can be used if you are printing from a computer, the AC adapter is connected, and

TZe and HGe laminated tape with black ink is installed. Use the printer driver to select the high resolution mode when printing the labels. You cannot use this function for TZe-FX**1 tape.

a

From the [

File

] menu in P-touch Editor, click [

Print

].

b

Click [

Properties…

].

c

On the [

Basic

] tab, select [

High resolution

] from the [

Quality

] drop-down list.

7

7

d

Click [

OK

].

118

Other Functions

Printing Labels in High Speed Mode

High speed printing can be used if you are printing from a computer, the AC adapter is connected, and TZe and HGe laminated tape with black ink is installed. Use the printer driver to select the high speed mode when printing the labels. You cannot use this function for TZe-FX**1 tape.

a

From the [

File

] menu in P-touch Editor, click [

Print

].

b

Click [

Properties…

].

c

On the [

Basic

] tab, select [

High Speed

] from the [

Quality

] drop-down list.

7

7

d

Click [

OK

].

119

Other Functions

Printing Labels in High Quality Mode

High quality printing can be used if you are printing from a computer, and TZe laminated tape with black ink is installed. Use the printer driver to select the high quality mode when printing the labels. You cannot use this function for TZe-FX**1 tape.

a

From the [

File

] menu in P-touch Editor, click [

Print

].

b

Click [

Properties…

].

c

On the [

Basic

] tab, select [

High Quality

] from the [

Quality

] drop-down list.

7

7

d

Click [

OK

].

Note

• You can select the high quality mode in P-touch Editor. Click [

File

] - [

Print

], and then select the [

Priority to print quality

] check box under [

Options

].

• You can also select the high quality mode using the keybord LCD unit.

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

Select [

High Quality

] using the or key, and then press the

OK

or

Enter

key.

Select [

High Quality

] using the or key, and then press the

OK

or

Enter

key to apply the settings.

120

Other Functions

Mass Storage Mode

7

Description

The mass storage mode feature allows you to communicate with the P-touch labeling system with just a file via the USB interface without loading a printer driver. Files that have been copied to the P-touch labeling system's mass storage area are processed when you press the

Print

key.

This feature is useful for:

Applying printer settings saved in a command file (.bin file format) or adding templates (.blf file format) into the P-touch labeling system distributed by the administrator without using any software tools.

 Executing commands without installing the printer driver.

 Using a device with an OS (including non-Windows operating systems) that has a USB host feature to print and transmit data.

7

Using the Mass Storage Mode

a

Confirm that the P-touch labeling system is turned off.

b

Press and hold the (Power) button, the

PF (Programmable Function)

key, and the

Home

key at the same time.

The P-touch labeling system starts up in mass storage mode, the (Power) indicator lights in green and the (Label) indicator lights in orange.

c

Connect the computer or device to the P-touch labeling system via USB.

The P-touch labeling system's mass storage area appears as a folder on the computer or device's screen.

Note

If the mass storage area does not appear automatically, refer to the operating instructions for the computer or device’s operating system for information about displaying the mass storage area.

d

Drag and drop the file you want to copy to the mass storage area.

e

Press the

Print

key.

The commands in the command file are executed, and the (Label) indicator flashes once in green.

When finished, the (Label) indicator lights in orange.

f

To turn mass storage mode off, turn off the P-touch labeling system so that it starts in its normal operating mode.

7

7

121

Other Functions

Important

• When the P-touch labeling system is turned off, mass storage mode is deactivated and any files in the mass storage area are deleted.

• This feature supports .bin, and .blf files. Other file formats are not supported.

• Do not create folders in the mass storage area. If a folder is created, files in the folder cannot be accessed.

• The capacity of the mass storage area is 2.5 MB. Files larger than 2 MB may not work correctly.

• If multiple files are copied, the order that the commands will be executed in cannot be guaranteed.

• Wi-Fi features are not available while the P-touch labeling system is running in mass storage mode.

• Do not access other files in the mass storage area when executing a copied file.

Note

For more information on how to create a .blf file, see

Creating a BLF File

on page 148.

7

122

Section II

Application for Windows

II

Using P-touch Software

How to Use Cable Label Tool

How to Use P-touch Editor

How to Use P-touch Transfer Manager

How to Use P-touch Library

Transferring Templates with P-touch Transfer Express

How to Update P-touch Software

124

125

134

138

149

155

163

8

Using P-touch Software

Installing P-touch Software

You must install P-touch software and the printer driver to use your P-touch labeling system with your computer.

Download the installer from www.brother.com/inst.

For more information on installing the software and driver, see

Installing the Printer Driver and Software

on page 64.

To download the latest driver and software individually, visit the Brother support website at support.brother.com.

[Select your region/country.] - [Downloads] - [Choose your product]

8

8

8

124

9

How to Use Cable Label Tool

Starting Cable Label Tool

a

Start the Cable Label Tool.

For Windows 7

:

From the Start button, click [

All Programs

] - [

Brother P-touch

] - [

Cable Label Tool

], or double-click

[

Cable Label Tool

] shortcut icon on the desktop.

9

9

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2

:

Click [

Cable Label Tool

] on the [

Apps

] screen or double-click [

Cable Label Tool

] on the desktop.

For Windows 10

:

From the Start button, select [

All apps

] and click [

Cable Label Tool

] under [

Brother P-touch

], or double-click [

Cable Label Tool

] on the desktop.

9

125

How to Use Cable Label Tool b

Click the button for the cable label type you want.

Creating a Cable Label

Faceplate

Labels of this type can be used to identify various faceplates.

Blocks of text are evenly spaced on each label.

9

9

9

126

How to Use Cable Label Tool

Cable Wrap

Labels of this type can be wrapped around a cable or wire.

The text is rotated 90° counterclockwise and printed.

9

Note

When using Flexible ID Tape:

• We recommend using Flexible ID Tape for the "Cable Wrap" labels.

• Labels made with Flexible ID Tape are not designed for use as electrical insulation.

• When wrapping labels around cylindrical objects, the diameter (1) of the object should be at least 0.12"

(3 mm).

• The overlapping (2) ends of the label should be at least 0.2" (5 mm).

2

1

9

127

How to Use Cable Label Tool

Cable Flag

Labels of this type can be wrapped around a cable or wire, and both ends of the label stick together to form a flag.

The text on flag labels is printed on both ends of the label, leaving a blank space in the middle that wraps around the cable.

9

Note

• The flag length (1) should be at least 0.6" (15 mm).

1

• Orientation

Horizontal Vertical

1 2 1 1 2

1 Flag length

2 Cable circumference

• We recommend using Flexible ID Tape for the "Cable Flag" labels.

• Labels made with Flexible ID Tape are not designed for use as electrical insulation.

1

128

9

How to Use Cable Label Tool

Patch Panel

Labels of this type can be used to identify various types of panels.

9

Punch-Down Block

Labels of this type can be used to identify a type of electrical connection, often used in telecommunications.

You can enter up to eight lines for each block on a single label.

9

9

129

How to Use Cable Label Tool

Die-cut Flag

Labels of this type can be printed on special die-cut flag labels to create flag labels for cables and wires.

Use FLe label cassettes for this type of application.

9

Heat Shrink Tube

Tubes of this type can be heated to shrink them to fit cables. Use HSe tube cassettes for this type of application.

9

9

130

How to Use Cable Label Tool

Linking a Database

You can link databases to templates.

a

Click [

Database

].

b

Select a database.

c

The database linked to the template appears.

Specify the data to print and the number of copies.

9

9

131

How to Use Cable Label Tool

Numbering Function (Serialized Number) Printing

You can create numerically serialized labels.

a

Highlight the text you want to serialize.

9

b

Click [

Serialize

].

c

Specify the settings using the screen image as an example.

Printing with Cable Label Tool

You can print by selecting [

Print

] from the [

File

] menu or by clicking the [

Print

] button. (Configure the printing settings in the [

Print

] screen before printing.)

9

9

132

How to Use Cable Label Tool

Transferring Templates from Cable Label Tool to the P-touch

Labeling System

9

Using the transfer function, you can transfer a template or a template with a database to the P-touch labeling system without using P-touch Transfer Manager.

a

Display the template to transfer in the layout window.

b

Click [

Transfer

].

The [

Transfer Template

] dialog box appears.

c

Select the assignment key.

Note

If the template or other data transferred to the printer has the same key number as another template already saved in the printer, the new template will overwrite the old one.

d

To transfer a template with a connected database, select the [

Transfer with Database

] check box.

e

Click [

Transfer

].

The template or template with database is transferred to the printer.

Note

• [

Serialize

] settings will not be transferred.

• When transferring a template with a database, if the linked database has multiple sheets, only the sheet currently displayed in the database dialog box is transferred.

9

133

10

How to Use P-touch Editor

Starting P-touch Editor

a

Start the P-touch Editor.

For Windows 7

:

From the Start button, click [

All Programs

] - [

Brother P-touch

] - [

P-touch Editor

], or double-click

[

P-touch Editor

] shortcut icon on the desktop.

10

10

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2

:

Click [

P-touch Editor

] on the [

Apps

] screen or double-click [

P-touch Editor

] on the desktop.

For Windows 10

:

From the Start button, select [

All apps

] and click [

P-touch Editor

] under [

Brother P-touch

], or double-click [

P-touch Editor

] on the desktop.

b

When P-touch Editor starts, select whether you want to create a new layout or open an existing layout.

Note

To change how P-touch Editor functions when it starts, click [

Tools

] - [

Options

] in the P-touch Editor menu bar to display the [

Options

] dialog box. On the left side, select the [

General

] heading, and then the setting you want in the [

Operations

] list box under [

Startup Settings

]. The factory setting is [

Display New View

].

10

134

How to Use P-touch Editor c

Select one of the displayed options:

4

3

1

5

2

1 To create a new layout, double-click [

New Layout

], or click [

New Layout

] and then click [ ].

2 To create a new layout using a preset layout, double-click a category button, or select a category button and then click [ ].

3 To connect a preset layout to a database, select the check box next to [

Connect Database

].

4 To open an existing layout, click [

Open

].

5 To open the application for creating labels for electrical equipment management, double-click [

Cable

Labelling Wizard

], or click [

Cable Labelling Wizard

] and then click [ ].

10

135

How to Use P-touch Editor

Printing with P-touch Editor

Express mode

This mode allows you to quickly create layouts that include text and images.

10

10

You can print by selecting [

Print

] from [

File

] in the menu bar or by clicking the [

Print

] icon. (Configure the printing settings in the [

Print

] screen before printing.)

Professional mode

This mode allows you to create layouts using a wide-range of advanced tools and options.

10

10

B

A

You can print by selecting [

Print

] from [

File

] in the menu bar or by clicking the Print Setting icon (A). Configure the printing settings in the [

Print

] screen before printing.

In addition, you can click the [

Print

] icon “B” to start printing without changing the printing settings.

136

How to Use P-touch Editor

Snap mode

This mode allows you to capture all or a portion of your computer screen display, print it as an image, and save it for future use.

a

Click the [

Snap

] mode selection button.

The [

Description of Snap mode

] dialog box appears.

10

b

Click [

OK

].

The [

Snap

] mode palette appears.

Transferring Data to the P-touch Labeling System

To transfer data to the P-touch labeling system, you must use P-touch Transfer Manager. For more

information, see

How to Use P-touch Transfer Manager

on page 138.

10

10

137

11

How to Use P-touch Transfer Manager

11

This program allows you to transfer templates and other data to the P-touch labeling system and save backups of your data on the computer.

Transferring the Template to P-touch Transfer Manager

11

To use P-touch Transfer Manager, you must first transfer templates created in P-touch Editor to P-touch

Transfer Manager.

a

In P-touch Editor, open the template to be transferred.

b

Click [

File

] - [

Transfer Template

] - [

Transfer

].

When P-touch Transfer Manager starts, the main window appears.

Note

The following method can also be used to start P-touch Transfer Manager:

For Windows 7:

From the Start button, click [

All Programs

] - [

Brother P-touch

] - [

P-touch Tools

] - [

P-touch Transfer

Manager

].

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2:

Click [

P-touch Transfer Manager

] on the [

Apps

] screen.

For Windows 10

:

From the Start button, select [

All apps

], and then click [

P-touch Transfer Manager

] under [

Brother

P-touch

].

11

138

How to Use P-touch Transfer Manager

Main window

1

2

11

3

5

4

6

1 Menu bar

Provides access to various commands, which are grouped under each menu title ([

File

], [

Edit

], [

View

],

[

Tool

], and [

Help

]) according to their functions.

2 Toolbar

Provides access to frequently used commands.

3 Printer selector

Allows you to select which P-touch labeling system the data will be transferred to. When you select a

P-touch labeling system, only the data that can be sent to the selected P-touch labeling system appears in the data list.

4 Folder view

Displays a list of folders and printers. When you select a folder, the templates in the selected folder appear in the template list.

If you select a P-touch labeling system, the current templates and other data stored in the P-touch labeling system appear.

5 Template list

Displays a list of templates in the selected folder.

6 Preview

Displays a preview of the templates in the templates list.

11

139

How to Use P-touch Transfer Manager

Explanations of the Toolbar Icons

Icon

Transfer

Button name

(Only for P-touch Transfer

Manager)

Save Transfer File

(When not connected to a

P-touch labeling system)

Backup

(Only for P-touch Transfer

Manager)

Open

Print

(Only for P-touch Library)

Search

Function

Transfers templates and other data from the computer to the

P-touch labeling system.

Changes the file type of the data to be transferred to other applications.

Select "BLF" for the filename extension when printing the label using Mass Storage Mode (USB), or when transferring the data using BRAdmin Professional (Wi-Fi) or Mobile Transfer Express

(Wi-Fi). Select "PDZ" when transferring the data using

TransferExpress (USB).

The available interfaces differ depending on your model.

Retrieves the templates and other data saved in the P-touch labeling system and saves it on the computer.

Opens the selected template.

Prints the selected template with the P-touch labeling system.

Allows you to search for templates or other data registered to

P-touch Library.

Display Style

Changes the file display style.

11

140

How to Use P-touch Transfer Manager

Transferring Templates or Other Data from the Computer to the P-touch Labeling System

11

Use the following procedure to transfer templates, databases and images from the computer to the P-touch labeling system.

a

Connect the computer and the P-touch labeling system via USB and turn on the P-touch labeling system.

The P-touch labeling system model name appears next to a printer icon in the folder view.

If you select the P-touch labeling system in the folder view, the current templates and other data stored in the P-touch labeling system appear.

Note

• If a P-touch labeling system is disconnected or offline, it is not listed in the folder view.

• Before transferring data, check that the computer and the P-touch labeling system are correctly connected using a USB cable or a wireless connection, and that the P-touch labeling system is on.

b

Select the P-touch labeling system that you want to transfer the template or other data to.

Note

Before transferring data, check that the computer and the P-touch labeling system are correctly connected with a USB cable or a wireless connection and that the P-touch labeling system is on.

11

141

How to Use P-touch Transfer Manager c

Right-click the [

Configurations

] folder, select [

New

], and then create a new folder.

In the example above, the [

Transfer

] folder is created.

d

Drag the template or other data that you want to transfer and place it in the new folder.

Transfer Function Specification

Data type

Maximum number of transferable items

Template

Database


(transferred symbols)

99

99

99

Restriction details

 Each template can contain a maximum of 50 objects.

 Each object can contain a maximum of 17 lines.

 Only *.csv files can be transferred.

 Each *.csv file can contain a maximum of 256 fields and

65000 records.

 Only *.bmp files can be transferred.

 Monochrome *.bmp files are recommended.

 The size limit is 2048 × 2048 pixels.

 Wide images may be cropped.

11

142

How to Use P-touch Transfer Manager

Note

The available space

1

in the transfer file memory can be confirmed using the following procedure:

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

Select [

Memory Usage

] using the or key, and then press the

OK

or

Enter

key.

1

Select [

Transferred Content

] using the or key, and then press the

OK

or

Enter

key.

Because the file size may vary depending on the characters input and the type of data, you may not be able to store a file even if the available space that appears in [

Available : X.XXMB

] indicates there is sufficient space.

You can view the templates and other data by selecting:

 The folder in the [

Configurations

] folder

 [

All Contents

]

 One of the categories under [

Filter

], such as [

Layouts

].

When transferring multiple templates or other data, drag all files you want to transfer and place them in the new folder.

Each file is assigned a key number (memory location in the P-touch labeling system) when it is placed in the new folder.

11

143

How to Use P-touch Transfer Manager e

To change the key number assigned to an item, right-click the item, select [

Key Assign

], and then select the key number you want.

Note

• Except for the data in databases, all data transferred to the P-touch labeling system is assigned a key number.

• If the template or other data transferred to the P-touch labeling system has the same key number as another template already saved in the P-touch labeling system, the new template will overwrite the old one. You can confirm the templates key number assignments saved in the P-touch labeling system by

backing up the templates or other data (see

Backing up Templates or Other Data Saved in the P-touch

Labeling System

on page 146).

• If the P-touch labeling system memory is full, remove one or more templates from the P-touch labeling

system memory (see

Backing up Templates or Other Data Saved in the P-touch Labeling System

on page 146).

f

To change the names of templates or other data that you want to transfer, click the item you want, and then type the new name. The number of characters used for the template names may be limited depending on your model.

11

144

How to Use P-touch Transfer Manager g

Select the folder containing the templates or other data that you want to transfer, and then click

[

Transfer

]. A confirmation message appears.

Note

• You can also transfer individual items to the P-touch labeling system without adding them to a folder.

Select the template or other data that you want to transfer, and then click [

Transfer

].

• Multiple items and folders can be selected and transferred in one operation.

h

Click [

OK

].

11

The selected data are transferred to the P-touch labeling system.

Note

To print data that was transferred to the P-touch labeling system, the P-touch labeling system must be switched from the transfer mode to the normal mode. Turn off the P-touch labeling system and then on again.

145

How to Use P-touch Transfer Manager

Backing up Templates or Other Data Saved in the P-touch

Labeling System

Use the following procedure to retrieve templates or other data saved in the P-touch labeling system and save it on the computer.

Important

• Backed up templates or other data cannot be edited on the computer.

• Depending on your model, templates or other data backed up from one P-touch labeling system model may not be able to be transferred to another P-touch labeling system model.

a

Connect the computer and the P-touch labeling system and turn on the P-touch labeling system.

The P-touch labeling system model name appears next to a printer icon in the folder view.

If you select the P-touch labeling system in the folder view, the current templates and other data stored in the P-touch labeling system appear.

b

Select the P-touch labeling system to back up from, and then click [

Backup

].

A confirmation message appears.

11

c

Click [

OK

].

A new folder is created under the P-touch labeling system in the folder view. The folder name is based on the date and time of the backup. All of the P-touch labeling system's templates and other data are transferred to the new folder and saved on the computer.

11

146

How to Use P-touch Transfer Manager

Deleting All the P-touch Labeling System Data

Use the following procedure to delete all templates or other data saved on the P-touch labeling system.

a

Connect the computer and the P-touch labeling system and turn on the P-touch labeling system.

The P-touch labeling system model name appears next to a printer icon in the folder view.

b

Right-click the P-touch labeling system, and then select [

Delete All

].

11

A confirmation message appears.

c

Click [

OK

].

All templates and other data saved in the P-touch labeling system is deleted.

11

147

How to Use P-touch Transfer Manager

Creating a BLF File

11

You can use P-touch Transfer Manager to save template data, which was created using P-touch Editor, in the BLF format. You can transfer these files in this format to a printer over a network, from a computer or mobile device. You can also print files in BLF format from mass storage mode.

a

Create the template using P-touch Editor, and then transfer it to P-touch Transfer Manager.

For more information, see

Transferring the Template to P-touch Transfer Manager

on page 138.

b

Without connecting the P-touch labeling system to the computer, select [

Configurations

] in the P-touch

Transfer Manager window, and then select the template to save.

Note

You can select multiple templates at the same time.

c

Click [

File

] - [

Save Transfer File

].

Important

The [

Save Transfer File

] button appears only if the P-touch labeling system is disconnected from the computer or offline.

Note

• If you click [

Save Transfer File

] after selecting [

Configurations

], all templates in the folder are saved as the Transfer file (.blf).

• You can combine multiple templates into a single Transfer file (.blf).

d

Select the BLF format in [

Save as type

], and then type in the name and save the template.

The templates are saved as a Transfer file (.blf).

11

148

12

How to Use P-touch Library

This program allows you to use your computer to manage P-touch Template.

You can use P-touch Library to print templates.

Starting P-touch Library

For Windows 7

:

From the Start button, click [

All Programs

] - [

Brother P-touch

] - [

P-touch Tools

] - [

P-touch Library

].

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2

:

Click [

P-touch Library

] on the [

Apps

] screen.

For Windows 10

:

From the Start button, select [

All apps

], and then click [

P-touch Library

] under [

Brother P-touch

].

12

When P-touch Library starts, the main window appears.

Main window

1

2

12

12

4

12

3

5

1 Menu bar

Provides access to all available commands, which are grouped under each menu title ([

File

], [

Edit

],

[

View

], [

Tool

], and [

Help

]) according to their functions.

2 Toolbar

Provides access to frequently used commands.

3 Folder list

Displays a list of folders. When you select a folder, the templates in the selected folder appears in the templates list.

149

How to Use P-touch Library

4 Templates list

Displays a list of the templates in the selected folder.

5 Preview

Displays a preview of the templates selected in the templates list.

Explanations of the Toolbar Icons

Icon Button name

Open

Function

Opens the selected template.

Print

(Only for P-touch Library)

Prints the selected template with the P-touch labeling system.

Search

Allows you to search for templates registered to P-touch Library.

Display Style

Changes the file display style.

12

150

How to Use P-touch Library

Opening and Editing Templates

Select the template you want to open or edit, and then click [

Open

].

12

The program associated with the template starts so that you can edit the template.

12

151

How to Use P-touch Library

Printing Templates

Select the template you want to print, and then click [

Print

].

The connected P-touch labeling system prints the template.

12

12

152

How to Use P-touch Library

Searching for Templates

You can search for templates registered to P-touch Library.

a

Click [

Search

].

The [

Search

] dialog box appears.

12

b

Specify the search criteria.

The following search criteria are available:

Settings

Multiple Parameters

Name

Type

Size

Date

Details

Determines how the program searches when multiple criteria are specified. If you select

[

AND

], the program searches for files that satisfy all of the criteria.

If you select [

OR

], the program searches for files that satisfy any of the criteria.

Search for a template by specifying the file name.

Search for a template by specifying the file type.

Search for a template by specifying the file size.

Search for a template by specifying the file date.

12

153

How to Use P-touch Library c

Click [

Begin Search

].

The search begins.

d

Close the [

Search

] dialog box.

To confirm the search results, click [

Search Results

] in the folder view.

Note

You can register templates to P-touch Library by dragging and dropping them into the [

All Contents

] folder or to the folder list. You can also configure P-touch Editor to register templates to P-touch Library automatically, using the following procedure:

1 From the P-touch Editor menu, select [

Tools

] - [

Options

].

2 In the [

Options

] dialog box, click [

Registration Settings

] in the [

General

] tab.

3 Select the timing for registering templates created with P-touch Editor, and then click [

OK

].

12

154

13

Transferring Templates with P-touch

Transfer Express

13

You can transfer templates to the P-touch labeling system using P-touch Transfer Express. First, the administrator creates a template, and then distributes it together with P-touch Transfer Express. You can then use P-touch Transfer Express to transfer the template directly to your P-touch labeling system.

You can download the latest version of P-touch Transfer Express from the Brother support website at support.brother.com.

[Select your region/country.] - [Downloads] - [Choose your product]

Important

• If the template is to be transferred as a new one, make sure you specify a [

Key Assign

] number (in

P-touch Transfer Manager) that is not currently used. If the specified [

Key Assign

] number is already being used, the existing template will be overwritten with the new one.

• This function requires a USB connection.

Administrator Users

1.

Brother support website support.brother.com

P-touch

Editor

Transfer Express

P-touch

Transfer Manager

P-touch

Transfer Express xxx.lbx

2.

xxx.lbx

xxx.pdz

3.

xxx.pdz

4.

5.

Preparing P-touch Transfer Express

The user must prepare P-touch Transfer Express for transferring templates to a P-touch labeling system.

13

Important

• The printer driver must be installed before using Transfer Express.

• P-touch Transfer Express is available only in English.

a

You can download the latest version of P-touch Transfer Express from the Brother support website at support.brother.com.

[Select your region/country.] - [Downloads] - [Choose your product] b

Download Transfer Express to any location on the computer.

c

Decompress the downloaded file (.zip).

13

155

Transferring Templates with P-touch Transfer Express

Transferring the Template to P-touch Transfer Manager

a

In P-touch Editor, open the template to be transferred.

b

Click [

File

] - [

Transfer Template

] - [

Transfer

].

13

The template is transferred to P-touch Transfer Manager.

P-touch Transfer Manager automatically starts up.

Note

For Windows 7:

The template can also be transferred to P-touch Transfer Manager by clicking the Start button - [

All

Programs

] - [

Brother P-touch

] - [

P-touch Tools

] - [

P-touch Transfer Manager

] to start P-touch Transfer

Manager, and then dragging the .lbx file to the P-touch Transfer Manager window.

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2:

The template can also be transferred to P-touch Transfer Manager by clicking [

P-touch Transfer

Manager

] on the [

Apps

] screen to start P-touch Transfer Manager, and then dragging the .lbx file to the

P-touch Transfer Manager window.

For Windows 10:

The template can also be transferred to P-touch Transfer Manager by clicking the Start button, then selecting [

All apps

] and clicking [

Brother P-touch

] - [

P-touch Transfer Manager

] to start P-touch

Transfer Manager, and then dragging the .lbx file to the P-touch Transfer Manager window.

13

156

Transferring Templates with P-touch Transfer Express

Saving the Template as a Transfer Package File (.pdz)

To create a file in a format that can be used by P-touch Transfer Express, save the template as a Transfer

Package file (.pdz).

a

In the folder view, select [

Configurations

].

13

b

Select the templates you want to distribute.

13

157

Transferring Templates with P-touch Transfer Express c

Click [

File

] - [

Save Transfer File

].

Important

The [

Save Transfer File

] button appears only if the P-touch labeling system is disconnected from the computer or offline.

Note

• If you click [

Save Transfer File

] after selecting [

Configurations

] or a created folder, all templates in the folder are saved as the Transfer Package file (.pdz).

• You can combine multiple templates into a single Transfer Package file (.pdz).

d

Type in the name, and then click [

Save

].

13

The template is saved as a Transfer Package file (.pdz).

158

Transferring Templates with P-touch Transfer Express

Distributing the Transfer Package File (.pdz) and P-touch

Transfer Express to the User

Note

If the user already has P-touch Transfer Express downloaded, it is not necessary for the administrator to send the Transfer Express folder to the user. In this case, the user can simply move the distributed

Transfer Package file to the downloaded folder, and then double-click [

PtTrExp.exe

].

a

Move the Transfer Package file (.pdz) to the downloads folder.

13

b

Distribute all files in the downloads folder to the user.

13

159

Transferring Templates with P-touch Transfer Express

Transferring the Transfer Package File (.pdz) to Your P-touch

Labeling System

13

Using the P-touch Transfer Express application received from the administrator, the user can transfer the

Transfer Package file (.pdz) to the P-touch labeling system.

Important

Do not turn off the power when transferring templates.

a

Turn on the P-touch labeling system.

b

Using a USB cable, connect the P-touch labeling system to the computer.

c

Double-click [

PtTrExp.exe

], which was received from the administrator.

d

1.When there is a single Transfer Package file (.pdz) within the folder containing [

PtTrExp.exe

], click

[

Transfer

].

The transfer of the Transfer Package file begins.

13

160

Transferring Templates with P-touch Transfer Express

2.When there are either multiple or no Transfer Package files (.pdz) within the folder containing

[

PtTrExp.exe

], click [

Browse

].

Select the Transfer Package file you want to transfer, and then click [

Open

].

Click [

Transfer

].

13

161

Transferring Templates with P-touch Transfer Express

Click [

Yes

].

The transfer of the Transfer Package file begins.

e

Click [

OK

].

The transfer of the Transfer Package file is completed.

162

13

14

How to Update P-touch Software

The software can be upgraded to the latest available version using the P-touch Update Software.

Note

• The actual software and the contents of this manual may differ.

• Do not turn off the power when transferring data or updating firmware.

Updating Cable Label Tool and P-touch Editor

Important

The printer driver must be installed before updating Cable Label Tool and P-touch Editor.

a

Start the P-touch Update Software.

For Windows 7

:

Double-click the [

P-touch Update Software

] icon.

Note

The following method can also be used to start P-touch Update Software:

Click the Start button, and then select [

All Programs

] - [

Brother P-touch

] - [

P-touch Update Software

].

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2

:

Click [

P-touch Update Software

] on the [

Apps

] screen or double-click [

P-touch Update Software

] on the desktop.

For Windows 10

:

From the Start button, select [

All apps

] and click [

Brother P-touch

] - [

P-touch Update Software

], or double-click [

P-touch Update Software

] on the desktop.

14

14

14

163

How to Update P-touch Software b

Click the [

Computer software update

] icon.

c

Select the [

Printer

] and [

Language

] settings, select the check box next to Cable Label Tool and P-touch

Editor, and then click [

Install

].

d

A message appears indicating that the installation has finished.

164

14

How to Update P-touch Software

Updating the Firmware

Important

• The printer driver must be installed before updating the firmware.

• Do not turn off the power when transferring data or updating firmware.

• If another application is running, exit the application.

a

Turn on the P-touch labeling system and connect the USB cable.

b

Start the P-touch Update Software.

For Windows 7

:

Double-click the [

P-touch Update Software

] icon.

Note

The following method can also be used to start P-touch Update Software:

Click the Start button, and then select [

All Programs

] - [

Brother P-touch

] - [

P-touch Update Software

].

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2

:

Click [

P-touch Update Software

] on the [

Apps

] screen or double-click [

P-touch Update Software

] on the desktop.

For Windows 10

:

From the Start button, select [

All apps

] and click [

Brother P-touch

] - [

P-touch Update Software

], or double-click [

P-touch Update Software

] on the desktop.

14

14

165

How to Update P-touch Software c

Click the [

Machine update

] icon.

d

Select the [

Printer

] settings, ensure that [

The machine is connected correctly.

] appears, and then click [

OK

].

166

14

How to Update P-touch Software e

Select the [

Language

] settings, select the check box next to the firmware you want to update to, and then click [

Transfer

].

Important

Do not turn off the P-touch labeling system or disconnect the cable during data transfer.

f

Check the content to be updated, and then click [

Start

] to begin the update.

The firmware update begins.

Important

Do not turn off the P-touch labeling system or disconnect the cable during the update process.

14

167

Section III

Application for Mac

Using P-touch Software

How to Use P-touch Editor

How to Update P-touch Software

169

170

173

III

15

Using P-touch Software

Installing P-touch Software

You must install P-touch software and the printer driver to use your P-touch labeling system with your computer.

Download the installer from www.brother.com/inst.

For more information on installing the software and driver, see

Installing the Printer Driver and Software

on page 64.

To download the latest driver and software individually, visit the Brother support website at support.brother.com.

[Select your region/country.] - [Downloads] - [Choose your product]

15

15

169

15

16

How to Use P-touch Editor

16

Starting P-touch Editor

a

Double-click [

P-touch Editor

] icon on the desktop.

Note

• The following method can also be used to start P-touch Editor:

Double-click [

Macintosh HD

] - [

Applications

] - [

P-touch Editor

], and then double-click the [

P-touch

Editor

] application icon.

• When using a Mac computer, you cannot transfer label data created using P-touch Editor to the P-touch labeling system.

P-touch Editor starts.

16

16

170

How to Use P-touch Editor

Operation modes

Standard Mode

This mode allows you to create labels with text and images.

The layout window consists of the following sections:

1

2

4

5

1 Command bar

2 Draw/Edit toolbar

3 Inspector

4 Layout window

5 Database window

3

16

16

16

171

How to Use P-touch Editor

Snap mode (P-touch Editor 5.1 only)

With this mode, you can capture the screen, print it as an image, and save it for future use.

To start the Snap mode, follow the steps below.

a

Click the [

Snap

] mode selection button.

The [

Description of Snap mode

] dialog box appears.

16

16

b

Click [

OK

].

The [

Snap

] mode palette appears.

Transferring Data to the P-touch Labeling System

To transfer data to the P-touch labeling system, you must use a Windows computer. For more information,

see

How to Use P-touch Transfer Manager

on page 138.

16

172

17

How to Update P-touch Software

17

The software can be upgraded to the latest available version using the P-touch Update Software.

Note

• The actual software and the contents of this manual may differ.

• Do not turn off the power when transferring data or updating firmware.

Updating the Firmware

Important

• The printer driver must be installed before updating the firmware.

• Do not turn off the power when transferring data or updating firmware.

• If another application is running, exit the application.

a

Turn on the P-touch labeling system and connect the USB cable.

b

Double-click the [

P-touch Update Software

] icon on the desktop.

Note

The following method can also be used to start P-touch Update Software:

Double-click [

Macintosh HD

] - [

Applications

] - [

P-touch Update Software

], and then double-click the

[

P-touch Update Software

] application icon.

17

17

173

How to Update P-touch Software c

Click the [

Machine update

] icon.

d

Select the [

Printer

] settings, ensure that [

The machine is connected correctly.

] appears, and then click [

OK

].

17

174

How to Update P-touch Software e

Select the [

Language

] settings, select the check box next to the firmware you want to update to, and then click [

Transfer

].

Important

Do not turn off the P-touch labeling system or disconnect the cable during data transfer.

17

f

Check the content to be updated, and then click [

Start

] to begin the update.

The firmware update begins.

Important

Do not turn off the P-touch labeling system or disconnect the cable during the update process.

175

Section IV

Wireless Network

Introduction

Changing Your P-touch Labeling System Network

Settings

Web Based Management

177

178

181

IV

18

Introduction

18

Network Features

Your P-touch labeling system can be shared on an IEEE 802.11b/g/n wireless network using the internal network print server. The print server supports various functions and methods of connection on a network supporting TCP/IP, depending on the operating system you are running.

18

18

177

19

Changing Your P-touch Labeling System

Network Settings

19

Changing Your P-touch Labeling System's Network Settings

(IP Address, Subnet Mask and Gateway) Using Windows

19

Using the BRAdmin Light Utility

The BRAdmin Light utility is designed for the initial setup of Brother network connectable devices. It can also search for Brother products in a TCP/IP environment, display the status, and configure basic network settings, such as the IP address.

19

19

Installing BRAdmin Light

You must install BRAdmin Light to your computer. See

Installing the Printer Driver and Software

on page 64

for more information on the installation.

To download the latest version of BRAdmin Light, visit the Brother support website at support.brother.com.

19

Note

• For more advanced printer management, use the latest version of the Brother BRAdmin Professional utility available as a download from the Brother support website at support.brother.com.

• If using firewall, anti-spyware, or antivirus software, temporarily disable them. When you are sure that you can print, re-enable them.

• The node name appears in the current BRAdmin Light window. The default node name of the print server in the printer is “BRWxxxxxxxxxxxx”. (“xxxxxxxxxxxx” is based on your printer's MAC Address / Ethernet

Address.)

Setting the IP address, Subnet Mask and Gateway using BRAdmin Light

a

Start the BRAdmin Light utility.

For Windows 7:

Click [

Start

] - [

All Programs

] - [

Brother

] - [

BRAdmin Light

] - [

BRAdmin Light

].

For Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2:

Click the [

BRAdmin Light

] icon on the [

Apps

] screen.

For Windows 10:

From the Start button, select [

All apps

], and then click [

BRAdmin Light

] under [

Brother

].

b

BRAdmin Light will search for new devices automatically.

19

178

Changing Your P-touch Labeling System Network Settings c

Double-click the unconfigured device.

Note

If you do not use a DHCP/BOOTP/RARP server, the device appears as [

Unconfigured

] in the BRAdmin

Light utility screen.

d

Select [

STATIC

] for [

Boot Method

]. Type the [

IP Address

], [

Subnet Mask

], and [

Gateway

] settings (if needed) for your print server.

19

e

Click [

OK

].

f

If you have set the IP address up correctly, the Brother print server appears in the device list.

179

Changing Your P-touch Labeling System Network Settings

Other Management Utilities

Your P-touch labeling system can be used with the following management utilities in addition to the BRAdmin

Light utility. You can change your network settings using these utilities.

19

Using Web Based Management (Web Browser)

A standard web browser can be used to change your print server settings using the HTTP (Hyper Text

Transfer Protocol). (See

Configuring the Printer Settings Using Web Based Management (Web Browser)

on page 182.)

19

19

Using the BRAdmin Professional Utility (Windows Only)

BRAdmin Professional is a utility for more advanced management of network connected Brother devices.

This utility can search for Brother products on your network, and display the device status from an easy to read Explorer style window that changes color to represent the status of each device. You can configure network and device settings along with the ability to update device firmware from a Windows computer on your Local Area Network (LAN). BRAdmin Professional can also log activity of Brother devices on your network and export the log data.

For more information and downloads, visit the Brother support website at support.brother.com.

Note

• Use the latest version of the BRAdmin Professional utility available as a download from the Brother support website at support.brother.com.

• If using firewall, anti-spyware, or antivirus software, temporarily disable them. When you are sure that you can print, re-enable them.

• The node name appears in the current BRAdmin Professional window. The default node name is

“BRWxxxxxxxxxxxx”. (“xxxxxxxxxxxx” is based on your printer's MAC Address / Ethernet Address.)

19

180

20

Web Based Management

20

Overview

You can use a standard web browser to manage a P-touch labeling system on your network using HTTP.

When using Web Based Management, the following operations are possible:

 Displaying your P-touch labeling system status information

 Changing network settings, such as TCP/IP information

 Displaying software version information of the P-touch labeling system and print server

 Changing network and P-touch labeling system configuration details

20

Note

We recommend Microsoft Internet Explorer 7.0 or later or Firefox 25.0.1 or later for Windows, Safari 5.0.6 or later or Firefox 26.0 or later for Mac.

Make sure JavaScript and cookies are always enabled in the browser you use.

To use Web Based Management, your network must use TCP/IP, and the P-touch labeling system and computer must have a valid IP address.

20

181

Web Based Management

Configuring the Printer Settings Using Web Based

Management (Web Browser)

20

A standard web browser can be used to change your print server settings using the HTTP (Hyper Text

Transfer Protocol).

a

In your browser's address bar, type the IP address of your P-touch labeling system (or print server name).

For example: http://192.168.1.2

Note

If you have edited the hosts file on your computer or are using a Domain Name System, you can also type the DNS name of the print server. As the print server supports TCP/IP and NetBIOS, you can also type the NetBIOS name of the print server. The NetBIOS name can be seen on the printer settings page. The

NetBIOS name assigned is the first 15 characters of the node name and by default it appears as

“BRWxxxxxxxxxxxx” where “ xxxxxxxxxxxx

” is the Ethernet address.

b

You can now change the print server settings.

Note

Setting a password

We recommend setting a logon password to prevent unauthorized access to Web Based Management.

a

Click [

Administrator

].

b

Type the password you want to use (up to 32 characters).

c

Re-type the password in the [

Confirm new password

] field.

d

Click [

Submit

].

The next time you access Web Based Management, type a password in the [

Login

] field, and then click .

After configuring the settings, log off by clicking .

20

You can also set a password by clicking [

Please configure the password.

] on the printer's web page if you are not setting a logon password.

182

Section V

Appendix

Resetting the P-touch Labeling System

Maintenance

Useful Settings

Using the Rechargeable Li-ion Battery (PA-BT-4000LI)

Troubleshooting

Product Specifications

Notes on Using P-touch Transfer Manager

Network Terms and Information

Symbols/Characters/Styles

184

186

191

194

198

212

215

217

227

V

21

Resetting the P-touch Labeling System

21

You can reset the internal memory of your P-touch labeling system to clear all saved label files, or if the

P-touch labeling system is not operating correctly.

Resetting All Settings to the Factory Settings Using the

P-touch Labeling System Buttons

21

All text, format settings, option settings and stored label files are cleared when you reset the P-touch labeling system (including language and unit settings).

To reset the P-touch labeling system, perform the following procedure.

a

Turn off the P-touch labeling system.

b

Press and hold the (Power) button and the (Feed and Cut) button for about three seconds until the

(Power) indicator lights in orange and the (Label) indicator blinks in green.

21

c

While holding the (Power) button, press the (Feed and Cut) button as follows:

 Press two times to reset the customized settings and clear the data except all of the transferred data from the computer, registered programs, and the contents in the file memory. (The settings that you can make using the keyboard LCD unit are reset.)

 Press four times to clear all of the transferred data from the computer, registered programs, and the contents in the file memory.

 Press six times to delete all data and reset the P-touch labeling system settings to the factory settings except the Wi-Fi settings.

d

Release the (Power) button.

184

Resetting the P-touch Labeling System

Resetting Data Using the Settings in the Home screen

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

Select [

Reset

] using the or key, and then press the

OK

or

Enter

key.

21

Value

Reset All Settings

Erase All Content

Details

Transferred data (templates, databases, and transferred symbols), registered programs and the contents in the file memory are NOT cleared.

Other data is cleared and all settings except the Wi-Fi settings are reset to factory settings.

Transferred data (templates, databases, and transferred symbols), registered programs and the contents in the file memory are cleared.

Other data is NOT cleared and settings are NOT reset.

All data, customized settings, and the Wi-Fi settings are reset to factory settings.

All Wi-Fi settings are reset to factory settings.

21

Factory Default

Reset Wi-Fi Settings

Resetting Data Using the Printer Setting Tool

You can use the Printer Setting Tool from a computer to perform the following operations for the P-touch labeling system:

 Deleting the templates and databases

 Deleting the print log

 Resetting Wi-Fi settings

 Resetting printer settings to factory settings

For more information, see

Changing the P-touch Labeling System Settings

on page 83.

21

185

22

Maintenance

22

We recommend cleaning your P-touch labeling system on a regular basis to maintain its correct performance and life span.

Note

Always remove the battery and disconnect the AC adapter before cleaning the P-touch labeling system.

Cleaning the Unit

Wipe any dust and marks from the main unit using a soft, dry cloth.

Use a slightly dampened cloth on difficult to remove marks.

Note

Do not use paint thinner, benzene, alcohol or any other organic solvent. These may deform the case or damage the appearance of your P-touch labeling system.

22

22

Cleaning the Print Head

Streaks or poor quality characters on printed labels generally indicate that the print head is dirty. Clean the print head using a dry cotton swab or the optional print head cleaning cassette (TZe-CL6).

22

WARNING

Do not touch the print head directly with your bare hands. The print head may be hot.

Note

See the instructions provided with the print head cleaning cassette for directions on how to use it.

186

Maintenance

Cleaning the Label Roller

If the quality of the printed characters on the labels is poor even after cleaning the print head, clean the entire label roller with a dry cotton swab by moving the swab up and down while rotating the roller.

22

Cleaning the Tape Cutter Unit

Tape adhesive can build up on the cutter blades after repeated use, dulling the blades, which may result in the tape jamming.

About once every year, wipe the cutter blades using a cotton swab.

22

22

WARNING

Do not touch the cutter blades directly with your bare hands.

187

Maintenance

Cleaning the FLe Sensor

If the FLe sensor is dirty, FLe labels cannot be positioned correctly. Wipe the sensor using a cotton swab moistened with alcohol.

22

Replacing the Coin Cell Battery

A coin cell battery is used as a backup power supply to maintain the settings for the internal clock of the keyboard LCD unit. The battery will be consumed even if the P-touch labeling system is not used for a long period of time.

Important

• Use only recommended batteries in the P-touch labeling system. Other batteries may cause damage to the P-touch labeling system.

• When storing or discarding the battery, wrap it (for example with cellophane tape) to prevent it from short-circuiting.

22

22

(Battery insulation example)

1

2

1 Cellophane tape

2 Coin cell battery

• We recommend replacing the battery every two years.

• If the clock is reset while power is supplied to the P-touch labeling system, replace this battery. When replacing the battery, buy a CR2032 battery (recommended manufacturers: Hitachi Maxell, Ltd., FDK

Corporation).

• Dispose of the batteries at an appropriate collection point, not in the general waste stream. In addition, be sure to observe all applicable federal, state, and local regulations.

188

Maintenance a

Press and hold the (Power) button to turn off the P-touch labeling system, and then disconnect the

P-touch labeling system from the AC power outlet. If the rechargeable Li-ion battery is installed, remove the rechargeable battery.

b

Press the cover open button to open the top cover.

c

Using a coin or similar object, slowly turn the coin cell battery cover in the direction of the arrow on the battery cover until it stops to unlock, and then remove the coin cell battery cover.

Important

If the coin cell battery cover is forcibly turned past the stop position, it may become damaged.

d

Remove the battery.

As shown below, press part A of the battery so that it can be removed.

22

e

Install the new battery.

Important

Be sure to insert the new battery with the + and – sides facing the correct direction.

f

Return the coin cell battery cover to its original position. To install and lock the coin cell battery cover, use a coin or similar object to slowly turn the coin cell battery cover in the opposite direction of the arrow on the battery cover until it stops.

Important

If the coin cell battery cover is forcibly turned past the stop position, it may become damaged.

189

Maintenance g

Close the top cover.

Note

You can configure the time and date using [

Settings

] in the Home screen. For more information, see

Clock Setting

on page 29.

22

190

23

Useful Settings

23

Auto Power-Off Time

Your P-touch labeling system has a power saving function that automatically turns itself off if no key is pressed within a certain time, under certain operating conditions.

If you use the AC adapter or Li-ion battery, you can change the setting of the auto power-off time.

23

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Auto Power Off

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

AC Adapter

] or [

Li-ion Battery

] using the or key and set the value using the or key.

d

Press the

OK

key.

You can also use the Printer Setting Tool to change the settings. See

Changing the P-touch Labeling System

Settings

on page 83 for more information.

23

Setting

AC Adapter

Value

Off

10 min

20 min

30 min

40 min

50 min

1 h

2 h

4 h

8 h

12 h

Setting

Li-ion Battery

Value

Off

10 min

20 min

30 min

40 min

50 min

1 h

Important

• If you connect the AC adapter to the P-touch labeling system after you specified "Auto Power Off", the machine uses the "AC Adapter" setting.

• The factory setting is "1 h" for the AC adapter and "30 min" for the Li-ion battery.

191

Useful Settings

Adjusting the LCD Settings

23

LCD Contrast

You can change the contrast setting of the LCD to one of five levels (+2, +1, 0, -1, or -2) to make the screen easier to read. The factory setting is “0”.

23

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

LCD Contrast

] using the or key, and then press the

OK

or

Enter

key.

c

Set the value using the or key, and then press the

OK

or

Enter

key.

Note

• To return to the previous step, press the

Esc

key.

• Pressing the

Space

key on the contrast setting screen sets the contrast to the factory setting of “0”.

23

Backlight

You can change the backlight setting either to "On" or "Off".

The display is easier to see with the backlight on. The factory setting is "On".

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Backlight

] using the or key, and then press the

OK

or

Enter

key.

c

Select [

On

] or [

Off

] using the or key, and then press the

OK

or

Enter

key.

Note

• Power can be saved when the backlight is turned off.

• The backlight automatically turns off. Press any key to turn the backlight on again.

During printing, the backlight is turned off. The backlight turns on during data transmissions.

23

192

Useful Settings

Setting Language and Unit

23

Language

23

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Language

] using the or key, and then press the

OK

or

Enter

key.

c

Select a language for menu commands and messages shown on the LCD using the or key.

The following languages are available: [

Č eština

], [

Dansk

], [

Deutsch

], [

English

], [

Español

],

[

Français

], [

Hrvatski

], [

Italiano

], [

Magyar

], [

Nederlands

], [

Norsk

], [

Polski

], [

Português

],

[

Português (Brasil)

], [

Român ă

], [

Slovenski

], [

Slovenský

], [

Suomi

], [

Svenska

], and [

Türkçe

].

d

Press the

OK

or

Enter

key.

Note

To return to the previous step, press the

Esc

key.

23

Setting Unit

23

a

Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

b

Select [

Unit

] using the or key, and then press the

OK

or

Enter

key.

c

Select a unit for dimensions shown on the LCD using the or key.

Either [ inch

] or [ mm

] can be selected.

d

Press the

OK

or

Enter

key.

Note

The factory setting is [ inch

].

To return to the previous step, press the

Esc

key.

193

24

Using the Rechargeable Li-ion Battery

(PA-BT-4000LI)

24

This P-touch labeling system can be powered by the AC adapter (included) or the rechargeable Li-ion battery

(PA-BT-4000LI). Use the power source appropriate for your intended use.

With the rechargeable Li-ion battery installed, you can use the P-touch labeling system in locations that do not have AC power.

The battery is recharged by the AC adapter when the battery installed to the P-touch labeling system.

Installing the Rechargeable Li-ion Battery

a

Press and hold the (Power) button to turn off the P-touch labeling system.

b

Open the battery cover on the bottom of the P-touch labeling system.

c

Insert the battery into the battery compartment.

d

Close the battery cover.

24

24

Note

The voltage supplied by the rechargeable Li-ion battery fluctuates. The printing speed may also fluctuate depending on the voltage.

194

Using the Rechargeable Li-ion Battery (PA-BT-4000LI)

Removing the Rechargeable Li-ion Battery

Press and hold the (Power) button to turn off the P-touch labeling system.

Remove the battery cover and the battery, and then reattach the battery cover.

CAUTION

If it is difficult to remove the rechargeable battery, turning the P-touch labeling system over with the battery cover removed may allow the rechargeable battery to fall out.

Be careful that this does not cause any injuries.

24

Charging the Rechargeable Li-ion Battery

Note

• Before use, fully charge the battery.

• Up to three hours may be needed to fully charge the battery.

a

Make sure the battery is installed in the P-touch labeling system.

b

Use the AC adapter and power supply cord to connect the P-touch labeling system to an AC power outlet.

Press the (Power) button to turn on the P-touch labeling system if it is not on already.

The (Battery) indicator lights in orange during charging, and it goes off when the battery is fully charged.

24

24

1

2

1 AC adapter

2 Power supply cord

Note

• Even if the P-touch labeling system is turned off during charging, the charging will continue until the battery is fully charged.

195

Using the Rechargeable Li-ion Battery (PA-BT-4000LI)

• If the P-touch labeling system is turned on with the rechargeable Li-ion battery installed and the AC adapter connected to an AC power outlet, the battery will be recharged. However, when the P-touch labeling system is turned on, even after the rechargeable battery has been charged, the battery charge will be used, leaving the battery with less than a full charge the next time the P-touch labeling system is used. We recommend leaving the P-touch labeling system turned off while charging the battery.

• Although the charging stops if the P-touch labeling system is used to print, feed, or perform another operation, the charging will start again automatically after the operation is finished if the charging is not completed.

Stopping Rechargeable Li-ion Battery Charging

To stop the battery charging, disconnect the AC adapter.

24

Notes on Using the Rechargeable Li-ion Battery

 Before use, fully charge the battery. Do not use it until it is fully charged.

 The battery charging must take place in environments between 32°F and 104°F (0°C and 40°C), otherwise the battery will not charge, and the (Battery) indicator will remain lit. If the charging stops because the environment temperature is too low or too high, place the P-touch labeling system with a temperature between 32°F and 104°F (0°C and 40°C) and try charging again.

 If the P-touch labeling system is used to print, feed, or perform another operation when both the battery is installed and the AC adapter is connected, the (Battery) indicator may turn off and charging may stop even if the battery is not fully charged.

24

24

Rechargeable Li-ion Battery Characteristics

To ensure the highest performance and longest life from the battery:

 Do not use or store the battery in a location exposed to extreme high or low temperatures as it may discharge more quickly. This may happen when using a rechargeable Li-ion battery with a high charge

(90% charged or more) in a location exposed to high temperatures.

 Remove the battery when storing the P-touch labeling system for long periods of time.

 Store a battery with less than a 50% charge in a cool dry place out of direct sunlight.

 Recharge the battery every six months if it is stored for long periods of time.

 If you touch a part of the P-touch labeling system while the Li-ion battery is charging, that part of the

P-touch labeling system may feel warm. This is normal, and the P-touch labeling system may be used safely. However, if the P-touch labeling system becomes extremely hot, discontinue use.

24

196

Using the Rechargeable Li-ion Battery (PA-BT-4000LI)

Product Specifications

Rechargeable Li-ion Battery

Size: approx. 2.92" (W) x 3.39" (D) x 1.26" (H) (74 mm (W) x 86 mm (D) x 32 mm (H))

Weight: approx. 0.53 lb (0.240 kg)

Voltage: 14.4 V

Capacity: 1800 mAh

Charging/discharging cycle: approx. 300 times

Charging time: approx. 3 hours

24

24

24

197

25

Troubleshooting

Overview

This chapter explains how to resolve typical problems you may encounter when using the P-touch labeling system. If you have any problems with the P-touch labeling system, first make sure you have performed the following tasks correctly:

 Connect the P-touch labeling system to an AC power outlet or install the battery (see

Connecting the

Power Supply

on page 5 or

Installing the Rechargeable Li-ion Battery

on page 194).

 Remove all protective packaging from the P-touch labeling system.

Install and select the correct printer driver (see

Installing the Printer Driver and Software

on page 64).

Connect the P-touch labeling system to a computer or mobile device (see

Connecting the P-touch

Labeling System to a Computer

on page 64).

 Close the top cover completely.

Insert a tape cassette correctly (see

Inserting a Tape Cassette

on page 6).

If you still have problems, read the troubleshooting tips in this chapter for help. If, after reading this chapter, you are unable to resolve your problem, visit the Brother support website at support.brother.com.

25

25

25

198

Troubleshooting

LCD Problems

Problem

The screen is locked, or the P-touch labeling system does not respond normally.

The display remains blank after turning on the power.

The POWER indicator does not light.

The LCD messages appear in a foreign language.

Solution

See

Resetting the P-touch Labeling System

on page 184 and reset the internal

memory to the factory settings. If resetting the P-touch labeling system does not solve the problem, disconnect the AC adapter and remove the battery for more than 10 minutes.

The P-touch labeling system is receiving no power.

If using AC power, connect the AC adapter correctly to the P-touch labeling system and an AC power outlet.

If using a rechargeable Li-ion battery, make sure the rechargeable Li-ion battery is firmly installed in the P-touch labeling system and is fully charged.

Check that the keyboard LCD unit cable is securely connected to the keyboard

LCD unit and keyboard LCD unit interface of the P-touch labeling system.

See

Language

on page 193 to select the language you want.

Printing Problems

25

Problem

The label is not printed.

The label is not printed correctly.

25

Solution

 Check that text has been entered and that the tape cassette is installed correctly with sufficient tape remaining.

 If the tape is bent, cut off the bent section and thread the tape through the exit slot or tape guides.

 When printing from a computer or mobile device, make sure the computer or mobile device is connected correctly to the P-touch labeling system.

 Remove the tape cassette and reinstall it, pressing it firmly until it locks into place.

 If the print head is dirty, clean it with a dry cotton swab (see

Cleaning the

Print Head

on page 186) or optional print head cleaning cassette

(TZe

-

CL6).

If the quality of the printed characters is poor even after wiping the label print

head, wipe the label roller with a dry cotton swab. See

Cleaning the Label

Roller

on page 187.

25

199

Troubleshooting

Problem

The tape is jammed.

The ink ribbon is separated from the ink roller.

Solution

If the tape is jammed, remove the tape cassette from the P-touch labeling system.

 Check the tape cassette compartment and tape exit slot for tape scraps, jammed tape or debris that may prevent the tape from correctly exiting the machine. Remove if present.

 Examine the tape cassette and cut away any damaged tape that is present past the tape guides on the tape cassette.

 Check that the end of the tape is not bent and that is passes through the

tape guides. For more information, see

Inserting a Tape Cassette

on page 6.

 Insert the tape cassette into the tape cassette compartment.

If the ink ribbon is broken, replace the tape cassette. If not, leave the tape uncut and remove the tape cassette, then wind the loose ink ribbon onto the spool as shown in the figure.

1

1 Spool

The P-touch labeling system stops while printing a label.

The label is not cut automatically.

Note

Do not pull the label when the P-touch labeling system is ejecting it from the tape exit slot. Doing so will cause the ink ribbon to be pulled out with the tape. The tape may no longer be functional after the ink ribbon is pulled out.

 Replace the tape cassette if striped tape is visible, as this indicates that you have reached the end of the tape.

Connect the AC adapter directly to the P-touch labeling system, or charge the rechargeable Li

ion battery.

Check the Cut Option setting. For more information, see

Tape Cutting Options

on page 42 or

Cutting Options

on page 73.

To cut labels manually, press the (Feed and Cut) button to feed and cut the tape.

Contact Brother customer service.

A tape jam error cannot be cleared despite following the troubleshooting steps.

I want to make fine adjustments to the print result.

I want to print faster.

The length and margins can be adjusted in the Printer Setting Tool. For more

information, see

Changing the P-touch Labeling System Settings

on page 83.

High speed printing can be used if you are printing from a computer, the AC adapter is connected, and TZe and HGe laminated tape with black ink is installed. Use the printer driver to select the high speed mode when printing the labels.

You cannot use this function for TZe-FX**1 tape.

25

200

Troubleshooting

Problem

I want to print in higher resolution.

The print result is poor.

The high resolution or high speed printing setting was specified, but an error occurred and printing could not be completed.

Solution

High resolution printing can be used if you are printing from a computer, the AC adapter is connected, and TZe and HGe laminated tape with black ink is installed. Use the printer driver to select the high resolution mode when printing the labels.

You cannot use this function for TZe-FX**1 tape.

High resolution printing can be used if you are printing from a computer, the AC adapter is connected, and TZe and HGe laminated tape with black ink is installed. Use the printer driver to select the high resolution mode when printing the labels.

You cannot use this function for TZe-FX**1 tape.

If using the high speed printing setting, print using the standard setting.

As conditions for high resolution or high speed printing, you must print from a computer, the AC adapter must be connected, and TZe and HGe laminated tape with black ink must be installed.

You cannot use this function for TZe-FX**1 tape.

To clear the error, cancel the print job, and then connect the AC adapter or cancel high resolution or high speed printing.

25

201

Troubleshooting

Problem

Printed barcodes cannot be read.

Solution

Print labels so that barcodes are aligned with the print head as shown below:

1

3

2

FLe labels cannot be positioned correctly.

Jams occur when I use TZe-R*** tape cassettes.

1 Print head

2 Barcode

3 Printing orientation

 Try using another scanner.

 We recommend printing the barcodes with [Standard] selected from the

[Quality] options.

Windows 7

:

To display the [

Quality

] options, open the printer properties by clicking the Start button - [

Devices and Printers

], right

clicking the printer you want to set up, and then clicking [

Printing Preferences

].

Windows 8.1 / Windows Server 2012 / Windows Server 2012 R2

:

To display the [

Quality

] options, open the printer properties by clicking

[

Control Panel

] in the [

Apps

] screen - [

Hardware and Sound

] -

[

Devices and Printers

], right

clicking the printer you want to set up, and then clicking [

Printing Preferences

].

Windows 10

:

To display the [

Quality

] options, open the printer properties by clicking the Start button - [

Settings

] - [

Devices

] - [

Devices and Printers

], right

clicking the printer you want to set up, and then clicking [

Printing

Preferences

].

If the FLe sensor is dirty, FLe labels cannot be positioned correctly. Wipe the

FLe sensor using a cotton swab moistened with alcohol to clean the sensor.

See

Cleaning the FLe Sensor

on page 188.

Remove the TZe-R*** tape cassette from the printer, and then remove the jammed ribbon.

Because the material used for the TZe-R*** ribbon is light and flexible, the ribbon may jam if it contacts the parts of the tape exit slot.

When using TZe-R*** tape cassettes, position the printer so that the ribbon exits straight out of the tape exit slot. In addition, make sure the discharged ribbon does not hang down from the printer. The ribbon may jam if it touches the tape exit slot.

In addition to these precautions, do not touch the ribbon during printing.

25

202

Troubleshooting

Version Information

Problem

I do not know the version number of the firmware of my P-touch labeling system.

Solution

The version number and other information for the firmware can be confirmed using the following procedure:

1 Select [

Settings

] in the Home screen using the , , or key, and then press the

OK

or

Enter

key.

I want to confirm whether I am using the latest version of the software.

2 Select [

Version Information

] using the or key, and then press the

OK

or

Enter

key.

In addition, you can also use the following procedure.

1 Turn on the P-touch labeling system.

2 Press and hold the (Feed and Cut) button for more than 10 seconds to print the report. For more information, see

Confirming the P-touch Labeling

System Settings

on page 113.

(Use 0.94" (24 mm) or 1.4" (36 mm) tape.)

Use the P-touch Update Software to confirm if you have the latest version.

See

How to Update P-touch Software

on page 163 for more information about

the P-touch Update Software.

25

25

203

Troubleshooting

Network Setup Problems

25

Problem

You are using security software

Your security settings

(SSID/Network Key) are incorrect

Solution

 Confirm your settings in the installation dialog box.

 Allow access when the security software alert message appears during the printer installation.

Recheck and select the correct security settings.

 The manufacturer's name or model number of the wireless access point/router may be used as the default security settings.

 See the instructions supplied with your wireless access point/router for information on how to find the security settings.

Your P-touch labeling system is placed too far from your mobile device

There are obstructions (walls or furniture, for example) between your

P-touch labeling system and the mobile device

 Ask the manufacturer of your wireless access point/router or ask your

Internet provider or network administrator.

Move your P-touch labeling system within about 3.3 ft (1 m) of the mobile device when you configure the Wi-Fi network settings.

Move your P-touch labeling system to an obstruction-free area.

A wireless computer, Bluetooth supported device, microwave oven or digital cordless phone is near the

P-touch labeling system or the wireless access point/router

Move other devices away from the P-touch labeling system.

You are using MAC Address filtering You can confirm the MAC address by printing the P-touch labeling system settings report.

Your wireless access point/router is in stealth mode (not broadcasting the

SSID)

Your P-touch labeling system is not connected correctly to the network

See

Confirming the P-touch Labeling System Settings

on page 113 for more

information.

 You must type the correct SSID name during the installation or when using the Printer Setting Tool.

 Check the SSID name in the instructions supplied with your wireless access point/router and reconfigure the Wi-Fi settings.

Check the wireless connection indicator on the LCD.

: Connected in Wi-Fi mode.

: Disconnected in Wi-Fi mode, so the wireless settings must be reconfigured.

I have checked and tried all of the above, but still cannot complete the

Wi-Fi settings

: Connected or disconnected in Wireless Direct mode.

Turn off the P-touch labeling system, and then turn it on again. Then try and configure the Wi-Fi settings again.

25

204

Troubleshooting

P-touch Labeling System Cannot Print over the Network

P-touch Labeling System Is Not Found on the Network Even after Successful

Installation

25

Problem

You are using security software

Your P-touch labeling system is not assigned with an available IP address

Your previous printing job failed

I have checked and tried all of the above, but my P-touch labeling system does not print

Solution

See

Security Software Problems

on page 205.

 Confirm the IP address and the Subnet Mask.

Verify that both the IP addresses and Subnet Masks of your computer and your P-touch labeling system are correct and located on the same network.

For more information on how to verify the IP address and the Subnet Mask, ask the network administrator.

 Confirm your IP address, Subnet Mask and other network settings using the

Printer Setting Tool.

See

Changing the P-touch Labeling System Settings

on page 83.

 If the failed printing job is still in your computer's print queue, delete it.

For example, when using Windows 7:

The Start button, [

Devices and Printers

] and select your printer from

[

Printers and Faxes

]. Double

click your printer's icon, and then select

[

Cancel All Documents

] in the [

Printer

] menu.

Uninstall the printer driver and the software, and then reinstall them.

25

Security Software Problems

25

Problem

You did not select to allow access when the security alert dialog box appeared during either the standard installation, BRAdmin Light installation, or when printing

Incorrect port numbers are being used for the Brother network features

Solution

If you did not select to allow access when the security alert dialog box appeared, the firewall function of your security software may be blocking access. Some security software may block access without displaying a security alert dialog box. To allow access, see the instructions of your security software or ask the manufacturer.

The following port numbers are used for Brother network features:

 BRAdmin Light i

Port number 161 / Protocol UDP

For more information on how to open the port, see the instructions for the security software or ask the manufacturer.

205

Troubleshooting

Checking the Operation of Network Devices

Problem

Your P-touch labeling system and wireless access point/router are not turned on

I do not know my P-touch labeling system network settings, such as the

IP address

Can you ping your P-touch labeling system from your computer?

Solution

Make sure you have performed all of the tasks on page 198.

Check the Printer Setting Tool (see

Changing the P-touch Labeling System

Settings

on page 83).

Ping your P-touch labeling system from your computer using the IP address or the node name.

 Successful: Your P-touch labeling system is working correctly and connected to the same network as your computer.

 Unsuccessful: Your P-touch labeling system is not connected to the same network as your computer.

Contact the network administrator.

You can confirm the IP address or the node name by printing the P-touch labeling system settings report.

See

Confirming the P-touch Labeling System Settings

on page 113 for

more information.

25

25

206

Troubleshooting

Error Messages

When an error message appears on the display, follow the directions provided below.

25

Message

Tape Removed!

Text Too Large!

Unable to use 01!

Unable to use 02!

High Res/Speed Print Not

Available!

Solution

 Do not remove the tape cassette while printing.

 Select a smaller font size.

 The size of transferred symbols has exceeded the label width when the

P-touch labeling system is printing the symbols using the vertical orientation. Create the transferred symbol data using a size that fits in the label you are using.

 MRAM error. Turn off the P-touch labeling system, and then on again.

The print head setting is incorrect. Turn off the P-touch labeling system, and then on again.

 When using high resolution or high speed printing, you must connect the AC adapter and use only TZe and HGe laminated tape with black ink, and print from the computer. Otherwise, print using the standard setting.

You cannot use this function for TZe-FX**1 tape.

Holder Malfunction! (Label)

 The operation of the label feeding mechanism is faulty. Turn off the P-touch labeling system, and then on again. Check that the tape cassette is installed correctly. If the error continues, contact Brother customer service.

Adapter Connected or

Disconnected!

File Transfer Failed!

 This message appears if you connect or disconnect the AC adapter during printing. To clear the error and print the print job again, press and hold a button other than the (Power) button. To cancel the print job, press and hold the (Power) button.

 The model name set for the sent file is incorrect. Create the file using the correct model name.

25

207

Troubleshooting

LED Indicators

The indicators light and flash to indicate the P-touch labeling system status. The symbols used in this section explain the meaning of the different indicator colors and patterns:

25

or

or or

or

Indicator is lit in the color shown

Indicator is flashing in the color shown

Indicator can be off, lit or flashing in any color

Indicator is off

Label, Power indicator

(Label)

(Power)

Condition

Power is turning off

Top cover open

Idle mode

Initializing mode

Tape feed and cutting mode

Transferring data

(1 time in 1 second)

Now cooling

System error 1

System error 2

System error 3

USB host power supply excessive voltage error

Mass storage error

(1 time in 1 second)

25

Label holder error

(1 time in 2 seconds)

Adapter error

(2 times in 1.8 seconds)

In boot mode

Reset mode

(when the mode is starting)

208

Troubleshooting

Label, Power indicator

(Label)

(Three times)

(Once)

(Power)

(Three times)

Condition

Reset mode

(when the button is pressed 2/4/6 times)

Reset mode

(when reset is confirmed)

Mass storage mode

Mass storage processing mode

Printing mode

Receiving data

(1 time in 1 second)

(2 times in 1.8 seconds) (2 times in 1.8 seconds)

Memory full error

Communication error

When blinking alternately: Cutter error

When blinking simultaneously:

High temperature error

Non-compliant tape error

(2 times in 1.8 seconds)

Wrong media error

(1 time in 1 second)

(2 times in 1.8 seconds)

No cassette error

Media end error

Top cover open error when printing

(2 times in 1.8 seconds) (2 times in 1.8 seconds)

High resolution/high speed printing error

Black mark not detected error

25

209

Troubleshooting

Battery indicator

(Battery)

(1 time in 4 seconds)

(2 times in 4 seconds)

Wi-Fi indicator

(Wi-Fi)

(1 time in 1 second)

(2 times in 1.8 seconds)

(2 times in 1.8 seconds)

(Power)

Condition

Rechargeable battery power: full

Charging

Rechargeable battery power: half

Rechargeable battery power: low

Rechargeable battery error

Rechargeable battery power: empty

Adapter connection/disconnection error

(Power)

Condition

No available WPS access point was found

WPS access point connection error

Check the protocol.

Incorrect security settings

WPS access point search error

Wi-Fi on, not connected

Wi-Fi on, connected

Wi-Fi off

25

210

Troubleshooting

Indicator Warnings

Problem

Received data in buffer

Head is cooling down

P-touch labeling system is in boot mode

Errors concerning tape cassettes

I want to reset an error

25

Solution

Print data is saved in the buffer. If the P-touch labeling system has not received the complete data, printing will not start.

Turn off the P-touch labeling system, and then turn it on again.

The thermal head is too hot.

The P-touch labeling system stops and resumes printing only after the thermal head has cooled down. The head may become too hot if you are printing a large number of labels.

When the thermal head becomes too hot, it may produce imaging on the labels in areas not intended to be printed. To avoid or delay overheating, make sure the P-touch labeling system has adequate ventilation and is not located in an enclosed space.

If the P-touch labeling system must cool down because it overheated due to the type of tape cassette you are using or the contents of the label, printing may take longer than usual.

Note

This condition may occur more often when the P-touch labeling system is used at high altitude (more than 10,000 ft (3,048 m)) due to a lower air density available to cool the P-touch labeling system.

To resolve the issue, contact your Brother dealer or Brother customer service for assistance.

Check the following:

You are using the correct tape cassette.

 There is enough tape remaining.

The tape cassette is installed correctly.

I want to reset an error

1 Open the top cover, and then close it.

2 If the error is not reset, press the (Feed and Cut) button.

3 If the error still is not reset, turn off the P-touch labeling system, and then turn it on again.

4 If the error still is not reset, contact Brother customer service.

25

211

26

Product Specifications

26

P-touch Labeling System Specifications

Model Name

Size

Dimensions

Weight

Printing

Method

Print head

Print height

Print speed

Cassette

No. of lines

Memory (local files)

File storage

26

PT-E800W

approx. 13.31" (W) x 7.40" (D) x 6.81" (H) (338 mm (W) × 188 mm (D) × 173 mm (H))

(including keybord LCD unit) approx. 7.50 lb (3.4 kg) (including keybord LCD unit)

Thermal Transfer

454 dot/360 dpi

High resolution mode: max. 720 dpi × 360 dpi (when connected to a computer)

1

1.26" (32 mm) max. (when using 1.4" (36 mm) tape)

2

AC Adapter: max. 2.3"/sec. (60 mm/sec.)

Battery: 0.78"/sec. - 2.3"/sec. (20 mm/sec. - 60 mm/sec.) (varies depending on the tape width)

Actual print speed varies depending on the conditions.

Brother TZe tape cassette : 0.13" (3.5 mm), 0.23" (6 mm), 0.35" (9 mm), 0.47" (12 mm), 0.70" (18 mm), 0.94" (24 mm), 1.4" (36 mm)

Brother HGe tape cassette : 0.23" (6 mm), 0.35" (9 mm), 0.47" (12 mm), 0.70" (18 mm), 0.94" (24 mm), 1.4" (36 mm)

Brother HSe tube cassette : 0.23" (5.8 mm), 0.34" (8.8 mm), 0.46" (11.7 mm), 0.69"

(17.7 mm), 0.93" (23.6 mm)

Brother FLe label cassette : 0.82" (21 mm) × 1.77" (45 mm)

 TZe tape cassette

1.4" (36 mm) tape: 17 lines; 0.94" (24 mm) tape: 13 lines; 0.70" (18 mm) tape: 10 lines; 0.47" (12 mm) tape: 6 lines; 0.35" (9 mm) tape: 4 lines; 0.23" (6 mm) tape: 3 lines; 0.13" (3.5 mm) tape: 1 line

 HGe tape cassette

1.4" (36 mm) tape: 17 lines; 0.94" (24 mm) tape: 13 lines; 0.70" (18 mm) tape: 10 lines; 0.47" (12 mm) tape: 6 lines; 0.35" (9 mm) tape: 4 lines; 0.23" (6 mm) tape: 3 lines

 HSe tube cassette

0.93" (23.6 mm) tape: 12 lines; 0.46" (11.7 mm) tape: 10 lines; 0.46" (11.7 mm) tape: 6 lines; 0.34" (8.8 mm) tape: 4 lines; 0.23" (5.8 mm) tape: 2 lines

26

max. 99 files

212

Product Specifications

Model Name

Power Supply

Adapter

Battery

Auto Power-off

Interface

USB

Wi-Fi

Other

Operating temperature/humidity

PT-E800W

AC adapter (AD9100ESA): 24 V AC 120 V 60 Hz

Li-ion Battery (PA-BT-4000LI): 14.4 V

Li-ion Battery (PA-BT-4000LI): 30 min

AC adapter (AD9100ESA): 1 h

(To change the Auto Power

off setting, see

Auto Power-Off Time

on page 191.)

Version 2.0 Full Speed (Peripheral)

 Wireless Direct: IEEE 802.11n

 Ad-Hoc mode: IEEE 802.11b

 Infrastructure mode: IEEE 802.11b/g/n

 WPS 2.0

When running: between 50°F and 95°F (10°C and 35°C) / between 20% and 80% max. wet bulb temperature: 80.6°F (27°C)

1

2

The high resolution mode can be used if the AC adapter is connected and TZe and HGe laminated tape with black ink is installed.

You cannot use this function for TZe-FX**1 tape.

Actual character size may be smaller than maximum print height.

26

213

Product Specifications

Operating Environment

26

Item

Operating System

Hard Disk

Memory

Specifications

Windows

Mac

Windows

Mac

Windows

Mac

Windows 7 / Windows 8.1 / Windows 10 / Windows Server 2012 /

Windows Server 2012 R2 / Windows Server 2016 / Windows

Server 2019 macOS v10.13.6 / 10.14.x / 10.15

Disk space: 460 MB or more

Disk space: 500 MB or more

Windows Server 2012 / Windows Server 2012 R2 / Windows

Server 2016 / Windows Server 2019: 512 MB or more

Windows 7 / Windows 8.1 / Windows 10: 1 GB or more (32-bit) or

2 GB or more (64-bit) macOS v10.13.6 / 10.14.x / 10.15: 2 GB or more

The compatible operating systems may change. For the latest information, visit our support website at support.brother.com.

Brother support website

Please visit our support website at support.brother.com.

You can find following information:

• Software downloads

• Manuals/Documents

• Frequently Asked Questions (Troubleshooting, Useful tips on using printer)

• Consumable information

• Latest OS compatibility information

The contents of this website are subject to change without notice.

26

214

27

Notes on Using P-touch Transfer Manager

27

Since some P-touch Editor functions are not available with the P-touch labeling system, keep the following points in mind when using P-touch Editor to create templates.

You can check a preview of the printed template before the created template is transferred to the P-touch labeling system. See

Transferring the Template to P-touch Transfer Manager

on page 138 for more

information.

Notes on Creating Templates

 The P-touch labeling system is loaded with 14 fonts. Some of the text in the template that is transferred to the P-touch labeling system will be printed using similar fonts and character sizes that are loaded in the

P-touch labeling system. As a result, the printed label may differ from the image of the template created in P-touch Editor.

 Depending on the text object setting, the character size may be automatically reduced or some of the text may not be printed. If this occurs, change the text object setting.

 Although character styles can be applied to individual characters with P-touch Editor, styles can be applied to a block of text only with the P-touch labeling system. In addition, some character styles are not available on the P-touch labeling system.

 A numbering field specified with P-touch Editor cannot be transferred.

 Backgrounds specified with P-touch Editor are not compatible with the P-touch labeling system.

 A P-touch Editor layout that uses the split printing function (enlarging the label and printing it on two or more labels) cannot be transferred.

 Only the first 17 lines of text typed in a database field are read by the P-touch labeling system.

 Fields that overflow the print area may not be printed completely.

27

Notes on Transferring Templates

 The printed label may differ from the image that appears in the preview area of P-touch Transfer Manager.

 If a barcode not loaded on the P-touch labeling system is transferred to the P-touch labeling system, the barcode will be converted into an image if it is a 2-dimensional barcode. The image of the converted barcode cannot be edited. If the template contains a 1-dimensional barcode that was rotated, an error will occur and the template cannot be transferred.

 All transferred objects that cannot be edited by the P-touch labeling system are converted into images.

 Grouped objects will be converted into a single bitmap, from which the data cannot be edited with the

P-touch labeling system keyboard.

27

27

215

Notes on Using P-touch Transfer Manager

Notes on Transferring Data Other Than Templates

 If the number or order of fields in a database is changed and only the database (*.csv file) is transferred to update it, the database may not link correctly with the template. In addition, the first line of data in the transferred file must be recognized by the P-touch labeling system as "field names".

 Logos, symbols, and graphics downloaded to the P-touch labeling system will automatically be scaled like the resident font or any of the resident symbol in the library.

27

216

27

28

Network Terms and Information

Supported Protocols and Security Features

Interface

Network

(Common)

Network

(Security)

Wireless IEEE 802.11b/g/n (Infrastructure mode)

IEEE 802.11b (Ad-Hoc mode)

IEEE 802.11n (Wireless Direct mode)

Protocol (IPv4) ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), mDNS, WINS,

NetBIOS name resolution, DNS Resolver, LPR/LPD, Custom Raw

Port/Port9100, FTP Server, TFTP client and server, SNTP client,

ICMP, LLMNR responder, SNMPv1/v2c

Protocol (IPv6) NDP, RA, DNS Resolver, LPR/LPD, mDNS, Custom Raw

Port/Port9100, FTP Server, SNMPv1, TFTP client and server, ICMP,

LLMNR responder, SNMPv1/v2c

Wireless SSID (32 chr), WEP 64/128 bit, WPA/WPA2-PSK, LEAP, EAP-FAST,

PEAP, EAP-TTLS, EAP-TLS

28

28

28

217

Network Terms and Information

Types of Network Connections and Protocols

You will find basic information about the advanced network features of the Brother P-touch labeling system, along with general networking and common terms.

The supported protocols and network features differ depending on the model you are using.

28

Types of Network Connections

28

Peer-to-Peer printing using TCP/IP

In a Peer-to-Peer environment, each computer directly sends and receives data to each device. There is no central server controlling file access or printer sharing.

28

TCP/IP

TCP/IP

1 Router

 In a smaller network of two or three computers, we recommend the Peer-to-Peer printing method as it is

easier to configure than the Network Shared printing method. See

Network Shared printing

on page 219.

 Each computer must use the TCP/IP Protocol.

 Your P-touch labeling system needs an appropriate IP address configuration.

 If using a router, you must configure the Gateway address on the computers and your P-touch labeling system.

28

218

Network Terms and Information

Network Shared printing

In a Network Shared environment, each computer sends data via a centrally controlled computer. This type of computer is often called a “Server” or a “Print Server”. Its job is to control the printing of all print jobs.

28

Network printer

(your P-touch labeling system)

1 Client computers

2 Also known as “Server” or “Print server”

3 TCP/IP or USB

 In a larger network, we recommend using a Network Shared printing environment.

 The “server” or the “print server” must use the TCP/IP print protocol.

 Your P-touch labeling system needs to have an appropriate IP address configuration, except when the

P-touch labeling system is connected via the USB interface to the server.

28

219

Network Terms and Information

Configuring Your P-touch Labeling System for a Network

28

IP Addresses, Subnet Masks and Gateways

To use the P-touch labeling system in a networked TCP/IP environment, you must configure its IP address and subnet mask. The IP address you assign to the print server must be on the same logical network as your host computers. If it is not, you must correctly configure the subnet mask and the gateway address.

28

IP address

An IP address is a series of numbers that identifies each device connected to a network. An IP address consists of four numbers separated by dots. Each number is between 0 and 254.

For example in a small network, you would normally change the final number:

192.168.1.1

192.168.1.2

192.168.1.3

How the IP address is assigned to your print server:

If you have a DHCP/BOOTP/RARP server on your network, the print server will automatically obtain its IP address from that server.

28

Note

On smaller networks, the DHCP server may also be the router.

If you do not have a DHCP/BOOTP/RARP server, the Automatic Private IP Addressing (APIPA) protocol will automatically assign an IP address from the range 169.254.0.1 to 169.254.254.254. The subnet mask is automatically set to 255.255.0.0 and the gateway address is set to 0.0.0.0.

By default, the APIPA protocol is enabled. To disable the APIPA protocol, use BRAdmin Light or Web Based

Management (web browser).

28

28

220

Network Terms and Information

Subnet mask

Subnet masks restrict network communication.

For example, Computer 1 can communicate with to Computer 2

• Computer 1

IP Address: 192.168.1.2

Subnet Mask: 255.255.255.0

• Computer 2

IP Address: 192.168.1.3

Subnet Mask: 255.255.255.0

The 0 in the Subnet mask signifies that there is no limit to communication at this part of the address. In the example above this means that you can communicate with any device with an IP address that begins with

192.168.1.x. (where x is a number between 0 and 254).

28

Gateway (and router)

A gateway is a network point that acts as an entrance to another network and sends data transmitted via the network to an exact destination. The router knows where to direct data that arrives at the gateway. If a destination is located on an external network, the router transmits data to the external network. If your network communicates with other networks, you may need to configure the Gateway IP address. If you do not know the Gateway IP address contact your network administrator.

28

28

221

Network Terms and Information

Wireless Network Terms and Concepts

Security Terms

28

28

Authentication and encryption

Most wireless networks use some kind of security settings. These security settings define the authentication

(how the device identifies itself to the network) and encryption (how the data is encrypted as it is sent on the network).

If you do not correctly specify these options when you are configuring your Brother wireless printer, it will not be able to connect to the wireless network.

Make sure you configure these options carefully.

28

Authentication and Encryption methods for a personal wireless network

A personal wireless network is a small network, for example using your P-touch labeling system in a wireless network at home, without IEEE 802.1x support.

28

To use your P-touch labeling system in an IEEE 802.1x supported wireless network, see

Authentication and

Encryption methods for an enterprise wireless network

on page 224.

Authentication methods

Open system

Wireless devices are allowed to access the network without any authentication.

Shared key

A secret pre-determined key is shared by all devices that will access the wireless network.

The Brother wireless printer uses a WEP key as the pre-determined key.

WPA-PSK

Enables a Wi-Fi Protected Access Pre-shared key (WPA-PSK), which enables the Brother wireless printer to associate with access points using TKIP for WPA-PSK.

 WPA2-PSK

Enables a Wi-Fi Protected Access Pre-shared key (WPA2-PSK), which enables the Brother wireless printer to associate with access points using AES for WPA2-PSK (WPA-Personal).

WPA/WPA2-PSK

Enables a Wireless Protected Access Pre-shared key (WPA-PSK/WPA2-PSK), which enables the Brother wireless printer to associate with access points using TKIP for WPA-PSK or AES for WPA-PSK and

WPA2-PSK (WPA-Personal).

28

28

Encryption methods

None

No encryption method is used.

WEP

When using WEP (Wired Equivalent Privacy), the data is transmitted and received with a secure key.

28

222

Network Terms and Information

 TKIP

TKIP (Temporal Key Integrity Protocol) provides per-packet key mixing, a message integrity check and rekeying mechanism.

AES

Advanced Encryption Standard (AES) provides stronger data protection using a symmetric-key encryption.

When [Communication Mode] is set to [Ad-hoc]

Authentication Method

Open System

Encryption Mode

None

WEP

When [Communication Mode] is set to [Infrastructure]

Authentication Method

Open System

Public Key Authentication

WPA-PSK

WPA2-PSK

WPA/WPA2-PSK

Encryption Mode

None

WEP

WEP

TKIP

AES

TKIP

AES

Network key

 Open system/Shared key with WEP

This key is a 64-bit or 128-bit value that must be entered in an ASCII or hexadecimal format.

• 64 (40) bit ASCII:

Uses five text characters. For example, “WSLAN” (case-sensitive)

• 64 (40) bit hexadecimal:

Uses 10 digits of hexadecimal data. For example, “71f2234aba”

• 128 (104) bit ASCII:

Uses 13 text characters. For example, “Wirelesscomms” (case-sensitive)

• 128 (104) bit hexadecimal:

Uses 26 digits of hexadecimal data. For example, “71f2234ab56cd709e5412aa2ba”

 WPA-PSK/WPA2-PSK and TKIP or AES, WPA2 with AES

Uses a Pre-Shared Key (PSK) that is eight or more characters in length, up to a maximum of 63 characters.

28

28

223

Network Terms and Information

Authentication and Encryption methods for an enterprise wireless network

An enterprise wireless network is a large network with IEEE802.1x support. If you configure your P-touch labeling system in an IEEE802.1x supported wireless network, you can use the following authentication and encryption methods:

28

Authentication methods

LEAP (For wireless network)

Cisco LEAP (Light Extensible Authentication Protocol) has been developed by Cisco Systems, Inc. and uses a user ID and password for authentication.

28

 EAP-FAST

EAP-FAST (Extensible Authentication Protocol-Flexible Authentication via Secured Tunnel) has been developed by Cisco Systems, Inc. and uses a user ID and password for authentication, and symmetric key algorithms to achieve a tunnelled authentication process.

The printer supports the following inner authentication methods:

• EAP-FAST/NONE

• EAP-FAST/MS-CHAPv2

• EAP-FAST/GTC

 PEAP

PEAP (Protected Extensible Authentication Protocol) has been developed by Microsoft Corporation, Cisco

Systems and RSA Security. PEAP creates an encrypted SSL (Secure Sockets Layer)/TLS (Transport

Layer Security) tunnel between a client and an authentication server, for sending a user ID and password.

PEAP provides mutual authentication between the server and the client.

The printer supports the following inner authentication methods:

• PEAP/MS-CHAPv2

• PEAP/GTC

EAP-TTLS

EAP-TTLS (Extensible Authentication Protocol Tunnelled Transport Layer Security) has been developed by Funk Software and Certicom. EAP-TTLS creates a similar encrypt SSL tunnel to PEAP, between a client and an authentication server, for sending a user ID and password. EAP-TTLS provides mutual authentication between the server and the client.

The printer supports the following inner authentication methods:

• EAP-TTLS/CHAP

• EAP-TTLS/MS-CHAP

• EAP-TTLS/MS-CHAPv2

• EAP-TTLS/PAP

 EAP-TLS

EAP-TLS (Extensible Authentication Protocol Transport Layer Security) requires digital certificate authentication both at a client and an authentication server.

28

224

Network Terms and Information

Encryption methods

 TKIP

TKIP (Temporal Key Integrity Protocol) provides a per-packet key mixing a message integrity check and rekeying mechanism.

AES

Advanced Encryption Standard (AES) provides stronger data protection using a symmetric-key encryption.

 CKIP

The original Key Integrity Protocol for LEAP by Cisco Systems, Inc.

28

When [Communication Mode] is set to [Infrastructure]

Authentication Method

LEAP

EAP-FAST/NONE

EAP-FAST/MS-CHAPv2

EAP-FAST/GTC

PEAP/MS-CHAPv2

PEAP/GTC

EAP-TTLS/CHAP

EAP-TTLS/MS-CHAP

EAP-TTLS/MS-CHAPv2

EAP-TTLS/PAP

EAP-TLS

TKIP

AES

TKIP

AES

TKIP

AES

TKIP

AES

TKIP

AES

TKIP

AES

TKIP

AES

Encryption Mode

CKIP

TKIP

AES

TKIP

AES

TKIP

AES

28

225

Network Terms and Information

User ID and password

The following security methods support a user ID less than 64 characters and a password less than 32 characters in length:

LEAP

EAP-FAST

PEAP

EAP-TTLS

EAP-TLS (For user ID)

28

226

28

29

Symbols/Characters/Styles

Symbols

Category

Punctuation

Datacom

Audio/Visual

Symbols

Electrical

Arrows

Safety

Prohibited

Brackets

Mathematics

Greek

Super/Subscript

29

29

29

227

Symbols/Characters/Styles

Category

Bullets

Currency

Misc.

Symbols

Note

The symbols shown in the table may look slightly different on the P-touch labeling system LCD and when printed.

228

29

Symbols/Characters/Styles

Accented Characters

Accented Characters Character

a

C d

D

A c e

G k

I i

E g

K l

L

Character

n

O r

R

N o s

T u

U y

S t

Y z

Z

Accented Characters

29

29

229

Symbols/Characters/Styles

Character Attribute

Attribute Value

Helsinki

1

Brussels

Font

US

Los

Angeles

San Diego

Florida

Calgary

Result

1

2

The default font for labels.

The default font for cable labels.

Value

Belgium

Atlanta

Adams

Brunei

Sofia

Germany

Letter

Gothic

2

Result

29

29

230

Symbols/Characters/Styles

Attribute

Size

Width

Style

Value

Auto

x 2

Result

When Auto is selected, the text is automatically adjusted to print in the largest size available for each tape width.

Value

4-90 pt

Result

The character is fixed to the selected size.

x 2/3 x 3/2 x 1/2

x 1

Normal

I + Bold

Bold

Outline

Shadow

I +

Outline

I +

Shadow

I + Solid

Solid Vertical

Italic

Off

Vertical+

Bold

Underline

Line

Strike out

29

231

Symbols/Characters/Styles

Attribute

Alignment

Value

Left

Center

Result Value

Right

Justify

Result

Note

• Factory settings are shown in bold.

• The actual printed font size depends on the tape width, number of characters and number of input lines.

When characters reach a minimum size, the selected font will be changed to a default custom font, which is based on the Helsinki style. This allows labels using the smallest text possible on narrow or multi-line labels.

• If 4 point or 5 point is selected for the font size, the text is printed in the Brussels font regardless of the selected font.

232

29

37

40

43

46

Symbols/Characters/Styles

Frames

25

28

19

22

31

34

13

16

7

10

Value

1

4

Result

38

41

44

47

26

29

20

23

32

35

14

17

8

11

Value

2

5

Result

39

42

45

48

27

30

21

24

33

36

15

18

9

12

Value

3

6

Result

29

29

233

Symbols/Characters/Styles

Result

82

85

88

76

79

70

73

91

94

97

64

67

58

61

Value

49

52

55

83

86

89

77

80

71

74

92

95

98

65

68

59

62

Value

50

53

56

Result

84

87

90

78

81

72

75

93

96

99

66

69

60

63

Value

51

54

57

Result

29

234

Symbols/Characters/Styles

Auto Format

Template

Category

Asset Management

Value

Asset Tag 1

Asset Tag 2

Asset Tag 3

Bin Box 1

Bin Box 2

Bin Box 3

Equipment Label 1

Equipment Label 2

Equipment Label 3

Size

1.4" x 2.7"

(36 mm x 70 mm)

0.94" x 2.7"

(24 mm x 70 mm)

0.70" x 2.7"

(18 mm x 70 mm)

1.4" x 3.0"

(36 mm x 76 mm)

0.94" x 3.0"

(24 mm x 76 mm)

0.70" x 3.0"

(18 mm x 76 mm)

1.4" x 2.2"

(36 mm x 58 mm)

0.94" x 2.2"

(24 mm x 58 mm)

0.70" x 2.2"

(18 mm x 58 mm)

Label layout

29

29

29

235

Symbols/Characters/Styles

Category

Cabinet

Signage

File

Value

Cabinet Label 1

Cabinet Label 2

Cabinet Label 3

Cabinet Label 4

Cabinet Label 5

Cabinet Label 6

Signage 1

Signage 2

Signage 3

Signage 4

Binder Spine 1

Binder Spine 2

Binder Spine 3

File Folder Tab

Divider Tab

Size

1.4" x 4.9"

(36 mm x 126 mm)

0.94" x 4.9"

(24 mm x 126 mm)

0.70" x 4.3"

(18 mm x 111 mm)

0.70" x 4.3"

(18 mm x 111 mm)

1.4" x 6.2"

(36 mm x 160 mm)

0.94" x 6.2"

(24 mm x 160 mm)

1.44" x 4.9"

(36 mm x 126 mm)

0.94" x 4.9"

(24 mm x 126 mm)

1.44" x 2.5"

(36 mm x 66 mm)

0.94" x 2.5"

(24 mm x 66 mm)

1.44" x 8.6"

(36 mm x 219 mm)

0.94" x 8.6"

(24 mm x 219 mm)

0.70" x 8.6"

(18 mm x 219 mm)

0.47" x 3.2"

(12 mm x 82 mm)

0.47" x 1.6"

(12 mm x 42 mm)

Label layout

29

236

Symbols/Characters/Styles

Category

Address/ID

Media

Value

Address Label 1

Address Label 2

Address Label 3

Name Badge 1

Name Badge 2

Name Badge 3

Name Badge 4

Size

1.44" x 2.7"

(36 mm x 70 mm)

0.94" x 2.7"

(24 mm x 70 mm)

0.70" x 2.7"

(18 mm x 70 mm)

1.44" x 2.8"

(36 mm x 72 mm)

0.94" x 2.8"

(24 mm x 72 mm)

0.70" x 2.8"

(18 mm x 72 mm)

0.70" x 2.8"

(18 mm x 72 mm)

SD Card Label

USB Flash Memory

CD Case Spine 1

CD Case Spine 2

0.47" x 0.90"

(12 mm x 25 mm)

0.35" x 0.90"

(9 mm x 25 mm)

0.23" x 4.4"

(6 mm x 113 mm)

0.13" x 4.4"

(3.5 mm x 113 mm)

Label layout

29

237

Symbols/Characters/Styles

Block Layout

Attribute Value

2LineA

1.44"

(36 mm)

2LineB

3Line

1+2LineA

2LineA

0.94"

(24 mm)

2LineB

3Line

1+2LineA

2LineA

0.70"

(18 mm)

2LineB

3Line

1+2LineA

0.47"

(12 mm)

2LineA

2LineB

Details

1+5Line

1+2LineB

1+3Line

1+4Line

1+5Line

3Line

1+2Line

Value

1+2LineB

1+3Line

1+4Line

1+5Line

1+2LineB

1+3Line

1+4Line

Details

29

29

238

Symbols/Characters/Styles

Attribute Value

2LineA

0.35"

(9 mm)

2LineB

0.23"

(6 mm)

1+2Line

Details Value

1+2Line

Details

239

29

Symbols/Characters/Styles

Barcodes

Barcode Settings Table

Attribute

Protocol

Width

Under#

(characters printed below barcode)

C.Digit

(check digit)

Note

Factory settings are shown in bold.

Value

CODE39

,

CODE128

,

EAN-8

,

EAN-13

,

GS1-128 (UCC/EAN-128)

,

UPC-A

,

UPC-E

,

I-2/5 (ITF)

,

CODABAR

Small

Large

On

Off

Off

On

(available only for the CODE39, I-2/5, and CODABAR protocols)

Special Character List

29

CODE39

Special Character

29

29

CODABAR

(SPACE)

Special Character

29

240

Symbols/Characters/Styles

CODE128, GS1-128 (UCC / EAN-128)

(SPACE)

Special Character

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

BS

HT

LF

VT

FF

CR

SO

SI

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

EM

SUB

ESC

FS

GS

RS

US

DEL

FNC3

FNC2

FNC4

FNC1

29

241

Symbols/Characters/Styles

Time & Date

Time & Date Format Options Table

Attribute

Date

12/31/2099

12.31.2099

12-31-2099

December 31, 2099

Dec. 31, 2099

2099/12/31

11:59 PM

Time

Note

Factory settings are shown in bold.

Value

2099-12-31

31/12/2099

31.12.2099

31-12-2099

31. December 2099

31. Dec. 2099

23:59

29

29

242

29
