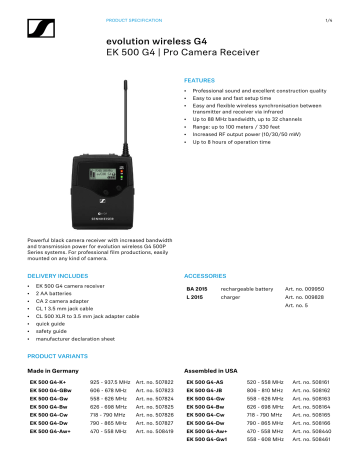

PRODUCT SPECIFICATION
1/4
evolution wireless G4
EK 500 G4 | Pro Camera Receiver
FEATURES
•
Professional sound and excellent construction quality
•
Easy to use and fast setup time
•
Easy and flexible wireless synchronisation between
transmitter and receiver via infrared
•
Up to 88 MHz bandwidth, up to 32 channels
•
Range: up to 100 meters / 330 feet
•
Increased RF output power (10/30/50 mW)
•
Up to 8 hours of operation time
Powerful black camera receiver with increased bandwidth
and transmission power for evolution wireless G4 500P
Series systems. For professional film productions, easily
mounted on any kind of camera.
DELIVERY INCLUDES
ACCESSORIES
•
EK 500 G4 camera receiver
•
2 AA batteries
•
CA 2 camera adapter
•
CL 1 3.5 mm jack cable
•
CL 500 XLR to 3.5 mm jack adapter cable
•
quick guide
•
safety guide
•
manufacturer declaration sheet
BA 2015
rechargeable battery
Art. no. 009950
L 2015
charger
Art. no. 009828
Art. no. 5
PRODUCT VARIANTS
Made in Germany
Assembled in USA
EK 500 G4-K+
925 - 937.5 MHz Art. no. 507822
EK 500 G4-AS
520 - 558 MHz
Art. no. 508161
EK 500 G4-GBw
606 - 678 MHz
Art. no. 507823
EK 500 G4-JB
806 - 810 MHz
Art. no. 508162
EK 500 G4-Gw
558 - 626 MHz
Art. no. 507824
EK 500 G4-Gw
558 - 626 MHz
Art. no. 508163
EK 500 G4-Bw
626 - 698 MHz
Art. no. 507825
EK 500 G4-Bw
626 - 698 MHz
Art. no. 508164
EK 500 G4-Cw
718 - 790 MHz
Art. no. 507826
EK 500 G4-Cw
718 - 790 MHz
Art. no. 508165
EK 500 G4-Dw
790 - 865 MHz
Art. no. 507827
EK 500 G4-Dw
790 - 865 MHz
Art. no. 508166
EK 500 G4-Aw+
470 - 558 MHz
Art. no. 508419
EK 500 G4-Aw+
470 - 558 MHz
Art. no. 508440
EK 500 G4-Gw1
558 - 608 MHz
Art. no. 508461
PRODUCT SPECIFICATION
2/4
evolution wireless G4
EK 500 G4 | Pro Camera Receiver
SPECIFICATIONS
Pilot tone squelch
RF characteristics
Modulation
Wideband FM
Frequency ranges
Aw+: 470 - 558 MHz
AS: 520 - 558 MHz
Gw1: 558 - 608 MHz
Gw: 558 - 626 MHz
GBw: 606 - 678 MHz
Bw: 526 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Receiving frequencies
Max. 3520 receiving
frequencies, adjustable in
25 kHz steps
20 frequency banks, each
with up to 32 factory-preset channels, no intermodulation
6 frequency banks with
up to 32 programmable
channels
Can be switched off
AF characteristics
Compander system
Sennheiser HDX
Signal-to-noise ratio (1 mV,
peak deviation)
Line: ≥ 110 dBA
Phones: approx. 90 dBA
Total harmonic distortion
(THD)
≤ 0.9 %
AF output voltage (at peak
deviation, 1 kHz AF)
3.5 mm jack socket:
+17 dBu
(mono, balanced)
Adjustment range of audio
output level
42 dB,
adjustable in steps of 6 dB
Overall device
Temperature range
-10 °C to +55 °C
Power supply
2 AA batteries, 1.5 V or
BA 2015 accupack
Nominal voltage
3 V battery /
2.4 V rechargeable battery
Current consumption
at nominal voltage:
typ. 140 mA
with receiver switched off:
≤ 25 µA
Switching bandwidth
up to 88 MHz
Nominal/peak deviation
±24 kHz / ±48 kHz
Receiver principle
Adaptive diversity
Operating time
Typically 8 h
Sensitivity (with HDX, peak
deviation)
< 1.6 μV for 52 dBA eff S/N
Dimensions
Approx. 82 x 64 x 24 mm
Weight (incl. batteries)
approx. 130 g
Adjacent channel selection
Typically ≥ 65 dB
Intermodulation attenuation
Typically ≥ 65 dB
Blocking
≥ 70 dB
Squelch
low: 5 dBµV
middle: 15 dBµV
high: 25 dBμV
PRODUCT SPECIFICATION
3/4
evolution wireless G4
EK 500 G4 | Pro Camera Receiver
84.3
3.32
max. 120
4.72
DIMENSIONS
3,5mm Klinke
3,5mm plug
31
1.22
3,5mm Klinke, symmetrisch
3,5mm plug, symmetrical
65.3
2.57
PRODUCT SPECIFICATION
4/4
evolution wireless G4
EK 500 G4 | Pro Camera Receiver
ARCHITECT‘S SPECIFICATION
The compact camera receiver with adaptive diversity technology shall be for use with a companion transmitter as part of
a wireless RF monitoring system.
The receiver shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 88 MHz: 470 – 558 MHz,
520 – 558 MHz, 558 – 608 MHz, 558 – 626 MHz, 606 – 678 MHz, 626 – 698 MHz, 718 – 790 MHz, 790 – 865 MHz, 806 –
810 MHz, 925 – 937.5 MHz; transmission frequencies shall be 3520 per range and shall be tunable in 25 kHz steps. The
receiver shall feature 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to
32 user programmable frequencies.
The receiver shall be menu-driven with a backlit LC display showing the current frequency, frequency bank and channel
number, metering of RF level, metering of AF level, lock status, battery status, muting function or line output level, and
pilot tone evaluation. An auto-lock feature shall be provided to prevent settings from being accidentally altered.
The receiver parameters shall either be configurable in the associated transmitter’s menu and synchronized with the
receiver via an integrated infrared interface or shall be programmable in the receiver menu.
The receiver shall feature a 3.5 mm audio output with a maximum output of +17 dBu (mono, balanced) and a 3.5 mm phone output.
Nominal/peak deviation shall be ±24 kHz/±48 kHz. Squelch threshold shall be defeatable (off) or adjustable to three
levels: Low (5 dBμV), Middle (15 dBμV) and High (25 dBμV).
The receiver shall incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch. Sensitivity
shall be < 1.6 μV for 52 dBA eff S/N with HDX engaged at peak deviation. Adjacent channel rejection shall be ≥ 65 dB (typical). Intermodulation attenuation shall be ≥ 65 dB (typical); blocking shall be ≥ 70 dB. Signal-to-noise ratio at 1 mV and
peak deviation shall be ≥ 110 dBA (line) or approximately 90 dbA (phones). Total harmonic distortion (THD) shall be ≤ 0.9
%. The audio output level shall be adjustable within a 42 dB range in steps of 6 dB.
Power shall be supplied to the receiver by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage shall be 2.4 V, current consumption shall be typical 140 mA at nominal voltage; ≤ 25 μA when
receiver is switched off. Operating time shall be typical 8 hours. The receiver shall have a rugged metal housing; dimensions shall be approximately 82 x 64 x 24 mm (3.23" x 2.52" x 0.94"). Weight including the batteries shall be approximately
130 grams (0.29 lbs). Operating temperature shall range from −10 °C to +55 °C (+14 °F to +131 °F).
The receiver shall be the Sennheiser EK 500 G4.
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
