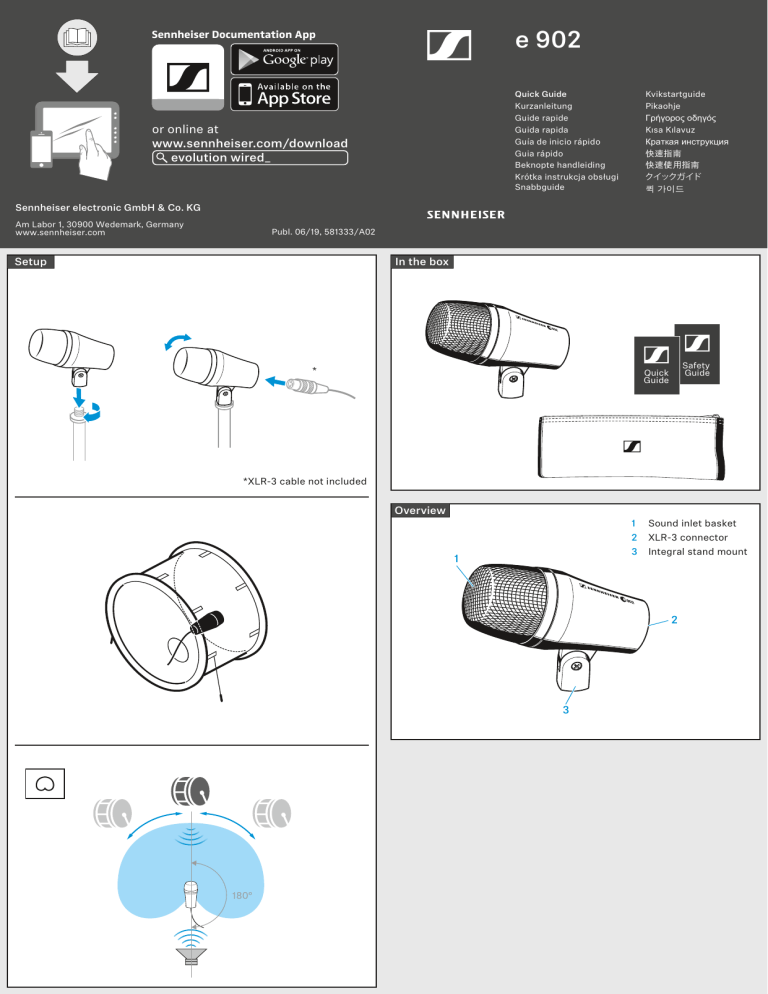

Setup
In the box
*
Safety
Guide
Quick
Guide
*XLR-3 cable not included
Overview
1
1
Sound inlet basket
2
XLR-3 connector
3
Integral stand mount
2
3
180°
Cleaning
Connector assignment
Specifications
Transducer principle
dynamic
1
Frequency response
20 - 18,000 Hz
Pick-up pattern
cardioid
Sensitivity (free field)
0.6 mV/Pa (at 60 Hz)
0.2 mV/Pa (at 1 kHz)
Nominal impedance (at 1 kHz)
350 Ω
Min. terminating impedance
1 kΩ
Connector
XLR-3
Dimensions
⌀ 60 x 128.5 mm
Weight
440 g
2
3
+
+
XLR
1
2
3
1
XLR
+
UNBALANCED
+
BALANCED
6.3 mm
2
3
+
+
XLR
1
3
1
XLR
2
3
+
2
+
XLR
6.3 mm
Polar pattern and frequency response
1,000 Hz
-70
2,000 Hz
-80
4,000 Hz
120°
120°
150°
180°
180°
150°
8,000 Hz
16,000 Hz
-90
0°, 1 m
H
z
90°
20
,0
00
25
dB
90°
-60
10
,0
00
500 Hz
-50
5,
00
0
20
125 Hz
250 Hz
2,
00
0
60°
15
1,0
00
10
60°
dBV
-40
30°
50
0
0°
20
0
0
5
10
0
0°
50
30°
