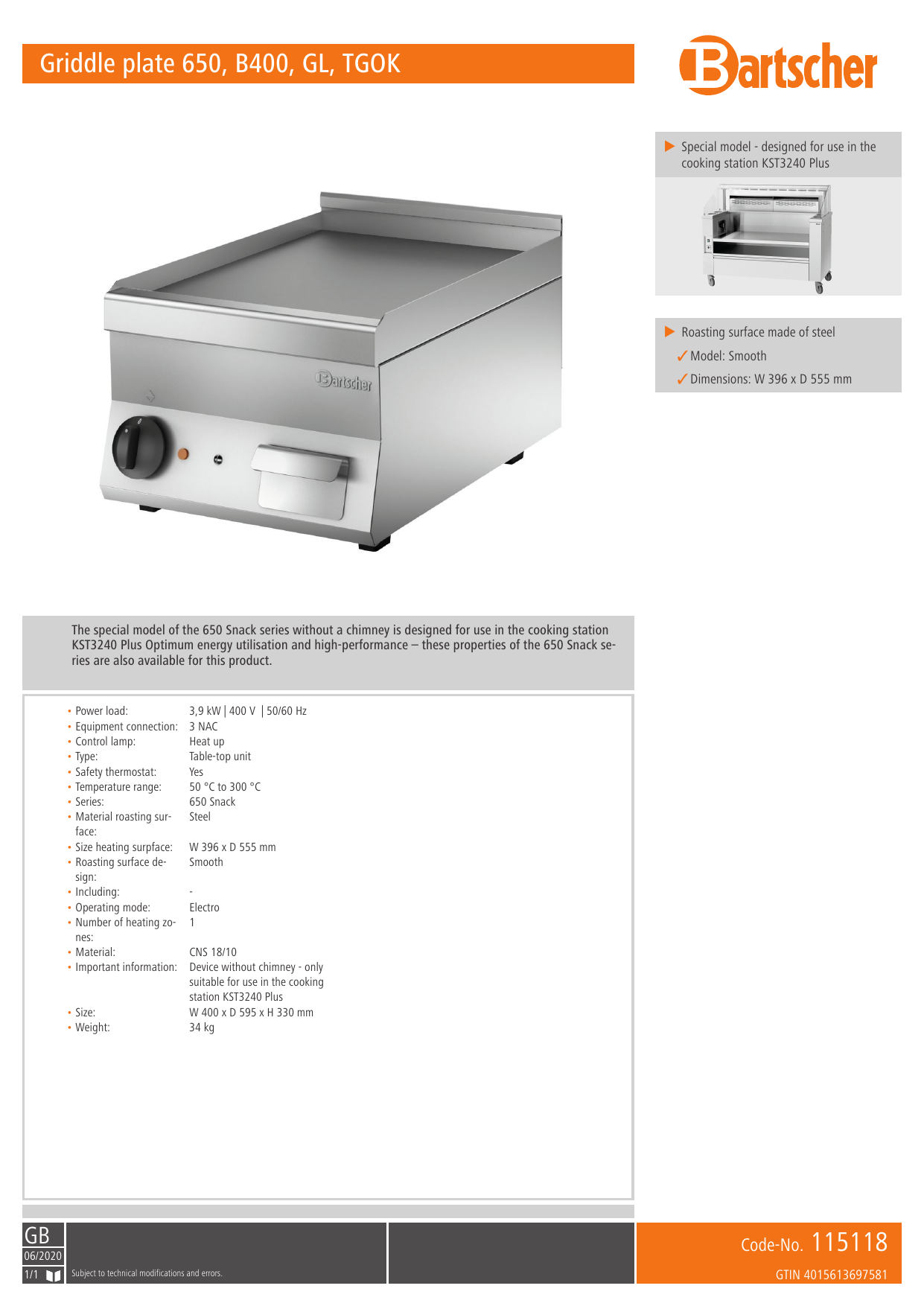

Bartscher 115118 Griddle plate 650, B400, GL, TGOK Data sheet

Griddle plate 650, B400, GL, TGOK
� Special model - designed for use in the
cooking station KST3240 Plus
� Roasting surface made of steel
✓ Model: Smooth
✓ Dimensions: W 396 x D 555 mm
The special model of the 650 Snack series without a chimney is designed for use in the cooking station
KST3240 Plus Optimum energy utilisation and high-performance – these properties of the 650 Snack se­
ries are also available for this product.
• Power load:
• Equipment connection:
• Control lamp:
• Type:
• Safety thermostat:
• Temperature range:
• Series:
• Material roasting sur­
face:
• Size heating surpface:
• Roasting surface de­
sign:
• Including:
• Operating mode:
• Number of heating zo­
nes:
• Material:
• Important information:
• Size:
• Weight:
3,9 kW | 400 V | 50/60 Hz
3 NAC
Heat up
Table-top unit
Yes
50 °C to 300 °C
650 Snack
Steel
W 396 x D 555 mm
Smooth
Electro
1
CNS 18/10
Device without chimney - only
suitable for use in the cooking
station KST3240 Plus
W 400 x D 595 x H 330 mm
34 kg
.
GB
06/2020
1/1
Code-No.
Subject to technical modifications and errors.
115118
GTIN 4015613697581
