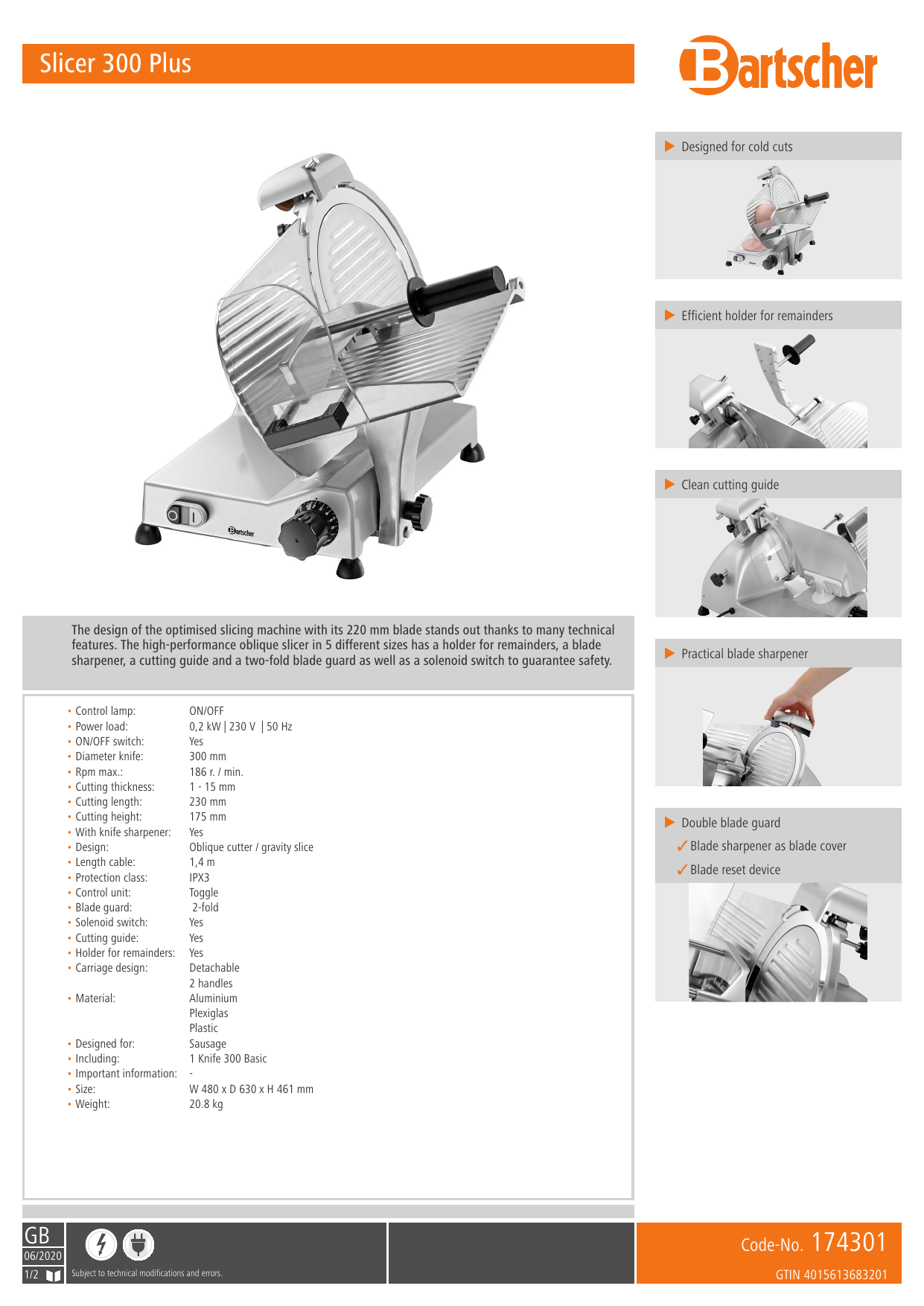

Bartscher 174301 Slicer 300 Plus Data sheet

Slicer 300 Plus
� Designed for cold cuts
� Efficient holder for remainders
� Clean cutting guide
The design of the optimised slicing machine with its 220 mm blade stands out thanks to many technical
features. The high-performance oblique slicer in 5 different sizes has a holder for remainders, a blade
sharpener, a cutting guide and a two-fold blade guard as well as a solenoid switch to guarantee safety.
• Control lamp:
• Power load:
• ON/OFF switch:
• Diameter knife:
• Rpm max.:
• Cutting thickness:
• Cutting length:
• Cutting height:
• With knife sharpener:
• Design:
• Length cable:
• Protection class:
• Control unit:
• Blade guard:
• Solenoid switch:
• Cutting guide:
• Holder for remainders:
• Carriage design:
ON/OFF
0,2 kW | 230 V | 50 Hz
Yes
300 mm
186 r. / min.
1 - 15 mm
230 mm
175 mm
Yes
Oblique cutter / gravity slice
1,4 m
IPX3
Toggle
2-fold
Yes
Yes
Yes
Detachable
2 handles
• Material:
Aluminium
Plexiglas
Plastic
• Designed for:
Sausage
• Including:
1 Knife 300 Basic
• Important information: • Size:
W 480 x D 630 x H 461 mm
• Weight:
20.8 kg
� Practical blade sharpener
� Double blade guard
✓ Blade sharpener as blade cover
✓ Blade reset device
.
GB
06/2020
1/2
Code-No.
Subject to technical modifications and errors.
174301
GTIN 4015613683201
Slicer 300 Plus
Add on Products
Blade 300, serrated blade
Blade 300, non-stick coated
• Diameter knife:
• Design knife:
• Designed for:
• Important information:
• Material:
• Diameter knife:
• Design knife:
• Material:
• Size:
• Weight:
300 mm
Corrugated edge
Sausage
Stainless steel
Hard chrome-plated
W 300 x D 300 x H 23 mm
2.13 kg
.
.
Code-No. 174058
Code-No. 174059
GTIN 4015613658339
GTIN 4015613658346
Oil and grease remover F1L
Knife 300 Basic
• Designed for:
• Diameter knife:
• Design knife:
• Designed for:
• Material:
• Model:
• Ph level:
• HACCP compliant:
• Chlorine-free:
• Phosphate-free:
• Important information:
GB
• Important information:
• Designed for:
• Size:
• Weight:
300 mm
Non-stick coating
Stainless steel
Teflon-coated
Sausage
W 300 x D 300 x H 23 mm
2.13 kg
06/2020
2/2
Wipe-off work surfaces, stainless steel surfaces
Machines, appliances
Tiled walls and floors
Highly effective against deposits in coffee cans
Liquid
High concentrate
13
Yes
Yes
Yes
Keep out of the reach of children
• Important information:
• Size:
• Weight:
300 mm
Standard
Sausage
Stainless steel
Hard chrome-plated
W 300 x D 300 x H 23 mm
2.13 kg
.
Code-No. 173076
Code-No. 174033
GTIN 4015613731896
GTIN 4015613702308
Subject to technical modifications and errors.
