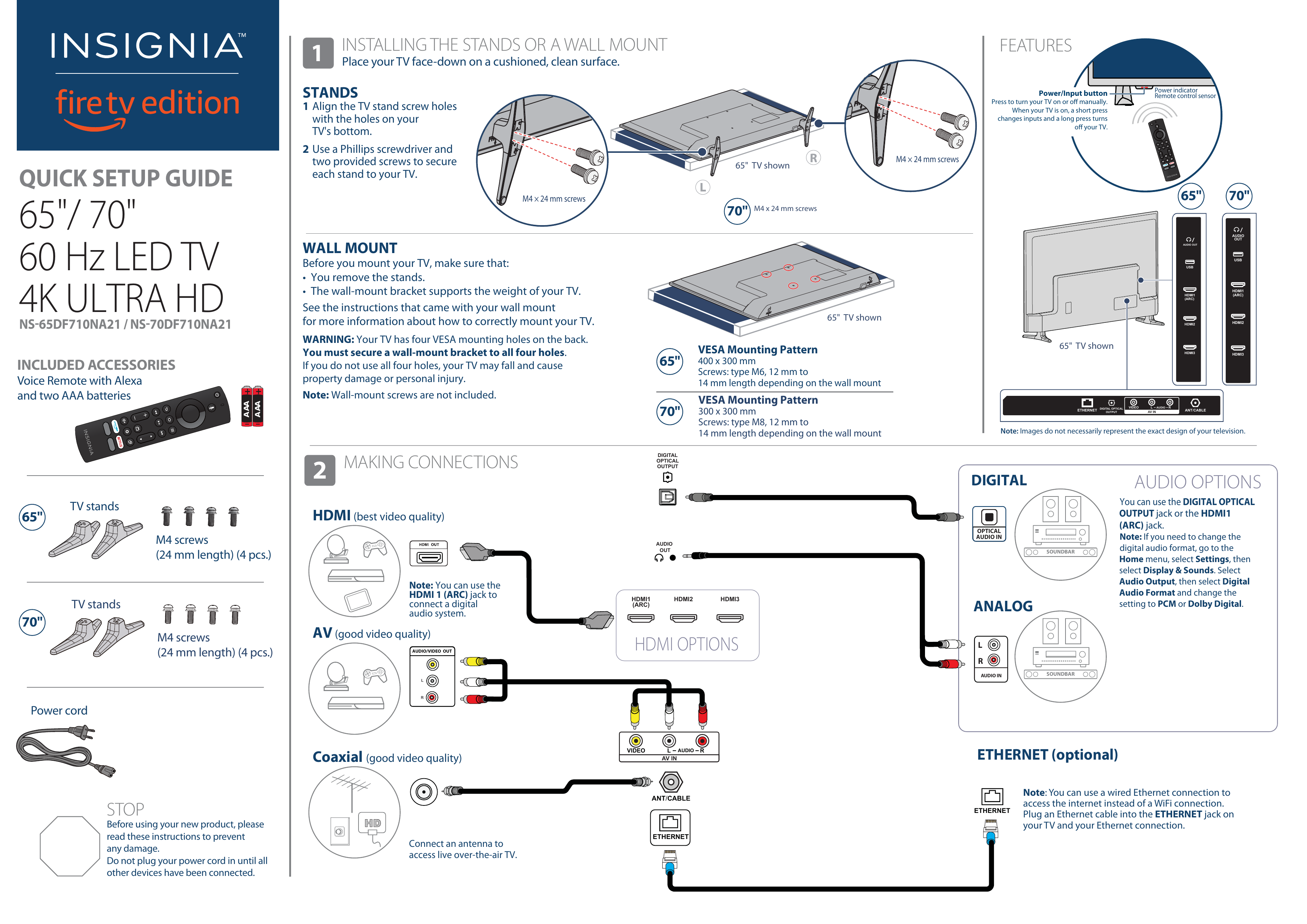

Insignia NS-65DF710NA21 65" Class LED 4K UHD Smart Fire TV Edition TV Quick Setup Guide

1
INSTALLING THE STANDS OR A WALL MOUNT
FEATURES
Place your TV face-down on a cushioned, clean surface.
STANDS
Press to turn your TV on or off manually.
When your TV is on, a short press
changes inputs and a long press turns
off your TV.
1 Align the TV stand screw holes
with the holes on your
TV's bottom.
2 Use a Phillips screwdriver and
two provided screws to secure
each stand to your TV.
QUICK SETUP GUIDE
65"/ 70"
60 Hz LED TV
4K ULTRA HD
65"
70"
70"
M4 x 24 mm screws
AUDIO
OUT
WALL MOUNT
AUDIO OUT
Before you mount your TV, make sure that:
• You remove the stands.
• The wall-mount bracket supports the weight of your TV.
See the instructions that came with your wall mount
for more information about how to correctly mount your TV.
INCLUDED ACCESSORIES
AAA
AAA
+ +
TV stands
USB
USB
HDMI1
(ARC)
65" TV shown
WARNING: Your TV has four VESA mounting holes on the back.
You must secure a wall-mount bracket to all four holes.
If you do not use all four holes, your TV may fall and cause
property damage or personal injury.
Note: Wall-mount screws are not included.
65"
70"
2
65"
M4 × 24 mm screws
65" TV shown
M4 × 24 mm screws
NS-65DF710NA21 / NS-70DF710NA21
Voice Remote with Alexa
and two AAA batteries
Power indicator
Remote control sensor
Power/Input button
MAKING CONNECTIONS
M4 screws
(24 mm length) (4 pcs.)
VESA Mounting Pattern
300 x 300 mm
Screws: type M8, 12 mm to
14 mm length depending on the wall mount
ETHERNET
AUDIO/VIDEO OUT
HDMI3
DIGITAL OPTICAL
OUTPUT
VIDEO
L AUDIO
AV IN
R
ANT/CABLE
Note: Images do not necessarily represent the exact design of your television.
AUDIO OPTIONS
DIGITAL
You can use the DIGITAL OPTICAL
OUTPUT jack or the HDMI1
(ARC) jack.
AUDIO
OUT
AV (good video quality)
HDMI3
DIGITAL
OPTICAL
OUTPUT
M4 screws
(24 mm length) (4 pcs.)
70"
HDMI2
400 x 300 mm
Screws: type M6, 12 mm to
14 mm length depending on the wall mount
OPTICAL
AUDIO IN
TV stands
HDMI2
65" TV shown
VESA Mounting Pattern
HDMI (best video quality)
Note: You can use the
HDMI 1 (ARC) jack to
connect a digital
audio system.
HDMI1
(ARC)
HDMI1
(ARC)
SOUNDBAR
HDMI3
HDMI2
HDMI OPTIONS
ANALOG
Note: If you need to change the
digital audio format, go to the
Home menu, select Settings, then
select Display & Sounds. Select
Audio Output, then select Digital
Audio Format and change the
setting to PCM or Dolby Digital.
L
R
AUDIO IN
SOUNDBAR
Power cord
Coaxial (good video quality)
STOP
Before using your new product, please
read these instructions to prevent
any damage.
Do not plug your power cord in until all
other devices have been connected.
VIDEO
L AUDIO
AV IN
R
ETHERNET (optional)
ANT/CABLE
ETHERNET
HD
Connect an antenna to
access live over-the-air TV.
ETHERNET
Note: You can use a wired Ethernet connection to
access the internet instead of a WiFi connection.
Plug an Ethernet cable into the ETHERNET jack on
your TV and your Ethernet connection.
TURNING ON YOUR TV
3
4
COMPLETE THE ONSCREEN SETUP
Your TV should automatically pair to your new Voice Remote with Alexa.
1 Plug the power cord into the back of
your TV and a power outlet.
1 If your remote is not paired, press
. If you continue to have issues, re-insert or replace the batteries and try again.
3 Press
AAA
+
2 Remove the remote control cover and
install the batteries.
+
2 Select your Wi-Fi network from the displayed network list.
AAA
on your Voice Remote with Alexa.
Note: If your Wi-Fi network is password protected, enter your network password using the on-screen keyboard.
If your network is hidden, select the Join Other Network tile.
3 Select your experience: Full (recommended) or Basic.
• Select Full to access live TV, over tens of thousands of streaming movies and TV episodes, thousands of apps, and Alexa skills.
To get started, sign into or sign up for a free Amazon account.
• Select Basic to access live TV and the six preset streaming apps. Alexa and the full Appstore are not included.
4 If you connected your TV to an antenna or cable wall jack:
A Go to Settings > Live TV > Channel Scan.
B Follow the on-screen instructions to scan for channels.
4 Follow the on-screen instructions.
Note: To browse and watch live TV, use the On Now row or press
USING YOUR VOICE REMOTE WITH ALEXA
FIND YOUR USER GUIDE ONLINE
Voice
Power
Turns your TV on or off. When your TV is off,
the LED indicator on the front of your TV lights red.
Holding down the Voice button activates the
Alexa-enabled microphone on the remote, and
initiates voice input. Releasing the Voice button
ends voice input. With Alexa, you can use your
voice to search for content, control playback,
and more. (Alexa Voice Service requires an
Amazon account).
Navigation
Navigate on-screen (up, down, left, and right).
Select
Confirms a selection or action.
Home
Takes you to the Home Screen. A long press
activates the Quick Settings Overlay.
Menu
Activates contextual commands on the screen.
Back
Returns you to the previous screen.
Rewind
Rewind (long press) and skip back (short press).
Behavior varies by app.
Volume Keys
Volume + increases the volume, and Volume decreases the volume.
Guide
Opens the live TV Channel Guide.
Mute
Mutes the sound.
Prime Video
Launches Prime Video from any screen
or when your TV is off.
App 1
Launches App 1 from any screen or when
your TV is off.
on your remote.
1 Go to www.insigniaproducts.com.
2 Use the search bar to find NS-65DF710NA21 / NS-70DF710NA21
3 Select Support & Downloads.
4 Next to User Guide, select the language you want.
A Smarter TV Is Here
4K Picture Quality, Fire TV Experience Built-in,
Voice Remote with Alexa
Access Your Favorite Content – All Through One
Home Screen
Fire TV Edition seamlessly integrates live over-the-air TV
and streaming channels on a unified home screen.
Endless Entertainment – Netflix, Prime Video,
YouTube, Hulu, HBO, and more
Watch over 500,000 streaming movies and TV episodes
with access to tens of thousands of channels, apps, and
Alexa skills.
Control It All With Your Voice – Voice Remote
with Alexa
Use your voice to watch live TV, launch apps, search for
titles, play music, switch inputs, control smart home
devices, and more.
Full Experience required to access all features described.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
NEED ADDITIONAL HELP?
Check out our Support Community at
http://community.insigniaproducts.com/ for helpful information
from other Insignia TV owners.
WE’RE HERE FOR YOU
www.insigniaproducts.com
For customer service, call: 1-877-467-4289 (U.S./Canada)
CONTACT AMAZON FIRE TV CUSTOMER SERVICE
www.amazon.com/deviceservices/support
Play / Pause
Resumes or pauses playback.
Forward
Fast forward (long press) and skip ahead (short
press). Behavior varies by app.
Channel
Channel  goes to the next live TV channel, and
channel  goes to the previous live TV channel.
Settings (gear)
Activates quick settings overlay.
Recents
Opens a row of recently watched content so
you can easily switch between content.
Netflix
Launches Netflix from any screen or when your
TV is off.
App 2
Launches App 2 from any screen or when your
TV is off.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol
together, and DTS Studio Sound are registered trademarks or trademarks of DTS, Inc. in
the United States and/or other countries.
© DTS, Inc. All Rights Reserved.
AMAZON TERMS & POLICIES
Before using Fire TV Edition, please read the terms located at
www.amazon.com/deviceservices/support. Please also read all terms and policies for
services related to Fire TV Edition, including but not limited to Amazon's Privacy Notice
located at www.amazon.ca/privacy, Amazon's Conditions of Use located at
www.amazon.ca/conditionsofuse, and any other terms or usage provisions available at
www.amazon.com/deviceservices/support.
All terms, rules, notices, policies, and provisions are, collectively, the “Agreements.” By
using Fire TV Edition, you agree to be bound by the terms of the Agreements.
Amazon, Fire, and all related marks are trademarks of Amazon.com, Inc. or its affiliates.
Certain services are subject to change at any time, may not be available in all areas, or in
4K UHD, and may require separate subscriptions.
U.S. and Canada:
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2020 Best Buy. All rights reserved.
V2 ENGLISH 20-0178
