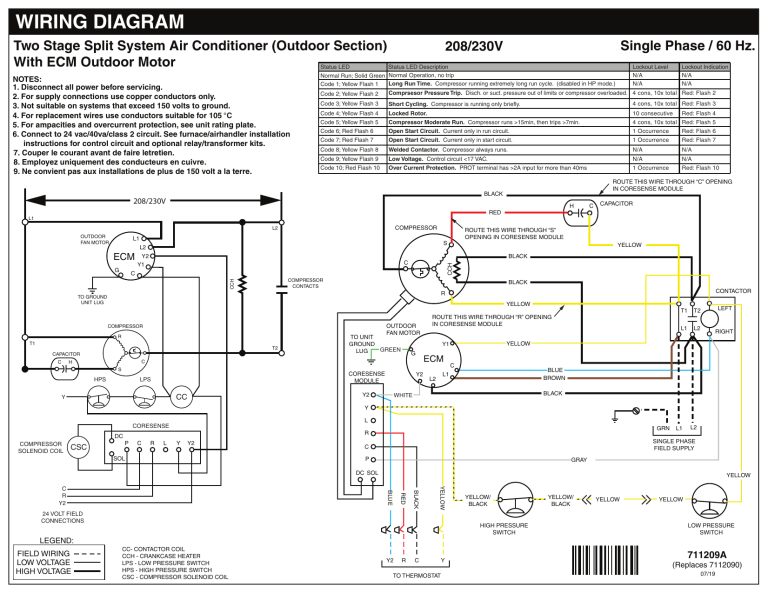

WIRING DIAGRAM
Two Stage Split System Air Conditioner (Outdoor Section)
208/230V
With ECM Outdoor Motor
Status LED Description
Status LED
NOTES:
1. Disconnect all power before servicing.
2. For supply connections use copper conductors only.
3. Not suitable on systems that exceed 150 volts to ground.
4. For replacement wires use conductors suitable for 105 °C
5. For ampacities and overcurrent protection, see unit rating plate.
6. Connect to 24 vac/40va/class 2 circuit. See furnace/airhandler installation
instructions for control circuit and optional relay/transformer kits.
7. Couper le courant avant de faire letretien.
8. Employez uniquement des conducteurs en cuivre.
9. Ne convient pas aux installations de plus de 150 volt a la terre.
Single Phase / 60 Hz.
Lockout Level
N/A
N/A
Normal Run; Solid Green Normal Operation, no trip
Long Run Time. Compressor running extremely long run cycle. (disabled in HP mode.)
Code 1; Yellow Flash 1
Lockout Indication
N/A
N/A
Code 2; Yellow Flash 2
Comprsesor Pressure Trip. Disch. or suct. pressure out of limits or compressor overloaded. 4 cons, 10x total Red: Flash 2
Code 3; Yellow Flash 3
Short Cycling. Compressor is running only briefly.
4 cons, 10x total Red: Flash 3
Code 4; Yellow Flash 4
Locked Rotor.
Compressor Moderate Run. Compressor runs >15min, then trips >7min.
Open Start Circuit. Current only in run circuit.
10 consecutive
Red: Flash 4
4 cons, 10x total Red: Flash 5
1 Occurrence
Red: Flash 6
Code 7; Red Flash 7
Open Start Circuit. Current only in start circuit.
1 Occurrence
Code 8; Yellow Flash 8
Welded Contactor. Compressor always runs.
N/A
N/A
Code 9; Yellow Flash 9
Low Voltage. Control circuit <17 VAC.
N/A
N/A
Code 10; Red Flash 10
Over Current Protection. PROT terminal has >2A input for more than 40ms
1 Occurrence
Red: Flash 10
Code 5; Yellow Flash 5
Code 6; Red Flash 6
Red: Flash 7
ROUTE THIS WIRE THROUGH “C” OPENING
IN CORESENSE MODULE
BLACK
208/230V
H
C
CAPACITOR
RED
L1
COMPRESSOR
L2
OUTDOOR
FAN MOTOR
ROUTE THIS WIRE THROUGH “S”
OPENING IN CORESENSE MODULE
L1
G
C
C
CCH
COMPRESSOR
CONTACTS
BLACK
CONTACTOR
R
TO GROUND
UNIT LUG
YELLOW
COMPRESSOR
R
T1
T2
CAPACITOR
C
YELLOW
BLACK
CCH
ECM
S
L2
Y2
Y1
OUTDOOR
FAN MOTOR
TO UNIT
GROUND
GREEN
LUG
G
C
H
S
HPS
CORESENSE
MODULE
LPS
Y2
CC
Y
Y2
ROUTE THIS WIRE THROUGH “R” OPENING
IN CORESENSE MODULE
C
L1
L2
LEFT
RIGHT
BLUE
BROWN
L1
L2
T2
YELLOW
Y1
ECM
T1
BLACK
WHITE
Y
L
CORESENSE
COMPRESSOR
SOLENOID COIL
CSC
GRN
R
DC
P
C
R
L
Y
Y2
SOL
L1
L2
SINGLE PHASE
FIELD SUPPLY
C
P
GRAY
DC SOL
YELLOW
YELLOW
RED
BLACK
BLUE
C
R
Y2
24 VOLT FIELD
CONNECTIONS
YELLOW/
BLACK
HIGH PRESSURE
SWITCH
YELLOW/
BLACK
YELLOW
YELLOW
LOW PRESSURE
SWITCH
LEGEND:
FIELD WIRING
LOW VOLTAGE
HIGH VOLTAGE
CC- CONTACTOR COIL
CCH - CRANKCASE HEATER
LPS - LOW PRESSURE SWITCH
HPS - HIGH PRESSURE SWITCH
CSC - COMPRESSOR SOLENOID COIL
Y2
R
C
TO THERMOSTAT
Y
711209A
(Replaces 7112090)
07/19
