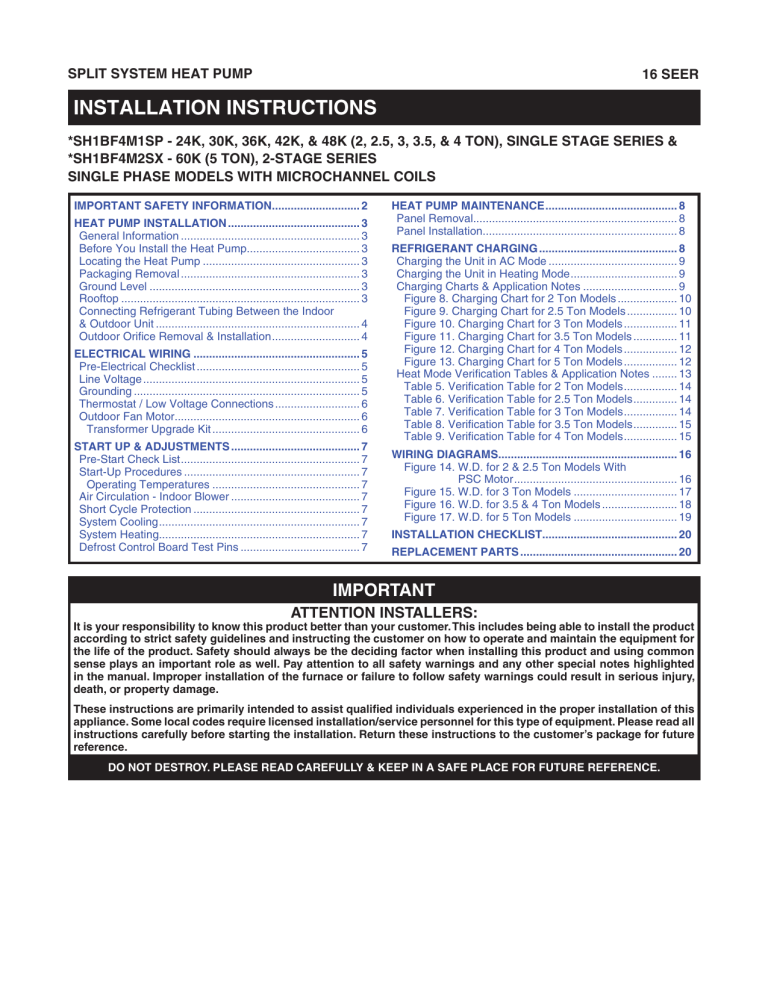

SPLIT SYSTEM HEAT PUMP
16 SEER
INSTALLATION INSTRUCTIONS
*SH1BF4M1SP - 24K, 30K, 36K, 42K, & 48K (2, 2.5, 3, 3.5, & 4 TON), SINGLE STAGE SERIES &
*SH1BF4M2SX - 60K (5 TON), 2-STAGE SERIES
SINGLE PHASE MODELS WITH MICROCHANNEL COILS
IMPORTANT SAFETY INFORMATION............................. 2
HEAT PUMP INSTALLATION........................................... 3
General Information.......................................................... 3
Before You Install the Heat Pump..................................... 3
Locating the Heat Pump................................................... 3
Packaging Removal.......................................................... 3
Ground Level.................................................................... 3
Rooftop............................................................................. 3
Connecting Refrigerant Tubing Between the Indoor
& Outdoor Unit.................................................................. 4
Outdoor Orifice Removal & Installation............................. 4
ELECTRICAL WIRING...................................................... 5
Pre-Electrical Checklist..................................................... 5
Line Voltage...................................................................... 5
Grounding......................................................................... 5
Thermostat / Low Voltage Connections............................ 6
Outdoor Fan Motor............................................................ 6
Transformer Upgrade Kit................................................ 6
START UP & ADJUSTMENTS.......................................... 7
Pre-Start Check List.......................................................... 7
Start-Up Procedures......................................................... 7
Operating Temperatures................................................ 7
Air Circulation - Indoor Blower.......................................... 7
Short Cycle Protection...................................................... 7
System Cooling................................................................. 7
System Heating................................................................. 7
Defrost Control Board Test Pins....................................... 7
HEAT PUMP MAINTENANCE........................................... 8
Panel Removal.................................................................. 8
Panel Installation............................................................... 8
REFRIGERANT CHARGING............................................. 8
Charging the Unit in AC Mode.......................................... 9
Charging the Unit in Heating Mode................................... 9
Charging Charts & Application Notes............................... 9
Figure 8. Charging Chart for 2 Ton Models.................... 10
Figure 9. Charging Chart for 2.5 Ton Models................. 10
Figure 10. Charging Chart for 3 Ton Models.................. 11
Figure 11. Charging Chart for 3.5 Ton Models............... 11
Figure 12. Charging Chart for 4 Ton Models.................. 12
Figure 13. Charging Chart for 5 Ton Models.................. 12
Heat Mode Verification Tables & Application Notes......... 13
Table 5. Verification Table for 2 Ton Models.................. 14
Table 6. Verification Table for 2.5 Ton Models............... 14
Table 7. Verification Table for 3 Ton Models.................. 14
Table 8. Verification Table for 3.5 Ton Models............... 15
Table 9. Verification Table for 4 Ton Models.................. 15
WIRING DIAGRAMS.......................................................... 16
Figure 14. W.D. for 2 & 2.5 Ton Models With
PSC Motor..................................................... 16
Figure 15. W.D. for 3 Ton Models.................................. 17
Figure 16. W.D. for 3.5 & 4 Ton Models......................... 18
Figure 17. W.D. for 5 Ton Models.................................. 19
INSTALLATION CHECKLIST............................................ 20
REPLACEMENT PARTS................................................... 20
IMPORTANT
ATTENTION INSTALLERS:
It is your responsibility to know this product better than your customer. This includes being able to install the product
according to strict safety guidelines and instructing the customer on how to operate and maintain the equipment for
the life of the product. Safety should always be the deciding factor when installing this product and using common
sense plays an important role as well. Pay attention to all safety warnings and any other special notes highlighted
in the manual. Improper installation of the furnace or failure to follow safety warnings could result in serious injury,
death, or property damage.
These instructions are primarily intended to assist qualified individuals experienced in the proper installation of this
appliance. Some local codes require licensed installation/service personnel for this type of equipment. Please read all
instructions carefully before starting the installation. Return these instructions to the customer’s package for future
reference.
DO NOT DESTROY. PLEASE READ CAREFULLY & KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
IMPORTANT SAFETY INFORMATION
INSTALLER: Please read all instructions before servicing
this equipment. Pay attention to all safety warnings and
any other special notes highlighted in the manual. Safety
markings are used frequently throughout this manual to
designate a degree or level of seriousness and should not
be ignored. WARNING indicates a potentially hazardous
situation that if not avoided, could result in personal injury or
death. CAUTION indicates a potentially hazardous situation
that if not avoided, may result in minor or moderate injury
or property damage.
WARNING:
ELECTRICAL SHOCK OR FIRE HAZARD
To avoid risk of electrical shock, personal injury,
or death, disconnect all electrical power to the unit
before performing any maintenance or service. The
unit may have more than one electrical supply.
Label all wires prior to disconnection when servicing
the unit. Wiring errors can cause improper and
dangerous operation
WARNING:
This split system heat pump is shipped charged
with R410A refrigerant and ready for installation.
If repairs make it necessary for evacuation and
charging, it should only be attempted by qualified
trained personnel thoroughly familiar with this
equipment. Under no circumstances should
the owner attempt to install and/or service this
equipment. Failure to comply with this warning
could result in property damage, personal injury,
or death.
WARNING:
Unless noted otherwise in these instructions,
only factory authorized parts or accessory
kits may be used with this product. Improper
installation, service, adjustment, or maintenance
may cause explosion, fire, electrical shock or
other hazardous conditions which may result in
personal injury or property damage.
2
CAUTION:
This unit uses R-410A refrigerant. DO NOT use
any other refrigerant in this unit. Use of another
refrigerant will damage the unit.
WARNING:
The information listed below must be followed
during the installation, service, and operation
of this unit. Unqualified individuals should
not attempt to interpret these instructions or
install this equipment. Failure to follow safety
recommendations could result in possible
damage to the equipment, serious personal
injury or death.
• The installer must comply with all local codes and
regulations which govern the installation of this type of
equipment. Local codes and regulations take precedence
over any recommendations contained in these instructions.
Consult local building codes and the National Electrical
Code (ANSI CI) for special installation requirements.
• All electrical wiring must be completed in accordance with
local, state and national codes and regulations and with
the National Electric Code (ANSI/NFPA 70) or in Canada
the Canadian Electric Code Part 1 CSA C.22.1.
• This equipment contains liquid and gaseous refrigerant
under high pressure. DO NOT USE ANY PORTION OF
THE CHARGE FOR PURGING OR LEAK TESTING.
Installation or servicing should only be performed by
qualified trained personnel thoroughly familiar with this
type equipment.
• Fully annealed, refrigerant grade copper tubing should
be used when installing the system. Refrigerant suction
line tubing should be fully insulated.
• Installation of equipment may require brazing operations.
The installer should comply with safety codes and wear
appropriate safety equipment (safety glasses, work gloves,
fire extinguisher, etc.) when performing brazing operations.
• Follow all precautions in the literature, on tags, and on
labels provided with the equipment. Read and thoroughly
understand the instructions provided with the equipment
prior to performing the installation and operational checkout
of the equipment.
• This unit is designed for outdoor installations only and
should be positioned as shown on page 3.
• Refrigerant and electrical line should be routed through
suitably waterproofed openings to prevent water from
leaking into the structure.
• Use caution when handling this appliance or removing
components. Personal injury can occur from sharp metal
edges present in all sheet metal constructed equipment.
HEAT PUMP INSTALLATION
General Information
Split system heat pumps are designed only for outdoor rooftop
or ground level installations. This unit has been tested for
capacity and efficiency in accordance with AHRI Standards
and will provide many years of safe and dependable comfort,
providing it is properly installed and maintained. Abuse,
improper use, and/or improper maintenance can shorten the
life of the appliance and create unsafe hazards.
To achieve optimum performance and minimize equipment
failure, it is recommended that periodic maintenance be
performed on this unit. The ability to properly perform
maintenance on this equipment requires certain mechanical
skills and tools.
Refer to the Quick Reference Data sheet for additional
electrical, charging and unit information.
Before You Install the Heat Pump
√ The cooling load of the area to be conditioned must be
calculated and a system of the proper capacity selected.
It is recommended that the area to be conditioned be
completely insulated and vapor sealed.
√ Check the electrical supply and verify the power supply
is adequate for unit operation. The system must be wired
and provided with circuit protection in accordance with
local building codes. If there is any question concerning
the power supply, contact the local power company.
√ The indoor section (air handler, furnace, etc) should be
installed before routing the refrigerant tubing. Refer to
the indoor unit's installation instructions for installation
details.
√ All units are securely packed at the time of shipment and
upon arrival should be carefully inspected for damage prior
to installing the equipment at the job site. Verify coil fins
are straight. If necessary, comb fins to remove flattened
or bent fins. Claims for damage (apparent or concealed)
should be filed immediately with the carrier.
√ Please consult your dealer for maintenance information
and availability of maintenance contracts. Please read all
instructions before installing the unit.
Ground Level
Ground level installations must be located according to local
building codes or ordinances and these requirements:
• Clearances must be in accordance with those shown in
Figure 1.
• A suitable mounting pad must be provided and be separate
from the building foundation. The pad must be level and
strong enough to support the unit’s weight. The slab height
must be a minimum of 2” (5 cm) above grade and with
adequate drainage. See Figure 1.
Rooftop
• The method of mounting should be designed so that it
does not overload roof structures or transmit noise to
the interior of the structure. The roof must be structurally
capable of handling the weight of the unit.
• Full perimeter support is required under the unit. Support
must be made of weather resistant materials and installed
prior to unit installation.
• The support must be built to raise the unit 6" above the
roof.
6” from Building
or Structure
24" for
Service Access
12" or 18”
See Note
DO NOT
OBSTRUCT
TOP OF UNIT
12" or 18”
See Note
NOTE: Units require full perimeter clearances.
Installer must maintain 18” between two units
or 12” between single unit and structure.
Locating the Heat Pump
• Survey the job site to determine the best location for
mounting the outdoor unit.
• Overhead obstructions, poorly ventilated areas, and areas
subject to accumulation of debris should be avoided. See
Figure 1.
• Sufficient clearance for unobstructed airflow through the
outdoor coil must be maintained in order to achieve rated
performance. See Figure 1 for minimum clearances to
obstructions.
• Consideration should be given to availability of electric
power, service access, noise, and shade.
48”
2” Mounting Pad
Packaging Removal
To prevent damage to the tubing onnections, carefully remove
the carton and user’s manual from the equipment. Discard
the shipping carton.
Figure 1. Clearance Requirements
3
Connecting Refrigerant Tubing Between the
Indoor & Outdoor Unit
CAUTION:
When servicing, cover or seal openings to
minimize the exposure of the refrigerant system
to air to prevent accumulation of moisture and
other contaminants.
After outdoor and indoor unit placement has been determined,
route refrigerant tubing between the equipment in accordance
with sound installation practices.
• When connecting refrigerant linesets together, it is
recommended that dry nitrogen be flowing through the
joints during brazing. This will prevent internal oxidation
and scaling from occurring.
• Refrigerant tubing should be routed in a manner that
minimizes the length of tubing and the number of bends
in the tubing.
• Refrigerant tubing should be supported in a manner
that the tubing will not vibrate or abrade during system
operation.
• Tubing should be kept clean of foreign debris during
installation.
• Every effort should be made by the installer to ensure
that the field installed refrigerant containing components
of the system have been installed in accordance with
these instructions and sound installation practices to
insure reliable system operation and longevity.
• The maximum recommended interconnecting refrigerant
line length is 75 feet, and the vertical elevation difference
between the indoor and outdoor sections should not
exceed 20 feet.
• If precise forming of refrigerant lines is required, a copper
tubing bender is recommended. Avoid sharp bends and
contact of the refrigerant lines with metal surfaces.
• A filter dryer is provided with the unit and must be
installed in the liquid line of the system. If the installation
replaces a system with a filter dryer already present in the
liquid line, the filter dryer must be replaced with the one
supplied with the unit. The filter dryer must be installed
in strict accordance with the manufacturer’s installation
instructions.
• Optional equipment such as liquid line solenoid valves,
low ambient, etc., should be installed in strict accordance
with the manufacturer’s installation instructions.
Outdoor Orifice Removal & Installation
CAUTION:
When servicing, cover or seal openings to
minimize the exposure of the refrigerant system
to air to prevent accumulation of moisture and
other contaminants.
CAUTION:
To prevent damage to the unit or internal
components, it is recommended that two
wrenches be used when loosening or tightening
nuts. Do not over tighten!
1. Using two wrenches loosen the nut and liquid valve. Turn
the assembly nut counter-clockwise until the orifice body
halves are separated.
2. Insert a light-gauge wire hook between the valve body
and the restrictor orifice while being careful not to scratch
either part. Carefully remove the restrictor orifice from the
valve body. See Figure 3.
Liquid
Valve
Restrictor
Swivel Nut
Figure 2. Liquid Valve, Restrictor, &
Swivel Nut Adapter
The orifice installed in the outdoor unit has been sized for use
with the most popularly matched indoor units. Depending
on the indoor coil that the unit is being matched with, the
outdoor restrictor may need to be changed. Please refer
to the Quick Reference Data sheet that is supplied with the
outdoor unit for more information.
If the outdoor unit has the liquid valve shown in Figure 2, then
the restrictor is located inside the swivel nut connection of
the liquid valve and not inside the outdoor unit’s distributor.
Perform steps 1 - 5 if the outdoor restrictor needs to be
changed.
Figure 3. Removal of Orifice
4
3. Check the actual size of the new orifice. NOTE: The size
is stamped on its side. Do not use pin gauges to measure
the orifice diameter.
4. Insert the new orifice into the valve body, with the rounded
end facing into the valve. See Figure 2 (page 4).
CAUTION:
To prevent damage to the unit or internal
components, it is recommended that two
wrenches be used when loosening or tightening
nuts. Do not over tighten!
•
•
5. Realign the assembly nut on the valve body and hand
tighten both components. Mark a line on both bodies and
then tighten an additional ¼ turn using two wrenches. The
movement of the two lines will show how much the nut is
tightened.
•
ELECTRICAL WIRING
•
WARNING:
ELECTRICAL SHOCK OR FIRE HAZARD
•
for the unit. Incoming field wiring and minimum size of
electrical conductors and circuit protection must be in
compliance with information listed on the outdoor unit
data label. Any other wiring methods must be acceptable
to authority having jurisdiction.
The outdoor unit requires both power and control circuit
electrical connections. Refer to the wiring diagrams (Figure
14, Figure 15, Figure 16, & Figure 17)for identification and
location of outdoor unit field wiring interfaces. Make all
electrical connections in accordance with all applicable
codes and ordinances.
Overcurrent protection must be provided at the branch
circuit distribution panel and sized as shown on the unit
rating label and according to applicable local codes. See
the unit rating plate for minimum circuit ampacity and
maximum overcurrent protection limits.
Provide power supply for the unit in accordance with the
unit wiring diagram, and the unit rating plate. Connect the
line-voltage leads to the terminals on the contactor inside
the control compartment.
Use only copper wire for the line voltage power supply
to this unit as listed in Table 1. Use proper code agency
listed conduit and a conduit connector for connecting
the supply wires to the unit. Use of rain tight conduit is
recommended.
208/230 Volt units are shipped from the factory wired for
230 volt operation. For 208V operation, remove the lead
from the transformer terminal marked 240V and connect
it to the terminal marked 208V.
Optional equipment requiring connection to the power or
control circuits must be wired in strict accordance of the
NEC (ANSI/NFPA 70), applicable local codes, and the
instructions provided with the equipment.
To avoid risk of electrical shock, personal injury,
or death, disconnect all electrical power to the unit
before performing any maintenance or service. The
unit may have more than one electrical supply.
•
Label all wires prior to disconnection when servicing
the unit. Wiring errors can cause improper and
dangerous operation
Grounding
• All electrical connections must be in compliance with all
applicable local codes and ordinances, and with the current
revision of the National Electric Code (ANSI/NFPA 70).
• For Canadian installations the electrical connections and
grounding shall comply with the current Canadian Electrical
Code (CSA C22.1 and/or local codes).
WARNING:
The unit cabinet must have an uninterrupted or
unbroken electrical ground to minimize personal
injury if an electrical fault should occur. Do not
use gas piping as an electrical ground!
Pre-Electrical Checklist
√ Verify that the voltage, frequency, and phase of the supply
source match the specifications on the unit rating plate.
√ Verify that the service provided by the utility is sufficient
to handle the additional load imposed by this equipment.
Refer to the unit wiring label for proper high and low
voltage wiring.
√ Verify factory wiring is in accordance with the unit wiring
diagram. Inspect for loose connections. See Figure 14
(page 16), Figure 15 (page 17), Figure 16 (page
18), & Figure 17 (page 19).
Line Voltage
• A wiring diagram is located on the inside cover of the
electrical box of the outdoor unit. The installer should
become familiar with the wiring diagram before making
any electrical connections to the outdoor unit.
• An electrical disconnect must be located within sight
of and readily accessible to the unit. This switch shall
be capable of electrically de-energizing the outdoor unit.
• Line voltage to the unit should be supplied from a dedicated
branch circuit containing the correct fuse or circuit breaker
COPPER WIRE SIZE — AWG
(1% VOLTAGE DROP)
200
150
100
50
SUPPLY
CIRCUIT
AMPACITY
6
4
4
4
3
3
2
2
2
1
8
6
6
4
4
4
3
3
3
2
10
8
8
6
6
6
4
4
4
3
14
12
10
10
8
8
6
6
6
4
15
20
25
30
35
40
45
50
55
60
SUPPLY WIRE LENGTH-FEET
Wire Size based on N.E.C. for 60° type copper conductors.
Table 1. Copper Wire Size
5
THERMOSTAT
WIRE GAUGE
MAXIMUM RECOMMENDED
THERMOSTAT WIRE LENGTH (FT)
24
25
22
45
20
70
18
110
Thermostat / Low Voltage Connections
Table 2. Thermostat Wire
ODT
(Optional)
W2
W2
Green
G
G
R
R
W2
OUT
W
C
C
O
O
O
Y1
IN
Y
Y
Outdoor
Heat
Pump
White
Black
Thermostat
IN
Red
This unit must be electrically grounded in accordance with
local codes or, in the absence of local codes, with the National
Electrical Code (ANSI/NFPA 70) or the CSA C22.1 Electrical
Code. Use the grounding lug provided in the control box for
grounding the unit.
R
E
C
Air Handler
• Thermostat connections should be made in accordance
with the instructions supplied with the thermostat and the
indoor equipment. For typical installations with a heat pump
thermostat and air handler see Figure 4 and Figure 5.
• The outdoor unit is designed to operate from a 24 VAC
Class II control circuit. The control circuit wiring must
comply with the current provisions of the NEC (ANSI/NFPA
70) and with applicable local codes having jurisdiction.
• The low voltage wires must be properly connected to
the units low voltage terminal block. Recommended wire
gauge and wire lengths for typical thermostat connections
are listed in Table 2.
• The thermostat should be mounted about 5 feet above the
floor on an inside wall. DO NOT install the thermostat on
an outside wall or any other location where its operation
may be adversely affected by radiant heat from fireplaces,
sunlight, or lighting fixtures, and convective heat from
warm air registers or electrical appliances. Refer to the
thermostat manufacturer’s instruction sheet for detailed
mounting and installation information.
Outdoor Fan Motor
If the unit utilizes a 2-speed condenser fan motor, this motor
will operate on low speed when in low cooling, and on high
speed when in high cooling. A relay within the control area
switches the fan motor from low to high speed using the call
for high cooling as the trigger. Other models that utilize BLDC
fixed torque variable speed fan motors will not require a relay.
Transformer Upgrade Kit
If this 2-stage heat pump is installed in conjunction with a gas
furnace and fossil fuel kit, the furnace transformer MUST be
upgraded to one with a 60 VA rating or using the transformer
upgrade kit (904077). To upgrade the transformer:
• Remove the existing transformer and install the new 60
VA transformer.
• Remove the 3 amp fuse on the furnace control board and
install the 5 amp fuse provided.
Figure 4. Thermostat Connections for
SH1BF4M1SP 2 - 4 Ton Units
OD T-stat
(Optional)
W2
G
R
R
W2 out
W
C
C
O
O
Y1 IN
Y1
Y2 IN
Y/Y2
Outdoor
Heat
Pump
Air Handler
Green
Red
White
Black
Figure 5. Thermostat Connections for
SH1BF4M2SX 5-Ton Units
6
G
R
E
C
O
Y1
Y2
Thermostat
W2 IN
NOTE: The new transformer may be larger than the existing
transformer that is mounted in the furnace. If this happens,
mount the 60 VA transformer using one of the mounting holes
in the furnace panel. On the other side either drill a 0.149
hole in the panel and use the existing fastener, or use a selfdrilling fastener to secure the other side of the transformer.
Air Circulation - Indoor Blower
START UP & ADJUSTMENTS
Pre-Start Check List
√ Verify the unit is level and has sufficient clearances for
unobstructed airflow.
√ Verify the outdoor coil and top of the unit are free from
obstructions and debris, and all equipment access/control
panels are in place.
√ Verify that the line voltage power leads are securely
connected and the unit is properly grounded.
√ Verify that the low voltage wires are securely connected
to the correct leads on the low voltage terminal strip.
√ Verify that the power supply branch circuit overcurrent
protection is sized properly.
√ Verify that the thermostat is wired correctly.
Start-Up Procedures
WARNING:
This unit is equipped with a crankcase heater.
Allow 24 hours prior to continuing the start up
procedures to allow for heating of the refrigerant
compressor crankcase. Failure to comply may
result in damage and could cause premature
failure of the system. This warning should be
followed at initial start up and any time the power
has been removed for 12 hours or longer.
Operating Temperatures
This equipment has been designed to operate within the
temperatures specified in Table 3. Running the equipment
in heating at higher than 70°F may require the use of a
Heat Pump Mild Weather Control Kit or changing over to
emergency or auxiliary heating.
COOLING
MIN (° F)
MAX (° F)
MIN (° F)
MAX (° F)
60
115
-10
70
Table 3. Heat Pump Operating Temperatures
STATUS
INDICATOR
STATUS
TYPE
C1
C2
H1
H2
SC
OF
_.
01
02
03
04
05
Operating Status
Cooling, 1st Stage
Operating Status
Cooling, 2nd Stage
Operating Status
Heating, 1st Stage
Operating Status
Heating, 2nd Stage
Operating Status
Anti Short Cycle Timer
Operating Status
Defrost
Operating Status
Power on, no call for operation
OF
(FLASHING)
DIAGNOSTIC
DESCRIPTION
Pressure switch, low
Fault
Pressure switch, high
Fault
Temperature Sensor, Ambient
Fault
Temperature Sensor, Coil
Fault
Board
Input Error
Short Cycle Protection
1. Set the thermostat system mode to COOL. Observe the
temperature setting of the thermostat and gradually raise
the set-point temperature until the unit de-energizes.
2. Immediately lower the set point temperature of the
thermostat to its original setting and verify that the indoor
blower is energized and outdoor unit remains de-energized.
3. After approximately 5 minutes, verify the outdoor unit
energizes and the temperature of the discharge air is
cooler than the room temperature.
System Cooling
1. Set the thermostat’s system mode to COOL and the fan
mode to AUTO. Gradually lower the thermostat temperature
setpoint below room temperature and verify the outdoor
unit and indoor blower energize.
2. Verify blower wheel is spinning in direction indicated by
arrow. Feel the air being circulated by the indoor blower
and verify that it is cooler than ambient temperature. Listen
for any unusual noises. If unusual sounds occur, determine
the source of the noise and correct as necessary.
3. Verify HI and LO refrigerant pressures.
4. Allow the system to operate for several minutes and then
set the temperature selector above room temperature.
Verify the fan and compressor cycle off with the thermostat.
NOTE: The blower should also stop unless fan switch is
set to the ON position.
System Heating
HEATING
Fault
1. Set the thermostat system mode on OFF and the fan mode
to ON.
2. Verify the blower runs continuously. Check the air delivery
at the supply registers and adjust register openings for
balanced air distribution. If insufficient air is detected,
examine ductwork for leaks or obstructions.
3. Set the thermostat fan mode to AUTO and verify the blower
stops running.
1. Set the thermostat's system mode to HEAT and the
temperature mode to below room temperature.
2. Verify the outdoor unit and indoor fan stop running. After
5 minutes, increase the temperature on the thermostat to
it's maximum setting.
3. Verify the outdoor unit and indoor blower energize. Feel
the air being circulated by the indoor blower and verify
that it is warmer than ambient temperature. Listen for any
unusual noises. If unusual sounds occur, determine the
source of the noise and correct as necessary.
Defrost Control Board Test Pins
• Placing a jumper between the test pins for less than 1
second will bypass the Anti-Short Cycle Timer.
• Placing a jumper between the test pins for more than 1
second will force the unit into a defrost cycle. As soon
as the jumper is removed, the defrost cycle will end as
determined by the typical criteria.
• Verify the Status Indicator (on the control board) against
the codes listed in Table 4 to determine proper diagnostic
description.
Forced defrost - test short applied
longer than 11 minutes
Table 4. Defrost Control Board Status Indicators
7
HEAT PUMP MAINTENANCE
WARNING:
To prevent electrical shock, personal injury, or
death, disconnect all electrical power to the unit
before performing any maintenance or service.
The unit may have more than one electrical
supply.
Proper maintenance is important to achieve optimum
performance from the heat pump. The ability to properly
perform maintenance on this equipment requires certain
mechanical skills and tools. If you do not possess these
skills, contact your dealer for maintenance. Consult your
local dealer about the availability of maintenance contracts.
Routine maintenance should include the following:
• Inspect and clean or replace air filters at the beginning
of each heating and cooling season, or more frequently
if required.
• Inspect the outdoor coil at the beginning of each cooling
season. Remove any debris. Clean the outdoor coil and
louvers as necessary using a mild detergent and water.
Rinse thoroughly with water.
• Inspect the electrical connections for tightness at the
beginning of each heating and cooling season. Service
as necessary.
CAUTION:
The unit should never be operated without a
filter in the return air system. Replace disposable
filters with the same type and size.
• Do not add additional oil to motors unequipped with oil
tubes. The compressor is hermetically sealed at the factory
and does not require lubrication.
Panel Removal
1. Remove screws securing the panel.
2. Slide the panel up towards the top pan in order to clear
the bottom flange from the base pan. See Figure 6.
3. Swing the bottom of the panel out and pull the panel down
to remove it from the unit.
Panel Installation
1. Insert the top corners of side panel flanges into the corner
post channels as shown in Detail A in Figure 7.
2. Slide the panel up into the top pan. (You may need to push
on the center of the panel at the top in order to clear the
top pan edge).
3. Swing the panel in and push down until the panel is resting
on the top edge of the base pan wall as shown in Detail
B.
4. Install screws into the panel to secure it to the unit.
REFRIGERANT CHARGING
WARNING:
Figure 6. Panel Removal
DETAIL A
DETAIL B
Figure 7. Panel Installation
8
SH1BF4M1SP split system heat pumps are
shipped charged with R410A refrigerant and
ready for installation. If repairs make it necessary
for evacuation and charging, it should only
be attempted by qualified trained personnel
thoroughly familiar with this equipment. Under
no circumstances should the owner attempt to
install and/or service this equipment. Failure to
comply with this warning could result in property
damage, personal injury, or death.
• After refrigerant line connections are completed, it is
required that you leak check and evacuate the indoor
section and all line connections (using proper methods)
before finalizing the full system refrigerant charge.
• To achieve rated capacity and efficiency, the compressor
must be exposed to refrigerant for at least 24 hours prior
to running and then the compressor must be run for a
minimum of 12 hours.
• The refrigerant charging charts are applicable only to
matched equipment and listed airflows for the indoor coil.
For systems matched with an indoor unit and a TXV, refer
to Figure 8 (page 10), Figure 9 (page 10), Figure 10
•
•
•
•
(page 11), Figure 11 (page 11), Figure 12 (page 12),
& Figure 13 (page 12) for correct system charging.
Refer to the unit's Quick Reference Data sheet to
determine if additional refrigerant will need to be
weighed-in to attain the base refrigerant amount
for the system match that is being installed. Please
note that the charge additons provided in the QRD
are estimates based on test data and should only be
used as a starting point. Complete the steps in the
charging procdure to obtain the final system charge.
Use of SH1BF4M1SP outdoor units with non-AHRI listed
indoor coils are not recommended and deviations from
rated airflows or non-listed combinations may require
modification to the expansion device and refrigerant
charging procedures for proper and efficient system
operation.
The refrigerant charge can be checked and adjusted
through the service ports provided external to the outdoor
unit. Use only gage line sets which have a “Schrader”
depression device present to actuate the valve. A common
suction port for heating mode charging is included and
located on the compressor access panel above the outdoor
unit service valves.
A high-pressure switch is factory-installed and located in
the compressor discharge line internal to the outdoor unit.
The switch is designed to de-energize the system when
very high pressures occur during abnormal conditions.
Under normal conditions, the switch is closed. If the
discharge pressure rises above 575 psig, then the switch
will open and de-energize the outdoor unit. The switch will
close again once the liquid pressure decreases to 460
psig. Please note that the switch interrupts the thermostat
inputs to the unit. When the switch opens and then closes,
there will be a 5 minute short cycling delay before the
outdoor unit will energize.
Charging the Unit in AC Mode (TXV Matches)
(With Outdoor Temperatures Above 65° F)
1. With the system operating at steady-state, measure the
liquid refrigerant pressure (in psig) at the outdoor unit
service valve.
2. Measure the liquid refrigerant temperature (in Fahrenheit)
at the service valve.
3. Determine the required liquid refrigerant pressure from
Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, &
Figure 13.
• If the pressure measured in Step 1 is greater than
the required liquid refrigerant pressure determined in
Step 3, then there is too much charge in the system.
Remove refrigerant and repeat Steps 1 through 3 until
the system is correctly charged.
• If the pressure measured in Step 1 is less than the
required liquid refrigerant pressure determined in Step
3, there is too little charge in the system. Add refrigerant
and repeat Steps 1 through 3 until the system is correctly
charged.
Charging the Unit in Heating Mode
Applies to SH1BF4M2SX 5-Ton Units only
1. Evacuate the unit to 350-500 microns.
2. Weigh in the proper charge as indicated on the unit label.
NOTE: Initial charge nust be verified in cooling season.
3. Verify the unit is operating properly according to the system
heating section on page.
Charging Charts & Application Notes
(Cooling Mode Only)
• This unit’s cooling system contains refrigerant under
high pressure. Always use safe and environmentally
sound methods when handling refrigerant handling
or servicing the unit. Review the factory literature and
safety warnings prior to servicing.
• When repairing system leaks, always use a nitrogen (inert)
gas to protect the refrigerant system and pressure check
the repair before re-charging. Always replace the filterdryers when performing any repair to the refrigeration
system with one capable of acid removal. After completing
the repairs, evacuate the system to 350 - 500 microns
and weigh in the refrigerant to the amount specified on
the unit rating label.
• The charging charts are valid for a variety of indoor, return
air conditions and are most influenced by the outdoor
ambient temperature, outdoor fan operation and the unit
operating voltage.
• Before using the charging charts, make sure the unit is in
a stable operating mode. As shown in Figure 9, Figure 10,
Figure 11, Figure 12, & Figure 13, the ideal system subcooling can vary over the range of operation. Reference
the charts to determine the ideal amount of sub-cooling
for a given liquid pressure. Units charged to other values
will not perform at the rated unit efficiency (EER) or rated
Coefficient of Performance (COP) in heating mode.
• To inspect a systems operation using quality instruments,
match the measured liquid temperature to the units chart.
The measured liquid pressure reading should be within
3% of the charts value for most installations.
• For systems that are operating with more than a 5%
deviation, inspect the unit for the proper voltage and phase
balance and the refrigeration system for leaks.
• Units that are operating at less then 95% of the nominal
voltage or with a 2% phase imbalance may see a more
significant deviation than the amount stated above.
• DO NOT use the charts in systems that have a fan cycling
under low-ambient control. Refer to the low-ambient kit
instructions for more information. (If applicable)
9
*SH1BF4M1SP24K Charging Chart - Cooling
600
580
Remove refrigerant when above curve
560
540
520
Liquid Pressure (psig)
500
480
460
440
420
400
380
360
340
320
300
280
260
Add refrigerant when below curve
240
220
200
75
80
85
90
95
100
105
110
115
120
125
130
135
Liquid Temperature (F)
Figure 8. Charging Chart for 2 Ton Models
(TXV Matches)
*SH1BF4M1SP30K Charging Chart - Cooling
600
580
Remove refrigerant when above curve
560
540
520
Liquid Pressure (psig)
500
480
460
440
420
400
380
360
340
320
300
280
260
Add refrigerant when below curve
240
220
200
75
80
85
90
95
100
105
110
115
Liquid Temperature (F)
Figure 9. Charging Chart for 2.5 Ton Models
(TXV Matches)
10
120
125
130
135
*SH1BF4M1SP36K Charging Chart - Cooling
600
580
Remove refrigerant when above curve
560
540
520
Liquid Pressure (psig)
500
480
460
440
420
400
380
360
340
320
300
280
260
Add refrigerant when below curve
240
220
200
75
80
85
90
95
100
105
110
115
120
125
130
135
Liquid Temperature (F)
Figure 10. Charging Chart for 3 Ton Models
(TXV Matches)
*SH1BF4M1SP42K Charging Chart - Cooling
600
580
Remove refrigerant when above curve
560
540
520
Liquid Pressure (psig)
500
480
460
440
420
400
380
360
340
320
300
280
260
Add refrigerant when below curve
240
220
200
75
80
85
90
95
100
105
110
115
120
125
130
135
Liquid Temperature (F)
Figure 11. Charging Chart for 3.5 Ton Models
(TXV Matches)
11
*SH1BF4M1SP48K Charging Chart - Cooling
600
580
Remove refrigerant when above curve
560
540
520
Liquid Pressure (psig)
500
480
460
440
420
400
380
360
340
320
300
280
260
Add refrigerant when below curve
240
220
200
75
80
85
90
95
100
105
110
115
120
125
130
135
Liquid Temperature (F)
Figure 12. Charging Chart for 4 Ton Models
(TXV Matches)
*SH1BF4M2SX60K Charging Chart-Cooling
600
580
Remove refrigerant when above curve
560
540
520
Liquid Pressure (psig)
500
480
460
440
420
400
380
360
340
320
300
280
260
Add refrigerant when below curve
240
220
200
75
80
85
90
95
100
105
110
115
Liquid Temperature (F)
Figure 13. Charging Chart for 5 Ton Models
(TXV Matches)
12
120
125
130
135
Heat Mode Verification Tables & Application
Notes
(Heat Mode Only)
• Read all notes and warnings for the Cooling-mode
charging charts prior to using the Heating-mode
charge verification tables. Always use safe and
environmentally sound methods when handling
refrigerant handling or servicing the unit. Review
the factory literature and safety warnings prior to
servicing.
• Heat Mode Verification Tables are provided for quick
reference when the unit is in heating mode and for the
inspection of the liquid line pressures and temperatures.
See Table 5 (page 14), Table 6 (page 14), Table 7
(page 14), Table 8 (page 15), & Table 9 (page 15).
• When repairing system leaks, always use a nitrogen (inert)
gas to protect the refrigerant system and pressure check
the repair before re-charging. Always replace the filterdryers when performing any repair to the refrigeration
system with one capable of acid removal. After completing
the repairs, evacuate the system to 350 - 500 microns
and weigh in the refrigerant to the amount specified on
the unit rating label.
• Before using the heat mode verification tables, determine
the outdoor ambient temperature and the return air
temperature to the unit. Locate the appropriate location on
the units verification chart based on those measurements
to determine the ideal discharge pressure and temperature.
See Table 5 (page 14), Table 6 (page 14), Table
7 (page 14), Table 8 (page 15), & Table 9 (page
15). Verify the outdoor fan and compressor are running
and the outdoor coil is free from frost accumulation. Also
verify the system is not operating in defrost mode before
inspecting the system.
• Always use quality instruments that are in good working
order to measure the actual operating point of the
refrigeration system. The discharge temperature should
be within 2 degrees of the ideal value and the pressure
should be within 2%.
• The most reliable way of verifying the system is at the
correct charge is to evacuate the system and weigh in
the charge to the amount shown on the rating label.
However, if an inspection with these verification charts
does not line up with the values shown and the ambient
temperature is above 50˚ F, then a more accurate way to
inspect the system for proper charge is with the cooling
mode charging charts. Switch the unit into cooling mode
and allow it to operate and stabilize for a few minutes then
inspect the unit operation with the cooling mode charts
and procedures.
Before changing the unit charge, always inspect the
following items first:
1. Inspect the liquid line temperature on the inlet and outlet
of the filter dryers. If it is the factory dryer and in good
condition there should be no temperature difference. If the
temperature difference is larger than 5˚, replace the filter
dryer with one that is bi-directional and has acid removal
capability. Refer to the unit RPL for the recommended
part number and size.
2. Inspect the units input voltage. Units operating at less
than 95% of the nominal voltage may deviate more from
the chart then previously stated.
3. Inspect the input voltage for a phase imbalance. Units with
greater then a 2% disparity will not operate at the rated
performance.
4. Verify that the unit filters are installed and are clean. The
pressure drop across the filters should not exceed 0.08
in-W.C.
5. Inspect the indoor coil, indoor blower and blower motor
for cleanliness, clogging, and proper operation.
6. Inspect the system for leaks. If any leaks are detected,
repair them immediately. Re-inspect the return air and
ambient temperatures and verify that the correct system
point on the verification chart was selected.
DO NOT use the charts in systems that have the fan cycling
under a low-ambient control. Low-ambient controls are for
cooling operation. In heating mode, the low ambient control
should be disabled. Unless the unit is in defrost mode, the
outdoor fan should always operate in conjunction with the
compressor.
IMPORTANT NOTE:
If the unit is equipped with a liquid valve with an outdoor
restrictor as shown in Figure 2 (page 4), then it
is not possible to measure the liquid pressure. To
approximate the liquid pressure, subtract 7 psig from
the discharge pressure.
13
LEGEND
NOTES:
Shaded boxes indicate flooded conditions.
Rated design values. The suction pressure
will vary from design value if outdoor air
flow, entering dry bulb, or entering wet bulb
temperatures vary.
1. All pressures are listed psig and all temperatures in °F
2. Discharge temperatures GREATER than charted values
indicate an UNDERCHARGED system.
3. Discharge temperatures LESS than charted values
indicate an OVERCHARGED system.
OUTDOOR TEMPERATURE (DEG. F)
10
20
30
40
50
60
SUC.
PRESS
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
0
37
38
39
206 212 113
213 219 111
220 226 109
40
227 233 107
41
234 240 105
241 247 103
248 254 101
42
43
51
52
53
226 231 119
232 237 117
238 243 115
54
243 249 113
55
249 255 111
255 261 109
261 267 107
56
57
66
67
68
245 250 125
250 255 123
255 260 121
69
259 265 119
70
264 270 117
269 274 115
274 279 113
71
72
80
81
82
264 270 131
268 273 129
272 277 127
98
274 280 139 113 298 304 151 131 322 327 162
281 287 136 114 305 311 146 132 329 334 156
288 294 134 115 312 318 142 133 336 341 150
83
275 281 125
99
295 301 131 116 319 325 137 134 343 348 144
84
279 284 123 100 302 308 128 117 326 332 133 135 350 355 138
283 288 121 101 309 315 125 118 333 339 128 136 357 362 132
286 292 119 102 316 322 122 119 340 346 124 137 364 369 125
85
86
96
97
Table 5. Verification Table for 2 Ton Models
(Orifice Matches)
OUTDOOR TEMPERATURE (DEG. F)
10
20
30
40
50
60
SUC.
PRESS
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
0
54
55
56
232 241
239 248
246 255
82
80
78
57
253 262
76
58
260 269
267 276
274 283
74
72
70
59
60
57
58
59
238 246
244 252
249 258
92
90
88
60
255 264
86
61
261 270
267 276
273 282
84
82
80
62
63
60
61
62
243 251 102
248 256 100
252 261 98
63
257 266
96
64
262 271
267 275
272 280
94
92
90
65
66
63
64
65
248 257 112
252 260 110
255 264 108
83
66
259 268 106
84
289 297 116 117 347 355 125 151 404 413 135
67
263 271 104
266 275 102
270 279 100
85
296 304 113 118 354 362 121 152 411 420 129
303 311 110 119 361 369 116 153 418 427 123
310 318 107 120 368 376 112 154 425 434 116
68
69
81
82
86
87
268 276 124 114 326 334 139 148 383 392 153
275 283 121 115 333 341 134 149 390 399 147
282 290 118 116 340 348 130 150 397 406 141
Table 6. Verification Table for 2.5 Ton Models
(Orifice Matches)
OUTDOOR TEMPERATURE (DEG. F)
10
20
30
40
50
60
SUC.
PRESS
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
0
34
35
36
193 199 132
200 206 130
207 213 128
37
214 220 126
38
221 227 124
228 234 122
235 241 120
39
40
48
49
50
224 230 138
230 236 136
236 242 134
51
242 248 132
52
248 254 130
253 260 128
259 266 126
53
54
62
63
64
255 261 143
260 266 141
264 271 139
65
269 275 137
66
274 280 135
279 285 133
283 290 131
67
68
76
77
78
286 292 148
289 296 146
293 299 144
93
79
297 303 142
94
328 334 151 109 363 369 163 124 398 404 176
80
300 307 140
304 310 138
308 314 136
95
335 341 148 110 370 376 159 125 405 411 169
342 348 145 111 377 383 154 126 412 418 163
349 355 142 112 384 390 150 127 419 425 157
81
82
91
92
96
97
307 313 159 106 342 348 177 121 377 383 194
314 320 156 107 349 355 172 122 384 390 188
321 327 154 108 356 362 168 123 391 397 182
Table 7. Verification Table for 3 Ton Models
(Orifice Matches)
14
LEGEND
NOTES:
Shaded boxes indicate flooded conditions.
Rated design values. The suction pressure
will vary from design value if outdoor air
flow, entering dry bulb, or entering wet bulb
temperatures vary.
1. All pressures are listed psig and all temperatures in °F
2. Discharge temperatures GREATER than charted values
indicate an UNDERCHARGED system.
3. Discharge temperatures LESS than charted values
indicate an OVERCHARGED system.
OUTDOOR TEMPERATURE (DEG. F)
10
20
30
40
50
60
SUC.
PRESS
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
0
35
36
37
212 223 134
219 230 132
226 237 130
38
233 244 128
39
240 251 126
247 258 124
254 265 122
40
41
49
50
51
235 245 135
241 251 133
247 257 131
52
252 263 129
53
258 269 127
264 274 125
270 280 123
54
55
64
65
66
257 267 136
262 272 134
267 277 132
67
272 282 130
68
276 287 128
281 291 126
286 296 124
69
70
78
79
80
280 290 138
283 294 136
287 297 134
96
293 303 146 111 321 331 160 128 348 359 174
300 310 143 112 328 338 156 129 355 366 168
307 317 140 113 335 345 151 130 362 373 162
81
291 301 132
97
314 324 137 114 342 352 147 131 369 380 156
82
294 305 130 98 321 331 134 115 349 359 142 132 376 387 150
298 308 128 99 328 338 131 116 356 366 138 133 383 394 144
302 312 126 100 335 345 129 117 363 373 133 134 390 401 137
83
84
94
95
Table 8. Verification Table for 3.5 Ton Models
(Orifice Matches)
OUTDOOR TEMPERATURE (DEG. F)
10
20
30
40
50
60
SUC.
PRESS
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
SUC.
PRESS.
LIQUID
PRESS.
DISCH.
PRESS.
DISCH.
TEMP.
0
32
33
34
203 219 121
210 226 119
217 233 117
35
224 240 115
36
231 247 113
238 254 111
245 261 109
37
38
47
48
49
229 244 125
235 250 123
241 256 121
50
247 262 119
51
252 268 117
258 274 115
264 280 113
52
53
62
63
64
255 270 129
259 275 127
264 280 125
65
269 284 123
66
274 289 121
278 294 119
283 299 117
67
68
77
78
79
280 296 133
284 299 131
288 303 129
94
80
291 307 127
95
315 331 133 111 342 357 139 127 368 383 146
81
295 310 125
299 314 123
302 318 121
96
322 338 130 112 349 364 135 128 375 390 140
329 345 127 113 356 371 130 129 382 397 134
336 352 124 114 363 378 126 130 389 404 127
82
83
92
93
97
98
294 310 141 108 321 336 153 124 347 362 164
301 317 139 109 328 343 148 125 354 369 158
308 324 136 110 335 350 144 126 361 376 152
Table 9. Verification Table for 4 Ton Models
(Orifice Matches)
15
16
YELLOW
R
C
OUTDOOR FAN MOTOR
S
COMPRESSOR
C
Figure 14. W.D. for 2 & 2.5 Ton Models With PSC Motor
HPS
Y
W2
THERMOSTAT
R O C
E
ODT
HP2 HP1 LP2 LP1 W2 OUT RV2 RV1
Y2 IN
Y1 IN R O C W2 IN
HOT1
HOT2
(24V COM)
Y1 OUT
Y2 OUT
COIL#1
TEMP
AMB SENSOR - Ambient Sensor
CC - Contactor Coil
CCH - Crankcase Heater
HPS - High Pressure Switch
HGBP - Hot Gas By Pass Valve
RVS - Reversing Valve Solenoid
* HARD START KIT (OPTIONAL)
HGBP
COIL SENSOR
RVS
HGBP
HPS
COIL SENSOR
(OPTIONAL
OUTDOOR
THERMOSTAT)
OUTDOOR
TEMP FAN1 FAN2 CCH2 CCH1
CCH
T2
L2
Y
O
C
W2
C W2 IN
THERMOSTAT
R
Y1 IN R O
E
ODT
Y2 IN
HP2 HP1 LP2 LP1 W2 OUT RV2 RV1
COIL#1
TEMP
HOT1
HOT2
(24V COM)
Y1 OUT
Y2 OUT
OUTDOOR
FAN1 FAN2 CCH2 CCH1
TEMP
DEFROST CONTROL
BOARD
AMB SENSOR
5
CAPACITOR
F
BLACK
BLACK
BLACK
BLACK
BLACK
H
C
L1
T1
L2
R
S
GRD
GROUNDING
SCREW
C
COMPRESSOR
R
BLACK
04/16
711315C
BLACK/
BLACK WHITE
YELLOW/
YELLOW BLACK
S
C
OUTDOOR
FAN MOTOR
Single Phase
RED/RED BLACK
BLUE
(SINGLE PHASE)
FIELD SUPPLY
L1
L2
T2
ORANGE
CONTACTOR
CC
BLACK
CCH
(OPTIONAL OUTDOOR
THERMOSTAT)
RVS
2
YELLOW
CC
R
DEFROST CONTROL BOARD
AMB SENSOR
C
F
DUAL CAPACITOR
H
S
T1
L1
NOTES:
1. Couper le courant avant de faire letretien.
1. Disconnect all power before servicing.
2. Employez uniquement des conducteurs en cuivre.
2. For supply connections use copper conductors only.
3. Ne convient pas aux installations de plus de 150 volt a la terre.
3. Not suitable on systems that exceed 150 volts to ground
4. For replacement wires use conductors suitable for 105˚ C.
5. For ampacities and overcurrent protection, see unit rating plate.
START RELAY*
6. Connect to 24 vac/40va/class 2 circuit. See furnace/air handler
START
LEGEND:
installation instructions for control circuit and optional
CAPACITOR*
1
FIELD WIRING
relay/transformer kits.
LOW VOLTAGE
DUAL
208/230V
HIGH VOLTAGE
Split System Heat Pump (Outdoor Section)
WIRING DIAGRAM
WIRING DIAGRAMS
CC
BLACK
LEGEND:
BLUE
L1
ECM
OUTDOOR
FAN MOTOR
5
Y
W2
BROWN
YELLOW
THERMOSTAT
R O C
Y1 IN R O C W2 IN
E
ODT
Y2 IN
HP2 HP1 LP2 LP1 W2 OUT RV2 RV1
COIL#1
TEMP
HOT1
HOT2
(24V COM)
Y1 OUT
Y2 OUT
OUTDOOR
TEMP FAN1 FAN2 CCH2CCH1
DEFROST CONTROL
BOARD
AMB SENSOR
L2
Y1
Y2
C
1
BLACK
BLACK
BLACK
BLACK
CC
CONTACTOR
BLACK
CCH
START
CAPACITOR*
BLACK
(OPTIONAL OUTDOOR
THERMOSTAT)
RVS
2
START RELAY*
1. Couper le courant avant de faire letretien.
2. Employez uniquement des conducteurs en cuivre.
3. Ne convient pas aux installations de plus de 150 volt a la terre.
BLACK
AMB SENSOR - Ambient Sensor
CC - Contactor Coil
CCH - Crankcase Heater
HPS - High Pressure Switch
HGBP - Hot Gas By Pass Valve
RVS - Reversing Valve Solenoid
* HARD START KIT (OPTIONAL)
FIELD WIRING
LOW VOLTAGE
HIGH VOLTAGE
HGBP
HPS
COIL SENSOR
NOTES:
1. Disconnect all power before servicing.
2. For supply connections use copper conductors only.
3. Not suitable on systems that exceed 150 volts to ground
4. For replacement wires use conductors suitable for 105˚ C.
5. For ampacities and overcurrent protection, see unit rating plate.
6. Connect to 24 vac/40va/class 2 circuit. See furnace/air handler
installation instructions for control circuit and optional
relay/transformer kits.
Split System Heat Pump (Outdoor Section) - Medium Speed ECM Motor
WIRING DIAGRAM
L2
L2
T2
C
GRD
H
01/17
10172930
GROUNDING
SCREW
C
COMPRESSOR
BLACK/
BLACK WHITE
S
R
CAPACITOR
YELLOW/
YELLOW BLACK
(SINGLE PHASE)
FIELD SUPPLY
L1
L1
T1
YELLOW
Single Phase
RED/RED BLACK
YELLOW
CC
Figure 15. W.D. for 3 Ton Models
17
Figure 16. W.D. for 3.5 & 4 Ton Models
LEGEND:
BLUE
L1
ECM
OUTDOOR
FAN MOTOR
5
Y
W2
BROWN
YELLOW
THERMOSTAT
R O C
Y1 IN R O C W2 IN
E
ODT
Y2 IN
HP2 HP1 LP2 LP1 W2 OUT RV2 RV1
COIL#1
TEMP
HOT1
HOT2
(24V COM)
Y1 OUT
Y2 OUT
OUTDOOR
TEMP FAN1 FAN2 CCH2CCH1
DEFROST CONTROL
BOARD
AMB SENSOR
L2
Y1
Y2
C
1
BLACK
BLACK
BLACK
BLACK
CC
CONTACTOR
BLACK
CCH
START
CAPACITOR*
BLACK
(OPTIONAL OUTDOOR
THERMOSTAT)
RVS
2
START RELAY*
1. Couper le courant avant de faire letretien.
2. Employez uniquement des conducteurs en cuivre.
3. Ne convient pas aux installations de plus de 150 volt a la terre.
BLACK
AMB SENSOR - Ambient Sensor
CC - Contactor Coil
CCH - Crankcase Heater
HPS - High Pressure Switch
HGBP - Hot Gas By Pass Valve
RVS - Reversing Valve Solenoid
* HARD START KIT (OPTIONAL)
FIELD WIRING
LOW VOLTAGE
HIGH VOLTAGE
HGBP
HPS
COIL SENSOR
NOTES:
1. Disconnect all power before servicing.
2. For supply connections use copper conductors only.
3. Not suitable on systems that exceed 150 volts to ground
4. For replacement wires use conductors suitable for 105˚ C.
5. For ampacities and overcurrent protection, see unit rating plate.
6. Connect to 24 vac/40va/class 2 circuit. See furnace/air handler
installation instructions for control circuit and optional
relay/transformer kits.
Split System Heat Pump (Outdoor Section) - High Speed ECM Motor
WIRING DIAGRAM
WHITE
18
L2
L2
T2
GRD
(SINGLE PHASE)
FIELD SUPPLY
L1
L1
T1
C
H
01/17
10148520
GROUNDING
SCREW
C
COMPRESSOR
BLACK/
BLACK WHITE
S
R
CAPACITOR
YELLOW/
YELLOW BLACK
YELLOW
Single Phase
RED/RED BLACK
YELLOW
CC
Figure 17. W.D. for 5 Ton Models
19
C
FIELD WIRING
LOW VOLTAGE
HIGH VOLTAGE
H
C
HPS
CC
T2
CCH
L2
Y1 IN
R
C W2 IN
TO THERMOSTAT
O
HP2 HP1 LP2 LP1 W2 OUT
COIL#1
TEMP
HOT1
HOT2
(24V COM)
Y1 OUT
Y2 OUT LPS
Y2 IN
L
RV2 RV1
OUTDOOR
FAN1 FAN2 CCH2 CCH1
TEMP
DEFROST CONTROL
BOARD
AMB
SENSOR
HGBP
CSC
COMPRESSOR
S
R
Y2
L2
208/230V
C
Y1
L1
ECM
COIL
SENSOR
CAPACITOR
OUTDOOR
FAN MOTOR
LEGEND:
T1
L1
ODT
RVS
L1
(OPTIONAL OUTDOOR
THERMOSTAT)
HGBP
L2
T2
Y1 IN
R
C W2 IN
TO THERMOSTAT
O
HP2 HP1 LP2 LP1 W2 OUT
COIL#1
TEMP
HOT1
HOT2
(24V COM)
Y1 OUT
Y2 OUT LPS
Y2 IN
L
RV2 RV1
OUTDOOR
FAN1 FAN2 CCH2 CCH1
TEMP
DEFROST CONTROL
BOARD
L1
T1
H
BLUE
ODT
RED
BLACK
C
12/16
7114570
AMB - Ambient Sensor
CC - Contactor Coil
CCH - Crankcase Heater
CSC - Compressor Solenoid Coil
LPS - Low Pressure Switch
HPS - High Pressure Switch
HGBP- Hot Gas By Pass Valve
RVS - Reversing Valve Solenoid
* OUTDOOR THERMOSTAT (OPTIONAL)
BLUE
BLUE
R
S
COMPRESSOR
YELLOW
Single Phase / 60 Hz.
(OPTIONAL OUTDOOR
THERMOSTAT)
BLACK
BLACK
BLACK
RIGHT
LEFT
C
208/230V
RVS
CAPACITOR
YELLOW
GRND L1 L2
CONTACTOR
GROUNDING
SCREW
AMB SENSOR
BLUE
BROWN
OUTDOOR
FAN MOTOR
BLACK
HPS
COIL SENSOR
L2
ECM
Y1
Y2
C
BLACK
YELLOW
1. Couper le courant avant
de faire letretien.
2. Employez uniquement des
conducteurs en cuivre.
3. Ne convient pas aux installations
de plus de 150 volt a la terre.
Two Stage Split System Heat Pump (Outdoor Section) With ECM Fan Motor
WHITE
NOTES:
1. Disconnect all power before servicing.
2. For supply connections use copper conductors only.
3. Not suitable on systems that exceed 150 volts to ground.
4. For replacement wires use conductors suitable for 105 °C
5. For ampacities and overcurrent protection, see unit rating plate.
6. Connect to 24 vac/40va/class 2 circuit. See furnace/airhandler installation
instructions for control circuit and optional relay/transformer kits.
BLACK
WIRING DIAGRAM
BLACK
CCH
INSTALLATION CHECKLIST
INSTALLATION ADDRESS:
CITY:
ELECTRICAL SYSTEM
STATE:
Electrical connections tight?
YES
NO
Line voltage polarity correct?
YES
NO
UNIT MODEL #
Rated Voltage:.................................................................. VOLTS
UNIT SERIAL #
Max. deviation of voltage
from avg. volts:................................................................. VOLTS
INSTALLER NAME:
CITY:
STATE:
Unit installed minimum clearances
shown on page 3?
YES
NO
Has the owner’s information been
reviewed with the customer?
YES
NO
Has the literature package been left
with the unit?
YES
NO
PROPOSITION 65 WARNING:
WARNING: This product contains chemicals
known to the state of California to cause cancer.
WARNING: This product contains chemicals
known to the state of California to cause birth
defects or other reproductive harm.
Has the thermostat been calibrated?
YES
NO
Is the thermostat level?
YES
NO
Is the heat anticipator setting
correct? (If Applicable)
YES
NO
REFRIGERATION SYSTEM
Was unit given 24 hr warm up period
for crankcase heaters?
YES
NO
Stage-1 Liquid Pressure (high side).................................
Stage-1 Suction Pressure (low side)................................
REPLACEMENT PARTS
Replacement parts are available through your distributor.
Please have the complete model and serial number of the
unit when ordering replacement parts.
ELECTRICAL:
Capacitors
Temperature Limit Switches
Compressors
Thermostats
Contactors
Time Delay Relays
Pressure Switches
Transformers
Relays
MOTORS:
Blower Motor
Fan Motor
COMPONENTS:
Blower Assembly
Fan Grille
Cabinet Panels
Filter/Driers
Expansion Valves
Specifications & illustrations subject to change without notice or incurring obligations (10/17).
O’Fallon, MO, © Nortek Global HVAC LLC 2017. All Rights Reserved.
1018327A
(Replaces 10183270)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
