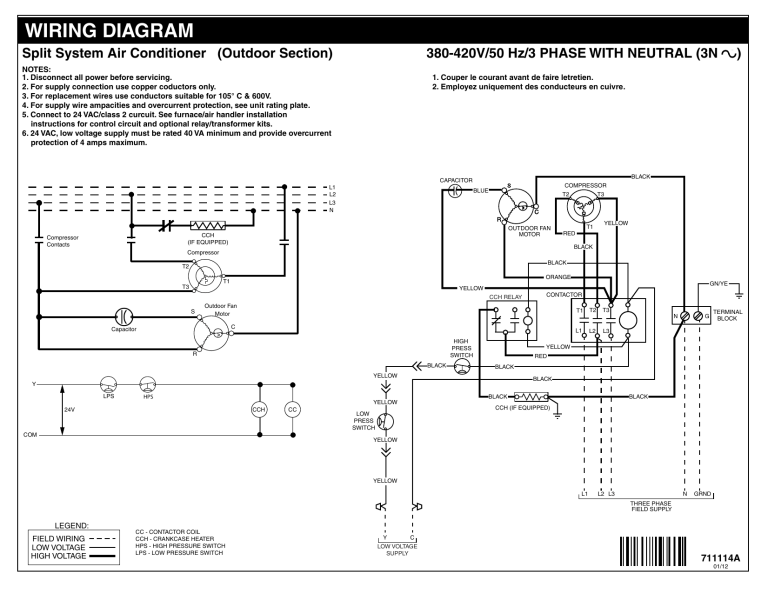

WIRING DIAGRAM
Split System Air Conditioner (Outdoor Section)
380-420V/50 Hz/3 PHASE WITH NEUTRAL (3N
NOTES:
1. Disconnect all power before servicing.
2. For supply connection use copper coductors only.
3. For replacement wires use conductors suitable for 105° C & 600V.
4. For supply wire ampacities and overcurrent protection, see unit rating plate.
5. Connect to 24 VAC/class 2 curcuit. See furnace/air handler installation
instructions for control circuit and optional relay/transformer kits.
6. 24 VAC, low voltage supply must be rated 40 VA minimum and provide overcurrent
protection of 4 amps maximum.
1. Couper le courant avant de faire letretien.
2. Employez uniquement des conducteurs en cuivre.
BLACK
CAPACITOR
L1
L2
L3
N
COMPRESSOR
T3
T2
S
BLUE
C
R
OUTDOOR FAN
MOTOR
CCH
(IF EQUIPPED)
Compressor
Contacts
)
T1
YELLOW
RED
BLACK
Compressor
BLACK
T2
ORANGE
T1
T3
GN/YE
YELLOW
CCH RELAY
S
Outdoor Fan
Motor
T1
L1
HIGH
PRESS
SWITCH
R
BLACK
L3
BLACK
BLACK
YELLOW
CC
TERMINAL
BLOCK
BLACK
HPS
CCH
L2
G
YELLOW
Y
COM
T3
RED
YELLOW
24V
T2
N
C
Capacitor
LPS
CONTACTOR
BLACK
CCH (IF EQUIPPED)
LOW
PRESS
SWITCH
YELLOW
YELLOW
L1
L2 L3
N
GRND
THREE PHASE
FIELD SUPPLY
LEGEND:
FIELD WIRING
LOW VOLTAGE
HIGH VOLTAGE
CC - CONTACTOR COIL
CCH - CRANKCASE HEATER
HPS - HIGH PRESSURE SWITCH
LPS - LOW PRESSURE SWITCH
Y
C
LOW VOLTAGE
SUPPLY
711114A
01/12
