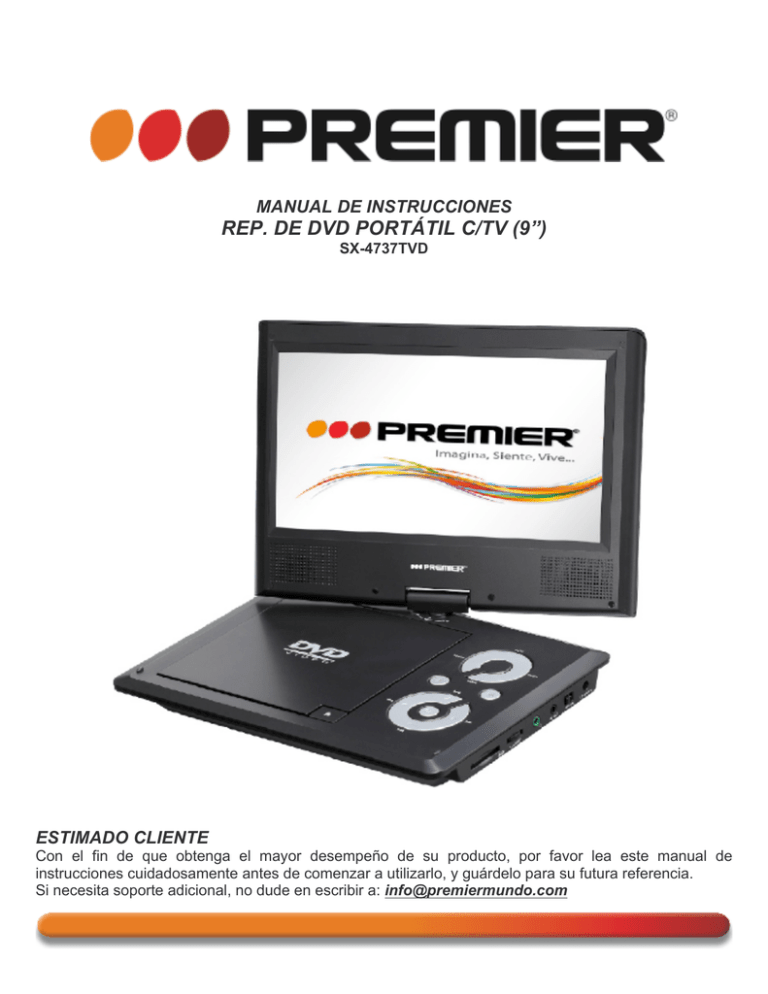

MANUAL DE INSTRUCCIONES

REP. DE DVD PORTÁTIL C/TV (9”)

SX-4737TVD

ESTIMADO CLIENTE

Con el fin de que obtenga el mayor desempeño de su producto, por favor lea este manual de instrucciones cuidadosamente antes de comenzar a utilizarlo, y guárdelo para su futura referencia.

Si necesita soporte adicional, no dude en escribir a: [email protected]

ÍNDICE

ACCESORIOS ........................................................................................................................................... 3



CARACTERÍSTICAS PRINCIPALES ........................................................................................................ 3



PANTALLA LCD GIRATORIA .................................................................................................................. 3



DESCRIPCIÓN DE LA UNIDAD ................................................................................................................ 4



CONEXIÓN DEL SISTEMA ....................................................................................................................... 5



CONTROL REMOTO ................................................................................................................................. 8



USO DEL CONTROL REMOTO ............................................................................................................. 9



FUNCIONES BÁSICAS ........................................................................................................................... 10



REPRODUCIR UN DISCO DE DVD, MPEG4, SVCD, VCD, CD, MP3 ................................................ 10

PAUSAR DURANTE EL FUNCIONAMIENTO ..................................................................................... 10

REPRODUCIR UN DISCO DVD CON MENÚ DE TITULO O CAPITULO ........................................... 10



ADELANTAR / RETROCEDER RÁPIDAMENTE ................................................................................. 10



REPETIR LA REPRODUCCIÓN .......................................................................................................... 11



REPETIR UNA ESCENA FAVORITA ................................................................................................... 11



SELECCIONAR ÁNGULO .................................................................................................................... 11



ZOOM ................................................................................................................................................... 12



REPRODUCIR UN DISCO DE ARCHIVOS JPEG ............................................................................... 12



REPRODUCIR UN DISCO DE ARCHIVOS MP3 ................................................................................. 12



EXTRACCIÓN DE CD ............................................................................................................................. 12



CONFIGURACIÓN DEL SISTEMA ......................................................................................................... 13

CONFIGURACIÓN GENERAL ............................................................................................................. 13



CONFIGURACIÓN DE AUDIO ............................................................................................................. 15



CONFIGURACIÓN DE VIDEO ............................................................................................................. 15



PREFERENCIAS .................................................................................................................................. 15



FUNCIÓN ATV ......................................................................................................................................... 16



USO DE LA BATERÍA RECARGABLE .................................................................................................. 17



MANTENIMIENTO DE LA BATERÍA RECARGABLE .......................................................................... 17



ESPECIFICACIONES .............................................................................................................................. 17



SOLUCIÓN DE PROBLEMAS ................................................................................................................ 18



P-1

PRECAUCIÓN

RIESGO DE CHOQUE

ELÉCTRICO , NO ABRA

Precaución: Para reducir el riesgo de choque eléctrico, no retire la cubierta, no hay partes manipulables por el usuario al interior de la unidad. Refiera todo mantenimiento o intervención técnica a personal técnico calificado.

Este símbolo indica la existencia de voltaje peligroso al interior de esta unidad, que constituye un riesgo de choque eléctrico.

Este símbolo indica que hay importantes instrucciones de operación y mantenimiento en la literatura que acompaña a esta unidad.

LÍNEAS DE SERVICIO AL CLIENTE PREMIER

Venezuela:

Panamá:

Sitio Web:

0800 – ELECTRIC (353-2874)

300-5185 www.premiermundo.com

E-mail:

[email protected]

NOTA

Nos reservamos el derecho de modificar las especificaciones, características y/u operación de esta unidad sin previo aviso, con el fin de continuar las mejoras y desarrollo del mismo.

P-2

ACCESORIOS

• Reproductor de DVD

• Control remoto con baterías

• Cable de Audio / Video

• Adaptador de potencia AC/DC

1

1

1

1

• Adaptador para Encendedor de cigarrillos 1

• Manual de instrucciones

• Audífonos

• Antena

1

1

1

1

• Bolsa para transporte

• Enchufe tipo DIN F

1

CARACTERÍSTICAS PRINCIPALES

• Pantalla LCD de 9” de alta luminosidad

• Compatible con discos de DVD, VCD, MP3, MPEG4, CD, JPEG, etc.

• Soporta TV/AV IN

• Parlante estéreo incorporado

• Batería de polímero de litio recargable incorporada

• Soporta sistemas PAL ó NTSC

• Soporta multi-Idiomas OSD, Adelantamiento y Retroceso rápido, Función de repetición.

• Función Zoom

PANTALLA LCD GIRATORIA

La pantalla de esta unidad puede ser girada en el sentido de las agujas del reloj máximo 180º.

P-3

DESCRIPCIÓN DE LA UNIDAD

P-4

1. Configuración

2. Menú

3. Modo

4. USB/Tarjeta

5. Reproducir / Pausar

6. Detener

7. Anterior / Siguiente

8. OK

9. Adelantar / Retroceder

10. Abrir

11. Entrada DC 9-12V

12. Interruptor de Potencia de Encendido y

Apagado

13. Salida AV

14. Entrada AV

15. Conector de audífonos

16. Ranura para tarjetas SD/MMC

17. Puerto USB

18. Antena

19. Juegos

20. Posición de la etiqueta de clasificación

21. Carga / IR

CONEXIÓN DEL SISTEMA

Alimentación e instalación

Conecte un extremo del adaptador de potencia AC/DC en el conector de entrada DC 9-12V ubicado en la parte derecha de la unidad. Luego, conecte el otro extremo en el tomacorriente. Use la siguiente ilustración como referencia.

Si usa el encendedor de cigarrillos de su vehículo para conectar a la potencia:

Conecte un extremo del adaptador para el encendedor de cigarrillos en el conector de entrada DC 9-

12V en la unidad. Luego, conecte el otro extremo en el conector del encendedor de cigarrillos del vehículo. Use la siguiente ilustración como referencia.

Notas:

1. No recomendamos recargar la batería en el encendedor para cigarrillos del vehículo.

2. Use solo el adaptador para el encendedor de cigarrillos del vehículo cuando la fuente de potencia del vehículo es de 9-12V.

3. Si el enchufe principal es usado como dispositivo de desconexión, este debe permanecer en un lugar de fácil alcance.

P-5

Conectar al TV

Puede conectar la unidad a un televisor para disfrutar de imágenes de alta calidad y sonido estéreo.

Use la siguiente ilustración como referencia

Cable AV

(No suministrado)

Nota: Use un cable AV para conectar la unidad y el televisor. Asegúrese que las conexiones se han realizado de manera correcta

P-6

Televisor

Conectar La Unidad Con Un Parlante Externo

La unidad puede ser conectada a un parlante externo. Use la siguiente ilustración como referencia

Entrada de Video

Televisor

Cable AV

(No suministrado)

Entrada de Audio

Amplificador

Parlante Frontal

Izquierdo.

Parlante Central

Parlante Frontal

Derecho.

Subwoofer

Parlante Posterior Parlante Posterior

Izquierdo. Derecho.

Nota: No hay salida de 5.1 Canales en la unidad. Sin embargo, después de conectarla al APM esta salida estará disponible.

P-7

CONTROL REMOTO

1. Encender / Apagar luz de fondo de la pantalla LCD.

2. USB/Tarjeta (Cambiar entre los modos DVD/USB/Tarjeta).

3. Botones numéricos.

4. Configuración.

5. Arriba/Abajo.

6. Derecha/Izquierda.

7. Enter (Confirmar).

8. Audio (Seleccionar el idioma de Audio)

9. Adelantamiento Rápido / Retroceso Rápido.

10. Modo (Cambiar entre los modos DVD/AVIN/TV).

11. Buscar (Iniciar la búsqueda automática de un programa cuando esta en modo TV. No disponible en modo de DVD).

12. Silenciar.

13. OSD (Muestra la información del disco durante la reproducción, como por ejemplo tiempo transcurrido y tiempo restante).

14. Repetir.

15. Repetición A-B.

P-8

16. Ángulo.

17. Menú.

18. Titulo.

19. Volumen +

20. Zoom

21. Volumen –

22. Reproducir / Pausar.

23. Subtitulo.

24. Anterior / Siguiente.

25. CAP (Captura una imagen en modo de reproducción de video o imagen. Luego, puede ajustar esta imagen como su imagen de fondo en el menú de configuración.

26. Detener.

USO DEL CONTROL REMOTO

Coloque la batería en el compartimiento del control remoto como lo indica la siguiente imagen:

Cuando use el control remoto, asegúrese que este apunta directamente al sensor infrarrojo de la unidad. La distancia entre la unidad y el control remoto debe ser de 3 metros máximo. Use la siguiente imagen como referencia

Notas:

• Evite que el control remoto se caiga.

• No lo coloque en lugares húmedos.

• Evite que el sensor infrarrojo de la unidad quede expuesto a los rayos directos del sol.

• Use una batería nueva para reemplazar la batería usada si el control remoto no funciona

P-9

FUNCIONES BÁSICAS

REPRODUCIR UN DISCO DE DVD, MPEG4, SVCD, VCD, CD, MP3

1. Conecte la unidad al tomacorriente (Asegúrese que el voltaje del área corresponda con el voltaje marcado en la parte posterior de la unidad).

2. Abra la unidad y ajuste la pantalla en el ángulo deseado para una mejor visualización.

3. Encienda la unidad deslizando el interruptor de Encendido / Apagado.

4. Abra la bandeja de discos de la unidad presionando el botón Abrir. Luego, coloque el disco en el compartimiento con la cara etiquetada mirando hacia arriba.

5. Cierre la bandeja de discos, la unidad cargara el disco e iniciara la reproducción.

6. Presione el botón Detener una vez si desea detener la reproducción. Luego, presione el botón

Reproducir/Pausar para reanudar la reproducción. Presione el botón Detener 2 veces si desea detener completamente la reproducción.

7. Cuando la reproducción se ha finalizado, deslice el botón Encender / Apagar para apagar la unidad.

Nota: No desconecte el dispositivo USB ó la tarjeta SD/MMC mientras funcionan en la unidad. Pueden ocurrir fallas en el funcionamiento en caso de presentarse operaciones incorrectas.

PAUSAR DURANTE LA REPRODUCCIÓN

Durante la reproducción, presione el botón reproducir / Pausar para Pausar. Presione el botón de nuevo para reanudar la reproducción.

Nota: Si no oprime ningún botón en modo Pausar, Detener o No disco durante 3 minutos, la unidad entrara en modo protegido. Presione cualquier botón para salir.

REPRODUCIR UN DISCO DVD CON MENÚ DE TITULO O CAPITULO

Para algunos discos de DVD con menú de titulo o capitulo, presione el botón Menú para ingresar a la pagina de menú, y use los botones direccionales para seleccionar. Presione el botón Enter para confirmar

ADELANTAR / RETROCEDER RÁPIDAMENTE

Cuando reproduzca un disco de DVD, MPEG4, SVCD, VCD, CD puede adelantar la reproducción hacia delante o hacia atrás rápidamente.

1. Presione el botón adelantar rápidamente ó retroceder rápidamente para adelantar ó retroceder la reproducción en las siguientes velocidades:

P-10

REPETIR LA REPRODUCCIÓN

Cuando reproduzca un disco de DVD, MPEG4, SVCD, VCD, CD, MP3 puede repetir la reproducción de un capitulo, titulo o el disco completo.

Para discos de DVD, presione el botón Repetir para repetir un capitulo, presiónelo de nuevo para repetir un titulo, y presiónelo por tercera vez para repetir el disco completo. Presione el botón de nuevo para cancelar la repetición.

Para discos DC/VCD, presione el botón Repetir para repetir una pista ó el disco completo.

Para discos MP3, presione el botón Repetir para repetir el archivo actual, presiónelo de nuevo para repetir la carpeta, y presiónelo nuevamente para cancelar la función.

REPETIR UNA ESCENA FAVORITA

Cuando reproduzca un disco de DVD, MPEG4, SVCD, VCD, CD, MP3, puede repetir la reproducción de una sección especifica.

Durante la reproducción, presione el botón “A-B” en el punto A, luego presione el botón de nuevo en el punto B. La unidad repetirá automáticamente la sección marcada entre los puntos A y B.

Presione el botón una vez mas para reanudar la reproducción normal.

SELECCIONAR ÁNGULO

1. Durante la reproducción de un disco DVD con función mutli-Ángulo, presione el botón Ángulo.

2. Presione los botones numéricos para seleccionar el ángulo que desea.

3. Para regresar a la reproducción normal, presione el botón Ángulo de nuevo y la unidad reproducirá el disco en el ángulo preestablecido.

Nota: Esta función solo esta disponible en discos con Multi-Angulo

P-11

ZOOM

Cuando reproduzca un disco de DVD, MPEG4, SVCD, VCD puede acercar o alejar la imagen durante la reproducción. Presione el botón Zoom repetidamente para acercar o alejar la imagen en las siguientes proporciones:

REPRODUCIR UN DISCO DE ARCHIVOS JPEG

1. Coloque un disco JPEG en la bandeja para discos, la unidad leerá el disco y lo reproducirá.

2. Cuando visualice los archivos JPEG, presione el botón Detener, las imágenes serán mostradas en miniatura. Presione los botones de navegación o el botón OK para seleccionar una imagen.

3. Presione los botones de navegación de Arriba y Abajo y el botón OK para seleccionar un archivo

JPEG del menú.

4. Use los botones de navegación Derecho e Izquierdo para rotar la imagen.

5. Presione el botón de navegación Abajo para invertir la imagen horizontalmente y presione el botón de navegación Arriba para invertir la imagen verticalmente.

REPRODUCIR UN DISCO DE ARCHIVOS MP3

Coloque el disco MP3 en la bandeja para discos. Presione los botones de navegación de Arriba y Abajo o el botón OK para elegir un archivo MP3.

Presione el botón de navegación Derecho o el botón OK para reproducir el archivo seleccionado.

EXTRACCIÓN DE CD

Durante la reproducción de discos de CD/HDCD, puede ingresar a la opción Extracción de CD presionando el botón Subtitulo. La unidad cambiara el formato del CD a formato MP3, luego guardara los archivos en el dispositivo USB o en la tarjeta de memoria SD.

P-12

Opciones:

Velocidad:

Tasa de Bits:

Crear ID3:

Dispositivo:

Salir:

Todo:

Ninguno:

Iniciar:

Ajuste la velocidad de extracción: Normal ó Rápida

Ajuste la tasa de bits, hay 6 opciones: 128Kbps, 192Kbps, 256Kbps, 320Kbps,

96Kbps y 112Kbps

Puede crear ID3 cuando reproduzca CD de texto

Indica si un dispositivo USB ó una Tarjeta SD están conectados en la unidad.

Regrese al menú anterior

Seleccione todos los archivos en el disco para conversión y almacenamiento

Cancela la selección

Mueva el cursor al ítem y presione el botón Enter, la conversión iniciara. Durante la conversión, puede seleccionar Cancelar para detenerla.

CONFIGURACIÓN DEL SISTEMA

Presione el botón Configuración y el menú principal será mostrado en la pantalla.

Use los botones de navegación para realizar los ajustes y el botón OK para confirmar.

CONFIGURACIÓN GENERAL

Tipo de visualización de TV

Ingrese a esta opción para ajustar el formato de visualización de pantalla (Normal/PS, Normal/LB, Ancho)

Nota:

• Esta función depende del radio de visualización con el que fue grabado el disco DVD.

• Seleccione Ancho (16:9) cuando use un televisor de pantalla ancha

P-13

Idioma OSD

Seleccione el idioma OSD de su preferencia: Ingles, Francés,

Alemán, Italiano.

Pre ajustado: Ingles

Protector de Pantalla

Seleccione “ON” para activar la función de protector de pantalla.

Cuando activa esta función, un icono de DVD en movimiento aparecerá en la pantalla cuando la unidad ha sido detenida o cuando se muestra una imagen fija por algunos minutos. Esta característica evita que la pantalla se dañe debido a una imagen estática que queda en la pantalla LCD durante un largo periodo de tiempo.

Seleccione “OFF” para desactivar la función.

Ultima Memoria

ON: Activar la función

OFF: Desactivar la función

Logotipo

Pre ajustado: Seleccione este ítem para ajusta el logo tipo pre ajustado como logo de apertura

Capturado: Si ha capturado una imagen presionando el botón

CAP, seleccione este ítem para elegir la imagen como logo de apertura.

Letras MP3

ON: Muestra las letras MP3 (Debe agregar el archivo de letras

MP3 al directorio de archivos MP3)

OFF: No muestra las letras MP3

P-14

CONFIGURACIÓN DE AUDIO

Downmix: Ajuste la salida del canal de audio como LT/RT ó estéreo.

CONFIGURACIÓN DE VIDEO

Ajuste la calidad de imagen de la pantalla.

Opciones: Brillo, Contraste, Tono y Saturación

Para todos los ajustes el valor pre ajustado es 00.

En modo TV: En este modo, ingrese a esta opción para ajustar el sistema de sonido e iniciar la búsqueda automática de canales.

PREFERENCIAS

Tipo de TV

Ingrese a esta opción para seleccionar el tipo de TV (PAL,

NTSC)

El modo pre ajustado es PAL.

Audio

Ingrese a esta opción para seleccionar el idioma de audio preferido para DVD. El idioma pre ajustado es Español.

Nota:

• El idioma de audio depende del material de cada disco.

• Puede cambiar el idioma de audio durante la reproducción presionando el botón de Audio

Subtítulos

Elija el idioma de subtítulos preferido para mostrar en la pantalla.

Nota:

• El idioma de subtítulos depende del material de cada disco.

• Puede cambiar el idioma de subtítulos durante la reproducción presionando el botón Subtítulos.

P-15

Menú del Disco

Esta opción le permite elegir el idioma del menú guardado en el disco

Control Parental

Los discos de DVD con la función de control parental son clasificados de acuerdo a su contenido. El contenido autorizado por el nivel de bloqueo parental y la manera en que un disco puede ser controlado puede variar de disco a disco. Si el disco lo permite, puede editar escenas violentes o reemplazarlas o bloquear la reproducción del disco completo.

Presione los botones numéricos en el control remoto, ingrese la contraseña y presione el botón OK para regresar al menú anterior.

La opción pre ajustada es Adulto.

Contraseña

Ingrese a esta opción para ajustar la contraseña (Cuatro números). Todas las características de control parental están protegidas con una contraseña.

La contraseña pre ajustada es 0000.

Usted puede cambiar la contraseña.

Restablecer

Seleccione esta opción y presione el botón OK para restablecer todos los ajustes a los valores iniciales de fabrica.

FUNCIÓN ATV

Presione el botón Modo para cambiar a modo ATV, asegúrese de conectar la antena correctamente. Si no hay base de datos (Resultado de la búsqueda) en el dispositivo portátil, presione el botón Buscar para explorar automáticamente. La siguiente operación le ayudara a recibir y ver los programas de TV.

Buscar

Presione el botón para que la unidad empiece a buscar canales automáticamente. El proceso puede tardar algunos minutos.

Use los botones de navegación de Derecha e Izquierda para seleccionar los canales que desea ver.

P-16

USO DE LA BATERÍA RECARGABLE

La unidad utiliza una batería recargable de Li-polímero de larga vida. La batería no tiene efecto memoria y por lo tanto se pueden recargar de forma segura independientemente de si la batería está completamente o parcialmente descargada. Es suficiente recargarla no más de 3 horas cada vez. La batería completamente cargada puede durar aproximadamente 2 horas.

Precauciones!

La batería solo debe ser recargada cuando la unidad este apagada. El indicador rojo se encenderá indicando que la batería esta siendo cargada, cuando la luz indicadora cambie a amarillo la unidad ha sido completamente cargada.

MANTENIMIENTO DE LA BATERÍA RECARGABLE

• La temperatura de operación normal debe ser de: 0ºC-40ºC

• Desconecte la unidad del tomacorriente cuando esta no este siendo usada.

• La unidad puede calentarse un poco durante la reproducción, esto en normal. Evite reproducir por largo tiempo y dejar la unidad desatendida.

• Evite golpear la unidad con cualquier objeto. Así mismo, ubique la unidad en un lugar alejado de fuentes de calor o zonas húmedas.

Precaución!

Hay peligro de explosión si la batería es puesta de manera incorrecta. Reemplácela solo con el mismo tipo o equivalente.

ESPECIFICACIONES

Compatible con:

Formatos de archivos soportados:

Sistema de Señal:

Dimensiones de panel:

Respuesta de frecuencia:

Salida de Video:

Salida de Audio:

Audio S/N:

Rango Dinámico:

Capacidad de Memoria Máx.:

Laser:

Fuente de potencia:

Potencia de Salida RMS:

Temperatura de Operación:

Peso:

Dimensiones:

Tipo de Batería:

DVD, DVD-R ,DVD+R, DVD-RW, DVD+RW, VCD2.0, SVCD,

CD, CD-R, CD+RW

AVI / MPG / MP3 / JPG

PAL/NTSC

9”

20Hz a 20KHz

1Vp-p / 75Ohm, Desequilibrado

1.4Vrms / 10kOhm

Mejor que 80dB

Mejor que 85dB

USB/SD/MMC: 8G

Laser semiconductor, longitud de onda: 650nm / 795 nm

AC100-240V 60/50Hz, DC 9-12V

<9V

0-40ºC

0.89Kg

242 x 172 x 42mm (WxDxH)

Li-Polímero

P-17

SOLUCIÓN DE PROBLEMAS

Problema Posible causa y solución

No suena o el sonido esta distorsionado

No se puede avanzar a través de una película

El icono “ pantalla

” aparece en la

La imagen esta distorsionada

• Asegúrese que la unidad esta conectada correctamente

• Asegúrese que todos los cables están conectados en los conectores correspondientes

• No se puede avanzar a través de los créditos de apertura y la información de alerta que aparece al principio de las películas, porque el disco está programado para prohibir esa acción.

La acción no puede ser completada debido a:

• El software del disco no lo permite

• El software del disco no soporta la característica (Ejem: Angulos)

• La característica no esta disponible en este momento.

• Ha ingresado un titulo o capitulo que esta fuera de rango.

• El disco puede estar dañado, intente con otro disco.

• Es normal que alguna distorsión aparezca durante el proceso de adelantamiento o retroceso

No se puede adelantar o retroceder

• Algunos discos tienen secciones que prohíben explorar rápidamente o saltar un capítulo; Si intenta saltar a través de la información de alerta y créditos al comienzo de una película, no le será permitido hacerlo. Esta parte de la película está programada a menudo para prohibir saltar a través de ella.

Notas:

• La calidad y velocidad de lectura de imágenes JPEG depende de la resolución y el rango de compresión de las imágenes.

• Algunas imágenes JPEG pueden no ser reproducidas debido a la calidad del disco y los formatos.

• Algunos discos de DVD+R/RW,DVD-R/RW,CD-R/RW pueden no ser reproducidos debido a la calidad en el proceso de quemado.

P-18

INSTRUCTION MANUAL

PORTABLE DVD PLAYER WIH 9'SWIVEL LCD TV

SX-4737TVD

DEAR CUSTOMER

In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference.

If you need extra support, please write to

[email protected]

Table Of Contents

Safety Precaution

Safety Precaution 1

Package 2

Main Features 2

Thank you for choosing our portable DVD player.The unit applies the latest state of art electronics and is designed for use at home,in hotels and in offices etc for relaxation.

The compact size makes carrying easier as well as installation.Please read the manual carefully prior to use and keep it well for future reference.

Main Unit Controls 3

System Connection 4

The Remote Control 7

Basic operation 9

System Setup 14

Specification 18

Troubleshooting 19

RISK OF ELECTRIC SHOCK,

DO NOT OPEN

Caution: To reduce the risk of electric shock do not open this device, there are not serviceable parts for customers. Please refer any maintenance or repair to qualified personnel.

This sign means the existence of dangerous voltage at the inside of the unit, which states a risk of electric shock.

This sign means that there are important instructions of operation and handling in the manual that comes with this device.

PREMIER CUSTOMER SERVICE

Venezuela:

Panama:

Website

E-mail:

0800 ELECTRIC (353-2874)

300-5185 www.premiermundo.com

[email protected]

NOTE

This unit may be submitted to changes in specifications, characteristics and/or operation without prior notice to the user, in order to continue improving and developing its technology.

1

Table Of Contents

Safety Precaution

Safety Precaution 1

Package 2

Main Features 2

Thank you for choosing our portable DVD player.The unit applies the latest state of art electronics and is designed for use at home,in hotels and in offices etc for relaxation.

The compact size makes carrying easier as well as installation.Please read the manual carefully prior to use and keep it well for future reference.

Main Unit Controls 3

System Connection 4

The Remote Control 7

Basic operation 9

System Setup 14

Specification 18

Troubleshooting 19

RISK OF ELECTRIC SHOCK,

DO NOT OPEN

Caution: To reduce the risk of electric shock do not open this device, there are not serviceable parts for customers. Please refer any maintenance or repair to qualified personnel.

This sign means the existence of dangerous voltage at the inside of the unit, which states a risk of electric shock.

This sign means that there are important instructions of operation and handling in the manual that comes with this device.

PREMIER CUSTOMER SERVICE

Venezuela:

Panama:

Website

E-mail:

0800 ELECTRIC (353-2874)

300-5185 www.premiermundo.com

[email protected]

NOTE

This unit may be submitted to changes in specifications, characteristics and/or operation without prior notice to the user, in order to continue improving and developing its technology.

1

Package

DVD Player

Remote Control with battery

Audio/Video Cable

AC/DC Power Adapter

Cigarette Lighter Adapter

User Manual

Earphone

Antenna

Carry pouch

DIN F Type pluy

1

1

1

1

1

1

1

1

1

1

Main Features

High brightness color 9” LCD screen

Compatible with disc of DVD,VCD,MP3,MPEG4,CD,JPEG,etc

Support TV/AV IN

Built-in stereo speaker

Built-in rechargeable Lithium polymer battery

Support PAL or NTSC system

Support Multi-language OSD,speed forward/backward, repeat function

Zoom in/out function

Swivelling LCD screen

You can swivel the LCD screen of this player clockwise a maximum of 180 ° for use.

Main Unit Controls

2

10

SETUP

MODE

USB/CARD

MENU

1

2

3

4

5

7

8

6

9

11

12

13

14

15

16

17

20

19 18

1.SETUP BUTTON

2.MENU BUTTON

3.MODE BUTTON

4.USB/CARD BUTTON

5.PLAY/PAUSE BUTTON

6.STOP BUTTON

7. BUTTON

8. OK BUTTON

9. BUTTON

10. OPEN knob

11. DC IN 9-12V

12. POWER ON/OFF SWITCH

13. AV OUT

14 .AV IN

15. Earphone jack

16. SD/MMC Card slot

17. USB port

18. ANT

19. GAME

20.Rating label position

21.Charging/IR

3

Charging /IR

21

Package

DVD Player

Remote Control with battery

Audio/Video Cable

AC/DC Power Adapter

Cigarette Lighter Adapter

User Manual

Earphone

Antenna

Carry pouch

DIN F Type pluy

1

1

1

1

1

1

1

1

1

1

Main Features

High brightness color 9” LCD screen

Compatible with disc of DVD,VCD,MP3,MPEG4,CD,JPEG,etc

Support TV/AV IN

Built-in stereo speaker

Built-in rechargeable Lithium polymer battery

Support PAL or NTSC system

Support Multi-language OSD,speed forward/backward, repeat function

Zoom in/out function

Swivelling LCD screen

You can swivel the LCD screen of this player clockwise a maximum of 180 ° for use.

Main Unit Controls

2

10

SETUP

MODE

USB/CARD

MENU

1

2

3

4

5

7

8

6

9

11

12

13

14

15

16

17

20

19 18

1.SETUP BUTTON

2.MENU BUTTON

3.MODE BUTTON

4.USB/CARD BUTTON

5.PLAY/PAUSE BUTTON

6.STOP BUTTON

7. BUTTON

8. OK BUTTON

9. BUTTON

10. OPEN knob

11. DC IN 9-12V

12. POWER ON/OFF SWITCH

13. AV OUT

14 .AV IN

15. Earphone jack

16. SD/MMC Card slot

17. USB port

18. ANT

19. GAME

20.Rating label position

21.Charging/IR

3

Charging /IR

21

System Connection

Powering and installation

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the main unit, then plug the other end into the AC power receptacle.Please refer to the following illustration.

AV IN AV OUT OFF/ON

DC IN 9-12V

If using car cigarette lighter adaptor to connect to the power:

Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket.See illustration below.

AV IN AV OUT

OFF/ON

DC IN 9-12V

Connecting to TV

You can also connect the unit to a TV to enjoy high quality picture and stereo sound.

Please refer to the following illustration:

AV IN AV OUT OFF/ON

DC IN 9-12V

AV CABLE

(Not Supplied)

AUDIO IN VIDEO IN

TV

Please use AV cable to connect the machine and the TV.Make sure it is connected

correctly.

Note:

1.Car cigarette lighter adaptor is not recommended to recharge the battery.

2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.

3.The mains plug is used as the disconnect device, the disconnect device should remain

readily operable.

4 5

System Connection

Powering and installation

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the main unit, then plug the other end into the AC power receptacle.Please refer to the following illustration.

AV IN AV OUT OFF/ON

DC IN 9-12V

If using car cigarette lighter adaptor to connect to the power:

Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket.See illustration below.

AV IN AV OUT

OFF/ON

DC IN 9-12V

Connecting to TV

You can also connect the unit to a TV to enjoy high quality picture and stereo sound.

Please refer to the following illustration:

AV IN AV OUT OFF/ON

DC IN 9-12V

AV CABLE

(Not Supplied)

AUDIO IN VIDEO IN

TV

Please use AV cable to connect the machine and the TV.Make sure it is connected

correctly.

Note:

1.Car cigarette lighter adaptor is not recommended to recharge the battery.

2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.

3.The mains plug is used as the disconnect device, the disconnect device should remain

readily operable.

4 5

Connecting with external Speaker

The unit can be connected with external speaker. Please see the following illustration.

AV IN AV OUT OFF/ON

DC IN 9-12V

AV CABLE

Not supplied

VIDEO IN AUDIO IN

AMPLIFIER

TV

Left front speaker

Center speaker

Right front speaker

SUBWOOFER

Left rear speaker Right rear speaker

Notice:There is no 5.1 channel in the unit,however,after connecting to APM it is available

to output audio in 5.1 channel.

6

The Remote Control

6

7

8

4

5

9

10

11

1

2

3

LCD

SETUP

AUDIO

ENTER

OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

ZOOM VOL+

SUBTITLE

VOL-

MODE SEARCH STOP CAP

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

1. LCD(Ture on/off LCD panel back light)

2. USB/CARD(Switch between DVD/USB/

CARD)

3. Number button

4. SETUP(To go to or exit setup menu)

5. UP/DOWN button

6. LEFT/RIGHT button

7. Enter(To confirm)

8. AUDIO(To select audio language)

9. Fast forward/backward button (To scan

forward/backward at 2, 4, 8,16, or 32 times)

10. MODE(Switch between DVD/AVIN/TV

MODE)

11. SEARCH(To start auto search TV program

when in TV mode:Not available in DVD mode)

12. MUTE(To turn to mute)

13. OSD(To display disc information during playing such as elapsed and remaining time)

14. Repeat(To repeat playing title,chapter or track)

15. A-B (Rep eat a s peci fic p orti on fr om po int A to B, press it again to cancel repeat playing)

16. Angle(To change viewing angle when playing disc with multi-angle)

17. Menu(To enter or exit menu root:When play disc with PBC,press this button to

enter PBC menu,press again to exit)

18. TITLE(To display title information)

19. VOL +(To adjust the volume)

20. ZOOM(To zoom in/out the image during the playback)

21. VOL-(To adjust the volume)

22. Play/pause

23. Subtitle(To select subtitle language when playing DVD disc)

24. Previous/Next button(To go to previous/next chapter or scene during playing)

25. CAP(To capture a image when in playing video or pictrue,and then you can set this

image as your opening logo in setup menu)

26. Stop(press once to stop playback, then press to resume playback from the

point where you stopped;press stop button twice to stop playback completely)

7

Connecting with external Speaker

The unit can be connected with external speaker. Please see the following illustration.

AV IN AV OUT OFF/ON

DC IN 9-12V

AV CABLE

Not supplied

VIDEO IN AUDIO IN

AMPLIFIER

TV

Left front speaker

Center speaker

Right front speaker

SUBWOOFER

Left rear speaker Right rear speaker

Notice:There is no 5.1 channel in the unit,however,after connecting to APM it is available

to output audio in 5.1 channel.

6

The Remote Control

6

7

8

4

5

9

10

11

1

2

3

LCD

SETUP

AUDIO

ENTER

OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

ZOOM VOL+

SUBTITLE

VOL-

MODE SEARCH STOP CAP

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

1. LCD(Ture on/off LCD panel back light)

2. USB/CARD(Switch between DVD/USB/

CARD)

3. Number button

4. SETUP(To go to or exit setup menu)

5. UP/DOWN button

6. LEFT/RIGHT button

7. Enter(To confirm)

8. AUDIO(To select audio language)

9. Fast forward/backward button (To scan

forward/backward at 2, 4, 8,16, or 32 times)

10. MODE(Switch between DVD/AVIN/TV

MODE)

11. SEARCH(To start auto search TV program

when in TV mode:Not available in DVD mode)

12. MUTE(To turn to mute)

13. OSD(To display disc information during playing such as elapsed and remaining time)

14. Repeat(To repeat playing title,chapter or track)

15. A-B (Rep eat a s peci fic p orti on fr om po int A to B, press it again to cancel repeat playing)

16. Angle(To change viewing angle when playing disc with multi-angle)

17. Menu(To enter or exit menu root:When play disc with PBC,press this button to

enter PBC menu,press again to exit)

18. TITLE(To display title information)

19. VOL +(To adjust the volume)

20. ZOOM(To zoom in/out the image during the playback)

21. VOL-(To adjust the volume)

22. Play/pause

23. Subtitle(To select subtitle language when playing DVD disc)

24. Previous/Next button(To go to previous/next chapter or scene during playing)

25. CAP(To capture a image when in playing video or pictrue,and then you can set this

image as your opening logo in setup menu)

26. Stop(press once to stop playback, then press to resume playback from the

point where you stopped;press stop button twice to stop playback completely)

7

The Use of Remote Control

Please put the battery into the remote control as per below illustration.

1

2

CR2025 CR2025

When using remote control,make sure the infrared window is pointed to infrared receiving window of the machine.The distance between machine and remote control must be within

3 metres.Please refer to the following illustration.

SETUP

MODE

USB/CARD

MENU

30

0

30

0

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Notice

1. To avoid falling off or place near damp environment.

2. To avoid infrared receiving window of the unit being under direct sunlight.

3. Please use a new battery to replace old one if the remote control doesn't work.

8

Basic Operation

Playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,

DVD MPEG4

SVCD

VCD CD MP3

1.Connect the unit to the power.

2.Open the unit and adjust the monitor to the best position for viewing.

3.Turn on the unit by sliding the ON/OFF switch to ON.

4.Open the disc door by pressing OPEN button and insert a disc into the door with the

label side facing up.

5.Close the disc door. The unit will load the disc and start playing.

6.Press

“STOP” once to stop playback; then press “ ” to resume playback from the point

where you stopped; press “STOP” twice to stop playback completely.

7.when the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.

Note:Please do not disconnect USB devices or plug out SD/MMC cards while they are

working with the unit.Functional failure may occur in case of wrong operations.

Pause during playback

DVD

MPEG4 SVCD

VCD CD MP3

During playback,press “ ” to resume playback.

to pause;press it again

Note

When at PAUSE,STOP,or no disc,in about 3 minutes the unit will be protected; press any button to exit.

Play DVD disc with title or chapter menu

For some DVD disc with Title or chapter menu, press MENU button to enter menu page,and use direction button to select,Press ENTER to confirm.

Cursor button

ENTER

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Play/pause

LCD OSD MUTE

REPEAT

A-B

SETUP

ENTER

ANGLE

TITLE

MENU

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Title

Menu

9

The Use of Remote Control

Please put the battery into the remote control as per below illustration.

1

2

CR2025 CR2025

When using remote control,make sure the infrared window is pointed to infrared receiving window of the machine.The distance between machine and remote control must be within

3 metres.Please refer to the following illustration.

SETUP

MODE

USB/CARD

MENU

30

0

30

0

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Notice

1. To avoid falling off or place near damp environment.

2. To avoid infrared receiving window of the unit being under direct sunlight.

3. Please use a new battery to replace old one if the remote control doesn't work.

8

Basic Operation

Playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,

DVD MPEG4

SVCD

VCD CD MP3

1.Connect the unit to the power.

2.Open the unit and adjust the monitor to the best position for viewing.

3.Turn on the unit by sliding the ON/OFF switch to ON.

4.Open the disc door by pressing OPEN button and insert a disc into the door with the

label side facing up.

5.Close the disc door. The unit will load the disc and start playing.

6.Press

“STOP” once to stop playback; then press “ ” to resume playback from the point

where you stopped; press “STOP” twice to stop playback completely.

7.when the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.

Note:Please do not disconnect USB devices or plug out SD/MMC cards while they are

working with the unit.Functional failure may occur in case of wrong operations.

Pause during playback

DVD

MPEG4 SVCD

VCD CD MP3

During playback,press “ ” to resume playback.

to pause;press it again

Note

When at PAUSE,STOP,or no disc,in about 3 minutes the unit will be protected; press any button to exit.

Play DVD disc with title or chapter menu

For some DVD disc with Title or chapter menu, press MENU button to enter menu page,and use direction button to select,Press ENTER to confirm.

Cursor button

ENTER

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Play/pause

LCD OSD MUTE

REPEAT

A-B

SETUP

ENTER

ANGLE

TITLE

MENU

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Title

Menu

9

Fast forward and fast backward

DVD MPEG4 SVCD VCD CD

When playing disc of DVD, MPEG4,SVCD, VCD, CD, the unit can search forward or backward.

1. Press“ ”,the unit will search forward.Press it repeatedly,the unit will play at 2,4,

8,16,32 times of speed.

2X 4X

32X 16X 8X

2. Press“ ”,the unit will search backward.

Press it repeatedly,the unit will play at

2,4,8,16,32 times of speed.

2X 4X

LCD OSD MUTE

REPEAT

A-B

SETUP

ENTER

ANGLE

TITLE MENU

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Search forward

Search backward

32X 16X

Repeat playing

DVD

MPEG4 SVCD VCD CD

MP3

8X

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one chapter,title or all the whole disc.

” playing Title;press it third time to repeat playing the whole disc ;Press it again to cancel repeat function.

Chapter Title All

Repeat off

Track

” button repeatedly to repeat the track and the whole disc.

All

Repeat off

”button to repeat playing current file;press it again to repeat playing the folder;press it third time to cancel repeat function.

Repeat off Repeat one

Repeat folder

10

Repeat playing of favorite scene

DVD MPEG4 SVCD VCD CD MP3

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a specific section.

A press this button again in point B,the unit will automatically repeat playing the part between A-B.

AB

Press it the third time,the unit will return to normal playback.

Number

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

A-B

Angle

Select angle

DVD

During playing DVD disc with multi-angle,press

“Angle”button,the followings will be displayed on screen.

Press number buttons to select the angle you desire

To return to normal playing,please press “Angle” the unit will play the disc in the default angle.

1 /4

2 /4

3 /4

Note

The function is available only for discs with multi-angle.

4 /4

11

Fast forward and fast backward

DVD MPEG4 SVCD VCD CD

When playing disc of DVD, MPEG4,SVCD, VCD, CD, the unit can search forward or backward.

1. Press“ ”,the unit will search forward.Press it repeatedly,the unit will play at 2,4,

8,16,32 times of speed.

2X 4X

32X 16X 8X

2. Press“ ”,the unit will search backward.

Press it repeatedly,the unit will play at

2,4,8,16,32 times of speed.

2X 4X

LCD OSD MUTE

REPEAT

A-B

SETUP

ENTER

ANGLE

TITLE MENU

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Search forward

Search backward

32X 16X

Repeat playing

DVD

MPEG4 SVCD VCD CD

MP3

8X

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one chapter,title or all the whole disc.

” playing Title;press it third time to repeat playing the whole disc ;Press it again to cancel repeat function.

Chapter Title All

Repeat off

Track

” button repeatedly to repeat the track and the whole disc.

All

Repeat off

”button to repeat playing current file;press it again to repeat playing the folder;press it third time to cancel repeat function.

Repeat off Repeat one

Repeat folder

10

Repeat playing of favorite scene

DVD MPEG4 SVCD VCD CD MP3

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a specific section.

A press this button again in point B,the unit will automatically repeat playing the part between A-B.

AB

Press it the third time,the unit will return to normal playback.

Number

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

A-B

Angle

Select angle

DVD

During playing DVD disc with multi-angle,press

“Angle”button,the followings will be displayed on screen.

Press number buttons to select the angle you desire

To return to normal playing,please press “Angle” the unit will play the disc in the default angle.

1 /4

2 /4

3 /4

Note

The function is available only for discs with multi-angle.

4 /4

11

Zoom in/ out

DVD MPEG4 SVCD VCD

When playing disc of DVD,MPEG4,SVCD,VCD,user can zoom in or zoom out the image .

During playback,press“Zoom”button,the image will be enlarged;press it again the image will be enlarged again; press it fourth time,the image will zoom out,press it repeatedly and the image will return to normal status.

2X

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

Zoom in/out

3X

4X

1 /2X

MODE SEARCH STOP CAP

When the image is enlarged,user can press“ ”to move the image.

1 /3X

1 /4X

Playing JPEG file in data disc

1. Place a JPEG disc into the tray, the unit will start reading and play.

2. “STOP” ,pictures will be displayed in thumbnail mode,

press “ ” or OK button to select one picture to view.

3. Press “ ” ”

4. To rotate the picture counter-clockwise,press “ ” ;Press “ ” to rotate the picture

clockwise.

5. Press “ ” to reverse the picture horizontally and press “ ” to reverse the picture

vertically.

Playing MP3 files in data disc

Place MP3 disc into the disc door.Press

“ ” or “OK”button to choose a MP3 file;

Press“ ”or“OK”button to play the file selected.

00 36 03 43

Dir 001

\Ctyy\

Mp3

......

TRACK01

Mp3 TRACK02

Mp3 TRACK03

Mp3

Mp3

TRACK04

TRACK05

12

CD RIPPING

During playing the CD/HDCD disc,you can enter CD Ripping function.By pressing subtitle button,DVD player will be able to change the CD format into MP3 format, and then store it in the USB or SD card.

Options

Speed Normal

Bitrate 128kbps

Create Id3 Yes

Device USB 1

SUMMARY

Selected Track 0

Selected Time 00:00

Start Exit

CD RIP

Track

Track 01 03:36

Track 02 03:36

Track 03 03:36

Track 04 03:36

Track 05 03:36

Track 06 03:36

Track 07 03:36

All None

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices,128Kbps,192Kbps,256Kbps,

320Kbps,96Kbps and 112Kbps.

Create ID3:In this item, you can create ID3 when playing CD text.

Device: This item indicates whether USB or SD CARD is connected with DVD player.

Exit: Exit to the previous menu.

All: Select all the files in the disc for convertion and storage.

None: Cancel the selection .

Start: Move the cursor to the item and press “ENTER” button, the convertion begins.

During the converting,you can select “CANCEL” to stop it.

CD RIP

Ripping

Track Progress

Total Progress

Cancel

SUMMARY

Now ripping

Track 01/01

Selected track

Track 01 9%

13

Zoom in/ out

DVD MPEG4 SVCD VCD

When playing disc of DVD,MPEG4,SVCD,VCD,user can zoom in or zoom out the image .

During playback,press“Zoom”button,the image will be enlarged;press it again the image will be enlarged again; press it fourth time,the image will zoom out,press it repeatedly and the image will return to normal status.

2X

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

Zoom in/out

3X

4X

1 /2X

MODE SEARCH STOP CAP

When the image is enlarged,user can press“ ”to move the image.

1 /3X

1 /4X

Playing JPEG file in data disc

1. Place a JPEG disc into the tray, the unit will start reading and play.

2. “STOP” ,pictures will be displayed in thumbnail mode,

press “ ” or OK button to select one picture to view.

3. Press “ ” ”

4. To rotate the picture counter-clockwise,press “ ” ;Press “ ” to rotate the picture

clockwise.

5. Press “ ” to reverse the picture horizontally and press “ ” to reverse the picture

vertically.

Playing MP3 files in data disc

Place MP3 disc into the disc door.Press

“ ” or “OK”button to choose a MP3 file;

Press“ ”or“OK”button to play the file selected.

00 36 03 43

Dir 001

\Ctyy\

Mp3

......

TRACK01

Mp3 TRACK02

Mp3 TRACK03

Mp3

Mp3

TRACK04

TRACK05

12

CD RIPPING

During playing the CD/HDCD disc,you can enter CD Ripping function.By pressing subtitle button,DVD player will be able to change the CD format into MP3 format, and then store it in the USB or SD card.

Options

Speed Normal

Bitrate 128kbps

Create Id3 Yes

Device USB 1

SUMMARY

Selected Track 0

Selected Time 00:00

Start Exit

CD RIP

Track

Track 01 03:36

Track 02 03:36

Track 03 03:36

Track 04 03:36

Track 05 03:36

Track 06 03:36

Track 07 03:36

All None

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices,128Kbps,192Kbps,256Kbps,

320Kbps,96Kbps and 112Kbps.

Create ID3:In this item, you can create ID3 when playing CD text.

Device: This item indicates whether USB or SD CARD is connected with DVD player.

Exit: Exit to the previous menu.

All: Select all the files in the disc for convertion and storage.

None: Cancel the selection .

Start: Move the cursor to the item and press “ENTER” button, the convertion begins.

During the converting,you can select “CANCEL” to stop it.

CD RIP

Ripping

Track Progress

Total Progress

Cancel

SUMMARY

Now ripping

Track 01/01

Selected track

Track 01 9%

13

System Setup

General

Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Go to General Setup Page

General setup page

Prefer

Press”Setup”button,the main menu will be displayed on the screen

In the General Setup Page, Press button to highlight this item.

Press OK button to access.

Press button to select the setting.

Press OK button to confirm your selection.

Press button to exit.

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Normal/PS

Normal/LB

Wide

Prefer

Set TV Display Mode

TV display:

Enter this option,user can set screen display format

(Nomal/PS,Nomal/LB,Wide)

The default is “Wide”

Note

The function depends on the display ratio with which the

DVD disc is recorded.

Please choose “Wide(16:9)”when using a16:9 wide screen

TV set16:9.

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Prefer

English

Spanish

Porturguese

Set OSD Language

OSD Language:

In the option user can set OSD menu language(English,

French,German,Italian).

The default:English

14

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

On

Off

Set Screen Saver

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

On

Off

Set Last Memory State

Prefer

Prefer

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Default

Captured

Prefer

Set Logo Type

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On On

Off

Set Mp3 Lyric Mode

Prefer

Screen Saver

Select On to activate the screen saver function, when you activate this function,a moving DVD symbol appears on the screen when the unit is stopped or when it shows a still picture for several minutes.This features saves the screen from the being damaged by a static image remaining on the LCD screen for long periods of time.

Select Off to cancel this function.

Last Memory

On:Turn on last memory function

Off:Turn off last memory function

Logo Type:

Default:Set that default logo as opening logo

Captured:If you have captured a image by press CAP key, select this item to set that image as your opening logo.

MP3 Lyric

On Show mp3 lyric(you must add the mp3 lyric file to the mp3 file directory)

Off:Don't show mp3 lyric

Audio Setup Page

General Audio

- - Audio Setup Page - -

Downmix STR

Video Prefer

Downmix:Set audio CH output as LT/RT or stereo.

Go to Speaker setup Page

15

System Setup

General

Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Go to General Setup Page

General setup page

Prefer

Press”Setup”button,the main menu will be displayed on the screen

In the General Setup Page, Press button to highlight this item.

Press OK button to access.

Press button to select the setting.

Press OK button to confirm your selection.

Press button to exit.

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Normal/PS

Normal/LB

Wide

Prefer

Set TV Display Mode

TV display:

Enter this option,user can set screen display format

(Nomal/PS,Nomal/LB,Wide)

The default is “Wide”

Note

The function depends on the display ratio with which the

DVD disc is recorded.

Please choose “Wide(16:9)”when using a16:9 wide screen

TV set16:9.

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Prefer

English

Spanish

Porturguese

Set OSD Language

OSD Language:

In the option user can set OSD menu language(English,

French,German,Italian).

The default:English

14

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

On

Off

Set Screen Saver

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

On

Off

Set Last Memory State

Prefer

Prefer

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Default

Captured

Prefer

Set Logo Type

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On On

Off

Set Mp3 Lyric Mode

Prefer

Screen Saver

Select On to activate the screen saver function, when you activate this function,a moving DVD symbol appears on the screen when the unit is stopped or when it shows a still picture for several minutes.This features saves the screen from the being damaged by a static image remaining on the LCD screen for long periods of time.

Select Off to cancel this function.

Last Memory

On:Turn on last memory function

Off:Turn off last memory function

Logo Type:

Default:Set that default logo as opening logo

Captured:If you have captured a image by press CAP key, select this item to set that image as your opening logo.

MP3 Lyric

On Show mp3 lyric(you must add the mp3 lyric file to the mp3 file directory)

Off:Don't show mp3 lyric

Audio Setup Page

General Audio

- - Audio Setup Page - -

Downmix STR

Video Prefer

Downmix:Set audio CH output as LT/RT or stereo.

Go to Speaker setup Page

15

Video setup page

General Audio

- - Video Setup Page - -

Panel Quality

TV

Video Prefer

Enter this option,user can adjust picture quality of unit

screen.There are items available to be adjusted:

Brightness,contrast,Hue and Saturation.

For all these items the default is 00.

TV:

When in TV mode,enter this option to set the TV sound

system and start auto search TV program.

Go to Video Setup Page

Preference page

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

PAL

NTSC

Prefer

Set TV Standard

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

English

French

Spanish

Chinese

Japanese

Korean

Russian

Thai

Prefer

Preferred Audio La nguage

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Preferred Subtitle Language

Video

Spanish

Chinese

Japanese

Korean

Russian

Thai

Off

Others

Prefer

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

ENG

Parental

Password

Default

Video

English

French

Spanish

Chinese

Japanese

Korean

Russian

Thai

Prefer

Preferred Menu Language

TV Type:

Enter this option to select TV type(PAL,NTSC)

The default is PAL.

Audio:

Enter this option,user can select your preferred audio language for DVDs,The default is Spanish.

Note

The audio language depend on the material on each disc.

User can also change the audio language during playback

by pressing the Audio button.

Subtitle

Select your preferred language to show the subtitles on the screen.The subtitle languages depend on the

information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button.

Disc Menu

This function allows you to choose the menu language stored on the disc.

16

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video Prefer

1 KID SAF

2 G

3 PG

4 PG 13

5 PGR

6 R

7 NC17

8 ADULT

Set Parental Control

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

ENG

Parental

Password

Default

Video

Change

Prefer

Change Password

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

Reset

Prefer

Load Factory Setting

Parental:

DVD discs equipped with the child lock function are rated according to their content. The content authorized by a parental lock level and the way a disc can be controlled may vary from disc to disc. If the disc allows, you can edit out violent scenes and replace them or lock out playback of the disc altogether.

press the number button on the remote control to enter the password and press the OK button to return to the previous menu.

The default is ADULT.

Enter this option, you can set a password(four numbers).

All parental Control features are password protected.

This function allow you to change the password.

The default password is 0000.

Default:

Select this item and press OK button to reset all settings to the original factory settings.

ATV Function

Press the MODE button to switch to ATV mode,ensure to connect antenna properly. If there is no database(search result)in the portable device, please press SEARCH key to auto scan.Operation as follow will help you receive and watch the TV programs.

SEARCH:

255.25

VHF 0

SEARCH: Automatic Channel Scan,pressing the button,the player will automatically start channel scan to find out available broadcasting channels in the area.It will cost several minutes to finish the search process.

/ : use / key to select the channel that you want to watch.

17

Video setup page

General Audio

- - Video Setup Page - -

Panel Quality

TV

Video Prefer

Enter this option,user can adjust picture quality of unit

screen.There are items available to be adjusted:

Brightness,contrast,Hue and Saturation.

For all these items the default is 00.

TV:

When in TV mode,enter this option to set the TV sound

system and start auto search TV program.

Go to Video Setup Page

Preference page

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

PAL

NTSC

Prefer

Set TV Standard

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

English

French

Spanish

Chinese

Japanese

Korean

Russian

Thai

Prefer

Preferred Audio La nguage

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Preferred Subtitle Language

Video

Spanish

Chinese

Japanese

Korean

Russian

Thai

Off

Others

Prefer

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

ENG

Parental

Password

Default

Video

English

French

Spanish

Chinese

Japanese

Korean

Russian

Thai

Prefer

Preferred Menu Language

TV Type:

Enter this option to select TV type(PAL,NTSC)

The default is PAL.

Audio:

Enter this option,user can select your preferred audio language for DVDs,The default is Spanish.

Note

The audio language depend on the material on each disc.

User can also change the audio language during playback

by pressing the Audio button.

Subtitle

Select your preferred language to show the subtitles on the screen.The subtitle languages depend on the

information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button.

Disc Menu

This function allows you to choose the menu language stored on the disc.

16

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video Prefer

1 KID SAF

2 G

3 PG

4 PG 13

5 PGR

6 R

7 NC17

8 ADULT

Set Parental Control

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

ENG

Parental

Password

Default

Video

Change

Prefer

Change Password

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

Reset

Prefer

Load Factory Setting

Parental:

DVD discs equipped with the child lock function are rated according to their content. The content authorized by a parental lock level and the way a disc can be controlled may vary from disc to disc. If the disc allows, you can edit out violent scenes and replace them or lock out playback of the disc altogether.

press the number button on the remote control to enter the password and press the OK button to return to the previous menu.

The default is ADULT.

Enter this option, you can set a password(four numbers).

All parental Control features are password protected.

This function allow you to change the password.

The default password is 0000.

Default:

Select this item and press OK button to reset all settings to the original factory settings.

ATV Function

Press the MODE button to switch to ATV mode,ensure to connect antenna properly. If there is no database(search result)in the portable device, please press SEARCH key to auto scan.Operation as follow will help you receive and watch the TV programs.

SEARCH:

255.25

VHF 0

SEARCH: Automatic Channel Scan,pressing the button,the player will automatically start channel scan to find out available broadcasting channels in the area.It will cost several minutes to finish the search process.

/ : use / key to select the channel that you want to watch.

17

Specification

Compatatible Disc: DVD, DVD-R ,DVD+R, DVD-RW, DVD+RW, VCD2.0, SVCD, CD,

CD-R, CD+RW

File format to support: AVI/MPG/MP3/JPG

Signal system:PAL/NTSC

Panel size:9 inch

Frequency response:20 Hz to 20 kHz

Video output:1 Vp-p/ 75 Ohm, unbalanced

Audio output:1.4Vrms/10kOhm

Audio S/N:Better than 80 dB

Dynamic range:Better than 85 dB

The Max memory size of USB/SD/MMC card can be supported: 8 G

Laser:Semiconductor Laser, Wave Length: 650 nm /795 nm

Power source: AC 100-240V 60/50 HZ, DC 9-12V

RMS output power: < 9 W

Operating temperature:0~40°C

Weight:0.89kg

Dimensions (W x D x H):242 x 172 x42mm

Battery Type:Li Polymer

Note:

1.The quality and speed for reading JPEG photos depend on the resolution and

compression ratio of the photos.Some JPEG photo may not be played due to the disc

quality and the formats.

2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to the quality on

burning conditions.

Rechargeable battery use

The unit utilizes long-life Li polymer battery for portable power supply.The battery has no Memory Effect and thus can be recharged safely regardless of whether the battery is fully or partially discharged.It is enough to recharge no longer than 3H each time.fully recharged battery can last about 2 hours.

Precautions related to Battery Recharge

The battery can be only recharged when turning power to OFF state,and keep continuous power supply,the red light will be on,and the light will turn yellow when it is fully charged.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is: 0 °C ~40 °C ;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing,it's normal,while avoid long time playing and unattended;

4. Avoid having the unit collide with any objects, and place away from all possible heat

sources or damp areas.

Caution:Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type.

18

Troubleshooting

PROBLEM SOLUTION

No sound or distorted sound

Make sure the machine is connected properly.

Make sure all cables are securely inserted into the appropriate jacks.

Can't advance through a movie

The icon appears on screen

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1.The disc's software restricts it.

2.The disc's software doesn't support the

feature (e.g., angles)

3.The feature is not available at the moment.

4.You've requested a title or chapter number

that is out of range.

Picture is distorted

The disc might be damaged.Try another disc; it is normal for some distortion to appear during forward or reverse scan.

No forward or reverse scan

Some discs have sections that prohibit rapid scanning or chapter skip;If you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

Owing to continuous improvement,no prior notice will be given regarding changes on above feature and spec.

19

Specification

Compatatible Disc: DVD, DVD-R ,DVD+R, DVD-RW, DVD+RW, VCD2.0, SVCD, CD,

CD-R, CD+RW

File format to support: AVI/MPG/MP3/JPG

Signal system:PAL/NTSC

Panel size:9 inch

Frequency response:20 Hz to 20 kHz

Video output:1 Vp-p/ 75 Ohm, unbalanced

Audio output:1.4Vrms/10kOhm

Audio S/N:Better than 80 dB

Dynamic range:Better than 85 dB

The Max memory size of USB/SD/MMC card can be supported: 8 G

Laser:Semiconductor Laser, Wave Length: 650 nm /795 nm

Power source: AC 100-240V 60/50 HZ, DC 9-12V

RMS output power: < 9 W

Operating temperature:0~40°C

Weight:0.89kg

Dimensions (W x D x H):242 x 172 x42mm

Battery Type:Li Polymer

Note:

1.The quality and speed for reading JPEG photos depend on the resolution and

compression ratio of the photos.Some JPEG photo may not be played due to the disc

quality and the formats.

2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to the quality on

burning conditions.

Rechargeable battery use

The unit utilizes long-life Li polymer battery for portable power supply.The battery has no Memory Effect and thus can be recharged safely regardless of whether the battery is fully or partially discharged.It is enough to recharge no longer than 3H each time.fully recharged battery can last about 2 hours.

Precautions related to Battery Recharge

The battery can be only recharged when turning power to OFF state,and keep continuous power supply,the red light will be on,and the light will turn yellow when it is fully charged.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is: 0 °C ~40 °C ;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing,it's normal,while avoid long time playing and unattended;

4. Avoid having the unit collide with any objects, and place away from all possible heat

sources or damp areas.

Caution:Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type.

18

Troubleshooting

PROBLEM SOLUTION

No sound or distorted sound

Make sure the machine is connected properly.

Make sure all cables are securely inserted into the appropriate jacks.

Can't advance through a movie

The icon appears on screen

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1.The disc's software restricts it.

2.The disc's software doesn't support the

feature (e.g., angles)

3.The feature is not available at the moment.

4.You've requested a title or chapter number

that is out of range.

Picture is distorted

The disc might be damaged.Try another disc; it is normal for some distortion to appear during forward or reverse scan.

No forward or reverse scan

Some discs have sections that prohibit rapid scanning or chapter skip;If you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

Owing to continuous improvement,no prior notice will be given regarding changes on above feature and spec.

19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
