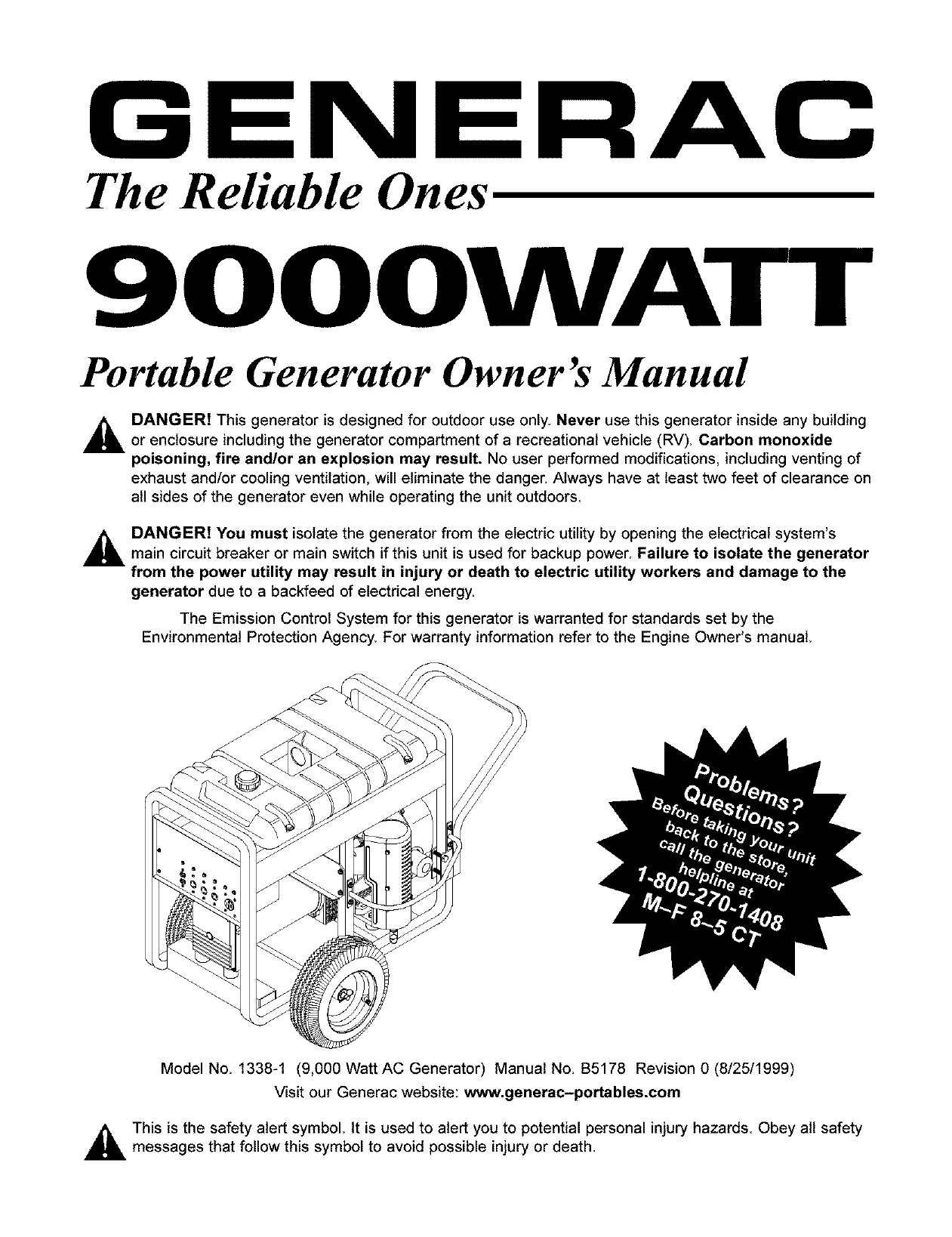

Generac 1338-1 Generator Owner's Manual

GENE 'AC
The Reliable Ones
9000WATT
Portable Generator Owner's Manual
A
DANGER[
This generator is designed for outdoor use only Never use this generator inside any building or enclosure including the generator compartment of a recreational vehicle (RV). Carbon
monoxide
poisoning, fire and/or an explosion may result.
No user performed modifications, including venting of exhaust and/or cooling ventilation, will eliminate the danger, Always have at least two feet of clearance on all sides of the generator even while operating the unit outdoors.
_
DANGER[
You must isolate the generator from the electric utility by opening the electrical system's from the power utility may result in injury or death to electric utility workers and damage to the
generator due to a backfeed of electrical energy.
The Emission Control System for this generator is warranted for standards set by the
Environmental Protection Agency. For warranty information refer to the Engine Owner's manual.
Model No. 1338-1 (9,000 Watt AC Generator) Manual No. B5178 Revision 0 (8/25/1999)
Visit our Generac website: www.generac-portables.com
,_
This is the safety alert symbol. It is used to alert you to potential personal injury hazards Obey all safety
EQUIPMENT DESCRIPTION
This generator is an engine-driven, revolving field, alternating current (AC) generator. It was designed to supply electrical power for operating compatible electrical lighting, appliance, tool and motor loads.
This manual contains information for a generator that operates 120 and/or 240 Volt, single phase, 60 Hz devices that require up to 9,000 watts (9.0kW) of power that pull up to 75 Amps at 120 Volts or
37.5 Amps at 240 Volts.
A
CAUTION] Do not exceed the generator's watts of all devices you are connecting to generator receptacles at one time. This total should not be greater than 9,000 watts for this generator. In most cases rated watts of the electrical device can be found on the device nameplate. If the device nameplate gives only volts and amps, multiply volts times amps to obtain watts (volts x amps = watts).
The generator's revolving field is driven at about
3600 rpm by a twin-cylinder engine.
Every effort has been expended to make sure that the information in this manual is both accurate and current. However, Generac reserves the right to change, alter or otherwise improve the product at any time without prior notice.
A
DANGER]
Do not tamper with engine governed speed. High operating speeds are dangerous and increase the risk of personal
injury or damage to equipment. The generator supplies correctly rated frequency and voltage
only when running at proper governed speed.
Incorrect frequency and/or voltage can
damage some connected electrical loads.
Operating at excessively low speeds imposes
a heavy load and, when adequate engine
power is not available, may shorten engine life
SAFETY RULES
This generator set was designed and manufactured for specific applications Do not attempt to modify the unit or use it for any application it was not designed for. If you have any questions about your generator's application, ask your dealer or consult the factory.
The manufacturer could not possibly anticipate every circumstance that might involve a hazard. For that reason warnings in the manual and warnings on tags or decals affixed to the unit are not all-inclusive.
If you intend to handle, operate or service the unit by a procedure or method not specifically recommended by the manufacturer, first make sure that such a procedure or method will not render this equipment unsafe or pose a threat to you and others.
Read this manual carefully and become familiar with your generator set. Know its applications, its limitations and any hazards involved.
A
A
DANGER!
You must isolate the generator from the electric utility by opening the electrical system's main circuit breaker or main switch if this unit is used for backup power. Failure to isolate the generator from the power utility
may result in injury or death to electric utility workers and damage to the
generator due to a backfeed of electrical energy.
DANGER!
Generator exhaust gases contain DEADLY carbon monoxide gas.
Carbon monoxide, if breathed in sufficient concentrations, can cause unconsciousness
or death. Operate this
equipment outdoors where adequate
ventilation is available.
/
2
GeneracPortableProducts9,000WattGenerator
• Thegeneratorproducesa verypowerfulvoltagethat cancauseseriousinjuryor deathbyelectrocution.
generator.
• Neverhandleanykindofelectricalcordor device whilestandinginwater,whilebarefootor while handsorfeetarewet.Deathor seriousinjuryfrom
• Never operate the generator:
in rain; in any enclosed compartment; if connected electrical devices overheat; if electrical output is lost; if engine or generator sparks; if flame or smoke is observed while unit is running; if unit vibrates excessively,
GROUNDING THE
GENERATOR
The National Electric Code requires the frame and external electrically conductive parts of the generator be properly connected to approved earth ground.
Local electrical codes may also require proper grounding of the unit. A grounding wing nut (Figure 1) is provided for this purpose.
decking
or steel work).
• Never use worn, bare, frayed or otherwise damaged electrical cords with the generator. Death, serious injury and property damage from electrical shock may result.
• Gasoline is highly FLAMMABLE
and its vapors are EXPLOSIVE.
Never allow smoking, open flames, sparks or heat in the vicinity while
handling gasoline. Avoid spilling gasoline on a hot engine. Comply with all laws regulating storage and handling of gasoline.
• Do not overfill the fuel tank. Always allow room for fuel expansion.
If tank is overfilled, fuel can
overflow onto a hot engine and cause a FIRE or an EXPLOSION.
• Never store a generator with fuel in the tank where
gasoline vapors might reach an open flame, spark
or pilot light (as on a furnace, water heater, clothes dryer). FIRE or an EXPLOSION may result.
• The engine-generator requires an adequate flow of
cooling air for its continued proper operation Never
operate the unit inside any room or enclosure where
the free flow of cooling air into and out of the unit
might be obstructed Allow at least 2 feet of
clearance on all sides of generator while operating unit
• Never start or stop the unit with electrical loads connected to receptacles with the connected devices turned ON. Start the engine and let it stabilize before connecting any electrical loads.
Disconnect all electrical loads before shutting down the generator.
• Do not insert any object through cooling slots of the engine. You could damage the unit or injure yourself.
Grounding
Wing Nut
Generally, connecting a No. 12 AWG (American Wire
Gauge) stranded copper wire to the grounding wing nut and to an earth-driven copper or brass grounding rod (electrode) provides adequate protection against electrical shock. However, local codes may vary widely. Consult with a local electrician for grounding requirements in your area. Be sure to keep the ground wire attached while you connect the electrode.
Properly grounding the generator helps prevent electrical shock if ground fault conditions exists in the generator or in connected electrical devices. Proper grounding also helps dissipate static electricity, which often builds up in ungrounded devices.
/
3
for useafterit hasbeenproperlyservicedwiththe oilandfuel.
1-800-270-1408.
IMPORTANT: Any attempt to run the engine before it
has been serviced with the recommended
oil will result in an engine failure
TO REMOVE GENERATOR
FROM CARTON
• Set the palleted carton on a rigid fiat surface
• Carefully cut bands around the shipping carton
• Lift carton off the generator.
• Remove all packing material, carton fillers, etc.
• Remove the generator from the shipping pallet.
CARTON CONTENTS
Check all contents. If any parts are missing or damaged, call the generator helpline at
1-800-270-1408.
Contents include:
9,000 Watt generator
Owner's manual
Engine manual
Owner's registration card
2 Bottles of engine oil (28 oz.)
125 Volt, 30 Amp plug
125 Volt, 20 Amp plug
240 Volt, 30 Amp plug
Oil fill funnel
Wheel kit
ASSEMBLE
WHEEL
KIT
IMPORTANT: This wheel kit is not intended for
over-the-road use.
To install your wheel kit you need the following toot
• 13mm box, open end, or socket wrench
Install Wheel Kit as follows: (See Figure 2)
1.
Place the bottom of the generator cradle on a flat,
even surface Temporarily elevate cradle on blocks to ease assembly
2.
Slide axle through both axle mounting brackets on
cradle frame
3.
Slide a wheel spacer over each end of the axle.
4.
Install a wheel as shown. Slide a fiat washer over
the axle, then secure the wheel with a retaining pin
NOTE
Be sure to install each wheel with the air
pressure valve on the outboard side.
5.
Install the other wheel in the same manner
6.
Secure the vibration mount to the support leg with
a lock nut, a flat washer, and a 30 mm cap screw.
7.
Secure the support leg assembly to the cradle
with 20 mm capscrews, flat washers, and lock
washers Remove the temporary blocks
8.
Position the handle on the cradle end opposite from the control panel Attach the handle with
45 mm cap screws and lock nuts.
9.
Tighten all lock nuts with 13mm wrench Make sure all components are secure.
/
4
GeneracPortableProducts9,000WattGenerator
HANDLE
/
Cap Screw, 45 mm
MOUNT,
Vibration
AXLE
Wheel
WHEEL
;HER,
Wheel
PiN, Retaining
CHECK BATTERY / ATTACH
NEGATIVE
BATTERY WIRE
The battery on the generator is fully charged, sealed
and pre-instalted except for the negative (black) battery cable.
To install:
• Cut off tie wrap on negative (black) cable attached
to the battery hold down.
• Remove nut on the negative battery terminal
• Slide the negative battery cable over the screw on
the negative terminal (Figure 3)
• Reattach nut and tighten.
• Ensure the connections to the battery and generator
and tight and secure
LEG, Mounting Support
/
WASHER
FLAT WASHER
,,--WASHER, Lock
_Cap Screw, 20 mm
Screw,
30 mm
/
5
KNOW YOUR GENERATOR
Read this owner's manual and safety rules before operating your generator.
Compare the illustrations with your generator to familiarize
yourself with the locations of various controls and adjustments Save this manual for future reference
Circuit Breakers (AC)
\
120 Volt AC, 20 Amp
Duplex Receptacle
120 Volt AC, 20 Amp
Locking Receptacle
120 Volt AC
Locking Receptacle
Air Cleaner
Switch
Choke Lever
Spark Arrestor Muffler
120/240 Volt AC,
50 Amp Receptacle
120/240 Volt AC, 30 Amp
Locking Receptacle Grounding Wing Nut
120 Volt AC, 20 Amp Duplex Receptacle -- May be used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical lighting, appliance, tool and motor loads.
120 Volt AC, 20 Amp Locking Receptacle -- May be used to supply electrical power for the operation of 120 Volt AC, 20 Amp, single phase, 60 Hz electrical lighting, appliance, tool and motor loads.
120 Volt AC, 30 Amp Locking Receptacle -- May
be used to supply electrical power for the operation
of 120 Volt AC, 30 Amp, single phase, 60 Hz
electrical lighting, appliance, tool and motor loads.
120/240 Volt AC, 30 Amp Locking Receptacle --
May be used to supply electrical power for the
operation of 120 and/or 240 Volt AC, 30 Amp, single phase, 60 Hz electrical lighting, appliance, tool and motor loads.
120/240 Volt AC, 50 Amp Receptacle -- May be used to supply electrical power for the operation of
120/240 Volt AC, 50 Amp, single phase, 60 Hz electrical loads.
Air Cleaner -- Used to limit the amount of dirt and dust that gets in the engine.
Choke Lever-Used when starting a cold engine.
Circuit Breakers (6 AC) -- Each receptacle is provided with a circuit breaker to protect the generator against electrical overload. Breakers are
"push to reset" type.
Grounding Wing Nut -- Use this connection to properly ground the generator. See "Grounding the
GeneratoK' on page 3.
Spark Arrestor Muffler -- Exhaust muffler lowers engine noise and is equipped with a spark arrestor screen.
Start Switch -- Turn to Start position to start generator. Set switch to Run position when operating. Set to Stop position when stored or idle.
/
6
GeneracPortableProducts9,000WattGenerator
BEFORE STARTING THE
ENGINE
• Clean area around fuel fill cap; remove cap.
• Fill fuel tank with clean, fresh, unleaded gasoline.
Be careful not to overfill Allow 1/2" of tank space for fuel expansion (Figure 4).
Add Engine Oil
Note: When adding oil to the engine crankcase in the
future, use only high quality detergent oil rated with
API service classification SE or higher. Use no special
additives. Select the oil's viscosity grade according to instructions given in the engine owner's manual.
To add oil to the generator:
• Make sure unit is on a level surface.
• Clean around oil fill cap and remove it
• Remove oil dipstick, wipe clean and fully reinsert in
engine block.
• Slowly fill engine with oil until it reaches the full mark on the dipstick
Stop occasionally to check oil
level Do not overfill.
• Install oil dipstick.
• Install oil fill cap. Hand tighten securely.
,_.
CAUTION!
Any attempt to crank or start the with the recommended oil results in an engine failure.
NOTE: The generator's revolving field rides on a pre-iubricated and sealed bali bearing that requires no additional lubrication for the life of the bearing.
Add Gasoline
A
DANGER!
NEVER fill fuel tank indoors.
NEVER fill fuel tank when engine is running or hot. DO NOT light a cigarette or smoke when filling the fuel tank.
1_" AirSpace
To Start The Engine
_nk
• Install fuel cap and wipe up any spilled gasoline
IMPORTANT: It is important to prevent gum deposits from forming in essential fuel system parts such as the carburetor, fuel filter, fuel hose or tank during storage. Also, experience indicates that alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. See "Storage" on page 13. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.
OPERATING
THE
GENERATOR
,_
DANGER!
Do not overfill the fuel tank.
• Use regular UNLEADED gasoline in the generator.
DO NOT use premium gasoline. DO NOT mix oil with gasoline. DO NOT overfill the gas tank.
,_
WARNING!
Never start or stop engine with receptacles and turned on. You could damage both the generator and the electrical devices.
• Unplug all electrical loads from generator receptacles before starting the engine
• Make sure the unit is in a level position.
• Open the fuel shut-off valve (Figure 5)
/
7
Jl'*""'_
Fuel Tank
I
/
Start
• Pull the choke knob to close. If the engine is warm, or the ambient temperature is high, pull the choke handle half-way, or keep it fully open (Figure 6).
Close
A DANGER!
Engine exhaust contains carbon causes unconsciousness and death. Never run engine indoors or in poorly ventilated areas.
A
DANGER!
Burn hazard Temperature of muffler and nearby areas may exceed 150°F
(65°C). Do not touch these areas on the generator.
• Turn key switch to the "Start" position (Figure 7)
IMPORTANT: Do not operate the electric starter continuously for more than 5 seconds, even if the engine does not start. Extended cranking can damage the starter motor.
NOTE: If the engine failed to start, set the key to the
"Run" position and wait for about 10 seconds before retrying.
IMPORTANT: Never turn the key switch to the "Start" position while the engine is running. You could damage the starter motor.
• When the engine starts, gradually open choke by pushing the choke knob in and keep it fully opened while running.
IMPORTANT!
Do not overload the generator!
Do not overload individual panel receptacles!
These outlets are protected against overload with push-toreset-type circuit breakers. If amperage rating of any circuit breaker is exceeded, that breaker opens and electrical output to that receptacle is lost. Read "Don't
Overload the Generator" on page 12 carefully.
If the Engine Will Not Start:
Refer to the engine owner's manual
/
8
GeneracPortableProducts9,000WattGenerator
Stopping the Engine
• Remove all electrical loads connected to generator panel receptacles.
Never start or stop engine with
devices plugged in and turned on.
• Let engine run at no-load for 30 seconds to stabilize
the internal temperatures of engine and generator.
• Turn the key switch to the "Stop" position.
• Close the fuel shut-off valve
Stopping the Engine with the Fuel Valve
This procedure eliminates fuel from the carburetor.
Use this method to stop the generator if you plan to store the generator over a long period. Fuel will clog the internal passages of carburetor if allowed to remain for an extended period.
• Unplug (or turn OFF) all electrical loads connected to generator panel receptacles.
Never start or stop
engine with devices plugged in and turned on.
• Let engine run at no-load for 30 seconds to stabilize the internal temperatures of engine and generator.
• Close the fuel shut-off valve while the engine is running and wait until the engine stops.
• Set the key switch to the "Stop" position after the engine quits.
Applying Electrical Loads
• Let engine stabilize and warm up for about two minutes after starting
• Plug in and turn on the desired 120 or 240 Volt AC, single phase, 60 Hz electrical loads. DO NOT
OVERLOAD THE GENERATOR.
Add up the rated watts (or amps) of all loads to be connected at one time. This total should not be greater than the rated wattage/amperage capacity of the generator. See page 12, "Don't Overload the Generator" for details.
RECEPTACLES
This generator is equipped with the following receptacles:
120 Volt AC, 20 Amp, Duplex
Receptacle
Each of these outlets is protected against overload by
20 Amp push-to-reset type circuit breakers. Use each outlet to operate 120 Volt AC, 60 Hz, single phase loads requiring 2400 (2.4 kW) watts at 20 Amps of current (Figure 8).
i
9
120 Volt AC, 20 Amp Locking
Receptacle
Use a NEMA L5-20 plug with this receptacle.
Connect a 3-wire cord set rated for 125 Volts AC at
20 Amps to the plug (Figure 9).
3-Wire Cord Set
120 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L5-30 plug with this receptacle.
Connect a 3-wire cord set rated for 125 Volts AC at
30 Amps to the plug (Figure 10).
m
3-Wire Cord Set
Neutml
120V
Hot
(_l
[ _--Neutral
120V
NEMA L5-20
,_ Greund
(Green)
Use this receptacle to operate 120 Volt AC, 60 Hz, single phase loads requiring up to 2400 watts
(2.4 kW) of power at 20 Amps. The outlet is protected by a 20 Amp push-to-reset circuit breaker.
=_
Hot
NEMA L5-30
/-!-TGreund
(Green)
Use this receptacle to operate 120 Volt AC, 60 Hz, single phase loads requiring up to 3600 watts
(3.6 kW) of power at 30 Amps. The outlet is protected by a 30 Amp push-to-reset circuit breaker.
/
10
GeneracPortableProducts9,000WattGenerator
120/240 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L14-30 plug with this receptacle.
Connect a 4-wire cord set rated for 250 Volts at
30 Amps (or greater) (Figure 11). You can use the same 4-wire cord if you plan to run a 120 Volt load.
4-Wire CordSet
240 Volt AC, 50 Amp Receptacle
Use a NEMA 14-50 plug with this receptacle.
Connect a 4-wire cord set rated for 250 Volts AC at
50 Amps to the plug (Figure 12)
240 Volts AC --
Y (Hot)
X (Hot)
This receptacle powers 120/240 Volt AC, 60 Hz, single phase loads requiring up to 3600 watts of power (3.6 kW) at 30 Amps for 120 Volts; 7200 watts of power (7.2 kW) at 30 Amps for 240 Volts. The outlet is protected by a 30 Amp push-to-reset circuit breaker.
w (Neutral)
NEMA 14-50
Use this receptacle to operate 240 Volts AC, 60 Hz, single phase loads requiring up to 9,000 watts
(9.0 kW) of power.
,_
CAUTION!
Although this outlet states it has a the generator is only rated for 9,000 watts.
Powering loads that exceed the wattage/ amperage capacity of the generator can damage it or cause serious injuries.
/
11
DON'T OVERLOAD
THE
GENERATOR
Overloading a generator in excess of its rated wattage capacity can result in damage to generator and to connected electrical devices. Observe the following, to prevent overloading the unit:
• Add up the total wattage of all electrical devices to be connected at one time. This total should NOT be greater than the generator's wattage capacity.
• The rated wattage of lights can be taken from light bulbs The rated wattage of tools, appliances and motors can usually be found on a data plate or decal affixed to the device.
• If the appliance, tool or motor does not give
wattage, multiply volts times ampere rating to determine watts (volts x amps = watts).
• Some electric motors, such as induction types, require about three times more watts of power for starting than for running. This surge of power lasts for only a few seconds when starting such motors.
Be sure you allow for this high starting wattage when selecting electrical devices to connect to your generator. First figure the watts needed to start the largest motor. Add to that figure the running watts of all other connected loads.
• Items in the guide shown in Figure 13 are provided to help you to determine how many items the generator can operate at one time.
Device .......................
*Air Conditioner (12,000 Btu) .......
*Air Conditioner (24,000 Btu) ..............
*Air Conditioner (40,000 Btu) ..............
Battery Charger (20 Amp) ..................
Belt Sander (3") .........................
Chain Saw .............................
Running Watts
1700
3800
6000
500
1000
1200
Circular Saw (6-1/2") ...............
*Clothes Dryer (Electric) ..................
*Clothes Dryer (Gas) ......................
*Clothes Washer ........................
Coffee Maker ...........................
*Compressor (1 HP) .....................
*Compressor (3/4 HP) ....................
*Compressor (1/2 HP) ....................
Curling Iron .............................
*Freezer ................................
*Dehumidifier ............................
Disc Sander (9") ........................
Edge Trimmer ...........................
Electric Blanket ..........................
Electric Nail Gun ........................
800 to 1000
5750
700
1150
1750
2000
1800
1400
700
700
650
1200
500
400
1200
Electric Range (per element) ...............
Electric Skillet ..........................
*Furnace Fan (3/5 HP) ....................
*Garage Door Opener ...............
Hair Dryer .............................
Hand Drill ........................
1500
1250
875
500 to 750
1200
250 to 1100
/
12
Device .......................
Hedge Trimmer ..........................
Impact Wrench ..........................
Iron ..................................
*Jet Pump ..............................
Lawn Mower ...........................
Light Bulb ..............................
Microwave Oven ...................
*Milk Cooler ............................
Oil Burner on Furnace .....................
Running Watts
450
500
1200
800
1200
100
700 to 1000
1100
300
Oil Fired Space Heater (140,000 Btu) .........
Oil Fired Space Heater (85,000 Btu) ..........
Oil Fired Space Heater (30,000 Btu) ..........
*Paint Sprayer, Aidess (1/3 HP) .............
Paint Sprayer, Airless (handheld) ............
Radio .............................
400
225
180
600
150
50 to 200
*Refrigerator ............................
Slow Cooker ............................
700
200
*Submersible Pump (1-1/2 HP) ............
*Submersible Pump (1 HP) ................
*Submersible Pump (1/2 HP) ..............
*Sump Pump .....................
*Table Saw (10") ..................
Television .........................
Toaster .........................
Weed Trimmer ...........................
2800
2000
1500
800 to 1050
1750 to 2000
200 to 500
1000 to 1650
500
* Allow 3 times the listed watts for starting these devices.
GeneracPortableProducts
_ _1
GENERAL MAINTENANCE
RECOMMENDATIONS
The Owner/Operator is responsible for making sure that all periodic maintenance tasks are completed on a timely basis; that all discrepancies are corrected; and that the unit is kept clean and properly stored.
Never operate a damaged or defective
generator.
Engine Maintenance
See your engine owner's manual for information needed to maintain and service the engine
Generator Maintenance
Generator maintenance consists of keeping the unit clean and dry Operate and store the unit in a clean dry environment where it will not be exposed to excessive dust, dirt, moisture or any corrosive vapors.
Make sure the cooling air slots in the generator do not become clogged with snow, leaves or other foreign material.
Check cleanliness of the generator frequently and clean when dust, dirt, oil, moisture or other foreign substances are visible on its exterior surface.
NOTE: DO NOT use a garden hose to clean generator. Water can enter the engine fuel system and cause problems. In addition, if water enters the generator through the cooling air slots, some water will be retained in the voids and cracks of the rotor and stator winding insulation. Water and dirt buildup on the generator internal windings will eventually decrease the insulation resistance of these windings.
To Clean the Generator
• Use a damp cloth to wipe exterior surfaces clean.
• Soft, bristle brush may be used to loosen caked on dirt or oil.
• A vacuum cleaner may be used to pick up loose dirt and debris.
• Low pressure air (not to exceed 25 psi) may be used to blow away dirt. Inspect cooling air slots and opening on generator. These openings must be kept clean and unobstructed.
STORAGE INSTRUCTIONS
The generator should be started at least once every seven days and allowed to run at least 30 minutes. If this cannot be done and you must store the unit for more than 30 days, use the following guidelines to prepare it for storage.
Generator Storage
• Clean the generator as outlined in "To Clean the
Generator_"
• Check that the cooling air slots and openings on the generator are open and unobstructed.
• Drain fuel and run engine until the fuel system is empty.
• Remove spark plugs and pour about 1 ounce of clean engine oil into spark plug holes. Crank engine over slowly several times, to distribute oil. Install and tighten spark plugs.
• Change engine oil and filter, as described in engine owner's manual.
• Remove the negative battery cable from the battery
to prevent the battery from being depleted
• Store the unit in a clean dry place
,_
DANGER!
Storage covers can be flammable generator. Let the unit cool for 10 minutes before placing cover on the unit.
SPECIFICATIONS
Rated Maximum Continuous
AC Power Output ........................ 9,000 watts
(9.0kW)
Rated Voltage ..................................
120/240 Volts
Rated Maximum Current: at 240 Volts ...................................
37.5 Amperes at 120 Volts ...................................
75 Amperes
Phase ...............................................
1
Rated AC Frequency ....................... 60 Hertz
Number of Rotor Poles .................... 2
Driven Speed of Rotor ..................... 3600 rpm
/
13
GeneracPortableProducts9,000WattGenerator
TROUBLESHOOTING
Problem
Engine is running, but no
AC output is available.
Cause
1. One of the circuit breakers is open.
2, Fault in generator.
3. Poor connection or defective cord set.
4. Connected device is bad.
Engine runs good at no-load but "bogs down" when loads are connected.
1. Short circuit in a connected load.
2, Engine speed is too slow.
3. Generator is overloaded.
4. Shorted generator circuit.
Engine will not start; or starts and runs rough.
1.
2,
3,
4,
5.
6.
7,
Run/Stop Switch set to STOE
Dirty air cleaner.
Out of gasoline.
Stale gasoline.
Spark plug wire not connected to spark plug,
Bad spark plug.
Water in gasoline.
8, Overchoking.
9, Excessively rich fuel mixture.
10, Intake valve stuck open or closed.
11, Engine compression lost.
12. Failed battery.
Engine shuts down during operation.
1. Out of gasoline.
2. Low oil level,
Engine lacks power.
Engine "hunts" or falters.
1. Load is too high.
2. Dirty air filter.
1. Choke is opened too soon.
2. Carburetor is running too rich or too lean.
Correction
1. Reset circuit breaker.
2.
Contact Generac service facility.
3.
Check and repair.
4.
Connect another device that is in good condition.
1. Disconnect shorted electrical load,
2. Contact Generac service facility.
3.
See "Don't Overload the
Generator" on page 12.
4.
Contact Generac service facility.
1. Set switch to RUN,
2.
Clean or replace air cleaner.
3, Fill fuel tank.
4.
Drain gas tank; fill with fresh fuel.
5.
Connect wire to spark plug,
6.
Replace spark plug.
7, Drain gas tank; fill with fresh fuel.
8, Open choke fully and crank engine.
9.
Contact Generac service facility.
10, Contact Generac service facility.
11, Contact Generac service facility.
12. Replace battery,
1. Fill fuel tank,
2.
Fill crankcase to proper level,
1. See "Don't Overload the Generator" on page 12,
2.
Replace air filter.
1. Move choke to halfway position until engine runs smoothly.
2.
Contact Generac service facility.
/
14
NOTES
Generac Portable Products 9,000 Watt Generator
/
15
ID]_LF_i_]_
SCHEMATIC
G_7
PB_ER
_/[ HDING
PBWEE
V£ND£NG
D_P_DITDR
B_LU
13
L_
_p_RK
1B_
PElf
18_
I BNITI BN
I1A r
_ EHB,
IGNITIBN
_44D _
/
16
WIRING DIAGRAM
GeneracPortableProducts9 000WattGenerator
I D_'! _
F
\
\
\
\
\
2TARTER
13
14 le
IB
16
LS
_PARK
PLUG _1
_PARK
PLUG _2
I
17
j/_ I
I
Generac Portable Products 9,000 Watt Generator
GENERATOR EXPLODED VIEW
7\\\\\
/
10
64
63
\\
\
2
62 x
14
61
69
7O
/ 58
19
Detoil of Battery Troy
22
67
47
"63
59
57
/
18
GeneracPortableProducts9,000WattGenerator
l/!
I
m
GENERATOR PARTS LIST
33
34
35
36
29
30
31
32
37
38
39
25
26
27
28
21
22
23
24
14
15
16
17
18
19
20
7
8
9
10
11
12
Item Part #
1 NSP
2 BB4509
5
6
3
4
A77304
BB4811
80270
78299
B4325
38353
78831B
B1696
AB4426
83465
B5177
B5176
78817
77816
B4826
B4824
79552
73054
B4268
BB4481
20441
23152
22237
22241
22746
22131
BB5228
B4425
19553621 1
38750 1
B4502
22145
1
2
26850
20566
B4986
92982
3
1
1
1
7
20
10
4
8
1
1
1
1
1
1
1
2
1
1
1
1
4
1
6
4
1
1
4
Qty
1
1
2
1
1
1
Description
ENGINE, Robin 18HP
SHIELD, Heat
SUPPORT, Engine
SHIELD, Heat
VALVE, Fuel Shut-Off
BUSHING, Fuel Valve
CAP, Fuel Tank
MOUNTS, Vibration
CAPSCREW, M6-1.0 x 60mm
TANK, Fuel 10 Gal
CRADLE
GROMMET, Fuel Tank
Mounting
CAPSCREW, 3/8-16 x 3/4"
WASHER, 3/8" Lock
NUT, 3/8"-16 Hex
CAPSCREW, 3/8-16 x 1-3/4"
WASHER, 3/8" Flat
SHIELD, Heat
ASSEMBLY, Control Panel
WIRE ASSEMBLY, Ground
HHCS, M6 - 1.0 x 30
SWITCH, Key Ignition
WASHER, M8 Flat
WASHER, M6 Shakeproof
DECAL 1-800
DECAL Ground
DECAL Danger
DECAL Side Panel
DECAL Control Panel
DECAL Data Plate
DECAL Caution Hot Muffler
DECAL Start Instructions
DECAL Start - Run - Stop
DECAL Ovedaminate
DECAL Fuel Shut-Off
ALTERNATOR, 10KW
GUARD, Muffler
SCREW, 1/4" x 3/4" Self
Driller
62
63
64
65
66
67
68
58
59
60
61
53
54
55
56
57
49
50
51
52
Item Part #
40 NSP
45
46
47
48
41
42
43
44
B4627
AB4682
A96925
96924
Qty
1
Description
BATTERY
1 KEY, Ignition Switch
1 BRACKET, Ignition Switch
1 BRACKET, Battery Tie Down
2 J-BOLT, M8 - 1.25
19353621 1 CABLE, Battery Positive
19453621 1 CABLE, Battery Negative
52618
49226
2 HHCS, M5 - 0.8 x 12
1 WASHER, M5 Lock
52856
49820
39253
NSP
45771
27482
47411
22473
B4948
2 NUT, M5 Flange Lock
2 NUT, Nylok M8 - 1.25
1 CAPSCREW, M8 - 1.25 x 20
SUPPLIED WITH ENGINE
1 NUT, M8 - 1.25
1 WASHER, 5/16" Shakeproof
2 CAPSCREW, M6 - 1.0 X 16
2 WASHER, Flat M6
1 CLAMP, Hose
55934G
22511
B4803
52618
B4794
B2153
B4988
52857
87680
23897
49813
3 CLAMP, Hose
4 CAPSCREW, 3/8 x 1-1/4"
1 CONNECTOR, 5-Way
1 HHCS, M5 - 0.8 x 12
1 GROMMET, Generator Cover
20 SCREW, #12 Self Driller
1 DECAL, Oil Fill
1 NUT, Locking M6 - 1.0
1 WING NUT, M6 - 1.0
2 WASHER, M5 Lock
1 NUT Hex M6 - 1.0
Items Not Shown:
B4428
37806
43438
93568
BB3061
1 Generator Owner's Manual
1 125V 30 Amp plug
1 120/240V 30 Amp plug
1 125V 30 Amp plug
2 Oil Bottle (28oz)
Available Accessories:
B4767
84883
Storage Cover
Cord Wrap
/
19
j/_ I
I
Generac Portable Products 9,000 Watt Generator
ALTERNATOR EXPLODED VIEW AND PARTS LIST
11
9 lO
\
\
12
\\
\
\\
Nx\
\\
\
%
15
6
\
\
\
\
7
\
\
\
\
\\
4
\
\
16
<
15
12
13
14
15
16
8
9
10
11
6
7
4
5
Item
1
2
3
Pa_ #
B4906
B4907
B4908
B4909
B4910
B4911
B4912
B4913
B4914
B4915
B4916
B4917
B4918
B4919
B4920
49820
Qty Description
1 SHIELD, Front
2 GRID, Front
1 BOLT, Shaft Stay
4 STAY BOLT, M8 x 30
1 ASSEMBLY, Housing
1 CAP
1 COVER, Blind End
1 COVER, Top Black
2 CAPACITOR, 25mF 450V
1 BEARING, 62052RS C3
1 CAPACITOR, Diode + Varistor + EMC
1 ROTOR, (Includes Item 13)
1 FAN
2 SCREW, M6 - 1.0 x 10mm
8 SCREW, M5 - 0.8 x 10mm
1 LOCK NUT, M8 - 1.25
/
2O
GeneracPortableProducts9,000WattGenerator
l/!
I
m
CONTROL
PANEL EXPLODED VIEW AND PARTS LIST
27
\
3o 28
23
,
8
9
2#
25
I0
\\\\_
29
25
17 18
8
9
10
11
12
13
Item Part #
1
2
BB4504
23897
3
4
91526
49226
5
6
7
75207
23365
68759
14
15
38150
22264
51715
75207A
74190
68868
B4445
B4262
5
Qty Description
1 PANEL, Control
5 FLAT WASHER, #10 - M5
4 PPHMS, M5 - .08 x 12mm
5 LOCK WASHER, M5
3 CIRCUIT BREAKER, 20 Amp
12 WASHER, #8 Shakeproof
1 OUTLET, 120V, 20 Amp
Duplex
12 FLAT WASHER, #8
12 LOCK WASHER, #8
12 NUT, M4 -0.7
Hex
2 CIRCUIT BREAKER, 30 Amp
1 OUTLET, 120V/20A Locking
1 OUTLET, 120V, 30 Amp
Locking
2 CIRCUIT BREAKER, 45 Amp
1 OUTLET, 120/250V, 50 Amp
/
21
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Item
16
Part #
43437
80077
92953
90576
84135
75477
B4894
43181
43182
77314
B4737
B95906
51716
B4893
B4892
51714
Qty Description
1 OUTLET, 120/240'7, 30 Amp
4
Locking
PPHMS, M4 x 20mm
1 BLOCK, 50 Amp, 3 - Terminal
1 GROMMET, Rubber
1 GROMMET, Rubber
1 PPHMS, M5 - 0.8 x 20mm
1 RECTIFIER, Battery Charge
4 PHMS, M3 - 0.5 x 10mm
4 LOCK WASHER, M3
1 RELAY, Thermal
1 ASSEMBLY, Wire Harness
1 BOX, Control Panel
1 NUT, Hex M5 - 0.8
2 STAND OFF
1 RESISTOR, 2ohm 25 watt
1 NUT, Hex M3
? j/_ I
I
Generac Portable Products 9,000 Watt Generator
WHEEL
KIT EXPLODED VIEW AND PARTS LIST
9
/
10
13
8
9
10
11
12
13
14
Item
1
2
3
4
5
6
7
Pa_ #
93393B
39287
52858
93394
27007
22145
42909
39253
93693B
89635
89742
22247
87005
22129
Qty Description
1 HANDLE
4 HHCS, M8 - 1.25 x 45
5 NUT, Locking M8 - 1 25
1 LEG, Mounting Support
1 MOUNT, Vibration
3 FLAT WASHER, 5/16 - M8
1 HHCS, M8 - 1.25 x 30
2 HHCS, M8 - 1.25 x 20
1 AXLE
2 SPACER, Wheel
2 WHEEL
2 WASHER, Wheel
2 PIN, Retaining
2 WASHER, M8 Lock
/
22
4
NOTES
GeneracPortableProducts9,000WattGenerator
/
23
LIMITED WARRANTY
FOR OVERHEAD VALVE V-TWIN ENGINE-DRIVEN PORTABLE GENERATORS
GENERAC PORTABLE PRODUCTS (hereafter referred to as the COMPANY) warrants to the original purchaser that all components originally equipped with the generator, excluding the engine, for its portable generator will be free from defects in materials or workmanship for the items and period set forth below from the date of original purchase. This warranty is not transferable and applies only to portable generators driven by an overhead valve
V-Twin engine.
Alternator
Engine
Consumer* Commercial*
2 years (2nd year parts only) 1 year
Warranted solely by the engine manufacturer
With the exception of European Community
Countries, all units bound for export shall be warranted for
One (1) Year in Consumer applications, and 90 days in Commercial applications as defined below.
*NOTE: For the purpose of this warranty "consumer
use" means personal residential household
use by
original purchaser. This warranty does not apply to units used for Prime Power in place of utility.
"Commercial
Use" means all other uses, including rental, construction, commercial and income producing purposes. Once a generator has experienced
commercial use, it shall thereafter be considered
a commercial use generator for the purposes of this warranty.
During said warranty period, the COMPANY will, at is option, repair or replace any part which, upon examination by the COMPANY, is found to be defective under normal use and service**. Starting batteries are not warranted by the COMPANY. All transportation costs under warranty, including return to the factory if necessary, are to be borne by the purchaser and prepaid by the purchaser. This warranty does not cover normal maintenance and service and does not apply to a generator set, alternator, or parts which have been subjected to improper or unauthorized installation or alteration, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair or storage so as, in the COMPANY's judgement, to adversely affect its performance and reliability.
**NORMAL WEAR: As with all mechanical devices, the generator needs periodic parts service and replacement to perform well. This warranty will not cover repair when normal use has exhausted the life of a part or generator.
THERE IS NO OTHER EXPRESS WARRANTY. THE COMPANY HEREBY DISCLAIMS ANY AND
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THOSE OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT PERMITTED BY LAW. THE
DURATION OF ANY IMPLIED WARRANTIES WHICH CANNOT BE DISCLAIMED IS LIMITED TO
THE TIME PERIOD AS SPECIFIED iN THE EXPRESS WARRANTY. LIABILITY FOR
CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES UNDER ANY AND ALL WARRANTIES iS EXCLUDED. THE COMPANY ALSO DiSCLAiMS ANY RESPONSIBILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SUCH AS THE LOSS OF TIME OR THE USE OF THE POWER
EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE FAILURE OF THE EQUIPMENT: AND
ANY IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.
For service, see your nearest COMPANY authorized warranty service facility or call 1-877-544-0982.
Warranty service can be performed only by a COMPANY authorized service facility_ This warranty will not apply to service at any other facility. At the time of requesting warranty service, evidence of original purchase date must be presented.
GENERAC PORTABLE PRODUCTS
Jefferson, Wisconsin 53549
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
