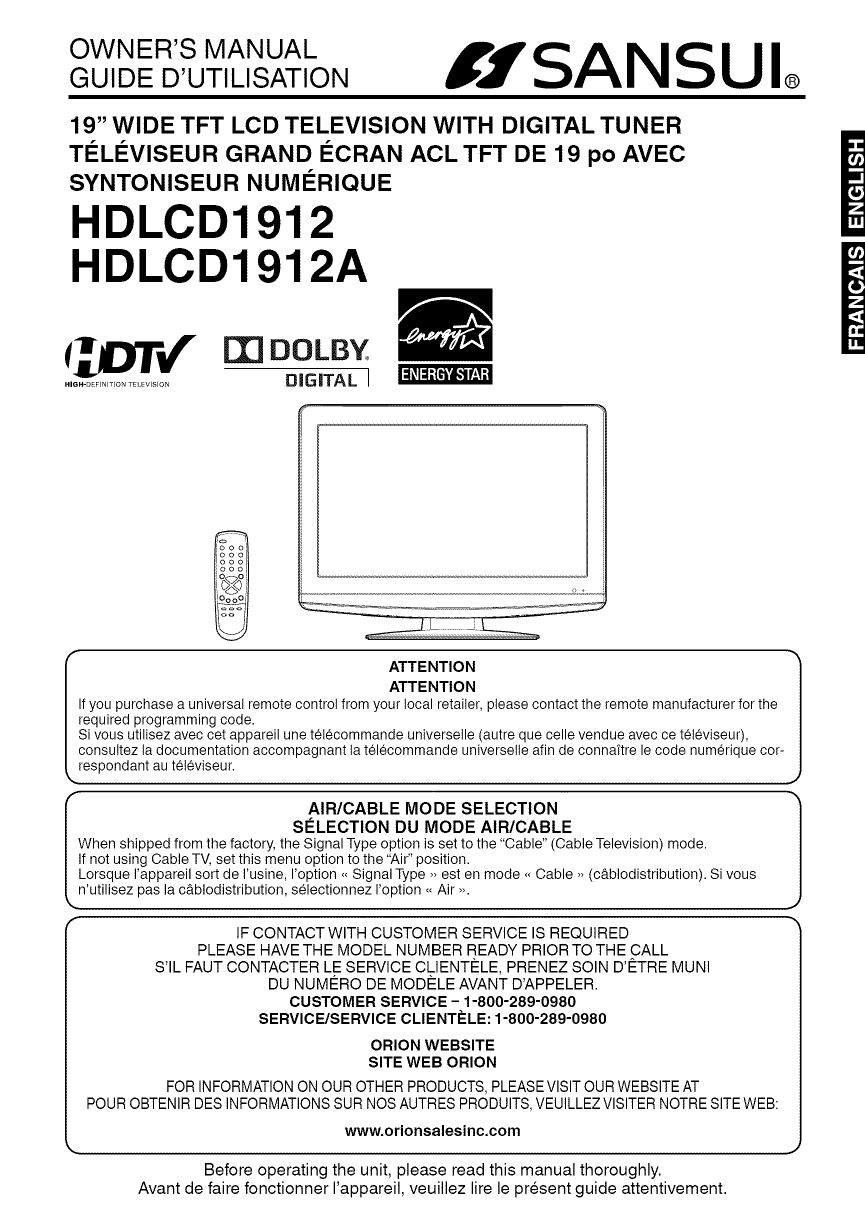

OWNER'S MANUAL
GUIDE D'UTILISATION #7 SAN S U |
19” WIDE TFT LCD TELEVISION WITH DIGITAL TUNER
TELEVISEUR GRAND ECRAN ACL TFT DE 19 po AVEC
SYNTONISEUR NUMERIQUE
HDLCD1912
HDLCD1912A
(T
„ЮТУ,
HIGH-DEFINITION TELEVISION
ENERGY STAR
DIGITAL |
00600)
0000
00000 |
SG
0019
6515
310
®
Г ATTENTION в
ATTENTION
If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the
required programming code.
Si vous utilisez avec cet appareil une télécommande universelle (autre que celle vendue avec ce téléviseur),
consultez la documentation accompagnant la télécommande universelle afin de connaître le code numérique cor-
respondant au téléviseur.
\. ”
@ \
AIR/CABLE MODE SELECTION
SELECTION DU MODE AIR/CABLE
When shipped from the factory, the Signal Type option is set to the “Cable” (Cable Television) mode.
If not using Cable TV, set this menu option to the “Air” position.
Lorsque l'appareil sort de 'usine, l'option « Signal Type » est en mode « Cable » (câblodistribution). Si vous
(utilisez pas la câblodistribution, sélectionnez l'option « Air ». |
С IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED ^
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL
S'IL FAUT CONTACTER LE SERVICE CLIENTELE, PRENEZ SOIN D'ETRE MUNI
DU NUMERO DE MODELE AVANT D'APPELER.
CUSTOMER SERVICE - 1-800-289-0980
SERVICE/SERVICE CLIENTELE: 1-800-289-0980
ORION WEBSITE
SITE WEB ORION
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT
POUR OBTENIR DES INFORMATIONS SUR NOS AUTRES PRODUITS, VEUILLEZ VISITER NOTRE SITE WEB:
www.orionsalesinc.com
\. /
Before operating the unit, please read this manual thoroughly.
Avant de faire fonctionner l'appareil, veuillez lire le présent guide attentivement.
FRANCAIS | ENGLISH |
ENGLISH
The lightning flash with arrowhead
symbol, within an equilateral triangle
CAUTION is intended to alert the user to the
presence of uninsulated dangerous
RISK OF ELECTRIC SHOCK voltage within the product's enclosure
DO NOT OPEN that may be of sufficient magnitude to
constitute a risk of electric shock.
CAUTION: To REDUCE THE RISK OF ELECTRIC The exclamation point within an
SHOCK, DO NOT REMOVE COVER equilateral triangle is intended to
alert the user to the presence of
(OR BACK). NO USER-SERVICEABLE important operating and maintenance
PARTS INSIDE. REFER SERVICING TO (servicing) instructions in the literature
QUALIFIED SERVICE PERSONNEL. accompanying the appliance.
WARNING: 10 PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY
FROM THIS PRODUCT AT TIMES.
CAUTION: To PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
CAUTION:
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance with the
FCC Rules could void the user's authority to operate this equipment.
Location of the required Marking
The lamp(s) within this product contain mercury. The rating sheet and the safety caution are
Disposal should be in compliance with local, state or on the rear of the unit.
federal laws.
Record the model number and serial number.
Model number Serial number
BN) wh
10)
11)
12)
13)
14)
Read these instructions.
Keep these instructions. 5
Heed all warnings. 3
Follow all instructions. pra
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
{including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety, If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the m
cart/apparatus combination to avoid injury from tip-over. 531254
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as
vases, should not be placed on the apparatus.
An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or
circuits, as contact with them might be fatal.
Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
Do not push objects through any openings in this unit, as they may touch dangerous voltage points
or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into
the unit,
If an outside antenna or cable system EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE
is connected to the unit, be surethe NL |
antenna or cable system is grounded PL ANTENNA LEAD IN WIRE
to provide some protection against |
voltage surges and built-up static ANTENNA
charges, Section 810 of the National Core DISCHARGE UNIT
Electrical Code, ANSI/NFPA 70, provides
UT A {NEC SECTION 810-20)
ELECTRIC SERVICE |
î i ; Po Ar GROUNDING CONDUCTORS
information with respect to proper EQUIPMENT —_ 5] (NEC SECTION 810-21)
grounding of the mast and supporting <= GROUND CLAMPS
structure, grounding of the lead-in NEC-NATIONAL ELECTRICAL CODE —* POWER SERVICE GROUNDING
. . . . S2808A ELECTRODE SYSTEM
wire to an antenna discharge unit, size (NEG ART 250, PART H)
of grounding conductors, location of
antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
IMPORTANT SAFETY INSTRUCTIONS
20) When replacement parts are required, be sure the service technician uses replacement parts
specified by the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety
checks to determine that the unit is in proper operating condition.
22) When you connect the product to other equipment, turn off the power and unplug ali of the
equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal
injury. Read the owner's manual of the other equipment carefully and follow the instructions when
making any connections.
23) Sudden high volume sound may cause hearing or speaker damage. When you use headphones,
(if the unit is equipped with a headphone jack) keep the volume at a moderate level. If you use
headphones continuously with high volume sound, it may cause hearing damage.
24) Do not allow the product to output distorted sound for an extended period of time. It may cause
speaker overheating and fire.
25) This reminder is provided to cali the cable TV system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable entry as
practical.
26) The socket-outiet must be installed near the unit and easily accessible.
CHILD SAFETY:
it Makes A Difference How and Where You Use Your Fiat Panel Display
Congratulations on your purchase! As you enjoy your new product, please keep the se safety tips in mind:
THE ISSUE
The home theater entertainment experience Is a growing trend and larger flat panel displays are popular
purchases. However, flat panel displays are not always supported on the proper stands or installed
according to the manufacturers recommendations.
Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers,
chests or carts may fall over and cause injury.
THIS MANUFACTURER CARES!
The consumer electronics industry is committed to making home entertainment enjoyable and safe.
TUNE INTO SAFETY
One size does NOT fit all. Follow the manufaciurers recommendations for the safe installation and use of
your flat panel display.
Carefully read and understand all enclosed instructions for proper use of this product.
Don’t allow children to climb on or play with furniture and television sets.
Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
Remember that children can become excited while watching a program, especially on a “larger than life” flat
panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or
knocked down.
Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:
Use a mount that has been recommended by the display manufacturer and/or listed by an independent
laboratory (such as UL, CSA, ETL).
Follow all instructions supplied by the display and wall mount manufacturers.
If you have any doubts about your ability to safely install your flat panel display, contact your retailer about
professional installation.
Make sure that the wall where you are mounting the display is appropriate to support the weight of the unit/
product and wall mount. If you are unsure, contact a professional installer.
A minimum of two people are required for installation. Flat panel displays can be heavy.
IMPORTANT SAFETY INSTRUCTIONS
CONDENSATION
Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm
room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired.
To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure
that the room temperature rises gradually.
Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In
such cases, change the location of the unit.
ENGLISH
HOW TO HANDLE THE LCD PANEL
* Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.
+ |[f the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause
skin inflammation.
If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your
eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.
Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for
long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but
permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your
LCD Panel on for long periods of time while it is displaying the following formats or images:
* Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
* Special Formats that do not use the entire screen. For example, viewing letterbox style (16:8) media on
a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media ona
widescreen (16:9) display (black bars on left and right sides of screen).
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any
responsibility for these symptoms.
+ LCD Panels are manufactured using an extremely high level of precision technology, however sometimes =
parts of the screen may be missing picture elements or have luminous spots.
This is not a sign of a malfunction.
* Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some
equipment placed too near this unit may cause interference.
* Effect on infrared devices — There may be interference while using infrared devices such as infrared cordless
SAFETY PRECAUTIONS
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating.
Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a sheif leave 10 cm
(4 inches) free space around the entire unit.
A
«10cmp
| |
У
Notes when mounting the LCD TV on a wall
* if the unit is to be mounted on the wall, contact the retailer where
you purchased the LCD TV for advice, and have the equipment
professionally installed. Incomplete or improper installation may
cause injury to you, and/or damage to the LCD TV.
Bracket holes: To attach a wall mounting bracket (not supplied) attach
where indicated in the drawing right.
This manufacturer recommends professional installation.
Utilize an appropriate bracket and fasteners, sufficient to
accommodate the size and weight of the unit.
Assure the wall to which the unit is to be mounted will safely support
the size and weight of the unit, using the bracket and fasteners you
have selected.
Keep cords and cables connected to this flat panel display out of
reach of children.
To hang the television on a wall, remove these screws and then
remove a stand. Before performing work spread cushioning over the
base area to lay the TV on.
Screws
How to attach the stand
NOTE:
¢ Unplug the AC cord from the AC INPUT terminal.
¢ Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid
any damage to the unit.
¢ Do not touch or press the TV-screen, glass might break under pressure.
Place the TV on its back onto a table.
Align the stand’s bottom-plate (supplied) as seen here.
It will fit in only one direction.
Press it in direction of arrow until you hear a ‘click’.
Finally secure the bottom-plate with 2
screws (supplied).
Please assure the "Y mark on the stand is facing the
LCD panel side.
How to remove the stand
When you transport this product, remove the stand and pack flat against the back of the unit in the
carton. To remove the stand, remove the two (2) screws from the bottom (see A), and hold the stand on a
flat surface lifting one side of the unit until stand disconnects (see B).
A
For wall mounting, the base must be removed. To disconnect the base/stand remove the two (2) screws from the
back (see page 5).
Features
integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box.
Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for
hearing impaired viewers. a
* Picture Adjustments Using The Remote Control! - The On-Screen display allows precise remote contro! mn
adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS. и
* Programmable TV Sleep Timer - Operable from the remote control, the LCD TV can be programmed for up ©)
to 120 minutes to turn off automatically. =
* V-Chip - The V-Chip function can read the rating of a broadcast program or movie content if the program is LL
encoded with this information. V-chip will allow you to set a restriction level.
* Digital Audio Jack (Coaxial) - When a component with a built-in Dolby Digital decoder is connected, Dolby
Digital sound can produce the effect of being in a movie theater or a concert hall.
* S-Video/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component
can be connected to this unit.
* Video Input Jacks - This unit is equipped with 3 types of video input jacks. The component video in jacks and
S-video in jack enable you to watch the DVD player or the video devices with high quality picture.
* On-Screen 3 Language Display - You can select one of 3 languages, English, French or Spanish for on-
screen programming.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
Power source
TO USE AC POWER
1.Connect the AC cord plug into this units AC INPUT jack.
2. Connect the AC cord into an AC outiet. -
y
AC Outlet
Wider Hole ¢
and Blade —
+
1e030peDnoEnaNDE) =
NOTE:
+ Please make sure to insert the cord securely at both the LCD TV and the wall outlet.
* The AC cord has a grounding-type AC line plug. If the supplied AC cord does not match your AC outlet,
contact a qualified electrician, do not defeat the purpose of a grounding plug.
WARNING:
* DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC
CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
* DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD CAUSE
FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
« WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF
SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
* DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL
SHOCK.
* IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS
RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.
Contents
IMPORTANT SAFETY INSTRUCTIONS... 3
SAFETY PRECAUTIONS cco na an es 5
IMPORTANT NOTICE... 5
How to attach the stand ........coo ove, 6
How to remove the Stand er 6
| == 1161 €= RSS 7
Power SOU CS eaea 7
Content S er EKEKEKEERKRKRKRKRR RR RRRRKRKREREREE 8
Parts and functions... eee enr nn annees 9
Remote control... ren ananas 10
Antenna connecCHONS eo 11
Cable TV connections... ee 12
Connections to other equipment. 13
Starting setup
TV operation... KK EG 15
Quick guide for menu operation... 16
Convenience functions .........cccoee iii, 17
Memorizing channels... 18
Checking the digital-signal strength................ 19
Labeling channels.............ccoo iin, 19
Labeling video inputs..........ooccoe inn, 19
Setting the V-Chip ............e eee 20
Closed Caption... KR 21
CC advanced............. EEE 21
Setting the picture S!ZE......00.. 22
Reception disturbancSS 23
TroubleshootiNQ eK 24
Specifications cocoon, 25
limited WARRANTY ooo nene0e 26
Parts and functions
Front Left side
M
И
ENGLISH
wr Fedo MENU button
ses @——— INPUT/ENTER button
© POWER button
(Remote sensor To display the menu screen.
| Press MENU button to display the menu
1 POWER screen.
— POWER indicator CHANNEL A/v buttons, VOLUME
Red: Standby +/- buttons and INPUT/ENTER button
Green: On can be used to select the desired setting
during the menu screen operations.
Rear
AC INPUT jack
HEADPHONE jack
COMPONENT IN jacks
(Y/Pb/Pr/ AUDIO (L/R))
VIDEO IN jacks PC MONITOR IN jack
(VIDEO/S-VIDEO/AUDIO (L/R))
RF (ANT) IN jack
COAXIAL DIGITAL AUDIO OUT jack
PC AUDIO IN jack
10
Remote control
1 EN |
Dee
2 © © ©
D OO
3 9 O CG 10
4 O 11
6
7 | — Le 3 15
: [Lom be о
9 LES ES i 17
|
1.POWER Button - Used to turn the power on/off to
the LCD TV.
2.Direct Channel Selection Buttons (0-9) - Allows
direct access to any channel of the LCD TV.
3.— Button - This button is the “— button used
when selecting digital channels. Also can display
the current channel number when viewing the
program.
4.SLEEP Button - To set the LCD TV to turn off
after a preset amount of time, use the SLEEP
button on the remote control.
5.CH (CHANNEL) + /-/ CURSOR 4 / Y Buttons
- Used to operate the menu functions of the LCD
TV, and to change the channels of the LCD TV.
6. MENU Button - Use to display the On-Screen
menu function.
7.RESET Button - Press to reset the On-Screen
picture adjustments to their factory preset positions.
To use this function, select “Picture” or “Audio” in
the menu screen, then press this button.
8.INPUT SELECT Button - Use to change the
external input.
9.SCREEN SIZE Button - Used to change the
picture size.
10.RECALL Button - This button allows you to go
back to the previous channel selected by just
pressing the RECALL button. Press this button
again to return to the channel you were watching.
.MUTE Button - To turn off the sound, press this
button once. The LCD TV will be silenced and
the symbol “Mute” will appear on the screen. The
muting feature can be released by pressing the
MUTE button again or one of the VOL (VOLUME)
+ or — buttons.
12. VOL (VOLUME) + / —- / CURSOR « / > Buttons
- Used to operate the menu functions of the LCD
TV. Press the » button to increase, or the « button
to decrease the sound level.
13.ENTER Button - Use to enter or select
information for On-Screen operations.
14.EXIT Button - Press to remove setup menu.
15.CCD Button - Used to display the Closed Caption
menu screen.
16.DISPLAY Button - When you press this button,
the current information will be displayed on a
screen. To remove the display from the screen,
press this button again.
17.AUDIO Button - Change sound track language.
1
—
Before using the remote control, batteries must first be installed.
HOW TO INSTALL BATTERIES
1. Open the battery compartment cover.
3. Replace the battery compartment cover.
Use two “AAA” size batteries. The batteries may last
approximately one year depending on how much the
remote control is used. For best performance, it is
recommended that batteries should be replaced on a
yearly basis, or when the remote operation becomes
erratic. Do not mix old and new batteries or different
types.
BATTERY PRECAUTIONS
These precautions should be followed when using
batteries in this device:
Use only the size and type of batteries specified.
* Be sure to follow the correct polarity when
installing the batteries as indicated in the battery
compartment. Reversed batieries may cause
damage to the device.
Do not mix different types of batteries together (e.g.
Alkaline and Carbon-zinc) or old batteries with fresh
ones.
If the device is not to be used for a long period of
time, remove the batteries to prevent damage or
injury from possible battery leakage.
Do not try to recharge batteries not intended to be
recharged; they can overheat and rupture. (Follow
battery manufacturers directions.)
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your
antenna system. If you are using a Cable TV service, see page 12 for Cable TV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
N
Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack.
ENGLISH
If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, the use of the 300-75 ohm
matching transformer may be necessary.
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
a
Antenna
ack Antenna
Jack
300-75 ohm
Matching
Transformer
Na
a
Antenna
Jack
Combiner
UHF 300 ohm hl
\ 300-75 ohm Matching Transformer
J
Connect the UHF 300 ohm twin-lead wire to
the Combiner (not supplied). Connect the VHF
300 ohm twin-lead wire to the 300-75 ohm
Matching Transformer. Attach the Transformer to =
the Combiner, then attach the Combiner to the
Antenna Jack.
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
a
Antenna
Jac
Combiner
UHF 300 ohm —
oo VHF 75 ohm
Na
N
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wiretothe Combiner (notsupplied). Attach
the Combiner to the Antenna Jack.
11
12
Cable TV connections
This TV has an extended tuning range and can tune most cable channels without using a Cable TV
Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled.
Descrambling these signals for normal viewing requires the use of a descrambler device which is
generally provided by the Cable TV company.
For subscribers to basic Cable TV service
rn N For basic Cable TV service not requiring a Converter/
Descrambler box, connect the 75 ohm Coaxial Cable directly
to the Antenna Jack on the back of the TV.
75 ohm
Coaxial Cable
N J
For subscribers to scrambled Cable TV service
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect
the incoming 75 ohm Coaxial Cable to the Converter/Descrambier box. Using another 75 ohm Coaxial
Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the
connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel
3 or 4) and use the Converter/Descrambier box to select channels.
r \
Incoming
75 ohm Antenna
Cable TV Jack
Cable I Converter/ 1 75 ohm Cable to TV _
| Descrambler | x
N J
For subscribers to unscrambled Cable TV service with scrambled premium
channels
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require
the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available
from the Cable TV company or an electronics supply store). Follow the connections shown below. With the
switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the
“A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the
Converter/Descrambler box to tune scrambied channels.
r
Incoming Converter/
75 ohm Descrambler Antenna
Cable TV Jack
Cabl
able splitter A/B Switch 75 ohm Cable to TV .
Ne
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to this unit is dependent
on the model and features of each component. Check the Owner's Manual provided with each component for
the location of video and audio inputs and outputs.
I
ez]
To connect the LCD TV to a VCR о
Rear of the unit VCR =
(ComPonen | To VIDEO/AUDIO IN To Video/Audio OUT /
© y > Г mn "a
To connect the LCD TV to a VCR with an S-Video cord
If you connect a VCR with a S-Video cable to the S-VIDEO IN jack on the rear side of the unit, you must also
connect the audio cables to the AUDIO IN jacks on the rear of the unit.
The S-Video cable only carries the video signal. The audio signal is separate.
NOTE:
* When the S-Video cable and the standard video cable are connected at the same time, the S-Video cable
takes precedence.
Rear of the unit
To S-VIDEO IN To S-Video OUT VCR
S-Video cord (not supplied)
To Audio OUT
Audio cord (not supplied)
To connect to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the units COMPONENT VIDEO OUT jacks of your DVD
player with the COMPONENT video cables (not supplied).
Component video cord (not supplied) To Component OUT
Y
| DVD
NENT AUDIO IN |
No Audio cord р ——
En (not supplied) m is UN
To Audio OUT
NOTE:
+ Component Video input of the unit are for use with a device which output 480i/1080i interlaced sighals and
480p/720p progressive signals.
To connect the TV to a camcorder, or a TV Game
To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of
signals generated by these devices and subsequent hook-up variations required, they have not all been
included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for
additional information.
Rear of the unit
En To VIDEO/AUDIO IN
ii Ju \
13
14
Connections to other equipment (continued)
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, etc. as shown below.
Rear of the unit
OUT Front
DIGITAL AUDIO Subwoofer | o
©
Coaxial Digital
Audio Output
Coaxial digital cable A
{not supplied)
To Coaxial
Digital Audio Input
-
EE Surround Surround
| Speaker (Left) Speaker
AY Amplifier with built-in digital surround (Right)
decoder as listed above
NOTE:
* When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.
There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.
To connect the TV to a PC (Personal Computer)
Before you connect this TV to your PC, change the adjustment of your PC’s Resolution and
Refresh rate (60 Hz).
Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA
connector PC MONITOR on the rear of the TV. Attach the connectors firmly with the screws on the plug. In case
of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to the
AUDIO connector of the PC AUDIO IN jack of the TV. Press INPUT SELECT on the remote control to select PC
mode. Switch on the computer. The TV can operate as the computer monitor.
Rear of the unit Monitor Display modes
MODE Resolution Refresh rate
VGA 640x480 60/72/75 Hz
VGA 720x400 70HZ
SVGA 800x600 56/60/72/ 75 Hz
XGA 1024x768 60/70/75 Hz
WXGA 1280x768 60Hz
WXGA 1280x720 60Hz
WXGA 1360x768 60Hz
Audio cord (not supplied)
To return to normal mode
VGA cable (not supplied) Press INPUT SELECT again.
NOTE:
* The on-screen displays will have a different appearance in PC mode than in TV mode.
* |fthere is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV-screen.
Starting setup
The Starting Setup menu appears the first time
you turn on the TV, and assists you to select the
menu language, specify the Air/Cable setting,
and program your channels automatically.
IMPORTANT: Make sure that the antenna or cable
TV system connection is made!
1 To turn on the TV, press POWER (POWER
indicator on the front of the unit changes green.
It may take approx. 10 seconds for a picture to
appear on screen.). The starting setup function
begins. Press <« or » to select your desired
language.
2 Press à or Y to select “Signal Type”, then press
«+ or > to select “Cable” or “Air”.
3 Press 4 or Y to select “Automatic Search”, then
press » or ENTER.
4 Now the “Auto Setup” starts. After the starting
setup Is completed, the TV channel appears on
the screen.
* Depending on the reception condition, it may
take from 15 minutes to 30 minutes to complete
memorizing digital cable channels. Please be
patient.
NOTE:
* |f you press EXIT in the process of “Auto Setup”,
the Starting Setup stops and changes to the normal
screen.
When you make a menu selection, your changes
occur immediately. You do not have to press EXIT to
see your changes.
When you are finished programming the menus,
press EXIT.
TV operation
TO SELECT ANALOG CHANNELS
1-9: Press 1-9 as needed. Example, to
select channel 2, press 2, then press
ENTER.
Press the 2 digits in order. Example,
to select channel 12, press 1, 2, then
press ENTER.
100-135: Press the 3 digits in order. Example, to
select channel 120, press 1,2, 0, then
press ENTER.
TO SELECT DIGITAL CHANNELS
Press the first 3 digits, then press the — button,
followed by the remaining number.
Example, to select channel 015-001, press 0, 1,
5, -, 0, 0, 1, then press ENTER.
+ |f a channel is selected with only audio content,
“Audio only” will be displayed on the screen.
If a channel is selected with a weak digital
signal, “Digital channel signal strength is low”
will be displayed on the screen.
The same program may be available on either
an analog channel or a digital channel. You may
choose to watch either format.
If a channel is selected to which you have not
subscribed, “Digital channel is encrypted” will
be displayed on the screen.
VHF/UHF/CABLE CHANNELS
10-99:
ENGLISH
Air Cable
VHF VHF
2-13 2-13
UHF STD/HRC/IRC
14-69 14-36 (
37-59 (
60-85 |
86-94 (86) (94)
95-99 (
100-135 (
01 (
1 To turn on the TV, press POWER.
(POWER indicator on the front of the unit
changes green. It may take approx. 10 seconds
for a picture to appear on screen.)
2 Adjust the volume level by pressing VOL + or —.
The volume level will be indicated on the screen
by blue bars. As the volume level increases, so do
the number of bars. If the volume decreases, the
number of blue bars also decreases.
3 Set the Signal Type option to the appropriate
position (see “Air/Cable selection” on page 18).
4 Press the Direct Channel Selection (0-9, -)
buttons to select the channel.
(If you press only channel number, channel
selection will be delayed for a few seconds.)
NOTE:
+ |f a channel with no broadcast is selected, the
sound will automatically be muted.
* It may take a few seconds for a digital channel
picture to appear on screen after being selected.
To select the video input source
To view a signal from another device connected to
your LCD TV, such as a VCR player, press INPUT
SELECT, then press a/ or corresponding Number
buttons (0-3), then press ENTER. You can select TV,
Video, Component or PC depending on which input
jacks you used to connect your devices.
CH +/-
Press and release CH +/—. The channel automatically
stops at the next channel set into memory.
For proper operation, before selecting channels, they
should be set into the memory. See “Memorizing
channels” on pages 18 and 19.
15
16
DISPLAY
Press DISPLAY to display the current information on
the screen.
When the TV receives a digital signal, the digital
information will appear.
ES
EDREAL TT SES
* Channel number + Station name
* Channel label (if preset) * Broadcast program name
* V-Chip rating * Signal type
* Sleep timer * Audio language
* Program guide * Picture size
* Resolution
When the TV receives a analog signal, the analog
information will appear.
О E
* Channel number + Channel label (if preset)
* V-Chip rating * Signal type
* Sleep timer * Picture size
* Audio information * Resolution
(Stereo, SAP or Mono)
Press DISPLAY again to clear the call display.
NOTE:
* After a few seconds, DISPLAY screen will return to
normal TV-operation automatically.
RECALL
This button allows you to go back to the last channel
selected by pressing RECALL. Press RECALL again to
return to the last channel you were watching.
MUTE
Press MUTE to switch off the sound. The TV's sound
will be silenced and “Mute” will appear on the screen.
The sound can be switched back on by pressing this
button again or the VOL + or —.
SLEEP
To set the TV to turn off after a preset amount of time,
press SLEEP on the remote control. The clock will
count up 10 minutes for each press of the SLEEP but-
ton (Off, Oh 10m, Oh 20m, ..., 2h Om). After the sleep
time is programmed, the display will appear briefly
every ten minutes to remind you that the sleep timer
is operating. To confirm the sleep timer setting, press
SLEEP and the remaining time will be displayed for a
few seconds. To cancel the sleep timer, press SLEEP
repeatedly until the display turns to Off.
Quick guide for menu
operation
Call menu and for example: Select Language.
1 Press INPUT SELECT to select TV mode.
2 Press MENU. The TV menu screen will appear.
3 Press 4 or v to select “Setup”, then press » or
ENTER.
4 Press à or ¥ to select “Language”, then press
«/» to select the desired language.
...on the following pages the menu can be called
in the same way as here.
5 Press EXIT to return to the normal screen.
NOTE:
* |f no buttons are pressed for more than about 60
seconds, the menu screen will return to normal
operation automatically.
Convenience functions
You can change the default settings to convenience use.
| You can adjust the picture quality to your preference.
Picture Brightness
Setting / Contrast /
Sharpness /
Color / Tint
Color Bluish (Cool) / Neutral (Standard) / Reddish (Warm)
Temperature
Backlight The Backlight feature adjusts the screen brightness for improved picture
clarity.
Picture Sports Bright and dynamic picture (factory-set)
Preference | Standard Standard picture quality (factory-set)
Movie Movie-like picture setting (factory-set)
Memory Your personal preferences (set by you; see “Picture Setting”)
Picture Size See page 22.
Film Mode On/Off A smoother motion may be obtained by setting the Film Mode to “On”
when you view a DVD from the DVD player connected with the component
or HDMI input.
PC Setting Hor Position / | To adjust the horizontal / vertical position of the image on the PC Monitor
Ver Position screen. Each video standard will require a different value for this setting.
Clock To minimize any vertical bars or stripes visibie on the screen background.
Phase This must be adjusted after the frequency has been set optimize picture
quality.
Auto Acjust To adjust the all PC settings automatically.
DNR On/Off DNR (Digital Noise Reduction) can reduce the roughness of the picture.
Audio Bass / Treble / Balance You can adjust the sound quality to your preference.
MTS Stereo / Mono | The multi-channel TV sound (MTS) feature provides high-fidelity stereo
/ SAP sound. MTS also can transmit a second audio program (SAP) containing a
second language or other audio information.
When the TV receives a stereo or SAP broadcast, the word “Stereo” or
“SAP” displays on-screen every time you press DISPLAY.
Surround On/Off The dynamic presence and sound created offers a thoroughly enjoyable
listening experience.
Audio Language When two or more audio languages are included in a digital signal, you can
select one of the audio language. (This function is available only for digital
broadcast.)
Channel | Add / Delete See page 18.
DTV Signal See page 19.
Auto Ch Memory See page 18.
Ch Label See page 19.
Lock See page 20.
Setup Closed Caption See page 21.
Language You can choose from three different languages (English, Francais (French)
and Español (Spanish) for the on-screen displays.
Select the language you prefer first, then proceed with the other menu
options.
Video Label See page 19.
Auto Shut Off | On/Off if the Auto Shut Off feature is On, a station being viewed stops
broadcasting and the TV is not operated, the TV will automatically shut
itself off after 15 minutes.
Reset The Reset function returns your settings to the factory settings.
“Picture Size”, “MTS” and “Audio Language” cannot be reset by this
function.
ENGLISH
17
18
Memorizing channels
This TV is equipped with a channel memory
feature which allows channels to skip up or down
to the next channel set into memory, skipping
over unwanted channels. Before selecting
channels, they must be programmed into the
TV's memory. To use this TV with an antenna, set
the Signal Type option to the Air mode. When
shipped from the factory, this menu option is in
the Cable mode.
Air/Cable selection
1 Select “Channel”, then press » or ENTER.
Press à or ¥ to select “Auto Ch Memory”, then
press » or ENTER.
3 Press à or y to select “Signal Type”.
4 Press « or > to select “Air” or “Cable”.
CABLE CHART
The chart below is typical of many cable system
channel allocations.
on
114 126 177 128 129 130
114
191 132 123 134
t31 132 133 134
NOTE:
* It may take a few seconds for a digital channel
picture to appear on screen after being selected.
Automatic search
1 Select “Channel”, then press » or ENTER.
2 Press a or y to select “Auto Ch Memory”, then
press » or ENTER.
3 Press 4 or Y to select “Automatic Search”, then
press » or ENTER.
4 The TV will begin memorizing all the channels
available in your area.
* |t may take from 15 minutes to 30 minutes to
complete memorizing digital cable channels.
Depending on the reception condition, a bar
display may not advance for several minutes,
please be patient.
NOTE:
* Memorizing channels is best accomplished during
evening “PRIMETIME” hours, as more stations are
broadcasting digital signals. Memorizing channels can
only be accomplished while a station is broadcasting
a digital signal to set that channel into memory.
If you are unsure of the digital channels available
in your area, you may visit www.antennaweb.org to
receive a list based on your address or zip code.
Should you require further assistance you may call
our toll-free customer service line at 1-800-289-0980.
New digital channels may be added to your area
periodically, it is recommended to perform the
“Automatic Search” procedure regularly.
Adding Channel
If you find a new digital channel unregistered, you can
add the new channel into the channel memory.
1 Tune in the new channel.
2 Select “Channel”, then press » or ENTER.
3 Press 4 or v to select “Add/Delete”, then press »
or ENTER.
4 Press à or ¥ to select “Adding Channel’, then
press » or ENTER. The new channel will be
added into the channel memory.
Add/Delete channel
You can select the channel that you want to skip.
1 Select “Channel”, then press » or ENTER.
Press д ог т to select “Add/Delete”, then press
» or ENTER.
3 Press a or v to select “Add/Delete”, then press
» or ENTER.
Press à or Y to select the channel that you want
to skip.
5 Press « or » to select “Add” or “Delete”,
whichever function you want to perform.
6 Repeat steps 4 - 5 for other channels you want to
add or delete.
Clear All
All channels are deleted from the channel memory.
1 Select “Channel”, then press > or ENTER.
2 Press à or ¥ to select “Add/Delete”, then press >
or ENTER.
3 Press a or v to select “Clear All”, then press > or
ENTER.
Checking the digital-
signal strength
This TV will allow you to view the digital signal
meter for digital channels.
1 Select “Channel”, then press » or ENTER.
2 Press д ог т to select “DTV Signal”.
3 Press ENTER to check the Digital-signal strength.
The Digital-Signal strength screen will appear.
If necessary, adjust the direction of the antenna to
obtain the maximum signal strength.
NOTE:
* Signal meter feature is not available for analog
channels.
* After 240 seconds, DTV Signal screen will return to
normal TV-operation automatically.
Labeling channels
4
5
6
Press < or » repeatedly until the character you
want appears in the first space.
ENGLISH
The characters rotation as follows:
0-8 > Da 7 > a .)Ee/+=-
mee
If the character which you desire appears, press
ENTER.
Repeat this step to enter the rest of the characters.
If you would like a blank space in the label name,
you must choose the empty space from the list of
characters.
When you finish inputting the label name, press
EXIT to return to the normal screen.
Repeat steps 3-4 for other channel. You can
assign a label to each channel.
To clear a Ch Label
After step 3 above, press a or Y to select “Label
Clear”, then press » or ENTER.
NOTE:
* The channel labels will be reset after “Automatic
Search” on page 18.
Labeling video inputs
Channel label appear with the channel number
display each time you turn on the TV, select a
channel, or press DISPLAY.
You can choose any four characters to identify a
channel.
To create channel labels
1 Select “Channel”, then press > or ENTER.
2 Press a or ¥ to select “Ch Label”, then press >
or ENTER.
The “Ch Label” menu will appear.
3 Press « ог » to select a channel you want to
label, then press v.
The Video Label feature allows you to label each
input source for your TV.
1
2
3
4
Select “Setup”, then press » or ENTER.
Press à or ¥ to select “Video Label”, then press
» or ENTER.
Press à or ¥ to select an input which you want to
label.
Press « or P to select the desired label for that
input source.
: Uses the default label name
: Video cassette recorder
DVD : DVD video
DTV : Digital TV set-top box
SAT : Satellite box
CBL : Cable box
19
20
Setting the V-Chip
An age limitation can be set to restrict children from
viewing or hearing violent scenes or pictures that you
may choose to exclude. The restriction applies to “TV
Rating” and “Movie Rating” if this data is transmitted.
You may set this restriction separately. To use the
V-Chip function, you must register a password.
To register a password
1 Select “Lock”, then press » or ENTER.
2 Select and enter your password (4 digits) using
Number buttons (0-9), then press ENTER.
“x” appears instead of the number.
3 Enter the same password again to confirm, then
press ENTER.
The password is now registered.
NOTE:
* |f you forget the password, contact Customer
Service at 1-800-289-0980 for assistance.
Your original remote control will be required.
* To avoid forgetting the password, write it down and
keep in a safe place.
To set the V-Chip
1 Select “Lock” menu, then press » or ENTER.
2 Use Number buttons (0-9) to enter your
password, then press ENTER. Then Lock menu
will appear.
3 Press a or v to select “V-Chip”, then press
< of > to select “On”.
4 Press д ог т to select “V-Chip Set”, then press
» or ENTER.
The V-Chip Set Menu appears.
Press a or т to select which rating will be used,
then press » or ENTER. Each rating below will
appear.
TV Rating
You can set the rating using age level and genre.
Age:
TVY — All children
TV-Y7 7 years old and above
TV-G: General audience
TV-PG : Parental guidance
TV-14 :14 years old and above
TV-MA :17 years old and above
Genre:
ALL : AH
D : Dialogue
L : Language
$ : Sex
Vv : Violence
FV : Fantasy Violence
Movie Rating
PG : Parental guidance
PG-13 : Parental guidance less than 13 years old
R Under 17 years old parental guidance
suggested
NC-17 :17 years old and above
X : Adult only
6 Press a//</b to select the desired rating, then
press ENTER.
7 Press EXIT to return to the normal screen.
V-Chip function is activated now.
To use the TV after the TV Is protected.
When a program is received that is blocked by the V-
Chip, press MUTE, then enter your password.
The protection will be temporarily overridden. If the
TV is turned off or the channel is changed, the V-Chip
restriction will be reactivated.
NOTE:
* The V-Chip function is activated only on programs
and input sources that include a rating signal.
To change the password
1 Select “Lock”, then press » or ENTER.
2 Use Number buttons (0-9) to enter your password,
then press ENTER. The Lock menu will appear.
3 Press a or Y to select “Change Password”, then
press » or ENTER.
The Change Password screen will appear.
4 Enter a new password using Number buttons
(0-9), then press ENTER.
Enter the same password again to confirm, then
press ENTER.
The password is now registered.
Downloading the additional V-Chip rating system
As a supplement to the standard V-Chip rating
system, your television will be able to download an
additional rating system, if such a system becomes
avallable in the future.
To download the additional V-Chip rating system
(when available)
1 Select “Lock”, then press » or ENTER.
2 Use Number buttons (0-9) to enter your password,
then press ENTER. The Lock menu will appear.
3 Press a or ¥ {0 select “V-Chip”, then press « or
» to select “Or”.
4 Press a or v to select “V-Chip Set (DTV), then
press » or ENTER.
5 If the TV is not storing the additional rating
system, the TV will begin downloading it, which
may take some time to be completed.
6 Set your preferred content rating limits for the
additional rating system.
7 You also need “Update” procedure to update
rating information.
NOTE:
* You can only download the additional V-Chip rating
system when your TV is receiving a digital signal.
* When you download the additional rating system, it
may take some time for the download to occur.
* The V-Chip rating information and system are not
determined or controlled by the TV.
The standard V-Chip rating system is available
whether your TV is receiving a digital signal or not,
and will block both analog and digital programs. To
set the restriction level using the standard V-Chip
rating system, select V-Chip Set in step 3.
The downioadable V-Chip rating system is an
evolving technology, and availability, content, and
format may vary.
* You cannot select this feature if the TV is not
receiving a digital signal for the current station.
To clear the all V-Chip settings
1 Select “Lock”, then press » or ENTER.
Use Number buttons (0-9) to enter your password,
then press ENTER. The Lock menu will appear.
3 Press a or ¥ to select “V-Chip Clear”, then press
» or ENTER.
The Password screen will appear.
4 Use Number buttons (0-9) to enter your
password, then press ENTER. All your settings
return ro the factory settings.
Closed Caption
WHAT IS CLOSED CAPTIONING?
This television has the capability to decode and
display Closed Captioned television programs.
Closed Captioning will display text on the screen
for hearing impaired viewers or it will translate and
display text in another language.
Captions: This Closed Caption Mode will display
text on the screen in English or another language.
Generally, Closed Captions in English are transmitted
on C1 and Closed Captions in other languages are
transmitted on C2.
Text: The Text Closed Caption Mode will usually fill
1/2 of the screen with a programming schedule or
other information.
1 Select “Setup”, then press » or ENTER.
2 Press a or ¥ to select “Closed Caption”, then
press » or ENTER.
The Closed Caption menu will appear.
3 Press < or > to set “CC Setting” to “On”.
On: Captions will be displayed on the screen.
Off: Captions will not be displayed on the screen.
4 Press a or ¥ to select “Analog Caption” or “Digital
Caption”.
When you select “Analog Caption”, you can
choose C1,C2,C3,C4,T1,T2, T3 and T4.
When you select “Digital Caption”, you can
choose from C51, CS2, C53, C54, CS5 and CS6.
5 Press « or » to select the desired Closed
Caption mode for both Digital and Analog Caption.
ENGLISH
6 Press à or Y to select “CC Priority”, then press
« ог» to select “Digital CC” or “Analog CC”.
NOTE:
* Depending on the broadcast signal, some
Analog Captions will function with a Digital
broadcast signal. This step prevent that two
Kind of captions are overlapping.
NOTE:
+ |fthe program or video you selected is not closed-
captioned, no captions will display on-screen.
+ If text is not available in your viewing area, a black
rectangle may appear on-screen. If this happens,
set the CC Setting to “Off”.
When selecting Closed Captions, the captioning will
be delayed approx. 10 seconds.
If no caption signal is received, no captions will appear,
but the television will remain in the Caption Mode.
Misspellings or unusual characters may
occasionally appear during Closed Captioning. =
This is normal with Closed Captioning, especially
with live programs. This is because during live
programs, captions are also entered live. These
transmissions do not allow time for editing.
When Captions are being displayed, on-screen
displays, such as volume and mute may be seen
but may interfere with Closed Captions.
Some cable systems and copy protection systems
may interfere with the Closed Captioned signal.
If using an indoor antenna or if TV reception is
very poor, the Closed Caption Decoder may not
appear or may appear with strange characters or
misspelled words. In this case, adjust the antenna
for better reception or use an outdoor antenna.
CC advanced
When you have selected Custom as the display
method, you can adjust the various setting listed
below as follows:
This feature is designed to customize Digital Captions
only.
1 Select “Setup”, then press » or ENTER.
Press a or ¥ to select “Closed Caption”, then
press » or ENTER.
The Closed Caption menu will appear.
3 Press « or » to set “CC Setting” to “On”.
Press a or ¥ to select “Digital CC Preset”, then
press « or > to select “Custom”.
21
22
5 Press 4 or Y to select “CC Advanced”, then
press » or ENTER.
The CC Advanced menu will appear.
6 Press à or Y to select the desired item, then
press « or » to change the setting.
You can select from among the following items
and parameters.
Text Size: Auto, Small, Standard, Large
Text Type: Auto, Styled, Style2, Style3, Styled,
Style5, Style6, Style7
Text Edge: Auto, None, Raised, Depressed,
Uniform, Left Shadow, Right
Shadow
Text Color: Auto, Black, White, Red, Green,
Blue, Yellow, Magenta, Cyan
Text Opacity: Auto, Solid, Transparent,
Translucent, Flashing
Background Auto, Black, White, Red, Green,
Color: Blue, Yellow, Magenta, Cyan
Background Auto, Solid, Transparent,
Opacity: Translucent, Flashing
NOTE:
* You cannot set both “Text Color” and “Background
Color as a same color.
* You cannot set both “Text Opacity” and “Background
Opacity” to “Transparent”.
Setting the picture size
You can view 480i and 480p format programs in a
variety of picture sizes— Natural, Cinema Wide1,
Cinema Wide2, Cinema Wide 3, Full and Native.
Selecting the picture size
1 Select “Picture”, then press » or ENTER.
2 Press a or ¥ to select “Picture Size”, then press
» or ENTER to display Picture Size menu. Press
4A/Y or corresponding Number buttons (0-4) to
select the desired picture size, as described below.
NOTE:
* Selectable picture sizes may vary depending on the
input source or broadcast signal.
+ Picture Size menu also can be displayed by
pressing SCREEN SIZE on the remote control.
Natural
In some cases, this image will display the size of
standard 4:3 with a black side bar.
Cinema Wide1 (for 4:3 format programs)
To fill the screen, the right and left edges are
extended, however; the center of the picture remains
hear its former ratio.
The top and bottom edges of the picture may be hidden.
O O O a O
== € В
O A e
Cinema Wide2 (for letter box programs with
subtitles)
To fill the width of the screen, it is exiended
horizontally. However; it is only slightly extended at the
top and the bottom.
O — O
The top and bottom edges of the picture may be hidden.
© O
O >— ©
Cinema Wide3 (for letter box programs with
subtitles)
To fill the width of the screen, it is extended
horizontally. However; it is only slightly extended at the
top and the bottom.
The top and bottom edges of the picture may be hidden.
rograms)
Full will display the picture at the maximum size.
ST me N
И YA DN моя
7
Native (for PC mode only)
Detects the resolution of the signal of the image and it
will be shown on the screen with same amount of pixels.
NOTE:
* Some High Definition and/or Digital broadcasts may
not allow you to change the picture size.
*. In COMPONENT mode with a scanning rate of
720p or 10801, only the Cinema Wide2 and Full
picture size feature is available.
* In PC Mode, only the Natural, Full and Native
picture size features are available. In PC Mode
(WXGA), only the Full and Native picture size
features are available.
Reception disturbances
Most types of television interference can be remedied by adjusting the height and position of the VHF/
UHF antenna. Outdoor antennas are recommended for best results. The most common types of television
interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV
system, the disturbance may be caused by the local Cable TV company broadcast.
IGNITION
Black spots or horizontal streaks may appear, the picture may flutter or
drift. Usually caused by interference from automobile ignition systems,
neon lamps or AC powered tools and appliances such as drills or hair
dryers.
N
4
GHOSTS
Ghosts are caused by the television signal following two paths. One is the
direct path and the other is reflected by tall buildings, hills or other large
objects. Changing the direction or position of the antenna may improve
the reception.
\.
SNOW
If the TV is located far from the TV station, in a fringe reception area where
the signal is weak, small dots may appear in the picture.
If the signal is extremely weak, the installation of a larger external antenna
may be necessary.
N
RADIO FREQUENCY INTERFERENCE (RFI)
Caused by two-way radios, this type of interference produces moving
ripples or diagonal streaks in the picture. Some cases may cause a loss of
contrast in the picture. Changing the direction and position of the antenna
or installing an RFI filter may improve the picture.
N
PICTURE SIZE VARIATION
A slight picture size variation is normal when you adjust the CONTRAST or
BRIGHTNESS settings.
N J
CARE AND MAINTENANCE
To prevent fire or shock hazard, disconnect the TV from the power source before cleaning.
The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture.
Use caution when cleaning or wiping the plastic parts.
ENGLISH
23
24
Troubleshooting
Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer
or service outlet if problems persist. Be sure all connections are properly made when using with other units.
Poor picture
or no picture.
Station or Cable TV experiencing
problems, tune to another station.
Make sure channels are set into memory.
Check antenna or Cable TV
connections, adjust antenna.
diagonal bars
on screen,
f SYMPTOMS POSSIBLE SOLUTIONS à SYMPTOMS POSSIBLE SOLUTIONS )
* Make sure the power cord is plugged in. Digital
* Try another AC outlet. broadcasting |, ds
TV does not |. Power is off, check fuse or circuit breaker. screen Gheck digital signal strengih.
Р ; * Unpiug unit for an hour, then piug it back problem.
in. » Check all Cable TV connections.
» Station or Cable TV experiencing » Set Air/Cable menu option to the Cable
. No CATV
problems, tune to another station. reception mode.
Poor sound | * Check sound adjustments {Volume and pion. * Station or Cable TV system problems,
or no sound. Mute). try another station.
* Check for sources of possibie * Check antenna connections, adjust or
interference. Horizontal or
* Check for sources of possibie
re-direct antenna.
interference.
No reception
above
* Make sure Signal Type option is in the
appropriate mode.
If using antenna, check UHF antenna
» Check for sources of possible channel 13. connections.
‚ Chock picture control adjustments * Batteries are weak, dead or inserted
— incorrectly.
* Station or Cable TV experiencing * Remote is out of range, move closer to
Poor problems, tune to another station. No Remote TV (within 15 feet).
reception on * Make sure channels are set into memory. operation. * Make sure Remote is aimed at sensor.
some * Station is weak, adjust antenna to * Confirm there are no obstructions
channels. receive desired station. between the Remote and the TV.
* neo for sources of possible * Make sure the power cord is plugged in.
interference.
* Sieep Timeris set.
* Station or Cable TV experiencing TV shuts off. |, Power interrupted.
problems, tune to another station. —
* TV station experiencing problems or
* Make sure channeis are set into memory. di losed loned
Poor color or |* Check picture control adjustments Closed - program tuned Is not closed captioned.
4 Try another channel.
no color. * Check antenna or Cable TV Caption is not |, Check Cable TV connection or VHE/UHF
connections, adjust antenna. activated.
* Check for sources of possible antenna, reposition or rotate antenna.
interference * Set closed caption decoder in the menu.
* Station or Cabie TV experiencing MN not ourl* Select proper language in the menu
Picture problems, tune to another station. lanaua > options.
wobbles or * Make sure channels are set into memory. \2g ade. A
drifts. » Cable TV company is scrambling signal.
» Adjust antenna.
\ J
f \
Na
£7 SANSUI.
FOR CUSTOMER SERVICE, ADDITIONAL SET-UP AND OPERATING ASSISTANCE, OR TO ORDER ACCESSORIES PLEASE CALL:
1-800-289-0980
OR WRITE TO:
ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
www.orionsalesinc.com
WHEN CALLING CUSTOMER SERVICE — PLEASE HAVE YOUR MODEL NUMBER READY
FOR INFORMATION ON OUR OTHER PRODUCTS, OR TO ORDER ACCESSORIES ONLINE, PLEASE VISIT OUR WEBSITE AT
A
Specifications
GENERAL
Power supply:
Power consumption:
Weight:
Dimensions:
Operating temperature:
Operating humidity:
Type:
Display method:
Number of Pixels:
Broadcasting system:
Receiving channels:
Tuner type:
Inputs:
Outputs:
Speaker:
Audio output power:
ACCESSORIES
AC 120V 60Hz
Operation: 29W
Stand by: 0.8W
3.8 kg (8.4 lbs)
Width: 472 mm (18-9/16 inches)
Height: 362 mm (14-1/4 inches)
Depth: 174 mm (6-7/8 inches)
5°C-40°C
Less than 80%
18.5 inches (470.1 mm diagonal)
Transmission TFT color LCD panel
1366 (H) x 768 (V)
US system M
ATSC standard (8VSB), QAM
VHF 2-13
UHF 14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-135 (100)-(135)
01 (4A)
Frequency synthesized
S-Video: Y-Input:1.0 Y (p-p), 75 ohms
C-Input:0.3 V (p-p), 75 ohms
Video: (RCA) 1 Y p-p/75 ohms
Audio: (RCA) -8 dBm/50K ohms
Component video: (Y) 1 Y (p-p), 75 ohms
(Pb})/(Pr) 0.7 V (p-p), 75 ohms
PC Monitor: Mini-Dsub 15pin x 1
Antenna: VHF/UHF In 75 ohms coaxial
Digital audio out: 0.5 Vp-p 75 ohms terminated
25.4 mm x 68.6 mm (1 inch x 2-11/16 inches), 8 ohms x 2
1.5W + 1.5W
Remote control
Batteries (AAA) x 2
AC Cord
Stand
Screws X 2
Designs and specifications are subject to change without notice.
25
ENGLISH

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
