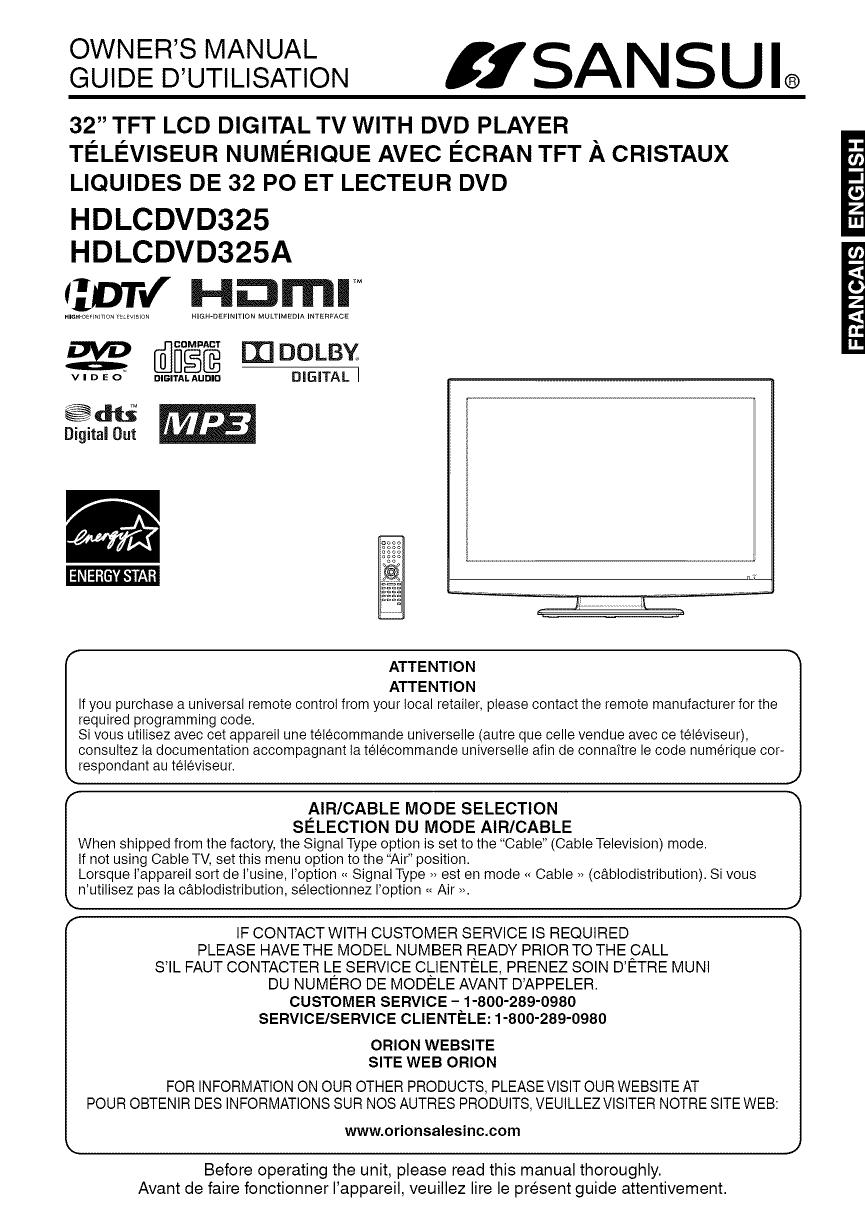

Sansui HDLCDVD325 LCD Television with DVD Owner's Manual

GUIDE DUTILISATION___ 4Y SANSUL,
32” TFT LCD DIGITAL TV WITH DVD PLAYER
TELEVISEUR NUMERIQUE AVEC ECRAN TFT A CRISTAUX
LIQUIDES DE 32 PO ET LECTEUR DVD
HDLCDVD325
HDLCDVD325A
(ЮТУ
HIGH-DEFINITION TELEVISION HIGH-DEFINITION MULTIMEDIA INTERFACE
VIDEO ISE DIGITAL |
SS dts
Digital Out
ET
COMPACT
ENERGY STAR
Г ATTENTION в
ATTENTION
If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the
required programming code.
Si vous utilisez avec cet appareil une télécommande universelle (autre que celle vendue avec ce téléviseur),
consultez la documentation accompagnant la télécommande universelle afin de connaître le code numérique cor-
|_‘espondant au téléviseur.
A
4 \
AIR/CABLE MODE SELECTION
SELECTION DU MODE AIR/CABLE
When shipped from the factory, the Signal Type option is set to the “Cable” (Cable Television) mode.
If not using Cable TV, set this menu option to the “Air” position.
Lorsque l'appareil sort de 'usine, option « Signal Type » est en mode « Cable » (cáblodistribution). Si vous
(utilisez pas la câblodistribution, sélectionnez l'option « Air ».
J
4 N
IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL
S'IL FAUT CONTACTER LE SERVICE CLIENTELE, PRENEZ SOIN D'ETRE MUNI
DU NUMERO DE MODELE AVANT D'APPELER.
CUSTOMER SERVICE - 1-800-289-0980
SERVICE/SERVICE CLIENTELE: 1-800-289-0980
ORION WEBSITE
SITE WEB ORION
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT
POUR OBTENIR DES INFORMATIONS SUR NOS AUTRES PRODUITS, VEUILLEZ VISITER NOTRE SITE WEB:
www.orionsalesinc.com
Before operating the unit, please read this manual thoroughly.
Avant de faire fonctionner l'appareil, veuillez lire le présent guide attentivement.
FRANCAIS | ENGLISH |
The lightning flash with arrowhead
symbol, within an equilateral triangle
CAUTION is intended to alert the user to the
. . ни presence of uninsulated dangerous
RISK OF ELECTRIC SHOCK voltage within the product's enclosure
DO NOT OPEN that may be of sufficient magnitude to
constitute a risk of electric shock.
CAUTION: To REDUCE THE RISK OF ELECTRIC The exclamation point within an
SHOCK, DO NOT REMOVE COVER equilateral triangle is intended to
alert the user to the presence of
(OR BACK). NO USER-SERVICEABLE important operating and maintenance
PARTS INSIDE. REFER SERVICING TO (servicing) instructions in the literature
QUALIFIED SERVICE PERSONNEL. accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY
FROM THIS PRODUCT AT TIMES.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EX-
TENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules
could void the user's authority to operate this equipment.
CAUTION:
THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE
READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN
FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE Location of the required Marking
MAINTENANCE. CONTACT AN AUTHORIZED SERVICE e rating sheet and the safety caution are
LOCATION-SEE SERVICE PROCEDURE. on the rear of the unit.
USE OF CONTROLS, ADJUSTMENTS OR THE CERTIFICATION: COMPLIES WITH FDA
PERFORMANCE OF PROCEDURES OTHER THAN THOSE | RADIATION PERFORMANCE STANDARDS, 21
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS CFR SUBCHAPTER J.
RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM, Complies with FDA performance standards
DO NOT TRY TO OPEN THE ENCLOSURE. RADIATION MAY | for laser products except for deviations
BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO pursuant to Laser Notice No. 50, dated
NOT STARE INTO THE BEAM. June 24, 2007.
The lamp(s) within this product contain mercury.
Disposal should be in compliance with local, state or federal laws.
Record the model number and serial number.
Model number Serial number
—
)
2) Keep these instructions. и"
Heed all | @
3) eed all warnings. =
4) Follow all instructions. g
5) Do not use this apparatus near water. TT]
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do notinstall near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachmenis/accessories specified by the manufaciurer.
12) Use only with cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over. S3125A
13) Unplug this apparatus during lighining storms or when unused for long periods of time. m
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such
as vases, should not be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken to keep from touching such
power lines or circuits, as contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric
shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage
points or short out parts that could result in fire or electric shock. Never spill or spray any type of
liquid into the unit. EXAMPLE OF ANTENNA GROUNDING AS PER THE
19) If an outside antenna or cable system is MA TAL BORE
connected to the unit, be sure the antenna or Гр ANTENNA О
cable system is grounded to provide some ~~ |
protection against voltage surges and built-up -
static charges, Section 810 of the National 2) ANTENNA
Electrical Code, ANSI/NFPA 70, provides T7 TTT (NEC SECTION 810-20)
information with respect to proper grounding of |eiecrricservice | GROUNDING CONDUCTORS
the mast and supporting structure, grounding FOUIPMENT =~” (NEG SECTION BIo-2)
of the lead-in wire to an antenna discharge NEC-NATIONAL JT GROUND CLANPS
unit, size of grounding conductors, location ELECTRICAL CODE LOMERSERVICE GROUNDING
of antenna discharge unit, connection to 528984 (NEC ART 250, PART H)
grounding electrodes, and requirements for the grounding electrode.
20) When replacement parts are required, be sure the service technician uses replacement parts
specified by the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform
safety checks to determine that the unit is in proper operating condition,
22) Keep your fingers clear of the disc slot as it is closing. It may cause injury.
Read these instructions.
IMPORTANT SAFETY INSTRUCTIONS (continued)
23) When you connect the product to other equipment, turn off the power and unplug all of the equipment from
the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's
manual of the other equipment carefully and follow the instructions when making any connections.
24) Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume
sound may cause hearing or speaker damage.
25) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker
overheating and fire.
26) When you use the headphones, keep the volume at a moderate level. If you use the headphones
continuously with high volume sound, it may cause hearing damage.
27) Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the
laser beam. It may cause eye damage.
28) Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious
personal injury and product malfunction.
29) This reminder is provided io call the cable TV system installer's attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
30) The socket-outlet must be installed near the unit and easily accessible.
CONDENSATION
Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm
room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired.
To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure
that the room temperature rises gradually.
Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In
such cases, change the location of the player.
HOW TO HANDLE THE LCD PANEL
Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.
+ |[f the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause
skin inflammation.
If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your
eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.
CHILD SAFETY:
it Makes A Difference How and Where You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:
THE ISSUE
The home theater entertainment experience is a growing trend and larger flat panel displays are popular
purchases. However, flat panel displays are not always supported on the proper stands or installed
according to the manufacturers recommendations.
Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers,
chests or carts may fall over and cause injury.
THIS MANUFACTURER CARES!
The consumer electronics industry is committed to making home entertainment enjoyable and safe.
TUNE INTO SAFETY
One size does NOT fit all. Follow the manufacturer's recommendations for the safe installation and use of
your flat panel display.
Carefully read and understand all enclosed instructions for proper use of this product.
Dont allow children to climb on or play with furniture and television sets.
Don't place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
Remember that children can become excited while watching a program, especially on a “larger than life” flat
panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or
knocked down.
Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:
Use a mount that has been recommended by the display manufacturer and/or listed by an independent
laboratory (such as UL, CSA, ETL).
Follow all instructions supplied by the display and wall mount manufacturers.
If you have any doubts about your ability to safely install your flat panel display, contact your retailer about
professional installation.
Make sure that the wall where you are mounting the display is appropriate to support the weight of the unit/
product and wall mount. If you are unsure, contact a professional installer.
A minimum of two people are required for installation. Flat panel displays can be heavy.
SAFETY PRECAUTIONS
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause
overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When
placing on a shelf leave 10 cm (4 inches) free space around the entire unit.
A
410cmp
ENGLISH
Notes when mounting the LCD TV/DVD on a wall
If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV/DVD for advice,
and have the equipment professionally installed. Incomplete or improper installation may cause injury to you,
and/or damage to the LCD TV/DVD.
IMPORTANT NOTICE —
Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for
long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but
permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your
LCD Panel on for long periods of time while it is displaying the following formats or images:
* Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
* Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on
a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a
widescreen (16:9) display (black bars on left and right sides of screen).
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim
any responsibility for these symptoms.
+ LCD Panels are manufactured using an extremely high level of precision technology, however sometimes
parts of the screen may be missing picture elements or have luminous spots.
This is not a sign of a malfunction.
* Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some
equipment placed too near this unit may cause interference.
* Effect on infrared devices — There may be interference while using infrared devices such as infrared cordless
headphones.
Features
LCD color TV With DVD/CD player
Unique space saving design combines a 32” LCD color TV and a DVD/CD player.
A DVD disc has much more capacity, but is the same size as an audio CD disc. The Picture/Audio quality ofa
DVD exceeds other software. The picture quality is higher than Super VHS video cassettes. The audio quality
is higher than an audio CD. The DVD also has special options; audio language selection, subtitle language
selection, or multi-angle, etc.
The DVD PLAYER can play back both audio CDs and MP3/WMA/JPEG CDs.
Compatible with a wide range of DVD audio outputs
Digital Audio Jack {Coaxial)
* When a component with a built-in Dolby Digital decoder is connected, Dolby Digital sound can produce the
effect of being in a movie theater or a concert hall.
Surround standard is different from Dolby Digital. This format is already in use in many theaters. By connecting
this unit to a DTS decoder or an AV amplifier with a built-in DTS decoder, the DTS audio of DVD discs
recorded in this format can be enjoyed. However, audio will not be output from the analog audio output jacks.
By connecting this unit to an AV amplifier with a built-in MPEG decoder, the MPEG audio of DVD discs
recorded in this format can be enjoyed.
* The Linear PCM sound of a 48 kHz/24 bit through 96 kHz/24 bit exceeds audio CD sound.
Convenience Features
Direct selection of your desired scenes using Title/Chapter/Time/Track - You can play back from the
desired scene.
Recalling Up to 3 Scenes - You can program up to 3 scenes in memory and recall the marked scenes.
Frame Advance - The PAUSE/STILL moves one frame at a time.
Slow Motion - The SLOW moves you back and forth through the program by 4 steps of 1/7-1/2 times.
Repeat Playback - You can repeat chapter, track, title, sides or material between two selected points.
Program Playback (Audio CD/MP3/WMA CD) - You can play back tracks in programmed sequences.
Zoom - You can zoom in the selected subject on the screen during playback.
Note: Make sure that discs are suitable for the following functions.
Multi-Language - Maximum 32 language subtitles and maximum 8 language soundtracks can be played back
for movies or programs.
Multi-Angle - Pictures of Sports or a Live Concert are recorded with many cameras. When you play such a disc,
you can change the angles during playback.
Parental Control - You can limit the play back of scenes or sounds of DVD discs that have a rating level
encoded on the disc.
Video Aspect Ratio - You can change the aspect ratio of the screen for your monitor.
TV Features
integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box.
Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for
hearing impaired viewers.
Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control
adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed for up to 120
minutes to turn off automatically.
On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-
screen programming.
V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded
with this information. V-chip will allow you to set a restriction level.
* DVD is atrademark of DVD Format/Logo Licensing Corporation.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
* Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued &
pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks
of DTS, Inc.© 1996-2008 DTS, Inc. All Rights Reserved.
* HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
Contents
IMPORTANT SAFETY INSTRUCTIONS... 3
ЗАРЕТУ РВЕСАОТПЮМЗ .........нннннннне 5
IMPORTANT NOTICE... 5
Features. ii RR KK RER EEE 6
Content Sr EEEKEKEKERKRKRKRKKR RR RRRRKR RER 7
D [7 oO 8
Location of controls... eme 9
Remote control... e... enr nanas 11
Power SOUTC@ sense srsnra nana aan anna na nanas 12
Antenna conneCcHONS ee 13
Starting setup... eee 15
Setting the on-screen language ...................... 15
Memorizing channels... 15
TV operation... ne 17
Labeling channels... 18
Labeling video inputs... inn, 18
Setting the V-CMP resserre care ee ae rare carre 18
Closed Caption... cnrs 20
CC advanced............. eee i 21
Adjusting the picture preference ..................... 21
Picture control adjusiment res 21
Selecting the color temperature... 22
Setting the picture SIZe..................eme 22
Film mode ............ eee rre 23
Picture control adjustment in the PC mode........... 23
De EEE 23
Sound control adjustment... 24
Selecting Stereo/
Second Audio Program (SAP)... 24
Selecting the audio language... 24
Selecting the HDMI audio input source........... 25
Turning off the built-in speakers ...................... 25
Adjusting the back lighting ................o 25
Checking the digital-signal strength ................ 25
Setting the auto shut off """— 25
Resetting your settings ec 26
Preparation ee EEE en 26
Status display of disc ........coooocoi i, 26
Playback proce@dUr® ses 26
Special playDbaCK oe eee 27
MP3/WMA/JPEG and Audio CD playback...... 27
Setting the JPEG Mean 29
Program playback (CD) ers vivre, 29
Repeat playback (CD)... ee, 30
Random playback (CD) ........... eee 30
ДПООППО...нннннннннннннннее: 30
Locating desired scene... 30
Repeat playback... 30
Marking desired scenes... 31
Changing soundtrack language...................... 31
Subtitles.…..…….....…..cssrerensnsner ras sa caca rase cena nes 32
Changing angles.................. eee 32
Title selection... ii ass rare nues 32
DVD Menu coon 32
Setting the language ................... iii, 32
Setting the aspect ratio of TV screen ........... 33
Setting on screen display ................ eee. 33
Setting the picture mode..." 33
Night Mode ..……....…….rrercsrreecereee aa se rene s ace nana 34
Digital out.......ooii era 34
Parental control... RE 34
Temporary disabling of rating level
by DVD dISC …...…... nee carrec care re are nana sa near a near e 35
Language code Stars 36
Connections to other equipment... 37
Reception disturbances ...............eeemeeres 40
Problems and troubleshooting........._.... 41
Specifications …….....….ecsreeeeseee anse re carre cnrs 43
Limited WARRANTY i, 44
ENGLISH
Disc
Playable discs
Disc type and logo mark content CAUTION:
* Only the left types of discs can be played on this
Audio unit. DVD-ROM, CD-ROM, SVCD, CVD, VCD, etc.
» + cannot be played.
DVD Video VIDEO Video 8cm discs can be played directly. If an 8cm disc
DVD (moving adapter is used it will cause errors.
VIDEO pictures) If you insert an irregular shaped disc, it may get
stuck and cause a malfunction.
The use of a ring protector or other disc
CD-DA ISE, Audio accessories will cause errors.
DIGITAL AUDIO This unit is to be used exclusively with the NTSC
The following discs are also available. color system and SECAM system discs cannot
: DEEP discs of JV ideo format. Some CD-R/RWs and DVD-R/RWs cannot be -
played back depending on the recording conditions.
COMPACT
Region Number
Region number (Regional restriction code) is built-in to the unit and DVD video discs. Ie
Region number “1” or “ALL of DVD video discs can be used on this unit. uy
Title
When two or more movies are recorded on a disc, the disc | _ DVD DISC _
is divided into two or more sections. Each section is called | TITLE 4 TITLES @
a TITLE”. - >| >
CHAPTER 1 CHAPTER 2 CHAPTERS
CHAPTER $ CHAPTER2
Chapter
The titles can be subdivided into many sections.
Each section is called a “CHAPTER”.
Track | , Audio - CD _
An Audio CD can contain several items.
These are assigned to the tracks.
TRACK + TRACK 2 TRACK 3 TRACK 4 TRACK 5
nu |пл | is] u) re
Removing Disc from Case
Be sure to hold the edge of disc. Do not touch the surface of the disc.
Pick up the disc gently from the case.
+ Do not scratch the disc.
* Do not get dirt on the surface of the disc.
+ Do not stick a label or adhesive tape on the disc.
* Do not drop or bend the disc.
Storing Disc
* Store the disc in the case to avoid risk of scratches, dirt or damage.
* Do not leave disc exposed to direct sunlight or in hot or humid places.
Cleaning Disc
Wipe the disc with a clean, dry cloth from center to edge.
* Do not wipe the disc in a circular motion.
* Do not use liquid or aerosol cleaners.
Location of controls
Front
T
ий
ar
©)
pa
TT
, ——.- ==
—— Remote sensor
| ld — POWER indicator
Red: Standby
Green: On
E
Left side
7 DJ
7 A @ — EJECT button
©
DISC slot wwe || VOLUME +/- buttons
7 9
eu » @-—! CHANNEL A/» (PLAY) button
| « @- | CHANNEL v/m (STOP) button
| MENU
8 @ | | MENU button
A | INPUT/ENTER button
—— POWER button
| 1.
L
1.1
aio
To display the menu screen.
Press MENU button to display the menu screen.
CHANNEL A/V butions, VOLUME +/- butions and INPUT/ENTER button can be used to select the desired
setting during the menu screen operations.
Location of controls (continued)
Rear side
COAXIAL DIGITAL AUDIO OUT jack
VAR (VARIABLE) AUDIO OUT jack
PC MONITOR IN jack
RF (ANT) IN jack
AC INPUT jack HDMI 1/DVI IN jack COMPONENT IN jack
HDMI 2 IN jack LINE2 VIDEO IN jack
PC/DVI AUDIO IN jack LINE1 IN jacks (VIDEO/S-VIDEO/AUDIO (L/R})
AUDIO (L/R) jacks
(for COMPONENT IN and LINE2 VIDEO IN)
10
Remote control
POWER Power On/Off
DISPLAY/- Call TV information T
Call DVD information 77)
Input =" for digital channels <
TV/DVD Switch between TV/AV and DVD g
A (EJECT) Eject a disc LL]
0-9 Direct channel selection of TV
POWER DispLay Tv/Dv) À Input setting
(SAN Enter a password
VOL +/- Adjust volume of TV
MUTE Switch off the sound
SLEEP Sleep timer
SETUP/ TV mode - Display menu of TV
TV MENU DVD mode - Call up initial setup mode
(9) DVD MENU Display DVD menu
SLEEP CHA/Y Select channel of TV
SETUP/ o лу <> Cursor buttons
TV MENU
a ENTER Enter information in the menu
EXIT/ Exit from On-Screen menu
CANCEL Reset information in the menu
TOP MENU Select title =
SEARCH Fast Forward/Review playback
PLAY Playback
— SKIP Skip chapter to forward or reverse direction
CH | SUBTITLE Set subtitle
SEARCH PLAY SEARCH
STOP Stop
SKIP SUBTITLE STOP SKIP SLOW Forward/Reverse- slow motion
& PAUSE/STILL — Pause CD sound
SLOW PAUSE/TILL PLAY MODE SLOW Still picture of DVD
GO PLAY MODE Select playback mode
AUDIO RETURN REPEAT A-B ANGLE
AUDIO Change sound track language
SCREENSIZE MARKER JUMP “РОМ” RETURN Remove DVD setup menu
NES REPEAT A-B Repeat playback between A and B
FS ANGLE Change playback angle
SCREEN SIZE Display PICTURE SIZE menu
MARKER Index
CCD/ Closed Caption
` ” JUMP Locating desired scene
RECALL/ Switch between present/last channel
ZOOM Zoom
INPUT SELECT Display source selection menu
ATTENTION
If you purchase a universal remote from a local retailer, please contact the remote manufacturer for the correct
programming code.
11
12
Remote control (continued)
Inserting Batteries
Open the battery compartment 2 Install two “AAA” batteries, 3 Replace the compartment cover.
cover in the direction of the arrow. paying attention to the
polarity diagram in the battery
compartment.
Operation
+ Aim the remote control at the remote sensor and press control
buttons to operate.
* Operate the remote control within a 30° angle on either side of
the remote sensor, up to a distance of approximately 15 feet.
y,
NOTE:
* Do not leave the remote control unit exposed to direct sunlight or in hot or humid places.
* The remote control unit uses infrared beams to transmit signals, so sunlight or fluorescent light on the remote
sensor may shorten operating distance.
* Incorrect use of batteries may cause them to leak or burst. Read the battery warnings and use the batteries
properly.
* Do not mix old and new batteries.
* Remove batteries if the remote control will not be operated for an extended period of time.
Power source
TO USE AC POWER
1.Connect the AC cord plug into this units AC IN jack.
2. Connect the AC cord into an AC outlet.
\
AC Outlet
Wider Hole
and Blade
NOTE:
+ Please make sure to insert the cord securely at both the LCD TV/DVD and the wall outlet.
+ The AC Cord has a polarized type AC line plug. If the supplied AC cord does not match your AC outlet,
contact a qualified electrician.
WARNING:
* DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC
CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
* DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. THIS COULD CAUSE
FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
* WHEN THIS UNIT 18 NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF
SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
* DO NOT PLUG/UNPLUG THE AC CORD WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL
SHOCK.
* IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS
RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your
antenna system. If you are using a Cable TV service, see page 14 for Cable TV connections.
я
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire) 2
a NN Connect the 75 ohm cable from the combination g
Antenna Antenna VHF/UHF antenna to the antenna jack. TT
Jack Jack
If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, the use of the 300-75 ohm
matching transformer may be necessary.
75 ohm 300-75 ohm
Coaxial Matching
Cable Transformer
N J
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
fr N Connect the UHF 300 ohm twin-lead wire to
Antenna FR the Combiner (not supplied). Connect the VHF
Jack \ 300 ohm twin-lead wire to the 300-75 ohm
Matching Transformer. Attach the Transformer {o -
the Combiner, then attach the Combiner to the
Antenna Jack.
Combiner me
UHF 300 oh
nm "VHF 300 ohm
No 300-75 ohm Matching Transformer 5
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Combiner
UHF 300 ohm —
"a VHF 75 ohm
N
J
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire tothe Combiner (notsupplied). Attach
the Combiner to the Antenna Jack.
13
14
Cable TV connections
This TV has an extended tuning range and can tune most cable channels without using a Cable TV
Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled.
Descrambling these signals for normal viewing requires the use of a descrambler device which is
generally provided by the Cable TV company.
For subscribers to basic Cable TV service
rn For basic Cable TV service not requiring a Converter/
Descrambler box, connect the 75 ohm Coaxial Cable directly
to the Antenna Jack on the back of the TV.
75 ohm
Coaxial Cable -
J
For subscribers to scrambled Cable TV service
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect
the incoming 75 ohm Coaxial Cable to the Converter/Descrambier box. Using another 75 ohm Coaxial
Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the
connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel
3 or 4) and use the Converter/Descrambier box to select channels.
4
Incoming
75 ohm Antenna
Cable TV Jack
Cable I Converter/ 1 75 ohm Cable to TV _
| Descrambler | x
N J
For subscribers to unscrambled Cable TV service with scrambled premium
channels
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require
the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available
from the Cable TV company or an electronics supply store). Follow the connections shown below. With the
switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the
“A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the
Converter/Descrambler box to tune scrambied channels.
r
Incoming Converter/
75 ohm Descrambler Antenna
Cable TV Jack
Cabl
able splitter A/B Switch 75 ohm Cable to TV .
Ne
Starting setup
The Starting Setup menu appears the first time
you turn on the TV, and assists you to select the
menu language, specify the Air/Cable setting,
and program your channels automatically.
IMPORTANT: Make sure that the antenna or cable
TV system connection is made!
1 To turn on the TV, press POWER (POWER
indicator on the front of the unit changes green.
It may take approx. 10 seconds for a picture to
appear on screen.). The starting setup function
begins. Press <« or » to select your desired
language.
2 Press à or Y to select “Signal Type”, then press
«+ or > to select “Cable” or “Air”.
3 Press 4 or Y to select “Automatic Search”, then
press » or ENTER.
4 Now the “Auto Setup” starts. After the starting
setup Is completed, the TV channel appears on
the screen.
* Depending on the reception condition, it may
take from 15 minutes to 30 minutes to complete
memorizing digital cable channels. Please be
patient.
NOTE:
* |f you press EXIT/CANCEL in the process of “Auto
Setup”, the Starting Setup stops and changes to the
normal screen.
When you make a menu selection, your changes
occur immediately. You do not have to press EXIT/
CANCEL to see your changes.
When you are finished programming the menus,
press EXIT/CANCEL.
Setting the on-screen
language
4 Press a or ¥ to select “Setup”, then press » or
ENTER.
ENGLISH
5 Press à or ¥ to select “Language”.
6 Press « ог » to select the desired language:
English, French (Francais) or Spanish (Español).
7 Press EXIT/CANCEL to return to the normal
screen.
NOTE:
* |f no buttons are pressed for more than about 60
seconds, the menu screen will return to normal
operation automatically.
Memorizing channels
You can choose from three different languages
(English, French and Spanish) for the on-screen
displays.
Select the language you prefer first, then
proceed with the other menu options.
1 Press POWER.
2 Press TV/DVD to select TV mode.
3 Press SETUP/TV MENU. The TV menu screen
will appear.
This TV is equipped with a channel memory =
feature which allows channels to skip up or down
to the next channel set into memory, skipping
over unwanted channels. Before selecting
channels, they must be programmed into the
TV's memory. To use this TV with an antenna, set
the Signal Type option to the Air mode. When
shipped from the factory, this menu option is in
the Cable mode.
Air/Cable selection
Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
Press a or ¥ to select “Channel”, then press >
or ENTER.
Press a or ¥ to select “Auto Ch Memory”, then
press » or ENTER.
Press à or ¥ to select “Signal Type”.
IB © N —
Press « or » to select “Air” or “Cable”.
6 Press EXIT/CANCEL to return to the normal
screen.
15
16
CABLE CHART
The chart below is typical of many cable system
channel allocations.
Oy
95
120 +21
120 121
128 123 124 125
122 123 124 125
127 128 325 130
127 128 1050 150
113 114 115
113 114 115
133
131 192 133
NOTE:
* It may take a few seconds for a digital channel
picture to appear on screen after being selected.
Automatic search
1 Press SETUP/TV MENU in the TV mode. The TV
Menu screen will appear.
Press a or ¥ to select “Channel”, then press > or
ENTER.
3 Press à or y to select “Auto Ch Memory”, then
press » or ENTER.
Press 4 or Y to select “Automatic Search”, then
press » or ENTER.
5 The TV will begin memorizing all the channels
available in your area.
* |t may take from 15 minutes to 30 minutes to
complete memorizing digital cable channels.
Depending on the reception condition, a bar
display may not advance for several minutes,
please be patient.
NOTE:
+ Memorizing channels is best accomplished during
evening “PRIMETIME” hours, as more stations are
broadcasting digital signals. Memorizing channels
can only be accomplished while a station is
broadcasting a digital signal to set that channel into
memory.
If you are unsure of the digital channels available
in your area, you may visit www.antennaweb.org to
receive a list based on your address or zip code.
Should you require further assistance you may call
our toll-free customer service line at 1-800-289-0980.
New digital channels may be added to your area
periodically, it is recommended to perform the
“Automatic Search” procedure regularly.
Adding Channel (Digital Channel Only)
If you find a new channel unregistered, you can add
the new channel into the channel memory.
1 Tune in the new channel.
2 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
3 Press 4 or y to select “Channel”, then press » or
ENTER.
4 Press a or ¥ to select “Add/Delete”, then press »
or ENTER.
5 Press a or ¥ to select “Adding Channel”, then
press » or ENTER. The new channel will be
added into the channel memory.
6 Press EXIT/CANCEL to return to the normal screen.
Add/Delete channel
You can select the channel that you want to skip.
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
Press à or Y to select “Channel”, then press » or
ENTER.
Press д ог т to select “Add/Delete”, then press
» or ENTER.
Press à or ¥ to select “Add/Delete”, then press
» or ENTER.
ao ~~ WN
Press à or Y to select the channel that you want
to skip.
6 Press « or » to select “Add” or “Delete”,
whichever function you want to perform.
7 Repeat steps 5 - 6 for other channels you want to
add or delete.
8 Press EXIT/CANCEL to return to the normal screen.
Clear All
All channels are deleted from the channel memory.
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
Press à or Y to select “Channel”, then press » or
ENTER.
3 Press 4 or v to select “Add/Delete”, then press »
or ENTER.
Press a or ¥ to select “Clear All”, then press » or
ENTER.
5 Press EXIT/CANCEL to return to the normal
screen.
TV operation
1 To turn onthe TV, press POWER.
(POWER indicator on the front of the unit
changes green. it may take approx. 10 seconds
for a picture to appear on screen.)
2 Adjust the volume level by pressing VOL + or —.
The volume level will be indicated on the screen
by blue bars. As the volume level increases, so do
the number of bars. If the volume decreases, the
number of blue bars also decreases.
3 Set the Signal Type option to the appropriate
position (see “Air/Cable selection” on page 15).
4 Press the Direct Channel Selection (0-9, -)
buttons to select the channel.
(If you press only channel number, channel
selection will be delayed for a few seconds.)
TO SELECT ANALOG CHANNELS
1-9: Press 1-9 as needed. Example, to
select channel 2, press 2, then press
ENTER.
10-99: Press the 2 digits in order. Example,
to select channel 12, press 1, 2, then
press ENTER.
Press the 3 digits in order. Example, to
select channel 120, press 1, 2, 0, then
press ENTER.
TO SELECT DIGITAL CHANNELS
Press the first 3 digits, then press the — button,
followed by the remaining number.
Example, to select channel 015-001, press O, 1,
5,-—, 0,0, 1, then press ENTER.
+ |f a channel is selected with only audio content,
“Audio only” will be displayed on the screen.
+ |f a channel is selected with a weak digital
signal, “Digital channel signal strength is low”
will be displayed on the screen.
The same program may be available on either
an analog channel or a digital channel. You may
choose to watch either format.
If a channel is selected to which you have not
subscribed, “Digital channel is encrypted” will
be displayed on the screen.
VHF/UHF/CABLE CHANNELS
100-135:
Air Cable
VHF VHF
2-13 2-13
UHF STD/HRCARC
14-69 14-36 (A) (W)
37-59 (AA) (WW)
60-85 (AAA) (ZZZ)
86-94 (86) (94)
95-99 (A-5) (A-1)
100-135 (100) (135)
01 (4A)
NOTE:
+ |f a channel with no broadcast is selected, the
sound will automatically be muted.
* It may take a few seconds for a digital channel
picture to appear on screen after being selected.
To select the video input source
To view a signal from another device connected to
your LCD TV, such as a VCR player, press INPUT
SELECT, then press a/ or corresponding Number
buttons (0-7), then press ENTER. You can select TV,
Video 1, Video 2, Component, HDMI1, HDMI2, PC
or DVD depending on which input jacks you used to
connect your devices.
ENGLISH
CHA/V
Press and release CH A/V. The channel automatically
stops at the next channel set into memory.
For proper operation, before selecting channels, they
should be set into the memory. See “Memorizing
channels” on pages 15 and 16.
DISPLAY
Press DISPLAY to display the current information on
the screen.
When the TV receives a digital signal, the digital
information will appear.
* Channel number * Station name
+ Channel label (if preset) * Broadcast program name
+ V-Chip rating * Signal type
* Sleep timer * Audio language
+ Program guide * Picture size
* Resolution
When the TV receives an analog signal, the analog
information will appear.
* Channel number + Channel label (if preset)
* V-Chip rating * Signal type
* Sleep timer * Picture size
* Audio information * Resolution
(Stereo, SAP or Mono)
Press DISPLAY again to clear the call display.
NOTE:
* After a few seconds, DISPLAY screen will return to
normal TV-operation automatically.
RECALL
This button allows you to go back to the last channel
selected by pressing RECALL. Press RECALL again
to return to the last channel you were watching.
17
18
MUTE
Press MUTE {o switch off the sound. The TV's sound
will be silenced and "Mute” will appear on the screen.
The sound can be switched back on by pressing this
button again or the VOL + or —.
SLEEP
To set the TV to turn off after a preset amount of time,
press SLEEP on the remote control. The clock will
count up 10 minutes for each press of the SLEEP but-
ton (Off, Oh 10m, Oh 20m, ..., 2h Om). After the sleep
time is programmed, the display will appear briefly
every ten minutes to remind you that the sleep timer
is operating. To confirm the sleep timer setting, press
SLEEP and the remaining time will be displayed for a
few seconds. To cancel the sleep timer, press SLEEP
repeatedly until the display turns to Off.
Sleep Timer
ов Tom
Labeling channels
Channel label appear with the channel number
display each time you turn on the TV, select a
channel, or press DISPLAY.
You can choose any four characters to identify a
channel.
To create channel labels
1 Press SETUP/TV MENU in the TV mode. The TV
menu screen will appear.
Press a or ¥ to select “Channel”, then press » or
ENTER.
or ENTER.
3 Press a or ¥ to select “Ch Label”, then press >
The “Ch Label” menu will appear.
Press < or » to select a channel you want to
label, then press v.
5 Press « ог » repeatedly until the character you
want appears in the first space.
The characters rotation as follows:
Q-...3 <> Ae: 7 > a ‚{) @ / + = —
mee 0)
If the character which you desire appears, press
ENTER.
Repeat this step to enter the rest of the
characters.
If you would like a blank space in the label name,
you must choose the empty space from the list of
characters.
6 When you finish inputting the label name, press
EXIT/CANCEL to return to the normal screen.
7 Repeat steps 4-5 for other channel. You can
assign a label to each channel.
To clear a Ch Label
After step 4 above, press 4 or Y to select “Label
Clear”, then press » or ENTER.
NOTE:
* The channel labels will be reset after “Automatic
Search” on page 16.
Labeling video inputs
The Video Label feature allows you to label each
input source for your TV.
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
Press д ог т to select “Setup”, then press » or
ENTER.
Press à or т to select “Video Label”, then press
» or ENTER.
4 Press a or Y to select an input which you want to
label.
Press « or » to select the desired label for that
input source.
— : Uses the default label name
VCR : Video cassette recorder
DVD : DVD video
DTV : Digital TV set-top box
SAT : Satellite box
CBL : Cable box
HD : HDMI device (only for HDMI inputs)
6 Press EXIT/CANCEL to return to the normal
screen.
Setting the V-Chip
An age limitation can be set to restrict children
from viewing or hearing violent scenes or
pictures that you may choose to exclude. The
restriction applies to “TV Rating” and “Movie
Rating” if this data is transmitted. You may set
this restriction separately. To use the V-Chip
function, you must register a password.
To register a password
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press д ог т to select “Lock”, then press » or
ENTER.
3 Select and enter your password (4 digits) using
Number buttons (0-9), then press ENTER.
“x” appears instead of the number.
4 Enter the same password again to confirm, then
press ENTER.
The password is now registered.
NOTE:
* |f you forget the password, contact Customer
Service at 1-800-289-0980 for assistance.
Your original remote contro! will be required.
* To avoid forgetting the password, write it down and
keep in a safe place.
To set the V-Chip
Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
Press a or v to select “Lock” menu, then press
» or ENTER.
Use Number buttons (0-9) to enter your
password, then press ENTER. Then Lock menu
will appear.
Press д ог т to select “V-Chip”, then press
« or > to select “On”.
Press д ог т to select “V-Chip Set”, then press
» or ENTER.
The V-Chip Set Menu appears.
© © BA WwW N —
Press a or т to select which rating will be used,
then press » or ENTER. Each rating below will
appear.
TV Rating
You can set the rating using age level and genre.
7
8
Age:
TVY All children
TVY7 1:7 years old and above
TV-G : General audience
TV-PG : Parental guidance
TV-14 :14 years old and above
TV-MA :17 years old and above 5
Genre: и
ALL : AH ©)
D : Dialogue =
L : Language LL]
$ : Sex
Vv : Violence
FV : Fantasy Violence
Movie Rating
G : All ages
PG : Parental guidance
PG-13 : Parental guidance less than 13 years old
R : Under 17 years old parental guidance
suggested
NC-17 :17 years old and above
X : Adult only
Press 4/Y/-</P to select the desired rating, then
press ENTER.
Press EXIT/CANCEL to return to the normal screen.
V-Chip function is activated now.
To use the TV after the TV is protected.
When a program is received that is blocked by the V-
Chip, press MUTE, then enter your password.
The protection will be temporarily overridden. If the
TV is turned off or the channel is changed, the V-Chip
restriction will be reactivated.
NOTE:
* The V-Chip function is activated only on programs
and input sources that include a rating signal.
To change the password
1
2
O al BD o
Press SETUP/TV MENU in the TV mode. The TV
menu screen will appear.
Press a or Y to select “Lock”, then press > or
ENTER.
Use Number buttons (0-9) to enter your
password, then press ENTER. The Lock menu
will appear.
Press a or ¥ to select “Change Password”, then
press » or ENTER.
The Change Password screen will appear.
Enter a new password using Number buttons
(0-9), then press ENTER.
Enter the same password again to confirm, then
press ENTER.
The password is now registered.
19
20
Downloading the additional V-Chip rating system
As a supplement to the standard V-Chip rating
system, your television will be able to download an
additional rating system, if such a system becomes
available in the future.
To download the additional V-Chip rating system
(when available)
1 Press SETUP/TV MENU while on a digital
channel.
Press a or ¥ to select “Lock”, then press » or
ENTER.
Use Number buttons (0-9) to enter your password,
then press ENTER. The Lock menu will appear.
Press à or y to select “V-Chip Set (DTVY”, then
press » or ENTER.
If the TV is not storing the additional rating
system, the TV will begin downloading it, which
may take some time to be completed.
Set your preferred content rating limits for the
additional rating system.
“Y O a == WN
You also need “Update” procedure to update
rating information.
NOTE:
You can only download the additional V-Chip rating
system when your TV is receiving a digital signal.
When you download the additional rating system, it
may take some time for the download to occur.
The V-Chip rating information and system are not
determined or controlled by the TV.
The standard V-Chip rating system is available
whether your TV is receiving a digital signal or not,
and will block both analog and digital programs. To
set the restriction level using the standard V-Chip
rating system, select V-Chip Set in step 4.
The downloadable V-Chip rating system is an
evolving technology, and availability, content, and
format may vary.
You cannot select this feature if the TV is not
receiving a digital signal for the current station.
To clear the all V-Chip settings
1 Press SETUP/TV MENU in the TV mode. The TV
menu screen will appear.
Press д ог т to select “Lock”, then press » or
ENTER.
Use Number buttons (0-9) to enter your
password, then press ENTER. The Lock menu
will appear.
Press a or ¥ to select V-Chip Clear”, then press
» or ENTER.
The Password screen will appear.
0 E WN
Use Number buttons (0-9) to enter your
password, then press ENTER. All of your settings
return to the factory settings.
Closed Caption
WHAT IS CLOSED CAPTIONING?
This television has the capability to decode and
display Closed Captioned television programs. Closed
Captioning will display text on the screen for hearing
impaired viewers or it will translate and display text in
another language.
Captions: This Closed Caption Mode will display
text on the screen in English or another language.
Generally, Closed Captions in English are transmitted
on C1 and Closed Captions in other languages are
transmitted on C2.
Text: The Text Closed Caption Mode will usually fill
1/2 of the screen with a programming schedule or
other information.
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press 4 or v to select “Setup”, then press » or
ENTER.
Press a or ¥ to select “Closed Caption”, then
press » or ENTER.
The Closed Caption menu will appear.
On: Captions will be displayed on the screen.
4 Press « or » to set “CC Setting” to “Or”.
Off: Captions will not be displayed on the screen.
Press д ог т to select “Analog Caption” or “Digital
Caption”.
When you select “Analog Caption”, you can
choose C1, C2, C3, C4, T1, T2, T3 and T4.
When you select “Digital Caption”, you can
choose from C51, CS2, C53, C54, CS5 and CS6.
6 Press « or > to select the desired Closed
Caption mode for both Digital and Analog
Caption.
7 Press a or y to select “CC Priority”, then press
«+ or > to select “Digital CC” or “Analog CC”.
NOTE:
* Depending on the broadcast signal, some
Analog Captions will function with a Digital
broadcast signal. This step Prevents two types
of captions from overlapping.
8 Press EXIT/CANCEL to return to the normal
screen.
NOTE:
* |fthe program or video you selected is not closed-
captioned, no captions will display on-screen.
If text is not available in your viewing area, a black
rectangle may appear on-screen. If this happens,
set the CC Setting to “Off”.
When selecting Closed Captions, the captioning will
be delayed approx. 10 seconds.
If no caption signal is received, no captions will appear,
but the television will remain in the Caption Mode.
Misspellings or unusual characters may
occasionally appear during Closed Captioning.
This is normal with Closed Captioning, especially
with live programs. This is because during live
programs, captions are also entered live. These
transmissions do not allow time for editing.
When Captions are being displayed, on-screen
displays, such as volume and mute may be seen
but may interfere with Closed Captions.
Some cable systems and copy protection systems
may interfere with the Closed Captioned signal.
If using an indoor antenna or if TV reception is
very poor, the Closed Caption Decoder may not
appear or may appear with strange characters or
misspelled words. In this case, adjust the antenna
for better reception or use an outdoor antenna.
CC advanced
7 Press EXIT/CANCEL to return to the normal
When you have selected Custom as the display
method, you can adjust the various setting listed
below as follows:
This feature is designed to customize Digital Captions
only.
1 Press SETUP/TV MENU in the digital channel.
The TV menu screen will appear.
2 Press 4 or Y to select “Setup”, then press » or
ENTER.
Press à or y to select “Closed Caption”, then
press » or ENTER.
The Closed Caption menu will appear.
Press a or y to select “Digital CC Preset”, then
press « or » to select “Custom”.
Press à or Y to select “CC Advanced”, then
press » or ENTER.
The CC Advanced menu will appear.
© © SS a
Press à or Y to select the desired item, then
press « or » to change the setting.
You can select from among the following items
and parameters.
Text Size: Auto, Small, Standard, Large
Text Type: Auto, Stylet, Style2, Style3, Styled,
Style5, Styles, Style?
Text Edge: Auto, None, Raised, Depressed,
Uniform, Left Shadow, Right
Shadow
Text Color: Auto, Black, White, Red, Green,
Blue, Yellow, Magenta, Cyan
Text Opacity: Auto, Solid, Transparent,
Translucent, Flashing
Background Auto, Black, White, Red, Green,
Color: Blue, Yellow, Magenta, Cyan
Background Auto, Solid, Transparent,
Opacity: Translucent, Flashing
screen.
NOTE:
* You cannot set both “Text Color” and “Background
Color” as a same color. T
* You cannot set both “Text Opacity” and “Background N
Opacity” to “Transparent”, =
z . . Oo
Adjusting the picture =
preference
You can seiect four picture modes —Sports,
Standard, Movie and Memory—as described in
the foilowing table:
1 Press SETUP/TV MENU in the TV Mode. The TV
menu screen will appear.
2 Press à or ¥ to select “Picture”, then press » or
ENTER.
3 Press à or Y to select “Picture Preference”.
4 Press « ог » to select a mode you want to adjust.
Mode Picture Quality =
Sports | Bright and dynamic picture (factory-set)
Standard | Standard picture quality (factory-set)
Movie Movie-like picture setting (factory-set)
Memory | Your personal preferences (set by
you; see “Picture control adjustment”
below).
5 After your desired setting, press EXIT/CANCEL
to return to the normal screen.
Picture control adjustment
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press à or ¥ to select “Picture”, then press » or
ENTER.
3 Press à or ¥ to select “Picture Setting”, then
press » or ENTER.
The Picture Setting menu will appear.
4 Press à or ¥ to select the item you want to
adjust.
Press « or » to adjust the setting.
21
22
5 After adjusting, press ENTER to return to the
Picture Setting menu. Then continue to adjust the
other items.
< >
Brightness | decrease increase
brightness brightness
Contrast |decrease increase
contrast contrast
Sharpness | makes picture makes picture
softer clearer
Color be pale color be brilliant color
Tint be reddish color | be greenish
color
6 After your desired setting, press EXIT/CANCEL
to return to the normal screen.
NOTE:
* The Contrast default setting is set to maximum at
the factory.
Selecting the color
temperature
1 Press SETUP/TV MENU in the TV mode. The TV
menu screen will appear.
Press д ог т to select “Picture”, then press » or
ENTER.
3 Press д ог т to select “Picture Setting”, then
press » or ENTER.
The Picture Setting menu will appear.
Press à or т to select “Color Temperature”, then
press « or » to change the setting.
Setting Picture Quality
Cool Bluish
Standard | Neutral
Warm Reddish
5 Press EXIT/CANCEL to return to the normal
screen.
Setting the picture size
You can view 480i and 480p format programs in a
variety of picture sizes— Natural, Cinema Wide1,
Cinema Wide2, Cinema Wide 3, Full and Native.
Selecting the picture size
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press à or Y to select “Picture”, then press » or
ENTER.
3 Press д ог т to select “Picture Size”, then press
» or ENTER to display Picture Size menu. Press
4A/Y or corresponding Number buttons (0-4) to
select the desired picture size, as described below.
NOTE
* Selectable picture sizes may vary depending on the
input source or broadcast signal.
* Picture Size menu also can be displayed by
pressing SCREEN SIZE on the remote control.
4 Press EXIT/CANCEL to return to the normal
screen.
Natural
In some cases, this image will display the size of
standard 4:3 with a black side bar.
Cinema Wide1 (for 4:3 format programs)
To fill the screen, the right and left edges are
extended,
however; the center of the picture remains near its
former ratio.
The top and bottom edges of the picture may be
hidden.
О „> О O — o
O O O —— O
Cinema Wide2 (for letter box programs with
subtitles)
To fill the width of the screen, it is exiended
horizontally. However; it is only slightly extended at the
top and the bottom.
The top and bottom edges of the picture may be hidden.
© — ©
O — Y
Cinema Wide3 (for letter box programs with
subtitles)
To fill the width of the screen, it is exiended
horizontally. However; it is only slightly extended at the
top and the bottom.
The top and bottom edges of the picture may be hidden.
KL ~~ Sn
| A N
E.
| CD >=” CD
ont ME AECDEF
Full (for 16:9 source programs)
Full will display the picture at the maximum size.
Native (for PC mode only)
Detects the resolution of the signal of the image and it
will be shown on the screen with same amount of pixels.
NOTE:
Some High Definition and/or Digital broadcasts may
not allow you to change the picture size.
In HDMI or COMPONENT mode with a scanning
rate of 720p , 10801 or 1080p (only HDMI), oniy
the Cinema Wide2 and Full picture size feature is
available.
In PC Mode, only the Natural, Full and Native
picture size features are avallable. In PC Mode
(WXGA), only the Full and Native picture size
features are available.
Film mode
2
3
4
7
Press SETUP/TV MENU. The TV menu screen
will appear.
Press à or ¥ to select “Picture”, then press » or
ENTER.
Press à or ¥ to select “PC Setting”, then press » 5
or ENTER. =
The PC Setting menu will appear. ГО
<
LL]
Press à or ¥ to select the desired item you want
to adjust.
Press « or » to adjust the setting.
Hor To adjust the horizontal position of
Position: the image on the PC mode.
Ver To adjust the vertical position of the
Position: image on the PC mode.
Clock: To minimize any vertical bars
or stripes visible on the screen
background.
Phase: This must be adjusted after the
frequency of the PC mode has
been set to 60Hz to optimize
picture quality (page 39).
Auto Adjust: To adjust the all PC settings
automatically =
Aîter adjusting, press ENTER to return to the PC
Setting menu. Then continue to adjust the other items.
A smoother motion may be obtained by setting
the Film Mode to “On” when you view a DVD.
1 Press SETUP/TV MENU in the TV mode. The TV
menu screen will appear.
2 Press a or Y to select “Picture”, then press » or
ENTER.
3 Press д ог т to select “Film Mode”.
Press « or » to select “On” or “Off”.
4 Press EXIT/CANCEL to return to the normal screen.
Picture control
adjustment in the PC mode
8 Press EXIT/CANCEL to return to the normal screen.
NOTE:
* Auto Adjust feature is available only for 16:9 or 4:3
format.
* |[f no buttons are pressed for more than approx. 60
seconds, the Menu-screen will return to normal
Monitor-screen automatically.
* The PC settings are not effective for other input modes.
DNR
You can adjust to optimize the performance of
the TV in the PC mode.
1 Press INPUT SELECT, then press a/ or
Number button (6) to select the PC mode.
DNR (Digital Noise Reduction) can reduce the
roughness of the picture.
1 Press SETUP/TV MENU in the TV mode. The TV
menu screen will appear.
2 Press a or ¥ to select “Picture”, then press » or
ENTER.
3 Press 4 or ¥ to select “DNR”. Press < or » to
select “On” or “Off”.
4 Press EXIT/CANCEL to return to the normal screen.
24
Sound control
adjustment
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press a or y to select “Audio” , then press » or
ENTER.
3 Press à or Y to select the item you want to
Bass:
Press « or » {0 adjust the bass sound.
Treble:
Balance: Press « or » to obtain an equal sound
level from both speakers.
Surround:
Press « ог » 10 select “On” or “Off”.
On: The dynamic presence and sound
created offers a thoroughly enjoyable
listening experience.
Off: Normal sound.
4 After you desired setting, press EXIT/CANCEL to
return to the normal screen.
Selecting Stereo/Second
Audio Program (SAP)
4 Press EXIT/CANCEL to return to the normal
screen.
NOTE:
Generally you can leave your TV in stereo
mode because the TV automatically outputs
the type of sound being broadcast (stereo or
mono).
If the stereo sound is noisy, select “Mono” to
reduce the noise.
To listen to a second audio program (SAP)
Press < or » to select “SAP” in step 3 above. The
TV speakers will output the second audio program
instead of normal audio.
Selecting the audio
language
Press < or » to adjust the treble sound.
The multi-channel TV sound (MTS) feature
provides high-fidelity stereo sound. MTS also
can transmit a second audio program (SAP)
containing a second language or other audio
information.
When the TV receives a stereo or SAP broadcast,
the word “Stereo” or “SAP” displays on-screen
every time you press DISPLAY.
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press a or ¥ to select “Audio”, then press » or
ENTER.
3 Press à or Y to select “MTS”, then press < or »
to select “Stereo”.
When two or more audio languages are inciuded
in a digitai signal, you can select one of the audio
languages. (This function is available only for
digital broadcast.)
1 Press SETUP/TV MENU in the digital channel.
The TV menu screen will appear.
2 Press a or ¥ to select “Audio” , then press » or
ENTER.
3 Press a or ¥ to select “Audio Language”, then
press » or ENTER to display the Audio Language
menu.
4 Press a/v or Number buttons (0-6) to select
your desired language.
5 Press EXIT/CANCEL to return to the normal
screen.
Selecting the HDMI
audio input source
When you use PC/DVI AUDIO IN jack with HDMI
or DVI device, you must select HDMI audio input
source from “HDMI” or “DVI”.
1 Press SETUP/TV MENU in the TV mode. The TV
menu screen will appear.
2 Press д ог т to select “Audio”, then press > or
ENTER.
3 Press a or Y to select “HDMI 1 Audio”.
Press « or » to select “HDMI” or “DVI”.
When you connect the HDMI device to
the TV, select this setting.
DVI: When you connect the DVI device to the
TV with analog audio cords, select this
setting.
4 Press EXIT/CANCEL to return to the normal
screen.
Turning off the built-in
speakers
3 Press a or ¥ 10 select “Picture Setting”, then press
> or ENTER. The Picture Setting menu will appear.
4 Press à or т to select “Backlight”.
Use this feature to turn the TV speakers off when
you connect an audio system (see pages 39).
1 Press SETUP/TV MENU. The menu screen will
appear.
2 Press д ог т to select “Audio”, then press > or
ENTER.
3 Press a or y to select “Speakers”.
Press « ог » to select “Off”.
Press EXIT/CANCEL to return to the normal
screen.
NOTE:
* | “Of” is selected, “Speakers : Off” will be displayed
on the screen when the volume is changed.
To turn on the built-in speakers:
Select “On” in step 3 above.
Adjusting the back lighting
я
©
md
Ö
<
5 Press « ог » to adjust the setting. Ш
6 Press EXIT/CANCEL to return to the normal screen.
Checking the digital-
signal strength
This TV will allow you to view the digital signal
meter for digital channels.
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press à or ¥ to select “Channel”, then press > or
ENTER.
3 Press à or ¥ to select “DTV Signal”.
4 Press ENTER to check the Digital-signal strength.
E
5 Press EXIT/CANCEL to return to the normal
screen.
NOTE:
* Signal meter feature is not avallable for analog
channeis.
+ After 240 seconds, Signal Meter screen will return
to normal TV-operation automatically.
Setting the auto shut off
The Backlight feature adjusts the screen
brightness for improved picture clarity.
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press à or Y to select “Picture”, then press » or
ENTER.
if the Auto Shut Off feature is On, a station being
viewed stops broadcasting and the TV is not
operated, the TV will automatically shut itself off
after 15 minutes.
1 Press SETUP/TV MENU in the TV mode. The TV
menu screen will appear.
2 Press a or ¥ to select “Setup”, then press » or
ENTER.
3 Press a or Y to select “Auto Shut Off”.
Press « or » to select “On” or “Off”,
4 Press EXIT/CANCEL to return to the normal
screen.
25
26
Resetting your settings
Preparation
The Reset function returns your settings to the
factory settings.
1 Press SETUP/TV MENU inthe TV mode. The TV
menu screen will appear.
2 Press à or y to select “Setup”, then press » or
ENTER.
3 Press 4 or Y to select “Reset”.
4 Press » or ENTER to return your settings to the
factory settings.
5 “Reset” will appear on the screen approx. 3
seconds, then it returns to the normal screen.
NOTE:
+ “Picture Size” in Picture menu cannot be reset by
this function.
* “MTS”, “Audio Language” and “HDMI 1 Audio” in
Audio menu cannot be reset by this function.
The following pages describe the setup/
operation in DVD mode.
Preparation
Before DVD/CD operation, please make the following
preparations.
1 Insert the AC cord plug into a standard 120V
60Hz polarized AC outlet.
+ |fthe AC cord plug is plugged in for the first
time, wait for about 5 seconds before pressing
POWER.
NOTE:
+ When connecting to other equipment, unplug
the unit from the AC outlet.
2 Press POWER on the unit or on the remote
control to turn on the unit. The POWER indicator
will change to green.
+ Each time you turn the unit ON, the TV/DVD
starts from the TV mode.
* When using an amplifier, switch on the amplifier.
3 Press TV/DVD to select DVD mode.
The DVD startup screen will appear on the screen.
NOTE:
s H the unit does not operate properly:
Static electricity, etc., may affect the player's
operation. Disconnect the AC power cord once,
then connect it again.
Status display of disc
Press DISPLAY. The status display of the disc will
appear on the screen.
ELAPSED
TIME
TOTAL
TIME
DISC OPERATION
TITLE NO.
ANGLE NO. SUBTITLE LANGUAGE
AUDIO LANGUAGE A KIND OF AUDIO
To make the status display screen disappear, press
DISPLAY again.
Playback procedure
1 Press TV/DVD to select DVD mode.
2 Place the disc in the
disc slot with the label
side facing forward. (If
the disc has a label.)
Hold the disc without
touching either of its
surfaces, align it with
the guides, and place it
in position.
3 On the screen, “A” changes to “Reading” and
then playback will commence.
* A menu screen may appear on the TV screen,
if the disc has a menu feature. In this case,
press д, Y, <, >» or ENTER to operate a menu
feature.
4 Press STOP to end playback.
* The unit memorizes the stopped point,
depending on the disc. “MW” appears on the
screen. Press PLAY to resume playback (from
the scene point).
If you press STOP again (* IN” appears on the
screen) or unload the disc, the unit will clear the
stopped point.
5 Press 4 (EJECT).
Remove the disc and then press POWER.
The unit turns off.
When you eject the disc, you may hear
mechanism noise, but it is not malfunction.
NOTE:
* |fanon-compatible disc is loaded, “Incorrect Disc”,
“Region Code Error” or “Parental Error” will appear
on the TV screen according to the type of loaded
disc. If these appear, check your disc again (see
pages 8 and 34,35).
Some discs may take a minute or so to start
playback.
If an 8 cm disc is placed into the disc slot and
picture playback or menu display does not begin
automatically, press PLAY.
A “Prohibition” symbol “X” may appear at the upper
right of the screen. This symbol means either the
feature you tried is not available on the disc, or the
unit cannot access the feature at this time. This
does not indicate a problem with the unit.
the wrong way) “Reading” will appear in the display
and then “Incorrect Disc” will be displayed.
Some playback operations of DVDs may be
intentionally fixed by software producers. Since
this unit plays DVDs according to the disc content
recorded, some playback features may not be
available. Also refer to the instructions supplied with
the DVDs.
Special playback
If you place a single-faced disc label backwards (i.e.
Still Playback
Press PAUSE/STILL during normal playback to pause
playback.
* To resume normal playback, press PLAY.
Frame Advance
Press PAUSE/STILL during still playback.
One frame is advanced each time you press PAUSE/
STILL.
* To resume normal playback, press PLAY.
ENGLISH
Slow-motion Playback
Press SLOW «1 Reverse or SLOW I» Forward
during normal playback or still playback.
Each press of SLOW will change the speed of the
slow x1/2, x1/4, x1/6, x1/7.
* To resume normal playback, press PLAY.
* To resume the still playback, press PAUSE/STILL.
Locating a chapter or track
Press SKIP > Forward or SKIP I Reverse during
playback to locate a chapter that you want to watch.
Each time you press the button, a chapter or track is
skipped.
NOTE:
* The unit is capable of holding a still video image or
On screen display image on your television screen
indefinitely. If you leave the still video image or On
screen display image displayed on your TV for
an extended period of time, you risk permanent
damage to your television screen.
* There may be a slight delay between when you
press the button and the function activating. =
MP3/WMA/JPEG and
Audio CD playback
Fast Forward Playback
Press SEARCH DD during normal playback.
Each press of SEARCH D» will increase the speed of
the search pp (x 2), PPP (x 4), PPPP (x 8), >> (X
15).
(CD: >» (x 2), PPP (x 4), PPP (x 8), PPPPP (x 20)
* To resume normal playback, press PLAY.
Review Playback
Press SEARCH << during normal playback.
Each press of SEARCH <Q will increase the speed
of the search 44 (x 2), 44 (x 4), 444 (x 8), <<4<4<4
(x 15).
(CD: 44 (x 2), 444 (x 4), 4444 (x 8), «4444 (x 20))
* To resume normal playback, press PLAY.
This player can play back MP3/WMA/JPEG-data
which has been recorded on CD-R or CD-RW.
To produce MP3/WMA/JPEG-data, you need a
Windows-PC with CD-ROM drive and MP3/WMA/
JPEG-encoding software (not supplied).
The Apple-HFS-System cannot be played.
MP3/WMA/JPEG CD information
Limitations on MP3/WMA/JPEG CD playback
+ MP3/WMA/PEG CD is the disc that is
standardized by ISO9660, its file name must
include 3-digit extension letters, “mp3”, “wma”, “jpg”.
The directory and file names of MP3/WMA/JPEG
CD must correspond to ISO standardized files.
This unit can read 2000 files per disc. If one
directory has more than 2000 files, it reads up to
2000 files, the remaining files will be omitted.
* MP3/WMA CDs cannot be used for playback for the
purpose of recording.
It may take more than one minute for this unit
to read MP3/WMA/JPEG files depending on its
structure.
27
28
+ Music recorded by “Joliet Recording Specification”
can be played back.
* The music files recorded by “Hierarchical File
System” (HFS) cannot be played.
* The unit can play back baseline and progressive
JPEG files.
Limitations on display
* The maximum number for display is 15 characters.
Long file names will be condensed.
* Available letters for display are the following:
capital or lowercase letters A through Z, numbers O
through 9, and _ (underscore).
* Other letters than those above are replaced by a
hyphen.
Notes on MP3/WMA/JPEG files
To play back MP3/WMA/JPEG CD in the recorded
order,
1. Use MP3/WMA/JPEG software that records data
alphabetically or numerically.
2. Name each file including a two-digit or three-digit
number (e.g. “01” “02” or “001” “002").
3. Refrain from making too many sub-folders.
CAUTION:
* Some MP3/WMA/JPEG CDs cannot be played
back depending on the recording conditions.
* ACD-R/RW that has no music data or non-MP3/
WMA/JPEG/DivX® files cannot be played back.
MP3/WMA/JPEG CD and Audio CD
playback:
1 Load a MP3/WMA/JPEG CD or an Audio CD in
the disc slot.
2 “Reading” will appear on the TV screen. Reading
time will depend on the number of files on the disc.
3 A file browser screen will appear on the TV screen.
Fite number Elapsed time Selected file name
Tool kit
window
Operation status
File list
—
Preview window windaw
Cursar
File type
J indicates Music file (Audio CD/MP3/WMA)
: indicates Picture file (JPEG)
In case the current directory includes 9 files or
more, press 4 or v to scroll in the file list.
To see contents in folder, select the folder and
then press ENTER. To return to the parent
directory, select “EM Go Up ..” then press
ENTER.
In case of a CD containing a mixture of MP3,
WMA and JPEG files, the files are played back
by selecting them from the file browser.
4 Press a or v to select the desired file.
When PLAY is pressed after displaying file
browser displayed, playback begins automatically
starting from the first file.
In this case, if the first file is an MP3/WMA file,
only MP3/WMA files are played back in order. If
the first file is a JPEG file, the first JPEG file is
played back. If there is no file at a root directory,
playback does not begin automatically.
FMPE-2.MP3S
5 Press ENTER.
The selected file starts playing back.
6 Press STOP to end playback.
* The unit records the stopped point. “№”
appears on the screen. Press PLAY to resume
playback (from the scene point).
* |f you press STOP again or unload the disc, the
unit will clear the stopped point.
NOTE:
* During MP3/WMA/JPEG-Playback, you cannot
use JUMP and A-B Repeat functions.
* You can use Program playback, Repeat (Track
or All} and Random functions for MP3/WMA/
JPEG and Audio CD Playback (see pages 29
and 30).
JPEG playback:
1 In the file browser, press a/v to select the desired
JPEG file.
To display a thumbnail list, press DVD MENU.
Press 4/Y/-/P to select the desired file.
(To return to the file browser, press TOP MENU.)
2 Press ENTER or PLAY.
The selected picture appears on the TV screen.
Rotating an image
You can rotate an image by 90 degrees.
Press ANGLE during playback of the image.
“ie” «Br com Or A" appears on the screen.
Zooming an image
Zoom function also can be used in viewing JPEG
files.
Press ZOOM (See “Zooming” on page 30).
3 Press STOP to end playback.
The file browser appears on the TV screen.
If you want to watch the other file, repeat steps 1-2.
Select Files
The file type to make it display in the file browser can
be chosen.
1 Press «/» to select “Select Files” at right column
in the file browser.
+ Press ENTER, then press A/V 10 select file
type from the list (Music or Picture).
2 Press ENTER to add/remove check mark.
Checked file type will be displayed in the file browser.
3 Press RETURN to save the setting.
Setting the JPEG
interval
You can continuously play back all JPEG files
automatically.
1 Press SETUP/TV MEN
Press 4 or Y to select
or ENTER.
2 Press à or y to select JPEG Interval”, then press
» or ENTER.
3 Press à or Y to select your desired time, then
press ENTER.
in the stop mode.
| option, then press </»
TV Screen :18:9 [1
Display : On
Picture Mode :Auic
Off:
Plays back one file at a time.
5 Seconds:
Plays back images in the form of a slide show at 5
second intervals.
10 Seconds:
Plays back images in the form of a slide show at
10 second intervals.
15 Seconds:
Plays back images in the form of a slide show in
15 second intervals.
4 Press SETUP/TV MENU to remove the menu
screen.
Program playback (CD)
You can arrange the order of tracks on the disc.
1 In the file browser, press a/v/«/» 10 select “Edit
Mode”, then press ENTER.
When “Edit Mode” is black color, you can mark
the files which you want to add into Program list.
2 Press a/v/«/» t0 select the file you want to add
into the program list.
Press ENTER. Selected file was marked.
Repeat this procedure to select the other files.
3 Press 4/Y/-/P to select “Add To Program”.
Then press ENTER. All marked files are added
into the program list.
When you finish storing the files you want into the
Program list, select “Edit Mode” again and press
ENTER to release edit mode.
4 Press a/v to select “Program View”, then
press ENTER. Program View shows only the
programmed files that you have added in Step 2.
Browser View
Program View
5 In the Program View, press PLAY. The files start
to playback in programmed order that were
added by you.
To remove file from program list in stop mode
In the Edit Mode, switch to Program View. Select the
files you want to remove, then press ENTER. Select
“Clear Program” and press ENTER. Marked file is
removed from program list.
NOTE:
* The program is cancelled when you eject the disc
or turn the power off.
ENGLISH
29
30
Repeat playback (CD)
1 In the file browser, press 4/Y/</» to select
“Repeat”.
2 Press ENTER repeatedly to select “Track” or "All.
3 Press PLAY.
The unit automatically starts repeat playback
after finishing the current track.
To resume normal playback, select Repeat : “Off”
instep 2.
NOTE:
* The repeat or random function is canceled when
you eject the disc or turn the power off.
* The track repeat function is canceled when SKIP
HE or PPlis pressed.
* In case of Audio CD, the function of A-B Repeat
also can be used (See “A-B Repeat playback” on
page 31).
Random playback (CD)
2 Press 4/Y/-</b to view a different part of the
frame.
You may move the frame from the center position
UP, DOWN, LEFT or RIGHT.
3 In the zoom mode press ZOOM repeatedly to
return to a 1:1 view (Lg Off).
NOTE:
* You can select the Pause, Slow or Search playback
in the zoom mode.
* Some discs may not respond to zoom feature.
Locating desired scene
1 In the file browser, press 4/Y/-/»> to select
“Mode”.
2 Press ENTER to select “Random”.
3 Press PLAY.
The Random playback will start.
To resume normal playback, select Mode : “Off”
instep 2.
Zooming
This unit will allow you to zoom in on the
frame image. You can then make selections by
switching the position of the frame.
1 Press ZOOM during playback.
The center part of the image will be zoomed in.
Each press of ZOOM will change the ZOOM
magnification Q1 (x 1.3), Q2 (x 1.5) and Q 3
{x 2.0).
Use the title, chapter and time recorded on the
disc to locate the desired point to play back.
1 Press JUMP during playback or resume stop
mode.
Jump
{Title
Chapter —
Time
2 Press a or ¥ to select the “Title”, “Chapter” or
“Time”.
3 Press Number buttons (0-9) to input the
number.
* |f you input a wrong number, press CANCEL.
* Refer to the package supplied with the disc to
check the numbers.
4 Press ENTER.
* Playback starts.
* When you change the title, playback starts from
Chapter 1 of the selected title.
* Some discs may not work in the above
operation.
Repeat playback
Title, Chapter Playback:
1 Press PLAY MODE during playback or stop
mode.
2 Press ENTER repeatediy to select “Chapter” or
“Title”.
The unit automatically starts repeat playback
after finishing the current title or chapter.
* |f you set the repeat mode during stop mode,
press PLAY to start Repeat playback.
3 Press PLAY MODE again to make the screen
disappear.
* In stop mode, press PLAY to start Repeat
playback.
* To resume normal playback, select Repeat
“Off” in step 2.
A-B Repeat Playback:
A-B repeat playback allows you to repeat material
between two selected points.
1 Press REPEAT A-B during playback.
The start point is selected.
2 Press REPEAT A-B again.
The end point is selected. Playback starts at the
point that you selected. Playback stops at the end
point, returns to Point A automatically, then starts
again.
3 To resume normal playback press REPEAT A-B
again.
1 Off” appears on the screen.
NOTE:
Some discs may not work with the repeat operation.
In A-B repeat mode, subtitles near point A or B may
not appear.
During the A-B Repeat Playback the ANGLE
feature will not operate.
You may not be able to set A-B Repeat, depending
on the scenes of the DVD.
A-B Repeat does not work with an interactive DVD,
MP3/WMA/JPEG-CD.
Marking desired scenes
Returning to the scenes:
1 Press MARKER during playback or stop mode.
2 Press A or ¥ to select the Marker 1-3.
Marker 1 00:27:54
{ Marker 2 01:16:25]
Marker 3 02:08:31
ENGLISH
3 Press ENTER.
Playback starts from the marked scene.
To cancel the mark:
1 Press MARKER during playback or stop mode.
2 Press 4 or Y to select the Marker 1-3.
3 Press CANCEL.
Press MARKER to remove this display.
NOTE:
* The marking is canceled when you eject the disc or
turn the power off.
* Some subtitles recorded around the marker may fail
to appear. [DVD]
Changing soundtrack
language
The TV/DVD stores the points that you want to
watch again. You can resume playback from that
scene.
Marking the scenes:
1 Press MARKER during playback.
2 Select the blank Marker using 4 or Y, then press
ENTER at the desired scene.
[ Marker 1
Marker 2
Marker 3
00:27:54]
* Up to 3 scenes can be selected.
* Repeat this procedure to set the other 2
scenes.
3 Press MARKER to remove this display.
You can select the language when you play a
multilingual disc.
1 Press AUDIO during playback.
The current soundtrack language will appear.
2 Press AUDIO repeatedly until the desired
language is selected.
The on-screen display will disappear after a few
seconds.
NOTE:
* |fthe desired language is not heard after pressing
AUDIO several times, the language is not recorded
on the disc.
* Changing soundtrack language is cancelled when
you eject the disc.
The initial default language or available language
will be heard if the disc is played back again.
31
32
Subtitles
Title selection
Turning the subtitles on and off
When playing back a disc recorded with subtitles, you
can turn the subtitles on or off.
Press SUBTITLE during playback until “Off” appears.
Changing the subtitle language
You can select the language when playing back a disc
recorded with multilingual subtitles.
1 Press SUBTITLE repeatedly during playback
until your desired language appears.
2 The on-screen display will disappear after a few
seconds.
NOTE:
* Changing subtitle language is cancelled when you
gject the disc.
Some functions may not work on some DVDs. You
may not be able to turn subtitles on or off or change
subtitles. While playing the DVD, the subtitle may
change when:
- you eject the disc.
- you change the title.
In some cases, the subtitle language is not changed
to the selected one immediately.
Changing angles
When playing back a disc recorded with multi-
angle facility, you can change the view angle.
1 Press ANGLE during playback.
The current angle will appear.
2 Press ANGLE repeatedly until the desired angle
is selected.
NOTE:
* Depending on the DVD, you may not be able to
change the angles even if multi-angles are recorded
on the DVD.
Two or more titles are recorded on some discs.
If the title menu is recorded on the disc, you can
select the desired title.
1 Press TOP MENU during playback.
Title menu appears on the screen.
2 Press 4/Y or «/» 10 select the desired title.
3 Press ENTER or PLAY.
The playback of the selected title will start.
NOTE:
* Depending on the DVD, you may not be able to
select the title. Depending on the DVD, a “title
menu” may simply be called a “menu” or “title” in the
instructions supplied with the disc.
DVD menu
Some DVDs ailow you to select the disc contents
using the menu.
When you playback these DVDs, you can select
the subtitie language and soundtrack language,
etc. using the DVD menu.
1 Press DVD MENU during playback.
The DVD menu appears on the screen.
+ Press DVD MENU again to resume playback at
the scene when you pressed DVD MENU.
2 Press 4/Y or «/» to select the desired item.
3 Press ENTER.
The menu continues to another screen. Repeat
steps 2 and 3 to set additional items if any.
Setting the language
You can select the language of “Menu”, “Subtitle”
and “Audio” if more than one languages are
recorded onto the disc.
1 Press SETUP/TV MENU in the stop mode.
Press a or Y to select ú::| option, then press </»
or ENTER.
2 Press a or Y to select desired option, then press
» or ENTER.
3 Press à or Y to select your desired language
(e.g. English), then press ENTER.
English, Francais, Espanol :
The selected language will be heard or seen.
Other:
Other language can be selected (see the
“Language code list” on page 36).
Original (Audio):
The unit will select the first priority language of
each disc.
Off (Subtitle):
Subtitles do not appear.
4 Press SETUP/TV MENU to remove the menu
screen.
NOTE:
* |fthe selected language is not recorded on the disc,
the first priority language is selected.
Setting the aspect ratio
of TV screen
Setting on screen
display
You can seiect the aspect ratio of the picture.
1 Press SETUP/TV MENU in the stop mode or No
Disc.
Press 4 or Y to select I2:] option, then press </»
or ENTER.
2 Press a or ¥ to select “TV Screen”, then press >
or ENTER.
3 Press à or т to select your desired screen type,
then press ENTER.
Display
Picture Mod
JPEG interval : OH
You have the following screen sizes to choose
from:
4:3 [1] Letterbox
When playing back a wide screen DVD disc, it
displays the wide picture with black bands at the
top and bottom of screen.
4:3 [1 Panscan
It displays the wide picture on the whole screen
with left and right edges automatically cut off.
16:9 [_] Wide
A wide screen picture is displayed full size.
4 Press SETUP/TV MENU to remove the menu
screen.
NOTE:
* №15 not always possible for the DVD disc to display
the picture as per your preferred picture setting - for
example, if you select “4:3 Panscan”, the disc may
not offer this option. In this case the picture would
display the format the disc is capable of playing
back.
On screen display can be switched on or off
when you press the any button.
1
Press SETUP/TV MENU in the stop mode or No
Disc.
Press à or Y to select
or ENTER.
Press à or ¥ to select “Display”, then press » or
ENTER.
ENGLISH
option, then press «/»
Press à or ¥ to select “On” or “Off”, then press
ENTER.
Picture Mode |
JPEG Intervai : Off
On: On screen displays appear when you press
the buttons (factory setting).
Off: On screen displays do not appear when you
press any buttons except SUBTITLE, PLAY
MODE, MARKER, DISPLAY, AUDIO and
JUMP.
4 Press SETUP/TV MENU to remove the menu
Setting the picture mode
screen.
There are two types of source content in pictures
recorded in DVD video discs: film content
(pictures recorded from films at 24 frames
per second) and video content (video signals
recorded at 30 frames per second). Make this
selection according to the type of content being
viewed.
1 Press SETUP/TV MENU in the stop mode or No
Disc. |
Press 4 or Y to select |
or ENTER.
Press à or ¥ to select “Picture Mode”, then press
» or ENTER.
Press a or ¥ to select your desired picture mode,
then press ENTER.
option, then press «/»
TV Screen : 16:29 [1
Dispiay : Оп
33
34
Auto:
Select this position normally.
The DVD player automatically detects source
content, film or video, of playback source.
Film:
Suitable for playback of film content pictures.
Video:
Suitable for playback of video content pictures.
4 Press SETUP/TV MENU to remove the menu
screen.
NOTE:
* Depending on the disc, pictures may be cut off or
doubled. In this case, select “Video”.
Night mode
Night Mode enables you to control the dynamic
range so as to achieve a suitable sound for your
equipment.
1 Press SETUP/TV MENU in the stop mode or No
Disc.
«/» or ENTER.
2 Press a or Y to select “Night Mode”, then press
» or ENTER.
3 Press à or Y to select “On” or “Off”, then press
ENTER.
On : Loud sounds such as explosions are toned
down slightly when played.
Off : The unit will play the disc as recorded.
;
4 Press SETUP/TV MENU to remove the menu
screen.
Digital out
Night Mode
Off: There is no sound output from
DIGITAL AUDIO OUT jack.
PCM: Change Dolby Digital to PCM for the
output. Select when connected to a 2
channel digital stereo amplifier.
Bitstream: Disc audio bitstream data will be
output.
4 Press SETUP/TV MENU to remove the menu
screen.
NOTE:
* This function works only during playback of Dolby
Digital recorded discs.
* The level of Dynamic Range Reduction may differ
depending on DVD video disc.
* Even if you select “Bitstream”, MPEG audio will be
output in PCM format.
Parental control
You can select the digital output sound format
corresponding to your system connection.
1 Press SETUP/TV MENU in the stop mode or No
Disc.
«/» or ENTER.
2 Press a or v to select “Digital Out”, then press »
or ENTER.
3 Press a or v io select “Off”, “PCM” or “Bitstream”,
then press ENTER.
Some discs are specified not suitable for
children. Such discs can be limited not to play
back with the unit.
Password and setting:
1 Press SETUP/TV MENU in the stop mode or No
Disc.
Press à or Y to select
</»> or ENTER.
2 Press a or ¥ to select “Parental”, then press » or
ENTER.
“Enter Password” screen will appear.
3 Press “0000” using Number buttons (0-9). (This
is pre-setting password of this unit). Then press
ENTER.
* |f you input a wrong number, press CANCEL.
| option, then press
4 The parental level list will appear. Press à or Y to
select the leve! 1 to level 8. The limitation will be
more severe as the level number is lowered. Then
press ENTER.
Password
* Level Off : The parental control setting does
not function.
« Level 8 : Virtually all DVD software can be
played back.
* Level1 : DVD software for adults cannot be
played back.
5 Press SETUP/TV MENU to remove the menu
screen.
NOTE:
if each setup (P.32~35) has been completed,
the unit will use these settings during DVD
playback.
Each setup will be retained in memory.
Depending on the discs, the unit may not be able to
limit playback.
Some discs may not be encoded with specific rating
level information though its disc jacket says “adult”.
For those discs, the age restriction will not work.
After the rating is locked, the setting cannot be
changed unless you enter the correct password.
Setting the new password:
1 Press SETUP/TV MENU in the stop mode or No
Disc.
Press 4 or Y to select
+/> or ENTER.
2 Press à or Y to select “Password”, then press >
or ENTER.
“Enter Current Password” screen will appear.
3 Press Number buttons (0-9) to enter the
password you have stored.
* |f you input a wrong number, press CANCEL.
4 Then press ENTER. “Enter New Password”
screen will appear. Press Number buttons (0-9)
to input the new password.
option, then press
5 Press ENTER.
Now your new password has been set.
Be sure to remember this number!
NOTE:
* Do not forget the password. If you forget the
password, contact Customer Service at 1-800-289-
0980. The original remote control will be required.
Temporary disabling of
rating level by DVD disc
Some pre-recorded DVD discs may attempt to
temporarily cancel the rating level that you have
set. You will be given the option to allow or not
aliow the override.
1
2
Load a DVD disc (see page 26).
ENGLISH
If the DVD disc has been designed to temporarily
cancel the Rating level, the screen which follows
the “Reading” screen will change, depending
on which disc is played. If you select “YES” with
ENTER key, password input screen will then
appear.
Enter the password with Number buttons (0-9).
Then press ENTER.
+ [f you interrupt the entering, press RETURN.
4 Playback will commence if the entered password
was correct.
NOTE:
* This temporary cancellation of the rating level will
be kept until the disc is ejected.
When the disc is ejected, the original rating level will
be set again automatically.
35
Language code list
Enter the appropriate code number for the initial settings “Menu”, “Subtitle” and/or “Audio” (see page 32).
Language Name Code | Language Name Code | Language Name = Code | Language Name Code
Abkhazian 1112 | Fiji 1620 | Lingala 2224 | Singhalese 2919
Afar 1111 | Finnish 1619 | Lithuanian 2230 | Slovak 2921
Afrikaans 1116 | French 1628 | Macedonian 2321 | Slovenian 2922
Albanian 2927 | Frisian 1635 | Malagasy 2317 | Somali 2925
Amharic 1123 | Galician 1722 | Malay 2329 | Spanish 1529
Arabic 1128 | Georgian 2111 | Malayalam 2322 | Sundanese 2931
Armenian 1835 | German 1415 | Maltese 2330 | Swahili 2933
Assamese 1129 | Greek 1522 | Maori 2319 | Swedish 2932
Aymara 1135 | Greenlandic 2122 | Marathi 2328 | Tagalog 3022
Azerbaijani 1136 | Guarani 1724 | Moldavian 2325 | Tajik 3017
Bashkir 1211 | Gujarati 1731 | Mongolian 2324 | Tamil 3011
Basque 1531 | Hausa 1811 | Nauru 2411 | Tatar 3030
Bengali; Bangla 1224 | Hebrew 1933 | Nepali 2415 | Telugu 3015
Bhutani 1436 | Hindi 1819 | Norwegian 2425 | Thai 3018
Bihari 1218 | Hungarian 1831 | Опуа 2528 | Tibetan 1225
Breton 1228 | Icelandic 1929 | Panjabi 2611 | Tigrinya 3019
Bulgarian 1217 | Indonesian 1924 | Pashto, Pushto 2629 | Tonga 3025
Burmese 2335 | Interlingua 1911 | Persian 1611 | Turkish 3028
Byelorussian 1215 | Irish 1711 | Polish 2622 | Turkmen 3021
Cambodian 2123 | ltalian 1930 | Portuguese 2630 | Twi 3033
Catalan 1311 | Japanese 2011 | Quechua 2731 | Ukrainian 3121
Chinese 3618 | Javanese 2033 | Rhaeto-Romance 2823 | Urdu 3128
Corsican 1325 | Kannada 2124 | Romanian 2825 | Uzbek 3136
Croatian 1828 | Kashmiri 2129 | Russian 2831 | Vietnamese 3219
Czech 1329 | Kazakh 2121 | Samoan 2923 | Volapük 3225
Danish 1411 | Kirghiz 2135 | Sanskrit 2911 | Welsh 1335
Dutch 2422 | Korean 2125 | Scots Gaelic 1714 | Wolof 3325
English 1524 | Kurdish 2131 | Serbian 2928 | Xhosa 3418
Esperanto 1525 | Laothian 2225 | Serbo-Croatian 2918 | Yiddish 2019
Estonian 1530 | Latin 2211 |Shona 2924 | Yoruba 3525
Faroese 1625 | Latvian, Lettish 2232 | Sindhi 2914 | Zulu 3631
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to this unit is dependent
on the model and features of each component. Check the Owner's Manual provided with each component for
the location of video and audio inputs and outputs.
To connect the LCD TV/DVD to a VCR
Rear of the unit VCR
ARO 0) vi | IN To Video/Audio OUT /
DE © LINE 2
a To LINE 2 VIDEO/AUDIO IN
” Video/Audio cord (not supplied)
To connect the LCD TV/DVD to a VCR with an S-Video cord
If you connect a VCR with a S-Video cable to the S-VIDEO IN jack on the rear side of the unit, you must also
connect the audio cables to the AUDIO IN jacks on the rear side of the unit.
The S-Video cable only carries the video signal. The audio signal is separate.
NOTE:
* When the S-Video cable and the standard video cable are connected at the same time, the S-Video cable
takes precedence.
Rear of the unit
VCR
rAUDIO= IN |
= "3 LINE 4 To Audio OUT /
S-Video OUT
Audio cord (not supplied)
S-Video cord (not supplied)
To connect to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the units COMPONENT VIDEO OUT jacks of your DVD
player with the COMPONENT video cables (not supplied).
Rear of the unit
Le Component video cord (not supplied)
To Component OUT
/ DVD
<<
A
L(MONO) VIDEO 1}
UU To LINE 2 AUDIO IN
To Audio OUT
Audio cord (not supplied)
NOTE:
+ Component Video input of the unit are for use with a device which output 480i/1080i interlaced sighals and
480p/720p progressive signals.
ENGLISH
Connections to other equipment (continued)
To connect a HDMI or a DVI device to the unit
The HDMI 1 input receives digital audio and uncompressed video from a HDMI device or uncompressed digital
video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate
analog audio cords required.
Rear of the unit
IN
Ca UE В To DVI output
en
DVI device
To PC/DVI
AUDIO IN Audio cord (not supplied)
a E
mE] | HDMI device
HDMI - to - DVI adapter cable
(HDMI type A connector)
To HDMI IN (not supplied)
HDMI cable (type A connector)
(not supplied)
NOTE:
* When using HDMI 1/DVi to connect your HDMI or DVI devices, you must select the corresponding
audio input source (HDMI or DVI) on the menu screen (see “Selecting the HDMI audio input source”
on page 25). Otherwise you will only see the image with no sound.
If you connect an external component (cable box, satellite receiver, etc.) to this LCD TV using an HDMI cable
or a DVI to HDMI cable, the image will not display if the output resolution of the component is set to 480i. To
receive the picture you must change the output resolution on the external component.
Should you require further instruction, please contact the manufacturer of the external component.
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as
shown below.
Rear of the unit
YAR AUDIO = Front
В L Subwoofer her
© = TV/DVD
To COAXIAL DIGITAL
AUDIO OUT
Coaxial digital cable
{not supplied)
To Coaxial
Digital Audio Input
> | /_ Surround \ |
| r— Speaker (Left) ре! Speaker
AY Amplifier with built-in digital surround pis (Right)
decoder as listed above
NOTE:
* When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.
38 There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.
Connections to other equipment (continued)
To connect an audio system
This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the
TV's remote control.
To control the audio, turn on the TV and the stereo amplifier, and turn off the TV's built-in speakers (see "Turning
off the built-in speakers” onpage 25). = mmseeeeeeeeeemmees | пененеенненененнесеесо
Rear of the TV
CARAJO. — DOTADO (OUT Amplifier
ee mm Г 10000
| | ООО OOO
To VAR (VARIABLE) To Audio (L) input © Audio (R) Input
AUDIO OUT
Audio cord (not supplied)
NOTE:
To hear sound when using an external audio amplifier, the volume of both the TV and the amplifier must be set
above 0 (zero).
For example, if the volume of the TV is set to 0, you will not be able to hear any sound, even if the volume of the
amplifier is at its highest level.
To connect the TV/DVD to a camcorder, or a TV Game
To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of
signals generated by these devices and subsequent hook-up variations required, they have not all been
included in the suggested connection diagrams. You'll need to consult each components Owners Manual for
additional information.
Rear of the unit
S-VIDEO O o " IN
= | DEO pine 1
à ToLINE1VIDEO/ To Video/Audio OUT
J AUDIO IN „СЪ
Video/Audio cord : JF
(not su pplied) | но Ti
To connect the TV/DVD to a PC (Personal Computer)
Before you connect this TV/DVD to your PC, change the adjustment of your PC’s Resolution
and Refresh rate (60 Hz).
Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA
connector PC MONITOR on the rear of the TV/DVD. Attach the connectors firmly with the screws on the plug. In
case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and
to the AUDIO connector of the PC/DVI AUDIO IN jack of the TV/DVD. You can also connect the PC with HDMI
cable. If you use HDMI cable, you dont have to connect the audio cord. If you use DVI-to-HDMI cable, please
connect audio cord as same way as VGA cable.
Press INPUT SELECT on the remote control to select PC mode.
Switch on the computer. The TV/DVD can operate as the computer monitor.
a nm Monitor Display modes
To PC
MODE Resolution Refresh rate
VGA 640x480 60/72/75 Hz
VGA 720x400 70Hz
SVGA 800x600 :56/ 60/72/75 Hz
Tom To PC/DVI XGA 1024x768 60/70/75 Hz
HDMI 1 ] AUDIO IN VGA cable WXGA 1280x768 60Hz
/DVI IN Audio cord (not supplied) WXGA 1280x720 60Hz
(not supplied) WXGA 1360x768 60Hz
Ë To return to normal mode
NOTE: HDMI cable (not supplied) Press INPUT SELECT again.
* The on-screen displays will have a different appearance in PC mode than in TV mode.
* [f there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV-screen.
ENGLISH
39
40
Reception disturbances
Most types of television interference can be remedied by adjusting the height and position of the VHF/
UHF antenna. Outdoor antennas are recommended for best results. The most common types of television
interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV
system, the disturbance may be caused by the local Cable TV company broadcast.
IGNITION
Black spots or horizontal streaks may appear, the picture may flutter or
drift. Usually caused by interference from automobile ignition systems,
neon lamps or AC powered {ools and appliances such as drills or hair
dryers.
GHOSTS
Ghosts are caused by the television signal following two paths. One is the
direct path and the other is reflected by tall buildings, hills or other large
objects. Changing the direction or position of the antenna may improve
the reception.
\.
SNOW
If the TV is located far from the TV station, in a fringe reception area where
the signal is weak, small dots may appear in the picture.
If the signal is extremely weak, the installation of a larger external antenna
may be necessary.
RADIO FREQUENCY INTERFERENCE (RFI)
Caused by two-way radios, this type of interference produces moving
ripples or diagonal streaks in the picture. Some cases may cause a loss of
contrast in the picture. Changing the direction and position of the antenna
or installing an RFI filter may improve the picture.
N
PICTURE SIZE VARIATION
A slight picture size variation is normal when you adjust the CONTRAST or
BRIGHTNESS settings.
N
CARE AND MAINTENANCE
To prevent fire or shock hazard, disconnect the TV from the power source before cleaning.
The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture.
Use caution when cleaning or wiping the plastic parts.
Problems and troubleshooting
Use the following check list for troubleshooting when you have problems with your TV/DVD. Consult your local
dealer or service outlet if problems persist.
Be sure all connections are properly made when using with other units.
Г SYMPTOMS POSSIBLE SOLUTIONS PAGE |
POWER
+ Make sure the power cord is plugged in.
TV/DVD does not operate. | * Power is off, check fuse or circuit breaker. 12
* Unplug unit, then plug it back in.
TV BROADCAST RECEPTION
+ Station or Cable TV experiencing problems, tune to another station. 17
Poor sound or no sound. + Check Volume adjustments or muting. 17,18
+ Check for sources of possible interference. 40
* Station or Cable TV experiencing problems, tune to another station. 17
* Check antenna or Cable TV connections, reorient antenna. 13,14
Poor picture or no picture. |, Check for sources of possible interference. 40
* Check picture control adjustments. 21,22
Poor reception on some . o or cae TV experiencing problems, tune to another station. 17
channels * Station signal Is weak, reorient antenna to receive stronger station. 13
* Check for sources of possible interference. 40
¢ Station or Cable TV experiencing problems, tune to another station. 17
* Make sure channels are set into memory. 15
Poor color or no color. * Check picture control adjustments. 21,22
* Check antenna or Cable TV connections, reorient antenna. 13,14
* Check for sources of possible interference. 40
* Station or Cable TV experiencing problems, tune to another station. 17
* Make sure channels are set into memory. 15
Picture wobbles or drifts. * Cable TV company is scrambling signal. —
* Check antenna orientation. 13
* Check all Cable TV connections. 14
No Cable TV reception. * Set Signal Type option to the “Cable” mode. 15
* Station or Cable TV system problems, try another station. 17
Horizontal or diagonal * Check antenna connections, reorient antenna. 13
bars on screen. * Check for sources of possible interference. 40
No reception above + Make sure Signal Type option is in the appropriate mode. 15
channel 13. + |fusing antenna, check UHF antenna connections. 13
* No broadcast on station tuned. 17
TV shuts off. * Sleep Timer is set. 18
* Power interrupted. —
* TV station experiencing problems or program tuned is not closed 17
_ € captioned. Try another channel.
Closed - caption is not * Check Cable TV connection or VHF/UHF antenna, reposition or 13, 14
rotate antenna.
* Set Closed caption in the menu. 20, 21
Display is not shown in . , .
your language. Select proper language in the menu options. 15 J
+ The LCD panel is a very high technology product, giving you fine picture details. Occasionally, a few non-
active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not
affect the performance of your product.
ENGLISH
Problems and troubleshooting (continued)
[ symPTOMS | POSSIBLE SOLUTIONS | PAGE |
DVD
» No disc is inserted. 26
Playback doesn’t start. * The disc may be dirty. Clean up the disc. 8
* The unit cannot play CD-ROMs, etc. 8
No picture. * TV/DVD selector is not set correctly. 26
* Check the input selector of the amplifier is set properly. —
No sound. * The unitis in the Special playback mode. 27
* Select the correct Audio Output position on AV amplifier. 39
Picture is distorted during | [| . . .
CUE or REVIEW. The picture will be distorted occasionally. —
Stopping playback,
search, slow-motion play,
repeat play, or program
play, etc. cannot be
Some discs may not allow some functions. —
performed.
No on-screen display. * Select Display On. 33
No surround sound. * The setup does not match your stereo system. 38
The unit or remote
Turn off the unit and unplug the AC power cord for several minutes,
operation key is not 12
functioning. then replug It.
Playback does not start .
when the title is selected. Check the Parental setup. 34,35
Audio soundtrack and/or
subtitle language is not . 4: :
changed when you play Multilingual language is not recorded on the DVD disc. 31,32
back a DVD.
. * Some discs have no subtitles.
No subtitle. * Subtitles are cleared. Press SUBTITLE. 32
Angle cannot be changed. |» Multi-angles are not recorded on the DVD disc. 32
“X” appears on the * The function is prohibited with the unit or the disc. 27
screen.
REMOTE CONTROL
* Aim at the remote control at the remote sensor.
* Operate within Approx. 15 feet or reduce the light in the room.
The remote control does * Clear the path of the beam. 12
* The batteries are weak. Replace the batteries.
\ * Check the batteries are inserted correctly.
7
£7 SANSUI.
FOR CUSTOMER SERVICE, ADDITIONAL SET-UP AND OPERATING ASSISTANCE, OR TO ORDER ACCESSORIES PLEASE CALL:
1-800-289-0980
WHEN CALLING CUSTOMER SERVICE — PLEASE HAVE YOUR MODEL NUMBER READY
OR WRITE TO:
ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
FOR INFORMATION ON OUR OTHER PRODUCTS, OR TO ORDER ACCESSORIES ONLINE, PLEASE VISIT OUR WEBSITE AT
www.orionsalesinc.com
Na —_ J
Specifications
Model
HDLCDVD325 HDLCDVD325A
GENERAL
Power supply:
AC 120V 60Hz
Power consumption:
Operation: 108W
Stand by: 0.7W
Weight:
10.8 kg (23.8 Ibs) | 10.4 kg (22.9 Ibs)
Dimensions:
Width: 796.5 mm (31-3/8 inches)
Height: 581 mm (22-7/8 inches)
Depth: 214 mm (8-7/16 inches)
Operating temperature: | 5C-40C
Operating humidity: Less than 80%
TELEVISION
Type: 31.51 inches (800.4 mm diagonal)
Display method: Transmission TFT color LCD panel
Number of Pixels: 1366 (H) x 768 (V)
Tuner type: NTSC standard
ATSC standard (8VSB), QAM
Receiving channels: VHF 2-13
UHF 14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-135 (100)-(135)
O1 (4A)
Inputs: S-Video: Y-Input:1.0 V (p-p), 75 ohms
C-Input:0.3 V (p-p), 75 ohms
Video: (RCA) 1V p-p/75 ohms
Audio: (RCA) -8 dBm/50K ohms
Component video: (Y) 1 Y (p-p), 75 ohms
(PbY(Pr) 0.7 V (p-p), 75 ohms
HDMI: HDMI compliant {type A connector)
HDCP compliant
E-EDID compliant
Suggested scan rates: 480p, 480i, 720p,10801,1080p
HDMI Audio: 2-channel PCM
32/44 .1/48 kHz sampling frequency
16/20/24 bits per sample
PC Monitor: Mini-Dsub 15pin x 1
Antenna: VHF/UHF In 75 ohms coaxial
Outputs: Digital audio out: 0.5 Vp-p 75 ohms terminated
Speaker: 40.6 mmx 121.9 mm (1-5/8 inches x 4-13/16 inches), 8 ohms x 2
Audio output power: 5.0W + 5.0W
DVD/CD player
Signal system:
NTSC
Applicable disc:
1.DVD (12 cm, 8 em)
2.CD (12 cm, 8 em)
Pickup:
CD: Wavelength: 780 nm
Maximum output power: 7 mW
DVD: Wavelength: 655 nm
Maximum output power: 5 mW
ACCESSORIES
Remote control
Batteries (UM-4) x 2
AC Cord
Designs and specifications are subject to change without notice.
ENGLISH
43

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
