Sony KDL-50EX645, KDL-46EX645 Owner's manual

Sony KDL-50EX645, KDL-46EX645 Owner's manual

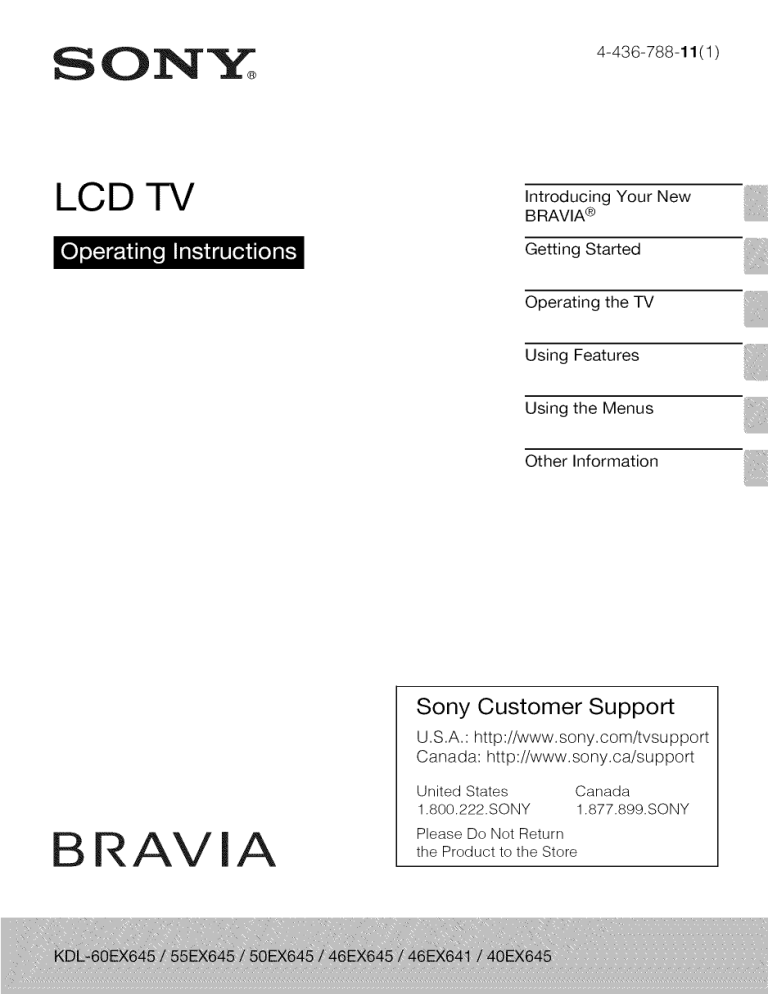

 LCD TV
4-436-788-11(1)
Introducing Your New
BRAVIA®
Getting Started
Operating the TV
Using Features
Using the Menus
Other Information
Sony Customer Support
U.S.A.: http://Wwww.sony.com/tvsupport
Canada: http://www.sony.ca/support
United States Canada
1.800.222. SONY 1.877.899. SONY
Please Do Not Return
the Product to the Store
Owner's Record
The model and serial numbers are located at the side
and rear of the TV. Record these numbers in the spaces
provided below. Refer to them whenever you call upon
your Sony dealer regarding this TV.
Model Name
Serial No.
CAUTION
To prevent electric shock and blade exposure, do not use
this polarized AC plug with an extension cord, receptacle or
other outlet unless the blades can be fully inserted.
U Operate the TV only on 110-240 V AC
(USA/Canada 120 V AC).
A Avoid operating the TV at temperatures
below 41°F (5°C).
Licensing Information
Macintosh is a trademark of Apple Inc, registered in the U.S.
and other countries,
HDMI, the HDMI logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing, LLC in the United States and other countries.
Fergason Patent Properties, LLC:
U.S. Patent No. 5,717,422
U.S. Patent No. 6,816,141
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories.
Biu-ray Disc is a trademark.
“BRAVIA” and BRAVIA, BRAVIA Sync, and El are
trademarks or registered marks of Sony Corporation.
“PlayStation” is a registered trademark and “PSS” is а
trademark of Sony Computer Entertainment Inc.
Opera® Browser from Opera Software ASA. Copyright 1995-
2012 Opera Software ASA. All rights reserved.
DLNA®, the DLNA Logo and DLNA CERTIFIEDO are
trademarks, service marks, or certification marks of the
Digital Living Network Alliance.
(T
DTV
HEGH=DEFINITION TELEVISION
au
DIGITAL |
software
CERTIFIED
Cleaning
When cleaning, be sure to unplug the power
cord to avoid any chance of electric shock.
* Wipe the LCD screen gently with a soft cloth.
* Stubbom stains may be removed with a
cloth slightly moistened with a solution of
mild soap and warm water.
e |f using a chemically pretreated cloth, please
follow the instruction provided on the
package.
e Never use strong solvents such as a thinner,
alcohol or benzine for cleaning.
e See the supplied Safety Booklet for
additional information.
Your BRAVIA TV is ENERGY STAR® qualified
in the "Home" mode. It meets strict energy
efficiency guidelines set by the U.S.
Environmental Protection Agency and
Department of Energy.
ENERGY STAR is a joint program of these
government agencies, designed to promote energy efficient
products and practices. Changes to certain features,
settings, and functionalities of this TV (Le. TV Guide, Picture/
Sound, Light Sensor, Power Savings) can increase or change
the power consumption. Depending upon such changed
settings, the power consumption may exceed the limits
required for the ENERGY STAR qualification in the “Home”
mode.
Wi-Fi Protected Set-up ™ (WPS) is a mark of the Wi-Fi
Alliance.
Wi-Fi Protected Access ™ (WPA) is a mark of the Wi-Fi
Alliance.
| The 55 class has a 54.6 inch viewable image size (measured diagonally).
2
Contents
Introducing Your New BRAVIA®
Welcome to the World of BRAVIA®
Experiencing Stunning HD with Your
BRAVIA
The Four Steps to a Stunning HD
Ехрепепсе ........................
TV Feature Highlights ..................
Getting Started
SettingUp Your TV. ...................
Attaching the Table-Top Stand. ..........
Adjusting the viewing angle of the TV
(except KDL-60EX645)
Locating Inputs and Outputs.............
Connecting the TV
Connecting Other Equipment ............
When Installing the TV Against a Wall or
Enclosed Area
Securing the TV
Bundling the cables. ...................
Running Initial Setup. ...............—...
Operating the TV
Using the Remote Control. ..............
Remote Control Button Description
TV Controls and indicators ..............
Using Features
BRAVIA® Sync™ with Control for HDMI. . . .
Using PIP Feature... ..................
Using PAP feature
Favorites e aa a ee
WideMode ..........................
Wide Mode with PC
Inputs
Playing back Photo/Music/Video via USB. . .35
Home Network ....................... 38
PhotoFrame......................... 39
Using Home Network Features. .......... 40
Setting up the Internet Connection ........ 41
If You Cannot Connect to the internet ..... 43
Adjusting the Server Display Settings. . . . .. 44
Browsing Websites. . .................. 44
Enjoying Sony Entertainment Network... 45
Enjoying Yahoo! Widgets ............... 46
Using the Menus
Navigating through TV Menus ........... 47
Using the Picture Settings. .............. 49
Using the Sound Settings ............... 51
Using the Screen Settings .............. 53
Using the Channel Settings ............. 55
Using the Parental Lock Settings ......... 56
Using the Setup Settings ............... 59
Using the Eco Settings ................. 65
Other Information
PC Input Signal Reference Chart for
PCand HDMIIN. ................... 66
Using a Wall-Mount Bracket. . ........... 67
Installing the Wall-Mount Bracket. ........ 68
Troubleshooting ...................... 73
Important Notices ..................... 80
Specifications .............. LL. 82
Index. .......... La ae 85
Customer Support
United States
http://www. sony.com/tvsupport
Canada
http://www. .sony.ca/support
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www .sony.ca/registration
Welcome to the World of BRAVIA®
Thank you for choosing this Sony BRAVIA® high-definition television. Use the
documentation listed below to get the most out of your TV.
Safety Booklet Quick Setup Guide
Contains precautionary measures to Provides TV setup information with
keep you and your TV safe. Read sample connection diagrams.
this information prior to setting up
your TV.
Operating Instructions
Provides the most detailed
information to operate your TV.
Experiencing Stunning HD with Your
BRAVIA
The quality of the image you see on your BRAVIA TV is only as good as the quality of the
signal it receives. To experience the stunning detail of your new BRAVIA TV, you need
access to HD programming. Your BRAVIA TV can receive and display HD programming
from:
Over-the-air broadcasting via HD-quality antenna
HD cable subscription
HD satellite subscription
Blu-ray Disc™ player or other HD compatible external equipment
Contact your cable, satellite or HD service provider for information on upgrading to HD
programming.
The Four Steps to a Stunning HD
Experience
Along with your BRAVIA TV set, a complete HD system requires a source of HD
programming, an HD sound system, and a proper connection setup. Refer to the Quick
Setup Guide, enclosed separately, for connecting optional equipment.
You can enjoy crisp, clear images, smooth
movement, and high-impact visuals from 1080 HD
signals as shown here.
When you compare a high-definition signal to a
standard analog signal, you will notice a big
difference in picture quality. If black bars appear as
shown here, press WIDE on the remote control to fill
the screen.
TV Feature Highlights
Your BRAVIA comes with many convenient features, such as:
> BRAVIA® Sync™: Allows your BRAVIA TV to communicate with other Sony
equipment supporting the Control for HDMI function (page 30).
Y
Digital Media Accessibility: Use the Photo, Music, and Video ¡cons to
access photo, music, and video files from DLNA Certified™ networked
equipment or Sony USB equipment (page 35).
Y
PIP (Picture in Picture): You can work on your PC and watch your favorite TV
program simultaneously (page 31).
> PAP (Picture and Picture): You can display two pictures (left and right) on the
screen simultaneously (page 32).
> Favorites: Your favorite channels and inputs are at your finger tips for easy
access (page 33).
> Auto Wide Mode: Set your TV to automatically adjust the screen based on the
signal resolution (page 33).
Y
Input Selection: Allows you to easily switch between the connected equipment
(page 35).
5
eVIAVHE MaN INoA Buronponu
=
Y
Y
Y
Y
Scene Select: Allows you to easily adjust your TV to the most suitable picture
and sound settings based on the scenes for the best quality result for the
contents genre you are watching (page 26).
Yahoo! Widgets: Yahoo! TV Widgets bring the best of the Internet to your TV
(page 46). Yahoo! Widgets allow you to access local weather, news and much
more.
DLNA: You can enjoy various content (e.g. photo/music/video files) stored on
DLNA Certified™ media servers. The home network feature allows you to enjoy
network content in other rooms. (page 38).
Internet Video: Internet Video brings videos, movies and much more from the
Internet to your TV (page 45).
Browser: Allows you easily browse websites.
Photo Frame: You can enjoy the large photo frame display with music.
On Timer: Set timer to wake up TV automatically with preferred setting of input
and volume. You can also wake up with your favorite photo and music through
photo frame feature (page 62).
Setting Up Your TV
Some TV models are packaged with a detached Table-Top Stand so you can mount
your TV to a wall right away. If you are not mounting the TV to a wall, you will need to
attach the Table-Top Stand. You will need a Phillips screwdriver and the supplied
screws to complete the task. Look for the attachment instructions provided with the TV.
Be sure to consider the following while setting up your TV:
e Disconnect all cables when carrying the TV.
e Carry the TV with the adequate number of people; larger size TVs require two or more people.
e Correct hand placement while carrying the TV is very important for safety and to avoid damage.
Ensure your TV has adequate ventilation, see page 18.
For best picture quality, do not expose the screen to direct illumination or sunlight.
Avoid installing the TV in a room with reflective wall and floor materials.
Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may
cause moisture condensation. This may cause the TV to show poor picture and/or poor color.
Should this occur, allow moisture to evaporate completely before powering the TV on.
panels une
Attaching the Table-Top Stand
Refer to the supplied Table-Top Stand leaflet for proper attachment.
e Do not put stress on the LCD panel or the frame around the screen.
* Be careful to not pinch your hands or the AC power cord when you install the TV set to the Table-
Top Stand.
1 Place the TV set on the Table-Top Stand.
Guide pins
e Align the TV from the top, slide it in until the guide pins cannot be seen.
2 Fix the TV to the Table-Top Stand using the supplied screws. The arrow marks 4
indicate the location of the screw holes used for securing the Table-Top Stand.
e |f using an electric screwdriver, set the torque at approximately 1.5 N-m {15 kgf-cmj}.
To detach the Table-Top Stand from the TV, remove the screws 4 fixed in step 2.
Do not remove the Table-Top Stand for any reason other than to install corresponding
accessories on the TV.
When removing the Table-Top Stand from the TV, lay the display face down on a stable work
surface that is larger than the TV.
To prevent damaging the surface of the LCD display, make sure to place a soft cloth on the work
surface.
When installing the TV on a wall, remove the screws from the rear of the TV. Be sure to store the
removed screws In a safe place, keeping them away from children.
When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed)
to the original holes on the rear of the TV.
panels une
Adjusting the viewing angle of the
TV (except KDL-60EX645)
This TV can be adjusted within the angles as illustrated.
Angle Adjustment (Swivel)
e When adjusting the angle, hold the stand with one hand to avoid having the stand slip or TV tip
over.
* The angle is approximate value.
10
Locating Inputs and Outputs
Rear Panel
Side Panel
[1] 2] [3]
En й
; IN ;
; SCHDMET |
Fim AUBO==l, Da Pe Y
ARRAY tono; M VIDEO IN
COMPONENT IN
CABLE/
ANTENNA НО)
DIGITAL AUDIO Connects to the optical audio input of digital audio equipment that is PCM/
QUT (OPTICAL) Dolby” Digital compatible.
PC IN (RGB)
Connects to a personal computer's video and audio output connector. Can
also be connected to other analog RGB equipment. See “PC Input Signal
Reference Chart” on page 66 for the signals that can be displayed.
For some Apple Macintosh computers, it may be necessary to use an
adapter (not supplied). If an adapter is used, connect the adapter to the
computer before connecting the HD15-HD15 cable.
You may need to adjust the TV settings or your PC’s resolution and timing.
See page 16 for information on how to setup your PC to this TV.
3]
HDMI IN 1/2/3/4
HDMI (High-Definition Multimedia Interface) provides an uncompressed,
all-digital audio/video interface between this TV and any HDMI-equipped
audio/video equipment, such as a set-top box, DVD player, and AV
receiver. HDMI supports enhanced, or high-definition video, plus digital
audio. Be sure to use only an HDMI cable that bears the HDMI logo.
Use the HDMI IN 1 port when connecting DVI equipment. Use a DVI-to-
HDMI cable or adapter (not supplied). Equipment using a DVI connection
also requires an additional audio connection using an audio cable
connected to PC/HDMI 1 AUDIO IN of PC IN.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
(Continued) 11
panels une
CABLE/ RF input that connects to your Cable or VHF/UHF antenna.
ANTENNA
VIDEO IN 1/ This input port can be used as a composite video input (VIDEO 1) or as a
COMPONENT component video input (COMPONENT). For composite use, connect the
IN/R-AUDIO-L yellow jack to Y for video and use audio L (mono) and R for audio signal.
(MONO) For component connection, use Y, Pg, PR for video signals and also
connect the audio L (mono) and R for audio signal.
This TV can auto detect and switch between the VIDEO 1 and
COMPONENT when VIDEO 1 or COMPONENT 1s connected.
To set to auto detection, press HOME, select Settings, and then select the
Setup settings. Select the Video1/Component Selection option in AV
Setup then set to Auto.
[6] AUDIO OUT Connects to the audio input jack of your analog audio equipment. You can
use this output to listen to your TV's audio through your stereo system.
LAN You can enjoy contents stored in DLNA Certified™ devices via a network
(page 35), and also IPTV, Yahoo! Widgets and Internet Browser are
available.
USB Connects to USB equipment to access photo, music, and video files.
A standard USB mouse and USB keyboard can also be connected to the
USB ports. An USB mouse or USB keyboard can only operate while
navigating on the internet browser (page 44).
VIDEO IN 2 Connects to the composite video output jack of video equipment.
VIDEO/L If you have mono equipment, connect its audio output port to the TV's L
(MONO)- (MONO) audio input port.
AUDIO-R
e An HDMI or Component video (YPBPR) connection is required to view 4801, 480p, 720p, 10801
and 1080p video formats. 1080/24p Is available only with HDMI connection.
12
Connecting the TV
You can enjoy high-definition and standard-definition digital programming (if available in
your area) along with standard-definition analog programming.
This TV is capable of receiving unscrambled digital programming for both cable (QAM
and 8VSB) and external VHF/UHF antenna (ATSC).
Cable or VHF/UHF (or VHF only)
75-ohm coaxial cable ses = Ei
= » I) Rear of TV
CABLE/ANTENNA
panels bumeyn
® |115 strongly recommended that you connect the CABLE/ANTENNA input using a 75-ohm
coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can easily be
affected by radio frequency interference, resulting in signal degradation.
Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-
air antenna programming, as indicated below.
A/B RF Switch
Cable == —
» Rear of TV
Antenna == | CABLE/ANTENNA
® Ве sure to set the Signal Type setting to Cable or Antenna found under the Channel settings
for your input signal (page 55).
13
You can enjoy high-definition programming by subscribing to a high-definition cable
service or a high-definition satellite service. For the best possible picture, make sure you
connect this equipment to your TV via the HDMI or component video (with audio) input
located on the back of your TV.
| Shown with HDMI Connection
CATV/Satellite antenna cable
Rear of TV 5
HD cable box/
HD satellite box
HDMI cable
CATV/Satellite
\ antenna cable
DVI-to-HDMI cable
Rear of TV
HD cable box/
HD satellite box
Audio cable
(stereo mini plugs)
14
Shown with Component Connection
CATV/Satellite antenna cable
Rear of TV Е
( HD cable box/
en HD satellite box
AUDIO-R (red) .
AUDIO-L (white) .
O
Pr (red) sm ad j 8
Pg (blue) cen. / 5
Y (green) Component video cable о
D
o
Audio cable
e |f your equipment has a DVI output and not an HDMI output, connect the DVI output to the HDMI
IN 1 (with DVI-to-HDMI cable or adapter) and connect the audio output to the AUDIO IN of PC
IN. For details, see page 11.
15
Use the TV as a monitor for your PC by connecting an HD15-HD 15 cable connection as
shown below. This TV can also be connected to a PC with a DVI or HDMI output. (Refer
to the separate Quick Setup Guide.)
Rear of TV
HD15-HD15 cable * |
(analog RGB) Ш
Audio cable (stereo mini plugs)
e Connect the PC IN jack to the PC using an HD15-HD15 cable with ferrite core (analog RGB) and
audio cable (page 11).
16
Connecting Other Equipment
Blu-ray Disc DVD Digital satellite Digital Audio
Player/ PS3” player receiver cable box system
Digital audio
equipment
(A/V Receiver/ Personal
Home Theater) computer
paliels buen
Router/ Analog audio Digital CABLE/ VCR/Game system/
Modem equipment recorder ANTENNA Camcorder
(A/V Receiver/
HomeTheater)
e Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.
17
When Installing the TV Against a
Wall or Enclosed Area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as
shown below. Avoid operating the TV at temperatures below 41 °F (5 °C).
Installed with stand Installed on the wall
11 7%einches ! 0 | |" 7/ginches |
(30 em) (30 cm)
4 inches 4inches | | 4 inches
(10cm) N {10 cm} ho 4 (10 cm)
Leave at least
we this much space
12 inches (10 em)! around the set.
Leave at least this much space around the set.
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
| > all
e InNadequate ventilation can lead to overheating of the TV and may cause TV damage or cause a
fire.
Z
18
Securing the TV
LULL
LL
Sony strongly recommends taking measures to prevent the TV from toppling
over. Unsecured TVs may topple and result in property damage, serious bodily
injury or even death.
Secure the TV to a wall and/or stand.
Do not allow children to play or climb on furniture and TV sets.
Avoid placing or hanging items on the TV.
Never install the TV on:
Slippery, unstable and/or uneven surfaces.
e Furniture that can easily be used as steps, such as a chest of drawers.
Install the TV where it cannot be pulled, pushed, or knocked over.
Route all AC power cords and connecting cables so that they are not accessible to curious
children.
Consider the following measures when securing your TV to a TV stand (not supplied).
1
Secure the stand for the TV.
Make sure the TV stand can adequately support the weight of the TV. Use two angle
braces (not supplied) to secure the stand.
For each angle brace use the appropriate hardware to:
e Attach one side of the angle brace to the wall stud.
e Attach the other side to the TV stand.
- Angle braces
й an
Stand
(Continued) 19
paliels buen
2 Secure the TV to the stand.
Use the optional hardware listed below (not supplied):
e M4 machine screw (screwed into the TV's Table-Top Stand).
e A screw or similar (attach it to the TV stand).
e Rope or chain (strong enough to support the weight of the TV). Make sure that there is
no excess slack in the rope or chain.
An alternative way to secure the TV is with an optional Sony Support Belt Kit.
The length of the M4 machine screw differs
depending on the rope or chain diameter.
Please refer to right illustration.
3 Anchor the TV to the wall.
6-8 mm |
M4 machine screw = Rope or chain
Screw hole on the (not supplied) (not supplied)
Table-Top Stand | A В
Screw
(not supplied)
Screw M4
' rope or chain
TV's Table-Top
Stand
Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).
holes
Anchor bolts —;
(not supplied)
Wall-anchor
(not supplied)
e Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV
model name.
For United States call: 1-800-488-7669 or visit: www.sony.com/accessories
For Canada call: 1-877-899-7669
e Securing the TV to the stand without securing the TV and the stand to the wall provides minimum
protection against the TV toppling over. For further protection, be sure to follow the three
measures recommended.
20
Bundling the cables
Before bundling the cables, remove the cable holder from the AC cover. Reuse the
cable holder to bundle the other cables.
® Do not bundle the AC power cord together with other cables.
panels une
21
Running Initial Setup
During initial setup, you will perform the following:
e Set the language for the On Screen Display (OSD) text
* Choose your viewing country
e Select the type of use
e Scan for digital and analog channels
* Set the current time
e Set the network setup
e Download the software
Complete your cable connections before beginning the Initial Setup. Refer to the Quick
setup Guide (supplied) for sample connection diagrams.
1 Turn on the TV.
The Initial Setup screen will appear.
2 Use the remote control buttons described below to navigate through the Initial
Setup.
4/%/«/» buttons:
Allow you to navigate and highlight options where applicable.
button:
Allows you to select the highlighted option and advance to the next screen.
3 Auto Program will scan for available channels from the signal source directly
connected to the TV's CABLE/ANTENNA input. Follow the help text provided on the
screen to run the Auto Program.
22
e li you cancel the Auto Program, any channels you have
selected are not registered. To rescan for available
channels, run Auto Program.
e Connect either your cable or antenna to the TV (you can
connect both using an A-B RF switch (not supplied)); for
more details see page 13.
e When promoted to select Retail or Home, be sure to
select Home for ENERGY STAR compliant mode.
4 Setthe current date and time.
Date (Month/Day/Year) 01/91/2012
Q
D
+
=
o
O
—
8
=
®
e
23
Using the Remote Control
Insert two size AAA batteries (supplied) by matching @ and @ on the batteries to the
diagram inside the battery compartment of the remote control.
e Point your remote control directly at the IR sensor
located on your TV.
e Make sure that no objects are blocking the path
between the remote control and the IR sensor on your
TV.
e FHuorescent lamps can interfere with your remote
control; try turning off the fluorescent lamps.
e |f you are having problems with the remote control,
reinsert or replace your batteries and make sure that
they are correctly inserted.
e Ensure that there are no objects in front of the TV.
IR Sensor
24
Remote Control Button Description
Press to display the list of External Inputs and TV
mode. Press repeatedly to toggle through the
inputs. See page 35.
WIDE Press repeatedly to cycle through the available
Wide Mode settings. See page 33.
Equipment These buttons are used to control the equipment
Control connected to the TV by using the Control for
HDMI function (not available on all Control for
HDMI equipment). Some other buttons on the
remote control may also operate BRAVIA®
sync'M equipment.
HE (PREV): Press to replay the current program
from the previous chapter mark.
Il (PAUSE): Press to pause playback.
EH (STOP): Press to stop playback.
p>» (NEXT): Press to advance forward to the
next chapter mark.
<< (fast reverse): Press to play a program in
fast rewind mode.
= (PLAY): Press to play a program at a normal
speed.
>> (fast forward): Press to play a program in
fast forward mode.
Colored When the colored buttons are available, an
buttons operation guide appears on the screen.
AL 94) Bunesado |
* The 5, * and CH + buttons have a tactile dot. Use them as a reference when operating the TY.
(Continued) 25
PHOTO Press to display the Photo Frame. See page 39.
FRAME
[6] SCENE Optimizes picture and sound quality by selecting
the following items.
Auto: Automatically optimizes picture and sound
quality according to the input source.
General: No optimized picture and sound quality
for any scene.
Photo: Reproduces the texture and color of a
printed photo.
Music: Lets you experience dynamic and clear
sound just like at a concert.
Cinema: Delivers picture and sound just like in a
theater.
Game: Broadens your game-playing experience
with superb picture and sound quality.
Graphics: Eases prolonged monitor viewing with
clearer detailed pictures.
Sports: Presents realistic pictures and sound just
like in a stadium.
RETURN Press to go back to the previous screen or exit
from the screen when displaying menu items and
settings.
HOME/ Press to display the menu with TV functions and
MENU settings. See “Using the Menus” on page 47.
NETFLIX Press to display the NETFLIX menu.
0-9 Press 0-9 to select a channel.
O Use with 0-9 to select digital channels.
For example, to enter 2.1, press (2), (), (1) and
(+).
MUTING Press to mute the sound. Press again or press
VOL + to restore the sound.
VOL (1) Press to adjust the volume.
+/—
POWER Press to turn on and off the TV.
VO
* When you set Scene Select to Photo, Music, Cinema, Game or Sports, Sound Mode is
automatically set to Standard.
* The scene select function is not compliant with USB/DLNA-Photo, -Music, -Video, IPTV, Yahoo!
Widgets and Internet Browser.
26
SYNC Press to display the BRAVIA Sync Menu and then
MENU select connected HDMI equipment from HDMI
Device Selection.
SEN Enables selection of content from the online
service “SEN” (Sony Entertainment Network). lí
“SEN” Is unavailable, the “SEN” category is not
displayed.
DISPLAY Press once to display the banner with channel/
program information you are watching. The
banner will time out in a few seconds or press
again to exit.
4/4 el» Press 4/4/«/# to move focus/highlight. Press
to select/confirm an item.
OPTIONS Press to display a list of convenient functions and
menu shortcuts. The options menu items vary
based on current input and content.
INTERNET Press to display the Yahoo! Widgets.
APPS
CC/ Press to cycle through the available settings for
SUBTITLE Closed Captions (CC) : On, Off, and On when
Muting.
JUMP Press to jump back and forth between two
channels and external inputs. The TV alternates
between the current/last channel or external input
selected
JUMP JUMP
CH +/— Press to scan through channels. To scan quickly
through channels, press and hold down either CH
+/—.
27
AL 841 Bunessdo
TV Controls and Indicators
/ ©
© №
ka
[+
Light sensor Senses room light level and adjusts the screen brightness accordingly. Do not
(IR) Infrared put anything over the sensor, doing so may affect its function.
Receiver Receives IR signal from the remote control.
& (Picture Lights up in orange when the On Timer/Sleep Timer/Photo Frame is set. If
Off)/© you set to On Timer, lights up in orange while the TV is also in standby mode.
(Timer) LED Lights up in green when the Power Saving is set to Picture Off.
O (Standby) Lights up in red when the TV is in standby mode.
LED
| (Power) LED Lights up in green when the TV is turned on.
I/D (Power) Press to turn on and off the TV.
[6] — CH + Press to scan through channels. To scan quickly through channels, press and
+ 4 hold down either CH +. In the menu screen, these buttons serve as up/down
buttons.
7] - Aa + Press to adjust the volume. In the menu screen, these buttons serve as left/
€ > right buttons.
-e- Press to display the list of external inputs. Press repeatedly to toggle through
+) (Input) the inputs.
In the menu screen, this button serves as confirming the selection or setting.
HOME Press to display menu with TV functions and settings (see “Using the Menus”
on page 47).
28
® For more information about setting up the external inputs labels, see page 62.
* The CH + button has a tactile dot. Use it as a reference when operating the TV.
* Make sure that the TV is completely switched off before unplugging the power cord.
AL 841 Bunessdo
29
BRAVIA® Sync™ with
Control for HDMI
With the Control for HDMI function,
BRAVIA Sync helps to communicate with
BRAVIA Sync-compatible equipment
using HDMI CEC (Consumer Electronics
Control). Use the following settings and
tips to help unify control of your
connected equipment.
1 Press HOME and select Settings,
then select the Setup settings.
2 Select the HDMI Settings, then
highlight Control for HDMI, and set to
On.
Controlling BRAVIA Sync-
Compatible Equipment
To control the equipment by using the
remote control, press SYNC MENU and
select the desired equipment from HDMI
Device Selection.
BD/DVD Player
e Automatically turns the BRAVIA Sync-
compatible equipment on and switches the
Input to that equipment when you select it
from the Sync Menu.
e Automatically turns the TV on and switches
the input to the connected equipment when
the equipment starts to play.
e Automatically turns the connected
equipment off when you switch the TV to
standby mode.
30
AV Amplifier
e Automatically turns the connected AV
amplifier on and switches the sound output
from the TV speaker to the audio system
when you turn the TV on.
e Automatically switches the sound output to
the AV amplifier by turning the AV amplifier
on when the TV is turned on.
e Automatically turns the connected AV
amplifier off when you switch the TV to
standby mode.
e Adjusts the volume (VOL +/-) and mutes the
sound (MUTING) of the connected AV
amplifier through the TV's remote control.
Video Camera
e Automatically turns the TV on and switches
the input to the connected video camera
when the connected video camera is turned
on.
e Automatically turns the connected video
camera off when you switch the TV to
standby mode.
* Control for HDMI (BRAVIA Sync) Is only
avallable for the connected Sony equipment
that has the BRAVIA Sync or is compatible
with Control for HDMI.
* The Control for HDMI settings must be set
on both the TV and connected equipment.
For settings on the connected equipment,
refer to their instruction manuals.
* When specific Sony equipment compatible
with Control for HDMI (BRAVIA Sync) is
connected, BRAVIA sync is automatically
activated on the equipment.
o Swap Audio
You can swap audio between the main
and sub window.
PIP (picture in picture) displays a picture 1 Press OPTIONS.
from a connected PC in full screen, and a 2 Press 4/4 to highlight Audio Swap
TV program or other external input (see and press O.
below “To Enter PIP” table) in an inset |
window. (Closed Captions (CC) is not
Using PIP Feature
3 Press 4/4 to highlight the window to
available with PIP mode.) be audible, then press ().
Sub Window
(Location of the
Sub Window
Main can be moved
Window by pressing
(PC) 4/4/€/».)
To Enter PIP
PC TV channel (CABLE/
ANTENNA), VIDEO IN
1/2, HDMI IN 1/2/3/4
(video timing)
salnjeaq buisn
HDMI IN (PC timing) | TV channel (CABLE/
ANTENNA), VIDEO IN
1/2, COMPONENT IN
1 Press OPTIONS while in the PC
mode.
2 Select PIP from the OPTIONS menu.
3 The sub window will appear.
To Change Channels
You can change the channel of the sub
window by pressing CH +/— or entering
the channel number using the 0-9 numeric
buttons.
To Exit from PIP
1 Press OPTIONS.
2 Press 4/4 to highlight Exit PIP and
press (=) to exit to full PC screen.
31
Using PAP feature © Press ©.
PAP (picture and picture) displays two
pictures (left and right) on the screen
simultaneously (e.g. external input and TV
program). For details on external
equipment, see page 17.
Main window - Sub window
To Enter PAP
Component TV channel (CABLE/
ANTENNA), VIDEO IN
2
HDMI IN (except PC | TV channel (CABLE/
timing) ANTENNA), VIDEO IN
1/2, COMPONENT IN
1 Press OPTIONS and then select P&P.
2 Press «/æ to select active picture.
To change channels
You can change the channel of the sub
window by pressing CH +/ or entering
the channel number using the 0-9 numeric
buttons.
To change the picture size
You can change the picture size by
pressing 4/4 buttons.
To Exit from PAP
You can exit from PAP, using any of the
following methods:
M Press RETURN.
@ Press 4/+ to highlight Single Picture
and press (+) to exit to Single Picture
from Options menu.
32
Favorites
Wide Mode
Your favorite channels and external inputs
can be accessed by pressing the HOME
button once they are added to the list.
1 Press HOME.
2 Press 4/4 to select Favorites, then
press (+).
The favorites list appears.
3 Press 4/4 to select a channel or input,
then press (+).
To add to Favourites
While tuned to the channel you want to
watch or viewing connected equipment,
press HOME and select Favorites to
display the list. Highlight Add to
Favorites, then press ©). Your newly
added item will be listed at the top of the
list. When you continue to add items
beyond the 10th item, the item listed at the
bottom of the list will be automatically
removed from the list.
e Favorite channels and external inputs can
also be added using the OPTIONS button
on the remote control.
* Your Favorites list will be cleared each time
you run the Auto Program.
The Wide Mode feature allows you to
select the screen display of your
preference. Based on the original signal
source, you may see black bars around
the picture or just on the both sides of the
screen. Sometimes you will see the
picture filled or with the full screen. This is
due to the signals your TV receives.
You can manually select available Wide
Mode settings as you watch your TV by
pressing the WIDE button on your remote
control or you can set your TV to Auto
Wide.
To set Auto Wide
Press HOME and select Settings, then
select the Screen settings.
Select Auto Wide and set to On.
o change the Wide Screen Mode
Press WIDE repeatedly to cycle through
the available modes.
Standard-
definition source
High-definition source
+ +
Wide Zoom
Normal
This mode Is not
available.
Full
(Continued) 33
salnjeaq buisn
Normal is available with 480i or 480p
sources only.
34
Wide Mode with PC
Wide Mode is also available for the PC
settings. When a PC is connected to the
TV and PC input is selected, you can
change the PC Screen settings.
To change the Wide Screen Mode for
PC Timing
Press WIDE repeatedly to cycle through
the available modes while in the PC input
mode.
800 x 600
+
Normal
e Use the Auto Adjustment to adjust the
display position and phase of the picture
when the TV receives an input signal from
the connected PC.
Inputs
Press INPUT to display the Input menu
and toggle through the external inputs to
select your video signal for viewing
including the TV mode. The inputs list
consists of TV mode and other equipment
connected to the TV.
You can label your external inputs to
identify them easily.
To Manage on Input
Press HOME and select Settings, then
select the Setup settings. Select the
Manage Inputs option in AV Setup. Press
4/4 to highlight the video input (HDMI 1-4,
Video 1-2, Component, PC) to which you
want to assign a label; press () to select
the input of your choice.
To Manage Label
Press «/» to highlight one of the
displayed labels that corresponds to your
connected equipment, then press (+).
To Manage Enable
1 Press «/w to select enable column.
2 Press 4/4 to select Auto, Always or
Off when Auto is selected. The
selected input will be listed always.
Playing back Photo/
Music/Video via USB
You can enjoy photo/music/video files
stored in a Sony digital still camera or
camcorder through a USB cable or USB
storage device on your TV.
1 Connect a supported USB device to
the TV.
2 Press HOME.
3 Press 4/+ to select Media, then press
4/+/«/w to select Photo, Music,
Video, then press (=).
4 Press 4/4/€/» to selecta file, folder or
device, then press (+).
When you select a folder, select a file,
then press (+).
Playback starts.
salnjeaq buisn
hoto Playback Auto Start
The TV automatically displays the
thumbnail view screen when the TV is
turned on and a digital still camera or
other device storing photo files is
connected to the USB port then turned on
(page 60).
(Continued) 35
Notes when playing back files
e While the TV Is accessing the data on
the USB device, observe the following:
— Do not turn off the TV or connect USB
device.
— Do not disconnect the USB cable.
— Do not remove the USB device.
The data on the USB device may be
damaged.
* Sony will not be held liable for any
damage to, or loss of, data on the
recording media due to a malfunction of
any connected devices or the TV.
* Playback does not start automatically if
the TV is turned on after connecting the
digital still camera or other device to the
USB port.
* The USB device supports FAT16, FAT32
and NTFS.
* Photo Playback Auto Start works only for
photo files in the newest digital still
camera folder (DCF-compliant, highest-
numbered “DCIM” folder).
e Playback may not start automatically
when some digital still cameras (such as
cameras with internal memory) are
connected.
* The file name and folder name support
only English.
* When you connect a Sony digital still
camera, set the cameras USB
connection mode to “Auto” or “Mass
Storage.” For more information about
USB connection mode, refer to the
instructions supplied with your digital
camera.
* Use a USB storage device that is
compliant with USB Mass Storage Class
standards.
e |f a selected file has incorrect container
information, or is incomplete, it cannot
be played back.
36
USB Video format
хую PCM / MPEGI Layer, 2/ MP3 /
MPEG MPEG2 AAC (2ch) /
MPEG4 AAC (2ch) /
AH AVI MPEG2 MP MPEG4 HE-AAC (2ch) /
H.264 BP/MP/HP Dolby Digital (2ch) /
MPEG-4 SP/ASP WMA v8
WMV v9
XviD
A. ASF MP3 / WMA v8
ast MPEG-4 SP/ASP
VC-1
mp4 H.264 BP/MP/HP MPEGI Layerl, 2/ MP3 /
| D/A MPEG2 AAC /
mov MP4 MPEG-4 SP/ASP MPEGÍ AAC /
EP H.263 MPEG4 HE-AAC
H.264 BP/MP/HP—— PCM/MPEGI Layerl,2/MP3/ 5
MPEG-4 SP/ASP MPEG2 AAC (2ch) / @
| MPEG4 AAC (2ch) /
mkv MKV nN T
WMV v9 MPEG4 HE-AAC (2ch) / ®
| Dolby Digital (2ch) / =
VC-1 WMA v8 3
.mpg MPEG]
.mpeg ps MPEG] Layerl, 2/ MP3 /
.vob "U MPEG? MP Dolby Digital (2ch)
NTO
MPEG2 MP MPEGI Layerl, 2/ MP3 /
: MPEG2 AAC (2ch) /
15, m2ts 15 vel MPEG4 AAC (2ch) /
H.264 BP/MP/HP MPEG4 HE-AAC (2ch)
USB Music format USB Photo format
mp3 MP3 Jpg. Jpeg JPEG
‚wma WMA v8
DCF2.0 or EXIF2.21 supported.
#2 « Playback of the above file formats is not guaranteed.
37
Home Network
You can enjoy various content (e.g. photo/
music/video files) stored on DLNA
Certified™ media servers. The home
network feature allows you to enjoy
network content in other rooms.
Playing photo/music/video
1 Press HOME, then select Media >
Photo, Music or Video > the desired
media server.
2 Select files or folders to play from the
list.
e [he server is required to be DLNA
Certifiead!M.
e Files from a network device need to be in the
following formats:
— Still Images: JPEG
— Music: MP3, linear PCM, WMA
— Video: AVCHD, MPEG?, MPEG1, MP4
(AVC), MP4 (MPEG4), WMV
e Depending on the file, playback may not be
possible even when using the supported
formats.
38
You can play back photo, music and
video files stored in network devices (e.g.
digital still cameras, mobile phones, PC)
on the TV screen by directly operating the
target device. The network should also be
renderer-compatible.
Adjusting the renderer settings
Press HOME, then select Settings >
Setup > Network > Home Network
Setup > Renderer > the desired setting.
Select home network servers to be
displayed in the Home Menu. Up to 10
servers can be displayed in the Home
Menu automatically.
1 Press HOME, then select Settings >
Setup > Network > Home Network
Setup > Show/Hide Media Servers.
2 Select the server to display in the
Home Menu.
@ Press HOME, and then select Media, then
Photo Frame select Photo. When playing back a photo,
press OPTIONS > Photo Frame Mode to
,L , | | launch Photo Frame with the selected
You can enjoy looking at a photo, listening photo.
to music, or the clock and calendar, at the
same time.
To select music
You can select music from USB memory
or the DLNA Certified 'M server, using any
of the following methods:
Photo Frame Mode
18 11 12 1% 14
17 18 19 20 21
2 2 26 27 28 | M Press HOME and select Settings, then
| Setup > Photo Frame Settings > Music
M Selection.
a Select the device/server and then press
ms to select the file from thumbnail view.
You can enter photo frame mode using @ In photo frame mode, press OPTIONS >
any of the following methods: Music Selection.
Select the device/server and then press
(1) Press HOME, and then select Photo to select the file from thumbnail view. 7
Frame Mode. © Press HOME, and then select Media, then a
@ Press Photo Frame. select Music. When playing back music, TI
@ Press OPTIONS, when you are playing press OPTIONS > Photo Frame Mode to D
back the photo/music files. launch Photo Frame with the selected =
music. ©
You can switch the frame, e.g. Image and
clock, full screen image or full screen
clock.
For more details, see page 60.
To select Display mode
You can change the photo frame display
by selecting Display Mode (page 60).
+ [Image and Clock
To select photo
You can select photos from USB memory
or the DLNA Certified™ server, using any
of the following methods:
M Press HOME and select Settings, then o Full Screen Image
Setup > Photo Frame Settings > Image
Selection.
Select the device/server and then press the
blue button or (+) to select the file from
thumbnail view.
@ In photo frame mode, press OPTIONS >
Image Selection. Select the device/server
and then press the blue button or (+) to
select the file from thumbnail view.
Full Screen Clock
(Continued) 39
To select Clock Display mode
There are five calendar display modes.
When the Display Mode setting is set to
Image and Clock, you can set to
Calendar, Analog Clock or Digital
Clock. When the Display Mode setting is
set to Full Screen Clock, you can set to
Calendar, Calendar and Clock or Clock.
For more details, see page 60:
* Calendar
* Analog Clock
* Digital Clock
* Calendar and Clock
e Clock
Duration
To save power, photo frame mode will
shut down aîter 24 hours of TV with power
off automatically. After running photo
frame mode for 24 hours, not use this
mode for at least one hour, to avoid panel
burn-in.
Duration time can be set to Duration in
Photo Frame Settings. For more details,
see page 60.
To avoid panel burn-in, the position of the
photo, clock and calendar are switched
automatically every hour.
40
Using Home Network
Features
When you connect this TV to the Internet,
you can enjoy multiple functions: enjoying
Internet video, etc.
e You will need to contract with an Internet
service provider to connect to the Internet.
with router
ет ; functions
® For LAN connections, use a Category 7
cable (not supplied).
Setting up the Internet
Connection
Using the network feature you can
connect the TV to the Internet. The set-up
procedure differs depending on the type
of network and LAN router. Before setting
up the Internet connection, be sure to set
up a LAN router. Check your wireless LAN
environment using the following chart.
Wireless LAN
Secure Wireless LAN? NO
=> Type 3
YES $
Do you use a wireless LAN NO
router compatible with Wi-Fi => Type 2
Protected Setup™ (WPS)?
YES §
Type 1%
Wired LAN =» Type 4
x
Type 1 Is easier to set up It your router has
an automatic setting button, e.g. Air Station
One-Touch Secure System (AOSS). Most of
the latest routers have this function. Check
your router.
Type 1: Follow the configuration for
Secured network with Wi-Fi Protected
Set-up™ (WPS).
Type 2: Follow the configuration for
Secured network without Wi-Fi
Protected Set-up™ (WPS).
Type 3: Follow the configuration for
Unsecured network with any type of
wireless LAN router.
Type 4: Follow the configuration for Wired
network set-up.
The WPS standard makes security of a
wireless home network as straightforward
as pressing the WPS button on the
wireless LAN router. Before setting up a
wireless LAN, check the location of the
WPS button on the router and verify how
to use it.
For security purpose, WPS (PIN) provides
a PIN code for your router. PIN code is
renewed every time you select WPS
(PIN).
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 IP Address setting/Proxy server:
— automatic setting:
Setup network connection > Auto
— manual setting:
Setup network connection >
Custom > Wireless Setup
3 Select WPS (Push Button) for Push
Button method or WPS (PIN) for PIN
method.
e Button name of the WPS may differ
depending on the router (e.g. AOSS button).
4 Follow the instructions on the set-up
screen.
41
salnjeaq buisn
To set up a wireless LAN, SSID (wireless
network name) and security key (WEP or
WPA key) will be required. If you do not
know them, consult the instruction manual
of your router.
1 Press HOME, then select Settings >
Setup> Network > Network Setup.
2 IP Address setting/Proxy server:
— automatic setting:
Setup network connection > Auto
— manual setting:
Setup network connection >
Custom > Wireless Setup
3 Select Sean, then select a network
from the list of scanned wireless
networks.
4 Follow the instructions on the set-up
screen.
e |f you use WPS for network set-up, the
security settings of the wireless LAN router
activate, and any equipment previously
connected to the wireless LAN in a non-
secure status will be disconnected from the
network.
In this case, activate the security settings of
the disconnected equipment and then
reconnect. Or, you can deactivate the
security settings of the wireless LAN router,
and then connect the equipment to a TV in a
non-secure status.
42
To set up a wireless LAN, SSID (wireless
network name) will be required.
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 IP Address setting/Proxy server:
— automatic setting:
Setup network connection > Auto
— manual setting:
Setup network connection >
Custom > Wireless Setup
3 Select Sean, then select a network
from the list of scanned wireless
networks.
4 Follow the instructions on the set-up
screen.
e Security key (WEP or WPA key) will not be
required because you do not need to select
any security method in this procedure.
Enter the respective alphanumeric values
for your router if necessary. The items that
need to be set (e.g. IP Address, Subnet
Mask, DHCP) may differ depending on
the Internet service provider or router. For
details, refer to the instruction manuals
provided by your Internet service
provider, or those supplied with the router.
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 IP Address setting/Proxy server:
— automatic setting:
Setup network connection > Auto
— manual setting:
Setup network connection >
Custom > Wired Setup
3 Follow the instructions on the set-up
screen.
Network Setup can also be set from
Initial Setup menu.
e Allows automatic configuration of your wired/
wireless network.
— When connecting with LAN cable: Wired
— When connecting with built-in Wireless
LAN: Wireless
— When connecting with USB Wireless
adaptor: Wireless
— When connecting with both of the cables:
Wired
e Set to Auto, sets the IP address
automatically. For proxy server is not use.
You can confirm your network status.
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 Select View Network settings and
status.
If You Cannot Connect
to the Internet
Use the diagnosis to check possible
causes for network connection failures,
and settings.
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 Select View Network settings and
status.
3 Select Check Connection.
This may take several minutes. You
cannot cancel the diagnosis after
selecting Check Connection.
43
salnjeaq buisn
Adjusting the Server
Display Settings
You can select home network servers to
be displayed on the Home Menu. Up to 10
servers can be displayed in the Home
Menu automatically.
1 Press HOME, then select Settings >
Setup > Network > Home Network
Setup.
N
Select Show/Hide Media Servers.
3 Select the server you want to display
on the Home Menu, and adjust the
settings.
If you cannot connect to your home
network
The TV detects if the server is being
correctly recognised when you cannot
connect it to your home network. If the
diagnostic results indicate a failure, check
possible causes, and network
connections and settings.
1 Press HOME, then select Settings >
Setup > Network > Home Network
Setup.
2 Select Media Server
Troubleshooting.
Press Yes, then the server diagnostic
starts. When the server diagnostic Is
complete, the diagnostic result list
appears.
44
Browsing Websites
When the TV is connected to the Internet,
you can browse websites.
Press HOME, then select Internet
Browser to launch the browser.
You can bookmark your favorite sites for
easy access.
* Web content may not be displayed correctly,
or some functions may not work properly, if
the TV does not support functions provided
by certain Internet services. Also, the TV
may not support functions developed in the
future.
Note on Internet Browser
In no event shall Sony be liable for any
damage caused or associated with the
use of Internet browser, malfunction
(including software) or communication
failure.
When using a USB mouse/USB
keyboard
se You can move the cursor with the USB
MOUSE.
e You can enter text with a keyboard.
e Depending on the USB equipment, you may
not be able to control the browser.
i i e To update Sony Entertainment Network
Enjoying sony content services, Press HOME, then select
Entertainment Network Settings > Setup > Network > Refresh
Internet Content.
Seeking forward/backward in video
sony Entertainment Network serves as a content
gateway to Internet content, delivering a Press the buttons on the remote controls
variety of on-demand entertainment that correspond with the control
straight to your TV. By making a indications on the screen.
broadband Internet connection, you can
enjoy video content, including movies and
cartoons.
® Ве sure to connect your TV to the broadband
Internet and complete Network Setup
(page 59).
To Use Sony Entertainment Network 1 i <
Press HOME, then select Internet Control indications 3
Contents > Internet Video. т
2 p act th | To use NETFLIX D
ress te to se ect tr e desired Press NETFLIX button on the remote =
©.
To use YouTube Leanback
Follow the steps in “To Use Sony
press ©. Entertainment Network” (page 45) to
To exit Sony Entertainment Network launch Sony Entertainment Network,
Press HOME. then select YouTube to launch the
YouTube Leanback.
3 Highlight the desired content, then
7 To launch Internet Video
Internet Video can also launched by
pressing the SEN button on the remote e |tis possible that Netflix cannot be used via
control. a Proxy server.
e |f you experience difficulties with this feature,
check that the Internet connection is set up
properly.
e Information about the highlighted icon
appears In the Information banner.
e The interface to Internet content depends on
the Internet content providers.
e Services block video content is based on the
“Parental Lock" setting of the TV. Some
service providers do not support this
function (page 56).
(Continued) 45
Enjoying Yahoo! 4 Select the desired Widget to activate.
Widgets
To launch Yahoo! Widgets
Yahoo! Widgets can also launched by
pressing the SEN button on the remote
With the Widgets feature, you can display control.
a variety of information on the screen.
Widgets are small downloadable
applications that provide easy access to
Interactive content when your TV Is
connected to the Internet.
e Be sure to connect your TV to the Internet,
and complete Network Setup.
e |f you experience difficulties with this feature,
check that the Internet connection is set up
properly.
e This feature may not be available in some
regions/countries.
e Available Widgets depend on your region/
country.
* MAC address and IP address are
transmitted automatically from the TV to
servers while an Internet connection is
available. The servers are under the control
of Sony, and MAC address will never be
transmitted to servers controlled by other
parties.
e |t Is possible that Yahoo! Widgets cannot be
used via a Proxy server.
1 Press HOME.
2 Press 4/4 to select Applications, and
press O.
3 Select the desired Widget to display
on the screen.
You can access Yahoo! Widgets by
pressing the INTERNET APPS button.
To activate additional Widgets
Press HOME.
2 Press 4/4 to select Applications, and
press O.
3 Press «/æ to select CONNECTED TV
STORE, and press @.
46
Navigating through TV Menus
The HOME button allows you to access a variety of TV settings and USB media files.
1 Press on the remote control to display the menu
options.
Press 4/%/«/» to navigate on the menu or adjust the
settings.
Press (+) to select or confirm.
Press to exit.
RBO N
You can select the frame image which enables you to enjoy with photo,
m= music and clock. For details, see page 39.
Mode
Enables access to Internet services for TV. For details, see page 45.
Internet
Contents
Internet Apps are small downloadable applications that provide easy access
to interactive content when your TV is connected to the Internet. You can
display a variety of information on the screen.
Internet Apps may not be available in some region/country. For details, see
E
Applications
$пчэ ey) buis
page 46.
Www When the TV is connected to the Internet, you can browse websites. Select
Internet the browser and enter a URL.
Browser
The Favorites feature provides quick access to your frequently used items,
such as preferred TV channels or external inputs (e.g. game console, DVD
player). For details, see page 33.
Favorites
(Continued) 47
The Photo, Music, and Video icons organize your photo, music, and
video files from DLNA Certified™ networked equipment or Sony USB
connected equipment. Be sure to select the correct icon when
accessing files. Refer to the feature section for more information on
these icons.
a The Settings ¡icon contains all of the necessary configurations to customize
Settings your 1V settings. The options you can select may vary. Unavailable options
are grayed out or not displayed.
Picture: adjust the picture on your TV to fit your viewing preference.
Sound: customize your sound settings to suit your audio preference. You can
also change the settings to output the sound to your connected audio
equipment.
Screen: adjust the size and shape of the images you see on the screen.
Channel: navigate your favorite channels and inputs and select the signal type,
as well as autoprogram channels. You can also customize the channels you see
and the labels assigned to them.
Parental Lock: set the password and limit access to programming based on
rating levels. You can also block channels and inputs.
Setup: modify and customize a variety of general setting options.
Eco: changes the settings related to power consumption.
48
Using the Picture Settings
Customized Scene Select IS set to General, the options below can be selected
picture viewing Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings. Recommended for home
entertainment.
Custom Select to store your preferred settings.
Cinema For film-based content. Suitable in a theater-like environment.
Photo For standard viewing of photographs.
Sports Optimizes picture quality for viewing sports.
Game For standard picture suitable for games.
Graphics Optimizes picture quality for viewing graphics.
Reset Resets the current Picture settings to their defaults, except Picture Mode.
Backlight Adjust to brighten or darken the backlight.
Picture Adjust to increase or decrease picture contrast.
Brightness Adjust to brighten or darken the picture. с
Color Adjust to increase or decrease color intensity. 2
Hue Adjust to Increase or decrease the green tones. =
Sharpness Adjust to sharpen or soften the picture. =
Color Cool Select to give the white colors a bluish tint. g
Temperature Neutral Select to give the white colors a neutral tint. о
White adjustment Warm 1/Warm Select to give the white colors a reddish tint. Warm 2 gives a
2 redder tint than Warm 1.
Noise Reduction Select to reduce the picture noise level. Select from Auto, High, Medium,
Low and Off.
MPEG Noise Select to reduce the picture noise in MPEG-compressed videos. This is
Reduction effective when viewing a DVD or digital broadcast. Select from High, Medium,
Low and Off.
Motionflow Provides smoother picture movement and reduces picture blur.
High Provides smoother picture movement such as for film-based
contents.
Standard Provides smooth picture movement. Use this setting for
standard use.
Off Use this setting when the High and Standard settings result
in noise.
e You can change the IPTV picture setting, only when watching Internet video.
(Continued) 49
rovides Improvea picture movement an
redUuces Picture DIU ana graminess
for film-based content. Select Auto 1 to represent original film-based content
as is, or Auto 2 for standard use. (Setting items vary depending on the TV
model.)
Advanced Reset Resets the advanced settings to the default values.
Settings Adv. Contrast Automatically adjusts backlight and contrast to the most
Enhancer suitable settings judging from the brightness of the screen.
This setting is especially effective for dark scenes, and will
Increase the contrast distinction of the darker picture scenes.
Select from High, Medium, Low and Off.
Black Enhances black areas of the picture for stronger contrast.
Corrector Select from High, Medium, Low and Off.
Gamma Adjusts the balance between bright and dark areas of the
picture.
Clear White Emphasizes white colors. Select from High, Low and Off.
Live Color Makes colors more vivid. Select from High, Medium, Low
and Off.
LED Motion Lights up the backlight adequately, reducing blur in movies,
Mode but the brightness decreases.
White Balance Adjusts the color temperature in detail.
e Available Picture options, including options in Advanced Settings depend on Scene Select
and Picture Mode.
50
oun ode includes options best suited for video an
Customized photographs, respectively. The available options depend on the scene select
sound listening settings.
Dynamic Enhances treble and bass.
Standard Standard sound optimized for home use.
Clear Voice Suitable for spoken dialog.
Custom Select to store your preferred settings.
Reset Resets the current Sound settings to their defaults, except MTS Audio,
Alternate Audio and Speakers.
Equalizer Adjust allows you to select your frequency response curve. Select Reset to
reset the Equalizer settings to the default values.
Balance Adjust to emphasize left or right speaker balance.
Steady Sound Select On to stabilize the volume across all programs and commercials.
Select Off to disable this function.
Volume Offset Adjust the volume level of the current input relative to other inputs.
Surround Allows you to select the sultable surround effects depending on the genre of
TV program (movie, sport, music, etc.) or video game. The avallable options
depend on the scene select setting.
On/Off Select On to optimize the sound quality to enjoy the effects of
the Surround option and to create a virtual surround sound
using the 2ch speaker.
Cinema/Off Provides surround effects just like the high-grade audio
systems found in movie theaters. This option is available
when you select Cinema in the scene select setting.
Music/Off Provides surround effects that make you feel like you are
surrounded by sound as In a music hall. This option is
available when you select Photo or Music in the scene select
setting.
Sports/Off Provides surround effects that make you feel like you are
watching a live sports contest. This option is available when
you select Sports in the scene select setting.
$пчэ ey) buis
Game/Off Provides surround effects that enhance game sound. This
option is available when you select Game in the scene select
setting.
Bass Booster Produces a fuller sound for more impact, by emphasizing the bass sounds.
(Continued) 51
MTS Audio
Enjoy stereo,
bilingual and
mono programs
Stereo Select for stereo reception when viewing a program
broadcast in stereo.
Auto SAP Select to automatically switch the TV to second audio
programs when a signal is received. If no SAP signal is
present, the TV remains in Stereo mode.
Mono Select for mono reception. Use to reduce noise during weak
stereo broadcasts.
Alternate Audio
Digital channels
only
Select among the available options to switch among the alternate audio
streams. The program you are tuned to may be broadcasted in a different
language In the alternate audio streams.
Speakers TV Speakers Select to use the TV speakers.
Audio System Select to use an external audio system for the TV sound. By
selecting this option you are disabling the TV speakers.
Audio Out Variable Adjusts the volume with the TV's remote control, when using
an external audio system.
Fixed Adjusts the volume using the connected audio system's
remote control.
HDMI/DVI Audio
Source
Sets the audio signal source for HDMI/DVI input.
Auto Automatically sets the audio signal source based on the
video signal.
HDMI Audio Sets the HDMI input as the audio signal source.
PC Audio Sets the PC/HDMI audio input as the audio signal source.
* MTS Audio is only available for analog programs.
* Alternate Audio is only available if the program is broadcast with alternate audio streams.
e You can also access Sound Mode, MTS Audio and Alternate Audio by using the OPTIONS
button on the remote control.
52
Using the Screen Settings
Wide Mode Wide Zoom Fills the screen with minimum distortion.
Normal Select to display 4:3 picture in original size when the original
source is 4:3.
Full Select to enlarge the picture horizontally to fill the screen when
the original source Is 4:3 (Standard definition source). When the
original source is 16:9 (High-definition source), select this mode
to display the 16:9 picture in its original size.
Zoom Select to enlarge the original picture without distorting the aspect
ratio.
Auto Wide On Select On to automatically change Wide Mode setting based on
the content.
Off If frequent screen changes are disturbing to you, select Off.
Choose one of the Wide Mode options when this function is set
to Off.
4:3 Default Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, displaying as
Select the default
much of the original image as possible.
$пчэ ey) buis
Screen Mode to Normal Select to display the 4:3 picture in its original size.
use for 4:3 Off Select to continue using the current Wide Mode setting when the
Sources channel or input is changed.
Auto Display Automatically adjusts the picture to the most appropriate display area.
Area
Display Area Fach setting depends on the resolution you are watching.
Full Pixel Displays pictures in their original size when parts of the picture
are cut off (available depending on the TV model).
+1 Displays pictures in their original size.
Normal Displays pictures in their recommended size.
-1 Enlarges the picture so that the edges are outside the visible
display area.
Horizontal Allows you to move the position of the picture left and right. (Available in Wide
Center Zoom and Zoom.)
Vertical Center
Allows you to move the position of the picture up and down. (Available in Wide
Zoom and Zoom.)
(Continued) 53
Normal in the 4:3 Default setting is not available when you are watching a 720p, 10801 or 1080p
source.
e |f 4:3 Default is set to anything but Off, the Wide Mode setting changes only for the current
channel. When you change channels (or inputs), Wide Mode is automatically replaced with the
4:3 Default setting for 4:3 sources. To retain the current Wide Mode setting as channels and
Inputs are changed, set 4:3 Default to Off.
e 4:3 Default is not available if Auto Wide is set to Off.
PC Settings
When a PC is connected to the TV and the PC input is selected, the PC
settings screen appears instead of the Screen settings.
You can also select the PIP feature which allows you to view two pictures
simultaneously from OPTIONS button (page 31).
Wide Mode Normal Select to display in the original image size.
Full 1 Select to enlarge the picture to fill the display area,
keeping its original aspect ratio.
Full 2 Select to enlarge the picture to fill the display area.
Reset Resets all PC settings to the default values.
Auto
Select to automatically adjust the display position and phase of
Adjustment the picture when the TV receives an input signal from the
connected PC. Note that Auto Adjustment may not work well
with certain input signals. In such cases, manually adjust the
options below.
Phase Adjust after Pitch to fine tune overall sharpness.
Pitch Adjust uneven sharpness on screen.
Horizontal Allows you to move the position of the picture left and right.
Center
Vertical Allows you to move the position of the picture up and down.
Center
e For the PC Input Signal Reference Chart, see page 66.
* Auto Adjustment, Phase and Pitch are not available with PC signal connected to HDMI input.
54
VO
Using the Channel Settings
elect if you are receiving cable channels via Cable
provider.
Antenna Select If you are using an antenna.
Auto Program Automatically sets up the channel list on the TV for all receivable channels.
1 Select Auto Program.
2 Select OK to start Auto Program.
Add Digital 1 Select Add Digital Channels.
Channels 2 Select OK to add digital channels.
Show/Hide Allows you to show or hide channels that appear when you use the CH +/—
Channels buttons.
1 Press 4/4 to scroll through the channels until you find the channel you
want to show or hide. Then press to select it.
2 Press 4/4 to determine If the channel will be shown or hidden. Then press
(+) to select it.
Edit Channel Allows you to assign labels (such as station call letters) to channel numbers.
Labels 1 Press 4/4 to scroll through the channel numbers. Then press (+) to
select the channel number that you want to assign a label.
2 Press 4/4 to scroll through the label characters (A-Z, 0-9, etc.). Press » to
move to the next character. Repeat the previous steps to add up to seven
characters to the label. When finished, press (+).
Analog Fine Allows you to fine-tune the selected analog channel manually if you feel that a
Tune slight tuning adjustment may improve picture quality. Select Auto to adjust to
the most appropriate analog channel.
You should run Auto Program after changing the Signal Type setting.
Running Auto Program will clear the Favorites list.
Channels that you set to be hidden can be accessed by the 0-9 and © buttons.
You can set channels to be hidden that are automatically set in Auto Program.
55
$пчэ ey) buis
Using the Parental Lock Settings
Password The Parental Lock settings allow you to set up the TV to block programs
according to their content and rating levels. Use 0-9 on the remote control to
enter a four-digit password. The first time you create a password, confirm the
password by entering it again.
Change Select to change your password.
Password
Country U.S.A. Select to use U.S.A. ratings (page 57).
Canada Select to use Canadian ratings (page 58).
Rating Off Turn Parental Lock off. No programs are blocked from
viewing.
Child Maximum ratings permitted are:
U.S.: TV-Y, TV-G, G
Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
U.S.: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Young Adult Maximum ratings permitted are:
U.S.: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
U.S.: See page 57 for details.
Canada: See page 58 for detalls.
Downloadable Off Turn Downloadable U.S. Rating off. No programs that contain
U.S. Rating downloadable ratings are blocked from viewing.
(Available only Custom Select to block programs based on downloadable ratings.
in U.S.A. Clear All Select to clear the entire downloadable rating system.
where advanced
ratings exist)
Unrated
(Available only
when Country is
set to U.S.A)
Allow Allows programs and movies that are broadcasted without a
rating.
Block Blocks all programs and movies that are broadcasted without
a rating.
Channel Block
Allows you to block channels regardless of program ratings.
To View a Blocked Channel
Press (
) when tuned to the blocked channel then enter the password.
External Input
Block
Allows you to block external inputs regardless of program ratings.
To View a Blocked External Input
Press (
) when tuned to the blocked input then enter the password.
96
e You need your password for any future access into the Parental Lock settings. If you lose your
password, see “Lost password” on page 77.
e Selecting Clear All will delete the current Downloadable U.S. Rating menu and the menu will
no longer be available until the TV is tuned to a channel that contains downloadable ratings.
e |f you block unrated TV programs, be aware that the following types of programs may be
blocked: programs broadcasted from another country, emergency broadcasts, political
programs, sports, news, public service announcements, religious programs and weather.
To select custom rating options for the U.S., select U.S.A. in the Country setting (page
cnhiaren ana general audience.
PG Parental guidance suggested.
PG-13 Parental guidance for children under 13.
R Restricted viewing, parental guidance 1s suggested for
children under 17.
NC-17 and X No one 17 or under allowed.
TV Rating Age-Based Ratings
Block programs Ty.y All children.
ov ther aha. TV-Y7 Directed to children age 7 and older.
TV-G General audience.
TV-PG Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA Mature audience only.
Content-Based Ratings
FV Fantasy violence.
D Suggestive dialogue.
L Strong language.
S sexual situations.
V Violence.
e To ensure maximum blocking capability, set the Age-Based Ratings.
57
$пчэ ey) buis
To select custom rating options for Canada, select Cana
56).
In the Country setting (page
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “US Models” on page 57 for details.
) when tuned to a
blocked program, then enter the password. This temporarily deactivates the parental
control feature. To reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Lock settings are reactivated.
You can view blocked programs by entering your password. Press (+)
58
Network
Using the Setup Settings
Network Setup Sets the network status settings.
Built-in Turns the built-in wireless LAN On or Off.
Wireless LAN Set to Off, if you do not use the built-in wireless LAN.
When you switch from Off to On, make the settings in Network
Setup.
Refresh Reconnects to the Internet to receive available Internet content
Internet services.
Content
Home Network Show/Hide Displays the connected server list. You can select
Setup Media the server to display in the Home menu.
Servers
Media Server Diagnoses whether the TV can connect to each
Troubleshooting server on the home network.
Renderer Renderer Enables the TV to play photo/
music/video files on a device
(e.g. digital still camera) by
operating the device via the
network.
Renderer Allows access from a specified
Access control device.
Control
Renderer Adjusts the Renderer Options
Options detailed settings.
(Continued) 59
$пчэ ey) buis
Photo Frame Display Mode
Allows you to select the display mode. Select from Image and
Settings Clock, Full Screen Image and Full Screen Clock. See page
39.
Clock Display Allows you to select the clock display. Select from Calendar,
Analog Clock, Digital Clock, Calendar and Clock and Clock.
When the Display Mode setting is set to Image and Clock, you
can set to Calendar, Analog Clock or Digital Clock. When the
Display Mode setting is set to Full Screen Clock, you can set
to Calendar, Calendar and Clock or Clock.
Calendar and Clock can be displayed only when Display
Mode is Full Screen Clock.
Audio Music You can enjoy music with this function.
Application Off Turns off the music.
Image Select Image.
Selection
Music Select music.
Selection
Slideshow Slideshow You can play a slideshow of photos.
Setting Single View Displays one photo only.
Music All Tracks Listen to all music tracks.
Playback Single Track Set to listen to a single music track.
Setting
Duration Selects the time period (1h, 2h, 4h or 24h) after which the TV
automatically switches to standby mode.
First day of the Set Sunday or Monday as the first day of the week on the
week calendar.
USB Auto Select On to start photo/music/video playback automatically when the TV is
Start turned on and a digital still camera or other device containing photo files is
connected to the USE port then turned on.
60
Closed
Captions
(CC)
Allows you to select from several closed caption modes (for programs that are
broadcast with closed captioning).
CC Display
On Closed Captions (CC) is turned on.
Off Closed Captions (CC) is turned off.
On when Closed Captions (CC) is turned on when the TV
Muting Is muted.
Analog CC
Allows you to select basic analog (EIA-608) closed caption
options.
CC1,CC2, Displays a printed version of the dialogue or
CC3,CC4 sound effects of a program. (Should be set to
CC1 for most programs.)
Text1, Text2, Displays network/station information presented
Text3, Text4 using either half or the whole screen (if available).
Digital CC
When the digital closed caption service is available, select from
the Service 1-6 or CC1-4.
Digital CC
Options
Allows you to make additional settings for digital closed caption
options. Select As Broadcast or Custom. The Custom option is
avallable on the Digital CC setting.
Custom Allows you to customize the following settings:
Character Small, Standard, Large
Size
Character Style 1-7
Style
Character Color 1-8
Color
Character Solid, Translucent
Opacity
Edge Type None, Raised, Depressed,
Outline, Left Shadow,
Right Shadow
Edge Color Color 1-8
Background Color 1-8
Color
Background Solid, Translucent
Opacity
® You can turn on Closed Captions (CC) options (On, Off or On when Muting) by pressing the
CC button on the remote control.
(Continued) 61
$пчэ ey) buis
p
display detailed channel and program information along with the TV icon if you
are viewing the TV. This information will appear if it is available from the
broadcaster.
Info Banner appears on the screen each time the channel and external inputs
are changed or when DISPLAY on the remote control is pressed.
Clock/Timers Sleep Timer Set the time in minutes (Off, 15, 30, 45, 60, 90, or 120) that you
would like the TV to remain on before shutting off automatically.
On Timer Turns on the TV from standby mode at a time you set, and tuned
to a channel or input of your preference or photo frame mode.
Before setting this function, make sure you set the correct
current Time.
Current Time Set the current time manually. This can be set from Initial Setup
or Clock/Timers. Adjust the Current Time for Daylight Saving
Time.
e This TV does not have a battery powered backup for the
clock. Therefore, if there is a power failure or if you disconnect
the power cord, be sure to reset the current date and time.
Initial Setup If you miss the Initial Setup when you first connected the TV or if you want to
scan all receivable channels, select Initial Setup. Follow the instructions on the
screen. Some settings such as Picture, Sound, and Parental Lock will not be
affected by this Initial Setup. If you wish to return your TV to factory settings,
please see the Troubleshooting section on page 77.
Language Select to display all on-screen settings in your language of choice: English,
Espanol, Francais.
Startup Logo Select On to display the logo when the TV is turned on. Select Off to disable it.
AV Setup Manage Inputs Assigns name to external equipment.
Select Auto to display names only when the equipment is
connected, or Always to display regardless of connection
status.
Video 1/ Select Auto to have the TV detect and switch between the
Component Video 1 or Component when Video 1 or Component is
Selection connected.
e Favorite channel list will be cleared each time you run the Initial Setup.
You can assign following labels for each input:
—, Cable, Satellite, VCR, DVD/BD, Home Theater, Game, Camcorder, Digital Camera, PC,
Edit (except PC IN)
—, Edit (for PC IN)
“~" Indicates that no labels are assigned.
If you select Edit, you can edit video labels. Follow the same steps for Edit Channel Labels on
page 55.
62
ommunicales wi
equipment compat
Settings Control for Links the operations of the TV and the equipment.
HDMI For specific Sony equipment compatible with Control for HDMI,
this setting is applied automatically to the connected equipment
when set to On.
Device Auto Select On to have your connected equipment with Control for
Power Off HDMI function power off automatically when the TV is turned off.
Select Off to disable this function. This feature is available when
Control for HDMI is On.
TV Auto Power Select On to control your TV's power on from your connected
On equipment with Control for HDMI function. Select Off to disable
this function. This feature is available when Control for HDMI is
On.
Device List Displays a list of equipment with Control for HDMI function
connected to the TV.
Device Control Select button functions of the TV's remote control to operate the
Keys connected equipment.
None Deactivates the control by the TV's remote
control.
Normal Enables basic operations, such as navigation
buttons (up, down, left or right, etc.).
Tuning Keys For basic operations and operation of channel-
related buttons, such as CH +/- or 0-9. etc. Useful
when you control a tuner or set-top box, etc; via
the remote control.
Menu Keys For basic operations and operation of the HOME/
OPTIONS buttons. Useful when you select menus
of a BD player, etc; via the remote control.
Tuning and For basic operations and operation of channel-
Menu Keys related buttons and HOME/OPTIONS buttons.
e Press OPTIONS while the equipment supporting Control for HDMI is
connected to display the Device Control options. The Device Control option
provides access to the Home (Menu), Options and Content List of your
connected equipment with your TV remote control.
e Some equipment with Control for HDMI does not support the Device Control
feature.
e HDMI Settings must be setup on the connected equipment.
Picture Select Lock so no adjustment can be made to items grayed out.
Adjustments Select Unlock to allow adjustment to any of the Picture settings.
Lock
Software Updates the TV system using USB memory or through Network. Select USB or
Update Network to update.
63
$пчэ ey) buis
Automatic
Select On to download the software automatically. Select Off to disable it.
Software
Download
Product Contact Sony Sony contact information is available on this screen for your
Support convenience. TV specific information such as Model Name,
Serial Number, Software Version and downloadable ratings (if
available from the TV) are displayed here.
Signal Press to display the diagnostics information for the current
Diagnostics signal.
Initialize You can erase your personal information stored in the TV.
Personal
Information
64
Reset
Using the Eco Settings
Resets the current Eco settings to the default values.
Power Saving
Select from Off, Low, High, Picture Off to adjust your TV's power consumption.
By selecting the High option, you will reduce the power consumption more than
the other avallable settings.
While Picture Off is set, pressing VOL +/- or MUTING buttons will not disable this
function. Press other buttons to disable it.
Idle TV Select to automatically power off the TV after 1h, 2h, or 4h when no buttons are
Standby pressed on the remote control or the TV. Select Off to disable this function.
This setting is not available if Internet Contents, Applications or Internet
Browser are running.
Light Sensor Optimizes the picture settings according to the ambient lighting.
Auto Shut Off Select On to automatically power off the TV when no input signal is detected for a
certain period of time. Select Off to disable this function.
65
$пчэ ey) buis
PC Input Signal Reference Chart for
PC and HDMI IN
After connecting the PC to the TV, set the output signal from the PC according to the
chart below.
315 60 VGA
37.9 60 VESA Guidelines
48.4 60 VESA Guidelines
47,4 60 VESA
47.8 60 VESA
47.7 60 VESA
1,024 64.0 60 VESA
1,080 67.5 60 CEA-861*
640
800
1,024
1,280
1,280
1,360
SXGA 1,280
HDTV* 1,920
X PX PX [X |X |X |X |X
* The 1080p timing when applied to the HDMI input will be treated as a video timing and not PC
timing. This affects Picture settings and Wide Mode settings. To view PC content set Scene
Select to Graphics, Wide Mode to Full, and Display Area to Full Pixel.
e This TV's PC input does not support Sync on Green or Composite Sync.
* This TV's PC VGA input does not support interlaced signals.
e Your PC must support one of the above PC input signals to display on the television.
e In plug and play, signals with a 60 Hz vertical frequency will be detected automatically. (PC
reboot may be necessary.)
66
Using a Wall-Mount Bracket
Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the
box as packaged. Some larger size TV may require removing the Table-Top Stand; refer
to the instructions provided with the TV.
Prepare the TV for the Wall-Mount Bracket before making cable connections.
For product protection and safety reasons, Sony strongly recommends that you
use the Wall-Mount Bracket designed for your TV and the installation should be
performed by a Sony dealer or licensed contractor.
e Follow the instruction guide provided with the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing this TV, especially to determine the strength
of the wall for withstanding the TV's weight.
* Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the
mounting hooks to the TV set.
The supplied screws are designed so that they are 8 mm to 12 mm in length when
measured from the attaching surface of the mounting hook.
The diameter and length of the screws differ depending on the Wall-Mount Bracket
model. Use of screws other than those supplied may result in internal damage to the
TV set or cause it to fall, etc.
8-12 mm
Screw (supplied with the Wall-Mount Bracket)
« Mounting Hook
Hook attachment on rear of TV set
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
® Ве sure to store the unused screws and Table-Top Stand in a safe place until you are
ready to attach the Table-Top Stand. Keep the screws away from small children.
e Read the supplied Safety Booklet for additional safety information.
67
Installing the Wall-Mount Bracket
To Customers
Your TV can be wall-mounted using SU-WL500 Wall-Mount Bracket (sold separately).
Please provide this installation information as well as the instruction supplied with SU-
WL500 Wall-Mount Bracket to your installer.
Z To Sony Dealers and Licensed Contractors
To avoid injury and property damage, read these instructions carefully. Periodic
Inspection and maintenance is highly recommended to ensure that TV is securely
mounted.
Note when installing
When using the SU-WL500 Wall-Mount Bracket, the space between the wall and the TV
will be 2 3/s inches (6 cm). Use this space to route cables to the TV.
2 */s inches (6 cm)
|
68
p 1: Check the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts
along with the Instructions.
Step 2: Decide on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL500.
screen center point
Dimension Table
Unit: mm (inches)
a ® © © © G
KDL-60EX645 1,386 828 41 466 112 359 767 476
(54 5/8) (32 5/8) (15/8) (18 3/8) (4 1/2) (14 1/4) (30 1/4) (18 3/1)
KDL-55EX645 1,269 760 78 468 108 332 703 476
(50) (30) (3 1/8) (18 1/2) (4 3/8) (13 1/8) (27 3/1) (18 3/1)
KDL-50EX645 1,152 693 411 467 109 311 641 476
(45 5/8) (27 3/8) (4 3/8) (18 1/2) (4 3/8) (12 1/4) (25 1/4) (18 3/1)
KDL-46EX645 1,074 649 133 468 108 294 599 476
KDL-46EX64 1 (42 3/8) (25 5/8) (5 1/4) (18 1/2) (4 3/8) (11 5/8) (23 7/8) (18 3/1)
KDL-40EX645 941 575 170 468 107 268 529 475
(37 1/8) (22 3/4) (6 3/4) (18 1/2) (4 1/4) (10 °/8) (20 7/8) (18 3/1)
Figures in the above table may differ slightly depending on the installation.
CAUTION
The wall that the TV will be installed on should be capable of supporting a weight of at
least four times that of the TV. Refer to your TV's operating instructions for its weight.
(Continued)
69
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Step 3: Install the Base Bracket on the wall
Refer to the Instructions for SU-WL500.
Step 4: Prepare the TV for wall mount installation
Follow the steps below to prepare for installing the TY.
1 Disconnect all the cables from the TV.
2 Detach the Table-Top Stand from the TV.
Remove the screws guided by the arrow marks and of the TV.
Do not remove any other screws from the TV.
3 Place the TV with its screen facing down on a level and stable surface covered with
a thick and soft cloth.
e Before attaching the Wall-Mount Bracket, hang the AC power cord down behind the TV.
70
For KDL-60EX645 only
When you install the TV on the wall, make sure you align the AC power cord in the
groove, and do not pinch the AC power cord between the TV and the Wall-Mount
Bracket.
4 Secure the Mounting Hook to the rear of the TV.
Determine the screw locations and secure the Mounting Hooks to the rear of the TV.
Refer to the “Screw and Hook Locations Diagram/Table” shown below.
O Secure the Mounting Hooks to the rear of the TV using only the supplied screws
(M6 x 16).
@ Be sure to tighten the screws with equal torque strength.
Screw
(M6 x 16)
Mounting
+» Hook
square …
hole
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
59 uare
hole
Screw and Hook Locations Diagram/Table
KDL-60EX645
KDL-50EX645
KDL-55EX645/46EX645/46EX641/40EX645 e, | b
(Continued) 71
Screw location Hook location
When installing the Mounting Hooks on When installing the TV onto Base Bracket.
the TV.
d Wall
PO +- Tv
e deb
f de
g
n
j —e
5 Adjust the angle of the Mounting Hook.
Refer to the Instructions for SU-WL500.
Step 5: Install the TV on the wall
Refer to the Instructions for SU-WL500.
#5
e \When you put the TV back on the Table-Top Stand, reverse the above steps.
* When moving the TV, do not squeeze the bottom of the front panel too tight.
e Remove the screws or install the Mounting Hook on a stable and level surface.
72
Troubleshooting
Many of the poor pictures and poor sound conditions are related to improper connection
of the cables; refer to the Quick Setup Guide provided for connections.
If you have questions, service needs, or require technical assistance related to the use
of your Sony TV even after you read this operating instructions manual, contact the
following:
For US Support:
hitp://www.sony.com/tvsupport or call 1-800-222-SONY (7669)
For Canadian Support:
http://www sony .ca/support or call 1-877-899-SONY (7669)
Things to consider
* Check the input selection by pressing the INPUT button. You may be watching the
wrong input.
* |f you cannot hear sound from the TV, you may have accidentally pressed the MUTING
button on your remote control; press the MUTING button again or press VOL + to
deactivate muting.
* |f the remote control is not functioning properly, the batteries may be installed
incorrectly or may be low or an object or light may be interfering with the remote
control.
* To reset the TV to factory default settings:
1 Turn on the TV.
2 Press and hold down the + button on the remote, press the O) button on the TV set.
(The TV will turn itself off, then back on again.)
3 Release the 4 button when the TV is turn on.
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
IMPORTANT: The factory reset will clear all of your customized settings including the
Parental Lock setting.
When the Password is lost or cannot be remembered, enter the master password: 4357.
This password clears your previous password and allows you to enter a new password.
No picture
No picture Check the Power Saving settings (see page 65).
Make sure the power cord 1s connected securely.
Turn on the power of the TY.
Check cable/antenna connections.
Make sure the Signal Type setting is correct for your TV signal
source.
Cannot receive any
channels
(Continued) 73
TV Is locked to one
channel
Perform Auto Program to add receivable channels that are not
present in the TV's memory (see pages 22 and 55).
Cannot receive or select
channels
Perform Auto Program to add receivable channels that are not
present in the TV's memory (see pages 22 and 55).
To receive or select cable channels, make sure that Signal Type
in the Channel settings is set to Cable (see page 55). To receive
or select UHF channels over an antenna, make sure Signal Type
Is set to Antenna.
The TV turns off
automatically
Check if Sleep Timer is activated (see page 62).
Check Idle TV Standby in the Eco settings.
No picture from some
video sources
Check the connection between the optional video equipment
and the TV.
Picture quality not as
good as viewed at the
store
Press INPUT on the remote control (see page 35).
Picture quality depends on the signal content. See Quick Setup
Guide (supplied) to display the best possible picture for that
signal.
Broadcast HD formats
have poor quality
Content and signal quality are controlled by the signal provider.
Many HD channels and content are actually upscaled versions of
standard-definition broadcasts. The picture is affected by the
quality of the signal received, which varies between channel and
program.
Double images or ghosts
Check cable/antenna connections.
Check the antenna location and direction.
Only snow and noise
appear on the screen
Check If the antenna is broken or bent.
Check If the antenna has reached the end of its serviceable life.
(3-5 years in normal use, 1-2 years at the seaside.)
Dotted lines or stripes
Keep the TV away from noise sources such as cars, motorcycles,
or hair-dryers.
If using 300 ohm twin lead, move the excess lead away from the
TV or try using 75-ohm coaxial cable instead.
No color / Dark picture /
Color is not correct / The
picture 1s too bright
Adjust the Picture Mode options in the Picture settings (see
page 49).
If you set the Power Saving mode to Low or High, it will
enhance the black level.
Noisy picture
Make sure that the antenna is connected using a 75-ohm coaxial
cable (not supplied).
Keep the antenna cable away from other connecting cords.
To avoid TV interference, make sure to use an undamaged
antenna cable.
Blurry picture / Poor color
Transporting the TV from a cold to a warm location or a sudden
change in room temperature may cause moisture condensation,
resulting in a blurry picture or poor color. Turn off your TV and
walt a few hours before powering on again.
74
o sound /-Noisy soun
No sound but good
Check the volume control.
Press MUTING or VOL + so that “Muting” disappears from the
screen (see page 26).
Set Speakers to TV Speakers in the Sound settings (see page
52). If itis set to Audio System, sound is not output from the TV's
speakers regardless of the TV's volume control.
When using HDMI input with Super Audio CD or DVD-Audio,
DIGITAL AUDIO OUT (OPTICAL) may not provide an audio
signal.
When tuned to a digital channel with Alternate Audio, the
broadcaster may not be broadcasting your preferred Alternate
Audio language. Press OPTIONS, highlight and select Alternate
Audio, and change the Alternate Audio language (see page
52).
Audio noise
Make sure that the antenna is connected using a 75-ohm coaxial
cable (not supplied).
e Keep the antenna cable away from other connecting cords.
e To avoid TV interference, make sure to use an undamaged
antenna cable.
No audio or low audio
with Home Theater
System
Set Speakers to Audio System in the Sound settings (see page
52).
Set Audio Out to Fixed in the Sound settings (see page 52).
No color / Irregular
Verify that the Video1/Component Selection (see page 62) is
set to the current input type in use. We suggest leaving this
Cannot find connected
BRAVIA Sync HDMI
device
BRAVIA Sync - —
and the optional device compatible with BRAVIA Sync (see
page 30).
Second ANN receiver Is
not listed on the Device
List
No picture / No signal
PC Input ET
Only one A/V receiver may be used with the BRAVIA Sync and
Control for HDMI functions at one time (see page 63).
Confirm the PC Is correctly connected to the TV with either the
PC IN (with an HD15 cable) or with the HDMI IN.
Ensure the output signal from the PC Is one of the formats listed
on page 66.
Turn the PC off. Confirm the PC connection and restart the PC.
Plug-and-play will auto-detect the TV and correctly set up PC
timing.
Verify the PC is not in standby or hibernation mode.
Poor Picture
Adjust the resolution (see page 66).
e Adjust Pitch and Phase (see page 54).
(Continued)
75
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
TV screen feels warm
General 00 E ESS e mm
Due to the thin profile of this television, the heat generated by the
LCD panel backlight and supporting electronics will be more
noticeable. This is normal operation and not a cause for concern.
Wide Mode changes
automatically
The current Wide Mode setting 1s automatically replaced with the
4:3 Default setting when you change the channel or video input,
If 4:3 Default in the Screen settings is set to other than Off. If you
want to lock in Wide Mode selected with WIDE on the remote
control, set 4:3 Default to Off in the Screen settings (see page
53).
Check the Auto Wide option in the Screen settings (see page
53).
Suddenly the picture
gets smaller
The picture gets smaller during the commercials due to the
method in which the provider broadcasts their content. When HD
content channels switch to SD content (commercials), the picture
may be small with a black border.
Auto Wide will not expand the picture during these content
changes since the content information is regulated by the
channel signal provider. You can manually change the Wide
Mode if you prefer (see page 33). This setting will remain in
effect until you change the channel or input or manually change
the Wide Mode again.
“Black box” on screen
You have selected a text option and no text is available (see
page 61). To turn off this feature, set the CC Display option to
Off. If you were trying to select closed captioning, select CC1
instead of Text1-4.
Black bands appear at
the edges of the screen
Some wide screen programs are filmed in aspect ratios that are
greater than 16:9 (this is especially common with theatrical
releases). Your TV will show these programs with black bands at
the top and bottom of the screen. For more details, check the
documentation that came with your DVD/Blu-ray (or contact your
program provider).
Programs in 4:3 aspect ratio will have bands on left and right
sides of the screen.
Programs broadcast in HD formats (720p and 10801) with 4:3
content will commonly have black bands on the left and right
sides of the screen which are added by the broadcaster (see
image on left).
Auto Wide will not expand the picture when the black bands on
the sides of the screen are added by the broadcaster. You can
manually change the Wide Mode to Wide Zoom, or Zoom to fill
the screen, which will remain in effect until you change the
channel or input or manually change the Wide Mode again.
76
Certain programs on
DVD or other digital
sources display a loss of
detail, especially during
fast-motion or dark
scenes
e This is due to the digital compression of the source content used
by certain digital broadcasts and DVDs which may cause your
TV's screen to display less detail than usual, or cause artifacts
(small blocks or dots, pixelations) to appear on your screen.
These signal compressions are more visible and are dependent
on the clarity and resolution of the TV.
Remote control does not
operate
To determine If the problem is with the remote control or not,
press a button on the TV.
e Check the polarity of the batteries or replace the batteries.
e Point the remote control at the remote control sensor located at
the front of the TV.
e Keep the remote control sensor area clear from obstacles.
e Fluorescent lamps can interfere with your remote control
operation; try turning off the fluorescent lamps.
Some digital cable
channels are not being
displayed
Certain cable companies have limitations on the broadcast of
digital cable channels. Check with your cable company for more
information.
The digital cable channel may be set to Hidden in the Show/
Hide Channels setting (see page 55).
Some photo, music, or
video files are not
displaying from my USB
equipment
The accessible file or folder limit in a directory is 1,000 for USB
connected equipment. This limit includes non-supported files or
just folders. Files or folders are populated based on their time
stamps. Photo, music files or folders exceeding the limit will not
be displayed.
Photo images appear
small in the screen
Set display size to expanded.
Whether photo images can be displayed in full screen or not
depends on the resolution or aspect ratio of the file.
Photo images or folders
take time to display
Depending on the image dimension, file size, and number of files
In a folder, some photo images or folders take time to display.
The first time a camera Is connected to the TV via USB cable, it
may take up to a couple of minutes for the photos to display.
Lost password
Select the Password settings on the Parental Lock settings,
then enter the following master password: 4357. This password
clears your previous password and allows you to enter a new
password (see page 56).
How to reset the TV to
factory settings
Turn on the TV. While holding down 4 on the remote control,
press () on the TV. (The TV will turn itself off, then back on
again.) Release +.
IMPORTANT: The reset will clear all of your customized settings
including the Parental Lock setting.
(Continued)
77
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Sometimes video * The wireless network connection quality varies depending on the
streaming quality is poor distance or obstacles (e.g. wall) between the TV/USB Wireless
when using the wireless LAN Adapter and the wireless router (access point), environment
LAN interference, and quality of the wireless router (access point). If
using USB Wireless LAN Adapter, it is suggested to use a
wireless router (access point) supporting 5GHz operation for
video streaming and place it closer to the USB Wireless LAN
Adapter (not applicable for models with built-in wireless LAN
device).
Wireless LAN connection * Check the installation location of the TV and wireless router
falls or radio reception (access point). Signal condition may be affected for the following
conditions are poor reasons.
- Other wireless devices, microwaves, fluorescent lights, etc,
are placed nearby.
- There are floors or walls between the wireless router (access
point) and TV.
If the problem persists even after checking the above, try
making a wired LAN connection.
Poor picture on Internet e Quality depends on the original video provided by the video
Video content provider and your connection bandwidth.
Small picture on Internet ® Use the color buttons to zoom In and out.
Video
Certain Internet video e Video quality and picture size depend on broadband speed and
content displays aloss of delivery by content providers.
detail, especially during
fast-motion or dark
scenes
Good picture quality but « Quality depends on the original content provided by the video
no sound on the Internet content provider and your connection bandwidth.
video content e Due to the nature of Internet video, not all videos will contain
sound.
You do not see many e Press OPTIONS and select categories to view more content.
videos in the Internet e Check the Parental Lock ratings on the TV; some Internet
Video Guide content may be blocked based on the rating.
Widgets are inaccessible ® Check that the LAN cable or AC power cord (mains lead) of the
router/modem™ has been connected properly.
* Your router/modem must be set in advance to connect to
the Internet. Contact your Internet service provider for
router/modem settings.
* Try using Widgets later. The Widget content provider's server
may be out of Service.
You cannot add a new e Your TV comes with preinstalled apps which occupy a certain
Widget amount of the allotted app memory. To add a new app, you may
have to delete an existing app. Press Home, then press 4/4 to
select Applications, press (+), then press «/# to select the
Widget you want to delete. Press yellow button, then press 4/4 to
select Delete App, and press (+).
78
Check the LAN cable or connection to your server and your TV.
Check if your network is properly configured on your TV.
Your TV cannot connect
to the server
A message appears e Check the current network settings. Press HOME, then select
starting that the TV Settings > Setup > Network > Network Setup > View Network
cannot connect to your settings and status. If all of your network settings are “-", your
network server may not be connected properly. Check your network
connections and/or server's instruction manual for connection
information.
e Reconfigure your network settings.
e |f the LAN cable is connected to an active server and the TV has
acquired an IP address, check your DLNA Certified'M media
servers connections and configurations.
e Your IP address configuration can be viewed by selecting the
View Network settings and status option.
DLNA Certified™ media * Check your LAN cable/connection or your server connections.
server Is inaccessible The TV may have lost connection with the server.
although itis listed under eo Perform Media Server Troubleshooting to check if your media
[=] [Media] in the Home server is properly communicating with the TV. Press HOME, then
Menu select Settings > Setup > Network > Home Network Setup >
Media Server Troubleshooting.
Some photos, music, e Unsupported files may not be displayed.
video files in the * The accessible file or folder limit in a directory is 1,000 for USB O
connected USB device and a DLNA Certified™ media server. This limit includes non- 5
or DLNA Certified™ supported files or just folders. Files or folders are populated 2
media server are not based on their timestamps. Photo, music files or folders 3
displayed exceeding the limit will not be displayed. o
When using the renderer * Some applications display a photo file pre-installed in the PC >
function, music files simultaneously with music playback when using the renderer o
cannot be played back function. Depending on the pre-installed photo file, music >
playback may not be possible, but may become possible by
changing the photo file.
The TV surrounds e When the TV is used for an extended period, the TV surrounds
become warm. become warm. You may feel hot when touching there by the
hand.
79
Important Notices
Declaration of Conformity
Trade Name: SONY
Model: KDL-60EX645/55EX645/50EX0645/46EX645/
46EX641/40EX045
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation of the device.
For Customers in Canada
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by tuming the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures;
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment,
80
Safety and Regulatory
This equipment complies with FCC/IC radiation exposure
limits set forth for uncontrolled equipment and meets the FCC
radio frequency (RF) Exposure Guidelines in Supplement C
to OET6S and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF
energy that it deemed to comply without maximum
permissive exposure evaluation (MPE). But it is desirable that
it should be installed and operated with at least 20 cm and
more between the radiator and person's body (excluding
extremities: hands, wrists, feel and ankles).
This device and its antenna(s) must not be co-located or
operating with any other antenna or transmitter except Grant
condition.
Compatible Wall-Mount Bracket
Information
Use the following Sony Wall-Mount Bracket with your TV
model.
KDL-60EX645/KDL-55EX645/
KDL-50EX645/KDL-46EX645/
KDL-46EX641/KDL-40EX645
SU-WL500
Use with other Wall-Mount Brackets may cause instability
and could result in property damages or injury.
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming vía subscription service to a cable service
provider. Availability of digital cable television programming
in your area depends on the type of programming and signal
provided by your cable service provider.
To Customers
Sufficient expertise is required for TV installations. Be sure to
subcontract the installation to a Sony dealer or licensed
contractor and pay adequate attention to safety during the
installation.
Pour les clients résidant au Canada
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Information sur le support de fixation murale
compatible
Utilisez le support de fixation murale Sony cidessous
correspondant au modèle de votre téléviseur.
KDL-60EX645/KDL-55EX645/
KDL-50EX645/KDL-46EX645/
KDL-46EX641/KDL-40EX645
SU-WL500
L'utilisation d’un autre support de fixation murale peut provoquer
l’instabilité de l'appareil et causer des blessures ou des dommages
matériels.
81
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Specifications
Television system
NTSC: American TV standard
ATSC (8VSB terrestrial). ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage
Analog terrestrial: 2 - 69 / Digital terrestrial; 2 - 69
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system
LCD (Liquid Crystal Display) Panel LED backlight
Speaker output 10W + 10W 8W +8 W
(KDL-60EX645/55EX645/50EX645) (KDL-46EX645/46EX641/40EX645)
Input/Output jacks - TN
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO IN 1/2 VIDEO: 1 Vp-p, 76 ohms unbalanced, sync negative
AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms
COMPONENT IN
YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB. 0.7 Vp-p,
75 ohms
PR: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480р, 720p, 1080i, 1080p
AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms
HDMI IN 1/2/3/4
HDMI: Video: 4801, 480p, 720n, 10801, 1080p, 1080/24p
Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dolby Digital
PC Input (see page 66)
AUDIO QUT
500 mVrms (typical)
DIGITAL AUDIO OUT
(OPTICAL)
PCM/Dolby Digital optical signal
PC IN
D-sub 18-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See the PC Input Signal Reference Chart for PC and HDMI IN on page 66.
PC/HDMI IN + AUDIO IN
Stereo mini jack, 500 mYrms, (Typical) / Impedance: 47 kilohms
USB
Compliant with USB mass storage e.g. digital camera or USB memory. Also compliant with
UWA-BR100 as WiFi Dongle.
DLNA DLNA Certified™ codec is the same as USB. (Some DLNA Certified™ servers may not be
able to play back.)
LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the
network, connection speed may differ. 10BASE-T/100BASE-TX communication rate and
communication quality are not guaranteed for this TV.)
82
Power and others
Power requirement
110-240 V AC, 50/60 Hz (U.S.A./Canada 120 Y AC, 60 Hz)
Power consumption
in use
170W
152 W
in standby
Less than 0.25 W with 120 V AC ano with 240
V AC less than 0.4 W
Less than 0.2 W with 120 V AC and with 240
V AC less than 0.25 W
Screen size”
(inches measured diagonally)
60
54.6 (55 class)
Display resolution
1,920 dots (horizontal) x 1,080 lines (vertical)
(mm
(inches
Speaker/Full range (2)
30 x 150
(13/16 x 6)
with stand (mm
(inches
Dimensions”
1,386 x 865 x 311
54 5/8 x 34 1/8 x 12 1/4
1,209 x 797 x 311
50 х 31 12 x 12 1/4
without stand (mm
(inches
)
)
)
)
)
)
1,386 x 828 x 65
54 5/8 x 32 Э/в х 2 Э/8
1,269 x 760 x 60
50 x 30 x 2 %s
wall-mount hole pattern
(mm)
400 x 300
300 x 300
wall-mount screw size
M6 (length: refer to diagram on page 67)
(mm)
Mass* with stand (kg) 31.1 23.4
Ces 68.6 51.6
without stand (kg) 26.7 18.9
Ces 58.9 41.7
Supplied accessories
common to all models
Remote control RM-YD075 (1)/5ize AAA batteries (2)/Operating Instructions (this manual)
(1)/Quick Setup Guide (1)/Warranty Card (1)/Safety and Regulatory Booklet (1)/Software
License (1)/Stand installation guide (1)/Table-Top Stand (1 set)
individual models
Screw (7)
Optional accessories
Connecting cables / Support Belt Kit / Wall-Mount Bracket: SU-WL500
(Continued) 83
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Power and others -
Power requirement
110-240 V AC, 50/60 Hz (U.S.A./Canada 120 Y AC, 60 Hz)
Power consumption
in use
146 W
117 W
100 W
in standby
Less than 0.3 W with 120 V
AC and with 240 Y AC less
than 0.35 W
Less than 0.2 W with 120 V AC and with 240 V AC less than
0.3 W
Screen size”
(inches measured diagonally)
50
46
40
Display resolution
1,920 dots (horizontal) x 1,080 lines (vertical)
Speaker/Full range (2) (mm) 30 x 150
(inches) (13/16 x 6)
Dimensions” with stand (mm 1,152 x 731 x 251 1,074 x 686 x 251 941 x 612 x 231
(inches) 45 3/8 x 28 7/8 x 10 42 3/8 x 27 ‘Ja x 10 37 1/8 x 24 1/8 x 9/8
without stand (mm) 1,152 x 693 x 61 1,074 x 649 x 60 941 x 575 х 60
(inches) 45 3/8 x 27 3/8 x 2 12 42 3/8 x 25 °/8 x 2 37 1/8 x 22 3/4 x 27/8
wall-mount hole pattern 200 x 400 300 x 300
(mm)
wall-mount screw size M6 (length: refer to diagram on page 67)
(mm)
Mass” with stand (kg) 22.8 17.4 14.3
(Ib) 50.3 38.4 31.5
without stand (kg) 19.6 14.2 11.7
(Ib) 43.2 31.3 25.8
Supplied accessories
common to all models
Remote control RM-YDO75 (1)/Size AAA batteries (2)/Operating Instructions (this manual)
(1)/Quick Setup Guide (1)/ Warranty Card (1)/Safety and Regulatory Booklet (1)/Software
License (1)/Stand installation guide (1)/Table-Top Stand (1 set)
individual models
Screw (7)
Optional accessories
Connecting cables / Support Belt Kit / Wall-Mount Bracket: SU-WL500
e Optional accessories availability depends on its stock.
* Design and specifications are subject to change without notice.
* Dimensions and mass are approximate values.
84
Index
0-9 buttons 26
4:3 Default 53
A
Add Digital Channels 55
Advanced Settings 50
Alternate Audio 52
Analog Fine Tune 55
AUDIO OUT 12
Audio Out 52
Auto Display Area 53
Auto Program 22, 55
Auto Shut Off 65
Auto Wide 53
Automatic Software Download 64
AV Setup 62
B
Backlight 49
Balance 51
Bass Booster 51
Brightness 49
C
CABLE/ANTENNA 12
CC button 27
CH +/- button 27, 28
Change Password 56
Channel Block 56
CineMotion 50
Clock/Timers 62
Closed Captions (CC) 61
Color 49
Color Temperature 49
Colored buttons 25
COMPONENT IN 12
Country 56
D
Det AUDIO OUT (OPTICAL)
Display Area 53
DISPLAY button 27
DLNA 6
Downloadable U.S. Rating 56
E
Edit Channel Labels 55
English Rating 58
Equalizer 51
Equipment Control button 25
External Input Block 56
F
French Rating 58
H
HDMI IN 11
HDMI Settings 63
HDMI/DVI Audio Source 52
Home Network Setup 59
HOME/MENU button 26, 28
Horizontal Center 53, 54
Hue 49
Idle TV Standby 65
Info Banner 62
Infrared Receiver (IR) 28
Initial Setup 62
INPUT button 25, 28
Installing the TV on a wall 67, 68
J
JUMP button 27
L
Language 62
Light sensor 28, 65
M
Manage Inputs 62
Movie Rating 57
MPEG Noise Reduction 49
MTS Audio 52
Music 35
MUTING button 26
N
Netflix 26, 45
Network Setup 59
Noise Reduction 49
O
OPTIONS 27
P
PAP 32
Password 56
PC IN 11
PC Settings 54
Photo 35
Photo Frame 26, 39
Photo Frame Settings 60
Picture 49
Picture Adjustments Lock 63
Picture Mode 49
Picture Off (53) LED 28
PIP 31
Power (D) button 28
POWER (I/D) button 26
POWER (I) LED 28
Power Saving 65
Product Support 64
R
Rating 56
Reset 49, 51, 65, 77
RETURN button 26
S
SCENE button 26
Settings
Channel 55
Eco 65
Parental Lock 56
Picture 49
Screen 53
Setup 59
Sound 51
Sharpness 49
Show/Hide Channels 55
Signal Type 55
Sleep Timer 62
Software Update 63
Sony Entertainment Network 45
Sound Made 51
Speakers 52
Standby (0) LED 28
Startup Logo 62
Steady Sound 51
Surround 51
SYNC MENU button 27
T
Timer (6)) LED 28
Troubleshooting 73-79
TV Rating 57
U
U.S.A. Rating 58
Unrated 56
USB 12
USB Auto Start 60
V
Vertical Center 53, 54
Video 35
VIDEO/AUDIO (L/R) 12
Viewing Blocked Programs 58
VOL (a) +/- button 26, 28
Volume Offset 51
W
WIDE button 25
Wide Mode 53, 54
Y
Yahoo! Widgets 46
YouTube Leanback 45
85
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
hitp://www.sony.net/
© 2012 Sony Corporation Printed in U.S.A.
For Your Convenience
Be sure to register your TV.
United States http://productregistration.sony.com
Canada http://Wwww.sony.ca/registration
Your TV is capable of receiving software updates. For the
latest information about software updates for your TV, visit:
United States http://www.sony.com/tvsupport
Canada http://Wwww.sony.ca/support
NOTE: If your TV is connected to the Internet, you can check
for software updates by selecting Settings, Product
Support and then Automatic Software Update.
