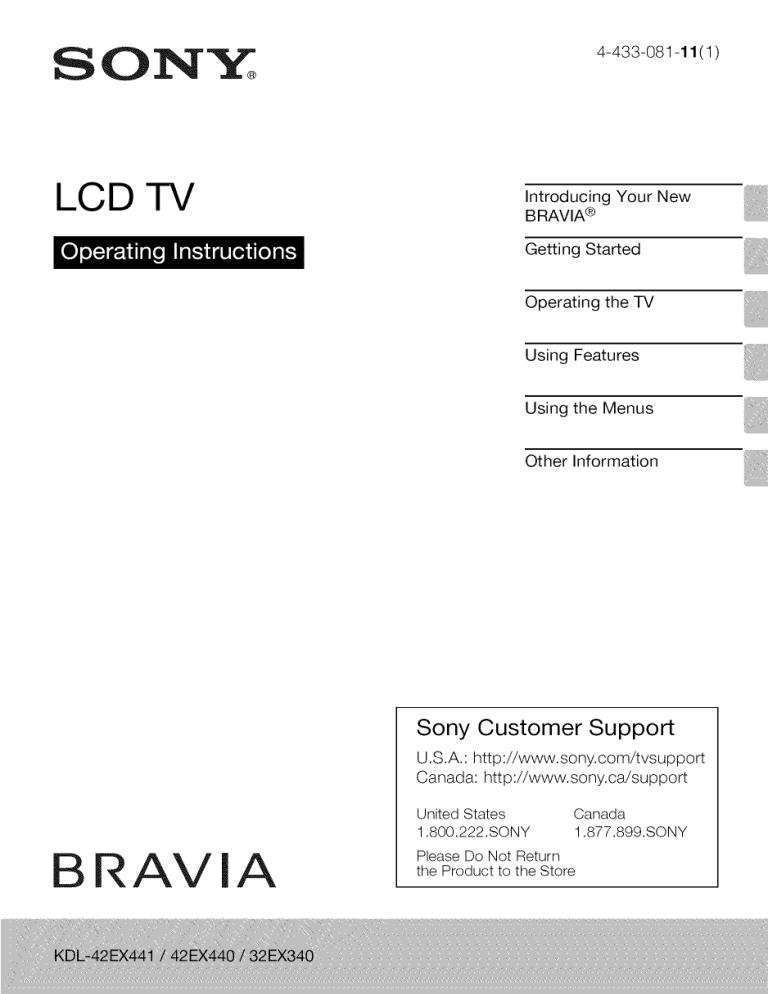

 LCD TV
4-433-081-11(1)
Introducing Your New
BRAVIA®
Getting Started
Operating the TV
Using Features
Using the Menus
Other Information
Sony Customer Support
U.S.A.: htto://www.sony.com/tvsupport
Canada: http://www.sony.ca/support
United States Canada
1.800.222 SONY 1.8/7.899 SONY
Please Do Not Return
the Product to the Store
Owner's Record
The model and serial numbers are located at the side
and rear of the TV. Record these numbers in the spaces
provided below. Refer to them whenever you call upon
your Sony dealer regarding this TV.
Model Name
Serial No.
CAUTION
To prevent electric shock and blade exposure, do not use
this polarized AC plug with an extension cord, receptacle or
other outlet unless the blades can be fully inserted.
U Operate the TV only on 110-240 V AC
(USA/Canada/Mexico 120 V AC).
A Avoid operating the TV at temperatures
below 41°F (5°C).
Licensing Information
Macintosh is a trademark of Apple Inc, registered in the U.S.
and other countries,
HDMI, the HDMI logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing, LLC in the United States and other countries.
Fergason Patent Properties, LLC:
U.S. Patent No. 5,717,422
U.S. Patent No. 6,816,141
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories.
Biu-ray Disc is a trademark.
“BRAVIA” and BRAVIA, BRAVIA Sync, and El are
trademarks or registered marks of Sony Corporation.
“PlayStation” is a registered trademark and “PSS” is а
trademark of Sony Computer Entertainment Inc.
(ЮТУ
AIGH=DEFINITION TELEVISION
DIGITAL |
Cleaning
When cleaning, be sure to unplug the power
cord to avoid any chance of electric shock.
e Wipe the LCD screen gently with a soft cloth.
e Stubborn stains may be removed with a
cloth slightly moistened with a solution of
mild soap and warm water.
e |f using a chemically pretreated cloth, please
follow the instruction provided on the
package.
e Never use strong solvents such as a thinner,
alcohol or benzine for cleaning.
e See the supplied Safety Booklet for
additional information.
Your BRAVIA TV is ENERGY STAR® qualified
in the “Home” mode. lt meets strict energy
efficiency guidelines set by the U.S.
Environmental Protection Agency and
Department of Energy.
ENERGY STAR is a joint program of these
government agencies, designed to promote energy efficient
products and practices. Changes to certain features,
settings, and functionalities of this TV (Le. Picture/Sound,
Light Sensor, Power Savings) can increase or change the
power consumption. Depending upon such changed
settings, the power consumption may exceed the limits
required for the ENERGY STAR qualification in the “Home”
mode.
| The 32 class has a 31.5 inch viewable image size (measured diagonally).
2
Contents
Introducing Your New BRAVIA®
Welcome to the World of BRAVIA? ........ 4
Experiencing Stunning HD with Your
BRAVIA aL 4
The Four Steps to a Stunning HD
Ехрепепсе ......................... 5
TV Feature Highlights ................... 5
Getting Started
SettingUp Your TV. .................... 7
Attaching the Table-Top Stand. ........... 8
Locating Inputs and Outputs............. 10
Connecting the TV .................... 12
Connecting Other Equipment ............ 16
When Installing the TV Against a Wall or
Enclosed Area ..................... 17
Securing the TV lL. 18
Running Initial Setup. . ................. 20
Operating the TV
Using the Remote Control. .............. 22
Remote Control Button Description ....... 23
TV Controls and indicators .............. 26
Using Features
BRAVIA® Sync™ with Control for HDMI . . .
Using PIP Feature. . ...................
Favorites. ........ ..a0rerera da.
Playing back Photo/Music/Video via USB. . .
Photo Frame
(KDL-42EX440/32EX340 only). ........
Using the Menus
Navigating through TV Menus ...........
Using the Picture Settings. ..............
Using the Sound Settings ...............
Using the Screen Settings
Using the Channel Settings
Using the Parental Lock Settings .........
Using the Setup Settings
Using the Eco Settings .................
Other Information
PC Input Signal Reference Chart for
PCandHDMIIN. ...................
Using a Wall-Mount Bracket. . ...........
Installing the Wall-Mount Bracket. ........
Troubleshooting ......................
Important Notices... ..................
Specifications .............. LL.
Customer Support
United States
http://www. sony.com/tvsupport
Canada
http://www. .sony.ca/support
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www .sony.ca/registration
Welcome to the World of BRAVIA®
Thank you for choosing this Sony BRAVIA® high-definition television. Use the
documentation listed below to get the most out of your TV.
Safety Booklet Quick Setup Guide
Contains precautionary Provides TV setup information with sample
measures to keep you and connection diagrams.
your TV safe. Read this
information prior to setting up
your TV.
Operating Instructions
Provides the most detailed
information to operate your
TV.
Experiencing Stunning HD with Your
BRAVIA
The quality of the image you see on your BRAVIA TV is only as good as the quality of the
signal it receives. To experience the stunning detail of your new BRAVIA TV, you need
access to HD programming. Your BRAVIA TV can receive and display HD programming
from:
Over-the-air broadcasting via HD-quality antenna
HD cable subscription
HD satellite subscription
Blu-ray Disc™ player or other HD compatible external equipment
Contact your cable, satellite or HD service provider for information on upgrading to HD
programming.
The Four Steps to a Stunning HD
Experience
Along with your BRAVIA TV set, a complete HD system requires a source of HD
programming, an HD sound system, and a proper connection setup. Refer to the Quick
Setup Guide, enclosed separately, for connecting optional equipment.
You can enjoy crisp, clear images, smooth
movement, and high-impact visuals from 1080 HD
signals as shown here.
When you compare a high-definition signal to a
standard analog signal, you will notice a big
difference in picture quality. If black bars appear as
shown here, press WIDE on the remote control to fill
the screen.
eVIAVHE MaN INoA Buronponu
TV Feature Highlights
Your BRAVIA comes with many convenient features, such as:
> BRAVIA® Sync™: Allows your BRAVIA TV to communicate with other Sony
equipment supporting the Control for HDMI function (page 28).
Y
Digital Media Accessibility: Use the Photo, Music, and Video ¡cons to
access photo, music, and video files from Sony USB equipment (page 32).
> PIP (Picture in Picture): You can work on your PC and watch your favorite TV
program simultaneously (page 29).
> Favorites: Your favorite channels and inputs are at your finger tips for easy
access (page 30).
> Auto Wide Mode: Set your TV to automatically adjust the screen based on the
signal resolution (page 30).
Y
Input Selection: Allows you to easily switch between the connected equipment
(page 32).
> Scene Select: Allows you to easily adjust your TV to the most suitable picture
and sound settings based on the scenes for the best quality result for the
contents genre you are watching (page 24).
(Continued) 5
> Photo Frame (KDL-42EX440/32EX340 only): You can enjoy the large photo
frame display with music (page 34).
> On Timer: Set timer to wake up TV automatically with preferred setting of input
and volume. You can also wake up with your favorite photo and music through
photo frame feature (page 50).
Setting Up Your TV
Some TV models are packaged with a detached Table-Top Stand so you can mount
your TV to a wall right away. If you are not mounting the TV to a wall, you will need to
attach the Table-Top Stand. You will need a Phillips screwdriver and the supplied
screws to complete the task. Look for the attachment instructions provided with the TV.
Be sure to consider the following while setting up your TV:
e Disconnect all cables when carrying the TV.
e Carry the TV with the adequate number of people; larger size TVs require two or more people.
e Correct hand placement while carrying the TV is very important for safety and to avoid damage.
Ensure your TV has adequate ventilation, see page 17.
For best picture quality, do not expose the screen to direct illumination or sunlight.
Avoid installing the TV in a room with reflective wall and floor materials.
Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may
cause moisture condensation. This may cause the TV to show poor picture and/or poor color.
Should this occur, allow moisture to evaporate completely before powering the TV on.
panels une
Attaching the Table-Top Stand
e Refer to the supplied stand leaflet for proper attachment.
e For best picture quality, do not expose the screen to direct illumination or sunlight.
1 Place the TV with its screen facing down on a level and stable surface covered with
a thick and soft cloth.
2 Fix the TV to the stand according to the arrow marks 4
using the supplied screws.
that guide the screw holes
Thick and soft cloth
Screw (+PSW 5 x 16)
(Supplied)
* Be careful not to hit the Table-Top Stand against the edge of
the surface when attaching it.
* To detach the Table-Top Stand from the TV, remove the three screws guided by the arrow mark
© on the Table-Top Stand. Do not remove any other screws.
e Hold the Table-Top Stand with one hand to avoid it dropping when attaching.
de x
* This TV is very heavy, so two or more people should place the TV onto thick and soft cloth.
e |f using an electric screwdriver, set the tightening torque at approximately 1.5 N-m (15 kgf-cm).
8
Be sure to securely tighten the three supplied screws, otherwise the TV may fall down.
Use an appropriate screwdriver to attach the screws tightly without damaging the screw head.
Please ensure the AC power cord is away from the stand installation location when you attach
the stand.
Do not touch the inner side of the bottom of the TV stand to avoid being hurt.
panels une
Locating Inputs and Outputs
Rear Panel
2] 3 Side Panel
CABLE
ANTENNA
PC IN
DIGITAL
So
PCIAMDME
AUDIO IN | (OPTICAL) PO PON esse
(MONO;
L AUDIO q VIDEO IN
COMPONENT IN
ANTENNA
AUDIO OUT Connects to the audio input jacks of your analog audio equipment. You can
use these outputs to listen to your TV's audio through your stereo system.
DIGITAL AUDIO Connects to the optical audio input of digital audio equipment that is PCM/
OUT (OPTICAL) Dolby*' Digital compatible.
PC IN (RGB) Connects to a personal computer’s video and audio output connector. Can
also be connected to other analog RGB equipment. See “PC Input Signal
Reference Chart” on page 54 for the signals that can be displayed.
For some Apple Macintosh computers, it may be necessary to use an
adapter (not supplied). If an adapter is used, connect the adapter to the
computer before connecting the HD15-HD15 cable.
You may need to adjust the TV settings or your PC’s resolution and timing.
See page 15 for information on how to setup your PC to this TV.
“Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
+=]
10
VIDEO IN/
COMPONENT
IN/R-AUDIO-L
(MONO)
This input port can be used as a composite video input (VIDEO) or as a
component video input (COMPONENT). For composite use, connect the
yellow jack to Y for video and use audio L (mono) and R for audio signal.
For component connection, use Y, Pg, Pr for video signals and also
connect the audio L (mono) and R for audio signal.
This TV can auto detect and switch between the VIDEO and COMPONENT
when VIDEO or COMPONENT is connected.
To set to auto detection, press HOME, select Settings, and then select the
Setup settings. Select the Video/Component Selection option in AV
Setup then set to Auto.
[6] HDMI IN 1/2
HDMI (High-Definition Multimedia Interface) provides an uncompressed,
all-digital audio/video interface between this TV and any HDMI-equipped
audio/video equipment, such as a set-top box, DVD player, and AN
receiver. HDMI supports enhanced, or high-definition video, plus digital
audio. Be sure to use only an HDMI cable that bears the HDMI logo.
Use the HDMI IN 1 port when connecting DVI equipment. Use a DVI-to-
HDMI cable or adapter (not supplied). Equipment using a DVI connection
also requires an additional audio connection using an audio cable
connected to PC/HDMI 1 AUDIO IN of PC IN.
USB
Connects to USB equipment to access photo, music, and video files.
e An HDMI or Component video (YPBPR) connection is required to view 4801, 480p, 720p, 10801
and 1080p video formats. 1080/24p is available only with HDMI connection.
11
panels une
Connecting the TV
You can enjoy high-definition and standard-definition digital programming (if available in
your area) along with standard-definition analog programming.
This TV is capable of receiving unscrambled digital programming for both cable (QAM
and 8VSB) and external VHF/UHF antenna (ATSC).
Cable or VHF/UHF (or VHF only)
75-ohm coaxial cable == || X D) Rear of TV
CABLE/ANTENNA
e |t is strongly recommended that you connect the CABLE/ANTENNA input using a 75-ohm
coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can easily be
affected by radio frequency interference, resulting in signal degradation.
Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-
air antenna programming, as indicated below.
A/B RF Switch
Cable ===
ij 1 pme mme | Rear of TV
CABLE/ANTENNA
Antenna ===
* Be sure to set the Signal Type setting to Cable or Antenna found under the Channel settings
for your input signal (page 44).
12
You can enjoy high-definition programming by subscribing to a high-definition cable
service or a high-definition satellite service. For the best possible picture, make sure you
connect this equipment to your TV via the HDMI or component video (with audio) input
located on the back of your TV.
Shown with HDMI Connection
CATV/Satellite
Rear of TV antenna cable
HD cable box/
HD satellite box
panels une
HDMI cable
Shown with DVI Connection
CATV/Satellite
antenna cable
Rear of TV HD cable box/
HD satellite box
Audio cable
(stereo mini plugs)
DVI-to-HDMI cable
(Continued) 13
Rear of TV
AUDIO-R (red
AUDIO-L (white
Shown with Component Connection
CATV/Satellite
antenna cable
HD cable box/
HD satellite box
Component video cable
Pg (blue
Y (green
)
)
Pr (red)
)
)
Audio cable
e |f your equipment has a DVI output and not an HDMI output, connect the DVI output to the HDMI
IN 1 (with DVI-to-HDMI cable or adapter) and connect the audio output to the AUDIO IN of PC
IN. For details, see page 10.
14
Use the TV as a monitor for your PC by connecting an HD15-HD15 cable connection as
shown below. This TV can also be connected to a PC with a DVI or HDMI output. (Refer
to the separate Quick Setup Guide.)
Rear of TV
Audio cable (stereo mini plugs)
paliels buen
HD15-HD15 cable
(analog RGB)
e Connectthe PC IN jack to the PC using an HD15-HD 15 cable with ferrite core (analog RGB) and
audio cable (page 10).
15
Connecting Other Equipment
Blu-ray Disc Player/ DVD Digital satellite Digital Audio
“PS3” player receiver cable box system
| | ) )
- CABLE/ANTENNA
{joe Analog audio equipment
(A/V Receiver/HomeTheater)
- Digital audio equipment
(A/V Receiver/Home
Theater)
CABLE/
ANTENNA f oc | DIGITAL
AÚDIO
UT
(OPTICAL)
PC/HDAL
AUD
IC3ETM IN
« Personal computer
USB
e Reter to the Quick Setup Guide (supplied) when connecting other equipment to your TV.
16
When Installing the TV Against a
Wall or Enclosed Area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as
shown below. Avoid operating the TV at temperatures below 41 °F (5 °C).
Installed with stand Installed on the wall
' ОТ 7/inehes © 0 . | 11 7e inches :
| (30 ст) | (30cm) |
4 inches | Ainches | | 4 inches
(10 ст) N
(1 0 cm) IN (do em) a
Leave at least
$. this much space
“14 inches (10 em): around the set.
(A
Leave at least this much space around the set.
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
1 15
all
e [nadequate ventilation can lead to overheating of the TV and may cause damage to your TV or
cause a fire.
17
panels une
Securing the TV
Sony strongly recommends taking measures to prevent the TV from toppling
over. Unsecured TVs may topple and result in property damage, serious bodily
injury or even death.
Ad Secure the TV to a wall and/or stand.
A Do not allow children to play or climb on furniture and TV sets.
1 Avoid placing or hanging items on the TV.
ad Never install the TV on:
e slippery, unstable and/or uneven surfaces.
e furniture that can easily be used as steps, such as a chest of drawers.
U Install the TV where it cannot be pulled, pushed, or knocked over.
A Route all AC power cords and connecting cables so that they are not accessible to curious
children.
Consider the following measures when securing your TV to a TV stand (not supplied).
1 Secure the stand for the TV.
Make sure the TV stand can adequately support the weight of the TV. Use two angle
braces (not supplied) to secure the stand.
For each angle brace use the appropriate hardware to:
e attach one side of the angle brace to the wall stud.
e attach the other side to the TV stand.
~ Angle braces
18
2 Secure the TV to the stand.
Use the optional hardware listed below (not supplied):
* M4 machine screw (screwed into the TV's Table-Top Stand).
e A screw or similar (attach it to the TV stand).
e Rope or chain (strong enough to support the weight of the TV). Make sure that there Is
no excess slack in the rope or chain.
An alternative way to secure the TV is with an optional Sony Support Belt Kit.
M4 machine
screw (not supplied) Rope or chain
Screw hole on the : (not supplied)
Table-Top Stand У
Screw
(not supplied)
не
The length of the M4 machine screw differs depending on the rope or chain
diameter. Please refer to below illustration.
Screw M4
« Rope or chain
- TV's Table-Top Stand
3 Anchor the TV to the wall.
Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).
Wall-anchor
(not supplied)
Wall-mount
holes
Anchor bolts
(not supplied) Rope or chain
“ (not supplied)
e Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV
model name.
For United States call: 1-800-488-7669 or visit: http://Www.sony.com/accessories
For Canada call: 1-877-899-7669
e Securing the TV to the stand without securing the TV and the stand to the wall provides minimum
protection against the TV toppling over. For further protection, be sure to follow the three
measures recommended.
19
panels une
Running Initial Setup
During initial setup, you will perform the following:
e Set the language for the On Screen Display (OSD) text
e Choose your vlewing environment
e Scan for digital and analog channels
e Set the current date and time after Auto Program.
Complete your cable connections before beginning the Initial Setup. Refer to the Quick
setup Guide (supplied) for sample connection diagrams.
1 Turn on the TV.
The Initial Setup screen will appear.
2 Use the remote control buttons described below to navigate through the Initial
Setup.
4/%/«/» buttons:
Allow you to navigate and highlight options where applicable.
button:
Allows you to select the highlighted option and advance to the next screen.
3 Auto Program will scan for available channels from the signal source directly
connected to the TV's CABLE/ANTENNA input. Follow the help text provided on the
screen to run the Auto Program.
4 Set the current date and time.
20
e |f you cancel the Auto Program, any channels you have selected are not registered. To rescan
for available channels, run Auto Program.
e Connect either your cable or antenna to the TV (you can connect both using an A-B RF switch
(not supplied)); for more details see page 12.
panels une
21
Using the Remote Control
Insert two size AA batteries (supplied) by matching @ and @ on the batteries to the
diagram inside the battery compartment of the remote control.
e Point your remote control directly at the IR sensor
located on your TV.
e Make sure that no objects are blocking the path
between the remote control and the IR sensor on your
TV.
e Fluorescent lamps can interfere with your remote
control; try turning off the fluorescent lamps.
e |f you are having problems with the remote control,
reinsert or replace your batteries and make sure that
they are correctly inserted.
22
Remote Control Button Description
Press to display the list of External Inputs and TV
mode. Press repeatedly to toggle through the
inputs. See page 32.
SYNC
MENU
Press to display the BRAVIA Sync Menu and then
select connected HDMI equipment from HDMI
Device Selection.
Equipment
Control
These buttons are used to control the equipment
connected to the TV by using the Control for
HDMI function (not available on all Control for
HDMI equipment). Some other buttons on the
remote control may also operate BRAVIA® Sync™
equipment.
HE (PREV): Press to replay the current program
from the previous chapter mark.
Il (PAUSE): Press to pause playback.
EH (STOP): Press to stop playback.
>| (NEXT): Press to advance forward to the
next chapter mark.
<< (fast reverse): Press to play a program in
fast rewind mode.
= (PLAY): Press to play a program at a normal
speed.
>> (fast forward): Press to play a program in
fast forward mode.
* The 5, * and CH + buttons have a tactile dot. Use them as a reference when operating the TV.
(Continued) 23
AL 94) Bunesado |
Colored When the colored buttons are available, an
buttons operation guide appears on the screen.
RETURN Press to go back to the previous screen or exit
from the screen when displaying menu items and
[6] HOME/ Press to display the menu with TV functions and
MENU settings. See “Using the Menus” on page 36.
| SCENE Optimizes picture and sound quality by selecting
5— the following items.
6 — Auto: Automatically optimizes picture and sound
Vig quality according to the input source.
General: No optimized picture and sound quality
for any scene.
Photo: Reproduces the texture and color of a
printed photo.
Music: Lets you experience dynamic and clear
sound just like at a concert.
Cinema: Delivers picture and sound just like in a
theater.
Game: Broadens your game-playing experience
with superb picture and sound quality.
Graphics: Eases prolonged monitor viewing with
clearer detailed pictures.
Sports: Presents realistic pictures and sound just
like in a stadium.
When you set Scene Select to Photo, Music, Cinema, Game or Sports, Sound Mode is
automatically set to Standard.
24
0-9
Press 0-9 to select a channel.
O
Use with 0-9 to select digital channels.
For example, to enter 2.1, press (2), (), (1) and
VOL (4) Press to adjust the volume.
+/—
MUTING — Press to mute the sound. Press again or press
VOL + to restore the sound.
POWER Press to turn on and off the TV.
VO
DISPLAY Press once to display the banner with channel/
program information you are watching. The
banner will time out in a few seconds or press
again to exit.
4/4//> Press 4/4/</w to move focus/highlight. Press
to select/confirm an item.
OPTIONS Press to display a list of convenient functions and
menu shortcuts. The options menu items vary
based on current input and content.
WIDE Press repeatedly to cycle through the available
Wide Mode settings. See page 30.
CC Press to cycle through the available settings for
Closed Captions (CC) : On, Off and On when
Muting.
CH +/— Press to scan through channels. To scan quickly
through channels, press and hold down either CH
+/—.
JUMP Press to jump back and forth between two
channels and external inputs. The TV alternates
between the current/last channel or external input
selected
25
AL 841 Bunessdo
TV Controls and Indicators
Receiver/ Senses room light level and adjusts the screen brightness accordingly. Do not
Light sensor put anything over the sensor, doing so may affect its function.
XI (Picture Lights up in orange when the timer is set or the TV is in Photo Frame Mode.
Off)/® Lights up in green when the Power Saving is set to Picture Off.
(Timer) LED
O (Standby) Lights up in red when the TV is in standby mode.
LED
| (Power) LED Lights up in green when the TV is turned on.
IVD (Power) Touch to turn on and off the TV.
[6|- CH + Touch to scan through channels. To scan quickly through channels, touch and
+ 4 hold down either CH —/+. In the menu screen, these buttons serve as up/down
buttons.
[7] — A + Touch to adjust the volume. In the menu screen, these buttons serve as left/
€ $» right buttons.
~~ Touch to display the list of external inputs. Touch repeatedly to toggle through
>) (Input) the inputs.
In the menu screen, this button serves as confirming the selection or setting.
26
HOME Touch to display menu with TV functions and settings (see “Using the Menus”
on page 36).
Speaker Outputs audio signal.
® For more information about setting up the external inputs labels, see page 50.
* Make sure that the TV is completely switched off before unplugging the power cord.
AL 841 Bunessdo
27
BRAVIA® Sync™ with
Control for HDMI
With the Control for HDMI function,
BRAVIA Sync helps to communicate with
BRAVIA Sync-compatible equipment
using HDMI CEC (Consumer Electronics
Control). Use the following settings and
tips to help unify control of your
connected equipment.
1 Press HOME and select Settings,
then select the Setup settings.
2 Select the HDMI Settings, then
highlight Control for HDMI, and set to
On.
Controlling BRAVIA Sync-
Compatible Equipment
To control the equipment by using the
remote control, press SYNC MENU and
select the desired equipment from HDMI
Device Selection.
BD/DVD Player
e Automatically turns the BRAVIA Sync-
compatible equipment on and switches the
Input to that equipment when you select it
from the Sync Menu.
e Automatically turns the TV on and switches
the input to the connected equipment when
the equipment starts to play.
e Automatically turns the connected
equipment off when you switch the TV to
standby mode.
28
AV Amplifier
e Automatically turns the connected AV
amplifier on and switches the sound output
from the TV speaker to the audio system
when you turn the TV on.
e Automatically switches the sound output to
the AV amplifier by turning the AV amplifier
on when the TV is turned on.
e Automatically turns the connected AV
amplifier off when you switch the TV to
standby mode.
e Adjusts the volume (VOL +/-) and mutes the
sound (MUTING) of the connected AV
amplifier through the TV's remote control.
Video Camera
e Automatically turns the TV on and switches
the input to the connected video camera
when the connected video camera is turned
on.
e Automatically turns the connected video
camera off when you switch the TV to
standby mode.
* Control for HDMI (BRAVIA Sync) Is only
avallable for the connected Sony equipment
that has the BRAVIA Sync or is compatible
with Control for HDMI.
* The Control for HDMI settings must be set
on both the TV and connected equipment.
For settings on the connected equipment,
refer to their instruction manuals.
* When specific Sony equipment compatible
with Control for HDMI (BRAVIA Sync) is
connected, BRAVIA sync is automatically
activated on the equipment.
E To Swap Audio
You can swap audio between the main
and sub window.
PIP (picture in picture) displays a picture 1 Press OPTIONS.
from a connected PC in full screen, anda 2 Press 4/% to highlight Audio Swap
TV program or other external input (see and press O.
below “To Enter PIP” table) in an inset |
window. (Closed Captions (CC) is not
available with PIP mode.)
Using PIP Feature
3 Press 4/4 to highlight the window to
be audible, then press (5.
sub Window
(Location of the
Sub Window
Main can be moved
Window by pressing
(PC) 4/4/€/».)
To Enter PIP
PC TV channel (CABLE/
ANTENNA), VIDEO
IN, HDMI IN 1/2
(video timing)
HDMI IN (PC timing) | TV channel (CABLE/
ANTENNA), VIDEO
IN, COMPONENT IN
1 Press OPTIONS while in the PC
mode.
2 Select PIP from the OPTIONS menu.
3 The sub window will appear.
To Change Channels
You can change the channel of the sub
window by pressing CH +/— or entering
the channel number using the 0-9 numeric
and © buttons.
% To Exit from PIP
You can exit from PIP, using any of the
following methods:
() Press OPTIONS, press 4/4 to highlight
Exit PIP, then press (+) to exit to the full PC
screen.
@ Press RETURN.
29
salnjeaq GuIsf
Favorites
Wide Mode
Your favorite channels and external inputs
can be accessed by pressing the HOME
button once they are added to the list.
1 Press HOME.
2 Press 4/4 to select Favorites, then
press (+).
The favorites list appears.
3 Press 4/4 to select a channel or input,
then press (+).
To add to Favorites
While tuned to the channel you want to
watch or viewing connected equipment,
press HOME and select Favorites to
display the list. Highlight Add to
Favorites, then press (). Your newly
added item will be listed at the top of the
list. When you continue to add items
beyond the 10th item, the item listed at the
bottom of the list will be automatically
removed from the list.
e Favorite channels and external inputs can
also be added using the OPTIONS button
on the remote control.
e Your Favorites list will be cleared each time
you run the Auto Program.
30
The Wide Mode feature allows you to
select the screen display of your
preference. Based on the original signal
source, you may see black bars around
the picture or just on the both sides of the
screen. Sometimes you will see the
picture filled the full screen. This is due to
the signals your TV receives.
You can manually select available Wide
Mode settings as you watch your TV by
pressing the WIDE button on your remote
control or you can set your TV to Auto
Wide.
To set Auto Wide
Press HOME and select Settings, then
select the Screen settings.
Select Auto Wide and set to On.
To change the Wide Screen Mode
Press WIDE repeatedly to cycle through
the available modes.
Standard-
definition source
High-definition source
+ +
Wide Zoom
Normal
This mode Is not
available.
Full Full
Normal is available with 480i or 480p
sources only.
Wide Mode with PC
Wide Mode is also available for the PC
settings. When a PC is connected to the
TV and PC input is selected, you can
change the PC Screen settings.
To change the Wide Screen Mode for
PC Timing
Press WIDE repeatedly to cycle through
the available modes while in the PC input
mode.
800 x 600
+
Normal
e Use the Auto Adjustment to adjust the
display position and phase of the picture
when the TV receives an input signal from
the connected PC.
31
salnjeaq buisn
Inputs
Press INPUT to display the Input menu
and toggle through the external inputs to
select your video signal for viewing
including the TV mode. The inputs list
consists of TV mode and other equipment
connected to the TV.
You can label your external inputs to
identify them easily.
To Manage on Input
Press HOME and select Settings, then
select the Setup settings. Select the
Manage Inputs option in AV Setup. Press
4/4 to highlight the video input (HDMI 1-2,
Video, Component, PC) to which you
want to assign a label; press ©) to select
the input of your choice.
To Manage Label
Press «/» to highlight one of the
displayed labels that corresponds to your
connected equipment, then press ().
To Manage Enable
1 Press «/ to select enable column.
2 Press 4/4 to select Auto, Always or
Off. The selected input will be listed
always.
32
Playing back Photo/
Music/Video via USB
You can enjoy photo/music/video files
stored in a Sony digital still camera or
camcorder through a USB cable or USB
storage device on your TV.
1 Connect a supported USB device to
the TV.
2 Press HOME.
3 Press 4/4 to select Photo, Music, or
Video, then press (+).
The file or folder list appears.
4 Press 4/4/€/» to selecta file or folder,
then press (+).
When you select a folder, select a file,
then press (+).
Playback starts.
e |f you connect the USB device when USB
Auto Start is set to On (page 48), the
thumbnail view of the last played Photo/
Music/Video appears automatically.
Notes when playing back files
While the TV is accessing the data on
the USB device, observe the following:
— Do not turn off the TV or connect USB
device.
—- Do not disconnect the USB cable.
— Do not remove the USB device.
The data on the USB device may be
damaged.
Sony will not be held liable for any
damage to, or loss of, data on the
recording media due to a malfunction of
any connected devices or the TV.
USB playback is supported for the
following photo file formats:
— JPEG (JPEG format files with the extension
“jpg” and conforming to DCF 2.0 or Exif
2.21)
USB playback is supported for the
following music file format:
—- MP3 (files with the extension “. mp3" that
have not been copyrighted)
USB playback is supported for the
following video file format:
- MPEG1, MPEG? (files with the extension
mpg’)
USB Auto Start shows photo files in the
newest digital still camera folder (DCF-
compliant, highest-numbered “DCIM”
folder).
USB Auto Start may not work
automatically when some digital still
cameras are connected.
The file name and folder name are only
supported in English.
When you connect a Sony digital still
camera, set the camera's USB
connection mode to “Auto” or “Mass
Storage.” For more information about
USB connection mode, refer to the
instructions supplied with your digital
camera.
* Use a USB storage device that is
compliant with USB Mass Storage Class
standards.
* The file system on the USB device
supports FAT16, FAT32 and NTFS.
33
salnjeaq GuIsf
Photo Frame (KDL-
42EX440/32EX340
only)
You can enjoy looking at photos, listening
to music, or seeing the clock and
calendar, at the same time.
Photo Frame Mode
t& 11 12 13 1
17 18 19 20 2
24% 25 26 27 2?
31
£] BRAVIA-Muslet
RTE
ae MT TT
» OC: CO:58/00:G2:
MR Previous
You can enter photo frame mode using
any of the following methods:
(D Press HOME, and then select Photo
Frame Mode.
(2) Press OPTIONS, when you are playing
back the photo/music files.
You can switch the frame, e.g. image and
clock, full screen image or full screen
clock.
For more details, see page 48.
To select photo
You can select photos from USB memory,
using any of the following methods:
M Press HOME and select Settings, then
Setup > Photo Frame Settings > Image
Selection.
Press (+) to select the file from thumbnail
view.
@ In photo frame mode, press OPTIONS >
Image Selection. Press (+) to select the file
from thumbnail view.
@ Press HOME, and select Photo. When
playing back a photo, press OPTIONS >
Photo Frame Mode to launch Photo
Frame with the selected photo.
34
| To select music
You can select music from USB memory,
using any of the following methods:
M Press HOME and select Settings, then
Setup > Photo Frame Settings > Music
Selection.
Press (+) to select the file from thumbnail
View.
@ In photo frame mode, press OPTIONS >
Music Selection.
Press (+) to select the file from thumbnail
view.
(9) Press HOME, and select Music. When
playing back music, press OPTIONS >
Photo Frame Mode to launch Photo
Frame with the selected music.
| To select Display mode
You can change the photo frame display
by selecting Display Mode (page 48).
* Image and Clock
* Full Screen Image
* Full Screen Clock
To select Clock Display mode
There are five calendar display modes.
When the Display Mode setting is set to
Image and Clock, you can set to
Calendar, Analog Clock or Digital
Clock. When the Display Mode setting is
set to Full Screen Clock, you can set to
Calendar, Calendar and Clock or Clock.
For more details, see page 48:
* Calendar
Analog Clock
Digital Clock
Calendar and Clock
Clock
Duration
To save power, photo frame mode will
shut down after 24 hours of TV with power
off automatically. After running photo
frame mode for 24 hours, not use this
mode for at least one hour, to avoid panel
burn-in.
Duration time can be set to Duration in
Photo Frame Settings. For more details,
see page 48.
To avoid panel burn-in, the position of the
photo, clock and calendar are switched
automatically every hour.
35
salnjeaq buisn
Navigating through TV Menus
The HOME button allows you to access a variety of TV settings and USB media files.
MENU
1 Press on the remote control to display the menu
options.
Press 4/4/€/» to navigate on the menu or adjust the
settings.
Press (+) to select or confirm.
Press to exit.
RBO N
You can select Photo Frame Mode which enables you to enjoy photo, music
and clock. For details, see page 34.
Photo Frame
Mode
(KDL-
42EX440/
32EX340
only)
The Favorites feature provides quick access to your frequently used items,
such as preferred TV channels or external inputs (e.g. game console, DVD
player). For details, see page 30.
Favorites
The Photo, Music, and Video icons organize your photo, music, and video
files from USB connected equipment. Be sure to select the correct icon when
accessing files. Refer to the feature section for more information on these
icons (page 32).
36
The Settings icon contains all of the necessary configurations to customize
your TV settings. The options you can select may vary. Unavailable options
are grayed out or not displayed.
Picture: adjust the picture on your TV to fit your viewing preference.
Sound: customize your sound settings to suit your audio preference. You can
also change the settings to output the sound to your connected audio
equipment.
Screen: adjust the size and shape of the images you see on the screen.
Channel: navigate your favorite channels and inputs and select the signal type,
as well as autoprogram channels. You can also customize the channels you see
and the labels assigned to them.
Parental Lock: set the password and limit access to programming based on
rating levels. You can also block channels and inputs.
Setup: modify and customize a variety of general setting options.
Eco: changes the settings related to power consumption.
Settings
$пчэ ey) buis
37
Using the Picture Settings
Customized Scene Select IS set to General, the first three options below can be selected.
picture viewing Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings. Recommended for home
entertainment.
Custom Select to store your preferred settings.
Cinema For film-based content. Suitable in a theater-like environment.
Photo For standard viewing of photographs.
Sports Optimizes picture quality for viewing sports.
Game For standard picture suitable for games.
Graphics Optimizes picture quality for viewing graphics.
Reset Resets the current Picture settings to their defaults, except Picture Mode.
Backlight Adjust to brighten or darken the backlight.
Picture Adjust to increase or decrease picture contrast.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Sharpness Adjust to sharpen or soften the picture.
Color Cool Select to give the white colors a bluish tint.
Temperature Neutral Select to give the white colors a neutral tint.
White adjustment Warm 1/Warm Select to give the white colors a reddish tint. Warm 2 gives a
2 redder tint than Warm 1.
Noise Reduction Select to reduce the picture noise level. Select from Auto, High, Medium,
Low and Off.
MPEG Noise Select to reduce the picture noise In MPEG-compressed videos. This is
Reduction effective when viewing a DVD or digital broadcast. Select from High, Medium,
Low and Off.
CineMotion Provides improved picture movement and reduces picture blur and graininess
for film-based content. Select Auto to represent original film-based content as
IS.
38
Advanced Reset
Resets the advanced settings to the default values.
Settings Adv. Contrast
Enhancer
Automatically adjusts backlight and contrast to the most
suitable settings judging from the brightness of the screen.
This setting is especially effective for dark scenes, and will
increase the contrast distinction of the darker picture scenes.
Select from High, Medium, Low and Off.
Black
Corrector
Enhances black areas of the picture for stronger contrast.
Select from High, Medium, Low and Off.
Gamma
Adjusts the balance between bright and dark areas of the
picture.
Clear White
Emphasizes white colors. Select from High, Low and Off.
Live Color
Makes colors more vivid. Select from High, Medium, Low
and Off.
LED Motion
Mode
Lights up the backlight adequately, reducing blur in movies,
but the brightness decreases.
White Balance Adjusts the color temperature in detail.
e Available Picture options, including options in Advanced Settings depend on Scene Select
and Picture Mode.
39
$пчэ ey) GBuisn
oun
Customized
sound listening
ode includes options best suited for video an
photographs, respectively. The available options depend on the scene select
settings.
Dynamic Enhances treble and bass.
Standard Standard sound optimized for home use.
Clear Voice Suitable for spoken dialog.
Custom Select to store your preferred settings.
Reset
Resets the current Sound settings to their defaults, except MTS Audio,
Alternate Audio and Speakers.
Equalizer
Adjust allows you to select your frequency response curve. Select Reset to
reset the Equalizer settings to the default values.
Balance
Adjust to emphasize left or right speaker balance.
Steady Sound
Select On to stabilize the volume across all programs and commercials.
Select Off to disable this function.
Volume Offset
Adjust the volume level of the current input relative to other inputs.
Surround
Allows you to select the suitable surround effects depending on the genre of
TV program (movie, sport, music, etc.) or video game. The available options
depend on the scene select setting.
On/Off Select On to optimize the sound quality to enjoy the effects of
the Surround option and to create a virtual surround sound
using the 2ch speaker.
Cinema/Off Provides surround effects just like the high-grade audio
systems found in movie theaters.
This option is available when you select Cinema in the Scene
Select setting.
Music/Off Provides surround effects that make you feel like you are
surrounded by sound as in a music hall.
This option is available when you select Photo or Music in
the Scene Select setting.
Sports/Off Provides surround effects that make you feel like you are
watching a live sports contest.
This option 1s avallable when you select Sports in the Scene
Select setting.
Game/Off Provides surround effects that enhance game sound.
This option is available when you select Game in the Scene
Select setting.
Bass Booster
Select On to produce a fuller sound for more impact, by emphasizing the bass
sounds.
Select Off to disable this function.
40
MTS Audio
Enjoy stereo,
bilingual and
mono programs
Stereo Select for stereo reception when viewing a program
broadcast in stereo.
Auto SAP Select to automatically switch the TV to second audio
programs when a signal Is received. If no SAP signal is
present, the TV remains In Stereo mode.
Mono Select for mono reception. Use to reduce noise during weak
stereo broadcasts.
Alternate Audio
Digital channels
only
Select among the available options to switch among the alternate audio
streams. The program you are tuned to may be broadcasted in a different
language in the alternate audio streams.
Speakers TV Speakers Select to use the TV speakers.
Audio System Select to use an external audio system for the TV sound. By
selecting this option you are disabling the TV speakers.
Audio Out Variable Adjusts the volume with the TV's remote control, when using
an external audio system.
Fixed Adjusts the volume using the connected audio system's
remote control.
HDMI/DVI Audio
Source
HDMI 1 input only
Sets the audio signal source for HDMI/DVI input.
Auto Automatically sets the audio signal source based on the
video signal.
HDMI Audio Sets the HDMI input as the audio signal source.
PC Audio Sets the PC/HDMI audio input as the audio signal source.
* MTS Audio is only available for analog programs.
* Alternate Audio is only available if the program is broadcast with alternate audio streams.
e You can also access Sound Mode, MTS Audio and Alternate Audio by using the OPTIONS
button on the remote control.
41
$пчэ ey) buis
Using the Screen Settings
Wide Mode Wide Zoom Fills the screen with minimum distortion.
Normal Select to display 4:3 picture in original size when the original
source is 4:3.
Full Select to enlarge the picture horizontally to fill the screen when
the original source Is 4:3 (Standard definition source). When the
original source is 16:9 (High-definition source), select this mode
to display the 16:9 picture in its original size.
Zoom Select to enlarge the original picture without distorting the aspect
ratio.
Auto Wide On Select On to automatically change Wide Mode setting based on
the content.
Off If frequent screen changes are disturbing to you, select Off.
Choose one of the Wide Mode options when this function is set
to Off.
4:3 Default Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, displaying as
Select the default much of the original image as possible.
Screen Mode to Normal Select to display the 4:3 picture in its original size.
use for 4:3 Off Select to continue using the current Wide Mode setting when the
Sources channel or input is changed.
Auto Display Select On to automatically adjust the picture to the most appropriate display
Area area.
Select Off to disable this function.
Display Area Full Pixel Displays pictures in their original size when parts of the picture
are cut off (available depending on the TV model).
+1 Displays pictures in their original size.
This option is only available for Digital TV and HDMI input signals
(non 10801 and 1080p video formats).
Normal Displays pictures in their recommended size.
-1 Enlarges the picture so that the edges are outside the visible
display area.
Horizontal Allows you to move the position of the picture left and right. (Available in Wide
Center Zoom and Zoom.)
* Normal in the Wide Mode setting is not available when you are watching a 720p, 10801 or 1080p
source.
e |f 4:3 Default is set to anything but Off, the Wide Mode setting changes only for the current
channel. When you change channels (or inputs), Wide Mode is automatically replaced with the
4:3 Default setting for 4:3 sources. To retain the current Wide Mode setting as channels and
Inputs are changed, set 4:3 Default to Off.
e 4:3 Default is not available if Auto Wide is set to Off.
42
Vertical Center Allows you to move the position of the picture up and down. (Available in Wide
Zoom and Zoom.)
PC Settings When a PC is connected to the TV and the PC input is selected, the PC
settings screen appears instead of the Screen settings.
You can also select the PIP feature which allows you to view two pictures
simultaneously from OPTIONS button (page 29).
Wide Mode Normal Select to display in the original image size.
Full 1 Select to enlarge the picture to fill the display area,
keeping its original aspect ratio.
Full 2 Select to enlarge the picture to fill the display area.
Reset Resets all PC settings to the default values.
Auto Select to automatically adjust the display position and phase of
Adjustment the picture when the TV receives an input signal from the
connected PC. Note that Auto Adjustment may not work well
with certain input signals. In such cases, manually adjust the
options below.
Phase Adjust after Pitch to fine tune overall sharpness.
Pitch Adjust uneven sharpness on screen.
Horizontal Allows you to move the position of the picture left and right.
Center
Vertical Allows you to move the position of the picture up and down.
Center
$пчэ ey) buis
e For the PC Input Signal Reference Chart, see page 54.
* Auto Adjustment, Phase and Pitch are not available with PC signal connected to HDMI input.
43
EN
Using the Channel Settings
Signal Type
Cable Select If you are receiving cable channels via Cable TV
provider.
Antenna Select If you are using an antenna.
Auto Program
Automatically sets up the channel list on the TV for all receivable channels.
1 Select Auto Program.
2 Select OK to start Auto Program.
Add Digital 1 Select Add Digital Channels.
Channels 2 Select OK to add digital channels.
Show/Hide Allows you to show or hide channels that appear when you use the CH +/-
Channels buttons.
1 Press #/% to scroll through the channels until you find the channel you
want to show or hide. Then press (+) to select it.
2 Press 4/4 to determine If the channel will be shown or hidden. Then press
to select it.
Edit Channel Allows you to assign labels (such as station call letters) to channel numbers.
Labels 1 Press 4/% to scroll through the channel numbers. Then press (+) to
select the channel number that you want to assign a label.
2 Press 4/4 to scroll through the label characters (A-Z, 0-9, etc.). Press » to
move to the next character. Repeat the previous steps to add up to seven
characters to the label. When finished, press (+).
Analog Fine
Tune
Allows you to fine-tune the selected analog channel manually if you feel that a
slight tuning adjustment may improve picture quality. Select Auto to adjust to
the most appropriate analog channel.
e You should run Auto Program after changing the Signal Type setting.
e Running Auto Program will clear the Favorites list.
e Channels that you set to be hidden can be accessed by the 0-9 and © buttons.
e You can set channels to be hidden that are automatically set in Auto Program.
44
Using the Parental Lock Settings
Password
The Parental Lock settings allow you to set up the TV to block programs
according to their content and rating levels. Use 0-9 on the remote control to
enter a four-digit password. The first time you create a password, confirm the
password by entering it again.
Change Select to change your password.
Password
Country U.S.A. Select to use U.S.A. ratings (page 46).
Canada Select to use Canadian ratings (page 47).
Rating Off Turn Parental Lock off. No programs are blocked from
viewing.
Child Maximum ratings permitted are:
US. TV-Y, TV-G, G
Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
U.S.: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Young Adult Maximum ratings permitted are:
U.S.: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
U.S.: See page 46 for details.
Canada: See page 47 for details.
Downloadable
U.S. Rating
$пчэ ey) buis
Off Turn Downloadable U.S. Rating off. No programs that contain
downloadable ratings are blocked from viewing.
(Avallable only Custom Select to block programs based on downloadable ratings.
in U.S.A. Clear All Select to clear the entire downloadable rating system.
where advanced
ratings exist)
Unrated Allow Allows programs and movies that are broadcasted without a
(Available only rating.
when Country is Block Blocks all programs and movies that are broadcasted without
setto U.S.A) a rating.
Channel Block
Allows you to block channels regardless of program ratings.
To View a Blocked Channel
Press (+) when tuned to the blocked channel then enter the password.
External Input
Block
Allows you to block external inputs regardless of program ratings.
To View a Blocked External Input
) when tuned to the blocked input then enter the password.
(Continued) 45
e You need your password for any future access Into the Parental Lock settings. If you lose your
password, see “Lost password” on page 70.
e Selecting Clear All will delete the current Downloadable U.S. Rating menu and the menu will
no longer be available until the TV is tuned to a channel that contains downloadable ratings.
e |f you block unrated TV programs, be aware that the following types of programs may be
blocked: programs broadcasted from another country, emergency broadcasts, political
programs, sports, news, public service announcements, religious programs and weather.
To select custom rating options for the U.S., select U.S.A. in the Country setting (page
cnliaren anda general aualence.
PG Parental guidance suggested.
PG-13 Parental guidance for children under 13.
R Restricted viewing, parental guidance is suggested for
children under 17.
NC-17 and X No one 17 or under allowed.
TV Rating Age-Based Ratings
Block programs Ty.y All children.
ov the ang. TV-Y7 Directed to children age 7 and older.
TV-G General audience.
TV-PG Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA Mature audience only.
Content-Based Ratings
FV Fantasy violence.
D Suggestive dialog.
L Strong language.
S sexual situations.
V Violence.
e lo ensure maximum blocking capability, set the Age-Based Ratings.
46
To select custom rating options for Canada, select Canada in the Country setting (page
45).
English Rating C
All children.
C8+ Children 8 years and older.
G General programming.
PG Parental guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating UG General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “US Models” on page 46 for details.
You can view blocked programs by entering your password. Press (+)
) when tuned to a
blocked program, then enter the password. This temporarily deactivates the parental
control feature. To reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Lock settings are reactivated.
47
$пчэ ey) buis
Using the Setup Settings
Photo Frame
Settings
(KDL-
42EX440/
32EX340 only)
Display Mode Allows you to select the display mode. Select from Image and
Clock, Full Screen Image or Full Screen Clock. See page 34.
Clock Display Allows you to select the clock display. Select from Calendar,
Analog Clock, Digital Clock, Calendar and Clock or Clock.
Calendar and Clock and Clock can be displayed only when
Display Mode is Full Screen Clock. This setting will be
changed automatically according to the Display Mode setting.
Audio Music You can enjoy music with this function.
Application Off Turns off the music.
Image Select image.
Selection
Music Select music.
Selection
Slideshow Slideshow You can play a slideshow of photos.
Setting Single View Displays one photo only.
Music All Tracks Listen to all music tracks.
Playback Single Track Set to listen to a single music track.
Setting
Duration Selects the time period (1 h, 2 h, 4 hor 24 h) after which the TV
automatically switches to standby mode.
First day of the
week
Set Sunday or Monday as the first day of the week on the
calendar.
USB Auto
Start
Select On to show the thumbnail view automatically when the TV is turned on and
a digital still camera or other device containing photo files is connected to the
USB port then turned on.
48
Closed Allows you to select from several closed caption modes (for programs that are
Captions broadcast with closed captioning).
(CC) CC Display On Closed Captions (CC) is turned on.
Off Closed Captions (CC) is turned off.
On when Closed Captions (CC) is turned on when the TV
Muting Is muted.
Analog CC Allows you to select basic analog (EIA-608) closed caption
options.
CC1,CC2, Displays a printed version of the dialog or sound
CC3,CC4 — effects of a program. (Should be set to CC1 for
most programs.)
Text1, Text2, Displays network/station information presented
Text3, Text4 using either half or the whole screen (if available).
Digital CC When the digital closed caption service is available, select from
the Service 1-6 or CC1-4.
Digital CC Allows you to make additional settings for digital closed caption
Options options. Select As Broadcast or Custom. The Custom option is
avallable on the Digital CC setting.
Custom Allows you to customize the following settings: с
Character Small, Standard, Large =
Size ©
Character Style 1-7 D
Style =
Character Color 1-8 =
Color ©
Character Solid, Translucent
Opacity
Edge Type None, Raised, Depressed,
Outline, Left Shadow,
Right Shadow
Edge Color Color 1-8
Background Color 1-8
Color
Background Solid, Translucent
Opacity
® You can turn on Closed Captions (CC) options (On, Off or On when Muting) by pressing the
CC button on the remote control.
(Continued) 49
In
Banner
play
to display minimal channel and program title or select Large to display detailed
channel and program information along with the TV icon if you are viewing the TV.
This information will appear if it Is available from the broadcaster.
Info Banner appears on the screen each time the channel and external inputs
are changed or when DISPLAY on the remote control is pressed.
Clock/Timers
Sleep Timer Set the time in minutes (Off, 15, 30, 45, 60, 90, or 120) that you
would like the TV to remain on before shutting off automatically.
On Timer Turns on the TV from standby mode at a time you set, and tuned
to a TV channel or input of your preference. Before setting this
function, make sure you set the correct current Time.
Current Time You can set the current time manually. Select Date (Month/Day/
Year) to set the date, then select Time to set the time.
e This TV does not have a battery powered backup for the
clock. Therefore, if there is a power failure or if you disconnect
the power cord, be sure to reset the current date and time.
Initial Setup
If you miss the Initial Setup when you first connect the TV or if you want to scan
all receivable channels, select Initial Setup. Follow the instructions on the screen.
Some settings such as Picture, Sound, and Parental Lock will not be affected
by this Initial Setup. If you wish to return your TV to factory settings, please see
the Troubleshooting section on page 65.
Language
Select to display all on-screen settings in your language of choice: English,
Espanol, Francais.
Startup Logo
Select On to display the logo when the TV is turned on. Select Off to disable It.
AV Setup
Manage Inputs Assigns a name to external equipment.
Select Auto to display names when the equipment is connected
and/or the signal of the equipment is ready to be shown, or
Always to display regardless of connection status or Off to
disable input (only for TV and PC inputs).
Video/ Select Auto to have the TV detect and switch between the
Component Video or Component when Video or Component is connected.
Selection
e You can assign following labels for each input (except TV):
—, Cable, Satellite, VCR, DVD/BD, Home Theater, Game, Camcorder, Digital Camera, PC,
Edit (except PC IN)
—, Edit (for PC IN)
EL n
e “_" Indicates that no labels are assigned.
e |f you select Edit, you can edit video labels. Follow the same steps for Edit Channel Labels on
page 44.
50
ommunicales win equipment compatll
Settings Control for Links the operations of the TV and the equipment.
HDMI For specific Sony equipment compatible with Control for HDMI,
this setting is applied automatically to the connected equipment
when set to On.
Device Auto Select On to have your connected equipment with Control for
Power Off HDMI function power off automatically when the TV is turned off.
Select Off to disable this function. This feature is available when
Control for HDMI is On.
TV Auto Power Select On to control your TV's power on from your connected
On equipment with Control for HDMI function. Select Off to disable
this function. This feature is available when Control for HDMI is
On.
Device List Displays a list of equipment with Control for HDMI function
connected to the TV.
Device Control Select button functions of the TV's remote control to operate the
Keys connected equipment.
None Deactivates the control by the TV's remote
control.
Normal Enables basic operations, such as navigation
buttons (up, down, left or right, etc.).
Tuning Keys For basic operations and operation of channel-
related buttons, such as CH +/- or 0-9. etc. Useful
when you control a tuner or set-top box, etc; via
the remote control.
Menu Keys For basic operations and operation of the HOME/
OPTIONS buttons. Useful when you select menus
of a BD player, etc; via the remote control.
Tuning and For basic operations and operation of channel-
Menu Keys related buttons and HOME/OPTIONS buttons.
e Press OPTIONS while the equipment supporting Control for HDMI is
connected to display the Device Control options. The Device Control option
provides access to the Home (Menu), Options and Content List of your
connected equipment with your TV remote control.
e Some equipment with Control for HDMI does not support the Device Control
feature.
e HDMI Settings must be setup on the connected equipment.
Picture Select Lock so no adjustment can be made to ¡items grayed out, except Picture
Adjustments Mode and CineMotion.
Lock Select Unlock to allow adjustment to any of the Picture settings.
(Continued) 51
$пчэ ey) buis
Product Contact Sony Sony contact information is available on this screen for your
Support convenience. TV specific information such as Model Name,
Serial Number, Software Version and downloadable ratings (if
available from the TV) are displayed here.
Signal Press to display the diagnostics information for the current
Diagnostics signal.
52
Reset
Power Saving
Using the Eco Settings
Resets the current Eco settings to the default values.
Select from Off, Low, High, Picture Off to adjust your TV's power consumption.
By selecting the High option, you will reduce the power consumption more than
the other avallable settings.
While Picture Off is set, pressing VOL +/- or MUTING buttons will not disable this
function. Press other buttons to disable it.
Idle TV
Standby
Light Sensor
Auto Shut Off
Select to automatically power off the TV after 1 h, 2 h, or 4 h when no buttons are
pressed or touched on the remote control or the TV. Select Off to disable this
function.
Optimizes the picture settings according to the ambient lighting.
Select On to automatically power off the TV when no input signal is detected for a
certain period of time. Select Off to disable this function.
53
$пчэ ey) buis
PC Input Signal Reference Chart for
PC and HDMI IN
After connecting the PC to the TV, set the output signal from the PC according to the
chart below.
640 VGA
800 VESA Guidelines
1,024 VESA Guidelines
1,280 VESA
1,280 VESA
1,360 VESA
KDL-42EX441/KDL-42EX440
640 315 60 VGA
800 37.9 60 VESA Guidelines
1,024 48.4 60 VESA Guidelines
1,280 47,4 60 VESA
1,280 47.8 60 VESA
1,360 47.7 60 VESA
SXGA 1,280 1,024 64.0 60 VESA
HDTV" 1,920 1,080 67.5 60 CEA-861*
* The 1080p timing when applied to the HDMI input will be treated as a video timing and not PC
timing. This affects Picture settings and Wide Mode settings. To view PC content set Scene
Select to Graphics, Wide Mode to Full and Display Area to Full Pixel.
e This TV's PC input does not support Sync on Green or Composite Sync.
* This TV's PC VGA input does not support interlaced signals.
e Your PC must support one of the above PC input signals to display on the television.
e In plug and play, signals with a 60 Hz vertical frequency will be detected automatically. (PC
reboot may be necessary.)
54
Using a Wall-Mount Bracket
Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the
box as packaged. Some larger size TV may require removing the Table-Top Stand; refer
to the instructions provided with the TV.
Prepare the TV for the Wall-Mount Bracket before making cable connections.
For product protection and safety reasons, Sony strongly recommends that you
use the Wall-Mount Bracket designed for your TV and the installation should be
performed by a Sony dealer or licensed contractor.
e Follow the instruction guide provided with the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing this TV, especially to determine the strength
of the wall for withstanding the TV's weight.
* Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the
mounting hooks to the TV set.
The supplied screws are designed as indicated by illustration when measured from
the attaching surface of the mounting hook.
The diameter and length of the screws differ depending on the Wall-mount bracket
model. Use of screws other than those supplied may result in internal damage to the
TV set or cause it to fall, etc.
32EX340: 6.5~10 mm
42E X440/EX441: 8-12 mm
Screw (supplied with the Wall-Mount Bracket)
32EX340: M4
42E X440/EX441: M6
Mounting Hook
Hook attachment on rear of TV set
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
® Ве sure to store the unused screws and Table-Top Stand in a safe place until you are
ready to attach the Table-Top Stand. Keep the screws away from small children.
e Read the supplied Safety Booklet for additional safety information.
55
Installing the Wall-Mount Bracket
To Customers
Your TV can be wall-mounted using SU-WL500 or SU-WL100 Wall-Mount Bracket (sold
separately).
Please provide this installation information as well as the instruction supplied with SU-
WL500 ог SU-WL100 Wall-Mount Bracket to your installer.
To Sony Dealers and Licensed Contractors
To avoid injury and property damage, read these instructions carefully. Periodic
Inspection and maintenance is highly recommended to ensure that TV is securely
mounted.
Note when installing
When using the SU-WL500 or SU-WL100 Wall-Mount Bracket, the space between the
wall and the TV will be 6 em (2 % inches). Use this space to route cables to the TV.
6 cm (2 * inches)
| |
96
Step 1: Check the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts
along with the Instructions.
Step 2: Decide on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL500.
Unit: mm
(inches)
Dimension Table
Screen center point
x4
KDL-42EX440
(3871)
(235%)
(5 Ya)
(18)
(4 °/g)
(11%)
(22)
(18%)
13.2 kg
(29.1 Ib.)
52.8 kg
(116.3 Ib.)
Figures in the above table may differ slightly depending on the installation.
CAUTION
The wall that the TV will be installed on should be capable of supporting a weight of at
least four times that of the TV. Refer to your TV's operating instructions for its weight.
Step 3: Install the Base Bracket on the wall
Refer to the Instructions for SU-WL500.
(Continued)
57
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Step 4: Prepare the TV for wall mount installation
Follow the steps below to prepare for installing the TV.
1 Disconnect all the cables from the TV.
2 Detach the Table-Top Stand from the TV.
© Place the TV with its screen facing down on a level and stable surface covered with a thick
and soft cloth.
e Be careful not to hit the Table-Top Stand against the edge of the surface when placing
the TV with its screen facing down.
O Remove the screws guided by the arrow marks #
Do not remove any other screws from the TV.
and €
Thick and
soft cloth
e Before attaching the Wall-Mount Bracket, hang the AC power cord down behind the TV.
pc a a,
58
3 Secure the Mounting Hook to the rear of the TV.
Determine the screw locations and secure the Mounting Hooks to the rear of the TV.
Refer to the “Screw and Hook Locations Diagram/Table” shown below.
O Secure the Mounting Hooks to the rear of the TV using only the supplied screws
(M6 x 16).
© Be sure to tighten the screws with equal torque strength.
Align the tab on the rear of the
Mounting Hook with the square hole
on the rear of the TV as illustrated.
Mounting
„ НооК
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
(Continued) 59
Screw and Hook Locations Diagram/Table
KDL-42EX441
KDL-42EX440
Screw location Hook location
When installing the Mounting Hooks on When installing the TV onto Base Bracket.
the TV.
Wall
Fo ih Te
Zn
FE >
ne =
4 Adjust the angle of the Mounting Hook.
Refer to the Instructions for SU-WL500.
Step 5: Install the TV on the wall
Refer to the Instructions for SU-WL500.
#5
* When you put the TV back on the Table-Top Stand, reverse the above steps.
* When moving the TV, do not squeeze the bottom of the front panel too tight.
e Remove the screws or install the Mounting Hook on a stable and level surface.
60
Step 1: Check the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts
along with the Instructions.
Step 2: Adjust the position of the holders of the Base Plate
Refer to the Instructions for SU-WL100.
Step 3: Decide on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL100.
Dimension Table
Screen center point
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Unit: mm
(inches)
KDL-32EX340
(15.7 | (62.6
(29/4) | (18%) | (1°16) | (8/4) | (4/8) | (10 °/8) | (17 в) | (7 °/e) Ib.) Ib.)
Figures in the above table may differ slightly depending on the installation.
CAUTION
The wall that the TV will be installed on should be capable of supporting a weight of at
least four times that of the TV.
Step 4: Install the Base Plate on the wall
Refer to the Instructions for SU-WL100.
(Continued) 61
Step 5: Prepare the TV for wall mount installation
Follow the steps below to prepare for installing the TV.
1 Disconnect all the cables from the TV.
2 Detach the Table-Top Stand from the TV. For details, see page 58.
3 Align the holes on the left Mounting Hook with the corresponding holes on the rear of
the TV.
Secure them to the TV using two screws (supplied with SU-WL100).
Screw
(M4 x 12)
4 Adjust the angle of the Mounting Hook.
Mounting Hook
62
5 Align the holes on the right Mounting Hook with the corresponding holes on the rear
of the TV.
Secure them to the TV using two screws (supplied with SU-WL100).
Screw
Step 6: Install the TV on the Base Plate
Refer to the Instructions for SU-WL100.
1 Connect the cables to the corresponding inputs on the rear of the TV.
For details on the cable connection, see “Connecting Other Equipment” on page 16.
2 Install the TV onto the Base Plate.
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
(Continued) 63
Hook locations diagram
Install the TV onto the location “a” of the Base Plate.
e When using an electric screwdriver to tighten the screws, the torque must be approximately
1.5 N-m {15 kgf em}. Do not lift the Mounting Hook before the screws (two screws each for left /
right) are secured.
64
Troubleshooting
Many of the poor pictures and poor sound conditions are related to improper connection
of the cables; refer to the Quick Setup Guide provided for connections.
If you have questions, service needs, or require technical assistance related to the use
of your Sony TV even after you read this operating instructions manual, contact the
following:
For US Support:
hitp://www.sony.com/tvsupport or call 1-800-222-SONY (7669)
For Canadian Support:
http://www sony .ca/support or call 1-877-899-SONY (7669)
Things to consider
* Check the input selection by pressing the INPUT button. You may be watching the
wrong input.
* |f you cannot hear sound from the TV, you may have accidentally pressed the MUTING
button on your remote control; press the MUTING button again or press VOL + to
deactivate muting, or set Speakers to Audio System.
* |f the remote control is not functioning properly, the batteries may be installed
incorrectly or may be low or an object or light may be interfering with the remote
control.
* To reset the TV to factory default settings:
1 Turn on the TV.
2 Press and hold down the 4 button on the remote, touch the I/© button on the TV set.
(The TV will turn itself off, then back on again.)
3 Release the 4 button when the TV is turn on.
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
IMPORTANT: The factory reset will clear all of your customized settings including the
Parental Lock setting.
When the Password is lost or cannot be remembered, enter the master password: 4357.
This password clears your previous password and allows you to enter a new password.
No picture
No picture Check the Power Saving settings (see page 53).
Make sure the power cord 1s connected securely.
Turn on the power of the TY.
Check cable/antenna connections.
Make sure the Signal Type setting is correct for your TV signal
source.
Cannot receive any
channels
(Continued) 65
TV Is locked to one
channel
Perform Auto Program to add receivable channels that are not
present in the TV's memory (see pages 20 and 44).
Cannot receive or select
channels
Perform Auto Program to add receivable channels that are not
present in the TV's memory (see pages 20 and 44).
To receive or select cable channels, make sure that Signal Type
in the Channel settings is set to Cable (see page 44). To receive
or select UHF channels over an antenna, make sure Signal Type
Is set to Antenna.
The TV turns off
automatically
Check if Sleep Timer is activated (see page 50).
Check Idle TV Standby in the Eco settings.
Check Duration of Photo Frame Settings.
Check Duration if TV is turned on by On Timer.
No picture from some
video sources
Check the connection between the optional video equipment
and the TV.
Press INPUT on the remote control (see page 32).
Poor picture A
Picture quality not as
good as viewed at the
store
Picture quality depends on the signal content. See Quick Setup
Guide (supplied) to display the best possible picture for that
signal.
Broadcast HD formats
have poor quality
Content and signal quality are controlled by the signal provider.
Many HD channels and content are actually upscaled versions of
standard-definition broadcasts. The picture is affected by the
quality of the signal received, which varies between channel and
program.
Double images or ghosts
Check cable/antenna connections.
Check the antenna location and direction.
Only snow and noise
appear on the screen
Check If the antenna is broken or bent.
Check If the antenna has reached the end of its serviceable life.
(3-5 years in normal use, 1-2 years at the seaside.)
Dotted lines or stripes
Keep the TV away from noise sources such as cars, motorcycles,
or hair-dryers.
If using 300 ohm twin lead, move the excess lead away from the
TV or try using 75-ohm coaxial cable instead.
No color / Dark picture /
Color is not correct / The
picture 1s too bright
Adjust the Picture Mode options in the Picture settings (see
page 38).
If you set the Power Saving mode to Low or High, it will
enhance the black level.
Noisy picture
Make sure that the antenna is connected using a 75-ohm coaxial
cable (not supplied).
Keep the antenna cable away from other connecting cords.
To avoid TV interference, make sure to use an undamaged
antenna cable.
66
urry picture / Poor color
ransporting the rom a cold to a warm location or a sudden
change in room temperature may cause moisture condensation,
resulting in a blurry picture or poor color. Turn off your TV and
walt a few hours before powering on again.
No sound / Noisy sound
No sound but good
Check the volume control.
e Press MUTING or VOL + so that “Muting” disappears from the
screen (see page 25).
Set Speakers to TV Speakers in the Sound settings (see page
41). If itis set to Audio System, sound is not output from the TV's
speakers regardless of the TV's volume control.
When using HDMI input with Super Audio CD or DVD-Audio,
DIGITAL AUDIO OUT (OPTICAL) may not provide an audio
signal.
When tuned to a digital channel with Alternate Audio, the
broadcaster may not be broadcasting your preferred Alternate
Audio language. Press OPTIONS, highlight and select Alternate
Audio, and change the Alternate Audio language (see page
41).
Audio noise
Make sure that the antenna is connected using a 75-ohm coaxial
cable (not supplied).
e Keep the antenna cable away from other connecting cords.
e To avoid TV interference, make sure to use an undamaged
antenna cable.
No audio or low audio
with Home Theater
System
Set Speakers to Audio System in the Sound settings (see page
41).
Set Audio Out to Fixed in the Sound settings (see page 41).
No color / Irregular
Verify that the Video/Component Selection (see page 50) is set
to the current input type in use. We suggest leaving this setting to
Cannot find connected
BRAVIA Sync HDMI
device
and the optional device compatible with BRAVIA Sync (see
page 28).
Second AN receiver Is
not listed on the Device
List
* Only one A/V receiver may be used with the BRAVIA Sync and
Control for HDMI functions at one time (see page 51).
(Continued)
67
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
No picture / No signal
Confirm the PC Is correctly connected to the TV with either the
PC IN (with an HD 15 cable) or with the HDMI IN.
Ensure the output signal from the PC is one of the formats listed
on page 54.
Turn the PC off. Confirm the PC connection and restart the PC.
Plug-and-play will auto-detect the TV and correctly set up PC
timing.
Verify the PC is not in standby or hibernation mode.
Poor Picture
Adjust the resolution (see page 54).
Adjust Pitch and Phase.
TV screen feels warm
Due to the thin profile of this television, the heat generated by the
LCD panel backlight and supporting electronics will be more
noticeable. This is normal operation and not a cause for concern.
Wide Mode changes
automatically
The current Wide Mode setting is automatically replaced with the
4:3 Default setting when you change the channel or video input,
If 4:3 Default in the Screen settings is set to other than Off. If you
want to lock in Wide Mode selected with WIDE on the remote
control, set 4:3 Default to Off in the Screen settings (see page
42).
Check the Auto Wide option in the Screen settings (see page
42).
Suddenly the picture
gets smaller
The picture gets smaller during the commercials due to the
method in which the provider broadcasts their content. When HD
content channels switch to SD content (commercials), the picture
may be small with a black border.
Auto Wide will not expand the picture during these content
changes since the content information is regulated by the
channel signal provider. You can manually change the Wide
Mode if you prefer (see page 30). This setting will remain in
effect until you change the channel or input or manually change
the Wide Mode again.
“Black box” on screen
You have selected a text option and no text is available (see
page 49). To turn off this feature, set the CC Display option to
Off. If you were trying to select closed captioning, select CC1
instead of Text1-4.
68
Black bands appear at
the edges of the screen
Some wide screen programs are filmed in aspect ratios that are
greater than 16:9 (this is especially common with theatrical
releases). Your TV will show these programs with black bands at
the top and bottom of the screen. For more details, check the
documentation that came with your DVD/Blu-ray (or contact your
program provider).
Programs in 4:3 aspect ratio will have bands on left and right
sides of the screen.
Programs broadcast in HD formats (720p and 10801) with 4:3
content will commonly have black bands on the left and right
sides of the screen which are added by the broadcaster (see
image on left).
Auto Wide will not expand the picture when the black bands on
the sides of the screen are added by the broadcaster. You can
manually change the Wide Mode to Wide Zoom, or Zoom to fill
the screen, which will remain in affect until you change the
channel or input or manually change the Wide Mode again.
Certain programs on
DVD or other digital
sources display a loss of
detail, especially during
fast-motion or dark
scenes
This is due to the digital compression of the source content used
by certain digital broadcasts and DVDs which may cause your
TV's screen to display less detail than usual, or cause artifacts
(small blocks or dots, pixelations) to appear on your screen.
These signal compressions are more visible and are dependent
on the clarity and resolution of the TV.
Remote control does not
operate
To determine if the problem is with the remote control or not,
touch a button on the TV.
e Check the polarity of the batteries or replace the batteries.
e Point the remote control at the remote control sensor located at
the front of the TV.
e Keep the remote control sensor area clear from obstacles.
e Fluorescent lamps can interfere with your remote control
operation; try turning off the fluorescent lamps.
Some digital cable
channels are not being
displayed
Certain cable companies have limitations on the broadcast of
digital cable channels. Check with your cable company for more
information.
The digital cable channel may be set to Hidden in the Show/
Hide Channels setting (see page 44).
Some photo, music, or
video files are not
displaying from my USB
equipment
The accessible file or folder limit in a directory is 1,000 for USB
connected equipment. This limit includes non-supported files or
just folders. Files or folders are populated based on their time
stamps. Photo, music files or folders exceeding the limit will not
be displayed.
Photo images appear
small in the screen
Set display size to expanded.
Whether or not photo images can or cannot be displayed in full-
screen depends on the resolution or aspect ratio of the file.
Photo Images or folders
take time to display
Depending on the image dimension, file size, and number of files
in a folder, some photo images or folders take time to display.
The first time a camera Is connected to the TV via USB cable, it
may take up to a couple of minutes for the photos to display.
(Continued) 69
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Lost password
Select the Password settings on the Parental Lock settings,
then enter the following master password: 4357. This password
clears your previous password and allows you to enter a new
password (see page 45).
How to reset the TV to
factory settings
Turn on the TV. While holding down # on the remote control,
touch МО on the TV. (The TV will turn itself off, then back on
again.) Release +.
IMPORTANT: The reset will clear all of your customized settings
including the Parental Lock setting.
The TV surrounds
become warm
When the TV is used for an extended period, the TV surrounds
become warm. You may feel hot when touching there by the
hand.
70
Important Notices
Declaration of Conformity
Trade Name: SONY
Model: KDL-42EX441/KDL-42EX440/KDL-32EX340
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 82127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
For Customers in Canada
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules, These limits are designed to provide
reasonable protection against harmful interference ina
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation, If this equipment does cause harmful
interference to radio or television reception, which can be
determined by tuming the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures;
QG Reorient or relocate the receiving antenna,
QG Increase the separation between the equipment and
receiver,
QG Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
QG Consult the dealer or an experienced radio/TV
technician for help.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment,
Compatible Wall-Mount Bracket
Information
Use the following Sony Wall-Mount Bracket with your TV
model.
KDL-32EX340
KDL-42EX441
KDL-42EX440
SU-WL500 SU-WL100
Use with other Wall-Mount Brackets may cause instability
and could result in property damages or injury.
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming via subscription service to a cable service
provider. Availability of digital cable television programming
in your area depends on the type of programming and signal
provided by your cable service provider.
To Customers
Sufficient expertise is required for TV installations. Be sure to
subcontract the installation to a Sony dealer or licensed
contractor and pay adequate attention to safety during the
installation.
Pour les clients résidant au Canada
Cet appareil numérique de la classe B est conforme ala
norme NMB-003 du Canada.
Information sur le support de fixation murale
compatible
Utilisez le support de fixation murale Sony ci-dessous
correspondant au modele de votre téléviseur,
KDL-42EX441 KDL-32EX340
KDL-42EX440
SU-WL500 SU-WL100
L'utilisation c'un autre support de fixation murale peut
provoquer l'instabilité de l'appareil et causer des Diessures
ou des dommages matériels.
71
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Specifications
Television system
NTSC: American TV standard
ATSC (8VSB terrestrial). ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage
Analog terrestrial: 2 - 69 / Digital terrestrial; 2 - 69
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system
LCD (Liquid Crystal Display) Panel
Speaker output
KDL-42EX440/KDL-32EX340: 6 W + 6 W
KDL-42EX441: 8 W + 8 W
Input/Output jacks ЗМС,
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO IN VIDEO: 1 Vp-p, 76 ohms unbalanced, sync negative
AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms
COMPONENT IN
YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB. 0.7 Vp-p,
75 ohms
PR: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480р, 720p, 1080i, 1080p
AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms
HDMI IN 1/2 HDMI: Video: 480i, 480р, 720р, 10801, 1080p, 1080/24p
Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dolby Digital
PC Input (see page 54)
AUDIO QUT 500 mVrms (typical)
DIGITAL AUDIO OUT PCM/Dolby Digital optical signal
(OPTICAL)
PC IN D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See the PC Input Signal Reference Chart for PC and HDMI IN on page 54.
PC/HDMIIN 3 AUDIO IN
Stereo mini jack, 500 mYrms, (Typical) / Impedance: 47 kilohms
USB
Photo, Music and Video
Power and others
Power requirement
Power consumption
in use
in standby
Screen size”
{measured diagonally)
(inches)
(cm)
Display resolution
Speaker/Full range (2) (mm)
(inches)
Dimensions” with stand (mm)
(inches)
without stand (mm)
(inches)
wall-mount hole pattern
(mm)
wall-mount screw size
(mm)
110-240 V AC, 50/60 Hz (U.S.A /Canada/Mexico 120 V AC, 60 Hz)
95 W
55 W
Less than 0.15 W with 120 V AC and with 240 V AC less than 0.3 W
42
106.7
31.5
(32 class)
80.0
1,920 dots (horizontal) x 1,080 lines (vertical) | 1,366 dots (horizontal) x 768 lines (vertical)
40 x 100
(1% x4)
983 x 643 x 233
38 3/, x 25 9/5 x 9 ‘14
983 x 603 x 75
38%, x 23%, x3
300 x 300
M6 (length: refer to diagram on page 55)
753 x 510 x 213
20%, x 20 Vg x 817
753 x 471 x 71
29 3/4 x 18 °/a x 2 "la
200 x 100
M4 (length: refer to diagram on page 55)
Mass*
with stand
Kg
14.1
7.7
(kg)
(ib) 31.1 17.0
without stand (kg) 13.2 7.1
(ib) 29.1 15.7
Supplied accessories
common to all models
Remote control RM-YDO80 (1)/Size AA batteries (2)/Operating Instructions (1)/Quick Setup
Guide (1)Warranty Card (1)/Safety and Regulatory Booklet (1)/Software License (1)/Stand
installation guide (1)/Table-Top Stand (1 set)/Screw (3)
Optional accessories
Connecting cables / Support Belt Kit / Wall-Mount Bracket: SU-WL500 (KDL-42EX441/
42EX440), SU-WL100 (KDL-32EX340)
e Optional accessories avallability depends on lts stock.
e Design and specifications are subject to change without notice.
* Dimensions and mass are approximate values.
73
O
pd
=
o
==
3
==
O
==
3
jb)
=
O
=
Index
0-9 buttons 25
4:3 Default 42
A
Add Digital Channels 44
Advanced Settings 39
Alternate Audio 41
Analog Fine Tune 44
AUDIO OUT 10
Audio Out 41
Auto Display Area 42
Auto Program 20, 44
Auto Shut Off 53
Auto Wide 42
AV Setup 50
B
Backlight 38
Balance 40
Bass Booster 40
Brightness 38
C
CABLE/ANTENNA 10
CC button 25
CH +/- button 25, 26
Change Password 45
Channel Block 45
CineMotion 38
Clock/Timers 50
Closed Captions (CC) 49
Color 38
Color Temperature 38
Colored buttons 24
COMPONENT IN 11
Country 45
D
DIGITAL AUDIO OUT (OPTICAL)
10
Display Area 42
DISPLAY button 25
Downloadable U.S. Rating 45
E
Edit Channel Labels 44
English Rating 47
Equalizer 40
Equipment Control button 23
External Input Block 45
F
French Rating 47
74
H
HDMI IN 11
HDMI Settings 51
HDMI/DVI Audio Source 41
HOME/MENU button 24, 27
Horizontal Center 42, 43
Hue 38
Idle TV Standby 53
Info Banner 50
Infrared Receiver (IR) 26
Initial Setup 50
INPUT button 23, 26
Installing the TV on a wall 55, 56
J
JUMP button 25
L
Language 50
Light sensor 26, 53
M
Movie Rating 46
MPEG Noise Reduction 38
MTS Audio 41
Music 32
MUTING button 25
N
Noise Reduction 38
O
OPTIONS button 25
P
Password 45
PC IN 10
PC Settings 43
Photo 32
Photo Frame 34
Photo Frame Settings 48
Picture 38
Picture Adjustments Lock 51
Picture Mode 38
Picture Off (34) LED 26
PIP 29
Power (1) button 26
POWER (I/D) button 25
POWER (I) LED 26
Power Saving 53
Product Support 52
R
Rating 45
Reset 38, 40, 53, 70
RETURN button 24
S
SCENE button 24
Settings
Channel 44
Eco 53
Parental Lock 45
Picture 38
Screen 42
Setup 48
Sound 40
Sharpness 38
Show/Hide Channels 44
Signal Type 44
Sound Mode 40
Speaker 27
Speakers 41
Standby (0) LED 26
Startup Logo 50
Steady Sound 40
Surround 40
SYNC MENU button 23
T
Timer (6)) LED 26
Troubleshooting 65-70
TV Rating 46
U
U.S.A. Rating 47
Unrated 45
USB 11
USB Auto Start 48
V
Vertical Center 43
Video 32
VIDEO IN 11
Viewing Blocked Programs 47
VOL (A) +/- button 25, 26
Volume Offset 40
W
WIDE button 25
Wide Mode 42, 43
For Your Convenience
Be sure to register your TV.
United States http://productregistration.sony.com
Canada http://Wwww.sony.ca/registration
4-433-081-11(1)
hitp://www.sony.net/
© 2012 Sony Corporation Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
