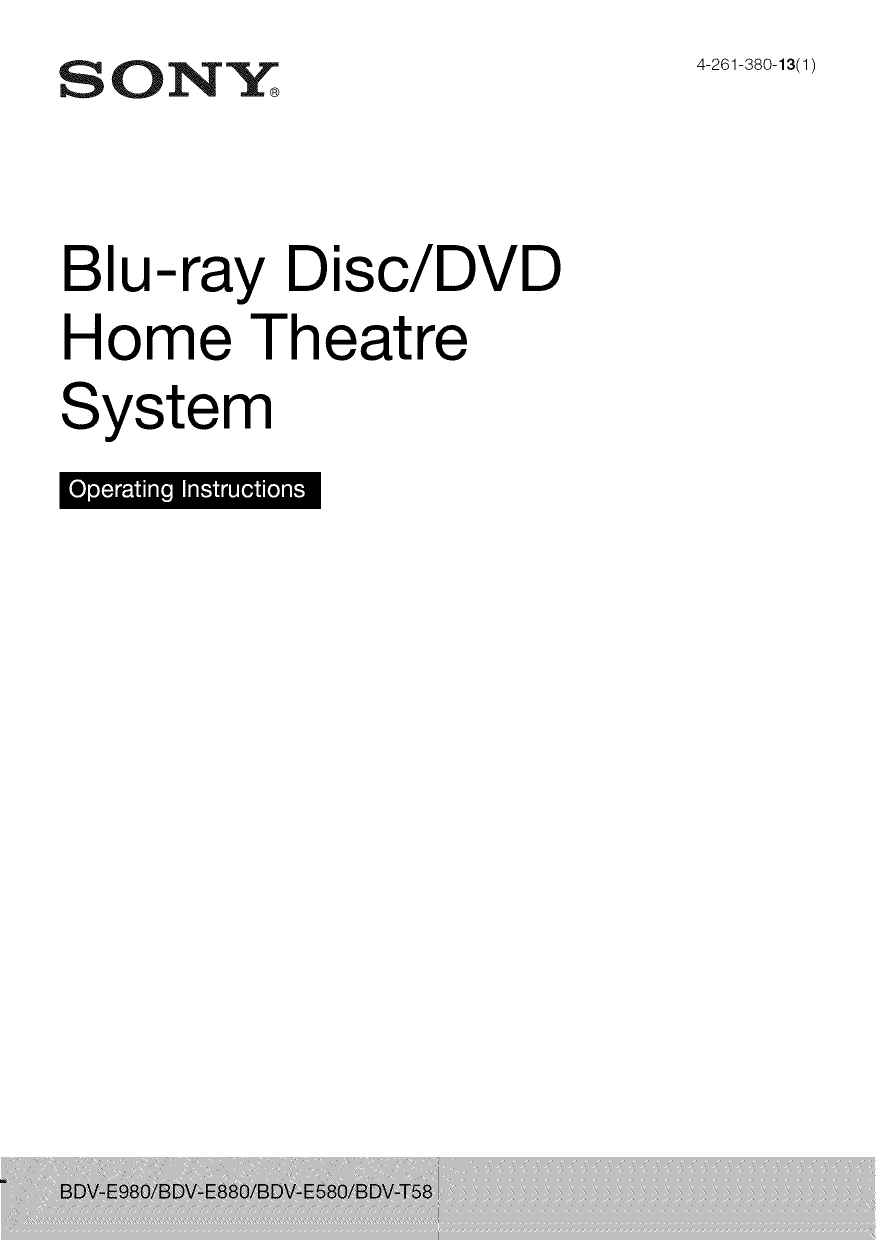

Sony BDV-E580 DVD Home Theater System Owner's Manual

4-261-380-13(1)
Blu-ray Disc/DVD
Home Theatre
System
Operating Instructions
205
WARNING
Do not install the appliance in a
confined space, such as a bookcase
or built-in cabinet.
To reduce the risk of fire, do not
cover the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc. Do not
place the naked flame sources such
as lighted candles on the apparatus.
Do not expose batteries or
apparatus with battery-installed to
excessive heat such as sunshine,
fire or the like.
To prevent injury, this apparatus
must be securely attached to the
floor/wall in accordance with the
installation instructions.
Indoor use only.
CAUTION
The use of optical instruments with
this product will increase eye
hazard. As the laser beam used 1n
this Blu-ray Disc / DVD Home
Theatre System is harmful to eyes,
do not attempt to disassemble the
cabinet.
Refer servicing to qualified
personnel only.
CAUTION CLASS OK VISIBLE AND INVISIBLE LASER RADIATION
WHEM OPER, AVOID DIRECT EYE EXPOSURE,
VORSICHT KLASSE SR SICHTBARE UND UNSICHTBARE
LASERSTAAHLUNG WENN SEÖFFMET,
UMMITTELBAREN AUGEMKÖNTAKT VERMEIDEN.
ADVARSEL SYNLIG 0G USYNLIG LASERSTRÁL ING AF KLASSE 3R
VEO ÁBNING. UNDGÁ AT SE DIREKTE 2Á STRÁLEN.
ADVARSEL SYHLIG 06 USYHLIG £ LASERSTRAL ING | KLASSE ЗВ NÁS
ENSEL ÁPMES. UBNGÁ DISENTE EXSPONERING AY OYMEME,
Кд 3R SYNLIG OC OSYALLIG LASERSTRÁLAIG
NÁR DENSA DEL AR ÚPPRAD. NDVI AFF DIRERT
Ae ÖGONEM FÜR STRÁLAINGEN,
VARO! AVATTLSJA LUOKAN 38 МАКУМАА ЧА МАКУМАТОМТА
LASERSÁTER YE, VALTÁ KATSEEN SUORAA ALTISTAMISTA.
LE DANERAT OA NTENIER, BARRES TRE
HE TRE ERA TANT RRHER, ERREÈRRE,
VARNING
This appliance is classified as a
CLASS 3R LASER product.
Visible and invisible laser radiation
is emitted when the laser protective
housing 1s opened, so be sure to
avoid direct eye exposure.
This marking is located on the laser
protective housing inside the
enclosure.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
12 ОСЛЕ 5h
This appliance is classified as a
CLASS 1 LASER product. This
marking is located on the rear
exterior.
For the customers in
the U.S.A.
To reduce the risk of fire
or electric shock, do not
expose this apparatus to
rain or moisture.
These following indications are
located on the rear exterior.
RISK OF ELECTRIC SHOCK
LE
TENTIO
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIA
, This symbol is intended to
4 alert the user to the
presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to
alert the user to the
presence of Important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Owners Record
The model and serial numbers are
located on the bottom exterior of
the unit. Record these numbers 1n
the space provided below. Refer to
them whenever you call upon your
Sony dealer regarding this product.
Model No. BDV-E580/BDV-T58
Serial No. ~~~
The following FCC statement
applies only to the version of this
model manufactured for sale in the
U.S.A. Other versions may not
comply with FCC technical
regulations.
NOTE:
This equipment has been tested and
found to comply with the limits for
a Class B digital device, pursuant to
Part 15 of the FCC Rules. These
limits are designed to provide
reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses, and can radiate
radio frequency energy and, if not
installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there 1s
no guarantee that interference will
not occur in a particular
installation. If this equipment does
cause harmful interference to radio
or television reception, which can
be determined by turning the
equipment off and on, the user 1s
encouraged to try to correct the
interference by one or more of the
following measures:
— Reorient or relocate the receiving
antenna {aerial}.
— Increase the separation between
the equipment and receiver.
— Connect the equipment into an
outlet on a circuit different from
that to which the receiver 1s
connected.
— Consult the dealer or an
experienced radio/TV technician
for help.
CAUTION
You are cautioned that any changes
or modifications not expressly
approved in this manual could void
your authority to operate this
equipment.
Properly shielded and grounded
cables and connectors must be used
for connection to host computers
and/or peripherals in order to meet
FCC emission limits.
Important Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
A
) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings. Install in accordance
with the manufacturer’s
instructions.
8) Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety
purpose of the polarized or
grounding-type plug. A
polarized plug has two blades
with one wider than the other. A
grounding type plug has two
blades and a third grounding
prong. The wide blade or the
third prong are provided for
your safety. If the provided
plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete
outlet.
10) Protect the power cord from
being walked on or pinched
particularly at plugs,
convenience receptacles, and
the point where they exit from
the apparatus.
11) Only use attachments/
accessories specified by the
manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use caution
when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing 1s
required when the apparatus
has been damaged in any way,
such as power-supply cord or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed to
rain or moisture, does not
operate normally, or has been
dropped.
The nameplate and the date of
manufacture marking are located
on the bottom exterior.
For the customers in
Mexico and Latin
America
To reduce the risk of fire or electric
shock, do not expose this apparatus
to dripping or splashing, and do not
place objects filled with liquids,
such as vases, on the apparatus.
The nameplate is located on the
bottom exterior.
Precautions
On power sources
» The unit 1s not disconnected from
the mains as long as it is
connected to the AC outlet, even
if the unit itself has been turned
off.
As the main plug 1s used to
disconnect the unit from the
mains, connect the unit to an
easily accessible AC outlet.
Should you notice an abnormality
in the unit, disconnect the main
plug from the AC outlet
immediately.
On watching 3D video
images
Some people may experience
discomfort (such as eye strain,
fatigue, or nausea) while watching
3D video images. Sony
recommends that all viewers take
regular breaks while watching 3D
video images. The length and
frequency of necessary breaks will
vary from person to person. You
must decide what works best. If you
experience any discomfort, you
should stop watching the 3D video
images until the discomfort ends;
consult a doctor if you believe
necessary. You should also review
(1) the instruction manual and/or the
caution message of any other
device used with, or Blu-ray Disc
contents played with this product
and (11) our website (http://
esupport.sony.com/) for the latest
information. The vision of young
children (especially those under six
years old) 1s still under
development. Consult your doctor
(such as a pediatrician or eye
doctor) before allowing young
children to watch 3D video images.
Adults should supervise young
children to ensure they follow the
recommendations listed above.
For the Blu-ray Disc/
DVD receiver (HBD-
E580/HBD-T58)
(For the customers in
the U.S.A.)
This equipment must not be co-
located or operated in conjunction
with any other antenna or
transmitter.
This equipment complies with FCC
radiation exposure limits set forth
for an uncontrolled environment
and meets the FCC radio frequency
(RF) Exposure Guidelines in
Supplement € to OETOS.
This equipment should be installed
and operated keeping the radiator at
least 20cm or more away {rom
person’s body (excluding
extremities: hands, wrists, feet and
ankles).
Jus
Jus
Copy Protection
Please be advised of the advanced
content protection systems used in
both Blu-ray Disc™ and DVD
media. These systems, called
AACS (Advanced Access Content
System} and CSS (Content
Scramble System), may contain
some restrictions on playback,
analog output, and other similar
features. The operation of this
product and the restrictions placed
may vary depending on the date of
purchase, as the governing board of
the AACS may adopt or change its
restriction rules after the time of
purchase.
Copyrights and
Trademarks
» This system incorporates with
Dolby” Digital and Dolby Pro
Logic (II) adaptive matrix
surround decoder and the DTS**
Digital Surround System.
Manufactured under license
from Dolby Laboratories.
Dolby, Pro Logic, and the
double-D symbol are
trademarks of Dolby
Laboratories.
#* Manufactured under license
under U.S. Patent Fs:
3,451,942: 5,950,074:
3,974,380; 5,978,702;
6,220,016; 6,487,533;
7,212,872; 7,333,929;
7,392,195, 7,272,567 &
other U.S. and worldwide
patents issued & pending.
DTS, DTS-HD and the
Symbol are registered
trademarks, & DTS-HD
Master Audio, and the DTS
logos are trademarks of
DTS, Inc. Product includes
software. © DTS, Inc. All
Rights Reserved.
» This system incorporates High-
Definition Multimedia Interface
(HDMI™, technology.
HDMI, the HDMI logo and High-
Definition Multimedia Interface
are trademarks or registered
trademarks of HDMI Licensing
LLC in the United States and
other countries.
Java is a trademark of Oracle and/
or its affiliates.
“BD-LIVE” and
“BONUSVIEW” are trademarks
of Blu-ray Disc Association.
“Blu-ray Disc” 15 a trademark.
“Blu-ray Disc,” “DVD+RW.”
“DVD-RW.” “DVD+R,” “DVD-
R,” “DVD VIDEO,” and “CD”
logos are trademarks.
“Blu-ray 3D” and “Blu-ray 3D”
logo are trademarks of Blu-ray
Disc Association.
“BRAVIA” 15 a trademark of
Sony Corporation.
“AVCHD” and the “AVCHD”
logo are trademarks of Panasonic
Corporation and Sony
Corporation.
e, “XMB,” and “xross media
bar” are trademarks of Sony
Corporation and Sony Computer
Entertainment Inc.
“PLAYSTATION” 18 a trademark
of Sony Computer Entertainment
Inc.
Music and video recognition
technology and related data are
provided by Gracenote.
Gracenote 1s the industry standard
in music recognition technology
and related content delivery. For
more information, please visit
www.gracenote.com.
CD, DYD, Blu-ray Disc, and
music and video-related data from
Gracenote, Inc., copyright ©
2000-present Gracenote.
Gracenote Software, copyright ©
2000-present Gracenote. One or
more patents owned by Gracenote
apply to this product and service.
See the Gracenote website for a
nonexhaustive list of applicable
Gracenote patents. Gracenote,
CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype,
and the “Powered by Gracenote”
logo are either registered
trademarks or trademarks of
Gracenote in the United States
and/or other countries.
gracenote
+ The Wi-Fi CERTIFIED'M Logo
is a certification mark of the
Wi-Fi Alliance.
» The Wi-Fi Protected Setup™
Mark is a mark of the Wi-Fi
Alliance,
* “Wi-Fi CERTIFIED™" and “Wi-
Fi Protected Setup!M” are
trademarks of the Wi-Fi Alliance.
+ “PhotoTV HD” and the “PhotoTV
HD” logo are trademarks of Sony
Corporation.
* MPEG Layer-3 audio coding
technology and patents licensed
from Fraunhofer IIS and
Thomson.
» (Phone, 1Pod, 1Pod classic, 1Pod
nano, and iPod touch are
trademarks of Apple Inc.,
registered in the U.S. and other
countries.
Made for
iPod [JiPhone
“Made for iPod,” and “Made for
iPhone” mean that an electronic
accessory has been designed to
connect specifically to 1Pod or
iPhone, respectively, and has been
certified by the developer to meet
Apple performance standards.
Apple is not responsible for the
operation of this device or its
compliance with safety and
regulatory standards. Please note
that the use of this accessory with
iPod or iPhone may affect
wireless performance.
Windows Media is either a
registered trademark or trademark
of Microsoft Corporation in the
United States and/or other
countries.
This product contains technology
subject to certain intellectual
property rights of Microsoft. Use
or distribution of this technology
outside of this product 1s
prohibited without the appropriate
license(s) from Microsoft.
Content owners use Microsoft
PlayReady " content access
technology to protect their
intellectual property, including
copyrighted content. This device
uses PlayReady technology to
access PlayReady-protected
content and/or WMDRM-
protected content. If the device
fails to properly enforce
restrictions on content usage,
content owners may require
Microsoft to revoke the device’s
ability to consume PlayReady-
protected content. Revocation
should not affect unprotected
content or content protected by
other content access technologies.
Content owners may require you
to upgrade PlayReady to access
their content. If you decline an
upgrade, you will not be able to
access content that requires the
upgrade.
DLNA® the DLNA Logo and
DLNA CERTIFIED" are
trademarks, service marks, or
certification marks of the Digital
Living Network Alliance.
All other trademarks are
trademarks of their respective
owners.
Other system and product names
are generally trademarks or
registered trademarks of the
manufacturers. ™ and ® marks
are not indicated in this document.
About These
Operating
Instructions
The instructions in these
Operating Instructions
describe the controls on the
remote. You can also use the
controls on the unit if they
have the same or similar
names as those on the remote.
In this manual, “disc” 1s used
as a general reference for
BDs, DVDs, Super Audio
CDs, or CDs unless otherwise
specified by the text or
illustrations.
The instructions in this
manual are for BDV-E380,
BDV-E880, BDV-E980, and
BDV-T38. BDV-E580 1s the
model used for illustration
purposes. Any difference in
operation 1s clearly indicated
in the text, for example,
“BDV-ES80 only.”
Some illustrations are
presented as conceptual
drawings, and may be
different from the actual
products.
The items displayed on the
TV screen may vary
depending on the area.
The default setting 1s
underlined.
Kus
6”
Table of Contents
About These Operating Instructions ....... 5
Unpacking cocoon, 7
Index to Parts and Control 11
Getting Started
Step 1: Installing the System....... 16
Step 2: Connecting the System...20
Step 3: Connecting to the
X 27
Step 4: Performing the Easy
Setup orci 29
Step 5: Selecting the Source ....... 30
Step 6: Enjoying Surround
Sound... 31
Playback
Playing a DISC ..vveveeeeeeeeeececceeeeeeee eee 34
Playing from a USB Device.................. 35
Enjoying an iPod/iPhone...........c........... 36
Playing via a Network... 38
Available Options ...........ee2eeeeeeeiereees 41
Sound Adjustment
Selecting the Effect to Suit
the Source cocoon, 43
Selecting the Audio Format, Multilingual
Tracks, or Channel... 43
Enjoying Multiplex Broadcast
Sound... eee 44
Tuner
Listening to the Radio .............2.eeeeerecee 45
Other Operations
Using the Control for HDMI Function for
“BRAVIA” SynC ...ncccieeeeceneeeiceneees 47
Calibrating the Appropriate Settings
Automatically ee 48
Setting the Speakers 49
Using the Sleep TiMeT as 50
Deactivating the Buttons on
the ÚNit .......... eee. ens 51
Controlling Your TV with the Supplied
Remote o.oo. 51
Changing the Brightness of the Front
Panel Display ….….…..…reereecceueees 51
Saving Power in Standby Mode............ 51
Browsing Websites ...............eem eee 52
Setting up the Network... 53
Settings and Adjustments
Using the Setup Display es 57
[Network Update] .................e.e e. 57
[Screen Settings].........eeerererere ces 58
[Audio Settings ie 59
[BD/DVD Viewing Settings] ............... 60
[Parental Control Settings]... 61
[Music Settings ee 61
[System Settings] ...........verererercceceeeee.s 61
[Network Setting fees 62
N 63
[Resetting] ..............memmeeenei re 63
Additional Information
Precautions «o.oo ei EEE 64
Notes about the DISCS eee. 65
TroubleshOOtINg.…...……rercrccccsceccncensenes 66
Playable DISCS ae EEE 71
Playable Types of Files ess 72
Supported Audio Formats.......cccccc....... 73
Specifications iin. 74
Language Code List... 76
Index ov, 77
Unpacking
BDV-E580/BDV-T58
Front speakers (2) * Speaker cords (5, red/white/ * HDMI cable (1)
CT) CN green/gray/blue)
(BDV-T38 only)
i
* Remote commander
(remote) (1)
* Operating Instructions
* Quick Setup Guide
* Speaker Installation Guide
* Software License
Information
+ Fasy Setup Disc (DVD)
75
BUS
BDV-E880
* Front speakers (2) » Speaker cords (5, red/white/ — * FM wire antenna (aerlal) (1)
== — green/gray/blue) em .
et Ts
* Remote commander
(remote) (1)
ari ein FE
* Surround speakers (2)
= = * Lower parts of the front
speakers (2)
* Operating Instructions
* Quick Setup Guide
* Speaker Installation Guide
* Screws (black) (6) * Software License
Information
BDV-E980
Front speakers (2)
msn,
= =
Mitra ire a
* Surround speakers (2)
иже анты,
frees eed Dominica
tos
mimada? iras tia or?
* Center speaker (1)
* Subwoofer (1)
* Speaker cords (5, red/white/ + FM wire antema (aerial) (1)
green/gray/blue)
* Remote commander
(remote) (1)
* Speaker-bottom covers (4)
* Bases (4)
* Lower parts of the front and
surround speakers (4)
* Operating Instructions
* Quick Setup Guide
* Speaker Installation Guide
* Software License
E 5 E | Information
e Screws (silver) (4)
® Screws (black) (12)
gus
Insert two R6 (size AA) batteries (supplied) by matching the ® and © ends on the batteries to the
markings inside the compartment.
105
Index to Parts and Control
For more information, refer to the pages indicated in parentheses.
| | a momo we we wen Y
EA! | F
NN — — 7
[6] [5] [4] [3]
Front panel display «<< (USB) port (page 35)
Soft-touch buttons/indicators Used for connecting a USB device.
=
A (open/close) (page 34) Power indicator
Opens or closes the disc tray. Lights up while the system is turned on.
> (play) Disc tray (page 34)
Starts or re-starts playback (resume play). 6] O (on/standby/Remote sensor
Plays a slideshow when a disc containing Tums on the unit, or sets 1t to standby mode.
JPEG image files is inserted.
About soft-touch buttons/
indicators
These buttons function when the soft-touch
button indicators are lit.
You can turn on/off the indicators by setting
[Iumination/Displav] (page 61). When vou set
[Hlumination/Display] to [Simple/Oft], the
E (stop)
Stops playback and remembers the stop
pont (resume pont).
The resume point for a title/track is the last
point you played or the last photo for a
photo folder.
VOL H Indicators turn off. In this case, touch any soft-
Adjusts the system s volume. touch button. When the indicators light up,
FUNCTION touch the desired button.
Selects the playback source.
* These buttons work when you touch them lightly. Do
not press on them with excessive force.
115
About the indications in the front panel display
Displays the system’s playing status. [6] Lights up when muting is on.
Lights up when repeat play is Displays the system’s status, such as
activated. radio frequency, etc.
Lights up when stereo sound is Lights up when outputting 720p/1080i/
received. (Radio only) 1080p video signals from the HDMI
Lights up when the system is playing (OUT) jack or 720p/1080i video signals
via the PARTY STREAMING function. from the COMPONENT VIDEO OUT
jacks.
a
Lights up when the HDMI (OUT) jack is
correctly connected to an HDCP (High-
bandwidth Digital Content Protection)-
compliant device with HDMI or DVI
(Digital Visual Interface) input.
1205
NE
| ©
a
6]
SPEAKERS jacks (page 20)
COMPONENT VIDEO OUT jacks (page
22)
<< (USB) port (page 35)
SAT/CABLE (DIGITAL IN COAXIAL)
jack (page 24)
ANTENNA (FM COAXIAL 75Q) jack
(page 26)
A.CAL MIC jack (pages 29, 48)
SN
ek =] E l9
AUDIO (AUDIO IN L/R) jacks (page 24)
TV (DIGITAL IN OPTICAL) jack (page
22)
LAN (100) terminal (page 27)
HDMI (IN 2) jack (page 24)
HDMI (IN 1) jack (page 24)
HDMI (OUT) jack (page 22)
VIDEO OUT jack (page 22)
1375
1405
SPEAKERS 16
T-AUDIO TYiZO) Q
=
DIMMER | we
SLEEP | jue
| 9 | FUNCTION Le
J
PARTES)
№
„ен, SUBTITLE
YELLOW BLUE HED GREEN
co]
=
[©]
o
Number 5, AUDIO, VOL +, and ** buttons
have a tactile dot. Use the tactile dot as a
reference when operating the remote.
° : For TV operations
(For details, see “Controlling Your TV with
the Supplied Remote” (page 51).)
A (open/close)
Opens or closes the disc tray.
SPEAKERS TV— AUDIO
Selects whether TV sound 1s output from
the system's speakers or the TV's
speaker(s). This function works only when
you set [Control for HDMI] to [On]
(page 61).
TV IX!) (on/standby) (page 51)
Turns on the TV or sets it to standby mode.
10 (on/standby) (pages 29, 45)
Turns on the system or sets 1t to standby
mode.
Number buttons (pages 46, 51)
Enters the title/chapter numbers, preset
station number, etc.
AUDIO (pages 43, 44)
Selects the audio format/track.
SUBTITLE (page 60)
Selects the subtitle language when
multilingual subtitles are recorded on a BD-
ROM/DVD VIDEO.
Color buttons (yellow/blue/red/green)
Short cut keys for selecting items on some
BD menus (can also be used for Java
Interactive operations on BDs).
TOP MENU
Opens or closes the BD's or DYD's Top
Menu.
POP UP/MENU
Opens or closes the BD-ROM's Pop-up
Menu, or the DY Ds menu.
OPTIONS (pages 31, 41. 52)
Displays the options menu on the TV screen
or in the front panel display. (The location
differs based on the selected function.)
RETURN
Returns to the previous display.
€/t/v/>
Moves the highlight to a displayed item.
(enter)
Enters the selected item.
SOUND MODE +/- (page 43)
Selects the sound mode.
HOME (pages 29, 45, 48, 49, 52, 53, 57)
Enters or exits the systems home menu.
6]
Playback operation buttons
See “Playback” (page 34).
HE/D>>I (previous/next)
Skip to the previous/next chapter, track, or
file.
4=e/eo=p (replay/advance)
Briefly replay the current scenes for 10
seconds./Briefly fast forwards the current
scenes for 15 seconds.
««/>»№ (fast/slow/freeze frame)
Fast reverse/fast forward the disc during
playback. Each time you press the button,
the search speed changes.
Activates slow-motion play when pressed
for more than one second in pause mode.
Plays one frame at a time when pressed 1n
pause mode.
Slow-motion and single-frame playback are
not available for Blu-ray 3D Discs.
> (play)
Starts or re-starts playback (resume play).
Activates One-Touch Play (page 47) when
the system is on and set to the “BD/DYD”
function.
Il (pause)
Pauses or re-starts playback.
E (stop)
Stops playback and remembers the stop
point (resume point). The resume point for
a title/track 1s the last point you played or
the last photo for a photo folder.
Radio operation buttons
See “Tuner” (page 45).
PRESET +/-
TUNING +/—
MUTING
Turns off the sound temporarily.
VOL +/- (page 45)
Adjusts the volume.
TV VOL +/- [TV]
Adjusts the TV volume.
TV INPUT
Switches the TVs input source between the
TV and other input sources.
DISPLAY (pages 34, 38, 52)
Displays playback and web browsing
information on the TV screen.
Displays the preset radio station, frequency,
etc., in the front panel display.
Displays the stream information/decoding
status in the front panel display when the
function 1s set to other than “BD/DYD,”
“TM,” and “AUDIO.” When the system 1s
set to the “HDMI,” “HDML2,” “TV.” or
“SAT/CABLE” function, the stream
information/decoding status appears only
when a digital signal 15 input.
The stream information/decoding status
may not appear depending on the stream or
item being decoded.
DIMMER (page 51)
Changes the brightness of the front panel
display.
SLEEP (page 50)
Sets the sleep timer.
FUNCTION (pages 30, 45)
Selects the playback source.
FAVORITES
Displays the Internet contents added to the
Favorites List. You can save 18 favorite
Internet contents.
15%
Step 1: Installing the System
Install the system by referring to the illustration below.
® Front speaker (L (left)
Front speaker (R (right))
© Center speaker
® Surround speaker (L (left))
® Surround speaker (R (right))
(F) Subwoofer
@ Unit
+ Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,
oiled, polished, etc.) floor, as staining or discoloration may result.
* Do not lean or hang on a speaker, as it may fall down.
» To assemble the speakers, refer to the supplied “Speaker Installation Guide.” (BDV-E880/BDV-E980 only)
* You can install the speakers on a wall. For details, refer to the supplied “Speaker Installation Guide.”
16”
(BDV-E980 only)
You can arrange the subwoofer's speaker cord by changing which direction it protrudes from the
bottom of the subwoofer.
Bottom of the subwoofer
When packing is opened:
Speaker cord is connected.
* To avoid short-circuiting the speakers, make sure that the speaker cord connection 1s not like the following
examples. If there is a problem, correct it.
Examples of an improper speaker cord connection
Stripped speaker cord is touching Stripped cords are touching each other
another speaker terminal due to excessive removal of insulation
175
When installing the subwoofer with the wide side facing forward
* Toward the listening position
1 Secure the speaker cord in the speaker cord holder to the right of the speaker terminal.
Speaker cord holder to the
right of the speaker terminal …
185
When installing the subwoofer with the narrow side facing forward
Toward the listening position
1 Secure the speaker cord in the speaker cord holder to the left of the speaker terminal.
Speaker cord holder to the left of
the speaker terminal
195
Step 2: Connecting the System
For connecting the system, read the information on the following pages.
Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other
connections are made.
To assemble the speakers, refer to the supplied “Speaker Installation Guide.” (BDV-E880/BDV-E980
only)
* When you connect another component with a volume control, turn down the volume of the other components to a
level where sound 1s not distorted.
To connect speaker cords to the speaker
You need to connect a speaker cord to each of the front, center, and surround speakers.
The connector of the speaker cords and the color tube are color-coded based on the speaker type.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with
the color tube to ®, and the speaker cord without the color tube to ©. Do not catch the speaker cord
insulation (rubber covering) in the speaker terminals.
Rear or bottom of the speaker
Connector
2075
To connect speaker cords to the unit
Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.
When connecting to the unit, insert the connector until it clicks.
(Front right
speaker (R)) -
White
(Front left
speaker (L)) —. wu a ео ~ Purple
Red | | y (Subwoofer)
AIN CN, ON ACN
Green
(Center speaker)
Rear panel of the unit
Gray Blue
(Surround right (Surround left
speaker (R)) speaker (L))
21 US
Connect the system to your TV to display the image of the system on your TV, and listen to TV sound
via the system’s speakers.
Depending on the jacks and functions on your TV, select the connection method.
« When your TV has an HDMI jack that is marked “ARC”: Connection ®
* When your TV has an HDMI jack: Connections @ and D
« When your TV has component video input jacks: Connections ® and ®
* When your TV does not have jacks above: Connections © and D
Video connections Audio connection
HDMI cable? Component Video cord Digital optical cord
video cable (not supplied) (not supplied)
(not supplied)
7000000000
Image quality
1 COMPONENT VIDEO IN | I vipeomn |
ER ra
Signal flow
: Video signal
——" ! Audio signal
Rear panel of the unit
Y Audio Return Channel. For details, see “About Audio Return Channel” (page 23).
The HDMI cable is supplied with BDV-E880/BDV-E980/BDV-T58 only.
Y Available only when your TV is compatible with the Audio Return Channel function.
2205
A HDMI cable connection
It your TV has an HDMI jack, connect to the TV with an HDMI cable. This will provide better image
quality compared to other types of connections.
When connecting with an HDMI cable, you need to select the type of output signal when performing
the Easy Setup (page 29).
For further HDMI settings, see “[HDMI Settings |” (page 61).
About Audio Return Channel
If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also
sends a digital audio signal from the TV. You do not need to make a separate audio connection for
listening to TV sound. For setting the Audio Return Channel function, see [Audio Return Channel]
(page 61).
Component video cable connection
If your TV does not have an HDMI jack, but has component video input jacks, connect to the TV with
a component video cable. Picture quality will be improved compared to using a video cord connection.
When connecting with a component video cable, you need to select the type of output signal in the Easy
Setup (page 29).
© Video cord connection
If your TV does not have an HDMI jack or a component video input jack, make this connection.
O) Digital optical cord connection
This connection sends an audio signal to the system from the TV. To listen to TV sound via the system,
perform this connection. With this connection, the system receives a Dolby Digital multiplex broadcast
signal and you can enjoy multiplex broadcast sound.
* You can enjoy the TV sound by selecting the “TV” function (page 30).
* If your TV does not have a digital optical output jack, you can connect the unit and your TV with an audio cord for
listening to TV sound via the system. For connection details, see “Connecting the other components” (page 24).
2375
When a component you wish to connect to the system has an HDMI
(OUT) jack
You can connect a component that has an HDMI (OUT) jack such as a set-top box/digital satellite
receiver or PLAYSTATIONS3, etc., with an HDMI cable. An HDMI cable connection can send both
video and audio signals. By connecting the system and the component using an HDMI cable, you can
enjoy high-quality digital picture and sound via the HDMI (IN 1) or HDMI (IN 2) jack.
Rear panel of the unit
ae \_ TS
HDMI cable (not supplied)
PE
cat
Dro ateo
To the HDMI QUT jack of the set-top box/
digital satellite receiver or
PLAYSTATION®3, etc.
* Video signals from the HDMI (IN 1/ 2) jacks are sent to the HDMI (OUT) jack only when the “HDMI” or
“HDMI?” function 15 selected.
* To send an audio signal from the HDMI (IN 1/2) jacks to the HDMI (OUT) jack, you may need to change the audio
output setting. For details, see [Audio Output] in [Audio Settings] (page 39).
2405
When the component does not have an HDMI OUT jack
Connect the system so that video signals from the system and other component are sent to the TV, and
audio signals from the component are sent to the system as follows.
TV
Video out
y Component
Signal flow
Ma. ! Video signal
===>. © Audio signal
Depending on the jacks on the component, select the connection method.
* Component which has a digital coaxial output jack: Q
* Component which does not have a digital coaxial output jack: ©
Rear panel of the unit
a U _—
ea | Signal flow
@ Digital coaxial cord
E Q Audio cord
(not supplied) 7
{not supplied)
Par”
Tothe digital coaxial out jack
ofthe VCR or digital satellite
receiver, etc.
To the audio out jacks of the VCR, digital
satellite receiver, PlayStation, or
portable audio source, etc.
#
af
DIGITAL OUT а
EE
» If you make connection above, set [Control for HDMI] in [HDMI Settings] of [System Settings] to [Off] (page 61).
You can enjoy component sound by selecting the “SAT/CABLE” function for connection @, or the “AUDIO”
function for connection @ (page 30).
2575
Rear panel of the unit
I \_
FM wire antenna (aerial)
(supplied)
* Be sure to fully extend the FM wire antenna (aerial).
* After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
* If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM
antenna (aerial).
2675
Step 3: Connecting to the Network
* To connect the system to your network, you need to make network settings that suit your usage environment and
components. For details, see “Setting up the Network™ (page 53) and “[Network Settings ]” (page 62).
For BDV-E580/BDV-T58
Select the method based on your LAN (Local Area Network) environment.
* If you use a wireless LAN
The system has built-in Wi-Fi, and you can connect the system to the network by making the network
settings.
* If you use other than a wireless LAN
Connect to the network by making a LAN cable connection as follows.
internet
Rear panel of the unit
ADSL modem/
cable modem Broadband router
LAN 2 LAN 3
5 LAN cable
(not supplied)
J |
* The placement distance between the unit and your wireless LAN router differs based on your usage environment.
If the system cannot connect to the network or the network connection is unstable, place the unit and the wireless
LAN router closer to each other. When you cannot place the unit and the wireless LAN router closer to each other,
use the optional USB Wireless LAN Adapter (Sony UWA-BR100* only).
* To connect to a wireless LAN using a 5 GHz frequency band, you need the optional USB Wireless LAN Adapter
(Sony UWA-BR 100% only).
* As of November 2010. The USB Wireless LAN Adapter may not be available in some regions/countries.
* You can also get information for network settings from the following Sony support page:
For customers in the U.S..:
http://www.sony.com/support
For customers in Canada:
English: http://www .sony.ca/support
French: hitp://fr.sony.ca/support
For customers in Mexico and Latin America:
http://esupport.sony.com/LA
21 US
For other models
Select the method based on your LAN (Local Area Network) environment.
Rear panel of the unit
y ne VENENO: НННИЙ: DADES RE u 7 E 2 7 mm.
Internet | /
HER
%, % FE
ye uy
== es mages mr Ыб”
s ADSL modem/
cable modem Broadband router
«
USB
Sus NDS RS A A A A A SE rs rs НЫЕ 5
LAN cable ; иле ГАМ
(not supplied) | и ый lied) +
4 y not supplied)
€ prs we RE MUDA Sue WD MUDA Mes MD SEE Des ME SUE ME Me SUE Me De Hue Mes Gen TUE Pen, HT TR WHR DOUE I WHR MENO у
Wired Setup
Use a LAN cable to connect to the LAN (100) terminal on the unit.
@ USB Wireless Setup
Use a wireless LAN via the USB Wireless LAN Adapter Sony UWA-BR100* only).
The USB Wireless LAN Adapter may not be available in some regions/countries.
* As of November 2010.
Turn the unit off before connecting the extension cable or inserting the USB Wireless LAN Adapter.
After inserting the USB Wireless LAN Adapter to the base and connecting the extension cable to the
<> (USB) port (front or rear), turn the unit on again.
* The placement distance between the USB Wireless LAN Adapter and your wireless LAN router differs based on
your usage environment. If the system cannot connect to the network or the network connection 15 unstable, move
the USB Wireless LAN Adapter to a different position or place the USB Wireless LAN Adapter and the wireless
LAN router closer to each other.
* You can also get information for network settings from the following Sony support page:
For customers in the U.S.:
hitp://Www.sony.com/support
For customers in Canada:
English: http://www .sony.ca/support
French: http://fr.sony.ca/support
For customers in Mexico and Latin America:
hitp://esupport.sony.com/LA
28%
2 Connect the calibration mic to the
Step 4: Performing the A.CAL MIC jack on the rear panel.
Set up the calibration mic at ear level using
Easy Setup a tripod, etc. (not supplied). The front of
each speaker should face the calibration
Before performing Step 4 mic, and there should be no obstruction
Make sure all connections are secure, and then between the speakers and the calibration
mic.
connect the AC power cord (mains lead).
Follow the Steps below to make the basic
adjustments for using the system.
Displayed items vary depending on the country
model.
Veh
EMS, E)
1 Turn on the TV.
3 Press I.
4 Switch the input selector on your TV so
that the signal from the system
appears on the TV screen.
The Easy Setup Display for OSD language
selection appears.
E Easy Selup - 050
Select the language to be displayed by this unit,
Francais
Español
Porugués
29us
9
To
=
=a WN
Perform the [Easy Setup]. Follow the
on-screen instructions to make the
basic settings using €/1/4/>, and ').
Depending on the connection method
(page 22), perform the following setting.
* HDMI cable connection: Follow the
instructions that are displayed on the TV
screen.
* Component video cable connection:
Select the picture quality. The available
settings are as follows, from lowest to
highest picture quality: 4801%, 480p**,
720p, and 10801.
* 4801/5761 for Mexican and Latin American
models.
ek 480p/576p for Mexican and Latin American
models.
* BD-ROM playback of protected content vía
component video output is only supported at
4801* output resolution. For details, see “Copy
Protection” (page 4).
* 4801/5701 for Mexican and Latin American
models.
* Video cord connection: Select [16:9] or
[4:3] so that the picture is displayed
correctly.
For details about [Auto Calibration]
settings in [Easy Setup], see “Calibrating
the Appropriate Settings Automatically”
(page 48).
recall the Easy Setup Display
Press HOME.
The home menu appears on the TV screen.
Press €/2 to select £2
Press 1/4 to select [Easy Setup], then
press (+).
Press €/> to select [Start], then press
The Easy Setup Display appears.
3055
Step 5: Selecting the
Source
You can select the playback source.
FUNCTION
Press FUNCTION repeatedly until the
desired function appears in the front panel
display.
Fach time you press FUNCTION, the function
changes as follows.
“BD/DVD” — “FM” — “HDMIT —
“HDMP?2” > TV” — “SAT/CABLE” —
“AUDIO” — “BD/DVD” —...
Source
Disc, USB device, iPod/iPhone, or
network device to be played by the
Function
“BD/DVD”
SYS tem
FM radio (page 45)
“EM”
“HDMI 7
“HDMI2”
Component that is connected to
the HDMI (IN 1) or HDMI (IN 2)
Jack on the rear panel (page 24)
“TV” Component (TV, etc.) that 1s
connected to the TV (DIGITAL
IN OPTICAL) jack on the rear
panel, or a TV compatible with the
Audio Return Channel function
that is connected to the HDMI
(OUT) jack on the rear panel
(page 22)
“SAT/CABLE” Component that is connected to
the SAT/CABLE (DIGITAL IN
COAXIAL) jack on the rear panel
(page 24)
“AUDIO” Component that is connected to
the AUDIO (AUDIO IN L/R)
Jacks on the rear panel (page 24)
Step 6: Enjoying Surround Sound
After performing the previous Steps and starting playback, you can easily enjoy surround sound. You
can also select pre-programmed surround settings that are tailored to different kinds of sound sources.
They bring the exciting and powerful sound of movie theaters into your home.
MY, E) =
Q-—— OPTIONS
The setting method differs depending on the function.
When playing via the “BD/DVD” or “FM” function
1 Press OPTIONS.
The option menu appears on the TV screen.
Press 1/4 to select [Surround Setting], then press (3).
3 Press 1/4 repeatedly until the surround setting you want appears on the TV screen.
See the table below for surround sound setting descriptions.
Press (>).
The setting 1s made.
* Surround sound settings do not apply to Internet content.
When playing via the “HDMI1,” “HDMI2,” “TV,” “SAT/CABLE,” or
“AUDIO” function
1 Press OPTIONS.
The option menu appears in the front panel display.
2 Press T/4 repeatedly until “SUR. SET” appears in the front panel display, then press
or >.
3 Press 1/4 repeatedly until the surround setting you want appears in the front panel
display.
See the table below for surround sound setting descriptions.
4 Press O.
The setting 1s made.
31 US
5 Press OPTIONS.
The option menu in the front panel display turns off.
About speaker output of each surround setting
The table below describes the options when you connect all the speakers to the unit.
The default setting 1s [A.F.D. Multi] (A.F.D. MULTI”).
Sound from Surround setting Effect
Depending on the source. [A.F.D. Standard] The system discriminates the sound format of the source and
“A.F.D. STD” presents sound as 11 was recorded/encoded.
(AUTO FORMAT
DIRECT STANDARD)
[A.F.D. Multi] * 2 channel source: The system simulates surround sound
“A.F.D. MULTI” from 2 channel sources and outputs sound from the 5.1
(AUTO FORMAT channel speakers by duplicating 2 channel source sound
DIRECT MULTI) across each speaker.
+ Multi-channel source: The system outputs sound from the
speakers depending on the number of channels of the
SOUrce.
+ |Dolby Pro Logic] + 2 channel source: The system simulates surround sound
“PRO LOGIC” from 2 channel sources and outputs sound from the 5.1
« [Dolby PL IT Movie] channel speakers.
“PLII MOVIE” — [Dolby Pro Logic] ("PRO LOGIC”) performs Dolby Pro
Logic decoding.
— [Dolby PL II Movie] (“PLII MOVIE”) performs Dolby
Pro Logic II movie mode decoding.
* Multi-channel source: The system outputs sound from the
speakers depending on the number of channels of the
source.
* [DTS Neo:6 + 2 channel source: The system simulates surround sound
Cinema] from 2 channel sources and produces 6.1 channel sound.
“NEO6 CIN” — [DTS Neo:6 Cinema] (“NEO6 CIN”) performs DTS
* [DTS Neo:6 Music] Neo:6 Cinema mode decoding.
“NEO6 MUS” — [DTS Neo:6 Music] (“NEO6 MUS”) performs DTS
Neo:6 Music mode decoding.
* Multi-channel source: The system outputs sound from the
speakers depending on the number of channels of the
source.
[2ch Stereo] The system outputs the sound {rom the front speakers and
“2CH ST.” subwoofer regardless of sound format or number of channels.
Multi-channel surround formats are downmixed to 2
channels.
3208
+ When you select [A.F.D. Multi] CA.F.D. MULTI”), depending on the disc or source, the beginning of the sound
may be cut off while the optimum mode is automatically selected. To avoid cutting the sound, select [A.F.D.
Standard] C‘A.F.D. STD”).
+ When bilingual broadcast sound is input, [Dolby Pro Logic] ("PRO LOGIC”) and [Dolby PL II Movie] (“PLII
MOVIE”) are not effective.
* Depending on the input stream, the surround settings may not be effective.
* When you play a Super Audio CD, surround settings are not activated.
* You can also select the surround setting in [Surround Setting] of [Audio Settings] (page 60).
* For functions other than “BD/DVD,” “FM,” and “AUDIO,” you can check whether [Dolby Pro Logic] (“PRO
LOGIC”) or the DTS Neo:6 mode is activated by pressing DISPLAY repeatedly so that the stream information/
decoding status appears in the front panel display.
335
345
Playing a Disc
For playable discs, see “Playable Discs”
(page 71).
1 Switch the input selector on your TV so
that the signal from the system
appears on your TV screen.
2 Press 4, and place a disc on the disc
tray.
3 Press 4 to close the disc tray.
+ appears on the home menu and playback
starts.
H playback does not start automatically,
select EP in the EE [Video], JJ [Music], or
Some BD-ROMs with “BD-LIVE Logo*” have
bonus content and other data that can be
downloaded for enjoyment.
"ml
OLIVE.
1 Connect the USB device to the «<>
(USB) port on the rear of the unit.
For local storage, use a 1 GB or larger USB
memory.
Rear panel
Fr _r
ta
2 Prepare for BD-LIVE (BD-LIVE only).
(page 27).
+ Set [BD Internet Connection] to [Allow]
(page 60).
3 Insert a BD-ROM with BONUSVIEW/
BD-LIVE.
The operation method differs depending on
the disc. Refer to the operating instructions
of the disc.
EID
* To delete data in the USB memory, select [Erase BD
Data] in EE [Video], and press (€). All data stored in
the buda folder will be deleted.
You can enjoy Blu-ray 3D Discs with the 3D
logo*.
AFTER ET
1 Prepare for Blu-ray 3D Disc playback.
* Connect the system to your 3D-
compatible TV using a High-Speed
HDMI cable (supplied with BDV-E880/
BDV-E980/BDV-TS$ only).
* Set [3D Output Setting] and | TV Screen
Size Setting for 3D] in [Screen Settings]
(page 38).
2 Insert a Blu-ray 3D Disc.
The operation method differs depending on
the disc. Refer to the operating instructions
supplied with the disc.
Refer also to the operating instructions of your 3D-
compatible TV.
You can check the playback information, etc.,
by pressing DISPLAY.
The displayed information differs depending on
the disc type and system status.
Example: when playing a BD-ROM
E lo М [=
a
la
gong] Angle 205)
8 4
JE: English Dolby Digital Plus 344.7 48 kHz
gris Chapter HG)
f0-42-52/80-58:59
Output resolution/Video frequency
Title number or name
The currently selected audio setting
Available functions 4 angle, OD audio,
(....) subtitle)
Playback information
Displays play mode, playing status bar, disc
type, video codec, bit rate, repeat type, elapsed
time, total playing time
Chapter number
The currently selected angle
Playing from a USB
Device
You can play video/music/photo files on the
connected USB device.
For playable types of files, see “Playable Types
of Files” (page 72).
1 Connect the USB device to the <-
(USB) port on the unit.
Refer to the operating instructions of the
USB device before connecting.
Rear panel
USB device
Front panel
USB device
2 Press HOME.
The home menu appears on the TV screen.
3 Press €/> to select EA [Video],
JJ [Music], or gy [Photo].
4 Press 1/4 to select F2. [USB device
(front)] or ==. [USB device (rear)], then
press (+).
* Do not remove the USB device during
operation. To avoid data corruption or damage
to the USB device, turn the system off when
connecting or removing the USB device.
YoegÁeId В
3555
3675
Enjoying an iPod/iPhone
You can enjoy the music/video*/photo* and
charge the battery of an iPod/iPhone via the
system.
* U.S. and Canada models only.
Compatible iPod/iPhone models
The compatible iPod/iPhone models are as
follows. Update your iPod/iPhone with the latest
software before using with the system.
Made for 1Pod classic, iPod 5th generation
(video), 1Pod nano 6th generation, iPod nano 5th
generation (video camera), iPod nano 4th
generation (video), 1Pod nano 3rd generation
(video), 1Pod nano 2nd generation (aluminum),
iPod nano 1st generation, 1Pod touch 4th
generation, iPod touch 3rd generation, iPod
touch 2nd generation, 1Pod touch Ist generation,
iPhone 4, iPhone 3GS, iPhone 3G, iPhone
To
enjoy an iPod/iPhone via the
system
1
(For U.S. and Canada models)
Connect the Dock for iPod/iPhone
(supplied) to the front or rear «€ (USB)
port on the unit, then place the iPod/
iPhone onto the Dock for iPod/iPhone.
When you play a video/photo file, connect
the video out jack of the Dock for 1Pod/
iPhone to the video input jack of your TV
with a video cord (supplied) before placing
the iPod/iPhone onto the Dock for iPod/
iPhone.
Front panel
ТЕ
X
1
Rear panel
CR
Dock for
iPod/iPhone
VIDEO IN
(For other models)
Connect the iPod/iPhone to the <<
(USB) port on the unit with the iPod/
iPhone’s USB cable.
Rear panel
USB cable that is connected to the iPod/iPhone
Front panel
— y,
Emil tem
USB cable that is connected to the iPod/iPhone
Press HOME.
The home menu appears on the TV screen.
JJ [Music], or
* U.S. and Canada models only.
Press 1/4 to select Y [iPod (front)] or
Hi [iPod (rear)], then press (5).
HE If you selected [Video]* or [Music] in
Step 3
The video/music files are listed on the TV
screen. Go to the next Step.
Hl If you selected [Photo] in Step 3*
[Please change the TV input to the video
input] appears on the TV screen. Switch the
input selector on your TV so that the signal
from the iPod/iPhone appears on your TV
screen. Then, start the slideshow by
operating the iPod/iPhone directly.
* U.S. and Canada models only.
Press €/t/4/3> and to select the file
that you want to play.
The sound from the iPod/iPhone is played
on the system.
When you play a video file, switch the input
selector on your TV so that the signal from
the 1Pod1Phone appears on your TV screen.
(U.S. and Canada models only)
You can operate the iPod/iPhone using the
buttons on the remote.
For operation details, refer to the operating
instructions of the iPod/iPhone.
* To change a system setting, such as the surround
setting, while viewing images from your iPod/iPhone
on your TV, select the input on your TV for this
system before operating the system. (U.S. and
Canada models only.)
To operate the iPod/iPhone using
the remote
You can operate the iPod/iPhone using the
buttons on the remote. The following table
shows an example of buttons that can be used.
(Depending on the iPod/iPhone model. the
operation may be different.)
For HE [Video]*/] [Music]
Press Operation
> Starts play.
It Pauses play.
E Stops play.
dd or >> Fast reverses or forwards.
Idd or PP» Goes to the previous/next file or
chapter (if any).
For [Photo]*
Press Operation
» II Starts/pauses play.
When you press and hold either of
these buttons for several seconds,
the connected iPod/iPhone enters
sleep mode.
E Pauses play.
dd or >> Fast reverses or forwards.
HE or PP» Goes to the previous/next file.
When you press and hold either of
these buttons, the connected 1Pod/
iPhone fast reverses or fast forwards.
DISPLAY Turns the backlight on (or extends it
for 30 seconds).
OPTIONS, € — Returns to previous display/folder
hierarchy.
TN Selects the previous/next item.
> Enters the selected item.
* U.S. and Canada models only.
YoegÁeId В
37 US
3875
+ The iPod/Phone 1s charged when connected to the
system while the system 15 turned on.
* You cannot transfer songs onto the iPod/iPhone from
this system.
Sony cannot accept responsibility in the event that
data recorded to iPod/iPhone 1s lost or damaged when
using an iPod/iPhone connected to this unit.
* This product has been designed specifically to work
with iPod/iPhone and has been certified to meet
Apple performance standards.
Do not remove the iPod/iPhone during operation. To
avoid data corruption or damage to the iPod/iPhone,
turn the system off when connecting or removing the
iPod/iPhone.
+ The system only recognizes iPods/iPhones that have
previously been connected to the system.
* The System Audio Control function does not work
while playing video/photo files via the iPod/iPhone
(U.S. and Canada models only).
* When you connect an 1Pod that 15 not compatible with
the video output function and select H [iPod (front)]
or H [1Pod (rear)] in [Video] or [Photo], an alert
message appears on the TV screen (U.S. and Canada
models only).
* The system can recognize up to 3,000 files (including
folders).
Playing via a Network
BRAVIA Internet Video serves as a gateway
delivering selected Internet content and a variety
of on-demand entertainment straight to your
unit.
*» For customers in the U.S. and Canada:
Some Internet content requires registration via a PC
before it can be played. For further details, visit the
following website:
http://www.sony.com/biuraysupport/
1 Prepare for BRAVIA Internet Video.
Connect the system to a network (page 27).
2 Press €/> to select
JJ [Music], or
3 Press 1/4 to select an Internet content
provider icon, then press (+).
If the Internet content list has not been
retrieved, it will be represented by an
unacquired icon or à new Icon.
To use the control panel
The control panel appears when the video file
starts playing. The displayed items may differ
depending on Internet content providers.
To display again, press DISPLAY.
00:07:23
Control display
Press €/1?/4/> or for playback operations.
Playing status bar
Status bar, cursor indicating the current
position, playing time, duration of the video
file
Network condition indicator
ill Indicates signal strength for a wireless
connection.
ax Indicates a wired connection.
Network transmission speed
The next video file name
>) >)
The currently selected video file name
You can play video/music/photo files on other
DI.NA-certified components by connecting
them to your home network.
This unit can be used as a player and renderer.
* Server: Stores and sends files
+ Player: Receives and plays files from the
server
» Renderer: Receives and plays files from the
server, and can be operated by another
component (controller)
* Controller: Operates the renderer component
Player
(This system)
Player
Prepare for using the DLNA function.
* Connect the system to a network (page 27).
* Prepare other DLNA-certified components.
For details, see the operating instructions of
the components.
To play files stored on a DLNA
server via the system (DLNA
Player)
Select the DLNA server icon from §_§ | Video],
dd [Music], or gg [Photo] in the home menu,
then select the file that vou want to plav.
Server
Е
Player
(This system)
To play remote files by operating
the system (Renderer) via a DLNA
controller
You can operate the system with a DLNA-
certified controller, such as iPhone, when
playing files stored on a DLNA server.
>
5
Controller Renderer
(This system)
Control this system using a DLNA controller.
For details of operation, see the operating
Instructions of the DLNA controller.
* Do not operate the system with the supplied remote
and a DLNA controller at the same time.
* Рог details about the DLNA controller, refer to the
operating instructions of the DLNA controller.
of Windows Media” Player 12 that comes standard
with Windows 7.
The system is compatible with the “Play To” function
YoegÁeId В
3955
405
You can play the same music at the same time
across all Sony components which are
compatible with the PARTY STREAMING
function and connected to your home network.
There are two kinds of PARTY STREAMING-
compatible components.
* PARTY host: Sends and plays files
* PARTY guest: Receives and plays files
This unit can be used as a PARTY host or
PARTY guest.
PARTY host
(This system)
PARTY guest
Prepare for PARTY STREAMING.
* Connect the system to a network (page 27).
* Connect components which are compatible
with the PARTY STREAMING function.
To use the system as PARTY host
Select a track in JJ [Music], then select [Start
Party] from the options menu to start a PARTY.
To close the PARTY, press HOME.
To use the system as PARTY
guest
Select + [Party] in JJ [Music], then select the
PARTY host device 1con.
To leave the PARTY, press OPTIONS, then
select [Leave Party].
To close the PARTY, press OPTIONS, then
select [Close Party].
N
* The sale and product lineup of products that are
compatible with the PARTY STREAMING function
differ depending on the area.
You can acquire content information using
Gracenote technology and search for related
information.
1 Connect the system to a network
(page 27).
2 Insert a disc or connect a USB device
with content about which you want to
search.
You can perform a video search from a BD-
ROM or DVD-ROM, and à music search
from a CD-DA (music CD) or USB device.
3 Press €/> to select f_H [Video] or
JJ [Music].
4 Press 1/4 to select El [Video Search]
or (7) [Music Search].
The content information 1s displayed.
a Video Search
T
nd Mature 4
4 & Магу Стых
a Nature 5
az & Mary Cruz
| 2 D Playback History
| 3 C Search History
Content details
Displays a list of related information, such as
title, cast, track, or artist.
[Playback History]
Displays a list of previously played BD-ROM/
DVD-ROM/CD-DA (music CD) titles. Select
a title to acquire content information.
[Search History]
Displays a list of previous searches performed
via the [Video Search] or [Music Search]
function.
To search for further related
information
Select an item in the lists, and select
[Information Search] or [Internet Video Search].
Available Options
items differ depending on the situation.
Common options
Items
Details
[Surround Setting]
Changes the surround setting
(page 31).
[Repeat Setting]
Sets repeat playback.
[3D Menu]
[3D Depth Adjustment]:
Adjusts the depth of 3D
images.
[Favorites List]
Displays the Favorites List.
[Play/Stop]
Starts or stops playback.
[Play from beginning]
Plays the item from the
beginning.
[Add to Favorites]
Adds an Internet content item
to the Favorites List.
[Remove from
Favorites]
Erases an Internet content
item from the Favorites List.
[Start Party]
Starts a party with the
selected source.
This item may not appear
depending on the source.
[Leave Party]
Leaves from a party which
the system 1s participating in.
The PARTY STREAMING
function continues among
other participating devices.
[Close Party]
Closes a party which the
system is participating in. The
PARTY STREAMING
function ends for all other
participating devices.
# [Video] only
Items
Details
[A/V SYNC]
Adjusts the gap between
picture and sound. For
details, see “Adjusting the
delay between the picture and
sound” (page 42).
[3D Output Setting]
Sets whether or not to output
3D video automatically.
* 3D video trom the HDMI
(IN 1) or HDMI (IN 2) jack
is output regardless of this
setting.
[Video Settings]
* [Picture Quality Mode]:
Selects the picture settings
for different lighting
environments.
» [FNR]: Reduces the random
noise appearing in the
picture.
» [BNR]: Reduces the
mosaic-like block noise in
the picture.
* [MNR]: Reduces minor
noise around the picture
outlines (mosquito noise).
[Pause]
Pauses playback.
[Top Menu]
Displays the BD’s or DVD's
Top Menu.
[Menu/Popup Menu]
Displays the BD-ROM's
Pop-up Menu or DVD's
menu.
[Title Search]
Searches for a title on BD-
ROMs/DVD VIDEOs and
starts playback from the
beginning.
[Chapter Search]
Searches for a chapter and
starts playback from the
beginning.
[Angle]
Switches to other viewing
angles when multi-angles are
recorded on BD-ROMs/DVD
VIDEOS.
[IP Content Noise
Reduction]
Adjusts the video quality for
Internet content.
[Video Search]
Displays information on the
BD-ROM/DVD-ROM based
on Gracenote technology.
YoegÁeId В
41 US
4205
JJ [Music] only
Items
Details
[Add Slideshow
BGM]
Registers music files in the
USB memory as slideshow
background music (BGM).
[Music Search]
Displays information on the
audio CD (CD-DA) based on
Gracenote technology.
[Shuffle Setting]
(iPod/iPhone only)
Sets shuffle playback.
[Photo] only
ltems Details
[Slideshow] Starts a slideshow.
[Slideshow Speed]
Changes the slideshow speed.
[Slideshow Effect]
Sets the effect when playing a
slideshow.
[Slideshow BGM]
* [Off]: Turns off the
function.
* | My Music from USB]: Sets
the music files registered in
[Add Slideshow BGM].
* | Play from Music CD]: Sets
the tracks on CD-DAs
(music CDs).
[Rotate Left]
Rotates the photo
counterclockwise by
90 degrees.
[Rotate Right]
Rotates the photo clockwise
by 90 degrees.
[View Image]
Displays the selected picture.
(A/V SYNC)
When the sound does not match the pictures on
the TV screen, you can adjust the delay between
the picture and sound.
The setting method differs depending on the
function.
be effective.
* Depending on the input stream, A/V SYNC may not
When playing via the “BD/DVD”
function
1
2
4
Press OPTIONS.
The option menu appears on the TV screen.
Press T/+ to select [A/V SYNC], then
press (+).
Press €/> to adjust the delay between
the picture and sound.
You can adjust from 0 ms to 300 ms in 25
ms increments.
Press ©).
The setting 1s made.
When playing via the “HDMI1,”
“HDMI2,” “TV,” “SAT/CABLE,” or
“AUDIO” function
1
Press OPTIONS.
The option menu appears in the front panel
display.
Press 1/4 repeatedly until “A/V SYNC”
appears in the front panel display, then
press (+) or >.
Press TA to adjust the delay between
the picture and sound.
You can adjust from 0 ms to 300 ms in 25
ms increments.
Press (>).
The setting 1s made.
Press OPTIONS.
The option menu in the front panel display
turns off.
Selecting the Effect to
Suit the Source
You can select a suitable sound mode for movies
or music.
MODE +/—
Press SOUND MODE +/- repeatedly during
playback until the desired mode appears in
the front panel display.
“AUTO”: The system selects “MOVIE” or
“MUSIC” automatically to produce the sound
effect depending on the disc or sound stream.
“MOVIE”: The system provides the sound for
movies.
“MUSIC”: The system provides the sound for
music.
“SPORTS”: The system adds reverberation for
sports programs.
“GAME ROCK”: The system provides the
sound for music/rhythm games.
“OMNI-DIR™: The same sound is audible
anywhere in the room.
“3D SUR.™: “3D SUR.” is a unique Sony
algorithm used for playing 3D (three-
dimensional) content that provides a 3D sound
experience with depth and presence by
creating a virtual sound field close to your
ears.
“HALL”: The system reproduces the sound of
a concert hall.
“NIGHT”: You can enjoy sound effects or
dialog, as you would in a movie theater, even
at low volume. It 1s useful for watching movies
at night.
Depending on the disc or source, when you select
“AUTO,” the beginning of the sound may be cut off
as the system selects the optimum mode
automatically. To avoid cutting the sound, select
other than “AUTO.”
* Depending on the input stream, the sound mode may
not be effective.
When you play a Super Audio CD, this function does
not work.
When “NIGHT” 1s selected and sound is output from
the center speaker, this effect 1s more pronounced, as
speech (movie dialog, etc.) 1s easy to hear. When
sound is not output from the center speaker, the
system optimally adjusts the volume.
Selecting the Audio
Format, Multilingual
Tracks, or Channel
When the system 1s playing a BD/DVD VIDEO
recorded in multiple audio formats (PCM,
Dolby Digital, MPEG audio, or DTS) or
multilingual tracks, you can change the audio
format or language.
With a CD, you can select the sound from the
right or left channel and listen to the sound of the
selected channel through both the right and left
speakers.
AUDIO
Press AUDIO repeatedly during playback to
select the desired audio signal.
The audio information appears on the TV
SErEehn.
Jueunsnipy punos В
43 US
440s
E BD/DVD VIDEO
Depending on the BD/DVD VIDEO, the choice
of language varies.
When 4 digits are displayed, they indicate a
language code. See “Language Code List”
(page 76) to confirm which language the code
represents. When the same language is
displayed two or more times, the BD/DVD
VIDEO is recorded in multiple audio formats.
E DVD-VR
The types of sound tracks recorded on a disc are
displayed.
Example:
* [ ) Stereo]
* [) Stereo (Audio1)]
* | > Stereo (Audio2)]
* | > Мат]
* [ ) Sub]
* [ ) Main/Sub]
* [) Stereo CAudio1)] and [ P Stereo (Audio? ] do not
appear when only one audio stream is recorded on the
disc.
HCD
* [ ) Stereo]: The standard stereo sound.
* [) 1/L]: The sound of the left channel
(monaural).
* [) 2/R]: The sound of the right channel
(monaural).
* [) L+R]: The sound of both the left and right
channels output from each individual speaker.
Enjoying Multiplex
Broadcast Sound
(DUAL MONO)
You can enjoy multiplex broadcast sound when
the system receives or plays a Dolby Digital
multiplex broadcast signal.
* To receive the Dolby Digital signal, you need to
connect a TV or other component to the unit with a
digital coaxial or optical cord (pages 22, 24). Tf your
TV is compatible with the Audio Return Channel
function (pages 22, 61), you can receive a Dolby
Digital signal via an HDMI cable.
AUDIO
Press AUDIO repeatedly until the desired
signal appears in the front panel display.
* “MAIN”: Sound of the main language will be
output.
“SUB”: Sound of the sub language will be
output.
“MAIN/SUB”: Mixed sound of both the main
and sub languages will be output.
Listening to the Radio
You can enjoy radio sound with the system’s
speakers.
10
Number
FUNCTION buttons
EAN, E)
HOME sesame ф- OPTIONS
PRESET +/~
= TUNING +/-
N
VOL +/- t
1
2
Current preset number
Current station
Press FUNCTION repeatedly until “FM”
appears in the front panel display.
Select the radio station.
Automatic tuning
Press and hold TUNING + until the auto
scanning starts.
| Auto Tuning] appears on the TV screen.
Scanning stops when the system tunes in à
station.
To stop the automatic tuning manually,
press TUNING +/- or HL.
Manual tuning
Press TUNING +/- repeatedly.
3 Adjust the volume by pressing
VOL +/-.
If an FM program is noisy
Han FM program is noisy, you can select
monaural reception. There will be no stereo
effect, but reception will improve.
1 Press OPTIONS.
The option menu appears on the TV screen.
2 Press 1/4 to select [FM Mode], then
press (+).
3 Press TA to select [Monaural].
* [Stereo]: Stereo reception.
+ |Monaural]: Monaural reception.
4 Press СЭ.
The setting is made.
To turn off the radio
Press IC).
You can preset up to 20 stations. Before tuning,
make sure to turn down the volume to minimum.
1 Press FUNCTION repeatedly until “FM”
appears in the front panel display.
2 Press and hold TUNING +/- until the
auto scanning starts.
Scanning stops when the system tunes in a
station.
Press OPTIONS.
The option menu appears on the TV screen.
Press 1/4 to select [Preset Memory],
then press ©).
Press 1/4 to select the preset number
you want, then press ().
©) GC: Aa WwW
Repeat Steps 2 to 5 to store other
stations.
To change the preset number
Select the desired preset number by pressing
PRESET +/-, then perform the procedure from
Step 3.
aun] В
4555
1 Press FUNCTION repeatedly until “FM”
appears in the front panel display.
The last received station 1s tuned in.
2 Press PRESET +/- repeatedly to select
the preset station.
The preset number and frequency appear on
the TV screen and front panel display.
Fach time you press the button, the system
tunes in one preset station.
by pressing the number buttons.
* Each time you press DISPLAY, the display in
the front panel display changes as follows:
Frequency —+ Preset number —+ Stream
information/Decode status —+ Frequency —» ….
46”
Using the Control for
HDMI Function for
“BRAVIA” Sync
This function is available on TVs with the
“BRAVIA” Sync function.
By connecting Sony components that are
compatible with the Control for HDMI function
via an HDMI cable, operation is simplified.
* Some functions can only be used if the connected TV
1s compatible, and require prior setting via the TV.
Refer to the operating instructions of the TV.
* To use the System Audio Control function, you need
to make an audio connection between the system and
TV (page 22).
Control for HDMI - Easy Setting
You can set the system's [Control for HDMI]
function automatically by enabling the
corresponding setting on the TV.
For details about the Control for HDMI
function, see “[HDMI Settings |” (page 61)
System Power Off
You can tum the system off in sync with the TV.
* The system does not turn off automatically while
playing music or when set to the “FM” function.
One-Touch Play
When you press ** on the remote, the system
and your TV turn on, and your TV's input is set
to the HDMI input to which the system 1s
connected.
System Audio Control
Y ou can simplify operation to enjoy sound from
the TV or other components.
Y ou can use the System Audio Control function
as follows:
+ When the system is turned on, the sound of the
TV or other components can be output from
the speakers of the system.
+ When sound from the TV or other components
is output via the speakers of the system, you
can change the speakers to which TV sound 1s
output by pressing
SPEAKERS TVe» AUDIO.
+ When sound from the TV or other components
is output via the speakers of the system, you
can adjust the volume and turn off the sound of
the system by operating the TV.
* While the TV 15 in PAP (picture and picture) mode,
or the system 1s playing video/photo files from the
iPod/iPhone, the System Audio Control function will
not work.
* Depending on the TV, when you adjust the unit’s
volume, the volume level appears on the TV screen.
In this case, the volume level that appears on the TV
screen and the unit’s front panel display may differ.
Audio Return Channel
You can enjoy TV sound via the system by using
Just one HDMI cable. For details of the setting,
see “Connecting the TV” (page 22).
Remote Easy Control
You can control the basic functions of the
system via the TV remote when the system’s
video output is displayed on the TV screen.
Language Follow
When you change the language for the on-screen
display of the TV, the system's on-screen
display language 1s also changed after turning
the system off and on.
Routing Control
When you perform One-Touch Play on the
connected component, the system turns on and
sets the system’s function to “HDMI” or
“HDMI?” (depending on the HDMI input Jack
in use), and your TV's input 1s automatically set
to the HDMI input to which the system is
connected.
* Make sure that the component 1s connected to the
system via an HDMI cable, and the Control for
HDMI function of the connected component 1s set to
on.
suone.edo 13410 В
47 US
48%
Calibrating the
Appropriate Settings
Automatically
[Auto Calibration]
D.C.A.C. (Digital Cinema Auto Calibration} can
set the appropriate surround sound
automatically.
* The system outputs a loud test sound when [Auto
Calibration] starts. You cannot turn the volume
down. Give consideration to children and neighbors.
1 Press HOME.
The home menu appears on the TV screen.
Press €/> to select [Setup].
Press 1/4 to select [Audio Settings],
then press (+).
Press 1/4 to select [Auto Calibration],
then press (+).
The confirmation display for [Auto
Calibration] appears.
= WN
5 Connect the calibration mic to the
A.CAL MIC jack on the rear panel.
Set up the calibration mic at ear level using
a tripod, etc. (not supplied). The front of
each speaker should face the calibration
mic, and there should be no obstruction
between the speakers and the calibration
mic.
Press 1/4 to select [OK].
To cancel, select [Cancel].
Press ©.
[Auto Calibration] starts.
The system adjusts the speaker settings
automatically.
Be quiet during the measurement.
» Before [Auto Calibration], make sure that the
surround amplifier turns on and you install the
surround amplifier in the appropriate location. If
you install the surround amplifier in an improper
location, such as another room, proper
measurement will not be obtained.
Confirm the conclusions of [Auto
Calibration].
The speakers connected to the unit are listed
as [Yes] on the TV screen.
» If measurement fails, follow the message then
retry [Auto Calibration].
* The measurement for [Subwoofer] 15 always
[Yes] and [Speaker Settings] returns to the
default setting when you perform [Auto
Calibration].
9 Press 1/4 to select [OK] or [Cancel],
then press ().
E The measurement is OK.
Disconnect the calibration mic, then select
[OK]. The result 1s implemented.
MN The measurement is not OK.
Follow the message, then select [OK] to
retry.
* While the Auto Calibration function is working, do
not operate the system.
Setting the Speakers
[Speaker Settings]
To obtain the best possible surround sound, set
connection of the speakers and their distance
from your listening position. Then use the test
tone to adjust the level and the balance of the
speakers to the same level.
1 Press HOME.
The home menu appears on the TV screen.
[Setup].
2 Press €/> to select
3 Press 1/4 to select [Audio Settings],
then press ©).
Press T/< to select [Speaker Settings],
then press (>).
The [Speaker Settings] display appears.
5 Press 1/4 to select the item, then press
.
Check the following settings.
E [Connection]
H you do not connect center or surround
speakers, set the parameters for [Center] and
[Surround]. Since the front speaker and
subwoofer settings are fixed, you cannot change
them.
[Front]
[Yes]
[Center]
| Yes]: Normally select this.
[None]: Select this 1f no center speaker 1s used.
[Surround]
[Yes]: Normally select this.
[None]: Select this if no surround speaker 1s
used.
[Subwoofer]
[Yes]
E [Distance]
When you move the speakers, be sure to set the
parameters of the distance (O) from the
listening position to the speakers.
Youcan set the parameters from 0 to 23 feet (0.0
to 7.0 meters).
The speakers in the illustration correspond to the Ш
following:
D Center speaker
@ Front left speaker (L)
© Front right speaker (R)
(4) Subwoofer
® Surround left speaker (L)
(© Surround right speaker (R)
| Front Left/Right] 10 ft/3.0 m: Set the front
speaker distance.
[Center[* 10 1t/3.0 m: Set the center speaker
distance.
[Surround Left/Rıght]* 10 ft/3.0 m: Set the
surround speaker distance.
[Subwoofer] 10 ft/3.0 m: Set the subwoofer
distance.
* This item appears when you set it to [Yes] in the
[Connection] setting.
* Depending on the input stream, [Distance] may not
be effective.
suone.edo 19Y10
49us
504%
* You can change measurement units (feet or meters)
by pressing the color button (RED).
H [Level]
You can adjust the sound level of the speakers.
Y ou can set the parameters from —6.0 dB to +6.0
dB. Be sure to set | Test Tone] to [On] for easy
adjustment.
[Front Left/Right] 0.0 dB: Set the front speaker
level.
|Center]* 0.0 dB: Set the center speaker level.
[Surround Lett/Right]* 0.0 dB: Set the surround
speaker level.
[Subwoofer] 0.0 dB: Set the subwoofer level.
* This item appears when you set it to [Yes] in the
[Connection] setting.
H [Test Tone]
The speakers will emit à test tone to adjust
[Level].
[Off]: The test tone is not emitted from the
speakers.
[On]: The test tone 1s emitted from each speaker
in sequence while adjusting level. When you
select one of the [Speaker Settings] items, the
test tone is emitted from each speaker in
sequence.
Adjust the sound level as follows.
Set [Test Tone] to [On].
Press 1/4 to select [Level], then press
Press 1/4 to select the desired speaker
type, then press (>.
Press €/> to select the left or right
speaker, then press TA to adjust the
level.
Press ©).
Repeat Steps 3 to 5.
Press RETURN.
= N N =
©9 1 ©) сл
Press 1/4 to select [Test Tone], then
press (©).
9 Press 1/4 to select [Off], then press
* The test tone signals are not output from the HDMI
(OUT) jack.
* To adjust the volume of all the speakers at one time,
press VOL +/—.
Using the Sleep Timer
You can set the system to turn off at a preset
time, so you can fall asleep listening to music.
The time can be preset in intervals of 10
minutes.
Press SLEEP.
Fach time you press SLEEP, the minutes display
(the remaining time) in the front panel display
changes by 10 minutes.
When you set the sleep timer, the remaining
time appears every 5 minutes.
When the remaining time is less than 2 minutes,
“SLEEP” flashes m the front panel display.
To check the remaining time
Press SLEEP once.
To change the remaining time
Press SLEEP repeatedly to select the desired
time.
Deactivating the Buttons
on the Unit
(Child Lock)
You can deactivate the buttons on the unit
(except for VD) for preventing misoperation,
such as child mischief (child lock function).
Press H on the unit for more than 5
seconds.
“LOCKED” appears in the front panel display.
The child lock function 1s activated and the
buttons on the unit are locked. (You can operate
the system by using the remote.)
To cancel, press IN for more than 5 seconds so
that “UNLOCK” appears in the front panel
display.
* When you operate the buttons on the unit while the
child lock function 1s on, “LOCKED” flashes in the
front panel display.
Controlling Your TV with
the Supplied Remote
By adjusting the remote signal, you can control
your TV with the supplied remote.
* When you replace the batteries of the remote, the
code number may reset itself to the default (SONY)
setting. Reset the appropriate code number.
Press and hold TV I/() while entering your
TV’s manufacturer’s code (see the table)
using the number buttons. Then release TV
VO.
H the setting 1s unsuccessful, the currently
registered code 1s not changed. Re-enter the
code number.
Code numbers of controllable
TVs
If more than one code number 1s listed, try
entering them one at a time until you find the
code that works with your TV.
Manufacturer Code number
SONY 01 (default)
LG 02
PANASONIC 05
SAMSUNG 02, 06
SHARP 03
TOSHIBA 04
VIZIO 07
Changing the Brightness
of the Front Panel
Display
the front panel display is changed.
Saving Power in Standby
Mode
Check that the following settings are both made:
— [Control for HDMI] in [HDMI Settings] is set
to [Off] (page 61).
— [Quick Start Mode] 1s set to [Off] (page 62).
suone.edo 13410 В
51 US
Browsing Websites
You can connect to the Internet and enjoy
websites like the Sony homepage using the
system.
1 Prepare for Internet browsing.
Connect the system to a network (page 27).
Press HOME.
The home menu appears on the TV screen.
[Network].
2
3 Press €/> to select
4
Press T/< to select [Internet Browser],
then press (+).
The [Internet Browser] display appears.
* Some websites may not display correctly, or not
function.
To enter a URL
Select [URL entry | from the options menu.
Enter the URL using the software keyboard,
then select [Enter].
To set the default start page
While the page you want to set is displayed,
select [Set as start page] from the options menu.
To quit Internet Browser
Press HOME.
Y ou can check website information by pressing
DISPLAY. The display information differs
depending on the website and page status.
Page title
ro] [=
Cursor
Move by pressing €/1/4/>. Place the cursor
on the link you want to view, then press ©.
The linked website 15 displayed.
Page address
SSL icon
Appears when the linked URL 1s secured.
| ©)
a
Signal strength indicator
Appears when the system 1s connected to a
wireless network.
[6] Progress bar/Loading icon
Appears when the page 1s being read, or during
file download/transter.
Text input field
Press (+), then choose [Input] from the options
menu to open the software keyboard.
Scroll bar
Press €/t/4/3 to move the page display left,
up, down, or right.
Various settings and operations are available by
The available items differ depending on the
situation.
Items Details
[Browser Setup] Displays the Internet Browser
settings.
e | Zoom]: Increases or
decreases the size of the
displayed contents.
* [JavaScript Setup]: Sets
whether to enable or disable
JavaScript.
* | Cookie Setup]: Sets
whether or not to accept
browser cookies.
* [SSL Alarm Display]: Sets
whether to enable or disable
SSL.
[Input] Displays the software
keyboard to enter characters
while browsing a website.
| Break] Moves the cursor to the next
line in the text input field.
Items
Details
[Delete]
Erases one character on the
left side of the cursor during
text input.
[Window List]
Displays a list of all currently
opened websites.
Allows you to return to a
previously displayed website
by selecting the window.
[Bookmark List]
Displays the bookmark list.
[Character encoding]
Sets the character code,
[Previous page]
Moves to a previously
displayed page.
[Next page]
Moves to the previously
displayed next page.
[Cancel loading]
Stops loading a page.
[Reload] Reloads the same page.
[URL entry] Allows you to enter a URL
when the software keyboard
is displayed.
[Add to Bookmark]
Adds the currently displayed
website to the bookmark list.
[Set as start page]
Sets the currently displayed
website as the default start
page.
[Open in new
window]
Opens a link in a new
window.
[Display certificate]
Displays server certificates
sent from pages that support
SSL.
Setting up the Network
[internet Settings]
Before setting, connect the system to the
network. For details, see “Step 3: Connecting to
the Network™ (page 27).
To open the setting display
1 Press HOME.
The home menu appears on the TV screen.
2 Press €/> to select [Setup].
O Network Updaie
Screen Settings
E
“44 3} Audio Sedings
=
BEVDVE Viewing Settings
Parental Control Sestings
3 Press 1/4 to select [Network Settings],
then press (>).
Inexiel Settings
Chex network bei AA DONE
Network Connection Miannostics
Connection Server Sefiings
Aerderer Options
suone.edo 13410 В
53 US
54%
4 Press 1/4 to select [Internet Settings],
then press (>).
The [Internet Settings] display appears.
CE Internet Settings
Internet Settings allows vou to access content on your home ratwaork
and the Internet, Please select a choice below.
| View Network Status ]
Wired Setup
Wireless Satup{built-ing
USB Wireless Setup
* The [Internet Settings] 1tems are necessary to connect
to the Internet. Enter the respective (alphanumeric)
values for your broadband router or Wireless LAN
router. The items that need to be set may differ,
depending on the Internet service provider or the
router. For details, refer to the instruction manuals
that have been provided by your Internet service
provider or supplied with the router.
* For more information, go to the following URL.
For customers in the U.S.:
hitp://Www.sony.com/support
For customers in Canada:
English: http://www .sony.ca/support
French: http://fr.sony.ca/support
For customers in Mexico and Latin America:
hitp://esupport.sony.com/LA
Follow the Steps below for connecting to a LAN
(Local Area Network).
Auto setting
1 Press 1/4 to select [Wired Setup] on
the [Internet Settings] display, then
press (+).
2 Press 1/4 to select [Auto], then press
©.
The system performs the network setting
automatically, and internet settings appear
on the TV screen.
3 Press =.
4 Press 1/4 to select [Save & Connect],
then press ©.
The system starts checking the network
connection.
5 Check that the message [Internet
Settings is now complete.] appears,
then press (>).
The setup is finished. If the message does
not appear, follow the on-screen messages.
Manual setting
1 Press 1/4 to select [Wired Setup] on
the [Internet Settings] display, then
press (+).
2 Press 1/4 to select [Custom], then
press (+).
3 Press TA to select the network setting
type, then press (>).
* [Auto]: The system sets the IP address
automatically, and the [DNS Settings]
display appears.
When you select [Auto] and press (+), the
system sets the DNS setting
automatically.
When you select [Specity IP address] and
press (+), enter the DNS settings
manually.
Press €/1/4/> and the number buttons to
set the following items, then press (>).
— [Primary DNS]
~ [Secondary DNS]
[Specify IP address]: Enter the network
settings manually according to your
network environment.
Press €/4/¥/2 and the number buttons to
set the following items, then press (>).
— [IP Address]
— [Subnet Mask]
[Default Gateway]
[Primary DNS]
— [Secondary DNS]
4 Press 1/4 to select the proxy server
setting, then press (©).
* [No]: A proxy server 15 not used.
+ | Yes]: Enter the proxy server setting.
Press €/1/4/> and the number buttons,
then press ©.
The value of the internet settings appears on
the TV screen.
Press ».
Press 1/4 to select [Save & Connect],
then press ().
The system starts checking the network
connection.
Check that the message [Internet
Settings is now complete.] appears,
then press (>.
not appear, follow the on-screen messages.
Follow the Steps below for connecting to a
wireless LAN (Local Area Network).
When your wireless router is
compatible with the WPS
function
1
Press 1/4 to select [Wireless
Setup(built-in)]* or [USB Wireless
Setup] on the [Internet Settings]
display, then press (+).
* BDV-E580/BDV-T58 only.
Press 1/4 to select [Wi-Fi Protected
Setup (WPS)], then press (>.
Activate the WPS function of your
wireless router, press 1/4 to select
[Start], then press ©.
For details about activating the WPS
function, see the operating instructions of
your router.
Check that the message [Wi-Fi
Protected Setup was successful.]
appears, then press =.
Setup of wireless LAN connectivity and the
IP address is finished.
Next, enter the proxy server setting. Follow
Steps 4 to 7 of “Manual setting” in “When
connecting to the LAN with a LAN cable”
above.
When your wireless router is not
compatible with the WPS
function
1
Press 1/4 to select [Wireless
Setup(built-in)]* or [USB Wireless
Setup] on the [Internet Settings]
display, then press ©.
* BDV-E580/BDV-TS58 only.
Press 1/4 to select [Scan], then press
СЭ.
The system searches for available wireless
LANs, then the list of wireless LANs
appears.
Press 1/4 to select the wireless LAN
name, then press (+).
E When the selected wireless LAN is
unsecured
Setup of wireless LAN connectivity is
finished. Next, enter the [P address settings
by following the Steps of “Auto setting” or
“Manual setting” in “When connecting to
the LAN with a LAN cable” above.
E When the selected wireless LAN is
secured
The display for entering a WEP or WPA
key appears. Go to Step 5.
E To specify the wireless LAN name
Select [Manual Entry].
The input display appears. Enter the
screen messages, then press >.
suone.edo 13410
5505
564
4 Press 1/4 to select the security mode,
then press ©).
* [None]: Select this 1f the wireless LAN 1s
unsecured. Setup of wireless LAN
connectivity 1s finished. Next, enter the IP
address settings by following the Steps of
“Auto setting” or “Manual setting” in
“When connecting to the LAN with a
LAN cable” above.
* [WEP]: The wireless LAN 1s protected by
a WEP key.
* | WPA/WPA2-PSK!]: The wireless LAN 18
protected by a WPA-PSK or WPA2-PSK.
+ [WPA2-PSK]: The wireless LAN is
protected by a WPA2-PSK.
5 Enter the WEP key/WPA key by
following the on-screen messages,
then press >.
Setup of wireless LAN connectivity is
finished. Next, enter the IP address settings
by following the Steps of “Auto setting” or
“Manual setting” in “When connecting to
the LAN with a LAN cable” above.
Since communication via the wireless LAN
function is established by radio waves, the
wireless signal may be susceptible to
interception. To protect wireless
communication, this system supports various
security functions. Be sure to correctly
configure the security settings in accordance
with your network environment.
No Security
Although you can easily make settings, anyone
can intercept wireless communication or intrude
into your wireless network, even without any
sophisticated tools. Keep in mind that there is a
risk of unauthorized access or interception of
data.
WEP
WEP applies security to communications to
prevent outsiders from intercepting
communications or intruding into your wireless
network. WEP 1s a legacy security technology
that enables older device which do not support
TKIP/AES to be connected.
WPA-PSK (TKIP), WPA2-PSK
(TKIP)
TKIP 1s à security technology developed in
response to the deficiencies of WEP. TKIP
assures a higher security level than WEP.
WPA-PSK (AES), WPA2-PSK (AES)
AES 15 a security technology that uses an
advanced security method distinct from WEP
and TKIP.
AES assures a higher security level than WEP or
TKIP.
Using the Setup Display
Y ou can make various adjustments of items such
as picture and sound.
Select (Setup) on the home menu when you
need to change the settings of the system.
The default settings are underlined.
* Playback settings stored in the disc take priority over
the Setup Display settings and not ali the functions
described may work.
1 Press HOME.
The home menu appears on the TV screen.
2 Press €/> to select [Setup].
Network Update
Seres Settings
AD y
- » Audio Settings
& o So
8 BENE Viewing Settings
Ú
e
Гу
Frarental Sorel Sedtings
3 Press 1/4 to select the setup category
icon to change, then press ©).
Example: [Screen Settings]
# уре 16
e Set the screen aspect ratio of your TV,
# Screen Format Original
pd
P DVD Aspect Auto Leiter Box
E
© Cinema Conversion Mode Auto
You can setup the following options.
Icon Explanation
[Network Update] (page 57)
Updates the software of the
system.
[Screen Settings] (page 58)
Makes the screen settings
according to the type of
connecting jacks.
Explanation
[Audio Settings] (page 59)
Makes the audio settings
according to the type of
connecting jacks.
[BD/DVD Viewing Settings]
(page 60)
Makes detailed settings tor BD/
DVD playback.
[Parental Control Settings]
(page 61)
Makes detailed settings for the
Parental Control function.
[Music Settings] (page 61)
Makes detailed settings for
Super Audio CD playback.
[System Settings] (page 61)
Makes the system-related
settings.
[Network Settings] (page 62)
Makes detailed settings for
Internet and network.
[Easy Setup] (page 63)
Re-runs the Easy Setup to make
the basic settings.
[Resetting] (page 63)
Resets the system to the factory
settings.
[Network Update]
Network Update
\
TA Screen Settings
“14 » Audio Settings
BEVDVO Viewing Settings
You can update and improve the functions of the
system.
For information about update functions, refer to
the following website:
For customers in the U.S.
http://www.sony.com/support
For customers 1n Canada:
English: http://www.sony.ca/support
French: http://fr.sony.ca/support
s>uewnsnipy pue síumes В
57 US
58-5
For customers in Mexico and Latin America:
http://esupport.sony.com/LA
During a software update, “UPDATING”
appears in the front panel display. After the
update completes, the main unit automatically
turns off. Please wait for the software update to
complete; do not turn the main unit on or off, or
operate the main unit or TV.
[Screen Settings]
Hl [3D Output Setting]
[Auto]: Normally select this.
[Off]: Select this to display all contents in 2D.
* 3D video from the HDMI (IN 1) or HDMI (IN 2) jack
is output regardless of this setting.
H [TV Screen Size Setting for 3D]
Sets the screen size of your 3D compatible TV.
* This setting does not apply to 3D video from the
HDMI (IN 1) or HDMI (IN 2) jack.
M [TV Type]
[16:9]: Select this when connecting to a wide-
screen TV or a TV with a wide-mode function.
[4:3]: Select this when connecting to a 4:3
screen TV without a wide-mode function.
E [Screen Format]
[Original]: Select this when connecting to a TV
with a wide-mode function. Displays a 4:3
screen picture in 16:9 aspect ratio even on a
wide-screen TV.
[Fixed Aspect Ratio]: Changes the picture size
to fit the screen size with the original picture
aspect ratio.
E [DVD Aspect Ratio]
[Letter Box]: Displays a wide picture with black
bands on the top and bottom.
[Pan & Scan]: Displays a full-height picture on
the entire screen, with trimmed sides.
E [Cinema Conversion Mode]
[Auto]: Normally select this. The unit
automatically detects whether the material is
video-based or film-based, and switches to the
appropriate conversion method.
[Video]: The conversion method suited for
video-based material will always be selected
regardless of the maternal.
E [Output Video Format]
[HDMI]: Normally select [Auto]. Select
[Original Resolution] to output the resolution
recorded on the disc. (When the resolution 15
lower than SD resolution, it is scaled up to SD
resolution.)
[Component Video]: Select the resolution that
suits your TV.
[Video]: Automatically sets the lowest
resolution.
* If no picture appears when setting [HDMI] or
[Component Video] resolution, try another resolution
setting.
When connecting via the COMPONENT VIDEO
OUT jack and [Component Video] is selected, BD-
ROM playback of protected content 1s only supported
at 4801* output resolution (pages 22, 29).
* 4801/5761 for Mexican and Latin American
models.
E [BD/DVD-ROM 1080/24p Output]
[Auto]: Outputs 1920 x 1080p/24 Hz video
signals only when connecting a 1080/24p-
compatible TV using the HDMI (OUT) jack.
[Off]: Select this when your TV 1s not
compatible with 1080/24p video signals.
EH [YCbCr/RGB (HDMI)]
| Auto |: Automatically detects the type of
external device, and switches to the matching
color setting.
[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video
signals.
[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video
signals.
[RGB]: Select this when connecting to a device
with an HDCP-compliant DVI jack.
E [HDMI Deep Color Output]
[Auto]: Normally select this.
[16bit], [12bit], [10bit]: Outputs 16b1t/12b1t/
10bit video signals when the connected TV is
compatible with Deep Color.
[Off]: Select this when the picture is unstable or
colors appear unnatural.
EH [Pause Mode] (BD/DVD VIDEO/DVD-R/
DVD-RW only)
| Auto |: The picture, including subjects that
move dynamically, 1s output with no jitter.
Normally select this position.
[Frame]: The picture, including subjects that do
not move dynamically, 1s output in high
resolution.
4» [Audio Settings]
EH [BD Audio MIX Setting]
[On]: Outputs the audio obtained by mixing the
interactive audio and secondary audio to the
primary audio.
[Off]: Outputs the primary audio only.
Hl [Audio DRC]
You can compress the dynamic range of the
sound track.
[| Auto]: Performs playback at the dynamic range
specified by the disc (BD-ROM only).
[On]: The system reproduces the sound track
with the kind of dynamic range that the
recording engineer intended.
E [Attenuate - AUDIO]
Distortion may occur when you listen to a
component connected to the AUDIO (AUDIO
IN LR) Jacks. You can prevent distortion by
reducing the input level on the unit.
[On]: Attenuates the input level. The output
level 1s changed.
[Öff]: Normal input level.
E [Audio Output]
You can select the output method where the
audio signal 1s output.
[Speaker]: Outputs multi-channel sound from
the system’s speakers only.
[Speaker + HDMI]: Outputs multi-channel
sound from the system’ s speakers and 2-channel
limear PCM signals from the HDMI (OUT) jack.
[HDMI]: Outputs sound from the HDMI (OUT)
jack only. Sound format depends on the
connected component.
Note
+ When [Control for HDMI] 1s set to [On] (page 61),
[Audio Output] is set to [Speaker + HDMI]
automatically and this setting cannot be changed.
+ When [Audio Output] is set to [HDMI], the output
signal format for the TV” and “SAT/CABLE”
function is 2-channel linear PCM.
s>uewnsnipy pue $битщэс В
595
60“
E [Sound Effect]
Youcan set the system's sound effects (SOUND
MODE and [Surround Setting ]) to on/off.
[On]: Enables all of the system’s sound effects.
The upper limit of sampling frequency is set to
48 kHz.
[Off]: The sound effects are disabled. Select this
when you do not want to set the upper limit of
sampling frequency.
E [Surround Setting]
Y ou can select the surround setting. For details,
see “Step 6: Enjoying Surround Sound”
(page 31)
E [Speaker Settings]
the speakers. For details, see “Setting the
Speakers” (page 49).
E [Auto Calibration]
You can calibrate the appropriate settings
automatically. For details, see “Calibrating the
Appropriate Settings Automatically” (page 48).
[BD/DVD Viewing
Settings]
You can make detailed settings for BD/DVD
playback.
E [BD/DVD Menu]
You can select the default menu language for
BD-ROMs or DYD VIDEOS.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 76).
Hl [Audio]
You can select the default track language for
BD-ROMs or DVD VIDEOS.
When you select [Original], the language given
priority in the disc is selected.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 76).
Hl [Subtitle]
You can select the default subtitle language for
BD-ROMs or DVD VIDEOS.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 76).
Ш [ВР Hybrid Disc Playback Layer]
[BD]: Plays BD layer.
[DVD/CD]: Plays DVD or CD layer.
E [BD Internet Connection]
[Allow]: Normally select this.
[Do not allow]: Prohibits Internet connection.
= [Parental Control
Settings]
E [Password]
Set or change the password for the Parental
Control function. A password allows you to set
à restriction on BD-ROM, DVD VIDEO, or
Internet video playback. If necessary, vou can
differentiate the restriction levels for BD-ROMs
and DVD VIDEOS.
E [Parental Control Area Code]
Playback of some BD-ROMs or DVD VIDEOs
can be limited according to the geographic area.
Scenes may be blocked or replaced with
different scenes. Follow the on-screen
instructions and enter your four-digit password.
E [BD Parental Control]
Playback of some BD-ROMs can be limited
according to the age of the users. Scenes may be
blocked or replaced with different scenes.
Follow the on-screen instructions and enter your
four-digit password.
E [DVD Parental Control]
Playback of some DVD VIDEOS can be limited
according to a predetermined level such as the
age of the users. Scenes may be blocked or
replaced with different scenes. Follow the
on-screen instructions and enter your four-digit
password.
E [Internet Video Parental Control]
Playback of some Internet videos can be limited
according to the age of the users. Scenes may be
blocked or replaced with different scenes.
Follow the on-screen instructions and enter your
four-digit password.
HE [Internet Video Unrated]
| Allow]: Allows the playback of unrated
Internet videos.
| Block]: Blocks the playback of unrated Internet
videos.
[Music Settings]
You can make detailed settings for Super Audio
CD playback.
E [Super Audio CD Playback Layer]
[Super Audio CD]: Plays the Super Audio CD
layer.
[CD]: Plays the CD layer.
E [Super Audio CD Playback Channel]
[DSD 2ch]: Plays the 2ch area.
[DSD Multi]: Plays the multi-channel area.
4 5 [System Settings]
You can make the system-related settings.
EH [OSD]
You can select your language for the system on-
screen displays.
Hl [lllumination/Display]
You can select the status of the soft-touch
buttons (page 11) and front panel display
(page 12).
[Standard/On]: The soft-touch buttons and the
front panel display stay 1lluminated.
[Simple/Off]: The soft-touch buttons and the
front panel display turn off when the system 1s
not being operated.
HE [HDMI Settings]
[Control for HDMI]
[On]: On. You can operate mutually between
components that are connected with an HDMI
cable.
[Off]: Off.
[Audio Return Channel]
This function 1s available when you connect the
system and TV that 1s compatible with the Audio
Return Channel function.
s>uewnsnipy pue síumes В
61 US
62”
[Auto]: The system can receive the digital audio
signal of the TV automatically via an HDMI
cable.
[Off]: Off.
+ This function is available only when [Control for
HDMI] is set to [On].
E [Quick Start Mode]
[On]: Shortens the startup time from standby
mode. You can operate the system quickly after
turning it on.
[Off]: The default setting.
E [Auto Standby]
[On]: Turns on the [Auto Standby] function.
When you do not operate the system for about
30 mmutes, the system enters standby mode
automatically.
[Off]: Turns off the function.
E [Auto Display]
[On]: Automatically displays information on the
screen when changing the viewing titles, picture
modes, audio signals, etc.
[Off]: Displays mformation only when you
press DISPLAY.
E [Screen Saver]
[On]: Tums on the screen saver function.
[Off]: Off.
E [Software Update Notification]
[On]: Sets the system to inform you of newer
software version information (page 37).
[Off]: Off.
Hl [Gracenote Settings]
[Auto]: Automatically downloads disc
information when you stop playback of the disc.
To download, the system must be connected to
the network.
[ Manual]: Downloads disc information when
[Video Search] or [Music Search] is selected.
E [System Information]
You can display the system's software version
Information and the MAC address.
[Network Settings]
You can make detailed settings for Internet and
network.
HE [Internet Settings]
Connect the system to the network beforehand.
For details, see “Step 3: Connecting to the
Network” (page 27).
EH [Network Connection Diagnostics]
You can run the network diagnostic to check 1f
the network connection has been made properly.
E [Connection Server Settings]
Sets whether or not to display the connected
DLNA server.
ME [Renderer Options]
[Auto Access Permission]: Sets whether or not
to allow automatic access from newly detected
DLNA controller.
[Smart Select]: Allows a Sony DLNA controller
to find the system as the target component to
operate by using the infrared ray. You can set
this function to on or off.
[Renderer Name]: Displays the system’s name
as It 1s listed on other DLNA devices on the
network.
EH [Renderer Access Control]
Sets whether or not to accept commands from
DINA controllers.
E [Party Auto Start]
[On]: Starts a PARTY or joins an existing
PARTY at the request of a networked device
compatible with the PARTY STREAMING
function.
[Off]: Off.
E [Media Remote Device Registration]
Registers your “Media remote” device.
Hl [Registered Media Remote Devices]
Displays a list of your registered “Media
remote” devices.
[Easy Setup]
Re-runs the Easy Setup to make the basic
settings. Follow the on-screen instructions.
1-2-3
[Resetting]
Hl [Reset to Factory Default Settings]
You can reset the system settings to the factory
default by selecting the group of settings. All the
settings Within the group will be reset.
E [Initialize Personal Information]
You can erase your personal information stored
In the system.
s>uewnsnipy pue síumes В
63 US
64"
Precautions
On safety
filled with liquids, such as vases, on the system, or
place the system near water, such as near a bathtub or
shower room. Should any solid object or liquid fall
into the cabinet, unplug the system and have it
checked by qualified personnel before operating it
any further.
* Do not touch the AC power cord (mains lead) with
wet hands. Doing so may cause an electric shock.
On power sources
» Unplug the unit from the wall outlet (mains) if you do
not intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never by
the cord.
On placement
* Place the system in a location with adequate
ventilation to prevent heat build-up in the system.
At high volume, over long periods of time, the cabinet
becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do
not place the system in a confined space where
ventilation is poor as this may cause overheating.
Do not block the ventilation slots by putting anything
on the system. The system is equipped with a high
power amplifier. If the ventilation slots are blocked,
the system can overheat and malfunction.
Do not place the system on surfaces (rugs, blankets,
etc.) or near materials (curtains, draperies) that may
block the ventilation slots.
Do not install the system in a confined space, such as
a bookshelf or similar unit.
Do not install the system near heat sources such as
radiators, air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or
shock.
* Do not install the system in an inclined position. It 1s
designed to be operated in a horizontal position only.
* Keep the system and discs away from components
With strong magnets, such as microwave ovens, or
large loudspeakers.
* Do not place heavy objects on the system.
* Do not place metal objects in front of the front panel.
They may limit reception of radio waves.
* Do not place the system in a place where medical
equipment is in use. It may cause a malfunction of
medical equipment.
* If you use a pacemaker or other medical device,
consult your physician or the manufacturer of your
medical device before using the wireless LAN
function.
On operation
» If the system 1s brought directly from a cold to a warm
location, or 15 placed 1n a very damp room, moisture
may condense on the lenses inside the unit. Should
this occur, the system may not operate properly. In
this case, remove the disc and leave the system turned
on for about half an hour until the moisture
evaporates.
+ When you move the system, take out any disc. If you
do not, the disc may be damaged.
» If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before
operating it any further.
On adjusting volume
* Do not turn up the volume while listening to a section
with very low level inputs or no audio signals. If you
do, the speakers may be damaged when a peak level
On cleaning
+ Clean the cabinet, panel, and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any questions or problems concerning
your system, please consult your nearest Sony dealer.
On cleaning discs, disc/lens
cleaners
* Do not use cleaning discs or disc/lens cleaners
(including wet or spray types). These may cause
the apparatus to malfunction.
On replacement of parts
parts may be collected for reuse or recycling
purposes.
On your TV’s color
* If the speakers should cause the TV screen to have
color irregularity, turn off the TV then turn it on after
[5 to 30 minutes. If color irregularity should persist,
place the speakers further away from the TV set.
IMPORTANT NOTICE
Caution: This system 1s capable of holding a still
video image or on-screen display image on your
television screen indefinitely. If you leave the still
video image or on-screen display image displayed
on your TV for an extended period of time you risk
permanent damage to your television screen.
Projection televisions are especially susceptible to
this.
On moving the system
+ Before moving the system, make sure that there is no
disc inserted, and remove the AC power cord (mains
lead) from the wall outlet (mains).
Notes ahout the Discs
On handling discs
* To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
* Do not stick paper or tape on the disc.
* Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
* After playing, store the disc in its case.
On cleaning
* Before playing, clean the disc with a cleaning
cloth.
Wipe the disc from the center out.
* Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
This system can only play a standard circular
disc. Using neither standard nor circular discs
(e.g., card, heart, or star shape) may cause a
malfunction.
Do not use a disc that has a commercially
available accessory attached, such as a label or
ring.
UONEUNOJUI [EUOIHPPV В
6575
66”
Troubleshooting
H you experience any of the following difficulties while using the system, use this troubleshooting
guide to help remedy the problem before requesting repairs. Should any problem persist, consult your
nearest Sony dealer.
Note that 1f service personnel changes some parts during repair, these parts may be retained.
General
Symptom
Problems and solutions
The power 1s not turned on.
* Check that the AC power cord (mains lead) is connected securely.
The remote does not function.
* The distance between the remote and the unit 1s too far.
* The batteries in the remote are weak.
The disc tray does not open and
you cannot remove the disc even
after you press 4.
* Try the following: (1) Press and hold le and £ on the unit for more than 5
seconds to open the disc tray. (2) Remove the disc. 6) Disconnect the AC power
cord (mains lead) from the wall outlet (mains), then reconnect after several
minutes.
The system does not work
* Disconnect the AC power cord (mains lead) from the wall outlet (mains), then
normally. reconnect after several minutes.
Messages
Symptom Problems and solutions
[A new software version 18
available. Please go to the
“Setup” section of the menu and
select “Network Update” to
perform the update. ] appears on
the TV screen.
* See [Network Update] (page 37) to update the system to a newer software
version.
“PROTECTOR” and “PUSH
PWR” appear alternately in the
front panel display.
Press VO to turn off the system, and check the following items after
“STANDBY?” disappears.
* Are the + and — speaker cords short-circuited?
* Are you using only the specified speakers?
» Is anything blocking the ventilation holes of the system?
* After checking the above items and fixing any problems, turn on the system. If
the cause of the problem cannot be found even after checking all the above
items, consult your nearest Sony dealer.
“LOCKED” appears in the front
panel display.
* Set the child lock function to off (page 31).
“DEMO LOCK” appears in the
front panel display.
* Contact your nearest Sony dealer or local authorized Sony service facility.
“Exxxx” appears 1n the front
panel display.
* Contact your nearest Sony dealer or local authorized Sony service facility and
give the error code.
appears without any
messages on the entire TV
screen.
* Contact your nearest Sony dealer or local authorized Sony service facility.
Symptom
Problems and solutions
There 1s no picture.
* Check the output method on your system (page 22).
There 1s no picture when you
make an HDMI cable
connection.
* The unit is connected to an input device that is not HDCP (High-bandwidth
Digital Content Protection) compliant ("HDMI™ on the front panel does not
light up) (page 22).
3D images from the HDMI (IN
1) or HDMI (IN 2) jack do not
appear on the TV screen.
* Depending on the TV or video component, 3D images may not appear.
There 1s no picture or output
resolution 1s low when you make
a component video cable
connection.
* When playing a BD-ROM, a high-resolution image may not be output because
of copy protection limitations. We recommend to make a HDMI connection
(page 22).
No picture appears when the
video output resolution selected
in [Output Video Format] 1s
incorrect.
+ Press and hold = and VOL — on the unit for more than 3 seconds to reset the
video output resolution to the lowest resolution.
The dark area of the picture istoo + Set [Picture Quality Mode] to [Standard] (default) (page 41).
dark/the bright area 1s too bright
or unnatural.
The picture 1s not output
correctly.
+ Check the [Output Video Format] settings in [Screen Settings] (page 38).
» If the analog and digital signals are output at the same time, set [BD/DVD-
ROM 1080/24p Output] in [Screen Settings] to [Off] (page 59).
* For BD-ROMs, check the [BD/DVD-ROM 1080/24p Output] settings in
[Screen Settings] (page 59).
Picture noise appears.
* Clean the disc.
* If the picture output from your system goes through your VCR to get to your
TY, the copy-protection signal applied to some BD/DVD programs could affect
picture quality. If you still experience problems even when you connect your
unit directly to your TV, try connecting your unit to the other input jacks.
An image is not displayed on the
entire TV screen,
+ Check the setting of [TV Type] in [Screen Settings ](page 38).
* The aspect ratio on the disc is fixed.
Color irregularity occurs on the
TV screen.
* If the speakers are used with a CRT-based TV or projector, install the speakers
at least 1.0 ft (0.3 meters) from the TV set.
» If the color irregularity persists, turn off the TV set once, then turn it on after 15
to 30 minutes.
* Make sure that no magnetic object {magnetic latch on a TV stand, health care
device, toy, etc.) 1s placed near the speakers.
There 1s no picture after playing
a video/photo file on the iPod/
iPhone. (U.S. and Canada
models only.)
* Select the input on your TV for this system.
UONEUNOJUI /ZUONIPPY В
67 US
68”
Sound
Symptom
Problems and solutions
There 15 no sound.
* The speaker cord 15 not connected securely.
* Check the speaker settings (page 49).
The Super Audio CD sound of a
component that is connected to
the HDMI (IN 1} or HDMI (IN
2) jack 1s not output.
* HDMI (IN 1) and HDMI (IN 2) does not accept an audio format that contains
copy protection. Connect the analog audio output of the component to the
AUDIO (AUDIO IN L/R) jacks of the unit.
There 15 no sound from the TY
via the HDMI (OUT) jack when
using the Audio Return Channel
function.
Set [Control for HDMI] in [HDMI Settings] of [System Settings] to [On]
(page 61). Also, set [Audio Return Channel] in [HDMI Settings] of [System
Settings] to [Auto] (page 61).
Make sure that your TV is compatible with the Audio Return Channel function.
Make sure that an HDMI cable is connected to a jack on your TV that is
compatible with the Audio Return Channel function.
The system does not output
sound correctly when connected
to a set-top box.
* Set [Audio Return Channel] in [HDMI Settings] of [System Settings] to [Off]
(page 61).
Severe hum or noise 18 heard.
* Move your TV away from the audio components.
Clean the disc.
The sound loses stereo effect
when you play a CD.
* Select stereo sound by pressing AUDIO (page 43).
The sound comes from the center
speaker only.
* Depending on the disc, the sound may come from the center speaker only.
No sound or only a very low-
level sound 15 heard from the
surround speakers.
* Check the speaker connections and settings (pages 20, 49).
* Check the surround setting (page 31).
* Depending on the source, the effect of the surround speakers may be less
noticeable.
A 2 channel source is being played.
Distortion occurs in the sound of
a connected component.
* Reduce the input level for the connected component by setting [Attenuate -
AUDIO] (page 59).
Tuner
Symptom
Problems and solutions
Radio stations cannot be tuned
* Check that the antenna (aerial) is connected securely. Adjust the antenna
in. (aerial) or connect an external antenna (aerial) if necessary.
* The signal strength of the stations 15 too weak (when tuning in with automatic
tuning). Use manual tuning.
Playback
Symptom Problems and solutions
The disc does not play.
* The region code on the BD/DYD does not match the system.
* Moisture has condensed inside the unit and may cause damage to the lenses.
Remove the disc and leave the unit turned on for about half an hour.
* The system cannot play a recorded disc that is not correctly finalized (page 71).
File names are not displayed
correctly.
* The system can only display ISO 8859-1-compliant character formats, Other
character formats may be displayed differently.
* Depending on the writing software used, the input characters may be displayed
differently.
Symptom Problems and solutions
A disc does not start playing * Resume play has been selected. Press OPTIONS and select [Play from
from the beginning. beginning]. then press >.
Playback does not start from the * The resume point may be cleared from memory depending on the disc when
resume point where you last — you open the disc tray.
stopped playing. — you disconnect the USB device.
— you play other content.
— you turn off the unit.
The language for the soundtrack/ * Try using the BD's or DVD's menu.
subtitle or angles cannot be * Multi-lingual tracks/subtities or multi-angles are not recorded on the BD or
changed. DVD being played.
Bonus contents or other data that» Try the following: M Remove the dise. © Turn the system off. @ Remove and
are contained in a BD-ROM reconnect the USB device (page 35). @ Turn the system on. © Insert the BD-
cannot be played. ROM with BONUSVIEW/BD-LIVE.
USB device
Symptom Problems and solutions
The USB device is not * Try the following: (1) Turn the system off. (2) Remove and reconnect the USB
recognized. device. © Turn the system on.
+ Make sure that the USB device is securely connected to the «> (USB) port.
* Check 1f the USB device or a cable 15 damaged.
* Check 1f the USB device 1s on.
+ If the USB device 18 connected via a USB hub, disconnect it and connect the
USB device directly to the unit.
BRAVIA Internet Video
Symptom Problems and solutions
The picture/sound is poor/certain »* Picture/sound quality may be poor depending on Internet content providers.
UOIJEUILIO«U] JÉUOIMNPPY В
programs display with a loss of Picture/sound quality may be improved by changing the connection speed.
detail, especially during fast- Sony recommends a connection speed of at least 2.5 Mbps for standard-
motion or dark scenes. definition video and 10 Mbps for high-definition video.
+ Not all videos contain sound.
The picture is small. + Press À to zoom in.
“BRAVIA” Sync ([Control for HDMI])
Symptom Problems and solutions
The [Control for HDMI] + Check that [Control for HDMI] 15 set to [On] (page 61).
function does not work * If you change the HDMI connection, turn the system off and on again.
(BRAVIA” Sync). * If power failure occurs, set [Control for HDMI] to [Off], then set [Control for
HDMI] to [On] (page 61).
* Check the following and refer to the operating instructions supplied with the
component.
— the connected component is compatible with the [Control for HDMI]
function.
— the connected component’s setting for the [Control for HDMI] function 1s
correct.
6975
Network connection
Symptom Problems and solutions
The system cannot connect to the * Check the network connection (page 27) and the network settings (page 62).
network.
Built-in/USB wireless LAN connection
Symptom Problems and solutions
You cannot connect your PC to» The wireless settings of the router may change automatically 1f you use the
the Internet after [Wi-Fi Wi-Fi Protected Setup function before adjusting the settings of the router. In
Protected Setup (WPS)] is this case, change the wireless settings of your PC accordingly.
performed.
You cannot connect the system» Check if the wireless LAN router is on.
to your wireless LAN router. * Depending on the usage environment, including the wall material, radio wave
reception conditions, or obstacles between the system and the wireless LAN
router, the possible communication distance may be shortened. Move the
system and the wireless LAN router closer to each other.
* Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or
digital cordless device, may interrupt the communication. Move the unit away
from such devices, or turn off such devices.
The desired wireless router 1s not -—* Press RETURN to return to the previous screen, and try [Scan] again. If the
detected even 1f [Scan] 1s desired wireless router 1s still not detected, press RETURN to select [Manual
performed. registration).
The system cannot connect to the » The distance between the unit and the wireless LAN router is too far (page 27).
network or the network
connection 1s unstable.
705
Playable Discs
BD-ROM!)
BD-R/BD-RE”)
DVD-ROM
DVD-R/DVD-RW
DVD+R/DVD+RW
CD”) CD-DA (Music CD)
CD-ROM
CD-R/CD-RW
Super Audio CD
Blu-ray Disc
DVD”
Since the Blu-ray Disc specifications are new and
evolving, some discs may not be playable depending
on the disc type and the version. Also, the audio
output differs depending on the source, connected
output jack, and selected audio settings.
“BD-RE: Ver.2.1
BD-R: Ver.1.1, 1.2, 1.3 including organic pigment
type BD-R (LTH type)
BD-Rs recorded on a PC cannot be played 11
postscripts are recordable.
YA CD or DVD disc will not play if it has not been
correctly finalized. For more information, refer to the
operating instructions supplied with the recording
device.
Discs that cannot be played
* BDs with cartridge
* BDXLs
* DVD-RAMs
+ HD DVDs
DVD Audio discs
* PHOTO CDs
* Data part of CD-Extras
* Super VCDs
* Audio material side on DualDiscs
* For U.S. and Canada models: A disc recorded
in a color system other than NTSC, such as
PAL
system.)
Notes on discs
This product 1s designed to play back discs that
conform to the Compact Disc (CD) standard.
DualDiscs and some music discs encoded with
copyright protection technologies do not
conform to the Compact Disc (CD) standard.
Therefore, these discs may not be compatible
with this product.
Note on playback operations of a
BD/DVD
Some playback operations of a BD/DVD may be
intentionally set by software producers. Since
this system plays a BD/DVD according to the
disc contents the software producers designed,
some playback features may not be available.
Note about double-layer BDs/
DVDs
The playback picture and sound may be
momentarily interrupted when the layers switch.
Region code (BD-ROM/DVD
VIDEO only)
Your system has a region code printed on the
rear of the unit and will only play a BD-ROM/
DVD VIDEO (playback only) labeled with
identical region codes or Ki.
UONEUNOJUI [EUOIHPPV В
71"
Playable Types of Files
Video!
File format
Extensions
МРЕС-1 М14со/Р$2)5)
9
“mpg,” “mpeg,” .m2ts,”
MPEG-2 Video/PS, mts”
TS2)6)
Xvid “avi”
MPEG4/AVC?) “mkv,” “mpd,” “атм,”
“m21s,” “mts”
WMV97}} “wmv,” “asf”
AVCHD 35)
Music
File format Extensions
MP3 (MPEG-1 Audio “mp3”
Layer III)
AAC?45) “mda”
WMA Standard?) “wma”
LPCM “wav”
Photo!
File format Extensions
JPEG “jpg.” “jpeg”
GIF gif”
PNG “png”
DThe system does not play these files via the DLNA
renderer function.
“The system does not play files encoded with DRM.
The system plays AVCHD-format files that are
recorded via a digital video camera, etc. To watch
AVCHD-format files, the disc with A VCHD-format
files on it must be finalized.
The system does not play files encoded with
Lossless, ete.
The system does not play these files via the DLNA
function.
The system plays SD resolution only via the DLNA
function.
* Some files may not play depending on the file format,
the file encoding, the recording condition, or DLNA
server condition.
* Some files edited on a PC may not play.
* The system can recognize the following files or
folders 1n BDs, DVDs, CDs and USB devices:
— up to folders in the 5th tree
— up to 500 files in a single tree
* The system can recognize the following files or
folders stored 1n the DLNA server:
— up to folders in the 20th tree
— up to 999 files in a single tree
* The system can recognize Mass Storage Class (MSC)
devices (such as flash memory or an HDD), Still
Image Capture Devices (SICDs), and 101-key
keyboards (front => (USB) port only).
* To avoid data corruption or damage to USB memory
or other devices, turn the system off before
connecting or removing USB memory or other
devices.
* The system may not play high bit rate video files from
a DATA CD smoothly. It 15 recommended to play
high bit rate video files using a DATA DVD.
Supported Audio Formats
Audio formats supported by this system are as follows.
Format
LPCM 2ch LPCM5.1ch — Dolby Digital Dolby DTS DTS-ES DTS-HD DTS-HD
Function LPCM 7.1ch TrueHD, Discrete 6.1, High Master
Dolby Digital DTS-ES Resolution Audio
Plus Matrix 6.1, Audio
DTS96/24
“BD/DVD” O O O O O O O O
“HDMI” O — O — O — — _
“HDMI2”
“SAT/CABLE” O — O — O — — _
“TV”
(DIGITAL IN)
O: Supported format.
—: Unsupported format.
such as Super Audio CD or DVD-Audio.
* For the LPCM 2ch format, the supported sampling frequency of the digital signal 1s up to 96 kHz when using the
“HDMI” or “HDMI2” function, and 48 kHz when using the “TV” or “SAT/CABLE” function.
* HDMI (IN 1) and HDMI (IN 2) do not input sound in the case of an audio format that contains copy protections
UONEUNOJUI [EUOIHPPV В
735
7455
Specifications
Amplifier Section
U.S.models:
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(FTC)
Front L + Front R: With 3 ohms loads, both
channels driven, from 180
- 20,000 Hz; rated 60 watts
per channel minimum
RMS power, with no more
than 1% total harmonic
distortion from 250 mills
watts to rated output.
Other models:
POWER OUTPUT (rated)
Front L/Front R: 108 W + 108 W (at 3 ohms.
| kHz, 19: THD)
POWER OUTPUT (reference)
Front L/Front R/Center/Surround L/Surround R:
[67 W (per channel at
3 ohms, | kHz)
Subwoofer: [65 W (at 3 ohms, 80 Hz)
Inputs (Analog)
AUDIO (AUDIO IN)
Inputs (Digital)
SAT/CABLE (COAXIAL)
TV (Audio Return Channel/OPTICAL)
Supported formats: LPCM
2CH (up to 48 kHz), Dolby
Digital, DTS
HDMI (IN 1//HDMTI (IN 2)
Supported formats: LPCM
2CH (up to 96 kHz), Dolby
Digital, DTS
Sensitivity: 450/250 mV
Video Section
Outputs VIDEO: 1 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
PB, Pr: 0.7 Vp-p
75 ohms
HDMI Section
Connector Type A (19pin)
BD/DVD/Super Audio CD/CD System
Signal format system
U.S. and Canada models: NTSC
Other models: NTSC/PAL
USB Section
e (USB) port:
LAN Section
LAN (100) terminal
Type A (For connecting
USB memory, memory
card reader, digital still
camera, and digital video
camera)
[OOBASE-TX Terminal
Wireless LAN Section (BDV-E580/BDV-T58)
Standards Compliance
Frequency and Channel
FM Tuner Section
System
Tuning range
U.S. and Canada models:
Other models:
Antenna (aerial)
IEEE 802.11 b/g/n
2.4 GHz - 2.4835 GHz
[CH] -11]
PLL quartz-locked digital
synthesizer
87.5 MHz - 108.0 MHz
(100 kHz step)
87.5 MHz - 108.0 MHz (50
kHz step)
FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Speakers
Front/Surround (SS-TSB106) for BDV-E580/
BDV-T58
Surround (SS-TSB106) for BDV-E880
Dimensions (approx.)
Mass (approx.)
96 mm x 245 mm x 96 mm
(3 7/8 in x 9 °/4 in x 3 "/s in)
(w/h/d)
0.6 kg (1 Ib 6 07)
Front (SS-TSB108) for BDV-E880/BDV-E980
Dimensions (approx.)
Mass (approx.)
96 mm x 775 mm x 72 mm
(3 7/8 in x 30° in x
2 fs in) (w/h/d) (wall-
mounted part)
275 mm x 1,205 mm x 245
mm (10 7/8 in x 47 V2 in x
9 */4 in) (w/h/d) (whole
speaker)
1.4 kg (3 1b 2 07) (wall-
mounted part)
2.7 kg (6 1b) (whole
speaker)
Surround (SS-TSB109) for BDV-E980
Dimensions (approx.) 96 mm x 775 mm x 72 mm
(3 73 in x 30 3% in x
2 "fs in} (w/h/d) (wall-
mounted part)
275 mm x 1,205 mm x 245
mm (10 7% in x 47 V2 in x
9 */4 in) (w/h/d) (whole
speaker)
Mass (approx.) 1.3 kg (2 Ib 14 07) (wall-
mounted part)
26 kg (51b 12 oz) (whole
speaker)
Center (SS-CTB103)
Dimensions (approx.) 315 mm x 59 mm x 53 mm
(12 2 in x 2 Vs in x
2 */s in) (w/h/d)
Mass (approx.) 0.4 kg (15 07)
Subwoofer (SS-WSB104) for BDV-E580/
BDV-E880/BDV-T58
Dimensions (approx.) 380 mm x 330 mm x 191
mm (15 in x 13 in x
7 5/5 in) (w/h/d)
Mass (approx.) 6.3 kg (13 1b 1307)
Subwoofer (SS-WSB105) for BDV-E980
Dimensions (approx.) 415 mm x 340 mm x 215
mm (16 °/ in x 13 V2 in x
8 !/2 in) (w/h/d)
Mass (approx.) 7.8 kg (17 1b 407)
General
Power requirements
U.S. and Canada models: 120 Y AC, 60 Hz
Other models: 110 V - 240 V AC,
50/60 Hz
Power consumption
BDV-F580/BDV-T58 On: 170 W
Standby: 0.3 W (at the
Power Saving mode)
BDV-F880/BDV-E980 — On: 165 W
Standby: 0.3 W (at the
Power Saving mode)
Dimensions (approx.) 430 mm x 75 mm x 320
mm (17 in x 3 in x
[2 3/8 in) (w/h/d) incl.
projecting parts
Mass (approx.) 4.1 kg (91b | 07)
Design and specifications are subject to change
without notice.
* Standby power consumption 0.3W.
* Over 85% power efficiency of amplifier block 1s
achieved with the full digital amplifier, S-Master.
UONEUNOJUI [EUOIHPPV В
755
Language Code List
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language Code Language Code Language Code Language
1027 Afar 1183 Irish 1347 Maori 1507 Samoan
1028 Abkhazian 1186 Scots Gaelic 1349 Macedonian 1508 Shona
1032 Afrikaans 1194 Galician 1350 Malayalam 1509 Somali
1039 Amharic 1196 Guarani 1352 Mongolian 1511 Albanian
1044 Arabic 1203 Gujarati 1353 Moldavian 1512 Serbian
1045 Assamese 1209 Hausa 1356 Marathi 1513 Siswati
1051 Aymara 1217 Hindi 1357 Malay 1514 Sesotho
1052 Azerbaijani 1226 Croatian 1358 Maltese 1515 Sundanese
1053 Bashkir 1229 Hungarian 1363 Burmese 1516 Swedish
1057 Byelorussian 1233 Armenian 1365 Nauru 1517 Swahili
1059 Bulgarian 1235 Interlingua 1369 Nepali 1521 Tamil
1060 Bihari 1239 Interlingue 1376 Dutch 1525 Telugu
1061 Bislama 1245 Inupiak 1379 Norwegian 1527 Tajik
1066 Bengali; 1248 Indonesian 1393 Occitan 1528 Thai
Bangla 1253 Icelandic 1403 (Afan)Oromo 1529 Tigrinya
1067 Tibetan 1254 italian 1408 Oriya 1531 Turkmen
1070 Breton 1257 Hebrew 1417 Punjabi 1532 Tagalog
1079 Catalan 1261 Japanese 1428 Polish 1534 Seiswana
1093 Corsican 1269 Yiddish 1435 Pashto; 1535 Tonga
1097 Czech 1283 Javanese Pushto 1538 Turkish
1103 Welsh 1287 Georgian 1436 Portuguese 1539 Tsonga
1105 Danish 1297 Kazakh 1463 Quechua 1540 Tatar
1109 German 1298 Greenlandic 1481 Rhaeto- 1543 Twi
1130 Bhutani 1299 Cambodian Romance 1557 Ukrainian
1142 Greek 1300 Kannada 1482 Kirundi 1564 Urdu
1144 English 1301 Korean 1483 Romanian 1572 Uzbek
1145 Esperanto 1305 Kashmiri 1489 Russian 1581 Vietnamese
1149 Spanish 1307 Kurdish 1491 Kinyarwanda 1587 Volapük
1150 Estonian 1311 Kirghiz 1495 Sanskrit 1613 Wolof
1151 Basque 1313 Latin 1498 Sindhi 1632 Xhosa
1157 Persian 1326 Lingala 1501 Sangho 1665 Yoruba
1165 Finnish 1327 Laothian 1502 Serbo-Croatian 1684 Chinese
1166 Fiji 1332 Lithuanian 1503 Singhalese 1697 Zulu
1171 Faroese 1334 Latvian; Lettish 1505 Slovak
1174 French 1345 Malagasy 1506 Slovenian
1181 Frisian 1703 Not specified
Code Area Code Area Code Area Code Area
2044 Argentina 2109 Germany 2362 Mexico 2499 Sweden
2047 Australia 2200 Greece 2376 Netherlands 2086 Switzerland
2046 Austria 2219 Hong Kong 2390 New Zealand 2543 Taiwan
2057 Belgium 2248 India 2379 Norway 2528 Thailand
2070 Brazil 2238 Indonesia 2427 Pakistan 2184 United
2080 Chile 2239 Ireland 2424 Philippines Kingdom
2092 China 2254 Italy 2428 Poland
2093 Colombia 2276 Japan 2436 Portugal
2115 Denmark 2304 Korea 2489 Russia
2165 Finland 2333 Luxembourg 2501 Singapore
2174 France 2363 Malaysia 2149 Spain
765
Index
Numerics
3D 34
3D Output Setting 58
A
A/V SYNC 42
Attenuate - AUDIO 59
Audio 60
Audio DRC 59
Audio Output 59
Audio Return Channel 61
Audio Settings 59
Auto Calibration 48, 60
Auto Display 62
Auto Standby 62
B
BD Audio MIX Setting 59
BD Hybrid Disc Playback
Layer 60
BD Internet Connection 60
BD Parental Control 61
BD/DVD Menu 60
BD/DVD Viewing Settings 60
BD/DVD-ROM 1080/24p
Output 59
BD-LIVE 34
BONUSVIEW 34
BRAVIA Internet Video 38
BRAVIA Sync 47
C
CD 71
Child Lock 51
Cinema Conversion Mode 58
Connection Server Settings 62
Control for HDMI 47, 61
D
D.C.A.C. (Digital Cinema Auto
Calibration) 48
DLNA 39, 62
Dolby Digital 43
DTS 43
DVD 71
DVD Aspect Ratio 58
DVD Parental Control 61
E
Easy Setup 29, 63
F
FM MODE 45
Front panel 11
Front panel display 12
G
Gracenote Settings 62
H
HDMI
YChCr/RGB (HDMI) 59
HDMI Deep Color Output 59
|
Humination/Display 61
Initialize Personal Information
63
Internet content 38
Internet Settings 53, 62
Internet Video Parental Control
61
Internet Video Unrated 61
L
Language Code List 76
M
Media Remote Device
Registration 62
Multiplex broadcast sound 44
Music Settings 61
N
Network Connection
Diagnostics 62
Network Settings 62
Network Update 57
O
OSD 61
Output Video Format 58
P
Parental Control Area Code 61
Parental Control Settings 61
Party Auto Start 62
Password 61
Pause Mode 59
Play information 35
Playable discs 71
Q
Quick Start Mode 62
R
Rear panel 13
Region code 71
Registered Media Remote
Devices 62
Remote control 14
Renderer Access Control 62
Renderer Options 62
Reset to Factory Default
Settings 63
Resetting 63
S
Screen Format 58
Screen Saver 62
Screen Settings 58
SLEEP 50
Slideshow 42
Sound Effect 60
Speaker Settings 49, 60
Connection 49
Distance 49
Level 50
Subtitle 60
Super Audio CD Playback
Channel 61
Super Audio CD Playback
Layer 61
Surround Setting 60
System Information 62
T
Test Tone 50
TV Screen Size Setting for 3D
58
TV Type 58
U
Update 57
USB 35
W
WEP 56
WPA2-PSK (AES) 56
WPA2-PSK (TKIP) 56
WPA-PSK (AES) 56
WPA-PSK (TKIP) 56
775
The software of this system may be updated in the future. To find out details on any
available updates, please visit the following URL.
For customers in the U.S.:
http://www. sony.com/support
For customers in Canada:
English: http://www.sony.ca/support
French: http://fr.sony.ca/support
For customers in Mexico and Latin America:
http://esupport.sony.com/LA
SIA DES
dina
$ CERTIFIED"
= TM
Blu-ray isc mame 2
im
En
nse Java
SUPER AUDIO CD DIGITAL AUDIO DIGITAL PLUS | POWERED
hitp://www.sony.net/
