II

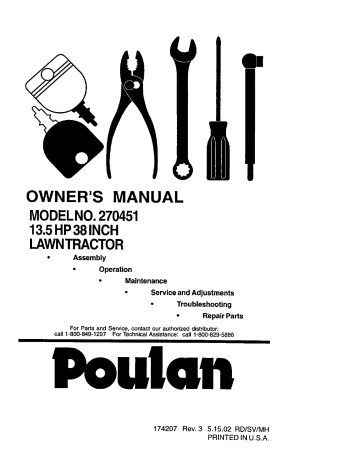

OWNER'S MANUAL

MODELNO. 270451

13.5HP 38 INCH

LAWNTRACTOR

Assembly

Operation

Maintenance

Service and Adjustments

Troubleshooting

Repair Parts

For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886

174207 Rev. 3 5.15.02

RD/SV/MH

PRINTED IN U.S.A.

Safety Rules .........................................

2

Product Specifications ..........................

5

Assembly ..............................................

7

Operation ............................................

Maintenance Schedule ......................

10

16

Maintenance .......................................

16

Service and Adjustments ....................

20

Storage ...............................................

25

Troubleshooting .................................

Repair Parts ........................................

26

30

Warranty .............................................

46

IMPORTANTThis cutting machine is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all instructions in the manual and on the machine before starting.

• Only allow responsible adults, who are familiar with the instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing.

Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

Be aware of the mower discharge direction and do not point it at anyone.

Do not operate the mower without either the entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended.

Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or unclogging chute.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the influence of alcohol or drugs.

• Watch for traffic when operating near or crossing roadways.

• Use extra care when loading or unloading the machine into a trailer

or truck.

Data indicates that operators,

age 60

years and above, are involved in a

large percentage of riding mowerrelated injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves

and others from

serious injury.

SLOPE OPERATION

Slopes are a major factor related to lossof-control and tipover accidents, which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel

uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps.

Uneven

terrain could overturn

the machine.

Tall grass can hide obstacles.

• Use slow speed.

Choose a low gear so that you will not have to stop or shift while on the slope.

Follow the manufacturer's

recommen-

dations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments.

These can change

the stability

of the machine.

Keep all movement

on the slopes slow and gradual.

Do not make sudden

changes

in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage

the

blades and proceed slowly straight

down the slope.

2

DO NOT:

Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

Do not mow near drop-offs, ditches, or

embankments.

The mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

Do not mow on wet grass.

Reduced traction could cause sliding.

Do nottry to stabilize the machine by putting your foot on the ground.

Do not use grass catcher on steep slopes.

CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children.

Children

are often attracted to the machine and the mowing activity.

Never

assume that children will remain where you last saw them.

Keep children out of the mowing area and under the watchful care of another responsible adult.

Be alert and turn machine off if children enter the area.

Before and when backing, look behind and down for small children.

Never carry children.

They may fall off and be seriously injured or interfere with safe machine operation.

Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

SERVICE

• Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine running.

Allow engine to cool before refueling.

Do not smoke.

Never refuel the machine indoors.

Never store the machine or fuel container inside where there is an open flame, such as a water heater.

3

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage.

Allow machine to cool before storing.

Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

Never make adjustments or repairs with the engine running.

Grass catcher components are subject to wear, damage, and deterioration, which could expose moving parts or allow objects to be thrown. Frequently check components and replace with manufacturer's when necessary.

recommended parts,

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and use extra caution when servicing them.

Check brake operation frequently.

Adjust and service as required.

Be sure the area is clear of other people before mowing.

Stop machine if anyone enters the area.

• Never carry passengers or children even with the blades off.

Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

• Never carry children.

They may fall off and be seriously injured or interfere with safe machine operation.

Keep children out of the mowing area and under the watchful care of another responsible adult.

Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small children.

• Mow up and down slopes (15 ° Max), not across.

Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overtum the machine.

Tall grass can hide obstacles.

Use slow speed.

Choose

a low gear

so that you will not have to stop or shift while on the slope.

• Avoid starting or stopping on a slope.

If tires lose traction, disengage the blades and proceed slowly

straight

down the slope.

• If machine stops while going uphill, disengage blades, shift into reverse and back down slowly.

Do not turn on slopes unless

neces-

sary, and then, turn slowly and gradually downhill, if possible.

_Look for this symbol to point out

important safety precautions.

It means

CAUTION!!!

BECOMEAWARE!!!YOUR

_FETY IS INVOLVED.

CAUTION; In order to prevent accidental starting when setting up, transporting, adjusting or making repairs always disconnect spark plug wire and place wire where it cannot contact spark

CAUTION: Do not coast down a hill in neutral, you may lose control of the tractor.

_CAUTION: Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor.

Use common sense when towing.

Operate only at the lowest possible speed when on a slope. Too heavy of a load, while on a slope, is dangerous.

"]3res can lose traction with the ground and cause you to lose control

RNING: The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

4

PRODUCT SPECIFICATIONS

GASOLINE

CAPACITY

AND TYPE:

OILTYPE

API-SF/SG/SH):

OILCAPACITY:

_PARK PLUG:

GAP: .030")

VALVE

CLEARANCE:

SAE 30(ABOVE 32°F

SAE 5W-30

(Below 32°F)

3 PTS

CHAMPION

RJ19LM

INTAKE:

OR J19LM

.005"-.007"

EXHAUST:.009"-.011"

GROUND SPEEDFORWARD:

(MPR):

1.25 GALLONS

UNLEADED

REGULAR

TIRE

PRESSURE:

CHARGING

SYSTEM:

BATTERY:

1ST

2ND

3RD

1.1

2.2

3.4

4TH

5TH

4.3

5.5

REVERSE: 1.7

FRONT:

REAR:

9 [email protected]

14 PSI

12 PSI

RPM

BLADE

TORQUE:

BOLT

AMP/HR:

MIN.CCA:

25

190

CASE SIZE:U1R

27-35 FT. LBS

CONGRATULATIONS on your purchase of a New Tractor.

It has been designed, engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center.

We have competent, well-trained technicians and the proper tools to service or repair this tractor.

Please read and retain this manual.

The instructions will enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

Follow a regular

schedule in maintain-

ing, caring for and using your tractor.

Follow the instructions under "Mainte-

nance" and "Storage" sections

of this owner's manual.

WARNING:

This tractor is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brushcovered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).

If a spark arrester is used, it should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands.

A spark arrester for the muffler is available through your nearest authorized service center/Department (See REPAIR PARTS section of this manual).

5

Steering Wheel

(1) Hex Bolt

3/8-16 x 1

Steering

Wheel Insert

(1) Large Flat Washer

(1) Hex Bolt 5/16-18 x 1-1/4

_L

(1) Locknut 5/16-18

_St_oeritg

(1) Lockwasher 3/8

Steering

Extension

Shaft

Seat

(_)

(1) Washer

17/32 x 1-3/16 x 12 Gauge

_(1)Knob

Keys

(1) Shoulder

Bolt 5/16-18

Slope Sheet

(2) Keys

6

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely.

Use the correct tools as necessary to insure proper tightness.

Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly easier.

Standard wrench sizes you need are listed below.

(1) 9/16"wrench (1) Pliers

(1) 1/2" wrench

(1) 5/16" wrench

(1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in this manual, it means, from your point of view, when you are in the operating position (seated behind the steering wheel).

Assemble

large flat washer, 3/8 lock washer,

3/8 hex bolt and tighten

securely.

Snap steering wheel insert into center

of steering wheel.

Remove protective

materials from

tractor hood and grill.

IMPORTANT:

Check for and remove any

staples in skid that may puncture tires where tractor is to roll off skid.

Steering Wheel Insert

o,t

,___./3/8 Lock Washer

TO REMOVETRACTOR FROM

CARTON

• Remove all accessible loose

parts

and parts cartons from carton.

• Cut, from top to bottom, along lines on all four corners of carton, and lay panels flat.

• Check for any additional loose parts or cartons and remove.

__e

Steering Wheel

Steering Boot _ _abs

Flat Washer

Adapter _

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

5/16 Locknut

j

Extension Shaft

"=_5/16

Hex Bolt

Lower Steering

,,_--_.,

_

Shaft _ "F_"""'-÷-',

ASSEMBLE EXTENSION SHAFT AND

BOOT

• Slide extension shaft onto lower steering shaft.

Align mounting holes in extension and lower shafts and install 5/16 hex bolt and Iocknut.

Tighten securely.

• Place tabs of steering boot over tab slots in dash and push down to secure.

_. '__,_ _

J "-

Tab

"

'

Slots

,.':;

INSTALL STEERING WHEEL

Position front wheels of the tractor so

they are pointing straight forward.

• Remove steering wheel adapter from steering wheel and slide adapter onto steering shaft extension.

• Position steering wheel so cross bars are horizontal (left to right) and slide inside boot and onto adapter.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

Lift seat pan to raised position and

open battery box door.

• If this battery is put into service after month and year indicated on label

(label located between terminals) charge battery for minimum of one hour at 6-10 amps.

(See "BAI-rERY" in

Maintenance section of this manual for charging instructions).

7

Ba_e_

Box

INSTALL SEAT

Adjust seat before tightening adjustment knob.

• Remove adjustment knob and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor.

• Pivot seat upward and remove from the cardboard packing.

Remove the cardboard packing and discard.

• Place seat on seat pan and assemble shoulder bolt. Tighten shoulder bolt securely.

• Assemble adjustment knob and flat washer loosely.

Do not tighten.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

Shoulder Seat Pan f_-f---_'_ II

Adjustment

Knob

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the tractor from the skid.

TO ROLLTRACTOR

Operation

OFF SKID

(See

section for location and function of controls)

• Press lift lever plunger and raise attachment lift lever to its highest position.

• Release parking brake by depressing clutch/brake pedal.

• Place gearshift lever in neutral (N) position.

• Roll tractor forward off skid.

• Remove banding holding discharge guard up against tractor.

TO DRIVE TRACTOR OFF SKID

(See Operation and function of section for location

controls)

,_

WARNING:

Before starting, read,

understand and follow all instructions in

the Operation

section of this manual. Be sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people

and objects.

Be sure all the above assembly steps

have been

completed.

Check engine oil level and fill fuel

tank with gasoline.

Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

Place gear shift lever in neutral (N)

position.

Press lift lever plunger and raise

attachment

lift lever to its highest

position.

Start the engine.

After engine has started, move throttle control to idle position.

Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and slowly drive tractor off skid.

• Apply brake to stop tractor, set parking brake and place gearshift lever in neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

8

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for shipping pur-

poses.

Correct tire pressure is important

for best cutting performance.

Reduce tire pressure to PSI shown in

"PRODUCT

SPECIFICATIONS" section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments section of this manual.

Verify that the belts are routed correctly.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly leveled.

See 'q-o

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

CHECKBRAKESYSTEM

After you learn how to operate

your

tractor, check to see that the brake

is

properly adjusted.

See "TO ADJUST

BRAKE" in the Service and Adjustments section of this manual.

/CHECKUST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WlSHTO

ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND

SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

,/All assembly instructions have been completed.

,z No remaining loose parts in carton.

/

Battery is properly prepared and charged.

(Minimum 1 hour at 6 amps).

,z Seat is adjusted comfortably and tightened securely.

,/All tires are properly inflated.

(For shipping purposes, the tires were overinflated at the factory).

,/Be

sure mower deck is properly leveled side-to-side/front-to-rear for best cutting results.

(Tires must be properly inflated for leveling).

,/Check mower and drive belts.

Be sure they are routed properly around pulleys and inside all belt keepers.

/ Check wiring.

See that all connections are still secure and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRAATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

,/Engine oil is at proper level.

,/Fuel

tank is filled with fresh, clean, regular unleaded gasoline.

J' Become familiar with all controls - their location and function.

Operate them before you start the engine.

,/Be

sure brake system is in safe operating condition.

9

These

symbols may appear

on your tractor or in literature supplied with the product.

Learn and understand their meaning.

f

BATTERY

ENGINE ON

CAUTION OR

WARNING

REVERSE

ENGINE OFF OIL PRESSURE

FORWARD j

LIGHTS ON

FAST

SLOW

@l k

OVER TEMP

LIGHT

!

MOWER LIFT

FUEL CHOKE MOWER HEIGHT PARKING

BRAKE

LOCKED

UNLOCKED

ATrACHMENT

CLUTCH ENGAGED

R N H L

REVERSE NEUTRAL HIGH LOW

PARKING

BRAKE

IGNITION

ATTACHMENT

CLUTCH

DISENGAGED

KEEP AREA CLEAR

SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

FREEWHEEL

(Automatic Models only)

DANGER, KEEP HANDS AND FEET AWAY

10

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments,

Save this manual

for future reference.

Attachment

Clutch Ignition Switch

Throttle/Choke

• " ."

Lever

Plunger

Attachment

Lift Lever

Clutch/

Brake Pedal

o Height

Adjustment

Indicator

Brake Lever

Gearshif

\

Our tractors conform to the safety standards of the American National Standards

Institute.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades,

or other attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to raise, lower, and adjust the mower deck

or other attachments

mounted to your tractor.

CLUTCH/BRAKE PEDAL

- Used for

declutching

and braking the tractor and starting the engine.

GEARSHIFT LEVER

- Selects the speed

and direction of tractor.

IGNITION release changing clutch/brake position.

SWITCH attachment

THROTTLE/CHOKE

- Used for starting and stopping the engine.

LIFT LEVER PLUNGER - Used to lift lever when its position.

LIGHT SWITCH

- Turns the headlights

on and off.

PARKING BRAKE LEVER - Locks pedal into the brake

CONTROL - Used

for starting and controlling engine speed.

11

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator presence sensing switch.

When engine is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut oft the engine.

• Depress clutch/brake

pedal into full

"BRAKE" position and hold.

Place parking brake lever

in "EN-

GAGED" position and release

pres-

sure from clutch/brake

pedal.

Pedal

should remain in =BRAKE"

position.

Make sure parking brake will hold tractor secure.

Attachment

Clutch Lever

"Engaged" Position

Throttle/Choke

Control

\

Clutch/

Brake

Pedal

The operation of any tractor

can

result in foreign objects thrown into the eyes, which can result in severe eye damage.

Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs.

We recommend a wide vision safety mask over spectacles or standard safety glasses.

"Disengaged"

Position

Parking

Brake

"Engaged"

Position

Gearshift

Lever

"Brake"

Position

STOPPING

"Disengaged"

Position

MOWER BLADES -

• TO stop mower blades,move attachment clutch lever to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/ brake pedal into full "BRAKE" position.

• Move gearshift lever to neutral (N) position.

ENGINE -

• Move throttle control to slow position.

NOTE:

Failure to move throttle control to slow position and allowing engine

to idle

before

stopping may cause engine to

"backfire".

Turn ignition key to "OFF" position and

remove key.

Always remove key when leaving tractor to prevent unauthorized use.

Never use choke to stop engine.

IMPORTANT: Leaving the ignition

switch in any position other than "OFF" will cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when tractor is standing idle with the engine running, hot engine exhaust gases may cause "browning" of grass.

To eliminate this possibility, always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor completely, as described above, before leaving the operator's position; to empty grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

Operating engine at less than full throttle reduces the battery charging rate.

• Full throttle offers the best bagging and mower performance.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is controlled by the gearshift lever.

• Start tractor with clutch/brake pedal depressed and gearshift lever in neutral (N) position.

• Move gearshift lever to desired position.

• Slowly release clutch/brake pedal to start movement.

IMPORTANT: Bring tractor to a complete stop before shifting or changing gears.

Failure to do so will shorten the useful life of your transaxle.

12

TO ADJUST MOWER cu'n'ING

HEIGHT

The position of the attachment

lift lever

determines the cutting height.

Grasp lift lever.

• Press plunger with thumb and move lever to desired position.

The cutting height range is approximately 1-1/2 to 4". The heights are measured from the ground to the blade tip with the engine not running.

These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed.

The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months.

For healthier and better looking lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in height should be mowed twice.

Make the first cut relatively high; the second to desired height.

TO OPERATE MOWER

Your tractor is equipped with an operator presence sensing switch.

Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine.

• Select desired height of cut.

• Start mower blades by engaging attachment clutch control.

• TO STOP MOWER BLADES - disengage attachment clutch control.

_,CAUTION: Do not operate the mower without either the entire grass catcher, on mowers so equipped, or the deflector shield in place.

Attachment Clutch Lever

"Engaged" Position

_mnt

Lift Lever

High Position

Low

Position

TO OPERATE ON HILLS

_JkCAUTION:

Do not drive up or down hills with slopes greater than 15 ° and do not drive across any slope.

Choose the slowest speed

before

starting up or down hills.

Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to slower position.

• If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.

• Move gearshift lever to 1st gear.

Be sure you have allowed room for tractor to roll slightly as you restart movement.

• To restart movement, slowly release parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor, be sure gearshift lever is in neutral (N) position.

• Do not push or tow tractor at more than five (5) MPH.

NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor.

Use an appropriate means of tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER

ATrACHMENTS

Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor.

Use common sense when towing.

Too heavy of a load, while on a slope, is dangerous.

-13res can lose traction with the ground and cause you to lose control of your tractor.

Position

Shield 13

BEFORE STARTING THE ENIGNE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level.

If necessary, add oil until "FULL" mark on dipstick is reached.

Do not overfill.

• For cold weather operation you should change oil for easier starting (See "OIL

VISCOSITY CHART" in the Maintenance section of this manual).

• To change engine oil, see the Maintenance section in this manual.

ADD GASOLINE

• Fill fuel tank.

Use fresh, clean, regular

unleaded

gasoline with a minimum

of

87 octane.

(Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life).

Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30 days to assure fuel fresh-

Bess.

IMPORTANT: temperatures

When operating in below 32°F(0°C), use fresh, clean winter grade gasoline to help insure good cold weather starting.

WARNING: Experience indicates that alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage.

Acidic gas can damage the fuel system of an engine while in storage.

To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer.

Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty.

Use fresh fuel next season.

See Storage Instructions for additional information.

Never use engine or carburetor cleaner products in the fuel tank or permanent damage may

OCCUr.

_CAUTION: Fill to bottom of gas tank filler neck.

Do not overfill.

Wipe off any spilled oil or fuel.

Do not store, spill or use gasoline near an open flame.

14

TO START ENGINE

When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.

• Sit on seat in operating position, depress clutch/brake pedal and set parking brake.

• Place gear shift lever in neutral (N) position.

• Move attachment clutch to "DISEN-

GAGED" position.

• Move throttle control to choke position.

NOTE: Before starting, read the warm and cold starting procedures below.

• Insert key into ignition and turn key clockwise to "START" position and release key as soon as engine starts.

Do not run starter continuously for more than fifteen seconds per minute.

If the engine does not start after several attempts, move throttle control to fast position, wait a few minutes and try again.

If engine still does not start, move the throttle control back to the choke position and retry.

WARM WEATHER STARTING (50 ° F and above)

• When engine starts, move the throttle control to the fast position.

• The attachments and ground drive can now be used.

If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above.

COLD WEATHER STARTING ( 50 ° F and below)

• When engine starts, allow engine to run with the throttle control in the choke position until the engine runs roughly, then move throttle control to fast position.

This may require an engine warm-up period from several seconds to several minutes, depend-

ing on the temperature.

• The attachments can also be used during the engine warm-up period.

NOTE: If at a high altitude (above 3000 feet) or in cold temperatures (below 32

F) the carburetor fuel mixture may need to be adjusted for best engine performance.

See "TO ADJUST CARBURE-

TOR" in the Service and Adjustments section of this manual.

MOWING TIPS

• Tire chains cannot be used when the mower housing is attached to tractor.

Mower should be properly leveled for

best mowing performance.

See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

The left hand side of mower should be

used for trimming.

Drive so that clippings are discharged

onto the area that has been cut.

Have the cut area to the right of the tractor.

This will result in a more even distribution of clippings and more uniform cutting.

When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc.

After one or two

rounds, mow in the opposite

direction

making left hand turns until finished.

If grass is extremely tail, it should be mowed twice to reduce load and

possible fire hazard from dried

clippings.

Make first cut relatively

high; the second to the desired height.

Do not mow grass when it is wet.

Wet grass will plug mower and leave undesirable clumps.

Allow grass to dry before mowing.

Always

operate engine at full throttle when mowing

to assure better mowing

performance and proper discharge of material.

Regulate ground speed by selecting a low enough gear to give the mower cutting performance as well as the quality of cut desired.

When operating attachments,

select a ground speed that will suit the terrain

and give best performance

of the attachment being used.

f tt

J

15

_V r

Check Operator Presence and

T

Int_dock Systems

If

V #

_7

If /

Sharpen/Replace

Mower Blades

T

Lubrication Chad

0 Check BaRe,"/Level

R

Clean Battery and Terminals

Check Transaxle Cooling

Adjust Blade Belt(s) Tension

Adjust Motion Drive Belt(s) Tens_n

Check Engine Oil Level

Change Engine Oil

E

Clean Air Filter

N CleanAirScreen

G

Inspect Muffier/Spark Arrester

NI

Replace

Oil

Filler

(if equipped)

E

Clean Engine Cooling Fins

V w

I_4

_

!_

_t2,=

Vw2

_z if

II_s

!,_s

_.z

1_2

If

V'

_#z if

Replace

Fuel Filter I_

1 " Ch_r'cJe more oldenwhen opemling Lmder a heaw load or i_ h_

amblenl tempemtum¢_ 5 - If equipped with adjuslBble system.

2 - Se_ice morn of_n when operating kl dirty or dusty coP_16ons.

3 - If equipped with oil filer, chango Ollever/50

hours,

4 - Replace 1:4ad_ moseo_en when mow_g in san_

scd+

6 - Not required if equipped with _n_u_e-_ee

batte_y.

7 - 3_htan ftor,t axle pivot bo_ l_ 35 It_1_1. mm_mum.

DO no_o_dighi_.

GENERAL RECOMMENDATIONS

The warranty

on this tractor does not

cover items that have been subjected to operator abuse or negligence.

To

receive full value from the warranty,

operator must maintain tractor as

instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tractor.

All adjustments in the Service and

Adjustments section of this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean or replace air filter, and check blades and belts for wear.

A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and interlock systems for proper operation.

• Check for loose fasteners.

Zerk

Bearing

Zerk

LUBRICATION

I

I

(

I i

I

CHART

Bearing Zerk

: i

I

:

:

Zerk

(_SAE OR 10W30 MOTOR OIL

_)REFER

TO MAINTENANCE "ENGINE"

SECTION

IMPORTANT" DO not oil or grease the pivot points which have special nylon bearings.

Viscous lubricants will attract dust and dirt that will shorten the life of the self-lubricating bearings.

If you feel they must be lubricated, use only a dry, powdered graphite type lubricant

16 sparingly.

TRACTOR

Always observe safety rules when performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS" section of this manual).

• Keep tires free of gasoline, oil, or insect control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are working properly.

If your tractor does not function as described, repair the problem immediately.

• The engine should not start unless the clutch/brake pedal is fully depressed and attachement clutch control is in the disengaged position.

• When the engine is running, any attempt by the operator to leave the seat without first setting the parking brake should shut off the engine.

• When the engine is running and the attachment clutch is engaged, any attempt by the operator to leave the seat should shut off the engine.

• The attachment clutch should never operate unless the operator is in the seat.

BLADECARE

For best results mower blades must be kept sharp.

Replace bent or damaged blades.

BLADE REMOVAL

• Raise mower to highest position to allow access to blades.

• Remove hex bolt, lock washer and flat washer securing blade.

17

Install new or resharpened

blade with

trailing edge up towards deck as shown.

IMPORTANT: To ensure proper assem-

bly, center hole in blade must align with

star on mandrel assembly.

Reassemble

hex bolt, lock washer

and flat washer

in exact order as shown.

Tighten

bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT:

Blade bolt is Grade 8 heat

treated.

Mandrel Assembly

Trailing Edge Up

Blade Center

Hole

Flat Washer

Lock Washer

/

_-'-Hex Bolt i

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE:

We do not recommend

sharpening blade - but it you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced.

An unbalanced

blade will cause

excessive

vibration and eventual damage to mower and engine.

The blade can be sharpened

with a

file or on a grinding wheel.

Do not attempt to sharpen while on the

mower.

• To check blade balance, you will need a 5/8" diameter steel bolt, pin, or a cone balancer.

(When using a cone balancer, follow the instructions supplied with balancer.)

NOTE: Do not use a nail for balancing blade.

The lobes of the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal position.

If either end of the blade moves downward, sharpen the heavy end until the blade is balanced.

Center Hole

BATTERY

Your tractor has a battery charging system which is sufficient for normal use.

However,

periodic charging of the battery

with an automotive

charger will extend

its life.

Keep battery and terminals clean.

• Keep battery bolts tight.

Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers.

Adding or checking level of electrolyte is not necessary.

TO CLEAN BAI-FERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause the battery to "leak" power.

• Open battery box door.

• Disconnect BLACK battery cable first then RED battery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary.

The belts are not adjustable.

Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service classification SF, SG, or

SH.

Select the oil's SAE viscosity grade according to your expected operating temperature.

TEMPERATURE

SAE VISCOStTY GRADES

RANGE ANTICIPATED

B-1EF0 R E N_0XT 011 CH30ANGE 40

NOTE: Although multi-viscosity

oils

(5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F.

Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least once a year if the tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine and after each eight

(8) hours of operation.

Tighten oil fill cap/ dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected before oil change.

All oil must meet API service classification SF, SG or SH.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick.

Be careful not to allow dirt to enter the engine when changing oil.

Remove drain plug.

• After oil has drained completely, replace oil drain plug and tighten securely.

• Refill engine with oil through oil fill dipstick tube.

Pour slowly.

Do not overfill.

For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this manual.

• Use gauge on oil fill cap/dipstick for checking level.

Be sure dipstick cap is tightened securely for accurate reading.

Keep oil at "FULL" line on dipstick.

Oil Fill Cap/

..

_,/Oil

Dipstick

Drain Plug

CLEAN AIR SCREEN

18

Air screen must be kept free of dirt and chaff to prevent engine damage from overheating.

Clean with a wire brush or compressed air to remove dirt and stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage from overheating.

Remove screws from blower housing and lift housing and dipstick tube assembly off engine.

• Cover oil fill opening to prevent entry of dirt.

• Use compressed air or stiff bristle brush to thoroughly clean engine cooling fins.

• To reassemble, reverse above procedure.

Screws Blower Housing Screws

• Clean

cartridge

by tapping gently on flat surface.

If very dirty or damaged, replace cartridge.

• Reinstall cartridge, nut, precleaner, cover and secure with knob(s).

IMPORTANT: Petroleum solvents, such as kerosene, are not to be used to clean the cartridge.

They may cause deterioration of the cartridge.

Do not oil cartridge.

Do not use pressurized air to clean or dry cartridge.

Cov e r ......-.------"_

Knob

Cover _Cartridge

\vJ'_ Nut

Foam P_p

Cleaner_ _ aper n Cartridge

Assembly

Engine Cooling Fins,

AIR FILTER

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after every 25 hours

of operation or

every season.

Service paper cartridge every 100 hours of operation or every season, whichever

occurs first.

Service air cleaner

more often

under dusty conditions.

Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil.

Wrap it in clean, absorbent cloth and squeeze to remove excess oil.

• If very dirty or damaged, replace precleaner.

• Reinstall pre-cleaner over cartridge.

• Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

• Remove cartridge

nut.

• Carefully remove cartridge to prevent

debris from entering carburetor.

Clean

base carefully to prevent debris from

entering carburetor.

19

Base_

MUFFLER

Inspect and replace corroded muffler

and spark arrester

(if equipped) as it

could create a fire hazard and/or

damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing season or after every 100 hours of operation, whichever occurs first.

Spark plug type and gap setting are shown in "PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season.

If fuel filter becomes clogged, obstructing fuel flow to carburetor, replacement is required.

With engine cool, remove filter and plug fuel line sections.

Place new fuel filter in position in fuel

line with arrow pointing

towards carburetor.

• Be sure there are no fuel line leaks and clamps are properly positioned.

• Immediately wipe up any spilled gasoline.

ClamP_amp

Fuel Filter _

CLEANING

Clean

engine,

battery, seat, finish,

etc.

of all foreign matter.

• Keep finished surfaces and wheels free of all _]asoline, oil, etc,

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your tractor unless the electrical system, muffler, air filter and carburetor are covered to keep water out.

Water in engine can result in a shortened engine life.

i

41_CAUTION:

Before performing any service or adjustments:

: * Depress

clutch/brake

pedal fully and set parking braKe.

Place gearshift lever in neutral (N) position.

position.

Turn ignition key "OFF' and remove key.

Make

sure the blades and all moving parts have completely

stopped.

_, Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

TRACTOR

TO REMOVE

Mower

MOWER

will be easier

right side of tractor.

• Place

attachment

clutch in "DISEN-

GAGED" position.

to remove

from

• Move attachment lift lever forward to lower mower to its lowest position.

the

• Roll belt off engine pulley.

• Remove small retainer spring, and lift clutch spring off pulley bolt.

• Remove large retainer spring, slide collar off and push housing guide out of bracket.

• Disconnect anti-swaybar from chassis bracket by removing retainer spring.

• Disconnect suspension arms from rear deck brackets by removing retainer springs.

• Disconnect front links from deck by removing retainer springs.

Raise lift lever to raise suspension arms.

Slide mower out from under tractor.

IMPORTANT: If an attachment other than the mower deck is to be mounted on the tractor, remove the front links and hook the clutch spring Into square hole in frame.

TO INSTALL

MOWER

Raise attachment lift lever to its highest position.

Slide mower under tractor with discharge guard to right side of tractor.

• Lower lift lever to its lowest

position.

• Install mower in reverse

order of

removal instructions.

Small Retainer ,_ng

Clutch Spring

:rent Link

Retainer Springs

(Both Sides)

Retainer Spring

Anti-Sway

Housing Guide

Large Retainer Spring

:et

2O

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or driveway.

Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual).

If tires are over or underinflated, you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom

edge of mower to ground.

Distance "A" on

both sides of mower should be the same or within 1/4" of each other.

If adjustment is necessary,

make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift link adjustment nut on that side.

• To lower one side of mower, loosen lift link adjustment nut on that side.

NOTE: Each full turn of adjustment nut will change mower height about 1/8".

• Recheck

measurements

after adjusting.

Bottom edge of mower to ground

Bottom edge of mower to ground

Check adjustment on right side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge of mower housing as shown.

Before making any necessary

adjust-

ments, check that both front links are

equal in length.

Both links should be

approximately 10-3/8".

If links are not equal in length, adjust one link to same length as other link.

To lower front of mower loosen nut "E"

on both front links an equal number of turns.

• When distance "D" is 1/8" to 1/2" lower at front than rear, tighten nuts "F" against trunnion on both front links.

• To raise front of mower, loosen nut "F" from trunnion on both front links.

Tighten nut "E" on both front links an equal number of turns.

• When distance "D" is 1/8" to 1/2" lower at front than rear, tighten nut "1_' against trunnion on both front links.

• Recheck side-to-side adjustment.

" Mandrel

"D"

Both Front Links Should be Equal in Length

._

Suspension Arm

"E"

/

/

Lift Link Adiustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to side. If the following front-to-back adjustment is necessary, be sure to adjust both front links equally so mower will stay level side-to-side.

To obtain the best cutting results, the mower housing should be adjusted so that the front is approximately 1/8" to 1/2" lower than the rear when the mower is in its highest position.

Nut "F"

Trunnion /

Front Links

21

TO REPLACE MOWER BLADE

DRIVE BELT

The mower blade drive belt may be replaced

without tools.

Park the tractor on level surface.

Engage parking brake.

BELT REMOVAL-

Remove mower from tractor (See '_'O

REMOVE MOWER" in this section of this manual).

Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION -

• Install new belt in reverse order of removal.

• Make sure belt is in all pulley grooves and inside all belt guides.

• Install mower in reverse order of removal instructions.

With Parking Brake "Engaged"

"_

. _

Nut "A"

7 perating

Mandrel

Pulley

Pulley

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface.

Engage parking brake.

For assistance, there is a belt installation guide decal on bottom side of left footrest.

• Remove mower (See "3-0 REMOVE

MOWER" in this section of this manual.)

• Remove belt from stationary idler and clutching idler.

• Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle pulley by deflecting belt keepers.

• Pull belt toward front of tractor and remove downwards from around engine pulley.

• Install new belt by reversing above procedure.

En

TO ADJUST BRAKE

Your tractor is equipped with an adjustable brake system which is mounted on the right side of the transaxle.

If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted.

• Depress clutch/brake pedal and engage parking brake.

• Measure distance between brake operating arm and nut "A ° on brake rod.

If distance is other than 1-1/2", loosen jam nut and turn nut "A" until distance becomes 1-1/2".

Retighten jam nut against nut "A'.

• Road test tractor for proper stopping distance as stated above.

Readjust if necessary.

If stopping distance is still greater than six (6) feet in highest gear, further maintenance is necessary.

Contact your nearest authorized service center/department.

Clutching

Stationary Idler

Transaxle

TO ADJUST STEERING WHEEL

ALIGNMENT

22

If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steering wheel and reassemble per instructions in the Assembly section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor.

If damage

has occurred to affect the front wheel

toe-in or camber, contact your nearest authorized service center/department.

TO REMOVE WHEEL FOR REPAIRS

Block up axle securely.

• Remove axle cover, retaining ring and

washers to allow wheel

removal (rear

wheel contains a square key - Do not lose).

Repair tire and reassemble.

On rear wheels only:

align grooves in rear wheel hub and axle.

Insert

square key.

Replace washers

and snap retaining

ring securely in axle groove.

Replace axle cover.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire sealant may be purchased from your

local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

TO A]-I-ACH JUMPER CABLES

-

• Connect each end of the RED cable to the POSITIVE (+) terminal of each battery, taking care not to short against chassis.

• Connect one end of the BLACK cable to the NEGATIVE (-) terminal of fully charged battery.

• Connect the other end of the BLACK cable to good CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

• BLACK cable first from chassis and

then from the fully charged battery.

RED cable last from both batteries.

Positive Terminal Negative Terminal

Terminal

Battery

Terminal

REPLACING BAI-I'ERY

Square Key --'---'_'_ "_

I

(Rear Wheel Only)

TO START

ENGINE

WITH A WEAK

BATI'ERY

,_

CAUTION: Lead-acid batteries generate explosive gases.

Keep sparks, flame and smoking materials away from batteries.

Always wear eye protection when around batteries.

If your battery is too weak to start the

engine,

it should be recharged.

(See

"BATTERY"

in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emergency starting, follow this procedure:

IMPORTANT: Your tractor is equipped with a 12 volt negative grounded system.

The other vehicle must also be a 12 volt negative grounded system.

Do not use your tractor battery to start other vehicles

23

_.CAUTION: Do not short battery terminals by allowing a wrench or any

other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

• Lift seat pan to raised position and

open battery box door.

Disconnect

BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

Install new battery

with terminals in

same position as old battery.

First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

• Connect

BLACK grounding cable to negative (-) terminal with remaining

hex bolt and keps nut. Tighten

securely.

• Close

battery box door.

seat

Battery

Box

Positive

(Red) Cable

Negative

(Black) Cable

TO REPLACE HEADLIGHT BULB

• Raise hood.

Pull bulb holder out of the hole in the backside of the grill.

Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.

• Close

hood.

INTERLOCKS AND RELAYS

Loose or damaged

wiring may cause

your tractor to run poorly, stop running, or prevent it from starting.

Check wiring.

See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 15 amp automotive-type plug-in fuse.

The fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

• Raise hood.

Unsnap

headlight wire connector.

• Stand in front of tractor.

Grasp hood at sides, tilt toward engine and lift off of tractor.

To replace, reverse above procedure.

ENGINE

TO ADJUST THRO'R'LE CONTROL

CABLE

The throttle control has been preset at the factory and adjustment should not be necessary.

Check adjustment as described below before loosening cable.

If adjustment is necessary, proceed as follows:

• With engine not running, move throttle control lever from slow to choke position.

Slowly move lever from choke to fast position.

• Check that hole in throttle lever and hole in plate line up. If holes "A" are not aligned, loosen clamp screw and move throttle cable until holes are aligned.

Tighten clamp screw securely.

TO ADJUST CARBURETOR

The carburetor

has been preset at the factory and adjustment should not be necessary.

However, minor adjustment may be required to compensate for differences in fuel, temperature, altitude or load. If the carburetor does need adjustment, see engine manual.

High speed stop is factory adjusted.

Do not adjust - damage may result.

IMPORTANT: Never tamper with the engine governor, which is factory set for proper engine speed.

Overspeeding the engine above the factory high speed setting can be dangerous.

If you think the engine-governed high speed needs adjusting, contact your nearest authorized service center/department, which has proper equipment and experience to make any necessary adjustments.

Idle Speed

Plate

\

Throttle Cable

Headlight Wire

Connector

24

Throttle Lever

Screw

Fast

Hole "A"

Immediatelyprepare

your tractor for storage at the end of the season or if the

tractor will not be used for 30 days or more.

wI_hCAUTION: Never store the tractor gasoline in the tank inside a building where fumes may reach an open flame or spark.

Allow the engine to cool before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage.

When mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc.

Store in a clean, dry area.

Clean entire tractor (See "CLEANING" in the Maintenance section of this manual).

• Inspect and replace belts, if necessary

(See belt replacement instructions in the Service and Adjustments section of this manual).

• Lubricate as shown in the Maintenance section of this manual.

• Be sure that all nuts, bolts and screws are securely fastened.

Inspect moving parts for damage, breakage and wear.

Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand lightly before painting.

BATI'ERY

ethanol or methanol)

can attract moisture

which leads to separation and formation

of acids during

storage. Acidic gas can

damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

Start the engine and let it run until the

fuel lines and carburetor

are empty.

Never use engine or carburetor

cleaner products in the fuel tank or

permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative

in minimizing the formation

of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container.

Always follow the mix

ratio found

on stabilizer container.

Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor.

Do not drain the gas tank and carburetor if using fuel stabilizer.

ENGINEOIL

Fully charge the battery for storage.

After a period of time in storage, battery may require recharging.

• To help prevent corrosion and power leakage during long periods of storage, battery cables should be disconnected and battery cleaned thoroughly (see 'q-O CLEAN BATIERY

AND TERMINALS" in the Maintenance section of this manual).

• After cleaning, leave cables disconnected and place cables where they cannot come in contact with battery terminals.

• If battery is removed from tractor for storage, do not store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT:

It is important to prevent

}_uUmdeposits from forming

in essential

el system parts such as carburetor, fuel filter, fuel hose, or tank during storage.

Also, experience

indicates

that alcohol blended fuels 9called gasohol or using

25

Drain oil (with engine warm) and replace with clean engine oil.

(See "ENGINE" in the Maintenance section of this manual).

CYLINDER(S)

• Remove

spark plug(s).

Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

• Turn ignition key to "START"

position

for a few seconds to distribute oil.

Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that does not retain moisture.

Do not use plastic.

Plastic cannot breathe which allows condensation to form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM

Will not start

CAUSE

Out of fuel.

• Engine not "CHOKED" properly.

• Engine flooded.

Bad spark

• Dirty airfilter.

Engine valves out of adjustment.

plug.

Dirty fuel filter,

• Water in fuel.

• Loose or damaged wiring.

• Carburetor out of adjustment.

CORRECTION

• Fill fuel tank.

• See "TO START ENGINE"

in Operation section.

• Wait several minutes before attempting to start.

• Replace spark plug.

Clean/replace air filter.

• Replace fuel filter.

• Drain fuel tank and carburetor, refill tank with fresh gasoline and replace fuel filter.

• Check all wiring.

See "To Adjust Carburetor" in Service Adjustments section.

• Contact an authorized service center/ department,

Hard to start

• Dirty air filter.

• Bad spark plug.

• Weak or dead battery.

Dirty fuel filter,

Stale or dirty fuel.

Loose or damaged wiring.

• Carburetor out of adjustment.

Engine valves out of adjustment,

• Clean/replace air filter.

• Replace spark plug.

• Recharge or replace battery.

• Replace fuel filter.

• Drain fuel tank and refill with fresh gasoline.

• Check all wiring.

• See "To Adjust Carburetor" in Service Adjustments section.

• Contact an authorized service center/department.

Enginewill not turn over

Clutch/brake pedal not depressed.

Attachment clutch is engaged.

Weak or dead battery.

Blown fuse.

Corroded battery terminals.

Loose or damaged wiring.

Faulty ignition switch.

Faulty solenoid or starter.

Faulty operator presence switch(es).

Depress clutch/brake

pedal.

• Disengage attachment clutch.

• Recharge or replace battery.

• Replace fuse.

• Clean battery terminals.

• Check all wiring.

• Check/replace switch.

ignition

• Check/replace starter.

solenoid

• Contact an authorized or service center/department.

TROUBLESHOOTING CHART

PROBLEM

CAUSE

Engine clicks but will not start

Weak or dead battery.

• Corroded battery terminals.

Loose or damaged

wiring.

Faulty solenoid or starter.

Loss of power

• Cutting too much grass/too

fast.

Throttle in "CHOKE" position.

• Build-up of grass, leaves and trash under mower.

• Dirty air filter.

Low oil level/dirty oil.

• Faulty spark plug.

Dirty fuel filter.

• Stale or dirty fuel.

• Water in fuel.

Spark plug wire loose.

• Dirty engine air screen/fins.

• Dirty/clogged muffler.

• Loose or damaged wiring.

• Carburetor out of adjustment.

_.

Engine valves out of adjustment.

CORRECTION

• Recharge or replace battery.

• Clean

battery terminals.

• Check all wiring.

• Check/replace starter.

solenoid or

• Set in "Higher Cut" position/ reduce speed.

• Adjust throttle control.

Clean underside of mower housing.

• Clean/replace air filter.

• Check oil level/change oil.

Clean and regap or change spark plug.

• Replace fuel filter.

• Drain fuel tank and refill with fresh gasoline.

• Drain fuel tank and Carbure tor, refill tank with fresh gasoline and replace fuel filter.

• Connect and tighten spark plug wire.

• Clean engine air screen/fins.

• Clean/replace

muffler.

• Check all wiring.

• See "To Adjust Carburetor" in

Service Adjustments section.

• Contact an authorized service center/department.

Excessive vibration

Engine continues to run when operator leaves seat with attachment clutch engaged

Worn, bent or loose blade.

Bent blade mandrel.

Loose/damaged part(s).

• Faulty operator-safety presence control system.

Replace blade.

Tighten blade bolt.

Replace blade mandrel.

Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and connections.

If not corrected, contact an autho rized service center/ department.

TROUBLESHOOTING

PROBLEM

Poor cut - uneven

CHART

CAUSE

Worn, bent or loose blade.

• Mower deck not level.

• Buildup of grass, leaves, and trash under mower.

• Bent blade mandrel.

Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels.

CORRECTION

Replace blade.

Tighten blade bolt.

Level mower deck.

Clean underside of mower housing.

Replace blade mandrel.

Clean around mandrels to

open vent holes.

Mower blades will not rotate

• Obstruction in clutch mechanism.

• Worn/damaged drive belt.

mower

• Frozen idler pulley.

• Frozen blade mandrel.

Poor grass discharge

Remove

Replace

obstruction.

mower drive belt.

Replace

idler pulley.

Replace blade mandrel.

speed too slow. too fast.

• Mower deck not level,

• Low/uneven tire air pressure.

Engine

Travel speed

Wet grass.

Worn, bent or loose blade.

• Buildup of grass, leaves

• and trash under mower.

Mower

Blades

Improper

Clogged drive belt worn. improperly blades mower installed.

used.

deck vent holes from buildup of grass, leaves, and trash around mandrels.

Place throttle control in

"FAST"

position.

i Shift to slower speed.

,• Allow grass to dry before mowing.

• Level mower deck.

• Check tires for proper air pressure.

• Replace/sharpen blade.

Tighten blade bolt.

• Clean underside of mower housing.

• Replace mower drive belt.

• Reinstall blades sharp edge down.

• Replace with blades listed in this manual.

• Clean around mandrels to open vent holes.

Headlight(s) not working

(if so equipped)

• Switch is "OFF".

• Bulb(s) burned out.

• Faulty light switch.

• Loose or damaged wiring.

• Blown fuse.

• Turn switch "ON".

• Replace bulb(s).

• Check/replace light switch.

Check wiring and connections

• Replace fuse.

Battery will not charge

Engine "backfires"

whenturnlng

engine "OFF"

• Bad battery cell(s).

• Poor cable connections.

• Faulty regulator

(if so equipped).

• Faulty alternator.

• Engine throttle control not set at "SLOW"

position

for 30 seconds

before stopping engine.

28

• Replace battery.

• Check/clean all connections.

• Replace regulator.

• Replace alternator.

Move throttle control to

"SLOW" position and allow to idle for 30 seconds before stopping engine.

TRACTORMODEL NUMBER 270451

SCHEMATIC

BLACK

SA'FrERY

RED

AMMETER

(OPTIONAL)

_G

AI(

IGNmON

SWITCH

J

FUSE

p

J

SOLENOID

SEAT SWITCH

(NOT OCCUPIED)

n

IGNITION SWITCH

PosmoN CIRCUIT "MAKE"

OFF

RUN/LIGH]

RUN

START

M+G+A1

B+A1

B÷A1

B ÷ S + A1

NONE

A2+L

NONE

NONE e_uE

(CLUTCH OFF)

GROUNDING

CONNECTOR

:

,

, .....

FUELI

, BLACK

--

LINE1

I

C_RGING Sy_

IGNITION

UNIT

OUTPUT ql_

r

SPARK

GAP

(2 PLUGS ON

TWIN CYL ENGINES)

_

VOLTS AC MIN IP 3600 RPM

{CHARGING _tSTEM

D,_CONNECTED )

|

0

I

I

3 AMP DC W 3Be° RPM

(IF SO EQUIPPED)

C¢_NG_E

DIODE

_

RED

_1

I

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATFERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS. THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED.

AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE JS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT. THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

F,

29

ELECTRICAL

25

TRACTORMODEL NUMBER 270451

21

22

\

I

I

I

41

i_

I_p

i \ I

I _

L i

\

i

-

26

I I f

I

I

I

I

I

I

I

_

I

i

L

\

\

\

\

\

/

/

\

/

48

I i

/

I

,

_

28

29

I

I

I

I

3O

ELECTRICAL

TRACTORMODEL NUMBER 270451

KEY PART

NO.

NO.

1

2

28

29

30

33

40

41

24

25

26

27

8

16

21

22

42

43

48

52

144925

74760412

156417

1_

166181

4152J

4799J

146147

166180

73510400

4207J

121305X

163968

140401

170217

71110408

131563

145673

140844

141940

DESCRIPTION

Battery 12 Volt 25 Amp

Bolt, Hex Head 1/4-20 unc x 3/4

Case, Battery Mech Hinge

Switch, Interlock Push-ln

Harness, Light Socket (Includes 4152J)

Bulb, Light

Cable, Battery, 6 Gauge, Red, 11"

Cable, Battery, 6 Gauge, Red, W/16 Wire

Fuse

Nut Kaps Hex 1/4-20 UNC

Cable, Ground, 6 Gauge, Black, 12"

Switch, Plunger

Switch, Ignition

Key, Ignition

Harness, Ignition

Bolt, Hex Head, Fin. 1/4-20 x 1/2

Cover, Terminal, Red

Solenoid

AdaptorAmmeter Rectangular

ProtectionWire Loop

NOTE: All component dimensions given in U. S. inches 1 inch = 25.4 mm

31

208

TRACTORMODEL NUMBER 270451

CHASSIS AND ENCLOSURES

3O

212

53

12

?

28

/

55

29

54

26

33

10

0

3

35

34

26

208

32

TRACTORMODEL NUMBER 270451

CHASSIS AND ENCLOSURES

KEY PART

NO.

NO.

DESCRIPTION

5

6

8

9

1

2

3

10

11

12

13

15

16

17

29

30

31

33

34

18

24

25

26

28

35

37

38

51

52

53

54

72140606

17490508

169834

73800400

19091416

144697

161464

55

57

58

144696

74780412

150127

145 156524

206 170165

208

17670608

209 17000612

212

156494

- -

5479J

169831

169061

17060612

Chassis

Drawba_

Screw 3/8-16 x 3/4

155272 Bumper Hood/Dash

155924X014 Saddle Slkscr Fit LT

155138 Clip Retainer Slide-On

168347X011 Dash

72140608

155927

Bolt Rdhd Sqnk 3/6-16unc X 1

Panel Dash LH

145660 Clip Tinnarman Grille P/L

172107X010 Panel Slkscr Dash RH

74180512

Screw Mach TRHD 5/16-18 uric x 3/4

73510500 Nut Keps 5/16-18 Unc

159639X417 HoodAsm

126938X

74780616

19131312

73680600

150407

BumperHood

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5

Washer 13/32 X 13/16 x 12 Ga

Nut Hex Lock W/Ins. 3/8-16 Unc

Grille/LensAsm

150209X599 Lens Headlight Bar Clear

169465X417 Fender

136619 Bracket Fender Rep1109873x

105476X417 Footrest Pnt Lh

105475X417 Footrest Pnt Rh

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

Screw Thdrol 5/16-18 x 1/2

Bracket Asm Pivot Mower Rear

Nut Lock Hex w/Ins 1/4-20

Washer 9/32 x 7/8 x 16 Ga.

Bracket, Grille LH

Screw

Bracket, Grille RH

Bolt Hex 1/4-20 x 3/4

Air Duct P/L

Rod Pivot Chassis/Hood

BoltShoulder 5/16-18

Screw thdrol3/8-16 x 1/2

Screw Hex Wsh Thdrol 3/6-16

Insert Lens Reflective

Plug Button BIk359 Dia Choke

NOTE:

All component dimensions given in U. S.

inches 1 inch = 25.4 mm

33

GROUND DRIVE

TRACTORMODEL NUMBER 270451

34

29

26

27

J

GROUND DRIVE

TRACTORMODEL NUMBER 270451

32

34

35

36

37

38

25

26

27

28

29

30

39

2

3

4

5

14

15

18

19

21

22

24

6

7

8

10

11

12

13

40

41

KEY PART

NO.

NO.

1

......

146682

123666X

12000028

121520X

17060512

162240

131679

76020416

105701X

19151216

74550412

10040400

74490544

74780616

73800600

106933X

130804

733506OO

106888X

19131016

76020412

145204

71673

130807

74760512

155071

120183X

19211616

1572H

131494

74760644

4470J

165838

DESCRIPTION

TransaxleDana D4360-139

(Order parts from transaxle

Manufacturer)

Spring Return Brake T/a Zinc

Pulley Transaxle 18/20" tires

Ring Retainer # 5100-62

Strap Torque 30 Degrees

Screw 5/16-18 x 3/4

Bracket Saddle Shift T/a

Rod Shf Sdl LY/YT Str BIk

Pin Cotter 1/8 x 1 Cad

Washer Plate 388 Sq Hole

Washer 15/32 x 3/4 x 16ga

Bolt 1/4-28urd Gr8 W/Patch

Washer Lock Hvy Helical 1/4

Bolt Hex Flghd 5/16-18 x Gr. 5

BoltFin Hex 3/8-16 UNC x 1Gr. 5

Nut Lock Hex W/Ins. 3/8-16 Unc

Knob Rd 1/2-13 Plstc Thds

Rod Brake BIk Zinc 26 840

Nut Hex Jam 3/8-16 Unc

Spring Rod Brake 2 00 Zinc

Washer 13/32 x 5/8 x 16 Ga

Pin Cotter 1/8 x 3/4 Cad

Rod Brake Parking Lt/Yt

Cap Brake Parking

Bracket Mtg Traosaxle

Bolt Hex Hd 5/16-18unc x 3/4

Shaft Asm Pedal Foot

Bearing Nylon BIk 629 Id

Washer 21/32 x 1 x 16 Ga

Pin Roll 3/16 x 1"

Pulley idler Flat

BoltFin Hex

3/8-16UNC

x 2-3/4Gr. 5

Spacer Split 395 x 59 Bzp

Keeper Belt Idler

KEY PART

NO.

NO.

59

51

62

63

64

65

66

70

72

74

42

47

48

49

50

51

52

53

55

56

57

75

76

77

78

121749X

12000001

123583X

121748X

112 19091210

113

127285X

116

72110610

150

165850

151 19133210

170

165849

202

72110612

19131312

127783

154407

123205X

74760624

73680600

73680500

105710)(

105709)(

74760620

160855

169691

17060612

8883R

140186

71170764

10040700

154778

134683

19132012

109502X

204

17060516

DESCRIPTION

Washer 13/32 x 13/16 x 12 Ga

Pulley Idler V Groove Plastic

BellcrenkAsm. Clutch

Retainer Belt Style Spring

Bolt Hex Hd 3/8-16unc x1-1/2

Nut Crownlock 3/8-16 UNC

Nut Crown Lock 5/16-18

Link Clutch 7 66

Spring Return Clutch 6 75

Bolt Fin Hex 3/8-16 unc x 1-1/4

V-Belt Gd Drive 9530

Keeper Belt Centerspan

Screw 3/8-16 x 3/4

Cover Pedal BIk Round

PulleyEng CI Mech 38deg

Bolt Hex 7/16-20 x 4 Gr 5

Washer Lock HIcl Spr 7116

Keeper Belt Engine FP

Guide Belt Mower Drive RH

Washer 13/32 x 1-1/4 x12 Ga

Spacer Axle

Washer 25/32 x 1-1/4 x16 Ga

E-ring#5133-75

Key Square 2 0 x 1645/1865

Washer 25/32 xl-5/8 x 16 Ga

Washer 9/32 x 3/4 x 10 Ga

StrapTorque LH LT

Bolt Rdhd Sq Neck 3/6-16 x 1,25

Bushing BellcrankGRD Drive

Washer 13/32 x 2 x 10 Ga.

Keeper Belt Transaxle Gear

Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5

Screw 5/16-18 x 1

NOTE: All component dimensionsgiven in U. S.

inches 1 inch = 25.4 mm

35

STEERING

TRACTORMODEL NUMBER 270451

_41

51 54

<

\

\

4O

25

68 67 67

67

43

36

STEERING

TRACTORMODEL NUMBER 270451

26

27

28

29

30

32

36

37

19

22

23

25

38

39

40

41

42

43

44

46

47

51

54

9

10

11

13

15

17

18

3

4

1

2

5

6

7

8

62

63

65

66

67

68

79

80

82

85

KEY PART

NO.

NO.

DESCRIPTION

140044

154427

156483

157473

6266H

121748X

19272016

12000029

3366R

169832

10040600

136518

145212

156546

57079

SteeringWheel

Axle AssemblySTMP Dropped STL

Spindle Assembly, LH.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, SteeringColumn

Draglink

Washer, Lock

Spacer BearingAxle Front

Hexflange Lock

Shaft Assembly, Steering

Washer, Thrust .515 x .750 x .033

160395

165857

165851

154406

126847X

136874

19131416

17060612

76020412

130465

155099

152927

Support, Shaft

Screw, Hex Wshhd

Pittman Shaft Assembly

Bracket, Steering

Bushing, Unk, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw, 3/8-16 x 3/4

Pin

Rod,Tie

Bushing,Steering

Screw

140045

19133812

7810H

Cap, SteeringWheel

Washer 13/32 x 2-3/8 x 12 Gauge

Gdpco Nut

100711L Adaptor, Steering Wheel

145054X428 Boot, Steering

121749X

Washer 25132 x 1-1/4 x 16 Gauge

153720

121232X

6855M

73800500

74780520

Shaft Extension Steering

Cap, Spindle

Fitting, Grease

Nut lock Hex w/Ins 5/16-18

Bolt Fin Hex 5/16-18 UNC x 1-1/4

167902

74780616

160367

154404

72140618

169827

19132012

74950612

169835

133835

Kit Steering Asm Service

Bolt Fin Hex 3/8-16 x 1-1/4

Spacer Brace Axle

BearingArm Pittman

Bolt, Rdhd Sq 3/8-16 UNC x 2-1/4

Axle, Brace

Washer 13/32 x 1-1/4 x 12 Ga.

Bolt Hex Nylon 3/8o16 x 3/4

Bracket Susp Chassis Front

Fastener Christmas Tree

NOTE: All component dimensions

given in U. S.

inches 1 inch = 2.4 mm

37

ENGINE

TRACTORMODEL NUMBER 270451

13

29

I OPTIONAL

EQUIPMENT

KEY PART

NO.

NO.

1

2

3

40

44

45

46

62

72

78

23

29

31

32

33

37

38

81

4

13

14

15

16

140310

17720410

137348

165291

13280324

13200300

11050600

169837

137180

109202X

140527

123487X

-

137040

124028X

17670412

17000612

19091416

10040500

71070512

17060620

73510400

DESCRIPTION

Control Th/ch

Screw Hex Thd Cut 1/4-20x5/8 T

Engine BdggsModel 28R707

(Order parts from Engine Manufacturer)

Muffler

Gasket Eng 1 313 Id Tin Plated

Nipple Pipe 3/8 Npt x 3"

Elbow Std 90 Degree 3/8-18 Npt

Washer Lock Ext Tooth 3/8

ShieldBrowning

Kit Spark Arrestor (Flat Scm)

Tank Fuel Front 1 25

Cap AsmFuel

Clamp Hose BIk

Line Fuel20"

PlugOil Drain (Order parts from Engine Manufacturer)

Bushing Snap Nyl BIk Fuel Line

Screw Hexwsh Thdrol 1/4-20 x 3/4

Screw Hex Wsh Thdrof3/8-16

Washer 9/32 x 7/8 x 16 ga

Washer Lock Hvy Hlcl Spr 5/16

Screw Hexhd Cap 5/16-18 x 3/4

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 UNC

NOTE: All component dimensionsgiven in U. S.

inches 1 inch = 25.4 mm

38

SEATASSEMBLY

TRACTOR- MODEL NUMBER 270451

_5

6

21

12

KEY PART

NO.

NO.

6

7

4

5

1

2

3

8

9

10

11

12

127427

140551

71110616

19131610

145O06

738O06OO

124181X

17000616

19131614

155925

166369

121246X

DESCRIPTION

Seat

Bracket Pvl St

Bolt Fin Hex 3/8-16unc x 1

Washer Flat 13/32 xl xl0 Ga

Clip Push-InHinged

Locknut Hex W/Wsh 3/8-16

Spdng Seat Cprsn 2 250 BIk

Screw 3/8-16 x 1

Washer 13/32 x 1 x 14 Ga

Pan Seat

Knob Seat Adj. Wingnut

Bracket Mounting Switch

KEY PART

NO.

NO.

17

21

22

24

25

13

14

15

16

121248X

72050412

134300

121250X

123976X

171852

73800500

19171912

127018X

DESCRIPTION

Bushing Snap BIk Ny150 Id

Bolt RdhdSht 1/4-20xi-1/2

Spacer Split28x 96 Yel Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5

Bolt Shld 5/16-18 Unc

Nut Lock Hex W/Ins 5/16-18

Washer 17/32 xt-3/16x12 Ga

Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensionsgiven in U. S.

inches 1 inch = 25.4 mm

39

DECALS

4

TRACTORMODEL NUMBER 270451

6

3

10

5

13

15

12

KEY PART

NO.

NO.

1 171831

2

3

4

5

6

7

8

10

172168

171828

171829

145005

174209

171830

156867

171833

DESCRIPTION

Decal LowerDash

Decal Engine HP

Decal Hood

Decal Fender

Decal Battery Danger

Decal Replacement Parts

Decal Steering

Decal, Oper sdl P/L Gear

Decal Fender

I

KEY PART

NO.

NO.

11 156439

12

13

4900J

146046

15

- -

136832

138311

- -

- -

174207

174208

DESCRIPTION

Decal Fender Dnger

Decal, Clutch/Brake Eng

Decal V-Belt Dr Sch tractor

Decal V-Belt ech

Decal Handle Lft Height

Adjust (Lift Handle)

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES

11

8

9

10

11

--

KEY PART

NO.

NO.

5

6

7

1

2

3

4

59192

65139

106222X

59904

106732X427

278H

9040H

106108)(427

124635X

7152J

104757X

144334

DESCRIPTION

Cap Valve Tire

Stem Valve

Tire F Ts 15 X 6 0 - 6 Service

Tube Front (Service Item Only)

Rim Asm 6"front White Service

Fitting Grease (Front Wheel Only)

Bearing Flange (front Wheel

Only)

Rim Asm 8"rear White Service

Tire Rear

Tube Rear (Service item Only)

Cap Axle BIk 1 50 X 1 0O

Sealant, Tire ( 10 oz. Tube)

NOTE: All componentdimensions given in U. S.

inches 1 inch = 25.4 mm

4O

LIFT ASSEMBLY

TRACTORMODEL NUMBER 270451

13

2

3

4

13

13

19

19

32

12

13

15

16

17

18

19

20

31

32

1

2

3

4

5

6

7

8

11

KEY PART

NO.

NO.

DESCRIPTION

159460

159471

105767X

Wire Asm InnerW/plunger

Shaft Asm Lift

Pin Groove 1 500 Zinc

1200(3002

E Ring #5133-62

19211621

120183X

Washer Pifd 21/32 X 1 X 21ga

Bearing Nylon BIk 629 Id

125631X

122365X

139865

Grip Handle Fluted BIk

Button PlungerRed

Link Lift LH

139866

4939M

173288

73350800

130171

73800800

139868

163552

140302

73540600

Link Lift RH

Retainer Spring

Link Front

Nut Jam Hex 1/2-13 Unc

Trunnion Bik Zinc

Nut Lock w/Wsh 1/2-13 UNC

Arm Suspension Rear

Retainer Spdng Zinc

Bearing Pvt Lift Spherical

Nut Crown]ock 3/8-24

NOTE:

All component dimensions given in U. S,

inches 1 inch = 25.4 mm

41

15

2O

MOWER DECK

TRACTORMODEL NUMBER 270451

42

21

2

29

14

MOWER DECK

TRACTORMODEL NUMBER 270451

8

9

5

6

10

28

29

30

31

24

25

26

27

32

33

36

45

53

54

55

14

15

16

19

21

23

KEY PART

NO.

NO.

1

2

3

4

11

12

13

170280

72140506

138017

169970

4939M

130832

85O857

1OO3O6OO

140296

134148

129895

137645

128774

110485X

140329

132827

73680500

137607

105304X

123713X

110452X

106736X428

19111016

106735X

157722

129963

153532

137266

131494

4497H

13O84O

133943

13384O

DESCRIPTION

MowerHousingAssembly

Bolt, Carriage 5/16-18 x 3/4

BracketAsm. Fram Sway Bar

Bracket, Asm. Deck Sway

Bar

Retainer, Spring

Asm. SuspensionRear

Bolt, Hsx 3/8-24 x 1-1/4 Gr 8

Washer, Lock, HIcl Sprg 3/8

Washer, Hard Blade Mower

Vented

Blade, Mower, Mulching38"

BallBearing

Shaft and Bearing Assembly

(Includes Key Number 15)

Mandrel Housing,Vented

BallBeadng, Mandrel

Stdpper,Mower, Vented

Bolt, Shoulder

Nut, Crownlock 5/16-18

Bracket, Mower Deflector

Cap, Sleeve

Spring, Deflector

Nut, Push

Shield, Deflector

Washer 11/32x3/4x16Ga

Rod, Hinge

Screw, Thdro Washer Hd

Washer, Spacer

Pulley, Mandrel

Nut, Flangelock 9/16

Pulley, Idler, Flat

Retainer, Spring

Brake Assembly

Washer Hardened

Idler Arm Assembly

KEY PART

NO.

NO.

56

67

68

69

86

87

88

89

165723

149846

144200

76020312

7631J

128772

19111216

19131612

107 133502

108 133503

109 74760640

110 142587

113 17060512

122 131289

123 169971

128 153390

146 165891

148 169022

149 165898

150 19091216

151 169670

152 172758

153 169674

154 169675

155 169671

156 169672

157 169669

158 17720410

- 130794

DESCRIPTION

Spacer, Retainer

Knob

Belt

Pin, Cotter 3/32 x 3/4

Runner, LH

Runner, RH

Washer 11/32 x 3/4 x 16 Ga

Washer 13/32 x 1 x 12 Ga

Spacer, Retainer

Stiffener, Idler Arm

Bolt, Hex Head 3/8-16 x2-1/2

Upstop Deck Front 38"

Screw 5/16-18 x 3/4

Rod, Brake, LH

Rod, Brake, RH

WasherFelt

Bolt Cardage Idler

Spring Return Idler

Retainer Spd ng Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 38 In

Washer Flat 3/8" Type B

Spdng Retainer

Spdng Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut

1/4-20x5/8

Mandrel Assembly (Includes

Key Numbers 12-15, 17-19,

31 and 33)

Mower Deck, Complete - 171665

NOTE: All component

dimensions

given in U, S.

inches 1 inch = 25.4 mm

43

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product

as manufactured

is free from defects in materials

and workmanship.

For a period of one (1) year from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective

due to materials

or workmanship.

This Warranty is subject to the following limitations and exclusions.

1. This warranty

does not apply to the engine, other than FHP manufactured

transaxle/transmission components, battery (except as noted below) or components parts thereof.

Please refer to the applicable

manufacturer's

warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser.

Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser unless such return is requested by Frigidaire Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace,

without charge to you, any battery which we find to be defective

in manufacture, during the first ninety (90) days of ownership.

After ninety (90) days, we will exchange the Battery, charging you 1/12 of the price of a new Battery for

each full month from the date of the original sale. Battery must be maintained in accordance with the instructions furnished.

4. The Warranty

period for any products used for rental or commercial

purposes is limited to 90 clays from the date of odginal purchase.

5. This Warranty applies only to products which have been properly assembled,

adjusted,

operated,

and maintained

in accordance with the instructions furnished.

This Warranty does not apply to any product which has been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard hardware and normal mainte-

nance.

7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please

contact:

Frigidaire Home Products

Outdoor Products Customer Service

Dept.

250 Bobby Jones Expressway

Augusta, GA 30909 USA

In Canada contact:

Frigidaire Home

Products

7075 Ordan Drive

Mississauga, Ontario

L5T 1K6 giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME

TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES.

Some areas do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the

Magnuson-Moss Act of 1975.

44

45

46

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHTING

GUIDE

AJk

I

/%

greater than 15 ), never across the face. Make turns gradu-

Operate your Tractor up and down the face of slopes (not I

[

caution when changing direction on slopes.

i

Poulan

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
