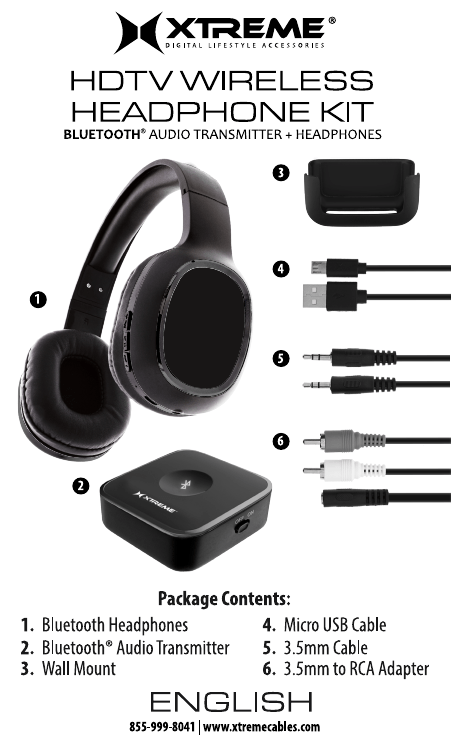

XTREME
DIGITAL LIFESTYLE ACCESSORIES
HD TV WIRELESS
HEADPHONE KIT
BLUETOOTH® AUDIO TRANSMITTER + HEADPHONES
Package Contents:
1. Bluetooth Headphones 4. Micro USB Cable
2. Bluetooth® Audio Transmitter 5. 3.5mm Cable
3. Wall Mount 6. 3.5mm to RCA Adapter
ENGLISH
855-999-8041 | www.xtremecables.com
MANUAL (ENGLISH)
Bluetooth Headphones
. To charge your Xtreme Bluetooth Headphones, connect a micro USB
cable to the micro USB charging port and connect the other end to a
USB power outlet (additional cable and adapter not included). The LED
indicator will blink red, indicating that the headphones are charging
properly. The LED indicator will turn off when the headphones are fully
charged.
NOTE: For best sound performance, please make sure
battery is fully charged before use
—
2. To activate pairing, while the headphones are powered off, press and
hold the multi-function button II for 5 seconds until the LED
indicator starts flashing blue and red.
3. With the headphones now in pairing mode, proceed to step 4 of
transmitter setup to complete the pairing process.
(For Xtreme Transmitter pairing instructions refer to page 4, step 4)
4. If desired, the Bluetooth Headphones can be paired to any Bluetooth
enabled device. Enable Bluetooth search mode on your audio device
and select pairing name “XBA9-1014 RX”.
Once the headphones have been successfully connected,
the LED indicator will flash blue.
Headphones Operation
* Turn the headphones ON by holding the Multifunction Button »II for
3 seconds.
* Toraise volume, press+hold the Volume Up Button »» +
* To lower volume, press+hold the Volume Down Button — <4
* To power down the headphones, hold the Multifunction Button » II
for 3 seconds. The LED light indicator will flash red 3 times and then
remain off.
2
Additional features if paired to a phone:
Press the Multifunction Button » II play/pause audio and to
answer/end phone calls.
To change to the next track, press the Next Track Button pp ==
To change to the previous track, press the Previous Track Button — <
To use as wired auxiliary headphones:
Plug in a 3.5mm audio cable into the “Aux” jack (additional cable not
included). The headphones will automatically switch from “Bluetooth”
mode to “Auxiliary” mode.
(Please note that the music control buttons on the headphones will not
function while in Auxiliary mode.)
Bluetooth Transmitter
3.5mm Jack
Micro USB Charging Port
Power Switch
Bluetooth Pairing Button
— X
Volume Down/
Previous Track
Multifunction
Button
Power/Pair
Play/Pause
Answer/End Calls
» +
Volume Up
Next Track
LED Indicator
Micro USB
Charging Port
3.5mm Aux Jack
Connecting the Bluetooth® Audio Transmitter
. Using Transmitter Wirelessly: Using included Micro USB Cable and a USB
wall charger, fully charge the Bluetooth® Audio Transmitter for a
minimum of 3 hours. The LED charging indicator will illuminate red
when charging. It will illuminate green when fully charged. When
battery is low, Bluetooth pairing button will flash blue quickly.
Using Connected to a Power Source: A constant power source may be
beneficial for long term use. Use the included Micro USB cable and plug
the micro USB end into the Transmitter. Plug the USB end into a 5V
home charger ( not included) or into a USB port on the back of your tv.
2. Connect the Transmitter to an audio source such as a TV or home stereo
using the 3.5mm jack & included 3.5mm Aux Cable. (For audio devices
with RCA output, the RCA to 3.5mm Adapter may be used).
3. Locate your fully charged Xtreme Bluetooth® headphones or a speaker
that you would like to stream audio to. Be sure to power them on and
activate pairing mode.
4. Turn on the Transmitter by switching the power switch (on the side) to
the “ON” position. The Bluetooth LED indicator will illuminate solid blue.
5. Press the Bluetooth Pairing Button to active pairing mode.
Bluetooth® Transmitter begins searching for nearby Bluetooth®
devices (Allow up to 20 sec for the Transmitter to pair).
6. Once the Transmitter and Bluetooth audio device are paired
successfully the LED indicator will begin to flash blue slowly,
indicating that the Transmitter is connected and ready to use.
X
Bluetooth” Headpnones
—
Power Source 5V USB
or
Audio Source «== ]I——
Bluetooth” Soundbar
(not included)
Wall Mount
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
FCC RADIO REQUENCY EXPOSURE STATEMENT
The device has been evaluated to meet general RF exposure
requirements. The device can be used in fixed or mobile condition.
The minimum separation distance is 20 cm.
NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules, these limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications or television reception. However, there is no
guarantee that interference will not occur in a particular installation. If
this occurs, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
(4) Consult an experienced radio/TV technician for help or
contact the customer service number below.
SAFETY AND CARE INSTRUCTIONS:
Please read and understand all instructions before using this product.
Be sure to keep these instructions.
Do not attempt to disassemble the unit. Repairs to electrical
equipment should only be performed by a qualified service person.
Improper repairs may place user as risk and void warranty.
Do not expose this product to dripping or splashing of drinks or liquids
of any kind.
Avoid long exposure to direct sunlight, which may cause damage.
Do not use the product in a strong magnetic field.
Do not use this unit for anything other than its intended user or
purpose. Doing so may damage the device and void warranty.
Do not puncture or harm the exterior surface of the product in any
way. This product is not a toy. Keep out of reach of children.
Do not expose batteries or battery pack to excessive heat or open flame.
Do not expose the unit to extremely high or low temperatures as this
will shorten the life of the device, destroy the battery, and /or distort
certain parts.
Do not use abrasive cleaning solvents to clean the unit.
In order to prolong battery life, turn off when not in use.
WARNING
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's warranty or authority
to operate the equipment.
PLEASE NOTE:
When pressing the Multifunction Button, short press one time to enter pairing
mode. Once in pairing mode, the bluetooth icon on the transmitter will begin
to flash. A short click will be sufficient. Do not hold down or long press the
button. Holding this button down will reset the connection.
The headphones will only connect to one device at a time. Please disconnect
from other devices before pairing to the Bluetooth Audio Transmitter.
After connecting your Bluetooth Audio Transmitter with included A/V cables,
refer to your TV's settings to change TV audio output to the connected source.
For further instructions on this step please refer to your TV manufacturer.
ONE YEAR WARRANTY
Xtreme warrants its products for ONE YEAR against defects in
manufacturing under regular consumer use with original receipt of retail
purchase.
We believe in our products and want to provide you with a replacement, if
needed, but we have to know about the problem while the productis still
under warranty. If you discover a defect covered by this warranty, please
contact us about receiving a replacement. In order to use the products
Warranty the customer must provide proof of the retailers receipt.
*Any customers outside of the U.S. will be responsible for shipping and
handling charges if a replacement is required that is not due to a
manufacturing defect. If there is not a manufacturing defect, shipping and
handling will be applied.
Xtreme's warranty is limited to our products only. Our warranty
does not cover the replacement or repair cost of any third-party
accessory, electronic device or personal property.
For instructions about how to obtain warranty service for your product,
please contact Customer Service at
[email protected]
