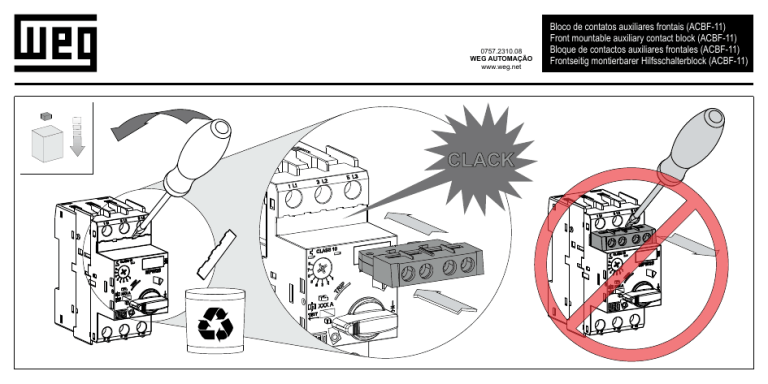

WEG Front mountable auxiliary contact block (ACBF-11) User guide
0757.2310.08
WEG AUTOMAÇÃO
www.weg.net
CLACK
Bloco de contatos auxiliares frontais (ACBF-11)
Front mountable auxiliary contact block (ACBF-11)
Bloque de contactos auxiliares frontales (ACBF-11)
Frontseitig montierbarer Hilfsschalterblock (ACBF-11)
mm/in
Nm/lb.in
mm2/AWG
11
0.43
45
1.76
34
1.34
LIPS
PHIL
#2
1Nm
.in
8.8lb
2
1 OR 2 x (0,5...1,5mm )
2
1 OR 2 x (0,75...2,5mm )
2 x (18...14AWG)
