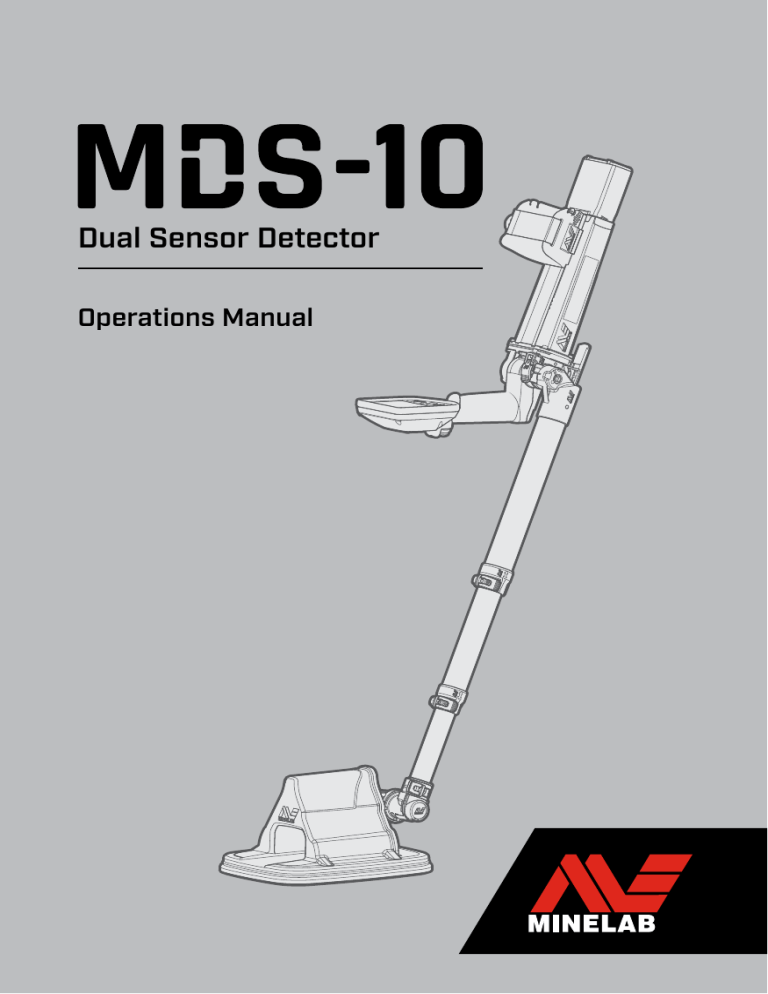

Dual Sensor Detector

Operations Manual

DISCLAIMER

THIS DOCUMENT CONTAINS INTELLECTUAL PROPERTY, TECHNICAL AND

PROPRIETARY DATA AND INFORMATION AND OTHER MATERIAL OWNED SOLELY

BY MINELAB ELECTRONICS PTY LIMITED. THIS MATERIAL MUST NOT BE USED

WITHOUT THE PRIOR WRITTEN PERMISSION OF MINELAB ELECTRONICS PTY LTD.

© Minelab Electronics Pty Ltd. All Rights Reserved.

This document is protected by copyright. Apart from any use permitted under the Australian Copyright Act 1968 (Cth) or other applicable laws, any unauthorised use, appropriation or reproduction of this document or any part of it is strictly prohibited. No part of this document may be used or reproduced by any means or by any process, in any form, without the prior written permission of the copyright owner Minelab Electronics Pty Ltd of 2 Second

Avenue, Mawson Lakes SA 5095, Australia.

Patents and Trademarks

Patents may apply to this product: www.minelab.com/patents

Minelab® and MDS‑10® are trademarks of Minelab Electronics Pty. Ltd.

Dual Sensor Detector

Operations Manual

Item Number: 4901‑0295‑1

Contents

System Overview

MDS‑10 Overview �������������������������������������� 6

MDS‑10 Kit Contents ����������������������������������7

Standard Items

Optional Items

7

7

MDS‑10 Main Detector Parts ������������������ 8

MDS‑10 Detector 9

Operating Modes Overview��������������������10

Dual Sensor Mode (Default)

MD Mode

GPR Mode

10

10

10

Additional Settings Overview �����������������11

Setup Screen

Additional Functions and Settings

11

11

Getting Started

MDS‑10 Unfolding Procedure ���������������12

User Interface ��������������������������������������������14

LCD Screen �������������������������������������������������16

Detect Screen

Setup Screen

Setup Pages

Pause Screen

16

18

19

19

Quick Start �������������������������������������������������20

MD Test Piece �������������������������������������������22

MD Test Piece Procedure 22

GPR Test Target ����������������������������������������23

GPR Test Target Procedure 23

Settings Adjustment

LCD and LED Indicator Settings ����������24

LCD and LED Brightness

Turn the LCD On or Off

Night Vision Mode

24

24

24

Sensor Feedback Settings ��������������������25

Selecting Sensor Feedback Settings

Visual Feedback

Audio Feedback

Vibration Feedback

Tactical Mode

User Interface Feedback

26

26

26

25

26

26

Detector Audio ������������������������������������������27

Volume 27

Audio Output Modes

MDS‑10 Earset Audio

27

28

Personal Role Radio Adapter Cable

3.5mm (1/8") Audio Adapter Cable

28

28

MD Overview

MD Sensor Overview ������������������������������29

Enabling the MD Sensor 29

MD Trace ����������������������������������������������������29

MD Sensor Modes �����������������������������������30

Detection Mode (Default)

Pinpoint Mode

Interrogation Mode

MD Sensor Overload

30

30

30

30

MD Ground Balance ���������������������������������31

MD Sensor Calibration

MD Ground Balance Procedure

Ground Balance Mode

Selecting the Ground

Balance Mode 33

31

32

33

MD Noise Cancel ��������������������������������������34

MD Noise Cancel Procedure

Nearby Detectors Procedure

34

34

MD Sensitivity �������������������������������������������35

Setting the MD Sensitivity 35

GPR Overview

GPR Sensor Overview �����������������������������36

Enabling the GPR Sensor 36

GPR Skyshot ����������������������������������������������37

GPR Sensor Calibration

GPR Skyshot Procedure

37

38

GPR Sensitivity �����������������������������������������39

Setting the GPR Sensitivity 39

Advanced GPR Settings �������������������������40

GPR Start/Stop Gates

Setting the Start/Stop Gates

GPR Detection Threshold

Adjusting GPR Detection Threshold

Play/Pause 42

Pause the GPR Imagery/MD Trace 42

40

40

41

41

GPR Imagery Overview ��������������������������43

Basics of GPR Imagery

Parts of the GPR Imagery

Detection GPR Imagery

Deep and Shallow Anomaly Imagery

Detection Sweep‑Speed Effect

Noisy GPR Imagery

Common Ground Type Imagery

44

44

45

43

43

44

44

Operating Procedures

Search Technique ������������������������������������46

Search Speed

Search Overlap

Search Height

46

46

46

Locating the Target ���������������������������������47

Mapping the Target

Target Mapping Procedure

MD Search Tips

MD Edge Mapping Procedure

Mapping Multiple Targets

MD Pinpointing Procedure

49

49

50

47

47

48

MD Interrogation Mode ���������������������������51

Interrogation Mode Audio 51

Interrogation Mode Procedure

Parts of the Target ID Field

MD Target ID

Target ID Examples

Accessories

Detector Battery ��������������������������������������53

Battery Status Indicator

Low Battery Alert

Lithium‑ion Battery Charger

Charging the Lithium‑ion Battery

Charge Status LEDs

Conditioning the Lithium‑ion Battery

Optional AA Battery Carrier

54

54

55

53

53

53

54

51

52

52

52

Troubleshooting, Safety, and Maintenance

Troubleshooting ���������������������������������������56

Error Codes �����������������������������������������������58

Critical Errors

Advisory Errors

Fatal Errors

System Error Codes

MD Error Codes

GPR Error Codes

59

60

60

58

59

59

Factory Presets �����������������������������������������61

Factory Preset Settings

Factory Reset

61

61

Safety Advice and Maintenance ���������62

MDS‑10 Detector Specification �����������64

MDS‑10 Overview

The MDS‑10® combines unique Metal Detection (MD) and Ground Penetrating

Radar (GPR) technologies to provide superior results in the detection of buried metal and non‑metal explosive device components including:

• Wires

• Improvised explosive devices

• Landmines

• Cluster munitions

• Unexploded ordnance

Dual Sensor Technology

The MDS‑10 combines Minelab’s patented

Simultaneous Multi‑Frequency Digital technology and Chemring’s proven Ultra Wideband

Impulse Radar to detect all conductive and non‑conductive targets of interest in varied soil conditions and operating environments.

Metal Detection (MD) and Ground Penetrating

Radar (GPR) sensors can operate independently or simultaneously, providing selectable visual, vibration, and audio feedback to the Operator.

The MD Sensor detects metal and some conductive non‑metal objects (such as carbon rod IED switch components).

The GPR Sensor is capable of detecting non‑metal and metal objects appearing as sub‑surface ground anomalies.

Rugged and Compact

Constructed from impact resistant materials, the

MDS‑10 is designed to survive in many operating environments.

Each detector is supplied in an impact resistant hard transit case that contains the MDS‑10, a tough nylon carry bag, and accessories.

MDS‑10 is compact and lightweight to reduce fatigue during extended operation.

Ease of Use

The User Interface features a versatile colour LCD screen and is designed for intuitive operation and minimising Operator training requirements.

Safe

It is not possible to accidentally disable both sensors or all detection feedback modes.

It includes a Built‑in Test (BIT) capability to monitor and confirm detector functionality.

Additional Features

• Continuous real‑time display of MD and GPR detections with the ability to pause graphical imagery for scrutiny of potential targets.

• Adjustable MD and GPR Sensitivity with Volume control.

• Target Classification for MD Sensor targets

(Conductivity, Ferrous/Non‑ferrous, Carbon Rod indications).

• Fully enclosed and protected cables.

• Screen is viewable in bright sunlight.

• Tactical Mode for night operations.

• Waterproof to 3m/10'.

• Compatible with Night Vision Imaging Systems

(NVIS).

6 | System Overview

MDS‑10 Kit Contents

The MDS‑10 is supplied as a complete kit packed in a hard transit case for storage and transportation.

1 3 4 7

2

8

5

9

6

10 11 12

Standard Items

1. MDS‑10 Detector

2. Hard Transit Case

3. Carry Bag

4. Battery Charger

5. Lithium‑ion Rechargeable Battery (×2)

6. MDS‑10 Earset

7. Operations Manual

8. Field Guide

9. GPR Test Target

Optional Items

10. AA Battery Pack

11. Personal Role Radio Adapter Cable

12. 3.5mm (1/8") Audio Adapter Cable

Items and specifications may vary slightly from those shown and may be subject to change.

Important Safety Warnings and

Advice

: Before Operating the

MDS‑10, read Safety Advice and

Maintenance on page 62.

System Overview | 7

MDS‑10 Main Detector Parts

The major parts listed are referred to throughout this Operations Manual.

5

6

1

2

7

4

3

11 12 13

20 21

8 9 10

18

17

16

15

14

19

22

23

8 | System Overview

MDS‑10 Detector

1. Lithium‑ion Rechargeable Battery

2. Battery Release Lever

3. Control Box

4. Lateral Shaft Camlock

5. Adjustable Armrest

6. Armrest Strap

7. User Interface

8. Speaker

9. Trigger Button

10. Folding Handle

11. Stand

12. Earset Connector

13. MD Test Piece

14. Upper Shaft

15. Upper Shaft Camlock

16. Middle Shaft

17. Lower Shaft Camlock

18. Lower Shaft

19. Sensor Head

20. Sensor Head Rotation Camlock

21. Sensor Head Pivot Tension

22. GPR Antennas

23. Metal Detection Coil

Attachment Points

Sturdy attachment points are located near the front of the control box. These are sized to fit standard 25mm (1") webbing straps for attachment to load carrying equipment.

Earset Cable Retention Notches

There are Earset cable retention notches located on each side of the armrest.

Loop excess Earset cable through to manage excess cable length, if required.

Stand

The stand can also be used as a carry handle.

System Overview | 9

Operating Modes Overview

The MDS‑10 has three main operating modes; Dual Sensor Mode, MD Mode, and GPR Mode.

Dual Sensor Mode (Default)

In Dual Sensor Mode, both MD and GPR Sensors are operational and provide detection feedback to the operator.

Operation in Dual Sensor Mode is achieved by

enabling both the MD (page 29) and GPR

(page 36) Sensors, and is the default operating

mode.

To differentiate between sensors, there are different audio tone responses for each sensor.

Each sensor has separate colour coded Target

Indicator LEDs for visual response (MD LEDs are red, GPR LEDs are yellow). However, the vibration response is indistinguishable between sensors.

MD Mode

In MD Mode, the MD Sensor is enabled, and the

GPR Sensor is disabled.

The following MD Sensor Modes are available in both MD Mode and Dual Sensor Mode:

MD Detection Mode

– this mode is optimised for maximum detection performance and is the

primary MD Sensor Mode (page 30)

Pinpoint Mode

– this mode provides a static detection response that is useful for localising

targets (page 30)

Interrogation Mode

– this mode provides additional information regarding probable

target characteristics (page 30)

The following additional MD functions are also available in both MD Mode and Dual Sensor

Mode:

MD Ground Balance

– a calibration function that reduces MD false detection responses

caused by ground mineralisation (page 31)

MD Noise Cancel

– this function minimises

MD interference from nearby electronic

sources (page 34)

MD Sensitivity

– this function allows the user

to set MD Sensitivity (page 35)

GPR Mode

In GPR Mode, the GPR sensor is enabled and the

MD Sensor is disabled.

The following GPR Sensor functions are available:

GPR Skyshot

– a calibration function that removes the GPR’s own ‘self signature’ from the

target response (page 37)

GPR Sensitivity

– this function allows the user

to set GPR Sensitivity (page 39)

GPR Advanced Settings

– these functions allow the user to set GPR Start/Stop Gates, and

the GPR Detection Threshold (page 40)

10 | System Overview

Additional Settings Overview

The MDS‑10 has a Setup Screen accessible in all operating modes enabling the user to access more settings.

Setup Screen

The Setup Screen (page 18) is accessible from

Dual Sensor Mode, MD Mode and GPR Mode by a

short‑press of the Setup Button (page 14).

The Setup Screen allows the user to adjust the following settings:

MD Ground Balance Mode

(page 33)

Audio Output Mode

– for speaker and earset

(page 27)

MD Sensor Feedback settings

– Visual,

Audio and Vibration (page 25)

GPR Sensor Feedback settings

– Visual,

Audio and Vibration (page 25)

Additional Functions and

Settings

The following additional functions and settings can be accessed from Dual Sensor Mode, MD

Mode, or GPR Mode:

Volume

adjustment (page 27)

Play/Pause

– pause the GPR Imagery and MD

Trace (page 42)

LCD On/Off

(page 24)

LCD/LED Brightness

adjustment (page 24)

Night Vision Mode

(page 24)

Tactical Mode

(page 26)

Refer to the referenced pages for more information.

System Overview | 11

MDS‑10 Unfolding Procedure

Follow these steps to unfold the MDS‑10 ready for operation.

Before beginning, remove the detector from the protective hard‑case or carry bag.

2

Extend the Lower Shaft

1.

Open the lower shaft camlock.

2.

Slide the lower shaft out to full extension.

3.

Close the lower shaft camlock.

1 3

Unfold the Detector

4.

Open the lateral shaft camlock.

5.

Holding the control box, rotate the

Sensor Head and shafts around

180° until the end stop is reached.

The handle will follow the shafts.

6.

Close the lateral shaft camlock.

4

Unfold the Sensor Head

7.

Pivot the Sensor Head out. The

Sensor Head should be parallel to the ground when held in the detecting position.

8.

If required, tighten the tension nut so that the Sensor Head holds its angled position.

Position the Armrest

9.

Squeeze the finger grips on the rear of the armrest to release the locking mechanism.

10.

Slide to a comfortable position.

10

8

9

6

5

7

12 | Getting Started

11

Extend the Middle Shaft

11.

Open the upper shaft camlock.

12.

Extend the middle shaft.

13.

Close the upper shaft camlock.

Attach Battery

14.

Align the battery perpendicular to its final position.

15.

Depress the Battery Lock Lever.

16.

Rotate the battery 90 degrees, then release the lever.

16

Once the detector is unfolded, proceed to Quick Start on page 20.

12

14

13

15

MDS‑10 Folding Procedure

Repeat the Unfolding procedure steps in reverse.

Note:

The MDS‑10 can be stowed with the Li‑ion battery attached. The battery slides into the cavity inside the Sensor Head when the lower shaft is collapsed.

The Lithium-ion battery inside the Sensor Head.

2

180° Sensor Head Rotation

The MDS‑10 Sensor Head can be rotated 90° to both the left and right for detecting on angled surfaces such as the side of a trench.

1.

Open the Sensor Head rotation camlock.

2.

Rotate to the Sensor Head preferred position.

3.

Close the camlock.

3

1

Getting Started | 13

User Interface

The MDS‑10 User Interface has a large LCD Screen, a backlight, and a keypad.

The User Interface displays and controls all of the detector functions.

13 12

1

2

3

4

14

The Trigger button icon

5 6 7 8

Additional Button Functions

Some buttons are used for more than one function, indicated by a small icon adjoining the button.

Short‑press

(<0.5s) the button to access its main function.

Long‑press

(>0.5s) the button to access its additional function.

Additional button function icon

14 | Getting Started

Main button function icon

11

10

9

1. LCD

Displays detector settings, options, and detection

information (page 16).

2. MD Button

Long‑press from the Detect Screen to Enable or

Disable the MD Sensor.

Short‑press from the Detect Screen to display MD

Sensitivity adjustment (page 35).

Short‑press from the Setup Screen to display the

MD Sensor feedback settings (page 25).

3. Ground Balance Button

Short‑press to initiate MD Ground Balance

(page 32).

Long‑press to initiate MD Noise Cancel (page 34).

4. MD Target Indicator LEDs (Visual and IR)

Red LEDS indicate MD detection signal strength, increasing from left to right.

The LEDs can transmit both visible light, and Infra‑ red for compatibility with Night Vision Imaging

Systems (NVIS).

5. Setup Button

Short‑press to display the Setup Screen to adjust the general detector settings and MD and GPR

Sensor Feedback settings.

Long‑press (1.5s) to turn the detector On and Off.

6. Play/Pause Button

Short‑press to Pause/Play the GPR Image and/ or MD Trace (disables both MD and GPR Sensor transmitters temporarily when paused.)

Brightness adjustment is only accessible from the

Pause Screen, using the Plus and Minus buttons to

adjust (page 24).

Long‑press to turn the LCD On and Off.

7. Minus Button

Short‑press from the Detect Screen to display and

decrease the detector Volume level (page 27).

Short‑press at the same time as the Plus button to

enable Night Vision Mode (page 24).

Short‑press from the Pause Screen to display and

decrease the LCD brightness level (page 24).

Short‑press to decrease the value of a selected detector setting by one level.

8. Plus Button

Short‑press from the Detect Screen to display and

increase the detector Volume level (page 27).

Short‑press at the same time as the Minus button to

enable Night Vision Mode (page 24).

Short‑press from the Pause Screen to display and

increase the LCD brightness level (page 24).

Short‑press to increase the value of a selected detector setting by one level.

9. GPR Target Indicator LEDs

Yellow LEDS indicate GPR detection signal strength, increasing from left to right.

The LEDs can transmit both visible light, and Infra‑ red for compatibility with Night Vision Imaging

Systems (NVIS).

10. Skyshot Button

Short‑press to initiate a Skyshot calibration process

(page 38).

Long‑press to display GPR Advanced Settings.

11. GPR Button

Long‑press from the Detect Screen to Enable or

Disable the GPR Sensor.

Short‑press from the Detect Screen to display GPR

Sensitivity adjustment (page 39).

Short‑press from the Setup Screen to display the

GPR Sensor Feedback settings (page 25).

12. Tactical Mode Buttons Reference

Quick‑reference showing the button press

combination to enable Tactical Mode (page 26).

Press the Plus and Minus buttons at the same time.

13. Night Vision Mode Buttons Reference

Quick‑reference showing the button press combination to enable Night Vision Mode

(page 24).

Press the Setup button and the Trigger at the same time.

14. Trigger

(at rear of user interface)

Press and release to toggle between Interrogation

Mode and Detection Mode (page 51).

Press and hold to enable Pinpoint Mode

(page 50).

Getting Started | 15

LCD Screen

The MDS‑10 LCD displays detector settings, options, and represents target detections visually. Key screens include the Detect Screen, the Setup Screen, and the Pause Screen.

Detect Screen

The Detect Screen displays the real‑time detection information for enabled Sensors.

Detect Screen in MD Mode

Most MD information is displayed in the MD display area on the left side of the LCD. Key functions are colour‑coded red so they can be easily differentiated from the GPR functions.

When the MD Sensor is disabled, all MD functions are not displayed on the Detect Screen.

Detect Screen in GPR Mode

Most GPR information is displayed in the GPR display area on the right side of the LCD. Key functions are colour‑coded yellow so they can be easily differentiated from the MD functions.

When the GPR Sensor is disabled, all GPR functions are not displayed on the Detect Screen.

Detect Screen in Dual Sensor Mode

Both MD and GPR information is displayed at the same time. This is the default Mode.

16 | Getting Started

Parts of the Detect Screen

The example below shows the Detect Screen with Factory Preset settings. By default, Dual Sensor

Mode is enabled, therefore both MD (red) and GPR (yellow) functions and settings are displayed.

2 3 4

1

8

5

6

7

9

10

1. Status Bar

Displays quick‑reference information for the detector battery level and MD/GPR Sensitivity settings.

In the event of an Advisory Error, the

Advisory Error icon will appear in the

status bar (page 59).

2. MD Sensitivity Level Indicator

Displays a visual indication of the MD

Sensitivity level (page 35).

3. Battery level Indicator

Displays a visual indication of the battery level

(page 53).

4. GPR Sensitivity Level Indicator

Displays a visual indication of the GPR

Sensitivity level (page 39).

5. MD Ground Balance Mode

Displays the current Ground Balance Mode

(page 33).

6. Enabled MD Feedback Indicators

Indicates enabled MD Feedback settings; Visual,

Audio, and Vibration (page 25).

7. MD Trace

Visually represents the responses from metallic

targets (page 29).

8. GPR Imagery

Visually represents buried objects and sub

surface structures (page 43).

9. Enabled GPR Feedback Indicators

Indicates enabled GPR Feedback settings;

Visual, Audio, and Vibration (page 25).

10. Pop‑up Indications Area

Displays the status of MD Ground Balance, MD

Noise Cancel, and GPR Skyshot processes.

In the event of a Critical System Error, an Error

Code and icon will be displayed (page 58).

Indicates when MD Pinpoint and Interrogation

Modes are enabled.

Getting Started | 17

Setup Screen

Short‑press the Setup button to display the Setup Screen. The example below shows the Setup Screen with

Factory Preset settings.

Parts of the Setup Screen

1 2 3

6

4

5

8

7

9

10 12

11

1. Settings Overview Area

Displays the current detector settings. They cannot be adjusted from the Setup Screen.

2. Setup Menu Icon

3. Battery Level Indicator

Displays the battery level (page 53).

4. MD Sensitivity Level

Displays the MD Sensitivity level (page 35).

5. Volume Level

Displays the Volume level (page 27).

6. GPR Sensitivity Level

Displays the GPR Sensitivity level (page 39).

7. LCD/LED Brightness Level

Displays the LCD/LED Brightness level

(page 24).

8. Default Setting Markers

Default setting marker

The Sensitivity, Volume, and

Brightness adjustment bars display a marker to indicate the default setting position.

14 15 13

9. MD Ground Balance Mode

Displays the current Ground Balance Mode

(page 33).

10. Enabled MD Feedback Indicators

Indicates enabled MD Feedback settings; Visual,

Audio, and Vibration (page 25).

11. MD Setup Page Indicator

12. Enabled GPR Feedback Indicators

Indicates enabled GPR Feedback settings;

Visual, Audio, and Vibration (page 25).

13. GPR Setup Page Indicator

14. Soft Key Options

Short‑press the button directly below each Soft

Key option to select or toggle the available options.

15. Error Code Display Area

In the event of an MD, GPR, or System Error, an

Error Code will be displayed (page 58).

18 | Getting Started

Setup Pages

Within the Setup Screen, there are 3 Setup Pages: the General Setup Page, the MD Setup Page, and the GPR

Setup Page. Each Page has different Soft Key Options at the bottom of the screen.

The General Setup Page

The General Setup Page displays the following

Soft‑Key Options:

Ground Balance Mode

Audio Mode

The MD Setup Page

The MD Setup Page displays the following Soft

Key Options:

MD Visual (LED) Feedback Setting

MD Audio Feedback Setting

MD Vibration Feedback Setting

A border appears around the MD Setup

Page Indicator when the MD Setup

Page is active.

The GPR Setup Page

The GPR Setup Page displays the following Soft‑

Key Options:

GPR Visual (LED) Feedback Setting

GPR Audio Feedback Setting

GPR Vibration Feedback Setting

A border appears around the GPR

Setup Page Indicator when the GPR

Setup Page is active.

Pause Screen

The GPR Imagery and/or MD Trace can be temporarily paused for scrutiny of detections.

Short‑press the Play/Pause button to display the Pause Screen. Note that MD and GPR Sensor transmitters are turned off while Paused.

Read Play/Pause on page 42 for detailed

operation instructions.

Getting Started | 19

Quick Start

Follow the Quick Start procedure to make the MDS‑10 ready for operation.

Begin with an assembled detector

(See MDS‑10 Unfolding Procedure on page 12.)

Note:

All detector modes and settings are saved after the detector is powered Off, including after removal/replacement of the battery.

When the detector is powered On again, all modes and settings will return to their last‑used state.

battery is recommended.

See Charging the Lithium‑ion Battery on page 54.

Tip:

Beginning a detecting operation with a fully charged

Factory Reset

Factory Reset will return all detector settings and modes to factory preset values.

1.

Turn the detector Off.

2.

Press and hold the Setup (power) button for approximately 5 seconds;

3.

After the first start‑up tone, there will be a short high‑pitched confirmation tone, and all settings and modes will return to factory preset values.

4.

Release the Setup (power) button.

1� Turn On

Long‑press the Setup button.

Wait for the first MD Target Indicator LED to stop flashing.

Long-press

2� MD Ground Balance

Carry out the Ground Balance Procedure (page 32).

25–50mm (1–2")

Short-press

20 | Getting Started

8s

4� MD Test Piece

Carry out the MD Test Piece procedure (page 22) to confirm the MD Sensor is working correctly.

3� GPR Skyshot

Ensure that the first GPR Target Indicator LED has stopped flashing.

Carry out the GPR Skyshot Procedure (page 38).

Short-press

23s

5� GPR Test Target

Carry out the GPR Test Target procedure (page 23) to confirm the GPR Sensor is working correctly.

6� Begin Detecting

Begin detecting using the correct search

technique (page 46).

Getting Started | 21

MD Test Piece

The supplied MDS‑10 MD Test Piece is used to confirm that the MD Sensor is functioning correctly.

The MD Test Piece procedure should be carried out every time the MDS‑10 is powered on.

Always set an MD Sensitivity level of 6 (default) when performing the Test Piece procedure.

In some instances, a user may prefer to use inert mines or targets as test pieces because they represent the local threat. Minelab recommends that the MDS‑10 always be first tested with the supplied MD Test Piece before local test pieces are used for testing.

5.

Hold the Test Piece perpendicular to the skidplate. Lightly touching the surface of the coil with the tip of the Test Piece, smoothly and slowly move the test piece across the coil from one side to the other.

The Minelab MDS-10 MD Test Piece

MD Test Piece Procedure

1.

Ensure that hands and arms are free of metallic objects (watches, rings etc.), and that no other metallic objects are near the Sensor Head.

2.

Ensure MD Sensitivity is set to 6 (default)

(page 35).

3.

Remove the Test Piece from its stowed position in the base of the detector’s handle.

A faint but clear response (a rise in volume) should be heard, indicating the MD Sensitivity level is correct.

With the MD LED display enabled, the Test Piece procedure should result in the illumination of at least one additional LED.

If the Test Piece does not produce a response,

Factory Reset the detector (page 61), and then

repeat the Test Piece procedure.

4.

Hold the Test Piece by the ridged finger grip.

If the Test Piece fails to be detected, the detector must be considered faulty and

MD Mode must not be used.

The MDS‑10 may still be used in GPR Sensor

Mode.

22 | Getting Started

GPR Test Target

The MDS‑10 is supplied with a GPR Test Target to confirm that the GPR

Sensor is functioning correctly.

The GPR Test Target procedure should be carried out every time the MDS‑10 is powered On.

Always set a GPR Sensitivity level of 6 (default) when performing the Test Target procedure.

In some instances, a user may prefer to use inert mines or targets as test targets because they represent the local threat. Minelab recommends that the detector always be first tested with the supplied GPR Test Target before local test targets are used for testing.

4.

Sweep the MDS‑10 Sensor Head over the Test

Target while adjusting the GPR Sensitivity

(page 39).

5.

Continue to adjust the GPR Sensitivity until a faint but clear response (a rise in volume) is heard consistently, indicating the GPR

Sensitivity level is correct.

The Minelab MDS-10

GPR Test Target

GPR Test Target Procedure

1.

Bury the GPR Test Target level with the ground surface in a clear, flat section of ground.

2.

Ensure GPR Sensitivity is set to 6 (default)

(page 39).

If the Test Target does not produce a response,

Factory Reset the detector, and then repeat the

Test Target procedure.

If the Test Target fails to be detected, the detector must be considered faulty and

GPR Mode must not be used.

The MDS‑10 may still be used in MD Sensor

Mode.

3.

Perform the Skyshot procedure (page 38).

Getting Started | 23

LCD and LED Indicator Settings

The LCD Screen and Target Indicator LEDs have a range of settings that allow the Operator to detect in high and low light situations.

LCD and LED Brightness

The LCD is dual‑mode with a backlight for daytime use and Night Vision Mode for use with NVIS.

The LCD backlight and Target Indicator LED brightness are both adjusted by the Brightness setting, and cannot be adjusted separately.

The Backlight / LED Brightness setting has a range from 1 (low) to 7 (high) with a default setting of 7

.

Adjusting the LCD Backlight and LED

Brightness

1.

From any screen, short‑press the Play/Pause button. The Pause Screen with be displayed.

The Play/Pause button

2.

Short‑press either the Plus (+) or Minus (–) button to display the Brightness adjustment bar at the current brightness level.

3.

Short‑press the Plus (+) or Minus (–) buttons to adjust the brightness level.

The Brightness adjustment bar will disappear after 3 seconds of inactivity. Short‑press the

Pause/Play button to return to the previous screen.

Turn the LCD On or Off

1.

To turn the LCD On or Off, long‑press the Play/

Pause button.

The Play/Pause button

Note:

The Target Indicator LEDs will remain on, even if the LCD is turned Off.

Night Vision Mode

In Night Vision Mode, the LCD Backlight switches to a low intensity mode that is visible only at night with NVIS. The Target Indicator LEDs switch to infrared (IR) which are also only visible with NVIS.

Night Vision Mode Quick Reference on the top right of the User Interface.

To Enable Night Vision Mode:

Note: If Tactical Mode is enabled, Night Vision Mode will already be active. Tactical Mode must be disabled before Night Vision Mode can be enabled separately.

1.

Short‑press the Plus (+) and Minus (–) buttons

+

simultaneously.

2.

The LCD and LEDs will now only be visible to

Operators using NVIS.

3.

To disable Night Vision Mode and return to the previous LCD/LED setting, repeat step 1.

Note:

If powered off whilst Night Vision mode is enabled, the detector will resume operation in

Night Vision mode when powered back on.

24 | Settings Adjustment

Sensor Feedback Settings

Sensor Feedback upon target detection is provided via a combination of visual, audio, and tactile (vibration) responses. These combinations can be selected to suit the detecting application and user preference.

Or, to display the GPR Setup Page, short‑press the GPR button.

The visual, audio, and tactile (vibration) Feedback

Settings for each sensor can be independently enabled and disabled via the Setup Screen.

For information on the parts of the Setup Screen and the Setup Pages (General, MD, and GPR), read

Setup Screen on page 18.

All Feedback Settings for the MD and GPR Sensors are

On by default.

It is recommended that audio feedback for both sensors is enabled, as it is capable of conveying more detection signal information than visual or vibration feedback alone. Visual and vibration feedback is best used to supplement audio.

MD GPR Feedback Setting

Visual (LED) Feedback Setting

The GPR button

The Feedback Settings are displayed as icons

(Soft Key Options) along the bottom of the screen.

3.

Short‑press the button directly below the

Feedback Setting icon to enable/disable it.

Enabled Disabled

Audio Feedback Setting

Vibration Feedback Setting

Selecting Sensor Feedback

Settings

1.

Short‑press the Setup button to open the

Setup Screen. The General Setup Page options are displayed by default on the Setup Screen.

The Setup button

2.

To display the MD Setup Page, short‑press the

MD button (shown in example)

The MD button

The MD Setup Page showing the Visual and Vibration settings disabled.

Note:

At least one Feedback Setting must and will always be enabled.

4.

When the selections have been made, short‑ press the MD button to return to the General

Setup Page, or short‑press the Setup button to return to the Detect Screen.

Settings Adjustment | 25

Visual Feedback

Visual feedback is provided in the form of two LED bar indicators that display a visual indication of

MD and GPR received signal strength.

Target Indicator LEDs show a weak received signal

Target Indicator LEDs show a strong received signal

The LED indicators provide both visible light and non‑visible IR indication for both sensors, allowing

Operators to use NVIS when necessary.

Audio Feedback

Audio feedback should be the primary feedback used by Operators as it is capable of conveying more detection signal information to an Operator than visual or vibration feedback. Skilled

Operators can typically achieve higher detection performance using audio feedback than visual or vibration feedback alone.

The MD and GPR Sensors have distinctly different audio tones for easy differentiation. Audio is able to be emitted from both the speaker located on the back of the User Interface, and/or through an earset.

For information on use of the supplied earset and

other audio accessories, read Detector Audio on page 27.

Vibration Feedback

Vibration feedback is provided by a vibration motor located in the handle of the detector.

The intensity and duration of vibration feedback is proportional to that displayed by the Target

Indicator LEDs.

Tactical Mode

Tactical Mode is provided as a quick means of configuring the detector settings for use in tactical deployment situations.

When Tactical Mode is enabled, the user interface does the following:

• Disables speaker audio (earset audio will remain On if an earset is connected)

• Sets the LCD and Target Indicator LEDs to

Night Vision Mode, i.e. LCD is Off and the Target

Indicator LEDs are only visible using NVIS.

• Enables vibration feedback.

Enabling Tactical Mode

1.

Short‑press both the Trigger button and Setup button simultaneously to enable.

To disable Tactical Mode, press both the Trigger button and Setup button simultaneously again.

Tactical Mode Quick Reference on the top right of the User Interface.

To Enable Tactical Mode when powering on the detector

1.

When the detector is Off, press and hold the

Trigger button and Setup button.

2.

Wait until two short vibration pulses have been felt. These occur approximately 2 seconds apart.

3.

Release the Trigger button and Setup button.

The detector will be On with Tactical Mode enabled.

User Interface Feedback

User Interface Feedback responses (e.g. a confirmation 'beep' when a button is pressed) will occur according to the enabled sensor feedback settings. To prevent user interface feedback of a particular type, e.g. audio, the Audio Feedback setting must be disabled for both the MD and GPR Sensors.

26 | Settings Adjustment

Detector Audio

The MDS‑10 is compatible with a number of Audio accessories.

Volume

The MDS‑10 has a single Volume control adjusting

MD, GPR and user interface audio responses.

The Volume setting has a range from 1 to 10 with a default setting of 6

.

Adjusting the Volume

1.

From the Detect Screen, short‑press either the

Plus (+) or the Minus (–) button to display the

Volume adjustment bar.

Speaker Auto‑Mute

(Default)

Speaker audio is automatically On if an earset is not connected. Speaker audio is automatically muted (Off) if an earset is connected.

Speaker and Earset On

Both the Speaker and the earset are On.

This is a useful mode for training scenarios.

Speaker Off

Speaker audio is always Off, even if there is no earset connected.

Note:

Speaker Off mode overrides the MD and

GPR enabled audio settings.

Selecting the Audio Output Mode

1.

Short‑press the Setup button to display the

Setup Screen. The General Setup Page Soft Key

Options will be displayed along the bottom of the screen.

2.

Short‑press the Plus (+) button (directly below the Audio Output icon). The Audio Output

Mode icon will change to the next Mode.

Each short‑press of the Plus (+) button will select the next Audio Output Mode.

2.

Short‑press the Plus (+) or Minus (–) buttons to increase or decrease the Volume level.

The Volume adjustment bar will disappear after 3 seconds of inactivit

y.

Audio Output Modes

MDS‑10 has 3 Audio Output Modes:

Speaker Auto‑Mute

(Default)

Speaker and Earset On

Speaker Off

3.

Short‑press the Setup button to return to the

Detect Screen.

Settings Adjustment | 27

MDS‑10 Earset Audio 3�5mm (1/8") Audio Adapter Cable

The MDS‑10 earset has a unique connector that is compatible with the earset connector on the control box.

The MDS‑10 earset is not waterproof when disconnected from earset connector on the control box.

To prevent dirt ingress, apply the dust cap when not in use.

Connecting the MDS‑10 Earset

1.

Remove the dust caps from both the earset connector on the detector, and from the earset plug on the earset.

2.

Ensure that the plug aligns with the connector.

3.

Press the earset plug evenly and firmly onto the earset connector.

The 3.5mm (1/8") adapter is an optional accessory for connecting standard 3.5mm (1/8") headphones to the MDS‑10.

The audio adapter cable is not waterproof.

To prevent dirt ingress, apply the dust cap when not in use.

Connecting the 3.5mm (1/8") Adapter Cable

1.

Remove the dust cap from both the earset connector on the detector, and from the plug on the adapter cable.

2.

Ensure that the plug aligns with the connector.

3.

Press the earset plug evenly and firmly onto the earset connector.

4.

Connect any set of headphones with a 3.5mm

(1/8") connector.

Personal Role Radio Adapter Cable

The Personal Role Radio Adapter Cable is an optional accessory. When connected to the

MDS‑10 Earset connector, it directs audio to the secondary input on the dual switch variant of the

'H4855' Soldier Personal Role Radio headphone

This allows the Operator to monitor the radio whilst also receiving detector audio feedback.

The Personal Role Radio Adapter Cable is not waterproof when disconnected from the earset connector on the control box.

To prevent dirt ingress, apply the dust cap when not in use.

Connecting the Personal Role Radio

Adapter Cable

1.

Remove the dust caps from both the Earset connector on the detector, and from the

Earset plug on the Adapter Cable.

2.

Ensure that the plug aligns with the connector.

3.

Press the Adapter Cable plug evenly and firmly onto the Earset connector on the MDS‑10.

4.

Connect the end of the Personal Role Radio

Adapter Cable (M55116 circular connector) to the secondary input on the Dual Switch

Variant of a H4855 Soldier Personal Role Radio.

28 | Settings Adjustment

MD Sensor Overview

The MD Sensor detects metal (conductive) objects.

Enabling the MD Sensor

The MD Sensor is enabled and disabled by long‑pressing the MD button.

All MD related functions are colour coded red for quick recognition.

When the MD Sensor is enabled, the MD Sensor

Modes can be accessed. These Sensor Modes are unavailable when the MD Sensor is disabled.

The 3 available MD Sensor modes are:

• Detection Mode (page 30)

• Pinpoint Mode (page 30, page 50)

• Interrogation Mode (page 30, page 51)

Detect Screen with the MD Sensor enabled.

MD Trace

When the MD Sensor is enabled, the red MD

Trace at the bottom of the Detect Screen is displayed. The MD Trace visually displays the responses from metallic targets.

Data scrolls in real‑time across the screen from right to left. The image represents 4 seconds of data, with the left representing data from 4 seconds ago. The most recent data is displayed on the right.

The size of peaks on the MD Trace is proportional to received target signal strength, similar to the Target Indicator LEDs.

Weak target detections will product small variations in the MD Trace. Strong target detections will produce large peaks in the MD

Trace.

Small or deep metallic targets

Large or shallow metallic targets

MD Overview | 29

MD Sensor Modes

Detection Mode (Default)

Detection Mode is optimised for maximum detection performance, and is the default MD

Sensor Mode used for initial searching of new ground to detect targets.

In Detection Mode, the detection signal is dynamically processed, meaning the Sensor Head must be moving relative to the target (e.g. using a normal sweeping search technique) in order to register a detection response.

In Detection Mode, audio target responses have pitch and volume that is proportional to received target signal strength. Strong targets will be loud/ high‑pitched and weak targets will be quieter/ low‑pitched.

Detection Mode is optimised for target detection and is more sensitive than Interrogation Mode or Pinpoint Mode. Therefore, very small targets detected in Detection Mode may not be detected when using Interrogation Mode or Pinpoint

Mode. If this occurs, use Detection Mode to pinpoint a detected target, rather than using

Pinpoint Mode.

Pinpoint Mode

Pinpoint Mode provides a static response such that target feedback will be heard even if the

Sensor Head is stationary with respect to the target. This mode is useful for locating targets.

To enable Pinpoint Mode, press and hold the

Trigger button.

When the Trigger button is released, the MD will return to Detection Mode.

Pinpoint Mode is used to map a detected metal target to discover its size and shape. For detailed information on mapping a target using Pinpoint

Mode, see page 50.

30 | MD Overview

Pinpoint Mode can also be used to locate the centre of a target. For detailed information on locating the centre of a target using Pinpoint

Mode, read page 50.

Interrogation Mode

Interrogation Mode provides additional information regarding the probable characteristics of a target based on its response to the magnetic field transmitted by the MD, including:

• Apparent target conductivity.

• Whether the target is ferrous or non‑ferrous.

• Whether the target is potentially a carbon rod switch component.

In Interrogation Mode, audio responses consist of a single 'beep' tone where the pitch corresponds to the characteristics of the detected target.

• Ferrous targets sound very low‑pitched.

• Carbon Rod targets sound very high‑pitched.

• Non‑Ferrous targets will have a mid‑range pitch response where the pitch is proportional to the conductivity of the target.

To enable/disable Interrogation Mode, press and release the Trigger button.

For detailed Interrogation Mode operation

information, see page 51.

MD Sensor Overload

When operating any of the MD Modes

(Detection/ Pinpoint/ Interrogation), very large metal objects close to the Sensor Head may overload the detector’s electronics.

If this occurs, the Coil Overload icon will flash on the LCD, and the

Overload Alarm will repeat until the Sensor Head is moved away from the source of the overload.

Overloading is not harmful to the electronics of the detector.

MD Ground Balance

MD Ground Balance reduces noise caused by ground mineralisation, allowing targets to be detected more clearly.

The MDS‑10 is capable of detecting metallic objects in all ground conditions. During the

Ground Balance procedure, the detector learns and adapts to the ground characteristics to reduce ground noise and false alarms due to mineralised (magnetic/lateritic) soils.

Frequent Ground Balancing will ensure maximum detection performance.

Ground Balance must be performed every time the detector is powered On.

It is recommended that Ground Balance be repeated:

• When ground conditions change.

• When it is suspected that the detector is responding to the ground.

The MDS‑10 uses a fixed Ground Balance system that will only change during a user‑initiated

Ground Balance procedure. The MDS‑10 will not automatically adjust to different ground during detecting.

MD Sensor Calibration

The MD Sensor calibration occurs for approximately 5 seconds after the MDS‑10 is powered On.

During MD start‑up calibration, the first MD Target

Indicator LED will flash. When the LED stops flashing and remains static on, a Ground Balance can be initiated.

If Ground Balance is attempted before the start‑ up MD calibration is complete (i.e. first MD Target

Indicator LED is flashing), an invalid button press tone will sound.

MD Overview | 31

MD Ground Balance Procedure

1.

Ensure this procedure is carried out on ground that contains no metal targets, and is representative of the ground in the intended search area.

3.

Sweep the coil left and right across the metal target free ground, maintaining a sweep height of 25–50mm (1–2").

25–50mm (1–2")

2.

From the Detect Screen, with the MD Sensor enabled, short‑press the Ground Balance button to initiate the Ground Balance process.

The Ground Balance button

A flashing Ground Balance icon will appear on the LCD, indicating that Ground Balance is in progress.

Ground Balance can be cancelled by pressing the Ground Balance button again.

4.

After eight seconds, there will be a confirmation tone/vibration, the flashing

Ground Balance icon will disappear, and the detector will return to Detection Mode.

5.

Sweep the coil back over the metal free ground checking for any ground noise or false alarms. Repeat Ground Balance if required.

Successfully completing Ground Balance may allow the use of a higher MD Sensitivity level due to reductions in ground noise and false alarms.

32 | MD Overview

Ground Balance Mode

The MDS‑10 has two Ground Balance Modes:

IED Mode

(Default)

Conventional Mode

IED Mode

(Default)

The IED (Improvised Explosive Device)

Mode for the MD Sensor is the default and recommended mode for most detecting operations.

IED Mode is sensitive to high frequency IED‑like targets such as wires, carbon rods, and very fine metal parts. IED Mode can also be more susceptible to naturally conductive elements in the environment, such as charcoal fragments or salt (e.g. wet beach sand adjacent to seawater). In such scenarios Conventional Mode can be used.

Conventional Mode

The Conventional Mode behaves more like a conventional mine detector such as the Minelab F3. It is less sensitive to high frequency objects such as wires, carbon rods and charcoal. It maintains a high sensitivity to metal targets typically detectable by conventional metal detector technologies.

Conventional Mode can be used for beach locations.

Selecting an Appropriate Ground

Balance Mode

Use of IED Mode is recommended except:

• When detecting on wet sand at a seawater beach or other salt environment,

• When detecting in an area known to be contaminated with charcoal fragments, fine wire or metal fragments, or

• If, after performing a Noise Cancel and Ground

Balance, the MD Sensor still gives a high number of false alarms with an MD Sensitivity setting of 4 or lower in IED Mode.

In these scenarios, Conventional Mode may give better performance.

WARNING:

Conventional Mode is less sensitive to certain IED threats including wires and carbon rod switch components. The Operator must always take the threat environment into account when deciding on a suitable Ground Balance

Mode.

Selecting the Ground

Balance Mode

1.

From the Detect Screen, short‑press the Setup button. The Setup Screen will be displayed.

The Setup button

2.

Short‑press the Ground Balance button

(directly below the Ground Balance Mode icon).

The Ground Balance button

The Ground Balance Mode icon will change to the next Ground Balance Mode.

Each short‑press of the Ground Balance button will toggle between the two available

Search Profiles.

MD Overview | 33

MD Noise Cancel

MD Noise Cancel adjusts the MD Sensor to reduce electrical interference.

Detectors may become noisy due to electrical interference from power lines, electrical equipment, or other detectors operating nearby.

The detector interprets this interference as inconsistent, erratic detections, even when the detector is held stationary.

3.

The Noise Cancel icon and progress bar will be shown on the LCD. A tone and/or vibration indicates that Noise Cancel is in progress.

Do not use the detector whilst Noise Cancel is in progress.

MD Noise Cancel Procedure

1.

Hold the Sensor Head stationary and away from the ground and metal targets.

≈ 60cm

(24")

2.

From the Detect Screen, with the MD Sensor enabled, long‑press the Ground Balance button to initiate the Noise Cancel process.

The Ground Balance button

4.

After 25 seconds, there will be an audio tone when the Noise Cancel is complete. The progress bar will reach 100%, and the icon and progress bar will disappear.

Nearby Detectors Procedure

If operating in close proximity with other detectors and there is interference, the following procedure should be followed:

1.

Enable the MD Sensor on all detectors.

2.

Perform Noise Cancel on each detector, one at a time to ensure that each detector selects a different operating frequency.

3.

Perform Ground Balance on each detector after Noise Cancel, before commencing detecting.

34 | MD Overview

< 1m (3')

MD Sensitivity

MD Sensitivity should be adjusted as needed to reduce false alarms arising from difficult grounds.

The MD Sensitivity setting has a range from 1 (low) to

10 (high) with a default setting of 6

.

To avoid missing targets, always set the sensitivity to the highest setting which does not give excessive false signals when the Sensor Head is swept over ground which is free of targets.

This setting will depend on the ground being searched, and how well the detector has ground balanced to the soil.

The MD Sensitivity level is displayed visually in the

LCD Status Bar at all times when the MD Sensor is enabled.

The MD Sensitivity Level

Indicator in the Status Bar

When viewing the Setup Pages or when adjusting the MD Sensitivity, the sensitivity level is displayed as a vertical gauge.

There is a default setting marker at level 6 to indicate the default sensitivity position.

Setting the MD Sensitivity

1.

Ensure that the MD Sensor is enabled, and the

Detect Screen is active.

2.

Ensure the MD Sensor has been Ground

Balanced, and (if required) perform a Noise

Cancel.

3.

Short‑press the MD button to display the MD

Sensitivity Adjustment Bar and value.

While sweeping the Sensor Head over ground with no targets present, use the Plus (+) button to increase the Sensitivity until false signals begin to occur.

4.

Reduce the Sensitivity by pressing the Minus

(–) button, just enough that these false signals disappear.

Note:

The Sensitivity adjustment bar will time‑out

(disappear) after 3 seconds of inactivity.

The MD button

The MD Sensitivity adjustment bar and value

It is the responsibility of the Operator to test and ensure that the chosen sensitivity setting is safe and correct before beginning live operations.

Where practical the Operator should bury an FFE (Free From Explosive) target that represents the local threat to confirm the detector and the sensitivity setting is correct.

MD Overview | 35

GPR Sensor Overview

The GPR Sensor is capable of detecting both metallic and non‑metallic targets as well as ground anomalies (clutter).

Enabling the GPR Sensor

The GPR Sensor is enabled and disabled by long‑pressing the GPR button.

All GPR related functions are colour coded yellow for quick recognition.

When the MDS‑10 is powered On, the GPR Sensor is not operational (i.e. GPR imagery is not shown) until a Skyshot is performed, even if the GPR

Sensor is enabled.

When the GPR Sensor is enabled, Advanced GPR settings can be accessed and modified. They are unavailable when the GPR Sensor is disabled.

These advanced settings are:

• GPR Start/Stop Gates (page 40)

• GPR Detection Threshold (page 41)

Detect Screen with the GPR Sensor enabled.

36 | GPR Overview

GPR Skyshot

Skyshot is a calibration to remove the GPR's own radar signature from the

GPR system for clearer imagery and optimum detection performance.

The GPR Sensor requires a Skyshot procedure before each use, and cannot be operated and no

GPR Imagery (page 43) will be generated until

this is performed.

In addition, a Skyshot should be repeated:

• If the Skyshot icon is flashing on the LCD.

• After each hour of continuous operation, indicated by the small flashing Skyshot icon.

• After the Sensor Head angle or rotation or shaft length has been adjusted.

• If the GPR target audio feedback becomes noisy or;

• If horizontal 'bands' or other visual indications can be seen in the GPR image with the Sensor

Head raised away from the ground.

GPR Sensor Calibration

The GPR Sensor calibration occurs for approximately 15 seconds after the MDS‑10 is powered On. During GPR start‑up calibration, the first GPR Target Indicator LED will flash. When the LED stops flashing and remains static on, a

Skyshot can be initiated.

If Skyshot is attempted before the start‑up

GPR calibration is complete (i.e. first GPR Target

Indicator LED is flashing), an invalid button press tone will sound.

GPR Overview | 37

GPR Skyshot Procedure

1.

Ensure that the GPR Sensor is enabled, then raise the Sensor Head high up in the air, away from all objects.

4.

The GPR Image should appear clean without any objects visible. If the GPR image is degraded or horizontal bands are present

(when the detector is still raised), repeat the above steps until a clean GPR image is achieved.

2.

Short‑press the Skyshot button to initiate the

Skyshot process..

The Skyshot button

A flashing Skyshot icon will appear on the LCD, indicating that the Skyshot is in progress.

Clean Skyshot: minimal background noise/EMI is visible.

3.

Continue to hold the detector stationary until a vibration and confirmation tones indicates

Skyshot is complete (approximately 2–3 seconds).

Bad Skyshot: horizontal bands are present in the GPR

Imagery when the detector is still raised.

38 | GPR Overview

2–3s

GPR Sensitivity

GPR Sensitivity should be adjusted as needed to reduce false target signals in more difficult grounds.

The GPR Sensitivity setting has a range from 1 (low) to 10 (high) with a default setting of 6

.

Increasing sensitivity will increase the likelihood that targets (and clutter) will cause audio feedback and overlay highlights on the display.

This is done according to a specific profile that increases with depth. Deeper targets will be amplified more relative to shallow targets as sensitivity is increased.

To avoid missing targets, always set the sensitivity to the highest setting which does not give excessive false signals (audio, visual, or vibration) when the Sensor Head is swung over ground that is free of targets. This setting will depend on the ground being searched and other conditions, such as soil moisture content.

The GPR Sensitivity level is displayed visually in the LCD Status Bar at all times when the GPR

Sensor is enabled.

The GPR Sensitivity Level

Indicator in the Status Bar

When viewing the Setup Pages or when adjusting the GPR Sensitivity, the sensitivity level is displayed as a vertical gauge.

There is a default setting marker at level 6 to indicate the default sensitivity position.

Setting the GPR Sensitivity

1.

Ensure that the GPR Sensor is enabled, and the

Detect Screen is active.

2.

Short‑press the GPR button to display the GPR

Sensitivity adjustment bar and value.

The GPR button

The GPR Sensitivity adjustment bar and value

3.

While sweeping the Sensor Head over ground that is free of targets, use the Plus (+) button to increase the Sensitivity level until false signals begin to occur.

4.

Reduce the Sensitivity level by pressing the

Minus (–) button, just enough that these false signals disappear.

Note:

The Sensitivity adjustment bar will time‑out

(disappear) after 3 seconds of inactivity.

It is the responsibility of the Operator to test and ensure that the chosen GPR Sensitivity setting is safe and correct before beginning operations.

The GPR Test Target or FFE (Free From Metal) target should be buried and then detected to confirm

the suitability of GPR Sensitivity settings. (See GPR Test Target Procedure on page 23).

GPR Overview | 39

Advanced GPR Settings

The advanced GPR settings allow fine tuning of the GPR detection capability.

GPR Start/Stop Gates

The GPR Start/Stop Gate Function allows the

Operator to mask detections from layers of soil near the surface, and at the bottom of the detectable depth range.

This helps to eliminate unwanted false alarms from rough or uneven soil surfaces, and shallow or very deep layers of clutter in the soil.

The Start and Stop Gates are adjusted independently.

The Start Gate has a range from 0 to –100 with a default setting of 0.

The Start Gate can be set to suppress detections from targets and clutter that appears above the

Start Gate Marker. This reduces false alarms due to rough or uneven ground, or clutter layers near the surface, such as grass or layers of leaf matter. The grey GPR imagery will still be displayed, but audio,

LED and vibration responses and red overlay highlights will be suppressed for targets or clutter above the Start Gate marker. Note that this setting will also suppress detection responses from flush or shallow buried targets, and should only be used when necessary.

The Stop Gate has a range from –100 to 0, with a default setting of –100.

The Stop Gate can be set to suppress detections from targets and clutter that appear below the

Stop Gate marker. This may be useful to suppress responses from deep clutter layers. The Grey GPR imagery will still be displayed, but audio, LED and vibration feedback, and red display overlay markings will be suppressed below the Stop Gate marker.

Setting the Start/Stop Gates

1.

Ensure that the GPR Sensor is enabled, then long‑press the Skyshot button.

The Skyshot button

The Start Gate icon and numerical value will be displayed. Markers will flash on the left and right of the LCD, indicating which Gate is currently being adjusted.

2.

Use the Plus (+) and Minus (–) buttons to increase or decrease the Gate position. The markers will move correspondingly.

Repeat as necessary while sweeping the

Sensor Head over the type of ground to be searched until false alarms no longer occur.

3.

Short‑press the Skyshot button to proceed to the Stop Gate adjustment.

4.

Repeat step 2 to adjust the Stop Gate.

The Gate positions cannot be overlapped, so a value lower than the Start Gate value must be selected.

40 | GPR Overview

to targets and clutter at all depths, rather than proportionally increasing with depth, as GPR

Sensitivity does.

Adjusting GPR Detection

Threshold

1.

With the GPR Sensor enabled, long‑press the

Skyshot button. Start Gate adjustment will be displayed.

The Skyshot button

2.

Short‑press the Skyshot button twice to display GPR Detection Threshold adjustment.

5.

Short‑press the Skyshot button to proceed to GPR Detection Threshold adjustment

(page 41).

Each short‑press of the Skyshot button will cycle back through the Start Gate, Stop Gate, and GPR Detection Threshold settings.

6.

Long‑press the Skyshot button to return to the

Detect Screen.

The Start and Stop Gate markers will remain on the Detect Screen for reference, but will not be displayed on the Detect Screen if they are set to 0 or –100.

GPR Detection Threshold

The GPR Detection Threshold setting adjusts the threshold at which the GPR will give a detection response (audio, vibration, LED, and red GPR overlay) for weak targets in the GPR Imagery.

The GPR Detection Threshold setting has a range from 0 to 100 with a default setting of 30

.

A higher GPR Detection Threshold setting will result in more detection feedback for weaker targets, but also more false alarms due to ground clutter.

A lower GPR Detection Threshold setting will reduce false detections due to ground clutter, but will also result in less detection feedback for weaker targets.

Note that GPR Detection Threshold works similarly to GPR Sensitivity, however it applies the same

Each short‑press of the Skyshot button will cycle through the Start Gate, Stop Gate, and

GPR Detection Threshold settings.

3.

Use the Plus (+) and Minus (–) buttons to increase or decrease the GPR Detection

Threshold level.

4.

Long‑press the Skyshot button to return to the

Detect Screen.

GPR Overview | 41

Play/Pause

The GPR Imagery and/or MD Trace can be paused if an anomaly of interest is observed. This pauses

the GPR Image and MD Trace (see page 29) so it

can be scrutinised.

It also disables the transmitters for both MD and

GPR Sensors.

Pause the GPR Imagery/MD

Trace

1.

Short‑press the Play/Pause button while detecting.

The Play/Pause button

The imagery will pause, and the Pause/Play icon will flash on the LCD.

All Sensor Feedback Setting Icons and

Sensitivity Level Indicators will be temporarily hidden.

The MD and GPR Sensors will be temporarily disabled.

2.

Short‑press the Pause/Play button again to re‑enable the Sensors and restart GPR imagery and/or MD Trace generation.

42 | GPR Overview

GPR Imagery Overview

Understanding GPR Imagery is a learned skill. Below are the basic fundamentals of GPR imagery interpretation.

The MDS‑10 has a unique visual representation of subsurface imagery. This allows the Operator to distinguish anomalies visually, as well as audibly. Visual interpretation is based on soil composition, size, shape and density of the anomaly.

Basics of GPR Imagery

The MDS‑10 displays GPR raw data which shows an image of buried objects and sub surface structures.

Data scrolls in real‑time across the screen from right to left (4). The image represents 4 seconds of data, with the left representing data from 4 seconds ago. The most recent data is displayed on the right.

Shallow buried objects (close to Sensor Head) will be displayed near the top of the image and deep buried objects are displayed lower in the image.

Parts of the GPR Imagery

Note: GPR imagery varies with type, density and moisture content of soil.

1

2

3

4

Least recent data 4 s 3 s 2 s

Seconds since data creation

1. Air

The space from the bottom of the Sensor Head to the surface of the ground.

2. Ground surface response

The most prominent (dark and light) lines show the ground surface response.

1 s Most recent data

3. Area under ground

Everything below the ground bounce line is displaying what is in the ground.

4. Data Flow

Arrow shows the direction of data flow across the screen from right to left.

GPR Overview | 43

Detection GPR Imagery Noisy GPR Imagery

The GPR Image shows a typical detection.

Anomalies are overlaid in red to facilitate recognition.

Deep and Shallow Anomaly Imagery

The GPR Image is noisy, making it difficult to identify true target signals among the erratic detections. Note the straight horizontal bands in the image, including above the ground surface. Skyshot procedure is required.

Small, shallow buried object detected.

Deep buried object detected.

Detection Sweep‑Speed Effect

The Operator can sweep the detector slowly or quickly, up to approximately 1 metre (3‑feet) per second.

Sweeping the Sensor Head quickly will compress the visual image on the display. Sweeping the Sensor

Head slowly will elongate the visual representation of the anomaly.

Large target detection with a fast sweep-speed. The imagery becomes compressed across the time period.

44 | GPR Overview

The same target detected with a slow sweep-speed. The imagery becomes elongated across the time period.

Common Ground Type Imagery

Shallow target detected under a grass surface. Note the irregular surface response due to the grass surface.

GPR Imagery detected over a surface layer of leaves and bark. Note the irregular surface response due to the leaves and bark in the surface layer.

Target detected beneath an uneven surface layer.

Shallow target

Deep target

GPR Imagery showing adjacent deep and shallow targets.

GPR Overview | 45

Search Technique

Using the correct search technique is crucial for optimum detecting.

Search Speed

The detector should be swept with a smooth even motion at a speed between 0.5 to 1 metre/sec (1.5' to 3'/ sec). If the detector is swept too fast or too slow small or deep targets may be missed.

Search Overlap

It is standard operating procedure to use a half coil overlap when sweeping, to ensure full ground coverage.

Search Height

To minimise false alarms, ensure that the Sensor

Head is swept as parallel to the ground as possible, at a height of approximately 25–50mm (1–2").

Sweeping the Sensor Head closer than 25–50mm

(1–2") is recommended when only the MD Sensor is operating.

The GPR Sensor should optimally be operated no closer than 25mm (1") above the ground to avoid ground coupling. Ground coupling is the interaction between the GPR transmitter and the receiver, which results in clutter and noise in the

GPR Imagery.

46 | Operating Procedures

Locating the Target

Target location techniques narrow down the exact location of a target.

Mapping the Target

Mapping a detected target is an important procedure that will allow the Operator to immediately gain an impression of the approximate location, size, and type (e.g. MD or

GPR) of the target.

Mapping the target also confirms that the target is not in close proximity to a second target.

This procedure is effective for mapping targets with both GPR and MD enabled (in Detection

Mode). For the MD, there are additional techniques that can be used to locate metal

targets more accurately. See MD Edge Mapping

Procedure on page 49, and MD Pinpointing

Procedure on page 50.

Target Mapping Procedure

1.

Maintaining the standard sweeping technique, sweep the Sensor Head over and beyond the target in an attempt to find clear ground.

With each sweep, the MD Trace (or GPR

Imagery) will display the strongest signal when the Sensor Head is in close proximity to the target.

2.

Form a mental image of the approximate bounds of the target.

Once the Operator has obtained an approximate idea of the size, relative depth, and metallic content of the target, greater target accuracy can be achieved.

Use the MD Edge Mapping (page 49) and/or

MD Pinpointing (page 50) procedures to more

accurately locate the target.

Operating Procedures | 47

MD Search Tips

Sensor Head Orientation

Always approach targets to be located/mapped/ pinpointed with the long sides of the Sensor Head.

Never use the back and front of the Sensor Head to approach a target, as the target may not be detected, or may be inaccurately located.

Pinpoint Mode Target Feedback

Activating Pinpoint Mode alters the manner in which the metal detector operates.

Detection Mode gives a dynamic response i.e. the Sensor Head must be moving over a target in order to detect it.

When Pinpoint Mode is selected, it changes to a 'static' response. This means that the detector will give target feedback when the Sensor Head is stationary/moving very slowly over a target.

This assists in finely pinpointing the location of a target.

Sensor Head Null Zone

If a target contains metal, the MD audio response increases to the maximum pitch when the Sensor

Head is immediately adjacent to the target centre

(on both sides), with a ‘null zone’ precisely centred over the target.

Null zone

Peak sensitivity zones

Sweeping over a target with MD Pinpoint Mode enabled will produce a

‘double‑beep’ response due to a characteristic of the MD figure‑8 receive coil.

The coil has a precise null down the length of the centre of the coil

(and corresponding peak sensitivity areas either side).

MD Detection Mode can produce a 'triple‑beep' response because it is a dynamic mode that is motion‑dependent.

MD Pinpoint Mode is a static mode resulting in a 'double‑beep' which reflects the sensitivity pattern of the MD coil.

MD Pinpoint

Mode

MD Detection

Mode

48 | Operating Procedures

MD Edge Mapping Procedure

The MD edge mapping procedure uses Pinpoint

Mode to identify the outer edges of a metal target when only the MD Sensor is enabled.

Note:

Pinpoint Mode is slightly less sensitive than Detection Mode, and may not work well for extremely weak target detections. In these instances, use Detection Mode to map the target

(steps 2 to 5).

Do not select Pinpoint Mode when the Sensor Head is above the target.

This may result in the target being masked.

1.

Move the Sensor Head away from the target and enable Pinpoint Mode by pressing and holding the Trigger button.

2.

Move the Sensor Head to approach the target area from a variety of angles.

Do not use the short sides of the Sensor Head

(see Sensor Head Null Zone on page 48).

The Pinpoint icon will appear on the LCD, and the audio responses will change.

As the Sensor Head approaches the target, the

Target indicators will indicate that the target is in close proximity.

3.

When there is an audio response, mentally mark the position on the ground.

4.

Move the coil away, and approach the target from another angle.

5.

This process continues until a clear mental picture of the target size and shape is achieved. The Operator will also be confident that the target is contained in the mapped area.

Once the target has been mapped, Pinpoint the

centre of the target (page 50).

Mapping Multiple Targets

The Operator may find multiple objects of interest in close proximity but may want to locate them separately.

Use the normal target location procedures to determine the locations of multiple targets. An irregular shape may emerge, allowing the centres of individual targets to be pinpointed within it.

Operating Procedures | 49

MD Pinpointing Procedure

After the target edges have been mapped, the

MD Pinpointing procedure is carried out to precisely determine the centre of the target.

If the target contains metal, and the metal in the target is sufficiently small, the area mapped will also be small, therefore it is easier to identify the centre of the target.

Note:

Pinpoint Mode is slightly less sensitive than Detection Mode, and may not work well for extremely weak target detections. In these instances, use Detection Mode to find the centre of the target (steps 2 to 5).

Do not select Pinpoint Mode when the Sensor Head is above the target.

This may result in the target being masked.

1.

Move the Sensor Head away from the mapped target and enable Pinpoint Mode by pressing and holding the Trigger button.

2.

Sweep the coil over the target.

If the target contains metal, the MD audio response will increase to the maximum pitch when the sensor heard is immediately adjacent to the target centre.

3.

When a response is heard, mentally mark the centreline.

4.

Repeat the process with the detector oriented at 90° to the first position. The intersection of the two lines will indicate the target location.

The Pinpoint icon will appear on the LCD, and the audio responses will change.

5.

To disable Pinpoint Mode and return to

Detection Mode, release the Trigger button.

Once the MD target has been Pinpointed, it can

be Interrogated (page 51).

50 | Operating Procedures

MD Interrogation Mode

Interrogation Mode provides information regarding characteristics and composition of a target.

When using the detector in Dual Sensor Mode, the separate MD and GPR signals may be used to differentiate targets of different types.

For example, a large metallic object will generate a high target response from both the MD and

GPR, while a large non‑metallic object would generate a high target response from the GPR but little to no response from the MD.

Conversely, a very small metallic target may not generate a response from the GPR, but still generate a response from the MD.

Audio feedback will change; Interrogation

Mode audio will vary in tone corresponding to

the target composition (see page 30).

A Target ID will also be displayed on the LCD corresponding to the tone emitted.

3.

Pass the coil over the target to be interrogated, while paying attention to target feedback and reviewing the Target ID.

Interrogation Mode Audio

MD Interrogation Mode will provide an audio tone related to the targets ferrous content and conductivity. The detection tone in Interrogation

Mode is not related to the target size and proximity as it is in MD Detection Mode.

Interrogation Mode Procedure

1.

Ensure that the MD Sensor is enabled.

Interrogation Mode cannot be enabled when operating only the GPR Sensor.

2.

Press and release the Trigger button once to enable Interrogation Mode.

The Target Identification (ID) Field will be

displayed (see page 52 for detailed Target ID

information).

4.

Press and release the Trigger button to return to Detection Mode.

Note:

Interrogation Mode will provide a specific tone for a target. However, the tone is not unique and other targets may produce the same type of tone. In different types of soil, the same target may give a different tone when interrogated.

Operating Procedures | 51

MD Target ID

MD Target ID represents the apparent conductivity and likely composition of a target.

Target IDs are based on the characteristics of a detected target's response to the magnetic field applied by the MD.

The MD Target ID is an identification displayed in the Target ID Field on the LCD when MD

Interrogation Mode is enabled, consisting of a single digit and letter.

The conductivity of a detected target is represented as a dimensionless number from

0 (low conductivity) to 9 (high conductivity).

The number is also represented visually on the

Conductivity Bar.

The likely material type of a detected target is represented as a letter.

In general, the stronger the target signal strength, the more accurate the Target ID.

Ferrous Targets

If a detected target is ferrous, the letter 'F' is displayed beside the number (0 to 9) inside the Target ID Field, and the Ferrous icon appears on the right.

Ferrous targets give a very low‑pitched beep tone in Interrogation Mode.

Non‑Ferrous Targets

If a detected target is non‑ferrous, a number (0 to

9) is displayed in the Target ID Field, but no letter will be displayed.

Non‑ferrous targets give a medium to high‑ pitched beep tone in MD Interrogation Mode, depending on their conductivity (higher pitch corresponds to higher conductivity).

Low Conductivity Targets

If a detected target has very low conductivity, the letter 'C' is displayed beside the number inside the Target ID Field, and the Carbon Rod icon appears on the left.

Low conductivity targets usually have a Target ID of 0 or 1, and have characteristics consistent with carbon rods or small wires. These can be found in particular types of IED threats.

Low conductivity targets give a distinctive very high‑pitched beep tone in MD Interrogation

Mode.

Target ID Examples

A moderately conductive non-ferrous target

A moderately conductive ferrous target

A very low conductive target

(likely to be a carbon rod or wire)

Parts of the Target ID Field

1 2

6 3 4 5

1. Conductivity Bar (0 to 9)

2. Target ID Field

3. Target ID Number

4. Target Composition Indicator

F = Ferrous C= Carbon Rod

5. Ferrous Target Indicator

6. Carbon Rod Indicator

52 | Operating Procedures

Detector Battery

The MDS‑10 detector is powered by a removable, rechargeable lithium‑ion battery. There is also an AA battery carrier available.

Battery Status Indicator

The battery status indicator shows the current battery level, and is located in centre of the Status

Bar on the LCD.

75% –100%

50% – 75%

25‑50%

5‑25%

<5% (Flashing, Charging required)

Low Battery Alert

The detector regulates the battery voltage so that its performance remains constant regardless of the charge remaining in the battery.

If the battery level is critically low, the Operator will be alerted in any combination of the following ways:

• If the LCD is On, the battery outline in the status bar will flash rapidly.

• If audio is enabled, there will a rapid high‑low‑ high‑low tone every 10 seconds.

• If vibration responses are enabled, there will be three rapid vibrations every 10 seconds.

When the battery is completely flat, the detector will automatically power Off.

Lithium‑ion Battery Charger

The detector is supplied with a smart charger.

The charger operates optimally in temperatures between 0°C and 40°C (+32°F to +104°F).

The Lithium-ion battery charger, Lithium-ion battery pack,

AC power pack, and the AC power cable. Both EU and US power cables are included with the MDS-10 .

If the Low Battery Alert occurs, the

Operator must immediately STOP operations.

Recharge the battery before recommencing de‑mining operations.

CAUTION:

The Charger only supports the Harris 12041‑

2100/2200/2400 Lithium‑ion battery.

Do not use any other battery on this charger.

Attempting to charge a battery with the wrong chemistry can lead to an incomplete charge, battery damage, fire or explosion.

Do not substitute the RF‑5850‑CH00X AC

Power Supply for the RF‑58530‑CH1XX

AC Power Supply due to connector incompatibility.

For full battery charger operation instructions, specifications and safety information, refer to the instructions included with the charger.

Accessories | 53

Charging the Lithium‑ion

Battery

1.

Plug the power cord or AC power supply into the back of the charger, and the power cord into a wall outlet. Turn on the power outlet.

All of the charge status LEDs will illuminate simultaneously and then turn off.

2.

Insert the MDS‑10 battery into the charging bay of the supplied smart charger.

Charge Status LEDs

The charge status LEDs display the current state of the battery.

Charge status LEDs and the Condition button on the Lithium-ion charger.

The charger will automatically detect the battery and will begin to charge.

The amber charge status LED will remain on during charging.

3.

When charging is complete, the green charge status LED status will illuminate.

Leaving the batteries in the charger when fully charged will not cause damage to the battery.

For further Lithium‑ion battery safety and

maintenance information, read Lithium‑ion battery safety and advice on page 63. For

further important battery charger information,

read Battery charger safety on page 63.

Amber solid Charging

Amber flashing Conditioning

Green solid Charging complete

Red solid Fault

Battery may be faulty or may need to be conditioned.

Red Flashing Temperature error

Charging paused due to temperature (too hot/cold).

Conditioning the Lithium‑ion

Battery

Is it not necessary to fully discharge a battery before charging it, however repeated shallow cycling (partially discharging and then topping‑ up) may cause incorrect battery level status readings.

To recalibrate the battery, the battery must be conditioned.

1.

Insert the battery into the powered charger.

2.

Within the first 5 seconds of inserting the battery, press the Condition button on the charger. The conditioning cycle will begin, indicated by the flashing amber charge status

LED.

3.

When the conditioning cycle is complete, the amber LED will change to solid On, and charging will automatically commence.

54 | Accessories

Optional AA Battery Carrier

The MDS‑10 includes an optional AA battery carrier that holds 16 × AA batteries. This provides a backup option in scenarios where there is no access to mains power for battery charger operation.

The AA battery carrier provides a runtime of over

2 hours in Dual Sensor Mode.

To Prepare the AA Battery Carrier:

1.

Unscrew the two retaining screws in the base of the battery carrier using a flat‑head screwdriver or a thin coin.

4.

Re‑insert the AA battery carrier into the enclosure.

5.

Tighten the retaining screws.

2.

Remove the AA battery carrier from its enclosure.

3.

Insert 16 full AA batteries, ensuring they are inserted in the correct polarity as marked on the AA battery carrier.

WARNING:

• Use only new, high quality alkaline AA batteries with the AA battery carrier.

• Do not mix old and new batteries.

• Do not mix battery types or manufacturers.

• Immediately remove and dispose of depleted batteries.

• Do not attempt to charge the AA battery carrier.

• Do not crush, disassemble, reverse polarity, or dispose of the AA battery carrier in fire.

Accessories | 55

Troubleshooting

If the listed problems occur, perform the recommended actions first before reporting the detector as faulty.

Before performing the recommended actions listed below, perform Factory Reset (page 61).

Problem

Detector will not turn On

Recommended Action

1.

Ensure that the battery is charged.

2.

Remove and refit the battery.

No LEDs/Audio/ Vibration

LCD display is not working

No sound ‑ Speaker

No sound ‑ Earset

Excessive MD noise

Excessive GPR ground noise

Excessive MD ground noise

Shafts stuck/don't move smoothly when extending due to sand or dirt contamination

1.

Check that the LED, Audio, or Vibration Feedback Settings are On for each

sensor (page 25).

2.

Ensure that Night Vision Mode is disabled (page 24).

3.

Ensure that Tactical Mode is disabled (page 26).

1.

Check that the LCD is On (page 24).

2.

Ensure that Night Vision Mode is disabled (page 24).

3.

Ensure that Tactical Mode is disabled (page 26).

1.

Check the Audio Output Mode is not set to 'Speaker Off' (page 27).

2.

Check the Audio Output Mode is not set to 'Speaker Auto‑Mute' with an

Earset connected (page 27).

3.

Check the Volume is set to an audible level (page 27).

4.

Check the Audio Feedback Settings are enabled for the applicable sensor

(page 25)

5.

Check the applicable Sensor is enabled (MD page 29, GPR page 36).

1.

Check the earset is properly connected.

2.

Check the Volume is set to an audible level (page 27).

3.

Check the Audio Feedback Settings are enabled for the applicable sensor

(page 25)

4.

Check the applicable Sensor is enabled (MD page 29, GPR page 36).

5.

Remove the earset and inspect the connectors for contamination or damage.

6.

Replace the earset.

1.

Perform Noise Cancel (page 34).

2.

Move away from the source of the noise.

1.

Perform GPR Skyshot (page 38).

2.

Adjust Start/Stop Gates (page 40).

3.

Adjust GPR Sensitivity as necessary (page 39).

1.

Perform Ground Balance (page 32).

2.

Adjust MD Sensitivity as necessary (page 35).

1.

Open camlocks and extend shafts fully.

2.

Wipe the shafts clean with a clean damp cloth.

3.

Collapse and extend shafts repeatedly, cleaning as necessary until shafts move smoothly.

56 | Troubleshooting, Safety, and Maintenance

Shaft camlocks too loose/tight

1.

Close the affected camlock

2.

Using a 3mm allen key (not included), adjust the camlock screw no more than a one‑quarter turn at a time.

90°

3.

Check that the camlock opens and closes firmly and without the need for excessive force. If it does not, repeat step 2.

4.

Check the camlock holds the shaft securely when closed. If it does not, repeat steps 2 and 3.

Do not attempt to remove mud with a sharp tool.

This may cause damage to the speaker.

1.

Gently rinse the speaker under clean water to soften and remove mud.

Rinse until the water runs clear.

2.

If the mud will not soften, the speaker grill will need to be removed and cleaned by a service technician.

Speaker grill blocked

The Speaker Grill on the rear of the User Interface.

1.

Tighten the Sensor Head Angle Tension as required.

Sensor Head does not retain the set angle

Error Code is displayed on the LCD

Battery is loose/rattling when fitted

1.

Power the detector Off then On again.

2.

If the Error Code persists, refer toError Codes on page 58.

1.

Remove the battery and check the O‑ring is fitted correctly.

2.

Inspect the battery mounting interface on the MDS‑10 for damage.

3.

Replace the battery if required.

Troubleshooting, Safety, and Maintenance | 57

Error Codes

In the event of a hardware fault, the MDS‑10 will display an Error Code. Try the recommended actions first, before reporting the detector as faulty.

The MDS‑10 has a Built‑in Test (BIT) capability for identifying faults that can occur in the detector.

In the event of a BIT failure, the error icon will be displayed on the LCD. If audio is enabled, there will also be a distinctive audio alarm tune.

Error Codes are divided into three types:

• System Error Codes

• MD Error Codes

• GPR Error Codes

An Error Code corresponding to the fault type will usually be displayed on the Setup Screen.

Errors will normally remain active until the detector is powered Off then back On.

Operator corrective actions are limited steps required to reset the detector to determine whether the fault is a transient condition, or if it is persistent. Units with persistent faults will need to be returned an Authorised Service Centre for investigation and repair.

System, MD, and GPR errors have three levels of severity: advisory, critical and fatal.

Critical Errors

Critical errors are conditions affecting detector performance.

Critical errors are indicated by a continuous alarm in all enabled Feedback settings (audio, visual and vibrate). The MD and GPR Target Indicator LEDs will display the Error sequence (alternating between the four left LEDs and the four right LEDs).

For critical MD and GPR errors, the error icon appears on either the left or the right of the

Detect Screen to indicate the affected Sensor.

Critical MD and GPR errors can be silenced by disabling the affected sensor, allowing the user to continue detecting with the functional Sensor.

Critical System Errors are indicated by the error icon and a code on the Detect Screen. They can only be reset by powering Off the detector.

Error icons on the Detect Screen. It appears on the left for critical MD errors, and on the right for critical GPR errors.

Critical System Error Code on the Detect Screen.

Critical/Advisory Error Codes are displayed on the Setup

Screen; MD errors on the left, System errors in the centre, and

GPR errors on the right.

58 | Troubleshooting, Safety, and Maintenance

Advisory Errors

Advisory errors are conditions that will not affect detector performance.

Advisory errors are indicated by a short error tune, which repeats once every 15 seconds. The advisory error icon appears in the LCD Status Bar.

The Operator may elect to continue detecting as normal in the presence of an advisory error.

The Error Code corresponding to the advisory error can be viewed on the Setup Screen.

Fatal Errors

Fatal errors are conditions that may result in damage to the detector.

If a fatal error occurs, the MDS‑10 will automatically shut down immediately, and no

Error Codes are displayed.

Fatal Error Recommended Action:

1.

Ensure a fully‑charged, Minelab approved battery is fitted (the battery supplied with the detector).

2.

Turn the detector On.

3.

Perform a Factory Reset (page 61).

If the fault persists, return the detector to an

Authorised Service Centre.

Code Fault

N/A

Overcurrent condition

N/A

Overvoltage condition

N/A

Undervoltage condition

Severity

Fatal

Fatal

Fatal

System Error Codes

System Error Codes indicate a possible electronic fault with the system affecting both the MD and

GPR Sensors.

For advisory system errors, an Error Code corresponding to the fault will be displayed in the centre of the Setup Screen.

Critical system Error Codes are displayed in the centre of the Detect Screen. All detector functions are disabled, and the only option to reset the error is to turn the detector Off and then On again.

System Error Recommended Action:

1.

Turn the detector Off and then On again.

2.

Perform Factory Reset (page 61).

If the fault persists, return the detector to an

Authorised Service Centre.

Code Fault

S01

User interface module authentication failure

Severity

Critical

S02

Battery type detection fault Critical

S03

UIM configuration load failure Critical

S04

UIM settings load failure Advisory

Troubleshooting, Safety, and Maintenance | 59

MD Error Codes

MD Error Codes indicate a possible fault with the

MD coil or MD coil cable in the Sensor Head, or the MD electronics in the control box.

If an MD fault occurs, the error icon will appear on the Detect Screen, adjacent to the MD Sensor

Feedback icons on the left.

The Error Code corresponding to the fault will be displayed on the left of the Setup Screen.

MD Coil Error Recommended Action:

1.

Disable/enable MD Sensor.

2.

Turn the detector Off and then On again.

3.

Perform Factory Reset (page 61).

If the fault persists, return the detector to an

Authorised Service Centre.

Code Fault Severity

M01

Control box incompatible error

Critical

M02

Control box comms fault error Critical

M03

MD Tx fault

M04

MD Rx fault

Critical

Critical

M05

MD VTX out of range

M06

MD A4V out of range

Critical

Critical

M07

Coil auth failure

M08

Control box auth failure

Critical

Critical

M09

Coil calibration load failure Critical

M10

Control box calibration load failure

Critical

M11

M12

M13

M14

Control box temperature sensor 1 over range

Control box temperature sensor 1 under range

Control box temperature sensor 2 over range

Control box temperature sensor 2 under range

Advisory

Advisory

Advisory

Advisory

GPR Error Codes

GPR Error Codes indicate a possible fault with the

GPR Sensor.

If a GPR fault occurs, the Error icon will appear on the Detect Screen, adjacent to the GPR Sensor

Feedback icons on the right.

The Error Code corresponding to the fault will be displayed on the right of the Setup Screen.

GPR Error Recommended Action:

1.

Disable/Enable GPR Sensor.

2.

Perform Skyshot.

3.

Turn the detector Off and then On again.

4.

Perform Factory Reset (page 61).

If the fault persists, return the detector to an

Authorised Service Centre.

Code Fault

G01

GPR incompatible error

Severity

Critical

G02

GPR comms fault error

G03

GPR DSP code load fault

G04

GPR FPGA code load fault

G05

GPR DSP start‑up fault

G06

GPR Skyshot fault

Critical

Critical

Critical

Critical

Critical

G07

GPR HV calibration fault Critical

G08

GPR trigger table load fault Critical

G09

GPR DCP peaks invalid fault Critical

G10

GPR scan rate fault Critical

G12

GPR MEMS fault Advisory

Advisory

G13

GPR frame gap warning

G14

GPR DCP peak warning

G27

GPR option ROM not accessible

Advisory

Advisory

60 | Troubleshooting, Safety, and Maintenance

Factory Presets

The factory preset detector settings are the default and recommended base‑ settings for typical detecting operations.

Factory Preset Settings

Function

Sensor Mode

Volume

Default Setting

Dual Sensor Mode

(MD and GPR)

6

Speaker Auto‑Mute

Audio Output Mode

Ground Balance Mode

LCD/LED Brightness

LCD/LED Setting

IED

7

On

MD Sensitivity

MD LED Response

6

Enabled

MD Audio Response

Enabled

MD Vibration Response

Enabled

GPR Sensitivity

GPR LED Response

6

Enabled

GPR Audio Response

Enabled

GPR Vibration Response

Enabled

GPR Start Gate

GPR Stop Gate

0

‑100

GPR Detection Threshold

30

Factory Reset

Factory Reset will return all detector settings and modes to factory preset values.

1.

Turn the detector Off.

2.

Press and hold the Setup (power) button for approximately 5 seconds;

3.

After the first start‑up tone, there will be a short high‑pitched confirmation tone, and all settings and modes will return to factory preset values.

4.

Release the Setup (power) button.

Troubleshooting, Safety, and Maintenance | 61

Safety Advice and Maintenance

The MDS‑10 is safe to transport, store and operate when handled with the due care. Safety hazards applicable to this equipment are identified below.

Hazard

Emission of non‑ ionising radiation.

Electromagnetic interference

Internal voltages

Precaution

The GPR and MD Sensors in the Sensor Head emit very low power magnetic fields and

Radio Frequency (RF) energy. The radiated energy from both Sensors is significantly lower than that emitted by a mobile telephone and is safe to human health.

Operators do not need to follow any specific safety precautions to mitigate hazards to human health posed by the emission of non‑ionising radiation from the equipment.

While interference with communications equipment is unlikely, consideration should be given to potential effects on other equipment in proximity.

Voltages potentially capable of causing electric shock are present on some internal conductors in both the GPR and MD Sensors.

Inspect the MDS‑10 shafts, Sensor Head enclosure, Control Box enclosure, and Battery for evidence of damaged or exposed cables or electrical conductors prior to use. Do not use the equipment if there is any evidence of damaged or exposed cables or electrical conductors.

Speaker/earset audio volume

Exposure to excessively high audio volumes with any audio generating equipment can cause discomfort and possible temporary and permanent hearing loss. The maximum output volume via the earset and speaker for the detector are limited to be within safe levels for peak sound pressure level exposure. Operators should also use the Volume control to ensure the audio volume is not set above comfortable levels.

Ensure the Volume control is not set above comfortable levels during operation.

Air transport safety requirements

The MDS‑10 should not be powered On while being transported by air, and all applicable safety regulations must be followed in relation to carriage of electronic equipment, including lithium‑ion batteries on aircraft.

Follow all applicable safety regulations including the directions from aircrew when transporting MDS‑10 equipment by air.

Ergonomic hazards

The MDS‑10 is a lightweight Dual Sensor detector, designed to minimise the risk of fatigue, strain, or other musculoskeletal injury to Operators. Operators using the equipment should always observe correct detecting posture and technique.

Exposed fibres from damaged carbon fibre shafts

Inspect the detector shafts prior to use. Do not allow damaged or abraded carbon fibre shaft sections to come into contact with skin.

The MDS‑10 middle and upper shafts are made from carbon fibre material. Damaged or abraded carbon fibre materials can expose fibres which can cause cuts and abrasions to skin, and ingress under the skin with potentially toxic effects.

Pinch‑points

The MDS‑10 has been designed to avoid the presence of pinch‑points, but is a compact, collapsible piece of equipment that requires moderate care when extending or collapsing. Keep fingers clear of sliding and rotating mechanisms including shaft camlocks, and around the base of the folding handle in the vicinity of the earset connector, when extending or collapsing the detector.

62 | Troubleshooting, Safety, and Maintenance

Hazard Precaution

Lithium‑ion battery safety and advice

The MDS‑10 comes with a high capacity, rechargeable lithium‑ion battery. Both the battery and MDS‑10 provide internal protection circuitry to ensure safe operation of the battery. All local regulations related to the operation, handling, storage and transportation of lithium‑ion batteries must be observed, including the following:

• Inspect lithium‑ion batteries before use. Do not use batteries with the equipment if damaged in any way.

• Do not short circuit or reverse polarity the lithium‑ion batteries. Fire or explosion may result.

• When fitting batteries to the detector, ensure the O‑ring on the battery around the contacts is fitted to prevent moisture, sand or dust fouling the battery contacts.

• Do not use or store the lithium‑ion batteries outside the specified operating temperature range for the Detector.

• Do not recharge the lithium‑ion batteries with anything other than the battery charger supplied with the equipment.

• Do not allow the lithium‑ion battery internal cells to fully discharge.

(Note: batteries may be safely operated until the MDS-10 shuts down due to low battery, without fully discharging the battery internal cells.)

• Ensure batteries have at least a partial charge if prolonged storage is anticipated.

• Do not expose lithium‑ion batteries to fire, explosion, solvents or corrosives or other hazardous substances.

• Do not incinerate, puncture, crush, or otherwise damage or misuse lithium‑ion batteries.

• Do not transport lithium‑ion batteries by aircraft except where explicitly authorised under applicable air transport regulations. Observe all applicable regulations when transporting the equipment.

• Dispose of lithium‑ion Batteries only in accordance with all applicable local and national environmental regulations.

• Recharge the battery after long periods of non‑use to maximise battery life

(approximately every 6 months)

Battery charger safety

The charger has been constructed from quality materials and is designed to be maintenance‑free.

• Do not attempt to charge batteries other than the Harris 12041‑2400 series batteries supplied with the MDS‑10 using the supplied charger. Attempting to charge a battery with the wrong chemistry can result in an incomplete charge, battery damage, fire or explosion.

• Do not substitute the AC power supply supplied with battery charger for any other

AC power supply.

• Do not attempt to charge batteries outside of the recommended charging temperature range of 0°C to +40°C (+32°F to +104°F).

• Do not block the ventilation slots.

• Keep away from moisture. Clean only with a dry or slightly damp lint‑free cloth.

• Do not remove cover. The charger has no internal user‑serviceable parts.

Troubleshooting, Safety, and Maintenance | 63

MDS‑10 Detector Specification

General Specifications

Sensor Operation Modes

Volume Control

Length

Weight

Audio Output

Earset

Display

MD (Metal Detector) | GPR (Ground Penetrating Radar) | Dual

1 to 9

Collapsed: 475mm (18.7") | Extended: 1567mm (61.7")

2.8kg (6.17lbs)

Speaker | MDS‑10 Earset connector

MDS‑10 Earset

3.5" 320 × 240 resolution (QVGA) LCD

Display Backlight

Waterproof

Waterproof to 3m/10‑feet*

Operating Temperature Range

–30°C to +60°C (–22°F to +140°F)

Storage Temperature Range

Environmental

Software Upgradeable

Dual Sensor Mode backlight: High brightness transmissive 1 to 7

Brightness Levels | NVIS compatible mode

–50°C to +80°C (‑58°F to +176°F)

MIL‑STD‑810G

Yes

Battery

Battery Life

12041‑2400‑01 Rechargeable lithium‑ion 10.8V, 72Wh (6.8Ah)

(common with AN/PRC‑152 radio battery)

7 hours (Dual Sensor Mode) | 10 hours (MD Sensor Mode) | 8 hours

(GPR Sensor Mode)

Charging Temperature Range

0°C to +45°C (+32°F to +113°F)

AA Battery Pack

16 × Alkaline AA Batteries | Runtime: 2.25 hours (Dual Sensor Mode)

* Although the MDS-10 can withstand immersion to a depth of 3 metres (10-feet) for short periods of time, it is NOT designed for use as an underwater detector.

64 | Troubleshooting, Safety, and Maintenance

Metal Detection Sensor

Key Technologies

Coil

Operating Frequencies (kHz)

MD Sensitivity

Noise Cancel

Ground Balance

Target Identification

Simultaneous Multi‑Frequency Digital

Transmit Coil: 269 × 191mm (10.6" × 7.5") Monoloop

Receive Coil: Figure 8

4 frequencies in the range 6kHz to 75kHz

1 to 10

Automatic, Operator initiated

Automatic, Operator initiated

Conductive: 0 to 9 | Ferrous: Indicated

GPR Detection Sensor

Key Technologies

Bandwidth (GHz)

GPR Sensitivity

GPR Skyshot

GPR Imagery

Ultra Wide‑Band (UWB) Impulse Radar

>5GHz

1 to 10

Automatic, Operator initiated

4s waterfall display of subsurface anomalies with target overlay highlights.

Minelab reserves the right to respond to ongoing technical progress by introducing changes in design, equipment and technical features at any time.

For the most up‑to‑date specifications for MDS‑10, visit www.minelab.com.

Troubleshooting, Safety, and Maintenance | 65

Australia & Asia Pacific

+ 61 8 8238 0888

Europe & Russia

+353 21 423 2352

North, South & Central America

+1 630 401 8150

Middle East & Africa

+971 4 254 9995

[email protected]

Part Number: 4901‑0295

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
