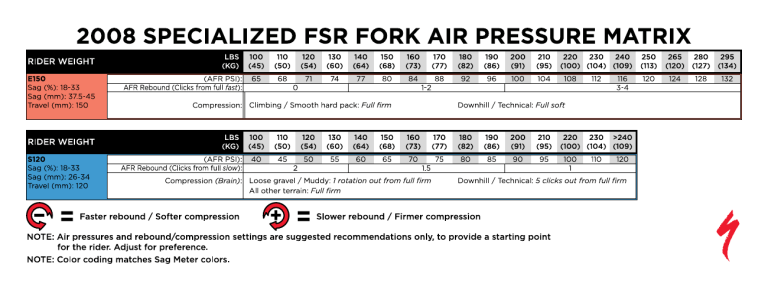

2008 SPECIALIZED FSR FORK AIR PRESSURE MATRIX
100 10 120 130 140 150 160 170 180 190 200 210 220 230 240 250 265 280 295
RIDER WEIGHT (45) (50) (54) (60) (64) (68) (73) (77) (82) (86) (91) (95) (100) (104) (109) (113) (120) (127) (134)
E150 (AFR PSD: 65 68 71 74 77 80 84 88 92 96 100 104 108 112 116 120 124 128 132
Sag (%): 18-33 AFR Rebound (Clicks from full fast): О | 1-2 | 3-4
Sag (mm): 37.5-45
Travel (mm): 150 Compression:| Climbing / Smooth hard pack: Full firm Downhill / Technical: Full soft
100 10 10 130 140 150 160 170 180 190 200 210 220 230 >240
(45) (50) (54) (60) (64) (68) (73) (77) (82) (86) (91) (95) (100) (104) (109)
Compression Loose gravel / Muddy: 7 rotation out from full firm Downhill / Technical: 5 clicks out from full firm
All other terrain: Full firm
e =m Faster rebound / Softer compression æ == Slower rebound / Firmer compression
NOTE: Air pressures and rebound/compression settings are suggested recommendations only, to provide a starting point
for the rider. Adjust for preference.
NOTE: Color coding matches Sag Meter colors.
