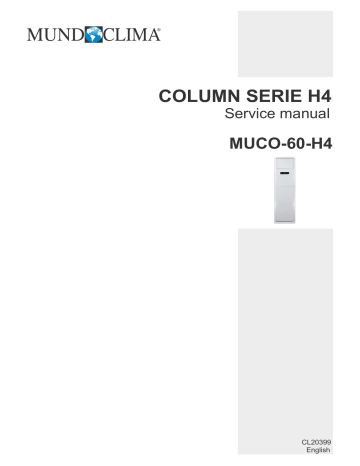

COLUMN SERIE H4

Service manual

MUCO-60-H4

CL20399

English

7DEOHRI&RQWHQWV

6XPPDU\DQG)HDWXUHV

6DIHW\3UHFDXWLRQV

6SHFL¿FDWLRQV

8QLW6SHFL¿FDWLRQV

&DSDFLW\9DULDWLRQ5DWLR$FFRUGLQJWR7HPSHUDWXUH

2SHUDWLRQ'DWD

6

8

8

&RQVWUXFWLRQ9LHZV

9

6

,QGRRU8QLW

9

2XWGRRU8QLW

10

5HIULJHUDQW6\VWHP'LDJUDP

11

6FKHPDWLF'LDJUDP

12

(OHFWULFDO'DWD

(OHFWULFDO:LULQJ

3ULQWHG&LUFXLW%RDUG

)XQFWLRQDQG&RQWURO

12

12

14

15

5HPRWH&RQWURO2SHUDWLRQV

)XQFWLRQ%XWWRQVRI$LU&RQGLWLRQHU

'HVFULSWLRQRI(DFK&RQWURO2SHUDWLRQ

,QVWDOODWLRQ0DQXDO

15

18

22

30

,PSRUWDQW1RWLFHV

,QVWDOODWLRQ'LPHQVLRQ'LDJUDP

,QVWDOODWLRQRI,QGRRU8QLW

,QVWDOODWLRQRI2XWGRRU8QLW

7HVW2SHUDWLRQDQG&KHFNDIWHU,QVWDOODWLRQ

([SORGHG9LHZVDQG3DUWV/LVW

30

33

34

37

39

40

,QGRRU8QLW

2XWGRRU8QLW

40

42

4

5

2

7URXEOHVKRRWLQJ

44

3UHFDXWLRQVEHIRUH3HUIRUPLQJ,QVSHFWLRQRU5HSDLU

44

&RQ¿UPDWLRQ

-XGJHPHQWE\)ODVKLQJ/('RI,QGRRU2XWGRRU8QLW

44

45

+RZWR&KHFN6LPSO\WKH0DLQ3DUW 47

5HPRYDO3URFHGXUH

55

5HPRYDO3URFHGXUHRI,QGRRU8QLW

55

5HPRYDO3URFHGXUHRI2XWGRRU8QLW

62

3

,QGRRU8QLW

6XPPDU\DQG)HDWXUHV

2XWGRRU8QLW

5HPRWH&RQWUROOHU

<%)

FAN AUTO

AIR HEALTH

OPER

X-FAN

HUMIDITY

FILTER

TURBO

HOUR

ON/OFF

ON/OFF

MODE

FAN

X-FAN

TURBO

TEMP

SLEEP

TIMER

LIGHT

4

6DIHW\3UHFDXWLRQV

Installing, starting up, and servicing air conditioner can be hazardous due to system pressure, electrical components, and equipment location, etc.

Only trained, qualified installers and service personnel are allowed to install, start-up, and service this equipment.

Untrained personnel can perform basic maintenance functions such as cleaning coils. All other operations should be performed by trained service personnel.

When handling the equipment, observe precautions in the manual and on tags, stickers, and labels attached to the equipment. Follow all safety codes. Wear safety glasses andwork gloves. Keep quenching cloth and fire extinguisher nearby when brazing.

Read the instructions thoroughly and follow all warnings or cautions in literature and attached to the unit. Consult local building codes and current editions of national as well as local electrical codes.

Recognize the following safety information:

Warning

Caution

Incorrect handling could result in personal injury or death.

Incorrect handling may result in minor injury,or damage to product or property.

Warning

All electric work must be performed by a licensed technician according to local regulations and the instructions given in this manual.

Before installing, modifying, or servicing system, main electrical disconnect switch must be in the OFF position.

There may be more than 1 disconnect switch. Lock out and tag switch with a suitable warning label.

Never supply power to the unit unless all wiring and tubing are completed, reconnected and checked.

This system adopts highly dangerous electrical voltage.

Incorrect connection or inadequate grounding can cause personal injury or death. Stick to the wiring diagram and all the instructions when wiring.

Have the unit adequately grounded in accordance with local electrical codes.

Have all wiring connected tightly. Loose connection may lead to overheating and a possible fire hazard.

All installation or repair work shall be performed by your dealer or a specialized subcontractor as there is the risk of fire, electric shock, explosion or injury.

Make sure the outdoor unit is installed on a stable, level surface with no accumulation of snow, leaves, or trash beside.

Make sure the ceiling/wall is strong enough to bear the weight of the unit.

Make sure the noise of the outdoor unit does not disturb neighbors.

Follow all the installation instructions to minimize the risk of damage from earthquakes, typhoons or strong winds.

Avoid contact between refrigerant and fire as it generates poisonous gas.

Apply specified refrigerant only. Never have it mixed with any other refrigerant. Never have air remain in the refrigerant line as it may lead to rupture and other hazards.

Make sure no refrigerant gas is leaking out when installation is completed.

Should there be refrigerant leakage, the density of refrigerant in the air shall in no way exceed its limited value, or it may lead to explosion.

Keep your fingers and clothing away from any moving parts.

Clear the site after installation. Make sure no foreign objects are left in the unit.

Always ensure effective grounding for the unit.

Caution

Never install the unit in a place where a combustible gas might leak, or it may lead to fire or explosion.

Make a proper provision against noise when the unit is installed at a telecommunication center or hospital.

Provide an electric leak breaker when it is installed in a watery place.

Never wash the unit with water.

Handle unit transportation with care. The unit should not be carried by only one person if it is more than 20kg.

Never touch the heat exchanger fins with bare hands.

Never touch the compressor or refrigerant piping without wearing glove.

Do not have the unit operate without air filter.

Should any emergency occur, stop the unit and disconnect the power immediately.

Properly insulate any tubing running inside the room to prevent the water from damaging the wall.

5

6SHFL¿FDWLRQV

8QLW6SHFL¿FDWLRQV

3DUDPHWHU

0RGHO

3URGXFW&RGH

9ROWDJH

3RZHU

6XSSO\

)UHTXHQF\

3KDVHV

3RZHU6XSSO\0RGH

&RROLQJ&DSDFLW\

+HDWLQJ&DSDFLW\

&RROLQJ3RZHU,QSXW

+HDWLQJ3RZHU,QSXW

&RROLQJ&XUUHQW

+HDWLQJ&XUUHQW

5DWHG3RZHU,QSXW

5DWHG&XUUHQW

((5

&23

6((5

+63)

$LU)ORZ9ROXPH

'HKXPLGLI\LQJ9ROXPH

6HW7HPSHUDWXUH5DQJH

&RROLQJ2SHUDWLRQ$PELHQW7HPSHUDWXUH5DQJH

+HDWLQJ2SHUDWLRQ$PELHQW7HPSHUDWXUH5DQJH

$SSOLFDWLRQ$UHD

,QGRRU8QLW0RGHO

)DQ7\SH

'LDPHWHU/HQJWK';/

)DQ0RWRU6SHHG&RROLQJ6++0/6/

)DQ0RWRU6SHHG+HDWLQJ6++0/6/

)DQ0RWRU3RZHU2XWSXW

)DQ0RWRU5/$

)DQ0RWRU&DSDFLWRU

+HDWHU3RZHU,QSXW

(YDSRUDWRU)RUP

(YDSRUDWRU3LSH'LDPHWHU

,QGRRU8QLW (YDSRUDWRU5RZ¿Q*DS

(YDSRUDWRU&RLO/HQJWK/;';:

6ZLQJ0RWRU0RGHO

6ZLQJ0RWRU3RZHU2XWSXW

)XVH

6RXQG3UHVVXUH/HYHO6++0/6/

6RXQG3RZHU/HYHO6++0/6/

2XWOLQH'LPHQVLRQ:;+;'

3DFNDJH&DUWRQ'LPHQVLRQ/:+

3DFNDJH'LPHQVLRQ/:+

1HW:HLJKW

*URVV:HLJKW

8QLW

9 ̚

+]

PP

UPLQ

UPLQ

:

$ ȝ)

:

PP

PP

PP

:

$

G%$

G%$

PP

PP

PP

NJ

NJ

$

::

::

::

::

P K

/K ć ć ć

P

:

:

:

:

$

$

:

6

9DOXH

MUCO-60-H4

CL20399

2XWGRRU

̚

̚

̚

MUCO-60-H4

&HQWULIXJDO ĭ;

$OXPLQXP)LQFRSSHU7XEH ĭ

;;

03$$03$%

;;

;;

;;

2XWGRRU8QLW0RGHO

&RPSUHVVRU0DQXIDFWXUHU7UDGHPDUN

&RPSUHVVRU0RGHO

&RPSUHVVRU2LO

&RPSUHVVRU7\SH

&RPSUHVVRU/5$

&RPSUHVVRU5/$

&RPSUHVVRU3RZHU,QSXW

2YHUORDG3URWHFWRU

7KURWWOLQJ0HWKRG

&RQGHQVHU)RUP

&RQGHQVHU3LSH'LDPHWHU

&RQGHQVHU5RZV¿Q*DS

&RQGHQVHU&RLO/HQJWK/;';:

)DQ0RWRU6SHHG

2XWSXWRI)DQ0RWRU

)DQ0RWRU5/$

)DQ0RWRU&DSDFLWRU

2XWGRRU8QLW

$LU)ORZ9ROXPHRI2XWGRRU8QLW

)DQ7\SH

)DQ'LDPHWHU

'HIURVWLQJ0HWKRG

&OLPDWH7\SH

,VRODWLRQ

0RLVWXUH3URWHFWLRQ

3HUPLVVLEOH([FHVVLYH2SHUDWLQJ3UHVVXUH

IRUWKH'LVFKDUJH6LGH

3HUPLVVLEOH([FHVVLYH2SHUDWLQJ3UHVVXUH

IRUWKH6XFWLRQ6LGH

6RXQG3UHVVXUH/HYHO+0/

6RXQG3RZHU/HYHO+0/

'LPHQVLRQ:;+;'

'LPHQVLRQRI&DUWRQ%R[/:+

'LPHQVLRQRI3DFNDJH/:+

1HW:HLJKW

*URVV:HLJKW

5HIULJHUDQW

5HIULJHUDQW&KDUJH

/HQJWK

*DV$GGLWLRQDO&KDUJH

/LTXLG3LSH2XWHU'LDPHWHU

&RQQHFWLRQ

/LTXLG3LSH7KLFNQHVV

3LSH

*DV3LSH2XWHU'LDPHWHU

*DV3LSH7KLFNQHVV

0D[+HLJKW'LVWDQFH

0D[/HQJWK'LVWDQFH

$

$

:

PP

PP

PP

USP

:

$ ȝ)

P K

PP

03D

03D

G%$

G%$

PP

PP

PP

NJ

NJ

NJ

P

JP

PP

PP

PP

PP

P

P

MUCO-60-H4

'$/,$16$1<2&2035(6625&'/7'6$1<2

&6%1+'

'$3+1()96

6FUROO

,QWHUQDO

&DSLOODU\

$OXPLQXP)LQFRSSHU7XEH ĭ

;;

7KHDERYHGDWDLVVXEMHFWWRFKDQJHZLWKRXWQRWLFH3OHDVHUHIHUWRWKHQDPHSODWHRIWKHXQLW

$[LDOÀRZ ĭ

$XWRPDWLF'HIURVWLQJ

7

,

,3

;;

;;

;;

5$ ĭ ĭ

7

&DSDFLW\9DULDWLRQ5DWLR a

FFRUGLQJWR7HPSHUDWXUH

&RROLQJ

120

110

100

90

80

70

60

Condition Indoor: DB29 ,WB19 ;

Indoor air flow: Super High

Pipe length: 5m.

50

32 34 36 38 40 42 44 46 48 50 52 54

Outdoor temp.( )

140

+HDWLQJ

120

100

80

60

40

20

Condition Indoor: DB20 ;

Indoor air flow: Super High

Pipe length: 5m.

0

-15 -10 -5 0 5

Outdoor temp.( )

10 15

2SHUDWLRQ'DWD

&RROLQJ

7HPSHUDWXUHFRQGLWLRQƒ&

,QGRRU 2XWGRRU

0RGHOQDPH

6WDQGDUG

SUHVVXUH

303D

+HDWH[FKDQJHUSLSHWHPS

7ƒ&

MUCO-60-H4 a aWRa

7ƒ& aWRa

,QGRRUIDQ

PRGHUSP

2XWGRRUIDQ

PRGHUSP

+HDWLQJ

7HPSHUDWXUHFRQGLWLRQƒ&

,QGRRU 2XWGRRU

6WDQGDUG

SUHVVXUH

+HDWH[FKDQJHUSLSHWHPS

0RGHOQDPH

303D 7ƒ& 7ƒ&

MUCO-60-H4 a aWRa aWRa

,QGRRUIDQ

PRGHUSP

2XWGRRUIDQ

PRGHUSP

127(6

0HDVXUHVXUIDFHWHPSHUDWXUHRIKHDWH[FKDQJHUSLSHDURXQGFHQWHURIKHDWH[FKDQJHUSDWK8EHQW

7KHUPLVWRUWKHPRPHWHU

&RQQHFWLQJSLSLQJFRQGLWLRQP

7,QOHWDQGRXWOHWSLSHWHPSHUDWXUHRIHYDSRUDWRU

7,QOHWDQGRXWOHWSLSHWHPSHUDWXUHRIFRQGHQVHU

33UHVVXUHRIDLUSLSHFRQQHFWLQJLQGRRUDQGRXWGRRUXQLWV

8

&RQVWUXFWLRQ9LHZV

,QGRRU8QLW

9

8QLWPP

2XWGRRU8QLW

10

8QLWPP

5HIULJHUDQW6\VWHP'LDJUDP

I N D O O R U N I T

GAS SIDE

3-WAY VALVE

HEAT

EXCHANGE

(EVAPORATOR)

LIQUID SIDE

2-WAY VALVE

O U T D O O R U N I T

Muffler

Discharge

Suction

COMPRESSOR

Accumlator

4-Way valve

S rt a i n e r Capillary

HEAT

EXCHANGE

(CONDENSER)

S rt a i n e r

COOLING

HEATING

5HIULJHUDQWSLSHGLDPHWHU

/LTXLGPP

*DVPP

11

6FKHPDWLF'LDJUDP

(OHFWULFDO'DWD

0HDQLQJRIPDUNV

Symbol

SAT

COMP

C1

C2

Parts name

OVERLOAD

COMPRESSOR

PROTECTIVE EARTH

CBB65

CBB61

Symbol

BU

YE

RD

Color symbol

BLUE

YELLOW

RED

YEGN

YELLOW GREEN

Symbol

VT

OG

BK

BN

Color symbol

VIOLET

ORANGE

BLACK

BROWN

(OHFWULFDO:LULQJ

,QGRRU8QLW

12

2XWGRRU8QLW

6BN

OVERLOAD

PROTECTOR

2BN 3BK 4VT

FA

A

B

7BU

1

3 5

CONTACTOR

2 4

8BN 9BK 10VT

6

(U)

COMPRESSOR

(V)

T1

T2

COMP

T3

3

~

(W)

E

18YEGN

L1

L2

L3

N

XT1

1YEGN

PE 13BN

14BK

15VT

27BU

L1

L2

L3

N

28YEGN

12BU

5BN

FU

21

22

KM

A2

A1

XT2

26BU

1

17BU

2

38BU

C

T

S

R

A

PM

XT3

16WH

REVERSAL DEFENSIBLE RELAY

C1

11BN

BU

(BK)

BN BN

M1

~

C2

OG

(WH)

BU

(BK)

BN BN

M2

~

EH

E E

YEGN YEGN

BN

BK

VT

BU

YEGN

OG

(WH)

BN

BK

VT

BU

YEGN

POWER

L1

L2

L3

N

4YV

1

2

19BU

FA

OVERLOAD

PROTECTOR

XT4

20BU

P

HIGH PRESSURE

SWITCH

2

1

HP

PE

PE

FAN MOTOR PE

21YE

39VT

23OG

24WH

22BK

3

4

5

1

2

X1

1

2

3

4

X2

X3

0

0

X4

0

X5

LP P

DISCHARGE GAS

TEMP. SENSOR

LOW PRESSURE

SWITCH

RT1

25BU

ROOM

TEMP. SENSOR

RT2

TUBE

TEMP. SENSOR

RT3

7KHVHFLUFXLWGLDJUDPVDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFH

.

P

OHDVHUHIHUWRWKHRQHVXSSOLHGZLWKWKHXQLW

13

3ULQWHG&LUFXLW%RDUG

Ɣ7239,(:

1 2 3 4 5 6 7 8

13

Ɣ%277209,(:

12 11

10

9

1 Copper insert of live wire

4

5

3

6

Copper insert of wire of compressor

Control relay of compressor

Copper insert of wire of outdoor fan

Copper insert of wire of

4-way valve

7

8

Copper insert of neutral wire

Wiring terminal of indoor fan

9 Relay of auxiliary heater

10 Terminals of DISP1 and

DISP2

11 Control relay for 4-speed of indoor fan

12 Control relay of 4-way valve

13 Control relay of outdoor fan

14

)XQFWLRQDQG&RQWURO

5HPRWH&RQWURO2SHUDWLRQV

7

5

)$1

)$1

$,5

+80,',7<

),/7(5

$87 2

+($/ 7+

23(5

;)$1

785%2

+285

212))

1

ON/OFF

2

Press it to start or stop operation.

MODE

3

4

5

-

Press it to select operation mode (AUTO/COOL/DRY/FAN/HEAT).

Press it to decrease temperature setting.

+

Press it to increase temperature setting.

FAN

Press it to set fan speed.

1

212))

3

9

12

;)$1

10

13

785%2

7(03

6/((3

02'(

4

2

6

8

7,0(5

11

14

/,*+7

CL96462 (Optional)

6

7

Press it to set swing angle.

HEALTH SAVE

Press it to turn on or off health function.

8

9

Press it to set left & right swing angle.

X-FAN

(X-FAN is the alternative expression of BLOW for the purpose of understanding.)

10

TEMP

11

TIMER

Press it to set timer ON/ timer OFF.

12

TURBO

13

SLEEP

14

LIGHT

Press it to turn on/off the light.

24

FAN AUTO

AIR

HEALTH

HUMIDITY

OPER

X-FAN

FILTER

15

16

17

18

TURBO

HOUR

ON/OFF

23

22

21

19 20

15

MODE icon:

16

17

If MODE button is pressed, current operation mode icon (AUTO), ( COOL), (DRY), (FAN) or (HEAT is only for heat pump models) will show.

LOCK icon:

is displayed by pressing "+" and “-” buttons simultaneously. Press them again to clear the display.

LIGHT icon:

18

is displayed by pressing the LIGHT button. Press LIGHT button again to clear the display.

SLEEP icon :

19

is displayed by pressing the SLEEP button. Press this button again to clear the display.

TEMP icon:

Pressing TEMP button, (set temperature), (ambient temperature) , (outdoor ambient temperature) and blank is displayed circularly.

15

20

21

Up & down swing icon:

is displayed when pressing the up & down swing button. Press this button again to clear the display.

Left & right swing icon:

22

is displayed when pressing the left & right swing button.Press this button again to clear the display.

SET TIME display:

23

After pressing TIMER button, ON or OFF will blink.This area will show the set time.

DIGITAL display:

24

This area will show the set temperature. In SAVE mode,"SE" will be displayed. During defrosting operation, “H1” will be displayed.

FAN SPEED display:

Press FAN button to select the desired fan speed setting(AUTOLow-Med-High).Your selection will be displayed in the LCD windows, except the AUTO fan speed.

Remote controller description

1

2

ON/OFF:

Press this button to turn on the unit. Press this button again to turn off the unit.

MODE:

Each time you press this button,a mode is selected in a sequence that goes from AUTO, COOL,DRY, FAN, and HEAT *, as the following:

AUTO COOL DRY FAN HEAT*

3

4

5

*Note: Only for models with heating function.

After energization, AUTO mode is defaulted. In AUTO mode, the set temperature will not be displayed on the LCD, and the unit will automatically select the suitable operation mode in accordance with the room temperature to make indoor room comfortable.

+ :

Press this button to increase set temperature. Hold it down for above 2 seconds to rapidly increase set temperature. In AUTO mode, set temperature is not adjustable.

-:

Press this button to decrease set temperature. Hold it down for above . 2 seconds to rapidly decrease set temperature. In AUTO mode, set temperature is not adjustable.

FAN :

This button is used for setting fan speed in the sequence that goes from AUTO, , , to then back to Auto.

AUTO

Low speed Medium speed High speed

6

●Press button to start or stop up & down swing function.The remote controller defaults to simple swing condition.

●Press + button and button at the same time at unit OFF to switch between simple swing and static swing; blinks for 2 seconds.

●In static swing condition, pressing button, the swing angle of up & down louver changes as below:

OFF

7

●If the unit is turned off during swing operation,the louver will stop at present position.

HEALTH SAVE:

Press HEALTH part of this button to turn on or off HEALTH function.Pressing SAVE part of this button,"SE" is displayed and the unit goes into SAVE operation mode. Press SAVE part of the button again to cancel SAVE function. During SAVE operation, the temperature and fan speed is not adjustable.

8

●Press button to start or stop left & right swing function.The remote controller defaults to simple swing condition.

●Press + button and button at the same time at unit OFF to switch between simple swing and static swing; blinks for 2 seconds.

16

●In static swing condition, pressing button, the swing angle of left & right louver changes as below:

9

OFF

●If the unit is turned off during swing operation,the louver will stop at present position.

X-FAN:

Pressing X -FAN button in COOL or DRY mode,the icon "X-FAN" is displayed and the indoor fan will continue operation for 10

10 minutes in order to dry the indoor unit even though you have turned off the unit. After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO, FAN and HEAT mode.

TEMP:

Press this button, could select displaying the indoor setting temperature or indoor ambient temperature.When the indoor unit firstly power on it will display the setting temperature, if the temperature's displaying status is changed from other status to" ",displays

11 the ambient temperature, 5s later or within 5s, it receives other remote control signal that will return to display the setting temperature. if the users haven't set up the temperature displaying status,that will display the setting temperature.

TIMER:

Press TIMER button at unit ON to set TIMER OFF; HOUR OFF blinks. Press TIMER button at unit OFF to set TIMER ON; HOUR

ON blinks. In this case, pressing + or - button changes time setting. Holding down either button rapidly changes time setting (time

12 setting range 0.5-24hours). Press TIMER button again to confirm setting; HOUR ON/OFF stops blinking. If there is not any operation of button within 5 seconds during HOUR ON/OFF blinking, TIMER setting will be cancelled.

TURBO:

Press this button to activate / deactivate the Turbo function which enables the unit to reach the preset temperature in shortest time.

13

In COOL mode, the unit will blow strong cooling air at super high fan speed. In HEAT mode, the unit will blow strong heating air at super high fan speed.

SLEEP :

Press this button to go into the SLEEP operation mode. Press it again to cancel this function. This function is available in COOL ,

14

HEAT (Only for models with heating function) or DRY mode to maintain the most comfortable temperature for you.

LIGHT:

Press LIGHT button to turn on the display's light and press this button again to turn off the display's light. If the light is turned on , is displayed. If the light is tunrned off, disappears.

15

Combination of "+" and "-" buttons: About lock

Press "+ " and " " buttons simultaneously to lock or unlock the keypad. If the remote controller is locked, is displayed. In this

16 case, pressing any button, blinks three times.

Combination of "MODE" and "-" buttons:About switch between Fahrenheit and Centigrade.At unit OFF, press "MODE" and "- " buttons simultaneously to switch between

and

.

Replacement of Batteries

1.Remove the battery cover plate from the rear of the remote controller.

(As shown in the figure)

2.Take out the old batteries.

3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.

4. Reinstall the battery cover plate.

Notes:

●When replacing the batteries, do not use old or different batteries, otherwise, it may cause malfunction.

●If the wireless remote controller will not be used for a long time, please remove batteries to prevent damage from leaking batteries.

●The operation should be performed in its receiving range.

●It should be kept 1m away from the TV set or stereo sound sets.

●If the wireless remote controller does not operate normally, please take the batteries out and reinsert them after 30 seconds. If it still can't operate properly, replace the batteries.

Sketch map for replacing batteries

17

)XQFWLRQ%XWWRQVRI$LU&RQGLWLRQHU

Speed

Function

E-HEATER

AMB.

Mode

ON/OFF

ON/OFF

ON/OFF Button

Press this button, to turn on the unit.

When unit is turned on, the original setting like Timer, Sleep function will be canceled.Note: When the unit is running in Dry mode, press ON/OFF button that can turn on the unit directly.

When the unit start up running, the status light will display in red indicated as power turn-on and free-duty.

Mode

Mode Button

● Press the button, the circulating changes of mode are shown as below:

AUTO COOL DRY

HEAT

FAN

AUTO: the controller will determine its operation mode according to changes of room temperatures under this mode.

COOL: display cooling state.

DRY: reduce temperature and keep the setting room temperature without any change.

FAN: The compressor doesn't on work and only the indoor blower is on running under this mode.

HEAT: Display the state of heating .

(Note: Single-cooling machine is not equipped with heating mode) and and

Button

Under the situation without setting the function, press and buttons,

● the setting temperature goes up

and down 1 , the regulating range is from 16 to 30

.

Under the conditions of setting the functions, can proceed with the round-trip option of this function (set

● and opposite direction of circulation).

Keep pressing and buttons

for 3 seconds continuously, functions

of all buttons on the display panel will be conductively-closed, and then press any button, the buzzer will ring once while "LC" is flashing for three times on the location of double

8 and resume to normal display so as to prompt users that the buttons have been locked up.When keep pressing again the two buttons for another 3 seconds continuously, the function of lockup will be removed and resume to display in normal state.

18

E-HEATER

Speed

Function AMB.

Mode ON/OFF and and Buttons (Continued)

After switch-on at first time, if without any button input:1. consecutively press twice of buttons in 20 seconds and soon access to the running of forced heating.After the blades of blowing up and down opens to the minimum position, start up running of all loads, indoor and outdoor high-speed blowers. All characters will be displayed when the non-inductive thermometer bulb is broken down. The

fault codes of breakdown will be displayed when the inductive thermometer bulb is broken down and then the buzzer rings.

After shutdown for five minutes or receiving shutdown signal within 5 minutes, it enter the status of normal standby. 2. consecutively press twice of buttons in 20 seconds and soon access to the running of forced cooling.

After the blades of blowing up and down opens to the minimum position,start up running of all loads, indoor and outdoor high-speed blowers besides the fourway valve and then the buzzer rings.

After shutdown for five minutes or receiving shutdown signal within 5 minutes,it enter the status of normal standby.

The 1 and 2 Functions are for trial use only.

Speed

Speed Button

Press this button, the speed can shift in the circulation among of

“ Auto

Low

Medium

→ High

Super →

Auto

Note: the function of forced low speed under operation of dehumidification is not available.

AMB.

AMB. Button

Press this button, AMB.circulating

changes set forth below:

Energy saving

Living Room

Normal Restaurant

Conference/Office

Adjustable method of AMB.

Button: The switch-on of AMB.mode

at first time is the default of normal mode,when shutting down and starting up again,the AMB. mod will

keep the setting status before last shutting down. Under the modes of energy-saving, conference/office and restaurant,the sleep function will be automatically cancelled.

And the sleep function is not adjustable: sleep function is only available on service for cooling, dehumidification and heating under normal mode.

19

Speed

Function

E-HEATER

AMB.

Mode

ON/OFF

AMB.

AMB.

Buttons (Continued)

AMB.

AMB.Buttons (Continued)

Under the modes of living room, restaurant, conference/office,The setting temperature, speed, blowing up and down as well as left and right can be adjustable. If users change the setting temperature, speed, blowing up and down as well as left and right, the operation will run in accordance with the status of setting adjustment. The services setting of blowing up and down as well as left and right of next time start-up will be remained before last shutdown while the setting temperature and speed will run with the default.

Under the energy-saving mode, while the heating service is on running, the setting temperature, speed, blowing up and down as well as left and

right can be adjustable. If users change the setting speed, blowing up and down as well as left and right, it will run according the status of users' setting adjustment. But the setting temperature under the energy-saving cooling function can not be adjusted.

Function

The modes of living room, restaurant, conference/office can only be called out by pressing buttons of air conditioner panel. If receiving the signal from remote control when the air conditioner is running the modes of living room, restaurant, conference/office, it will exit from the abovementioned modes and run according to the modes of remote control.

Function Button

Under the status of switch-on, Every time press the function button, the settings of up and down, left and right, drying, concurrent heating, timing, air renewal, setting and room temperature can be shifted in sequence. When a certain character is flashing, it indicates can proceed its setting and go on setting by press buttons.

The action will be confirmed if without receiving other operating order in 5 seconds. Or press the function button to leave for the confirm.

Press the function button under the status of running drying service can directly proceed shutdown.

Press the function button under the status of shutdown and nondrying can proceed timing setting.

20

Speed Function

E-HEATER

AMB.

Mode

ON/OFF

Swing

Status of swing

Display status of swing.

Setting

Display setting temperature.

Room temperature

Indicate temperature of indoor circumstances.

Supper strong

When the typeface light is on, it indicates setting the super strong function.

SAVE

Mode of save

Indicate mode of save.

ROOM

Mode of room

Indicate mode of room.

Swing

BLOW

Status of swing

Display status of swing.

BLOW Function

When the typeface light is on, it indicates setting the BLOW function.

E-HEATER

E-HEATER Function

This icon on the displayer turns on,indicates that the E-HEATER function turned on,the electrical heating, according to a certain

condition, it can put into use.

OFFICE

RESTAURANT

Office mode

Indicate mode of office.

Mode of restaurant

Indicate mode of restaurant.

TIMER

TIMER Function

When the typeface light is on, it indicates setting the timer function.

SLEEP

SLEEP Function

When the typeface light is on, it indicates setting the sleep function.

COMMON

Indicate common mode.

21

'HVFULSWLRQRI(DFK&RQWURO2SHUDWLRQ

1.

Running Mode

1. cooling; 2. dry; 3. fan; 4: heating; 5. AUTO; 6. others (Freon recovery mode).

2.

Temperature Para meter

1. Indoor ambient temperature Tamb. (adopt 15K temperature sensor, external connect 15K partial resistance);

2. Outdoor ambient temperature T outdoor amb.

(adopt 15K temperature sensor, external connect 15K partial resistance);

3. Discharge temperature (Tdischarge)

4. Indoor evaporator tube temperature Tevaporator (adopt 20K temperature sensor, external connect 20K partial resistance);

5. Outdoor condenser tube temperature Tcondenser (adopt 20K temperature sensor, external connect 20K partial resistance).

3.

Basic Functions of System

In all modes, once the compressor is started up, it will run within 6mins all the time; once the compressor is stopped, it can only be started up after 3mins delayed.

( 1 ) Cooli ng Mode

1. Working conditions and process of cooling

When Tamb.≥ Tpreset+1 ć , the unit will run in cooling mode. Meanwhile, compressor, outdoor fan will start running, and indoor will run at setting fan speed;

When Tamb.

̰ Tpreset-1 ć , the unit is at OFF status in cooling mode. Meanwhile, compressor, outdoor fan will all stop running, while indoor fan will run at setting fan speed;

When Tpreset-1 ć <Tamb.<Tpreset+1 ć , the unit will keep previous running status.

In this mode, the temperature setting range is 16 ć ~30 ć and the initial value is 25 ć .

Tamb.

Tpreset+1 ℃ start cooling

Tpreset-1 ℃ original running status stop cooling mins mins mins compressor outdoor fan indoor fan setting fan speed stop run

( 2 ) Dry Mode

1. Working conditions and process of dry

When Tamb.>Tpreset+2 ć

, the unit will run in cooling mode. Meanwhile, compressor and outdoor fan will start running, and indoor fan will run at low fan speed;

When Tpreset-2 ̰ Tamb.

̰ Tpreset+2 ć , compressor and outdoor fan will run for 6mins and then stop for 4 mins, and they will run like that circularly. Indoor fan will run at low fan speed;

When Tamb.<Tpreset-2 ć

, compressor and outdoor fan will stop running, while indoor fan will run at low fan speed.

In this mode, the temperature setting range is 16 ć ~30 ć and the initial value is 25 ć .

Tamb.

cooling

Tpreset+2 ℃ drying

Tpreset-2 ℃

6mins

4mins

6mins

4mins stop running compressor outdoor fan indoor fan low fan speed low fan speed low fan speed run stop

22

( 3 ) Heating Mode ( this mode is not available for c ooling only un it)

1. Working condition and process for heating

When Tamb.

̰ Tpreset-1 ć , the unit will run in heating mode. Meanwhile, compressor and outdoor fan will start running. Indoor fan may be start running after delayed for a period of time to prevent blowing out cold air. If the unit turns to heating mode for the first time or switches to heating mode from other modes, the four-way valve will be energized after compressor was started up for the first time for 20s.

When Tamb.≥ Tpreset+1 ć

, compressor and outdoor fan will stop running. The four-way valve is energized all the same and indoor fan will stop running after running at low fan speed for 10s;

When Tpreset-1 ć

<Tamb.<Tpreset+1 ć

, the unit will keep original running status;

In this mode, the temperature setting range is 16 ć ~30 ć and the initial value is 25 ć . When tuning off the unit in heating mode or switching to other modes from heating mode, the four-way valve will be de-energized after 2mins delayed.

When turning off the unit, if the complete unit is at running status in heating mode, the unit will stop running when reaching the setting temperature and the unit will be turned off after lowing residual heat for 10s. If the unit is at the status of blowing residual heat when the unit is stopped after reaching the temperature point, the unit will continue to blow residual heat and then it will be turned off; if the unit is stopped after reaching the temperature and indoor fan is stopped, the unit will be turned off directly without blowing residual heat. stop heating

Tpreset original running status

Tpreset

Tamb mins mins mins start heating setting fan speed compressor outdoor fan indoor fan anti cold air reversing valve run low fan speed anti cold air stop low fan speed

2. Defrosting condition and process

System will defrost intelligently and automatically. When it’s detected that the system is reached the defrosting condition, the system will turn to defrosting status;

After defrosting is started up, H1 will be displayed . If there’s auxiliary heating, auxiliar y heating will be stopped and then compressor, indoor fan and outdoor fan will stop running after 1min delayed. 3mins later, the four-way valve will be closed. After four-way valve has closed for 30s, compressor will be started up.

After defrosting is finished, compressor will stop running, while the four-way valve will be start up. 30s later, compressor and outdoor fan will be restarted up and turn to the next periods. Indoor fan is running at anti cold air status.

Defrosting time can’t exceeds 12mins at the most.

3. Working condition for auxiliary heating

Auxiliary heating can be turned on/off by buttons.

If auxiliary heating is at ON status, when indoor fan is running, and indoor ambient temperature and air discharge temperature are low, auxiliary heater will start running;

When indoor fan isn’ t running, or indoor ambient temperature is high, or air discharge temperature is high, auxiliary heater will stop running. Once the auxiliary heater is stopped, it can only be restarted up after 2mins delayed.

If auxiliary heating is set OFF, the auxiliary heating will be turned off directly.

˄ 4 ˅ Fan Mo de

Indoor fan is running at setting fan speed: auto fan speed low fan speed medium fan speed high fan speed

The temperature setting range is 16 ć ~30 ć and the initial value is 25 ć .

( 5 ) Auto Mode

In this mode, the system will select the running mode (cooling, dry, heating, fan) automatically according to the change of ambient temperature.

Once the mode is started up, the unit will only switch to the running status under auto mode according to Tamb after it has run for

30s at least.

23

6 Freon Recovery Mode

That’s the recovery operation method for refrigerant:

1. After the A/C is energized for the first time, set the A/C at FAN mode, low fan speed by remote controller and the indoor temperature is set as 20 ć ; Meanwhile, indoor fan will start running.

2. Press the light button on remote controller for twice successively within 5s; meanwhile, indoor fan and compressor will start running automatically.

3. After compressor has run for 3mins, close the cut-off valve completely.

4. When the protector for low-voltage switch has an action, compressor and outdoor unit will stop running automatically. Please close the cut-off valve immediately.

5. After stopping blowing wind by remote controller, the refrigerant recovery operation is finished completely.

Notice: 1. After refrigerant is recovered, if the recovery operation should be operated again, please cut off the power at first and then put through the power again.

2. Above methods are applicable for the movement or reinstallation of indoor unit or outdoor unit; during this process, the low voltage switch can’t be short circuited.

4. Other Controls

1. Sleep Function

Sleep in cooling mode:

When initial temperature is set as 16~23 ć , after sleep function is started up, the temperature will increase by 1 ć every 1hr. After the temperature has increased by 3 ć

, the unit will keep this temperature. After the unit has run for 7hrs, the temperature will decrease 1 ć and then the unit will run at this temperature all the time.

When initial temperature is set as 24~27 ć , after sleep function is started up, the temperature will increase by 1 ć every 1hr. After the temperature has increased by 2 ć , the unit will keep this temperature. After the unit has run for 7hrs, the temperature will decrease 1 ć and then the unit will run at this temperature all the time.

When initial temperature is set as 28~29 ć , after sleep function is started up, the temperature will increase by 1 ć every 1hr. After the temperature has increased by 1 ć , the unit will keep this temperature. After the unit has run for 7hrs, the temperature will decrease 1 ć and then the unit will run at this temperature all the time.

When initial temperature is set as 30 ć

, the unit will run at this temperature. After the unit has run for 7hrs, the temperature will decrease by 1 ć and then the unit will run at this temperature all the time.

Sleep in heating mode:

When initial temperature is set as 16 ć

, the unit will run at this temperature all the time;

When initial temperature is set as 17~20 ć

, after sleep function is started up, the temperature will decrease by 1 ć

every 1hr. After the temperature has decreased for 1 ć , the unit will keep this temperature.

When initial temperature is set as 21~27 ć , after sleep function is started up, the temperature will decrease by 1 ć every 1hr. After the temperature has decreased for 2 ć

, the unit will keep this temperature.

When initial temperature is set as 28~30 ć , after sleep function is started up, the temperature will decrease by 1 ć every 1hr. After the temperature has decreased for 3 ć , the unit will keep this temperature.

Sleep in dry mode:

When setting sleep function in dry mode, after the sleep function has run for 1hr, Tpreset will increase by 1 ć and it will increase by another 1 ć after 2hrs. Tpreset will increase by 2 ć at all within 2hrs and then the unit will run at this temperature.

Sleep in fan mode and auto mode:

Sleep function is nor available in fan mode and auto mode.

2. Timer Function

Timer ON: Timer ON can be set at the OFF status of the unit. After timer ON is reached, controller will run according to the setting mode.

The time setting range is 0.5~25hrs and the interval is 0.5hr. If the time on display screen is less than 10hrs, the display interval is 0.5hr; if the time is more than 10hrs, the display interval is 1hr.

Timer OFF: Timer OFF can be set at the ON status of the unit. After timer OFF is reached, the unit will be turned off. The time setting range is 0.5~25hrs and the setting interval is 0.5hr. If the time on display screen is less than 10hrs, the display interval is 0.5hr; if the time is more than 10hrs, the display interval is 1hr.

3. Swing Control

Swing motor can be turned on/off by pressing the swing button on remote controller. Swing is valid only when the indoor fan is running.

Right & left swing: swing blade has 7 kinds of status: ķ angle 1, ĸ angle 2, Ĺ angle 3, ĺ angle 4,

Ļ

angle 5, ļ

swing,

Ľ

stop. After the unit is turned on by the ON/OFF button on control panel every time, the default status of swing is OFF and the position is Ĺ angle 3.

After the unit is turned on by remote controller, the status of swing motor is basing on the display status on remote controller ˊ After the unit is energized every time, right & left swing motor will be reset.

UP & down swing: when turning off the unit, the swing blade will stop at the starting point (zero position). When turning on the unit, there are 7 kinds of status: ķ angle 1 (max position), ĸ angle

2,

Ĺ angle 3, ĺ angle 4,

Ļ angle 5 (min position), ļ swing,

Ľ stop. If turn on the unit by the

ON/OFF button on control panel, the setting swing status is basing on the status before turning off the unit; while if turn on the unit by remote controller, the setting swing status is basing on the status on remote controller (if the receiving remote controller is 35, 25, 24, 14 or 13, it’s ļ swing). When turning on the unit each time (including turn on the unit by remote controller or control panel), if the setting swing status is not

Ľ stop, then it will at the actual swing status; if the setting swing status is Ľ stop, after turning the unit, it will be defaulted at angle 3 in cooling, angle

4 in heating and angle 3 in dry. As for mode switchover, it will also switch like that until the setting swing status is not

Ľ stop, then the above compulsory default status will be cancelled. set this place as the starting point set this place as the starting point

(0° )

24

When turning on the unit each time, the swing blade must be open to angle 5 (mini position), and then compressor, fan etc. can run.

When switching on controller or turning off the unit each time, the swing blade must be at OFF status.

4. Buzzer

Upon energization or operation, the buzzer will give out pleasant sound (digital chord).

5. Auto Fan Speed Control of Indoor fan

In auto fan speed, indoor fan will select high, medium or low fan speed automatically according to the change of ambient temper ature.

For the switchover between any two kinds of fan speed, the unit must be make sure that it has run at each fan speed for 3mins and 30s at least.

6. AIR Function it’s reserved for some models

˅

AIR function is invalid when the unit is turned off. Upon receiving the order for starting up AIR function from remote controller or control panel, indoor fan will be turned on and the AIR function will be started up; once receiving the order for turning off AIR function, AIR function will be turned off. After the unit is turned off, AIR function will be cleared automatically.

7. X-FAN function

X-FAN function can be turned on/off by the FUNCTION button on control panel or X-FAN E-HEATER button on remote controller.

If start up X-FAN function in cooling or dry mode, after the unit is turned off, indoor unit will still run for a few minutes to dry the water inside the unit, and then the indoor unit will be turned off automatically.

8. Turbo Function

In cooling and heating mode, turbo function can be turned on/off (there’s no turbo function in auto, dry and fan mode) by the turbo button

After pressing turbo button for once, remote controller will display the characters of “turbo” and fan speed won’t change, Meanwhile, indoor fan will run at super-high fan speed and display panel will display the super-high fan speed; After repressing turbo button, the turbo function will be quitted and the characters of “turbo” on remote controller will be disappeared. Meanwhile, indoor fan will turn back to setting fan speed. Super-high fan speed will also be quitted after operating the fan speed button and the fan speed will also be changed correspondingly. Display panel will display the setting fan speed.

Turbo function is default to be turned off when remote controller is energized.

When restarting up the unit or switching the mode, turbo function will be memorized.

When restarting up the unit by remote controller and controller or switch to cooling or heating mode, turbo function will be memorized.

While when switching to auto, dry or fan mode, the turbo function is unavailable.

9. Power-off Memory Function

When re-energizating the unit after power failure, the unit will run at the memory content. Memory content : mode, up&down swing

(7kinds of status), right and left swing (7 kinds of status), setting temperature, setting fan speed, light, timer, turbo, AIR, health and environment mode.

If the unit is at ON status after power failure, compressor will be started up 3mins delayed after energization; if the unit is at OFF status, compressor will be started up without 3mins delayed.

If the timer hasn’t been reached before power failure, the unit will time again according to the setting timer before power failure.

5 Protective Measures

1. Indoor antifreezing protection

When cooling in cooling mode or dry mode (that’s Tamb>Tpreset+2 ć ), if it’s detected that the evaporator tube temperature is too low the system will turn to antifreezing protection status. Meanwhile, compressor and outdoor fan will stop running, while indoor fan and swing motor will keep original status. When evaporator tube temperature resumes to normal range and compressor has stopped for

6mins, controller will run at the setting mode.

Buttons won’t be shielded during the antifreezing protection.

2. High-pressure protection of system

When the high-pressure protection is detected for 3s successively, all loads will be turned off. Meanwhile, all buttons and signal will be shielded and E1 will be displayed. When it’s detected that the high-pressure protection of compressor has been released for 6s successively, the shield for button and signal will be released and E1 will still be displayed. E1 can be cleared after pressing ON/OFF button to turn off the unit. The unit will resume running after repressing ON/OFF button.

3. Low-voltage protection of system

This function is unavailable for some modes. But if the controller is the general controller and the shielded wire of low-pressur protection is loosened or not connected well, it will take it as low-pressure protection by mistake. The details are as below:

1. After compressor is started up for 2mins, it will begin to detect the signal of low pressure switch. If it’s detected that the low pressure switch is broken for 1mins successively, the complete unit will stop running. 3mins later, if the low pressure switch is resumed, the unit will resume running automatically. If low pressure switch protection occurs for 2 times successively, E3 will be displayed and the can’t resume running automatically to warn users that it’s leaking. After restarting up the unit and low pressure switch is resumed, the unit will resume running.

25

2. When compressor is stopped, if it’s detected that the low pressure switch is broken for 30s successively, the complete unit will stop running. Meanwhile, E3 will be displayed and the unit can’t resume running automatically. Only after restarting up the unit and the low pressure switch is resumed, the unit can resume sunning.

3. When compressor hasn’t been start up after energization each time, if it’s detected that the low pressure switch is broken for 1s successively, all loads won’t be turned on after turning on the unit, and E3 will be displayed on the display screen. E3 will still be displayed after restarting up the unit. Only when the low pressure switch is resumed, E3 will be cleared and then all loads will run normally.

4. In compulsory cooling or heating mode, it will begin to detect the signal of low pressure switch after compressor has started up for

2mins. When it’s detected that the low pressure switch is broken for 1s successively, the complete unit will stop running and E3 will be displayed. During compulsory heating, if outdoor ambient temperature

̰

0 ć

, the detection for low pressure switch will be shielded.

Correct disposal method: after cutting off the power, insert the shielded wire again to make sure that the shielded wire is connected firmly and then restart up the unit.

4. High temperature protection for discharge pipe

After the compressor is started up, if it’s detected that the discharge temperature is too high for 30s successively, the unit will stop running when indoor ambient temperature is reached to setting temperature. When compressor has stopped for 3mins and discharge temperature resumes to normal range Tdischarge <90 ć

, the complete unit will resume running.

If above protection is occurred for twice successively, the complete unit can’t resume running and E4 will be displayed. When restarting up the unit and Tdischarge <90 ć , the unit will run at setting mode.

If turning on the unit to turn to heating mode or switching to heating mode from other modes, discharge protection will be shielded for

1min when compressor is started up for the first time.

5. Indoor high temperature resistance protection

In heating mode, when it’ s detected that the evaporator tube temperature is too high, outdoor fan will stop running; when evaporator tube temperature resumes to normal range, outdoor fan will be started up.

6. Overcurrent protection

After compressor is started up, if it’s detected that the current is exceeds I

0 (

I

0

=25A) for 3s successively, the unit will stop running when

Indoor ambient temperature is reached to setting temperature. After compressor has stopped for 3mins, the unit will resume original running status. If protection times exceeds 6 times, indicator will blink and display E5 and the unit can’ t resume original running status.

The unit can only resume running after restarting up the unit.

7. Malfunction of temperature sensor

Under ON status, it will detect the malfunction of indoor tube temperature (exclude defrosting period and the period when defrosting is finished for 5mins) and outdoor discharge temperature sensor (in heating mode, it starts detecting the malfunction after compressor has started up for 1min; the malfunction won’ t be detected when compressor is stopped). It ’ s the malfunction when they are short circuit or broken circuit for 30s successively. When there’ s malfunction of temperature sensor, the complete unit will stop running. Meanwhile the indicator will blink and display the corresponding error code. Malfunction of temperature sensor won’ t shield the button and remote controller.

8. Malfunction and protection code

E1: high-pressure protection of system;

E3: low-pressure protection of system;

E4: high temperature protection for discharge pipe;

E5: overcurrent protection;

F1: malfunction of indoor ambient temperature sensor;

F2: malfunction of indoor tube temperature sensor;

F3: malfunction of outdoor ambient temperature sensor

F4: malfunction of outdoor tube temperature sensor

F5: malfunction of discharge temperature sensor

When multiple malfunctions are occurred simultaneously, each malfunction error will be displayed for 3s and they be will displayed in cycle.

6 Button

When remote controlling by remote controller:

1.If the display mode for remote controller is the heating mode and A/C is the cooling only type, A/c won’t receive other signal except the signal for turning off the unit.

2.If pressing the invalid button on remote controller, the buzze r will still give out a sound but the function won’t be carried out.

There are those buttons on the panel: ON/FF button, mode button, ambient setting button, ▲ button, ▼button, function button, fan speed button.

Display screen:

Speed Function AMB.

Mode ON/OFF

26

1. ON/OFF button

Controller is turned on/off by pressing this button. After each pressing of this button, the on/off status will be switched for once.

2. Mode button

After pressing this button, it will be selected and displayed as below:

Auto cooling dry fan heating (heat pump type)

3. Ambient setting button

After pressing AMB. button, it will be selected as below:

SAVE mode room mode office mode restaurant mode common mode ķ In each mode, after pressing AMB. mode on control panel, the ambient mode can be selected and cycled as : SAVE mode---room mode---office mode---restaurant mode---common mode; when the unit is turned on for the first time, ambient mode is default as common mode; when restarting up the unit, ambient mode will keep the setting status before turning off the unit. ĸ

When using the remote controller, the unit can only turn to SAVE mode or common mode after receiving the order from remote controller, and the unit will run according to the order transmitted by remote controller all the time.

Ĺ In SAVE mode, room mode, office mode or restaurant mode, sleep will be cancelled automatically and sleep can’t be adjusted;

Sleep is only valid in cooling, dry and heating mode under the common mode. ĺ

Room, restaurant and office modes

Cooling and heating mode: setting temperature, fan speed and swing will run at the default status. If users have adjusted the parameters, they will run according to adjusting status. 30mins later, it will turn back to auto adjusting status; when restating the unit, swing will keep the status before turning off the unit.

Fan, dry and auto mode: running status is the same as that in common mode.

In cooling mode: setting temperature and fan speed can be adjusted automatically; if users have adjusted the setting temperature and setting fan speed, it will run according to the adjusting status. 30mins later, it will turn back to auto adjusting status.

Heating, fan, dry and auto mode: the running status is the same as that in common mode.

Notice: room, restaurant and office mode can only be adjusted by buttons on control panel. If controller is receiving the order from remote controller when it’s running in room, restaurant or office mode, those modes will be quitted and it will run according to the mode on remote controller.

4. Selection button for setting temperature ( ▲and ▼)

(1) During the status when don’t set the function, after pressing ▲ button or ▼button for once, the setting temperature will increase or decrease for 1 ć and the temperature setting range is 16 ć ~30 ć .

(2) During the status when setting the function, the function can be selected circularly. ˄ the circulatory direction for ▲and▼ is opposite ˅ ķ up & down swing swing, stop swinging. ĸ right & left (swing): swing, stop swinging.

Ĺ

blow: start up blow, turn off blow. ĺ

E-HEATER: start up E-HEATER, turn off E-HEATER.

Ļ TIMER: set timer and it can be adjusted among 0~24hrs. If the time is less than 10hrs, the interval is 0.5hr; if the time is more than

10hrs, the interval is 1hr. ļ

AIR: start up AIR, turn off AIR.

Ľ Sleep: start up sleep, turn off sleep. ľ Health: start up the electrostatic dedusting, turn off the electrostatic dedusting.

Ŀ Turbo: start up turbo, turn off turbo.

27

ŀ Setting: default to display the setting temperature at ON status, default to display the setting temperature at off status ŋ

Room temperature: default to display room temperature at on status, default to display to room temperature at off statu s.

(3) After pressing ▲ button and ▼button simultaneously, all buttons on the display panel will be shielded. When pressing any buttons, the buzzer will give out a sound and dual 8 will display “LC”. The display will resume normal after the dual 8 blinks 3 times to warn users that the buttons are locked. When repressing those two buttons simultaneously, shield will be released and the display will resume normal status.

(4) After the unit is energized for the first time, if there isn’t any input: ķ If pressing ▲ buttons within 20s successively, the unit will turn to compulsory heating immediately and up & down swing blade will open to angle I

˄ minimum position

˅

. Meanwhile, all loads will be started up and indoor fan and outdoor fan will run at high fan speed.

When there’s no malfunction of temperature sensor, all characters will be displayed. When there’s malfunction of temperature sensor, dual 8 will display error codes circularly and the buzzer will give out sound. When the unit is stopped 5 mins later or the unit is stopped after receiving the signal for turning off the unit within 5mins, the unit will turn to normal standby status. ĸ If pressing ▼button within 20s successively, the unit will turn to compulsory cooling immediately and up & down swing blade will open to angle I (minimum position). Meanwhile, all loads will be turned on except the four-way valve and the indoor fan and outdoor fan will run at high fan speed. When there’s no malfunction of temperature sensor, all characters will be displayed. When there’s malfunction of temperature sensor, dual 8 will display error codes circularly and the buzzer will give out sound. When the unit is stopped 5 mins later or the unit is stopped after receiving the signal for turning off the unit within 5mins, the unit will turn to normal standby status.

After above tests are all displayed for 2s, it will begin to detect the malfunction of indoor ambient, indoor tube temperature, outdoor ambient, outdoor ambient, outdoor tube temperature and discharge temperature sensor. When it’s detected that there are multiple malfunctions, each error code will be displayed for 3s and they will be displayed circularly.

Item ķ and ĸ are only used for testing. During this period, high pressure, overcurrent and discharge protection won’t be detected.

5. Functi on but ton

In the ON state of the unit, after each pressing of the function button, you can switch among up&down swing, right&left swing, blow,

E-HEATER, timer, AIR, sleep, health (this is unavailable for L-shape floor standing A/C), turbo, setting and room temperature setting in sequence. When a certain character is blinking, it means that you can set this function and you can press “▲”butt on or “▼”button to set it. The setting will be confirmed after the setting has been set for 5 mins and there’s no change for the operation.

In blow running status, the unit will be turned off after pressing the function button. If repressing the function button, you can set the timer or health function.

After a function is selected by function button, if the unit hasn’t been turned off and it hasn’t received the signal from remote controller within 2 mins, the unit will circulate starting from the original setting function after repressing the function button. 2mins later or the unit is turned off or the unit has received the signal from remote controller, the unit will circulate from the first icon after repressing function button.

6. Fan Speed B utt on

After pressing speed button, it will be selected and displayed as: auto low medium high

7.

Display Method

1.Middle Nu mbe r Part

(1) When there’s malfunction protection (E1, E3, E4, E5, F2, F5), the unit only displays the error code and others won’t be displayed.

When there’s multiple malfunctions, those malfunctions will be displayed circularly.

(2)In the normal running status, when setting temperature or timer is set, the unit will display the corresponding setting for 5s. After that, the unit will display the setting temperature and it will default to display H1 during the time of defrosting. When setting the setting temperature, timer and temperature display, they will be displayed in sequence as below: setting temperature, timer, temperature display and defrosting H1 and each status will be displayed for 5s. If one status (setting temperature, timer, temperature display, defrosting H1) isn’t exist, that status will be omitted and the display will stop at the defaulted or setting temperature display. After the unit is energized, it defaults to display the ambient temperature.

The corresponding character and icon will be displayed simultaneously.

2. Fan Speed

When setting auto, low, medium and low fan speed, the corresponding character for the selected fan speed will be bright, and others won’t be bright.

When setting auto, cooling, dry, fan and heating mode, the corresponding character for the selected mode will be bright and others won’t be bright. The character and icon for the selected mode will be bright simultaneously. In auto mode, the auto and actual running mode will be displayed at the same time.

3. Ambi ent Mode

Ambient mode is including 5 kinds of mode: SAVE mode, room mode, office mode, restaurant mode and common mode. The selected ambient mode will be bright, others won’t be bright. ķ Up&down swing: when setting up&down swing, the icon and character will blink; when selecting the up&down swing, the icon and the character of (up&down) will be displayed. When there’s no up&down swing or the swing the stopped, the icon and the character of “up&down” won’t be displayed. ĸ Right&left swing: when setting right&left swing, the icon and character will blink; when selecting the right&left swing, the icon and the character of (right&left swing) will be displayed. When there’s no right&left swing swing or the swing the stopped, the icon and the character of “right&left swing” won’t be displayed.

28

displayed. If the blow function hasn’t been selected, the icon and character won’t be displayed. During the time of blow, only the icon and character are displayed, others won’t be displayed. character will be displayed. If the E-HEATER function hasn’t been selected, the icon and character won’t be displayed.

Ļ Timer: when setting timer function, the icon and character will blink; when this function is selected, the icon and character will be displayed. If the timer function hasn’t been selected, the icon and character won’t be displayed. displayed. If the AIR function hasn’t been selected, the icon and character won’t be displayed. displayed. If the sleep function hasn’t been selected, the icon and character won’t be displayed. ľ Health: when setting AIR function, the icon and character will blink; when this function is selected, the icon and character will be displayed. If the health function hasn’t been selected, the icon and character won’t be displayed. turbo function hasn’t been selected, the character won’t be displayed. ŀ

Setting: when setting function, the character of setting will blink; when this function is selected, the character will be displayed and the dual 8 will display the setting temperature. If the setting function hasn’t been selected, the character and setting temperature won’t be displayed. character will be displayed and the dual 8 will display the indoor room temperature. If the room temperature function hasn’t been selected, the character and indoor room temperature won’t be displayed.

5. Indicator Control

When the unit is at standby status after energizing, the power LED will be bright. After the unit is turned on, the running LED will be bright. When any one of the circumstances as below are occurred, the running LED will blink: defrosting, overcurrent protection, high pressure protection of compressor, low pressure protection of compressor, high temperature protection of discharge pipe ˈ indoor tube temperature sensor, malfunction of discharge temperature sensor.

6. Light Control

LED display can be turned off by the light button on remote controller. When using remote controller to cancel “light”, the complete LED displayer screen will go out, except the running LED. When turning off the light, if there’s signal from button or remote controller, LED will go out after displaying for 5s.

29

,QVWDOODWLRQ0DQXDO

,PSRUWDQW1RWLFHV

1. The unit installation work must be done by qualified personnel according to the local rulesand this manual.

2.When removing the unit to the other place, please firstly contact with the local maintenance center.

Basic requirements for installation location

Installation at the following places may cause failure of the air conditioner. Please contact installation and service agency if the installation at such places cannot be avoided.

Choose a place far away from heat source, steam and inflammable gases.

A place with high frequency facilities, such as radio equipment, electric welder or medical equipment;

A region with saline-sodic soil near the sea;

A place full of machine oil;

A place with sulphide gases (such as sulphur spring);

An environment with special conditions.

Installation location of indoor unit

1. Select a place, avoid the inflammable gas produce or leakage.

2. Select a place avoid the water vapor or oil sprayed on the unit .

3. Ensure that airflow can reach every conner of the room .

4. Choose a place so that the connection pipe could be easily pulled out.

5. Select the place where the airflow of the unit can not be blocked.

6. Select the position where the few outer air influenced.

7. Select the firm and flat ground.

8.Ensure sufficient clearance and space for service and maintenanc.

9. Ensure the installation of indoor unit is in conformity with the requirements of installation dimension drawing;

10.Do not use the unit in the immediate surroundings of a laundry a bath a shower or a swimming pool.

11.A location from which the condensation water can be drained out conveniently.

Installation location of outdoor unit

1. A place where noise and airflow generated by air exhaust do not affect the neighbors,animals and plants.

2.Ensure good ventilation of outdoor unit.

3.No obstacles near the outdoor unit obstructing the air intake and air exhaust of the unit.

4.The installation position shall be able to withstand the weight and vibration of the outdoor unit.

5. Choose a place far away the direct sunshine or strong wind.

6.The indoor unit shall be in conformity with the requirements of installation diagram,and ensure sufficient clearance and space for service and maintenance.

7. The height of connection pipe should be within 20 meters, and the length of it should bewithin 30 meters.

8. Please select the place keep out of the children's reach.

9. Select the place which do not influence the communal path way and the appearanceof the city .

30

Electric wiring

1.It should be connected with the special earth device on the building, it should be installed by the professional personnel. There should be enough capacity of creepage protector and air switch. (please refer to the following table)

2.The power supply must use the rated voltage and special circuit.

3.The diameter of the power wiring should be large enough. (Please refer to the following table)

4.The wiring work should conform to relative standard.

5.The ground must be connected.

6.Don't pull the power wire strongly.

Requirements for electric safety

1.First install wire of outdoor unit and then wire of indoor unit. After finishing wiring and piping, connect the unit to the power supply.

2.Please strictly follow the instruction of this manual when installing indoor unit and its piping.

3.The unit is subject to change without prior notice.

4.Please read this manual carefully before installation.

The unit power is large, the power supply circuit supplied for the unit should accord with the following: a.Installed the air switch with suitable capacity, please refer to the following, the air switch must have the functions of magnetic tripping and heat tripping. (Note: never use the fuse to protect the branch circuit.) b.The capacity of wire diameter should be 1.5 times larger than the unit max. curren t c.Installed the creepage protector with enough capacity .

d.Make sure to divide the branch circuit for the special circuit.

e.The min. clearance between combustible surface and the air conditioner is 1.5 meters.

Models

Air switch capacity

Note:

Please pay attention to surrounding conditions (eg. Ambient temp., direct sun shine, rain drops etc.)

The data of lead wire cross section listed above is the min. area. The cross section area of power cable, power connection wire should not be less than the data listed above.

The power cable, power connection wire must adopt the standard copper-core cable accord with the national criterion.

Earth wire must be connected to both of indoor and outdoor units.

An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.

the appliance shall be installed in accordance with national wiring regulations.

31

Notes for electric wiring:

1. Special circuit must be used for power supply.

2. The circuit must be installed by special serviceman.

3. Please do the wiring according to the following wiringdiagram. The screws must be tightly fastened, the slippery screws must be changed, the tapping screw cannot be used for electric wiring.

Installation diagram, please refer to the following.

For the Signal pahse:

Fig.1

Air switch

Power supply

4. Please wiring according to the circuit diagram on the unit.

5. Adopts the cables which are attached with the unit, pleasedo not to change the cables optionally, and do not change the length and ends of the cable, if need to adjust, please contact with the local after-sales service center .

Power cable

Outdoor unit

Signal control cable

Indoor unit

Earth

6. For the power cord which is without the plug, that cannot beconnected the plug for using.

7. The electric wiring connection of indoor and outdoor shouldnot be affected by the stretch and bending.

Power supply indoors and outdoors

Connection cable

8. is the symbol of earthing, it denotes that the yellow-greendual wire only can be connected with the place with the symbol.

Note:the unit should be correctly earthed to avoid interference to the complete unit and ensure personal safety.

9. After the electric installation completed, make sure to use wireclamp to fix the power cord, power supply connection cable and signal cable tightly, and ensure that there is enough space in thefix position and each connection terminals of the lead wires.

10.Please use about a half kilogram of force, to check whether eachlead wire is installed well. When checking the air connector pleaseenclasp it, and check each lead wire of which is connecting with the connector.

Requirements for earthing

1.The air conditioner is the first class electric appliance:

2.The yellow and green dual color wire in the air conditioner is earth wire, it cannot be used for other purposes, do not cut off it. Do not fix it by the tapping screw: otherwise, it can cause the electric shock.

3.Please do not connect the earth wire to the place:The power supply must be reliabbly earthed.

(1)Water pipe (2)Gas pipe (3)Drainage pipe (4)The place where is unreliable by the professional

Other

1. All electric installation must be done by professional personnel according to local law, regulation and this manual.

2. The connection method between air conditioner and power cable as well as the interconnection of each separate components, please refer to the circuit diagram on the unit.

3. The model and rated value of blown fuse please refer to the corresponding silk-screen on the controller or fuse sleeve.

4. The outer static pressure is 0MPa when the unit is testing.

32

,QVWDOODWLRQ'LPHQVLRQ'LDJUDP

Air outlet side

200cm above

30cm

Space to the ceiling

10cm

Space to the wall: (30cm at

least

for the pipe side)

5cm

Space to the rear side

Space to the obstruction

Air inlet side

cm above cm above

Space to the wall

cm above

Air outlet side

cm above

Space to the wall

This is just the schematic plan. Please refer to the actual product.

33

,QVWDOODWLRQRI,QGRRU8QLW

Installation of connection pipe

Before wiring and piping, please remove the filter after opening the glass panel.

1.As shown in Fig.2,take out the decorative strip at position 1 and

then unscrew the screws.Remove the screws fixing the filter after

opening the glass panel.At last take out the filter along the arro w direction at position 3.

2.During piping and wiring in the left and at the rear side,the

attached accessories should be used,as shown in Fig.4 .

Fig.2

Connection pipe

Flare-end connection

Flare-end connection

Fig.3

Drainage pipe

Fig.4

Fig.5

Connection pipe

Drainagepiping hole

Drainage pipe

Blowing drainage pipe

Wrapping tape

Installation of drainage pipe

1. Make sure drainage pipe is led outdoors (discharge side).

2. Butt-joint drainage pipe in the unit with blowing drainage pipe and fix them with insulated tape.

3. If the drainage pipe should be wrapped with heat-preservation material (at least 9 mm thickness), and then wrap it with tape to prevent air from entering into the pipe,which will cause condensation.

4. After connecting, check if water can discharge properly or if there is any leakage. (As shown in Fig.5)

Electric connection

1.Disassemble the air intake grill.

2.Remove screws from the cover of electric box to expose the box.

3.Put the power connection wire through the single wire hole of the indoor unit rear side, the pull it out from the front.

4. According to the diagram for wiring,according to the marks on wire board for connection correspondingly,as shown in Fig.6.

L1 L2 L3 N

BN BK VT BU YEGN

Outdoor unit terminal board

Fig.6.

34

5.Place the section with sleeve of the power connection wire into the wire groove, then cover the electric box cover, tighte n

the fixing screw,and tighten the connection wire .

6. Recover the electric box cover.

7.For the cooling and heating unit, the signal control wire is connected via connector and indoor unit, and clasp the signal control

wire with the wire clamp, which is under the bottom of body case.

Note:

When the connection wire length isn’t enough, please contact with the appointed service shop for buying a dedicated electric wire with enough length, the connection isn’t allowed between the wire.

The wrong wiring connection isn’t allowed, it may cause the malfunction of the components.

Tighten the terminal screw.

After tightened the screw, and slightly pull the electric wire to confirm whether it is firmed or not .

Wrong earth wire connection may cause electric shock.

The electric wire covering plate must be fixed well, and tighten the connection wire, if the wire cover-ing plate isn’t installed

well, that may lead the dust, moisture enter in or due to the outside force impact, it may cause fire or electric shock.

Installation of baffle

Please install it after installtion of connection pipe and drainage pipe according to Fig.7.

1.Loosen the screws and adjust the baffle position up and down to clamp connection pipe/drainage pipeas much as possible.

2.Tighten the screws.

Baffle

Screws

Hole

Fig.7

35

Notes for piping

Pipes for refrigerant and drainage pipeshould be insulated to avoid frostingand dripping.

1. Both of the indoor and outdoor unitsadopt flare-end connection.

Refrigerantpipe as shown below is used to connect indoor and outdoor units.(As shown in Fig.8)

Note:Don't bend the bendable pipe back and forth more than 3 times.

Insulate allexposed parts of the flare-end connectionjoint and refrigerant pipe. (As shown in Fig.9)

2.Check valve of the outdoor unit should be closed(in factory). Every time of connection,screw cap at check valve should be unscrewed and then connect it with flare-end pipe immediately (within 5 min).

Otherwise,dust, moisture and other impuritiesmay go into the pipe and cause malfunction.

Notes for bendable pipe:

1.The part with bendable pipe should be used inindoor side.

2.The bending angle should not be more than 90.

3. It's better for the bend to be in the middle of the pipeand the radius

of the bend is the bigger the better.

4. Don't bend the bendable pipe more than three times.

When bending the pipe

1. Cut some part of the insulation pipe at the place of the bend (and

wrap with polythene tape after bending).

2. Make radius of the bend as big as possible so that thepipe will not

get flat or broken.

3. Tighten the pipe bending by the rubber bender.

When using copper pipe bought locally

Check valve of the outdoor unit should be closed completely(in the factory). After connection of indoor and outdoor unitsvia connection pipe, discharge the air from service vent oflow-pressure check valve

of the outdoor unit. After that,screwdown the nuts to service vent.

Install the big handle.

After step 1 or 2 aboveCheck valve of the outdoor unit should be fully opened toensure smooth flow of connection pipe between indoor and outdoor units.

Note: Before fastening nut of the flare-end pipe, please apply some

refrigerant oil to the end of the pipe and the joint.

Indoor unit

Flare-end connection

Bendable pipe

Fig.8

Outdoor

unit

Polythene tape

Insulation cover

Fig.9

Bend the pipe with thumbs

Fig.10

Loosen the roll of pipe

Straighten end of pipe

Fig.11

36

Installation of connection pipe

1.Align the center of the piping flare with the pyramidal face of relevant valve.

2.Screw in the flare nut by hand and then tighten the nut with spanner and torque wrenc h refer to the following.

Indoor unit piping

Hex nut

Ф .

Ф19

Tightening torque (N.m)

50

̚

55

70 ̚ 75

Spanner

Taper nut Piping

Torque wrench

Fig.12

NOTE: Firstly connect the connection pipe to indoor unit, then to outdoor unit; pay attention to the piping bending, and do not damage the connection pipe; the joint nut couldn’t tighten too much, otherwise it may cause leakage.

37

,QVWDOODWLRQRI2XWGRRU8QLW

When using vacuum pump

1.Connect charging hose of to charge nozzle. (both cores of gas and liquid valves should be shut down tightly.)

2.Connect joint of charging hose to vacuum pump.

3.Fully open low-pressure valve(Lo) of manometer.

4.Make vacuum pump operate for 15 min above.Close lowpressure

5 valve(Lo) to stop vacuum pump after confirmation of -1.0X10 pa(-76cmHg ) at manometer .Then check if there is air in the pipe(keep for 2 min to se e if indicated needle of manometer returns).If there is ,re-operate the vacuum pump after restoration.

5.Remove charging hose from gas valve.

-76cmHg

Low-pressure valve (Lo) Open

Liquid valve

Gas valve

6.Fully open the cores of gas valve and liquid valve.

7.Tighten bonnet of gas valve and liquid valve and nut of charge nozzle.(As shown in Fig.15 )

Manometer

Fig.15

High-pressure valve (Hi) closed

Charging hose

Vacuum pump

Leakage detection

Coat soap water at the gap between connection pipes to see if there is any leakage.If there is air bubble at this position,it should leak.(As shown in Fig.16

Leakage detector,if possible,can be used.

Leakage detection spot of indoor unit

Leakage detection spot of outdoor unit

Fig.16

38

Wiring method

1. Remove the front side plate.

2. Put it through to the outdoor wire hole .

3. Please refer to the electric wiring connection of the indoor unit, then fix them with wire clamp.(As shown in Fig.17)

Terminal board

L1 L2 L3 N

BN BK VT BU YEGN

Intdoor unit terminal board

Rear side plate

Wiring hole

Fig.17

7HVW2SHUDWLRQDQG&KHFNDIWHU,QVWDOODWLRQ

Check after installation

I

I t s e m w s t o b e a t e r d c h e c k e d

H a s i t b e e n if x e d f i r m l y ?

Have you done the refrigerant leakage test?

I s h e a t i n s u l a r a i n it o n s u f f i c i e n t ?

a g e w e l l ?

P o s s i b l e m a l f u n c t i o n

T h e u n i t m a y d r o p , s h a k e o r e m i t n o i s e .

It may cause insufficient cooling(heating)capacity.

I t m a y c a u s e c o n d e n s a t i o n a n d d r i p p i n g .

I t m a y c a u s e c o n d e n s a t i o n a n d d r i p p i n g .

Is the voltage in accordance with the rated voltage marked on the nameplate?

It may cause electric malfunction or damage the part.

Is the electric wring and piping connectioninstalled correctly and securely?

It may cause electric malfunction or damaged the part.

Has the unit been connected to a secure earthconnection?

It may cause electrical leakage.

I s t h e p o w e r c o r d s p e c i f i e d ?

I t m a y c a u s e e l e c t r i c m a l f u n c t i o n o r d a m a g e t h e p a r t .

I s t h e i n l e t a n d o u t l e t b e e n c o v e r e d ?

Has the length of connection pipes and refrigerant capacity been recorded?

I t m a y c a u s e i n s u f f i c i e n t c o o l i n g ( h e a t i n g ) c a p a c i t y .

The refrigerant capacity is not accurate.

Test operation

1.Before test operation

(1)Do not switch on power before installation is finished completely.

(2)Electric wiring must be connected correctly and securely.

(3)Cut-off valves of the connection pipes should be opened.

(4)All the impurities such as scraps and thrums must be cleared from the unit.

2.Test operation method

39

([SORGHG9LHZVDQG3DUWV/LVW

,QGRRU8QLW

Model: MUCO-60-H4

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

19 20

37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

38

40

1R

'HVFULSWLRQ

3URGXFW&RGH

5HDU3ODWH$VV\

/HIW6LGH3ODWH6XE$VV\

5LJKW6LGH3ODWH6XE$VV\

7RS&RYHU6XE$VV\

%UHDNZDWHU6XE$VV\

(YDSRUDWRU$VV\

&DSLOODU\6XEDVV\

$PELHQW7HPSHUDWXUH6HQVRU

&UDQN

5HDU*ULOO

(OHFWULF+HDWHU

6WHS0RWRU

6WHS0RWRU

6ZLQJ/HYHU

*XLGH%ODGH/HYHU

'LVSOD\%RDUG

3URSHOOHU+RXVLQJ3UHVV3ODWH6XEDVV\

$LU*XDUG$VV\

/DWFK

$LU2XWOHW3DQHO$VV\

$LU,QWDNH3DQHO$VV\

)LOWHU6XE$VV\

(OHFWULF%R[&RYHU6XE$VV\

0DLQ%RDUG

&DSDFLWRU&%%

7HUPLQDO%RDUG

7UDQVIRUPHU

(OHFWULF%R[$VV\

3URWHFWLYH&RYHULQJ

'LYHUVLRQ&LUFOH

3URSHOOHU+RXVLQJ6XEDVV\

&HQWULIXJDO)DQ

)DQ0RWRU

&KDVVLV

:DWHU7UD\6XE$VV\

%DIÀH3ODWH

5HDU&RYHU

&RQQHFWLQJ&DEOH

&RQQHFWLQJ&DEOH

&RQQHFWLQJ&DEOH

&RQQHFWLQJ&DEOH

7KHGDWDDERYHDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFH

3DUW&RGH

MUCO-60-H4

UI20399

3

41

4W\

2XWGRRU8QLW

0RGHO MUCO-60-H4

42

29 28

1R

'HVFULSWLRQ

3URGXFW&RGH

)URQWJULOO

&DELQHW

$[LDO)ORZ)DQ

)DQ0RWRU

0RWRU6XSSRUW6XE$VV\

$PELHQW7HPSHUDWXUH6HQVRU

&RQGHQVHU$VV\

7RS&RYHU

5HDU*ULOO

$&&RQWDFWRU

&DSDFLWRU&%%

2YHU&XUUHQW3URWHFWRU

3KDVH5HYHUVH3URWHFWRU

7HUPLQDO%RDUG

7HUPLQDO%RDUG

7UDQVIRUPHU

(OHFWULF%R[$VV\

2XWGRRU7XEH6HQVRU

&DSLOODU\6XEDVV\

:D\9DOYH$VV\

*DVOLTXLG6HSDUDWRU$VV\

$LURXW7HPS6HQVRU

,QKDODWLRQ7XEH6XE$VV\

5HDU6LGH3ODWH6XE$VV\

+DQGOH

9DOYH6XSSRUW6XE$VV\

'UDLQDJH&RQQHFWHU

7HUPLQDO%RDUG

(OHFWULF+HDWHU&RPSUHVVRU

&RPSUHVVRUDQG¿WWLQJV

&KDVVLV6XEDVV\

0LG&ODSERDUG6XEDVV\

)URQW6LGH3ODWH

'UDLQDJH3OXJ

7KHGDWDDERYHDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFH

3DUW&RGH

MUCO-60-H4

UE20399

4W\

3

43

7URXEOHVKRRWLQJ

3UHFDXWLRQVEHIRUH3HUIRUPLQJ,QVSHFWLRQRU5HSDLU

Be cautious during installation and maintenance. Do operation following the regulations to avoid electric shock and casualty or even death due to drop from high attitude.

*

Static maintenance is the maintenance during de-energization of the air conditioner.

For static maintenance, make sure that the unit is de-energized and the plug is disconnected.

maintenance is the maintenance during energization of the unit.

Before dynamic maintenance, check the electricity and ensure that there is ground wire on the site. Check if there is electric ity on the housing and connection copper pipe of the air conditioner with voltage tester . After ensure insulation place and the safety , the maintenance can be performed.

Take sufficient care to avoid directly touching any of the circuit parts without first turning of f the power.

At times such as when the circuit board is to be replaced, place the circuit board assembly in a vertical position.

Normally,diagnose troubles according to the trouble diagnosis procedure as described below.(Refer to the check points in servicing written on the wiring diagrams attached to the indoor/outdoor units.)

NO. Troubles hooting procedure

1 Confirm ation

2 Judgement by Flas hing LED of Indoor/Outdoor Unit

3 How to Check sim piy the main part

Precautions when inspecting the control section of the outdoor unit :

A large-capacity electrolytic capacitor is used in the outdoor unit controller

(inverter).Therefore,if the power supply is turned off,charge(charging voltage DC380V )remains and discharging takes a lot of time..

After turning off the power source,if touching the charging section before discharging, an electrical shock may be caused.

Please open the outdoor unit after the unit is power off for 20min.

&RQ¿UPDWLRQ

(1)Confirmation of Power Supply

Confirm that the power breaker operates(ON) normally;

(2)Confirmation of Power Voltage

Confirm that power voltage is AC 380-415 ± 10%.

If power voltage is not in this range, the unit may not operate normally .

44

-XGJHPHQWE\)ODVKLQJ/('RI,QGRRU2XWGRRU8QLW

Display Method of Indoor Unit

No. Malfunction Name

Error

Code

Indicator lamp

(During blinking, ON for 0.5S

A/C Status and OFF for 0.5 S)

Operation COOL

Lamp Lamp

HEAT

Lamp

1

High pressure protection

E1

OFF 3S and blinks once

(inverter unit); the running indicator blinks

(non-inverter floor standing unit); As for other types of units, please refer to the detailed function requirement.

Possible Causes

1. The main board and the display panel are not connected well.

2. The OVC terminal on main board is not connected well with the high pressure switch on the complete unit.

3. The wiring of high pressure switch is loosened.

4. Refrigerant is superabundant;

5. Poor heat exchange (including

During cooling and drying operation, except radiating environment );

6. Ambient temperature is too high; (if indoor fan operates, all blocked heat exchanger and bad it is 3-phase unit, the high pressure loads stop operation.

During heating operation, if it is inverter overcurrent protection due to this reason) unit, the complete unit protection may be caused by

7. The supply voltage is abnormal (if stops; if it is floor it is 3-phase unit, the high pressure standing unit, the protection may be caused by complete unit stops and operation of remote controller or controller is reason)

8. The air intake and air discharge at unavailable. overcurrent protection due to this indoor / outdoor heat exchanger are not smooth. The air cycle is short circuited.

9. Filter and heat exchange fins of indoor/outdoor units are blocked.

10. The system pipeline is blocked.

11. The gas valve and liquid valve for outdoor unit are not completely opened.

12. The OVC input is at high level.

2 Freeze protection

E2

OFF 3S and blinks twice

(inverter unit); running indicator blinks

(non-inverter floor standing unit); As for other types of units, please refer to the detailed function requirement.

During cooling and drying operation, compressor and outdoor fan stop while indoor fan operates.

1. Poor air-return in indoor unit;

2. Abnormal fan speed;

3. Dirty evaporator;

4. System is normal, but the indoor tube temperature sensor is abnormal, or the tube temperature sensor is not connected well.

45

Low pressure compressor

High discharge of compressor

5 Overcurrent protection

E5

OFF 3S and blinks 5 times

(inverter unit); running indicator blinks

(non-inverter floor standing unit); As for other types of units, please refer to the detailed function requirement.

OFF 3S and blinks 3 times

(inverter unit); running indicator blinks

(non-inverter floor standing unit); As for other types of units, please refer to the detailed function requirement.

OFF 3S and blinks 4 times

(inverter unit

); running indicator blinks

(non-inverter floor standing unit); As for other types of units, please refer to the detailed function requirement.

The complete unit stops

During cooling and drying operation, compressor and outdoor fan stop while indoor fan operates.

During heating operation,all loads stop.

1. The main board and display panel are not connected well.

2. The LPP terminal on the main board is not connected well with the high pressure switch on the complete unit.

3. The wiring of the high pressure switch is loosened. High pressure switch is damaged or poorly contacted.

4. Insufficient or leaking out refrigerant.

5. The LPP input is at high level.

1. Abnormal system (e.g.: blockage, etc)

2. Abnormal rotation speed of outdoor motor (cooling )

3. Abnormal air intake (cooling)

4. System is normal, but the compressor discharge temperature sensor is abnormal or poorly contacted.

During cooling and drying operation, compressor and outdoor fan stop while indoor fan operates.

During heating operation, all loads stop.

1. Unstable supply voltage. Normal fluctuation shall be within 10% of the rated voltage on the nameplate.

2. Supply voltage is too low and load is too high.

3. Measure the current of live wire on main board. If the current isn’t higher than the overcurrent protection value, please check the controller.

4. The indoor and outdoor heat exchangers are too dirty, or the air inlet and air outlet are blocked.

5. The fan motor is not running.

Abnormal fan speed: fan speed is too low or the fan doesn’t run

6. The compressor is not running normally. There is abnormal sound, oil leakage or the temperature of the shell is too high, etc.

7. There’s blockage in the system

˄ filth blockage, ice plug, greasy blockage, Y-valve hasn’t been opened completely

˅

46

+RZWR&KHFN6LPSO\WKH0DLQ3DUW

+LJKSUHVVXUHSURWHFWLRQ(

Start

Are the display panel and main board connected tightly?

yes

Are the OVC terminal on the main board connected well with the high pressure switch on the complete unit?

yes no no

Is the wiring of high pressure switch loosened? Is the high pressure switch broken or poorly contacted?

no

Is the refrigerant superabundant?

no

Is there poor heat exchange? (Including filth blockage of heat exchanger and bad radiating environment ); no

Is the ambient temperature too high?(If it is a 3-phase unit, high pressure protection may be caused by overcurrent protection due to this) no

Is the supply voltage normal?

(If it is a 3-phase unit, high pressure protection may

be caused by overcurrent protection

due to this) yes

Are the air intake and air discharge at indoor / outdoor heat exchanger smooth?

yes

Is there filth blockage on the filter or on the

heat exchanger fins of indoor / outdoor unit?

yes yes yes no no no

Connect the display panel with the main board well no

Adjust the volume of refrigerant according to the requirement of the system no

Adjust the unit to improve the heat exchange of unit smooth no

Connect the OVC terminal on the main board with the high pressure switch on the complete unit well yes no

If the wire of high pressure switch is loosened, please connect the wires according to the circuit diagram.

If the high pressure switch is broken or poorly contacted, please replace it.

no

Decrease the ambient temperature no

The normal voltage is lower than 90% of the rated voltage on the nameplate no

Adjust the system to make the air inta ke and air discharge of indoor and outdoor heat exchangers no

Remove the blockage.

no no

Is there blockage inside the pipeline of the system no

Are the gas valve and liquid valve for outdoor unit opened completely?

yes no

Remove the blockage inside the pipeline of the system no

Open the outdoor gas valve and liquid valve completely yes no

Replace the controller

Malfunction is eliminated.

Malfunction is eliminated.

Malfunction is eliminated.

Malfunction is eliminated.

Malfunction is eliminated.

Malfunction is eliminated.

yes yes yes yes

Malfunction is eliminated.

yes

Malfunction is eliminated.

Malfunction is eliminated.

Malfunction is removed.

Malfunction is eliminated.

yes yes yes yes yes yes

End

47

)UHH]HSURWHFWLRQ(

Start

Is there poor air return in the indoor unit?

yes

Solve the problem of system.

no

Is the fan speed abnormal?

no no yes

Solve the problem of speed.

no

Is the evaporator dirty ?

yes

Clean the evaporator

Malfunction is eliminated .

Malfunction is eliminated .

yes yes

Problem is solved.

yes no

System is normal, but the indoor tube temperature sensor is abnormal.

yes

Replace the temperature sensor no

Replace the controller no

Problem is solved.

yes

End

48

/RZSUHVVXUHSURWHFWLRQRIFRPSUHVVRU(

“E3" is displayed on the unit.

Is the terminal of low pressure switch inserted well?

No

Re-insert it tightly to ensure reliable contact.

Yes

No

Is the malfunction eliminated?

Is the system pressure higher than the acting value of the low pressure

switch?

Yes Add refrigerant.

No

No

Is the malfunction eliminated?

Test when denergized:

is it a closed circuit between the two terminals led out from the switch?

No

Replace the low pressure switch.

Yes

No

Is the malfunction eliminated?

The controller is defined abnormal; replace it.

Yes

Yes

Yes

Yes

End

49

+LJKGLVFKDUJHWHPSHUDWXUHSURWHFWLRQRIFRPSUHVVRU(

Check the wiring and fan capacitor, replace the motor

Check the unit, make the air intake and outlet smooth.

50

2YHUFXUUHQWSURWHFWLRQ(

Start

Is the supply voltage unstable with big fluctuation?

no

Is the supply voltage too low with overload?

yes

Normal fluctuation is within 10% of the rated voltage on the nameplate no yes

Adjust the supply voltage to maintain it within normal range

Malfunction is eliminated.

yes

Malfunction is eliminated.

yes no no

Is the indoor / outdoor heat exchanger too dirty, or are the air inlet and outlet blocked?

no

Is the fan motor running abnormally; is the fan speed too low or does it fail to run?

no

Measure the current of live wire on the main board with a clamp ampere meter. Is the current higher than the value of the overcurrent

protection?

yes

Clean the indoor and outdoor heat exchangers and remove the blockage of air inlet and outlet no yes

Check the motor and reinstall the motor to have the fan run normally no no

Replace the controller yes

Is there blockage inside the system?

(Filth blockage, ice plug, greasy blockage, the Y-valve hasn’ t been opened completely) no yes

Flush the heat exchangers with high pressure nitrogen

Malfunction is eliminated.

Malfunction is eliminated.

yes

Malfunction is eliminated.

yes

Malfunction is eliminated.

yes yes no

Is the compressor running abnormally? Is there abnormal sound or oil leakage; is the temperature of the shell too high, etc.?

no

Replace the control panel yes no

Replace the compressor no

Malfunction is eliminated.

yes

End

51

Appendix 1: Resistance Table of Ambient Temperature Sensor for Indoor and Outdoor Units(15K)

Temp.

˄ć˅

Resistance

˄ kΩ

˅

Temp.

˄ć˅

Resistance

˄ kΩ

˅

Temp.

˄ć˅

Resistance

˄ kΩ

˅

Temp.

˄ć˅

Resistance kΩ

˅

38.15

36.32

34.58

32.94

31.38

29.9

28.51

27.18

57.18

54.31

51.59

49.02

46.6

44.31

42.14

40.09

25.92

24.73

23.6

22.53

21.51

20.54

19.63

87.35

82.75

78.43

74.35

70.5

66.88

63.46

60.23

138.1

128.6

121.6

115

108.7

102.9

97.4

92.22

48

49

50

51

44

45

46

47

40

41

42

43

36

37

38

39

56

57

58

52

53

54

55

32

33

34

35

28

29

30

31

24

25

26

27

20

21

22

23

9

10

11

12

7

8

5

6

3

4

1

2

-3

-2

-1

0

17

18

19

13

14

15

16

-7

-6

-5

-4

-11

-10

-9

-8

-15

-14

-13

-12

-19

-18

-17

-16

18.75

17.93

17.14

16.39

15.68

15

14.36

13.74

13.16

12.6

12.07

11.57

11.09

10.63

10.2

9.779

9.382

9.003

8.642

8.297

7.967

7.653

7.352

7.065

6.791

6.529

6.278

6.038

5.809

5.589

5.379

5.197

4.986

4.802

4.625

4.456

4.294

4.139

3.99

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

3.848

3.711

3.579

3.454

3.333

3.217

3.105

2.998

2.896

2.797

2.702

2.611

2.523

2.439

2.358

2.28

2.206

2.133

2.064

1.997

1.933

1.871

1.811

1.754

1.699

1.645

1.594

1.544

1.497

1.451

1.408

1.363

1.322

1.282

1.244

1.207

1.171

1.136

1.103

126

127

128

129

122

123

124

125

118

119

120

121

114

115

116

117

130

131

132

133

134

135

136

110

111

112

113

106

107

108

109

102

103

104

105

98

99

100

101

0.547

0.532

0.519

0.505

0.492

0.48

0.467

0.456

0.678

0.66

0.642

0.625

0.608

0.592

0.577

0.561

0.444

0.433

0.422

0.412

0.401

0.391

0.382

0.848

0.825

0.802

0.779

0.758

0.737

0.717

0.697

1.071

1.039

1.009

0.98

0.952

0.925

0.898

0.873

52

Appendix 2: Resistance Table of Outdoor and Indoor Tube Temperature Sensors(20K)

Temp.

˄ć˅ Resistance ˄ kΩ ˅ Temp.

˄ć˅ Resistance ˄ kΩ ˅ Temp.

˄ć˅ Resistance ˄ kΩ ˅ Temp.

˄ć˅ Resistance kΩ ˅

46.11

43.92

41.84

39.87

38.01

36.24

34.57

32.98

31.47

30.04

28.68

27.39

26.17

68.79

65.37

62.13

59.08

56.19

53.46

50.87

48.42

104.6

99.13

94

89.17

84.61

80.31

76.24

72.41

181.4

171.4

162.1

153.3

145

137.2

129.9

123

116.5

110.3

50

51

52

53

46

47

48

49

54

55

56

57

58

42

43

44

45

38

39

40

41

34

35

36

37

30

31

32

33

24

25

26

27

20

21

22

23

28

29

11

12

13

14

7

8

9

10

15

16

17

18

19

5

6

3

4

-1

0

1

2

-5

-4

-3

-2

-9

-8

-7

-6

-15

-14

-13

-12

-19

-18

-17

-16

-11

-10

25.01

23.9

22.85

21.85

20.9

20

19.14

18.13

17.55

16.8

16.1

15.43

14.79

14.18

13.59

13.04

12.51

12

11.52

11.06

10.62

10.2

9.803

9.42

9.054

8.705

8.37

8.051

7.745

7.453

7.173

6.905

6.648

6.403

6.167

5.942

5.726

5.519

5.32

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

5.13

4.948

4.773

4.605

4.443

4.289

4.14

3.998

3.861

3.729

3.603

3.481

3.364

3.252

3.144

3.04

2.94

2.844

2.752

2.663

2.577

2.495

2.415

2.339

2.265

2.194

2.125

2.059

1.996

1.934

1.875

1.818

1.736

1.71

1.658

1.609

1.561

1.515

1.47

128

129

130

131

124

125

126

127

132

133

134

135

136

120

121

122

123

116

117

118

119

112

113

114

115

108

109

110

111

102

103

104

105

98

99

100

101

106

107

0.692

0.674

0.658

0.64

0.623

0.607

0.592

0.577

0.563

0.549

0.535

0.521

0.509

0.856

0.833

0.811

0.77

0.769

0.746

0.729

0.71

1.069

1.039

1.01

0.983

0.956

0.93

0.904

0.88

1.427

1.386

1.346

1.307

1.269

1.233

1.198

1.164

1.131

1.099

53

Appendix 3: Resistance Table of Outdoor Discharge Temperature Sensor(50K)

Temp.

˄ć˅

220.5

209

198.3

199.1

178.5

169.5

161

153

145.4

138.3

131.5

342.8

323.9

306.2

289.6

274

259.3

245.6

232.6

125.1

119.1

113.4

108

102.8

Resistance

˄ kΩ

˅

853.5

799.8

750

703.8

660.8

620.8

580.6

548.9

516.6

486.5

458.3

432

407.4

384.5

362.9

1

2

3

4

-1

0

-5

-4

-3

-2

7

8

5

6

9

-9

-8

-7

-6

-13

-12

-11

-10

-17

-16

-15

-14

-21

-20

-19

-18

-25

-24

-23

-22

-29

-28

-27

-26

Temp.

˄ć˅

38

39

40

41

42

43

34

35

36

37

44

45

46

47

48

30

31

32

33

26

27

28

29

22

23

24

25

18

19

20

21

14

15

16

17

10

11

12

13

Resistance ˄ kΩ ˅ Temp.

˄ć˅ Resistance ˄ kΩ ˅ Temp.

˄ć˅ Resistance kΩ ˅

77

78

79

80

81

82

73

74

75

76

83

84

85

86

69

70

71

72

65

66

67

68

61

62

63

64

57

58

59

60

53

54

55

56

49

50

51

52

87

33.45

32.09

30.79

29.54

28.36

27.23

26.15

25.11

24.13

23.19

47.08

45.07

43.16

41.34

39.61

37.96

36.38

34.88

22.29

21.43

20.6

19.81

67.34

64.33

61.48

58.77

56.19

53.74

51.41

49.19

98

93.42

89.07

84.95

81.05

77.35

73.83

70.5

19.06

7.726

7.47

7.224

6.998

6.761

6.542

6.331

6.129

5.933

5.746

10.18

9.827

9.489

9.165

8.854

8.555

8.268

7.991

13.58

13.09

12.62

12.17

11.74

11.32

10.93

10.54

18.34

17.65

16.99

16.36

15.75

15.17

14.62

14.09

5.565

5.39

5.222

5.06

4.904

116

117

118

119

120

121

112

113

114

115

122

123

124

125

108

109

110

111

104

105

106

107

100

101

102

103

96

97

98

99

92

93

94

95

88

89

90

91

126

2.365

2.302

2.241

2.182

2.124

2.069

2.015

1.963

1.912

1.863

2.955

2.872

2.792

2.715

2.64

2.568

2.498

2.431

1.816

1.77

1.725

1.682

3.728

3.619

3.514

3.413

3.315

3.22

3.129

3.04

4.754

4.609

4.469

4.334

4.204

4.079

3.958

3.841

1.64

Note: The information above is for reference only.

54

5HPRYDO3URFHGXUH

5HPRYDO3URFHGXUHRI,QGRRU8QLW

:DUQLQJ%HVXUHWRZDLWIRUDPLQLPXPRIPLQXWHVDIWHU

WXUQLQJRIIDOOSRZHUVXSSOLHVEHIRUHGLVDVVHPEO\

Procedure Steps

Remove air-in panel

Remove screws fixing air-in panel and then remove air-in panel. screw air-in panel

Remove air-out panel

Remove retaining screws on the top and bottom of the air-out panel. Then remove air-out panel. air-out panel

55

Steps

Remove display panel and step motor

Remove retaining screws of controller box and the cover of controller box.

Then remove the display panel.

Remove screws fixing motor and then remove the step motor.

Procedure display panel step motor

Remove air guard

Remove retaining screws of air guard.

Then remove the air guard. air guard

56

Steps Procedure air guard

Remove controller box

Remove retaining screws of electric box cover and then remove the cover.

Unplug each wiring terminal and remove components which need to be removed. Remove retaining screws of electric box and then remove the electric box. electric box cover

57

Steps

Remove cover plate

Remove screws fixing cover plate and then remove the plate.

Procedure cover plate

Remove evaporator

Remove retaining screws of connecting boards respective on the top and the bottom of evaporator.

Then draw the side plate outwards to remove evaporator, splash plate and water tray. After removing evaporator, air guide and splash plate above evaporator can be removed. evaporator water tray splash plate

58

Steps

Remove propeller housing clamp

Procedure

Remove retaining screws of propeller housing clamp and then draw the clamp outwards to remove it. propeller housing clamp

Remove propeller housing

Remove retaining screws of propeller housing and then remove the propeller housing. propeller housing

59

Steps

Remove centrifugal fan blade

Remove nut fixing centrifugal fan blade and then remove the fan blade.

Procedure centrifugal fan blade

Remove motor

Remove wire clamp on rear plate and then unplug motor wire. Remove screws fixing motor and then remove motor. nut motor

60

Steps

Remove chassis

Remove screws fixing chassis and then remove the chassis.

Procedure chassis

Remove right and left side plates

Remove screws fixing right and left side plates and then remove the side plates.

left side plate right side plate

61

5HPRYDO3URFHGXUHRI2XWGRRU8QLW

:DUQLQJ%HVXUHWRZDLWIRUDPLQLPXPRIPLQXWHVDIWHU

WXUQLQJRIIDOOSRZHUVXSSOLHVEHIRUHGLVDVVHPEO\

Note: Electric heating band is not exemplified in the disassembly below.

Steps Procedure

1. Remove the rear grille

Remove the tapping screws connecting the back grille with the back-side plate, the front case and the chassis. Remove the back grille. rear grille screws screws

2. Remove the top cover

Remove the screws fixing the top cover.

Raise the top cover to remove it. top cover

3. Remove the front side plate

Remove the 3 tapping screws fixing the front side plate. Take the front side plate outward to remove it. front side plate

62

Steps

4. Remove the cabinet

Remove the connecting screws fixing the cabinet. Remove the cabinet.

Procedure

5. Remove right side plate sub-assembly

Remove the screws fixing the right side plate.

Remove the right side plate. cabinet right side plate

6. Remove electric box sub-assembly

Remove the screws fixing the electric box cover. Disconnect the wire terminals and remove the electric box. electric box sub-assembly

63

Steps

7. Remove axial flow blades

Remove the nut on the axial flow blades.

Remove the blades.

Procedure axial flow blades

8. Remove the motors

Remove the 4 screws fixing the motors.

Disconnect the leading wire inserts of the motors. Remove the motors. motors

9. Remove the motor support

Remove the screws connecting the motor support and the chassis. Raise the motor support to remove it. motor support

64

Steps

10. Remove the 4-way valve

(Only available for heat pump unit)

Remove the nut on the 4-way valve coil and then remove the coil. Wrap the 4-way valve with a wet cloth. Unsolder the 4-way valve quickly and remove it. Ensure that the cloth keeps wet and do not burn the compressor lead. (Recover the refrigerant before unsoldering)

Procedure

11. Remove the compressor

Unsolder the pipes connected to the compressor and liquid tank. Remove the 4 foot bolts of the compressor. Raise the liquid tank and compressor to remove them. liquid tank

4-way valve compressor

65

Steps

12. Remove the valve

Remove the 2 bolts fixing the gas valve.

Unsolder the welding joint between the gas valve and the return air pipe. Remove the gas valve. Remove the 2 bolts fixing the liquid valve. Unsolder the welding joint between the liquid valve and the Y-type connecting pipe. Remove the liquid valve.

(Note: During unsoldering, wrap the gas valve with a wet cloth to avoid damage to the valve caused by high temperature.)

Procedure

13. Remove the mid. isolation sheet

Remove the screws connecting the isolation sheet with the right side plate of condenser and the chassis. Remove the mid. isolation sheet. mid. isolation sheet valve

66

Steps

14. Remove condenser subassembly

Remove the screws connecting the condenser and the chassis. Raise the condenser subassembly to remove it.

Procedure condenser subassembly

15. Remove valve support subassembly

Remove the screw connecting the valve support and the chassis. Remove the valve support subassembly.

valve support subassembly

67

ASK FOR MORE INFORMATION:

Phone: 93 446 27 80 - Fax: 93 456 90 32 eMail: [email protected]a.com

TECHNICAL ASSISTANCE:

Phone: 93 652 53 57 - Fax: 93 635 45 08

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
