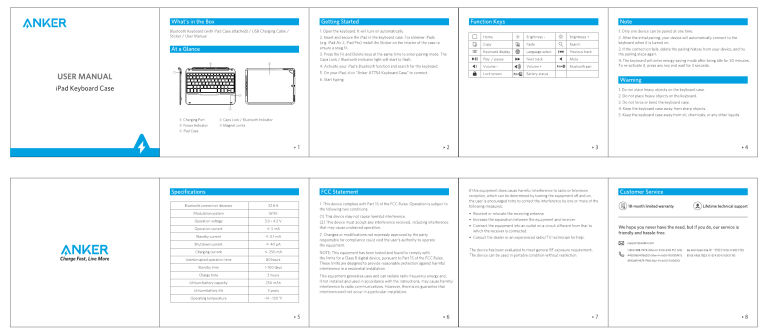

Anker Bluetooth Folio Keyboard Case User manual

Anker Bluetooth Folio Keyboard Case User manual
iPad Keyboard Case
What's in the Box
Bluetooth Keyboard (with iPad Case attached) / USB Charging Cable /
Sticker / User Manual
At a Glance
Charging Port (2 Caps Lock / Bluetooth Indicator
3 Power Indicator 4 Magnet Joints
5 iPad Case
Getting Started
1. Open the keyboard. It will turn on automatically.
2. Insert and secure the iPad in the keyboard case. For slimmer iPads
(e.g. iPad Air 2, iPad Pro) install the Sticker on the interior of the case to
ensure a snug fit.
3. Press the Fn and Delete keys at the same time to enter pairing mode. The
Caps Lock / Bluetooth Indicator light will start to flash.
4. Activate your iPad’s Bluetooth function and search for the keyboard.
5. On your iPad, click “Anker A7754 Keyboard Case” to connect.
6. Start typing.
> 2
Function Keys
(J | Home -0- | Brightness - О: Brightness +
Copy (& | Paste Q | Search
Keyboard display ® Language select | I44 | Previous track
II | Play / pause »» | Next track | Mute
{) | Volume - 4) Volume + Fn+Q | Bluetooth pair
e Lock screen Еп+ | Battery status
> 3
1. Only one device can be paired at one time.
2. After the initial pairing, your device will automatically connect to the
keyboard when it is turned on.
3. If the connection fails. delete the pairing history from your device, and try
the pairing steps again.
4. The keyboard will enter energy saving mode after being idle for 30 minutes.
To re-activate it, press any key and wait for 3 seconds.
1. Do not place heavy objects on the keyboard case.
2. Do not place heavy objects on the keyboard.
3. Do not force or bend the keyboard case.
4. Keep the keyboard case away from sharp objects.
5. Keep the keyboard case away from oil, chemicals, or any other liquids.
Charge Fast, Live More
Bluetooth connection distance 32.8 ft
Modulation system GFSK
Operation voltage 3.0-42V
Operation current < 5mA
Standby current < 0.1mA
Shutdown current < 40 UA
Charging current < 250 mA
Uninterrupted operation time 80 hours
Standby time > 100 days
Charge time 2 hours
Lithium battery capacity 250 mAh
Lithium battery life 3 years
Operating temperature -14 - 130 °F
› 5
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interferencewill not occur in a particular installation.
> 6
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged totry to correct the interference by one or more of the
following measures:
e Reorient or relocate the receiving antenna.
e Increase the separation between the equipment and receiver.
e Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
* Consult the dealer or an experienced radio/ TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable condition without restriction.
› /
Customer Service
18-month limited warranty
® Lifetime technical support
We hope you never have the need, but if you do, our service is
friendly and hassle-free.
DY [email protected]
1-800-988-7973 | Mon-Fri 9:00-5:00 PST (US) 86 400 0550 036 JA—Z ET. 9:00-17:30( FE)
44(0)1604 936200 Mon-Fri 6:00-11:00(GMT) 81034455 7823 H-£ 9:00-17:00( HZ)
49(0)69 9579 7960 Mon-Fri 6:00-11:00(DE)
