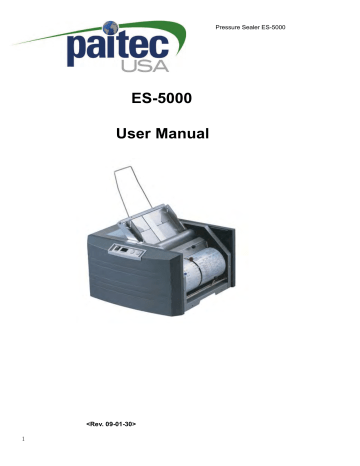

Pressure Sealer ES-5000

ES-5000

User

Manual

1

<Rev. 09-01-30>

Pressure Sealer ES-5000

Table of Contents

1.

Introduction

2.

Installation

3.

Features

1) Specifications

2) General views

4.

How to Operate

1) Form Preparation

2) Loading forms

3) Start

4) Fold Setting

5) Operator Panel

6) Manual Feed

5.

Maintenance

1) General Cleaning

2) Paper Dust

3) Cleaning Pickup and Fold Rollers

4) Cleaning Press Rollers

6.

Trouble Shooting

1) Paper Jam

2) Double Feed

3) Mis-Feed

4) Skewed Fold

2

Pressure Sealer ES-5000

1.

Introduction

3

ES-5000 produces folded and sealed mailable documents with cut-sheet Pressure Seal forms. Pressure activated adhesive applied forms provide and instantly secure seal on all sides of the form, whether use a

C

,

V

,

Z

or

Double

fold.

Names of each part

2.

Pressure Sealer ES-5000

2.

Installation

Locate the box right next to the location where the machine will be set up and operate.

Open Box, Remove the Operators Guide and set aside. Grasp the two Shipping Straps and remove the unit from the box.

Remove all packing materials from around the unit and place the folder on a sturdy surface.

Open Infeeder Chute and Pull out Paper Stopper

4

Set up fold drum and run at least 50 documents through the machine. Show customer how to run the machine.

Pressure Sealer ES-5000

1) Features

1) Specifications

Processing Speed 4,200 forms per hour

2)

Automatic jam recovery system

No adjustment required for varying paper thickness

Fold plate setting can be changed in seconds

Manual feeder for single form processing

Folding unit slides out for easy access and maintenance

Digital reset counter

Exceptionally quiet

approximately 45db

Infeeder capacity-150(24#), 120(28#)

Form Size: Letter, Legal(14

Z-fold available option)

Z,C,V & double fold

Paper Weights: 16 lb to 28 lb

Counter: reset counter

Jam Removal: folder unit slides out and opens

Size: 17.3 x 16.5 x 19 inches (L x W x H)

Weight: 80 lbs

Power: 120V/60Hz

General Views

2.1) Folding Drum

2 nd

Fold position Setting Lever

2.2) Feeding Unit

5

Movable Paper Guide Rollers

Spring-loaded Feed Table

1 st

Fold position Setting Lever

Feed Roller

Fold Position Lock Lever

Fold Type/Setting Chart

Folding Drum Release Handle

Slide these Tab up or down to decrease or increase Feed Table spring lift tension to Aid in feeding documents. Factory Preset Value is right in the middle as shown above

6

Pressure Sealer ES-5000

2.3) Exit Tray

Stopper for Exit Tray

2.4) Label & Fuse

AC Socket

5 Amp 250V Mini Fuse in a 1/4

Turn Fuse Holder

Manufacturer

’ s Label with

Serial No.

2.5) How to Open the Fold Unit (Please follow the pictures below in order)

Folding Unit Pulls out by grasping the hand hold and pull out

7

Pressure Sealer ES-5000

2.6) How to open the Fold Drum (Please follow the pictures below in order)

Folding Drum handle in the Unlock(down) position

Folding Drum in the partially open position

Folding Drum in the open position.

Access the Folding Drum for clearing jams

Pressure Sealer ES-5000

3.

How to operate

1) Form preparation

Forms must be fanned properly on both sides to separate and eliminate any static that may have been induced by the laser printer

2) Loading forms

Place the paper in the Paper tray in the correct orientation as indicated in the chart below. The Paper tray can hold up to about 120 sheets of pressure forms. To correctly place your forms in the Paper tray, jog the forms so the stack is neat, push the Paper tray back so the forms will rest on the solid plate and behind the feed roller. The Paper tray is spring-loaded to apply the correct amount of pressure for proper feeding.

It is always a good idea to fold one form to verify that the fold settings are OK and have not been changed. Adjust if necessary and then proceed to load your forms in the Paper tray.

Form Load tray in Paper Forms will deliver

Z-Fold

Z-Fold

Address leading,

Face Up

Address Trailing,

Face Down

Address side will be face up and document sequence will be reversed from the sequence in the Paper tray

Address side will be face down and document sequence will be reversed from the sequence in the Paper tray

C-Fold Address Trailing,

Face Down

V-Fold Address Trailing,

Face Down

Address side will be face up and document sequence will be the same as the sequence in the Paper tray

Address side will be face down and document sequence will be the same as the sequence in the Paper tray

3) Start (Press Start button to fold & seal)

3.1

) If the output is acceptable, Run the job

3.2

) If the folded position is not correct, reset the fold position by readjusting the fold guide.(Please use plain paper for a test run in order to find out more accurate the fold position and compare the folded position with the perforation line on the forms)

8

Pressure Sealer ES-5000

4) Fold Setting

4.1) Standard Folding Drum

9

4.1.1) Unlock the green release lever to set the fold positio n

4.1.2) Move the red arrow, First fold on the red knob to the fold position required according to the manual on the fold drum

4.1.3) Move blue arrow, Second fold according to the manual on the fold drum

4.1.4)

Once the f old position properly is done, lock back the green release lever

(Red knob is the first fold setting, Blue know is the second fold setting)

Ex 1) “Z” fold with

8 1/2" x 11"

Red knob

1

86 ”

(First fold 1 86 mm), blue knob

9

3 ”

(Second fold 9 3 mm)

Ex 2) “C” fold with Letter

Red knob

92

(First fold 92mm), blue knob

94

(Second fold 94mm)

Ex 3) “V” fold with

8 1/2" x 11"

Red knob

1

40 ”

(First fold 140 mm), blue knob

0

(Fully down, No Second fold)

Note: Please note that although we suggest that you follow the fold setting according to the manual, however the scale on the drum is NOT

100% accurate

Pressure Sealer ES-5000

5) Operator Panel

5.1) Power Switch: Power On/Off

5.2) Reset: Reset button will clear

the display count

5.3) Start/Stop: Start/Stop button

will start or stop the Feed cycle

5.4) Counter: Display will show the total page count/resettable as well as Firmware Rev. Level at

Start-up, Fold unit open and

Jam condition, please see the pictures as below for the details

10

6) Manual Feed

6.1) Fold the form manually and insert the form to the manual feeder

6.2) Press Start button to run the machine

Note: This is ideal for the poorly sealed forms owing to evaporation of the glue

Pressure Sealer ES-5000

5.

Maintenance

1) General Cleaning

Be sure that the room is well ventilated, Switch off the mains power and unplug or disconnect from the mains, Pull out the fold drum and the fold unit, Remove as much paper dust as possible using a soft brush

2) Paper Dust

With general use, paper dust will build up inside the machine and can be cleared by suing an can of invertible Air Duster, which will apply a short burst of compressed air and clear any paper dust that may be present.

3) Cleaning Pick up and Fold rollers

Clean the pickup roller, aluminum and rubber roller in the Fold unit with roller cleaning fluid such as an alcohol solution.

11

Pickup roller in Gray color Aluminum & Rubber rollers

Caution:

Please do not use any gasolinic oils since it may damage the surface of the rubber rollers!

Avoid breathing the fumes or getting the solution in an open wound or other sensitive areas such as the eyes or mouth!

12

Pressure Sealer ES-5000

4) Cleaning Press Rollers

With general use, toner will build up on the Press rollers. Check the rollers for build up and clean on a regular basis with roller cleaning fluid. Depending on the type of laser printer, toner and fuser, the degree of build up will vary.

Clean both Upper & Lower Press

Pressure Sealer ES-5000

6.

Trouble Shooting

1) Paper Jam

1.1) Feeding Unit Jam

Do not pull the document backward in the event of jam in the Infeeder.

Open the Fold Drum Unit by pushing down the Fold Drum handle as the direction of the red arrow in the picture on the right

Pull the paper to the direction of the red arrow as shown in the picture on the right

1.2) Folding Unit Jam

Open the Fold Drum Unit by pushing down the Fold Drum handle as shown in the direction of the red arrow in the picture on the right

Remove the document from the Folding

Drum as shown in the picture on the right

13

14

Pressure Sealer ES-5000

1.3) Press Unit Jam

Fully extend the Folding Unit to the direction of the red arrow in the picture on the right

Use the Jam Removal Tool to rotate the rollers by placing the tool into the jam

Removal holes as shown in the picture on the right

Turn it downward. Remove the jam as shown in the picture on the right

Tips: Correct any mis-folds and run the form through the manual feed (please refer to Chapter 4-6 for the details of the manual feed)

1.4) Out Feed Jam

In the event of jam in the Out-feed, the display blinks

Push down the lower plate (with the rollers) and remove the jam as shown in the picture on the right.

Pressure Sealer ES-5000

2) Double Feed

2.1) Clean the Pickup rollers and pad with an alcoholic solution(In case the problem persists, then go to 2.2)

2.2) Slide In-feed tray tension adjusters upwards (Manufacturer

’ s default position: middle). Both tension adjusters must be in the same position as shown in the picture on the right(In case the problem persists, then go to 2.3)

2.3) Replace in-feed roller and or Separator(Pad Base)

3) Mis-Feed

3.1) Clean In-feed roller and pad with an alcoholic solution(In case the problem persists, then go to 3.2)

3.2) Move the In-feed tray tension adjusters downwards until miss-feeding is resolved as shown in the picture on the right(in case of no improvement, then go to 3.3)

3.3) Replace in-feed roller and/or Separator

(Pad Base)

4) Skewed Fold

4.1) Clean the In-feed roller and pad with an alcoholic solution

4.2) Check to make sure the side guides are not bent in any ways

4.3) Insure that there shouldn

’ t be too much gap between paper and the side guides as shown in the picture below

15

4.4) On adjustment screws are set correctly

4.5) Insure that the side guides are right up against the edge of the form but not compressing the form

4.6) Look for foreign materials in the folding drum assembly

16

Pressure Sealer ES-5000

4.7) Clean the fold rollers with an alcoholic solution

4.8) Examine and replace any folding roller with imperfections such as flat spots or swelling

4.9) Replace or exchange from side to side the folding roller compression springs

Division of Pai Trading, Inc.

Headquaters & Factory

15951 SW 41st Street. Suite 400

Davie, FL 33331

Email: [email protected] www.paitec.com
