Duncan Enviro 3000e MK1 User manual

Duncan Enviro 3000e MK1 User manual

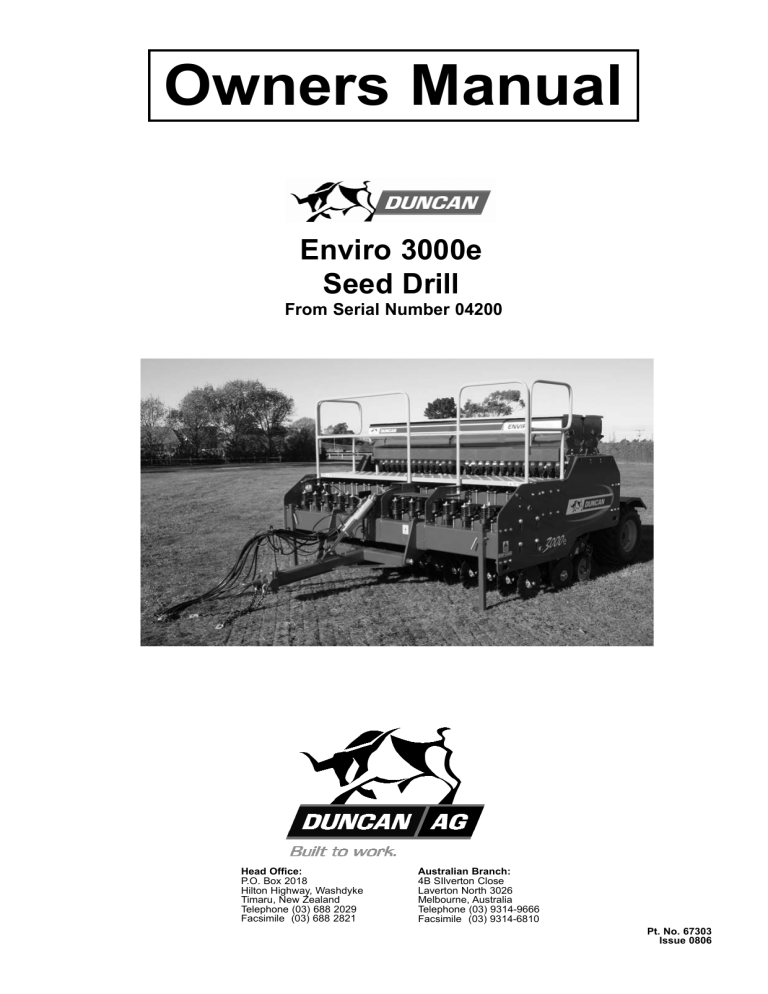

Owners Manual
Enviro 3000e
Seed Drill
From Serial Number 04200
Head Office:
P.O. Box 2018
Hilton Highway, Washdyke
Timaru, New Zealand
Telephone (03) 688 2029
Facsimile (03) 688 2821
Australian Branch:
4B SIlverton Close
Laverton North 3026
Melbourne, Australia
Telephone (03) 9314-9666
Facsimile (03) 9314-6810
Pt. No. 67303
Issue 0806
Enviro 3000e Seed Drill
Introduction
Acquisition & Warranty
Disclaimer
Description of Machine
Specification
SAFETY - General
SAFETY - Machine Specific
Transport
Operation
Contents
......................................
Page
2
......................................
2
......................................
2
Working Principle . . . . . . . . . . . . . . . . . . . . . . .
3
......................................
3
Safety Symbols on Machine . . . . . . . . . . . . . . 4
Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . 5
Be Prepared for Emergencies . . . . . . . . . . . . . 5
Appropriate Dress . . . . . . . . . . . . . . . . . . . . . . 6
Transport This Machine Safely . . . . . . . . . . . . 6
Handle Agricultural Chemicals Safely . . . . . . . 7
Avoid High Pressure Fluids . . . . . . . . . . . . . . . 7
Safe Work Practices . . . . . . . . . . . . . . . . . . . . 7
Practise Safe Maintenance . . . . . . . . . . . . . . . 8
Hazard Points on Enviro 3000e . . . . . . . . . . . . 9
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sowing Chart
...............................
13
13
13
13
14
14
14
14
15
15
15
15
16
Basic Calibration Procedure
Setting Seeder Shutter Slides . . . . . . . . . . . . .
Bottom Flap Setting . . . . . . . . . . . . . . . . . . . . .
Seed Calibration . . . . . . . . . . . . . . . . . . . . . . .
Calibration Deviations . . . . . . . . . . . . . . . . . . .
Sowing Fine Seeds . . . . . . . . . . . . . . . . . . . . .
Sowing Small Seeds . . . . . . . . . . . . . . . . . . . .
Sowing Peas . . . . . . . . . . . . . . . . . . . . . . . . . .
Calibration Notes . . . . . . . . . . . . . . . . . . . . . . .
17
17
18
19
20
21
21
22
Maintenance & Care
General Safety & Accident Prevention Advice
General Cautionary Maintenance Advice . . . .
Lubrication Chart . . . . . . . . . . . . . . . . . . . . . . .
Maintenance Schedule . . . . . . . . . . . . . . . . . .
Maintenance Instructions & Hints . . . . . . . . . .
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance Service Record . . . . . . . . . . . . .
Maintenance Notes . . . . . . . . . . . . . . . . . . . . .
24
24
25
25
27
28
29
30
Parts Lists
Electric Drive Operating Manual
General Operation Guidelines . . . . . . . . . . . . .
Sowing Speed . . . . . . . . . . . . . . . . . . . . . . . . .
Front Coulter & Dragbar Loading . . . . . . . . . .
Magnetic Cut-out Sensor . . . . . . . . . . . . . . . . .
Transport Position . . . . . . . . . . . . . . . . . . . . . .
Coulter Penetration Depth . . . . . . . . . . . . . . . .
Double Disc Sowing Depth . . . . . . . . . . . . . . .
Press Wheel Adjustment . . . . . . . . . . . . . . . . .
Double Disc Scrapers . . . . . . . . . . . . . . . . . . .
Press Wheel Scrapers . . . . . . . . . . . . . . . . . . .
Level Drill . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric Drive . . . . . . . . . . . . . . . . . . . . . . . . . .
Separate Document
Separate Document
Introduction
Acquisition & Warranty
On delivery of your new Duncan Enviro 3000e Seed Drill
please check that the machine is not damaged. In cases of
shipping damage, please ask your dealer to arrange for the
appropriate claim to be lodged immediately. Assemble any
parts supplied loose and inspect your machine with the aid of
this manual to familiarise yourself with its features. If you have
any queries ask your dealer straight away. The machine is
covered by our 12 month warranty on faulty parts, subject to
normal use.
Record below the serial number of your machine and keep
it in a secure place to help trace the machine and assist
us when you order parts.
Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Owner: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.............................................
.............................................
Delivery Date: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.............................................
.............................................
The Owner’s Manual
Your new Duncan Enviro 3000e Seed Drill will give long and
efficient service if given normal care and operated properly.
This owner’s manual is provided so that you can become
thoroughly familiar with the design of the machine and to
furnish information on correct operation, adjustment and
maintenance. Only persons well acquainted with these
guidelines should be allowed to use the equipment.
A separate illustrated parts section has been provided so that if
any parts are required your dealer will be able to supply them
by reference to part numbers.
The manual is considered as part of your machine and must
remain with the machine when it is sold.
Right and left hand references in this manual are determined
by standing behind the machine and facing in the direction
of travel.
2
Disclaimer
Every effort has been made to
ensure that the information in this
manual was accurate and up to
date at the time of going to press.
Clough Agriculture Ltd reserves the
right to make subsequent changes
to the machine, where necessary,
without notification.
The Company will not be
responsible for any damage or
consequential loss arising out of
misinterpretation or failure to follow
recommended procedures. Nor will
it be liable for any damage caused
by or arising out of modification or
misuse of its product.
The owner has a responsibility to
protect himself and others by
observing all safety information
and by ensuring all operators are
well acquainted with the safety
information, trained in the correct
use of the machine and applying
safe work practices.
Description of Machine
The Duncan Enviro 3000e is a triple disc
direct drill. It has as standard two boxes for
either seed combinations or traditional seed
fertiliser mixes, with the option of one or two
extra small seed boxes. The boxes are
mounted on a heavy duty frame
accommodating large rear mounted wheels
which are hydraulically operated, allowing
adjustable sowing pressure and good
transport clearance. Both opening discs and
double discs are independently sprung,
giving good contour following ability. Sowing
depth is controlled by adjustable rubber
tyred depth wheels. The quality European type peg roller
seeder system handles all seeds from turnip and rape through
to peas and maize. The seeder drive is electric via a reduction
gearbox to the seeder shaft. Ground speed is sensed via
ground radar with seed rates controlled proportionally to
ground speed. Seeding ceases automatically when the
machine is raised into the transport position.
Working Principle
The seed box slides, seeder flaps and seeding rate are set to
give the required seed delivery. The front disc precuts the
ground surface, followed by the double disc which creates the
seed bed. Seed/fertiliser is metered down the flexible
convolute tubes from the boxes to the double disc unit and fed
into the prepared seed bed. A suitably profiled depth wheel
maintains the double discs at a predetermined depth, closing
and compacting the soil over the deposited seed.
Fig 1
Specification
Dimensions & Capacities
19 Run
Width overall (mm)
Length overall max. (mm)
Height transport max. (mm)
Weight (unladen)*
Tyre size
Maximum speed
Tyre pressure
Row spacing (mm)
Sowing width (mm)
Box capacity per box (litres)
23 Run
27 Run
3225
3225
3225
4680
4680
4680
2650
2650
2650
4320kg
4760kg
5200kg
400/60-15.5 400/60-15.5 400/60-15.5
40 kph
40 kph
40 kph
4.5bar(65psi) 4.5bar(65psi) 4.5bar(65psi)
163
135
115
3097
3105
3105
475 litres
475 litres
475 litres
* Weights are approximate only
Table 1
Pt. No. 67303
Issue 0806
3
!
ATTENTION
On the machine important safety information is indicated by these symbols.
These highlight general safety aspects in regard to the machine rather than specific hazards.
Do not ride or allow passengers on the machine.
Under no circumstances are passengers to be permitted
on the machine while it is in operation or being transported.
Any footboards and/or footsteps are provided solely for the
purpose of preparing the machine for use.
Keep clothing and body extremities well clear of pinch
points while the machine is operating (seeding or
calibrating). Keep well clear of moving parts at all times.
These signs typically occur wherever trapping points exist.
These include drive chains, sprockets, shafts, wheels, discs,
pivot points, etc. Guards are provided with the machine for
safety reasons (where practical without compromising
machine performance). Ensure these are always fitted during
operation.
Always exercise extreme caution in the vicinity of sharp
edges and points.
Where possible guards are provided with the machine for
safety reasons (where practical without compromising
machine performance). Ensure these are always fitted during
operation.
Footboards, footsteps, drawbars and other machine
surfaces may be slippery when wet.
Apply extra caution in wet conditions and in the early morning
when surfaces are wet.
Keep Clear. (It is dangerous to be in this area when the
machine is operating.)
4
SAFETY - General
N.B. Throughout this
manual important safety
information is indicated
by these symbols in the
margin:
A prohibition should
be observed under all
circumstances.
A warning indicates a
hazard that could
cause death or injury if
the warning is ignored.
A caution indicates a
hazard that may cause
damage to property if
the caution is ignored.
This section of the manual offers general guidelines
for the safe operation of machinery. It does not replace
local safety regulations. These guidelines were current at
the time of publication, but may be superseded by later
regulations.
Clough Agriculture has made every effort to highlight all
risks to personnel or property. Owners and operators have
a responsibility to exercise care and safe work practices at
all times in the vicinity of the machine.
Owners are advised to keep up to date on safety issues
and to communicate these to all users of the machine.
Contact the Occupational Safety and Health Service
(OSH) for further information about general safety aspects.
If you have safety concerns specifically related to this
machine, contact your dealer immediately.
Operator Safety
Read this manual carefully before operating new
equipment. Learn how to use this machine safely.
Be thoroughly familiar with the controls and the proper use
of the equipment before using it.
Take careful note of all safety instructions both in this
manual and on the machine itself. Failure to comply with
instructions could result in personal injury and/or damage
to the machine.
Replace missing or damaged safety signs on the machine
and ensure that these remain clearly visible.
It is the owner’s responsibility to ensure that anyone
who operates, adjusts, lubricates, maintains, cleans or
uses the machine in any way has had suitable
instruction and is familiar with the information in this
manual (particularly with regard to safety aspects).
Operators and other users of the machine should be
aware of potential hazards and operating limitations.
Be Prepared for Emergencies
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctors, ambulance,
hospital and fire department near your telephone.
Pt. No. 67303
Issue 0806
5
SAFETY - General (continued)
Appropriate Dress
Wear close fitting clothing and avoid rings or other forms of
jewellery which could become caught in the machinery.
People with long hair must have it securely fixed and confined
close to the head.
Refer to local safety standards for protective clothing and
recommended safety equipment.
Transport This Machine Safely
Ensure that all linkage pins and security clips are fitted correctly.
With trailing machines tow with the drawbar only, as this is the
only safe towing point on the machine.
Always check that bystanders (especially children) are well clear
(front and rear) before starting and moving the tractor and the
machine.
Plan safe routes of travel, and be aware of power lines and
other roadside hazards. Take particular care when towing
implements on hillsides.
Do not ride or allow passengers on the machine.
This machine is not designed to carry passengers, and no riders
are permitted.
Road transport
On public roads,
• A speed of 40 km/h must not be exceeded.
• Do not operate during the hours of darkness unless standard
lights are fitted and clearly visible. (This also applies when
visibility is limited, e.g., in foggy conditions.)
See the guidelines in the Vehicle Dimensions and Mass Rule,
issued by the Land & Transport Safety Authority.
Avoid tip-overs
Avoid holes, ditches and obstructions which may cause the
machine to tip over, especially on hillsides. Never drive near the
edge of a gully or steep embankment - it might cave in. Slow
down for hillsides, rough ground and sharp turns.
6
SAFETY - General (Continued)
Handle Agricultural Chemicals Safely
All farm chemicals should be stored, used, handled and
disposed of safely and in accordance with the
supplier’s/manufacturer’s recommendations.
Read the product label before using, noting any warnings
or special cautions, including any protective clothing or
equipment that may be required, ie. respirtor.
Do not eat or smoke while handling sprays, fertilisers, coated
seeds, etc. Afterwards, always wash your hands and face
before you eat, drink, smoke, or use the toilet.
Store sprays, fertilisers, coated seeds, etc. out of reach of
children and pets, and away from food and animal feeds.
Any symptoms of illness during or after using chemicals should
be treated according to the supplier’s/manufacturer’s
recommendations. If severe, call a physician or get the
patient to hospital immediately. Keep the container and/or
label for reference.
Avoid High Pressure Fluids
Avoid any contact with fluids leaking under pressure, because
the fluids can penetrate the skin surface.
Any fluid which penetrates the skin, will need to be removed
immediately by a medical expert. Seek specialist advice on
this type of injury.
Relieve the pressure before disconnecting any hydraulic or
other lines. Make all repairs and tighten all fittings before
re-connection to pressurised fluid.
Keep your hands and body away from any pinholes or high
pressure jets. Search for leaks with a piece of cardboard
instead of using your hand directly.
Safe Work Practices
All farm machinery is potentially dangerous and should be
treated with caution and respect.
Before starting the machine, ensure that all controls are placed
in neutral and that bystanders are well clear. Check that the
guards have been securely fitted and that any adjustments
have been made correctly.
Where possible, disconnect or isolate the drive mechanism to the
implement. Lower the machine onto the ground when not in use.
7
Pt. No. 67303
Issue 1005
SAFETY - General (continued)
Practise Safe Maintenance
Keep the machine in safe working condition. Routine
maintenance and regular servicing will help reduce risks and
prolong the life of the machine.
General Maintenance
Accidents occur most frequently during servicing and repair.
The following general rules must be followed when maintaining
or working with machinery:
All operating and maintenance manuals must be read
before and referred to while using or servicing any piece of
equipment.
Turn off all machinery power sources and isolate the
machine before making adjustments, doing lubrication,
repairs or any other maintenance on the machine.
Ensure that the machine hydraulics are disconnected from
the power source.
Wear gloves when handling components with cutting
edges, such as any ground cutting components.
Beware of hazards created by springs under tension or
compression when dismantling or maintaining the
machine.
It is recommended that you clean the machine with a water
blaster or similar apparatus before commencing
maintenance.
Make Sure the Machine is Well Supported
When machinery is fitted with hydraulics, do not rely on the
hydraulics to support the machine. During maintenance or while
making adjustments under the machine, always lock the
hydraulics and support the machine securely. Place blocks or
other stable supports under elevated parts before working on
these.
Electrical Maintenance
Disconnect the electrical supply from the tractor before doing
any electrical maintenance.
Welding
With electronic equipment in modern tractors and on
machinery it is advisable to disconnect the machine from the
tractor or at least disconnect the alternator and battery before
attempting any welding.
Use Only Genuine Spare Parts
Unauthorised modifications or non-genuine spare parts may be
hazardous and impair the safe operation and working life of the
machine.
Excess lubricants must be disposed of safely so as not to
become a hazard.
8
SAFETY - Machine Specific
This section of the manual gives specific guidelines for
the safe operation of the Duncan Enviro 3000e.
These guidelines were current at the time of publication, but
may be superseded by later circumstances. They do not
necessarily cover every possible hazard and must be read in
conjunction with the SAFETY - General section (Pages 4 - 8).
Hazard Points on the Enviro 3000e
The lists below are not all-inclusive and serve only to highlight
the more obvious areas of risk.
The decals attached to the machine are a general reminder
that there are hazardous areas on the machine, rather than
specifically highlighting all possible hazards.
For safety decal locations on the machine, refer Page 11.
No Ride
Passengers are not permitted anywhere on the machine.
Pinch Points/Moving Parts
Hazardous areas include:
Agitator drive units (LH side).
Agitator shaft inside the boxes.
Seeder units, box shaft and shaft connectors.
Adjacent dragbars and coulter arms.
Between double discs and other sub-assembly parts.
Wheel legs.
Springs - front coulter, double disc and press wheel.
Press wheel assemblies.
Slippery When Wet
Hazardous areas include:
Footboards and footstep.
All smooth surfaces on the frame structure.
Keep Clear
Hazardous areas include:
Between the tractor and the Duncan Enviro 3000e.
Immediately beside the Duncan Enviro 3000e.
Behind the Duncan Enviro 3000e.
Pt. No. 67303
Issue 0806
9
SAFETY - Machine Specific
(continued)
Hazard Points on the
Duncan Enviro 3000e (continued)
Calibrating
Be particularly careful when calibrating the seeding rate. At this
time, the calibration trays have been removed and are no
longer covering the rotating seeder units. See Pinch
Points/Moving Parts (Page 9) for hazardous areas.
Transport
The two large wheels located at the rear of the machine are for
the purpose of controlling maximum loading on dragbars and
coulters. These are also used to support the machine weight
during transport.
Important - Refer to safety cautions in the Transport section,
Page 12 of the manual.
Ensure that all linkage pins and security clips are fitted
correctly.
Maintenance
Refer Pages 24 - 28 for the Care and Maintenance section of
the manual.
Lubrication
Refer Page 25 for the Lubrication section of the manual.
10
SAFETY - Machine Specific
(continued)
Safety Decals
2
2
2
2
5
4
Enviro Inside Lid
6
3
1
2
7
4
Fig 2
7
Item Decal
1
2
3
4
5
6
7
‘No Ride’ (75 x 99)
‘Pinch Point/Moving Parts’ (75 x 99)
‘Slippery When Wet’ (100 x 45)
‘Keep Clear’ (38 x 192)
Arrows
‘Check Wheel Nuts Regularly’
‘40 km/hr’
Pt No
Qty
43906
43907
43902
43909
43905
43708
43913
1
6
2
2
4
2
2
Table 2
Pt. No. 67303
Issue 0806
11
1
Transport
1
Raise the drill into the transport position and hold at the full
extent of the rams for a few seconds to allow cylinders to
rephase/equalise.
2
Important - To avoid machine damage due to drill
lowering during transport, always close the hydraulic
valves for the wheels and drawbar. Move the handles to a
position at 900 to the hydraulic line as shown in Fig 3/1.
3
Locate jack stand in transport position. Refer Fig 4.
4
Ensure lighting and oversize warning requirements meet
recommendations published by the local Land Transport
Authority or equivalent.
5
Maximum towing speed for the drill is
40 km/hr.
Fig 3
For countries other than New Zealand, greater speed
restrictions may apply. Please refer to your local
transport authority.
Ensure towing vehicle requirements are adequate for the
towed vehicle e.g. mass, brakes. Refer to
recommendations published by the local Land Transport
Authority or equivalent.
Braking when towing can cause the load to jackknife. Use
extra care when towing in adverse conditions such as mud,
inclines and sharp bends.
Lower towing speeds are recommmended on farm
roads/tracks and where one wheel is on or over a road
verge.
Fig 4
6
Attach safety chains to tractor. Refer Fig 5.
Safety chains must be crossed over underneath the
coupling and attached to the towing vehicle. The
attachment points must be as close as practical to the
towing coupling and one each side.The towbar on the
towing vehicle must be rated for the towed mass. Do not
remove or replace the safety chains provided with any
other than those specified in the parts manual.
Note: The safety chains are provided with sufficient length
to cater for all towing vehicles. Safety chains must be
shortened by cutting off excess length so that if the
coupling fails the drawbar will not hit the ground.
7
If the machine is fitted with row markers or other vertical
extensions check clearance under power lines en route.
Fig 5
12
Operation
General Operation Guidelines
1
Use a sufficiently powerful tractor which is heavy enough to tow
the drill safely.
2
Operate the drill at a speed of 6-12 km/hr (4-8 mph).
In stoney and uneven ground conditions a lower speed is more
appropriate.
3
Check that the drill is level during calibration and while seeding.
4
Adjust the individual depth wheels to the required sowing depth.
5
Check tyre pressure before seeding. Refer Page 3.
6
Double check seed rates before seeding.
7
Do not turn with discs in the ground. When making any turns,
make sure the drill is fully raised out of the ground.
8
Raise the drill out of the ground before backing up.
9
After prolonged storage, check to see that all drive mechanisms and
hydraulic equipment are functioning correctly. Check that the seed
tubes are not perished or blocked.
Sowing Speed
Typical travel speeds when sowing range from 6-12 km/hr in
good conditions. In stoney and uneven ground conditions a lower
speed is recommended to minimise rapid part deterioration.
Sowing too fast can result in:
1 Poor contour following and uneven sowing depth.
2 Impact damage to:
a Ground engaging components.
b Bearings, housings and axles.
c Fasteners & structural components.
3 More extreme conditions will result in greater vibration and
uneven seed flow at low seeding rates.
Front Coulter & Dragbar Loading
The height of the drill when in the drilling position is determined
by the laden weight and the number and size of the depth collars
on the master cylinder shaft. Refer Fig 6/1. This in turn
determines the pressure on the discs.
In very soft conditions where downward pressure may alter seed
depth, there may be a compromise between downward pressure
and total contour following abilities.
2
1
Magnetic Cut-out Sensor
To enable seeding to start and stop when coulters are lowered
into and lifted out of the ground, a magnetic cut-out sensor is
mounted on the RH wheel arm hydraulic ram. To minimise seed
wastage during raising and lowering the coulters, the sensor
should be adjusted up or down on the ram to suit the sowing
depth and ground conditions. Moving the sensor down the ram
stops the seeding later and starts the seeding earlier, and vice
versa. The sensor can be moved by slackening the metal hose
clip (Fig 6/2). It is better to experiment with the sensor position for
various depth settings to get the response required.
Fig 6
Pt. No. 67303
Issue 0806
13
Transport Position
When in the transport position the hydraulic cylinders are
fully extended. In this position the cylinders fully equalise by
allowing oil to bypass the master cylinder piston. To ensure
the cylinder rods are equally extended and to minimise
variations in sowing depth, raise the drill into the transport
position regularly to counteract the effects of oil leakage past
the piston. It is recommended to raise the drill into the
transport position when turning at headlands.
1
Coulter Penetration Depth
To create the ideal seed bed the front coulter disc should cut
approximately 20mm below the double discs. If more
undercut is required or the ground is particularly hard or the
discs have become worn, the front coulter beam can be
lowered. This is done by undoing the four bolts at each end
of the beam on the outside of the sideplates (Fig 7/1),
connecting the hydraulic hoses for the rams to the supply
and operating them until the beam is level and the discs are
at the required height. Retighten the bolts and disconnect
the hydraulic hoses.
Fig 7
The system is factory set at the highest level. When the
beam is moved down, there are three holes 20mm apart for
intermediate settings, in which an M20 bolt can be fixed as a
stop. Choose the hole to give the best position. An M20 bolt
for this purpose is stored at the top front of each of the side
plates.
Note: The front coulter blades will sharpen with initial use
and therefore penetration ability will improve.
Double Disc Sowing Depth
The penetration depth of the double discs is dependent on
two aspects.
1 The weight applied from the machine’s mass.
2 The press wheel adjustment.
If the ground is hard and the double discs are not
penetrating to the desired depth the press wheels will not be
in contact with the ground. To increase the weight applied,
refer to “Front Coulter & Dragbar Loading” (Page 13).
Where the loading applied to the double discs exceeds the
ground resistance the remaining load is transferred to the
press wheels. The running height of the press wheel in
relation to the double discs controls the sowing depth. See
“Press Wheel Adjustment” (below).
Note: Ground penetration ability will increase as the double
discs sharpen and the paint wears off.
Press Wheel Adjustment
Press wheels are used to control the seeding depth and
compact the soil after sowing to give good seed/soil contact.
To adjust the press wheel setting, reposition the jaw lock pin
in the desired notch.
14
Double Disc Scrapers
Scrapers are fitted to the rear of the double discs and
prevent soil buildup on the inside face of the disc. The
scrapers will need to be adjusted as the discs wear
(reduce in diameter). If not adjusted the scrapers will
overhang the disc edge and wear unevenly. Scrapers are
factory set in the correct initial operating position and don’t
require adjustment before drill use.
Press Wheel Scrapers
A minimum clearance of 2mm is recommended between
the scraper and the press wheel. Check the scraper
clearance on full circumference regularly as press wheels
can be eccentric. Best scraper performance may be
dependent on the ground conditions.
Level Drill
Use the drawbar ram to tilt the drill so it is sitting level. An
adjustment may be required after a short period of use
because of oil leakage.
Electric Drive
Refer to the separate Electric Drive Operating Manual.
Pt. No. 67303
Issue 0806
15
Default
Calibration
Factor(kg/rev)
0.28
0.30
0.70
0.69
0.69
1.00
0.092
0.09
0.093
0.093
0.10
0.094
0.094
0.70
1.20
0.94
Sowing Rate
kg/ha (max)
at 6 kph
227
243
568
560
560
811
74
73
75.5
75.5
81
76
76
568
974
763
Sowing Rate
kg/ha (min)
at 6 kph
1.35
1.45
3.38
3.33
3.33
4.83
0.44
0.43
0.45
0.45
0.48
0.45
0.45
3.38
5.80
4.54
Sowing Rate
kg/ha (max)
at 8 kph
170
182.5
426
420
420
608.5
56
54.5
56.5
56.5
60.5
57
57
426
730
572
Sowing Rate
kg/ha (min)
at 8 kph
1.01
1.09
2.54
2.50
2.50
3.62
0.33
0.33
0.34
0.34
0.36
0.34
0.34
2.54
4.35
3.41
16
Grass
Grass Mix
Wheat
Barley
Oats
Peas
Kale
Rape
Swede
Turnip
Lucerne
White Clover
Red Clover
Urea
Super Phosphate
DAP Granules
Seed Type
Shutter
Slide1
Full
Full
3/4
Full
Full
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
Full
Full
Full
Bottom
Flap2
3
3
3
3
3
3
1
1
1
1
1
1
1
3
3
3
Recommended Settings
Metering
Wheel3
N
N
N
N
N
N
F
F
F
F
F
F
F
N
N
N
Agitator4 Calibration
Amount
E
1.0 kg
E
1.0 kg
E
2.0 kg
E
2.0 kg
E
2.0 kg
D
2.0 kg
D
0.5 kg
D
0.5 kg
D
0.5 kg
D
0.5 kg
D
0.5 kg
D
0.5 kg
D
0.5 kg
E
2.5 kg
E
2.5 kg
E
2.5 kg
Sowing Rate
kg/ha (max)
at 10 kph
136
146
340.5
336
336
486
44.5
43.5
45
45
48.5
45.5
45.5
340.5
584
457.5
Sowing Rate
kg/ha (min)
at 10 kph
0.81
0.87
2.03
2.00
2.00
2.90
0.27
0.26
0.27
0.27
0.29
0.27
0.27
2.03
3.48
2.73
Table 3
NOTES
1. SHUTTER SLIDE
For grain, opening the shutter slide to Full gives 10-15% more flow.
2. BOTTOM FLAP
The values shown were the optimum test settings.
Decreasing the gap may cause seed damage.
Too large a gap will give intermittent flow rates.
Flaps are spring loaded to cope with small variations in seed/granule size.
3. METERING WHEEL
N = Normal metering wheel
F = Fine metering wheel only
4. AGITATOR
E = Engaged
D = Disengaged
*SOWING RATES These are based on the maximum and minimum electric motor speeds, which are independent of ground speed
Grass
Grass Mix
Wheat
Barley
Oats
Peas
Kale
Rape
Swede
Turnip
Lucerne
White Clover
Red Clover
Urea
Super Phosphate
DAP Granules
Seed Type
Sowing Rates at Recommended Settings*
Enviro 3000e Seed Drill
Sowing Chart
Basic Calibration Procedure
Setting Seeder Shutter Slides
The varying flow properties of seeds require different shutter
slide positions which may be found in the Sowing Chart for the
individual type of seed. This corresponds to one of the three
settings in Fig 8.
Fig 8/A
Fig 8/B
Fig 8/C
Closed
3/4 Open
Fully Open
B
A
C
Bottom Flap Settings
The various seed sizes require matching bottom flap clearances
below the metering wheel. The adjusting plate allows for 10
different settings. The required position for the seed type may be
found in the Sowing Chart. The control levers are located on the
LH end of the seedbox, (opposite end to the gearbox).
Fig 8
10
1
1
10
Number “1” corresponds to the minimum (closed) position and
“10” the maximum gap.
Refer Fig 9.
Fig 9
Pt. No. 67303
Issue 0806
17
Seed Calibration
The calibration test should be done to confirm the required
seed rate to be sown and is done with the drill stationary and
level.
Seed Calibration Procedures
1
Remove the calibration trays from the brackets on the
seedbox. Place the trays on the calibration tray brackets
below the seeders.
2
Push down all the clear plastic seed directers to redirect
the seed into the calibration trays, as in Fig 10/1.
3
Make sure all the shutters are open and set to the
position indicated in the seed chart for the seed being
sown. Refer Page 16.
4
Check the seed chart (Page 16) for hints on whether the
agitator shaft should or should not be connected. If it is
to be disconnected, remove the lynch pin (Fig 11/1).
5
For the test, half fill the box with seed. If this is not
possible make sure the seed is evenly distributed over all
seeders in the box.
6
Now refer to the calibration procedures in the Electric Drive
Operating Manual.
1
Fig 10
1
Fig 11
Note The amount of product to be dispensed during
calibration is entered when initiating the calibration
procedure (refer Electric Drive Operating Manual).
Suggested amounts are specified in Table 3, Page 16. The
greater the amount of product dispensed, the more
accurate the process.
7
To check weigh the seed, scales must be setting level
and out of any wind. Scale accuracy must be to at least
two grams.
18
Calibration Deviations
Deviations Between the Calibration Test
and the Actual Seed Rate
Changes in the flowing properties of seed during sowing often cause
changes in the relationship between the calibration test and the seed rate.
These changes in flowing properties generally result from reactions of the
dressing agents to temperature, humidity or abrasion. Such changes will
become even more obvious when the bottom flaps are incorrectly set. If
the setting of these flaps leaves too large a gap, an uncontrollable flow of
additional seed can occur during sowing, especially when the drill bounces
(a condition not simulated during the calibration tests). For this reason the
basic setting of the bottom flaps should be checked at regular intervals.
When the flap handle setting is at “1”, the clearance between the metering
wheel and the flap should be set to 0.5mm. Refer Fig 21, Page 28.
Residues from the seed dressing on the bottom flaps and metering wheels
can also influence the flowing properties of seed and hence the seed rate.
In such cases a balance will occur only after a period of time, and it is
recommended that the calibration test be repeated, nominally when the
seed box is half empty, to confirm the seed rate after 2-3 seedbox fillings.
Only then will a balance occur and the seed rate stabilise.
When calibrating the speed ground sensor (radar), it is important for the
drill to be at the same angle as when sowing. A variation in position will
result in a variation between the application rate and the required rate.
Refer to the Electric Drive Operating Manual.
Pt. No. 67303
Issue 0806
19
3
Sowing Fine Seeds
For sowing fine seeds the Enviro 3000e is equipped as standard
with a combined normal and fine seed “Elite” metering wheel
(Fig 12/1).
During grain sowing and other larger varieties of seed both the
normal and fine seed metering wheels are coupled and both rotate.
In order to convert the seed drill to sow fine seed, rotate the box
shaft clockwise until the holes of the fine seed wheel (Fig 12/2)
are visible. Using the tool supplied (Fig 13/1) disengage the
the pin inside the hole so that the normal metering wheel
rotates freely on the metering shaft.
At this time it would be advisable to close any shutter slides
not required for the fine seed sowing.
When seed is to be sown again using the normal metering wheel
press the pin, from the normal metering wheel side (opposite
direction to before), using the tool, back into the hole of the fine
seed wheel thus reconnecting the drive between the two.
1
1
2
Fig 12
1
Fig 13
20
1
Sowing Small Seed
Calibration with Disconnected Agitator Shaft
The fine seed metering wheel used in Duncan Drills is
especially well suited for sowing small seeds such as rape.
Due to the intensive action caused by the agitator the seeds
can adhere to each other, or be damaged, causing irregular
sowing/germination. Therefore it is recommended that
when sowing small seeds, especially oil seeds and thin
shelled seeds, the drive to the agitator is disconnected.
To do this remove the lynch pin as shown in Fig 14/1.
Fig 14
Deviations between the calibrated and actual seed rate can
occur when residual dressing agent sticks to the bottom flaps
and thus slows the flow of seed. Before beginning the actual
calibration test fill the calibration trays. This will cause an
immediate buildup of the dresssing agent on the flaps. Return
the contents of the calibration trays to the seed box and
proceed with the actual calibration. Due to the residue
buildup on the flaps your calibration will now reflect accurately
the required seed rate.
Note - Remember to reconnect the agitator shaft as required
for other seeds otherwise the consistency of seed rate will be
affected.
Sowing Peas
Fig 15
Peas having the size and shape as illustrated in Fig 15 (e.g.
White Field Peas), can be sown without problems with all
Duncan Drills with this type of metering wheel.
The flap should be set to a gap of at least “3” on the flap
setting lever. Refer Page 17, Fig 9.
With these peas it should not be necessary to run the agitator
shaft.
Peas having the size and shape as illustrated in Fig 16 (e.g.
Green or Garden Peas), tend to bridge inside the seedbox
and do not flow freely.
This multi-faceted pea requires agitation for sowing.
Fig 16
Caution - When resetting the metering wheels
on the seeder shaft
Care should be taken when tightening the grub screws
(Fig 12/3) on the fine seed wheel. Adjust the grubscrew until
the movement of the metering wheel just stops, then tighten
no more than 1/8 of a turn.
Do not overtighten as this can result in breakages while
operating and may render the warranty on these units void.
Pt. No. 67303
Issue 0806
21
Enviro 3000e Seed Drill
22
Calibration Notes
Enviro 3000e Seed Drill
Calibration Notes
Pt. No. 67303
Issue 0806
23
Maintenance & Care
General Safety and Accident Prevention Advice
1
Make sure that if the tractor remains attached to the drill
that the ignition key is removed.
2
During maintenance the drill should be supported in such a
manner that if hydraulic failure was to occur the machine
would still be adequately supported.
3
Wear gloves when handling components with cutting
edges such as worn discs etc...
4
Disconnect the electrical supply from the tractor before
doing any electrical maintenance.
5
Refer to safety sections for more safety information.
General Cautionary Maintenance Advice
1
Electric Welding - With the electronic equipment in
modern tractors and on implements, it is advisable to
completely disconnect the implement from the tractor, or at
the very least disconnect the alternator before attempting
any welding. See also the electric drive manual.
2
Hydraulics - Ensure hydraulic couplings (male & female)
are clean before connecting. Dirty couplings will result in
hydraulic oil contamination, hydraulic cylinder seal
damage, and bore scores. This in turn will result in oil
leakage past the piston seals.
Filters are only fitted to the main wheel lines. If hydraulic
fittings and oil supply are not going to be kept clean, to
help prevent hydraulic cylinder damage, it is recommended
that a filter be fitted to the other lines.
3
Water Blasting - Water blasting, steam cleaning or other
pressurised cleaning processes can force dirt etc. into
undesirable places that may cause damage or rapid part
wear to items such as bearings, seals, chains, bushes etc.
Caution must be exercised.
4
Box set lifting eye profile - These profiles are provided
for easy removal of the dual boxes from the side frames.
Do not use when boxes are loaded nor to lift the
machine.
24
Inside
Endplates
4
Maintenance
7
8
Your new Duncan Enviro 3000e Seed Drill will
give long and efficient service if given normal
care and maintained properly.
3
5
6
1
Fig 18
Precautions with Grease
5
6
Greases should not be mixed as the structure may be
weakened by the mixing of different types of thickener
which may cause softening and loss of grease from
bearings by running out.
Fig 17
Lubrication Chart
Item
1
2
3
4
5
6
7
8
*
Components
Lubricant
*Frequency
Wheel Bearings
Gearboxes (not shown)
Wheel Arm Pivots
Drive Chains (Agitators)
Front Disc Bearings
Double Disc Bearings
Agitator Shaft
Seeder Shafts
Castrol LMX Grease
Prefilled and Sealed
S.K.F. LGEM2 Grease or Equivalent
Suitable Roller Chain Lubricant
(Pre-packed & Sealed)
(Pre-packed & Sealed)
Nylon Bushes
Nylon Supports
Annually
Not Required
Weekly
6 Monthly
Not Required
Not Required
Not Required
Not Required
The lubrication frequencies are only a guide. Actual frequency will be dependent on extent of use and ground conditions.
Table 4
Maintenance Schedule - Summary Chart
Components
Daily
Weekly
Pre-season
(or after 20 ha)
(or after 100 ha)
(or 1000 ha)
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
Coulters & Double Discs
Press Wheels
Seeders/Agitators/Bottom Flaps
Wheel & Tyres (65psi/4.5bar)
Pivot Pin Fasteners
Coupling & Safety Chains
Roller Chains
Hydraulics (Oil Leaks)
Bolted Connections
For full list see Maintenance Schedule (Page 26).
Table 5
Pt. No. 67303
Issue 0806
25
Enviro 3000e Seed Drill
Maintenance Schedule
Refer Maintenance Schedule Summary Chart
(Page 25)
FRONT COULTERS
D
D
D
D
D
W
W
W
A
DOUBLE DISCS
Check springs for damage/breakage
Clean any dirt build up
Check discs for wear, damage, buckles etc
Check discs turn freely
Check discs for excessive sideplay (>5mm)
Check arms for damage & sideplay
Check tightness of pivot pin end & tab bolts
Check tightness of disc pivot bolts
Check all other bolts for tightness
PRESS WHEELS
D
D
D
D
D
D
W
W
W
A
Check springs for damage/breakage
Clean any dirt build up
Check discs for wear, damage, buckles etc
Check discs turn freely
Check discs for excessive sideplay (>5mm)
Check arms for damage & sideplay
Check tightness of pivot pin end & tab bolts
Check tightness of disc pivot bolts
Clean dirt build up (if any) on scrapers
Check scrapers for wear
Check all other bolts for tightness
SEEDERS / AGITATORS / BOTTOM FLAPS
Check for & clean any dirt build up
Check tyres for wear, damage, cuts etc
Check wheels turn freely
Check for excessive sideplay
Clean dirt build up (if any) on scrapers
Check all height adjustments are the same
Check scrapers for wear
Check scraper position
Check tightness of pivot bolts
Check all other bolts for tightness
WHEELS
D
W
W
W
W
A
A
D
D
D
D
D
W
W
W
W
W
A
D
D
D
W
W
W
A
Check seeder housings for damage
Check all seeder wheels are operating the same,
ie all main wheels or all small wheels
Check agitators running correctly
Check bottom flaps are all the same for both boxes
Check units drive chains for damage wear etc
Clean any dirt/dust build up on drive units
Lubricate chains
DRAWBAR, COUPLING SAFETY CHAIN, LIGHTS
Check tyres for damage, wear etc
Check tyre pressures
Check wheel nuts for tightness
Lubricate wheel arm pivots
Check wheel mount bolts for tightness
Check all other bolts for tightness
Check for wear in pivots, bushes etc
HYDRAULICS
D
W
W
A
A
Check for damage, wear etc on coupling & chains
Check mounting bolts for tightness
Check anchor bolt
Check all other bolts for tightness
Check drawbar pivot roll pins, replace if damaged
or loose
GENERAL
D
W
W
W
A
Clean quick release couplings
Check quick release couplings for damage leaks etc
Check connections for leaks, tighten if required
Check hoses for damage leaks etc replace if required
Clean out or replace in line filters
D
W
A
Daily or every 20 ha check
Weekly or every 100 ha check (includes daily checks)
Annual or pre-season or every 1000 ha check
(includes weekly checks)
A
A
A
A
A
A
Check
Check
Check
Check
Check
Check
all bolts for tightness
safety decals for damage & readability
for any wear/damage/broken components
for any rust, paint wear or damage
seeder hoses for damage, blockages, splits etc
seeder hose clips
Key
Table 6
26
Maintenance Instructions & Hints
1
Front Coulter
Front coulter bearings are sealed and do not require
lubrication. Check discs for any lateral movement (wobble) on
a regular basis. Replace bearings if there is any movement
greater than 5mm. To ensure seal damage does not occur,
check for dirt build-up around the rod seals at the piston
heads on the beam adjusting rams.
2
Double Discs
Check that the discs are free from excessive wobble and the
bearings run smoothly. Replace any worn bearings. Check for
dirt build-up behind the rubber “V” seals on the double disc
castings. Clean right into the corner, as in Fig 20, and check
that the “V” seal bearing surface is not damaged and is free
from rust. It is recommended to replace the inner “V” seals
when the bearings are replaced. When discs wear in diameter
(to 13”), remove the flat washer (Fig 20/1, Part Number
29247) so the discs meet. Also remove the nylon washer (Fig
20/2, Part Number 22136). The double disc coulter is
equipped with two scrapers to remove sticking soil. These
scrapers have been set by the factory in such a way that they
lightly touch the discs without having a noticeable braking
effect. After extensive use of the drill a certain amount of wear
may be evident on the scrapers. The scrapers should be reset
using the adjusting bolt so they just touch the discs as
described above. Refer Fig 19/1. In some cases if a notch has
formed on either of the blades by the abrasive action of the
coulter disc, you may need to regrind the leading edge to give
optimum cleaning action or replace.
3
Both Front Coulters & Double Discs
When replacing font or double disc units on the frame, tighten
the M16x70 bolts first until the thread protrudes through the
nyloc nut by 6 - 6.5mm. Use anti-seize on M16x200 bolts. The
tightening sequence of the two M16x200 bolts alters the
position of the double discs. Measure the spacings of the
discs at the discs, NOT at the clamps. If replacing any blue
plastic bushes in the clamps or double disc castings, spray
the bores with CRC, align the blue bushes correctly and
PRESS the bushes in. Do NOT knock them in.
4
Press Wheels
Scrapers will wear, the rate being dependent on the ground
conditions. The minimum clearance is 2mm. In some
conditions a greater clearance may give better performance.
5
Main Wheels (Tyre Pressure)
The recommmended tyre pressure is 4.5 bar (65psi). Check
tyre pressure regularly to ensure the correct pressure is
maintained. Weekly checks are recommended.
1
Fig 19
Fig 20
Double Disc
Casting
2
1
Remove buildup
of dirt behind
the ‘V’ seal.
Clean right into
this corner.
Pt. No. 67303
Issue 0806
27
6
Im
po
rta
nt
Fig 21
!
Seed/Fertiliser Boxes
These tubes can stretch over a period of time and
require checking at approximately 6 monthly intervals.
Check tubes at the operating depth. Shorten if
necessary to avoid bends which will restrict the flow of
seed/fertiliser.
The required seed rate is controlled by both the
metering wheels and the bottom flaps. The seed flows
from the seed box into the metering wheel housings.
Inside the metering wheel housing (Fig 21/1) the seed
is caught between the metering wheel (Fig 21/2) and
the bottom flap (Fig 21/3). The metered amount of seed
is transported by the metering wheel to the edge of the
bottom flap where it drops off into the seed guide tube
which leads to the coulter. Varying grain sizes require
the matching of the flap clearance to the different grain
sizes. This matching is done by raising or lowering the
bottom flaps by using the flap adjusting lever on the LH
end of the seed box. If larger foreign particles, e.g.
stones, get between the metering wheel and the bottom
flap, the bottom flap can give way downwards. A strong
return spring (Fig 21/4) brings the bottom flap
immediately back into the working position.
The metering system should be checked every
100 hectares or weekly or before any sowing period,
with an empty seed box and empty metering
housings. Use the following proceedure:
Put the bottom flap setting levers (located on the LH
end of the seed boxes) in position “1” for the front box
and position “1” for the rear box. Refer Fig 22.
By turning the metering wheel shaft by hand, check
the flaps are all set to a gap of 0.1 - 0.5mm
(refer Fig 21).
To adjust individual flaps use the spring tensioning
screw (Fig 21/5).
If agitator shaft(s) do not turn freely in the box,
disassemble them and clean or replace the plastic
bearings.
Note: Maintenance Schedule (Page 25)
Where the frequency is given in terms of time of use
(e.g. weekly) or area covered (e.g.100 ha), perform the
maintenance task according to whichever occurs first.
Fig 22
Storage
Preparing the Machine for Storage.
Locate a dry level surface. The machine should be stored
wherever possible with the rams retracted.
For longer term storage remove seed/fertiliser tubes from
the coulters and allow to hang without deformation.
28
Enviro 3000e Seed Drill
Maintenance Service Record
DATE
HECTARES
REFER TO MAINTENANCE
SCHEDULE FOR DETAILS
(Page 26)
ANNUAL/PRESEASON CHECK
(or every 1000 ha)
FRONT COULTERS
DOUBLE DISCS
PRESS WHEELS
SEEDERS/AGITATORS/BOTTOM FLAPS
WHEELS
DRAWBAR/COUPLING SAFETY CHAIN/
LIGHTS
HYDRAULICS
GENERAL
SERVICED BY
NOTES
29
Pt. No. 67303
Issue 0806
Enviro 3000e Seed Drill
30
Maintenance Notes
Parts List
Enviro 3000e
Seed Drill
From Serial Number 04200
Head Office:
P.O. Box 2018
Hilton Highway, Washdyke
Timaru, New Zealand
Telephone (03) 688 2029
Facsimile (03) 688 2821
Australian Branch:
4B Silverton Close
Laverton North 3026
Melbourne, Australia.
Telephone (02) 9314-9666
Facsimile (02) 9314-6810
Pt. No. 67303
Issue 0806
Enviro 3000e Seed Drill Parts List
Contents
Page
Complete Assembly .................................................
2
Mainframe & Drawbar .................................................
6
Wheel Arms .................................................
8
Hydraulics .................................................
10
Wiring & Lighting Kit .................................................
12
Double Disc System .................................................
14
Front Disc Assembly .................................................
16
Double Disc Assembly .................................................
18
Radar System
.................................................
20
Press Wheel Assembly
.................................................
21
Seedbox Assembly
.................................................
22
Agitator Drives .................................................
24
Seeder Assembly .................................................
26
Electric Drive .................................................
28
9
31
27
32
29
14
25
30
34
33
6
7
58
41
28
42
39
40
17
5
16
24
1
31
12 11
13
4
32
18 19
54 53
34
10
33
21
44
43
55
56
57
35
47
36
48
3
37
38
23
15
46 45
49 50
8
22
20
2
26
2
51 52
Enviro 3000e Seed Drill
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
Part No.
29025
Refer Page 8
Refer Page 10
Refer Page 12
Refer Page 6,16
Refer Page 6,14
Refer Page 28
43955
Refer Page 22
Refer Page 22
Refer Page 24
Refer Page 25
Refer Page 26
Refer Page 20
29060
29062
29306
28099
45272
29097
29080
29350
29351
29120
29290
29035
29280
Refer Page 3,10
29100
29101
29102
29195
29196
29193
45039
45140
45060S
45161
45060S
45141
45038
45140
45039
45140
45039
45140
45039
45140
45062
45141
45419
45138
45019S
45139
45140
45132
45272
45292
Complete Assembly
Description
Qty
Frame Front Beam Assembly
Wheel Arms
Hydraulics
Lighting Kit
Front Coulter Beam Assembly
D/Disc Coulter Beam Assembly
Electric Drives (See Also Separate Manual)
400/60 - 15.5 BKT Wheel Assembly
Box Drive Shaft
Seedbox Assembly
Agitator Drives
Agitator Shaft Assembly
Seeder Assembly
Radar System
LH Sideplate Assembly
RH Sideplate Assembly
Stand Leg Assembly
Pin
‘R’ Clip
Hub Set
Wheel Mount Assembly
Mudguard Assembly LH
Mudguard Assembly RH
Footstep Assembly
Footboard Support Assembly
Frame Rear Beam Assembly
Footboard Assembly
Front Coulter Beam Adjustment
Guard Rail Assembly (1601 Centres)
Guard Rail Assembly (796 Centres)
End Rail Assembly
Calibration Tray Assembly (1427)
Calibration Tray Assembly (1297)
Ripstop Weather Skirt
M16 x 45 Class 8.8 Zinc Plated Bolt
M16 Nyloc Nut
M20 x 40 Class 8.8 Zinc Plated Set Screw
M20 Heavy Duty Flat Washer
M20 x 40 Class 8.8 Zinc Plated Set Screw
M20 Nyloc Nut
M16 x 40 Class 8.8 Zinc Plated Bolt
M16 Nyloc Nut
M16 x 45 Class 8.8 Zinc Plated Bolt
M16 Nyloc Nut
M16 x 45 Class 8.8 Zinc Plated Bolt
M16 Nyloc Nut
M16 x 45 Class 8.8 Zinc Plated Bolt
M16 Nyloc Nut
M20 x 50 Class 8.8 Zinc Plated Bolt
M20 Nyloc Nut
M10 x 30 Zinc Plated Bolt
M10 Nyloc Nut
M12 x 30 Class 8.8 Zinc Plated Set Screw
M12 Nyloc Nut
M16 Nyloc Nut
M16 Hex Nut
‘R’ Clip
7/16” x 1 1/2” Lynch Pin
1
2
1
1
1
1
2
2
2
2
2
2
*N
1
1
1
2
2
2
2
2
1
1
1
1
1
2
1
1
1
2
2
2
2
12
12
8
8
2
2
4
4
12
12
12
12
6
6
12
12
6
6
4
4
1
1
1
6
*N Where N = Number of Coulters Fitted.
Pt. No. 67303
Issue 0806
3
59
60
69
70
61
63
64
65
66
67
68
71
62
4
Enviro 3000e Seed Drill
Item
59
60
61
62
63
64
65
66
67
68
69
70
71
Part No.
45418S
45138
45935
43936
29129
29134
43956
45390
45137
43954
4800315
45181
45157
Description
Complete Assembly
(continued)
Qty
M10 x 25 Zinc Plated Set Screw
M10 Nyloc Nut
4” Ram (RH Arm)
3.75” Ram (LH Arm)
Wheel Sensor Mount Assembly
Activator Arm
Bar Magnet
M8 x 75 Bolt
M8 Nyloc Nut
Hose Clamp
Hose Support
M8 x 12 Socket Head Grub Screw
M8 Heavy Duty Flat Washer
5
4
4
1
1
1
1
1
1
1
1
1
1
2
Pt. No. 67303
Issue 0806
3
21
33 34 35 36
7
8
9
32 31
12
9
15
6
2
4
14
18
19
1
17
28
13
20
29
24
11
5
10
30
25
22
31
26
23
27
6
16
Enviro 3000e Seed Drill
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Part No.
29060
29062
29300
43628
22262
29090
29091
43499
29080
22318
29010
4800315
29025
29040
29045
29021
29356
29125
29115
29290
47462
45285
45181
45418S
45158
45166
45065
45141
45107
45143
45117
45024
45018S
45167
45153
Mainframe & Drawbar
Description
Qty
LH Sideplate Assembly
RH Sideplate Assembly
Top Front Coulter Ram Mount
Drawbar Ram
Clevis Pin (Tabbed)
Wheel Leg Assembly LH (refer page )
Wheel Leg Assembly RH (refer page )
Stop Collar Set
Wheel Mount Assembly (refer page)
Draw Bar Axle
Draw Bar Final Assembly
Ram Pin (Supplied with Ram)
Hose Support (not shown)
Frame Front Beam Assembly
Front Coulter Beam Assembly
Double Disc Beam Assembly
Swivel Tow Hitch
Decal Indicator Scale
Ram Extension Indicator
Nylon Coupling Pad
Footboard Support Assembly
1 1/4” Heavy Duty Flat Washer
Dia 10 x 60 Roll Pin
M8 x 12 S/HD Grub Screw
M10 x 25 Set Screw
M10 Heavy Duty Flat Washer
M10 Spring Washer
M20 x 65 Class 8.8 Bolt
M20 Nyloc Nut
M24 x 120 Class 8.8 Bolt
M24 Nyloc Nut
M24 x 200 Class 8.8 Bolt
M12 x 55 Class 8.8 Bolt
M12 x 25 Class 8.8 Set Screw
M12 Spring Washer
M12 Light Flat Washer
1
1
2
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
4
4
1
2
1
2
2
4
2
Pt. No. 67303
Issue 0806
7
Note LH Only Shown
6
10
15
1
16
7
9
11
8
8
6
9
4
5
12
13
As Shown
3
2
Opposite Hand
14
19
24
18
23
20
21
22
24
8
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
29080
29090
29091
29097
22262
22270
29113
29118
43426
29116
45018S
45418S
45166
45158
45186
43008
18
19
20
21
22
23
24
43959
43960
43962
43963
43964
43966
43965
Description
Wheel Arms
Qty
Wheel Mount Assembly
LH Wheel Leg Assembly
RH Wheel Leg Assembly
Hub Set (comprises items 18-25)
Clevis Pin (Tabbed)
Clevis Spacer
Wheel Arm Pin - Standard
Wheel Arm Spacer
Glacier Bush
Top Wheel Ram Pin
M12 x 25 Set Screw
M10 x 25 Set Screw
M10 Spring Washer
M10 Heavy Duty Flat Washer
M10 x 12 Socket Head Grub Screw
1/8” BSP Grease Nipple
2
1
1
2
2
4
2
4
4
2
4
2
2
2
4
4
M18 x 1.5 mm Nut
M18 x 1.5 mm x 61 mm Stud
Dust Cap
Castle Nut and Pin
Taper Roller Bearing 32210 (Small Outer)
Taper Roller Bearing 30213 (Large Inner)
Mk II Seal Kit
6
6
1
1
1
1
1
Pt. No. 67303
Issue 0806
9
9
8
27
13
All 6 hoses
12
15
16
4
20
24
19
21
14
17
7
26
23
23
25
25
22
3
32
30
10
5
2
10
1
Slave
Master
6
11
Seal Kit for Item 1 = Part No 43923
Seal Kit for Item 2 = Part No 43922
Seal Kit for Item 14 = Part No 43920
10
Enviro 3000e Seed Drill
2 Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
43935
43936
29360
29361
29362
29363
43393
43147
43617
43151
29369
43933
43934
43628
26723
26724
43496
29322
43280
29125
29356
29320
43937
29364
29365
22449
43445
45438
45441
45139
29367
45447
43399
Hydraulics
Description
Qty
4” x 12” Master Rephasing Ram
3.75” x 12” Slave Rephasing Ram
Hydraulic Hose 6.35m Return
Hydraulic Hose 2.90m Supply
Hydraulic Hose 3.15m
Hydraulic Hose 2.90m
3/8” BSP S/S Ball Valve
1/2” BSP Quick Release Coupling
1/2” Male Probe Dust Cover
3/4” UNO to 1/2” BSPT Nipple
Dia 22 Tube Clamp Parts
1/2” BSPP In-line Pressure Filter
1/2” BSPT Nipple
3 1/2” x 12” Hydraulic Ram
Hydraulic Hose 2.80m
Hydraulic Hose 2.50m
3/4” UNO to BSPT Elbow
Hydraulic Mounting Block Assembly
3/4” UNO to 3/8” BSPP Nipple
Ram Extension Indicator
Indicator Scale Decal
Double Hydraulic Tee Assembly
1.5” x 4” x 3/4” Compact S Ram
Hydraulic Hose 3.50m
Hydraulic Hose 1.43m
Hydraulic Valve Support Assembly
1/2” BSPT to 3/8” BSPP Nipple
M12 x 60 Bolt
M12 x 70 Bolt
M12 Nyloc Nut
15 Dia Tube Clamp Parts
M12 x 110 Bolt
3/8” BSPTM to 3/8” BSPF Swivel Nipple
26
27
33
1
1
1
1
1
1
2
6
6
4
4
2
2
1
1
1
1
1
1
1
1
1
2
2
4
1
3
1
1
3
1
1
1
7
28
29
5
18 31
30
4
Pt. No. 67303
Issue 0806
11
6
5
12
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
29311
29312
43435
43436
43437
43438
43443
43444
43928
43929
45138
454185S
45401S
45122
Wiring & Lighting Kit
Description
Qty
Front Lamp Bracket Assembly
Rear Lamp Bracket Assembly
Combination Rear Lamp
Marker Lamp
Trailer Round Connector Plug
5 Core Trailer Flex
White 1mm Appliance Wire x 1m
Brown 1mm Appliance Wire x 1m
Trailer Connector 7 Pin (Male)*
Trailer Connector 7 Pin (Female)*
M10 Nyloc Nut
M10 x 25 Class 4.6 Zinc Plated Bolt
M6 x 16 Class 4.6 Zinc Plated Set Screw
M6 Nyloc Nut
5W Festoon Bulb 15 x 44mm
21W Festoon Bulb 15 x 44mm
2
2
2
2
1
12.5m
1
1
1
1
4
4
8
8
4
4
*Not Shown - Mounted on Front Middle Support
LH Side
RH Side
7
16
8
15
14
2
16
2
13
16
14
9
15
16
8
13
7
3
3
Rear
13 14
15
1
1
14 13
15
Front
11 12
4
4
12 11
Pt. No. 6730
Issue 0806
13
See Below
26 25
10
27 28
2
6
12
9
23
22
28
23
37
21
1
20
19
14
18
17
29
16
30
5
See Below
38
39
42
40
43
35 34
3
4
36 30
Discs Not Shown
See Page 18
2 or 4
6 or 12
1
44
Disc Scrapers
See Page 18
21
19
24
15
41
Press Wheel
See Page 21
14
or
34
21
3
35
28
5
11
26
15
33
8
7
8
11
13
37
14
20
Enviro 3000e Seed Drill
Item
Part No.
Double Disc System
Description
Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29220
29222
29229
29221
29202
29225
29217
43953
29227
29211C
43899
29232
29219
29250
29254
29257
29258
23525
29263
29264
29265
10174
45321
29261
45055
45168
45043
45140
45443
LH Parallel Mechanism Arm Assembly
RH Parallel Mechanism Arm Assembly
LH Parallel Mechanism Arm
RH Parallel Mechanism Arm
30 Diameter Pivot Pin Assembly
Double Disc Beam Clamp
Plastic Pivot Bush
Nylon Washer 30 x 70 x 2
Double Disc Spring
Double Disc Top Clamp Casting
Disc Spring
Double Disc Welded Assembly
Pivot Pin Cap
Upper Jaw Assembly
Lower Jaw Assembly
Jaw Lock Pin Assembly
Spring Slide
Spring
Pivot Plastic Bush
Pivot Bush
Press Wheel Pivot Washer
Press Wheel Spring
5/16” ‘D’ Shackel
Press Wheel Arm Spacer
M16 x 200 Grade 8.8 Bolt
M16 Spring Washer
M16 x 65 Grade 8.8 Bolt
M16 Nyloc Nut
M12 x 80 Bolt
1
1
1
1
4
1
4
8
1
1
8
1
4
1
1
1
1
1
1
1
2
1
3
2
2
6
1
2
1
33
34
35
36
37
38
39
40
41
42
43
44
45037
45419
45130
45026
45044
29262
454175
45158
45166
45405
45136
45150
M16 x 35 Grade 8.8 Bolt
M10 x 30 Bolt
M10 Hex Nut
M12 x 65 Grade 8.8 Bolt
M16 x 70 Grade 8.8 Bolt
14” x 75 mm RDSP Press Wheel Scraper
M10 x 20 Set Screw
M10 Light Flat Washer
M10 Spring Washer
M6 x 45 Bolt
M6 Nyloc Nut
M6 Light Flat Washer
4
4
4
2
1
1
2
2
2
2
2
8
Pt. No. 67303
Issue 0806
15
17
25
23
20
24
19 20
18 22
16
26
27
20
31
21
13
22
30
29
14
28
15
11
12
8
9
6
10
5
7
3
33
37
2
1
7
34 35 36
32
33
38
5
4
39
4
32
16
6
Enviro 3000e Seed Drill
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Part No.
22083
22084
22095
43352
22078
22080
45163
29216
45141
45155
29200
29201
29202
45419
45130
29205
29228C
45055
45043
45140
45037
45168
29212
29214
29215
29213
43953
29217
29219
43899
45049
11351
17537
22000
22001
22003
22102
45138
45418S
Front Disc Assembly
Description
Qty
Front Disc Assembly (Fluted)
Front Disc Assembly (Plain)
Front Disc Assembly (Action)
V40 Vee Seal
Seal Collar
Dust Cap
M24 Heavy Duty Flat Washer
Front Coulter Axle Bolt
M20 Nyloc Nut
M20 Light Flat Washer
LH Front Coulter Arm
RH Front Coulter Arm
30 Diameter Pivot Pin Assembly
M10 x 30 Zinc Plated Bolt
M10 Hex Nut
Front Coulter Beam Clamp
Front Coulter Top Clamp
M16 x 200 Class 8.8 Zinc Plated Bolt
M16 x 65 Class 8.8 Zinc Plated Bolt
M16 Nyloc Nut
M16 x 35 Class 8.8 Zinc Plated Bolt
M16 Spring Washer
M16 x 450 Eye Bolt
Spring Cap
Front Coulter Spring
Clamp Side Plate Spacer
Nylon Washer
Plastic Pivot Bush
Pivot Pin Cap
Disc Spring
M16 x 110 Class 8.8 Zinc Plated Bolt
Bearing
Bearing Housing (6 Hole)
406 x 4 mm Plain Disc
406 x 4 mm Fluted Disc
406 x 4 mm Action Disc
Bearing Spacer
M10 Nyloc Nut
M10 x 25 Zinc Plated Set Screw
1
1
1
2
2
2
2
1
1
1
1
1
1
1
1
1
1
2
1
3
1
3
1
1
1
1
2
1
1
2
1
2
2
1
1
1
1
6
6
Pt. No. 67303
Issue 0806
17
Double Disc Assembly
Note: Plastic Spacers
Chamfer to the Inside
19
13
10
18
17
12
11
1
17
16
15
31
11
14
12
18
13
28 29 30
19
Scraper Assembly
26
23
22
14
Note: Parts 29245 &
29246 (items 12 & 17)
may have been
superseded by part
29241
21
20
24
27
18
25
31
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
29240
29242
43890
29243
22002
29244
22081
45418S
45138
29232
22077
29245
43352
43891
22082
45040
29246
29247
22136
22086C
22087C
22088
22069
22070
45404
45136
45156
45417S
45152
45166
45154
Double Disc Assembly
Description
Qty
Plain Disc and Bearing Assembly
Triple Seal Bearing and Housing Assembly
Triple Seal Bearing
Bearing Housing 6 Hole Triple Seal
Plain Disc 6 Hole
Bearing Housing Spacer 3 mm (not shown, similar to 7)
Stainless Steel Face Seal Ring
M10 x 25 Set Screw
M10 Nyloc Nut
Double Disc Welded Assembly (with Seed Tubes)
16 mm Bore Dust Cap
Seal Collar
Vee Ring Seal V-40A
Vee Ring Seal V-45A
M16 (LH Thread) x 50 Disc Retaining Bolt
M16 x 50 Class 8.8 Zinc Plated Bolt
Bearing Sleeve
25 i/d x 35 o/d x 1.6 Flat Washer
Plastic Spacer
RH Scraper Casting
LH Scraper Casting
Scraper Hinge Stainless
Double Disc Scraper Mounting Strap
Double Disc Scraper Tensioner
M6 x 30 Class 4.6 Zinc Plated Bolt
M6 Nyloc Nut
M6 Heavy Duty Flat Washer
M10 x 20 Class 4.6 Zinc Plated Set Screw
M10 Zinc Plated Light Flat Washer
M10 Zinc Plated Spring Washer
M16 Light Flat Washer
2
1
1
1
1
1
1
6
6
1
2
2
2
2
1
1
2
2
2
1
1
1
1
1
1
1
1
1
1
1
2
Disc & Bearing Assembly
5
8
1
6
7
7
6
9
8
2
9
4
3
3
Comprises
and
4
Pt. No. 67302
Issue 0806
19
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
Radar System
Description
43951
Qty
Radar Unit
Radar Mount Plate (Supplied with Radar Unit)
Radar Mount Bracket
Radar Clamp Plate
M12 x 300 Bolt
M12 Nyloc Nut
M10 x 25 Set Screw
M10 Nyloc Nut
M8 x 20 Set Screw
M8 Light Flat Washer
M8 Nyloc Nut
29402
29404
45454
45139
45417S
45138
45411S
45151
45137
1
1
1
1
1
2
2
3
3
2
2
2
2
8
3
7
9
10
11
5
4
6
20
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
29254
29260
43940
29259
43939
43895
45024
45139
45051
45140
29266
43941
Press Wheel Assembly
Description
Qty
Lower Jaw Assembly
Press Wheel Arm (15” x 3”)
14” x 75 mm RDSP Press Wheel
Bearing Spacer
Bearing
Oil Seal
M12 x 55 Class 8.8 Bolt
M12 Nyloc Nut
M16 x 130 Class 8.8 Bolt
M16 Nyloc Nut
Bearing Mount
Tyre (Spares)
1
2
1
1
2
2
2
2
1
1
2
1
1
8
7
2
2
3
4
11
6
9
10
5
12
Pt. No. 67302
Issue 0806
21
16
3
2
27
1
Not Shown
For Agitator
Drive Detail
Refer Page 24
9
21
26
27
28
36
19
7
38
35
5
33 40
4
6
5
34
31
Lid Hinge Detail
19 27
21
32
28
8
15
24
22
12
21
11
29
37
37
36
36
26
26
42
33 41
43
30 13
27 19
38 36 26
20
Location Tab Detail
21
29
21
31 14
30
29
15
26
Gas Strut Detail
27
36
19
37
10
48
46
44
37
45
36
26
18
46
47
15
32
17 21 29
17 21 29
22
48
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Refer Page 28
29155
29156
Refer Page 26
29181 / 29182
29183 / 29184
10143
10158
14442
43967
29163
22491
22498
22499
22568
29194
22855
43373
43430
45122
45136
45150
43958
27599
45852
45139
45702
45758
45908
45186
22485P
29119
45185SS
23633
47615
45153
45433S
45435
43381
29147
29148
22445
22446
45426
45421
45158
45130
45138
Seedbox Assembly
Description
Qty
Electric Drive System (2 Bin Unit)
Front Box Complete (Includes Seeders & Shafts)
Rear Box Complete (Includes Seeders & Shafts)
Seeder Assembly
Box Shaft (20mm) (1 Short per Box 29181, 1 Long per Box 29182)
Flap Shaft (18mm) (1 Short per Box 29183, 1 Long per Box 29184)
Front Box Quadrant Plate
Rear Box Reverse Quadrant Plate
Rubber Body Plug R187
Gas Strut
Hinge Assembly
Hinge Pin
Front Flap Handle Assembly
Rear Flap Handle Assembly
Location Tab (Calibration Tray)
Weather Skirt Holder
Agitator Access Blanking Plate
Black Edge Trim
Plastic Lashing Hooks
M6 Class 8.8 Zinc Plated Hex Nut
M6 Nyloc Nut
M6 Zinc Plated Light Flat Washer
Magnet Ring
Hinge Pin Spring Clip
No 8 x 3/8” Pan Pozi (23 Run Machines Only)
M12 Nyloc Nut
4.8 x 9.5 Monel Pop Rivet
M6 x 16 Zinc Plated Countersunk Pozi Drive Screw
M6 x 16 Zinc Plated Pan Head Machine Screw
M10 x 12 Socket Head Grubscrew
Box Set Lifting Eye Profile
Box Set Mounting Bracket
M10 x 10 Stainless Steel Socket Head Grubscrew
Box Shaft Connecting Sleeve (Short)
6 x 40 Pipe Lynch Pin
M12 Zinc Plated Light Flat Washer
M12 x 30 Class 4.6 Zinc Plated Set Screw
M12 x 40 Class 4.6 Zinc Plated Bolt
Metering Housing Outlet Cover (23 Run Machines Only)
Box Shaft Joining Collar
Flap Shaft Joining Collar
Front Agitator Drive Complete Assembly
Rear Agitator Drive Complete Assembly
M10 x 70 Bolt
M10 x 40 Bolt
M10 Heavy Duty Washer
M10 Hex Nut
M10 Nyloc Nut
1
1
1
*N
4
4
1
1
28
2
6
6
1
1
6
2
2
6m
4
6
38
12
2
6
4
16
28
4
24
4
2
2
8
4
8
40
16
4
4
2
2
1
1
1
1
4
1
2
*N Where N = Number of Coulters Fitted, e.g. 19 for 19 Run Machine
Pt. No. 67303
Issue 0806
23
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
22414
22415
22416
22418
22422
22417
43396
22425
22426
43428
23633
22420
45415
45416
45137
45180SS
47615
1
Agitator Drives
Description
Qty
Agitator Drive Front Housing
Agitator Drive Rear Housing
Agitator Drive Spacer
3/8” Pitch x 20mm Bore 21T Sprocket
3/8” Pitch x 20mm Bore 15T Sprocket
3/8” Pitch x 33 Link BS Chain
3/8” Pitch Joiner Link
Agitator Shaft Extension
Seed Shaft Extension
Nylon Bush
Box Shaft Connecting Sleeve
Agitator Shaft Joining Collar
M8 x 45 Class 4.6 Zinc Plated Bolt
M8 x 60 Class 4.6 Zinc Plated Bolt
M8 Nyloc Nut
M8 x 10 Stainless Steel Socket Head Grub Screw
6 x 40 Pipe Lynch Pin
Rear Agitator
Drive Complete
Assembly
Pt No 22446
15
4
5
14
13
3
11
1
1
2
2
2
2
2
2
2
6
2
2
2
2
4
4
4
10
2
Front Agitator
Drive Complete
Assembly
Pt No 22445
16
12
10
17
10
11
12
9
8
6
7
Front Assembly Only, Shown Exploded
24
15
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
29185
29186
22420
22423
22424
22428
29149
43442
45185SS
45410SSS
45137SS
47600
45186
Agitator Shaft Assembly
Description
Qty
Agitator Shaft Assembly (Drive End)
Agitator Shaft Assembly (Non-drive End)
16mm Agitator Joining Collar
Agitator Shaft Support RH (Short)
Agitator Shaft Support LH (Long)
Agitator Shaft Support Cap in Box Set
Agitator Joining Collar
5/8” Lurethane Wiper Seal
M10 x 10 Stainless Steel Socket Head Grubscrew
M8 x 16 Grade 316 Stainless Steel Set Screw
M8 Grade 316 Stainless Steel Nylock Nut
M30 ISO Fine Zinc Plated Hex Lock Nut
M10 x 12 Socket Head Grubscrews
1
1
1
1
1
2
1
2
2
4
4
2
2
Non-drive End
8
Centre Bearing
10
6
13
1
12
2
4
Drive End
9
11
7
3
8
5
12
Pt. No. 67303
Issue 0806
25
1
4
3
8
10
9
7
6
14
9
4
3
5
2
1
8
10
6
11
7
26
Enviro 3000e Seed Drill
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Part No.
Seeder Assembly
Description
43375
43376
43377
43374
43378
22550
22551
22548
43379
43380
43382
29270
11102
43362
Qty
Metering Housing
Shutter Slide
Seed Metering Wheel Assembly
Fine Seed Wheel
Bottom Flap & Bolt Assembly
Seeder Extension Funnel
Seed Diverter
Seeder Extension Spring Clip
Seed Shaft Guide Bearing
Guide Bearing Tension Spring
Metering Wheel Clutch Hook
Seed/Fertiliser Conductor Tube
No. 42 Cray Clip
Fine Seed Wheel Brush (Optional)
1
1
1
1
1
1
1
1
1
1
1
1
2
1
8
7
6
13
12
12
13
Pt. No. 67303
Issue 0806
27
4
12
5
8
9
1
12
2
11
13
10
10
16
11
12
17
11
7
15
3 Not Shown
28
6
14
Enviro 3000e Seed Drill
Item
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
43957
43983
43952
43980
43981
43943
43944
43945
43950
43949
43948
43982
29376
29377
43951
43956
43958
45368SS
45158
29339
43984
18
Electric Drive
Description
Qty
Duncan PS Console
Duncan PS Console Decal
PS Console Mounting Bracket
Tractor Power Lead c/w Fuse Assembly
Duncan Drill Power Lead
Power Link Cable
450watt, 100:1 g/box & 100:1 Encoder
Bin 1 Motor Control Module (0000)
Bin 2 Motor Control Module (1000)
0.5m Priming Switch c/w Connector
0.5m Shaft Speed Sensor c/w Connector
0.5m Level Sensor c/w Connector
Duncan PS Instrument Lead
Duncan 3000e 1/2 Box Harness
Duncan 3000e Drill Harness to Tractor
Radar
Bar Magnet (Wheel Ram Sensor)
Magnet Ring
M10 Starlock Fixing Washer
M10 Heavy Duty Flat Washer
Shaft Confirmation Sensor Bracket
60Amp Maxi Fuse (Blue)
1
1
1
1
1
1
2
1
1
2
3
4
1
1
1
1
2
per Box
per Box
per Box
per Box
1
19
1
1
1
1
20
11
21
Pt. No. 67303
Issue 0806
29
2
1
5
6
3
4
4
3
2
7
7
6
5
8
9
2
30
3 10
Enviro 3000e Seed Drill
Item
1
2
3
4
5
6
7
8
9
10
Part No.
29141
45403S
45136
45156
45434
45139
45159
29142
29338
45150
Description
Electric Drive
(continued)
Qty
Gearbox Mount Assembly (Front)
M6 x 25 Set Screw
M6 Nyloc Nut
M6 Heavy Duty Flat Washer
M12 x 35 Bolt
M12 Nyloc Nut
M12 Heavy Duty Flat Washer
Gearbox Mount Assembly (Rear)
Priming Switch Bracket
M6 Light Flat Washer
1
10
10
8
4
4
4
1
2
2
Pt. No. 67303
Issue 0806
31
Enviro 3000e Seed Drill
32
Operator Notes
Owners Manual
Duncan Drill
Electric Drive System
Head Office:
P.O. Box 2018
Hilton Highway
Timaru, New Zealand
Telephone (03) 688 2029
Facsimile (03) 688 2821
Australian Branch:
4B Silverton Close
Laverton North
Melbourne, Australia
Telephone (03) 9314-9666
Facsimile (03) 9314-6810
Pt. No. 67385
Issue 1005
1
Contents
A INTRODUCTION..........................................................................................................................5
A.1
A.2
A.3
A.4
A.5
General Description ................................................................................................................................5
System Schematic – 2 Bin System.................................................................................................5
System Schematic – 3rd Bin System..............................................................................................6
System Schematic – 4th Bin System..............................................................................................6
Console Layout ..........................................................................................................................................7
B OPERATION .................................................................................................................................8
B.1
Power On Routine....................................................................................................................................8
B.2
Main Operating Screen .......................................................................................................................11
B.2.1
Main screen options and bin configuration display..................................................11
B.2.2
Main screen display features.................................................................................................13
B.3
Info Screen ................................................................................................................................................16
B.3.1
Info screen options and bin configuration display...................................................16
B.3.2
Info screen display features ..................................................................................................17
B.4
Totals Screen ............................................................................................................................................20
B.5
Main Screen Alarms ..............................................................................................................................22
B.5.1
Low Bin Level..................................................................................................................................22
B.5.2
Shaft Confirmation Alarm........................................................................................................23
B.5.3
Encoder Alarm ................................................................................................................................24
B.5.4
Forward Speed Alarm ................................................................................................................24
B.5.5
Motor Alarm .....................................................................................................................................25
B.5.6
Motor Control Module Alarm ..................................................................................................27
B.6
Calibration..................................................................................................................................................29
B.6.1
Calibration Check Programme 1 ..........................................................................................29
B.6.2
Calibration Check Programme 2 ..........................................................................................30
B.6.3
Calibration Nudge Programme .............................................................................................32
C CONFIGURATION /SETUP......................................................................................................35
C.1
Menu ..............................................................................................................................................................35
C.1.1
Alarm Setup .....................................................................................................................................35
C.1.2
Cal Check ...........................................................................................................................................36
C.1.3
Bin Setup ...........................................................................................................................................36
C.1.4
User Options....................................................................................................................................36
C.1.4.1 Speed Simulation .....................................................................................................................37
C.1.4.2 Display............................................................................................................................................39
C.1.4.3 Forward Speed Sensor..........................................................................................................39
C.1.4.4 Time / Date .................................................................................................................................42
C.1.4.5 Helpline..........................................................................................................................................43
C.1.5
Drill Setup .........................................................................................................................................43
C.1.5.1 Sowing Width.............................................................................................................................44
C.1.5.2 Instrument Setup ....................................................................................................................44
C.1.5.3 Bin Configuration.....................................................................................................................45
C.1.5.4 Bin Setup ......................................................................................................................................46
C.1.6
Diagnostics.......................................................................................................................................47
C.1.6.1 Test Routine................................................................................................................................48
C.1.6.2 Instrument Live ........................................................................................................................51
C.1.6.3 Motor Module 1 Live...............................................................................................................52
C.1.7
History.................................................................................................................................................55
D
E
F
G
DEFAULT SETTINGS ...............................................................................................................57
TROUBLE SHOOTING .............................................................................................................58
TEMPORARY SOLUTIONS .....................................................................................................61
NOTES ..........................................................................................................................................62
2
List of Figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
Figure 10.
Figure 11.
Figure 12.
Figure 13.
Figure 14.
Figure 15.
Figure 16.
Figure 17.
Figure 18.
Figure 19.
Figure 20.
Figure 21.
Figure 22.
Figure 23.
Figure 24.
Figure 25.
Figure 26.
Figure 27.
Figure 28.
Figure 29.
Figure 30.
Figure 31.
Figure 32.
Figure 33.
Figure 34.
Figure 35.
Figure 36.
Figure 37.
Figure 38.
Figure 39.
Figure 40.
Figure 41.
Figure 42.
Figure 43.
Figure 44.
Figure 45.
Figure 46.
Figure 47.
BIN SETUP screen.......................................................................................... 8
BIN CONTENTS screen.................................................................................. 9
PRODUCT SETUP screen .............................................................................. 9
RESET TOTALS screen ............................................................................... 10
2 bin configuration ....................................................................................... 11
3 bin configuration (3rd box at front)........................................................... 11
3 bin configuration (3rd box at rear) ............................................................ 12
4 bin configuration ....................................................................................... 12
MAIN screen summary (4 bin configuration) ............................................. 13
MAIN screen (4 bin configuration) .............................................................. 13
MAIN screen - low speed alarm................................................................... 14
MAIN screen - motors on & off.................................................................... 14
MAIN screen - max ground speed............................................................... 15
INFO screen - 4 bin configuration............................................................... 16
INFO screen summary - 4 bin configuration.............................................. 16
BIN CONTENTS screen................................................................................ 17
INFO SETUP screen ..................................................................................... 18
TODAY screen .............................................................................................. 19
TOTALS screen -part ................................................................................... 20
TOTALS screen - total.................................................................................. 20
TOTALS screen 3 ......................................................................................... 21
Low bin level alarm - left.............................................................................. 22
Low bin level alarm - right ........................................................................... 22
Low bin level alarm - volume ...................................................................... 23
Shaft confirmation alarm ............................................................................. 23
Encoder alarm .............................................................................................. 24
Low speed alarm .......................................................................................... 24
High speed alarm 1 ...................................................................................... 25
High speed alarm 2 ...................................................................................... 25
Motor alarm................................................................................................... 26
Motor speed alarm ....................................................................................... 26
Motor overload ............................................................................................. 27
Motor control module offline....................................................................... 28
CAL CHECK screen 1/1................................................................................ 29
CAL CHECK screen 1/2................................................................................ 29
CAL CHECK screen 1/3................................................................................ 30
CAL CHECK screen 1/4................................................................................ 30
CAL CHECK screen 2/1................................................................................ 31
CAL CHECK screen 2/2................................................................................ 31
CAL CHECK screen 2/3................................................................................ 32
NUDGE screen 1........................................................................................... 33
NUDGE screen 2........................................................................................... 33
NUDGE screen 3........................................................................................... 34
MENU screen ................................................................................................ 35
ALARM SETUP screen................................................................................. 35
BIN SETUP screen........................................................................................ 36
USER OPTIONS screen................................................................................ 37
3
Figure 48.
Figure 49.
Figure 50.
Figure 51.
Figure 52.
Figure 53.
Figure 54.
Figure 55.
Figure 56.
Figure 57.
Figure 58.
Figure 59.
Figure 60.
Figure 61.
Figure 62.
Figure 63.
Figure 64.
Figure 65.
Figure 66.
Figure 67.
Figure 68.
Figure 69.
Figure 70.
Figure 71.
Figure 72.
Figure 73.
Figure 74.
Figure 75.
SIMULATED SPEED screen......................................................................... 37
MAIN screen with SIMULATED SPEED ...................................................... 38
SIMULATED SPEED off................................................................................ 39
DISPLAY screen ........................................................................................... 39
SPEED FACTOR screen............................................................................... 40
SPEED FACTOR CALIBRATION screen 1 .................................................. 40
SPEED FACTOR CALIBRATION screen 2 .................................................. 41
SPEED FACTOR CALIBRATION screen 3 .................................................. 41
SPEED FACTOR CALIBRATION screen 4 .................................................. 42
TIME/DATE screen ....................................................................................... 43
HELPLINE screen ......................................................................................... 43
DRILL SETUP screen ................................................................................... 44
INSTRUMENT SETUP screen ...................................................................... 44
BIN CONFIG screen...................................................................................... 46
BIN SETUP screen........................................................................................ 47
DIAGNOSTIC screen .................................................................................... 48
TEST ROUTINE screen 1 ............................................................................. 48
TEST ROUTINE screen 2 ............................................................................. 49
TEST ROUTINE screen 3 ............................................................................. 49
TEST ROUTINE screen 4 ............................................................................. 50
TEST ROUTINE screen 5 ............................................................................. 50
TEST ROUTINE screen 6 ............................................................................. 51
TEST ROUTINE screen 7 ............................................................................. 51
INSTRUMENT LIVE screen .......................................................................... 52
MCM 1 LIVE screen 1 ................................................................................... 52
MCM 1 LIVE screen 2 ................................................................................... 53
HISTORY screen........................................................................................... 55
HISTORY MCM1 screen ............................................................................... 56
4
A
INTRODUCTION
A.1
General Description
The electric drive system enables up to 4 electric motors to be controlled
proportional to the forward speed. The system also includes a cut-out sensor to
stop seeding while in transport, and a tractor cab mounted console. Connected to
each bin is a seeder shaft confirmation sensor, 2 low level sensors, calibration
priming switch, electric motor complete with gearbox and a motor control module.
The console programming includes product information, bin configuration and set
up, sowing rate set up, calibration, system monitoring, etc.
A.2
System Schematic – 2 Bin System
A schematic of the complete 2 bin system is as follows
5
A.3
System Schematic – 3rd Bin System
A schematic of the 3rd bin system is as follows. This system connects directly to
the 2 bin system above.
A.4
System Schematic – 4th Bin System
A schematic of the 4th bin system is as follows. This system connects directly to
the 2 bin system and the 3rd bin systems above using the ‘Y’ junction shown
below.
6
A.5
Console Layout
KEYPAD
A
B
C
ON/OFF
D
ENTER
I
H
G
F
E
References are made throughout this manual to Keys A to I which correspond to the
buttons labelled A to I above.
7
B
OPERATION
B.1
Power On Routine
When the instrument is first turned on the instrument will enter a short routine to
remind the operator of the previous setup. The set up can be changed and then
accepted by pressing the ENTER key or alternatively, the routine can be skipped
by pressing the MAIN button (Key A).
The first screen on start up is the BIN SETUP screen. See Figure 1 This screen
advises the operator which products are defined to which bin. On the screen
format shown in Figure 1 the operator can use Keys E & F to cycle through the list
of products. The application rate saved against that product will also be shown.
The letter shown in the graphic will also change to reflect the product selected.
A
B
C
D
I
Figure 1.
H
G
F
E
BIN SETUP screen
Key I can be used to move down the list with both ends of the arrow moving to
indicate the product and bin selected. Once at the end it will return to the
beginning with the next key press.
Pressing Key H accesses the BIN CONTENTS screen. See Figure 2. This screen
enables the operator to adjust the contents of the product in the bin. Pressing the
ENTER key returns to BIN SETUP screen.
8
A
B
C
D
I
Figure 2.
H
G
F
E
BIN CONTENTS screen
Pressing Key G on the BIN SETUP screen accesses the PRODUCT SETUP screen.
See Figure 3. On this screen the operator can view/programme the setup
regarding the product in the bin selected.
A
B
C
D
I
Figure 3.
H
G
F
E
PRODUCT SETUP screen
There is a directory of 16 products and against each of these 4 factors are
recorded. These factors are rate, step size, alarm weight and calibration factor.
The 1st line simply reminds the operator which bin the product is set for.
The 2nd line is the product name. This can be changed using the keypad, pressing
ENTER to confirm the name entered. This new name then applies to any of the
other bins that have the same product.
9
The 3rd line is the target rate for the product. This value can be changed here or
on the MAIN screen. The last entered value here or on the MAIN screen is the one
saved.
The 4th line is the step size. The step size is the percentage change of the target
sowing rate. This can be programmed here or on the screen INFO SETUP screen.
The 5th line of the display is the bin low level alarm weight. This can be
programmed here or on the INFO SETUP screen or on the ALARM SETUP screen.
The 6th line is the calibration factor for the product. This can be manually entered
here or on the INFO SETUP screen. Doing a product calibration of this product on
any bin overwrites this value irrespective of bin.
Pressing the ESC key returns to the BIN SETUP screen.
Pressing the ENTER key while showing the BIN SETUP screen accesses the RESET
TOTALS screen. See Figure 4. If Key I is pressed the instrument goes directly to
the MAIN operating screen. If Key E is then pressed a secondary screen is
displayed which enables the operator to reset either the ‘PART’ or ‘TOT’ area’s.
Select ‘PART’ or ‘TOT’ to highlight whish is to be reset and press the RESET button
(Key E). Press the ESC button (Key G) to return to the previous screen or the
ENTER button to confirm the reset. Press the MAIN button (Key A) when
complete.
A
B
C
D
I
Figure 4.
H
G
F
E
RESET TOTALS screen
10
B.2
Main Operating Screen
B.2.1 Main screen options and bin configuration display
Figure 5 shows the MAIN screen display for the 2 bin configuration. The left bin is
bin 1 (front) and the right hand bin is bin 2 (rear). The MAIN screen can be
accessed at any time by pressing the MAIN button (Key A).
A
B
C
D
I
Figure 5.
H
G
F
E
2 bin configuration
Figure 6 shows the MAIN screen display for one of the 3 bin configurations. The
left bin is bin 3 (the small bin), the middle bin is bin 1 and the right hand bin is bin
2.
A
B
C
D
I
Figure 6.
H
G
F
E
3 bin configuration (3rd box at front)
11
Figure 7 shows the MAIN screen display for the other 3 bin configuration. The left
bin is bin 1, the middle bin is bin 2 and the right hand bin is bin 3 (the small bin).
A
B
C
D
I
Figure 7.
H
G
F
E
3 bin configuration (3rd box at rear)
Figure 8 shows the MAIN screen display for the 4 bin configuration. The left bin is
bin 3 (the front small bin), the left middle bin is bin 1, the right middle is bin 2
and the right hand bin is bin 4 (the rear small box).
A
B
C
D
I
Figure 8.
H
G
F
E
4 bin configuration
Figure 9 shows a summary of the 4 bin configuration MAIN screen display. This
enables particular details of each bin to be displayed simultaneously.
The
summary screens for the 2 bin and 3 bin configurations are the same except the
respective missing bin information is blank.
12
A
B
C
D
I
Figure 9.
H
G
F
E
MAIN screen summary (4 bin configuration)
Pressing the MAIN button (Key A) cycles between the two versions of the
appropriate MAIN screen (box specific and summary screens).
B.2.2 Main screen display features
Figure 10 provides a description of various features on the MAIN screen. This is
for a 4 bin configuration but also applies to the other configurations.
The top line of the display shows the time (top left) and area cut-out status (top
right). When the drill is ‘out of work’ (lifted) a cross is shown, a tick indicates ‘in
work’ (lowered). When the drill is ‘out of work’ motor control and alarms will be
inhibited. The second line of the MAIN display advises the operator of the
product that the details below relate to. This will change when Key I is pressed.
The metering rolls will be stationary when the motors are stationary and as soon
as the motors start rotating the icon will be animated. If the motor is turned off
a cross will be show.
Area Cut-Out Status
Product Selected
Low level reminder
Bin contents indication
Metering Roll
Bin number
Part area for selected product
Figure 10. MAIN screen (4 bin configuration)
13
If the instrument is ‘in work’ and the forward speed is below the minimum forward
speed setting (refer to C.1.5.2), then the instrument will beep and the display will
be as in Figure 11. The alarm bell icon and down arrows will flash in sequence
with the internal buzzer.
A
B
C
D
I
H
G
F
E
Figure 11. MAIN screen - low speed alarm
Pressing Key I cycles through the bins in a loop. The end of the arrow will move
to indicate the bin currently selected (underneath the metering roll). The product,
rate, amount, hectares done and motor status shown will change with each bin.
Pressing Key H will turn the selected bin motor ON or OFF irrespective of whether
the machine is in transport or not. When turned off the product totals stop
accumulating. The key tab reverses shading to show the status and the metering
roll shows a cross when turned off as shown in Figure 12.
A
B
C
D
I
H
G
F
E
Figure 12. MAIN screen - motors on & off
14
With the desired bin/product selected simply use the key pad to enter the desired
application rate. The digits will flash and pressing ENTER will confirm the rate
entered. Maximum is either 3 digits to 0 decimal places or 1 digit to 1 decimal
place. Resolution will be as follows 0.0 to 9.9 in 0.1 kg steps, 10 – 99 in 1 kg
steps, 100 – 999 in 5kg steps. Values programmed will be rounded to the nearest
acceptable value, i.e. 254 will be 255. It will only be possible to enter a new
application rate if the forward speed is below the minimum forward speed setting.
This rate is then saved against the specific product within the PRODUCT SETUP
screen, refer Figure 3.
When a new product rate has been entered, the MAIN screen shows the maximum
forward speed for 3 seconds or until a Key has been pressed. See Figure 13. The
maximum forward speed shown is the corresponding ground speed when the
motor is at maximum speed. This is based on the product calibration factor.
A
B
C
D
I
H
G
F
E
Warning: The speed shown may
exceed the practical speed for the
Figure 13. MAIN screen - max ground speed
machine and/or conditions.
Keys F & G are used to change the rate of the product selected. The default step
size is 10% but this can be changed. Refer to B.3.2.
The TARGET RETURN button (Key E) is used to return the actual sowing rate to
the target sowing rate when a rate change has already been made. Until the rate
has been changed the key is ‘greyed’ out.
15
B.3
Info Screen
B.3.1 Info screen options and bin configuration display
Figure 14 shows the information screen for the 4 bin configuration. The display
for the 2 and 3 bin configurations is similar. The INFO screen can be accessed at
any time by pressing the INFO button (Key B). The INFO screen displays the
amount of product remaining in the bin and also the shaft speed as calculated
from the shaft confirmation sensor. It is also used to access and set the bin
contents and settings.
A
B
C
D
I
H
G
F
E
Figure 14. INFO screen - 4 bin configuration
Key I is used to cycle through the bins. The end of the arrow also moves to the
appropriate bin under the metering roll. Pressing the INFO button (Key B) cycles
between the individual and summary INFO screens. Figure 15 shows the later.
A
B
C
D
I
H
G
F
E
Figure 15. INFO screen summary - 4 bin configuration
16
B.3.2 Info screen display features
Pressing Key H when on the individual INFO screen accesses the BIN CONTENTS
screen. See Figure 16. This screen enables the operator to programme the
contents of the bin. The NOW value refers to the calculated current contents of
the bin based on the initial value less the number of shaft revolutions x product
calibration factor. This value can be changed directly by selecting NOW and using
the key pad and pressing ENTER. Alternatively, when a specific amount of product
is being added to the bin, select ‘TO ADD’ and use the key pad and press ENTER
to add to the NOW total. The NOW total will be updated. Pressing the ESC button
(Key G) returns to the previous INFO screen.
A
B
C
D
I
H
G
F
E
Figure 16. BIN CONTENTS screen
Pressing the SETUP button (Key G) when on the individual INFO screen, accesses
the INFO SETUP screen. See Figure 17. This screen shows a summary of the bin
setup which was selected on the INFO screen. The 3 cursors shown in Figure 17
are the only cursor positions selectable.
17
A
B
C
D
I
H
G
F
E
Note: Changes to any of these
changes the product settings.
Figure 17. INFO SETUP screen
The first item is the low contents alarm for the bin. When the bin contents reach
this setting, the alarm will sound. This can be changed by using the keypad and
pressing ENTER. Setting to 0kg disables this alarm.
The second item is the ‘Step size’ and sets the percentage that the actual sowing
rate will change using the + and – buttons (Keys F and G) on the MAIN screen.
The actual sowing rate can be changed while sowing. The minimum value
programmable is 5%, the maximum is 50%.
The third item is the ‘Cal. factor’. The product calibration factor can be changed
by using the keypad and pressing ENTER.
Pressing the CAL CHECK key tab when on the individual INFO screen, accesses the
first screen of the calibration check procedure. For calibration programmes refer
to B.6.1.
Pressing the NUDGE key tab when on the individual INFO screen, accesses the
first screen of the calibration nudge programme. For the calibration programme
refer to B.6.1.
Press the ESC button to return to the INFO screen.
Pressing the TODAY button (Key E) accesses the TODAY screen shown in Figure
18. This shows information relating to the operation of the system since the
instrument was turned on that day and is reset at midnight.
18
A
B
C
D
I
H
G
F
E
Figure 18. TODAY screen
The first line indicates the area that has been covered since the instrument was
turned on.
The second line displays the time that the drill has been in work and the motors
have been operating.
The third line shows the instantaneous work-rate based on the forward speed and
working width.
The fourth line shows the work-rate for the last bout. This is based upon the
distance and time between the system going ‘in to work’ and then going ‘out of
work’. It is updated every time the system goes ‘out of work’.
The fifth line shows the average work-rate since the instrument was turned on
that morning. It is based upon the area covered and the time in work (both
shown above).
This information is reset and the date updated at midnight.
Pressing Key G returns to the previously shown INFO screen.
19
B.4
Totals Screen
The TOTALS screen can be accessed at any time by pressing the TOT button (Key
C). The TOTALS screen shown in Figure 19 displays the amount of product
dispensed and the area covered while dispensing that product since the date
specified for the 4 bin configuration. Similar displays are shown for the 2 and 3
bin configurations. The PART/TOT key tab can be pressed to cycle through the
PART and TOTAL registers. Figure 19 shows the PART register screen while Figure
20 shows the TOTAL register screen.
A
B
C
D
I
H
G
F
E
Figure 19. TOTALS screen -part
A
B
C
D
I
H
G
F
E
Figure 20. TOTALS screen - total
Pressing the RESET key tab accesses the screen shown in Figure 21. This allows
the reset to be accepted by pressing ENTER or press ESC to cancel. The register
20
being reset is that highlighted in the PART/TOT key tab before the RESET key tab
was pressed.
A
B
C
D
I
Figure 21.
H
G
F
E
TOTALS screen 3
21
B.5
Main Screen Alarms
B.5.1 Low Bin Level
Figure 22 shows the MAIN screen alarm display when a left hand low bin level
alarm is activated. This will occur when a bin level sensor is uncovered. The
MAIN screen display changes the bin information of the bin which is low. The
alarm can be temporarily ignored by pressing the TARGET RETURN button (Key
E).
A
B
C
D
I
Figure 22.
H
G
F
Target Return
E
Low bin level alarm - left
Figure 23 shows the MAIN screen alarm display when the right hand low bin level
is activated.
A
B
C
D
I
Figure 23.
H
G
F
E
Low bin level alarm - right
22
Figure 24 shows the MAIN screen alarm display when the theoretical bin level
reaches the ‘Low alarm’ setting (see Figure 17). The alarm can be temporarily
ignored by pressing the TARGET RETURN button (Key E). The MAIN screen
display changes the bin information of the bin which is low.
A
B
C
D
I
Figure 24.
H
G
F
E
Low bin level alarm - volume
B.5.2 Shaft Confirmation Alarm
Figure 25 shows the MAIN screen alarm display when the system is not receiving
a signal from the shaft confirmation sensor.
The display defaults to the
appropriate bin for the alarm. The alarm can be temporarily ignored by pressing
the TARGET RETURN button (Key E).
A
B
C
D
I
Figure 25.
H
G
F
E
Shaft confirmation alarm
23
B.5.3 Encoder Alarm
Figure 26 shows the MAIN screen alarm display when the system is not receiving
a signal from the motor encoder but is receiving a signal from the shaft
confirmations sensor. In this case the motor increases speed to maximum. This
alarm can not be ignored.
A
B
C
D
I
Figure 26.
H
G
F
E
Encoder alarm
B.5.4 Forward Speed Alarm
Figure 27 shows the MAIN screen display if the drill is ‘in work’ and the forward
speed is below the minimum forward speed setting. Refer to C.1.5.2.
A
B
C
D
I
Figure 27.
H
G
F
E
Low speed alarm
Figure 28 shows the MAIN screen display if the drill speed exceeds the motors
capacity to keep up. The up arrows flash in sequence with the internal buzzer, but
24
every 2 seconds the display flashes the message ‘TOO HIGH’ for 1 second as
shown if Figure 29. The rate information defaults to the appropriate bin and the
application rate displayed is based on the maximum motor speed and the current
forward speed.
A
B
C
D
I
H
G
F
E
Figure 28. High speed alarm 1
A
B
C
D
I
Figure 29.
H
G
F
E
High speed alarm 2
B.5.5 Motor Alarm
Figure 30 shows the MAIN screen display if there is no speed being registered
from the motor but pulses are being received from the shaft confirmation sensor.
25
A
B
C
D
I
Figure 30.
H
G
F
E
Motor alarm
Figure 31 shows the MAIN screen display if the error between actual motor speed
and target motor speed is greater than 10%.
A
B
C
D
I
Figure 31.
H
G
F
E
Motor speed alarm
Figure 32 shows the display when the motor is overloaded and operating above
the maximum current programmed. Refer to C.1.5.2. The automatic motor
overload alarm/shutdown procedure is based on both the amount and the duration
of the overload. If the maximum operating current is only exceeded by a small
margin, then this is permitted for a short time before the alarm is initiated and the
motor drive is shutdown. If the current immediately exceeds the threshold by a
large amount then the alarm is instantly shown and the motor drive stopped i.e. a
mechanical blockage stops the motor from rotating.
26
When the alarm is triggered the motor operation will be stopped and the only way
to continue is to fully raise the drill ‘out of work’.
This logic avoids alarm/shutdown being triggered from exceeding the programmed
maximum current value by small, short and occasional amounts i.e. during motor
start-up.
The procedure once the alarm/shutdown is initiated and the screen in Figure 32 is
shown should then be as follows:
• The screen indicates that it is the 2nd bin motor control module that has
shutdown due to overload. (Bin1 =0000, Bin 2=1000, Bin 3 =0100, Bin 4
=1100 as indicated on the rear of the motor control modules). This
overload alarm/shutdown action will be recorded on the instrument.
• Stop the drill and lift it into the transport position, the alarm/shutdown is
then automatically reset.
• Check for the cause of the overload shutdown e.g. faulty bearing, seed
bag wrapped around agitator shaft, etc.
• Assuming the problem is rectified the operator may then continue
working by lowering the drill into work.
• If the alarm re-occurs then follow the above procedure but further indepth investigation will be required to avoid future re-occurrences.
A
B
Motor
C control module
identification (1000 = Bin 2)
D
I
Figure 32.
H
G
F
E
Motor overload
B.5.6 Motor Control Module Alarm
Figure 33 shows the screen display when the motor control module is recognised
as being offline. In this case bin 2 is offline indicated by the motor control module
identification 1000.
27
A
B
C
D
I
Figure 33.
H
G
F
E
Motor control module offline
28
B.6
Calibration
B.6.1 Calibration Check Programme 1
There are two ways to access the calibration check programme, the first is by
pressing the following key tabs; INFO, SETUP & CAL CHECK. This will calibrate
the product in the bin which was active on the individual INFO screen. The second
is to press the MENU key tab (under the TOT key tab) and then CAL CHECK. The
only difference between these two methods of accessing the calibration
programme is that the first option only allows the calibration to be run on the bin
which was on the INFO screen whereas the second option allows the bin to be
selected on the first screen by using Key I.
The first screen of the calibration programme is shown in Figure 34. This screen
requests the operator to enter the amount of product to be dispensed. This is
done by using the key pad and pressing ENTER. The programme gives the option
to correct the amount to be dispensed. If the number entered is incorrect, use
the keypad and press ENTER. If the number was correct press ENTER to proceed
to the next screen.
Figure 34. CAL CHECK screen 1/1
The second screen is shown if Figure 35. Pressing ENTER again will start the
product dispensing. The actual amount of product dispensed is based on the
product calibration factor and the gearbox ratio. The instrument calculates the
number of motor revolutions required and then carries this out. Whilst the motor
is running the screen Figure 35 is shown with the weight accumulating.
A
B
C
D
I
H
G
F
E
Figure 35. CAL CHECK screen 1/2
When the system thinks it has delivered the product weight requested, the motor
stops and the amount dispensed is shown on the third screen. See Figure 36.
The product dispensed is weighed and then entered using the key pad and
29
pressing ENTER. Again the programme will give the opportunity for the figure
entered to be corrected. To proceed to the last screen, press ENTER again.
A
B
C
D
I
H
G
F
E
Figure 36. CAL CHECK screen 1/3
The last screen of the programme shows the old and new calibration factors and
the percentage error as shown in Figure 37. Press ENTER to accept the change or
ESC to exit the programme without changing.
A
B
C
D
I
H
G
F
E
Figure 37. CAL CHECK screen 1/4
B.6.2 Calibration Check Programme 2
The programme 2 calibration is essentially the same as programme 1 however it is
activated using the priming switches mounted into the left hand side plate of the
machine.
30
The programme is initiated when the priming switch is held for ½ second and then
released. Figure 38 shows the first programme 2 calibration screen which is
accessed automatically when the priming switch is pressed. With this programme
the option of entering the weight to be dispensed is not available. The product
starts being dispensed into the calibration trays immediately.
A
B
C
D
I
H
G
F
E
Figure 38. CAL CHECK screen 2/1
The product being dispensed accumulates until the priming switch is pressed a
second time for ½ second and released. The screen display changes to that
shown in Figure 39.
A
B
C
D
I
H
G
F
E
Figure 39. CAL CHECK screen 2/2
31
When the product has been weighed, enter the amount using the keypad and
press ENTER. The programme will give the opportunity for the figure entered to
be corrected. To proceed to the last screen, press ENTER again.
The display changes to the last screen as shown in Figure 40. This shows the old
and new calibration factors and the percentage error. Press ENTER to accept the
change or ESC to exit the programme without changing.
A
B
C
D
I
H
G
F
E
Figure 40. CAL CHECK screen 2/3
The disadvantage of programme 2 is that the operator is unable to programme
the amount of product to be dispensed. There two advantages of the second
programme, firstly, less walking to and from the console and secondly, two bins
can be calibrated simultaneously.
When calibrating two bins simultaneously, press the priming switch for the first
bin and release after ½ second to start product dispensing. Press and hold the
priming switch for ½ second for the second bin. The console will display the
product weight accumulating of the bin started last. When both bins are finished
dispensing, the console will display and request the weight to be entered for the
last bin finished.
The ESC key tab can be pressed at any time to return to the screen displayed
before starting the calibration programme.
B.6.3 Calibration Nudge Programme
The calibration nudge programme is accessed by pressing the following key tabs;
INFO, SETUP & NUDGE. The programme enables the calibration factor to be
adjusted to compensate for variations is seeding rate due to dynamic affects, eg.
vibration.
32
The first programme screen is shown in Figure 41. Use the key pad to enter the
‘target’ weight, the weight of product that should have been dispensed, and press
ENTER.
A
B
C
D
I
H
G
F
E
Figure 41. NUDGE screen 1
The second screen is shown in Figure 42. Use the key pad to enter the ‘actual’
weight, the weight of product that has been dispensed, and press ENTER.
A
B
C
D
I
H
G
F
E
Figure 42. NUDGE screen 2
The last screen as shown in Figure 43 shows the old and new calibration factors
and the error. If the error value is negative, the system has not applied as much
as it should have. The calibration factor will decrease to increase the motor
revolutions. Press ENTER to accept the correction or ESC to exit.
33
A
B
C
D
I
H
G
F
E
Figure 43. NUDGE screen 3
34
C
CONFIGURATION /SETUP
C.1
Menu
The MENU screen can be accessed at any time by pressing Key D. Items on this
list can be accessed by using the keypad. See Figure 44
A
B
C
D
I
H
G
F
E
Figure 44. MENU screen
C.1.1 Alarm Setup
From the MENU screen, press Key F to access the ALARM SETUP screen as shown
in Figure 45.
A
B
C
D
I
H
G
F
E
Figure 45. ALARM SETUP screen
35
Pressing Key I cycles through the bins for which the sensors displayed apply.
Pressing Key H cycles though the sensors for the bin shown. The alarms shown
are the shaft confirmation sensor (top), bin level sensor (middle) and the bin
weight (bottom). Pressing Keys E and F turn the selected sensor ON or OFF. The
bin weight alarm level is set by using the keypad and pressing ENTER. Setting the
weight alarm level to 0kg disables the alarm. Press ESC to exit the ALARM SETUP
screen and return to the MENU screen.
C.1.2 Cal Check
From the MENU screen, press the CAL CHECK button (Key G) to access the first
screen of the calibration programme 1. Refer to section B.6.1. This calibration
programme is also accessible by pressing INFO, SETUP & CAL CHECK.
C.1.3 Bin Setup
From the MENU screen, press the BIN SETUP button (Key I) accesses the BIN
SETUP screen shown Figure 46. This is the same screen and setup as seen on the
Power On Routine. See section B.1.
A
B
C
D
I
H
G
F
E
Figure 46. BIN SETUP screen
C.1.4 User Options
From the MENU screen, enter 1 using the keypad to access the USER OPTIONS
screen. See Figure 47.
36
A
B
C
D
I
H
G
F
E
Figure 47. USER OPTIONS screen
Options are selected using the keypad or by using the up/down arrows and
pressing the ENTER key. The ESC key can be pressed at any time to return to the
MENU screen.
C.1.4.1 Speed Simulation
Pressing the SIM button (Key E) when on the USER OPTIONS screen, accesses
the SIMULATED SPEED screen. See Figure 48. The electric drive system can
be driven at a set speed (simulated speed) rather than being dependent on
the true ground speed sensor (radar). This is useful if there is a radar failure.
The speed can be changed by using the up/down arrows or the keypad and
pressing ENTER.
A
B
C
D
I
Figure 48.
H
G
F
E
SIMULATED SPEED screen
37
The ESC button can be pressed at any time to return to the USER OPTIONS
screen. The SIMULATED SPEED screen can also be accessed from the SPEED
FACTOR screen. See Figure 52.
When the simulated speed is running, it is shown on the MAIN screen as
shown in Figure 49. The screen flashes between the two displays until the
speed is cancelled.
A
B
C
D
I
H
G
F
E
A
B
C
D
I
Figure 49.
H
G
F
E
MAIN screen with SIMULATED SPEED
To cancel the simulated speed, press the SIM OFF button (Key E) on the USER
OPTIONS screen shown in Figure 50.
38
A
B
C
D
I
Figure 50.
H
G
F
E
SIMULATED SPEED off
The product calibration motor speed is dependent on the simulated
speed setting.
C.1.4.2 Display
The DISPLAY screen shown in Figure 51 is for setting the brightness and
contrast. Use appropriate arrows to select and adjust. Use ESC key to return
to the USER OPTIONS screen.
A
B
C
D
I
Figure 51.
H
G
F
E
DISPLAY screen
C.1.4.3 Forward Speed Sensor
The SPEED FACTOR screen shown in Figure 52 is for setting the true ground
speed sensor (radar). This can be set manually if the figure is known by using
39
the up/down arrows to select the Speed Sensor Factor (SSF) and using the
keypad and pressing ENTER.
A
B
C
D
I
Figure 52.
H
G
F
E
SPEED FACTOR screen
To re-calibrate the sensor use the arrows to select AUTO-CAL and press
ENTER. The first screen of the calibration programme is shown in Figure 53.
The programme requires to operator to drive 100m. For accurate results
measure out 100m and ensure the drill is sitting level with the ground before
starting.
A
B
C
D
I
Figure 53.
H
G
F
E
SPEED FACTOR CALIBRATION screen 1
Pressing the ENTER key on the keypad starts the routine and the display
changes to the screen in Figure 54. After the operator starts driving the
screen changes to as shown in Figure 55. As the operator drives, the tractor
40
on the screen progresses towards the 100m.
100m marked out on the ground is reached.
The operator stops when the
A
B
C
D
I
Figure 54.
H
G
F
E
SPEED FACTOR CALIBRATION screen 2
A
B
C
D
I
Figure 55.
H
G
F
E
SPEED FACTOR CALIBRATION screen 3
After stopping press the ENTER key. One of the screens in Figure 56 will
appear. If the factor it calculates is greater than 0.05 then the left hand
screen will be displayed, otherwise the right hand screen will be displayed.
41
A
B
C
D
I
H
G
F
E
A
B
C
D
I
Figure 56.
H
G
F
E
SPEED FACTOR CALIBRATION screen 4
For either case in Figure 56 press ESC to exit the programme without changes
occurring. To accept the NEW FACTOR in the right hand screen, press ENTER.
The ESC button can be pressed at any time to stop the calibration and return
the SPEED FACTOR screen.
C.1.4.4 Time / Date
Figure 57 shows the TIME/DATE screen. These can be changed by using the
up/down arrows to select the required line, using the keypad to enter the
correct figure and pressing ENTER. The ESC key can be pressed at any time
to return to the USER OPTIONS screen.
42
A
B
C
D
I
Figure 57.
H
G
F
TIME/DATE screen
E
Note: TODAY totals will reset at midnight
so it is important that the time/date is set
correctly. (24 hour clock)
C.1.4.5 Helpline
Figure 57 shows the HELPLINE screen. This provides contact details should
the operator require assistance beyond the information provided in this
manual. By moving the cursor and using the keypad this can be overtyped
with the name/address/number as required.
A
B
C
D
I
Figure 58.
H
G
F
E
HELPLINE screen
C.1.5 Drill Setup
From the MENU screen, enter 2 using the keypad to access the DRILL SETUP
screen. See Figure 59. The default pin number to access the DRILL SETUP is
6789. These setting are generally specific for the machine configuration and will
not require changing.
43
A
B
C
D
I
H
G
F
E
Figure 59. DRILL SETUP screen
C.1.5.1 Sowing Width
The sowing width of the drill can be entered by using the up/down arrows to
select WIDTH, using the keypad to enter the sowing width in meters and
pressing ENTER. Resolution is to 3 decimal places, maximum 9.999m.
C.1.5.2 Instrument Setup
Figure 60 shows the INSTRUMENT SETUP screen.
A
B
C
D
I
Figure 60.
H
G
F
E
INSTRUMENT SETUP screen
On this screen the operator can change the configuration of the Area cut-out
on the Pro-Series. Default setting is ‘In work’. If there is a sensor or harness
failure, the setting can be changed to ‘Out of work’ so the operation can
continue until the sensor repairs are done.
44
Min. Speed refers to the minimum operating speed that the motors will
operate proportional to forward speed. All alarms will be disabled below this
speed (except module offline alarms).
Max. Motor Cur. refers to the maximum motor current. When the motors
operating current exceeds this amount for a specific amount of time then an
alarm is initiated and the motor stopped.
C.1.5.3 Bin Configuration
There are four different bin configurations. All bin configuration options
available in the BIN CONFIG screen are shown in Figure 61.
A
B
C
D
I
H
G
F
E
A
B
C
D
I
H
G
F
E
45
A
B
C
D
I
H
G
F
E
A
B
C
D
I
Figure 61.
H
G
F
E
BIN CONFIG screen
For all configurations shown the front bin is to the left and the rear is to the
right. For the 2 bin system bin1 is the front bin and bin 2 is the rear. Where
is a 3rd bin fitted (small box), this can be mounted at the front or rear. Where
there are 2 small bin fitted the third box is at the front an the fourth bin is at
the rear. The bin configuration can be changed by using the across arrows.
C.1.5.4 Bin Setup
Figure 62 shows the BIN SETUP screen where the settings for the gearbox
ratio, maximum motor speed and pulses received per metering shaft
revolution. These are all factory settings and must not be changed.
46
A
B
C
D
I
Figure 62.
H
G
F
E
BIN SETUP screen
The across arrow is used to cycle through the bins, the end of the arrow
moving to identify the selected bin. The down arrow is used to cycle down
through the 3 factors, after the third it returns to the top of the list again. The
first factor is the ratio of the gearbox fitted to the motor. Default value is
100:1. The second factor is the maximum motor speed. This is used to
calculate the maximum forward speed that any application rate set into the
system can be achieved. The third factor is the shaft sensor pulses per
revolution. This is used to calculate the shaft speed correctly.
Press ESC to exit the BIN SETUP screen and return to the DRILL SETUP
screen.
C.1.6 Diagnostics
From the MENU screen, enter 3 using the keypad to access the DIAGNOSTIC
screen. See Figure 63. This accesses a test routine and provides information on
the instrument and motor moduals.
47
A
B
C
D
I
H
G
F
E
Figure 63. DIAGNOSTIC screen
C.1.6.1 Test Routine
Where problems are occurring with the system, the test routine will help
identify where the potential problems are. When on the DIAGNOSTIC screen
enter 1 using the keypad to access the first TEST ROUTINE screen shown in
Figure 64.
A
B
C
D
I
Figure 64.
H
G
F
E
TEST ROUTINE screen 1
This requires the machine to be fully raised to fully extend the wheel rams. If
the system is sensing a change in the area cut-out sensor the display will
automatically change to the second screen. See Figure 65. If there is no
change sensed the display will automatically change after 30 seconds.
48
A
B
C
D
I
Figure 65.
H
G
F
E
TEST ROUTINE screen 2
The second screen requires the machine to be fully lowered to fully close the
wheel rams. If the system is sensing a change in the area cut-out sensor the
display will automatically change to the third screen. See Figure 66. If there is
no change sensed the display will automatically change after 30 seconds.
A
B
C
D
I
Figure 66.
H
G
F
E
TEST ROUTINE screen 3
The third screen requires the operator to wave a hand in front of the true
ground speed sensor (radar). If the system receives a signal, the display will
automatically change to the third screen. See Figure 67. If there is no signal
the display will automatically change after 30 seconds.
49
A
B
C
D
I
Figure 67.
H
G
F
E
TEST ROUTINE screen 4
The fourth screen requires the operator to press ENTER on the keypad to
operate all motors. All the motors will be operated at 800rpm for 5 seconds
during which the system will monitor for motor speed and signal from the
shaft confirmation sensors.
After the motors stop the display will
automatically change to the fifth screen. See Figure 68.
A
B
C
D
I
Figure 68.
H
G
F
E
TEST ROUTINE screen 5
The fifth screen requires the operator to cover all bin sensors and press each
priming switch for 2 seconds. This can be done in any order. When the first
signal is received, the display automatically changes to the sixth screen. See
Figure 69.
50
A
B
C
D
I
Figure 69.
H
G
F
E
TEST ROUTINE screen 6
The sixth screen requires the operator to press ENTER when all bin sensors
have been covered and priming switches pressed. The display will then
change to that shown in Figure 70 which provides a summary of the test
routine. Items with a ‘X’ highlight a fault. This could be in the switch or
sensor itself or in the wiring.
A
B
C
D
I
Figure 70.
H
G
F
E
TEST ROUTINE screen 7
Pressing ENTER in the keypad returns the display to the DIAGNOSTIC screen.
C.1.6.2 Instrument Live
The screen shown in Figure 71 shows the supply voltage, the status of the cutout input, how many motor control modules are connected and how many
51
modules are connected.
operation.
This screen can be viewed while the drill is in
A
B
C
D
I
Figure 71.
H
G
F
E
INSTRUMENT LIVE screen
Press the ESC key at any time to return to the DIAGNOSTIC screen.
C.1.6.3
Motor Module 1 Live
Figure 72 shows a typical live screen of the Motor Control Module (bin 1)
diagnostic.
A
B
C
D
I
Figure 72.
H
G
F
E
MCM 1 LIVE screen 1
The 1st line of the display shows the status of the motor drive (on or off) and
the current being drawn by the motor.
52
The 2nd line shows the status and frequency on the motor speed input. The
switch status icon is useful for diagnostics purposes but does not need to be
shown operating above 2hz.
The 3rd line of the display shows the ‘actual’ motor speed in revs per minute.
This is based on the input frequency and 100ppr.
The 4th line of the display shows the instruments theoretical motor speed in
revs per minute required for the application rate, speed etc currently being
operated at.
The 5th line shows the status and frequency of the forward speed input.
The 6th line shows the actual forward speed as calculated from the frequency
above and the Speed Sensor Factor. See Figure 52.
The 7th line of the display shows the status of the shaft confirmation input and
also the timer for closure.
The 8th line of the display shows the status of the priming switch and also the
timer for closure.
Pressing the down arrow then changes the screen to display the remaining
information. See Figure 73.
A
B
C
D
I
Figure 73.
H
G
F
E
MCM 1 LIVE screen 2
The 1st line of the display shows the status of the bin level left sensor input
and the timer for closure.
The 2nd line of the display shows the status of the bin level right sensor and
the timer for closure.
53
The 3rd line of the display shows the status of the spare analogue input and
the voltage level.
Int. Temp refers to the voltage on the internal temperature sensor fitted to the
heat sink in the motor control module. Below this the calculated temperature.
Pressing the up arrow then changes the screen to display the initial
information or the ESC can be pressed to return to the DIAGNOSTIC screen.
54
C.1.7 History
From the MENU screen, enter 4 using the keypad to access the HISTORY screen.
See Figure 47.
A
B
C
D
I
H
G
F
E
Figure 74. HISTORY screen
The 1st line of this display is the grand total area that the drill has covered. This is
based on speed, width and c/o status. It cannot be reset unless a POR is carried
out.
The 2nd line of the display is working hours. This accumulates when any of the
motors are operating.
By using the up/down arrows and pressing ENTER, the history screen for each
motor control module can be accessed. Figure 75 shows the display for MCM1.
55
A
B
C
D
I
H
G
F
E
Figure 75. HISTORY MCM1 screen
The 1st line shows the total area for this bin/MCM. This only accumulates when
the motor is operating.
The 2nd line shows the time of motor operation.
The 3rd line shows the number of motor revolutions.
The 4th line shows the ‘offline’ count. This number increases by 1 everytime the
module is recognised as being ‘offline’.
Pressing the ESC key returns to the HISTORY screen.
56
D DEFAULT SETTINGS
Speed Sensor Factor
Working Width
Simulated Speed
Area Cut Out Sensor
Minimum Forward Speed
Max. Motor Current
Bin Configuration
Gearbox
Max Speed
Shaft Sensor
Product Name
-
0.00815 mm/pulse
3.105 m
10 km/h
‘in work’
1.5 km/h
40 amps
2
100:1 (all bins)
2700 rpm (all bins)
3.0 ppr (all bins)
Rate
(kg/ha)
Step (%)
Alarm
Weight (Kg)
Cal factor
(kg/rev)
A
Grass
20
5
5
0.280
B
Grass Mix
20
5
5
0.300
C
Wheat
80
5
10
0.700
D
Barley
80
5
10
0.690
E
Oats
80
5
10
0.690
F
Peas
80
5
10
1.000
G
Kale
10
5
2
0.092
H
Rape
10
5
2
0.090
I
Swedes
5.0
5
1
0.093
J
Turnip
5.0
5
1
0.093
K
Lucerne
15
5
3
0.100
L
W Clover
5.0
5
1
0.094
M
R Clover
5.0
5
1
0.094
N
Urea
80
5
20
0.700
O
Super
130
5
20
1.200
P
DAP
130
5
20
0.940
57
E
TROUBLE SHOOTING
There is a test routine which can be accessed via the DIAGNOSTICS option on the
MENU screen (Key D). This routine checks the operation of the motors, sensors
switches and radar and provides the operator with a summary of which are operating
correctly. This can be used at any time the drill is stationary.
Problem
Cause to check
Action required
System does
not power up
Power LED is not going
on MCM
Check battery connection
Check fuse on tractor power cable
Fuse blown
Motors are not
operating
One motor is
not running
Power LED on MCM
going but console does
not turn on
Check the cable is plugged into the PS
console correctly
Harness faulty
Check continuity of drill harness and repair
or replace as necessary
Tractor or drill power
leads have mechanical
damage or have short
circuited
Repair or re-insulate power lead
Motor damage
Press each priming switch and check each
motor is operational
Blocked seeder(s) or
agitator
Check for obstructions causing abnormal
loading
Motor overload
If running small seeds, disconnect agitator
shaft
Motors are turned off on
the main operating
screen
Turn motors on
Drill is not in working
position
Lower drill
Area cut-out sensor
faulty
Fit another sensor (from shaft
confirmation), if correct operation original
sensor is faulty
Forward speed signal
Check speed is displayed on main operating
screen
Harness faulty
Check continuity of drill harness and repair
or replace as necessary
Motor is turn off
Turn motor on
Application rate
Check setting is not too high or low
Calibration factor
Check setting is not too high or low
Check the connection between the PS
console cable and the drill harness is clean
and dry
58
Area cut-out
not functioning
correctly
Motors operates
at maximum
speed
Application rate
is incorrect
Area
accumulation
appears
incorrect
Forward speed
appears
incorrect
Press priming switch
If not operating check for obstructions
Stone or similar caught
in seeder mechanism
Remove obstruction
Bag or other obstacle
caught on agitator
Remove obstruction
Fertilizer has absorbed
moisture
Free up fertilizer
Product compaction
Free up fertilizer and disconnect agitator
Bars magnets are
missing
Replace if necessary and check sensor
alignment with magnets
Check area cut-out
sensor/magnet
alignment
Adjust if necessary
Area cut-out sensor is
faulty
Fit sensor from shaft and check. If working,
replace faulty sensor. If not working this
suggests harness wiring problem.
Harness faulty
Check continuity of drill harness and repair
or replace as necessary
Poor motor encoder
connection with drill
harness
Check connection
Harness faulty
Check continuity of drill harness and repair
or replace as necessary
Application rate
Check setting
Calibration factor
Recalibrate product
Obstruction
Check for and remove obstruction
Forward speed sensor
Check setting and recalibrate if required
Sowing width
Check sowing width is correct
Area cut-out sensor
setting
Check sensor height position and ensure
drill is lifted fully into transport position
Incorrect forward speed
sensor setting
Recalibrate forward speed sensor
Sowing width
Check sowing width is correct
Calibration setting
incorrect
Ensure drill is level during work and when
calibrating radar
Recalibrate forward speed sensor (radar),
refer C.1.4.3
59
Significant variation
with tractor speed
Check for wheel slip
Hopper alarm is turned
off
Turn hopper alarm on
Low sowing speed
Hopper alarms are only active when sowing
above the minimum forward speed setting,
refer C.1.5.2
Faulty sensor (LED on
rear of sensor is
illuminated when
covered)
Connect sensor from another bin, if
operating correctly, then replace faulty
sensor
Faulty harness
Disconnect sensor, if alarm is not activated
then there is a harness fault
Faulty motor control
module
Replace motor control module with correct
ID
Low theoretical volume
shown on main
operating screen
Check bin level and if necessary adjust
product weight in bin or deactivate alarm
by setting low level alarm to 0kg
Low bin level
Bin contents is low, sensor is uncovered
and more product needs to be added or
turn alarm setting to off
Faulty sensor
Replace sensor with a known working
sensor, if the replacement sensor works the
original sensor is faulty
Priming switch
not functioning
Faulty sensor
Connect another priming switch, if
functioning correctly then original switch is
faulty
Shaft
confirmation
alarm sound
continuously
Magnet ring position
Check magnet ring is in line with sensor
and adjust if necessary
Bin low level
alarm does not
function
Bin low level
alarm sounds
continuously
One motor
control module
is offline
Recalibrate tractor radar
Check the height of sensor in relation to the
magnet ring and adjust if necessary
Incorrect setting
Check the shaft sensor PPR setting on the
bin setup screen is 3
Faulty sensor
Connect another sensor, if functioning
correctly then original sensor is faulty
Incorrect bin
configuration
Check the bin configuration setup on the PS
console and change if necessary
Incorrect motor control
module fitted
Check the motor control module
identifications are correct and change
module if required
60
All motor
control modules
are offline
Harness faulty
Check continuity of yellow, green and red
cores between module connection points.
Repair or replace as necessary
System
operates while
drill is
stationary
Grass movement (or
other) in front on the
forward speed sensor
Raise the drill into the transport position or
increase the minimum forward speed
setting
Tractor vibration
Increase the minimum forward speed
setting
F
TEMPORARY SOLUTIONS
The following are temporary solutions which will enable the operator to complete a job
for specific electric drive system faults or damage.
Problem
Temporary Solution
Radar
Access the USER OPTIONS screen, initiate the simulated speed
and change the speed to the desired setting. Seeders will
dispense product as if the drill was travelling at the specified
speed setting. Note, the seeders will only operate while the drill is
in the working position.
Area cut-out sensor
Access the INSTUMENT SETUP screen and change the area cutout setting from ‘In Work’ to ‘Out of Work’. Seeders will dispense
seed relative to travel speed regardless of whether the drill is in
the working position or in the transport position. To stop the
seeding operation, turn the motors or the console off.
Priming switch
Initiate the calibration program procedure using the console.
Shaft confirmation
sensor
Access the ALARMS screen and turn the respective shaft sensor
setting to ‘Off”
Bin level sensor
Access the ALARMS screen and turn the respective bin level
sensor setting to ‘Off”
Blown fuse
Disconnect the fuse box, bolt the power cable ends together and
ensure exposed connection can not come into contact with tractor
parts resulting in a short circuit. The use of insulation tape is
recommended.
Motor or motor
control module (MCM)
No temporary solution is available. Replace part required.
Harness or power
cables
No temporary solution is available unless wire or connection
damage can be identified.
61
G
NOTES
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
62
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
63
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
