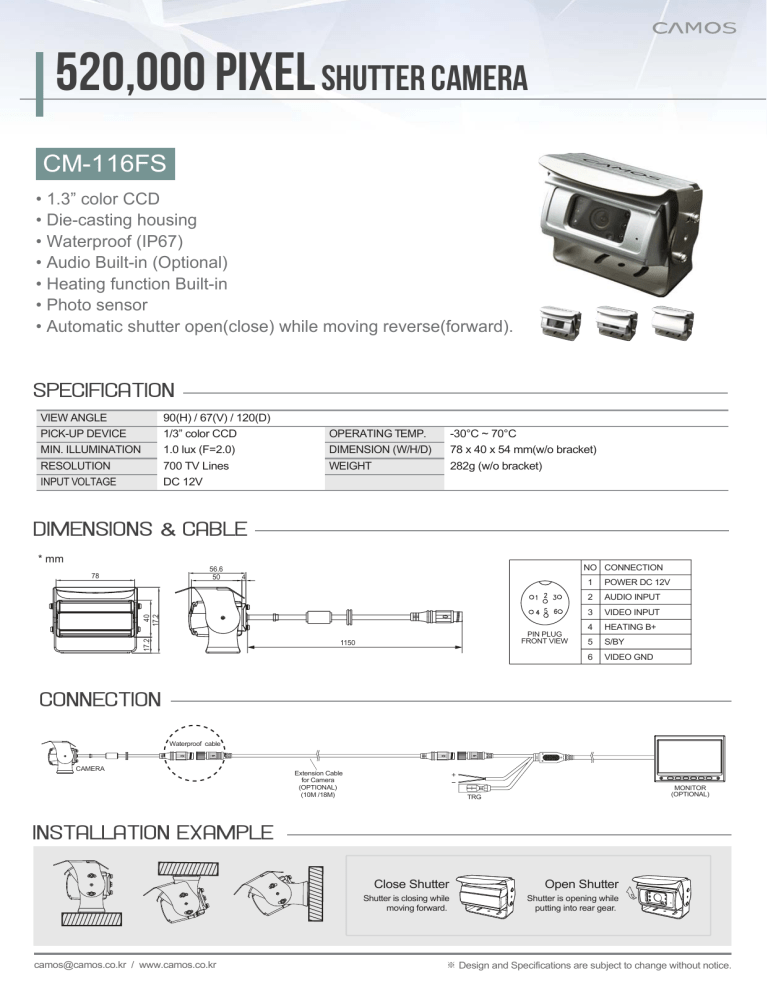

520,000 pIXEL Shutter Camera
CM-116FS
• 1.3” color CCD
• Die-casting housing
• Waterproof (IP67)
• Audio Built-in (Optional)
• Heating function Built-in
• Photo sensor
• Automatic shutter open(close) while moving reverse(forward).
SPECIFICATION
VIEW ANGLE
PICK-UP DEVICE
MIN. ILLUMINATION
RESOLUTION
INPUT VOLTAGE
90(H) / 67(V) / 120(D)
1/3” color CCD
1.0 lux (F=2.0)
700 TV Lines
DC 12V
OPERATING TEMP.
-30°C ~ 70°C
78 x 40 x 54 mm(w/o bracket)
282g (w/o bracket)
DIMENSION (W/H/D)
WEIGHT
DIMENSIONS & cable
* mm
56.6
50
NO CONNECTION
4
1
17.2
40
17.2
78
PIN PLUG
FRONT VIEW
1150
POWER DC 12V
2
AUDIO INPUT
3
VIDEO INPUT
4
HEATING B+
5
S/BY
6
VIDEO GND
CONNECTION
Waterproof cable
CAMERA
+
Extension Cable
for Camera
(OPTIONAL)
(10M /18M)
MONITOR
(OPTIONAL)
TRG
INSTALLATION EXAMPLE
[email protected] / www.camos.co.kr
Close Shutter
Open Shutter
Shutter is closing while
moving forward.
Shutter is opening while
putting into rear gear.
※ Design and Specifications are subject to change without notice.
